An Innovative STEAM-Based Method for Teaching Cycloidal Curves in Engineering Higher Education

Abstract

Robotics offers innovative possibilities at all levels of education, which should be considered when planning the teaching process for certain engineering mathematics topics in higher education. This paper introduces a new teaching–learning technique that utilizes STEAM-based methods to explore cycloidal curves for Computer Science Engineering BSc students. Traditional frontal teaching has been enhanced with methods addressing the generational needs of students, including problem-based learning, STEAM integration, and project-based learning. We developed a methodological model that merges traditional teaching advantages with practical modern approaches suitable for Generation Z. The four-stage model for learning cycloidal curves employs various didactical approaches, utilizing different learning techniques at each stage to create an engaging and effective learning experience. A vital component of this model is the use of Desmos dynamic geometry software to create animations alongside educational robotics to aid visualization. We conducted quantitative studies with 98 first-year Computer Science Engineering students using a quasi-experimental research design to evaluate the new teaching technique’s effectiveness. Results from the Mann–Whitney U test indicated that the experimental group significantly outperformed the control group. Additionally, the Kruskal–Wallis test confirmed that the four-stage model for learning cycloidal curves enhances learning achievement for all students, regardless of their prior knowledge.

1. Introduction

Understanding scientific and mathematical knowledge and practices, as well as technological and engineering practices, has become a priority for national education programs across the world [1]. STEAM (Science, Technology, Engineering, Art, Mathematics) has recently become a standard part of higher education internationally, with many universities adapting their curriculum to integrate it [2]. STEAM is the evolution of STEM (Science, Technology, Engineering, Mathematics), which was first introduced by the US National Science Foundation (NSF) in the 1990’s [3]. STEM was initially developed to address the ongoing low performance of students from the Western world in mathematics and science in international assessments and to encourage students to pursue careers in these fields [3]. In 2010, Bybee [4] called for quality science education that includes technology and engineering: “A true STEM education should increase students’ understanding of how things work and improve their use of technologies. …Engineering is directly involved in problem-solving and innovation, two themes with high priorities on every nation’s agenda …the creation of high-quality, integrated instruction and materials, as well as the placement of problems associated with grand challenges of society at the centre of study”. The extension of STEM to STEAM was first proposed in 2013 [5]. As the name STEAM suggests, there is a crucial focus on encouraging students to think in a broader perspective than that of each individual subject [6]. STEAM has been shown to improve conceptual and deep understanding of the subjects covered. Kang [7] in 2019 conducted a literature review of 6 studies, which included analyzing 256 papers from schools that provide STEAM education, and the results demonstrated that there is a positive and immediate effect on the student’s conceptual understanding. The methods of STEAM education are now widely used and applied at all levels of education, including higher education.

1.1. What Is Engineering Mathematics?

Engineering mathematics has two distinct but interconnected facets. On one hand, it serves as the foundation for engineering programs and is typically taught by mathematicians. On the other hand, mathematics is an integral component of engineering science, providing the tools and framework for understanding and solving complex problems [8]. Over the past decade, advancements in technology have significantly impacted the field. New algorithms and methods have emerged to help engineers analyze large databases, build predictive models, and solve optimization problems [9]. The increasing power of computers has enabled the application of complex numerical methods and simulation techniques, supporting engineers in modeling and understanding intricate physical phenomena such as fluid dynamics, structural analysis, and electromagnetic design [10,11,12]. While still in its early stages, quantum computing offers immense potential to further revolutionize engineering mathematics [13,14]. We can expect breakthroughs in complex optimization problems and simulations, potentially influencing engineering design and research [15]. These innovations and methods empower engineers to work more efficiently on technical challenges and open new opportunities for developing and applying technology.

Engineering students’ training in mathematics is a top priority. The field relies heavily on mathematical principles, with foundational subjects like calculus, differential equations, linear algebra, and statistics being crucial for understanding and solving engineering problems. A robust mathematical background equips engineers with critical thinking and problem-solving skills, enabling them to design systems, troubleshoot issues, and optimize processes [15,16]. As modern engineering increasingly leverages sophisticated technology, a deep understanding of advanced mathematical algorithms becomes essential [17]. Fields like artificial intelligence (AI) and machine learning (ML) require extensive knowledge of linear algebra, calculus, and probability [18]. Engineering innovation and research continually push the boundaries of mathematical knowledge, necessitating that engineers working on cutting-edge technologies, such as quantum computing or advanced materials, possess a comprehensive understanding of both applied and theoretical mathematics [19,20]. Ultimately, mathematics is the foundation upon which engineering principles are built, equipping students with the skills to solve complex problems, innovate, and excel in a technologically advanced and interdisciplinary world. Teaching mathematics to engineers in higher education requires a thoughtful and well-structured approach to meet the needs of the profession and prepare students for the future challenges they will face [8,21].

Engineering mathematics education should provide a strong foundation in core subjects, demonstrating theoretical concepts through practical examples that showcase their real-world applications in engineering problem-solving. Rogovchenko and Rogovchenko [22] argued that mathematical modeling projects can effectively develop students’ mathematical competency, enhance their understanding of engineering concepts, and improve their communication and collaboration skills. They provide a specific project example in their work, concluding that such projects are crucial for developing the necessary skills for engineering success. Education should embrace modern software and technologies [23], using computer simulations to reinforce theoretical knowledge and provide students with practical experience. Integrating project-based learning (PjBL) is essential, as it allows students to engage in significant projects and real-life case studies, enhancing their problem-solving and analytical skills. Interactive classrooms, where students are actively encouraged to participate in solving problems and understanding concepts [24], foster a more dynamic and engaging learning environment. The curriculum must adapt to technological advancements, equipping students with the knowledge and skills to effectively utilize new educational technologies to maximize their learning and prepare them for continuous professional development [25].

1.2. STEAM-Based Education and Educational Robotics

Technology and innovation play an increasingly important role in modern life, and education must evolve based on innovation and technological progress to keep pace with a changing world. Digital technologies have made a paradigm shift in the entire education system [25]. STEAM-based education is gaining increasing prominence at universities [26], which is particularly important for engineering higher education. Today’s university students increasingly demand educational methods that they find engaging, relevant, and interactive. STEAM education offers a dynamic and attractive learning experience [27]. Many contemporary challenges are complex and multidisciplinary. The STEAM approach allows university students to combine knowledge from various scientific and artistic fields to understand and address these challenges. The spread of problem-based learning is a consequence of the realization that learners are left with minimal knowledge after learning through traditional, frontal teaching methods and find it difficult to apply the knowledge they acquire in other contexts. Problem-based learning provides a learning environment where learners can use and reinforce prior knowledge, learn in real-life contexts, and develop their knowledge in individual or small group work [28]. Developments over the past decade have led to the availability of a wide range of robotic learning tools, all with the common goal of innovation and motivating learners in the learning process.

Robotics and computational thinking are valuable tools for developing STEAM pedagogy and promoting the inclusion and integration of diverse groups of students. There are many robotic teaching tools at our disposal intended to encourage innovation and motivation of students during the learning process. As robots are increasingly common in our world, it is essential to integrate them into education [29,30]. Robots have clearly opened up new possibilities in teaching and learning. Educational robotics (ER), which involves robotic techniques in education, is seen as a groundbreaking learning tool that enhances the learning environment, transforms teaching and learning methods, and fosters a new educational ecosystem [31]. Of course, most of the educational applications of ER focus on robotics-related subjects such as robot programming, robot building, and artificial intelligence [32,33,34].

LEGO Education focused on STEM-based learning from the beginning, even before this acronym was standard [35,36]. The collaboration with MIT has played a crucial role in developing LEGO’s robotics products. LOGO is a programming language developed in the 1960s at MIT, designed to make coding accessible for children. Its most famous feature is the turtle, a simple robot or on-screen graphic controlled with commands, teaching basic programming concepts like sequencing and loops [37]. In the mid-1980s, the LOGO research group began collaborating with the LEGO group because LEGO Group recognized the potential of teaching and learning with robots [35]. The partnership between LOGO and LEGO brought programming to life, starting with LEGO/LOGO, which combined LEGO building with LOGO code. The history of LEGO robots dates back to the end of the 20th century when the LEGO Group started developing robotic kits. The first significant step was introducing the LEGO Technic series in the late 1970s, which allowed users to build more complex mechanical models. The programmable brick revolutionized the process by allowing LEGO creations to be independent and mobile, paving the way for LEGO Mindstorms [38]. Various generations of LEGO robotics kits have been released in the last twenty years: Mindstorms NXT in 2006, NXT 2.0 in 2009, and Mindstorms EV3 in 2013. Souza et al. [33] conducted a systematic review of the literature analyzing the use of LEGO robotics technology as an instrument for teaching, considering the robotics kits and their programming environments as a combination of teaching methodologies and practices. In 2018, it was reported that the most commonly used environment and programming languages are LabVIEW and LEGO’s block-based programming language. Additionally, Souza et al. [33] found that LEGO Robotics is utilized for teaching programming, interdisciplinary subjects, participating in tournaments, robotics, and computational thinking. Furthermore, LEGO^® Robotics has been successfully used by students across various levels, including K-12, undergraduate, and graduate programs. The most recent product in the evolution of LEGO robots, SPIKE Prime, was released in 2020 and is already very popular [39]. One reason for this is probably that the robot can be programmed in several ways, and one option is the Scratch programming language [35]. Ersozlu et al. [40] used a scientometrics analysis to map data from the scientific literature based on different kinds of published research and found that computational thinking (CT) in mathematics education was mostly about teaching computational skills and computer programming through practical and algorithmic thinking in engineering and STEM education, especially at the higher education level. In addition, Scratch has been the dominant tool used to teach programming skills at all levels of schooling, including higher education.

Educational robotics has been successfully used for many years as a tool to make learning more experiential and effective [41]. Combining educational robotics with problem-based learning is not a new idea, and educational software developed for LEGO Education robot kits (WeDo 2.0, EV3, SPIKE Prime, SPIKE Essential) includes learning projects that essentially implement problem-based learning as an integral part of the design of the educational software [35]. However, these projects focus on basic physical, biological, and social science knowledge and learning robot programming concepts [42]. In order to target STEAM-based methodology in higher education, it is necessary to develop new robot constructs and build student projects around them.

Despite the potential of integrating robotics into teaching and learning, this integration has not yet been fully explored in university practice, especially in higher mathematics education.

1.3. Importance and Teaching of Cycloidal Curves

Roulette is a path traced by the point fixed on a curve that is rolling on another fixed curve [43]. Cycloidal curves are a family of roulettes generated by the motion of a point attached to a circle as the circle rolls along a fixed straight line or another circle. These curves include trochoids, epitrochoids, and hypotrochoids, as shown in

Table 1. Classification of cycloidal curves.

	Cycloidal Curves
	(A Circle Rolling on Another Circle or a Line)
	Epitrochoids	Trochoids	Hypotrochoids
	(A Circle Rolling Outside Another Circle)	(A Circle Rolling on a Line)	(A Circle Rolling Inside Another Circle)
The tracing point is on the circumference of the moving circle	Epicycloid	Cycloid	Hypocycloid
The tracing point is inside the moving circle	Curtate epitrochoid	Curtate cycloid	Curtate hypotrochoid
The tracing point is outside the moving circle	Prolate epitrochoid	Prolate cycloid	Prolate hypotrochoid

.

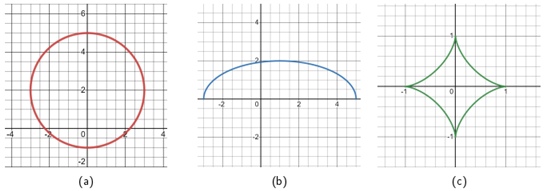

The parametric equations and graphs of the cycloidal curves are given in Appendix A. We note that the term central trochoid encompasses both epitrochoids and hypotrochoids [44]. The center of a central trochoid curve is defined as the center of the fixed circle.

In engineering mathematics, theory and application go hand in hand. Cycloidal curves are very useful in practical life. In 1694, Philip de la Hire published a complete mathematical analysis of epicycloids and recommended an involute curve for designing gear teeth. However, in practice, it was not used for another 150 years. In 1733, Charles Camus expanded la Hire’s work and developed theories of mechanisms. Twenty years later, in 1754, Leonard Euler worked out design principles for involute gearing. Felix Wankel developed the Wankel Rotary Engine in the 1920s. Initially developed as an air compressor, the engine is now used in automobiles. The rotor is an equilateral triangle with curved sides, and the bore is an epitrochoid curve. Nowadays, epitrochoids can be found in important mechanical parts such as gears with epitrochoid tooth profiles, cams, and epitrochoid-shaped housings for rotary internal combustion engines and rotary piston pumps. For the last case, the epitrochoid curve notes the path that the rotor tip of the eccentric shaft traces out upon revolving [45]. Hypocycloid curves also have many important applications in engineering. One of these is the use of the astroid shape in the process of moving bus doors [46]. In addition, central epi- and hypotrochoids can be used, for example, in surveillance or spatial coverage applications, as periodic motion primitives for human dancers or for performing complex choreographic patterns in small autonomous vehicles [47], as well as in the context of autonomous robot navigation with collision-free and decoupled multi-robot path planning [48]. Cycloidal curves are used in roller coaster design, architecture (Kimbell Art Museum, Hopkins Center for the Arts), and the creation of geometric patterns for stained glass windows, mosaics, and textiles [49].

The wide range of applications above shows that cycloidal curves represent fundamental mathematical and geometric concepts indispensable in various engineering fields. In his 1913 article, Epsteen [50] summarized the minimum content to be taught in engineering mathematics, emphasizing the importance of higher plane curves in the curriculum, including cycloids, hypocycloids, and epicycloids. These curves are extremely important for mathematical foundations because the knowledge associated with them becomes relevant in the context of kinematic analysis and mechanical design. Cycloidal curves help engineering students better understand motion and force transfer principles, especially in mechanical systems [51]. By studying such curves, students learn the precise design and efficient calculations that are essential for a variety of engineering applications. In addition, the presentation of cycloidal curves is also important in modeling the behavior of physical motions, such as the behavior of a pendulum [52]. In modern computer-aided design programs, the accurate representation of cycloidal curves allows the efficient design of complex mechanical components. Cycloidal curves are not only mathematical curiosities but also fundamental tools for solving engineering problems.

In university engineering mathematics education, cycloidal curves were taught in the 18th and 19th centuries using geometric and analytical methods. Students usually learned from hand-drawn diagrams and understood mathematical equations involved in on-the-spot demonstrations and geometric proofs [53,54]. Kinematic models and mechanical devices were used for illustration because the derivation of the equations of cycloidal curves and the representation requires visualization [55]. Several of these constructions are included in Schilling’s famous collection of kinematic models [56]. Kinematics, which involves the study of motion, played an important role in understanding cycloidal curves, especially in analyzing mechanical systems and motions. The emphasis was on geometric insights and classical physical examples. Traditional teaching methods for students at universities are outdated and not effective enough [52]. In today’s education, modern technologies and computer simulations are now used to help understand the knowledge of cycloidal curves. Several didactical articles deal with visualizing cycloidal curves using dynamic geometric software or simulation embedded in a remote experiment [52,57,58]. These methods have many advantages in terms of visualization, but they do not provide direct experimental experience. The recent research of Tessema et al. [59] highlights the importance of a realistic, hands-on approach to learning in mathematics education, particularly in the study of geometry. Traditionally, drawing cycloidal curves is a lengthy process that requires engineering drawing knowledge. A simpler and faster way to produce curves is to have a robot draw the curve during an ER activity. By building and then testing the drawing robots, students gain first-hand experiences [60,61,62,63,64].

1.4. 4C Learning Approach

LEGO’s philosophy is that effective learning can only be achieved through a holistic approach because learning has creative, cognitive, social and emotional aspects. The LEGO 4C principle is a pedagogical model developed by LEGO Education, focusing on four fundamental key competencies in learning [65]. The LEGO 4C learning approach is characterized by its hands-on, inquiry-based, and collaborative nature, which aligns with constructivist and experiential learning theories. It engages students in active learning experiences where they actively construct knowledge, explore concepts, and solve problems.

By integrating the four Cs into educational activities, the LEGO 4C learning approach aims to foster creativity, critical thinking, collaboration, and communication skills in students, preparing them for success in the 21st century [66]. These key competencies are as follows:

• Connect: This first C stands for connection, meaning establishing a connection. Students should be given the opportunity to connect with the subject matter and recognize its relevant and interesting context. This allows learning to more closely align with students’ everyday lives and experiences.
• Construct: The second C stands for construction, which means allowing students to create or build something. This could be a physical model, a project work, or a digital creation. The act of constructing enables students to deepen and apply their learning.
• Contemplate: The third C stands for contemplate, which encourages students to reflect on the things they have created and what they have learned. This includes reflection and self-reflection, as well as critical evaluation of the application of what they have learned.
• Continue: The final C stands for continue, which means giving students the opportunity to further develop, apply, and share what they have learned and created with others. This process can help sustain learning and apply what has been learned in practical ways.

These four phases are steps in an iterative process that should often be seen as a learning spiral (Figure 1); the four links are not a single linear structure but a process of interlocking and dynamic circulation [66]. The LEGO 4C principle is a framework applied to learning and teaching that helps students establish a closer connection with the subject matter and apply experiential and hands-on learning methods. This allows for a deeper understanding of learning and enriches the learning experience.

The LEGO 4C methodology has mainly gained ground in primary and secondary education [65]. The 4C principle can also be applied in higher education because of the generational shift. We propose a methodological model based on the 4C principle to process the curriculum on cycloidal curves. Engineering students naturally show a keen interest in robotics and ICT tools, which aligns with their chosen specialization. To help them discover the secrets of cycloidal curves, we have developed a methodology combining frontal teaching with problem-based learning, educational robotics, and dynamic geometric software in project-based learning.

1.5. The Four-Stage Methodological Model for Learning Cycloidal Curves

The first element of the four-stage model for learning cycloidal curves is frontal teaching (lecture and practice), where the theoretical material is presented, covering cycloidal curves (Figure 2). In fact, many studies have been carried out over the last two decades on the disadvantages of frontal teaching. However, it is still the dominant teaching method in higher education [67]. Ganyaupfu [68] investigated that the teacher–student interactive method was the most effective teaching method over the teacher-centered approach because direct teaching is efficient in transferring knowledge but is not sufficient for deeper understanding, problem-solving, and creativity. Innovative teaching incorporates technology into the teaching–learning process to create a rich and helpful learning experience for students and a rewarding teaching experience for teachers [69,70]. It should not necessarily be abandoned for large courses and frontal teaching, but it should be complemented by techniques where students are not passive participants. There is evidence that lectures can effectively and structurally communicate information, model reasoning, and motivate students, particularly when adequately supported by other activities [71].

After the theoretical grounding, the topic of plane curves can be continued in specialized seminars. The second stage is to start working according to the 4C principle. The problem statement explores the possibility of producing a curve experimentally. We note that seminars are extracurricular activities. In the second phase, the focus is on attracting attention and motivation. Where possible, we choose demonstration experiments that students can carry out in small groups, documenting them and allowing them to gain direct experience. Problem-based learning (PBL) is achieved through the formulation of real-life tasks. Given that Connect aims to revive knowledge related to what has been learned previously, students are actively involved in solving the problems formulated. It is worthwhile to revive the most important theoretical knowledge; for this purpose, visualization solutions and animations can be used to illustrate cycloidal plane curves.

The third stage uses STEAM-based methods, i.e., building and programming drawing robots, and understanding how robots work. The educational robot kits allow students to explore a curve under investigation in small group activities. Working with robots requires providing building instructions for appropriate drawing robot designs and sharing conditions for working with robots. For four years, the authors have been designing drawing robots whose operating mechanisms can be mathematically deduced with precision. Using the LEGO Education SPIKE Prime robot set, educational robots have been designed to produce a wide range of representatives of the cycloidal curve family.

In Spirograph-like robot models, gears are used to model the circles that generate the cycloidal curves. The aim of [60] was to introduce the hypotrochoid family of curves and to give ideas and tools for teaching the topic. The general parametric equations of hypotrochoids were given, and several special curves that can be derived from these equations were shown. In addition, a drawing robot called Spikograph 1.0 (see Figure 3), modeled on a Spirograph toy, was presented, which can draw different hypotrochoids, giving students a physical experience. This robot uses LEGO gears to model the slip-free rolling of the circles, and knowing the gears’ sizes, the parametric equations of the drawn curves can be easily written.

Spikograph 1.0 gave the idea to design Spikograph 2.0 (Figure 4) for drawing epitrochoid curves; this drawing robot was presented in [61]. The factor that most determines which epitrochoids can be drawn with the robot is the size of the suitable gears in the LEGO Education SPIKE Prime set. The diameters of the circles that define the epitrochoid correspond to the rolling diameters of the gears that model them. The rolling diameter of a gear is the diameter of an idealized disc that allows it to roll on the equivalent idealized disc of another gear that is usually meshing with it. This dimension is easy to determine since the rolling diameter of any LEGO gear, expressed in mm, is equal to the number of teeth on it.

Students can work not only with these two gearing robots in the seminars. Although Spirograph-like robots are an excellent way to illustrate the production of many notable plane curves, the principle of operation of robots in the industry follows a different path. It is important that students can work through real-life tasks on various projects; therefore, the use of a SCARA-style robot design is also possible in the seminar series (see Figure 5). The SCARA robot is one of the common types of industrial robots [72]. The SCARA name stands for Selective Compliance Articulated Robot Arm. The main feature of the SCARA robot is that it has a jointed 2-link arm driven by two independent motors [73]. It is well-known that the plots generated by a Spirograph toy can also be drawn using a 2-link planar or SCARA robot after computing the inverse kinematics to get the joint angles needed to perform the correct movements. It is also a known fact that the Spirograph toy is not able to draw all types of trochoidal curves; only the curtate types can be created. However, Spirograph-like and SCARA-style robots can draw all three types of central trochoids [63,64].

Thanks to their construction, robots can draw an infinite number of cycloidal curves. However, the number of curves that can be drawn in the Spirograph toy is finite.

Table 2. Drawing central trochoids with didactic tools.

	Central Trochoid Curves
	(A Circle Rolling on Another Circle)
	Epitrochoids			Hypotrochoids
	Curtate	Epicycloid	Prolate	Curtate	Hypocycloid	Prolate
Spirograph toy	Yes	No	No	Yes	No	No
LEGO gears, racks	Yes	No	No	Yes	No	No
Spikograph 1.0 robot	No	No	No	Yes	Yes	Yes
Spikograph 2.0 robot	Yes	Yes	Yes	No	No	No
SCARA-style robot	Yes	Yes	Yes	Yes	Yes	Yes

summarizes the central trochoids that can be drawn with the Spirograph, only LEGO gears and racks [74], and the various educational LEGO drawing robots. The SCARA-style robot can be used to draw all types of central trochoids, but its principle of operation does not follow the usual definition of curve generation. A big advantage of the robot versions using gears is that the generation of curves is based on the definition. Exploring the potential of drawing robots and how to integrate them into the educational process is an ongoing process of active research.

The construction phase of the 4C principle is where the robot is built and programmed. Writing the program is also considered design because the robot can only operate with the right program. With Spirograph-like robots, this refers to the operation of a single motor, whereas with a SCARA-style robot, it refers to the coordinated operation of two motors.

The LEGO SPIKE Prime robot hub can be programmed in three ways, one of which includes the Scratch programming language. Developed by Mitchel Resnick at the MIT Media Lab, Scratch is an evolution of the LOGO language. This visual, block-based coding language features a drag-and-drop interface, making programming accessible and enjoyable for users [35]. Programs for drawing robots are created in Scratch using the original software designed for the LEGO SPIKE Prime robot.

In the contemplate phase, the synthesis is given through the solution of a project task, where the task is to create an animation modeling the robot’s working principle. Students can work on the project independently or in groups, allowing for exchange and knowledge sharing. Project-based learning (PjBL) can be a very effective way to learn mathematics. PjBL involves students working on complex, real-life problems that require them to apply mathematical knowledge and skills. This approach helps students link theoretical knowledge with practical applications and develops their problem-solving and collaboration skills [75]. In project-based learning, it is important that the projects are genuinely interesting and relevant to the students and that they solve real problems [76]. The teacher has a key role to play in guiding and supporting students through the projects and helping them to understand the relationships and mathematical principles. Projects can also help students to see how mathematics relates to their everyday lives and to solve real-world problems. Relevant literature suggests that the link between PjBL and dynamic geometric software (DGS) is extremely useful in mathematics education [77,78]. DGS refers to computer software that allows the visualization and manipulation of functions, curves, and geometric shapes. This software can help students understand and visualize mathematical concepts that they can apply in PjBL projects. With DGS, students can see geometric constructions and shapes in real time, resulting in a visual understanding that supports students in handling abstract mathematical concepts better. The DGS provides an interactive platform through which students can experiment and modify geometric constructions on their own, significantly contributing to the development of active learning and an experimental approach. The link between theoretical and practical aspects is greatly facilitated by using DGS, as students can immediately see how functions, geometric shapes, and relationships change when they change parameters or manipulate constructs. Experiences have shown that the combined use of PjBL and DGS helps make mathematics teaching more interactive and understandable [78,79,80]. Students will be able to apply the mathematical knowledge they have acquired through DGS in real projects and will be able to combine theoretical and practical aspects more easily.

In the fourth stage of 4C, additional project tasks are connected to the studied curve. It is recommended that homework be solved using DGS. There are different types and versions of DGS. One of the most commonly used DGS is GeoGebra [79]. The application can be used for geometric and algebraic analysis. It offers several tools for visualizing functions, drawing and manipulating geometric shapes, and understanding mathematical concepts [80]. Desmos was originally a graphing calculator application but has since been extended to include DGS functionality. Desmos is a compelling application for visualizing functions and curves and helping to understand mathematical expressions [81], so it is worth using this DGS for engineering mathematics courses. Another advantage is that Desmos is also an excellent tool for project-based learning. Real-time graphs, data visualization, and interactive shape generation help students present their projects clearly and interestingly and provide opportunities for collaboration and interaction between students. For example, several students can collaborate on a project and see each other’s work in real-time. In Desmos, students can animate graphs, which can help them better understand mathematical relationships and changes [82].

A well-designed methodology helps to structure and manage the learning process. It sets out the expected goals and outcomes for learners and the steps to be followed to achieve them. Based on the 4C principle, the four-stage methodological model for learning cycloidal curves considers learners’ individual needs, interests, and abilities. It provides a flexible structure for differentiated learning experiences to ensure all students succeed. This method creates a motivating and engaging learning environment. Students enjoy learning through exciting and challenging tasks, contributing to long-term engagement and success.

Using the four-stage model for learning cycloidal curves, ellipses, cycloids, cardioids, astroids, and roses were discussed. The application of the four-stage model for learning cycloidal curves is illustrated in Appendix B with the example of teaching cardioid.

2. Materials and Methods

2.1. General Background

Many good practices are related to teaching 2-dimensional plane curves, including cycloidal curves, where the teaching model supports knowledge development through different visualization techniques. However, no methodological model was found on cycloidal curves, where STEAM-based education is integrated consistently into university practice. The need for this development and research was motivated by the fact that central trochoids are the most crucial two-dimensional plane geometric patterns widely used in real-life practice (see Section 1.3); however, alternative methods for teaching them in higher education were not available to provide students with first-hand experiences.

A new learning structure was created after a thorough study of the literature in the framework of Lithuanian–Hungarian cooperation. The new methodological model, the four-stage methodology for learning cycloidal curves (see Section 1.5), considers generational needs while making optimal use of the University of Miskolc’s available infrastructure because the University of Miskolc training center has 24 LEGO Education SPIKE Prime educational robotics kits. The development started in May 2023. Researchers from the Šiauliai State Institute of Higher Education and the University of Miskolc jointly worked. Based on the previous experience [62], the researcher team compiled the additional teaching material needed to apply the new methodological model according to the 4C principle (Section 1.4). We have rethought the drawing robots’ construction and created building guides with the seminar material. We sorted the problems related to cycloidal curves and selected them thematically for the seminars. The complete development of the four-stage methodological model for teaching cycloidal curves took half a year.

A methodology model is well-designed if it is based on scientific research and pedagogical principles. The four-stage methodology model for learning cycloidal curves is based on the 4C principle, which is the result of research conducted by LEGO Education and is, therefore, scientifically sound. In order to make the same claim about the overall structure, measurements have been carried out in the spring semester of the academic year 2023/24 to provide empirical evidence of the effectiveness of the four-stage model for learning cycloidal curves. The experiment was carried out in Miskolc, Northern Hungary. The research presented in this article continues the Lithuanian–Hungarian research conducted between June 2021 and June 2023 with 27 students at the University of Miskolc. The previous research focused only on a new, innovative approach to teaching the cardioid curve [62].

2.2. Research Design

This study used exploratory research, a quasi-experimental research design, and quantitative observation to assess the impact of the four-stage model for learning cycloidal curves. The quasi-experimental approach was necessary because it was impossible to randomly assign computer science engineering students to the experimental and control groups. The experiment was carried out in connection with the Calculus II course.

In the first part of this study, we used a post-test-only design. In the spring semester, the cycloidal curve topic is the first part of the Calculus II syllabus. All students who took the Calculus II course were absolved of the Calculus I course in the autumn semester, so all participants had a basic knowledge of the topic of engineering mathematics. A control group study was conducted, in which the experimental group learned using the four-stage model for learning cycloidal curves, while the control group was taught in a traditional format. The control group participated solely in traditional frontal lectures and practical lessons, whereas the experimental group benefited moreover from additional activities based on the four-stage model for learning cycloidal curves. The post-test-only design allows for a clear comparison between the intervention and control groups, helping to isolate the effect of the treatment.

Table 3. Activities during the Calculus II course.

	Cycloidal Curves
	Frontal Teaching		Other Activities
	(Stage 1)		(Stage 2 and Stage 3)		(Stage 4)
Topic	Lectures	Practical Sessions	R-STEAM Seminars	In-Class DGS Tasks	Homework Projects
	(Academic Hours)			(Exercises)
Circles, ellipses	3	2	2	2	4
Trochoids	3	2	2	2	3
Epitrochoids	2	1	2	3	2
Cardioid	1	1	2	2	2
Hypotrochoids	2	1	2	3	2
Astroid	1	1	2	2	2

summarizes activities during the Calculus II course.

In the second part of this study, a between-groups design was used. This framework allows the effectiveness of the intervention to be assessed across different groups of participants. Based on their prior knowledge, the experimental group was divided into three sub-groups (below-average, average, and above-average performers). The average score of the question papers in Calculus I was used to form the groups. The post-test results were examined group-by-group to explore whether the method could be used effectively regardless of prior knowledge.

2.3. Sample and Ethics

The effectiveness of the four-stage methodology model for learning cycloidal curves was tested with Hungarian Computer Science Engineering BSc students at the University of Miskolc.

The experimental group comprised 36 students (86.11% male, 13.89% female). The control group comprised 62 students (93.55% male, 6.45% female). The total sample compared 98 students, consisting of 89 men (90.82%) and 9 women (9.18%), as shown in Figure 6. All participants are full-time BSc students and aged between 19 and 22. The experimental group and the control group were of different sizes, but the statistical method chosen to analyze the data was not sensitive to differences in group size.

At the beginning of the semester, students were informed that up to 40 students could participate in six extra Robotic-STEAM (R-STEAM) seminars during the semester. Students could register voluntarily. Participants agreed to attend all six seminar sessions and to prepare solutions for the homework assignments. Four of the applicants failed to meet this condition, resulting in an experimental group of 36. The groups in the practical sessions were mixed, i.e., the control and experimental groups were not separated during the frontal teaching. Cycloidal curves are usually covered in the first 4 weeks of the semester. The lectures and practical sessions were held as usual during the experiment in the first four weeks. However, six extra seminars were held so that the experiment took place in the first six weeks of the semester. Only members of the experimental group attended the R-STEAM seminars. Due to the limited number of robots and the training center’s limited capacity, the seminars were divided into groups of 20 students.

At the beginning of the semester, students were informed of the research’s aims, and all agreed to participate. This study followed the ethical standards set out in the University of Miskolc’s Code of Ethics.

2.4. Intervention and Instruments

The Calculus II course lasted 13 weeks and consisted of three 45-min lectures and two 45-min practical problem sessions weekly. Students learned the same material and solved the same exercises during practice sessions. The participants attended the same lectures, while their practice sessions were taught in groups of 20 students on average. There were five practice groups. The teachers of the practice groups consulted each week on the main issues related to the course in order to avoid teacher influence, so the structure of the practice sessions was similar in each group.

The learning processes of the experimental and control groups were synchronized during frontal teaching. Both groups heard the same theoretical material in the lectures, and in the exercises, they took the same types of tasks, working from the same exercise book. The first stage in the four-stage methodological model for learning cycloidal curves is frontal teaching, which was implemented under the same conditions for both the experimental and control groups. The control group did not receive any other intervention.

The experimental group members (36 students) participated in six extra R-STEAM seminars, one weekly for six weeks, where STEAM-based supplementary training was implemented to support the frontal teaching of the theoretical material. A full description of one of the six seminars can be found in Appendix B. The second and third stages of the teaching–learning process were implemented in the seminars according to the 4C principle. The last stage involved extracurricular activities in the form of project work. In these out-class activities, the experimental group students solved homework projects using DGS, as shown in the last column in Table 3.

The post-test, the question paper of Calculus II, was written in the seventh week of the semester. The scores obtained on the question paper were used for the statistical analysis. The task set used for the question paper was the same for the experimental and control groups. Experienced teachers marked the question papers. The question paper exercises were marked using a detailed scoring guide prepared by the lecturer, which included the sub-scores and scoring information. All post-test tasks, along with their corresponding score values, can be found in Appendix C.

2.5. Research Questions

When introducing a new educational model, it is crucial to address several key research questions to ensure its effectiveness, impact, and sustainability. This research aimed to demonstrate the positive effects of the four-stage methodological model for learning cycloidal curves, so the research questions were the following:

• RQ1: Can a positive effect of the four-step model on the learning of cycloidal curves be demonstrated after its introduction in an undergraduate engineering mathematics course?
• RQ2: Which group of students use the new learning model most effectively regarding academic performance?

The results of the participants’ question papers were analyzed using statistical methods to address the two research questions regarding the effectiveness and learning outcomes.

3. Data Analysis and Results

In the experiment, the control group was larger (62 participants) than the experimental group (36 participants). The DATAtab statistical calculator was used to analyze the data.

Table 4. Descriptive statistics for both groups.

	Experimental Group	Control Group
N	36	62
Mean	42.17	27.15
Median	45	27
Mode	50	25
Std. Deviation	8.56	8.18
Variance	73.34	66.88
Minimum	24	7
Maximum	50	46

shows the two groups’ statistical key figures. The maximum possible score on the question paper was 50. The experimental group has a higher mean score (42.17) compared to the control group (27.15). Similarly, the median score for the experimental group (45) is higher than that of the control group (27). The standard deviations and variances are similar, indicating a comparable level of spread or variability in scores within both groups. However, the experimental group has a slightly higher standard deviation (8.56) compared to the control group (8.18). The range for the control group (7 to 46) is wider compared to the experimental group (24 to 50). The 95% confidence interval for the mean score of the control group ($25.07–29.22$) does not overlap with that of the experimental group ($39.27–45.07$), reinforcing the conclusion that the experimental group scores significantly higher. The data show that the experimental group shows significantly higher performance in scores compared to the control group, with higher mean, median, and mode. The confidence intervals for the means do not overlap, suggesting a statistically significant difference between the groups. The variability within each group is similar, but the experimental group has a slightly higher spread around the median.

The violin plot of the sample combined with the box plot includes all the essential data: a marker for the median, a box indicating the interquartile range, and all points of the sample, so it shows the entire distribution of the data (see Figure 7). The violin plot is a powerful visual tool that vividly illustrates the distribution of scores for the control and experimental groups. The distribution in the control group is centered around a score of 27, which aligns with the group’s median and mean scores. The distribution in the experimental group is centered around a score of 45, corresponding to the group’s median and mean scores. The plot clearly shows that the experimental group achieved higher scores than the control group. Additionally, the width of the violin plot at any given score indicates the density of scores at that level, highlighting the distribution’s shape and spread. The kernel density estimation (KDE) method generates the violin plot to smooth the distribution. This method estimates the density of the data, and during the smoothing process, the estimated density may overlap the actual minimum and maximum of the data at some points. Therefore, we can see the “stretches” of the violin plot beyond the actual boundaries of the data.

3.1. Response to Research Question RQ1

The statistical results showed that the experimental group had a higher average score than the control group. However, a statistical hypothesis test is needed to conclude that the experimental group did indeed score better than the control group. The following hypotheses were formulated to answer research question RQ1:

• Null hypothesis: There is no difference between the experimental and control groups concerning the dependent variable.
• Alternative hypothesis: There is a difference regarding the dependent variable between the experimental group and the control group.

Table 5. Different statistical tests to check the normality.

	Experimental Group		Control Group
	Statistics	$\mathit{p}$	Statistics	$\mathit{p}$
Kolmogorov–Smirnov	0.21	0.075	0.12	0.287
Shapiro–Wilk	0.84	<0.01	0.97	0.172
Anderson–Darling	2.17	<0.01	0.78	0.042

shows the results of three different statistical tests used to assess whether the data follow a normal distribution.

A high p-value (greater than 0.05) suggests that the data do not significantly deviate from normality. In our case, the results of the different tests are contradictory; the results are mixed. The Kolmogorov–Smirnov test shows no significant difference between the two samples, while other tests (Shapiro–Wilk and Anderson–Darling) do. The Shapiro–Wilk and Anderson–Darling tests suggest the data do not follow a normal distribution. To compare the two samples, we used a non-parametric test, the Mann–Whitney U test, which does not assume a normal data distribution. This test helped to determine whether the medians of the two samples were significantly different.

Table 6. Mann–Whitney U-test values.

	U	z	Asymptotic p	Exact p	r
Mann–Whitney U-test	247	−6.42	<0.001	<0.001	0.65

shows the results of a Mann–Whitney U-test, which is used to analyze whether there is a difference between the two groups.

The Mann–Whitney U statistic value (U) is 247. The U value represents the number of times a score from one group precedes a score from the other group in the ranked list of all scores. A smaller U value indicates that the ranks of one group are generally lower than the ranks of the other group, suggesting a difference in the distributions of the two groups. The value of 247 is indeed low compared to the maximum possible value, which means that the scores of the experimental group are generally higher than those of the control group. The maximum value of the U statistic is the product of two sample sizes:

$$U_{max}=36\times 62=2232.$$

The z-value (standardized test statistic) is −6.42. This is the standardized deviation from the mean value in a normal distribution, which is used to determine the significance of the U-statistic. The negative z value indicates that the experimental group scores significantly higher. The asymptotic p-value is <0.001. This value represents the probability of observing a test statistic as extreme as, or more extreme than, the observed value under the null hypothesis (which posits no difference between the groups). A p-value of <0.001 is below the common significance threshold of 0.05, suggesting that the result is significant at the 5% level. Another way of calculating the p-value is the exact p-value, which is often used for small sample sizes. It’s slightly smaller than the asymptotic p-value and also indicates a significant result at the 5% significance level. The r value is 0.65. This is a measure of effect size and indicates the magnitude of the difference between groups. The r-value, a measure of effect size, is calculated for the Mann–Whitney U test as follows:

$$r={\displaystyle \frac{\left|z\right|}{\sqrt{N_{total}}}},$$

where z is the standardized z-value from the test, and N is the total sample size, i.e., the sum of the sizes of the two groups. The interpretation of effect size values was established by the statistician Jacob Cohen in 1988 [83]. A value of 0.65 indicates a high effect size, which shows that the difference is not only statistically significant but also of practical significance.

In summary, the Mann–Whitney U-test showed that the difference between the control group and the experimental group with respect to the dependent variable was statistically significant. The results of the Mann–Whitney U test indicate that the experimental group achieved significantly better results than the control group. The low U-value (247) indicates that the experimental group ranks higher, and this conclusion is reinforced by the very low p-values and the significant effect size. This suggests that the experimental intervention was more effective than the control. Thus, the null hypothesis was rejected, which answers research question RQ1.

3.2. Response to Research Question RQ2

In the experimental group, we tested whether we could find a correlation between the results of the question paper on cycloidal curves and past performance. Given the differences in prior knowledge, we wanted to see what relationship could be identified in the sample. For this study, we used participants’ Calculus I average scores. The Calculus II course is in the spring semester; of course, it can only be taken if the Calculus I course was absolved in the previous semester. Similar to Calculus II requirements, Calculus I requires students to write two 50-point question papers during the semester. Three subgroups were formed based on the average of the scores on these two papers. Subgroups of below-average (G1), average (G2), and above-average performers (G3) were created using the usual technique in psychological experiments. The sample mean and standard deviation were used to calculate the lower and upper bounds of the middle interval. Students who performed in the mean $\pm 0.5\times$ standard deviation range were assigned to group G2. The intervals for the selection are as follows:

$$G1=[25,28.445),G2=[28.445,33.755],G3=(33.755,44].$$

With this selection method $\left|G1\right|=13$, $\left|G2\right|=12$ és $\left|G3\right|=11$, as can be seen in Figure 8.

Once the three subgroups were formed, the results of the question papers on cycloidal curves were examined group by group.

Table 7. Descriptive statistics for Groups G1, G2, and G3.

	G1	G2	G3
N	13	12	11
Mean	40.31	43.25	43.18
Median	43	46.5	47
Mode	50	50	50
Std. Deviation	9.13	8.09	8.81
Variance	83.4	65.48	77.56
Minimum	24	29	25
Maximum	50	50	50

shows the data of descriptive statistics. The mean and median values are similar across the three groups, indicating that the means of the data are not significantly different (see Figure 9). However, the median for G1 is slightly lower (43) compared to the median for G2 (46.5) and G3 (47). The standard deviation and variance are similar in magnitude across all three groups. Still, the variance and standard deviation for the G1 group are slightly higher, suggesting greater variability among the G1 data. The minimum and maximum values are in a similar range.

The following two hypotheses were formulated and tested to answer research question RQ2:

• Null hypothesis: There is no difference between the three categories of the experimental group in terms of the dependent variable (scores of the question paper on cycloidal curves).
• Alternative hypothesis: There is a difference between the three categories of the experimental group in terms of the dependent variable (scores of the question paper on cycloidal curves).

The Kruskal–Wallis non-parametric test was used to determine whether there was a significant difference between the groups because the normality condition was not met in the sample.

Table 8. Kruskal–Wallis test values.

	${\mathit{\chi }}^2$	df	p
Kruskal–Wallis test	0.99	2	0.611

shows the results. ${\chi }^2$ is the test statistic for the Kruskal–Wallis test. A value of 0.99 suggests there is not much difference between the groups. The larger the ${\chi }^2$ value, the more evidence there is for differences between the groups. A lower ${\chi }^2$ value usually suggests that the differences between the groups are not as pronounced. The degrees of freedom in this case are 2. The degrees of freedom for the Kruskal–Wallis test is one less than the number of groups being compared. We have three subgroups, so the degrees of freedom are 2. The resulting p-value was 0.611, meaning that there was no statistically significant difference between the medians of the three groups. This is consistent with the statistical characteristics where means and medians were similar. Typically, a p-value less than 0.05 is considered statistically significant.

Based on the data and the Kruskal–Wallis test results, there is no statistically significant difference among the three subgroups (G1, G2, and G3). The means and medians of the subgroups are very similar, and the variability is also comparable across the subgroups. The p-value of 0.611 indicates that any observed differences are likely due to random chance rather than a true effect. In summary, based on the results of the Kruskal–Wallis test, a p-value of 0.611 indicates that there is no statistically significant difference between the subgroups tested. We retain the null hypothesis, which means that the four-stage model for learning cycloidal curves helped students achieve better academic results regardless of their individual mathematical competencies. Thus, we can answer the RQ2 research question: the four-stage methodology for learning cycloidal curves supports learning achievement regardless of individual differences in prior knowledge; it is not only effective for a certain group of students.

4. Discussion and Conclusions

This research delved into the potential of a novel four-stage methodology for teaching cycloidal curves in university engineering mathematics education, aiming to determine its effectiveness and suitability for diverse student populations. The new learning model implements STEAM-based education in engineering mathematics using ER and DGS.

In the experiment, we conducted a control group study involving 98 first-year computer engineering BSc students. In the first part of this study, we employed a post-test-only design, which means we collected data only after the intervention without administering a pre-test beforehand. By skipping the pre-test, we reduced the risk of biases arising from participants being aware of this study’s purpose or goals, which might otherwise affect how they respond or behave during the post-test. As a result, this design helped provide a more precise and more accurate evaluation of the intervention’s impact based solely on the post-test results. In the second part of this study, we used a between-groups design. This approach enabled us to compare the effects of the intervention among different subgroups of participants.

Two research questions were formulated and answered by analyzing the scores of the question paper written in a classroom setting. Both the descriptive statistics data and the result of the hypothesis test support the answers to research questions RQ1 and RQ2, so the treatment used is an effective tool for learning cycloidal curves.

In hypothesis testing to answer research question RQ1, we employed a non-parametric test, specifically the Mann–Whitney U test, due to the non-normal distribution of the data. The Mann–Whitney U test demonstrated a statistically significant difference concerning the dependent variable between the control and experimental groups. Expressly, the results indicated that the experimental group achieved significantly better outcomes than the control group. The low U-value (247) suggested higher rankings for the experimental group, which was further supported by very low p-values and a significant effect size. These findings imply that the experimental intervention was more effective than the control. We compared the results with the study conducted by Coufal [84], which utilized the LEGO Mindstorms EV3 kit. Both experiments demonstrated similarly strong results. In the research by Coufal [84], a comparable main research design was employed, featuring a pedagogical experiment that included both experimental and control groups, alongside skill and knowledge assessment through testing. A significant contribution of their study was its verification of the positive impact of educational robotics and project-based learning on developing student competencies, a finding that our experiment corroborates. Additionally, a content analysis technique used in one of the other experiments with the LEGO Mindstorms EV3 robot indicated that project-based learning, when combined with robotics activities within a STEM curriculum framework, significantly benefits students [85]. We also concur with the findings of Goh and Ali [86], who reported positive outcomes in their educational experiment with the LEGO NXT robot. They emphasized the necessity for improved teaching methods to inspire courses, provide more comprehensive support for students facing mathematical challenges, and foster a community atmosphere among STEM learners.

In the experimental group, three subgroups were formed based on students’ previous results in Calculus I to answer research question RQ2. The Kruskal–Wallis test yielded a p-value of 0.611, indicating no statistically significant difference between the subgroups. This suggests that the four-stage model for learning cycloidal curves contributed to improved academic outcomes regardless of students’ individual mathematical competencies, demonstrating its effectiveness across diverse student groups. In our research, we found that the four-stage methodological model for learning cycloidal curves is an effective approach to the learning process. Our results show that the method can be applied positively to students with below-average, average, and above-average mathematical knowledge.

The experiment indirectly validated Pritchard’s claim in [71] that the frontal teaching method can effectively teach mathematics, and thus engineering mathematics, if it is complemented with activities that motivate students. Our research also supports Hassidov’s findings in [87] that the teaching method employed in mathematics classrooms is a key and highly influential factor in students’ mathematical development. Additionally, it emphasizes the importance of integrating frontal teaching with computer-based mathematical activities. Recent technological innovations have accelerated the integration of digital technologies into mathematics education [88]. The systematic analysis of Cevikbas et al. [88] showed that the most popular technologies in the category of digital resources for mathematical modeling were DGSs. While the four-stage model for learning about cycloidal curves relies heavily on DGS, it also introduces students to an alternative modeling technique by integrating ER, providing them with tangible physical experiences. Additionally, the experiment suggested that, aligning with the findings of Tessema et al. [59], realistic hands-on experiences are essential to the mathematics learning process. This approach ensures that students are actively engaged in learning, fostering a deeper understanding of the subject matter.

The findings of our study on the effectiveness of the novel four-stage model for teaching cycloidal curves are consistent with recent advancements in educational practices that emphasize active learning and technological integration. Current research highlights the importance of hands-on experiences and the use of educational robotics in enhancing student engagement and understanding in mathematics education [41,85,89]. Our results corroborate existing literature that supports the positive impact of innovative teaching methods and PjBL approaches on diverse learner populations, demonstrating improved outcomes across different mathematical competencies [75,76]. Additionally, this study contributes to the growing body of evidence suggesting that integrating digital technologies, like ER and DGS, fosters deeper conceptual understanding and developing problem-solving skills [77,78,80,88] Overall, our findings suggest that adopting modern pedagogical approaches can significantly enhance engineering mathematics education in higher education settings, aligning with contemporary trends in STEM education.

Limitations

Introducing educational robotics into higher education presents several challenges that must be addressed while planning and implementing robotic activities. Adequate laboratories and technical infrastructure are essential for robotics programs. Robotic tools and software often have technical problems and bugs that require time and expertise, hindering the smooth running of classes and reducing the overall learning experience.

The narrowest cross-section is LEGO robot kits. There are good examples of LEGO robots being used in higher education; for example, Avanzato [90] and Udvardy and Beszédes [91] show educational applications of the LEGO Mindstorms EV3 system. However, the LEGO EV3 robotics kit was released in 2013, and since then, many newer technologies and robotic tools have entered the market. Newer kits like the LEGO Education SPIKE Prime feature more advanced sensors, motors, and programming capabilities. Technology evolves rapidly, the EV3’s programming environment is nowadays less user-friendly and modern compared to newer systems that are more intuitive and support multiple programming languages, such as Scratch and Python; moreover, the LEGO education SPIKE Prime is more modular and flexible, better suited to the needs of various educational levels and projects. These kits are more accessible to assemble and modify, which is particularly important in education.

The research was conducted at one university and only involved students in computer science engineering. Further research is needed to test the methodology in different universities and with various groups of students. The lack of demographic diversity may be a limitation of our methodological experiment, as the results of experiments in homogeneous groups are difficult to generalize. If the participants are not representative of the different demographic characteristics of the society, the results may be biased and may not reflect the real situation or the different reactions of different groups. The lack of demographic diversity in the experiment meant that important factors such as cultural differences, the impact of social background, or the different experiences of different age groups could not be taken into account when interpreting the results. This study’s small sample size (98 participants) is a major limitation. This small sample size may limit the generalizability of the findings to the larger population. A larger sample would provide more robust and reliable results.

Nowadays, the gender distribution in engineering higher education remains unequal. The proportion of females is much lower than males in engineering and computer science [92,93]. The sample in this article was predominantly male (90.82%). This may have affected the study’s results. Future research may wish to use a more gender-balanced sample. However, it may also be interesting to repeat the experiment in a course with a higher proportion of females to explore whether the results remain consistent across diverse populations. Unfortunately, we could not conduct such experiments either at the University of Miskolc or at the Šiauliai State Higher Education Institution because the sex ratios of the students did not allow it.

One of the main limitations of the quasi-experimental research design used in the experiment is that it does not allow randomly allocating participants into groups. This means that the experimental and control group members may not be equally representative of the whole population. Because of the lack of random grouping, it is impossible to determine whether the substantial differences observed are due to the experimental intervention or the result of pre-existing differences. Quasi-experimental research design is often used in educational experiments [94], as random assignment is usually not feasible for ethical or practical reasons; it was the case in our experiment too.

The research focused on only one subject: teaching cycloid curves. Further development and research are needed to test the four-step methodological model in other subjects, as the ER activity requires the creation of appropriate robot constructs and projects.

5. Considerations for Future Research

It is crucial to recognize that while the research design and sample size may raise some questions regarding the overall robustness of the research findings, they do not inherently undermine the validity of the results. Nonetheless, these limitations must be carefully considered when interpreting this study’s outcomes. To enhance the reliability of future inquiries, it is essential to evaluate the effectiveness of the four-stage methodology for learning cycloidal curves using a larger and more diverse sample size. Specifically, ensuring a more balanced gender representation and incorporating a wider demographic of subjects will provide a more comprehensive understanding of the methodology’s impact.

The findings from this experiment suggest that the four-stage approach for learning cycloidal curves holds promise in facilitating the learning process of cycloidal curves. This potential of the four-stage approach for learning cycloidal curves to significantly enhance the learning process is a reason for hope. However, to establish more definitive conclusions, it is imperative to conduct additional studies in this area. Exploring the application of this methodology across various educational institutions and among different student demographics would provide valuable insights and strengthen the generalizability of the results.

In the current study, we relied solely on quantitative measures to assess the outcomes, which limited the understanding of the participants’ experiences and attitudes. For future iterations of this experiment, it will be vital to integrate qualitative tools, including soliciting student feedback through questionnaires. By gathering participants’ perspectives on the four-stage methodology for learning cycloidal curves, we will not only enrich the data but also better understand the subjective experiences of students, thus providing a more holistic view of the methodology’s effectiveness and areas for improvement.
