Article

EADN: An Efficient Deep Learning Model for Anomaly Detection in Videos

1
Digital Image Processing Laboratory, Department of Computer Science, Islamia College Peshawar, Peshawar 25000, Pakistan
2
Software, Data and Digital Ecosystems, Department of Computer Science, Norwegian University for Science and Technology (NTNU), 2815 Gjøvik, Norway
3
Industrial Innovation and Robotic Center (IIRC), University of Tabuk, Tabuk 47711, Saudi Arabia
4
Department of Civil and Environmental Engineering, King Fahd University of Petroleum and Minerals (KFUPM), Dharan 31261, Saudi Arabia
5
Visual Analytics for Knowledge Laboratory (VIS2KNOW Lab), Department of Applied Artificial Intelligence, School of Convergence, College of Computing and Informatics, Sungkyunkwan University, Seoul 03063, Korea
*
Authors to whom correspondence should be addressed.
Mathematics 2022, 10(9), 1555; https://doi.org/10.3390/math10091555
Submission received: 25 March 2022 / Revised: 13 April 2022 / Accepted: 18 April 2022 / Published: 5 May 2022
(This article belongs to the Special Issue Recent Advances in Computational Intelligence and Its Applications)

Abstract

:
Surveillance systems regularly create massive video data in the modern technological era, making their analysis challenging for security specialists. Finding anomalous activities manually in these enormous video recordings is a tedious task, as they infrequently occur in the real world. We proposed a minimal complex deep learning-based model named EADN for anomaly detection that can operate in a surveillance system. At the model’s input, the video is segmented into salient shots using a shot boundary detection algorithm. Next, the selected sequence of frames is given to a Convolutional Neural Network (CNN) that consists of time-distributed 2D layers for extracting salient spatiotemporal features. The extracted features are enriched with valuable information that is very helpful in capturing abnormal events. Lastly, Long Short-Term Memory (LSTM) cells are employed to learn spatiotemporal features from a sequence of frames per sample of each abnormal event for anomaly detection. Comprehensive experiments are performed on benchmark datasets. Additionally, the quantitative results are compared with state-of-the-art methods, and a substantial improvement is achieved, showing our model’s effectiveness.

1. Introduction

In the twenty-first century, the rise in the crime rate is one of the prime reasons for lost lives [1]. A smart video surveillance system is one possible solution for rapidly detecting unexpected criminal events. Recently, enormous quantities of surveillance cameras have been put globally in various areas for public safety. Due to the limitations of manual surveillance, law enforcement organizations perform poorly in detecting or avoiding anomalous activities. A smart computer vision system is required to detect unusual behavior, one that can effectively recognize normal and abnormal events without human intervention. Such an automated system is beneficial for monitoring and decreases the human work required to maintain 24-h manual observation.
In the current literature, anomaly detection approaches based on sparse coding have shown promising results to date [2,3,4,5]. These techniques are assumed to be standard for anomaly identification. These approaches are trained so that the initial frames of a video are utilized to construct a dictionary of usual events. Despite computational efficiency, this is a poor technique for accurately detecting abnormal events. Weakly supervised multi-instance learning (MIL)-based techniques are also explored for anomaly detection in [3,5,6]. In such techniques, the training phase divides the videos into a predefined number of segments. These segments construct a bag of instances for positive and negative samples.
Due to the dynamic nature of surveillance environments, sparse coding techniques have specific drawbacks. For example, converting the dictionary from usual to anomalous events leads to a high false-positive and false-negative. Additionally, recognizing anomalous events in low resolution noisy videos is exceedingly difficult. While humans can recognize regular or uncommon events based on their intuition, machines must rely on visual features.
Predominantly, the existing methods suffer from a high proportion of false alarms, leading to lower performance. Furthermore, these approaches perform well on small datasets, but their performance is limited when applied to real-world circumstances. In this paper, to address these concerns, we proposed a simple and efficient lightweight model to detect anomalies in surveillance videos. EADN uses a windowing approach and processes five frames per sample, chronologically ordered to detect movements and actions in the surveillance videos. Our model learns visual features from a sequence of five frames per sample by integrating them into spatiotemporal information from surveillance videos. The key contributions of our work are as follows:
  • Pre-Processing: Surveillance camera generates huge amount of data on a regular basis in the current technological era, needing a considerable amount of computational complexity and time for exploration. Existing techniques in anomaly detection in surveillance video literature lack the focus on pre-processing steps. In this paper, we present a novel and efficient pre-processing strategy of video shots segmentation, where shots boundaries are segmented based on underlying activity. Further, the segmented shots of the video can be processed for advanced analysis such as anomaly activities without any transmission delay. Thus, our pre-processing strategy plays a prominent role in the overall anomaly detection in the surveillance video framework.
  • A simple, light-weight, and novel CNN model consisting of time-distributed layers for learning spatiotemporal features from a series of frames per sample is proposed.
  • A comprehensive model evaluation on standard performance metrics using a challenging benchmark dataset and achieving promising results compared to the state-of-the-art with a model size of only 53.9 MBs.
The rest of the paper is organized in the following order. In Section 2, the background and related work is explained. The EADN framework is elaborated in Section 3. Details about the dataset, the quantitative evaluation, and discussion are given in Section 4. The final remarks and future directions are given in Section 5, which concludes the paper.

2. Related Work

The literature of anomaly detection methods is discussed in two main categories: Traditional handcrafted feature-based methods and deep feature-based methods for anomalous event recognition. Previously, anomaly detection was highly dependent on low-level hand-crafted feature-based methods. These methods are primarily based on three stages: (1) Feature extraction, in which low-level patterns from the training set are extracted; (2) feature learning is distinguished by the distribution of encoding regularity or normal events; and (3) outlier detection, separated clusters or outliers are identified as anomalous events. For example, Zhang et al. [7] employed the Markov random field to represent common occurrences by using spatiotemporal features. Similarly, Mehran et al. [8] developed a social interaction model in which cooperation forces were computed, and normal and abnormal activities were detected using optical flow. Furthermore, Nor et al. [9] proposed an explainable anomaly detection framework that assists in prognostic and health management PHM. Their framework is based on a Bayesian deep learning model with predefined prior and likelihood distributions. It provides additive explanations to come up with the local and global explanations for the PHM tasks. Similarly, Ullah et al. [10] come up with an attention-based LSTM for the action recognition in sport videos. They used convolution block attention to refine the spatial features. Similarly, a fully connected neural network with a softmax classifies the refine feature maps into different sports actions. Compared to visual data, Selicato et al. [11] worked on detecting anomalies in the gene data. For example, they come up with an ensemble-based approach for detecting the normal and abnormal gene expression matrices using hierarchical clustering and principal component analysis (PCA). Riaz et al. [12] proposed an ensemble of deep model for detecting anomalies in complex scenes. In the first step, a human pose estimation model is incorporated that detects the human joints. In the second step, the detected joints are treated as features and are given to a densely connected fully CNN for the anomaly detection. More recently, Zhao et al. [13] proposed an unsupervised technique that used a time varying sparse coding style to detect anomalies in videos using online query signals and sparse reconstruction ability acquired from a learned vocabulary of all events. However, developing the ability to identify anomalies in a timely way has remained a challenge, attracting the interest of several researchers. For example, Lu et al. [4] utilized Sparse Combination Learning (SCL) and analyzed their technique with local and cloud servers.
Compared to traditional methods, deep feature-based models have gained significant success in a variety of nonlinear high-dimensional data domains in the modern age, including activity identification and video summarization, among others. Liu et al. [14] developed a system in which video frames were encoded using a CNN, and anomalous events were detected using ConvLSTM. Their encoder encodes motion variation to detect abnormalities in a surveillance environment. Hasan et al. [15] proposed a convolution autoencoder and a RNN. Luo et al. [14] came up with a convolutional LSTM model with an autoencoder for video anomaly detection. Moreover, they expanded this work by detecting anomalies using a stacked RNN with an autoencoder. Liu et al. [16] proposed a technique for detecting video abnormalities by integrating a temporal and spatial detector. The discriminant saliency detector and a collection of dynamic texture features were treated in this model as normal training data events. Cheng et al. [17] developed a clustering-based deep autoencoder to extract information from normal events efficiently. Two modules are used to learn spatial-temporal feature regularity, and the spatial autoencoder in the first module handles the last individual video frame. In contrast, the temporal autoencoder in the second module operates and produces the RGB difference between the frames. Additionally, generative models are used for detecting anomalies in videos. For instance, Sabokroul et al. [18] came up with generative adversarial networks (GANs) for detecting abnormalities in a videos. This model teaches the normal distribution using GANs with discriminator and generator techniques. More recently, weakly supervised approaches for video labeling have been proposed where anomalous events are detected using C3D and MIL [19,20]. For example, Sultani et al. [5] developed a framework for detecting anomalous events based on weak video labels, and the MIL method. This model was trained on both normal and unusual videos by creating two distinct bags for common and uncommon events and then using the MIL technique to detect anomalous activity scores in the videos. Landi et al. [21] proposed a tube extraction technique that uses coordinates to build a regression model for abnormalities. Briefly, the average pooling layer combines the spatial features from the inception block with the temporal features of optimal flow before sending it to the regression model. Zhong et al. [22] developed a technique for detecting weakly supervised anomalies and a supervised system for action categorization with noisy labels. The novelty was keeping only the anomaly video labels noisy due to the unpredictable nature of the anomalous events. Additionally, a graph CNN was trained to clean up these noisy labels, and the activities were classified using an action classifier. Compared to the existing approaches, this paper proposed an efficient time-distributed 2D CNN with LSTM for anomaly detection in videos. The prominent features of the proposed method are discussed in Section 3.

3. Proposed Framework

This section discusses the EADN framework and its essential constituent structure in detail. The pictorial representation of our EADN framework is presented in Figure 1. In a nutshell, the anomaly detection and classification task consist of three parts: (i) Shot segmentation, (ii) feature extraction, and (iii) sequence learning and anomaly classification. In the first step, salient frames are segmented using a shot boundary detection algorithm. The segmented frames are given to the Lightweight CNN ( L W C N N ) model to extract spatiotemporal features from the intermediate layer. After that, LSTM cells are used to learn spatiotemporal features from a sequence of frames per sample of each anomalous event. The proposed L W C N N took frames that are chronologically ordered to detect movements and action. Finally, the proposed trained L W C N N LSTM network is used to recognize anomalous events in the segmented shot of the video. A comprehensive list of model parameters is given in Table 1. The model is trained end-to-end and the categorical cross entropy loss function is used to optimize its parameters. Mathematically, the loss function is defined as:
L o s s = i = 1 N y i · log y i ^
where N is the total number of anomalies, y i is the true class label, and y i ^ is the estimated probability given by the model. Using this configuration, the model takes the key frames of a given video and returns the score for the corresponding anomaly accoridngly. It is important to mention that the key frames are representative of the input video. Therefore, the anomaly detected in the key frames can be generalized as an anomaly occurring in the input video.

3.1. Shot Segmentation Using Boundary Detection

Our shot segmentation algorithm is inspired by [23], where histogram differences are used to detect shot boundary and consequently extracted keyframes. The key steps of the algorithm are the following:
Step 1:
First, divide a frame into blocks with m rows and n columns. Second, compute a x 2 histogram that matches the difference in corresponding blocks between consecutive frames in the video sequence. Here, the histograms of bth blocks in the f t and f t + 1 frames are H ( f t , j , c , b ) and H ( f t + 1 , j , c , b ) , respectively. Finally, use the following equation to calculate the difference between blocks:
B D ( f t , f t + 1 ) = c = 1 3 b = 1 N B j = 1 N H H ( f t , j , c , b ) H ( f t + 1 , j , c , b ) x
B D represents block difference, and N B is the total number of blocks, while N H is the total number of possible gray levels and H ( f t , j , c , b ) is the histogram value for the jth level in the channel c at the bth block in the frame t.
Step 2:
Calculate the difference through x 2 histograms between two consecutive frames:
D ( f t , f t + 1 ) = k = 1 N W k B D k ( f t , f t + 1 )
where W k denotes the block’s weight at k and N represents the total number of blocks, while B D k ( f t , f t + 1 ) is the block difference at k between f t and f t + 1 frames.
Step 3:
Calculate the threshold: For the entire video sequence, compute the difference of the x 2 histogram through mean and standard deviations as follows:
M D = f t = 1 T v 1 D ( f t , f t + 1 ) T v 1
S T D = f t = 1 T v 1 ( D ( f t , f t + 1 ) ) 2 T v 1
where T v is the total number of video sequence.
Step 4:
Detection of shot boundaries: Let T = M D + α × S T D be the threshold. α is the constant. It weights the standard deviation for the overall threshold T . If D ( f t , f t + 1 ) T , the frame f t represents the end of the previous shot, and the frame f t + 1 represents the end of the following shot. Generally, the shortest shot should last between 1 and 2.5 s. For the sake of fluency, the frame rate must be at least 25 frames per second (in most situations, it is 30 frames per second), or a flash may appear. As a result, a shot must have at least 30 to 45 frames. Thus, a shot merging principle created that state: If a detected shot has fewer than 38 frames, it will be merged into the preceding shot or considered independent. The pseudo-code is given in Algorithm 20.
Algorithm 1 Pseudocode of shot boundary detection
Require: Total number of videos = T v R 3
Require: Distribute Each frame f in sixteen block i.e., ∀f B 16
for T ← 1 T v do
  for f 1 T do
    B D ( f t , f t + 1 ) c = 1 3 b = 1 N B j = 1 N H H ( f t , j , c , b ) H ( f t + 1 , j , c , b ) x
    D ( f t , f t + 1 ) k = 1 N W k B D k ( f t , f t + 1 )
    M D f t = 1 T v 1 D ( f t , f t + 1 ) T v 1
    S T D f t = 1 T v 1 ( D ( f t , f t + 1 ) ) 2 T v 1
    τ = M D + α × S T D
   if D ( f t , f t + 1 ) τ then
    Previous shot last frame f t
    Next shot last frame f t + 1 .
   else if then
    Print “Shot not detected”
   end if
  end for
  return Shot boundary detection for the given video.
  Repeat loop until last video frame
end for

3.2. Extraction of Keyframes

Keyframes are essential in the abstraction of video. The term “keyframes” refers to a collection of prominent frames taken from video sequences. The following describes the algorithm for keyframe extraction:
Step 1:
Compute the difference between the general frames (all frames except the reference frame) and the reference frame (first frame of each shot):
D ( x , y ) = k = 1 N W k B D k ( x , y t + 1 )
where W k denotes the block’s weight at k and N represents the total number of blocks, while B D k ( x , y t + 1 ) is the block difference at k between the x reference frame and y general frames.
Step 2:
Within a shot, look for the maximum difference:
max ( i ) = D ( x , y ) m a x y = 2 , 3 , 4 , . . . , FC
where max ( i ) represents the maximum x 2 histogram within shot i, and D ( x , y ) is the difference between the x reference frame and y general frames, while FC is the total number of the current shots.
Step 3:
Use the relationship between max ( i ) and MD to determine “Shot Type”:
T y p e S h o t = 1 i f max ( i ) MD 0 otherwise
A shot will be declared as a dynamic shot if its max ( i ) is bigger than MD ; otherwise it is a static shot.
Step 4:
Determine the keyframe’s location: If T y p e S h o t = 0 and the number of frames in the shot is odd, the frame in the center of the shot is chosen as a keyframe; if the number of frames is even, any frame between the two frames in the middle of the shot can be chosen as the keyframe. When T y p e S h o t equals 1, the frame with the greatest difference is designated as the keyframe [23]. The graphical depiction of the four steps for extracting the keyframes is given in Figure 2.

3.3. Proposed CNN Architecture

Our proposed CNN architecture ( L W C N N ) consists of time distributed 2D convolutional layers (CL) and two time distributed 2D max-pooling layers, whose number of filters, kernel sizes, and strides are specified in Table 2. Each time distributed 2D CL is followed by the Rectified Linear Unit (ReLU) activation function with a kernel size of 3 × 3 and stride size of 2 × 2. After the second and third CL, it has a time distributed 2D max pooling layer with a stride size of 2 × 2 to reduce the network’s size. We employ same-padding strategies for each convolutional operation to prevent skipping information at the input frame’s border. As a result, the system produces feature maps that are the same size as the raw frame input of h × w. We begin with 64 feature maps in the first CL and then the same feature maps in the second. The final CL contains 128 feature maps. The proposed model receives a pre-processed frame of segmented shot as input. First, our system extracts spatial features from each frame by using ( L W C N N ) and then feeds the sequence of spatial features into the LSTM to capture temporal features. For final prediction, the fully connected layer receives the output of the last time step of the LSTM layer and feeds it to the softmax layer [24], as seen in Figure 1. To capture the spatial features of each frame, we used a frame-wise L W C N N , as seen in Figure 1. Furthermore, the input frames ( f t , f t + 1 , f t + n ) are feed into an L W C N N individually, which transforms each frame into a sequence of spatial feature representation series as seen in Equation (9); F t is a spatial feature representation series. However, the temporal features h t + n are computed using the spatial feature representation series as input to the LSTM network, as shown in Equation (10). The H t is the hidden state of the LSTM layer at current time step t, and the hidden state of the previous time step t 1 is denoted by H t 1 [24]. The previous time step’s information is fed as an input to the current time step. The output of the last time step of the hidden state H t + n is passed into the next fully connected layer as an input [24]. The softmax layer receives input from the fully connected layer and calculates the final probability estimate for each class, as shown in Equation (11).
F t = L W C N N ( f t , f t + 1 , f t + n )
H t + n = L S T M ( F t )
P r e d i c a t i o n : y j = s o f t m a x ( H t + n )

4. Experimental Results

Three benchmark datasets, CUHK Avenue [4], UCSD Pedestrian [25], and UCF-Crime [5], are used for the evaluation of the EADN framework. Details about the number of videos, training–testing split, average frame, and types of anomalies are given in Table 3 and Table 4. Sample frames of normal and anomalous events are given in Figure 3. Furthermore, the 3D visualizations of datasets are given in Figure 4. Two quantitative metrics, namely frame-based area under the curve (AUC) and receiver operating characteristic (ROC) [26], are used for the quantitative analysis. The algorithm is implemented in Keras backed Tensor Flow in Python version 3.7.4 programming environment. Experiments were done using a personal computer (PC) equipped with an NVidia GeForce GTX TITAN 1080 graphics-processing unit (GPU) with 8GB of RAM, a Windows 10 operating system, and the CUDA toolkit 9.0 with cuDNN v7.0. The quantitative results demonstrated the effectiveness of our EADN framework and showed a sustainable improvement in the state-of-the-art.

4.1. Quantitative Results

UCSD pedestrian is a widely used dataset for anomaly detection in surveillance videos and is considered as a benchmark dataset. Similarly, the CUHK Avenue and UCF-Crime datasets are freely accessible and frequently used to evaluate video anomaly detection algorithms. We compare our EADN framework with both the earlier techniques [4,8,25,27] and the contemporary ones [15,16,28,29,30,31], including supervised and unsupervised strategies. Table 5 shows the quantitative comparison of the EADN against state-of-the-art methods in frame-based AUC values. EADN achieved a frame-based AUC of 93% and 97% for the UCSDped1 and UCSDped2 dataset, surpassing all the earlier methods. Similarly, on the CUHK Avenue dataset, EADN achieved 97% AUC compared to the best state-of-the-art of only 86.1%. Last but not the least, on the UCF-Crime dataset, EADN obtained 98% AUC, improving the state-of-the-art substantially. In Figure 5, we compared the frame-based ROC curve of our model with the state-of-the-art methods. Figure 6 plots the EADN’s frame-based anomaly detection performance against the anomaly scores for test video sequences (a) Arrest048-x264, (b) Fighting047-x264, (c) Assault051-x264, and (d) Normal-Videos-027-x264. Figure 7 and Figure 8 illustrate the EADN’s training accuracy and loss against the number of epochs.

4.2. Comparison with the State-of-the-Art Techniques

Our EADN framework is compared with the existing strategies using the benchmark datasets. The authors of [42] examined a variety of deep learning models with the integration of multi-layer BD-LSTM, including VGG-19+multi-layer BD-LSTM, InceptionV3+multi-layer BD-LSTM, and ResNet-50 + multi-layer BD-LSTM. ResNet-50 combined with bidirectional-LSTM has the smallest model size among these approaches. The EADN framework for anomaly detection has a lower storage size, fewer learned parameters, and a faster processing time than other existing approaches [22,42,47,48,49]. The model’s efficiency is compared to the recent techniques in terms of model size, time complexity, and parameter count, as seen in Table 6 and Table 7. The quantitative results reveal that EADN framework has the lowest false alarm rates. Additionally, it can process a 32-frame sequence in 0.194 s, which is considerably faster than previous approaches [22,42,47,48,49]. As seen in Table 7, the sizes of existing approaches are significantly larger than the EADN.

5. Conclusions

This paper proposed a lightweight and cost-effective model for anomaly detection in surveillance videos that achieves promising accuracy on several benchmark anomaly detection datasets. The model works in three main steps: (i) Shot segmentation, (ii) feature extraction, and (iii) sequence learning and anomaly classification. In shot segmentation, salient shots are segmented using a shot boundary detection algorithm from the surveillance videos. Afterwards, we use our EADN framework to propagate a sequence of frames per sample of the salient shots and forward it to a lightweight Convolutional Neural Network ( L W C N N ) that gets the spatiotemporal features from the intermediate layer. After that, LSTM cells learn the spatiotemporal features from a sequence of frames per sample of each anomalous event, which enables the EADN to classify anomalous events in the segmented shot of the video. Our model is validated using a variety of evaluation parameters and proved to be more accurate than recently published techniques. The experimental results demonstrate that EADN improves accuracy by 10.9%, 0.9%, 1.6%, and 15.88% for the Avenue, UCSD Pedestrian1, UCSD Pedestrian2, and UCF-Crime datasets, respectively, and significantly reduces false alarm rates as compared to recent works. However, our EADN framework still has room for real-time accuracy and efficiency improvement. In the future, we aim to incorporate the attention-based deep learning (self and multi-headed attention) networks to improve the accuracy and efficiency of the current EADN framework.

Author Contributions

S.U.A., M.U., M.S., F.A.C., M.H., A.H. and K.M. contributed to the conceptualization, analysis, validation, manuscript writing, and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Piza, E.L.; Welsh, B.C.; Farrington, D.P.; Thomas, A.L. CCTV surveillance for crime prevention: A 40-year systematic review with meta-analysis. Criminol. Public Policy 2019, 18, 135–159. [Google Scholar] [CrossRef] [Green Version]
  2. Cheng, K.W.; Chen, Y.T.; Fang, W.H. An efficient subsequence search for video anomaly detection and localization. Multimed. Tools Appl. 2016, 75, 15101–15122. [Google Scholar] [CrossRef]
  3. He, C.; Shao, J.; Sun, J. An anomaly-introduced learning method for abnormal event detection. Multimed. Tools Appl. 2018, 77, 29573–29588. [Google Scholar] [CrossRef]
  4. Lu, C.; Shi, J.; Jia, J. Abnormal event detection at 150 fps in matlab. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), Sydney, Australia, 1–8 December 2013; pp. 2720–2727. [Google Scholar]
  5. Sultani, W.; Chen, C.; Shah, M. Real-world anomaly detection in surveillance videos. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–22 June 2018; pp. 6479–6488. [Google Scholar]
  6. Huo, J.; Gao, Y.; Yang, W.; Yin, H. Abnormal event detection via multi-instance dictionary learning. In International Conference on Intelligent Data Engineering and Automated Learning; Springer: Berlin/Heidelberg, Germany, 2012; pp. 76–83. [Google Scholar]
  7. Zhang, D.; Gatica-Perez, D.; Bengio, S.; McCowan, I. Semi-supervised adapted hmms for unusual event detection. In Proceedings of the 2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR’05), San Diego, CA, USA, 20–25 June 2005; Volume 1, pp. 611–618. [Google Scholar]
  8. Mehran, R.; Oyama, A.; Shah, M. Abnormal crowd behavior detection using social force model. In Proceedings of the 2009 IEEE Conference on Computer Vision and Pattern Recognition, Miami, FL, USA, 20–25 June 2009; pp. 935–942. [Google Scholar]
  9. Nor, A.K.M.; Pedapati, S.R.; Muhammad, M.; Leiva, V. Abnormality detection and failure prediction using explainable Bayesian deep learning: Methodology and case study with industrial data. Mathematics 2022, 10, 554. [Google Scholar] [CrossRef]
  10. Ullah, M.; Mudassar Yamin, M.; Mohammed, A.; Daud Khan, S.; Ullah, H.; Alaya Cheikh, F. Attention-based LSTM network for action recognition in sports. Electron. Imaging 2021, 2021, 302-1–302-6. [Google Scholar] [CrossRef]
  11. Selicato, L.; Esposito, F.; Gargano, G.; Vegliante, M.C.; Opinto, G.; Zaccaria, G.M.; Ciavarella, S.; Guarini, A.; Del Buono, N. A new ensemble method for detecting anomalies in gene expression matrices. Mathematics 2021, 9, 882. [Google Scholar] [CrossRef]
  12. Riaz, H.; Uzair, M.; Ullah, H.; Ullah, M. Anomalous Human Action Detection Using a Cascade of Deep Learning Models. In Proceedings of the 2021 9th European Workshop on Visual Information Processing (EUVIP), Paris, France, 23–25 June 2021; pp. 1–5. [Google Scholar]
  13. Zhao, B.; Fei-Fei, L.; Xing, E.P. Online detection of unusual events in videos via dynamic sparse coding. In Proceedings of the CVPR 2011, Colorado Springs, CO, USA, 20–25 June 2011; pp. 3313–3320. [Google Scholar]
  14. Luo, W.; Liu, W.; Gao, S. Remembering history with convolutional lstm for anomaly detection. In Proceedings of the 2017 IEEE International Conference on Multimedia and Expo (ICME), Hong Kong, China, 10–14 July 2017; pp. 439–444. [Google Scholar]
  15. Hasan, M.; Choi, J.; Neumann, J.; Roy-Chowdhury, A.K.; Davis, L.S. Learning temporal regularity in video sequences. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 733–742. [Google Scholar]
  16. Liu, W.; Luo, W.; Lian, D.; Gao, S. Future frame prediction for anomaly detection–a new baseline. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–23 June 2018; pp. 6536–6545. [Google Scholar]
  17. Chang, Y.; Tu, Z.; Xie, W.; Yuan, J. Clustering driven deep autoencoder for video anomaly detection. In European Conference on Computer Vision; Springer: Berlin/Heidelberg, Germany, 2020; pp. 329–345. [Google Scholar]
  18. Sabokrou, M.; Khalooei, M.; Fathy, M.; Adeli, E. Adversarially learned one-class classifier for novelty detection. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–23 June 2018; pp. 3379–3388. [Google Scholar]
  19. Ullah, W.; Ullah, A.; Hussain, T.; Khan, Z.A.; Baik, S.W. An Efficient Anomaly Recognition Framework Using an Attention Residual LSTM in Surveillance Videos. Sensors 2021, 21, 2811. [Google Scholar] [CrossRef] [PubMed]
  20. Tomar, D.; Agarwal, S. Multiple instance learning based on twin support vector machine. In Advances in Computer and Computational Sciences; Springer: Berlin/Heidelberg, Germany, 2017; pp. 497–507. [Google Scholar]
  21. Landi, F.; Snoek, C.G.; Cucchiara, R. Anomaly locality in video surveillance. arXiv 2019, arXiv:1901.10364. [Google Scholar]
  22. Zhong, J.X.; Li, N.; Kong, W.; Liu, S.; Li, T.H.; Li, G. Graph convolutional label noise cleaner: Train a plug-and-play action classifier for anomaly detection. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, CA, USA, 15–20 June 2019; pp. 1237–1246. [Google Scholar]
  23. Rathod, G.I.; Nikam, D.A. An algorithm for shot boundary detection and key frame extraction using histogram difference. Int. J. Emerg. Technol. Adv. Eng. 2013, 3, 155–163. [Google Scholar]
  24. Zhang, D.; Yao, L.; Zhang, X.; Wang, S.; Chen, W.; Boots, R.; Benatallah, B. Cascade and parallel convolutional recurrent neural networks on EEG-based intention recognition for brain computer interface. In Proceedings of the AAAI Conference on Artificial Intelligence, New Orleans, LA, USA, 2–7 February 2018; Volume 32. [Google Scholar]
  25. Mahadevan, V.; Li, W.; Bhalodia, V.; Vasconcelos, N. Anomaly detection in crowded scenes. In Proceedings of the 2010 IEEE Computer Society Conference on Computer Vision and Pattern Recognition, San Francisco, CA, USA, 13–18 June 2010; pp. 1975–1981. [Google Scholar]
  26. Li, W.; Mahadevan, V.; Vasconcelos, N. Anomaly detection and localization in crowded scenes. IEEE Trans. Pattern Anal. Mach. Intell. 2013, 36, 18–32. [Google Scholar]
  27. Kim, J.; Grauman, K. Observe locally, infer globally: A space-time MRF for detecting abnormal activities with incremental updates. In Proceedings of the 2009 IEEE Conference on Computer Vision and Pattern Recognition, Miami, FL, USA, 20–25 June 2009; pp. 2921–2928. [Google Scholar]
  28. Hinami, R.; Mei, T.; Satoh, S. Joint detection and recounting of abnormal events by learning deep generic knowledge. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 3619–3627. [Google Scholar]
  29. Luo, W.; Liu, W.; Gao, S. A revisit of sparse coding based anomaly detection in stacked rnn framework. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 341–349. [Google Scholar]
  30. Ravanbakhsh, M.; Nabi, M.; Mousavi, H.; Sangineto, E.; Sebe, N. Plug-and-play cnn for crowd motion analysis: An application in abnormal event detection. In Proceedings of the 2018 IEEE Winter Conference on Applications of Computer Vision (WACV), Lake Tahoe, NV, USA, 12–15 March 2018; pp. 1689–1698. [Google Scholar]
  31. Xu, D.; Yan, Y.; Ricci, E.; Sebe, N. Detecting anomalous events in videos by learning deep representations of appearance and motion. Comput. Vis. Image Underst. 2017, 156, 117–127. [Google Scholar] [CrossRef]
  32. Tudor Ionescu, R.; Smeureanu, S.; Alexe, B.; Popescu, M. Unmasking the abnormal events in video. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 2895–2903. [Google Scholar]
  33. Chong, Y.S.; Tay, Y.H. Abnormal event detection in videos using spatiotemporal autoencoder. In International Symposium on Neural Networks; Springer: Berlin/Heidelberg, Germany, 2017; pp. 189–196. [Google Scholar]
  34. Zhou, J.T.; Du, J.; Zhu, H.; Peng, X.; Liu, Y.; Goh, R.S.M. Anomalynet: An anomaly detection network for video surveillance. IEEE Trans. Inf. Forensics Secur. 2019, 14, 2537–2550. [Google Scholar] [CrossRef]
  35. Gianchandani, U.; Tirupattur, P.; Shah, M. Weakly-Supervised Spatiotemporal Anomaly Detection; University of Central Florida Center for Research in Computer Vision REU: Orlando, FL, USA, 2019. [Google Scholar]
  36. Lee, S.; Kim, H.G.; Ro, Y.M. BMAN: Bidirectional multi-scale aggregation networks for abnormal event detection. IEEE Trans. Image Process. 2019, 29, 2395–2408. [Google Scholar] [CrossRef] [PubMed]
  37. Zaheer, M.Z.; Mahmood, A.; Shin, H.; Lee, S.I. A self-reasoning framework for anomaly detection using video-level labels. IEEE Signal Process. Lett. 2020, 27, 1705–1709. [Google Scholar] [CrossRef]
  38. Singh, K.; Rajora, S.; Vishwakarma, D.K.; Tripathi, G.; Kumar, S.; Walia, G.S. Crowd anomaly detection using aggregation of ensembles of fine-tuned convnets. Neurocomputing 2020, 371, 188–198. [Google Scholar] [CrossRef]
  39. Tang, Y.; Zhao, L.; Zhang, S.; Gong, C.; Li, G.; Yang, J. Integrating prediction and reconstruction for anomaly detection. Pattern Recognit. Lett. 2020, 129, 123–130. [Google Scholar] [CrossRef]
  40. Ganokratanaa, T.; Aramvith, S.; Sebe, N. Unsupervised anomaly detection and localization based on deep spatiotemporal translation network. IEEE Access 2020, 8, 50312–50329. [Google Scholar] [CrossRef]
  41. Maqsood, R.; Bajwa, U.I.; Saleem, G.; Raza, R.H.; Anwar, M.W. Anomaly recognition from surveillance videos using 3D convolution neural network. Multimed. Tools Appl. 2021, 80, 18693–18716. [Google Scholar] [CrossRef]
  42. Ullah, W.; Ullah, A.; Haq, I.U.; Muhammad, K.; Sajjad, M.; Baik, S.W. CNN features with bi-directional LSTM for real-time anomaly detection in surveillance networks. Multimed. Tools Appl. 2021, 80, 16979–16995. [Google Scholar] [CrossRef]
  43. Wu, C.; Shao, S.; Tunc, C.; Satam, P.; Hariri, S. An explainable and efficient deep learning framework for video anomaly detection. Clust. Comput. 2021, 1–23. [Google Scholar] [CrossRef] [PubMed]
  44. Qiang, Y.; Fei, S.; Jiao, Y. Anomaly detection based on latent feature training in surveillance scenarios. IEEE Access 2021, 9, 68108–68117. [Google Scholar] [CrossRef]
  45. Madan, N.; Farkhondeh, A.; Nasrollahi, K.; Escalera, S.; Moeslund, T.B. Temporal Cues from Socially Unacceptable Trajectories for Anomaly Detection. In Proceedings of the IEEE/CVF International Conference on Computer Vision, Montreal, BC, Canada, 11–17 October 2021; pp. 2150–2158. [Google Scholar]
  46. Tian, Y.; Pang, G.; Chen, Y.; Singh, R.; Verjans, J.W.; Carneiro, G. Weakly-supervised video anomaly detection with robust temporal feature magnitude learning. In Proceedings of the IEEE/CVF International Conference on Computer Vision, Montreal, BC, Canada, 11–17 October 2021; pp. 4975–4986. [Google Scholar]
  47. Simonyan, K.; Zisserman, A. Very deep convolutional networks for large-scale image recognition. arXiv 2014, arXiv:1409.1556. [Google Scholar]
  48. Szegedy, C.; Vanhoucke, V.; Ioffe, S.; Shlens, J.; Wojna, Z. Rethinking the inception architecture for computer vision. In Proceedings of the IEEE Conference on Computer Vision and pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 2818–2826. [Google Scholar]
  49. He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 770–778. [Google Scholar]

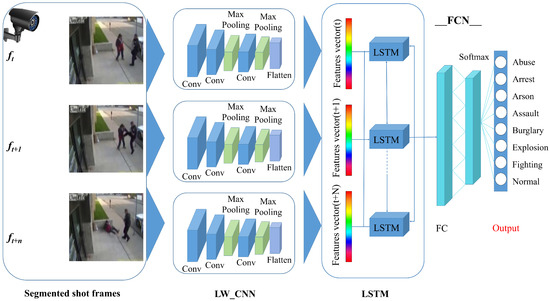

Figure 1. EADN framework for anomaly detection in surveillance videos.
Figure 1. EADN framework for anomaly detection in surveillance videos.
Mathematics 10 01555 g001

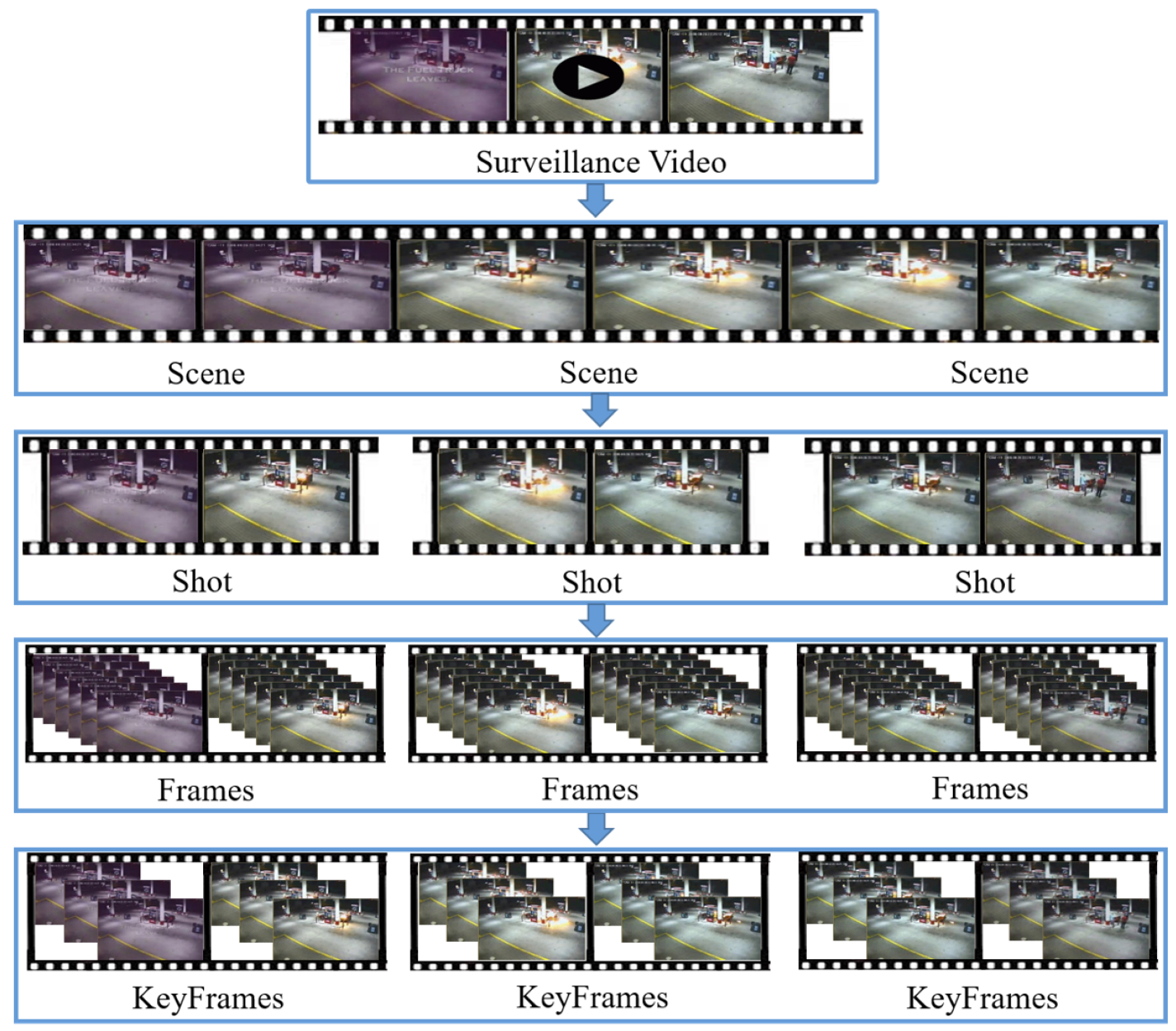

Figure 2. Steps of keyframe extraction from a given input video.
Figure 2. Steps of keyframe extraction from a given input video.
Mathematics 10 01555 g002
Figure 3. Sample of the ‘Normal’ and ‘Abnormal’ event frames from three datasets: Avenue, UCSD (Ped1 and Ped2), and UCF-Crime.
Figure 3. Sample of the ‘Normal’ and ‘Abnormal’ event frames from three datasets: Avenue, UCSD (Ped1 and Ped2), and UCF-Crime.
Mathematics 10 01555 g003

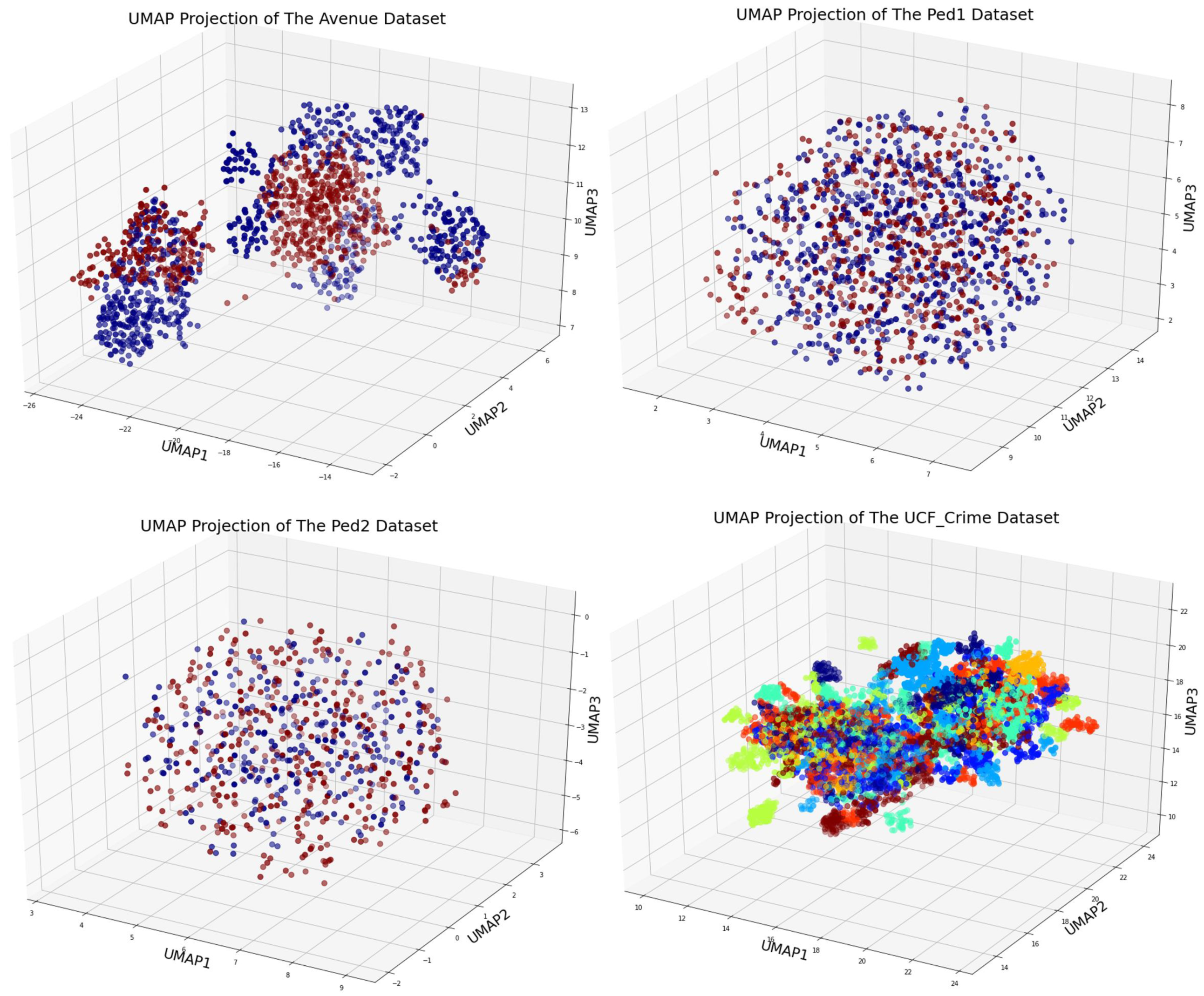

Figure 4. UMap data visualization of UCSD, CUHK, and UCF Crime datasets.
Figure 4. UMap data visualization of UCSD, CUHK, and UCF Crime datasets.
Mathematics 10 01555 g004

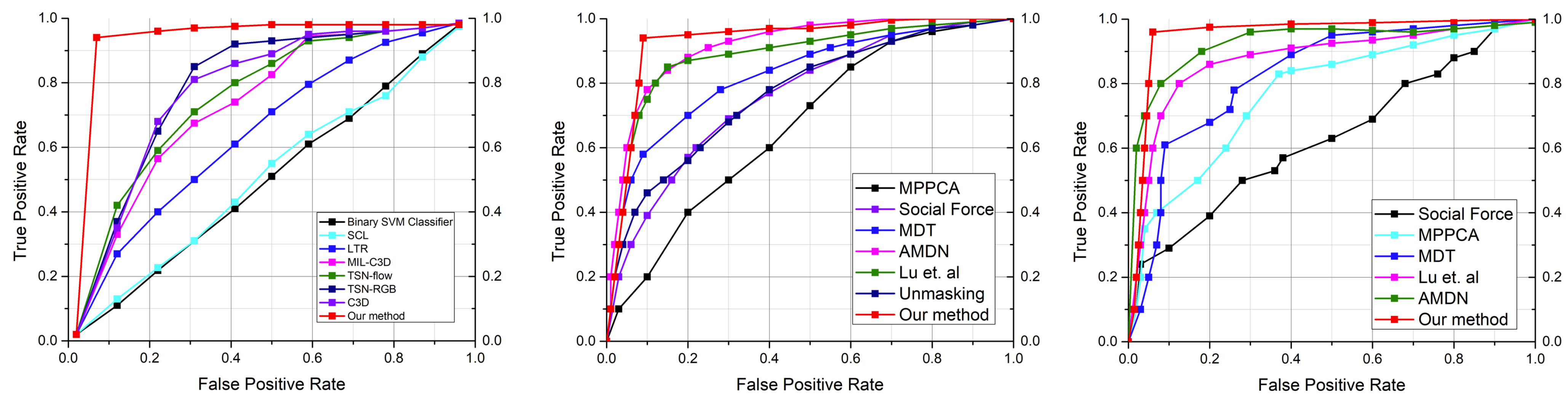

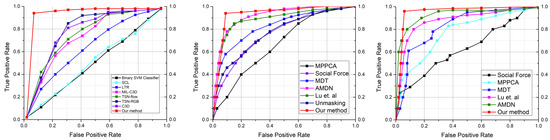

Figure 5. The proposed approach is compared to other existing approaches using the UCFcrime, UCSDped1, and UCSDped2 dataset. The ROC curves for state-of-the-art methods and our method are represented in the color codes.
Figure 5. The proposed approach is compared to other existing approaches using the UCFcrime, UCSDped1, and UCSDped2 dataset. The ROC curves for state-of-the-art methods and our method are represented in the color codes.
Mathematics 10 01555 g005

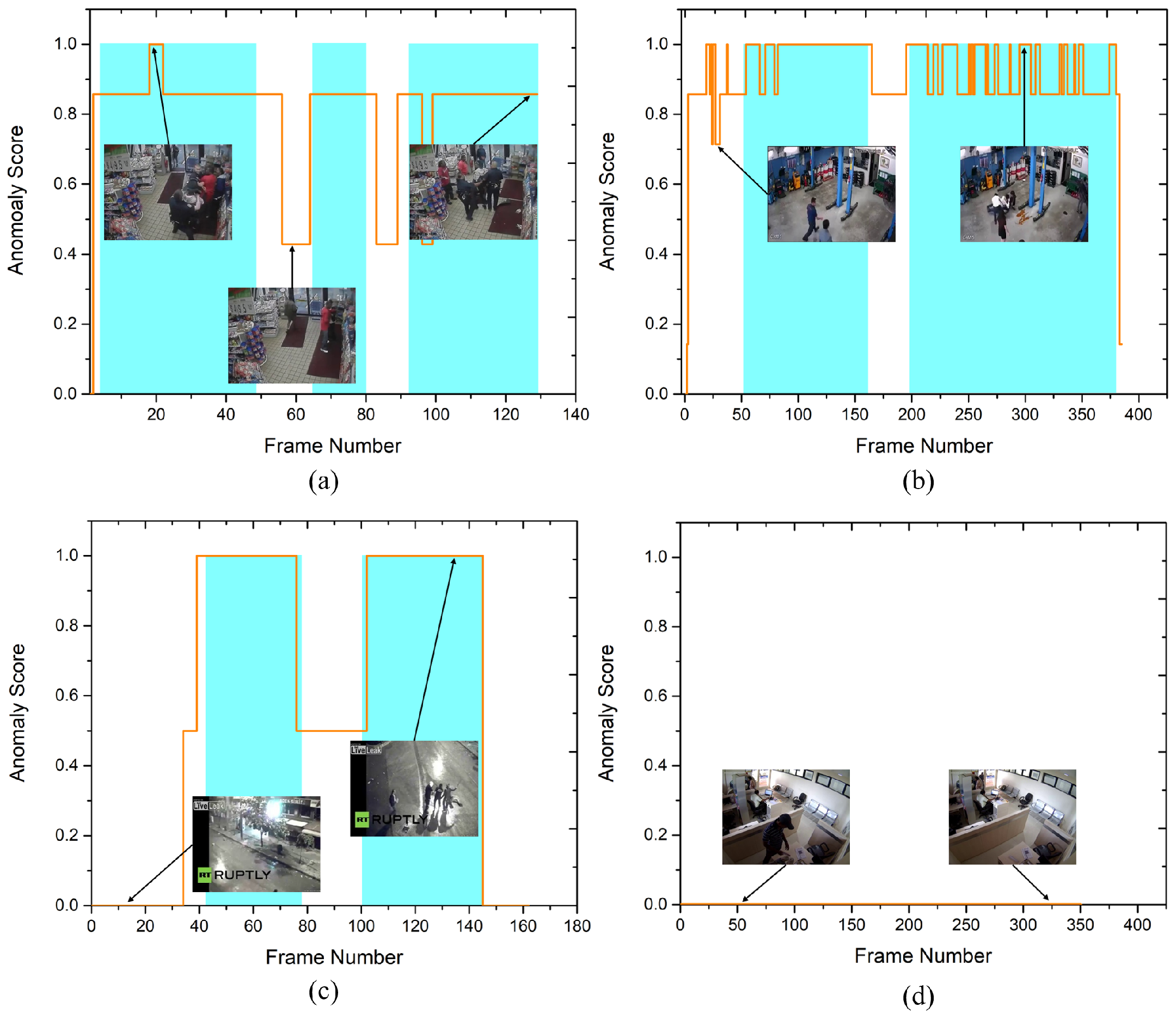

Figure 6. The curves of anomaly score, for four test videos from the test set of the UCF-Crime dataset (a) Arrest048-x264, (b) Fighting047-x264, (c) Assault051-x264, and (d) Normal-Videos-027-x264. Cyan regions denote the ground truth abnormal frames. For better representation, we normalized anomaly scores for every video into the range of [0, 1]. This demonstrates that, as anomalies arise, the anomaly scores increase. (For best results, view in color).
Figure 6. The curves of anomaly score, for four test videos from the test set of the UCF-Crime dataset (a) Arrest048-x264, (b) Fighting047-x264, (c) Assault051-x264, and (d) Normal-Videos-027-x264. Cyan regions denote the ground truth abnormal frames. For better representation, we normalized anomaly scores for every video into the range of [0, 1]. This demonstrates that, as anomalies arise, the anomaly scores increase. (For best results, view in color).
Mathematics 10 01555 g006

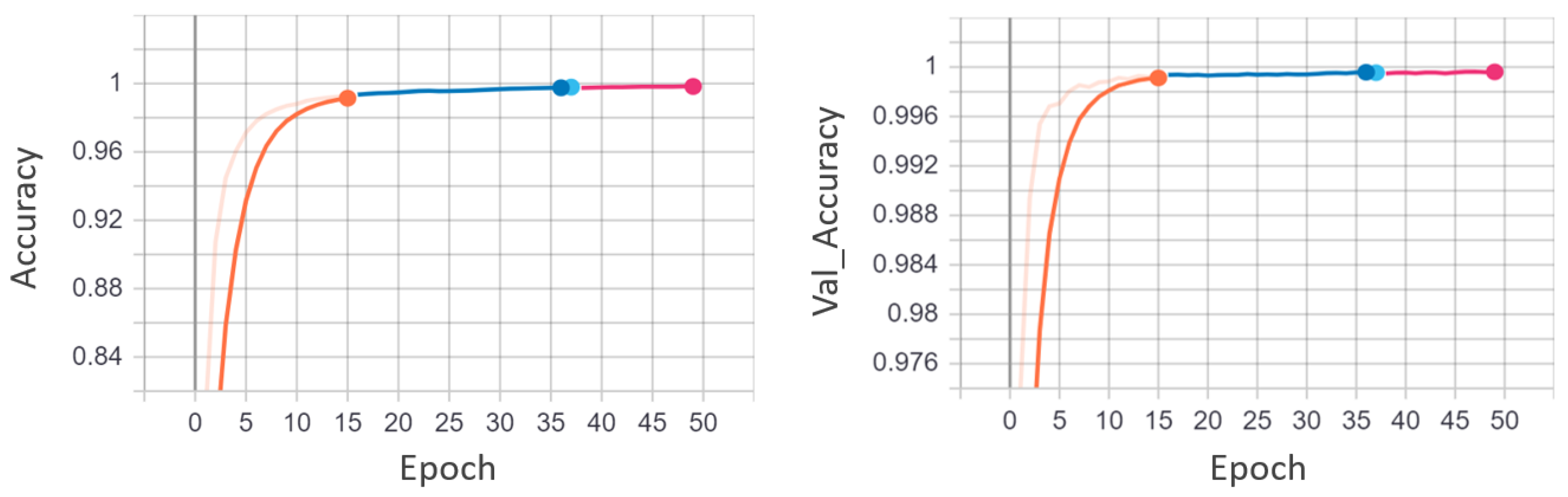

Figure 7. EADN training and validation accuracy graphs utilizing the UCF-Crime dataset. The training accuracy and the validation accuracy are plotted against the number of epochs. It is apparent from the graph that the model gets an optimal accuracy after 35 epochs. After 35 epochs, the model tends to overfit.
Figure 7. EADN training and validation accuracy graphs utilizing the UCF-Crime dataset. The training accuracy and the validation accuracy are plotted against the number of epochs. It is apparent from the graph that the model gets an optimal accuracy after 35 epochs. After 35 epochs, the model tends to overfit.
Mathematics 10 01555 g007

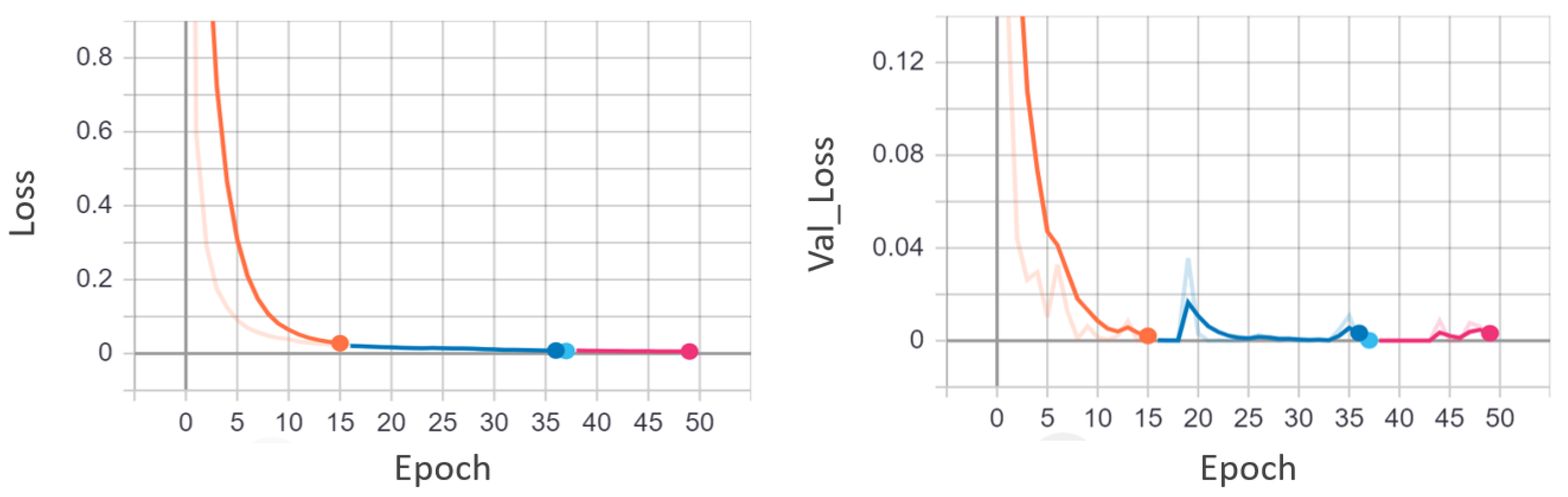

Figure 8. EADN training and validation loss graphs utilizing the UCF-Crime dataset. The training loss and the validation loss are plotted against the number of epochs. It is apparent from the graph that the model has a minimum loss after 35 epochs. After 35 epochs, the model tends to overfit.
Figure 8. EADN training and validation loss graphs utilizing the UCF-Crime dataset. The training loss and the validation loss are plotted against the number of epochs. It is apparent from the graph that the model has a minimum loss after 35 epochs. After 35 epochs, the model tends to overfit.
Mathematics 10 01555 g008
Table 1. Summary of the input and output parameters in the proposed framework.
Table 1. Summary of the input and output parameters in the proposed framework.
SymbolDescription
mRows.
nColumns.
B D ( f t , f t + 1 ) Block Difference between the corresponding blocks of the consecutive frames.
H ( f t , j , c , b ) Histogram value for the jth level, in the channel c at the bth block in the frame t.
H ( f t + 1 , j , c , b ) Histogram value for the jth level, in the channel c at the bth block in the frame t + 1 .
N B Total number of blocks.
N H Total number of possible gray levels.
D ( f t , f t + 1 ) Histogram difference between two consecutive frames.
W k Block’s weight at ( k ) .
M D Mean of the histogram difference.
S T D Standard variance of the histogram difference.
τ Threshold.
xReference frame.
T v Total number of video sequences.
m a x ( i ) Searching for the maximum difference within a shot.
L W C N N Light-Weight Convolutional Neural Network.
F t Spatial feature representation series.
h t + n Temporal feature representation series.
h t Hidden state of the LSTM layer at current time step t.
h t 1 Hidden state of the LSTM layer at previous time step t 1 .
i t Input gate at time t.
f t Forget gate at time t.
O t Output gate at time t.
gRecurrent unit.
C t Memory cell.
Table 2. Description of L W C N N architecture used in EADN framework.
Table 2. Description of L W C N N architecture used in EADN framework.
Layer TypeNumber of FiltersSizePadding ValueStrideActivationOutput Shape
Time Distributed Conv2D1643 × 3same2 × 2Relu5, 112, 112, 64
Time Distributed Conv2D2643 × 3same2 × 2Relu5, 56, 56, 64
Time Distributed MaxPooling2D112 × 2-2 × 2-5, 28, 28, 64
Time Distributed Conv2D31283 × 3same2 × 2Relu5, 14, 14, 128
Time Distributed MaxPooling2D212 × 2-2 × 2-5, 7, 7, 128
Time Distributed Flatten1-----56272
Table 3. The UCSD Pedestrian and Avenue dataset’s statistical information.
Table 3. The UCSD Pedestrian and Avenue dataset’s statistical information.
DatasetNo. of VideosTraining SetTest SetAverage FramesDataset LengthExample of Anomalies
UCSDPet17034362015 minBikers, small carts, walking across walkways
UCSDPet22816121635 minBikers, small carts, walking across walkways
Avenue3716218395 minRun, throw, new object
Table 4. The UCF-Crime dataset’s statistical information.
Table 4. The UCF-Crime dataset’s statistical information.
Anomaly’s TypesNo. of VideosTraining SetTest Set
Abuse50482
Arrest504512
Arson504121
Assault504721
Explosion502921
Fighting504521
Shooting502721
Shoplifting502921
Vandalism504521
Burglary1008721
Stealing1009521
Accident15012721
Robbery1501455
Total950810140
Table 5. A frame-based AUC comparison of accuracies of the EADN framework against existing approaches based on the UCSDped1, UCSDped2, CUHK Avenue, and UCF crime datasets.
Table 5. A frame-based AUC comparison of accuracies of the EADN framework against existing approaches based on the UCSDped1, UCSDped2, CUHK Avenue, and UCF crime datasets.
Publication YearMethodUCSDped1 [25]UCSDped2 [25]CUHK Avenue Dataset [4]UCF-Crime Dataset [5]
2009Kim and Grauman [27]5969.3
2009Mehran et al. [8]67.555.6
2010Mahadevan et al. [25]81.182.9
2013Lu et al. [4]91.8- 65.51
2016Hasan et al. [15]81.090.070.250.6
2017Ionescu et al. [32]68.482.280.6
2017Hinami et al. [28]-92.2
2017Luo et al. [29]-92.281.7
2017Chong & Tay [33] 80.3
2017Xu et al. [31]92.190.8
2018Binary SVM classifier. [5] 50.0
2018MIL-C3D without constraints [5] 74.44
2018MIL-C3D with constraints [5] 75.41
2018Liu et al. [16]83.195.484.9
2019Zhong et al. [22]-93.2 81.08
2019TSN-Optical Flow [22] 92.8 78.08
2019Zhou et al. [34] 86.1
2019Spatiotemporal [35] 63.0
2019Zhou et al. [34]83.394.986.1
2019Lee et al. [36] 96.690.0
2020Zaheer et al. [37] 94.47 79.54
2020Singh et al. [38]94.695.992.7
2020Tang et al. [39]82.696.283.7
2020Ganokratanaa et al. [40]98.595.587.9
2021Maqsood et al. [41] 45.0
2021Ullah et al. [42] 85.53
2021Wu et al. [43]85.992.4
2021Qiang et al. [44]85.297.185.8
2021Madan et al. [45] 86.9
2021Tian et al. [46] 96.5 84.30
2022EADN (Ours)93.097.097.098.0
Table 6. False alarm rate of the proposed EADN framework against state-of-the-art methods. In addition to the UCF-Crime dataset, EADN gives 0.08, 0.06, and 0.04 false alarm rates on the UCSDped1, UCSDped2, and the CUHK Avenue datasets.
Table 6. False alarm rate of the proposed EADN framework against state-of-the-art methods. In addition to the UCF-Crime dataset, EADN gives 0.08, 0.06, and 0.04 false alarm rates on the UCSDped1, UCSDped2, and the CUHK Avenue datasets.
MethodUCF-Crime Dataset [5]
MIL-C3D with constraints [5]1.9
Hasan et al. [15]27.2
Lu et al. SCL [4]3.1
C3D [22]2.8
TSN-RGB [22]0.1
TSN-Optical flow [22]1.1
EADN (Ours)0.03
Table 7. Evaluation of EADN in terms of parameters, model size, and time complexity against the state-of-the-art methods.
Table 7. Evaluation of EADN in terms of parameters, model size, and time complexity against the state-of-the-art methods.
MethodParameter Count
(in million)
Model Size
(MB)
Latency/Per Sequence
(s)
C3D [22]-313-
VGG-19+multi-layer BD-LSTM [47]143605.50.22
Inception V3+ multi-layer BD-LSTM [48]23148.5-
ResNet-50 + multi-layer BD-LSTM [42,49]251430.20
EADN (Ours)14.1453.90.20
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ul Amin, S.; Ullah, M.; Sajjad, M.; Cheikh, F.A.; Hijji, M.; Hijji, A.; Muhammad, K. EADN: An Efficient Deep Learning Model for Anomaly Detection in Videos. Mathematics 2022, 10, 1555. https://doi.org/10.3390/math10091555

AMA Style

Ul Amin S, Ullah M, Sajjad M, Cheikh FA, Hijji M, Hijji A, Muhammad K. EADN: An Efficient Deep Learning Model for Anomaly Detection in Videos. Mathematics. 2022; 10(9):1555. https://doi.org/10.3390/math10091555

Chicago/Turabian Style

Ul Amin, Sareer, Mohib Ullah, Muhammad Sajjad, Faouzi Alaya Cheikh, Mohammad Hijji, Abdulrahman Hijji, and Khan Muhammad. 2022. "EADN: An Efficient Deep Learning Model for Anomaly Detection in Videos" Mathematics 10, no. 9: 1555. https://doi.org/10.3390/math10091555

APA Style

Ul Amin, S., Ullah, M., Sajjad, M., Cheikh, F. A., Hijji, M., Hijji, A., & Muhammad, K. (2022). EADN: An Efficient Deep Learning Model for Anomaly Detection in Videos. Mathematics, 10(9), 1555. https://doi.org/10.3390/math10091555

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
