Practical Evaluation of Lyndon Factors via Alphabet Reordering

Abstract

We evaluate the influence of different alphabet orderings on the Lyndon factorization of a string. Experiments with Pizza&Chili datasets show that for most alphabet reorderings, the number of Lyndon factors is usually small, and the length of the longest Lyndon factor can be as large as the input string, which is unfavorable for algorithms and indexes that depend on the number of Lyndon factors. We present results with randomized alphabet permutations that can be used as a baseline to assess the effectiveness of heuristics and methods designed to modify the Lyndon factorization of a string via alphabet reordering.

1. Introduction

A non-empty primitive string s of length n over an ordered alphabet $\Sigma$ is a Lyndon word if s is smaller than all its proper suffixes in alphabetic order, or alternatively, smaller than all its conjugates [1]. The Lyndon factorization [2] partitions a string s uniquely into substrings (factors) $w_1,w_2,\dots ,w_k$ such that $s=w_1·w_2\cdots w_k$, and each $w_i$ is a Lyndon word with $w_1\ge w_2\ge \cdots \ge w_k$.

Lyndon factorization has important applications in combinatorics and string algorithms (see [1,3,4]). In the context of suffix sorting, the relative order of suffixes of a string inside each Lyndon factor $w_i$ is the same as their order in the original string [5], which allows the design of divide-and-conquer algorithms (e.g., [5,6]) for computing the suffix array [7]. Lyndon factors can also be used to compute indexes (e.g., [8]) based on the Bijective Burrows–Wheeler transform [9]. The efficiency of these algorithms, however, depends on the number and length of the Lyndon factors and may deteriorate when the longest factor is large [5]. In Section 4, we evaluate the Lyndon factorization of strings from Pizza&Chili datasets [10] and we show in Table 1 that this unfavorable situation is common in practice.

Although the Lyndon factorization of a string s is fixed and unique, it depends on the given alphabet ordering. Recent approaches (e.g., [11,12,13]) have investigated how to modify (increase or reduce) the number of Lyndon factors by reordering the symbols in the alphabet (considering a new alphabetic order for string comparisons). Very recently, Gibney and Thankachan [14] showed that the problem of finding an alphabet ordering to either minimize or maximize the number of factors is NP-complete.

In this paper, we evaluate in practice different alphabet orderings to modify the Lyndon factorization of a string.

In Section 3, we present two variants of a simple heuristic for reordering the alphabet based on the most frequent symbols of the input string. In Section 4, we compare our heuristic with results by Clare and Daykin [11] and we show that, although simpler, ours produces results close to those presented by Clare and Daykin’s method in most cases (even though not satisfactorily, as we discuss next). Unfortunately, we were not able to execute methods based on the evolutionary search techniques presented in [12,13] due to their high running time complexity.

In Section 4, we conclude that no method consistently modifies the Lyndon factorization via alphabet reordering in practice. Additionally, we generate uniform random distributions of alphabetic orderings to evaluate their Lyndon factorizations. Based on these results, we provide a baseline that can be used to assess the effectiveness of heuristics and optimization methods that aim to modify the number of Lyndon factors and the length of the longest Lyndon factor via alphabet reordering.

2. Background

Let $s=s\left[1\right]s\left[2\right]\dots s\left[n\right]$ be a string of size $\left|s\right|=n$ over an alphabet $\Sigma =\{{\alpha }_1,{\alpha }_2,\dots ,{\alpha }_{\sigma }\}$, with the ordering ${\alpha }_1<{\alpha }_2<\cdots <{\alpha }_{\sigma }$, and $\sigma =|\Sigma |$. We denote the set of all strings of symbols in $\Sigma$ by ${\Sigma }^{*}$.

A substring of s is defined as $s[i,j]=s\left[i\right]\dots s\left[j\right]$, with $1\le i<j\le n$. In particular, the substring $s[1,i]$ is a prefix and $s[i,n]$ is a suffix of s. A prefix or suffix of s is called proper if it is not equal to s. We say that $u\in {\Sigma }^{+}$ is a factor of s if u is equal to some non-empty substring $s[i,j]$.

A string $s\in {\Sigma }^{*}$ is smaller than or equal to another string $v\in {\Sigma }^{*}$, denoted by $s\le v$, if either s is a prefix of v or $s=w\alpha z_1$ and $v=w\beta z_2$ with $w,z_1,z_2\in {\Sigma }^{*}$ (possibly empty) and the symbols $\alpha ,\beta \in \Sigma$, with $\alpha <\beta$.

We denote by $u^k$ the repeated concatenation of a string u, $k>1$ times. A non-empty string u is a repetition if there exists a string v and some integer $k>1$ such that $u=v^k$, otherwise, u is primitive. If a string is primitive, all its conjugates (circular rotations) are distinct.

A primitive string s is a Lyndon word if it is lexicographically smaller than all its proper suffixes [2], or smaller than all its conjugates. For example, $s=abcacb$ is a Lyndon word. A Lyndon factor of s is a factor w that is a Lyndon word itself.

Theorem 1

(Lyndon Factorization). Any string $s\in {\Sigma }^{*}$ has a unique factorization $s=w_1{w}_2\cdots w_k$, such that $w_1\ge w_2\ge \cdots \ge w_k$ is a non-increasing sequence of Lyndon words.

Herein, we denote the number of Lyndon factors as k, and the length of the longest factor as $m={max}_{1\le i\le k}\left(\right|w_i\left|\right)$. The Lyndon factorization can be computed in linear time by using Duval’s algorithm [15].

For example, given $s=alohomora$ over $\Sigma =\{a,h,l,m,o,r\}$, its Lyndon factorization is

$$alohomor·a$$

with $k=2$ Lyndon factors and longest factor length $m=8$.

It is easy to see that, for an alphabet $\Sigma =\{a,b\}$, with $\sigma =2$, the minimum number of Lyndon factors for a string s of length n is $k=1$ with $m=n$, which is achieved by $s=a^{n-1}b$, while the maximum number of Lyndon factors is $k=n$ with $m=1$, achieved by $s=b{a}^{n-1}$.

In this paper, we are interested in evaluating these values for long text datasets and ASCII alphabets.

3. Reordering the Alphabet

The problem of reordering (permuting) the symbols of a given alphabet $\Sigma =\{{\alpha }_1,{\alpha }_2,\dots ,{\alpha }_{\sigma }\}$, with the original ordering ${\alpha }_1<{\alpha }_2<\cdots <{\alpha }_{\sigma }$, is to create another alphabet ${\Sigma }_{\pi }=\{{\alpha }_{\pi \left[1\right]},{\alpha }_{\pi \left[2\right]},\dots ,{\alpha }_{\pi \left[\sigma \right]}\}$ with the same $\sigma$ symbols of $\Sigma$ permuted in a different order, such as

$${\alpha }_{\pi \left[1\right]}<{\alpha }_{\pi \left[2\right]}<\cdots <{\alpha }_{\pi \left[\sigma \right]}.$$

As a consequence, two strings in ${\Sigma }^{*}$ may have different lexicographic orders when considering them from ${\Sigma }_{\pi }^{*}$. For example, given the strings $u=aloho$ and $v=mora$, we have that $u<v$ when $u,v\in {\Sigma }^{*}$, while $u>v$ when $u,v\in {\Sigma }_{\pi }^{*}$, with ${\Sigma }_{\pi }=\{r,o,m,l,h,a\}$, where $r<o<m<l<h<a$.

The Lyndon factorization of s depends on the ordering of symbols in $\Sigma$. Therefore, Lyndon factorizations can differ when strings are drawn from different alphabet orderings.

For example, suppose that $s=alohomora$ was written over the alphabet permutation ${\Sigma }_{\pi }=\{r,o,m,l,h,a\}$. The Lyndon factorization of $s\in {\Sigma }_{\pi }^{*}$ is

$$a·l·oh·om·o·ra$$

with $k=6$ and $m=2$.

Whereas, another possible alphabet ordering ${\Sigma }_{{\pi }^{\prime }}=\{m,r,a,h,l,o\}$, would result the following Lyndon factorization for $s\in {\Sigma }_{{\pi }^{\prime }}^{*}$

$$aloho·mora$$

with $k=2$ and $m=5$

A natural question is whether it is possible to design a efficient method for reordering (permuting) the alphabet to modify the Lyndon factorization, increasing or decreasing k and m based on the input string s. For small alphabets, such as DNA, the number of possible choices is small $4!=24$, but for larger alphabets, such as ASCII, such a brute-force approach becomes unfeasible.

This problem has been recently investigated by Clare et al. in [11,12,13] with greedy and evolutionary algorithms (on short sequences in the range of thousands of symbols).

In the next section, we present a straightforward heuristic for reordering the alphabet based on frequencies of symbols in s, which produce similar results to those obtained by Clare and Daykin’s method [11].

3.1. Most/Least Frequent Symbol

Let us consider the Parikh vector, $\mathsf{p}\left(s\right)$, for the string s, where $\mathsf{p}\left(s\right)$ gives the number of occurrences of each ${\alpha }_i\in \Sigma$ in s. The most frequent symbol (MFS) method assigns to $\pi \left[i\right]$ the i-th most frequent symbol in $\mathsf{p}\left(s\right)$, whereas the least frequent symbol (LFS) method assigns to $\pi \left[i\right]$ the i-th least frequent symbol in $\mathsf{p}\left(s\right)$.

A new alphabet ordering ${\Sigma }_{\pi }=\{{\alpha }_{\pi \left[1\right]},{\alpha }_{\pi \left[2\right]},\dots ,{\alpha }_{\pi \left[\sigma \right]}\}$ is created accordingly, such as ${\alpha }_{\pi \left[1\right]}<{\alpha }_{\pi \left[2\right]}<\cdots <{\alpha }_{\pi \left[\sigma \right]}$.

In case different symbols have the same values in $\mathsf{p}\left(s\right)$, we consider their original ranks in $\Sigma$.

For example, given $s=alohomora$ over $\Sigma =\{a,h,l,m,o,r\}$. We have $\mathsf{p}\left(s\right)=[2,1,1,1,3,1]$ that give us the following alphabets reorderings:

$${\Sigma }_{\mathtt{MFS}}=\{o,a,h,l,m,r\}\mathrm{and}{\Sigma }_{\mathtt{LFS}}=\{h,l,m,r,a,o\}$$

The Lyndon factorization of $s\in {\Sigma }_{\mathtt{MFS}}^{*}$ is

$$al·ohomora$$

with $k=2$ and $m=7$, whereas the factorization of $s\in {\Sigma }_{\mathtt{LFS}}^{*}$ is

$$a·lo·homora$$

with $k=3$ and $m=6$.

4. Experiments

We evaluate the Lyndon factorization of strings from Pizza&Chili datasets (https://pizzachili.dcc.uchile.cl/, accessed on 1 November 2022). The source-code of methods MFS and LFS (Section 3.1) is freely available on Github (https://github.com/felipelouza/remap/, accessed on 1 November 2022).

Table 1 shows the alphabet size (Column 2), string length in MB (Column 3), number of Lyndon factors (Column 4) and the longest Lyndon factor length in percentage to the string length (Column 5) of each dataset. We considered the standard alphabet ordering in this first experiment.

Table 1. Experiments with Pizza&Chili datasets considering the standard alphabet ordering. The datasets einstein-de, kernel, fib41 and cere are highly repetitive texts. The dataset english.1G is the first 1 GB of the original english dataset. Column 2 shows the alphabet size.

Dataset	σ	Size in MB	Number of Factors	Longest Factor
sources	230	201	30	52.00%
dblp	97	282	17	37.93%
dna	16	385	18	74.75%
english.1GB	239	1047	30	57.28%
proteins	27	1129	24	80.71%
einstein-de	117	88	44	40.39%
kernel	160	246	33	41.73%
fib41	2	256	21	61.68%
cere	5	440	22	79.98%

Table 1. Experiments with Pizza&Chili datasets considering the standard alphabet ordering. The datasets einstein-de, kernel, fib41 and cere are highly repetitive texts. The dataset english.1G is the first 1 GB of the original english dataset. Column 2 shows the alphabet size.

Dataset	σ	Size in MB	Number of Factors	Longest Factor
sources	230	201	30	52.00%
dblp	97	282	17	37.93%
dna	16	385	18	74.75%
english.1GB	239	1047	30	57.28%
proteins	27	1129	24	80.71%
einstein-de	117	88	44	40.39%
kernel	160	246	33	41.73%
fib41	2	256	21	61.68%
cere	5	440	22	79.98%

Notice that the number of Lyndon factors is small even for larger strings (english.1GB and proteins) and the longest Lyndon factor can be as large as the input string. This situation is particularly unfavorable for divide-and-conquer algorithms that take advantage of the input string partitioned into Lyndon factors to compute fundamental data structures for string processing, such as the suffix array (e.g., [5,6]).

4.1. Alphabet Reordering

We compared the methods MFS and LFS (Section 3.1) with the greedy algorithm (with and without backtracking) proposed in [11]. Unfortunately, we were not able to run the evolutionary methods proposed in [12,13] due to their high time complexity (the authors presented experiments only with very small inputs). We also included results obtained from 100 samples drawn from a uniform distribution of permutations. These random results are presented as box plots in the figures.

Figure 1 shows the number of Lyndon factors resulting for each method compared to the number of factors presented in Table 1 (standard alphabet ordering). Results for dataset cere were omitted, MFS and random generated more than 7000 factors, while LFS, greedy and greedy with backtracking generated about 2000 factors. Despite this case, the resulting number of factors is still small for all alphabet orderings, at most twice the number created by the original alphabet order.

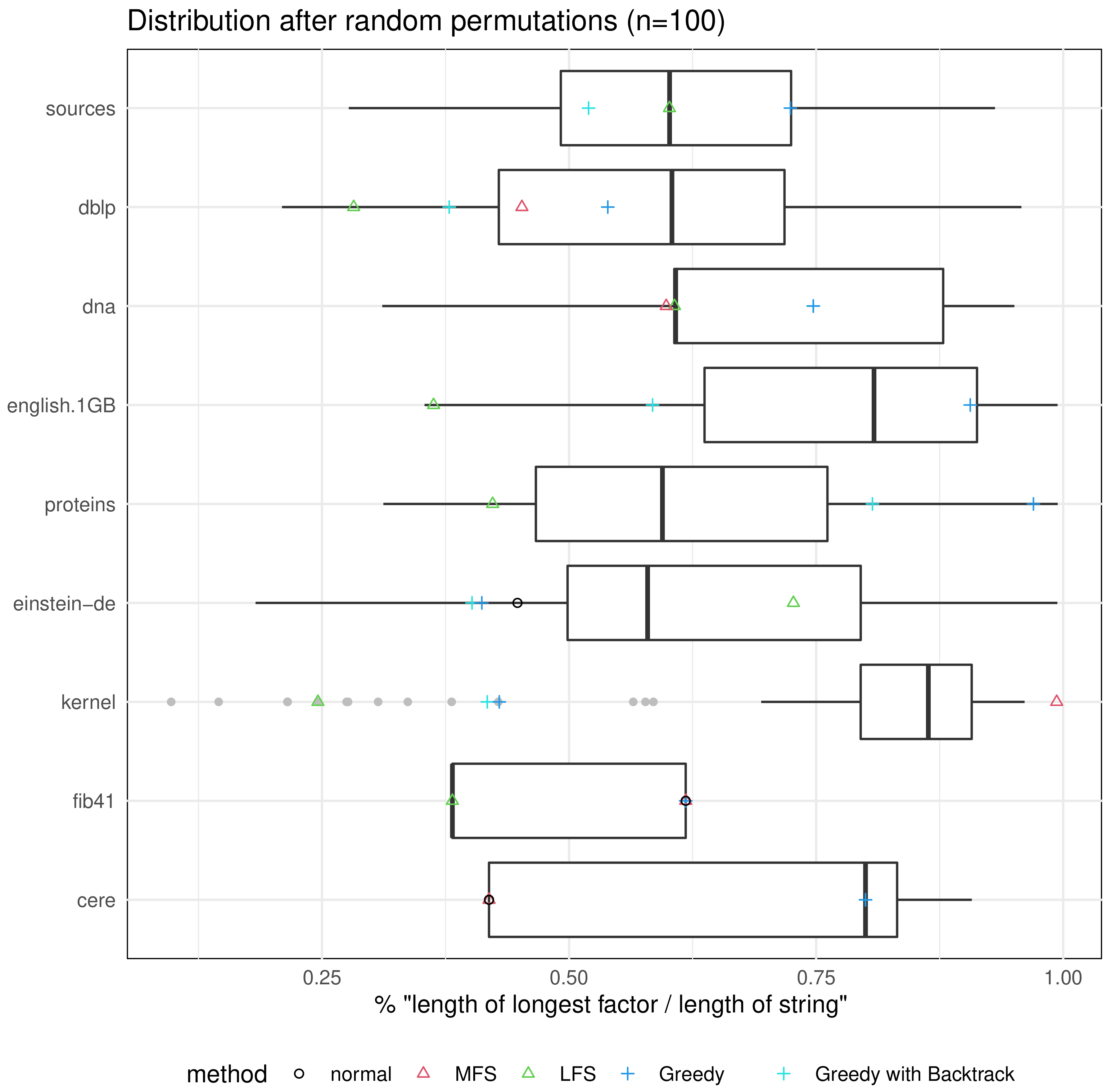

Figure 2 shows the lengths of the longest Lyndon factors as a percentage of the total length of the input string for each method. Notice that the length of the longest factor can be as large as the length of the input string. Note that in most cases, the longest factor is not smaller than $33\%$ of the input string. Additionally, results of the straightforward methods MFS and LFS were close to the greedy algorithms proposed by Clare and Daykin [11].

We remark that no method consistently always increased (or decreased) neither the number of Lyndon factors, nor their maximum lengths.

4.2. Randomized Alphabet

Table 2. Number of Lyndon factors for random permutations of the alphabet. Column 2 shows the number of factors for the original alphabet. Columns 3 and 7 show the minimum and maximum number of factors obtained with 100 random permutations of the alphabet. Columns 4, 5 and 6 show the first quartile (Q1), the median and the third quartile (Q3) of the distribution.

	Original	Min	Q1	Median	Q3	Max
sources	30	15	21	26	31	54
dblp	17	13	17	21	25	43
dna	18	17	20	23	24	35
english.1GB	30	11	7	13	19	28
proteins	24	13	22	25	29	43
einstein-de	44	21	43	57	71	123
kernel	33	10	18	22	28	39
fib41	21	22	22	22	41	41
cere	22	16	2192	7718	7724	7728

and

Table 3. Longest Lyndon factors (in percentage of the total length of the string) for random permutations of the alphabet. Column 1 shows the longest factor of the original alphabet. Columns 3 and 7 show the minimum and maximum longest factors obtained with 100 random permutations of the alphabet. Columns 4, 5 and 6 show the first quartile (Q1), the median and the third quartile (Q3) of the distribution.

	Original	Min	Q1	Median	Q3	Max
sources	52.00%	27.72%	49.19%	60.20%	72.50%	93.15%
dblp	37.93%	20.98%	42.96%	60.50%	71.91%	95.91%
dna	74.75%	31.11%	60.68%	60.82%	87.91%	95.11%
english.1GB	57.28%	34.66%	62.43%	79.23%	89.45%	97.43%
proteins	80.71%	31.22%	46.65%	59.46%	76.16%	99.46%
einstein-de	40.39%	18.37%	50.11%	58.25%	79.93%	99.93%
kernel	41.73%	9.74%	79.51%	86.36%	90.74%	96.09%
fib41	61.68%	38.12%	38.12%	38.12%	61.68%	61.68%
cere	79.98%	41.89%	41.89%	79.98%	83.18%	90.74%

summarize results of the 100 samples of randomized alphabet permutations (method random). We present a baseline that can be used to assess heuristics and optimization methods for increasing/decreasing Lyndon factors via alphabet reordering based on these results. The histograms of these results can be found in Figure 3 and Figure 4

We state that any maximization method can be considered effective if it consistently selects an alphabet permutation ${\Sigma }_{\pi }$ that results in a number of Lyndon factors (or the longest factor length) larger than most other random permutations in Q3 (third quartile, >75%). Similarly, a minimization method will be effective if the selected alphabet permutation provides a number of Lyndon factors (or the longest factor length) smaller than most other permutations in Q1 (first quartile, <25%).

5. Conclusions

In this paper, we evaluated the Lyndon factorization of strings from Pizza&Chili [10] for different alphabet reorderings. We showed that in practice, the number of Lyndon factors is usually small, and the length of the longest factors can be as large as the input string. This suggests that perhaps the Lyndon factorization may not be an effective way of breaking down strings into manageable pieces without alphabet reordering, which could potentially lead to even more efficient ways of working with larger strings. We also evaluated randomized alphabet permutations, which can be used as a baseline to assess the effectiveness of heuristics and methods designed to modify the Lyndon factorization via alphabet reordering.
