In this section, a comprehensive evaluation of the proposed spectral S&P patch masking for self-supervised speech representation learning by performing six downstream tasks is conducted.
4.1. Dataset Description
We standardize the audio sampling rate to 16 kHz to ensure that all speech data used in the experiments have a consistent quality.
Table 1 shows all the datasets used in this paper. Details of various datasets used in this paper are as below.
(1) LibriSpeech: The LibriSpeech dataset [
33] is one of the widely used benchmarks for speech recognition research. This dataset encompasses a large-scale collection of English speech recordings totaling approximately 960 h from audiobooks. The training set comprises three subsets: train-clean-100, train-clean-360, and train-other-500. The “clean” designation indicates the absence of noise, while “other” denotes the presence of noise. The numbers 100, 360, and 500 refer to the respective hour durations of the subsets. For evaluation purposes, the dataset includes the dev-clean, dev-other, test-clean, and test-other subsets. In our experiments, we utilize a total of 960 h from the LibriSpeech dataset for pretraining. For the downstream tasks, the train-clean-100 subset is used for training the phoneme classification and English ASR tasks, and the dev-clean and test-clean subsets are used for evaluation.
(2) TIMIT: The TIMIT [
40] dataset is a well-known corpus used for speech recognition and acoustic–phonetic studies. This dataset consists of recordings from 630 American English speakers pronouncing phonetically rich sentences. In our experiments, we only use this dataset for conducting phoneme classification for downstream tasks. The TIMIT dataset is divided into three subsets: “train”, “dev”, and “test”. During our experiments, we train the downstream tasks using the training set and determine the best-performing checkpoint on the dev set to assess the performance on the test set.
(3) Speech Commands: The Speech Commands [
41] dataset is usually used in the field of keyword spotting, which is specifically designed to recognize and classify spoken commands of keywords. The dataset comprises recordings of short spoken commands from a diverse set of speakers, covering different categories such as “yes”, “no”, “up”, “down”, “left”, “right”, “stop”, “go”, and more. In our experiments, we train the keyword spotting downstream model using the training set and then evaluate the performance of the model on the development set and test set. Note that the Speech Commands dataset is not utilized for pretraining in our experiments.
(4) VoxCeleb1: The VoxCeleb1 [
42] dataset is an audio–visual dataset that contains more than 100,000 utterances from 1251 celebrities. These utterances are extracted from videos on YouTube. The VoxCeleb1 dataset is widely used for tasks such as speech recognition and speaker identification. For conducting the speaker identification downstream task, we utilize the VoxCeleb1 training and test set split provided within the dataset itself. The VoxCeleb1 dataset is not used for pretraining in this paper.
(5) KsponSpeech: To explore the effectiveness of the proposed method in languages other than English, the KsponSpeech [
34] dataset is used for both pretraining and ASR downstream tasks. By using a non-English dataset, we can evaluate the performance and generalizability of the proposed method in different linguistic contexts. This allows us to investigate the applicability and effectiveness of the method beyond the English language. The KsponSpeech dataset is widely used in the Korean ASR domain and comprises around 1000 h of speech from native Korean adult males and females, providing a total of 620,000 training examples. For pretraining, the speech samples that are shorter than 3 s were excluded, so only 517,144 samples were utilized for self-supervised learning with the proposed method. In contrast, all the KsponSpeech training samples were used to measure ASR performance in the downstream task. In the Korean ASR experiment, the ASR performance is reported on the KsponSpeech dev set.
4.2. Downstream Tasks Details
In this subsection, the respective six downstream tasks setup and training details are explained.

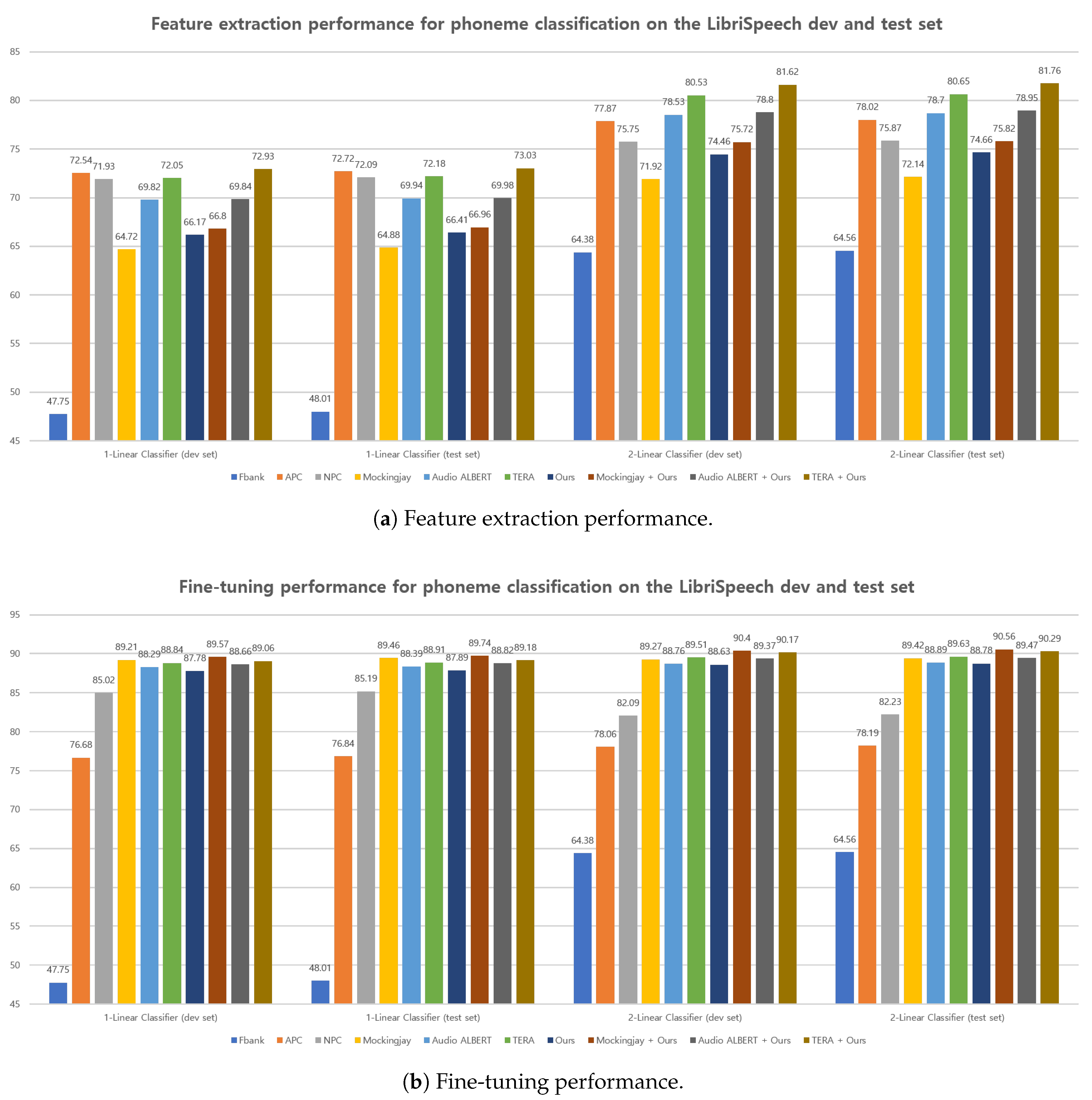

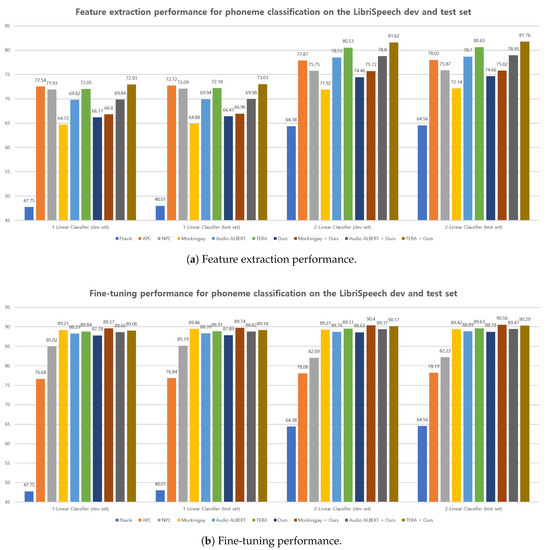

(1) LibriSpeech phoneme classification: The framewise phoneme prediction performance is evaluated using classifiers trained on the last hidden state of representations for both the feature extraction and fine-tuning stages. To ensure reproducibility, this downstream task follows previous work as described in [
39]. For the phoneme classification task on the LibriSpeech [
33] dataset, the train-clean-100 subset includes 41 possible phoneme classes used for training. To ensure consistency, we make use of aligned phoneme labels, train/test split, and the development set derived from 10% of the training set as provided in [
39]. In evaluating the LibriSpeech phoneme classification task, the phoneme classification accuracy (%) on the development and test sets employing two measurement approaches are provided:
1-linear classifier and
2-linear classifier. In the 1-linear classifier approach, a single linear classifier is employed to evaluate the linear separability of phonemes. This setting is denoted as “1-linear classifier”. Furthermore, the incorporated classifiers with a single hidden layer of 768 dimensions are referred to as the “2-linear classifier” setting. During training, the AdamW [
43] optimizer with a learning rate of 0.0002 and a batch size of 32 is used. The training process continues until 500,000 steps.

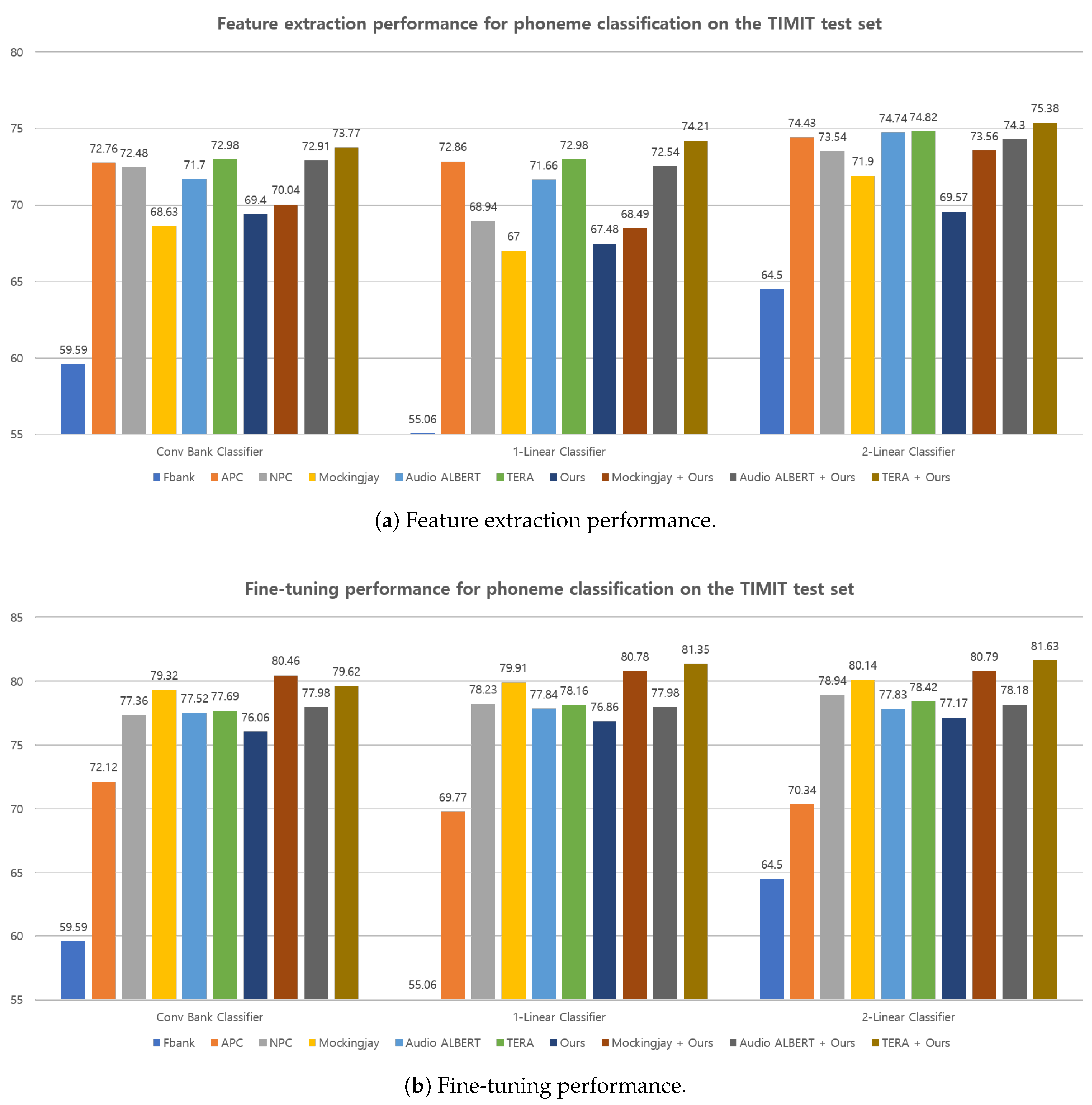

(2) TIMIT phoneme classification: For the TIMIT [
40] phoneme classification task, frame-wise phoneme predictions are estimated based on the manual phoneme transcriptions provided in the TIMIT dataset. To ensure reproducibility, the procedures outlined in previous work [
39] are followed. In experiments, the phoneme classification task is conducted using the TIMIT training set, which comprises 39 phoneme classes, as described in [
39,
44]. The phoneme classification accuracy (%) on the test set is reported using three different measurement approaches:
conv-bank classifier,
1-linear classifier, and
2-linear classifier. In the conv-bank classifier approach, a 64-dimensional hidden layer is utilized, along with three 1D-CNN layers with kernel sizes of [3, 5, 7] and channel sizes of [32, 32, 32]. This is followed by a 96-dimensional hidden layer and a phoneme classifier. This specific setting is referred to as the “conv-bank classifier” approach. The structures of both the 1-linear classifier and the 2-linear classifier are equivalent to the phoneme classification setting used for the LibriSpeech task. For training, the AdamW optimizer is employed with a learning rate of 0.0002 and a batch size of 16. The training process for this task continues until 500,000 steps.

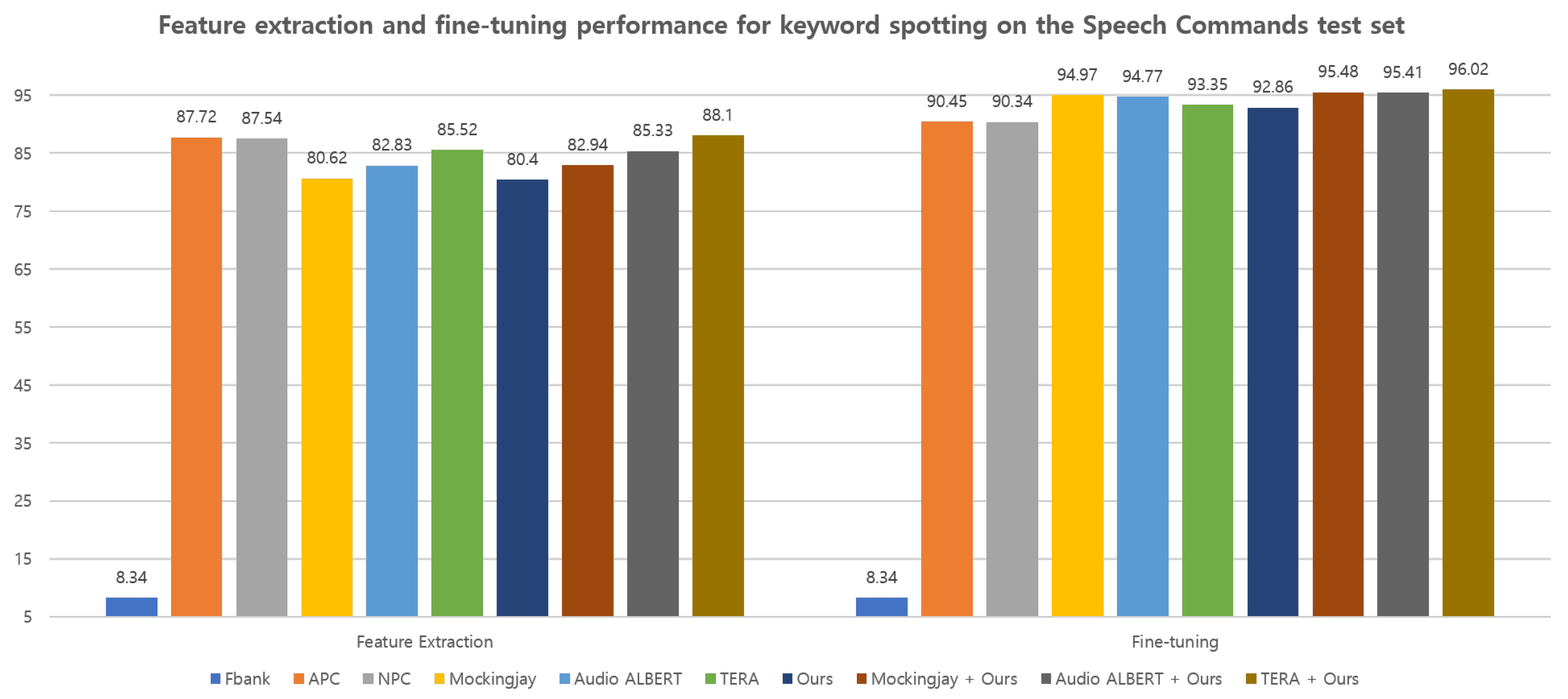

(3) Keyword spotting: To evaluate the quality of representations for the keyword spotting task in both the feature extraction and fine-tuning stages, the Speech Commands [
41] dataset is used, following the setup employed in the S3PRL toolkit [
39]. In this setup, keyword spotting is treated as a 12-class classification problem. A two 256-dimensional hidden layer feed-forward classifier is employed for this task. Prior to the output layer, mean pooling over time is applied to the representations, as described in [
39]. The evaluation metric reported is the keyword classification accuracy (%) on the test set. This evaluation allows for the assessment of the pretrained model’s representation transferability across different domains. During the keyword spotting training, the Adam optimizer [
45] is used with a learning rate of 0.0001 and a batch size of 32. The training process for this task continues until 200,000 steps.

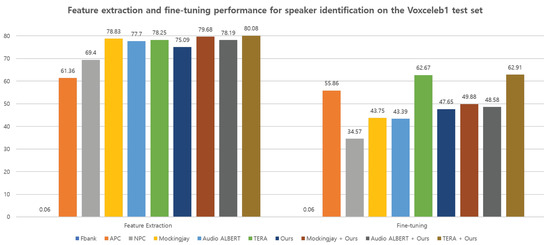

(4) Speaker identification: For evaluating the speaker identification task in both the feature extraction and fine-tuning stages, the VoxCeleb1 dataset [
42] is used. A frame-wise linear transformation is applied, followed by mean-pooling across all sequences. This is then followed by another linear transformation with a cross-entropy loss for the utterance-level task. This setting is consistent with the approach described in [
39,
46]. The evaluation metric used for this task is accuracy (%), which measures the percentage of correctly identified speakers. During training, the Adam optimizer is utilized with a learning rate of 0.0001 and a batch size of 8. Additionally, 4 gradient accumulation steps are employed until reaching 200,000 training steps.
(5) English ASR: To evaluate the English Automatic Speech Recognition (ASR) downstream performance in both the feature extraction and fine-tuning stages, the LibriSpeech dataset [
33] is utilized. Specifically, the train-clean-100, dev-clean, and test-clean subsets of LibriSpeech are used for training, validation, and testing, respectively. The performance of two types of deep neural network settings, BiGRU and BiLSTM, is measured as described in [
39,
46]. For both the BiGRU and BiLSTM settings, a 2-layer bidirectional GRU and bidirectional LSTM with a dimensionality of 1024 are used. The models are optimized using the Connectionist Temporal Classification [
47] loss on 32 English characters. Once trained, the ASR models are decoded using the LibriSpeech official 4-gram language model performed by KenLM [
48] and the Wav2letter toolkit [
49]. The evaluation metric reported for English ASR modeling on the LibriSpeech dataset is the word error rate (WER, %) on the test-clean subset. During the training stage, the Adam optimizer is used with a learning rate of 0.0001, a batch size of 32, and a beam size of 5 until 200,000 steps.
(6) Korean ASR: To evaluate the performance of Korean ASR downstream performance for feature extraction, the KsponSpeech dataset [
34] is employed. In order to compare the performance of feature extraction, the weights of various pretrained models are kept frozen. The speech representations are extracted from the hidden state of the final bidirectional Transformer encoder. These representations are then fed into the ASR model architecture described in [
50]. Specifically, an ESPNet [
51]-like Transformer model is used for ASR architecture, which includes 7-layer CNNs with 8 subsampling operations, followed by 3 Transformer encoder layers and 6 Transformer decoder layers. The maximum input length for the training set is set to 25 s, and no additional normalization or preprocessing is applied. During training, the AdamW optimizer is utilized with a learning rate of 0.001, and a Transformer learning rate scheduler [
1] is employed. The model is trained using a total batch size of 64 on 4 TITAN RTX GPUs until 50 epochs. Label smoothing [
52] is also applied during training.
Unlike English characters, the KsponSpeech dataset includes 2311 symbols, including special tokens such as "start", "end", "mask", "pad", and "unk". This makes the Korean ASR downstream task more challenging to predict accurately. To evaluate the performance of the Korean ASR downstream task, the character error rate (CER, %) is used as a commonly employed metric in Korean ASR. The CER is computed at the syllable level by measuring the Levenshtein distance [
53] between the ASR-predicted results and the corresponding labels.
