PQ-Mist: Priority Queueing-Assisted Mist–Cloud–Fog System for Geospatial Web Services

Abstract

The IoT and cloud environment renders enormous quantities of geospatial information. Fog and mist computing is the scaling technology that handles geospatial data and sends it to the cloud storage system through fog/mist nodes. Installing a mist–cloud–fog system reduces latency and throughput. This mist–cloud–fog system has processed different types of geospatial web services, i.e., web coverage service (WCS), web processing services (WPS), web feature services (WFS), and web map services (WMS). There is an urgent requirement to increase the number of computer devices tailored to deliver high-priority jobs for processing these geospatial web services. This paper proposes a priority-queueing assisted mist–cloud–fog system for efficient resource allocation for high- and low-priority tasks. In this study, WFS is treated as high-priority service, whereas WMS is treated as low-priority service. This system dynamically allocates mist nodes and is determined by the load on the system. In addition to that, the assignment of tasks is determined by priority. Not only does this classify high-priority tasks and low-priority tasks, which helps reduce the amount of delay experienced by high-priority jobs, but it also dynamically allocates mist devices within the network depending on the computation load, which helps reduce the amount of power that is consumed by the network. The findings indicate that the proposed system can achieve a significantly lower delay for higher-priority jobs for more significant rates of task arrival when compared with other related schemes. In addition to this, it offers a technique that is both mathematical and analytical for investigating and assessing the performance of the proposed system. The QoS requirements for each device demand are factored into calculating the number of mist nodes deployed to satisfy those requirements.

1. Introduction

The demand for cloud services has significantly expanded in recent years as more people have access to the technology required to run cloud computing. These days, off-device computation and storage are accomplished through the usage of cloud services [1,2]. The internet of things (IoT) and cloud environments generate an enormous number of geographical data. The harnessing technology that analyzes geospatial data and provides it to the cloud storage system via fog/mist nodes is referred to as fog and mist computing [3,4,5].

According to the report that was presented by [6,7], the size of the geospatial analytics market is projected to increase from USD 74.78 billion in 2023 to USD 148.91 billion at a CAGR of 14.77% during the forecast period of 2023–2028. So, these statements motivate us to deliver geospatial services quickly and effectively.

As a result, cloud computing, fog computing, and mist computing are currently the most common forms of computing platforms. These forms of computing make virtualized and scalable resources available through web services. Consequently, both the difficulty of deploying and maintaining web applications and the quality of the environment in which computing takes place are improved [8,9]. Cloud applications and the service providers that support them are gaining popularity as a result of the unique features that they possess. These properties include ease of maintenance, resilience, and sustainability, all of which make it possible to schedule resources and maintain performance control. To improve service delivery for various geospatial data, cloud, fog, mist, and edge computing systems, they have been adopted by many authors [10,11]. However, adding an extra layer to the conventional mist computing system is inefficient for many geospatial IoT devices. We need to evaluate each layer experimentally and analytically to make it cost-efficient and improve system performance. Geospatial IoT devices still communicate directly with cloud services, allowing for more complex computations to be performed. Cloud computing has enabled robust geospatial computing systems to share geospatial data among various parties. This cloud architecture allows many users to access geospatial data through geospatial web services (GWS) [12,13].

In a mist–cloud–fog system, particularly for GWS, the computation jobs need to be correctly divided between the mist and fog nodes. This ensures that the mist, the fog devices, and the cloud can coordinate effectively and adequately. As a result, we use queuing theory for the performance study to examine this kind of resource allocation approach [10,11,14].

To enable online geospatial services, the open geospatial consortium (OGC) has recently published a set of specifications that are either an adaptation or an extension of the usual online service standards. Standardizing service interfaces and data models is possible with several well-known products such as WMS (web map service), WFS (web feature service), WCS (web coverage service), and CSW (catalogue service for the web). In the meantime, a web processing service (WPS) interface can be utilized to gain access to any environmental model or geospatial algorithm that is classified as a geoprocessing service [15,16,17].

The queuing model has seen extensive use for this kind of study since it may shed light on various QoS parameters, including the response time for the system, CPU utilization, mean throughput, and many more. Mist computing is used to provide improved QoS for high-priority tasks. However, due to the limited computing available on most devices, finishing some allotted work within a delay threshold is possible. This is one of the drawbacks of using mist computing. In [18], the authors suggested that the limited processing capabilities of mist devices place a ceiling on the number of task requests. As a result, we utilize a priority queueing strategy to maximize the high-priority task request rather than consider another low-priority task.

Thus, this study presents a priority-queuing assisted mist–cloud–fog system for geospatial applications to allocate resources to efficiently provide high- and low-priority tasks. WFS is given a high-priority status in this study, whereas WMS is given a low-priority status. This system determines how to dynamically allocate mist nodes in a way that is dependent on the load being placed on the system. The load defines how the system should allocate mist nodes.

1.1. Contributions

The present research paper is structured with the following contributions:

• It presents a description of geospatial computing paradigms, geospatial web services, and different performance evaluations strategies, with varieties of queueing approaches associated with edge, mist, fog, and cloud computing perspectives.
• It introduces the priority queueing-assisted mist–cloud–fog system for geospatal web services.
• It provides the analytical queueing approach along with performance analysis for the proposed system.
• It also carries the performance measurement and experimental results of the proposed system with the variability of arithmetic outcomes in graphs.

1.2. Organizations

The rest of the paper is organized as follows. Section 2 explains the related work. It details the geospatial computing paradigm, the geospatial web services, and the performance evaluations of various models used in different application domains. Section 3 presents a detailed description of the proposed priority queueing analytical approach for the mist–cloud–fog system for geospatial web services. Section 4 presents the experimental results and performance evaluation of the proposed model and the proposed model’s performance measurement and experimental results, which are based on the variability of arithmetic outcomes in graphs. Section 5 draws the concluding remarks of the present research paper.

2. Related Work

2.1. Geospatial Computing Paradigms

2.1.1. Geospatial Edge Computing

The term “edge computing” refers to an advanced technology that transfers a module, data, or service from one internet hub to the subsequent hub. A customer who is either physically present or easily duped is close. The perimeter of this computing system is where the data are generated and handled. Through the utilization of this computing technology, edge devices are given the ability to interact with cloud platforms [16,19]. Before cloud platforms can be upgraded to leverage cloud services, the model must alter to sort information by velocity, volume, and variety. Edge computing equalizes data providers and consumers. Near-edge cloud computing jobs are carried out. This computing stores, distributes, caches, processes, and delivers data to clients. Because so many jobs are running on the edge computing network, the edge hubs need to be constructed to meet the requirements for data reliability, privacy, and data security [20]. In this edge computing design, the processing assets should be located close to the information sources. These advantages of cutting-edge standards outweigh those of the cloud framework. For example, mobile phones symbolize the transition between the cloud and the human body, whereas smart houses symbolize the transition between the cloud and the domestic sphere. The cloud-to-mobile edges comprise cloudlets and tiny data centers [1].

2.1.2. Geospatial Mist Computing

Mist computing offloads some computation to the cloud data center’s network’s edge, actuator devices, and sensors. Mist computing in embedded nodes’ microcontrollers computed the network’s edge [11,21,22]. Mist computing minimises latency and boosts autonomy. Cloud, fog, and mist computing are complementary because the fog layer’s gateway can run computationally complex application tasks, while edge devices can run less intensive ones [23].

The user can access cloud data centre data. Mist computing provides varied services across computing nodes. Cisco invented fog and mist computing, which expands client–server architecture like edge. Geosptial mist computing has four layers: cloud, fog, mist, and edge [10,18].

2.1.3. Geospatial Fog Computing

Cisco invented fog computing in early 2012. This computing paradigm gives untrained users data center resources. It does not use cloud data centers for computing. Cloud servers make computation and data storage for convenient for customers, reducing latencies relative to transmission overheads. They provide a user interface similar to smart devices. Local processing offers data compression, faster throughput, and decreased latency. Smart cities, residences, and healthcare use fog computing [24,25,26].

Fog computing uses fog devices. Raspberry Pi and Intel Edison fog devices are cloud-to-user gateways. Geographic big data analysis and distribution require scalable and efficient geospatial fog computing systems. Fog computing minimizes latency and increases throughput for ignorant clients. Fog architecture stores geographical data near local devices instead of a cloud infrastructure data server [2,27,28].

A fog computing system processes customer requests and returns responses. Cloud computing supplies storage and analysis. All resource utilization components, including fog servers, respond to unequal demands. Inefficient resource management reduces QoS and increases energy usage [29,30,31,32]. Smart cities use fog computing to manage urban data. Fog computing can promote smart cities, urban business, industry, tourism, and transit management [30,33,34].

2.1.4. Geospatial Cloud Computing

The method of cloud computing deals with an enormous number of large data by dividing up the available computer resources among multiple locations in the cloud. The paradigm of cloud computing allows for the pooling of resources and the provision of services on demand. You are able to do data analysis and visualization with the help of this computing method [17,23,35].

A multi-tenant design is supported by geospatial cloud computing systems, and a single instance can serve several customers for processing, storage, and data transfer. Putting in place enhancements and additional software benefits the user. In cloud GIS architecture, geospatial web services are the essential component of the core functional feature. The discovery of app data and features is performed by a number of geospatial cloud computing solutions using geospatial web services. Because of this, they are utilized in the SOA infrastructure operations of enterprise organizations [35,36,37].

There are three client tiers available in a geospatial cloud computing system: thin, thick, and mobile. Mobile clients use mobile devices. Thin clients are those that function on web browsers, whereas thick clients are those that function on desktop or standalone systems. In order to connect to cloud servers, thick clients require an additional module or piece of software. On the application layer, servers are responsible for running geospatial web services. This facilitates communication between the many service providers and the end users. Within the application-tier, there is a separate dedicated server for every one of the application services (WPS, WCS, WMS, and WFS, respectively).

The

Table 1. Features of geospatial computing paradigms through cloud, fog, mist, and edge computing.

Features	Cloud	Fog	Mist	Edge
Mobility management	No	Yes	Yes	Yes
Computing resources	Yes	Yes	Yes	Yes
Virtualization mechanism	Yes	Yes	Yes	No
Scalability support	Yes	Yes	Yes	Yes
IoT uses	Yes	Yes	Yes	Yes
Large-scale storage	Yes	No	No	No
Real time applications	No	Yes	Yes	Yes
Inter-operability support	No	Yes	Yes	Yes
High energy consumption	Yes	No	No	No
Low latency	No	Yes	Yes	Yes
Location awareness	No	Yes	Yes	Yes
Standardized	Yes	Yes	No	No
Geographically distributed	No	Yes	Yes	Yes
Large-scale processing power	Yes	No	No	No

highlights the various aspects of geospatial computing paradigms by addressing the cloud, fog, mist, and edge computing paradigms for geospatial applications.

The geospatial mist–cloud–fog model is presented in Figure 1 with the integration of the geospatial edge, mist, fog, and cloud computing system.

2.2. Geospatial Web Services

The development of a wide variety of web-based models by scientists is facilitated by geospatial web services (GWS). The development of technology based on cloud computing has opened the door to environmental modeling that is both quicker and more effective. There are public cloud, private cloud, and hybrid cloud products [2,36,38]. GWS caters to the requirements of environmental scientists developing and distributing their models in several ways to meet their needs. The phrase geoprocessing service describes any function or model for processing geospatial and associated data, whereas the term geospatial data service refers to geospatial services for collecting geospatial data. Both geospatial data and geoprocessing services can be derived from GWS in their own right [23,35,39].

Users can access, edit, and utilize hosted geospatial feature datasets through WFS. Distributed tools are used in WMS to produce and host both static and dynamic maps. Access to coverage data in practical formats for client-side rendering, as input into scientific models, and for usage by other clients is made available by a WCS. Users can use web processing services to run GIS calculations on geospatial data. WPS has standardized geospatial statistics methods and standardizes inputs and outputs for geospatial data within the geospatial cloud platform [40,41].

GWS alleviates the burden of tasks by utilizing the combined capacity of distributed services throughout the network. It is accomplished by using massive volumes of geographical data and functions flexibly [24,38].

Compared to the conventional method, in which each activity is carried out on an individual computer, this method facilitates greater remote participation, promotes collaboration, and enhances the repeatability of research.

Many web-based geospatial applications, also known as spatial data infrastructures (SDIs), have been built to utilize geospatial data, geoprocessing services, or both. When many GWSs are available online, researchers integrate various services to fulfill the requirements of more complicated applications. As a result, geospatial analysis and the deployment of GWS are both commonly carried out on the cloud (for example, on Amazon Web Services (AWS), Microsoft Azure, and Google Cloud) [2,41,42].

Specific cloud infrastructures and web services standards are typically created by integrating cloud, fog, and mist computing with diverse geographic applications.

2.3. Performance Evaluations Strategies

Many research works have been carried out where priority and non-priority queueing analytical methodologies have been employed to conduct performance assessments on computing-based systems based on edge, cloud, fog, and mist systems. This is to achieve the objective of conducting performance assessments.

Table 2. Review of various queuing approaches used in edge, cloud, fog, and mist systems.

Various Queuing Approach
Year	Author	Reference	Edge	Mist	Fog	Cloud	Approach
2011	Khazaei et al.	[43]	✗	✗	✗	✓	M/M/1
2011	Khazaei et al.	[43]	✗	✗	✗	✓	M/G/s
2012	Ellens et al.	[44]	✗	✗	✗	✓	M/M/c/N
2012	Do et al.	[45]	✗	✗	✗	✓	M/M/m/m
2013	Salah	[46]	✗	✗	✗	✓	M/M/1
2013	Pal and Hui	[47]	✗	✗	✗	✓	M/M/1
2014	Mohanty et al.	[48]	✓	✗	✗	✓	M/M/1
2014	Chiang et al.	[49]	✗	✗	✗	✓	M/M/c/N
2015	Evangelin and Vidhya	[50]	✗	✗	✗	✓	M/M/1
2015	Cheng et al.	[51]	✗	✗	✗	✓	M/M/1
2015	Bai et al.	[52]	✗	✗	✗	✓	M/M/c
2015	Kirsal et al.	[53]	✗	✗	✗	✓	M/M/c
2015	Guo et al.	[54]	✗	✗	✗	✓	M/M/1
2016	Akbari et al.	[55]	✗	✗	✗	✓	M/M/1
2017	Chang et al.	[56]	✗	✗	✗	✓	M/M/1
2017	Liu et al.	[57]	✗	✗	✓	✓	M/M/1
2017	El Kafhali and Salah	[30]	✗	✗	✓	✓	M/M/c
2017	Safvati and Sharzehei	[58]	✗	✗	✓	✓	M/M/1
2018	Tadakamalla et al.	[59]	✗	✗	✓	✗	M/M/1
2018	Sthapit et al.	[60]	✗	✗	✓	✗	M/M/c
2018	Chunxia and Shunfu	[61]	✗	✗	✓	✗	M/M/1
2018	Sophin et al.	[62]	✗	✗	✓	✗	M/M/c
2018	Vasconcelos	[63]	✗	✗	✓	✓	M/M/1
2019	Barik et al.	[2]	✗	✓	✗	✗	M/M/c
2019	Jafarnejad et al.	[64]	✓	✗	✓	✓	M/M/1
2019	Barik et al.	[23]	✗	✓	✓	✓	M/M/c
2019	Li et al.	[65]	✗	✓	✓	✗	M/M/1
2020	Kumar and Raja	[66]	✗	✗	✓	✓	M/M/1
2020	Xu et al.	[67]	✓	✗	✓	✓	M/M/1
2020	Patra et al.	[68]	✗	✓	✗	✗	M/M/1
2020	Bouanaka et al.	[21]	✗	✓	✓	✗	M/M/1
2021	Sedaghat et al.	[69]	✗	✗	✓	✓	M/M/1
2021	Sufyan and Banerjee	[70]	✗	✗	✓	✗	M/M/1
2021	Tadakamalla and Menasce	[71]	✗	✗	✓	✗	M/M/1
2021	Feitosa et al.	[72]	✗	✗	✓	✗	M/M/1
2021	Panigrahi et al.	[73]	✗	✓	✓	✗	M/M/1
2021	Behera et al.	[74]	✗	✗	✓	✗	M/M/c/N
2021	Hmissi and Ouni	[11]	✗	✓	✓	✗	M/M/1
2021	Dutta et al.	[22]	✗	✗	✓	✓	M/M/1
2021	Shahid et al.	[18]	✗	✓	✓	✗	M/M/1
2022	Mas et al.	[75]	✗	✗	✓	✓	M/M/1
2022	Rodrigues et al.	[76]	✗	✗	✓	✓	M/M/c/K
2022	Hamdi et al.	[77]	✗	✗	✓	✓	M/M/1
2022	Nikoui et al.	[5]	✗	✗	✓	✓	G/G/1
2022	Golkaret al.	[9]	✗	✗	✓	✓	Multi Queue Priority
2022	Maiti et al.	[76]	✗	✗	✓	✓	M/M/c
2023	Arefian et al.	[14]	✗	✓	✗	✓	M/M/1
2023	Hazra et al.	[78]	✗	✓	✗	✓	M/M/k
2023	Goswami et al.	[3]	✗	✓	✗	✓	M/M/c
2023	Yazdani et al.	[79]	✗	✓	✗	✓	M/M/1
2023	Saif  et al.	[80]	✗	✓	✗	✓	M/M/1 and M/M/c
2023	Saif et al.	[81]	✗	✓	✗	✓	M/M/1 and M/M/c
2023	Mallick et al.	[13]	✗	✓	✗	✓	M/M/c

compares different queuing mathematical and analytical approaches used by other researchers in the context of the various application services. It can be observed that most of the research works preferred different strategies to the norm.

Many different networking fragments are available in an edge, mist, fog, and cloud computing platform, and each networking device operates according to the concept of “first come, first serve”. The queueing model has become an important consideration in the system model to evaluate the effectiveness of cloud computing.

Muniir et al. [82] also demonstrated and detailed an integrated fog-assisted cloud architecture for IoT applications that improve performance, latency, scalability, and localized accuracy. To explore and analyze the performance of geospatial fog computing systems within the healthcare business, Barik et al. [2] developed a queuing mathematical and analytical technique. Barik et al. [23] developed a mathematical and analytical approach to queuing in order to explore and examine the performance of geospatial mist computing systems in the education and tourism industries.

Mukherjee et al. [4] took into account a high-priority queue and a low-priority queue in each fog node. These queues are filled with tasks that have directly arrived from the end-users and have been offloaded from the fog nodes. Each task’s delay deadline determines which queue it is placed in. In addition, the Lyapunov drift algorithm was utilized for queue scheduling when the tasks in these two queues had stringent latency requirements.

Adhikari et al. [83] devised a plan for prioritizing the assignment of work by dividing it into three distinct groups according to the lengths of their respective due dates. In addition, they also established a rule-based task scheduling technique to discover an ideal sequence for the tasks and reduce the time spent waiting in the queue.

Bhushan and Ma [8] presented an analytical queuing model to implement priority-based job scheduling within a fog-cloud architecture. The model categorized the jobs into two groups to facilitate the implementation of the priority-based service offering. Class 1 refers to computing jobs with a higher priority and more sensitivity to delays. In contrast, Class 2 relates to computing tasks with lower priority and less sensitivity to delays.

He et al. [19] considered a scenario of cloud-assisted multi-access edge computing involving multiple mobile devices. It considered the mobile devices in question to be operating under an $M/G/1$ non-preemptive priority queueing model, with each edge server operating under an $M/G/m$ non-preemptive priority queueing model, and the cloud data center operating under an $M/G/\infty$ queueing model.

3. Proposed Model

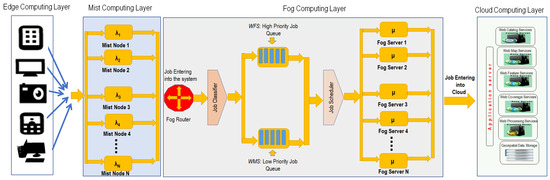

This section presents the analytical queuing model for the mist–cloud–fog system by describing its four-tier network topology, as represented in Figure 2. The first tier is the bottom layer, the edge layer. It includes all IoT devices responsible for sensing a wide range of events and relaying the raw detected data to the upper layer immediately above them. It is predicated on the assumption that the total number of IoT devices remains constant and equal to X end customers. The access point connects IoT devices to the mist nodes, connecting them in wireless or cable connections. The access points receive that inbound traffic from end clients. These IoT device messages are gathered at the access points (positioned near the IoT devices) and then forwarded to the mist nodes for further processing. The mist computing layer is the next layer near the client layer. The mist computing layer comprises mist nodes that are clever enough to process, compute, and temporarily store the information that has been received and transmit any leftover requests or burdens to the fog tier for additional processing or storage. Each of these mist nodes connects to the fog gateway. They are in charge of transmitting data to and from the cloud via the fog gateway. The cloud layer is the uppermost tier. This layer comprises a large data center where virtual machines can process and store massive data.

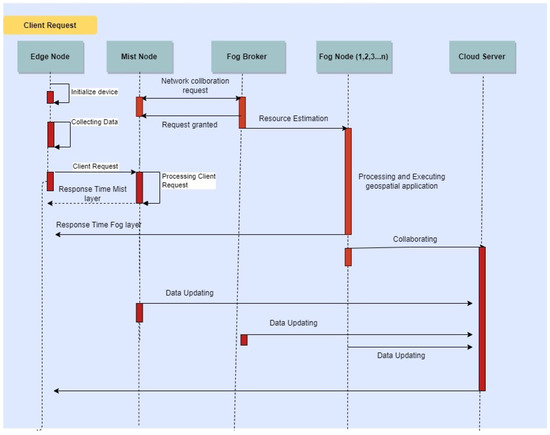

Figure 3 describes the overall sequence diagram of the proposed architecture.

Let us assume that tasks arrive as a Poisson process at a single exponential processor and that each job is assigned to one of the two priority classes upon arrival in the system. It is customary to number priority tasks so that small numbers correspond to higher priorities. Assume that the (Poisson) arrivals of the first or higher priority task have a mean arrival rate ${\lambda }_h$ and those of the second or lower priority task have a mean arrival rate ${\lambda }_{\ell }$. The total arrival rate is $\lambda ={\lambda }_h+{\lambda }_{\ell }$.

Queue disciplines that prioritize specific tasks are frequent in service systems. Priority can be based on elements such as the classification of tasks and the type of service. With the advent of cloud computing, a broad range of priority tasks were put in to improve system measures. Analyzing more variants entails much more complex underlying processes.

Here, we discuss the priority model of two-type as part of the $M/M//1$ set-up. To start, when considering the priority queues in the fog system, the following components need special attention:

• There is more than one class of tasks on the basis of their demands or significance to the system.
• The tasks of one class are more important than the other. When there are more than two classes, it is possible to organize them into a hierarchy of service priorities.
• The priority that agrees with a class of tasks may or may not be preemptive. If one task is prioritized in relation to another, the priority task will prevent the non-priority task from obtaining service.
• When service preemption is permitted, it can resume the service to the preempted task after the priority tasks are processed, from when the service was preempted or initiated from the start. They are disciplines of preventive recovery and preventive repetition, respectively.

Consider the preemptive-resume priority class for the $M/M/1$ queue. Tasks of type 1 are a higher priority for the service than tasks of type 2. By preemptive resume, we mean that a Class 1 task will be served immediately upon arrival if there are not already Class 1 tasks in the system. As a result, a Class 1 task may preempt a Class 2 task already on the service system. If a class 2 task is preemptive, it goes to the “top of the line” for Class 2 jobs, and when processed, the service is restarted, not repeated. Let the arrival and departure of the task take place according to Poisson and exponential distribution, respectively. The  arrival and processing rates of the tasks of the two types are as follows: Type 1—arrival rate ${\lambda }_h$, processing rate ${\mu }_h$; Type 2—arrival rate ${\lambda }_{\ell }$, service rate ${\mu }_{\ell }$. Since the processing time of the task is exponentially distributed, the memory-less property of the processing-time distribution makes it easier to simplify the preemptive-resume analysis. Figure 4 depicts the flow chart of the proposed preemptive-resume priority queueing model for WFS and WMS.

In the case of a preemptive priority scheme, system tasks are ranked in order of priority. The moment the high-priority task arrives, a low-priority task in the process is turned out from service immediately. The disrupted task is permitted back into service once the system has no higher-priority task. As we assume a preemptive resume policy, when the service resumes, it proceeds from where it was disrupted.

Let us assume $\pi (m,n)$ is the steady state of two types of tasks, where the number of high-priority and low-priority tasks are m and n, respectively. The common notations and their representations used across the paper are given in

Table 3. Notations used.

Notation	Representation
${\lambda }_h$	High-priority task arrival rate
${\lambda }_{\ell }$	Low-priority task arrival rate
${\mu }_h$	Service rate of high-priority task
${\mu }_{\ell }$	Service rate of low-priority task
$\lambda$	Total task arrival rate
$\mu$	Service rate of total task
$\rho$	System utilization factor
$E\left(L_h\right)$	Average number of high-priority tasks in the system
$E\left(L_{\ell }\right)$	Average number of low-priority tasks in the system
$W_h$	Average sojourn time of high-priority tasks in the system
$W_{\ell }$	Average sojourn time of low-priority tasks in the system
$W_{q,h}$	Average sojourn time in the queue of high-priority task class
$W_{q,\ell }$	Average sojourn time in the queue of low-priority task class
$C_h$	Cost of having a task of high-priority class
$C_{\ell }$	Cost of having a task of low-priority class
$\Delta \left(F\right(\lambda \left)\right)$	Expected total cost

. We have the following equations in steady-state by applying flow out = flow in:

$$\begin{array}{cc}\hfill ({\lambda }_h+{\lambda }_{\ell })\pi (0,0)& ={\mu }_h\pi (1,0)+{\mu }_{\ell }\pi (0,1),\hfill \end{array}$$

(1)

$$\begin{array}{cc}\hfill ({\lambda }_h+{\lambda }_{\ell }+{\mu }_h)\pi (m,0)& ={\lambda }_h\pi (m-1,0)+{\mu }_h\pi (m+1,0),m\ge 1,\hfill \end{array}$$

(2)

$$\begin{array}{cc}\hfill ({\lambda }_h+{\lambda }_{\ell }+{\mu }_{\ell })\pi (0,n)& ={\lambda }_{\ell }\pi (0,n-1)+{\mu }_h\pi (1,n)+{\mu }_{\ell }\pi (0,n+1),n\ge 1,\hfill \\ \hfill ({\lambda }_h+{\lambda }_{\ell }+{\mu }_h)\pi (m,n)& ={\lambda }_h\pi (m-1,n)+{\lambda }_{\ell }\pi (m,n-1)\hfill \end{array}$$

(3)

$$\begin{array}{c}\hfill +{\mu }_h\pi (m+1,n),m,n\ge 1.\end{array}$$

(4)

Under equilibrium conditions (${\lambda }_h<{\mu }_h$), the probability distribution for the number of tasks of type 1 in the system is

$$\pi (1,n)={\rho }_h^n(1-{\rho }_h),n\ge 1$$

where ${\rho }_h={\lambda }_h/{\mu }_h$. For the class 1 tasks, the class 2 tasks do not exist. Thus, we have

$$\begin{array}{cc}\hfill E\left(L_h\right)& =\frac{{\rho }_h}{1-{\rho }_h}.\hfill \end{array}$$

(5)

As the processing times of all tasks are exponentially distributed with the same mean, the complete tasks in the system do not depend on their processing. This number is, therefore, the same as in the system in which all tasks are completed in order of arrival. Hence,

$$\begin{array}{cc}\hfill E\left(L_{\ell }\right)& =\frac{{\rho }_{\ell }}{1-{\rho }_h-{\rho }_{\ell }}\left[1+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right]\hfill \end{array}$$

(6)

where ${\rho }_{\ell }={\lambda }_{\ell }/{\mu }_{\ell }$.

$$\begin{array}{cc}\hfill E\left(L_h\right)+E\left(L_{\ell }\right)& =\frac{{\rho }_h}{1-{\rho }_h}+\frac{{\rho }_{\ell }}{1-{\rho }_h-{\rho }_{\ell }}\left[1+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right].\hfill \end{array}$$

(7)

The mean number of low-priority tasks in the mist–fog system is

$$\begin{array}{cc}\hfill \sum _{n=0}^{\infty }n\pi (m,n)& =\frac{{\rho }_{\ell }}{1-{\rho }_h-{\rho }_{\ell }}\left[1+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right].\hfill \end{array}$$

The mean sojourn time of high-priority tasks in the mist–fog structure is

$$\begin{array}{cc}\hfill W_h& =\frac{1}{{\mu }_h-{\lambda }_h}\hfill \end{array}$$

(8)

and for low-priority tasks by

$$\begin{array}{cc}\hfill W_{\ell }& =\frac{1}{{\mu }_{\ell }(1-{\rho }_h-{\rho }_{\ell })}\left[1+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right].\hfill \end{array}$$

(9)

The average sojourn time in the queue of high-priority task class is given by

$$\begin{array}{cc}\hfill W_{q,h}& =\frac{{\rho }_h}{{\mu }_h(1-{\rho }_h)}\hfill \end{array}$$

(10)

The average sojourn time in the queue of low-priority task class is

$$\begin{array}{cc}\hfill W_{q,\ell }& =\frac{1}{{\mu }_{\ell }(1-{\rho }_h-{\rho }_{\ell })}\left[{\rho }_h+{\rho }_{\ell }+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right].\hfill \end{array}$$

(11)

In steady-state, let $E\left(L_j\right)$ be the mean number of type-j jobs in the system. The $E\left(L_k\right)$ of the kth task class is generalized (Jaiswal, 1968 [84]) and is given by

$$\begin{array}{cc}\hfill E\left(L_k\right)& =\frac{{\rho }_k}{1-{\sum }_{j=1}^{k-1}{\rho }_j}+\frac{{\lambda }_k{\sum }_{j=1}^k({\lambda }_j/{\mu }_j^2)}{(1-{\sum }_{j=1}^{k-1}{\rho }_j)(1-{\sum }_{j=1}^{k-2}{\rho }_j)}.\hfill \end{array}$$

(12)

Optimal Cost for Task of Priorities

Let us assume that the priorities are pre-assigned. To compare several potential priority tasks, we require the associated cost factors. The optimum allocation of tasks is that for which the total cost is a minimum. Consider that $C_h$ is the cost of having a task of high-priority class, and $C_{\ell }$ is the cost of having a task of low-priority class. Here, $C_h,C_{\ell }\ge O$. Especially, if $C_h=C_{\ell }$ is equal, then we are looking for a priority allocation that minimizes the expected number of tasks in all classes. In the model discussed here, there are two classes of tasks, specified by arrival and processing rates $({\lambda }_i,{\mu }_i)$ for $i=h,\ell$, and the priority allocation is high for $i=h$ and low for $i=\ell$. Then the expected total cost is

$$\begin{array}{c}\hfill F({\lambda }_{\ell },{\mu }_{\ell },C_{\ell };{\lambda }_h,{\mu }_h,C_h)=C_{\ell }E\left(L_{\ell }\right)+C_{h}E\left(L_h\right),\end{array}$$

(13)

Using (5) and (6) in (13), we find the cost function to be

$$\begin{array}{cc}\hfill \Delta \left(F\left({\lambda }_{\ell }\right)\right)& =F({\lambda }_{\ell },{\mu }_{\ell },C_{\ell };{\lambda }_h,{\mu }_h,C_h)=\frac{C_{\ell }{\rho }_{\ell }}{1-{\rho }_h-{\rho }_{\ell }}\left[1+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right]+\frac{C_h{\rho }_h}{1-{\rho }_h}.\hfill \end{array}$$

We alter this priority allocation to low for $i=h$ and high for $i=\ell$ and study the impact of this variation on the cost function (13). Therefore,

$$\begin{array}{cc}\hfill \Delta \left(F\left({\lambda }_h\right)\right)& =F({\lambda }_h,{\mu }_h,C_h;{\lambda }_{\ell },{\mu }_{\ell },C_{\ell })=\frac{C_h{\rho }_h}{1-{\rho }_{\ell }-{\rho }_h}\left[1+\frac{{\mu }_h{\rho }_{\ell }}{{\mu }_{\ell }(1-{\rho }_{\ell })}\right]+\frac{C_{\ell }{\rho }_{\ell }}{1-{\rho }_{\ell }}.\hfill \end{array}$$

After simplification, we have

$$\begin{array}{c}\hfill \Delta \left(F\left({\lambda }_{\ell }\right)\right)<\Delta \left(F\left({\lambda }_h\right)\right),\end{array}$$

this implies that the class h tasks should be allocated higher priority when

$$C_h{\mu }_h>C_{\ell }{\mu }_{\ell }.$$

The algorithm for finding optimal cost for task of priorities is described in Algorithm 1.

Algorithm 1 Algorithm for finding optimal cost for task of priorities

Input: ${\lambda }_h$, ${\lambda }_{\ell }$, ${\mu }_h,{\mu }_{\ell },C_h,C_{\ell }$.      Output: $\Delta F\left({\lambda }_h\right),\Delta F\left({\lambda }_{\ell }\right)$, 1: Initialize: 2: ${\rho }_h=\frac{{\lambda }_h}{{\mu }_h}<1$, ${\rho }_{\ell }=\frac{{\lambda }_{\ell }}{{\mu }_{\ell }}<1$. 3: $C_h\leftarrow$ Cost of having a task of high-priority class. 4: $C_{\ell }\leftarrow$ Cost of having a task of low-priority class. 5: Compute: 6: $E\left(L_h\right)=\frac{{\rho }_h}{1-{\rho }_h};$ 7: $E\left(L_{\ell }\right)=\frac{{\rho }_{\ell }}{1-{\rho }_h-{\rho }_{\ell }}\left[1+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right];$ 8: $Z=\Delta \left(F\left({\lambda }_i\right)\right)=C_{h}E\left(L_h\right)+C_{\ell }E\left(L_{\ell }\right);$ 9: Compute: 10: $\Delta \left(F\left({\lambda }_{\ell }\right)\right)=\frac{C_{\ell }{\rho }_{\ell }}{1-{\rho }_h-{\rho }_{\ell }}\left[1+\frac{{\mu }_{\ell }{\rho }_h}{{\mu }_h(1-{\rho }_h)}\right]+\frac{C_h{\rho }_h}{1-{\rho }_h};$ 11: $\Delta \left(F\left({\lambda }_h\right)\right)=\frac{C_h{\rho }_h}{1-{\rho }_{\ell }-{\rho }_h}\left[1+\frac{{\mu }_h{\rho }_{\ell }}{{\mu }_{\ell }(1-{\rho }_{\ell })}\right]+\frac{C_{\ell }{\rho }_{\ell }}{1-{\rho }_{\ell }};$ 12: returnZ 13: exit

4. Numerical Results

To illustrate the analytical results presented herein, some numerical results are illustrated in tables and figures. The calculations were made with double accuracy and performed in a 64-bit windows ten professional OS possessing Intel^® Core i5 6200U processor @2:30 GHz and 8 GB DDR3 RAM manufacturer Dell utilizing MAPLE 22 software. We reported the numeric results to only the nearest four digits, but the results were very accurate.

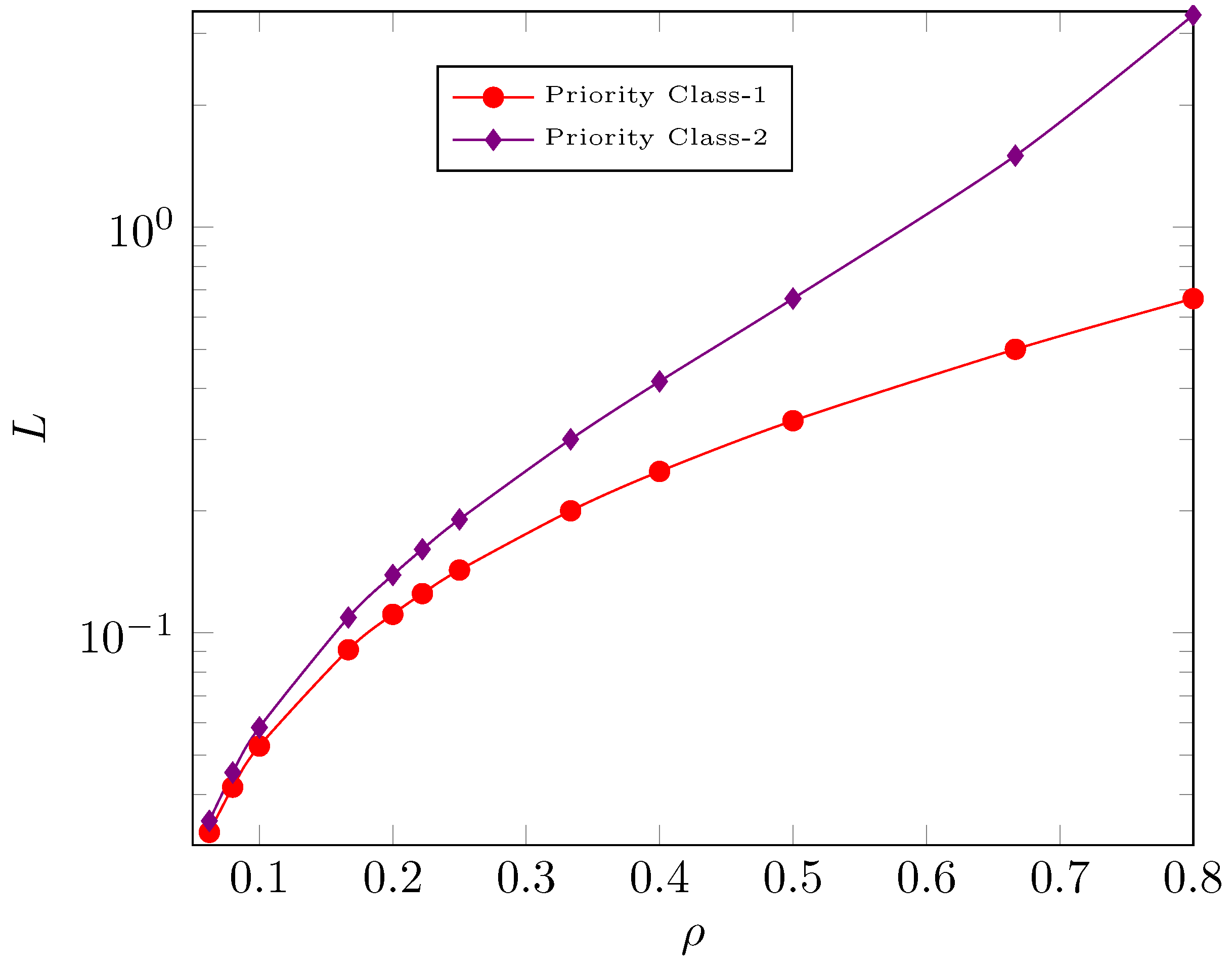

Figure 5 depicts the impact of $\rho$ on the average number of tasks in the system for two priority classes. We observe that in the mist–fog system, the average number of tasks rises with the increase in $\rho$, and even more so in priority class-2, which is the low-priority class. When there are two priority classes, as far as the higher-priority task is referred, the system performs just like a regular M/M/1 system. Figure 6 describes the impact of $\rho$ on the mean number of tasks in the system for five priority classes. One can see that with an increase in $\rho$, the mean number of tasks in the system increases. The average number of tasks in the system is less in the case of priority class 1 than in other priority classes. In this case, the system outperforms when the value of $\rho$ is lower.

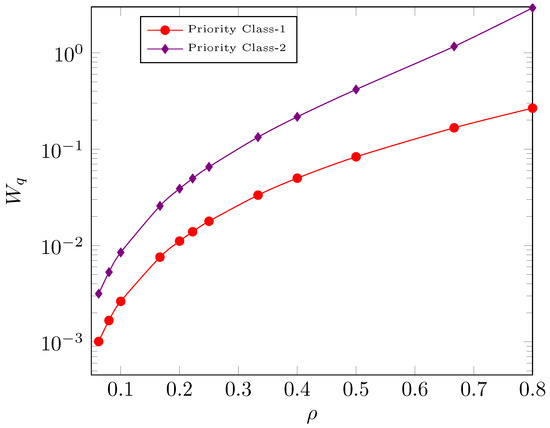

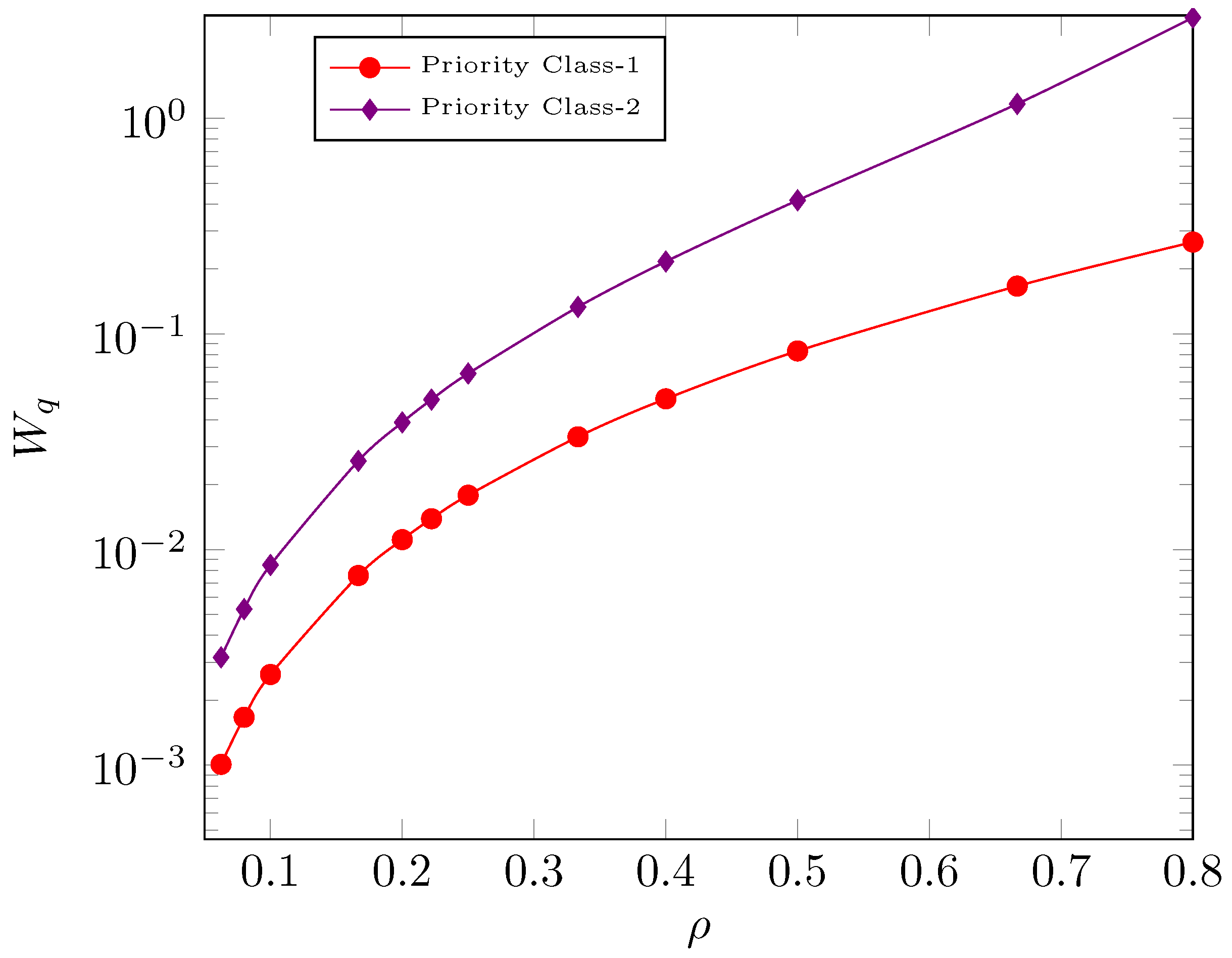

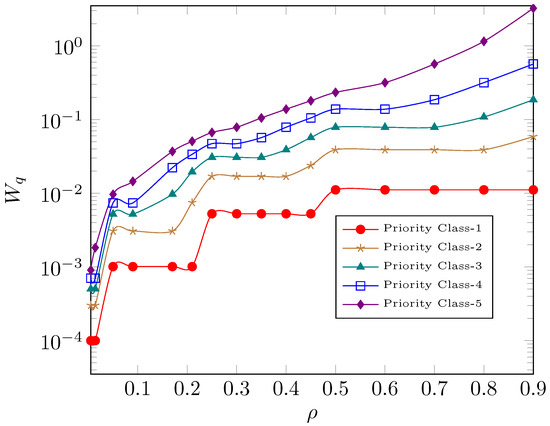

Figure 7 plots the dependence of $\rho$ on the average waiting time in the queue ($W_q$). Observe that the system $W_q$ increases with an increase in $\rho$. For higher values of $\rho$, the variation in mean waiting time in the queue for both classes increases. The mean waiting time in the queue is less for the higher-priority task than for the low-priority task. However, the impact of the low-priority task is twofold: the queue time and the processing time. Figure 8 illustrates the influence of the mean waiting time in the queue ($W_q$) on the $\rho$. With an increase in $\rho$, we note an increasing trend in all priority classes. For priority class 1, $W_q$ is almost static when $\rho$ is more significant than $0.5$. We note that the performance of various classes impacts the system’s performance. For instance, the processing time and wait time are more in class 5 than in class 4. Thus, a hierarchy of priorities would arise if there were more classes of tasks.

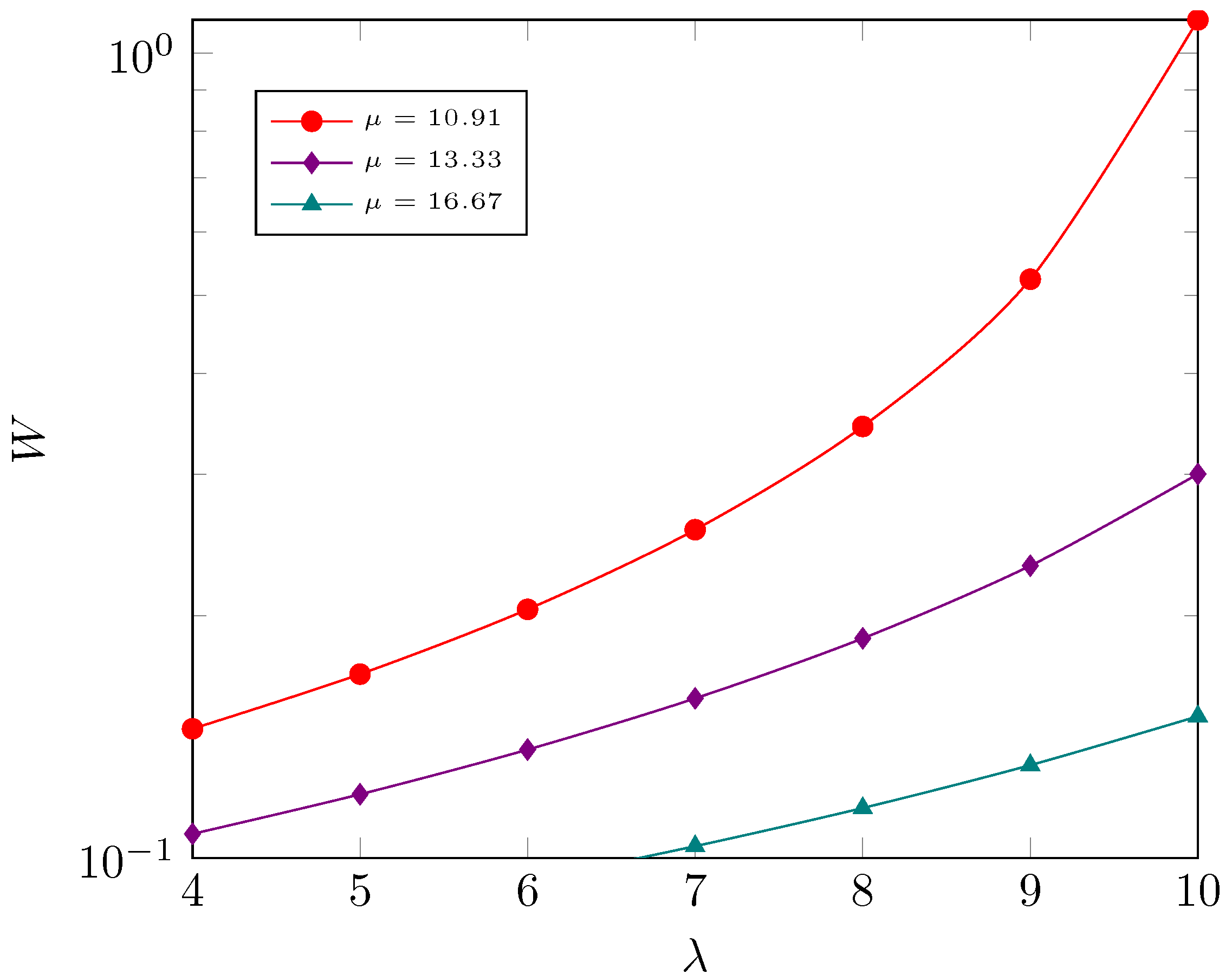

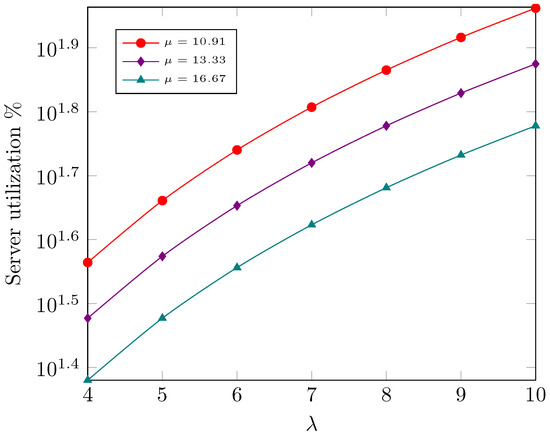

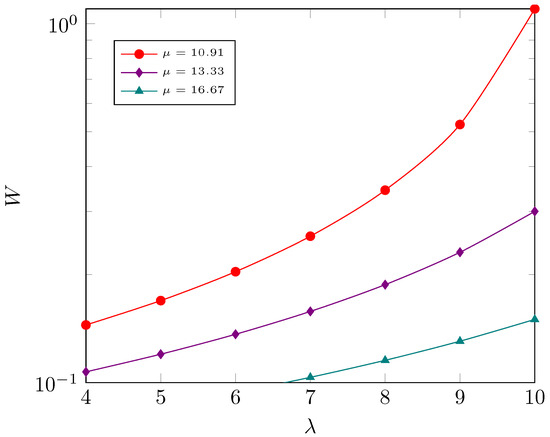

Figure 9 and Figure 10 show the impact of $\lambda$ on server utilization % and the average waiting time in the mist–fog system (W), respectively. From Figure 9, we observe an increasing trend, with an increase in $\lambda$. But, with the rise of $\mu$, we see a decreasing trend. Also, the server utilization % increases with the increase in arrival rate with a fixed service rate. Thus, we may carefully assume the arrival and service rate to ensure the balance of the server utilization of the system. From Figure 10, we note an increasing trend, with an increase in $\lambda$. For the small value of $\mu$, the average waiting time rises monotonically. Moreover, with a fixed service rate, the average wait time increases with the increase in the arrival rate. To reduce the average wait time of the system, we can meticulously put in place the service and the arrival rate to achieve it.

Table 4. Performance measures of two priority classes.

	${\mathit{\lambda }}_{\mathit{\ell }}=5,{\mathit{\mu }}_{\mathit{h}}={\mathit{\mu }}_{\mathit{\ell }}=10.9091$
	${\mathit{\lambda }}_{\mathit{h}}=\mathbf{1}$			${\mathit{\lambda }}_{\mathit{h}}=\mathbf{2}$
	Overall	Type-1	Type-2	Overall	Type-1	Type-2
$L_s$	1.222222	0.100917	1.121305	1.790698	0.22449	1.566208
$L_q$	0.672222	0.009251	0.662971	1.149031	0.041156	1.107875
$W_s$	0.203704	0.100917	0.224261	0.255814	0.112245	0.313242
$W_q$	0.112037	0.009251	0.132594	0.164147	0.020578	0.221575
	${\lambda }_h=3$			${\lambda }_h=4$
	Overall	Type-1	Type-2	Overall	Type-1	Type-2
$L_s$	2.75	0.37931	2.37069	4.714286	0.578947	4.135338
$L_q$	2.016667	0.10431	1.912356	3.889286	0.212281	3.677005
$W_s$	0.34375	0.126437	0.474138	0.52381	0.144737	0.827068
$W_q$	0.252083	0.03477	0.382471	0.432143	0.05307	0.735401

and

Table 5. Performance measures of two priority classes when ${\mu }_h\ne {\mu }_{\ell }$.

	${\mathit{\lambda }}_{\mathit{\ell }}=5,{\mathit{\mu }}_{\mathit{h}}=10.9091,{\mathit{\mu }}_{\mathit{\ell }}=12$
	${\mathit{\lambda }}_{\mathit{h}}=\mathbf{1}$			${\mathit{\lambda }}_{\mathit{h}}=\mathbf{2}$
	Overall	Type-1	Type-2	Overall	Type-1	Type-2
$L_s$	0.165636	0.100917	0.064719	0.305812	0.224489	0.081322
$L_q$	0.023970	0.009251	0.014719	0.072478	0.041156	0.031322
$W_s$	0.103523	0.100917	0.107865	0.117619	0.112245	0.135537
$W_q$	0.014981	0.009251	0.024532	0.027876	0.020578	0.052203
	${\lambda }_h=3$			${\lambda }_h=4$
	Overall	Type-1	Type-2	Overall	Type-1	Type-2
$L_s$	0.484291	0.37931	0.104981	0.719247	0.578947	0.140301
$L_q$	0.159291	0.10431	0.054981	0.302581	0.21228	0.090301
$W_s$	0.134525	0.126436	0.174968	0.156358	0.144737	0.233834
$W_q$	0.044247	0.03477	0.091635	0.065778	0.05307	0.150501

present performance measures of the task allocation system of two priority class when ${\mu }_h={\mu }_{\ell }$ and ${\mu }_h\ne {\mu }_{\ell }$, respectively. In Table 4, we vary ${\lambda }_1$ and assume other parameters as ${\lambda }_{\ell }=5$ and ${\mu }_h={\mu }_{\ell }=10.9091$. Note that with the gain of ${\lambda }_h$, the performance indices increases. Comparing priority type 1 and type 2, observe that the mean number of tasks in the queue (system) and the average waiting time in the queue (system) is less in the case of priority class 1. In

Table 6. Performance measures of five priority classes.

	${\mathit{\lambda }}_1=1,{\mathit{\lambda }}_2={\mathit{\lambda }}_3={\mathit{\lambda }}_4={\mathit{\lambda }}_5=2,\mathit{\lambda }=5,\mathit{\mu }=10,\mathit{\rho }=0.9$
	Overall	Type-1	Type-2	Type-3	Type-4	Type-5
$L_s$	9	0.111111	0.31746	0.571429	1.333333	6.666667
$L_q$	8.1	0.011111	0.11746	0.371429	1.133333	6.466667
$W_s$	1	0.111111	0.15873	0.285714	0.666667	3.333333
$W_q$	0.9	0.011111	0.05873	0.185714	0.566667	3.233333
	${\lambda }_1=0.5,{\lambda }_2={\lambda }_3={\lambda }_4={\lambda }_5=1,\lambda =5,\mu =10,\rho =0.45$
	Overall	Type-1	Type-2	Type-3	Type-4	Type-5
$L_s$	0.818182	0.052632	0.123839	0.156863	0.205128	0.27972
$L_q$	0.368182	0.002632	0.023839	0.056863	0.105128	0.17972
$W_s$	0.181818	0.105263	0.123839	0.156863	0.205128	0.27972
$W_q$	0.081818	0.005263	0.023839	0.056863	0.105128	0.17972

, we vary ${\lambda }_h$ and assume other parameters as ${\lambda }_{\ell }=5$, ${\mu }_h=10.9091$, and ${\mu }_{\ell }=10.9091$. We also compared the system when there was no priority task. The relevant results are presented in the second column of the tables as the overall result.

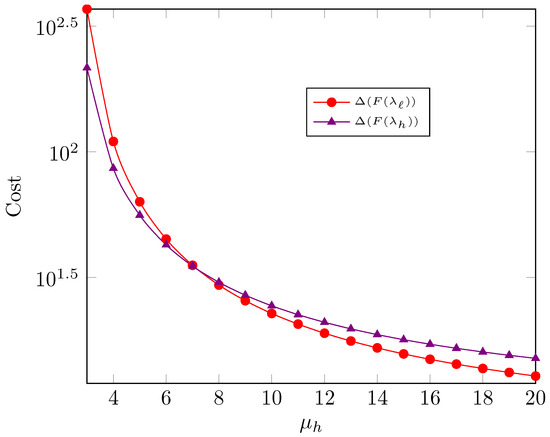

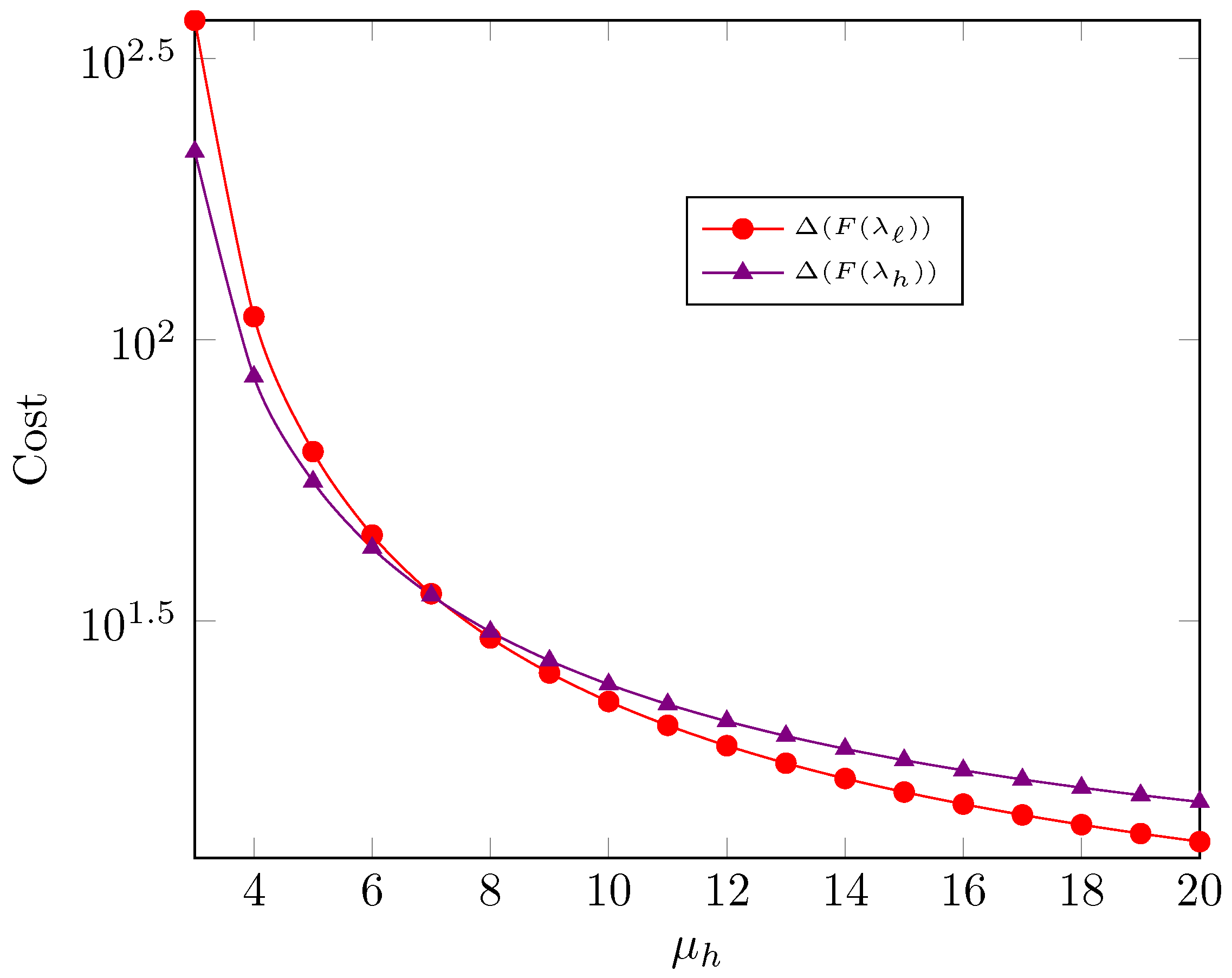

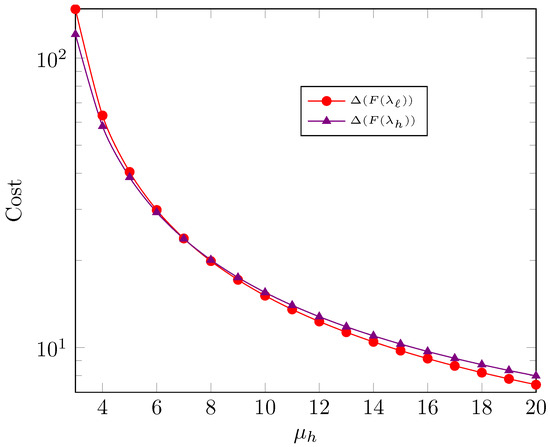

Figure 11 and Figure 12 demonstrate the impact of processing rate ${\mu }_h$ on total cost of low- and high-priority tasks when ${\lambda }_h={\lambda }_{\ell }$ and ${\lambda }_h\ne {\lambda }_{\ell }$, respectively. One may note that the total cost decreases as ${\mu }_h$ increases in both cases. When ${\lambda }_h={\lambda }_{\ell }$, the total cost of the low-priority task decreases more rapidly for higher values of ${\mu }_h$ in comparison to the high-priority task. But the result is just reversed in the case of ${\lambda }_h\ne {\lambda }_{\ell }$.

5. Concluding Remarks

In this article, the concepts of cloud computing, fog computing, and mist computing for geospatial web services, in particular WMS and WFS, are analyzed and explored. This paper proposed the preemptive-resume priority queueing strategy for the mist–cloud–fog system and associated components for improved data processing and analysis in geospatial web applications. Because of the mist and fog nodes, the number of geospatial data that need to be stored as well as processed is cut down, which results in transmission that is both efficient and has a lower latency and throughput. Additionally, a priority-based queuing strategy was presented in order to limit the dynamism of the suggested model and conduct analysis on it. Using the proper diagrams, the performance analysis, performance assessment, and performance measurement of the provided framework, in addition to the experimental results, have been discussed.

The proposed model is going to be put to the test in future application-oriented case studies, which will will include a wide range of parameters. The model that was suggested incorporates, among other things, specific data regarding the utilization of the CPU, the response time, the loss rate, the throughput, and the average number of jobs that were requested.
