Design of High-Dimensional Maps with Sine Terms

Abstract

The use of the advancements in memristor technology to construct chaotic maps has garnered significant research attention in recent years. The combination of memristors and nonlinear terms provides an effective approach to proposing novel maps. In this study, we have leveraged memristors and sine terms to develop three-dimensional maps, capable of processing special fixed points. Additionally, we have conducted an in depth study of a specific example (TDMM${}_1$ map) to demonstrate its dynamics, feasibility, and application for lightweight encryption. Notably, our general approach could be extended to develop higher-dimensional maps, including four- and five-dimensional ones, thereby opening up the possibility to create numerous higher-dimensional maps.

1. Introduction

A discrete map, also known as a discrete dynamical system, is a useful tool for the analysis of the behavior of chemical reactions and the spread of diseases [1]. Discrete maps can exhibit a variety of behaviors, including stability, periodicity, and chaos [2,3,4,5]. Fractional-order models and neural networks play a vital role in artificial intelligence and signal processing [6,7]. Discrete chaotic maps are particularly interesting because they exhibit complex and unpredictable behavior, even though they are deterministic and follow precise rules. Chaotic maps have important applications in fields such as cryptography, data encryption, and random number generation [8,9]. In this context, understanding and implementing the dynamics of discrete chaotic maps has become a crucial research topic [10,11].

The memristor is a fundamental electronic device that was proposed in 1971. However, it was not until 2008 that the first practical memristor was developed by a team of researchers at HP Labs. The development of the memristor has provided a new type of non-volatile memory that is faster, smaller, and requires less energy than existing technologies. Furthermore, memristors could be used in artificial intelligence, neuromorphic computing, and analog signal processing [12,13,14]. This has led to significant interest in the memristor from both the academic and industrial communities, with many researchers working to explore its full potential [15,16]

Memristors have been shown to be capable of generating chaotic behavior, and this property can be exploited to create new discrete chaotic maps [17,18,19,20,21]. Generally, authors explore 2D memristive maps due to their simplicity. However, recent research is also shifting towards investigating topics related to high-dimensional memristive maps, as they offer distinct advantages [22,23,24]. For instance, high-dimensional chaotic maps can store and process significantly more information compared to low-dimensional maps. Wang et al. conducted a study on a 3D memristive Lozi map [22], while another research group reported on a bi-memristor map in [23]. Additionally, a comprehensive list of 3D maps with memristors was introduced [24]. Researchers remain highly intrigued by the quest for an effective approach to designing high-dimensional maps.

This work considers another way to build high-dimensional maps with memristors and sine terms. The following are the primary advancements of this study. This work introduces a highly efficient method for the creation of high-dimensional memristive maps. These maps exhibit two distinct types of special fixed points, a plane of fixed points and the absence of any fixed points, categorizing them as unique maps with hidden dynamics [25]. By applying an extension of the suggested approach, the generation of even more intricate higher-dimensional maps, including 4D and 5D maps, becomes conveniently achievable. In Section 2, the general model and four example maps are introduced. Section 3 focuses on the specific map (called TDMM${}_1$). Further examples of high-dimensional maps are discussed in Section 4. Section 5 presents the conclusions.

2. Model of 3D Maps

Chaotic discrete maps have intrigued scientists for decades due to their unpredictable and complex behaviors. These systems find application in various fields, from cryptography and secure communications to chaotic circuit design. With the discovery of memristors, a new dimension was introduced to the understanding and exploration of chaos in discrete maps. Memristors, the fourth fundamental circuit element, possess unique properties that offer novel possibilities in chaotic dynamics research. Recently, different 2D memristive maps have been proposed [20,26,27]. However, a few higher memristive maps have also been reported [22,23,24]. In this work, we develop a model of 3D maps, as shown in Figure 1. The main parts of the model are a sine function $sin\left(.\right)$, a memristor, amplifiers ($a_1$, $a_2$, $a_4$, $a_5$), and a controller term $a_3$. The sine function is a popular function that was first applied to develop special discrete maps. Exploring further, additional functions could be employed in constructing high-dimensional maps. The effect of the sine term is indicated by $a_1$ and $a_4$. The memristor has an effect on the model through a factor $a_2$, while $a_5$ represents the feedback from $x\left(n\right)$ to $z(n+1)$. The term $a_3$ can be used to change the number of the model’s fixed points.

From Figure 1, the mathematical model is derived as

$$\left\{\begin{array}{c}x\left(n+1\right)=a_{1}sin\left(z\left(n\right)\right)+a_{2}M\left(y\left(n\right)\right)x\left(n\right)+a_3\hfill \\ y\left(n+1\right)=y\left(n\right)+x\left(n\right)\hfill \\ z\left(n+1\right)=a_{4}sin\left(z\left(n\right)\right)+a_{5}x\left(n\right)\hfill \end{array}\right.$$

(1)

with discrete memristance $M\left(y\left(n\right)\right)$ and parameters $a_i$, $i=1,\dots ,5$. Here, x, y, and z are state variables. It is noted that x and z can be considered as the outputs of the model, while y is the internal state of the memristor.

The fixed point of (1) $P\left(x^{*},y^{*},z^{*}\right)$ is found by solving Equation (2)

$$\left\{\begin{array}{c}{x}^{*}=a_{1}sin\left(z^{*}\right)+a_{2}M\left(y^{*}\right)x^{*}+a_3\hfill \\ y^{*}=y^{*}+x^{*}\hfill \\ z^{*}=a_{4}sin\left(z^{*}\right)+a_5{x}^{*}\hfill \end{array}\right.$$

(2)

We obtain

$$\left\{\begin{array}{c}{x}^{*}=0\hfill \\ \sin \left(z^{*}\right)=-\frac{a_3}{a_1}\hfill \\ z^{*}=-\frac{a_3{a}_4}{a_1}\hfill \end{array}\right.$$

(3)

when $a_1\ne 0$.

As shown in Equation (3), there is a plane of fixed points $P\left(0,y^{*},0\right)$ when $a_3=0$. When $a_3\ne 0$, the fixed points depend on $a_1$, $a_3$, and $a_4$. In particular, the fixed points disappear for

$$sin\left(\frac{a_3{a}_4}{a_1}\right)\ne \frac{a_3}{a_1}$$

(4)

By selecting $M\left(y\left(n\right)\right)={\left(y\left(n\right)\right)}^2-1$, we obtain a three-dimensional memristive map (TDMM${}_1$ map):

$$\left\{\begin{array}{c}x\left(n+1\right)=a_{1}sin\left(z\left(n\right)\right)+a_2\left({\left(y\left(n\right)\right)}^2-1\right)x\left(n\right)+a_3\hfill \\ y\left(n+1\right)=y\left(n\right)+x\left(n\right)\hfill \\ z\left(n+1\right)=a_{4}sin\left(z\left(n\right)\right)+a_{5}x\left(n\right)\hfill \end{array}\right.$$

(5)

The TDMM${}_1$ map is chaotic for

$$\left\{\begin{array}{c}{a}_1=a_3=a_4=0.1\hfill \\ a_2=1.65\hfill \\ a_5=1\hfill \end{array}\right.$$

(6)

and $\left(x\left(0\right),y\left(0\right),z\left(0\right)\right)=\left(0.01,0.01,0.01\right)$ (see Figure 2a). The maximum Lyapunov exponent (MLE) equals 0.2697.

Selecting different memristors, it is possible to obtain new 3D maps based on the general model (1). In

Table 1. List of new maps $\left(x\left(0\right),y\left(0\right),z\left(0\right)\right)=\left(0.01,0.01,0.01\right)$.

Name	Equations	Parameters	MLE
TDMM${}_2$	$x\left(n+1\right)=a_{1}sin\left(z\left(n\right)\right)+a_2\left(\left|y\left(n\right)\right|-1\right)x\left(n\right)+a_3$	$a_1=a_4=0.1$	0.2046
	$y\left(n+1\right)=y\left(n\right)+x\left(n\right)$	$a_2=2.3$, $a_3=0.01$
	$z\left(n+1\right)=a_{4}sin\left(z\left(n\right)\right)+a_{5}x\left(n\right)$	$a_5=1$
TDMM${}_3$	$x\left(n+1\right)=a_{1}sin\left(z\left(n\right)\right)+a_{2}sin\left(\pi y\left(n\right)\right)x\left(n\right)+a_3$	$a_1=a_4=0.1$	0.2415
	$y\left(n+1\right)=y\left(n\right)+x\left(n\right)$	$a_2=1.8$, $a_3=0.01$
	$z\left(n+1\right)=a_{4}sin\left(z\left(n\right)\right)+a_{5}x\left(n\right)$	$a_5=1$
TDMM${}_4$	$x\left(n+1\right)=a_{1}sin\left(z\left(n\right)\right)+a_2\left(e^{-cos\left(\pi y\left(n\right)\right)}-1\right)x\left(n\right)+a_3$	$a_1=a_4=0.1$	0.214
	$y\left(n+1\right)=y\left(n\right)+x\left(n\right)$	$a_2=2.5$, $a_3=0.01$
	$z\left(n+1\right)=a_{4}sin\left(z\left(n\right)\right)+a_{5}x\left(n\right)$	$a_5=1$

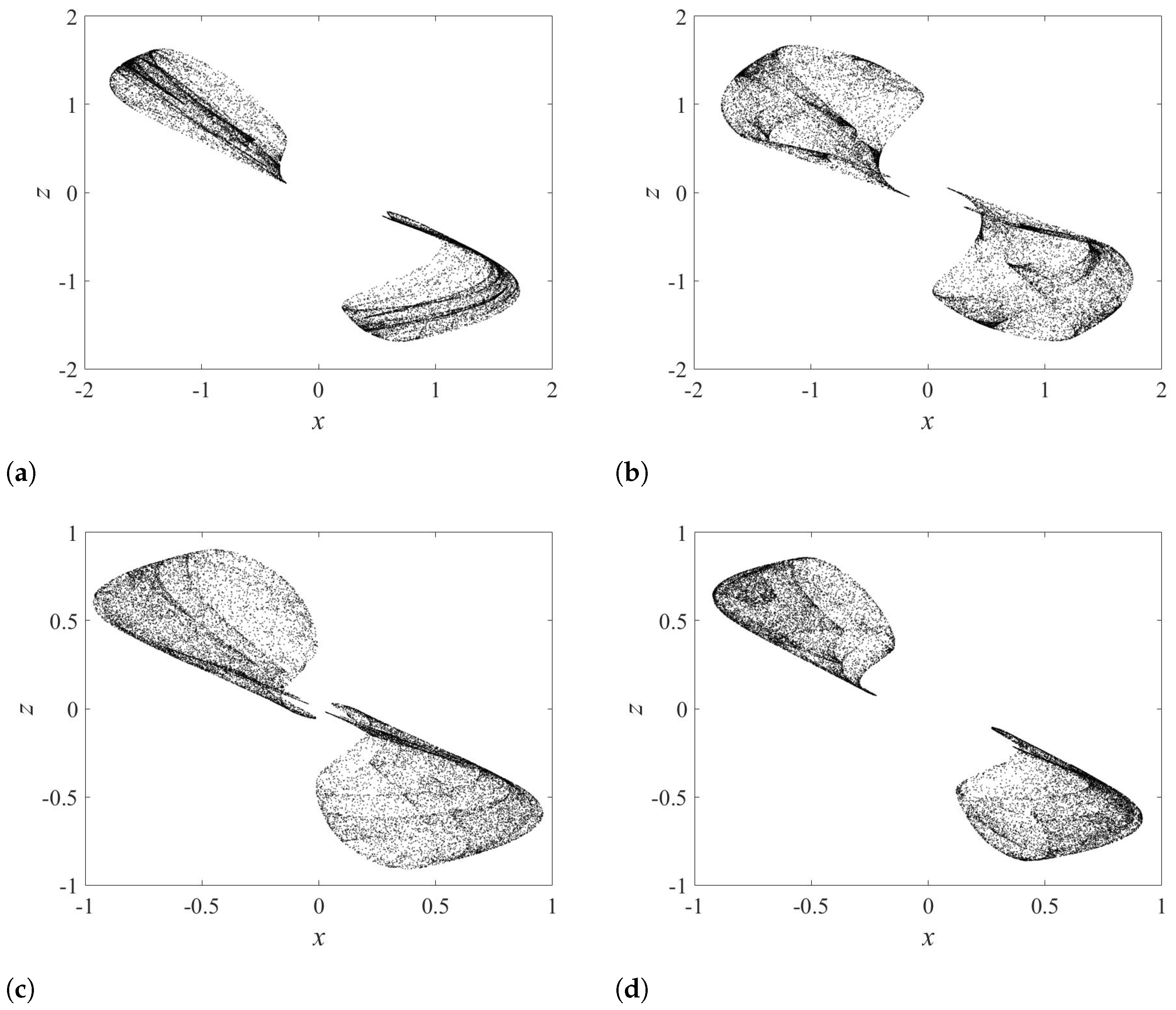

, we report new maps, while their chaotic dynamics are illustrated in Figure 2. While we exclusively present a singular set of parameter values for each map, it is important to note that there exist various parameter values leading to the chaotic behavior of these maps.

3. Study of TDMM${}_1$ Map

The TDMM${}_1$ map (5) has no fixed point when $a_1=a_3=a_4=0.1$ and $a_5=1$. We consider the effect of the memristor on the dynamics by changing $a_2$ from 1.3 to 1.7 (see Figure 3). Both chaotic and non-chaotic behaviors are observed in this range of $a_2$. Figure 3a shows a route from periodic dynamics to chaos.

The map is realized with a microcontroller via an Arduino Uno board. Signal x is displayed in Figure 4. The chaos of signal x verifies the map’s feasibility with hardware.

The Internet of Things (IoT) has emerged as a groundbreaking technology that promises to connect and automate various physical objects and devices, transforming industries and enhancing our daily lives. However, along with its numerous benefits, the IoT shows security challenges. The rapid proliferation of IoT devices, which are often embedded with sensors, actuators, and other smart technologies, has created a complex and interconnected network of devices that can be vulnerable to security threats. Lightweight cryptography plays a crucial role in securing IoT environments, where resource-constrained devices require efficient and effective cryptographic solutions [28,29]. Its ability to provide strong security with minimal resource requirements makes it suitable for a wide range of IoT applications, including secure communication, device authentication, data protection, access control, and secure firmware updates. As the IoT ecosystem continues to grow, the importance of lightweight cryptography in protecting IoT devices cannot be overstated. We test a simple lightweight encryption proposed by Moysis et al. [8] using the TDMM${}_1$ map. In this simple encryption, we generate random numbers from the TDMM${}_1$ map, which are utilized to encrypt a small-sized image via XOR operation. The encryption algorithm comprises the following steps.

Step 1: Formation of a secret key through the utilization of initial values and map parameters.

Step 2: Generation of a random bit sequence (K), with each bit ($k_i$) being generated by the map’s state variable, x

$$k_i=\left\{\begin{array}{c}1,\mathrm{if}mod\left({10}^5\left|x\left(i\right)\right|,1\right)\ge 0.5\hfill \\ 0,\mathrm{if}mod\left({10}^5\left|x\left(i\right)\right|,1\right)<0.5\hfill \end{array}\right.$$

(7)

Step 3: Conversion of the original image into a binary sequence (P).

Step 4: Application of the XOR operation to yield the encrypted data (C): $C=P\oplus K$.

Step 5: Utilization of the XOR operation to derive the decrypted data ($P^{\prime }$): $P^{\prime }=C\oplus K$, allowing for the reconstruction of the original image.

The original, encrypted, and decrypted images are displayed in Figure 5. A uniform histogram of the encrypted image protects it against statistical attacks (see Figure 6). The information entropy calculations of the encrypted and original images are 7.9974 and 7.4509, respectively. The information entropy closer to 8 protects encrypted data against entropy attacks. The obtained results illustrate the possibility of the TDMM${}_1$ map for use in lightweight encryption.

4. Discussion

High-dimensional chaotic maps, also known as multi-dimensional chaotic maps, are mathematical models that describe the dynamics of systems with many degrees of freedom. High-dimensional chaotic maps exhibit more complex and diverse behaviors than low-dimensional maps. By enlarging the model (1), higher-order dimensional maps are constructed easily.

Including an additional state $w\left(n\right)$ and $sin\left(w\left(n\right)\right)$, a 4D map is derived

$$\left\{\begin{array}{c}x\left(n+1\right)=a_{1}sin\left(z\left(n\right)\right)+a_{2}sin\left(w\left(n\right)\right)+a_3\left({\left(y\left(n\right)\right)}^2-1\right)x\left(n\right)+a_4\hfill \\ y\left(n+1\right)=y\left(n\right)+x\left(n\right)\hfill \\ z\left(n+1\right)=a_{5}sin\left(z\left(n\right)\right)+a_{6}x\left(n\right)\hfill \\ w\left(n+1\right)=a_{7}sin\left(w\left(n\right)\right)+a_{8}z\left(n\right)\hfill \end{array}\right.$$

(8)

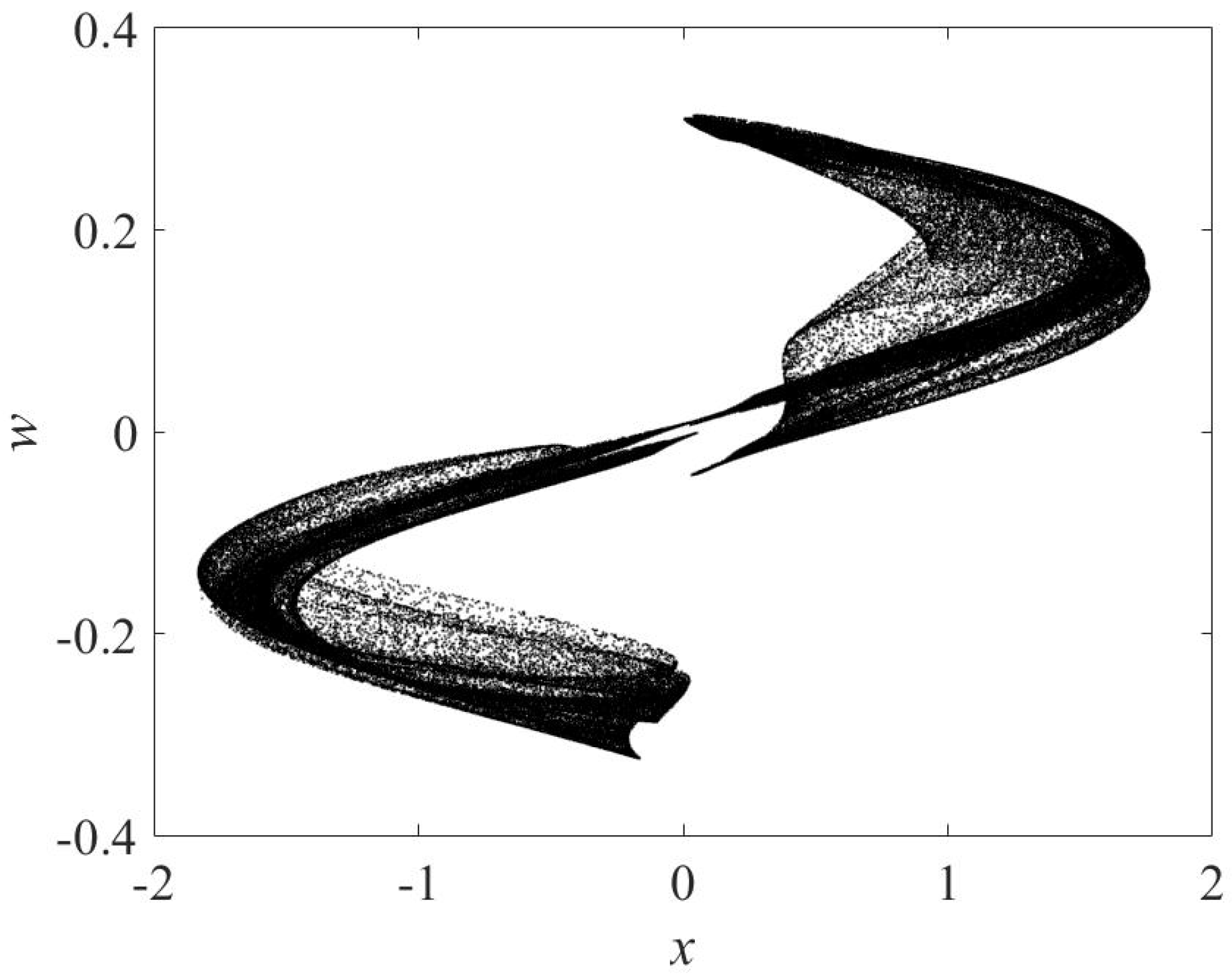

with parameters $a_i$, $i=1,\dots ,8$. The chaos in the 4D map is shown in Figure 7 for

$$\left\{\begin{array}{c}{a}_1=a_2=a_4=a_5=a_7=0.1\hfill \\ a_3=1.7\hfill \\ a_6=1\hfill \\ a_8=0.2\hfill \end{array}\right.$$

(9)

The value of MLE is 0.3003, confirming the presence of chaos.

Similarly, when introducing two states $w\left(n\right)$, $v\left(n\right)$ and terms $sin\left(w\left(n\right)\right)$, $sin\left(v\left(n\right)\right)$, a 5D map is proposed as

$$\left\{\begin{array}{c}x\left(n+1\right)=a_{1}sin\left(z\left(n\right)\right)+a_{2}sin\left(w\left(n\right)\right)+a_{3}sin\left(v\left(n\right)\right)+a_4\left({\left(y\left(n\right)\right)}^2-1\right)x\left(n\right)+a_5\hfill \\ y\left(n+1\right)=y\left(n\right)+x\left(n\right)\hfill \\ z\left(n+1\right)=a_{6}sin\left(z\left(n\right)\right)+a_{7}x\left(n\right)\hfill \\ w\left(n+1\right)=a_{8}sin\left(w\left(n\right)\right)+a_{9}z\left(n\right)\hfill \\ v\left(n+1\right)=a_{10}sin\left(v\left(n\right)\right)+a_{11}w\left(n\right)\hfill \end{array}\right.$$

(10)

with parameters $a_i$, $i=1,\dots ,11$. Figure 8 displays the chaos in the 5D map for

$$\left\{\begin{array}{c}{a}_1=a_2=a_3=a_5=a_6=a_8=a_{10}=0.1\hfill \\ a_4=1.7\hfill \\ a_7=a_9=1\hfill \\ a_{11}=0.2\hfill \end{array}\right.$$

(11)

The value of MLE is 0.2849.

5. Conclusions

We have conducted a study focusing on high-dimensional memristive maps, motivated by their potential application in various fields. In this research, we present a general approach to constructing these maps using memristors and sine terms. The resulting 3D model exhibits intriguing fixed points, making it particularly appealing. To illustrate the dynamics and practical applications of these maps, we specifically developed the TDMM${}_1$ map, employing simulations and a microcontroller board. The TDMM${}_1$ map generates chaotic signals, rendering it suitable for lightweight ciphers. Nevertheless, further investigations into the map’s potential applications are planned for future work. In particular, the proposed approach is scalable and can be extended to create higher-dimensional maps, such as 4D and 5D maps.
