A Computationally Efficient Distributed Framework for a State Space Adaptive Filter for the Removal of PLI from Cardiac Signals

Abstract

The proliferation of cardiac signals, such as high-resolution electrocardiograms (HRECGs), ultra-high-frequency ECGs (UHF–ECGs), and intracardiac electrograms (IEGMs) assist cardiologists in the prognosis of critical cardiac diseases. However, the accuracies of such diagnoses depend on the signal qualities, which are often corrupted by artifacts, such as the power line interference (PLI) and its harmonics. Therefore, state space adaptive filters are applied for the effective removal of PLI and its harmonics. Moreover, the state space adaptive filter does not require any reference signal for the extraction of desired cardiac signals from the observed noisy signal. Nevertheless, the state space adaptive filter inherits high computational complexity; therefore, filtration of the increased number of PLI harmonics bestows an adverse impact on the execution time of the algorithm. In this paper, a parallel distributed framework for the state space least mean square with adoptive memory (PD–SSLMSWAM) is introduced, which runs the computationally expensive SSLMSWAM adaptive filter parallelly. The proposed architecture efficiently removes the PLI along with its harmonics even if the time alignment among the contributing nodes is not the same. Furthermore, the proposed PD-SSLMSWAM scheme provides less computational costs as compared to the sequentially operated SSLMSWAM algorithm. A comparison was drawn among the proposed PD–SSLMSWAM, sequentially operated SSLMSWAM, and state space normalized least mean square (SSNLMS) adaptive filters in terms of qualitative and quantitative performances. The simulation results show that the proposed PD–SSLMSWAM architecture provides almost the same qualitative and quantitative performances as those of the sequentially operated SSLMSWAM algorithm with less computational costs. Moreover, the proposed PD–SSLMSWAM achieves better qualitative and quantitative performances as compared to the SSNLMS adaptive filter.

1. Introduction

The cardiac signal represents the electrophysiology of atrial and ventricular depolarization and repolarization of the heart. Additionally, the cardiac signal contains information regarding the structure and conduction of the heart’s electrical conduction system. Due to rapid growth in biomedical technologies in the past decade, the acquisition of cardiac signals has also evolved. Therefore, instead of recoding the normal electrocardiogram (ECG) of cardiac patients, high-resolution ECGs (HRECGs), and ultra-high-frequency ECGs (UHF–ECGs) are also monitored by cardiologists for the diagnosis of sudden cardiac death (SCD), atrial and ventricular abnormalities, ventricular electrical dyssynchrony (e-DYS), pericarditis, heart rate variability (HRV), etc. [1,2,3]. The acquisition of HRECG and UHF–ECG signals provides in-depth details about the high-resolution in the time and frequency domains, assisting cardiologists in the prognosis of critical cardiac diseases [1,2]. Likewise, an electrophysiology study (EPS) monitors the real-time localized cardiac activity through an intracardiac electrogram (IEGM), which provides aid to electrophysiologists for the ablation of particular heart muscles in the case of critical cardiac arrhythmia [3]. On account of these advancements, the frequency band of interest of cardiac signals may vary up to 1 kHz as compared to standard ECG frequency bands of [0–80] Hz; likewise, the HRECG signal has a bandwidth of 500 Hz while the UHF–ECG and IEGM signal frequency bands may increase to 1 kHz in the cases of atrial/ventricular abnormalities, heart rate variability (HRV), etc. [4,5,6].

Due to a wider frequency band span, the HRECG, UHF–ECG, and IEGM cardiac signals are more prone to different types of external noises, e.g., baseline wander (BW), high-frequency noise, and power line interference (PLI). Among these noises, the PLI is the most usual and catastrophic noise. For example, the cables carrying cardiac signals in cardiac activity monitoring laboratories are vulnerable to electromagnetic interference (EMI). Therefore, the PLI noise cannot be completely eluded from the cardiac signal even though the recording device has a high common mode rejection ratio (CMRR). Moreover, the frequency (i.e., 50 Hz or 60 Hz depending on the region) of the PLI’s fundamental component and its harmonics superimpose with the cardiac signal spectrum span, overwhelms critical features that may mislead cardiologists for diagnosis of myocardial infarction. Therefore, the removal of the PLI’s fundamental component and its harmonics are challenging tasks while preserving the underlying cardiac activity.

In the literature, numerous techniques have been proposed for PLI removal from cardiac signals [7,8,9,10,11,12,13]. One of the most conventional approaches for PLI removal from the observed cardiac signal is notch filtering, which may be implemented through finite impulse response (FIR) and infinite impulse response (IIR) filters [7,8,9]. However, notch filtering using FIR and IIR filters provides longer observational delays, ringing effects, and non-linear phase distortions, respectively [10,11,12,13]. Moreover, PLI removal through notch filtering may distort the underlying cardiac activity, which could mislead the results, especially in the case of the aforementioned critical diseases.

Signal decomposition-based techniques for cardiac signal denoising have been reported in the literature, e.g., the Fourier decomposition (FD) method [14,15,16,17], empirical mode decomposition (EMD) [18,19], and eigenvalue decomposition (EVD) [20]. The FD method decomposes the cardiac signal into different frequency bands and takes out the complete frequency band to remove the PLI interference [21]. The elimination of the complete band bestows a critical impact on the denoised cardiac signal. Likewise, the EMD and its modified algorithms [22,23] decompose the PLI signal into different intrinsic mode functions (IMFs). Hence, removing the PLI noise means setting these IMFs to zero, which leads to the loss of significant underlying cardiac activities. Similarly, the EVD-based techniques [24] estimate the PLI interference eigenvectors and, thereafter, remove these eigenvectors for PLI elimination from cardiac signals, which also eradicate some critical features of cardiac signals.

To overcome such a problem, adaptive filtration techniques have been introduced to better handle and retain the underlying cardiac activity intact [25,26]. In this context, Widrow et al. introduced the concept of adaptive noise cancellation (ANC) and Glover et al. applied ANC for PLI removal by adaptively tracking PLI sinusoids with known parameters, such as amplitude, phase, and frequency [27,28]. Later on, H.C. So modified the ANC technique for two unknown parameters, the amplitude and phase of the PLI signal, while the frequency of the observed signal is known [29]. Likewise, Satija modified the ANC algorithm for all three unknown parameters [30]. Therefore, the ANC’s need for a reference signal, makes the medical devices expensive.

Overcoming the issues related to reference-based signals for adaptive filtering that state space adaptive filters introduce does not require reference signals for the removal of the PLI interference from cardiac signals [31,32,33,34]. On the other hand, the state space adaptive filter provides fast convergence and efficiently handles the frequency drifts on behalf of higher computational costs. Moreover, the computational burden is further increased due to PLI and its harmonics that need to be removed from the cardiac signal [32].

In this paper, the scope of [34] is extended by making it useful for the effective removal of PLI plus its harmonics from HRECCG, UHF–ECG, and IEGM signals. In this context, the parallel distributed state space least mean square with adaptive memory (SSLMSWAM) framework is proposed to adaptively track and eliminate the PLI and its harmonics from these cardiac signals. The proposed PD–SSLMSWAM algorithm provides lesser computational costs compared to the sequentially operated SSLMSWAM algorithm. The simulation results show that the proposed architecture provides lesser computational costs and it shows almost the same qualitative and quantitative performances as compared to the sequentially operated SSLMSWAM algorithm. The remainder of the paper is organized as follows. In Section 2, the generalized state space model for PLI and its harmonics is modeled. The concept’s sequentially operated SSLMSWAM algorithm and proposed parallel distributed framework PD–SSLMSWAM along with the computational comparison is explained in Section 3. Section 4 describes the computer simulation results and discussions. Finally, the conclusion is outlined in Section 5.

2. State Space Model of PLI

The cardiac signal is corrupted by the PLI signal at the time instant k and can be modeled as

$$y\left[k\right]=x_{cl}\left[k\right]+I\left[k\right]$$

(1)

where $y\left[k\right]$ is the contaminated signal, $x_{cl}\left[k\right]$ is the pure cardiac signal, and $I\left[k\right]$ is the PLI signal, which can be defined as

$$I\left[k\right]=\sum _{i=1}^M{a}_{i}sin(2\pi fi\Delta Tk+{\theta }_i)$$

(2)

where M shows the total number of harmonics of the PLI signal, $a_i$ is the amplitude of the ith harmonic component, f is the fundamental frequency component, $\Delta T$ is the sampling period, and ${\theta }_i$ is the phase of the ith harmonic. The PLI signal for the fundamental frequency at $i=1$ can be expressed as.

$$I\left[k\right]=a_{1}sin(\omega k+{\theta }_1).$$

(3)

where $\omega =2\pi f\Delta T$ is the frequency in the rad/esc. The state space representation of the PLI model of the 1st harmonic given in (3) has two states, which can be written as.

$$\begin{array}{l}{x}_1\left[k\right]=a_{1}sin(\omega k+{\theta }_1)\\ x_2\left[k\right]=a_{1}sin(\omega k+{\theta }_1+\pi /2)=a_{1}cos(\omega k+{\theta }_1)\end{array}$$

(4)

With the help of trigonometric identities, the (4) can be rewritten as.

$$\begin{array}{l}{x}_1\left[k\right]=a_{1}sin\left(\omega k\right)cos\left({\theta }_1\right)+a_{1}cos\left(\omega k\right)sin\left({\theta }_1\right)\\ x_2\left[k\right]=a_{1}cos\left(\omega k\right)cos\left({\theta }_1\right)-a_{1}sin\left(\omega k\right)sin\left({\theta }_1\right)\end{array}$$

(5)

By rewriting (5) in the matrix form, we have

$$\left[\begin{array}{c}{x}_1\left[k\right]\\ x_2\left[k\right]\end{array}\right]=\left[\begin{array}{cc}cos\left(\omega k\right)& sin\left(\omega k\right)\\ -sin\left(\omega k\right)& cos\left(\omega k\right)\end{array}\right]\left[\begin{array}{c}{a}_{1}sin\left({\theta }_1\right)\\ a_{1}cos\left({\theta }_1\right)\end{array}\right]$$

(6)

The initial conditions at $k=0$, (6) can be expressed as

$$\begin{array}{l}{x}_1\left[0\right]=a_{1}sin\left({\theta }_1\right)\\ x_2\left[0\right]=a_{1}cos\left({\theta }_1\right)\end{array}$$

(7)

Putting the initial conditions as defined in (7) into (6) at $k=0$, we have

$$\left[\begin{array}{c}{x}_1\left[1\right]\\ x_2\left[1\right]\end{array}\right]=\left[\begin{array}{cc}cos\omega & sin\omega \\ -sin\omega & cos\omega \end{array}\right]\left[\begin{array}{c}{x}_1\left[0\right]\\ x_2\left[0\right]\end{array}\right]$$

(8)

Likewise, the generalized form for $k>1$, (8) can be expressed as

$$\left[\begin{array}{c}{x}_1[k+1]\\ x_2[k+1]\end{array}\right]=\left[\begin{array}{cc}cos\omega & sin\omega \\ -sin\omega & cos\omega \end{array}\right]\left[\begin{array}{c}{x}_1\left[k\right]\\ x_2\left[k\right]\end{array}\right]$$

(9)

Ideally, the main power lines comprise only fundamental frequency components of 50 Hz or 60 Hz (depending on the regional area). However, in practical situations, the integer multiples of the fundamental frequency component, called harmonics, are also present. Due to the half-wave symmetry property, the power line system only has odd harmonics [35]. Therefore, the generalized PLI state space model for M harmonics can be expressed in (10), which is presented at the top of the next page.

$$\left[\begin{array}{c}{x}_1[k+1]\\ x_2[k+1]\\ ⋮\\ x_{2M-1}[k+1]\\ x_{2M}[k+1]\end{array}\right]=\left[\begin{array}{cccc}cos\omega & sin\omega & \cdots & 0\\ -sin\omega & cos\omega & \cdots & 0\\ ⋮& ⋮& \ddots & ⋮\\ 0& \cdots & cosM\omega & sinM\omega \\ 0& \cdots & -sinM\omega & cosM\omega \end{array}\right]\left[\begin{array}{c}{x}_1\left[k\right]\\ x_2\left[k\right]\\ ⋮\\ x_{2M-1}\left[k\right]\\ x_{2M}\left[k\right]\end{array}\right]$$

(10)

3. Methodology

3.1. SSLMSWAM Algorithm

The SSLMSWAM adaptive algorithm is based on the state space model, which provides good tracking capabilities with high accuracy [36]. The unforced discrete time state space model for the removal of PLI plus its harmonics from cardiac signals is defined as.

$$\begin{array}{cc}\hfill \mathbf{x}[k+1]& =\mathbf{A}\mathbf{x}\left[k\right]\hfill \\ \hfill y\left[k\right]& =\mathbf{c}\mathbf{x}\left[k\right]+v\left[k\right]\hfill \end{array}$$

(11)

where $y\left[k\right]$ is the observed output signal at time index k, $v\left[k\right]$ is the observation noise, $\mathbf{c}$ is the output vector, $\mathbf{x}\left[k\right]$ is the state vector, and $\mathbf{A}$ is the state transition matrix. Moreover, for SSLMSWAM adaptive filter modeling, it is assumed that $\mathbf{A}$ and $\mathbf{c}$ should be invertible and full rank, respectively, while their pairs $(\mathbf{A},\mathbf{c})$ should be l-step observable [37]. Furthermore, the predicted state $\overline{\mathbf{x}}\left[k\right]$ that is formulated through the a priori estimated state $\widehat{\mathbf{x}}[k-1]$ can be written as follows:

$$\overline{\mathbf{x}}\left[k\right]=\mathbf{A}\widehat{\mathbf{x}}[k-1]$$

(12)

Similarly, the predicted output $\overline{y}\left[k\right]$ and the prediction error $ϵ\left[k\right]$ can be defined as

$$\begin{array}{l}\overline{y}\left[k\right]=\mathbf{c}\overline{\mathbf{x}}\left[k\right]\end{array}$$

(13a)

$$\begin{array}{l}ϵ\left[k\right]=y\left[k\right]-\overline{y}\left[k\right]\end{array}$$

(13b)

The SSLMSWAM is a recursive algorithm that recursively estimates the state $\widehat{\mathbf{x}}\left[k\right]$ given the prior estimated state $\widehat{\mathbf{x}}[k-1]$ on the advent of observation $y\left[k\right]$. The SSLMSWAM adaptive algorithm updates the states in a well-known estimator form [38].

$$\widehat{\mathbf{x}}\left[k\right]=\overline{\mathbf{x}}\left[k\right]+\mathbf{k}\left[k\right]ϵ\left[k\right]$$

(14)

where $\mathbf{k}\left[k\right]$ is the observational gain. Likewise, the estimated output $\widehat{y}\left[k\right]$ and the estimated error $e\left[k\right]$ can be defined as

$$\begin{array}{c}\widehat{y}\left[k\right]=\mathbf{c}\widehat{\mathbf{x}}\left[k\right]\end{array}$$

(15a)

$$\begin{array}{c}ϵ\left[k\right]=y\left[k\right]-\widehat{y}\left[k\right]\end{array}$$

(15b)

The observational gain for SSLMS can be expressed as [39].

$$\mathbf{k}\left[k\right]=\mu \mathbf{G}{\mathbf{c}}^T$$

(16)

where $\mu$ is the step size, which controls the convergence rate while the matrix $\mathbf{G}$ is chosen in a way to make the pair $(\mathbf{A}-\mathbf{k}[k]\mathbf{cA},\mathbf{k}[k\left]\right)$ controllable for such an estimator. Likewise, the observational gain for the normalized SSLMS (SSNLMS) can also be represented as [40].

$$\mathbf{k}\left[k\right]=\mu \mathbf{G}{\mathbf{c}}^T{(\gamma I+\mathbf{c}{\mathbf{c}}^T)}^{-1}$$

(17)

where $\mathbf{c}{\mathbf{c}}^T$ is the normalization factor and $\gamma$ is a small number to ensure the invertibility of matrix $\mathbf{c}{\mathbf{c}}^T$.

The generalized PLI state space model (10) contains the frequency drifts in a real-time scenario; therefore, the state space adaptive filter should adaptively tune the step size to better handle these frequency drifts. Hence, the SSLMS with the adaptive memory iteratively tunes the step-size parameter $\mu$ by minimizing the following cost function [37].

$$\mathrm{J}\left[k\right]=\frac{1}{2}E\left[{ϵ}^T\left[k\right]ϵ\left[k\right]\right]$$

(18)

where $ϵ\left[k\right]$ is the prediction error defined in (13) and $E[•]$ is the expectation operator. Differentiating $J\left[k\right]$ with respect to $\mu$ can be written as

$${\nabla }_{\mu }\left[k\right]=\frac{\partial J\left[k\right]}{\partial \mu }=E\left[\frac{\partial {ϵ}^T\left[k\right]}{\partial \mu }ϵ\left[k\right]\right]$$

(19)

By taking the partial fraction of (13), we have

$$\frac{\partial ϵ\left[k\right]}{\partial \mu }=\frac{\partial }{\partial \mu }\left[y\left[k\right]-\mathbf{c}\mathbf{A}\widehat{\mathbf{x}}[k-1]\right]=-\mathbf{c}\mathbf{A}\Psi [k-1],$$

(20)

where $\Psi \left[k\right]=\frac{\partial \widehat{\mathbf{x}}\left[k\right]}{\partial \mu }$ and $\frac{\partial {ϵ}^T\left[k\right]}{\partial \mu }$ is a row vector; therefore, (19) can be rewritten as

$${\nabla }_{\mu }\left[k\right]=-E\left[\Psi [k-1]{\mathbf{A}}^{\mathrm{T}}{\mathbf{c}}^{\mathrm{T}}ϵ\left[k\right]\right]$$

(21)

Differentiating (14) with respect to $\mu$ and using (12), (16) and (20), we have

$$\Psi \left[k\right]=\left(\mathbf{A}-\mathbf{k}\left[k\right]\mathbf{c}\mathbf{A}\right)\Psi [k-1]+\mathbf{G}{\mathbf{c}}^Tϵ\left[k\right],$$

(22)

Moreover, the updated equation of the time-varying step size $\mu \left[k\right]$ based on the stochastic gradient method can be defined as [38].

$$\mu \left[k\right]=\mu [k-1]-\alpha {\nabla }_{\mu }\left[k\right],$$

(23)

where $\alpha$ is a small positive learning rate parameter. Furthermore, the instantaneous estimate of the scalar gradient ${\nabla }_{\mu }\left[k\right]$ mentioned in (21) can be taken as

$${\widehat{\nabla }}_{\mu }\left[k\right]=-{\Psi }^T[k-1]{\mathbf{A}}^{\mathrm{T}}{\mathbf{c}}^{\mathrm{T}}ϵ\left[k\right],$$

(24)

Hence (23) can be rewritten as

$$\mu \left[k\right]={\left[\mu [k-1]-\alpha {\Psi }^T[k-1]{\mathbf{A}}^{\mathrm{T}}{\mathbf{c}}^{\mathrm{T}}ϵ\left[k\right]\right]}_{{\mu }_{-}}^{{\mu }_{+}},$$

(25)

where ${\mu }_{-}$ is the lower limit, which is generally set close to zero and ${\mu }_{+}$ is the upper limit that depends on the natural variations in the PLI frequency. The complete SSLMSWAM is summarized in (26), where $\mu$ is replaced with $\mu \left[k\right]$ in the observational gain (16).

$$\begin{array}{cc}\hfill \widehat{\mathbf{x}}\left[k\right]& =\mathbf{A}\widehat{\mathbf{x}}[k-1]+\mathbf{k}\left[k\right]ϵ\left[k\right]\hfill \\ \hfill ϵ\left[k\right]& =y\left[k\right]-\mathbf{c}\mathbf{A}\widehat{\mathbf{x}}[k-1]\hfill \\ \hfill \mathbf{k}\left[k\right]& =\mu \mathbf{G}{\mathbf{c}}^T\hfill \\ \hfill \mu \left[k\right]& ={\left[\mu [k-1]-\alpha {\Psi }^T[k-1]{\mathbf{A}}^{\mathrm{T}}{\mathbf{c}}^{\mathrm{T}}ϵ\left[k\right]\right]}_{{\mu }_{-}}^{{\mu }_{+}}\hfill \\ \hfill \Psi \left[k\right]& =\left(\mathbf{A}-\mathbf{k}\left[k\right]\mathbf{c}\mathbf{A}\right)\Psi [k-1]+\mathbf{G}{\mathbf{c}}^Tϵ\left[k\right]\hfill \end{array}$$

(26)

Likewise, the SSNLMS adaptive filter algorithm is summarized in (27)

$$\begin{array}{cc}\hfill \widehat{\mathbf{x}}\left[k\right]& =\mathbf{A}\widehat{\mathbf{x}}[k-1]+\mathbf{k}\left[k\right]ϵ\left[k\right]\hfill \\ \hfill ϵ\left[k\right]& =y\left[k\right]-\mathbf{c}\mathbf{A}\widehat{\mathbf{x}}[k-1]\hfill \\ \hfill \mathbf{k}\left[k\right]& =\mu \mathbf{G}{\mathbf{c}}^T{(\gamma I+\mathbf{c}{\mathbf{c}}^T)}^{-1}\hfill \end{array}$$

(27)

The estimated noise-free cardiac signals $\widehat{x}\left[k\right]$ can be obtained by taking the difference of the estimated output signal $\widehat{y}\left[k\right]$ and the contaminated cardiac signal $y\left[k\right]$, which can be written as

$$\widehat{x}\left[k\right]=y\left[k\right]-\widehat{y}\left[k\right]$$

(28)

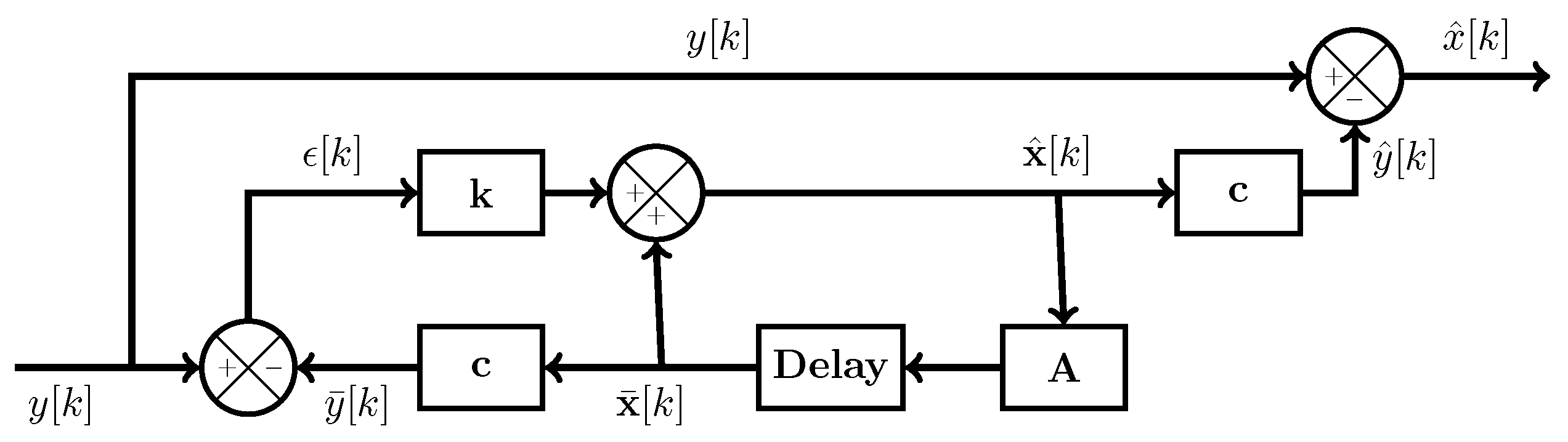

The flow diagram of the sequentially operated SSLMSWAM algorithm is shown in Figure 1.

3.2. Proposed Parallel Distributed System Model

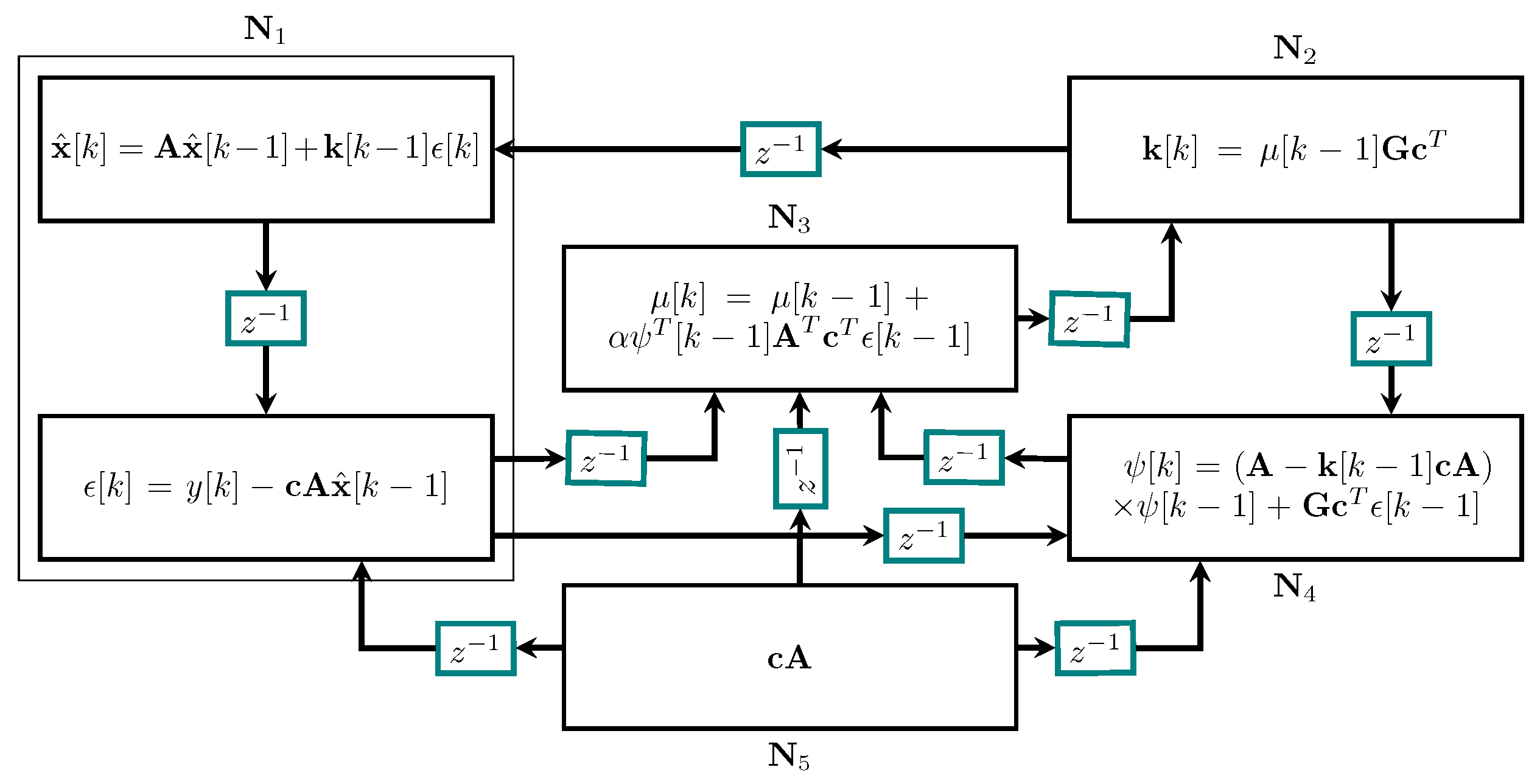

In the conventional SSLMSWAM algorithm, all filter parts are interdependent of each other, which makes the algorithm run in a cascade fashion. Due to the cascade fashion, the SSLMSWAM algorithm provides high computational costs as compared to the SSLMS adaptive filter. However, in the proposed PD–SSLMSWAM algorithm, all filter parts are capable of working in a parallel fashion and this was done by placing the time non-alignment among the parts of the SSLMSWAM algorithm. While setting the time’s non-alignment among the participating parts of the algorithm, it must be realized that the behavior of the filter is not uncertain while it implements the desired application; secondly, all of the filter parts are able to operate in a parallel fashion. The flow diagram of the proposed PD–SSLMSWAM is depicted in Figure 2.

The sequentially operated state space adaptive filter operated on a single computationally capable unit, as shown in Figure 1. However, if the same state space adaptive filter operates on a group of computationally incapable platforms using the proposed parallel distributed scheme, these filter nodes, namely $N_1$, $N_2$, $N_3$, $N_4$, and $N_5$ would be executed parallelly on various individual platforms, as shown in Figure 3.

Let the processing time taken by the estimated state ${\widehat{\mathbf{x}}}_k$, predicted error ${ϵ}_k$, observation gain ${\mathbf{k}}_k$, step size ${\mu }_k$, ${\Psi }_k$, and $\mathbf{cA}$ be represented as $T_{\widehat{\mathbf{x}}}$, $T_{ϵ}$, $T_{\mathbf{k}}$, $T_{\mu }$, $T_{\Psi }$, and $T_{\mathbf{cA}}$, respectively.

Consequently, the overall time required by the SSLMSWAM algorithm when it operates sequentially can be written as

$$T_{tot}=T_{\widehat{\mathbf{x}}}+T_{ϵ}+T_{\mathbf{k}}+T_{\mu }+T_{\Psi }+T_{\mathbf{cA}}$$

(29)

Here, $T_{\Psi }$ is the maximum contributor to the overall processing time; the strict and sufficient condition based on multiplication and addition computations with respect to fast convergence performance can be defined as

$$T_{\widehat{\mathbf{x}}},T_{ϵ},T_{\mathbf{k}},T_{\mu },T_{\mathbf{cA}}\le T_{\Psi }$$

(30)

The mismatch factor $\xi$ between the aligned and nonaligned time indexes can be defined as

$$\xi =\parallel {\epsilon }_{seq}-{\epsilon }_{NA}\parallel$$

(31)

where ${\epsilon }_{seq}$ and ${\epsilon }_{NA}$ are the errors based on the sequentially operated SSRLMSWAM algorithm and proposed PD–SSLMSWAM algorithm, respectively. The pseudocode of the proposed PD-SSLMSWAM is given in Algorithm 1.

Algorithm 1: Pseudocode of the proposed PD-SSLMSWAM

Input: $x_{cl}\left[k\right],I\left[k\right]$  Output: $\widehat{x}\left[k\right]$  Initialization: $\alpha \leftarrow 0.0001$  $\mathbf{G}\leftarrow I_{10\times 10}$, $\mu \left[0\right]\leftarrow 0.01$  $\widehat{x}\left[0\right]\leftarrow 0_{10\times 1}$, $\mathbf{k}\left[0\right]\leftarrow 0_{10\times 1}$  $\mathbf{c}\leftarrow \left[1010101010\right]$  $y\left[k\right]\leftarrow x_{cl}\left[k\right]+I\left[k\right]$  $\mathbf{for}k=1ton$  $\mathbf{A}\leftarrow$ Compute through Equation (10)        Compute $\mathbf{c}\mathbf{A}$        Do in Parallel  $ϵ\left[k\right]\leftarrow y\left[k\right]-\mathbf{c}\mathbf{A}\widehat{\mathbf{x}}[k-1]$  $\widehat{\mathbf{x}}\left[k\right]\leftarrow \mathbf{A}\widehat{\mathbf{x}}[k-1]+\mathbf{k}[k-1]ϵ\left[k\right]$  $\mathbf{k}\left[k\right]\leftarrow \mu [k-1]\mathbf{G}{\mathbf{c}}^T$  $\mu \left[k\right]\leftarrow {\left[\mu [k-1]-\alpha {\Psi }^T[k-1]{\mathbf{A}}^T{\mathbf{c}}^Tϵ[k-1]\right]}_{{\mu }_{-}}^{{\mu }_{+}}$  $\Psi \left[k\right]\leftarrow \left(\mathbf{A}-\mathbf{k}[k-1]\mathbf{c}\mathbf{A}\right)\Psi [k-1]+\mathbf{G}{\mathbf{c}}^Tϵ[k-1]$  $\widehat{y}\left[k\right]\leftarrow \mathbf{c}\widehat{\mathbf{x}}\left[k\right]$  $\widehat{x}\left[k\right]\leftarrow y\left[k\right]-\widehat{y}\left[k\right]$

3.3. Computational Complexity

The computational costs of the adaptive algorithm provide significant impacts, particularly in real-time applications. In this section, the complexity comparison of SSNLMS, sequentially operated SSLMSWAM, and proposed PD–SSLMSWAM adaptive filters are discussed. The computational complexity of the sequentially operated SSLMSWAM (26) is given in

Table 1. Computational complexity of the SSLMSWAM mentioned in Equation (26).

Eq.#	Operation	Multiplications	Additions
	${\mathbf{d}}_{1\times n}={\mathbf{c}}_{1\times n}{\mathbf{A}}_{n\times n}$	$n^2$	$n^2-n$
(26.1)	$\widehat{\mathbf{x}}{\left[k\right]}_{n\times 1}={\mathbf{A}}_{n\times n}\widehat{\mathbf{x}}{[k-1]}_{n\times 1}+\mathbf{k}{\left[k\right]}_{n\times 1}ϵ{\left[k\right]}_{1\times 1}$	$n^2+n$	$n^2$
(26.2)	$ϵ{\left[k\right]}_{1\times 1}=y{\left[k\right]}_{1\times 1}-{\mathbf{d}}_{1\times n}\widehat{\mathbf{x}}{[k-1]}_{n\times 1}$	n	n
(26.3)	$\mathbf{k}{\left[k\right]}_{n\times 1}=\mu {\left[k\right]}_{1\times 1}{\mathbf{G}}_{n\times n}{\mathbf{c}}_{1\times n}^T$	$n^2+n$	$n^2-n$
	${\mathbf{p}}_{n\times 1}={\mathbf{d}}_{n\times 1}^Tϵ{\left[k\right]}_{1\times 1}$	n	–
	${\mathbf{q}}_{1\times 1}={\Psi }^T{[k-1]}_{1\times n}{\mathbf{p}}_{n\times 1}$	n	$n-1$
(26.4)	$\mu {\left[k\right]}_{1\times 1}=\mu {[k-1]}_{1\times 1}+{\alpha }_{1\times 1}{\mathbf{q}}_{n\times 1}$	1	1
		$2n+1$	n
	${\mathbf{h}}_{n\times 1}={\mathbf{G}}_{n\times n}{\mathbf{c}}_{n\times 1}^Tϵ{\left[k\right]}_{1\times 1}$	$n^2+n$	$n^2-n$
	${\mathbf{J}}_{n\times n}=\mathbf{k}{\left[k\right]}_{n\times 1}{\mathbf{d}}_{1\times n}$	$n^2$	–
	${\mathbf{O}}_{n\times n}={\mathbf{A}}_{n\times n}-{\mathbf{J}}_{n\times n}$	–	$n^2$
	${\mathbf{s}}_{n\times 1}={\mathbf{O}}_{n\times n}\Psi {[k-1]}_{n\times 1}$	$n^2$	$n^2-n$
(26.5)	$\Psi \left[k\right]n\times 1={\mathbf{s}}_{n\times 1}+{\mathbf{h}}_{n\times 1}$	–	n
		$3n^2+n$	$3n^2-n$
	Total	$\mathbf{6}{\mathit{n}}^{\mathbf{2}}+\mathbf{6}\mathit{n}+\mathbf{1}$	$\mathbf{6}{\mathit{n}}^{\mathbf{2}}-\mathit{n}$

while the computational costs of SSNLMS (27) are mentioned in

Table 2. Computational complexity of the SSNLMS mentioned in Equation (27).

Eq.#	Operation	Multiplications	Additions
(27.1)	$\widehat{\mathbf{x}}{\left[k\right]}_{n\times 1}={\mathbf{A}}_{n\times n}\widehat{\mathbf{x}}{[k-1]}_{n\times 1}+\mathbf{k}{\left[k\right]}_{n\times 1}ϵ{\left[k\right]}_{1\times 1}$	$n^2+n$	$n^2$
(27.2)	$ϵ{\left[k\right]}_{1\times 1}=y{\left[k\right]}_{1\times 1}-{\mathbf{c}}_{1\times n}{\mathbf{A}}_{n\times n}\widehat{\mathbf{x}}{[k-1]}_{n\times 1}$	$n^2+n$	$n^2$
	${\mathbf{p}}_{n\times 1}={\mu }_{1\times 1}{\mathbf{G}}_{n\times n}{\mathbf{c}}_{n\times 1}^T$	$n^2+n$	$n^2-n$
	$q_{1\times 1}={\mathbf{c}}_{1\times n}{\mathbf{c}}_{n\times 1}^T$	n	$n-1$
	$r_{1\times 1}={\gamma }_{1\times 1}{I}_{1\times n}+q_{1\times 1}$	n	1
	$s_{1\times 1}=r_{1\times 1}^{-1}$	1	–
(27.3)	$\mathbf{k}{\left[k\right]}_{n\times 1}={\mathbf{p}}_{n\times 1}{s}_{1\times 1}$	n	–
		$n^2+4n+1$	$n^2$
	Total	$\mathbf{3}{\mathit{n}}^{\mathbf{2}}+\mathbf{6}\mathit{n}+\mathbf{1}$	$\mathbf{3}{\mathit{n}}^{\mathbf{2}}$

. It can be realized that the sequentially operated SSLMSWAM requires $6n^2+6n+1$ multiplications and $6n^2-n$ additions per iteration. Similarly, the SSNLMS needs $3n^2+6n$ multiplications and $3n^2$ additions in each iteration, where n shows the system order.

On the other hand, the proposed PD–SSLMSWAM framework entails less computational costs than sequentially operated SSLMSWAM and SSNLMS adaptive filters. The proposed PD–SSLMSWAM architecture requires parallel $3n^2+n$ multiplications and $3n^2-n$ additions per iteration at maximum, and this reduced complexity is based on the fact that node $N_4$ provides the maximum computational cost as compared to other nodes in the distributed network, which is clearly presented in Table 1. The summarized forms of complexity comparisons among the proposed PD–SSLMSWAM, sequentially operated SSLMSWAM, and SSNLMS adaptive filters are presented in

Table 3. Comparison of computational complexity.

Algorithm	Multiplications	Additions
Sequentially operated SSLMSWAM	$6n^2+6n+1$	$6n^2-n$
SSNLMS	$3n^2+6n+1$	$3n^2$
Proposed PD–SSLMSWAM	$3n^2+n$	$3n^2-n$

. It can be seen that the proposed architecture provides reduced complexity compared to those of sequentially operated SSLMSWAM and SSNLMS adaptive filters.

3.4. Performance Parameters

Besides the visual inspection, a quantitative measure of the efficiency of the filtering method and the clinical acceptability of the reconstructed signal are employed to provide accurate accessions on the proposed approach. Consequently, four performance evaluation indexes are employed to compare the original (noise-free) cardiac signal with the filtered signal. Therefore, among these performance metrics, the suppression ratio can be written as [41].

$$\gamma =10lo{g}_{10}\left\{\frac{{\parallel \mathbf{y}\parallel }_{{}^2}^{{}^2}}{\parallel \widehat{\mathbf{x}}{\parallel }_{{}^2}^{{}^2}}\right\}$$

(32)

where $\mathbf{y}$ is the contaminated cardiac signal and $\widehat{\mathbf{x}}$ is the filtered signal. in the case of a highly corrupted cardiac signal (low input SNR), the value of the suppression ratio $\gamma$ should be observed as high as possible.

Secondly, Pearson’s correlation coefficient, which shows the shape similarity of the filtered signals to the original noise-free cardiac signals can be expressed as [42]

$$\rho =\frac{E\left[\mathbf{x}\widehat{\mathbf{x}}\right]}{{\sigma }_{\mathbf{x}}{\sigma }_{\widehat{\mathbf{x}}}}$$

(33)

where ${\sigma }_{\mathbf{x}}$ and ${\sigma }_{\widehat{\mathbf{x}}}$ are the standard deviations of pure noise-free cardiac signals and denoised signals, respectively. The value of the correlation coefficient shows the shape similarity of the filtered signals to the original noise-free cardiac signals. Furthermore, the well known SNR and mean square error (MSE) are expressed as [15].

$$SN{R}_{out}=10lo{g}_{10}\left\{\frac{{\sigma }_{\mathbf{x}}^2}{{\sigma }_{(\mathbf{x}-\widehat{\mathbf{x}})}^2}\right\}$$

(34)

$$MSE=\frac{1}{N}\sum _{n=1}^N{(x\left[k\right]-\widehat{x}\left[k\right])}^2$$

(35)

The output SNR should be high because the remaining interference should be as low as possible. On the other hand, the MSE defines how close the recovered signal is to the clean signal.

4. Results and Discussions

In this section, both the qualitative and quantitative-based results are presented. The proposed PD–SSLMSWAM algorithm is then compared with those of sequentially operated SSLMSWAM and SSNLMS adaptive algorithms. To substantiate the validation of the proposed algorithm, three types of cardiac signals are used in this study, namely, HRECG, UHF–ECG, and IEGM. The HRECG and atrial IEGM signals were acquired from the National Institute of Heart Diseases (NIHD), with a sampling rate of 1000 samples/s and 2000 samples/s, respectively [43]. While the UHF–ECG signal used in this paper is provided by Dr. Pavel Jurak with a sampling rate of 5000 samples/s [4].

4.1. Qualitative Performance

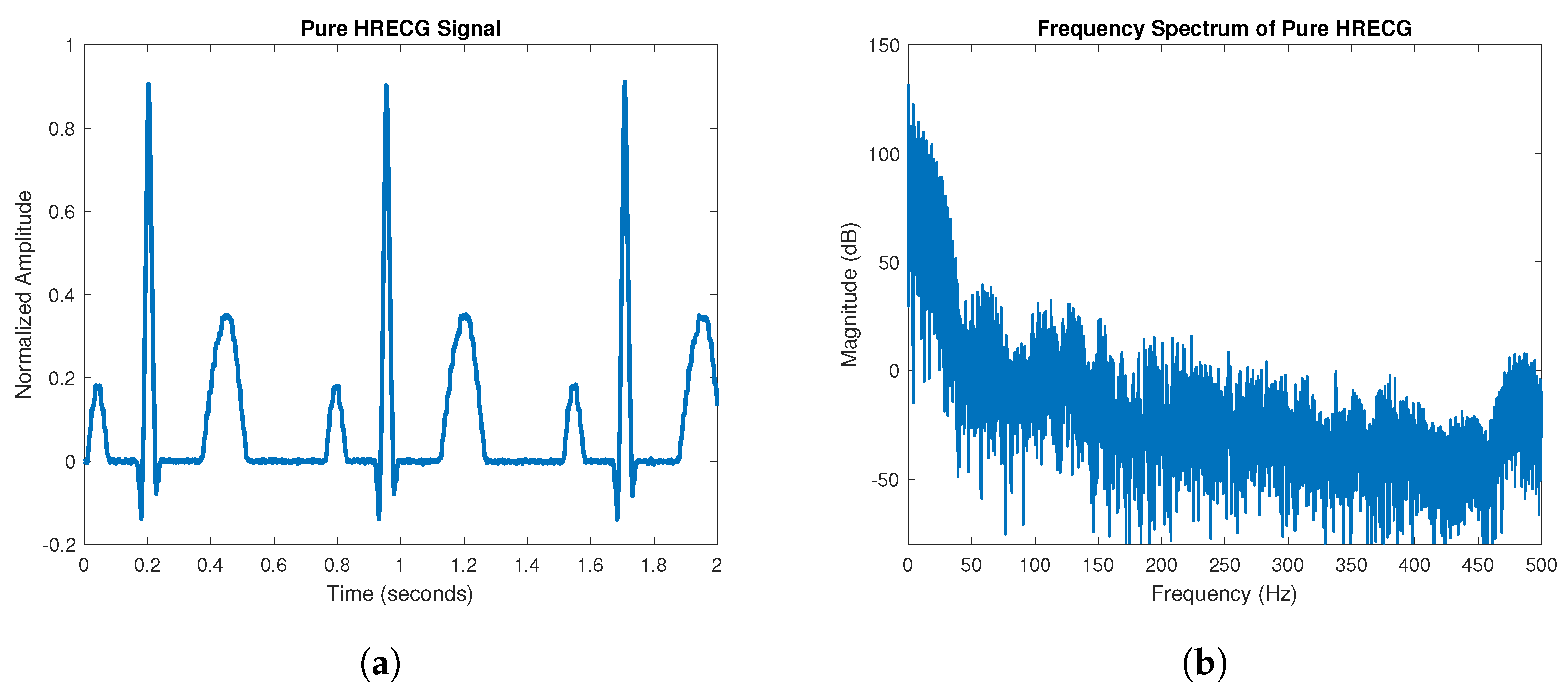

The normalized two-second segment of the pure HRECG signal and its frequency spectrum are shown in Figure 4. The frequency spectrum shows that the recorded HRECG signal has no PLI component or harmonics; however, it contains high-frequency content. The removal of the high-frequency content is not within the scope of this paper, meanwhile the existence of the high-frequency content does not affect the performance of the proposed architecture.

Moreover, to demonstrate the effectiveness of the proposed algorithm on the significant harmonic content, the following composite PLI interference signal is taken from (2) and can be expressed as

$$\begin{array}{cc}\hfill x_{PLI}\left(n\right)& =A.1.0sin(\omega n+{\theta }_1)+A.0.2sin(3\omega n+{\theta }_3)\hfill \\ \hfill & A.0.01sin(5\omega n+{\theta }_5)+A.0.04sin(7\omega n+{\theta }_7)\hfill \\ \hfill & A.0.09sin(9\omega n+{\theta }_9)\hfill \end{array}$$

(36)

where $\omega =2\pi f_0/f_s$ denotes the normalized angular frequency, $A=1$ is the amplitude and ${\theta }_i=\{0^{\circ },{180}^{\circ },0^{\circ },0^{\circ },{180}^{\circ }\}$ are the initial phases of the harmonics of order i. The selected signal is rich in odd harmonic content for being the most usual case for PLI interference. The fundamental frequency of the PLI interference signal is set as $f_0$ = 48.79 Hz.

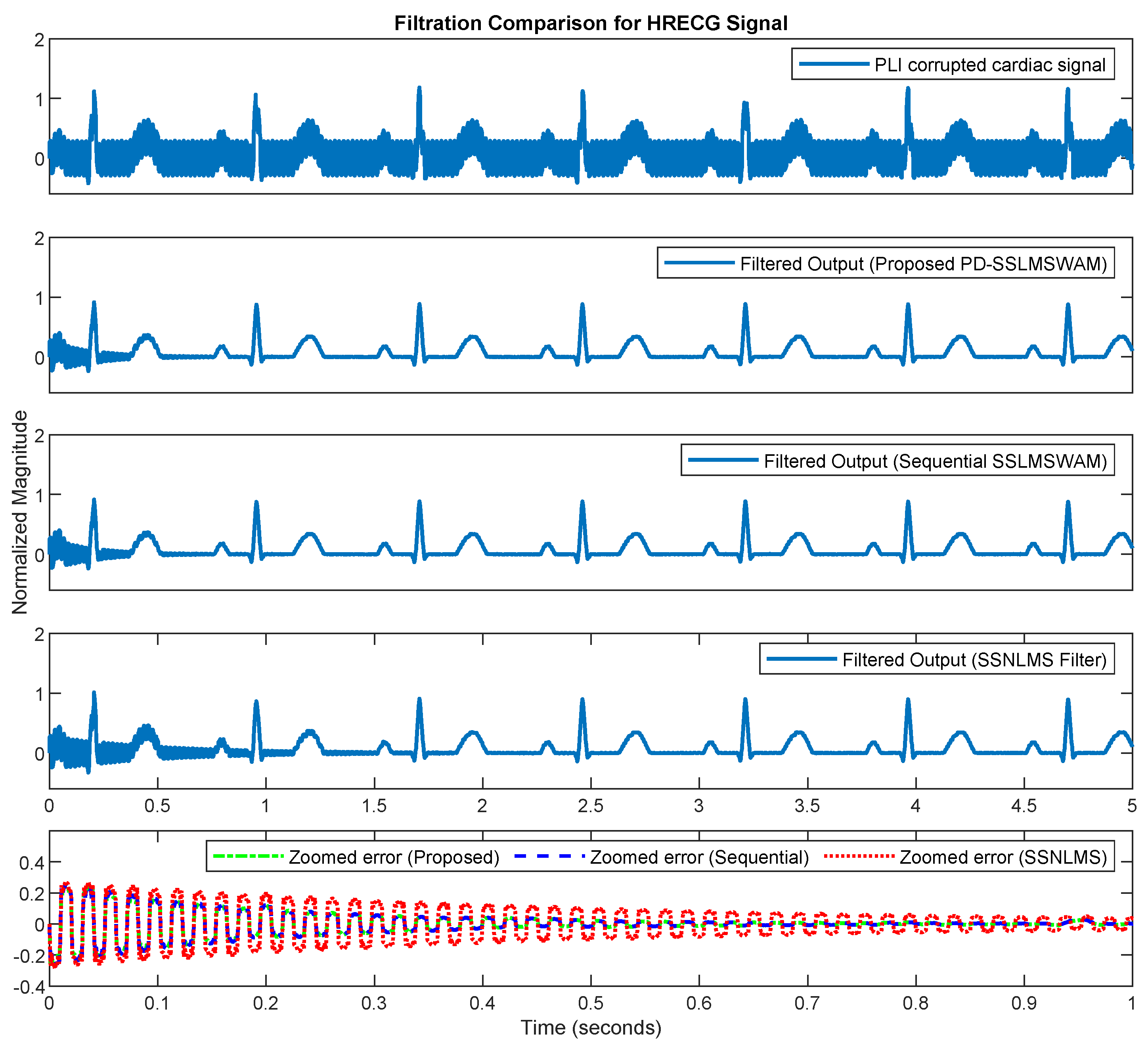

To validate the qualitative performance of the proposed algorithm, the PLI noise, with a fundamental frequency of 48.79 Hz, as well as its next four odd harmonics, are considered. The normalized magnitudes of the 1st, 3rd, 5th, 7th, and 9th harmonic components along with the composite PLI signal, are shown in Figure 5. Furthermore, the contaminated HRECG signal with an SNR value of 3 dB is shown in Figure 6. The PLI-contaminated HRECG signal is the mixture of the compound PLI signal and pure HRECG signal. On the other hand, the frequency spectrum of the contaminated HRECG clearly depicts the harmonic as an odd integer multiple of 50 Hz, as illustrated in Figure 6a. For a PLI signal with five harmonic components (including fundamental), the system matrix $\mathbf{A}$ entails the dimensions of $10\times 10$. Likewise, the state vector $\mathbf{w}$ requires the dimension of $10\times 1$ and the observational vector $\mathbf{c}$ entails the dimension of $1\times 10$. For tracking of 1st, 3rd, 5th, 7th, and 9th harmonics of the PLI, the C vector in (15) can be chosen as $\mathbf{c}=\left[1010101010\right]$. The SSLMSWAM adaptive filter updates the states based on the recursive approach; therefore, initialization of the parameters, such as $\alpha$, $\mathbf{G}$, $\widehat{\mathbf{x}}\left[0\right]$, $\mu \left[0\right]$, and $\mathbf{k}\left[0\right]$ is required. For the simulation purpose, these parameters are initialized as $\alpha =0.0001$, $\mathbf{G}=I_{10\times 10}$. Moreover, the predicted states $\widehat{\mathbf{x}}\left[k\right]$ and the observational gain $\mathbf{k}\left[k\right]$ are presumed to have zero initial conditions except for $\mu \left[0\right]$, which is set to be 0.01. The frequency spectrum of the adaptive tracking of the PLI signal by using the proposed PD–SSLMSWAM architecture is shown in Figure 6b. It can be seen that the proposed architecture provides good tracking for five harmonics components of the PLI signal, including the fundamental component.

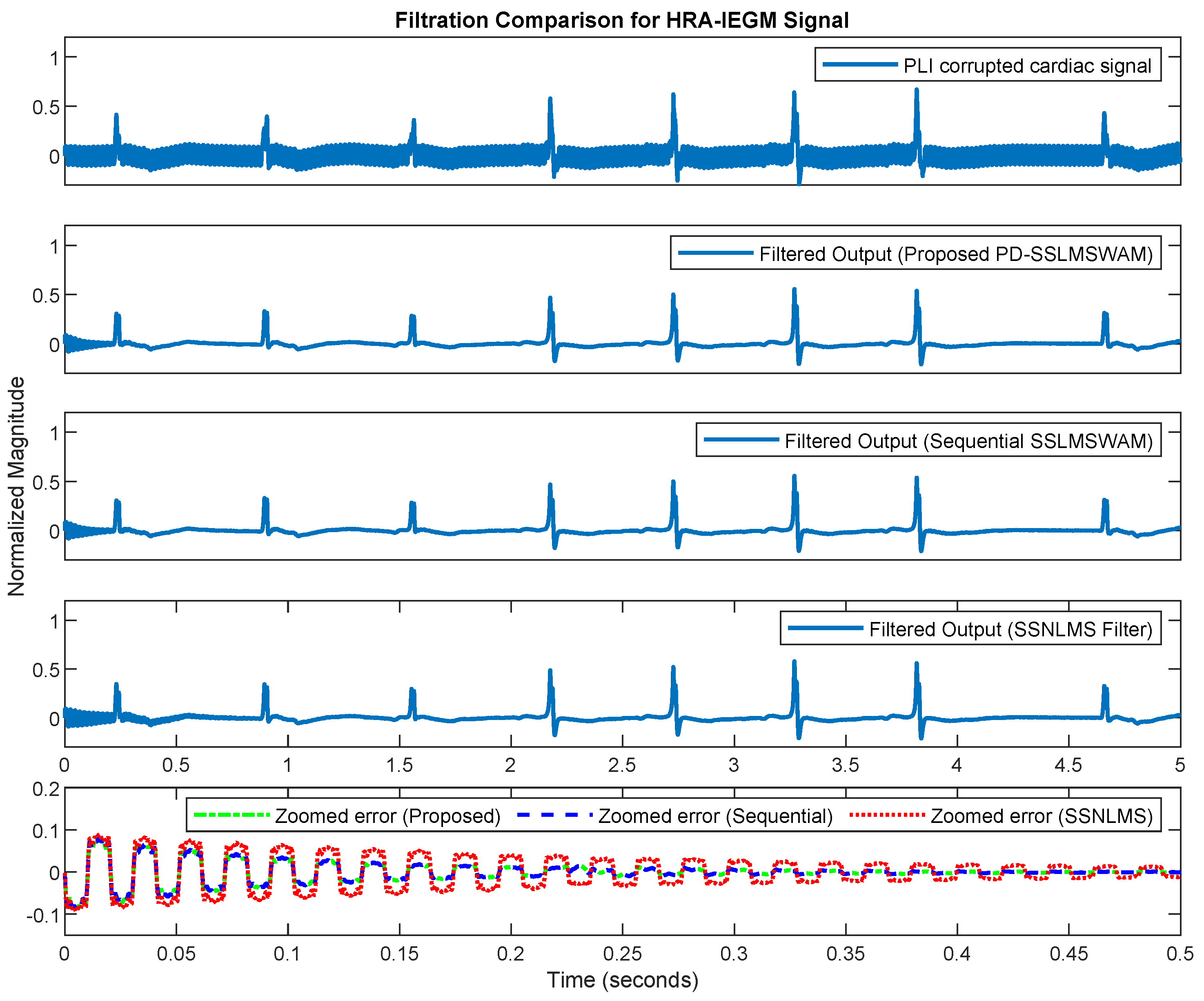

Furthermore, to validate the qualitative performances of the proposed PD–SSLMSWAM algorithm, a comparison was drawn among the proposed PD–SSLMSWAM adaptive algorithm, sequentially operated SSLMSWAM adaptive algorithm, and the SSNLMS adaptive filter for the PLI interference signal with fundamental and harmonic components. The step size $\mu$ is taken as 0.05 for the SSNLMS adaptive filter throughout the rest of the paper. For the simulation, a segment of a PLI-contaminated cardiac signal is shown in Figure 7. The results show that the proposed PD–SSLMSWAM scheme provides an equivalent performance than that of the sequentially operated SSLMSWAM algorithm. However, it is also evident that the transition period of the SSNLMS adaptive filter is greater than that of the proposed PD–SSLMSWAM architecture.

Likewise, the comparative analysis in terms of the convergence performance for the UHF–ECG signal and IEGM signal are shown in Figure 8 and Figure 9, respectively. It can be observed that the proposed architecture provides almost the same convergence performance as that of the sequentially operated SSLMSWAM algorithm. It can also be realized that the error, which is provided by the proposed PD–SSLMSWAM algorithm, is much less than that of the SSNLMS adaptive filter.

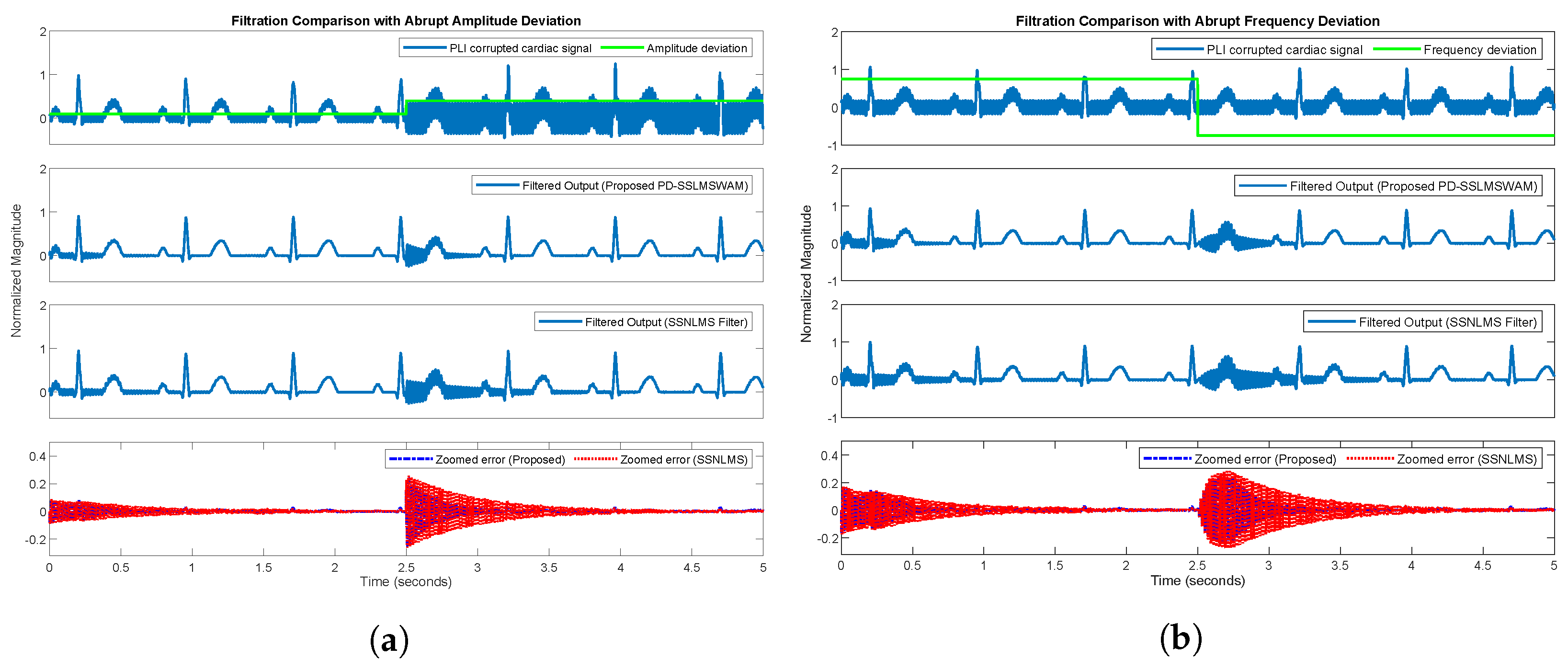

The qualitative performance of the proposed PD–SSLMSWAM architecture is almost the same as that of the sequentially–operated SSLMSWAM for all types of cardiac signals. Therefore, the proposed PD–SSLMSWAM algorithm is only compared with the SSNLMS adaptive filter to analyze the convergence performance for abrupt, linear, and sinusoidal deviations in both the amplitude and frequency of the PLI interference. For simulation purposes, a change in the amplitude of the PLI with a range of 0 to 300 mV and a fundamental frequency of 48.79 Hz of the composite PLI signal with a deviation of $\Delta F=\pm 0.75$ Hz are considered.

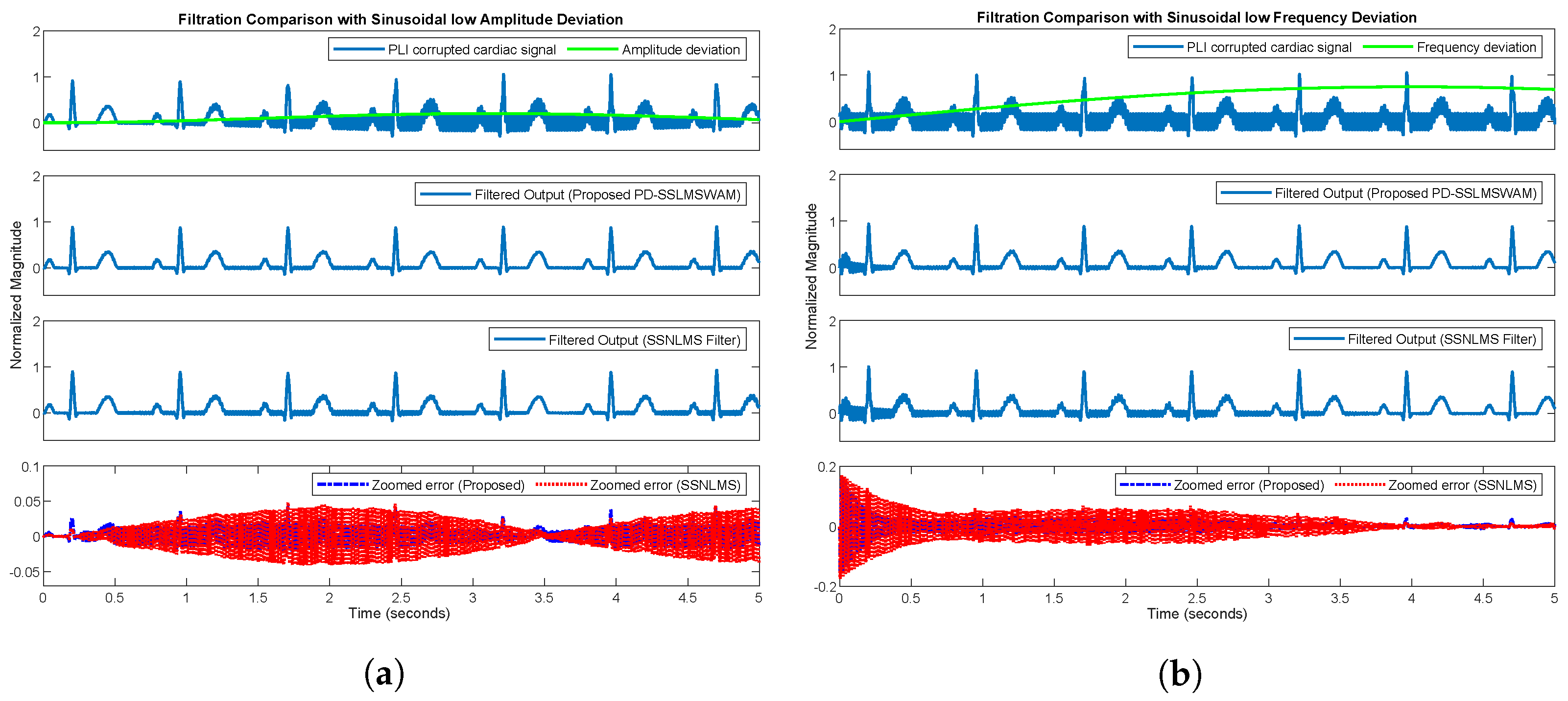

As the state space adaptive filters track the amplitude of the PLI signal based on the given frequency; therefore, to estimate the change in frequency, the high-resolution frequency estimation technique mentioned in [31] is applied for the proposed PD–SSLMSWAM, sequentially–operated SSLMSWAM, and SSNLMS adaptive filters. Figure 10 shows the corrupted cardiac signal of the PLI with abrupt changes in both the amplitude and frequency of the composite PLI signal. It can be realized that the proposed PD–SSLMSWAM algorithm takes approximately 500 ms, while the SSNLMS adaptive filter requires approximately 1500 ms to track the abrupt deviations in the amplitude and frequency of the PLI signal.

Moreover, the linear deviated PLI-corrupted cardiac signal with respect to amplitude and frequency is shown in Figure 11a and Figure 11b, respectively. It can be observed that the tracking error of the proposed algorithm is less than that of the SSNLMS adaptive filter. Additionally, sinusoidal low variations in the amplitude and frequency of the composite PLI signals are incorporated as shown in Figure 12. It can be evident that the proposed PD–SSLMSWAM algorithm successfully tracks the variations in both the amplitude and frequency of the PLI signal as compared to the SSNLMS adaptive filter.

4.2. Qualitative Performance

In this section, the proposed PD–SSLMSWAM technique is compared with those of sequentially operated SSLMSWAM and SSNLMS adaptive filters in terms of computational complexity, suppression ratio [41], correlation coefficient factor [42], the output SNR, and mean square error (MSE) [15].

Figure 13 represents the multiplication and addition complexity comparison of the proposed PD–SSLMSWAM and sequentially operated SSLMSWAM and SSNLMS adaptive filters. It is observed that the proposed technique using nonaligned time indexes parallelly provides lesser multiplication and addition complexities than the sequentially operated SSLMSWAM. However, in the case of the SSLMSWAM adaptive filter, the node $N_5$ based on $\Psi \left[k\right]$ provides the maximum computational cost as compared to other nodes, as presented in Table 1. Moreover, the parallelly reduced complexity provides serious impacts on the efficiency of the distributed network in terms of less computational costs, which are performed at each processing node.

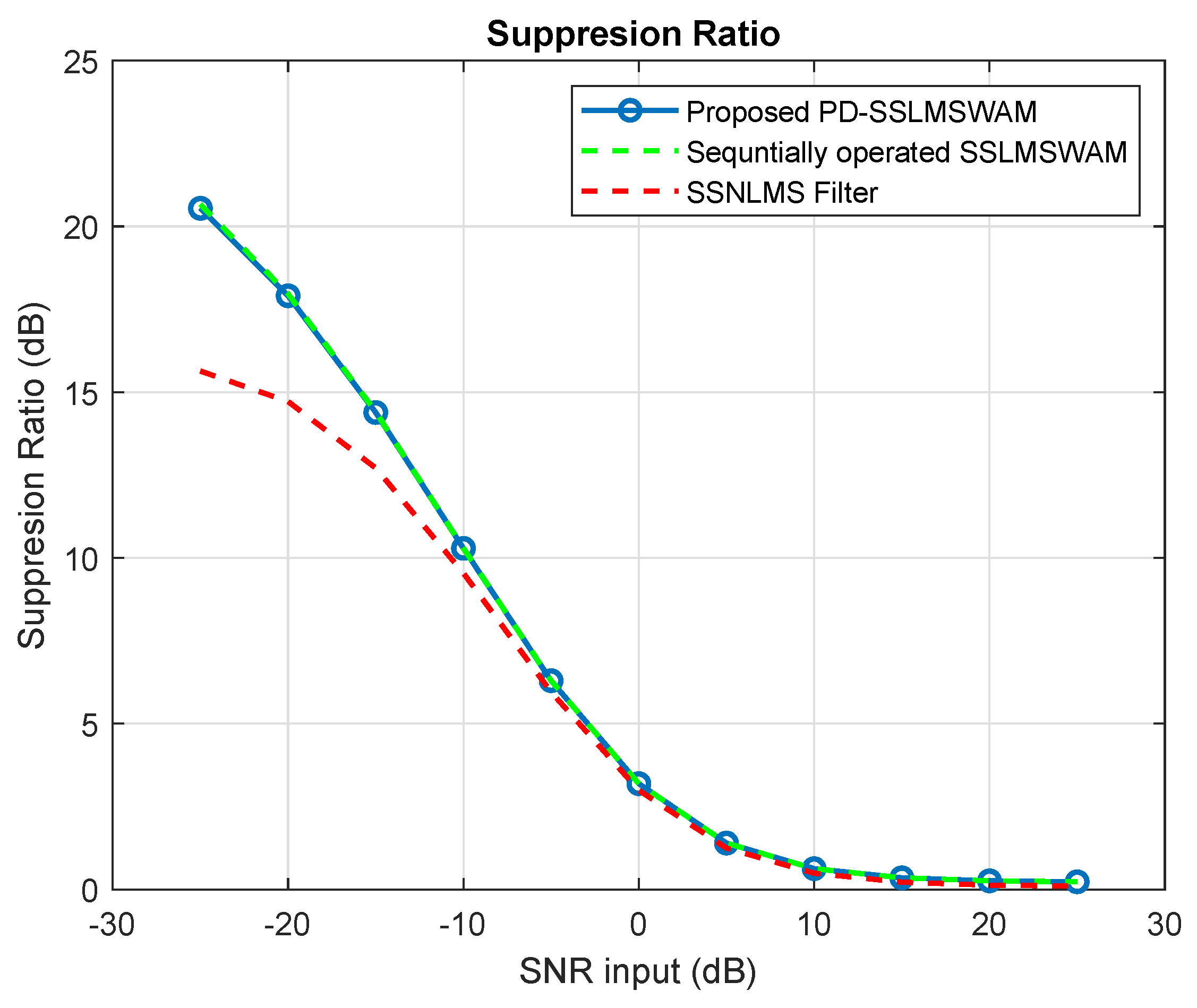

The performance criteria of the suppression ratio $\gamma$ with respect to various SNR values are compared in Figure 14. The proposed PD–SSLMSWAM algorithm has the same suppression ratio as a sequentially operated SSLMSWAM. It is also evident that the SSNLMLS adaptive filter provides much less of a suppression ratio for the low input SNR as compared to the proposed algorithm.

In the cases of critical cardiac diseases, such as SCD, e-DYS, and HRV, the shape or pattern of the cardiac signal helps the cardiologist in the clinical prognosis and diagnosis. Therefore, to measure the shape distortion due to the PLI interference, the correlation coefficient provided by the proposed PD–SSLMSWAM sequentially operates the SSLMSWAM algorithm and the SSNLMLS adaptive filter, as compared in Figure 15. The proposed architecture has almost negligible impacts in terms of shape distortion, while the overall correlation coefficient factor of the SSLMSWAM adaptive filter for the PLI removal is very high even when the corrupted HRECG has an input SNR of −20 dB compared to the SSNLMLS adaptive filter.

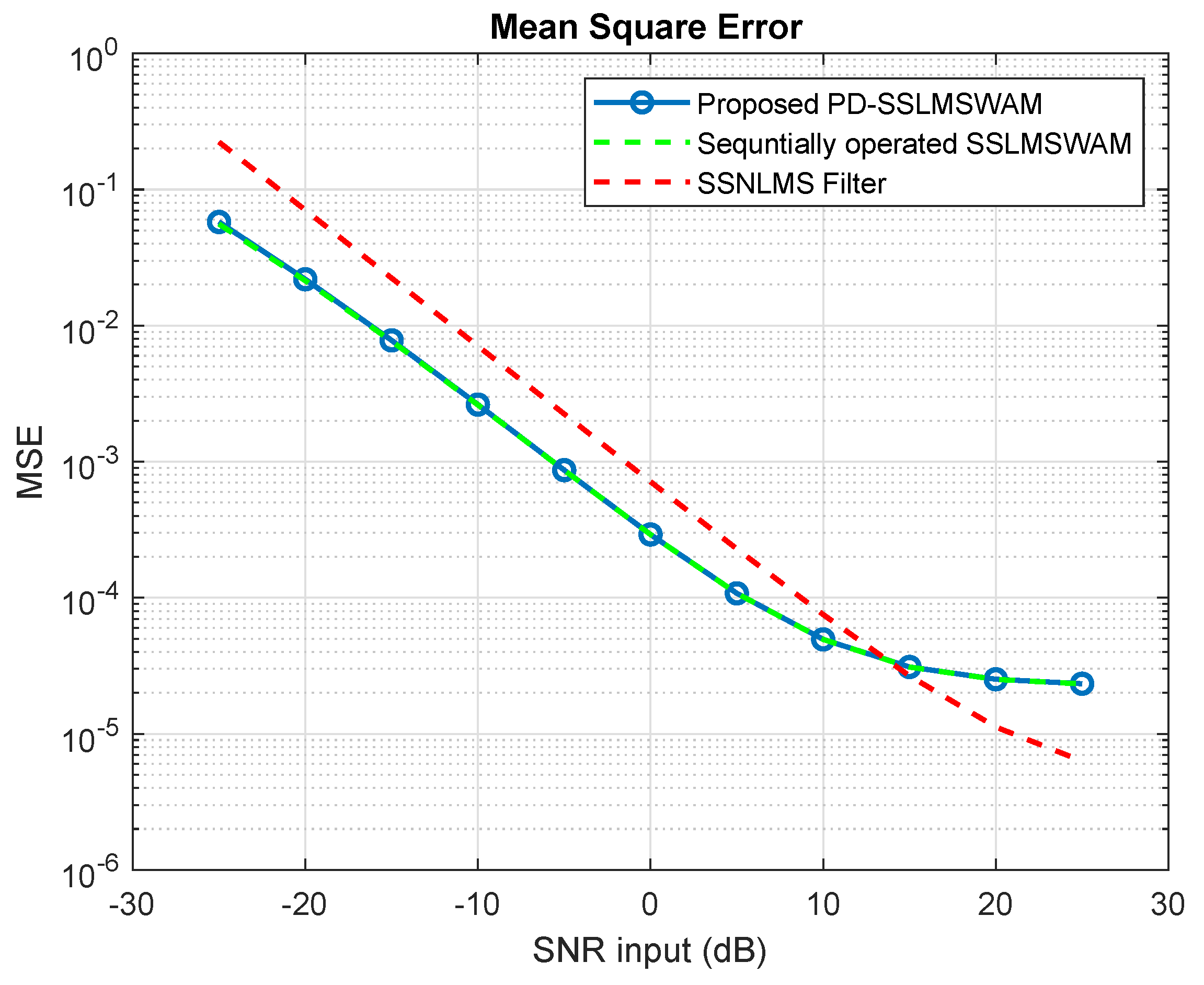

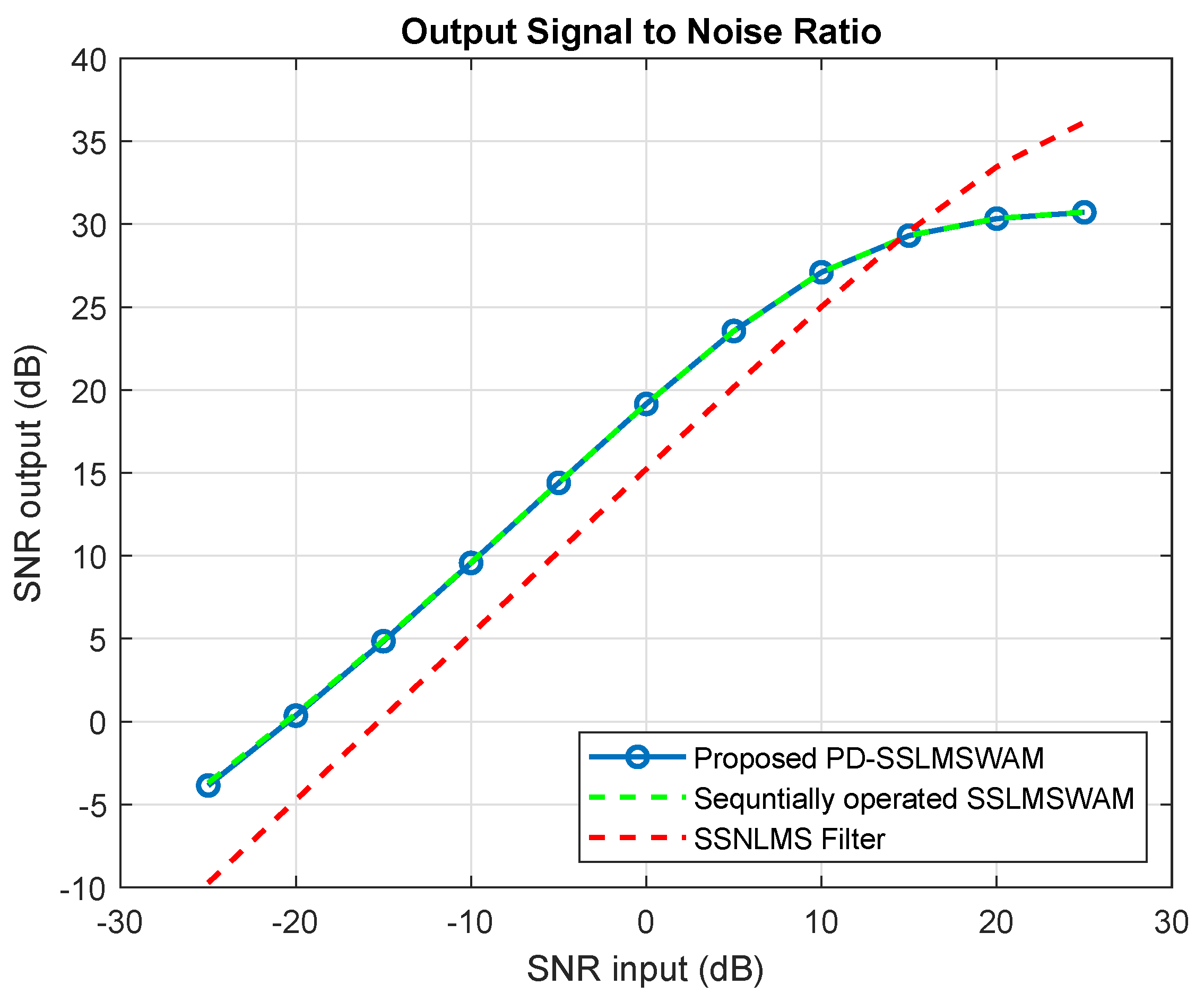

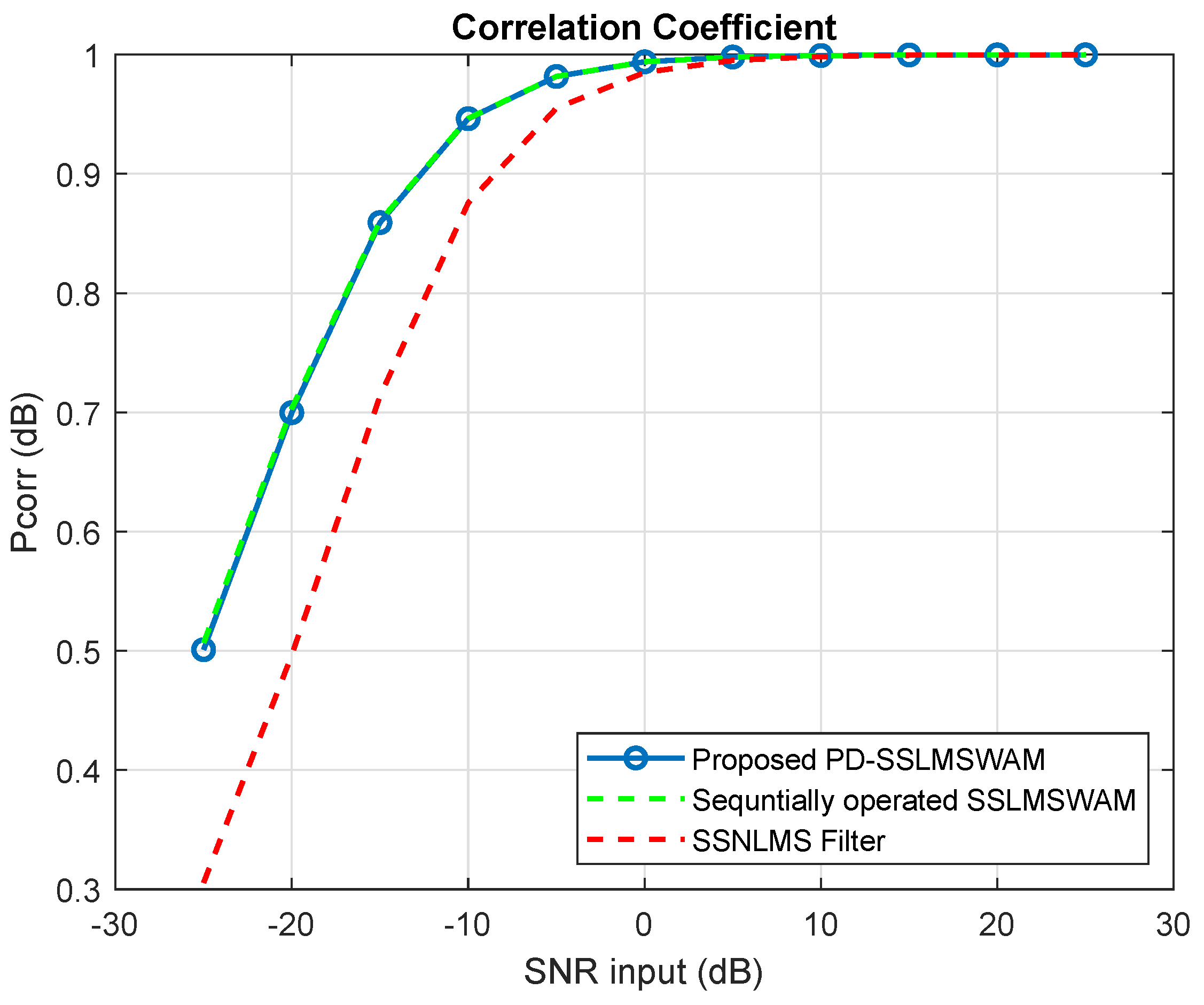

Furthermore, the comparison between the proposed PD–SSLMSWAM and sequentially operated SSLMSWAM and SSNLMLS adaptive filters for the output SNR and MSE are shown in Figure 16 and Figure 17, respectively. It can be seen that the output SNR provided by the proposed PD–SSLMSWAM architecture is approximately 5 dB higher than that of the SSNLMLS adaptive filter until the input SNR level is 0 dB. Likewise, the MSE error of the proposed architecture is also much less than that of the SSNLMLS adaptive filter.

Furthermore, to substantiate the validity of the proposed algorithm, a large dataset of real cardiac signals was statistically analyzed to measure the quantitative performance of PD–SSLMSWAM, sequentially operated SSLMSWAM, and SSNLMS adaptive filters. The dataset includes 181 recordings of the HRECG signal, 360 recordings of the UHFECG signal, and 230 recordings of the IEGM signal. Each recording of the real cardiac signal has a length of 30 s. The statistical analysis of the proposed and sequentially operated SSLMSWAM and SSNLMS algorithms for cardiac signals are illustrated in

Table 4. Statistical analysis of the proposed PD–SSLMSWAM, sequentially operated SSLMSWAM, and SSNLMS algorithm for real cardiac data.

Cardiac Data	No. of Recordings	Proposed PD–SSLMSWAM	Sequential SSLMSWAM	SSNLLMS
		Suppression Ratio
HRECG	181	$2.6428$	$2.3376$	$2.2778$
UHFECG	360	$6.8996$	$0.54561$	$0.31098$
IEGM	230	$57.944$	$57.961$	$21.566$
		Output SNR
HRECG	181	$8342.5$	$6561.7$	$6077.6$
UHFECG	360	$216.25$	$65.315$	$27.467$
IEGM	230	$120.67$	$118.11$	$110.62$
		Correlation Coefficient
HRECG	181	$0.11652$	$0.092527$	$0.086663$
UHFECG	360	$40.007\times {10}^{-3}$	$0.303\times {10}^{-3}$	$0.187\times {10}^{-3}$
IEGM	230	$0.01332$	$0.013302$	$0.079151$
		Mean Square Error
HRECG	181	$291.4\times {10}^{-6}$	$634.85\times {10}^{-3}$	$25.125$
UHFECG	360	$4.6085\times {10}^{-6}$	$205.48\times {10}^{-6}$	$150.51\times {10}^{-3}$
IEGM	230	$5.2041\times {10}^{-10}$	$8.3774\times {10}^{-10}$	$1.4554\times {10}^{-6}$

. The suppression ratios of the proposed and sequentially operated SSLMSWAM are nearly the same for HRECG and IEGM signals, but for the UHFECG signal, the proposed algorithm has more of a suppression ratio than that of the sequentially operated SSLMSWAM. Likewise, the proposed PD-SSLMSWAM algorithm achieves a higher suppression ratio for all three types of cardiac signals compared to the SSNLMS adaptive filter. Moreover, the proposed algorithm provides a much higher output SNR for all three types of cardiac signals, i.e., HRECG, UHFECG, and IEGM than those of the sequentially operated SSLMSWAM and SSNLMS algorithms. Likewise, the correlation coefficients of both the proposed and sequentially operated SSLMSWAM are almost the same for HRECG and IEGM signals, but for the UHFECG signal, the proposed algorithm has a much higher correlation coefficient than that of the sequentially operated SSLMSWAM. Likewise, the proposed PD-SSLMSWAM algorithm achieves a higher suppression ratio for all three types of cardiac signals as compared to the SSNLMS adaptive filter. Furthermore, the proposed algorithm provides a lesser mean square error for all three types of cardiac signals, i.e., HRECG, UHFECG, and IEGM than those of the sequentially operated SSLMSWAM and SSNLMS algorithms.

5. Conclusions

In this paper, a computationally efficient parallel distributed framework for the state space least mean square with an adoptive memory (SSLMSWAM) adaptive filter is proposed. The proposed parallel distributed architecture runs the computationally expensive SSLMSWAM adaptive filter parts in a parallel manner. The proposed parallel distributed SSLMSWAM (PD–SSLMSWAM) algorithm efficiently removes the PLI along with its harmonics (even the time alignments among the contributing nodes are not the same). The proposed PD–SSLMSWAM technique was compared with those of the sequentially operated SSLMSWAM and state space normalized least mean square (SSNLMS) adaptive filters in terms of computational costs and convergence performances. It was observed that the proposed PD–SSLMSWAM algorithm exhibits less computational costs and has nearly the same convergence performance as that of the sequentially operated SSLMSWAM adaptive filter. However, the proposed PD–SSLMSWAM architecture has a high convergence performance for the effective removal of PLI, along with its harmonics from cardiac signals, compared to the SSNLMS adaptive filter.

The source code can be accessed by clicking on the following link.

https://github.com/RaoInam-ur-Rehman/PDSSLMSWAM-for-removal-of-PLI-from-cardiac-signals (accessed on 1 January 2020 ).
