Deep Reinforcement Learning Heterogeneous Channels for Poisson Multiple Access

Abstract

This paper proposes a medium access control (MAC) protocol based on deep reinforcement learning (DRL), i.e., multi-channel transmit deep-reinforcement learning multi-channel access (MCT-DLMA) in heterogeneous wireless networks (HetNets). The work concerns practical unsaturated channel traffic that arrives following a Poisson distribution instead of saturated traffic that arrives before.By learning the access mode from historical information, MCT-DLMA can well fill the spectrum holes in the communication of existing users. In particular, it enables the cognitive user to multi-channel transmit at a time, e.g., via the multi-carrier technology. Thus, the spectrum resource can be fully utilized, and the sum throughput of the HetNet is maximized. Simulation results show that the proposed algorithm provides a much higher throughput than the conventional schemes, i.e., the whittle index policy and the DLMA algorithms for both the saturated and unsaturated traffic, respectively. In addition, it also achieves a near-optimal result in dynamic environments with changing primary users, which proves the enhanced robustness to time-varying communications.

1. Introduction

With the continuous optimization of communication technology, the global communication network traffic is growing exponentially. The scarce spectrum resources make it necessary to use the spectrum efficiently. Therefore, dynamic spectrum access (DSA) is the key to realize the efficient utilization of spectrum resources in cognitive radio. Various approaches envisioned for DSA are broadly categorized under three models: dynamic exclusive use model, open-sharing model, and hierarchical access model [1]. In the hierarchical access model, the network structure includes a primary user (PU), cognitive user (CU) and access point (AP). The CU can perceive the spectrum holes in the current frequency band without affecting the communication service quality of the PU.

In the field of DSA, the most common medium access control (MAC) protocol is carrier sense multiple access with collision avoidance (CSMA/CA), which uses the carrier sense and binary exponential back-off (BEB) scheme to avoid collision [2]. In BEB, the collision issue increases with the increase in connected devices in the network due to a fixed contention window size [3]. Recently, with advances in artificial intelligence (AI) techniques, deep learning (DL) has been widely used in the field of communication, e.g., channel estimation [4,5,6,7], beamforming [8,9,10,11], channel coding [12,13,14,15,16] and power control [17]. Deep reinforcement learning (DRL) is a major branch of DL that has developed rapidly and achieved great success in the field of games. Ref. [18] uses the Deep Q Network [19] algorithm in the classic Atari2600 game. People also began to use DRL technology in communication fields as a problem-solving solution. Ref. [20] applied multi-agent DRL for transmission power allocation in practical wireless network, where the system model is inaccurate and the channel state information (CSI) delay is not negligible. Ref. [21] proposed a DRL-based routing approach to reduce packet collisions as well as end-to-end delay. Ref. [22] specifically designed a DRL framework to emulate a continuous power allocation for non-orthogonal multiple access (NOMA) systems. By exploiting neural networks, [23] considered a dynamic multi-channel access problem, where multiple correlated channels follow an unknown joint Markov model and users select the channel to transmit data. Ref. [24] considered a multi-channel scenario, where DRL is used to achieve a specific network goal (e.g., $\alpha$-fairness). Ref. [25] adopted DRL to develop a new MAC protocol, referred to as multi-channel DRL multiple access (DLMA). It allows CU single channel access among multiple channels and can learn an optimal access policy by historical observations. We see that most existing DRL-based solutions assume that the data traffic is saturated. This will be the case, for example, when the nodes are transmitting large files containing many packets. However, in some cases, devices do not generate communication requests all the time. Refs. [26,27] investigated the MAC protocol for the vehicle network and the unmanned aerial vehicle network with unsaturated traffic, respectively. Thus, to better simulate more generalized situation, we consider that the user traffic arrives following a Poisson distribution rather than saturated traffic [28]. In addition, the single-channel transmit, i.e., in DLMA, also leads to a low channel utilization rate when multiple channels are idle at the same time. To address these issues, we consider a heterogeneous wireless network (HetNet) with multiple orthogonal channels. For the considered model, we propose a new DRL-based MCT-DLMA protocol. This protocol enables the CU to multi-channel transmit the data at a time, e.g., via the multi-carrier technology, by exploiting the collected historical channel information. Then, a near-optimal channel access policy can be learned from MCT-DLMA, and we can avoid the waste of channel resources in the case of multiple idle channels. MCT-DLMA can be used for wireless multi-access applications, e.g., the internet of vehicles and the internet of things to enhance the transmission spectrum utilization [29,30]. Figure 1 shows the MCT-DLMA application in IoV. There is a fixed CU and multiple PUs that change with the movement of the vehicle. When PUs are not occupying the channel, CU is expected to send data packets to maximize channel utilization.

The experimental results show that the proposed MCT-DLMA can achieve higher throughput than the existing methods in static HetNet. In particular, MCT-DLMA also shows the enhanced robustness in dynamic environments, where the PUs communicating with the CU change over the time. The contributions of this paper are summarized as follows:

• We propose a DRL-based MCT-DLMA protocol for efficient spectrum utilization in multi-channel HetNets. It can learn to find a near-optimal spectrum access policy by exploiting the collected historical channel information. A salient feature of MCT-DLMA is that it enables CU to multi-channel transmit the data at a time, e.g., via the multi-carrier technology. It can avoid the waste of channel resources in the case of multiple idle channels.
• The proposed MCT-DLMA is optimized for saturated and unsaturated traffic networks, respectively. The experimental results show that the proposed MCT-DLMA can achieve higher throughput than the existing the whittle index policy [31] and the DLMA in static HetNet. In particular, MCT-DLMA also shows the enhanced robustness in dynamic environments, where the PUs communicating with the CU change over the time.

The remainder of this paper is organized as follows. Section 2 overviews the reinforcement learning techniques. Section 3 describes the system model and the problem to be solved. In Section 4, we present the specific details of MCT-DLMA. Section 5 gives the simulation results, and Section 6 end this paper.

2. Deep Reinforcement Learning Framework

In reinforcement learning (RL), the agent interacts with the environment. At time slot t, the agent observes some manifestations of the environmental state $s_t$. Then, it performs the action $a_t$ in accordance with the policy $\pi \left(a\right|s)=P_r(a_t=a|s_t=s)$. As a result, the agent will receive a reward $r_t$ from the environment. Meanwhile, the environmental state becomes $s_{t+1}$. The objective of the agent is to find an optimal policy ${\pi }^{*}\left(a\right|s)$ such that the long-term cumulative discounted reward $R_t$ can be maximized by

$$R_t=\underset{\pi }{max}{\mathrm{E}}_{\pi }\left[\sum _{k=t}^{\infty }{\gamma }^{k-1}{r}_k\right],$$

(1)

$${\pi }^{*}=arg\underset{\pi }{max}{\mathrm{E}}_{\pi }\left[\sum _{k=t}^{\infty }{\gamma }^{k-1}{r}_k\right],$$

(2)

where $\gamma$ is the reward discount rate, $0\le \gamma <1$.

2.1. Q-Learning

Q-learning [32] is one of the most classic paradigms of RL. For each state–action pair $(s,a)$, the action-value function $Q_{\pi }(s,a)$ under the policy $\pi$ is defined as

$$Q_{\pi }(s,a)={\mathrm{E}}_{\pi }\left[R_t\right|s_t=s,a_t=a].$$

(3)

Then the optimal policy can be decided by

$${\pi }^{*}\left(a\right|s)=arg\underset{\pi }{max}{Q}_{\pi }(s,a).$$

(4)

Q-learning builds a lookup Q-table to store the action-value function $Q(s,a)$ for each state–action pair $(s,a)$. At time slot t, the agent performs the action $a_t$ with the $ϵ$-greedy policy [32]. The Q-learning updates the corresponding Q-value $Q(s_t,a_t)$ as

$$Q(s_t,a_t)\leftarrow Q(s_t,a_t)+\alpha [r_t+\gamma \underset{a^{\prime }}{max}Q(s_{t+1},a^{\prime })-Q(s_t,a_t)],$$

(5)

where $\alpha$ is the learning rate of the agent.

2.2. Deep Q Network

DQN is an improved algorithm of the Q-learning. It uses an end-to-end reinforcement learning to directly input high-dimensional perceptual vectors into the deep Q network to learn behavioral policies. It uses deep neural networks to approximate the Q function instead of the table in Q-learning. In Q-learning, $Q(s_t,a_t)$ is the expected reward, i.e., Q value, of taking action $a_t$ in the state $s_t$. In DQN, $Q(s_t,a_t)$ becomes $Q(s_t,a_t;\theta )$, where $\theta$ is the parameter of the deep neural network. The data pair $(s_t,a_t,r_t,s_{t+1})$ generated time step is stored in a FIFO experience pool D. Then, N pairs of data are randomly extracted from D to form a mini-batch. The loss function $L\left(\theta \right)$ is minimized using neural network back-propagation given by

$$\begin{array}{cc}\hfill L\left(\theta \right)=& \frac{1}{N}\sum _{i=1}^N{[r_t^i+\gamma \underset{a}{max}Q(s_{t+1}^i,a;\theta )-Q(s_t^i,a_t^i;\theta )]}^2.\hfill \end{array}$$

(6)

Based on DQN, the dueling double deep Q network (D3QN) is further developed as follows:

• Double DQN: Solve the overestimation problem in DQN [33]. It changes the loss function and uses the target network (${\theta }^{\prime }$) to update the loss function as

  $$\begin{array}{cc}\hfill L\left(\theta \right)=& \frac{1}{N}\sum _{i=1}^N[r_t^i+\gamma Q(s_{t+1}^i,arg\underset{a}{max}Q(s_t^i,a,\theta );{\theta }^{\prime })-Q(s_t^i,a_t^i;\theta )].\hfill \end{array}$$

  (7)
• Dueling DQN: Change the unbranched neural network structure in DQN [34]. An advantage layer and a value layer are added, which are used to estimate the advantage value of each action and the current state value.

3. System Model and Problem of Interest

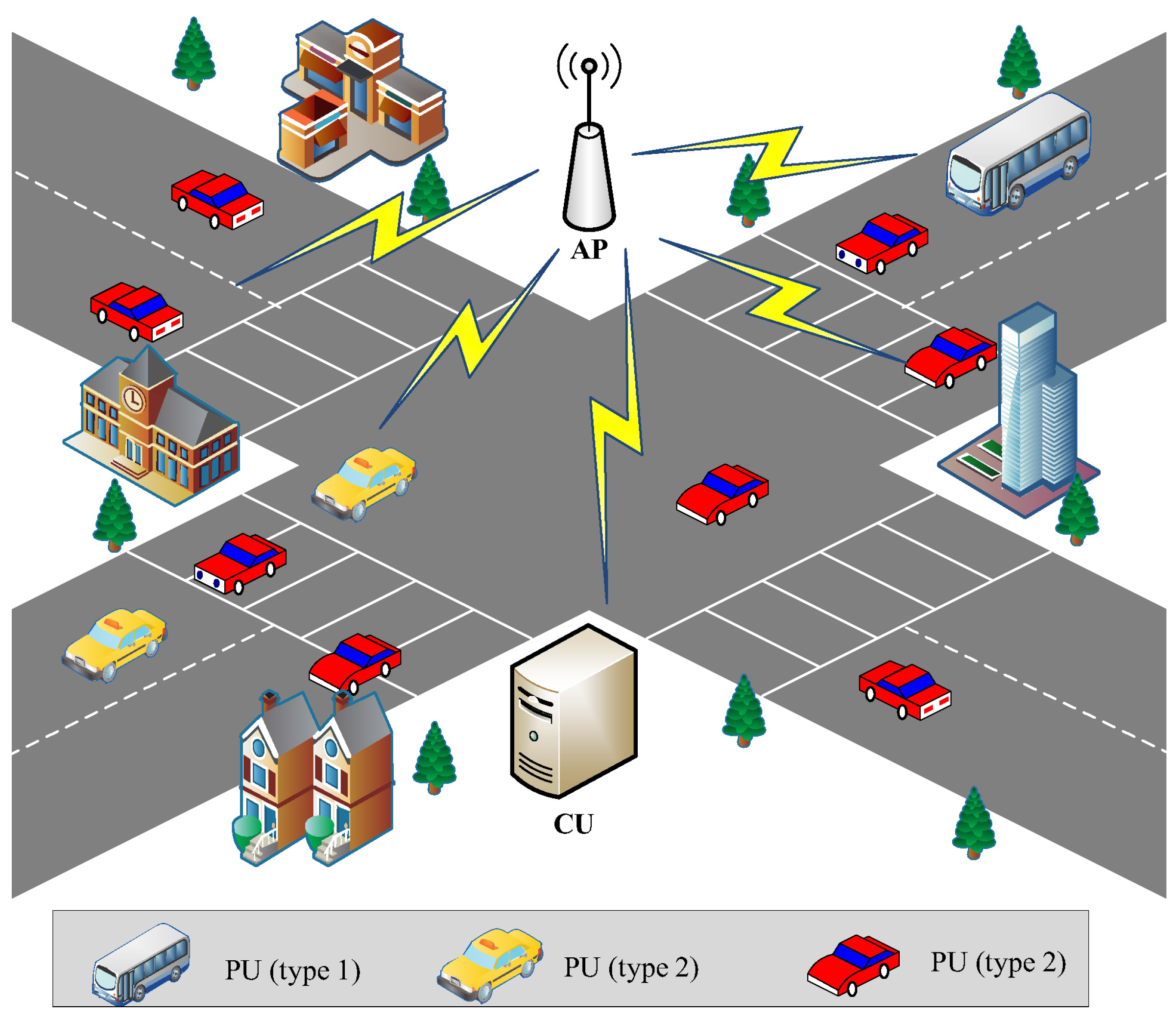

We consider a multi-channel multi-user HetNet based on the slotted ALOHA protocol. Time is allocated into different frames, and each frame contains F time slots. Each user is equipped with a finite buffer, and the packet arrives randomly, i.e., following a Poisson distribution at the beginning of each frame. The user node adopts different MAC protocols and sends packet to AP through the pre-assigned channel. After the AP successfully receives the packet, it will return an acknowledge character (ACK) signal to the sending user. When multiple users access the same channel at the same time, a collision occurs, and these users fail to send in the current time. Each user has not any protocol information of other users. There are the following types of users in this system:

1.

TDMA: send data packet in a fixed time slot of a frame.

2.

Q-ALOHA: send data packet with a fixed probability q in each time slot using Q-ALOHA protocol.

3.

Fixed-window ALOHA (FW-ALOHA): randomly generate a value $w\in [W_1,W_2]$ after sending a data packet, and wait for w time slots to send the next time [25].

4.

CU: adopt the MCT-DLMA protocol, it monitors the channel state (BUSY/IDLE) for a period of time in the past and selects the channel to send data packets based on the deep Q network.

Only CU can multi-channel transmit, and other users can only single-channel transmit. The purpose is that the CU can access all idle channels possibly when multiple channels are idle.

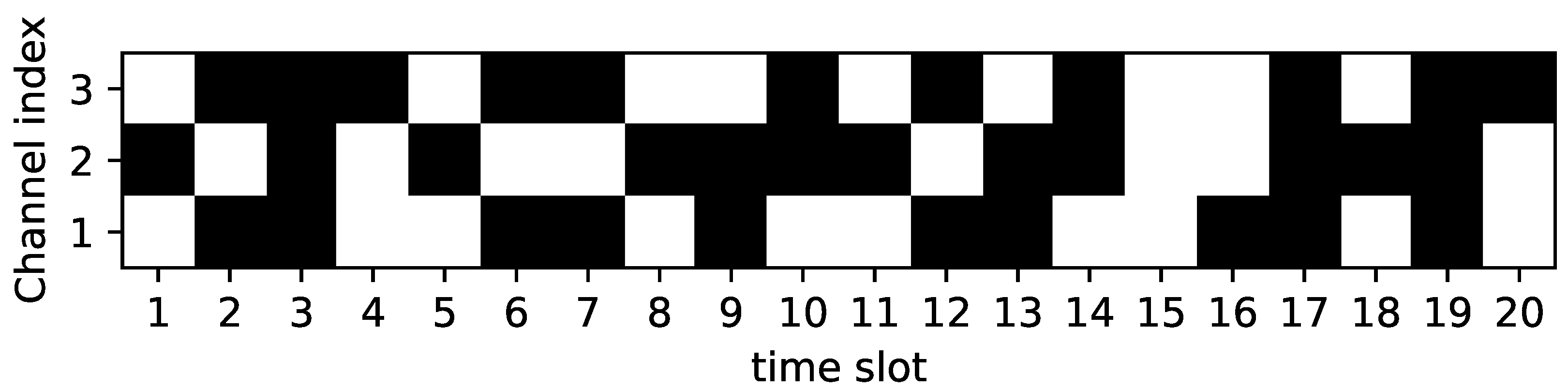

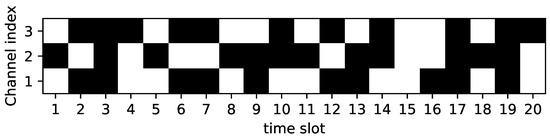

The communication network may waste many spectrum resources. Figure 2 is the channel state diagram of 20 consecutive time slots, when the three-channel heterogeneous network works. In the figure, white represents that the channel is idle, and black represents that the channel is busy. There is a large number of white areas, which means the spectrum resources are not used. Motivated by this, our goal is to increase throughput and avoid transmit collision by optimizing CU. Since the CU does not have any prior knowledge of PUs, it needs to infer the next behavior of PUs based on past observations, e.g., ACK and channel state.

4. MCT-DLMA Protocol

In this section, we introduce the detail of the proposed MCT-DLMA, which includes the design of actions, states and rewards, and the deep neural network.

4.1. Action

CU chooses an action before the start of each time slot. Suppose that there are K available channels in total. At time slot t, the action of the CU is to select $n\in \{0,1,2,\dots ,K\}$ channels to send the data packet. We denote $a_t^k\in \{0,1\}$ (wait or transmit) as the action of the kth channel of the CU at time slot t, where $k\in \{1,2,\dots ,K\}$. The CU joint action is denoted by $a_t=[a_t^1,a_t^2,\cdots ,a_t^K]$ in all K channels.

4.2. State

The state is the basis for the CU decision making. CU monitors all channels to help decision making. At time slot t, the $k^{th}$ channel state is denoted by $b_t^k$, where $b_t^k=0$ means that the $k^{th}$ channel is idle, and $b_t^k=1$ means the busy channel. CU needs to avoid collision with PUs, and it collects the action of PUs. The collected information is denoted as $o_t=[o_t^1,o_t^2,\cdots ,o_t^k,\cdots ,o_t^K]$, where $o_t^k$ is the observation of the $k^{th}$ channel by CU at time t. When PU sends data and CU does not send data, i.e., $b_t^k=1$, $a_t^k=0$, we have $o_t^k=1$ and $o_t^k=0$ otherwise, given by

$$\begin{array}{c}\hfill o_t^k=\left\{\begin{array}{cc}1,\hfill & b_t^k=1,a_t^k=0,\hfill \\ 0,\hfill & otherwise.\hfill \end{array}\right.\end{array}$$

(8)

Since there is a dependency between the channel states across the times, we integrate the channel observations of the past M time slots as the state $s_t$, given by

$$\begin{array}{cc}\hfill s_t& ={[o_{t-M}^{\mathrm{T}},o_{t-M+1}^{\mathrm{T}},\cdots ,o_{t-1}^{\mathrm{T}}]}^{\mathrm{T}}\hfill \\ \hfill & =\left[\begin{array}{cccc}{o}_{t-M}^1& o_{t-M}^2& \cdots & o_{t-M}^K\\ o_{t-M+1}^1& o_{t-M+1}^2& \cdots & o_{t-M+1}^K\\ ⋮& ⋮& \ddots & ⋮\\ o_{t-1}^1& o_{t-1}^2& \cdots & o_{t-1}^K\end{array}\right].\hfill \end{array}$$

(9)

4.3. Reward

At time slot t, we denote the ACK signal $z_t=[z_t^1,z_t^2,\cdots ,z_t^k,\cdots ,z_t^K]$, where $z_t^k\in \{0,1\}$ is the ACK signal received on the $k^{th}$ channel. The number of packets in the buffer of CU at time t is defined as $d_t$. The goal of CU is to utilize the idle channels and then maximize network throughput. We then denote the reward as $r_t=[r_t^1,r_t^2,\dots ,r_t^k,\dots ,r_t^K]$, where $r_t^k$ is the reward for the $k^{th}$ channel at time slot t, given by

$$\begin{array}{c}\hfill r_t^k=\left\{\begin{array}{cc}1,\hfill & z_t^k=1,a_t^k=1,d_t>0,\hfill \\ -1.5,\hfill & z_t^k=0,a_t^k=1,d_t>0,\hfill \\ -0.5,\hfill & z_t^k=0,a_t^k=0,d_t>0,\hfill \\ 0,\hfill & otherwise.\hfill \end{array}\right.\end{array}$$

(10)

Thus, we have different penalties for different channel utilization, i.e., reward of $-1.5$ for collisions, $-0.5$ for waste, and 1 for successful sending.

4.4. Neural Network

Since all the channels are orthogonal, CU can evaluate the expected reward for a single channel without interference from other channels. In addition, the action space size is $2^K$, which will rise exponentially as K increases. It results in a huge scale of neural network and ultra-high storage costs. It is not feasible for the neural network to directly output the Q value of all actions.

To address this issue, we divide the state $s_t$ into independent states $s_t^k$ of each channel, and we define

$$\begin{array}{cc}\hfill s_t& =\left[\begin{array}{cccc}{o}_{t-M}^1& o_{t-M}^2& \cdots & o_{t-M}^K\\ o_{t-M+1}^1& o_{t-M+1}^2& \cdots & o_{t-M+1}^K\\ ⋮& ⋮& \ddots & ⋮\\ o_{t-1}^1& o_{t-1}^2& \cdots & o_{t-1}^K\end{array}\right]\hfill \\ \hfill & =\left[\begin{array}{cccccc}{s}_t^1& s_t^2& \cdots & s_t^k& \cdots & s_t^K\end{array}\right].\hfill \end{array}$$

(11)

where

$$\begin{array}{cc}\hfill s_t^k& ={\left[\begin{array}{cccc}{o}_{t-M}^k& o_{t-M+1}^k& \cdots & o_{t-1}^K\end{array}\right]}^{\mathrm{T}}.\hfill \end{array}$$

(12)

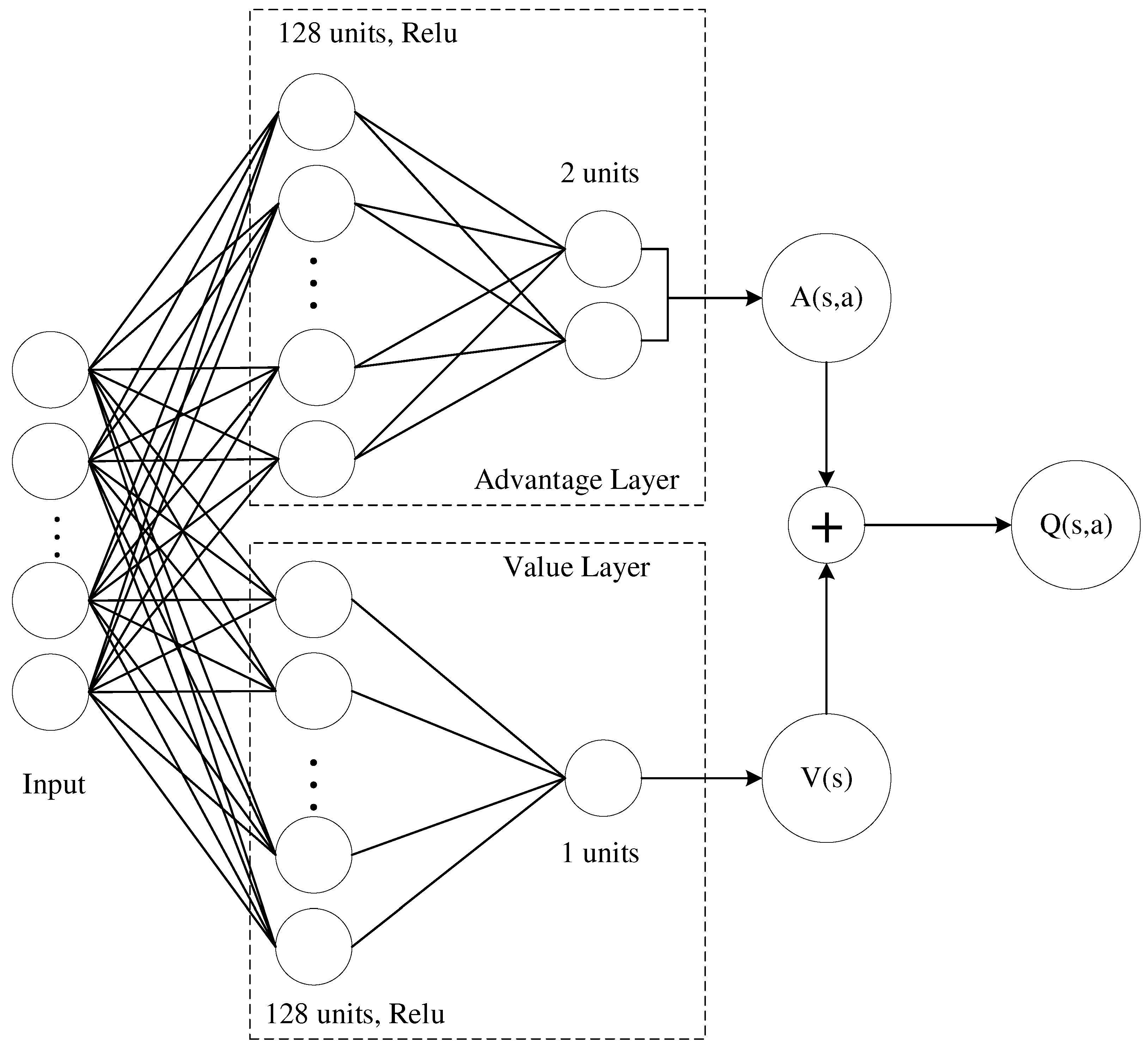

Figure 3 shows a graph of the proposed neural network structure based on Dueling DQN. Note that we use a simple fully connected (FC) neural network inside. There are two branches in the neural network with the advantage layer and the value layer. The advantage layer contains a 128-unit FC layer and a 2-unit FC layer, and the output is advantage value $A(s,a)$. The value layer contains a 128-unit FC layer and a 1-unit FC layer, and the output is state value $V\left(s\right)$. Q-value $Q(s,a)$ is obtained by adding $A(s,a)$ and $V\left(s\right)$. At time slot t, $s_t^k$ is input into the neural network, and enters the advantage layer and value layer. The output of the advantage layer is advantage value $A(s,a;\theta )$, and the output of the value layer is state value $V(s;\theta )$. The two values are added to get action–state value $Q(s,a;\theta )$. We denote the action–state value of channel k as $Q_t^k=[Q_{t,0}^k,Q_{t,1}^k]$, where $Q_{t,0}^k$ is the Q value indicating not sending, and $Q_{t,1}^k$ is the Q value indicating sending. Finally, CU obtains the larger Q value between $Q_{t,0}^k$ and $Q_{t,1}^k$ to decide the action $a_t^k$ of channel k. Repeat this process for each channel, and we can obtain the joint action $a_t=[a_t^1,a_t^2,\cdots ,a_t^K]$.

We adopt a D3QN algorithm as a problem-solving method. CU interacts with the environment to collect historical information to optimize the access policy. The optimization policy updates the parameters of the neural network by minimizing the loss function $L\left(\theta \right)$ as in (6). The historical data are stored in the experience pool D in the form of $(s_t,a_t,r_t,s_{t+1})$.

During the training period, data are randomly extracted from D for calculating the loss function and training the neural network. In a dynamic environment, changes in the channels will reduce the reference value of the data in D. Therefore, the past data should be squeezed out of D as quickly as possible after the environment changes. It means that the size of the experience pool D should be limited. In the DRL tasks, the reward discount rate $\gamma$ usually takes the value close to 1. The agent can see further and gain the greatest long-term rewards [24,25]. However, to adapt a dynamic environment, the long-term reward has little significance since the environment changes over times, and the short-term rewards are more important. Thus, the reward discount rate $\gamma$ cannot be too large.

4.5. Algorithm

Algorithm 1 shows the proposed MCT-DLMA protocol with T frame in each epoch. A frame consists of F times slots. First, initialize the parameters. Input the current state $s_t$ into the neural network at the beginning of each time slot, and select the action $a_t$. Then, each user performs an action to send the data packet. The CU can obtain the reward $r_t$ and the next state $s_{t+1}$. Data pair $(s_t,a_t,r_t,s_{t+1})$ is stored in D. After one epoch, N data pairs $(s_t,a_t,r_t,s_{t+1})$ are randomly sampled from D. The eval-network $\theta$ and the target-network ${\theta }^{\prime }$ are updated according to (6). Then, we start the communication process of the next epoch.

Algorithm 1 Double-dueling-deep Q network.

1: Initialization $s_0$, $\mathbf{D}$, N, $\alpha$, $\gamma$, $\theta$, ${\theta }^{\prime }$, F, $\lambda$ 2: for epoch $=1$ to max epoch do 3:    for $t=1$ to T do 4:      if $t\%F==0$ then 5:         Users receive data follows a Poisson distribution $P\left(\lambda \right)$ 6:      end if 7:      Feed $s_t$ into eval-Net $\theta$ and get the Q values 8:      Q = $\left\{\mathit{Q}(s_t,a;\theta )\mid a\in \left\{0,1\right\}\right\}$ 9:      Choose $a_t$ according to Q 10:      Take $a_t$ to transmit data, get $r_{t+1},s_{t+1}$ 11:      Save $(s_t,a_t,r_{t+1},s_{t+1})$ into experience pool D 12:      Randomly choosing N data pair from D 13:      $y={\displaystyle \sum _{i=1}^N}[r_t^i+\gamma Q(s_{t+1}^i,arg\underset{a}{max}Q(s_t^i,a,\theta );{\theta }^{\prime })]$ 14:      $L=\frac{1}{N}(y-{\displaystyle \sum _{i=1}^N}Q(s,a;\theta ))$ 15:      backward and update $\theta$ according to L 16:    end for 17:    ${\theta }^{\prime }\leftarrow \theta$ 18: end for

5. Simulation Results

In this section, we apply the MCT-DLMA protocol in different environments and compare it with the existing algorithms, e.g., the whittle index policy and the DLMA. The whittle index policy and the DLMA can only send one packet at a time. MCT-DLMA that supports the channels utilization optimization with unsaturated traffic can transmit multiple data packets at one time by using the multi-channel access mechanism (

Table 1. Approach comparison.

Algorithms	DRL-Based	Access Channels	Data Traffic
Whittle Index [31]	No	single	saturated
DLMA [25]	Yes	single	saturated
MCT-DLMA	Yes	multiple	Poisson distribution/ saturated

).

In the system model, we set $T=5$ and $F=10$ in each frame. The CU observes the history information with length $M=20$, i.e., it can record the channel state of the past 20 time slots. We empirically set the learning rate $\alpha =0.0005$, $\gamma =0.5$, and use the Adam optimizer for the trained policy of the neural network [23,25]. The experience pool size of D is 250, and the batch size is 32.

5.1. MCT-DLMA + 3-User TDMA

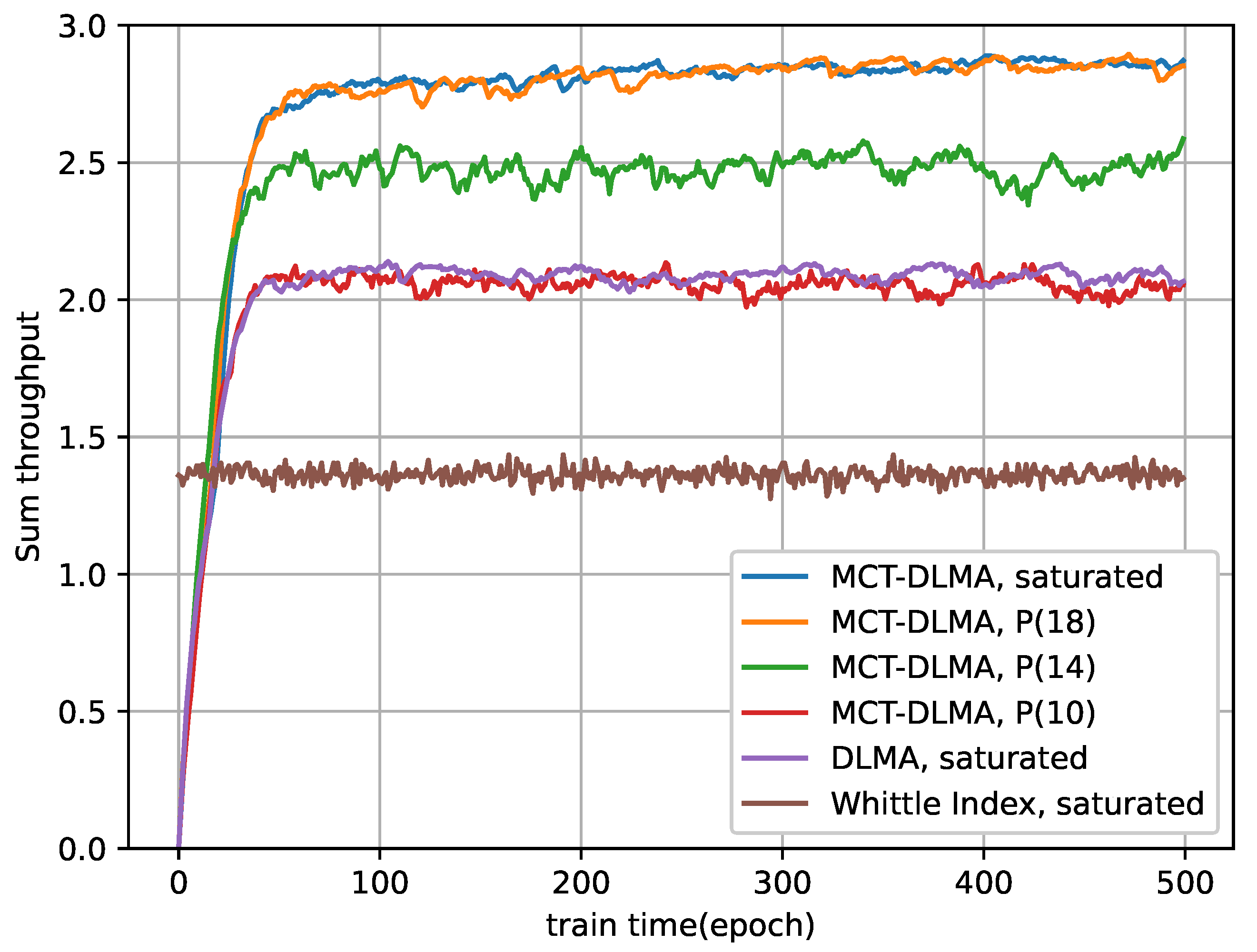

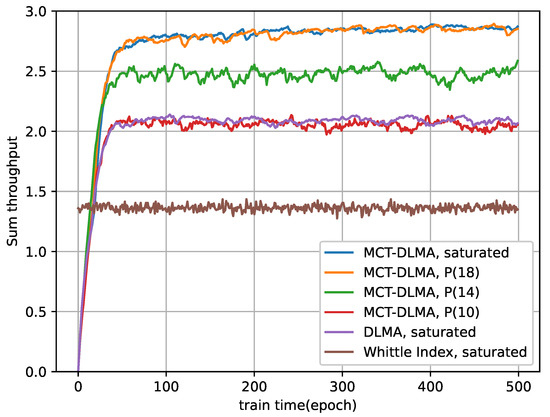

CU coexists with 3 TDMA PUs, denoted by A, B, and C. Each PU sends data on one channel for a total of 3 channels. A sends data in the 1st, 3rd, and 5th time slots of each frame. B sends data in the 1st, 4th, 7th, and 8th time slots of each frame. C sends data in the 4th, 6th, 7th, 9th and 10th time slots of each frame. The data traffic by each user obeys Poisson distribution $P\left(\lambda \right)$. The traffic of PUs A, B and C follows $P\left(3\right)$, $P\left(4\right)$ and $P\left(5\right)$, respectively. In Figure 4, it can be seen that MCT-DLMA performs much better than the whittle index for all the cases. In particular, the sum throughput of MCT-DLMA with $P\left(10\right)$ is about 51.5% higher than that of the whittle index with saturated traffic. This is because all the transition probability matrices of the channels vary in this environment, and the whittle index policy cannot accurately find spectrum holes. On the other hand, MCT-DLMA with $P\left(10\right)$ has similar performance with DLMA. Under saturated traffic, the sum throughput of MCT-DLMA is about 34% higher than that of DLMA in HetNets. This is because MCT-DLMA can enable CU multi-channel transmit of the data at a time. It can fully exploit the channel resources in the case of multiple idle channels, while DLMA can only utilize a single channel at this case. MCT-DLMA learns the channel access policy of TDMA PUs with historical observations. Thus, it can accurately uses the time slots that are idle in the TDMA protocol due to lack of data. For example, PU C can send data in the 4th, 6th, 7th, 9th, and 10th time slots of each frame. However, in the 7th time slot, the CU detects that the channel is idle. It can be inferred that PU C has no data to send until the next frame. Thus, the CU can learn to send data on the channel of PU C in the 9th and 10th time slots without collision.

5.2. MCT-DLMA + TDMA + Q-ALOHA + FW-ALOHA

TDMA PU, Q-ALOHA PU and FW-ALOHA PU transmit data on one channel each in $K=3$ channels. TDMA PU sends data in the 3rd, 7th, and 8th time slots of each frame. We consider two cases. For the first case, window size parameter of FW-ALOHA $W_1$ is fixed at 0, $W_2$ increases from 2 to 10 with a step size of 2, and the transmission probability q of the Q-ALOHA PU is 0.2. For the second case, $W_1$ of FW-ALOHA is fixed to 0, $W_2$ is fixed to 4, and q of Q-ALOHA PU increases from 0.1 to 0.9 with a step size of 0.2. We set the mean of the sum of all user traffic to be $KF=30$. The traffic of TDMA PU, Q-ALOHA PU and FW-ALOHA PU follows $P\left(3\right)$, $P\left(10q\right)$, $P(20/(W_1+W_2+1))$, respectively. Moreover, the traffic distribution of unsaturated case for CU is given by

$$P(30-3-10q-\frac{20}{W_1+W_2+1}).$$

(13)

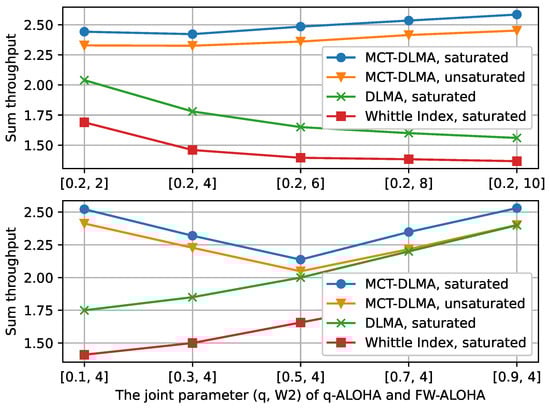

Figure 5 shows the sum throughput under different configurations. It can be seen that MCT-DLMA achieves higher throughput as compared to DLMA. The reason is that the former scheme allows CU multi-channel access, while DLMA only allows CU single-channel transmit, even there are multiple idle channels in some time slots. Moreover, we can see that when q gradually increases, the throughput of CU first reduces and then increases, while the DLMA is gradually rising. This difference is mainly caused by the multi-channel transmission mechanism of MCT-DLMA. Let us consider two extreme cases, i.e., q is 0 and q is 1. When q is 0, the channel of Q-ALOHA PU is always idle. In this case, the DLMA can send only on the channel of Q-ALOHA. When q is 1, the DLMA policy is not to send on the Q-ALOHA channel, but to search for spectrum holes on the other two channels. Therefore, the sum throughput increases. In MCT-DLMA, the Q-ALOHA channel is occupied by CU for $q=0$ and Q-ALOHA PU for $q=1$, respectively. The utilization rate of the channel is 100%, which has no effect on the sum throughput. When q is at the middle value, i.e., 0.5, the behavior of Q-ALOHA PU is unpredictable, CU prefers to not use this channel, and the utilization rate of the channel is only 50%. Thus, the sum throughput of MCT-DLMA decreases first and then increases as q changes from 0 to 1.

5.3. MCT-DLMA + 10-User Dynamic TDMA

To simulate more realistic network communications, we randomly change the assigned time slots of 4 TDMA PUs out of a total of 10 PUs every 200 epochs. Let p denote the ratio of the number of time slots used by the TDMA PU to the total number of time slots in a frame. The traffic of TDMA PUs follow $P\left(10p\right)$, while the traffic of CU is assumed to be saturated. We consider an ideal TDMA with a priori knowledge of the network (pk-TDMA), where CU knows the assigned time slots of all the PUs, and it can send data at these fixed idle time slots. In Figure 6, the sum throughput of MCT-DLMA is about 7% higher than pk-TDMA, even if it is difficult for pk-TDMA to obtain prior knowledge in practice. The reason is that in MCT-DLMAM, CU can send data in the assigned idle time slot of PUs just like pk-TDMA. Moreover, in the case that the PU fails to send data in the assigned time slot without new traffic, CU in MCT-DLMA can occupy this channel of the PU to send data, while CU in pk-TDMA cannot unitize this channel. Similar to the static environment, Figure 6 shows that MCT-DLMA still achieves 92% higher sum throughput than DLMA. Moreover, from Figure 4 and Figure 6, we can see that the achieved throughput gain becomes larger as the number of available channels increases in the HetNets.

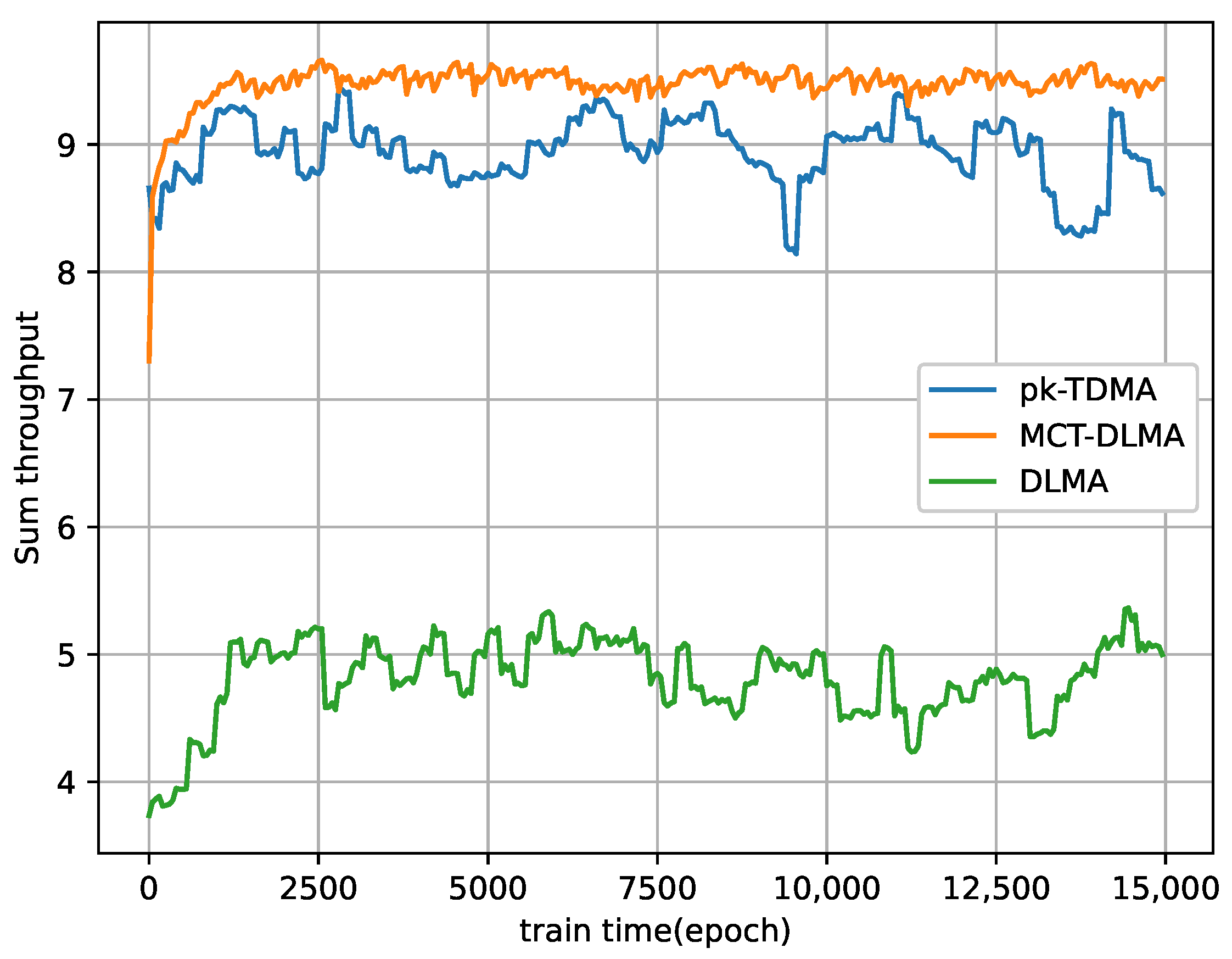

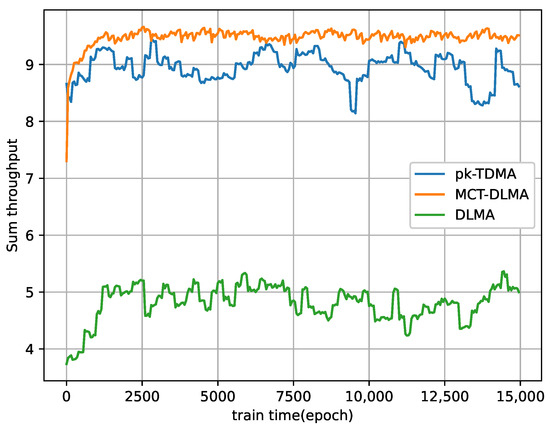

Additionally, we can see from Figure 6 that the throughput is decreased when the TDMA PUs change every 200 epochs because CU needs time to adapt to the new environment. By using MCT-DLMA, the sum throughput quickly rebounds in a short time after the decrease. It suggests that MCT-DLMA achieves the enhanced robustness in practical dynamic communications as compared to pk-TDMA.

6. Conclusions

Considering realistic communication models with unsaturated traffic, this paper proposes a new DRL-based protocol, MCT-DLMA, to improve spectrum utilization over multi-channel HetNet. The proposed MCT-DLMA allows CU to continuously learn and optimize access policy based on the collected historical channel information. The simulation results demonstrate that MCT-DLMA achieves much higher sum throughput than the conventional whittle index policy and DLMA method in different environments by fully exploiting multiple idle channels. In particular, it can quickly adapt to the dynamic environment with changing PUs and then achieves the near-optimal result since it proposes the deep neural network that can improve generalization ability for multi-channel access optimization. Moreover, in this paper, we assume that the channel condition is perfect. It will be of significance to investigate MCT-DLMA that can deal with HetNets under imperfect channel conditions in the future since the DRL decision of the agent may be affected by the channel interference and transmission interruption.
