The Extrinsic Enriched Finite Element Method with Appropriate Enrichment Functions for the Helmholtz Equation

Abstract

The traditional finite element method (FEM) could only provide acceptable numerical solutions for the Helmholtz equation in the relatively small wave number range due to numerical dispersion errors. For the relatively large wave numbers, the corresponding FE solutions are never adequately reliable. With the aim to enhance the numerical performance of the FEM in tackling the Helmholtz equation, in this work an extrinsic enriched FEM (EFEM) is proposed to reduce the inherent numerical dispersion errors in the standard FEM solutions. In this extrinsic EFEM, the standard linear approximation space in the linear FEM is enriched extrinsically by using the polynomial and trigonometric functions. The construction of this enriched approximation space is realized based on the partition of unity concept and the highly oscillating features of the Helmholtz equation in relatively large wave numbers can be effectively captured by the employed specially-designed enrichment functions. A number of typical numerical examples are considered to examine the ability of this extrinsic EFEM to control the dispersion error for solving Helmholtz problems. From the obtained numerical results, it is found that this extrinsic EFEM behaves much better than the standard FEM in suppressing the numerical dispersion effects and could provide much more accurate numerical results. In addition, this extrinsic EFEM also possesses higher convergence rate than the conventional FEM. More importantly, the formulation of this extrinsic EFEM can be formulated quite easily without adding the extra nodes. Therefore, the present extrinsic EFEM can be regarded as a competitive alternative to the traditional finite element approach in dealing with the Helmholtz equation in relatively high frequency ranges.

1. Introduction

In the engineering computation field, nowadays, the finite element method (FEM) has made great achievements due to the fact that it has sufficient generalities and versatilities in dealing with very complex engineering problems [1,2]. Unfortunately, the FEM still suffers from obvious laminations in solving several specific problems, such as the wave analysis in relatively high frequency ranges [3]. The origin of this issue is that the numerical error always arises and is not easy to effectively control when the FEM is employed for wave problems [3,4,5,6,7,8].

In general, the total numerical error mainly consists of two different parts [9]. One important component of the numerical error is the interpolation error. This numerical error component usually stands for the capacities of the employed discretization to approximate the solution of the considered problems. In solving elasticity problems, the numerical error of the obtained FEM solutions is actually the interpolation error. The interpolation error usually exists locally and can be effectively suppressed by employing the smaller element sizes. In addition to the numerical interpolation error, in wave analysis the pollution error also exists and is relatively difficult to address. In contrast to the interpolation error, the pollution error usually comes from the particularity of the governing equation for wave problems (namely the Helmholtz equation). The pollution error actually represents the phase difference between the numerical and analytical solutions. More importantly, the pollution error has global feature and cannot be effectively suppressed by directly decreasing the element sizes. No matter how refined meshes are employed, in wave analysis, the pollution error still exists as long as the considered frequency values are sufficiently high. Note that the FEM always suffers from the above mentioned numerical errors for wave problems; the need of developing more powerful alternatives to FEM is quite pressing in practical engineering computation fields.

In addition to the FEM, many other numerical methods, such as the finite volume method (FVM) [10], finite difference method (FDM) [11,12,13,14], boundary element method (BEM) [15,16], singular boundary method (SBM) [17,18,19,20,21,22,23], and different types of meshfree numerical techniques [24,25,26,27,28,29,30,31,32,33,34,35] are also effective numerical approaches for wave problems. However, these alternative approaches also usually have their own associated advantages, disadvantages, and specificities. For example, the classical boundary element or boundary-based numerical techniques have natural advantages in dealing with the Helmholtz problems in exterior unbounded domains (such as the acoustic radiation and acoustic scattering) because the required Sommerfeld radiation at infinity can be satisfied naturally [36,37]. However, the resultant system matrices from these numerical approaches are always non-symmetric and full, and then the solution of the obtained system matrix equation is usually very expensive in computation cost. The meshfree numerical techniques in strong-form (such as the FDM and a variety of collocation methods [38,39,40,41,42,43,44]) always have very high computation efficiency in solving Helmholtz equation. Unfortunately, these strong-form meshfree approaches usually become unstable and inaccurate when the considered Helmholtz problems have Neumann boundary conditions. The weak-form meshfree numerical techniques indeed possess relatively high computation accuracy for Helmholtz problems and the treatment of the Neumann boundary conditions is usually direct and easy to implement [45,46,47,48]. While the construction of the related numerical approximation is always quite complicated and the involved numerical integration is usually numerically expensive [45].

Due to several preeminent and attractive features (such as rich mathematical background, symmetrical and banded system matrices, easy to solve coupled structural-acoustic problems and inhomogeneous problems) of the classical FEM, the FEM is still a very important and dominative numerical method for acoustic computation at present. Actually, the main challenge of the acoustic computation using the standard FEM is to efficaciously tackle the numerical error. With this objective in mind, many improved versions of FEMs are developed for acoustic simulation, including the smoothed FEM [49,50,51,52,53,54], the Galerkin/least squares FEM [55], the generalized FEM [56], and the mass-redistributed FEM [57], to name a few. Unfortunately, all these methods still cannot totally remove the pollution effects for solving general two and three dimensional acoustic problems.

In addition to the above-mentioned numerical approaches, the meshfree methods, which are developed to address several inherent shortcomings of the FEM, also have great potentials in the analysis of wave problems for relatively high computation precision. One main feature of the meshfree numerical techniques is that the construction of the employed nodal shape functions is based on several scattered field nodes in the considered problem domain, while in the FEM, the pre-defined meshes are always used to construct the nodal shape functions. Note the high order numerical approximation is always quite easy to achieve in the meshfree framework; it is very reasonable to expect that the meshfree methods have more powerful capacities than the FEM in decreasing the numerical errors in wave analysis. Unfortunately, the relatively complicated formulation and implementation process always obstruct the development of the meshfree techniques. Additionally, to obtain the optimal numerical results, usually many critical parameters (such as the influence domains, the weight functions and the function bases) should be carefully determined. As a result, the meshfree techniques usually cannot outmatch the classical FEM in terms of versatility and universal nature for practical engineering computation.

The objective of the present paper is to use an extrinsic enriched finite element method (EFEM) with appropriate enrichment functions to solve the acoustic problems. In this extrinsic EFEM, the simple linear nodal interpolation functions are enriched by the polynomial and trigonometric functions, then the original linear approximation space is enriched by the specially-designed enrichment functions. Due to the use of the appropriate enrichment functions, the highly oscillating features of the Helmholtz equation in relatively large wave numbers can be effectively captured, and the numerical dispersion error can be markedly decreased. The numerical examples in this paper show that this extrinsic EFEM behaves much better than the standard FEM in suppressing the numerical dispersion effects and could provide much more accurate numerical solutions in acoustic computation. In addition, the present extrinsic EFEM also stands out as a winner in terms of the convergence rate in comparison with the standard FEM. More importantly, the extrinsic EFEM can be performed directly by using the standard triangular mesh as in the FEM and the additional nodes (such as the mid-edge-point or element centroid) are not required. In the view of these good properties of the present extrinsic EFEM, it could be a competitive alternative to the standard FEM and has great potential in acoustic computation for practical engineering applications.

In the following sections, firstly the basic formulations of the Helmholtz problems are given in Section 2; secondly, the structure of this extrinsic EFEM for Helmholtz problems is shown in Section 3; in Section 4 and Section 5, the dispersion effects of the numerical solutions for the Helmholtz equation and several typical numerical experiments are investigated in great detail; and finally, the main concluding remarks are summarized in the final section.

2. Formulation of the Helmholtz Problem

Consider a problem domain $\mathsf{\Omega }$ with boundary $\mathsf{\Gamma }$; the ideal acoustic fluid medium occupies the problem domain and the acoustic pressure propagation speed is c. Following the momentum and mass conservation law as well as the ideal gas law, the following governing equation for acoustic wave propagation can be obtained:

$${\nabla }^{2}P-\frac{1}{c_1^2}\frac{{\partial }^{2}P}{\partial t^2}=0,$$

(1)

in which $P$ stands for the acoustic pressure variable, ${\nabla }^2$ represents the Laplace operator and t is time.

If the considered pressure wave $P$ has steady harmonic feature, we have

$$P=p{e}^{j\omega t},$$

(2)

in which $j=\sqrt{-1}$, $p$ represents the acoustic pressure distribution in physical space and $\omega$ stands for the angular frequency.

Using Equation (2), from Equation (1) we can obtain the following reduced wave propagation equation (namely the well-known Helmholtz equation)

$${\nabla }^{2}p+k^{2}p=0,$$

(3)

in which $k=\omega /c$ is the wave number.

By introducing the appropriate boundary conditions, the considered Helmholtz problem governed by Equation (3) can be well posed. By using the analytical or numerical approaches, the solutions to Equation (3) can be obtained. When the involved problem domain is very simple, the analytical approach can be used to solve Equation (3). When the problem has very complicated geometry shapes, the numerical techniques are always employed to tackle Equation (3).

For the above-mentioned Helmholtz problem, the following three types of boundary conditions are usually considered

$$\left\{\begin{array}{l}p=p_D, \mathrm{on} {\mathrm{\Gamma }}_D\\ \frac{\partial p}{\partial n}=-j\rho \omega v_n, \mathrm{on} {\mathrm{\Gamma }}_N\\ \frac{\partial p}{\partial n}=-j\rho \omega A_{n}p, \mathrm{on} {\mathrm{\Gamma }}_R\end{array}\right.,$$

(4)

in which $\rho$ stands for the acoustic fluid density, ${\mathrm{\Gamma }}_D$ is the Dirichlet boundary condition and the acoustic pressure $p_D$ is prescribed on ${\mathrm{\Gamma }}_D$, ${\mathrm{\Gamma }}_N$ is the Neumann boundary condition and the normal acoustic particle velocity $v_n$ is prescribed on ${\mathrm{\Gamma }}_N$, ${\mathrm{\Gamma }}_R$ is the Robin boundary condition, and $A_n$ is the associated admittance coefficient which is usually employed to model the structural damping effects.

In this work, we mainly focus on the numerical techniques in weak form (such as the standard FEM) for solving the Helmholtz equation. In formulating the weak form of the Helmholtz equation, the weighted residual technique is always employed. By introducing the required boundary conditions shown in Equation (4), the following weak form of the Helmholtz equation can be obtained:

$$-{\displaystyle {\int }_{\mathrm{\Omega }}\left({\nabla }^{2}p+k^{2}p\right)w\mathrm{d}\mathrm{\Omega }}+{\displaystyle {\mathrm{\int }}_{{\mathrm{\Gamma }}_N}\left(\frac{\partial p}{\partial n}+j\rho \omega v_n\right)}w\mathrm{d}\mathrm{\Gamma }+{\displaystyle {\int }_{{\mathrm{\Gamma }}_R}\left(\frac{\partial p}{\partial n}+j\rho \omega A_{n}p\right)}w\mathrm{d}\mathrm{\Gamma }=0,$$

(5)

in which $w$ stands for the employed weight functions.

According to the Gauss divergence theorem, Equation (5) can reduce to

$${\displaystyle {\int }_{\mathrm{\Omega }}\left(\nabla p\nabla w-k^{2}wp\right)\mathrm{d}\mathrm{\Omega }}+{\displaystyle {\int }_{{\mathrm{\Gamma }}_R}\left(\frac{\partial p}{\partial n}+j\rho \omega A_{n}p\right)}w\mathrm{d}\mathrm{\Gamma }=-{\displaystyle {\int }_{{\mathrm{\Gamma }}_N}j\rho \omega w{v}_n}\mathrm{d}\mathrm{\Gamma },$$

(6)

On the purpose of solving this typical boundary-value problem described by Equation (6), the involved acoustic pressure $p$ should be discretized.

When the involved problem domain is divided into standard triangular mesh, the following numerical approximation of the acoustic pressure p is usually employed

$$p_h\left(x\right)={\displaystyle \sum _{i=1}^n{N}_i{p}_i}=Np,$$

(7)

in which $N_i$ stands for the used nodal interpolation functions for node i, $p_i$ represents the nodal unknown coefficient.

When the well-known Galerkin technique is employed here (namely the nodal interpolation functions are directly used as the weighted functions), using Equation (7) the following matrix form of Equation (6) can be obtained

$$\left[K+ikC-k^{2}M\right]p=-jkf,$$

(8)

in which

$$\left\{\begin{array}{l}K={\displaystyle {\int }_{\mathrm{\Omega }}{\left(\nabla N\right)}^T\left(\nabla N\right)\mathrm{d}\mathrm{\Omega }}\\ C=\rho c{\displaystyle {\int }_{{\mathrm{\Gamma }}_R}{A}_n{N}^{T}N\mathrm{d}\mathrm{\Gamma }}\\ M={\displaystyle {\int }_{\mathrm{\Omega }}{N}^{T}N\mathrm{d}\mathrm{\Omega }}\\ f=\rho c{\displaystyle {\int }_{{\mathrm{\Gamma }}_N}{N}^T{v}_n\mathrm{d}\mathrm{\Gamma }}\end{array}\right.,$$

(9)

In Equations (8) and (9), the resultant system matrices K, M, and C correspond to the acoustical stiffness, acoustical mass and acoustical damping effects, respectively; f is a nodal vector representing the acoustical nodal excitation force, and p is a vector containing the unknown nodal acoustic pressure.

3. Structure of the Extrinsic EFEM for the Helmholtz Equation

Assuming that a scalar function $u\left(x\right)$ is defined in a d-dimensional problem domain, the standard linear triangular mesh with N_e elements and N_n nodes is employed to perform the problem domain discretization. In this extrinsic EFEM, the numerical approximation of the defined scalar function is given by [58,59,60,61]

$$u_h\left(x\right)={\displaystyle \sum _{i\in N_n}{N}_i\left(x\right)u_i}+{\displaystyle \sum _{i\in N_n}{N}_i^{\ast }\left(x\right)\psi \left(x\right)a_i},$$

(10)

In the right side of Equation (10), the first term is the conventional finite element approximation, and the second term corresponds to the additional extrinsic enriched numerical approximation. $u_i$ corresponds to the conventional nodal unknown coefficient in the finite element approximation which is usually the unknown nodal field variable and $a_i$ is the associated additional nodal unknown coefficients. $N_i\left(x\right)$ is the standard nodal interpolation function as in the classical finite element approach, and $N_i^{\ast }\left(x\right)$ is a new constructed nodal interpolation function which should satisfy the partition of unity (PU) property, namely

$${\displaystyle \sum N_i^{\ast }\left(x\right)}=1,$$

(11)

Actually, $N_i^{\ast }\left(x\right)$ and $N_i\left(x\right)$ can be but are not necessarily chosen as the same. However, in this work $N_i^{\ast }\left(x\right)$ = $N_i\left(x\right)$ is directly used for simplicity.

From Equation (10), it is easy to observe that in this extrinsic EFEM the basic nodal unknown quantities are not the nodal unknown coefficients as in the traditional FEM, it is actually the numerical approximation of the related nodal unknown coefficients. In Equation (10), the function $\psi \left(x\right)$ is a specially-designed enrichment function and it always plays a very important role in improving the numerical performance of this extrinsic EFEM. In general, the enrichment function $\psi \left(x\right)$ is designed to contain the special knowledge about the solution of the considered problems. For example, in this work the trigonometric functions are incorporated into the enriched numerical approximation space to capture the highly oscillating features of the Helmholtz equation, in particular the relatively large wave numbers are considered.

Generally, the constructed numerical approximation in Equation (10) does not possess the important Kronecker-delta function property, namely the following relationship is often obtained:

$$u_h\left(x_i\right)\ne u_i,$$

(12)

Owing to the lack of the Kronecker-delta function property, the Dirichlet boundary condition is always not very easy to impose when the numerical approximation in Equation (10) is employed to build the discretized system matrix equation. To effectively address this issue, the constructed extrinsic enriched numerical approximation in Equation (10) is always modified as follows:

$$u_h\left(x\right)={\displaystyle \sum _{i\in N_n}{N}_i\left(x\right)u_i}+{\displaystyle \sum _{i\in N_n}{N}_i^{\ast }\left(x\right)\left[\psi \left(x\right)-\psi \left(x_i\right)\right]a_i},$$

(13)

With the aim to further reduce the condition number of the obtained system matrices and improve the numerical stability, in practical numerical implementation, we usually employ the following shifted form of Equation (13):

$$u_h\left(x\right)={\displaystyle \sum _{i\in N_n}{N}_i\left(x\right)u_i}+{\displaystyle \sum _{i\in N_n}{N}_i^{\ast }\left(x\right)\left[\frac{\psi \left(x\right)-\psi \left(x_i\right)}{h}\right]a_i},$$

(14)

in which h is a parameter to define the characteristic length of the employed meshes.

For the Helmholtz equation considered in this work, the polynomial and trigonometric functions are exploited to create the enrichment function $\psi \left(x\right)$.

When the pure trigonometric functions are used, the enrichment function $\psi \left(x\right)$ in two dimensions has the following form [62,63,64]

$$\psi \left(\mathbf{x}\right)=\left\{\begin{array}{c}\begin{array}{cccc}cos\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),\end{array}\hfill \\ \begin{array}{cccc}cos\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}+\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}+\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}-\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}-\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),\end{array}\hfill \\ \begin{array}{ccc}& \dots ,& \end{array}\hfill \\ \begin{array}{cccc}cos\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),\end{array}\hfill \\ \begin{array}{cccc}cos\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}+\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}+\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}-\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}-\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right)\end{array}\hfill \end{array}\right\},$$

(15)

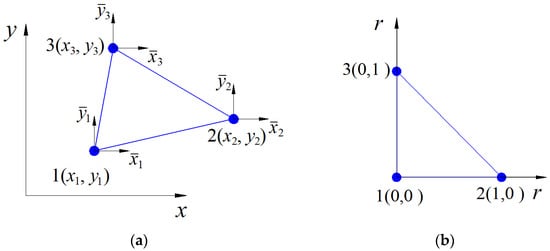

in which ${\overline{x}}_i=x-x_i$ and ${\overline{y}}_i=y-y_i$ are the relative coordinate value, as shown in Figure 1, and q is a parameter to denote the degree of the employed polynomial or trigonometric functions.

When the polynomial functions are combined with the trigonometric functions to create the enrichment function $\psi \left(x\right)$, in two dimensions we have

$$\psi \left(\mathbf{x}\right)=\left\{\begin{array}{c}\begin{array}{cc}{\overline{x}}_i,& \begin{array}{cc}{\overline{y}}_i,& \begin{array}{cccc}{\overline{x}}_i^2,& {\overline{x}}_i{\overline{y}}_i,& {\overline{y}}_i^2,& \begin{array}{cccc}\dots ,& {\overline{x}}_i^q,& \dots ,& \begin{array}{cc}{\overline{y}}_i^q& \dots ,\end{array}\end{array}\end{array}\end{array}\end{array}\hfill \\ \begin{array}{cccc}cos\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),\end{array}\hfill \\ \begin{array}{cccc}cos\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}+\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}+\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}-\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }{\overline{x}}_i}{h}-\frac{\mathsf{\pi }{\overline{y}}_i}{h}\right),\end{array}\hfill \\ \begin{array}{ccc}& \dots ,& \end{array}\hfill \\ \begin{array}{cccc}cos\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),\end{array}\hfill \\ \begin{array}{cccc}cos\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}+\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}+\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& cos\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}-\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right),& sin\left(\frac{\mathsf{\pi }q{\overline{x}}_i}{h}-\frac{\mathsf{\pi }q{\overline{y}}_i}{h}\right)\end{array}\hfill \end{array}\right\},$$

(16)

In theory, the higher order enrichment functions can lead to higher computation accuracy, while the related numerical computation also becomes very numerically expensive. For brevity, in this work, we only employ the linear polynomial and the first order of trigonometric functions (namely q = 1) to create the enrichment function $\psi \left(x\right)$.

In addition, it should also be noted that the present extrinsic enriched numerical approximation usually suffers from the linear dependence (LD) issue when the polynomial functions are employed to create the enrichment functions [65,66].

This LD issue comes from the fact that the linearly dependent nodal shape functions are employed to construct the system matrix equation. Due to this LD issue, the resultant system matrices are usually singular and not positive definite, making the associated numerical computation not have sufficient numerical stability. To address this LD issue, a systematic study was performed by Gui et al., and they have proposed a simple and direct procedure to completely remove the LD issue of this extrinsic EFEM without any loss in computation accuracy [63]. In this work, the related numerical procedures developed by Gui et al. are directly employed to tackle the possible LD issue.

4. The Dispersion Effects

It is known that the computed wave number $k_h$ often differs from the exact wave number k when the Galerkin-like numerical approaches (such as the classical FEM and several meshless techniques [6,9]) are employed to deal with the Helmholtz equation and a phase lag between $k_h$ and k usually exists in the numerical solutions. This non-robust numerical performance of the underlying discretization method for Helmholtz problems is called the numerical dispersion issue. It is this issue that can markedly decrease the precision of the numerical solutions. What is more, the effects of this issue always become more severe when the considered wave number gets larger. In the practical process of performing the numerical simulation, the employed mesh quality and the order of the employed numerical approximation should always be adopted to the computed wave number to ensure that the computed numerical solution quality at an acceptable level. To examine the ability of the employed numerical discretization methods from all sides and investigate how the numerical dispersion effects are affected by the mesh quality, a comprehensive dispersion analysis should be usually performed before the practical numerical simulation. The dispersion analysis can be regarded as an a priori error estimate of the obtained numerical solutions. In this section, the dispersion effects of several disparate numerical discretization approaches are compared and investigated in great detail using the regular mesh pattern shown in Figure 2.

Without considering any boundary conditions, the constructed matrix equation in Equation (8) becomes

$$\left[K-k^{2}M\right]p=0,$$

(17)

Clearly, the numerical solution of Equation (17) can be assumed as the following form:

$$p_h=A_h{e}^{j{k}_{h}n\cdot x},$$

(18)

in which n is a unit vector and x is a position vector of the interest point, $A_h$ is a amplitude vector and has the following form [63,64,67,68]

$$A_h={\left[A_1& A_2& \dots & A_{ad}, A_1& A_2& \dots & A_{ad},& \dots \right]}^T,$$

(19)

in which ${\left[\begin{array}{cccc}{A}_1& A_2& \dots & A_{ad}\end{array}\right]}^T$ is a amplitude vector corresponding to each node. Since here we do not consider any types of boundary conditions, the amplitude vector ${\left[\begin{array}{cccc}{A}_1& A_2& \dots & A_{ad}\end{array}\right]}^T$ for each node should be identical; namely, this amplitude vector should repeat itself in Equation (19).

It also should be pointed out that the subscript ad in Equation (19) actually represents the number of unknown nodal degree of freedom (DoF) at each node in this extrinsic EFEM formulation. For example, when only the first order of trigonometric functions is employed to create the enriched numerical approximation space, ad = 9; when the linear polynomial and the first order of trigonometric functions are employed, ad = 11. In this work we respectively use the abbreviations EFEM-N9 and EFEM-N11 to represent different versions of this extrinsic EFEM when these two different enrichment functions are employed.

Using Equation (18), from Equation (17) we can obtain the following matrix equation:

$$\left[D_{\mathrm{stiff}}-k^2{D}_{\mathrm{mass}}\right]A_h{}_i=0,$$

(20)

in which $D_{\mathrm{stiff}}$ and $D_{\mathrm{mass}}$ represent two coefficient matrices with the dimensions $ad\times ad$ and can be calculated by [63,64,67,68]

$$\begin{array}{ll}{D}_{\mathrm{stiff}}=& K_{n,n}+K_{n,n-1}{e}^{-j{k}_{h}h\cos \theta }+K_{n,n+1}{e}^{j{k}_{h}h\cos \theta }+\\ & K_{n,n-2}{e}^{j{k}_{h}h\left(\cos \theta -\sin \theta \right)}+K_{n,n+2}{e}^{j{k}_{h}h\left(-\cos \theta +\sin \theta \right)}+\\ & K_{n,n-3}{e}^{-j{k}_{h}h\sin \theta }+K_{n,n+3}{e}^{j{k}_{h}h\sin \theta }+\\ & K_{n,n-4}{e}^{j{k}_{h}h\left(-\cos \theta -\sin \theta \right)}+K_{n,n+4}{e}^{j{k}_{h}h\left(\cos \theta +\sin \theta \right)}\end{array},$$

(21)

$$\begin{array}{ll}{D}_{\mathrm{mass}}=& M_{n,n}+M_{n,n-1}{e}^{-j{k}_{h}h\cos \theta }+M_{n,n+1}{e}^{j{k}_{h}h\cos \theta }+\\ & M_{n,n-2}{e}^{j{k}_{h}h\left(\cos \theta -\sin \theta \right)}+M_{n,n+2}{e}^{j{k}_{h}h\left(-\cos \theta +\sin \theta \right)}+\\ & M_{n,n-3}{e}^{-j{k}_{h}h\sin \theta }+M_{n,n+3}{e}^{j{k}_{h}h\sin \theta }+\\ & M_{n,n-4}{e}^{j{k}_{h}h\left(-\cos \theta -\sin \theta \right)}+M_{n,n+4}{e}^{j{k}_{h}h\left(\cos \theta +\sin \theta \right)}\end{array},$$

(22)

When only consider the non-trivial solutions of Equation (20), it is actually a typical eigenvalue problem and the exact wave number k can be calculated by [63,64,67,68]

$$k=\mathrm{eig}\left(\sqrt{\frac{D_{\mathrm{stiff}}}{D_{\mathrm{mass}}}}\right),$$

(23)

Obviously, from Equations (21) and (22) we can see that the coefficient matrices $D_{\mathrm{stiff}}$ and $D_{\mathrm{mass}}$ are the functions of the discrete wave number $k_h$. Therefore, Equation (23) actually builds a relationship for k and $k_h$. For any given $k_h$, we can compute the corresponding k via Equation (23). Due to the numerical dispersion effects, $k_h$ usually differs from k. In this work the following error index is employed to measure the numerical dispersion effects of the different discretization methods in solving the Helmholtz equation [67,68]:

$$\epsilon =\frac{k}{k_h},$$

(24)

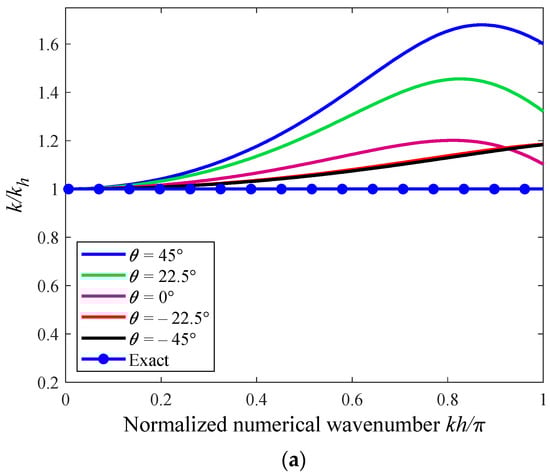

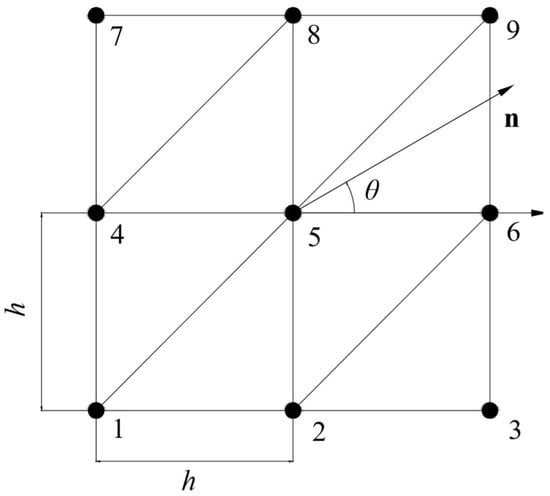

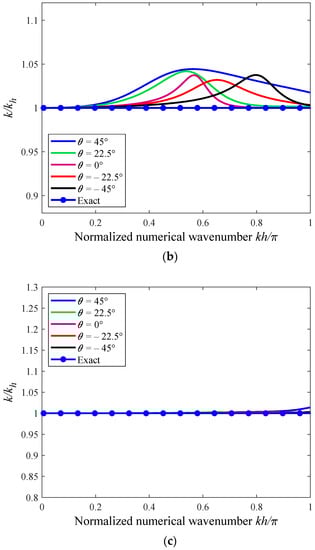

Using the regular triangular mesh pattern shown in Figure 2, the numerical dispersion error along the varying angles of acoustic wave propagation from different discretization techniques is computed via Equation (23), and the corresponding results against the normalized wave number $kh/\mathsf{\pi }$ are displayed in Figure 3. It is easily seen that the dispersion errors yielded by the standard linear triangular finite element (FEM-T3) are observably larger than the extrinsic EFEM-N9 and EFEM-N11, and the numerical dispersion effects usually become larger with the increase of the considered normalized wave number $kh/\mathsf{\pi }$; actually, these results have also been reported in Ref. [63].

Additionally, it is also clear that the dispersion effects from the standard FEM-T3 differs quite much when the varying wave propagation angles are considered, namely the standard FEM-T3 usually suffers from the numerical anisotropy issue in tackling the Helmholtz equation. The EFEM using the first order of trigonometric enrichment functions (EFEM-N9) is able to provide much smaller dispersion error results than the standard FEM-T3, while the EFEM-N9 still suffers from the above-mentioned numerical anisotropy issue and the numerical dispersion effects are also markedly different along different angles of wave propagation. In contrast to the standard FEM-T3 and EFEM-N9, the EFEM with linear polynomial and the first order of trigonometric enrichment functions (EFEM-N11) can yield the smallest dispersion error results which are almost zero in the computed normalized wave number range. More importantly, we also can observe that the above-mentioned numerical anisotropy issue can be basically eliminated by this EFEM-N11. The above findings show that it is quite suitable to enrich the linear numerical approximation space of the standard FEM by using the combination of the polynomial and trigonometric enrichment functions. The good performance of the EFEM-N11 in dispersion analysis indicates that the EFEM-N11 also can behave quite well in solving the practical Helmholtz problems. The related numerical experiments will be performed in the next section.

5. Numerical Results

In this section, a number of typical numerical experiments will be conducted to examine the numerical performance of all the above-mentioned numerical discretization techniques (FEM-T3, EFEM-N9, and EFEM-N11) in handling the real acoustic problems. It should be noted that all the computed numerical solutions from different methods are obtained using the totally identical mesh pattern.

5.1. Acoustic Propagation in a Two-Dimensional Tube

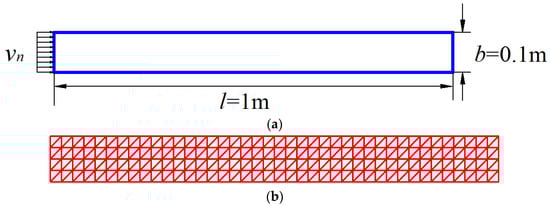

Here we firstly consider the acoustic propagation in a two-dimensional tube. As shown in Figure 4, this tube is filled with water (mass density $\rho$ = 1000 kg/m³ and acoustic wave speed c = 1500 m/s) and has a dimension with length l = 1 m and width b = 0.1 m. The Neumann boundary condition with normal acoustic particle velocity v_n = 1 m/s is imposed on the left side of this tube, and the other three sides are rigid walls. the regular triangular elements are employed to perform the problem domain discretization and the average node space h = 0.025 m. This is a frequently-used benchmark problem in examining the abilities of the employed numerical discretization techniques in tackling the Helmholtz problems and the exact solutions to this acoustic propagation problem can be easily obtained by

$$\left\{\begin{array}{l}p=-j\rho c{v}_n\frac{\cos \left[k\left(1-x\right)\right]}{\sin k}\\ v=\frac{v_n\sin \left[k\left(1-x\right)\right]}{\sin k}\end{array}\right.,$$

(25)

To effectively measure the quality of the obtained numerical solutions, here the following two error indexes are employed:

$$e_p=\left|\frac{p_e-p_h}{p_e}\right|\times 100\%,$$

(26)

$$\eta =\sqrt{\frac{{\displaystyle {\int }_{\mathrm{\Omega }}{\left({\overline{v}}_e-{\overline{v}}_h\right)}^T\left(v_e-v_h\right)\mathrm{d}\mathrm{\Omega }}}{{\displaystyle {\int }_{\mathrm{\Omega }}{\overline{v}}^T{v}_e\mathrm{d}\mathrm{\Omega }}}}\le C_1{\left(\frac{kh}{p}\right)}^p+C_{2}k{\left(\frac{kh}{p}\right)}^{2p},$$

(27)

in which the subscript h and e mean that the corresponding field variables are numerical and exact, respectively; v denotes the acoustic particle velocities and the sigh $\overline{·}$ stands for the complex conjugate of v; l is the order of the employed numerical approximation space; and C₁ and C₂ are two constants which are independent of the wave number k and node space h [9].

From Equations (26) and (27), we can find that $e_p$ is a local error index and it can examine the numerical performance of the numerical methods in local domain. On the contrary, $\eta$ is a global error index and it can evaluate the solution quality in the total problem domain. For the linear numerical approximation space (such as the standard FEM using the simple linear nodal interpolation functions), Equation (27) becomes

$$\eta =\sqrt{\frac{{\displaystyle {\int }_{\mathrm{\Omega }}{\left({\overline{v}}_e-{\overline{v}}_h\right)}^T\left(v_e-v_h\right)\mathrm{d}\mathrm{\Omega }}}{{\displaystyle {\int }_{\mathrm{\Omega }}{\overline{v}}^T{v}_e\mathrm{d}\mathrm{\Omega }}}}\le C_{1}kh+C_2{k}^3{h}^2,$$

(28)

In the right side of Equations (27) and (28), the first term is the interpolation error and the second term corresponding to the pollution error [9].

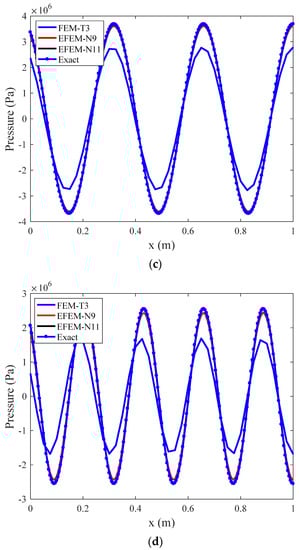

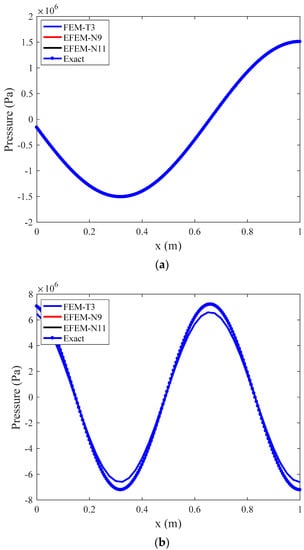

In Figure 5, the calculated acoustic pressure along the longitudinal direction of the tube provided by the above-mentioned numerical techniques are given together with the exact ones. To effectively assess the effects of the considered frequency values on the solution accuracy, a number of varying frequency values (f = 1100 Hz, f = 2200 Hz, f = 4400 Hz and f = 6600 Hz) are employed here. It is quite interesting that for the relatively low frequencies, all the numerical solutions produced by different methods are in very good agreement with the exact solutions. When the computed frequency value becomes higher, the standard FEM-T3 solution accuracy visibly gets worse. In contrast to the FEM-T3, the EFEM-N9 indeed behaves better and more accurate solutions can be generated. Nevertheless, among all the numerical solutions the EFEM-N11 can generate the best numerical solutions which are very close to the exact ones, even if very high frequency values are considered. These findings indicate that the enrichment functions which are constructed by the linear polynomial and the first order of trigonometric functions is indeed very suitable to enrich the original linear approximation space in the standard FEM-T3 for solving Helmholtz problems and hence very reliable numerical solutions can be obtained.

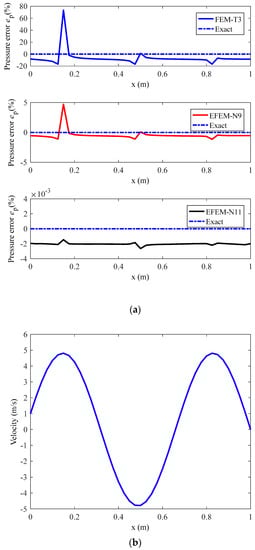

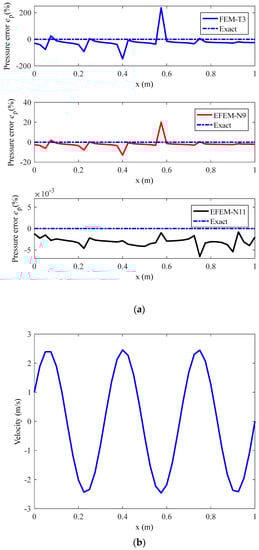

For two different frequency values (f = 2200 Hz and f = 4400 Hz), the relative error results, which is defined in Equation (26), are depicted in Figure 6a and Figure 7a. For a clear comparison and analysis, the corresponding exact acoustic particle velocity distributions along the longitudinal direction of this tube for these two frequency values are also plotted in Figure 6b and Figure 7b. From Figure 6 and Figure 7, it is again confirmed that the numerical performance of the proposed EFEM-N11 is much better than the standard FEM-T3 and EFEM-N9 in terms of computation accuracy, and it can provide the smallest relative error results. More specifically, it is quite easy to see that the relative numerical error results from the standard FEM-T3 and EFEM-N9 always exhibit obvious oscillations when the corresponding acoustic particle velocity solutions are relatively high. This means that in solving the Helmholtz problems, the numerical dispersion errors are usually larger when the acoustic gradients, which is related to the acoustic particle velocity, are relatively high. From Figure 6 and Figure 7, it is clearly seen that the standard FEM-T3 and EFEM-N9 cannot perform sufficiently well in capturing the high oscillating features of the Helmholtz problems in the relatively high frequency range. However, the proposed EFEM-N11 behaves quite well and almost no oscillations can be seen in the relative error results. These observations demonstrate that the effectiveness and robustness of the EFEM-N11 in tackling the Helmholtz problems.

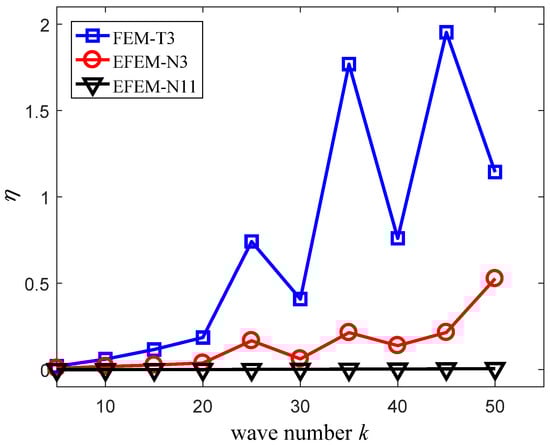

Furthermore, we also have studied the numerical performance of different numerical approaches in addressing the global numerical error for Helmholtz problems. The global error index $\eta$ from different methods versus the wave number k is calculated and compared in Figure 8. It is shown that the global numerical error from the standard FEM-T3 increases very fast when the computed wave number becomes larger. This means that the standard FEM-T3 is not very effective in capturing the highly oscillating features of the Helmholtz problem in the relatively large wave number range and very large numerical errors will be obtained. Compared to the standard FEM-T3, the EFEM-N9 is able to yield a much smaller global numerical error, while it still becomes larger when the computed wave number k increases. Among the three mentioned numerical methods (FEM-T3, EFEM-N9 and EFEM-N11), the EFEM-N11 is able to yield the smallest numerical error results, which are almost zero even if the computed wave number k is relatively large.

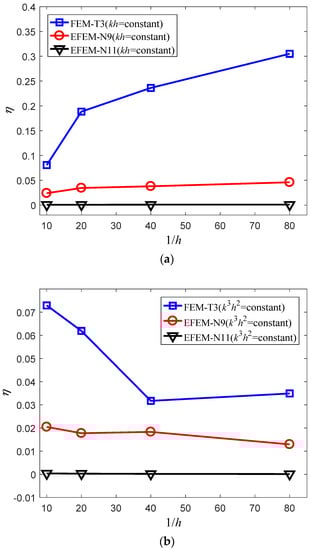

From Equations (27) and (28), it is shown that the numerical errors of the numerical solutions for Helmholtz problems usually contains the numerical interpolation error and numerical pollution error. Here the abilities of the three numerical techniques in controlling these two different numerical error components are investigated separately. Figure 9 shows the calculated global numerical error from different methods by keeping the parameter kh = constant and k³h² = constant. From the previous analysis, it is shown that the numerical interpolation error can be effectively controlled by keeping kh = constant, and numerical pollution error can be effectively controlled by keeping k³h² = constant. These two points can be clearly confirmed by the global error results of the standard FEM-T3 in Figure 9. The EFEM-N9 obviously performs better than the standard FEM-T3 and much lower global error results can be yielded. However, the EFEM-N11 is able to yield the lowest global error results. These observations indicate that both the numerical interpolation error and the numerical pollution error can be effectively controlled by the EFEM-N11 in solving the Helmholtz problems.

5.2. Acoustic Propagation in a Two-Dimensional Square Domain

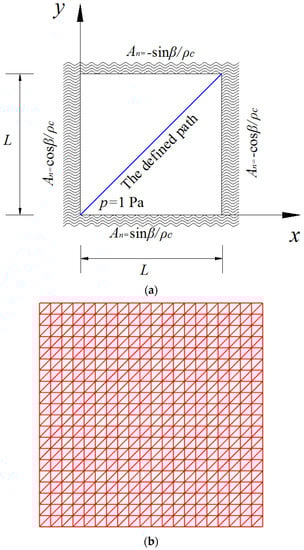

In the second numerical experiment, a two-dimensional square domain with side length L = 1 m is considered (see Figure 10a). This square domain is filled with ideal acoustic fluid with mass density $\rho$ = 1 kg/m³ and acoustic wave speed c = 1 m/s. The Robin boundary conditions with different admittance coefficients are applied on four sides of the square domains (see Figure 10a). The Dirichlet boundary condition p = 1 Pa is imposed at the left bottom corner of the square domain. The exact solution of this Helmholtz problem is actually the following plane wave solution:

$$p=\cos \left[k\left(x\cos \beta +y\sin \beta \right)\right]+j\sin \left[k\left(x\cos \beta +y\sin \beta \right)\right],$$

(29)

in which $\beta$ is the angle of acoustic wave propagation.

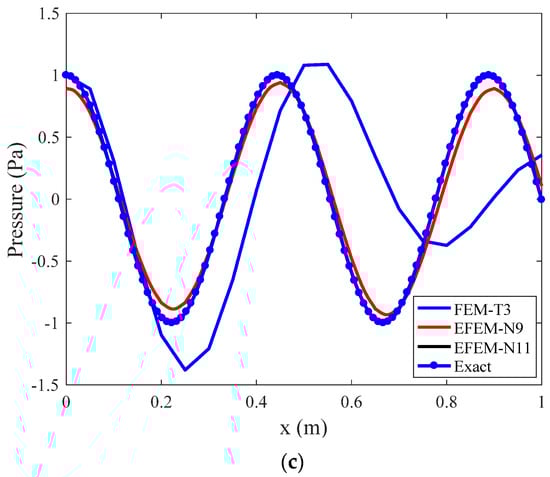

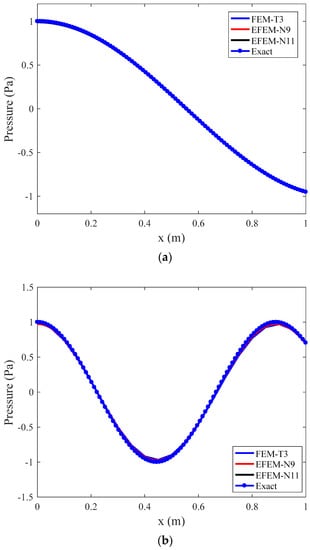

The involved problem domain is discretized into standard triangular mesh with average node space h = 0.05 m (see Figure 10b). For a wave propagation angle $\beta ={45}^{°}$ and the varying wave numbers (k = 2, k = 5 and k = 10), the calculated acoustic pressure distribution results along the defined path are plotted in Figure 11. For comparison, the numerical solutions from the three different methods (FEM-T3, EFEM-N9, and EFEM-N11) together with the exact solutions are given in Figure 11. The similar observations obtained from the previous numerical experiment are again confirmed here, namely the standard FEM-T3 and EFEM-N9 cannot generate sufficiently reliable numerical solutions for the Helmholtz problems, while the proposed EFEM-N11 is able to yield nearly exact solutions, even though the considered wave number is very large.

5.3. Acoustic Propagation in a Two-Dimensional Car

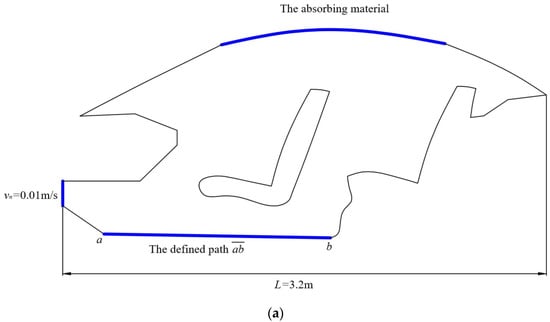

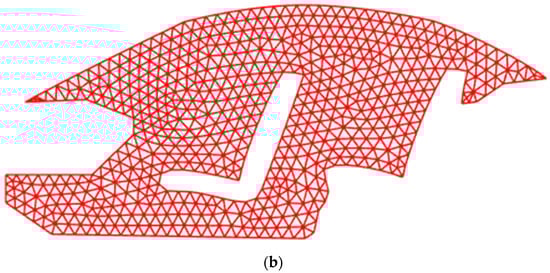

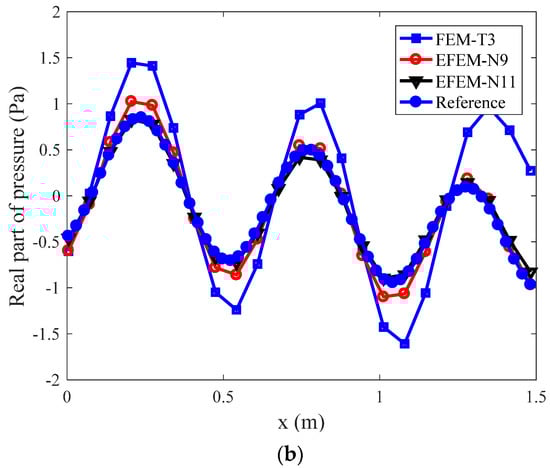

In the third numerical experiment, a two-dimensional section of a car is investigated. The geometry description and mesh pattern of the car is given in Figure 12; here, the average node space of the used mesh is h = 0.04 m. The front panel of the car is excited by the Neumann boundary condition with normal acoustic particle velocity v_n = 0.01 m/s, and the roof of this two-dimensional car is coated with absorbing material (namely the Robin boundary condition is imposed) with the admittance coefficient A_n = 0.00144 m/(Pa·s). The considered acoustic fluid medium in this car is air with mass density $\rho$ = 1.25 kg/m³ and acoustic wave speed c = 340 m/s. Note that the exact solution to this Helmholtz problem is not available, the corresponding numerical solutions from the high order elements with very refined mesh are provided as the reference solutions for comparison in this section.

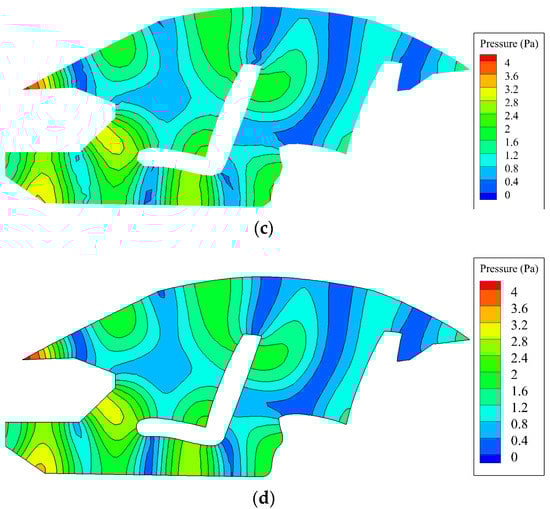

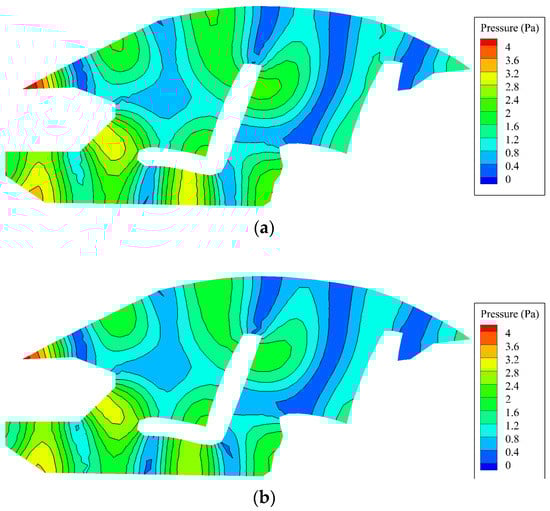

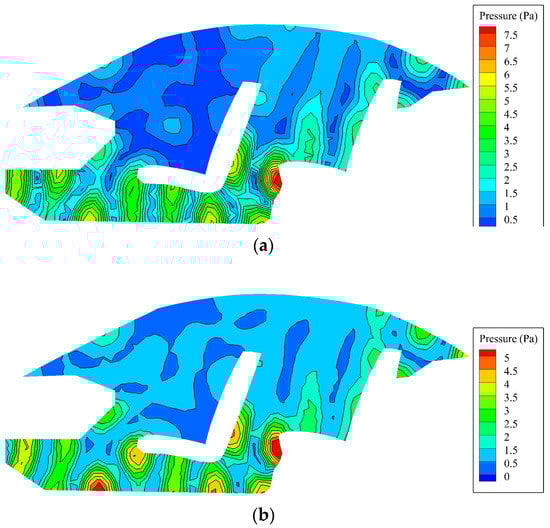

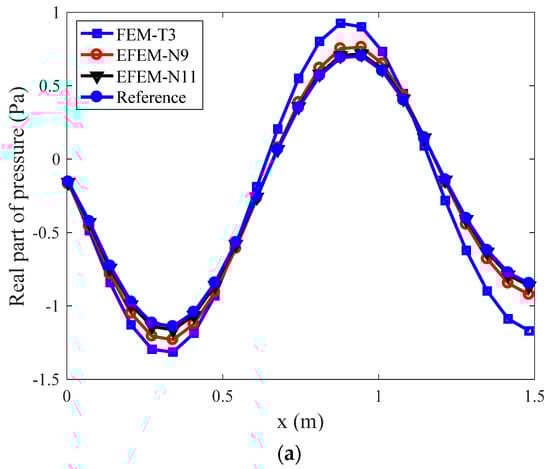

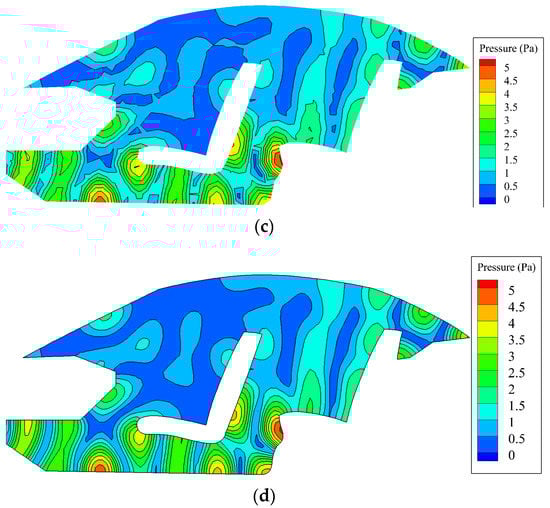

For two frequency values (f = 320 Hz and f = 650 Hz), Figure 13 gives the computed acoustic pressure results along the defined path. The main finding obtained from Figure 13 is that all the employed numerical methods are able to produce acceptable numerical solutions for the relatively low frequency value (f = 320 Hz). When it comes to the relatively high frequency value (f = 650 Hz), the standard FEM-T3 and EFEM-N9 solutions are not very accurate, and the clear accuracy reduction can be seen in the results, while the proposed EFEM-N11 can produce very accurate and reliable numerical solutions even though the relatively high frequency value (f = 650 Hz) is considered. These observations again show the powerful and excellent numerical performance of the EFEM-N11 in solving the Helmholtz problems. In more detail, the calculated acoustic pressure distribution results from different methods in the total problem domain are also shown in Figure 14 and Figure 15. We can again observe that the EFEM-N11 can obtain more accurate solutions than the standard FEM-T3 and EFEM-N9 in solving the Helmholtz problems, and the numerical error can be markedly reduced.

6. Concluding Remarks

In this work, we present the formulation and implementation of the extrinsic enriched FEM (EFEM) for solving the Helmholtz problems. In this extrinsic EFEM, the original linear polynomial approximation space in the standard FEM using linear triangular element (FEM-T3) can be enriched extrinsically by using the proper enrichment functions. To effectively reduce the numerical errors of the obtained solutions and capture the highly oscillating characteristics of the Helmholtz equation in relatively high frequency range, different types of enrichment functions are employed and their numerical performance are investigated in great detail via the dispersion analysis and several typical numerical experiments. The obtained numerical solutions show that the hybrid enrichment functions, which are constructed by the combination of the linear polynomial and the first order of trigonometric functions, are particularly suitable for solving the Helmholtz problems in relatively high frequency ranges. The explicit findings are that better control of the numerical error and much more accurate solutions can be achieved by the proposed EFEM-N11 compared to other numerical techniques (FEM-T3 and EFEM-N9). More importantly, the formulation and implementation of this proposed EFEM-N11 is as easy as in the standard FEM and can also be extended directly from the two-dimensional case to the general three-dimensional case. Therefore, the present EFEM-N11 can be regarded as a promising numerical approach in solving the complicated Helmholtz problems in practical engineering applications.
