Layout Reconstruction Optimization Method of Oil-Gathering Systems for Oilfields in the Mid to Late Stage of Development Based on the Arithmetic–Fireworks Optimization Algorithm

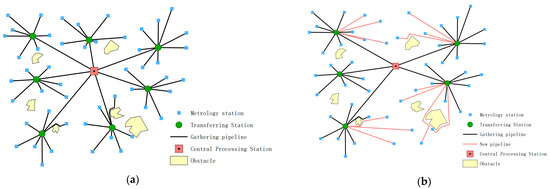

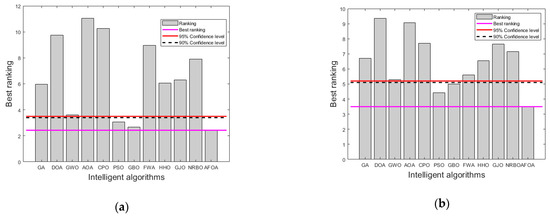

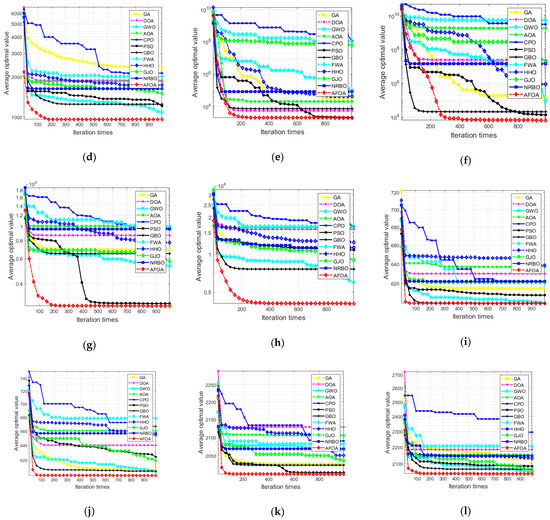

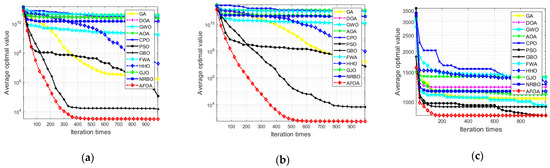

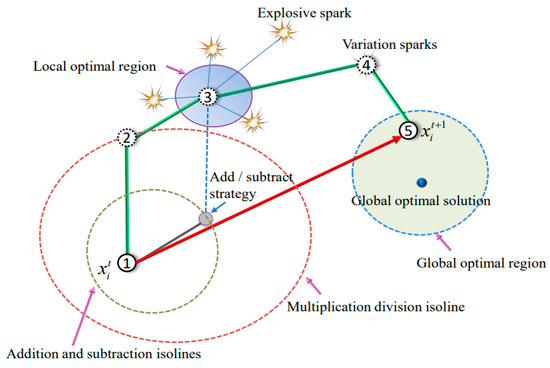

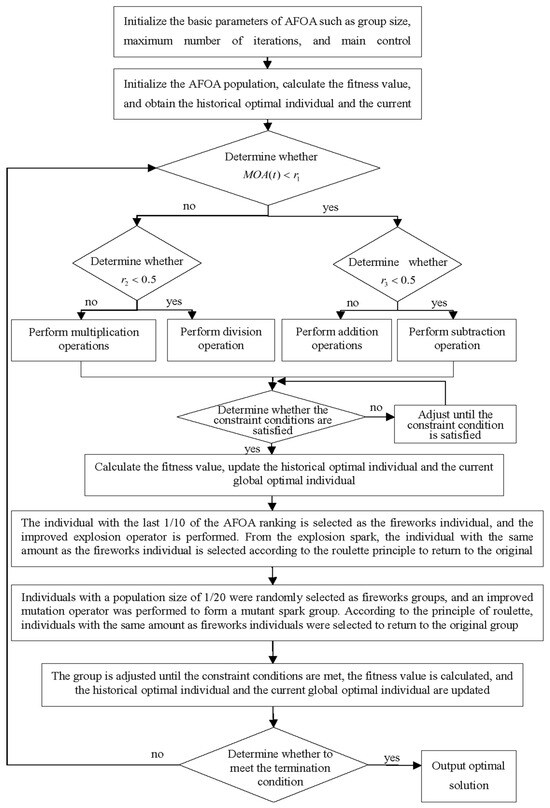

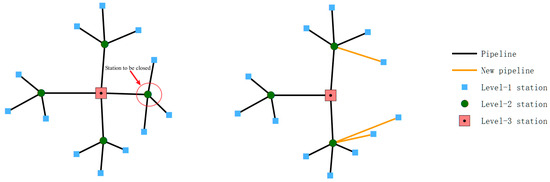

The problems of uneven load and low operating efficiency in the oil-gathering system of old oilfields lead to higher operating costs. In order to reduce operating costs, the layout-reconfiguration optimization model is established, and the minimum comprehensive investment is taken as the objective function. The multi-constraint conditions, such as the current situation of the oil-gathering system, the processing capacity, the possibility of pipeline failure, and the obstacles, are considered. The hybrid arithmetic–fireworks optimization algorithm (AFOA) is proposed to solve the model. Combined with the experience of the hybrid metaheuristic algorithm, using hybrid metaheuristics, the hybrid of the arithmetic optimization algorithm (AOA) and the operator of the fireworks algorithm (FWA) is considered, and some improved operators of FWA are integrated into AOA to form a new algorithm (AFOA) to achieve a better solution effect. Compared with the 11 other algorithms, AFOA has better solution efficiency. This method is applied to the actual case of an old oilfield. The optimized scheme increases the average load rate of the station by 15.9% and reduces the operating costs by 38.1% per year. Overall, the reconstruction costs will be recovered in a short period.
