On the Analytical Solution of the SIRV-Model for the Temporal Evolution of Epidemics for General Time-Dependent Recovery, Infection and Vaccination Rates

Abstract

The susceptible–infected–recovered/removed–vaccinated (SIRV) epidemic model is an important generalization of the SIR epidemic model, as it accounts quantitatively for the effects of vaccination campaigns on the temporal evolution of epidemic outbreaks. Additional to the time-dependent infection ($a\left(t\right)$) and recovery ($\mathit{\mu }\left(t\right)$) rates, regulating the transitions between the compartments $S\to I$ and $I\to R$, respectively, the time-dependent vaccination rate $v\left(t\right)$ accounts for the transition between the compartments $S\to V$ of susceptible to vaccinated fractions. An accurate analytical approximation is derived for arbitrary and different temporal dependencies of the rates, which is valid for all times after the start of the epidemics for which the cumulative fraction of new infections $J\left(t\right)\ll 1$. As vaccination campaigns automatically reduce the rate of new infections by transferring persons from susceptible to vaccinated, the limit $J\left(t\right)\ll 1$ is even better fulfilled than in the SIR-epidemic model. The comparison of the analytical approximation for the temporal dependence of the rate of new infections $\mathring{J}\left(t\right)=a\left(t\right)S\left(t\right)I\left(t\right)$, the corresponding cumulative fraction $J\left(t\right)$, and $V\left(t\right)$, respectively, with the exact numerical solution of the SIRV-equations for different illustrative examples proves the accuracy of our approach. The considered illustrative examples include the cases of stationary ratios with a delayed start of vaccinations, and an oscillating ratio of recovery to infection rate with a delayed vaccination at constant rate. The proposed analytical approximation is self-regulating as the final analytical expression for the cumulative fraction $J_{\infty }$ after infinite time allows us to check the validity of the original assumption $J\left(t\right)\le J_{\infty }\ll 1$.

1. Introduction

Vaccination campaigns on a considered population, subject to pandemic and epidemic outbursts, have a profound influence on the temporal evolution of the rate of infected persons. The necessity to calculate quantitatively this influence has prompted the development of the susceptible–infected–recovered/removed–vaccinated (SIRV) epidemic model [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. The compartmental SIRV model generalizes the simpler susceptible–infected–recovered/removed (SIR) epidemic model [23,24,25,26]. Three time-dependent rates, namely the infection ($a\left(t\right)$), recovery ($\mathit{\mu }\left(t\right)$) and vaccination ($v\left(t\right)$) rates, regulate the transitions between the compartments $S\to I$, $I\to R$ and $S\to V$, respectively. The ratios $k\left(t\right)=\mathit{\mu }\left(t\right)/a\left(t\right)$ of the recovery to infection rate and $b\left(t\right)=v\left(t\right)/a\left(t\right)$ of the vaccination to infection rate are the important key parameters of the SIRV pandemic model. Existing analytical solutions to the SIRV equations available in the literature [1,2] have adopted originally stationary values of the ratios $k\left(t\right)=k_0$ and $b\left(t\right)=b_0$, allowing for arbitrary time-dependent infection rates $a\left(t\right)$ so that the recovery and vaccination rates have the same time dependence as the infection rate.

Here, we apply the recently developed analytical approach towards the solution of the compartmental SIR model [27] to the SIRV-epidemic model. For all times after the start of the epidemic, for which the cumulative fraction of infected persons $J\left(t\right)\ll 1$ is much less then unity, an accurate analytical approximate solution of the SIRV equations is possible for general and arbitrary time dependencies of the infection ($a\left(t\right)$), recovery ($\mathit{\mu }\left(t\right)$) and vaccination ($v\left(t\right)$) rates. As vaccination campaigns automatically reduce the rate of new infections by transferring susceptible persons directly to vaccinated persons, who then no longer can get infected, the limit $J\ll 1$ is even better fulfilled than in the SIR-epidemic model.

A number of numerical studies to quantify the effect of vaccination campaigns are available in the literature [28,29,30,31,32] using generalized SIRV-model equations with additional compartments. In these works, the time dependence of individual compartment quantities such as $I\left(t\right)$ and $R\left(t\right)$ have been derived, but these quantities are not regularly observed and monitored during pandemic waves. Of higher interest, especially from the medical and public health care points of view, are the rate of new infections $\mathring{J}\left(t\right)$ and its corresponding cumulative number $J\left(t\right)$, defined by

$$\mathring{J}\left(t\right)=a\left(t\right)S\left(t\right)I\left(t\right),J\left(t\right)=J\left(t_0\right)+{\int }_{t_0}^{t}d\mathit{\xi }\mathring{J}(\mathit{\xi }),$$

(1)

respectively, after the start of the pandemic outburst at time $t_0$, as the hospitalization and death rates are directly proportional to $\mathring{J}\left(t\right)$. Forecasts of the hospitalization and death rates are essential in order to prepare a community for an upcoming pandemic outburst by introducing non-pharmaceutical interventions and/or vaccination campaigns at an optimized time.

The organization of the manuscript is as follows. In Section 2, we introduce the starting SIRV-model equations both in terms of the real time t and the reduced time $\mathit{\tau }={\int }_{t_0}^{t}d\mathit{\xi }a(\mathit{\xi })$. It is beneficial for the analysis to express the SIRV-equations in a form directly involving the observable quantities, such as rate of new infections $j(\mathit{\tau })=S(\mathit{\tau })I(\mathit{\tau })$, the cumulative fraction of infections $J(\mathit{\tau })=J\left(0\right)+{\int }_0^{\mathit{\tau }}dxj\left(x\right)=\mathit{\eta }+{\int }_0^{\mathit{\tau }}dxj\left(x\right)=1-S(\mathit{\tau })-V(\mathit{\tau })=R(\mathit{\tau })+I(\mathit{\tau })$, and the cumulative fraction of vaccinated persons $V(\mathit{\tau })$. As shown in Section 3 the SIRV-equations in this form allow an approximate analytical solution in the limit of small cumulative fractions $J\ll 1$. The approximate solution can be written both as function of the real and the reduced time. In Section 4, the approximate solutions are compared with the earlier obtained analytical results for the special case of stationary ratios between the recovery to infection rate and the vaccination to infection rate, respectively. In Section 5 and Section 6, we investigate two applications which were inaccessible to analytical treatment before. The considered applications include the cases of stationary ratios with a delayed start of vaccinations (Section 5), and an oscillating ratio of recovery to infection rate with a delayed vaccination at constant rate (Section 6). Here, the analytical approximations are compared with the exact numerical solution of the SIRV-equations for these two applications in order to test the accuracy of the analytical approach. A summary and conclusion (Section 7) completes the manuscript.

2. SIRV Model

The original SIRV-equations read [1]:

$$\begin{array}{cc}\frac{dS}{dt}& =-a\left(t\right)SI-v\left(t\right)S,\end{array}$$

(2)

$$\begin{array}{cc}\frac{dI}{dt}& =a\left(t\right)SI-\mathit{\mu }\left(t\right)I,\end{array}$$

(3)

$$\begin{array}{cc}\frac{dR}{dt}& =\mathit{\mu }\left(t\right)I,\end{array}$$

(4)

$$\begin{array}{cc}\frac{dV}{dt}& =v\left(t\right)S,\end{array}$$

(5)

obeying the sum constraint

$$S\left(t\right)+I\left(t\right)+R\left(t\right)+V\left(t\right)=1$$

(6)

at all times $t\ge t_0$ after the start of the wave at time $t_0$ with the initial conditions

$$I\left(t_0\right)=\mathit{\eta },S\left(t_0\right)=1-\mathit{\eta },R\left(t_0\right)=0,V\left(t_0\right)=0,$$

(7)

where $\mathit{\eta }$ is positive and usually very small, $\mathit{\eta }\ll 1$. We refer to this case as the semi-time case [25].

Recently, it has been demonstrated [33] that the SIRV Equations (2)–(5) can be expressed as

$$\begin{array}{ccc}\hfill b(\mathit{\tau })& =& \frac{\frac{dV}{d\mathit{\tau }}}{1-V(\mathit{\tau })-J(\mathit{\tau })},\hfill \end{array}$$

(8)

$$\begin{array}{ccc}\hfill I(\mathit{\tau })& =& \frac{j(\mathit{\tau })}{1-V(\mathit{\tau })-J(\mathit{\tau })},\hfill \end{array}$$

(9)

and

$$\begin{array}{c}\hfill k(\mathit{\tau })=1-V(\mathit{\tau })-J(\mathit{\tau })-\frac{d}{d\mathit{\tau }}ln\left[\frac{j(\mathit{\tau })}{1-V(\mathit{\tau })-J(\mathit{\tau })}\right]\end{array}$$

(10)

in terms of the reduced time

$$\mathit{\tau }={\int }_{t_0}^{t}d\mathit{\xi }a(\mathit{\xi }),$$

(11)

and the ratios

$$k(\mathit{\tau })=\frac{\mathit{\mu }(\mathit{\tau }(t\left)\right)}{a(\mathit{\tau }(t\left)\right)},b(\mathit{\tau })=\frac{v(\mathit{\tau }(t\left)\right)}{a(\mathit{\tau }(t\left)\right)}.$$

(12)

The great advantage of the SIRV equations written in the form (8)–(10) is the direct involvement of observable and monitored quantities, such as the rate of new infections $j(\mathit{\tau })=S(\mathit{\tau })I(\mathit{\tau })$, the cumulative fraction of new infections $J\left(t\right)=J(\mathit{\tau })=J\left(0\right)+{\int }_0^{\mathit{\tau }}dxj\left(x\right)=\mathit{\eta }+{\int }_0^{\mathit{\tau }}dxj\left(x\right)=1-S(\mathit{\tau })-V(\mathit{\tau })=R(\mathit{\tau })+I(\mathit{\tau })$, and the cumulative fraction of vaccinated persons $V\left(t\right)=V(\mathit{\tau })$. This has enabled the determination [33] of the time variation of the ratios $k\left(t\right)$ and $b\left(t\right)$ from past COVID-19 mutant waves. For completeness, we note the SIRV Equations (2)–(6) in terms of the reduced time (11)

$$\begin{array}{ccc}\hfill \frac{dS}{d\mathit{\tau }}& =& -SI-b(\mathit{\tau })S,\hfill \end{array}$$

(13)

$$\begin{array}{ccc}\hfill \frac{dI}{d\mathit{\tau }}& =& SI-k(\mathit{\tau })I,\hfill \end{array}$$

(14)

$$\begin{array}{ccc}\hfill \frac{dR}{d\mathit{\tau }}& =& k(\mathit{\tau })I,\hfill \end{array}$$

(15)

$$\begin{array}{ccc}\hfill \frac{dV}{d\mathit{\tau }}& =& b(\mathit{\tau })S,\hfill \end{array}$$

(16)

$$\begin{array}{ccc}\hfill 1& =& S(\mathit{\tau })+I(\mathit{\tau })+R(\mathit{\tau })+V(\mathit{\tau }).\hfill \end{array}$$

(17)

In the following, we will derive approximate analytical solutions of the four nonlinear differential Equations (13)–(16) in the limit of small $J(\mathit{\tau })\ll 1$ and prove its accuracy by comparing with the exact numerical solutions of these equations for a number of illustrative examples of the reduced time dependence of the ratios $k(\mathit{\tau })$ and $b(\mathit{\tau })$. As will be demonstrated, the proposed analytical approximation is self-regulating as the final analytical expression for the cumulative fraction $J_{\infty }={lim}_{t\to \infty }J\left(t\right)$ after infinite time allows us to check the validity of the original assumption $J\left(t\right)=J(\mathit{\tau })\le J_{\infty }\ll 1$.

3. Approximate Analytical Solutions

$J\left(t\right)=J(\mathit{\tau })$ denotes the cumulative fraction of new infections. In the semi-time case considered here, this fraction starts with very small values $J\left(t_0\right)=\mathit{\eta }\simeq 𝒪\left({10}^{-5}\right)$ at the start for all pandemic outbreaks and approaches $J_{\infty }$ after infinite time. In

Table 1. Reported data as of 12 Jan 2024 for final values $J_{\infty }$ and $D_{\infty }$ for several countries with more than $P={10}^7$ inhabitants. Here, P denotes the total population size, $P{J}_{\infty }$ and $P{D}_{\infty }$ the reported total number of infections and fatalities, and $J_{\infty }$ and $D_{\infty }$ the population fractions at the declared end of the pandemics. The table is sorted by ascending $J_{\infty }$. The data were collected from the following github repository: https://pomber.github.io/covid19/timeseries.json (accessed on 20 December 2023).

Country	$\mathit{P}/{10}^6$	${\mathit{PJ}}_{\mathit{\infty }}/{10}^6$	${\mathit{J}}_{\mathit{\infty }}$	${\mathit{PD}}_{\mathit{\infty }}/{10}^6$	${\mathit{D}}_{\mathit{\infty }}$
France	64.88	39.867	0.6145	0.166	0.0026
Korea South	51.63	30.616	0.5930	0.034	0.0007
Portugal	10.33	5.570	0.5395	0.026	0.0025
Greece	10.75	5.548	0.5163	0.035	0.0032
Netherlands	17.02	8.713	0.5120	0.024	0.0014
Australia	24.13	11.399	0.4725	0.020	0.0008
Germany	84.08	38.249	0.4549	0.169	0.0020
Czechia	10.56	4.618	0.4373	0.042	0.0040
Italy	60.60	25.604	0.4225	0.188	0.0031
Belgium	11.35	4.739	0.4176	0.034	0.0030
United Kingdom	65.64	24.659	0.3757	0.221	0.0034
United States	323.13	103.803	0.3212	1.124	0.0035
Spain	46.44	13.770	0.2965	0.119	0.0026
Chile	17.91	5.192	0.2899	0.064	0.0036
Japan	126.99	33.320	0.2624	0.073	0.0006
Argentina	43.85	10.045	0.2291	0.130	0.0030
Turkey	79.51	17.043	0.2143	0.101	0.0013
Brazil	207.65	37.076	0.1785	0.699	0.0034
Romania	19.71	3.346	0.1698	0.068	0.0034
Poland	37.95	6.445	0.1698	0.119	0.0031
Malaysia	31.18	5.045	0.1618	0.037	0.0012
Russia	144.34	22.076	0.1529	0.388	0.0027
Peru	31.77	4.488	0.1412	0.220	0.0069
Colombia	48.65	6.359	0.1307	0.142	0.0029
Canada	36.28	4.617	0.1272	0.052	0.0014
Ukraine	45.01	5.712	0.1269	0.119	0.0027
Vietnam	92.70	11.527	0.1243	0.043	0.0005
Bolivia	10.89	1.194	0.1097	0.022	0.0021
Cuba	11.48	1.113	0.0970	0.009	0.0007
Iran	80.27	7.572	0.0943	0.145	0.0018
Guatemala	16.58	1.238	0.0747	0.020	0.0012
South Africa	55.91	4.067	0.0727	0.103	0.0018
Thailand	68.86	4.728	0.0687	0.034	0.0005
Iraq	37.20	2.466	0.0663	0.025	0.0007
Ecuador	16.38	1.057	0.0645	0.036	0.0022
Dominican Republic	10.65	0.661	0.0621	0.004	0.0004
Mexico	127.54	7.483	0.0587	0.333	0.0026
Philippines	103.32	4.077	0.0395	0.066	0.0006
Morocco	35.27	1.272	0.0361	0.016	0.0005
India	1420.00	44.691	0.0315	0.531	0.0004
Indonesia	261.12	6.738	0.0258	0.161	0.0006
Saudi Arabia	32.28	0.830	0.0257	0.010	0.0003
Venezuela	31.57	0.552	0.0175	0.006	0.0002
Algeria	40.61	0.271	0.0067	0.007	0.0002
Senegal	15.41	0.089	0.0058	0.002	0.0001
Egypt	95.69	0.516	0.0054	0.025	0.0003
China	1410.00	4.904	0.0035	0.101	0.0001

we have collected the monitored values for the COVID-19 outbreaks in different countries. As can be seen, these are smaller than $0.62$ and, in many countries, smaller than 0.1. Especially for the countries with values $J_{\infty }<0.2$, the assumption $J\ll 1$ is well justified.

3.1. Solution in the Limit of Small $J\ll 1$

Initially at reduced time $\mathit{\tau }=0$, the cumulative number of new infections is extremely small. In the limit $J(\mathit{\tau })\le J_{\infty }\ll 1$, where $J_{\infty }=J(\mathit{\tau }=\infty )$, and also at later times, we use the approximations $1-J(\mathit{\tau })\simeq 1-J_{\infty }$ to obtain for Equation (8)

$$b(\mathit{\tau })\simeq \frac{\frac{dV}{d\mathit{\tau }}}{1-J_{\infty }-V(\mathit{\tau })}=\frac{d}{d\mathit{\tau }}ln{[1-J_{\infty }-V(\mathit{\tau })]}^{-1}.$$

(18)

With the initial condition $V\left(0\right)=0$ for arbitrary but given dependencies $b(\mathit{\tau })$, Equation (18) immediately integrates to

$$V(\mathit{\tau })\simeq (1-J_{\infty })[1-e^{-{\int }_0^{\mathit{\tau }}dxb\left(x\right)}],$$

(19)

which approaches $V_{\infty }=V(\infty )=1-J_{\infty }$ after infinite time. Likewise, in the same limit $J\le J_{\infty }\ll 1$, Equation (10) becomes

$$\begin{array}{ccc}\hfill k(\mathit{\tau })& \simeq & 1-J_{\infty }-V(\mathit{\tau })-\frac{d}{d\mathit{\tau }}ln\left[\frac{j(\mathit{\tau })}{1-J_{\infty }-V(\mathit{\tau })}\right]\hfill \\ & =& (1-J_{\infty })e^{-{\int }_0^{\mathit{\tau }}dxb\left(x\right)}-\frac{d}{d\mathit{\tau }}ln\left[\frac{j(\mathit{\tau })e^{{\int }_0^{\mathit{\tau }}dxb\left(x\right)}}{1-J_{\infty }}\right],\hfill \end{array}$$

(20)

where we inserted Equation (19). With the initial condition $j\left(0\right)=\mathit{\eta }(1-\mathit{\eta })$ Equation (20) integrates to

$$j(\mathit{\tau })\simeq \mathit{\eta }(1-\mathit{\eta })exp{\int }_0^{\mathit{\tau }}dx\left[(1-J_{\infty })e^{-{\int }_0^{x}dyb\left(y\right)}-k\left(x\right)-b\left(x\right)\right].$$

(21)

Because of the adopted smallness $J_{\infty }\ll 1$, we simplify the approximative solution (21) in the following as

$$j(\mathit{\tau })\simeq \mathit{\eta }(1-\mathit{\eta })exp{\int }_0^{\mathit{\tau }}dx\left[e^{-{\int }_0^{x}dyb\left(y\right)}-k\left(x\right)-b\left(x\right)\right].$$

(22)

but we keep the $J_{\infty }$ in the solution (19) in order not to violate the restriction $J(\mathit{\tau })+V(\mathit{\tau })\le J_{\infty }+V_{\infty }\le 1$. In terms of the real time the approximative solutions, (19) and (22) read

$$V\left(t\right)\simeq (1-J_{\infty })[1-e^{-{\int }_{t_0}^{t}d\mathit{\xi }v(\mathit{\xi })}],$$

(23)

and

$$\mathring{J}\left(t\right)\simeq a\left(t\right)\mathit{\eta }(1-\mathit{\eta })exp\left[{\int }_{t_0}^{t}d\mathit{\xi }[a(\mathit{\xi })e^{-{\int }_{t_0}^{\mathit{\xi }}dyv\left(y\right)}-\mathit{\mu }(\mathit{\xi })-v(\mathit{\xi })]\right],$$

(24)

respectively.

3.2. Comparison with the SIR Model Limit

The SIR model corresponds to the limit of no vaccinations $v=b=0$, corresponding to $V=0$. In this limit, the solutions (22) and (24) reduce to

$$j_{\mathrm{SIR}}(\mathit{\tau })\simeq \mathit{\eta }(1-\mathit{\eta })e^{{\int }_0^{\mathit{\tau }}dx[1-k\left(x\right)]}$$

(25)

and

$${\mathring{J}}_{\mathrm{SIR}}\left(t\right)\simeq a\left(t\right)\mathit{\eta }(1-\mathit{\eta })e^{{\int }_{t_0}^{t}d\mathit{\xi }[a(\mathit{\xi })-\mathit{\mu }(\mathit{\xi })]},$$

(26)

respectively, in perfect agreement with the earlier derived Equations (12) and (15) of ref. [27].

3.3. Properties of the Approximate Solution (22)

The approximate solution (22) is predominantly determined by the reduced time variation of the ratios $k(\mathit{\tau })$ and $b(\mathit{\tau })$. For the first and second time derivatives of the solution (22) we obtain

$$\begin{array}{ccc}\hfill \frac{dj}{d\mathit{\tau }}& =& \mathit{\eta }(1-\mathit{\eta })\left[e^{-{\int }_0^{\mathit{\tau }}dyb\left(y\right)}-k(\mathit{\tau })-b(\mathit{\tau })\right]exp{\int }_0^{\mathit{\tau }}dx\left[e^{-{\int }_0^{x}dyb\left(y\right)}-k\left(x\right)-b\left(x\right)\right],\hfill \end{array}$$

(27)

$$\begin{array}{ccc}\hfill \frac{d^{2}j}{d{\mathit{\tau }}^2}& =& \mathit{\eta }(1-\mathit{\eta })\left({[e^{-{\int }_0^{\mathit{\tau }}dyb\left(y\right)}-k(\mathit{\tau })-b(\mathit{\tau })]}^2-\frac{dk}{d\mathit{\tau }}-\frac{db}{d\mathit{\tau }}-b(\mathit{\tau })e^{-{\int }_0^{\mathit{\tau }}dyb\left(y\right)}\right)\times \hfill \\ & & exp{\int }_0^{\mathit{\tau }}dx\left[e^{-{\int }_0^{x}dyb\left(y\right)}-k\left(x\right)-b\left(x\right)\right].\hfill \end{array}$$

(28)

Consequently, extrema of the rate of new infections occur at reduced times ${\mathit{\tau }}_E$ determined by

$$k\left({\mathit{\tau }}_E\right)+b\left({\mathit{\tau }}_E\right)=e^{-{\int }_0^{{\mathit{\tau }}_E}dyb\left(y\right)}.$$

(29)

As the right-hand side of this Equation is smaller than or equal to unity, no extrema of infections occur for a sum of variations

$$k(\mathit{\tau })+b(\mathit{\tau })>1$$

(30)

greater than unity at all times. As both rates are semi-positive the condition (30) for no extrema in the rate of new infections is fulfilled if either the vaccination rate $v\left(t\right)>a\left(t\right)$ is greater than the infection rate and/or the recovery rate $\mathit{\mu }\left(t\right)>a\left(t\right)$ is greater than the infection rate. For large enough values of k and b, so that $k(\mathit{\tau })+b(\mathit{\tau })>1$, we have thus shown in Equation (27) that no extrema of the rate of new infections $j(\mathit{\tau })$ occur at any reduced time $\mathit{\tau }\ge 0$. According to Equation (27), then, this rate continually decreases from its original positive initial value $j(\mathit{\tau }=0)=\mathit{\eta }(1-\mathit{\eta })$ to even smaller values at later times. As $j(\mathit{\tau })=S(\mathit{\tau })I(\mathit{\tau })$ and $S(\mathit{\tau })$, as well as $I(\mathit{\tau })$, are originally positive for $\mathit{\tau }=0$, they will remain positive. With $I(\mathit{\tau })$ and $S(\mathit{\tau })$ positive, it is clear from Equations (15) and (16) that $R(\mathit{\tau })$ and $V(\mathit{\tau })$ are also positively valued at all times.

In the case of reduced time intervals, where

$$k(\mathit{\tau })+b(\mathit{\tau })<1,$$

(31)

we obtain

$$\begin{array}{ccc}\hfill {[\frac{d^{2}j}{d{\mathit{\tau }}^2}]}_{{\mathit{\tau }}_E}& =& -\mathit{\eta }(1-\mathit{\eta })({[\frac{dk}{d\mathit{\tau }}]}_{{\mathit{\tau }}_E}+{[\frac{db}{d\mathit{\tau }}]}_{{\mathit{\tau }}_E}+b^2({\mathit{\tau }}_E)+b({\mathit{\tau }}_E)k({\mathit{\tau }}_E))\times \hfill \\ & & exp\left[{\int }_0^{{\mathit{\tau }}_E}dx\left(e^{-{\int }_0^{x}dyb\left(y\right)}-k(x)-b(x)\right)\right],\hfill \end{array}$$

(32)

so that the extrema are maxima if

$${[\frac{dk}{d\mathit{\tau }}]}_{{\mathit{\tau }}_E}+{[\frac{db}{d\mathit{\tau }}]}_{{\mathit{\tau }}_E}+b^2\left({\mathit{\tau }}_E\right)+b\left({\mathit{\tau }}_E\right)k\left({\mathit{\tau }}_E\right)>0$$

(33)

is positive. Alternatively, the extrema are minima if

$${[\frac{dk}{d\mathit{\tau }}]}_{{\mathit{\tau }}_E}+{[\frac{db}{d\mathit{\tau }}]}_{{\mathit{\tau }}_E}+b^2\left({\mathit{\tau }}_E\right)+b\left({\mathit{\tau }}_E\right)k\left({\mathit{\tau }}_E\right)<0$$

(34)

is negative. Note that there can be multiple minima and maxima depending on the reduced time variation of the ratios $k(\mathit{\tau })$ and $b(\mathit{\tau })$. The extreme values of the rate of new infections are given by

$$j_E\left({\mathit{\tau }}_E\right)=\mathit{\eta }(1-\mathit{\eta })e^{{\int }_0^{{\mathit{\tau }}_E}dx\left[e^{-{\int }_0^{x}dyb\left(y\right)}-k\left(x\right)-b\left(x\right)\right]}.$$

(35)

3.4. Cumulative Fraction

Integrating the rate of new infections (22) provides us with the corresponding cumulative fraction

$$J(\mathit{\tau })=\mathit{\eta }+\mathit{\eta }(1-\mathit{\eta }){\int }_0^{\mathit{\tau }}dzexp\left[{\int }_0^{z}dx(e^{-{\int }_0^{x}dyb\left(y\right)}-k\left(x\right)-b\left(x\right))\right].$$

(36)

For general reduced time variations $k(\mathit{\tau })$ and $b(\mathit{\tau })$, the integral in Equation (36) can be reasonably well approximated and evaluated using the method of steepest descent [34,35] by expanding the argument in the exponential function in Equation (36) to second order in z around its (possible multiple) minimum values ${\mathit{\tau }}_m$

$$h\left(z\right)=-{\int }_0^{z}dx(e^{-{\int }_0^{x}dyb\left(y\right)}-k\left(x\right)-b\left(x\right))\simeq h\left({\mathit{\tau }}_m\right)+\frac{{(z-{\mathit{\tau }}_m)}^2{h}_m^{{}^{\prime \prime }}}{2},$$

(37)

where

$$h_m^{″}={[\frac{d^{2}h\left(z\right)}{d{z}^2}]}_{{\mathit{\tau }}_m}.$$

(38)

With this expansion, we obtain for the cumulative fraction (36)

$$J(\mathit{\tau })\simeq \mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })\sum _m\sqrt{\frac{\mathit{\pi }}{2h_m^{{}^{″}}}}{e}^{-h\left({\mathit{\tau }}_m\right)}\left[\mathrm{erf}\left(\sqrt{\frac{h_m^{{}^{″}}}{2}}(\mathit{\tau }-{\mathit{\tau }}_m)\right)+\mathrm{erf}\left(\sqrt{\frac{h_m^{{}^{″}}}{2}}{\mathit{\tau }}_m\right)\right],$$

(39)

where the sum of m accounts for possible multiple minima and

$$\begin{array}{ccc}\hfill h\left({\mathit{\tau }}_m\right)& =& {\int }_0^{{\mathit{\tau }}_m}dx\left[k\left(x\right)+b\left(x\right)-e^{-{\int }_0^{x}dyb\left(y\right)}\right],\hfill \\ \hfill h_m^{″}& =& {[\frac{dk}{d\mathit{\tau }}]}_{{\mathit{\tau }}_m}+{[\frac{db}{d\mathit{\tau }}]}_{{\mathit{\tau }}_m}+b^2\left({\mathit{\tau }}_m\right)+b\left({\mathit{\tau }}_m\right)k\left({\mathit{\tau }}_m\right).\hfill \end{array}$$

(40)

For a minimum, the second derivative $h_m^{″}>0$ has to be positive. The minima occur at times given by

$$k\left({\mathit{\tau }}_m\right)+b\left({\mathit{\tau }}_m\right)=e^{-{\int }_0^{{\mathit{\tau }}_m}dyb\left(y\right)},$$

(41)

and, as discussed before (see Equations (29)–(31)), only for reduced time intervals where the sum $k(\mathit{\tau })+b(\mathit{\tau })<1$ is less than unity.

4. Special Case: Stationary Ratios

We first consider the approximative solutions (19) and (22) in the special case of stationary ratios

$$\begin{array}{ccc}\hfill k(\mathit{\tau })& =& k_0,\hfill \\ \hfill b(\mathit{\tau })& =& b_0,\hfill \end{array}$$

(42)

considered before [1]. We readily obtain

$$V(\mathit{\tau })=(1-J_{\infty })[1-e^{-b_0\mathit{\tau }}],$$

(43)

and

$$j(\mathit{\tau })=\mathit{\eta }(1-\mathit{\eta })exp\left[\frac{1-e^{-b_0\mathit{\tau }}}{b_0}-(k_0+b_0)\mathit{\tau }\right].$$

(44)

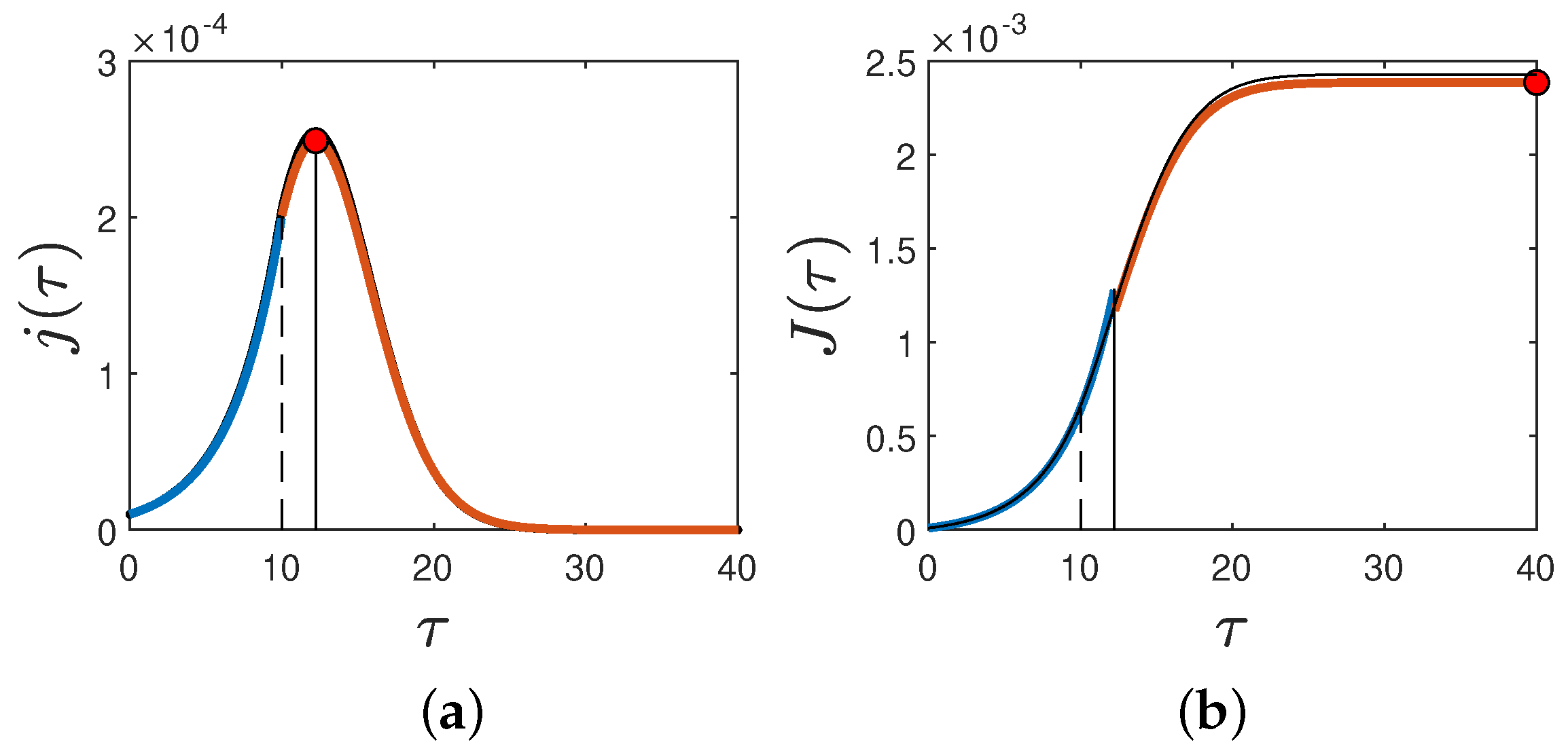

Provided $k_0+b_0<1$, the rate of new infections (44) attains its maximum value at the reduced time

$${\mathit{\tau }}_m=-\frac{ln(k_0+b_0)}{b_0}.$$

(45)

The maximum rate of new infections, then, is

$$j_{\max }=j\left({\mathit{\tau }}_m\right)=\mathit{\eta }(1-\mathit{\eta }){(k_0+b_0)}^{\frac{k_0+b_0}{b_0}}{e}^{\frac{1-(k_0+b_0)}{b_0}}.$$

(46)

Equations (45) and (46) agree exactly with Equations (98) and (100) derived before [1].

4.1. Cumulative Fraction

Integrating Equation (44) yields for the cumulative fraction

$$J(\mathit{\tau })=\mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })H(\mathit{\tau }),$$

(47)

with the integral

$$H(\mathit{\tau })={\int }_0^{\mathit{\tau }}dxexp\left[\frac{1-e^{-b_{0}x}}{b_0}-(k_0+b_0)x\right]=b_0^{\frac{k_0}{b_0}}{e}^{\frac{1}{b_0}}{\int }_{\frac{e^{-b_0\mathit{\tau }}}{b_0}}^{\frac{1}{b_0}}dy{y}^{\frac{k_0}{b_0}}{e}^{-y},$$

(48)

where we substituted $y=e^{-b_{0}x}/b_0$. The integral (48) can be expressed as the difference of two lower incomplete gamma functions

$$\mathit{\gamma }(s,x)={\int }_0^x{t}^{s-1}{e}^{-t}dt=\Gamma \left(s\right)-\Gamma (s,x),$$

(49)

yielding

$$H(\mathit{\tau })=b_0^{\frac{k_0}{b_0}}{e}^{\frac{1}{b_0}}\left[\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{1}{b_0}\right)-\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{e^{-b_0\mathit{\tau }}}{b_0}\right)\right],$$

(50)

so that the cumulative fraction (47) is given by

$$J(\mathit{\tau })=\mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })b_0^{\frac{k_0}{b_0}}{e}^{\frac{1}{b_0}}\left[\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{1}{b_0}\right)-\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{e^{-b_0\mathit{\tau }}}{b_0}\right)\right].$$

(51)

For infinitely large times, the fraction (51) approaches the final value

$$J_{\infty }=J(\mathit{\tau }=\infty )=\mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })b_0^{\frac{k_0}{b_0}}{e}^{\frac{1}{b_0}}\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{1}{b_0}\right).$$

(52)

Equations (51) and (52) agree exactly with the earlier derived Equations (A10) and (102) of ref. [1], using a different approach.

Because the analytical approximations were derived in the limit $J\le J_{\infty }\ll 1$, for consistency, we have to require $J_{\infty }<1$ for the values of $k_0$ and $b_0$ for which our approximation holds. In Figure 1, we calculate the required values of $k_0$ and $b_0$ fulfilling $J_{\infty }<1$ using Equation (52). The required values depend on the initial condition encoded by $\mathit{\eta }$, and are located above the line shown in this figure. For sufficiently large $k_0$, $J_{\infty }<1$, for any ratio $b_0$, while at low recovery to infection ratios $k_0$, the vaccination to infection rate must be significant to ensure $J_{\infty }<1$. The regime of $b_0$ close to zero is numerically difficult to evaluate using Equation (52).

4.2. Limit $b_0\ll 1$

In the limit of small $b_0\ll 1$, we use relation (49) and the asymptotic expansion (Equation 6.5.32 in [36]) of the upper incomplete gamma function for large arguments $x\gg 1$

$$\Gamma (s,x\gg 1)\simeq x^{s-1}{e}^{-x}\left[1+\frac{s-1}{x}+\frac{(s-1)(s-2)}{x^2}+\dots \right],$$

(53)

to obtain for

$$\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{1}{b_0}\right)\simeq \Gamma \left(1+\frac{k_0}{b_0}\right)-b_0^{\frac{k_0}{b_0}}{e}^{-\frac{1}{b_0}}[1+k_0+k_0(k_0-1)+\dots ];$$

(54)

the fraction (52) then becomes

$$J_{\infty }(b_0\ll 1)\simeq \mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })\left[\Gamma \left(1+\frac{k_0}{b_0}\right)b_0^{\frac{k_0}{b_0}}{e}^{\frac{1}{b_0}}-[1+k_0+k_0(k_0-1)+\dots ]\right].$$

(55)

Using Stirling’s formula (Equation 6.1.37 in [36]) for the gamma function $\Gamma (x+1)\sim \sqrt{2\mathit{\pi }x}{(x/e)}^x[1+{\left(12x\right)}^{-1}]$ for large x, Equation (55) becomes,

$$J_{\infty }(b_0\ll 1)\simeq \mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })\left[\sqrt{\frac{2\mathit{\pi }{k}_0}{b_0}}{k}_0^{\frac{k_0}{b_0}}{e}^{\frac{1-k_0}{b_0}}\left(1+\frac{b_0}{12k_0}\right)-[1+k_0+k_0(k_0-1)+\dots ]\right].$$

(56)

For values of $b_0<k_0<1$, the fraction (56) to leading orders is given by

$$J_{\infty }(b_0\ll 1)\simeq \mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })\left[\sqrt{2\mathit{\pi }{k}_0/b_0}{e}^{(1-k_0)/b_0}{k}_0^{k_0/b_0}-1\right].$$

(57)

Because one has to require $J_{\infty }\le 1$, or equivalently, $ln\left(J_{\infty }\right)\le 0$, Equation (57) turns into an inequality for $b_0$, which can be written in terms of the principal branch $W_0$ of Lambert’s W-function, because $(x/b_0)-ln{b}_0=lny$ is solved for any $x\ge 0$ and y by $x/W_0\left(xy\right)$, leading to

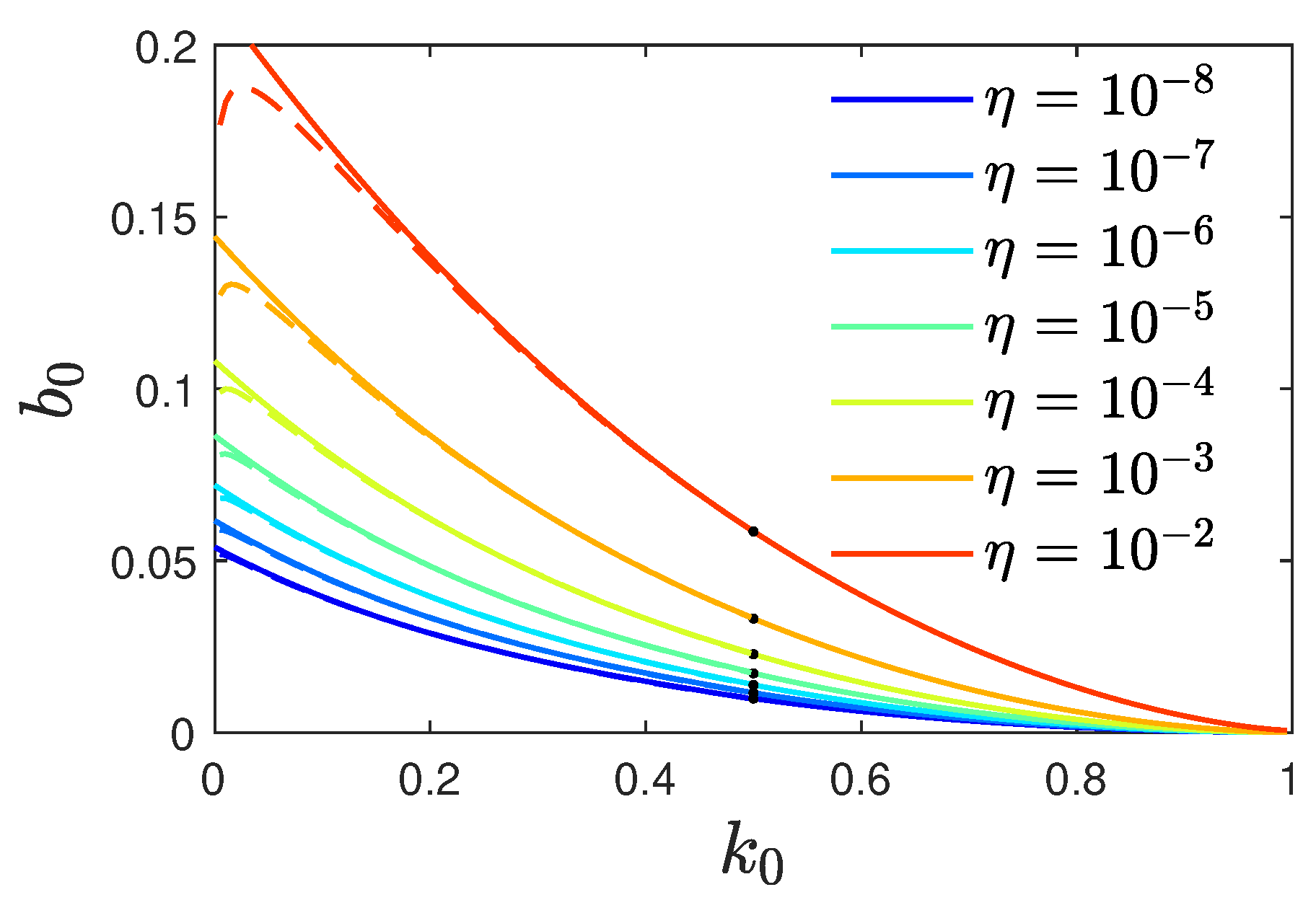

$$b_0\ge \frac{2(1-k_0+k_{0}ln{k}_0)}{W_0\left(\frac{{(1+\mathit{\eta })}^2[1-k_0+k_{0}ln\left(k_0\right)]}{\mathit{\pi }{k}_0{\mathit{\eta }}^2}\right)}.$$

(58)

This inequality (58) ensures $J_{\infty }\le 1$. Along with the information contained in Equation (52), it is visualized in Figure 1.

5. Stationary Ratios with Delayed Start of Vaccinations

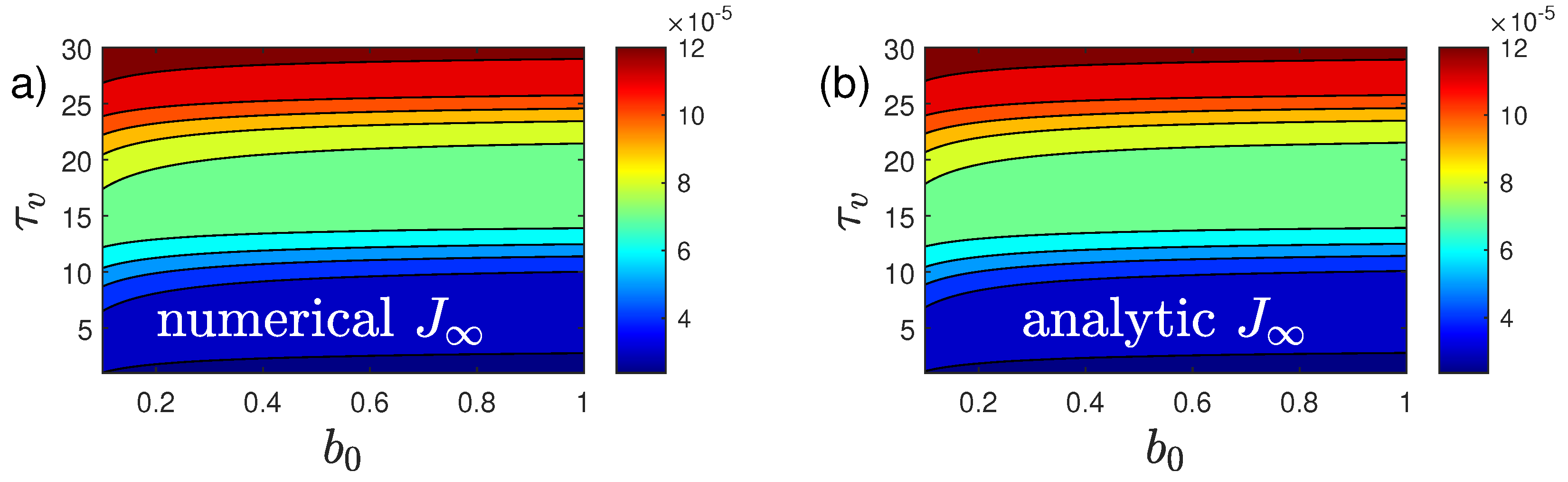

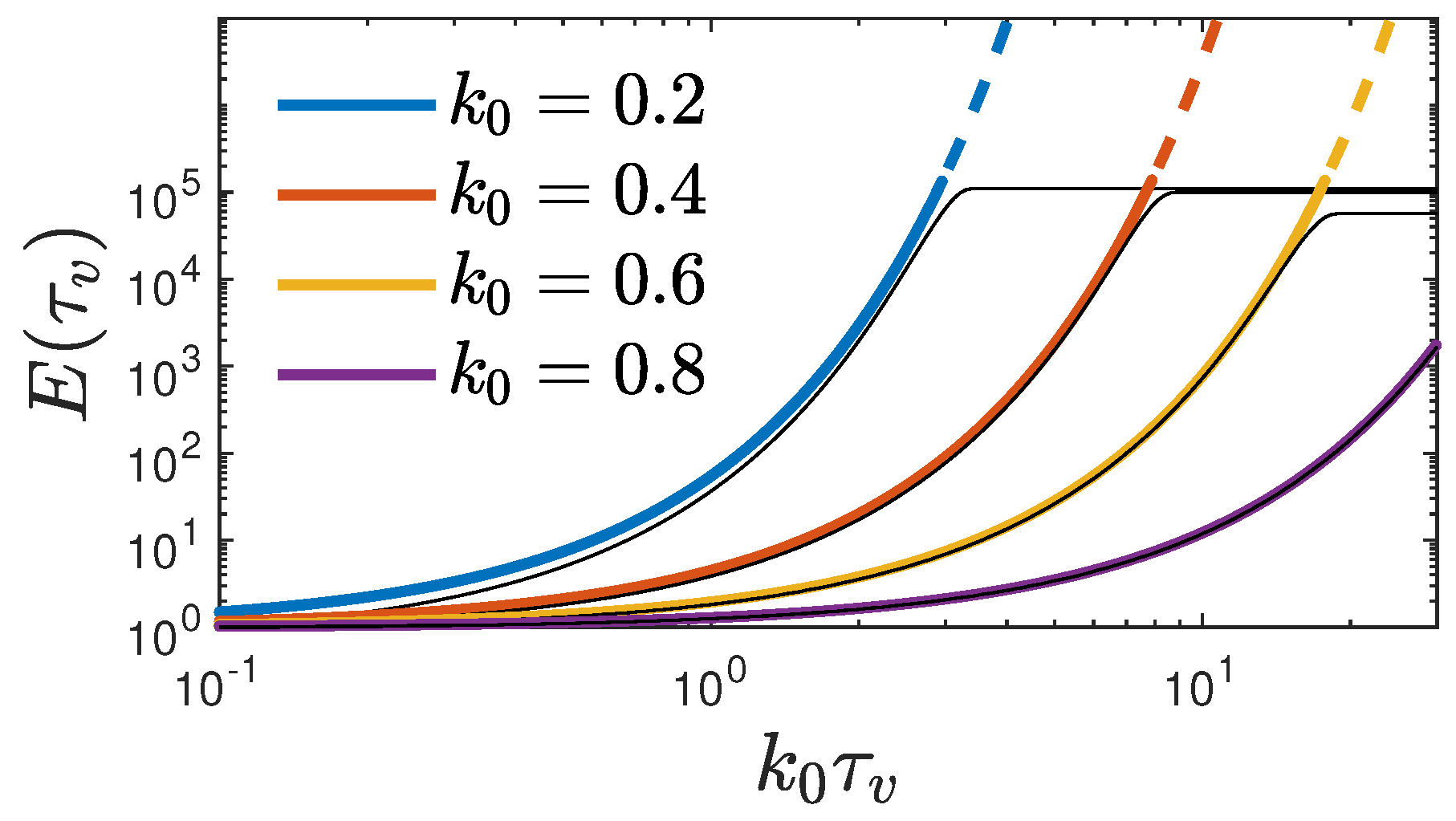

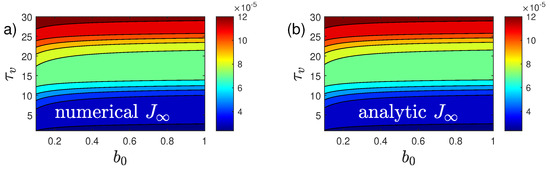

As first new application of our results, we discuss the case of stationary ratio $k(\mathit{\tau })=k_0$ for all reduced times and the influence of a stationary ratio $b(\mathit{\tau })$ starting at the delayed reduced time ${\mathit{\tau }}_v>0$, i.e.,

$$\begin{array}{ccc}\hfill k(\mathit{\tau })& =& k_0,\hfill \\ \hfill b(\mathit{\tau })& =& b_0\Theta (\mathit{\tau }-{\mathit{\tau }}_v)\hfill \end{array}$$

(59)

where $\Theta (x<0)=0$ and $\Theta (x\ge 0)=1$ denotes the step function. We then obtain for Equation (19), i.e., in the limit $J\ll 1$, $V=0$ for $\mathit{\tau }<{\mathit{\tau }}_V$ and

$$V(\mathit{\tau }\ge {\mathit{\tau }}_v)=(1-J_{\infty })[1-e^{-b_0(\mathit{\tau }-{\mathit{\tau }}_v)}].$$

(60)

Likewise, the rate (22) becomes the SIR-rate [27]

$$j(0\le \mathit{\tau }<{\mathit{\tau }}_v)=\mathit{\eta }(1-\mathit{\eta })e^{(1-k_0)\mathit{\tau }}$$

(61)

at times without vaccination, and

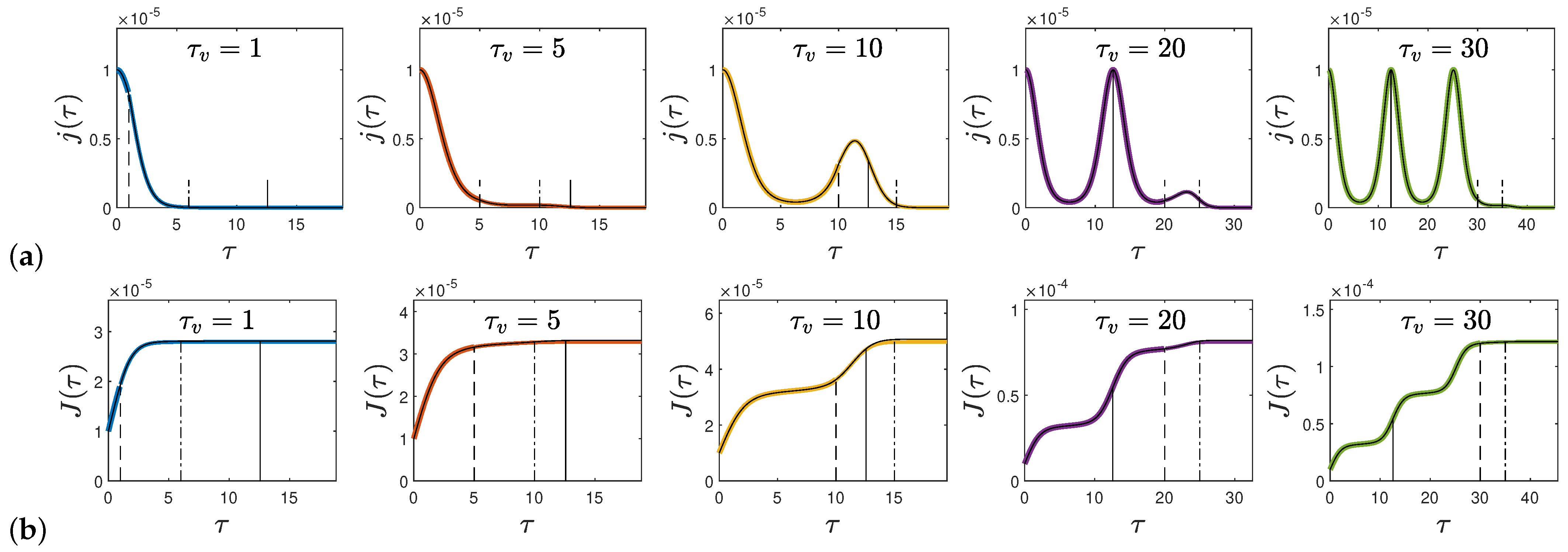

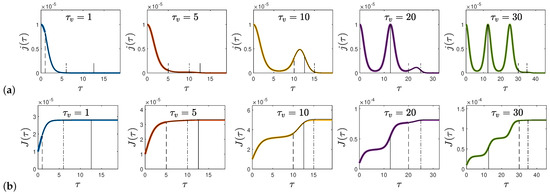

$$j(\mathit{\tau }\ge {\mathit{\tau }}_v)=\mathit{\eta }(1-\mathit{\eta })exp\left[(1-k_0){\mathit{\tau }}_v+\frac{1-e^{-b_0(\mathit{\tau }-{\mathit{\tau }}_v)}}{b_0}-(k_0+b_0)(\mathit{\tau }-{\mathit{\tau }}_v)\right]$$

(62)

at later times. While the SIR-rate (61) is exponentially increasing in reduced time, the rate (62) has a maximum value

$$\begin{array}{ccc}\hfill j_{\max }=j\left({\mathit{\tau }}_m\right)& =& \mathit{\eta }(1-\mathit{\eta })exp\left[(1-k_0){\mathit{\tau }}_v+\frac{1-e^{-b_0({\mathit{\tau }}_m-{\mathit{\tau }}_v)}}{b_0}-(k_0+b_0)({\mathit{\tau }}_m-{\mathit{\tau }}_v)\right]\hfill \\ & =& \mathit{\eta }(1-\mathit{\eta }){(k_0+b_0)}^{\frac{k_0+b_0}{b_0}}exp\left[(1-k_0){\mathit{\tau }}_v+\frac{1-(k_0+b_0)}{b_0}\right],\hfill \end{array}$$

(63)

provided $k_0+b_0<1$, the rate of new infections attains its maximum at the reduced time

$${\mathit{\tau }}_m={\mathit{\tau }}_v-\frac{ln(k_0+b_0)}{b_0}.$$

(64)

We first note that for ${\mathit{\tau }}_v=0$, the rates (62) and (63) correctly reproduce the earlier results (44) and (46). We emphasize that the delayed start of the vaccinations increases both the maximum time of the rate of infections and the maximum rate of new infections. Compared to the case of no delay in the start of vaccinations (${\mathit{\tau }}_v=0$), we introduce the enhancement factor for the maximum rate

$$E\left({\mathit{\tau }}_v\right)=\frac{j_{\max }\left({\mathit{\tau }}_v\right)}{j_{\max }({\mathit{\tau }}_v=0)}=e^{(1-k_0){\mathit{\tau }}_v},$$

(65)

shown in Figure 2, which is independent of the vaccination rate and determined by the values of $k_0$ and ${\mathit{\tau }}_v$. Apparently, this exponential enhancement solely results from the new infections before the vaccinations start. While the enhancement factor increases exponentially over a wide range of $k_0{\mathit{\tau }}_v$, in accord with Equation (65), it numerically reaches a plateau as $k_0{\mathit{\tau }}_v$ approaches infinity, whose height increases with decreasing $\mathit{\eta }$. This is a clear indication that for large values of the enhancement factor, a regime is reached where $J\left({\mathit{\tau }}_m\right)$ is no longer much smaller than unity, so that the analytical approximation no longer holds. This explanation is supported by the cumulative fraction at large times (68) (see below) being directly proportional to the enhancement factor (65).

Integrating the rates of new injections (61) and (63) yields for the cumulative fraction

$$J(0\le \mathit{\tau }<{\mathit{\tau }}_v)=\mathit{\eta }+\frac{\mathit{\eta }(1-\mathit{\eta })}{1-k_0}[e^{(1-k_0)\mathit{\tau }}-1],$$

(66)

and

$$\begin{array}{ccc}\hfill J(\mathit{\tau }\ge {\mathit{\tau }}_v)& =& \mathit{\eta }+\frac{\mathit{\eta }(1-\mathit{\eta })}{1-k_0}\left[e^{(1-k_0){\mathit{\tau }}_v}-1\right]+\mathit{\eta }(1-\mathit{\eta })b_0^{\frac{k_0}{b_0}}{e}^{(1-k_0){\mathit{\tau }}_v+\frac{1}{b_0}}\times \hfill \\ & & \left[\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{1}{b_0}\right)-\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{e^{-b_0(\mathit{\tau }-{\mathit{\tau }}_v)}}{b_0}\right)\right].\hfill \end{array}$$

(67)

For infinitely large times, the fraction (67) approaches the final value $J_{\infty }=J(\mathit{\tau }=\infty )$ with

$$\begin{array}{ccc}\hfill J_{\infty }& =& \mathit{\eta }+\frac{\mathit{\eta }(1-\mathit{\eta })}{1-k_0}\left[e^{(1-k_0){\mathit{\tau }}_v}-1\right]+\mathit{\eta }(1-\mathit{\eta })b_0^{\frac{k_0}{b_0}}{e}^{(1-k_0){\mathit{\tau }}_v+\frac{1}{b_0}}\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{1}{b_0}\right)\hfill \\ & =& \frac{\mathit{\eta }(1-\mathit{\eta })}{1-k_0}E\left({\mathit{\tau }}_v\right)\left[1+(1-k_0)b_0^{\frac{k_0}{b_0}}{e}^{\frac{1}{b_0}}\mathit{\gamma }\left(1+\frac{k_0}{b_0},\frac{1}{b_0}\right)\right]+\frac{\mathit{\eta }(\mathit{\eta }-k_0)}{1-k_0}.\hfill \end{array}$$

(68)

An example showing all quantities calculated analytically in this section, along with the numerical solution for a case with $J_{\infty }\ll 1$, is given in Figure 3.

6. Oscillating Ratio $\mathbf{k}$ with Delayed Vaccinations at Constant Rate ${\mathbf{b}}_{\mathbf{0}}$

As a second application, we investigate the influence of delayed vaccinations with constant rate on the earlier discussed SIR-application [27] with an oscillating k ratio and delayed vaccination ratio b,

$$\begin{array}{ccc}\hfill k(\mathit{\tau })& =& 1+\mathit{\alpha }sin(\mathit{\beta }\mathit{\tau }),\hfill \end{array}$$

(69)

$$\begin{array}{ccc}\hfill b\left(t\right)& =& b_0\Theta (\mathit{\tau }-{\mathit{\tau }}_v),\hfill \end{array}$$

(70)

with constant values $\mathit{\alpha }$ and $\mathit{\beta }$. As noted before [27] the oscillating ratio (69) represents a series of repeating pandemic outbursts with equal amplitudes in the rate of new infections. We then obtain for Equation (19) $V=0$ for $\mathit{\tau }<{\mathit{\tau }}_V$ and

$$V(\mathit{\tau }\ge {\mathit{\tau }}_v)=1-e^{-b_0(\mathit{\tau }-{\mathit{\tau }}_v)}.$$

(71)

Likewise, the rate (22) becomes the SIR-rate [27]

$$j(0\le \mathit{\tau }\le {\mathit{\tau }}_v)=\mathit{\eta }(1-\mathit{\eta })e^{\frac{\mathit{\alpha }}{\mathit{\beta }}[cos(\mathit{\beta }\mathit{\tau })-1]}$$

(72)

at times without vaccination, and

$$j(\mathit{\tau }\ge {\mathit{\tau }}_v)=\mathit{\eta }(1-\mathit{\eta })exp\left\{\frac{\mathit{\alpha }}{\mathit{\beta }}\left[cos(\mathit{\beta }\mathit{\tau })-1\right]+\frac{1-e^{-b_0(\mathit{\tau }-{\mathit{\tau }}_v)}}{b_0}-(1+b_0)(\mathit{\tau }-{\mathit{\tau }}_v)\right\}$$

(73)

at later times. In Figure 4a, we show the rate of new infections (72)–(73) in the case $\mathit{\alpha }=0.8$ and $\mathit{\beta }=0.5$ for several values of the starting time of vaccinations ${\mathit{\tau }}_v$ and the vaccination rate $b_0=0.2$. We also compare, in each case, the analytical approximations with the exact rates of new infections from solving the SIRV equations numerically.

For the corresponding cumulative fractions, one finds [27]

$$J(\mathit{\tau }\le {\mathit{\tau }}_v)=\mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })e^{-\frac{\mathit{\alpha }}{\mathit{\beta }}}\left[\mathit{\tau }{I}_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)+2\sum _{n=1}^{\infty }\frac{I_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)}{n\mathit{\beta }}sin(n\mathit{\beta }\mathit{\tau })\right]$$

(74)

in terms of an infinite series of the modified Bessel function of the first kind $I_n\left(z\right)$, and

$$J(\mathit{\tau }\ge {\mathit{\tau }}_v)=\mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })e^{-\frac{\mathit{\alpha }}{\mathit{\beta }}}\{M(\mathit{\tau })+{\mathit{\tau }}_v{I}_0(\frac{\mathit{\alpha }}{\mathit{\beta }})+2\sum _{n=1}^{\infty }\frac{I_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)}{n\mathit{\beta }}sin(n\mathit{\beta }{\mathit{\tau }}_v)\},$$

(75)

with the integral

$$M(\mathit{\tau })={\int }_{{\mathit{\tau }}_v}^{\mathit{\tau }}dx{e}^{\frac{\mathit{\alpha }}{\mathit{\beta }}cos(\mathit{\beta }x)-(1+b_0)(x-{\mathit{\tau }}_v)+\frac{1-e^{-b_0(x-{\mathit{\tau }}_v)}}{b_0}}={\int }_0^{\mathit{\tau }-{\mathit{\tau }}_v}dy{e}^{\frac{\mathit{\alpha }}{\mathit{\beta }}cos[\mathit{\beta }(y+{\mathit{\tau }}_v)]+g\left(y\right)},$$

(76)

where we substituted $y=x-\mathit{\tau }$ and introduced the function

$$g\left(y\right)=\frac{1-e^{-b_{0}y}}{b_0}-(1+b_0)y.$$

(77)

This function (77) has the following asymptotic behaviors for small and large values of $b_{0}y$, i.e.,

$$g\left(y\right)\simeq \left\{\begin{array}{cc}\hfill -b_{0}y(1+\frac{y}{2}),& \hfill \mathrm{for}y\ll b_0^{-1},\\ \hfill \frac{1}{b_0}-(1+b_0)y,& \hfill \mathrm{for}y\gg b_0^{-1}.\end{array}\right.$$

(78)

In the following, we therefore approximate the function (77) as $g\left(y\right)\simeq g_A\left(y\right)$ with

$$g_A\left(y\right)=-b_{0}y\left(1+\frac{y}{2}\right)\Theta \left[b_0^{-1}-y\right]+\left[\frac{1}{2b_0}-(1+b_0)y]\Theta [y-b_0^{-1}\right].$$

(79)

With this approximation, we calculate the integral (76). For values of $\mathit{\tau }\le {\mathit{\tau }}_v+b_0^{-1}$ we obtain

$$\begin{array}{ccc}\hfill M(\mathit{\tau }-{\mathit{\tau }}_v\le b_0^{-1})& \simeq & {\int }_0^{\mathit{\tau }-{\mathit{\tau }}_v}dy{e}^{\frac{\mathit{\alpha }}{\mathit{\beta }}cos[\mathit{\beta }(y+{\mathit{\tau }}_v)]-b_{0}y(1+\frac{y}{2})}\hfill \\ & =& {\int }_0^{\mathit{\tau }-{\mathit{\tau }}_v}dy\left[I_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)+2\sum _{n=1}^{\infty }{I}_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)cos[n\mathit{\beta }(y+{\mathit{\tau }}_v)]\right]e^{-b_{0}y(1+\frac{y}{2})}\hfill \\ & =& \sqrt{\frac{\mathit{\pi }}{2b_0}}{e}^{\frac{b_0}{2}}\left\{I_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)\left[\mathrm{erf}\left(\sqrt{\frac{b_0}{2}}(\mathit{\tau }-{\mathit{\tau }}_v+1)\right)-\mathrm{erf}\sqrt{\frac{b_0}{2}}\right]\right.\hfill \\ & & \left.+2\sum _{n=1}^{\infty }{I}_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)e^{-\frac{n^2{\mathit{\beta }}^2}{2b_0}}{W}_n(\mathit{\tau })\right\},\hfill \end{array}$$

(80)

with

$$\begin{array}{ccc}\hfill W_n(\mathit{\tau })& =& \sqrt{\frac{2b_0}{\mathit{\pi }}}{e}^{-b_0/2}{e}^{\frac{n^2{\mathit{\beta }}^2}{2b_0}}{\int }_0^{\mathit{\tau }-{\mathit{\tau }}_v}dycos[n\mathit{\beta }(y+{\mathit{\tau }}_v)]e^{-b_{0}y(1+\frac{y}{2})}\hfill \\ \hfill & =& \Re \left[e^{𝚤n\mathit{\beta }({\mathit{\tau }}_v-1)}\left[\mathrm{erf}\left(\sqrt{\frac{b_0}{2}}(\mathit{\tau }-{\mathit{\tau }}_v+1)-\frac{𝚤n\mathit{\beta }}{\sqrt{2b_0}}\right)-\mathrm{erf}\left(\sqrt{\frac{b_0}{2}}-\frac{𝚤n\mathit{\beta }}{\sqrt{2b_0}}\right)\right]\right]\hfill \end{array}$$

(81)

in terms of error functions with complex arguments. The real part in Equation (81) is calculated in detail in Appendix A, providing

$$\begin{array}{ccc}\hfill W_n(\mathit{\tau })& =& cos[n\mathit{\beta }({\mathit{\tau }}_v-1)]\left[\mathrm{erf}\left(\sqrt{\frac{b_0}{2}}(\mathit{\tau }-{\mathit{\tau }}_v+1)\right)-\mathrm{erf}\sqrt{\frac{b_0}{2}}\right]\hfill \\ & & +\frac{e^{-\frac{b_0}{2}{(\mathit{\tau }-{\mathit{\tau }}_v+1)}^2}}{\mathit{\pi }\sqrt{2b_0}(\mathit{\tau }-{\mathit{\tau }}_v+1)}\left\{cos[n\mathit{\beta }({\mathit{\tau }}_v-1)]-cosn\mathit{\beta }\mathit{\tau }\right\}\hfill \\ & & -\frac{e^{-\frac{b_0}{2}}}{\mathit{\pi }\sqrt{2b_0}}\left\{cos[n\mathit{\beta }({\mathit{\tau }}_v-1)]-cosn\mathit{\beta }{\mathit{\tau }}_v\right\}\hfill \\ & & +\frac{2e^{-\frac{b_0}{2}{(\mathit{\tau }-{\mathit{\tau }}_v+1)}^2}}{\mathit{\pi }}\sum _{m=1}^{\infty }\frac{e^{-\frac{m^2}{4}}{A}_{n,m}(\mathit{\tau })}{m^2+2b_0{(\mathit{\tau }-{\mathit{\tau }}_v+1)}^2}\hfill \\ & & -\frac{2e^{-\frac{b_0}{2}}}{\mathit{\pi }}\sum _{m=1}^{\infty }\frac{e^{-\frac{m^2}{4}}{B}_{n,m}(\mathit{\tau })}{m^2+2b_0}\hfill \end{array}$$

(82)

with

$$\begin{array}{ccc}\hfill A_{n,m}(\mathit{\tau })& =& \sqrt{2b_0}(\mathit{\tau }-{\mathit{\tau }}_v+1)\left[cos[n\mathit{\beta }({\mathit{\tau }}_v-1)]-cosh\left(\frac{mn\mathit{\beta }}{\sqrt{2b_0}}\right)cosn\mathit{\beta }\mathit{\tau }\right],\hfill \\ & & +msinh\left(\frac{mn\mathit{\beta }}{\sqrt{2b_0}}\right)sinn\mathit{\beta }\mathit{\tau },\hfill \end{array}$$

(83)

$$\begin{array}{ccc}\hfill B_{n,m}(\mathit{\tau })& =& \sqrt{2b_0}\left[cos[n\mathit{\beta }({\mathit{\tau }}_v-1)]-cosh\left(\frac{mn\mathit{\beta }}{\sqrt{2b_0}}\right)cosn\mathit{\beta }{\mathit{\tau }}_v\right]\hfill \\ & & +msinh\left(\frac{mn\mathit{\beta }}{\sqrt{2b_0}}\right)sinn\mathit{\beta }{\mathit{\tau }}_v.\hfill \end{array}$$

(84)

Likewise, in the alternative case $\mathit{\tau }\ge {\mathit{\tau }}_v+b_0^{-1}$, we find

$$\begin{array}{ccc}\hfill M(\mathit{\tau }-{\mathit{\tau }}_v\ge b_0^{-1})& \simeq & {\int }_0^{b_0^{-1}}dy{e}^{\frac{\mathit{\alpha }}{\mathit{\beta }}cos[\mathit{\beta }(y+{\mathit{\tau }}_v)]-b_{0}y(1+\frac{y}{2})}\hfill \\ & & +e^{\frac{1}{2b_0}}{\int }_{b_0^{-1}}^{\mathit{\tau }-{\mathit{\tau }}_v}dy{e}^{\frac{\mathit{\alpha }}{\mathit{\beta }}cos[\mathit{\beta }(y+{\mathit{\tau }}_v)]-(1+b_0)y}\hfill \\ & =& e^{\frac{1}{2b_0}}{\int }_{b_0^{-1}}^{\mathit{\tau }-{\mathit{\tau }}_v}dy\left[I_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)+2\sum _{n=1}^{\infty }{I}_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)\Re e^{𝚤n\mathit{\beta }(y+{\mathit{\tau }}_v)}\right]e^{-(1+b_0)y}\hfill \\ & & +\sqrt{\frac{\mathit{\pi }}{2b_0}}{e}^{\frac{b_0}{2}}\left\{I_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)\left[\mathrm{erf}\left(\sqrt{\frac{b_0}{2}}(1+b_0^{-1})\right)-\mathrm{erf}\sqrt{\frac{b_0}{2}}\right]\right.\hfill \\ & & \left.+2\sum _{n=1}^{\infty }{I}_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)e^{-\frac{n^2{\mathit{\beta }}^2}{2b_0}}{W}_n\left({\mathit{\tau }}_v+b_0^{-1}\right)\right\}.\hfill \end{array}$$

(85)

The remaining integrals can be evaluated with the help of

$${\int }_{b_0^{-1}}^{\mathit{\tau }-{\mathit{\tau }}_v}dy{e}^{-(1+b_0)y}=\frac{e^{-\frac{1+b_0}{b_0}}-e^{-(1+b_0)(\mathit{\tau }-{\mathit{\tau }}_v)}}{1+b_0},$$

(86)

and

$$\begin{array}{ccc}\hfill \Re {\int }_{b_0^{-1}}^{\mathit{\tau }-{\mathit{\tau }}_v}dy{e}^{𝚤n\mathit{\beta }(y+{\mathit{\tau }}_v)-(1+b_0)y}& =& \hfill \\ & & \frac{1}{n^2{\mathit{\beta }}^2+{(1+b_0)}^2}[\left(n\mathit{\beta }sinn\mathit{\beta }\mathit{\tau }-(1+b_0)cosn\mathit{\beta }\mathit{\tau }\right)e^{-(1+b_0)(\mathit{\tau }-{\mathit{\tau }}_v)}\hfill \\ & & -\left(n\mathit{\beta }sinn\mathit{\beta }({\mathit{\tau }}_v+b_0^{-1})-(1+b_0)cosn\mathit{\beta }({\mathit{\tau }}_v+b_0^{-1})\right)e^{-\frac{1+b_0}{b_0}}].\hfill \end{array}$$

(87)

Consequently, Equation (85) becomes

$$\begin{array}{ccc}\hfill M(\mathit{\tau }-{\mathit{\tau }}_v\ge b_0^{-1})& \simeq & \sqrt{\frac{\mathit{\pi }}{2b_0}}{e}^{\frac{b_0}{2}}\left\{I_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)\left[\mathrm{erf}\left(\sqrt{\frac{b_0}{2}}(\frac{1}{b_0}+1)\right)-\mathrm{erf}\sqrt{\frac{b_0}{2}}\right]\right.\hfill \\ & & \left.+2\sum _{n=1}^{\infty }{I}_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)e^{-\frac{n^2{\mathit{\beta }}^2}{2b_0}}{W}_n({\mathit{\tau }}_v+b_0^{-1})\right\}\hfill \\ & & +e^{\frac{1}{2b_0}}{I}_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)\frac{e^{-\frac{1+b_0}{b_0}}-e^{-(1+b_0)(\mathit{\tau }-{\mathit{\tau }}_v)}}{1+b_0}+2e^{\frac{1}{2b_0}}\sum _{n=1}^{\infty }\frac{I_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)}{n^2{\mathit{\beta }}^2+{(1+b_0)}^2}\times \hfill \\ & & [\left(n\mathit{\beta }sinn\mathit{\beta }\mathit{\tau }-(1+b_0)cosn\mathit{\beta }\mathit{\tau }\right)e^{-(1+b_0)(\mathit{\tau }-{\mathit{\tau }}_v)}\hfill \\ & & -\left(n\mathit{\beta }sin[n\mathit{\beta }({\mathit{\tau }}_v+b_0^{-1})]-(1+b_0)cos[n\mathit{\beta }({\mathit{\tau }}_v+b_0^{-1})]\right)e^{-\frac{1+b_0}{b_0}}].\hfill \end{array}$$

(88)

For the cumulative fraction (75), we obtain

$$\begin{array}{ccc}\hfill J({\mathit{\tau }}_v\le \mathit{\tau }\le {\mathit{\tau }}_v+b_0^{-1})& =& \mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })e^{-\frac{\mathit{\alpha }}{\mathit{\beta }}}\times \hfill \\ & & \left[{\mathit{\tau }}_v{I}_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)+M(\mathit{\tau }-{\mathit{\tau }}_v\le b_0^{-1})+2\sum _{n=1}^{\infty }\frac{I_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)}{n\mathit{\beta }}sin(n\mathit{\beta }{\mathit{\tau }}_v)\right],\hfill \end{array}$$

(89)

and

$$\begin{array}{ccc}\hfill J(\mathit{\tau }\ge {\mathit{\tau }}_v+b_0^{-1})& =& \mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })e^{-\frac{\mathit{\alpha }}{\mathit{\beta }}}\times \hfill \\ & & \left[{\mathit{\tau }}_v{I}_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)+M(\mathit{\tau }-{\mathit{\tau }}_v\ge b_0^{-1})+2\sum _{n=1}^{\infty }\frac{I_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)}{n\mathit{\beta }}sin(n\mathit{\beta }{\mathit{\tau }}_v)\right],\hfill \end{array}$$

(90)

by inserting Equation (85) and (88), respectively. Hence, the cumulative fraction after infinite time is given by

$$\begin{array}{ccc}\hfill J_{\infty }& =& \mathit{\eta }+\mathit{\eta }(1-\mathit{\eta })e^{-\frac{\mathit{\alpha }}{\mathit{\beta }}}\{{\mathit{\tau }}_v{I}_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)+2\sum _{n=1}^{\infty }\frac{I_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)}{n\mathit{\beta }}sin(n\mathit{\beta }{\mathit{\tau }}_v)\hfill \\ & & +\sqrt{\frac{\mathit{\pi }}{2b_0}}{e}^{\frac{b_0}{2}}\left[I_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)\left[\mathrm{erf}\left(\sqrt{\frac{b_0}{2}}(1+b_0^{-1})\right)-\mathrm{erf}\sqrt{\frac{b_0}{2}}\right]\right.\hfill \\ & & \left.+2\sum _{n=1}^{\infty }{I}_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)e^{-\frac{n^2{\mathit{\beta }}^2}{2b_0}}{W}_n({\mathit{\tau }}_v+b_0^{-1})\right]\hfill \\ & & +e^{\frac{1}{2b_0}}{I}_0\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)\frac{e^{-\frac{1+b_0}{b_0}}}{1+b_0}+2e^{-\frac{1+2b_0}{2b_0}}\sum _{n=1}^{\infty }\frac{I_n\left(\frac{\mathit{\alpha }}{\mathit{\beta }}\right)}{n^2{\mathit{\beta }}^2+{(1+b_0)}^2}\times \hfill \\ & & \left[(1+b_0)cos[n\mathit{\beta }({\mathit{\tau }}_v+b_0^{-1})]-n\mathit{\beta }sin[n\mathit{\beta }({\mathit{\tau }}_v+b_0^{-1})]\right]\},\hfill \end{array}$$

(91)

which is compared in Figure 5 with the numerical values. It is sufficient to evaluate the sums up to $n=m=50$; with this setting, the calculation of a $J_{\infty }$ value lasts only a fraction of a second.

7. Summary and Conclusions

The dynamical equations of the susceptible–infected–recovered/removed–vaccinated (SIRV) epidemic model play an important role in predicting and/or analyzing the temporal evolution of epidemic outbreaks accounting quantitatively for the influence of vaccination campaigns. Additional to the time-dependent infection ($a\left(t\right)$) and recovery ($\mathit{\mu }\left(t\right)$) rates, regulating the transitions between the compartments $S\to I$ and $I\to R$, respectively, the time-dependent vaccination ($v\left(t\right)$ accounts for the transition between the compartments $S\to V$ of susceptible to vaccinated fractions. Here, apparently for the first time a new approximate analytical solution is derived for arbitrary and different but given temporal dependencies of the infection, recovery and vaccination rates, which is valid for all times after the start of the epidemic for which the cumulative fraction of new infections $J\left(t\right)\ll 1$ is much less than unity. As vaccination campaigns automatically reduce the rate of new infections by transferring susceptible persons to vaccinated persons, who then no longer can get infected, the limit $J\ll 1$ is even better fulfilled than in the SIR-epidemic model, which does not account for vaccinations. The proposed analytical approximation is self-regulating, as the final analytical expression for the cumulative fraction $J_{\infty }$ after infinite time allows us to check the validity of the original assumption $J\left(t\right)\le J_{\infty }\ll 1$, thus indicating the allowed range of parameter values describing the temporal dependence of the ratios $k\left(t\right)=\mathit{\mu }\left(t\right)/a\left(t\right)$ and $b\left(t\right)=v\left(t\right)/a\left(t\right)$.

The comparison of the analytical approximation for the temporal dependence of the rate of new infections $\mathring{J}\left(t\right)=a\left(t\right)S\left(t\right)I\left(t\right)$, the corresponding cumulative fraction of new infections $J\left(t\right)=J\left(t_0\right)+{\int }_{t_0}^{t}d\mathit{\xi }\mathring{J}(\mathit{\xi })$, and the fraction of vaccinated persons $V\left(t\right)$, respectively, with the exact numerical solution of the SIRV-equations for two different and interesting applications proves the accuracy of the analytical approach. These two applications were not accessible to analytical treatment before. The considered applications include the cases of stationary ratios with a delayed start of vaccinations, and an oscillating ratio of recovery to infection rate with a delayed vaccination at constant rate. The excellent agreement of the analytical approximations with the exact numerical solution of the SIRV-equations for these two applications proves the accuracy of the analytical approach. In the first case, the effect of a delayed start of vaccinations on the maximum rate of new infections and on the final cumulative fraction of infected persons is quantitatively calculated, demonstrating the importance of an early start of vaccinations during a new epidemic outburst. Moreover, the new analytical approximation agrees favorably well with the earlier obtained analytical approximation [1] for the case of stationary ratios between the recovery to infection rate and the vaccination to infection rate, respectively, implying that the time dependence of the three rates $a\left(t\right)$, $\mathit{\mu }\left(t\right)$, and $v\left(t\right)$ is the same.

This work has calculated approximately the temporal dependence of the rate of new infections and its corresponding cumulative fraction for a given population size using the SIRV-epidemic model equations for spatially integrated quantities. No attempt has been made to include any spatial spread by diffusion. Future work will be concerned with finding analytical approximations for the more complex set of equations including spatial diffusion [19,37,38,39,40,41,42,43].
