A Hybrid Harmony Search Algorithm for Distributed Permutation Flowshop Scheduling with Multimodal Optimization

Abstract

Distributed permutation flowshop scheduling is an NP-hard problem that has become a hot research topic in the fields of optimization and manufacturing in recent years. Multimodal optimization finds multiple global and local optimal solutions of a function. This study proposes a harmony search algorithm with iterative optimization operators to solve the NP-hard problem for multimodal optimization with the objective of makespan minimization. First, the initial solution set is constructed by using a distributed NEH operator. Second, after generating new candidate solutions, efficient iterative optimization operations are applied to optimize these solutions, and the worst solutions in the harmony memory (HM) are replaced. Finally, the solutions that satisfy multimodal optimization of the harmony memory are obtained when the stopping condition of the algorithm is met. The constructed algorithm is compared with three meta-heuristics: the iterative greedy meta-heuristic algorithm with a bounded search strategy, the improved Jaya algorithm, and the novel evolutionary algorithm, on 600 newly generated datasets. The results show that the proposed method outperforms the three compared algorithms and is applicable to solving distributed permutation flowshop scheduling problems in practice.

1. Introduction

Compared to the single workshop processing mode of the traditional manufacturing system, the distributed manufacturing system (DMS) fully utilizes resources in the workshops of distributed factories. By realizing the effective allocation of raw materials and an optimal combination of productivity, reasonable resource sharing, etc., the goal of quickly achieving product manufacturing at reasonable costs in the DMS is fulfilled.

Distributed scheduling plays a crucial role in the DMS; it has large-scale, nonlinear, strong constraint, multiobjective, and uncertainty characteristics and has always been a hot topic in the fields of optimization and manufacturing. Its scientific optimization directly affects the efficiency and long-term development of production enterprises. Therefore, developing efficient optimization scheduling algorithms is one of the keys to improving production efficiency, saving energy, reducing emissions, decreasing production costs, and solving the bottleneck problem.

In the DMS, the distributed flowshop scheduling problem (DFSP) is a very important problem. Due to the presence of multiple factories, the DFSP encounters many challenges, such as the coupling relationship between processing factories, allocation of machines within the factory, and sorting of jobs to be processed [1]. Compared with the traditional NP-hard flowshop scheduling problem in a single factory, the DFSP has a larger solution space and involves greater difficulty in arriving at the optimal solution. It imposes more stringent requirements on the accuracy and speed of the algorithm. Therefore, research on the problem has theoretical and applicative importance.

Many researchers have proposed various algorithms for solving the DFSP in different scenarios and under different constraints by focusing on different objectives of multimodal optimization. Li and Wu [2] proposed a heuristic for no-wait flowshops with makespan minimization based on total idle-time increments. Gogos [3] addressed the DFSP by using constraint programming and its special scheduling features for makespan minimization. Hao, Li, and Du et al. [4] studied the distributed hybrid flowshop scheduling (DHFS) problem for makespan minimization and established a mathematical model. Geng and Li [5] studied an improved hyperplane-assisted evolutionary algorithm to solve a distributed mixed flowshop scheduling problem in a glass manufacturing system with two objectives: to minimize the makespan and the total energy consumption. Zhang, Geng, and Li et al. [6] proposed an effective Q-learning-based multiobjective particle swarm optimization algorithm to solve the DFSP problem with the total completion time minimization and energy consumption. Bai, Liu, and Zhang et al. [7] studied a heterogeneous distributed permutation flowshop scheduling problem to minimize the makespan. Zhao, Zhuang, Wang, and Dong [8] investigated the distributed no-idle permutation flowshop scheduling problem (DNIPFSP). The makespan and total tardiness were optimized simultaneously, considering the scale and variety of problems by introducing an improved iterative greedy (IIG) algorithm. Li, Pan, and Sang et al. [9] addressed a distributed permutation flowshop scheduling problem with part of the jobs subject to a common deadline, established a mathematical model, and proposed a self-adaptive population-based iterated greedy algorithm with the objective of minimizing the total completion time. Song, Lin, and Chen [10] studied the distributed assembly permutation flowshop scheduling problem with sequence-dependent setup times. An effective two-stage heuristic was proposed with the optimization objective of minimizing the makespan.

The distributed permutation flowshop scheduling problem (DPFSP) is considered in this study as it is one of the most widely studied problems in the field of scheduling [11]. For example, Yu, Zhong, and Sun et al. [12] studied the energy-efficient distributed permutation flowshop scheduling problem with sequence-dependent setup times for the criterion of minimizing the total flowtime and total energy consumption.

The harmony search (HS) algorithm, proposed by Geem, Kim, and Loganathan [13], is a simple but effective meta-heuristic. It is based on the processes involved in musical performance when a composer searches for a better musical harmony, such as during jazz improvisation. Jazz improvisation seeks to find musically pleasing harmonies as determined by an aesthetic standard, just as the process of optimization seeks to find a global optimal solution as determined by an objective function. The pitch of each musical instrument determines the overall aesthetic quality, just as the value of the objective function is determined by the set of values assigned to each decision variable. The HS algorithm has been widely applied to various optimization problems in science and engineering [14]. In particular, it has also been deeply explored for power system optimization [15]. In recent years, Khaleel, Zaher, and Raeid [16] combined War Strategy Optimization technology with the harmony search algorithm to form a hybrid algorithm called H-WSO, which is used to improve the effectiveness of the War Strategy Optimization algorithm in optimization problems. Wang, Zhang, Wang, and Pan [17] proposed a three-way decision-based island harmony search algorithm for robust flowshop scheduling with uncertain processing times depicted by big data. Li, Xue, Li, and Shi [18] conducted research on the performance of the harmony search algorithm with local search algorithms to solve flexible job-shop scheduling problems.

As the DPFSP is one of the fastest-growing topics in the scheduling literature and HS is a simple but effective meta-heuristic which can be well used to solve this problem, applying HS to solve the DPFSP will be a challenging and promising solution. A harmony search algorithm with iterative optimizing operators is proposed in this paper to solve this problem for multimodal optimization with the objective of makespan minimization.

The remaining parts of this paper are organized as follows: Section 2 provides an objective of minimizing makespan and a mathematical model for the considered problem. Combined with iterative optimization algorithms, Section 3 presents a hybrid harmony search algorithm, named IOHS. Section 4 conducts simulation experiments based on experimental data to verify the effectiveness of the algorithm, and compares its performance with other algorithms. Section 5 provides conclusions and prospects for future research contents and directions.

2. Problem Description

The DPFSP can be described as follows: a batch of sequentially numbered jobs are first assigned to some distributed homogeneous factories, and then the jobs in each factory are scheduled and processed sequentially on the machines in that factory. The objective is to determine a near-optimal job–factory allocation and intra-factory job sequencing for multimodal optimization with makespan minimization.

The main assumptions are as follows:

• All jobs are ready when processing starts.
• The number of jobs and their processing times on machines are known, and are non-negative.
• Each job can be processed only on one machine in a given factory at a given time, and cannot be pre-empted.
• Each machine can process only one job at a time, and completes all jobs in sequence.
• The preparation time for each job is sequence independent, and is included in its processing time.

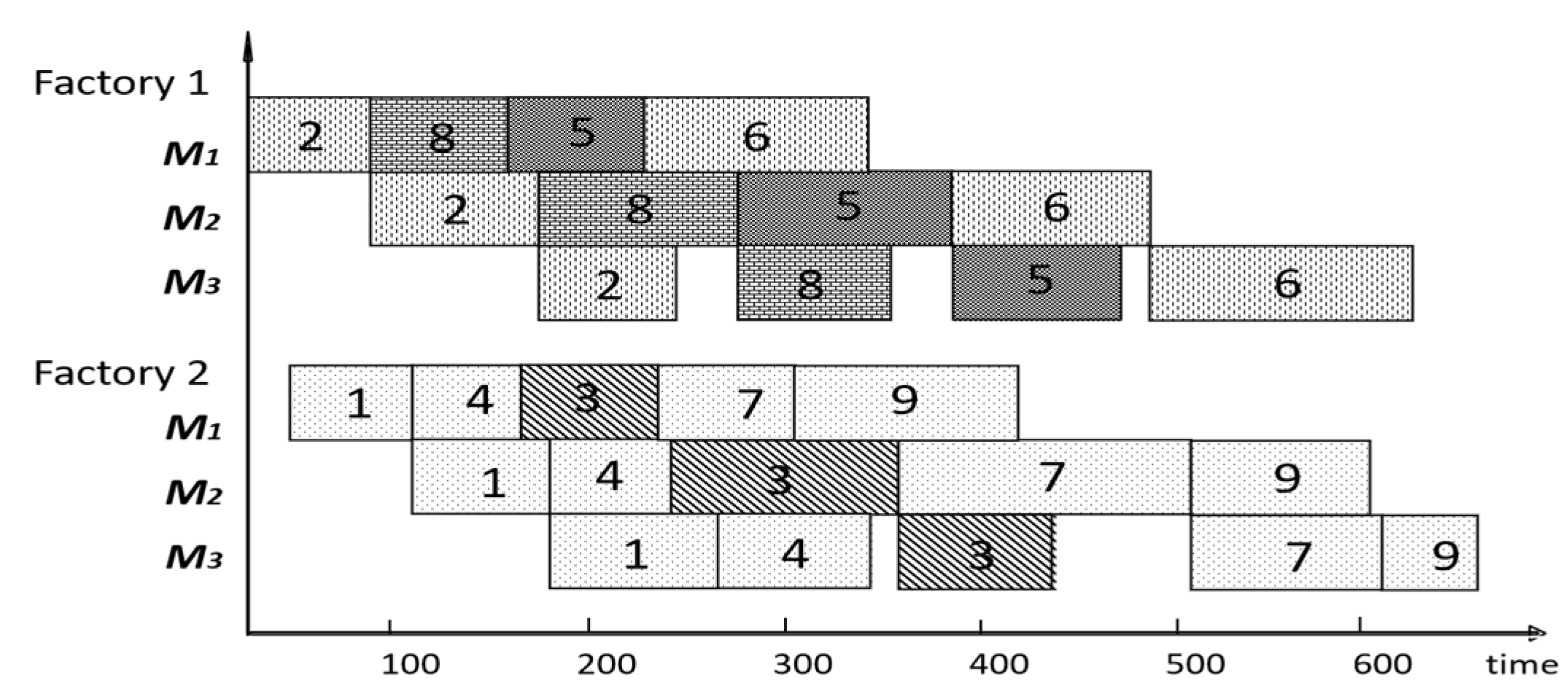

In Figure 1, there are nine sequentially numbered jobs assigned to two distributed manufacturing factories. It shows that there are four jobs scheduled in sequence {2,8,5,6} in the first factory, and five jobs scheduled in sequence {1,4,3,7,9} in the second one. While each factory has its own makespan, the maximum of these makespans is regarded as the makespan of the overall schedule. Thus, the makespan of this schedule as shown in Figure 1 is the completion time of job 9 on machine 3 in factory 2.

The symbols and definitions used in this paper are as follows:

F: Number of factories.

f: Index for factories, f = {1, 2, …, F}.

M: Number of machines in each factory.

m: Index for machines, m = {1, 2, …, M}.

J_f: Number of jobs in factory f.

J: Total number of jobs, J = J₁ + J₂ + … + J_F.

j_f,n: The n-th job assigned to factory f, n = {1, 2, …, J_f}.

p_f,n,m: The processing time of the n-th job in factory f on machine m.

A solution $\mathsf{\pi }$ can then be given by Equation (1):

$$\mathsf{\pi }=\left\{\left\{J_1,J_2,\dots ,J_F\right\},\left\{\left\{j_{\mathrm{1,1}},j_{\mathrm{1,2}},\dots ,j_{1,J_1}\right\},\left\{j_{\mathrm{2,1}},j_{\mathrm{2,2}},\dots ,j_{2,J_2}\right\},\dots ,\left\{j_{F,1},j_{F,2},\dots ,j_{F,J_F}\right\}\right\}\right\}$$

(1)

Equation (1) shows that $\mathsf{\pi }$ is composed of two parts: {J₁, J₂, …, J_F} means the number of jobs assigned to each factory, while $\left\{j_{\mathrm{i},1},j_{\mathrm{i},2},\dots ,j_{\mathrm{i},J_{\mathrm{i}}}\right\}$ indicates the sequence of jobs processed in the ith factory.

The formulae for calculating the completion time of each job on the machines in the factory are given by Equations (2)–(5):

$${C(j}_{f,1},1)=p_{f,\mathrm{1,1}}$$

(2)

$${C(j}_{f,1},m)=\sum _{k=1}^m{p}_{f,1,k}$$

(3)

$${C(j}_{f,n},1)=\sum _{t=1}^{\mathrm{n}}{p}_{f,t,1}$$

(4)

$${C(j}_{f,n},m)=\max \left\{{C(j}_{f,n},m-1\right),{C(j}_{f,n-1},m)\}+p_{f,n,m}$$

(5)

In Equation (2), C(j_f,1, 1) is the completion time of the first job j_f,1 on the first machine in each factory. p_f,1,1 is the processing time for this job on the given machine. In Equation (3), C(j_f,1, m) is the completion time of the first job j_f,1 on the m-th machine in each factory. p_f,1,k is the processing time of the first job on the k-th machine in factory f. In Equation (4), C(j_f,n, 1) is the completion time of the n-th job j_f,n on the first machine in each factory. p_f,t,1 is the processing time of the t-th job on the first machine in factory f. In Equation (5), the completion time of the n-th job j_f,n on the m-th machine in factory f, C(j_f,n, m) is the sum of p_f,n,m and the maximum value of C(j_f,n, m − 1) and C(j_f,n−1, m):

$$C\left(f\right)=C\left(j_{f,J_f},M\right)$$

(6)

$$C\left(\mathsf{\pi }\right)=\max \left\{C\left(1\right),C\left(2\right),\dots ,C\left(F\right)\right\}$$

(7)

The completion time of factory f is the completion time of the last job $j_{f,J_f}$ on the last machine M, as shown in Equation (6). The makespan for collaborative processing in DMS is the maximum of C(1), C(2), …, C(F), as shown in Equation (7).

The solution ${\mathsf{\pi }}^{\mathrm{*}}$ in the solution space $\mathsf{\Pi }$ that has the minimum makespan can be depicted by Equation (8):

$$C\left({\mathsf{\pi }}^{\mathrm{*}}\right)={\min }_{\forall \mathsf{\pi }\in \mathsf{\Pi }}\left\{C\left(\mathsf{\pi }\right)\right\}$$

(8)

The aim of this paper is to construct an algorithm to find multiple global and local optima of a function, which is defined as multimode optimization in [19]. In this way, the user can gain better knowledge about different optimal solutions in the search space, and choose the appropriate optimal solution according to their own needs to meet system performance requirements.

3. Proposed Algorithm

3.1. Harmony Search Algorithm

The basic process of HS is shown in Algorithm 1.

Algorithm 1. Harmony search algorithm (HS).

01. Initialize parameters rh, rp, sh, bw; 02. For (i =1 to sh){ 03.   Select values within the range of the decision variable to generate a harmony solution; 04.   Put the solution into the harmony memory HM; 05. } 06. Repeat 07.   $\mathrm{Set} {\pi }_{new}\leftarrow \mathsf{\varphi }$; 08.  For (i =1 to n){ 09.     Generate a random number r1; 10.     $\mathrm{If} (r_1<r_h$){ 11.        $\mathrm{Select} \mathrm{a} \mathrm{value} \mathrm{as} \mathrm{the} i\mathrm{th} \mathrm{decision} \mathrm{variable} \mathrm{of} {\pi }_{new}$ from the historical solution of HM; 12.        Generate a random number r2; 13.        $\mathrm{If} (r_2<r_p$) 14.          Adjust this decision variable according to the adjustment bandwidth bw to obtain a new decision variable; 15.     } 16.     Else{ 17.         $\mathrm{Select} \mathrm{a} \mathrm{value} \mathrm{as} \mathrm{the} i\mathrm{th} \mathrm{decision} \mathrm{variable} \mathrm{of} {\pi }_{new}$ within the range of values of the decision variable; 18.     } 19.   } 20.   $\mathrm{According} \mathrm{to} \mathrm{the} \mathrm{objective} \mathrm{function}, \mathrm{find} \mathrm{the} \mathrm{worst} \mathrm{solution} {\pi }_{worst}$ in HM; 21.   $\mathrm{If} ({\pi }_{new}$$\mathrm{is} \mathrm{better} \mathrm{than} {\pi }_{worst})$      $22. \mathrm{Replace} {\pi }_{worst}$$\mathrm{with} {\pi }_{new}$; 23. Until (the stopping condition is satisfied); 24. Return;

In the HS algorithm, the rate of consideration of HM, r_h, is the probability of taking a value from HM. The rate of pitch adjustment, r_p, is the probability of adjusting a value. s_h is the size of HM, and bw is the bandwidth of adjustment. r₁ and r₂ are two random numbers in range (0, 1). The algorithm consists of three main process: (1) harmony memory initialization, (2) new solution generation, and (3) harmony memory update.

3.1.1. Harmony Memory Initialization

The initialization of HM, which is the first stage of this evolutionary computing algorithm, is used to generate an initial solution set. The initial solution set, containing s_h harmony solutions, is randomly generated from the solution space with n variables, and is placed in HM. The form of HM is given in Equation (9).

$$HM=\left[\begin{array}{c}{\mathsf{\pi }}_1\\ ⋮\\ {\mathsf{\pi }}_{{\mathrm{s}}_{\mathrm{h}}}\end{array}\right]=\left[\begin{array}{ccc}{\mathsf{\pi }}_1^1& \dots & {\mathsf{\pi }}_1^{\mathrm{n}}\\ ⋮& \ddots & ⋮\\ {\mathsf{\pi }}_{{\mathrm{s}}_{\mathrm{h}}}^1& \dots & {\mathsf{\pi }}_{{\mathrm{s}}_{\mathrm{h}}}^{\mathrm{n}}\end{array}\right]$$

(9)

3.1.2. New Solution Generation

A two-stage process, involving construction and adjustment, is used to generate a new solution. In the construction stage, a random number r₁ is generated and compared with r_h. If r₁ is smaller than r_h, a harmony variable is selected from HM; otherwise, a harmony variable is generated from the solution space. For each harmony variable obtained from HM, another random number r₂ is generated in the adjustment stage and compared with r_p. If r₂ is smaller than r_p, the variable needs to be adjusted according to the adjustment bandwidth bw to obtain a new value. Otherwise, no adjustments will be made. By performing this process n times, a new harmony ${\pi }_{new}$ is obtained.

3.1.3. Harmony Memory Update

The generated new solution ${\pi }_{new}$ is evaluated based on the optimization objective function. If ${ \pi }_{new}$ is better than the worst solution ${\pi }_{worst}$ in HM, ${\pi }_{worst}$ is replaced by ${\pi }_{new}$. Otherwise, no update is needed.

3.2. Harmony Search with Iterative Optimization

The HS algorithm was originally developed for continuous functions of n variables, and it has the essence of continuity [13]. However, the discussed problem in this paper involves decision variables with discrete characteristics. Hence, a hybrid HS algorithm, based on the classical HS algorithm, is proposed to solve the considered problem.

3.2.1. Initialization of HM

Due to the homogeneity of DMS, all factories have the same number and sequence of machines with identical processing characteristics; there is no need to optimize the order of factories, so the factories can be arranged in numerical order. Each solution in HM consists of two parts. The first part describes the number of jobs allocated by each factory in order. The second part shows the sequence of the jobs in a given factory. Assigning different numbers of jobs to a factory and the resulting schedule can significantly influence the makespan of that factory. Therefore, the two factors, job–factory allocation and job sequencing in a factory, have an impact on the objectives of the scheduling. These factors cannot be simply separated, and need to be studied as a whole.

Assume that there are nine sequentially numbered jobs assigned to three distributed manufacturing factories.

Table 1. An example of HM.

Solution Structure	Job Sequence
	Processing Factory 1	Processing Factory 2	Processing Factory 3
{3,3,3}	{1,3,4}	{2,5,9}	{6,7,8}
{4,2,3}	{1,3,4,9}	{2,5}	{6,7,8}

shows an example of the HM. It contains two harmony solutions represented as ${\pi }_1$ and ${\pi }_2$, respectively. Considering the solution ${\pi }_2$= {{4,2,3},{{1,3,4,9},{2,5},{6,7,8}}}, {4,2,3} indicates that there are three processing factories, and there are four jobs {1,3,4,9} in the first factory, two jobs {2,5} in the second one, and three jobs {6,7,8} in the third one.

The quality of the initial solution set is very important for the evolution of the algorithm, because it determines whether the algorithm can quickly find the near-optimal solution or not. The NEH algorithm [20] is an efficient and widely used heuristic algorithm used to obtain an initial solution for the scheduling problems with makespan minimization. Its main idea is as follows: First, arrange the n jobs in descending order according to their processing times. Second, pick the first two jobs from the list, and choose the best sequence of the two jobs by calculating makespan of the two possible sequences, and set i = 2. Third, pick the job in the (i + 1)-th position of the list, and find the best sequence by placing it at all possible (i + 1) positions in the partial sequence found previously. Repeat the third step till i = n.

However, the problem considered here is a distributed permutation flowshop scheduling problem with multiple factories. The NEH algorithm cannot be directly used. Thus, a distributed NEH algorithm (D-NEH) is constructed to obtain an initial solution set. The D-NEH can be described as follows: First, generate a job sequence by arranging the J jobs in descending order according to their processing times on the machines, and randomly generate the other (s_h − 1) job sequences. Then, for each of the s_h job sequences, assign the first F jobs to F factories (each factory contains one job), pick the next job from the job sequence, and find the best position by placing it in all possible positions in the partial sequence of each factory, and repeat the pick–find operation until all the jobs have been arranged to its proper factory and the best position in that factory. After the new job sequence ${\mathsf{\pi }}_{\mathrm{i}}^{\prime }$ is generated, input it into HM. Finally, the initial solution set HM is obtained.

The description of the D-NEH is shown in Algorithm 2. Assuming that s_h is an independent variable, the time cost of this algorithm mainly occurs between pseudocode lines 4 and 16, so the algorithm’s overall time complexity is O(s_h ∗ J² ∗ F) according to these pseudocodes.

Algorithm 2. D-NEH algorithm.

01. Initialize the parameter sh; 02. $\mathrm{Generate} \mathrm{the} \mathrm{first} \mathrm{job} \mathrm{sequence} {\pi }_1$ by arranging the J jobs in descending order according to their processing times on the machines; 03. Randomly generate the other (sh − 1) job sequences; 04. For (i = 1 to sh){ 05. ${\mathsf{\pi }}_{\mathrm{i}}^{\prime }\leftarrow$ $\mathrm{Ø}$; 06.   $\mathrm{Assign} \mathrm{the} \mathrm{first} F \mathrm{jobs} \mathrm{to} F \mathrm{factories} \mathrm{one} \mathrm{by} \mathrm{one} \mathrm{and} \mathrm{get} \mathrm{the} \mathrm{partial} \mathrm{job} \mathrm{sequence} {\mathsf{\pi }}_{\mathrm{i}}^{\prime }$; 07.   For (j=F; j<J; j++){ 08.     $\mathrm{Pick} \mathrm{the} \mathrm{job} \mathrm{in} \mathrm{the} (j+1)-\mathrm{th} \mathrm{position} \mathrm{of} \mathrm{the} \mathrm{job} \mathrm{sequence} {\mathsf{\pi }}_i$; 09.     For (f=1; f<=F; f++){ 10.       For (k=1; k<=J; k++){ 11.         Place the (j+1)-th job into the k-th possible position of the partial sequence for factory f; 12.       } 13.       Record the best partial job sequence in factory f; 14.     } 15.     $\mathrm{Pick} \mathrm{the} \mathrm{partial} \mathrm{job} \mathrm{sequence} \mathrm{with} \mathrm{minimum} \mathrm{makespan} \mathrm{as} \mathrm{the} \mathrm{current} \mathrm{job} \mathrm{sequence} {\mathsf{\pi }}_{\mathrm{i}}^{\prime }$  } 17.   $\mathrm{Put} \mathrm{the} \mathrm{job} \mathrm{sequence} {\mathsf{\pi }}_{\mathrm{i}}^{\prime }$ into HM; 18. } 19. Return;

3.2.2. Generation of New Solution

The process of generating new solutions includes three stages. The first two stages are identical to those in the HS algorithm, while the last one is an optimization stage. Unlike the case in which there is one solution sequence for only one factory, a DMS in the construction stage has at least two factories, each of which may not necessarily contain the same number of jobs. When constructing a new solution sequence, the number $t(0<t\le s_h)$ of different solution structures contained in HM should first be obtained. According to the number of jobs in each factory, if the random number $r_1(0<r_1<1)$ is smaller than the parameter r_h, a new solution is constructed by selecting jobs from HM. Otherwise, the solution is constructed by selecting jobs from a range of possible values for each decision variable. It is clear that, when constructing the new solution, t solutions are generated instead of one. The construction stage essentially combines the architecture of certain meta-heuristic algorithms. For example, it preserves the historical traces of past vectors, similarly to the taboo search algorithm [21]. It can have a varying probability of fitness from the beginning to the end of the calculation, similarly to the simulated annealing algorithm [22]. At the same time, it can retain several vectors like genetic algorithms to enable the newly generated solution to evolve.

The adjustment stage in this process involves a certain variation based on the parameter r_p, while the solution is obtained by considering convergence and divergence in the generation of the new solution by the algorithm. That is, the algorithm constructs the solution while performing mutation on each decision variable by relying on r_p. The main idea of this adjustment operation is that when it is executed, a decision variable is selected from the current solution sequence, and exchanged with a randomly selected decision variable that is close to it. The solution with the optimal value of the objective function is used as the new solution. This idea means to create a small random disturbance to avoid premature convergence.

In the optimization stage, an iterative optimization algorithm (IOA), which is composed of RZ and PE operators [2], is used to further search the neighborhood of the candidate solution to find more and better solutions. RZ and PE algorithms are commonly used and are relatively efficient among heuristic algorithms. The main idea of the RZ algorithm is as follows: For a given job sequence with n jobs, select a job from the sequence, and insert it into n possible positions to find the best sequence. Repeat this select–insert operation for the next job in the job sequence until all of the jobs are selected/optimized. The main idea of the PE algorithm is as follows: For a given job sequence with n jobs, pick a job from it and exchange this job with other n-1 jobs to find the best sequence. Repeat this pairwise exchange operation for the next unpicked job until all of the jobs are picked/optimized. The time complexities for the two algorithms are both O (mn²), where m is the number of machines.

Based on the above description, the IOA can be depicted as follows: For each new candidate solution ${\pi }_i, i=\mathrm{1,2},\dots ,t$, select one job from the sequence with the largest makespan value (if there is more than one sequence, select one randomly), and insert it into other possible positions to find the best sequence ${\pi }_{best}^{\prime }$. For ${\pi }_{best}^{\prime }$, pick this job and exchange it with other jobs to find the best sequence ${\pi }_{best}^{″}$. Repeat the select–insert and pairwise-exchange operations for the next selectable job until all the jobs have been optimized. Thus, the near-optimal solution has been finally obtained. Algorithm 3 shows the IOA in detail. The time cost of IOA mainly lies between line 2 and line 19 in the pseudocode, with a time complexity of O(J² ∗ F). Thus, for each new candidate solution ${\pi }_i, i=\mathrm{1,2},\dots ,t$, the overall time complexity of the algorithm is O(J² ∗ F).

Algorithm 3. Iterative optimization algorithm (IOA).

01. $\mathrm{Set} {\pi }_{best}\leftarrow {\pi }_i (i=\mathrm{1,2},...,t)$; 02. Repeat 03.   $\mathrm{Find} \mathrm{the} \mathrm{factory} \mathrm{with} \mathrm{the} \mathrm{largest} \mathrm{value} \mathrm{of} \mathrm{makespan} \mathrm{in} {\pi }_{best}$ and record it as fmax; 04.   Set global ← false; 05.   $\mathrm{For} (j=1 \mathrm{to} {J_f}_{max}$){ 06.     For (f =1 to F){ 07.       If (f = fmax) continue; 08.       Insert job j into factory f; 09.       $\mathrm{Apply} \mathrm{the} \mathrm{select}–\mathrm{insert} \mathrm{operation} \mathrm{to} \mathrm{optimize} \mathrm{the} \mathrm{job} \mathrm{sequence} \mathrm{of} \mathrm{factory} f\mathrm{and} \mathrm{get} \mathrm{the} \mathrm{best} \mathrm{sequence} {\pi }_{best}^{\prime }$; 10.       $\mathrm{Apply} \mathrm{the} \mathrm{pairwise} \mathrm{exchange} \mathrm{operation} \mathrm{to} \mathrm{further} \mathrm{optimize} \mathrm{the} \mathrm{job} \mathrm{sequence} \mathrm{of} \mathrm{factory} f\mathrm{and} \mathrm{get} \mathrm{the} \mathrm{best} \mathrm{solution} {\pi }_{best}^{″}$; 11.       $\mathrm{If}(\mathrm{C}\left({\pi }_{best}^{″}\right)$$< \mathrm{C}\left({\pi }_{best}\right)$){ 12.         $\mathrm{Replace} {\pi }_{best}$$\mathrm{with} {\pi }_{best}^{″}$; 13.         Set global ← true; 14.       } 15.       If (global=true) break; 16.       } 17.     If (global=true) break; 18.   } 19. Until global=false; 20. $\mathrm{Set} {\pi }_i\leftarrow {\pi }_{best}$; 21. Return;

After the construction and adjustment stages as well as the optimization of the candidate solution, t new candidate solutions ${\pi }_{new}=\{{\pi }_1,{\pi }_2,\dots ,{\pi }_t\}$ are generated and sorted in descending order according to the value of the objective function to facilitate the subsequent update of HM.

The proposed NSGA to generate and optimize new solutions is described in Algorithm 4. The time cost of NSGA mainly lies between line 4 and line 20 in the pseudocode with a time complexity of O(t ∗ J² ∗ F), where t is the number of solution structures. As the maximum value of t is s_h. Thus, the worst-case time complexity of the algorithm is O(s_h ∗ J² ∗ F).

Algorithm 4. New solution generation algorithm (NSGA).

01. Initialize parameters rh, rp, bw; 02. Set ${\pi }_{new}\leftarrow \mathsf{\varphi }$; 03. Obtain the total number of solution structures t of HM; 04. For (i =1 to t){ 05.   $\mathrm{Let} \mathrm{the} i\mathrm{th} \mathrm{solution} \mathrm{structure} \mathrm{be} \mathrm{the} \mathrm{structure} \mathrm{of} \mathrm{the} \mathrm{new} \mathrm{solution} {\pi }_i$; 06.   $\mathrm{Set} {\pi }_i\leftarrow \mathsf{\varphi }$; 07.   For (j=1 to J){ 08.     Generate two random numbers r1 and r2; 09.     $\mathrm{If} (r_1<r_h$){ 10.       $\mathrm{Select} \mathrm{a} \mathrm{new} \mathrm{job} \mathrm{from} \mathrm{column} j \mathrm{in} \mathrm{HM} \mathrm{and} \mathrm{insert} \mathrm{it} \mathrm{into} \mathrm{the} j-\mathrm{th} \mathrm{position} \mathrm{of} \mathrm{the} \mathrm{new} \mathrm{solution} {\pi }_i$; 11.     }Else{ 12.       $\mathrm{Select} \mathrm{a} \mathrm{new} \mathrm{job} \mathrm{from} \mathrm{the} \mathrm{job} \mathrm{set} \mathrm{and} \mathrm{insert} \mathrm{it} \mathrm{into} \mathrm{the} j-\mathrm{th} \mathrm{position} \mathrm{of} \mathrm{the} \mathrm{new} \mathrm{solution} {\pi }_i$; 13.     } 14.     $\mathrm{If} (r_2<r_p$){ 15.       $\mathrm{Adjust} \mathrm{the} \mathrm{job} \mathrm{in} {\pi }_i$ to within the range (max{0, j-bw}, min{ j+bw, J}); 16.     } 17.   } 18.   $\mathrm{Applying} \mathrm{the} \mathrm{IOA} \mathrm{operator} \mathrm{to} \mathrm{optimize} \mathrm{the} \mathrm{new} \mathrm{solution} {\pi }_i$; 19.   $\mathrm{Set} {\pi }_{new}\leftarrow {{\pi }_{new}\cup \pi }_i$; 20. } 21. Sort the t new candidate solutions in descending order according to values of the objective function, and obtain the new solution set ${\pi }_{new}=${${\pi }_1,{\pi }_2,\dots ,{\pi }_t$}; 22. Return;

In the NSGA, the IOA is used to further optimize the candidate solutions for better ones. This not only increases the diversity of solutions in HM, but also enables the algorithm to expand the search space, and find more and better solutions. Therefore, this algorithm has a good ability to search the solution space $\mathsf{\Pi }$ and find more near-optimal solutions while maintaining their diversity.

3.2.3. Update of HM

The update operation is used to obtain more and better solutions, which can guide the proposed algorithm to search for a better solution space and accelerate the convergence of the solution. Therefore, the update operation plays an important role in maintaining high-quality solutions and ensuring the convergence of the algorithm.

According to the objective function, the main idea of the update operation is as follows: For each new generated harmony solution ${\pi }_i(i=\mathrm{1,2},\dots ,t)$ and the worst harmony solution ${\pi }_h(h=\mathrm{1,2},\dots ,s_h)$ found in HM, if ${\pi }_h$ is worse than ${\pi }_i$, replace ${\pi }_h$ with ${\pi }_i$.

The update of HM is detailed in Algorithm 5. It is obvious that the time complexity of this algorithm is O(s_h²).

Algorithm 5. Update algorithm.

01. For (i =1 to t) { 02.   Set pos ← −1; ms ← −1; 03.   For (h =1 to sh){ 04.     $\mathrm{If} (\mathrm{m}\mathrm{s}<\mathrm{C}({\pi }_h\left)\right)${ 05.       Set pos ←$h,\mathrm{m}\mathrm{s}\leftarrow {\pi }_h$; 06.     } 07.   } 08.   $\mathrm{If} (\mathrm{p}\mathrm{o}\mathrm{s}\ne -1$$\mathrm{and} \mathrm{m}\mathrm{s}>\mathrm{C}\left({\mathsf{\pi }}_i\right))${ 09.     $\mathrm{Replace} {\pi }_{pos}$$\mathrm{with} {\mathsf{\pi }}_i$; 10.   } 11. } 12. Return;

3.2.4. The Proposed Algorithm

The algorithm proposed in this paper, called IOHS, is a hybrid meta-heuristic based on HS and iterative optimization. After the D-NEH algorithm obtains the initial solution set, the NSGA algorithm is used to construct new solutions. While constructing a new solution, it may select a new job from HM or a job set based on the parameter r_h, and adjusts it to avoid local convergence based on the parameter r_p. The IOA algorithm is used to further optimize the quality of the new solution and obtain the final candidate solution. The worst solutions in HM are replaced if they are worse than the candidate solutions. The construction, optimization, and update procedures are repeated until the algorithm satisfies its stopping condition. Finally, the solutions that satisfy the multimodal optimization are output.

The IOHS algorithm is described in detail in Algorithm 6.

Algorithm 6. IOHS algorithm.

01. Generate the initial solution set of HM by using D-NEH algorithm; 02. Repeat 03.   $\mathrm{Construct} \mathrm{a} \mathrm{new} \mathrm{solution} \mathrm{set} {\pi }_{new}=\{{\pi }_1,{\pi }_2,\dots ,{\pi }_t\}$ by using the NSGA algorithm; 04.   Use the Update algorithm to update HM; 05. Until (the stopping condition is satisfied) 06. Calculate the objective function values based on Equation (7); 07. Output the solutions satisfying multimodal optimization based on Equation (8); 08. Return;

4. Simulations

In this section, the test dataset used to assess the performance of the proposed method is described. Then, Statgraphics is used to analyze the parameters r_h and r_p, and, finally, the simulations are detailed.

4.1. Test Dataset

The Taillard benchmark [23] has been widely used in scenarios involving single and multiple manufacturing factories. However, when the number of factories increases in the application of a distributed manufacturing system, the average number of jobs assigned to each factory may be very small. For example, if there exists a DMS consisting of 10 factories and 200 jobs, the average job allocation for each factory is only 10. Although the solution space is huge, the size of the problem for each factory is relatively small. Therefore, to faithfully simulate job allocation in distributed scenarios, a new dataset is generated which is based on the main idea of the data generation algorithm developed by Taillard.

The stopping condition of the algorithm is described in the following Section 4.2. The generated dataset is as follows: The processing time of each job on M machines is randomly generated in the interval [5, 99]. The numbers of jobs J are set to 60, 150, 330, 510, and 600. The numbers of factories F are set to 2, 3, 5, and 10, respectively. The numbers of machines M in each factory are set to 5, 10, and 20, respectively.

4.2. Parameter Analysis

The parameter s_h represents the size of HM, i.e., the number of solutions in HM. Based on the total number of jobs, s_h is set to 0.2 × J. The parameter bw is used to increase the range of the search space, prevent the algorithm from prematurely converging, and improve the probability of finding a better solution. In this paper, bw is set as bw = J × 0.05. To evaluate the algorithm fairly based on the number of machines and the average number of jobs per factory, the stopping condition for these algorithms is $T=M\times (J÷F)\times t\times 0.5$ ms [24], where M is the number of machines in each factory, J is the total number of jobs to be processed, F is the number of factories, and t is set to 120.

The rates of consideration r_h and pitch adjustment r_p are two important parameters in HS algorithm. r_h determines the probability of randomly generating a solution based on the historical variables in HM. As HM stores the best solutions obtained by the algorithm at any given time, the algorithm tends to find more optimized solutions (leading to faster convergence) when the value of r_h increases. r_p determines the probability of adjusting the values selected from among the historical values in HM, which means that it determines the probability of adjusting some vectors of a solution (probability of divergence). As the value of r_p increases, the algorithm tends to generate solutions by selecting from global variables, that is, by expanding the search range (divergence) to find more optimized solutions. To determine appropriate values of r_h and r_p, they are tested with different values: r_h is set to 0.70, 0.75, 0.80, 0.85, 0.90, and 0.95, while r_p is set to 0.10, 0.15, 0.20, 0.25, 0.30, and 0.35. In order to test the parameter values fairly and quickly, M is set to 10, J to 330, and F to 5. For each parametric combination, a total of 20 instances are generated, each of which is executed three times, and the minimum value of the objective function is obtained. The average makespan values (MS_avg) and standard deviation (SD) of each parameter combination are shown in

Table 2. Comparison of parameter combinations.

Parameters (rh, rp)	MSavg	SD	Parameters (rh, rp)	MSavg	SD	Parameters (rh, rp)	MSavg	SD
(0.70, 0.10)	4663	27.77	(0.80, 0.10)	4648	27.55	(0.90, 0.10)	4614	30.80
(0.70, 0.15)	4659	28.63	(0.80, 0.15)	4658	33.93	(0.90, 0.15)	4626	35.52
(0.70, 0.20)	4675	38.42	(0.80, 0.20)	4665	30.51	(0.90, 0.20)	4641	26.09
(0.70, 0.25)	4679	35.49	(0.80, 0.25)	4665	28.00	(0.90, 0.25)	4652	29.08
(0.70, 0.30)	4689	31.21	(0.80, 0.30)	4679	32.71	(0.90, 0.30)	4654	25.69
(0.70, 0.35)	4687	30.32	(0.80, 0.35)	4680	31.18	(0.90, 0.35)	4663	28.29
(0.75, 0.10)	4651	31.57	(0.85, 0.10)	4627	26.51	(0.95, 0.10)	4601	31.54
(0.75, 0.15)	4659	41.57	(0.85, 0.15)	4644	28.50	(0.95, 0.15)	4614	38.53
(0.75, 0.20)	4666	38.24	(0.85, 0.20)	4652	30.50	(0.95, 0.20)	4627	31.48
(0.75, 0.25)	4672	33.12	(0.85, 0.25)	4661	31.96	(0.95, 0.25)	4636	38.94
(0.75, 0.30)	4678	35.82	(0.85, 0.30)	4667	31.27	(0.95, 0.30)	4648	26.03
(0.75, 0.35)	4689	31.06	(0.85, 0.35)	4673	33.33	(0.95, 0.35)	4651	37.61

.

Seen in Table 2, when r_h = 0.95 and r_p = 0.10, the average value of MS is 4601, which is the best among these makespan values, and the standard deviation is 31.54, which means that the algorithm searches a wider and better solution space by using these two parameters. Further, different parameter combinations, as listed in Table 2, may have a significant impact on the average makespan values, and the analysis results are shown in Figure 2, Figure 3 and Figure 4.

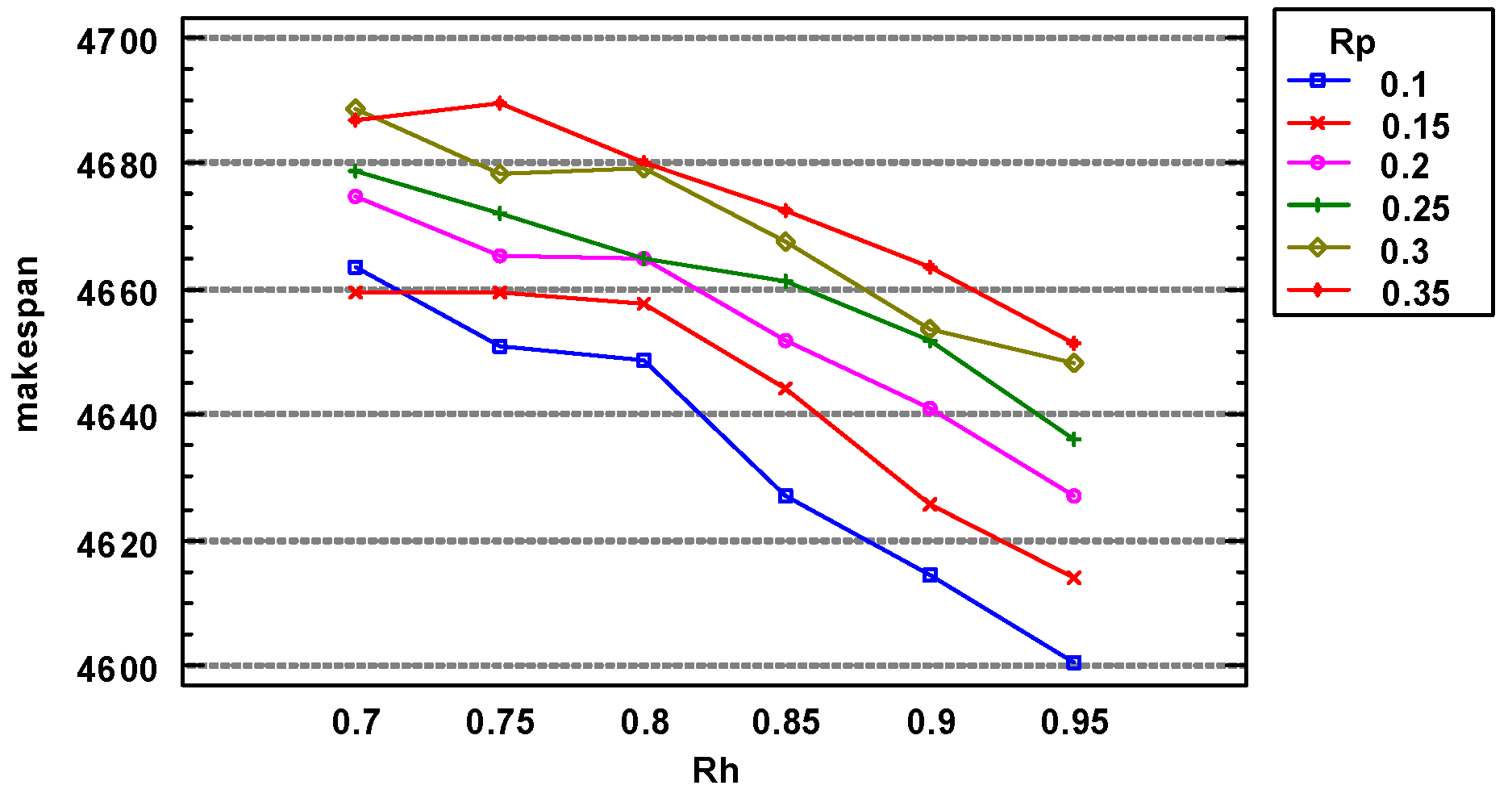

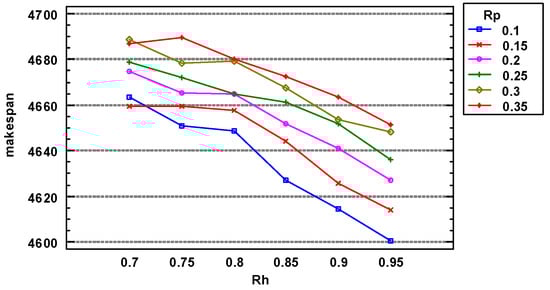

Figure 2 shows the results of a multivariate analysis of variance. As the value of r_h increased and that of r_p decreased, the solution obtained by the algorithm was improved. This indicates that the larger the value of r_h, and the smaller the value of r_p, the better the performance of the algorithm. It is clear from Figure 3 that when r_h = 0.95 and r_p = 0.10, the algorithm can obtain the best solution.

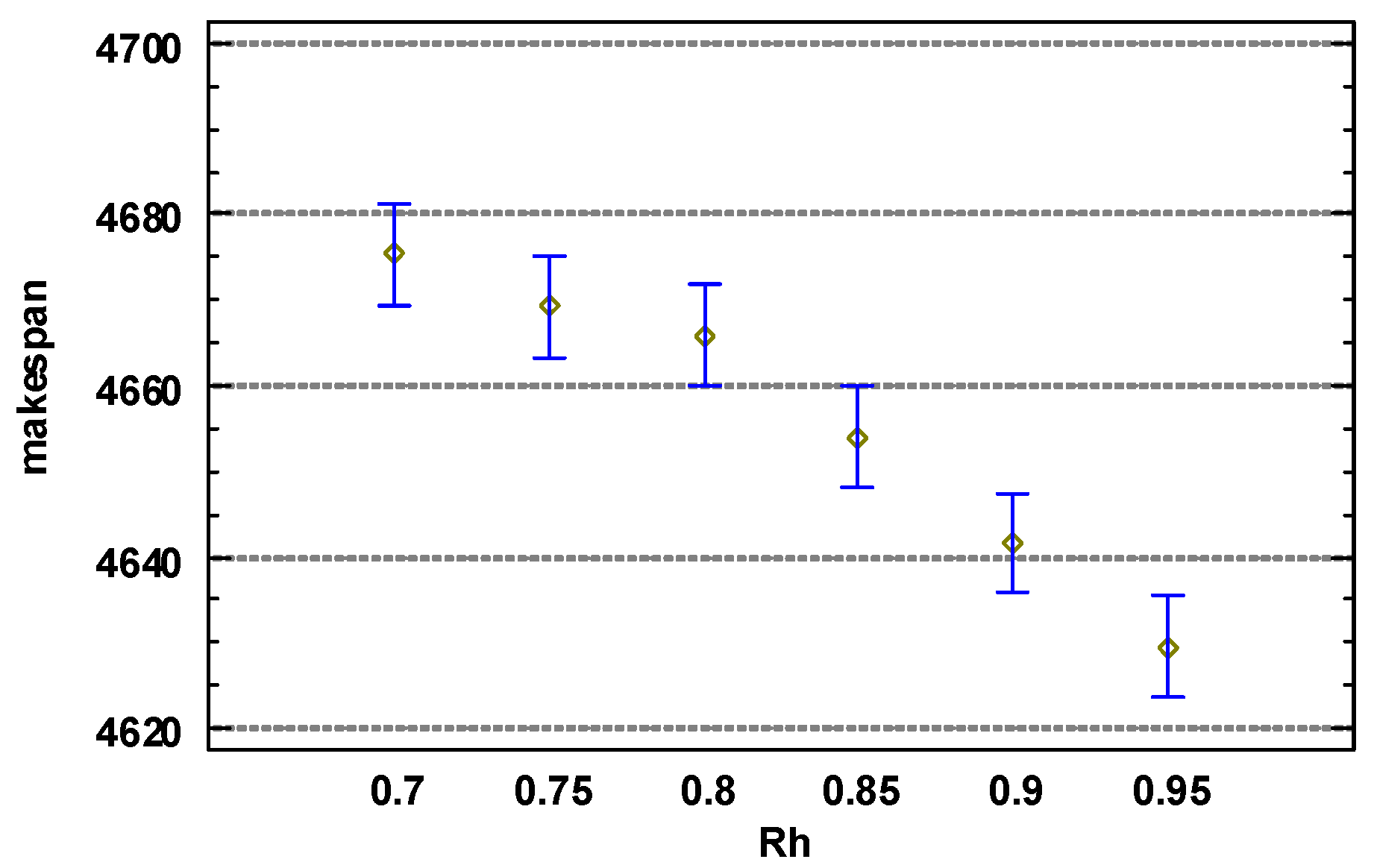

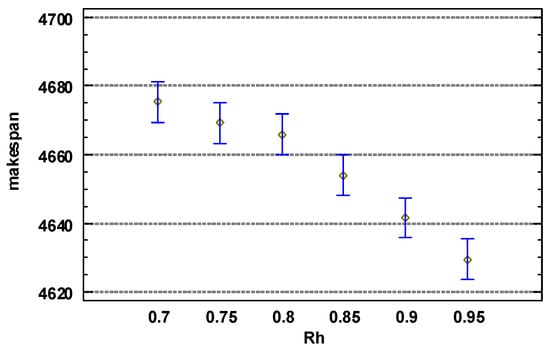

Figure 3 shows the results of a one-way analysis of variance for r_h. Clearly, as the value of r_h increases, the solution obtained by the algorithm is improved. When r_h is 0.95, the algorithm can achieve the best solution.

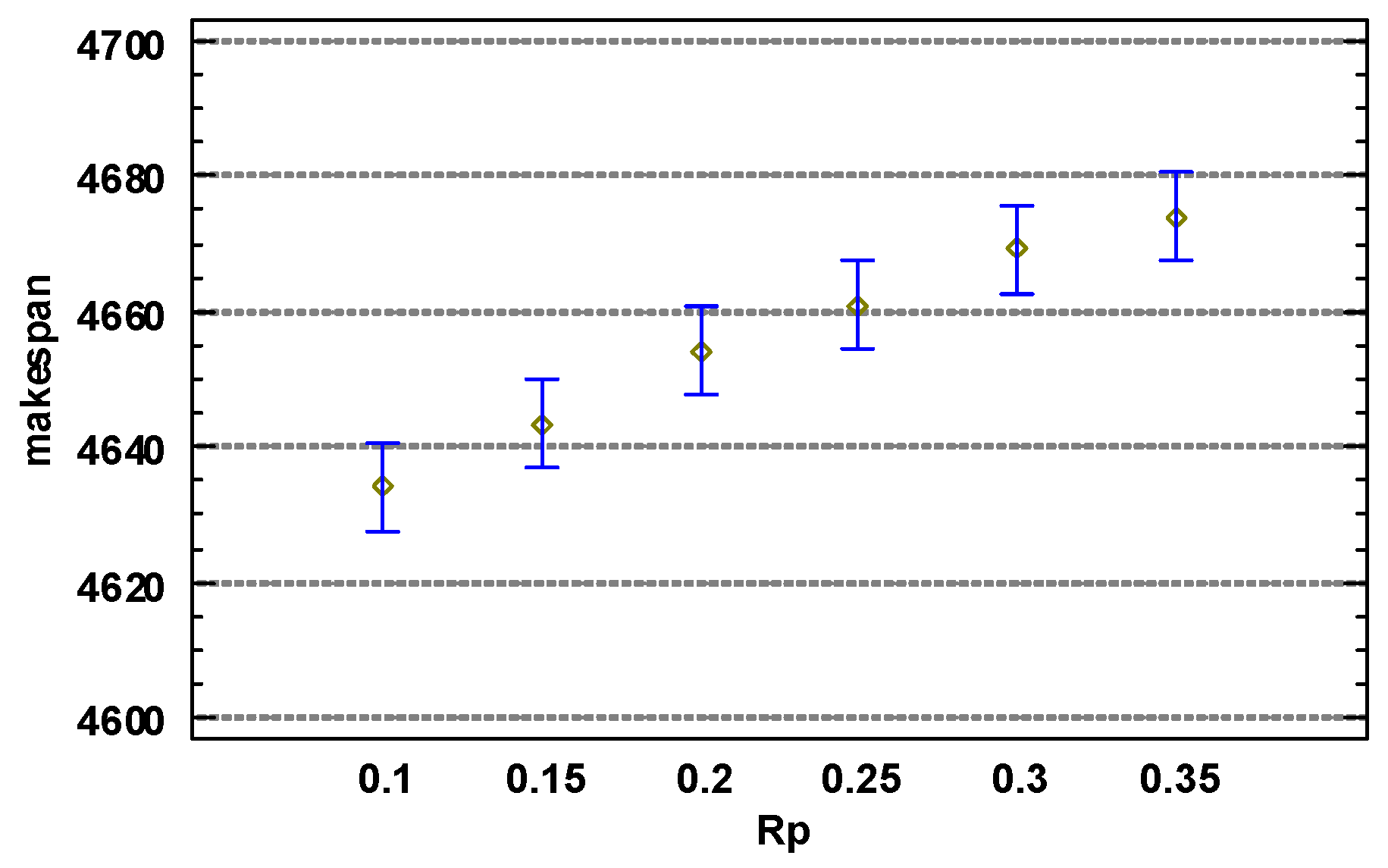

Figure 4 shows the results of a one-way analysis of variance for r_p, from which it can be seen that as the value of r_p decreases, the solution obtained by the algorithm is improved. When r_p is 0.10, the algorithm can obtain the best solution.

From the above analysis, it can be concluded that setting r_h = 0.95 and r_p = 0.10 can enable IOHS algorithm to obtain the optimal makespan.

4.3. Experimental Verification

4.3.1. Comparison of HS and IOHS

To determine whether the optimization method (IOA) can enhance the performance of IOHS, this study compares the HS and IOHS algorithms from three perspectives: job, factory, and machine. The average makespan values and standard deviation obtained by HS and IOHS algorithms are shown in

Table 3. Comparison of HS and IOHS.

Parameters (J, F, M)	HS		IOHS		Parameters (J, F, M)	HS		IOHS		Parameters (J, F, M)	HS		IOHS
	MSavge	SD	MSavge	SD		MSavge	SD	MSavge	SD		MSavge	SD	MSavge	SD
(60, 2, 5)	1847	59.67	1774	85.98	(150, 5, 20)	3285	22.13	2858	22.52	(510, 3, 10)	10,483	68.54	9442	72.12
(60, 2, 10)	2318	43.87	2119	46.85	(150, 10, 5)	1203	26.24	965	26.41	(510, 3, 20)	11,782	52.25	10,365	67.35
(60, 2, 20)	3102	39.85	2871	44.02	(150, 10, 10)	1618	15.82	1333	12.97	(510, 5, 5)	6049	39.70	5528	60.17
(60, 3, 5)	1349	41.52	1237	53.40	(150, 10, 20)	2333	13.43	2009	15.18	(510, 5, 10)	6748	49.31	5837	44.61
(60, 3, 10)	1751	36.66	1587	41.69	(330, 2, 5)	9159	110.49	8866	152.78	(510, 5, 20)	7913	50.26	6789	46.79
(60, 3, 20)	2485	29.93	2284	31.09	(330, 2, 10)	10,007	101.23	9230	115.82	(510, 10, 5)	3351	36.66	2834	49.87
(60, 5, 5)	937	26.17	817	21.86	(330, 2, 20)	11,374	73.20	10,195	55.13	(510, 10, 10)	3893	32.43	3200	31.85
(60, 5, 10)	1308	16.21	1166	16.31	(330, 3, 5)	6314	70.25	5932	89.85	(510, 10, 20)	4846	17.14	4053	18.84
(60, 5, 20)	1977	18.54	1810	20.67	(330, 3, 10)	7078	29.42	6322	69.01	(600, 2, 5)	16,347	149.29	15,977	214.21
(60, 10, 5)	626	18.04	525	16.41	(330, 3, 20)	8237	39.13	7223	40.27	(600, 2, 10)	17,485	95.85	16,365	173.86
(60, 10, 10)	962	18.71	838	15.31	(330, 5, 5)	4020	41.91	3615	64.45	(600, 2, 20)	19,138	63.66	17,279	82.79
(60, 10, 20)	1593	28.57	1450	26.87	(330, 5, 10)	4651	27.79	3974	39.79	(600, 3, 5)	11,205	126.23	10,692	164.90
(150, 2, 5)	4373	56.27	4214	96.23	(330, 5, 20)	5667	31.89	4857	31.03	(600, 3, 10)	12,137	76.40	11,008	115.43
(150, 2, 10)	4907	50.04	4477	56.65	(330, 10, 5)	2280	21.91	1881	28.93	(600, 3, 20)	13,560	54.99	11,979	60.05
(150, 2, 20)	5923	42.96	5293	51.22	(330, 10, 10)	2787	24.98	2264	21.67	600, 5, 5)	7060	68.62	6478	103.95
(150, 3, 5)	3037	42.75	2819	56.91	(330, 10, 20)	3634	11.06	3039	15.93	(600, 5, 10)	7806	48.11	6819	74.35
(150, 3, 10)	3571	38.06	3137	45.88	(510, 2, 5)	14,136	150.29	13,810	221.83	(600, 5, 20)	9002	25.86	7745	32.39
(150, 3, 20)	4502	44.06	3972	36.72	(510, 2, 10)	14,994	114.14	13,997	218.39	(600, 10, 5)	3863	29.49	3295	41.03
(150, 5, 5)	1998	28.29	1733	31.89	(510, 2, 20)	16,599	63.02	14,947	71.85	(600, 10, 10)	4464	37.89	3687	27.79
(150, 5, 10)	2465	35.25	2102	31.97	(510, 3, 5)	9528	66.37	9057	86.60	(600, 10, 20)	5437	24.15	4529	30.10

.

From Table 3, it can be seen that the IOHS algorithm can obtain more and better makespan values than the HS algorithm, and the standard deviation of the IOHS algorithm is greater than that of the HS algorithm, which means that the IOHS algorithm found better solutions in a wider and better solution space. Further, the analysis results are shown in Figure 5, Figure 6 and Figure 7.

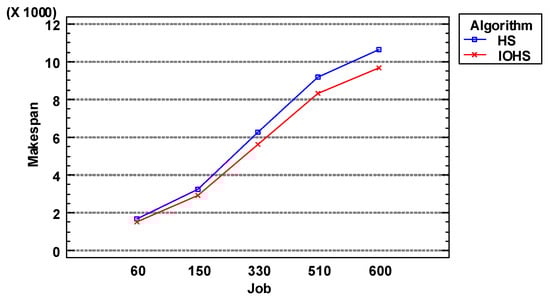

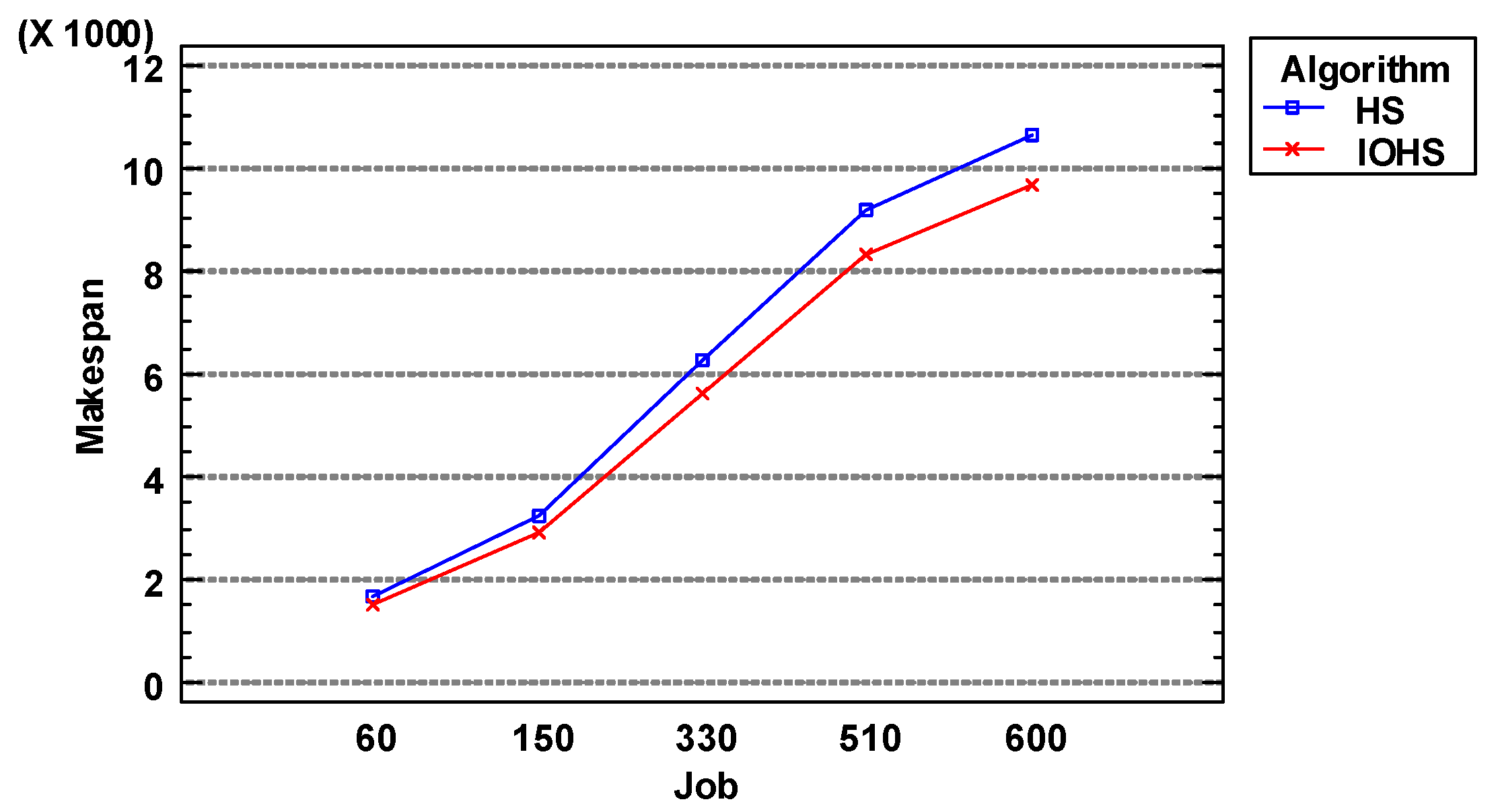

It can be seen from Figure 5 that as the number of jobs increases, the problem becomes more complex, and the makespan values obtained by the algorithms increase. However, under the same number of jobs, the IOHS algorithm outperforms the HS algorithm.

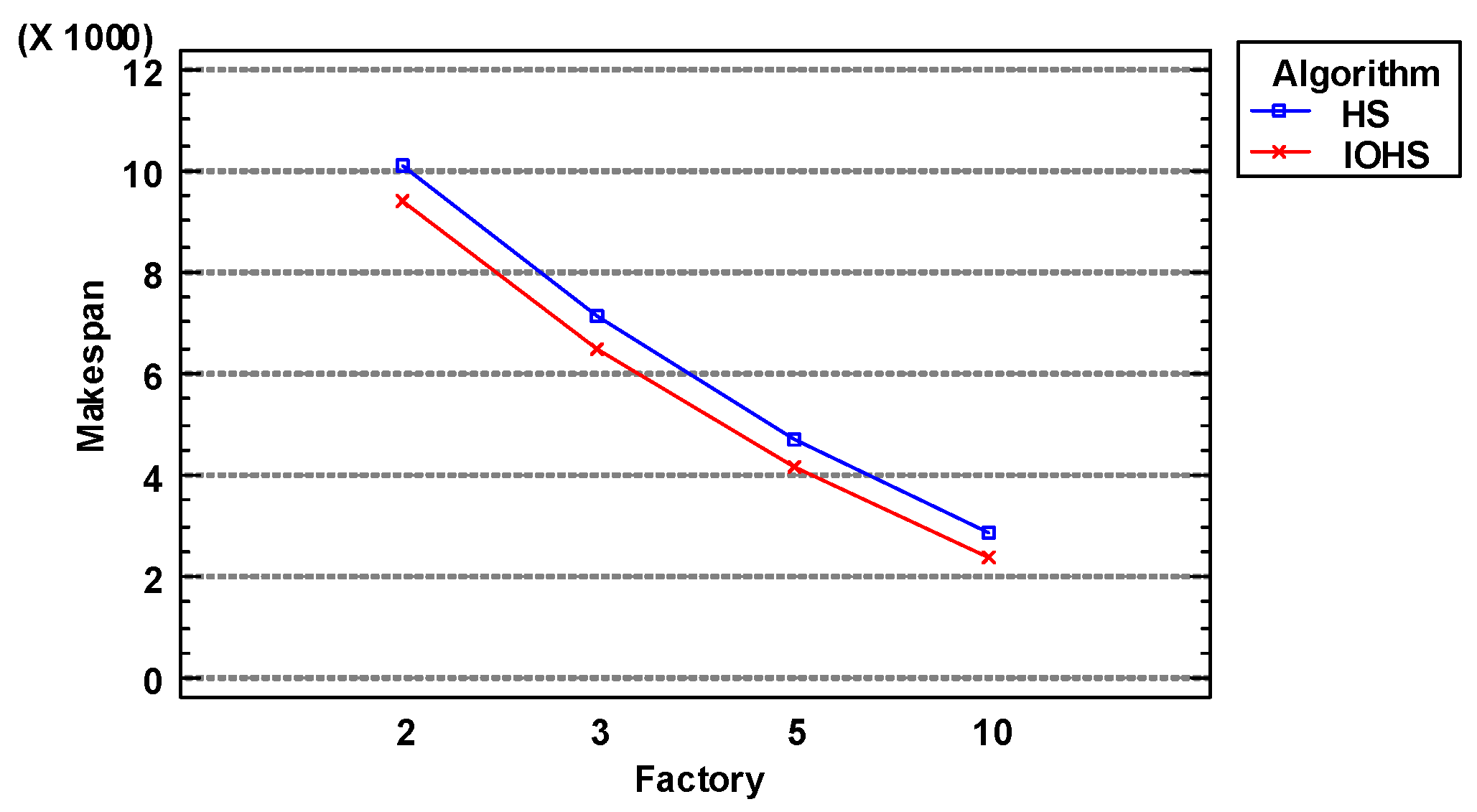

Figure 6 shows that, as the number of factories increases, the number of jobs in each factory becomes smaller, and the resulting makespan values obtained by the algorithms decrease. Under the same number of factories, the IOHS algorithm outperforms the HS algorithm.

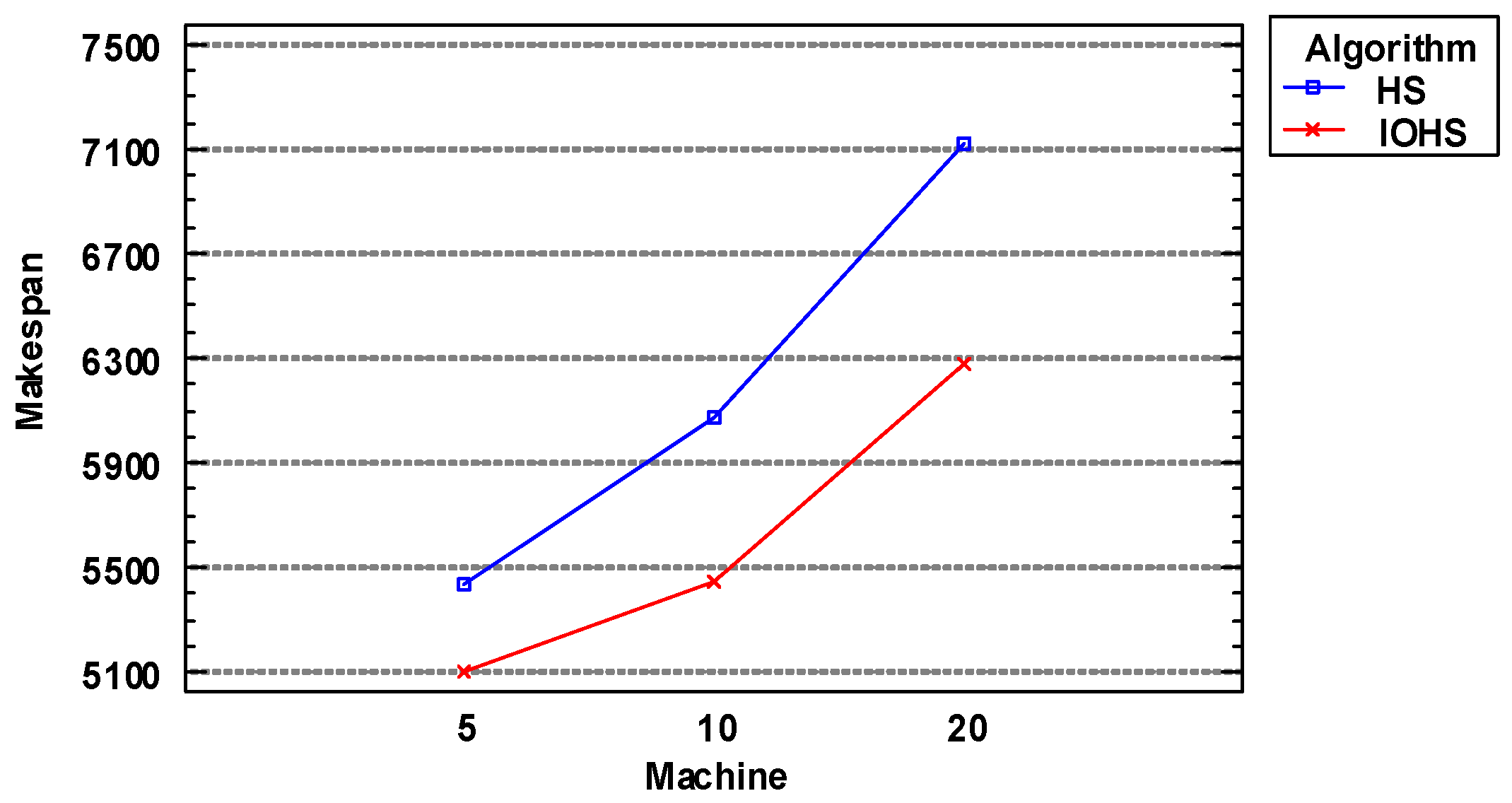

It can be seen from Figure 7 that, as the number of machines increases, the makespan values obtained by the algorithms increase. Under the same number of machines, the IOHS algorithm outperforms the HS algorithm.

Based on the above analysis, it can be concluded that the IOHS algorithm has better results than the HS algorithm in both individual parameter and parameter combinations conditions. In other words, the optimization method IOA is effective in improving the performance of the IOHS algorithm.

4.3.2. Algorithms Comparison

Many effective meta-heuristic algorithms have been developed in research, including PSO [25], DE [26], and CMA-ES [27], that can be compared with the proposed IOHS algorithm in the context of the DPFSP. However, only the iterative greedy meta-heuristic algorithm with a bounded search strategy (BSIG) [28], the improved Jaya algorithm (Jaya) [29], and the novel evolutionary algorithm [30] are suitable for solving the problem considered here. They are implemented along with the proposed algorithm on a new dataset, with the aim of multimodal optimization. The same stopping condition is used by the three algorithms, and is described in Section 4.2. The average values of makespan and standard deviation obtained by these algorithms are shown in

Table 4. Comparison of algorithms.

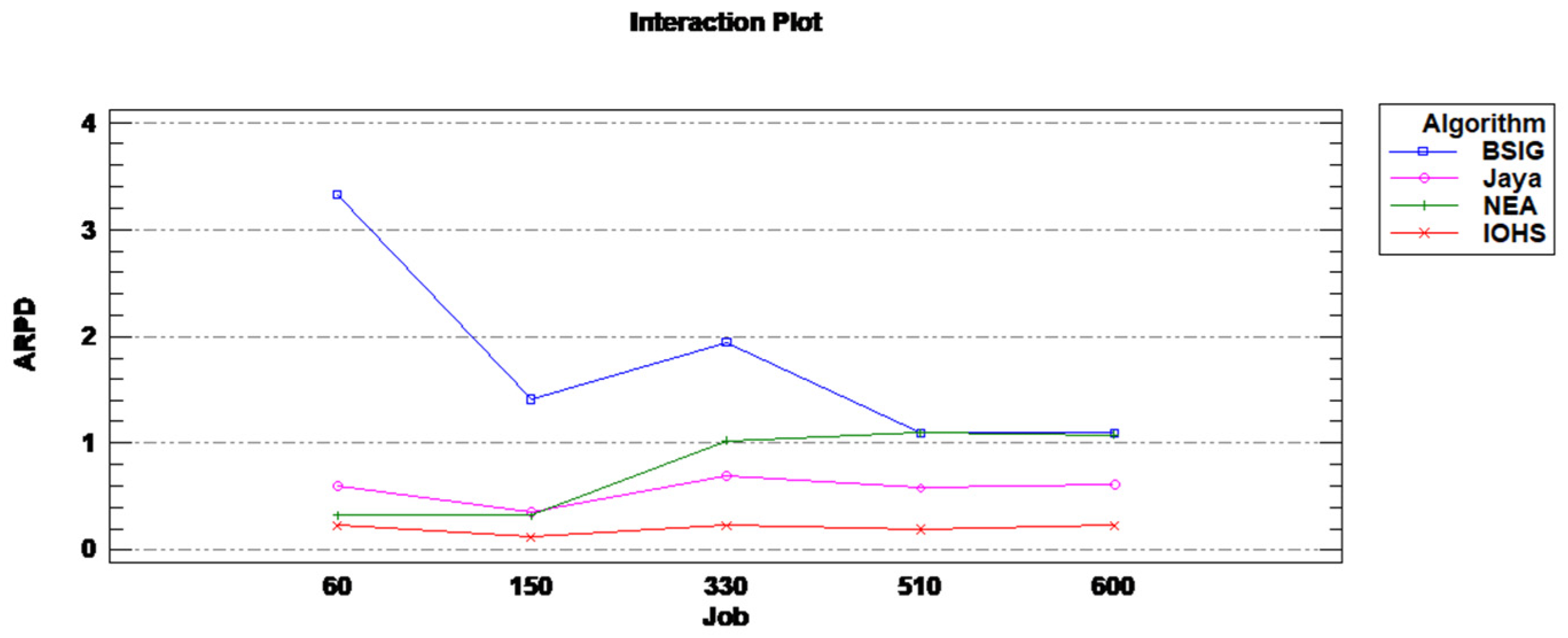

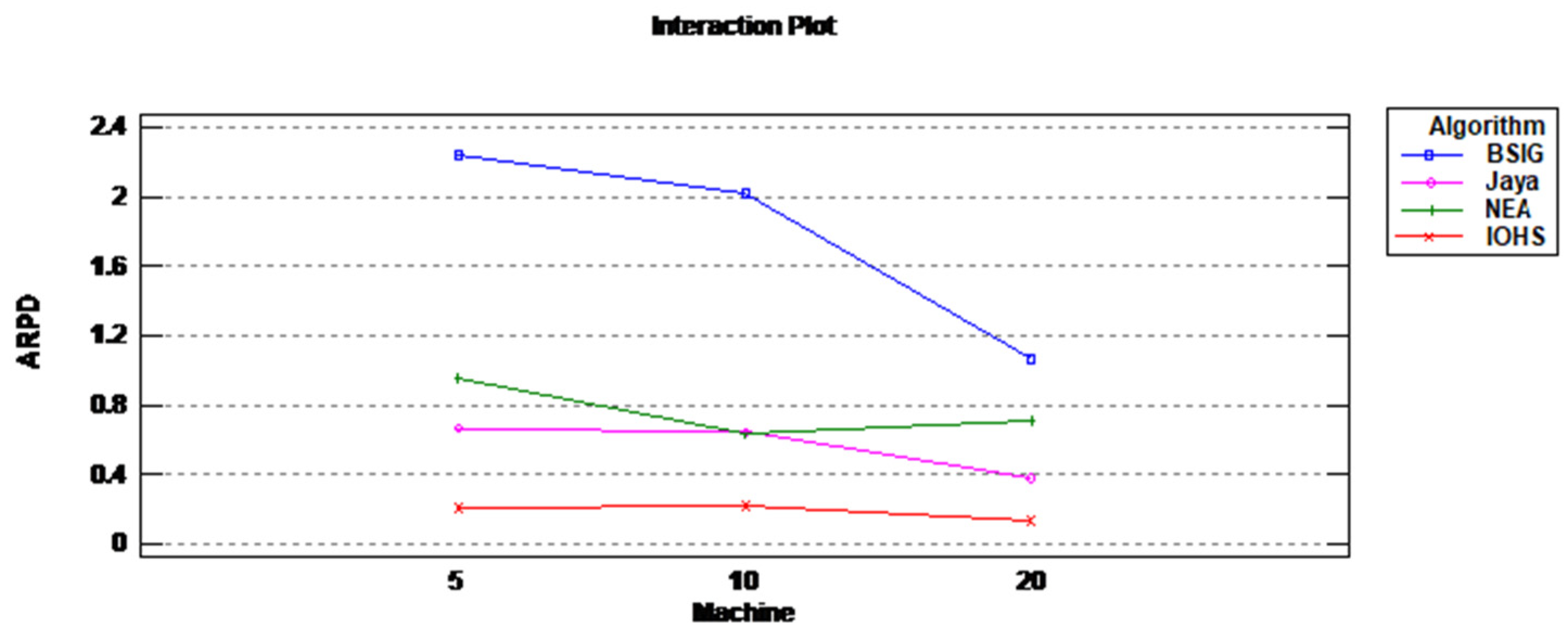

Parameters (J, F, M)	BSIG		Jaya		NEA		IOHS		Parameters (J, F, M)	BSIG		Jaya		NEA		IOHS
	MSavg	SD	MSavg	SD	MSavg	SD	MSavg	SD		MSavg	SD	MSavg	SD	MSavg	SD	MSavg	SD
(60, 2, 5)	1828	76.06	1782	81.81	1773	86.77	1774	85.98	(330, 5, 5)	3713	54.05	3641	56.15	3643	57.86	3615	64.45
(60, 2, 10)	2249	45.19	2144	50.97	2100	44.35	2119	46.85	(330, 5, 10)	4181	41.45	4028	32.49	4024	29.86	3974	39.79
(60, 2, 20)	3024	46.37	2897	41.33	2842	40.58	2871	44.02	(330, 5, 20)	5081	29.97	4894	24.74	4884	25.15	4857	31.03
(60, 3, 5)	1248	51.13	1254	49.12	1236	54.23	1237	53.40	(330, 10, 5)	1973	31.82	1920	28.17	1910	29.77	1881	28.93
(60, 3, 10)	1613	37.14	1618	43.27	1573	41.74	1587	41.69	(330, 10, 10)	2386	20.95	2308	19.54	2294	21.57	2264	21.67
(60, 3, 20)	2318	38.24	2321	31.82	2261	29.95	2284	31.09	(330, 10, 20)	3180	24.70	3072	20.41	3059	19.05	3039	15.93
(60, 5, 5)	828	23.70	841	23.85	810	24.20	817	21.86	(510, 2, 5)	13,899	244.89	13,811	220.65	13,816	217.14	13,810	221.83
(60, 5, 10)	1182	15.36	1193	15.92	1153	15.48	1166	16.31	(510, 2, 10)	14,225	169.83	14,006	213.08	14,059	192.12	13,997	218.39
(60, 5, 20)	1833	21.33	1845	20.33	1795	23.04	1810	20.67	(510, 2, 20)	15,393	78.56	15,016	81.52	15,028	68.95	14,947	71.85
(60, 10, 5)	534	17.93	544	18.71	522	17.93	525	16.41	(510, 3, 5)	9160	86.36	9073	78.28	9087	78.83	9057	86.60
(60, 10, 10)	855	15.43	867	17.02	832	16.06	838	15.31	(510, 3, 10)	9719	92.83	9503	71.43	9522	68.70	9442	72.12
(60, 10, 20)	1472	23.32	1484	25.26	1438	24.18	1450	26.87	(510, 3, 20)	10,761	72.29	10,445	53.55	10,430	68.87	10,365	67.35
(150, 2, 5)	4270	87.90	4215	95.43	4214	95.93	4214	96.23	(510, 5, 5)	5640	42.93	5556	55.63	5563	54.40	5528	60.17
(150, 2, 10)	4655	45.47	4482	58.67	4469	60.62	4477	56.65	(510, 5, 10)	6085	38.79	5912	43.12	5926	46.02	5837	44.61
(150, 2, 20)	5544	50.02	5295	56.45	5271	50.94	5293	51.22	(510, 5, 20)	7084	51.09	6853	48.51	6839	49.07	6789	46.79
(150, 3, 5)	2897	64.82	2828	54.20	2819	57.42	2819	56.91	(510, 10, 5)	2940	41.05	2881	43.86	2883	43.27	2834	49.87
(150, 3, 10)	3325	42.00	3176	40.52	3131	42.94	3137	45.88	(510, 10, 10)	3354	27.62	3258	34.22	3253	35.61	3200	31.85
(150, 3, 20)	4164	48.92	4008	38.22	3954	35.18	3972	36.72	(510, 10, 20)	4234	22.19	4094	19.83	4087	14.27	4053	18.84
(150, 5, 5)	1823	27.40	1765	30.48	1738	29.36	1733	31.89	(600, 2, 5)	16,042	198.69	15,980	213.34	15,987	213.33	15,977	214.21
(150, 5, 10)	2225	38.66	2141	33.31	2099	32.04	2102	31.97	(600, 2, 10)	16,647	160.67	16,399	151.60	16,422	152.45	16,365	173.86
(150, 5, 20)	3004	23.39	2887	26.52	2843	26.76	2858	22.52	(600, 2, 20)	17,773	60.58	17,379	56.36	17,397	56.30	17,279	82.79
(150, 10, 5)	972	27.17	992	25.35	967	26.68	965	26.41	(600, 3, 5)	10,804	133.22	10,707	153.92	10,721	146.39	10,692	164.90
(150, 10, 10)	1342	15.53	1365	14.41	1332	11.36	1333	12.97	(600, 3, 10)	11,299	106.39	11,065	97.58	11,106	87.11	11,008	115.43
(90, 10, 20)	2024	16.33	2044	14.85	2003	16.29	2009	15.18	(600, 3, 20)	12,389	71.59	12,062	64.43	12,052	59.50	11,979	60.05
(330, 2, 5)	8941	131.44	8867	151.42	8875	147.90	8866	152.78	(600, 5, 5)	6601	61.92	6512	83.50	6520	85.59	6478	103.95
(330, 2, 10)	9451	117.41	9244	112.69	9255	106.97	9230	115.82	(600, 5, 10)	7065	37.97	6894	67.23	6904	58.24	6819	74.35
(330, 2, 20)	10,575	62.94	10,217	69.41	10,240	60.97	10,195	55.13	(600, 5, 20)	8065	43.40	7808	34.97	7798	36.49	7745	32.39
(330, 3, 5)	6036	99.49	5939	87.41	5947	88.49	5932	89.85	(600, 10, 5)	3402	36.13	3343	32.79	3348	38.13	3295	41.03
(330, 3, 10)	6567	58.99	6363	54.33	6378	52.69	6322	69.01	(600, 10, 10)	3871	31.92	3763	28.02	3753	31.21	3687	27.79
(330, 3, 20)	7530	48.89	7277	39.06	7254	39.22	7223	40.27	(600, 10, 20)	4742	32.70	4580	26.85	4569	28.40	4529	30.10

.

Table 4 shows that, for most instances, the IOHS algorithm can obtain the best results. Although the value of its standard deviation is close to that of other algorithms, it can search a better solution space. The average relative percentage deviation (ARPD) is used for further analysis of these algorithms; it is defined in Equation (10).

$$\mathrm{A}\mathrm{R}\mathrm{P}\mathrm{D}=\sum _{i=1}^N{\displaystyle \frac{\raisebox{1ex}{$F_i\left(H\right)$}\!\left/ \!\raisebox{-1ex}{$B_i$}\right.-1}{N}}\times 100\mathrm{\%}$$

(10)

where N is the number of instances of the same size, F_i(H) is the makespan value obtained by solving instance i by using algorithm H, and B_i is the minimum value of makespan obtained by solving instance i by using all the other algorithms. The larger the value of the ARPD, the worse the average performance of the algorithm.

Table 5. Comparison of algorithms based on ARPD.

Parameters (J, F, M)	ARPD (%)				Parameters (J, F, M)	ARPD (%)				Parameters (J, F, M)	ARPD (%)
	BSIG	Jaya	NEA	HHS		BSIG	Jaya	NEA	HHS		BSIG	Jaya	NEA	HHS
(60, 2, 5)	4.61	1.95	0.68	0.70	(150, 5, 20)	0.90	0.19	0.33	0.06	(510, 3, 10)	1.15	0.53	1.17	0.16
(60, 2, 10)	8.63	3.05	0.30	1.25	(150, 10, 5)	3.12	0.23	0.78	0.06	(510, 3, 20)	0.79	0.49	0.77	0.18
(60, 2, 20)	0.87	0.24	0.24	0.10	(150, 10, 10)	2.15	0.21	0.49	0.08	(510, 5, 5)	1.77	0.88	0.91	0.29
(60, 3, 5)	2.14	0.13	0.22	0.04	(150, 10, 20)	1.52	0.19	0.37	0.07	(510, 5, 10)	1.43	0.66	1.90	0.18
(60, 3, 10)	2.32	0.24	0.34	0.10	(330, 2, 5)	4.14	1.60	0.23	0.35	(510, 5, 20)	0.70	0.44	0.90	0.16
(60, 3, 20)	1.61	0.17	0.26	0.06	(330, 2, 10)	2.31	0.63	0.60	0.20	(510, 10, 5)	0.82	0.54	2.14	0.20
(60, 5, 5)	3.67	0.22	0.46	0.07	(330, 2, 20)	1.09	0.51	0.75	0.20	(510, 10, 10)	0.86	0.56	2.04	0.26
(60, 5, 10)	2.78	0.26	0.40	0.09	(330, 3, 5)	2.62	0.84	0.46	0.27	(510, 10, 20)	0.56	0.35	1.08	0.15
(60, 5, 20)	2.01	0.18	0.25	0.05	(330, 3, 10)	2.04	0.62	1.21	0.20	(600, 2, 5)	1.23	0.59	0.16	0.21
(60, 10, 5)	4.72	0.25	0.52	0.09	(330, 3, 20)	1.10	0.52	0.77	0.19	(600, 2, 10)	1.04	0.55	0.50	0.18
(60, 10, 10)	3.87	0.21	0.45	0.05	(330, 5, 5)	3.18	0.87	0.99	0.30	(600, 2, 20)	0.66	0.41	0.76	0.17
(60, 10, 20)	2.66	0.17	0.45	0.07	(330, 5, 10)	2.28	0.76	1.62	0.28	(600, 3, 5)	1.31	0.83	0.51	0.30
(150, 2, 5)	1.64	0.28	0.03	0.07	(330, 5, 20)	1.24	0.57	0.93	0.21	(600, 3, 10)	1.17	0.64	1.13	0.24
(150, 2, 10)	1.33	0.87	0.23	0.28	(330, 10, 5)	1.31	0.59	1.98	0.20	(600, 3, 20)	0.69	0.49	0.73	0.20
(150, 2, 20)	1.06	0.79	0.18	0.26	(330, 10, 10)	1.00	0.50	1.84	0.18	(600, 5, 5)	1.58	0.78	0.97	0.30
(150, 3, 5)	0.62	0.39	0.09	0.15	(330, 10, 20)	0.99	0.37	0.93	0.12	(600, 5, 10)	1.29	0.71	1.57	0.24
(150, 3, 10)	0.66	0.30	0.29	0.07	(510, 2, 5)	1.56	0.68	0.14	0.23	(600, 5, 20)	0.79	0.49	0.86	0.17
(150, 3, 20)	0.55	0.19	0.22	0.07	(510, 2, 10)	1.29	0.66	0.71	0.27	(600, 10, 5)	1.45	0.77	2.00	0.25
(150, 5, 5)	1.94	0.40	0.41	0.11	(510, 2, 20)	0.78	0.50	0.83	0.17	(600, 10, 10)	1.27	0.64	2.07	0.23
(150, 5, 10)	1.44	0.22	0.32	0.07	(510, 3, 5)	1.39	0.55	0.55	0.13	(600, 10, 20)	0.67	0.41	1.14	0.15

lists the values of ARPD obtained by the BSIG, Jaya, and IOHS algorithms.

Table 5 shows that the BSIG algorithm has the worst performance, and the IOHS algorithm is slightly better than the NEA algorithm. Due to the fact that the data in Table 5 is deduced from Table 4 using Equation (10), which does not have the characteristics of a normal distribution, a Wilcoxon test is conducted on the data in Table 5. The results of the 2-related sample tests for BSIG and IOHS, Jaya and IOHS, and NEA and IOHS, are summarized and shown in

Table 6. Hypothesis test summary.

	Null Hypothesis	Test	Sig.	Decision
1	The median of differences between BSIG and IOHS equals 0	Related samples Wilcoxon signed rank test	<0.001	Reject the null hypothesis
2	The median of differences between Jaya and IOHS equals 0	Related samples Wilcoxon signed rank test	<0.001	Reject the null hypothesis
3	The median of differences between NEA and IOHS equals 0	Related samples Wilcoxon signed rank test	<0.001	Reject the null hypothesis

Asymptotic significances are displayed. The significance level is 0.05.

.

From the hypothesis test results in Table 6, it can be seen that the IOHS algorithm is significantly better than the three compared algorithms. This is consistent with the statistical results in Table 4 and Table 5.

To facilitate comparison and visually display the trends of the solutions to the DPFSP obtained by different algorithms at different scales, the results of the multifactor ANOVA are shown in Figure 8, Figure 9 and Figure 10.

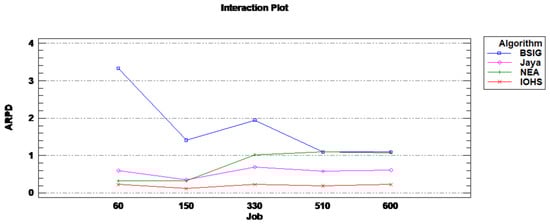

Figure 8 shows that, as the number of jobs increase, the ARPD values obtained by BSIG slightly decrease, while the ARPD values obtained by NEA algorithm increase. It indicates that, as the number of jobs increases, the BSIG algorithm can expand its search range and find better solutions, while the NEA algorithm becomes worse. As the number of jobs increases, the ARPD values obtained by the Jaya and IOHS algorithms have no significant changes. It is obvious that, regardless of the number of jobs, the IOHS algorithm gives the best performance of the three algorithms.

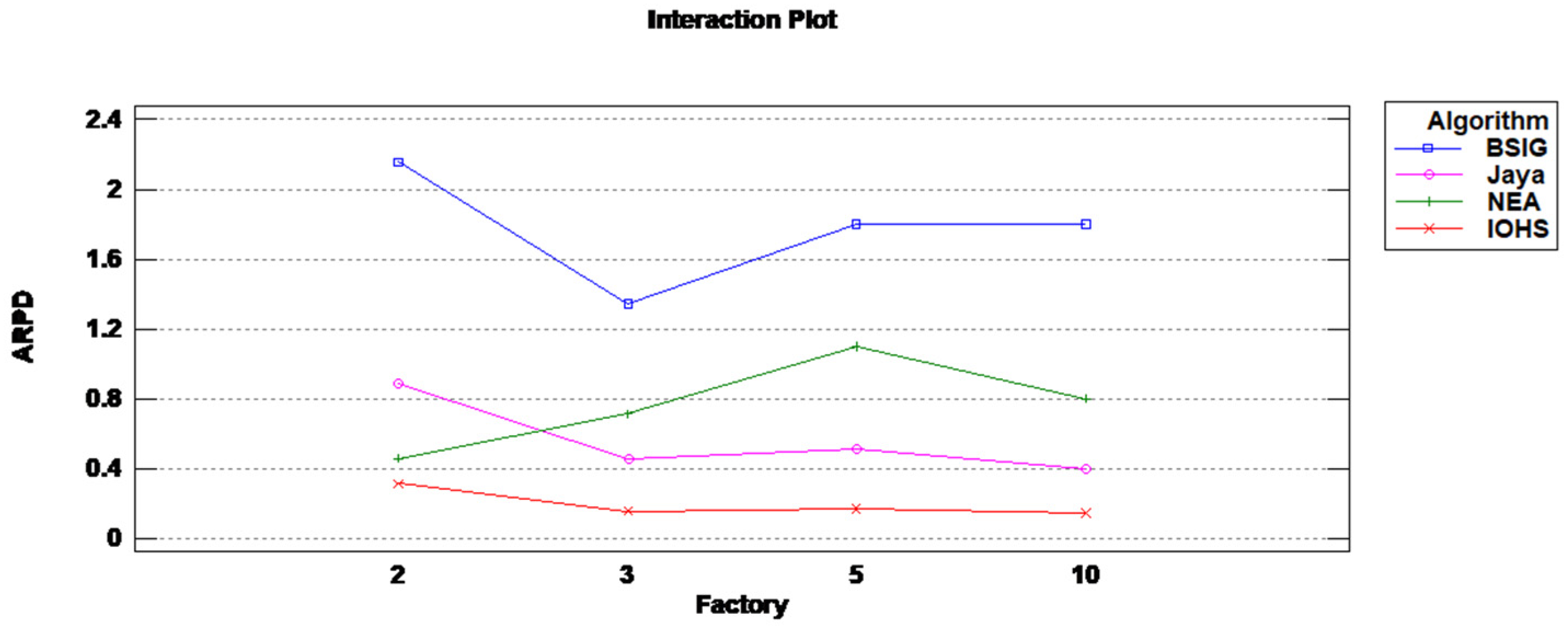

Figure 9 shows that, as the number of factories increases, the ARPD values obtained by the IOHS and Jaya algorithms both show a downward trend, while those obtained by the BSIG and NEH algorithms fluctuate. That is, the IOHS and Jaya algorithms are still able to find better solutions when the number of factories increases. It is clear that the IOHS algorithm shows the best performance of the three algorithms under this assumption.

Figure 10 shows that, as the number of machines increases, the ARPD values obtained by the BSIG, Jaya, and IOHS algorithms exhibit a decreasing trend, while the ARPD values obtained by the NEA algorithm fluctuate. It means that the BSIG, Jaya, and IOHS algorithms can find better solutions, while the NEA algorithm is uncertain. Furthermore, the IOHS algorithm performs the best among the three algorithms.

Through the above analysis results, the following conclusion can be made: Although the NEA algorithm is superior to the BSIG algorithm, the performance of the BSIG and NEA algorithms is not as good as the Jaya and IOHS algorithms. Whether analyzed from the perspective of jobs, factories, or machines, the ARPD values obtained by the IOHS algorithm are superior to the three algorithms, indicating that IOHS provides the best and most stable performance in solving the DPFSPs at all scales.

4.4. Discussion

Compared with the three meta-heuristics, the proposed IOHS algorithm is an efficient and effective method. Its advantages are manifested in the following aspects:

• By using the distributed NEH algorithm D-NEH to generate the initial solution set, it can improve the quality of the initial solutions, thereby accelerating the algorithm’s convergence speed.
• The proposed iterative optimization algorithm IOA can further optimize the candidate solutions through selection–insertion and pairwise exchange operations, which significantly enhance the IOHS algorithm’s search capability and solution quality.
• It dynamically adjusts its search strategy through parameters (e.g., r_h and r_p), balancing the guidance of historical optimal solutions (convergence) with random adjustments (divergence) to avoid local optima. This ensures a more comprehensive exploration of the solution space.
• The constructed algorithm can find high-quality solutions within a reasonable time through optimization operations and dynamic updates to harmony memory, which make it applicable to large-scale scheduling problems.
• The IOHS algorithm demonstrated more stable and superior performance compared to the BSIG, Jaya, and NEA algorithms on 600 newly generated datasets. Its lower average relative percentage deviation indicates higher accuracy and robustness in solving DPFSP problems.

As the IOHS algorithm performs well in different scales of DPFSP problems (such as different numbers of factories, machines, and jobs), the conclusion can be made that the IOHS algorithm is highly applicable and effective in solving complex distributed permutation flowshop scheduling problems.

In the meantime, its disadvantages are also obvious:

• As it is a meta-heuristic, its computational overhead is significant. Compared with heuristic algorithms, it is not suitable for scenarios requiring real-time scheduling.
• The algorithm’s performance heavily depends on key parameters (e.g., r_h, r_p, and bw), which require experimental tuning. Improper parameter settings may lead to premature convergence (trapping in local optima) or inefficient exploration.
• Compared with more intelligent optimization algorithms such as Q-learning, this meta-heuristic still has high randomness in the solution space search process.

Regarding its disadvantages, future improvements could involve dynamic parameter adjustment, hybridizing with other meta-heuristic search strategies, parallel computing, or combining with artificial intelligence technologies.

5. Conclusions

This study discussed the distributed permutation flowshop scheduling in detail, and proposed a hybrid harmony search algorithm IOHS for multimodal optimization. The proposed algorithm initializes HM with a distributed NEH algorithm, continuously constructs and adjusts new solutions using the NSGA algorithm to obtain better solutions, and updates HM until the stopping condition is met. The constructed algorithm was analyzed by different parameter combinations, and was compared with three classic or recently developed algorithms on a large number of test datasets. The results show that IOHS is applicable and effective in solving complex distributed permutation flowshop scheduling problems.

The development and empirical evaluations of the algorithm reported in this paper also reveal some fruitful directions for future research in the scheduling field. First, researchers should seek to enhance the capability of the proposed algorithm to search large-scale problem spaces. Second, as novel kinds of bionic algorithms, such as PSO, DE, and CMA-ES, are developed, devising effective and efficient algorithms for the DPFSP should persist as the major aim of research in the area. Third, the performance of the algorithms considered here should be compared by considering other criteria than those provided here, particularly criteria involving different production environments with varying purposes, on various DMS-related scheduling problems. The DPFSP involving more realistic issues, such as no wait, parallel batching, set-up, and transmission times is a more complex problem which is commonly encountered in production environments. Therefore, assessing the performance of the relevant methods on such scheduling problems is important in future research. Finally, researchers should consider a number of problems in different production environments, including the flowshop, open-shop, and job-shop. This is a promising opportunity to explore the development and application of scheduling theory in DMS and services.
