On Phase-I Monitoring of Process Location Parameter with Auxiliary Information-Based Median Control Charts

Abstract

A control chart is often used to monitor the industrial or services processes to improve the quality of the products. Mostly, the monitoring of location parameters, both in Phase I and Phase II, is done using a mean control chart with the assumption that the process is free from outliers or the estimators are correctly estimated from in-control samples. Generally, there are question marks about such kind of narratives. The performance of the mean chart is highly affected in the presence of outliers. Therefore, the median chart is an attractive alternative to the mean chart in this situation. The control charts are usually implemented in two phases: Phase I (retrospective) and Phase II (prospective/monitoring). The efficiency of any control chart in Phase II depends on the accuracy of control limits obtained from Phase I. The current study focuses on the Phase I analysis of location parameters using median control charts. We examined the performance of different auxiliary information-based median control charts and compared the results with the usual median chart. Standardized variance and relative efficacy are used as performance measures to evaluate the efficiency of median estimators. Moreover, the probability to signal measure is used to evaluate the performance of proposed control charts to detect any potential changes in the process. The results revealed that the proposed auxiliary information based median control charts perform better in Phase I analysis. In addition, a practical illustration of an industrial scenario demonstrated the significance of the proposed control charts, in which the monitoring of concrete compressive strength is emphasized.

1. Introduction

Quality improvement is a never-ending process in manufacturing industries. There is always a need to increase the quality of a product by reducing process variations. Statistical Process Control (SPC) is the core field of statistics that supports essential methods to complete this objective. SPC consists of a toolkit that is employed to monitor industrial processes and to boost the quality of the product(s) by reducing the variability in the product(s) [1]. The SPC toolkit contains a Pareto chart, scatter diagram, cause and effect diagram, check sheet, histogram and control chart, the last one being the most prominent and frequently used tool in the SPC toolkit. A control chart, initially developed in 1924 by Walter A. Shewhart, later published in [2], is a graphical display of the quality characteristic used for the monitoring of the process. The main innovative idea of Shewhart is to define the variability of a production process using statistical thoughts and further divide the variation of a process into common and special causes. At present, the choice of an appropriate statistical control chart has become a prime concern of professionals for quality control in manufacturing industries [1].

The monitoring of process parameters (location or dispersion) by applying control charts is mainly categorized into two phases: Phase I (retrospective phase) and Phase II (prospective/monitoring phase). In Phase I, we attempt to adjust a process for stability (in-control state) with respect to different process parameters, which usually happens at the first monitoring process (e.g., the output of production from the first installation of a machine). There is a need for the small dataset from the process to apply the Phase I control chart in order to know whether it is in-control or needs an amendment, if the process is not in an in-control state. Usually, this exercise needs to be repeated a number of times until the process is in-control. The next step for online monitoring, using a controlled structure in Phase I, is to construct a control chart. The main goal for Phase II is the quick signaling of an out-of-control situation of the process parameters. A control chart assumes that the process parameters of the in-control samples are either known or correctly estimated from Phase I samples. In reality, the process parameters are unknown or estimated from an inadequate number of samples, which influences the results of the control chart in terms of detection ability (see, [3,4]). The effectiveness of any Phase II control chart is determined by the accurate limits of the Phase I control chart. The main reason for the difference in performance is the variability of the parameter estimates. A number of researchers have studied the performances of control charts in Phase I analysis [5,6,7].

In SPC, it is a common practice to use mean $(\overline{Y})$ or the variance $(S^2)$ in control charts for process monitoring. However, other estimators like median $(\tilde{Y})$ have received less attention for this purpose. The mean chart is a more effective chart to detect out-of-control signals as compared to the median chart under normality. However, in abnormal cases, where we come across outliers, the median chart is a good substitute for the mean chart. The median chart is robust and very simple compared to the mean chart in the presence of outliers (contamination) or small deviations from normality [8]. These characteristics (properties) strengthen the use of the median chart in a long running process or without checking possible outliers. There is a relatively small body of literature concerned with median control charts (see [9,10,11,12,13]). Furthermore, to investigate the effect of estimated parameters on the deduction ability of the median control chart, Castagliola and Figueiredo [14] presented the Shewhart median charting structure with estimated parameters. They also gave recommendations about the selection of the number of initial subgroups by comparison of Shewhart median chart in both known and unknown (estimated) parameter cases. The exponentially weighted moving average (EWMA) median chart with estimated parameter for the monitoring of location parameters was proposed by Castagliola et al. [8]. They showed that the large number of initial samples can reduce the difference between known and estimated parameters. Castagliola et al. [15] proposed the estimated parameters study for the cumulative sum (CUSUM) structure of the median control chart. Tran [16] suggested the investigation of run rules median chart in the existence of measurement errors. Recently, Teng et al. [17] presented the run rules median chart with estimated parameters. Motivated by the above research, we proposed and investigated various median charts for the effective monitoring of process locations under contaminated situations.

The supplementary extra (or auxiliary) information correlated or associated with the variable of interest results into the reduction of the variance. The auxiliary information, i, enhances the precision of estimator(s) or improves the sampling plan. There are several studies in literature of survey sampling available for the use of auxiliary information and it has been conclusively shown that the use of auxiliary information enhances the accuracy of estimators for population mean [18], population median [19] or population variance [20].

In SPC literature, the use of auxiliary information has been proven successful to improve the efficiency of control chart structures. Zhang [21] used the auxiliary variable regressed by the variable of interest in the cause-selecting control chart. The study of [22,23] introduced control charts for location and dispersion monitoring, respectively, by using a regression estimator, and showed the enhancement in the efficiency of the control chart based on the auxiliary variable. Some other useful literature includes [24,25] for location parameter, and [13,26] for dispersion parameter.

The International Organization for Standardization (ISO) is a global organization of national standard bodies which encourage international trade in goods and services, promote international cooperation in intellectual, scientific, technological and economical activities and support the development of international standardization activities. No universal agreement has been reached in the past on the use of control charts. Various companies had various rules. A number of international regulatory standards, such as ISO 7870-1 [27], ISO 7870-2 [28], ISO 7870-3 [29], ISO 7870-4 [30], ISO 7870-5 [31] and ISO 7870-6 [32] are being developed and are widely accepted with massive business exchanges in countries of different levels of quality. This is in addition to the international regulatory standards [33] and [34]. The international standard provides a guide on the application and knowledge of the methods of statistical control of a process by the Shewhart control chart known as ISO 7870-2:2013 Control charts. There are different parts for ISO 7870-2:2013, in which the second part is related to Shewhart control charts and deals with statistical methods for process control using Shewhart charts. Some additional information related to Shewhart charts, like process capability, analysis of trend pattern and use of warning limits is briefly included.

The control process in Phase I can be iterative and control limits are generally seen as trail limits, as defined in [1]. When statistical checks are developed in order to satisfy the user, any in-control data (also known as reference data) in unknown quantities (parameters) are estimated to lead to the development of control charts in order to allow for the efficient process monitoring in Phase II. It is therefore no wonder that the effectiveness of the Phase II process monitoring critically depends on the performance of the related Phase I study. Motivated by the above-cited literature, auxiliary information-based median control charts for location monitoring, particularly for Phase I analysis, is the main idea of this study, because Phase I analysis for any monitoring plays a crucial role in the monitoring of parameters. The organization of this article is as follows: the details about median estimators with their biases and mean square errors are presented in Section 2. The control charting structure of auxiliary information based median control charts are given in Section 3. Section 4 presents the information about performance measures used to evaluate the charting structures. The results discussion and comparative analysis is provided in Section 5. An illustrative example with a real dataset for the application of control charts is included in Section 6, and finally, the summary and conclusions of the study are given in Section 7.

2. Auxiliary Information Based Location Median Estimators and Their Properties

Let us assume that the characteristic of interest (study variable) is represented by $Y$ and the auxiliary characteristic (variable) is represented by $X$—follow the bivariate normal distribution with means ${\mu }_y$ and ${\mu }_x$, respectively, with standard deviations ${\sigma }_y$ and ${\sigma }_x$, medians $M_y$ and $M_x$, coefficient of variations $C_y$ and $C_x$, coefficient of kurtosis ${\beta }_2(y)$ and ${\beta }_2(x)$ and correlation coefficient ${\rho }_{yx}$. Similarly, let $(y_i,x_i)$ for $(i=1, 2, 3, \dots ,n)$ be a bivariate ransom sample of size $n$. The notations for sample quantities are explained as; the sample means of $Y$ and $X$ are $\overline{y}$ and $\overline{x}$, respectively, sample standard deviations are $s_y$ and $s_x$ and the sample medians are ${\widehat{M}}_y$ and ${\widehat{M}}_x$. On the basis of this preliminary information, we considered some auxiliary information-based efficient median estimators for the estimation of the median of quality characteristic $M_y$. Let the correlation coefficient between $({\widehat{M}}_x, {\widehat{M}}_y)$ be ${\rho }_{({\widehat{M}}_x, {\widehat{M}}_y)}={\rho }_c=4P_{11}(x,y)-1$, where $P_{11}(x,y)=P(X\le M_x{\displaystyle \cap }Y\le M_y)$ is the probability of the population units with $X\le M_x$ and $Y\le M_y$. It is further assumed the limiting distribution of $(X,Y)$ is a continuous distribution with marginal densities $f_x(x)$ and $f_y(y)$ and also the quantities $f_x(M_x)$ and $f_y(M_y)$ are positive.

These median estimators $M_a (a=1, 2, \dots , 6)$ with their respective bias, $B(.)$ And mean square error, $MSE(.)$ are presented below:

(i) The usual median estimator

The most commonly used estimator for the median is sample median, which is an unbiased estimator defined as:

$$M_1={\widehat{M}}_y$$

(1)

Up to the first degree of approximation, the MSE of the usual estimator is

$$MSE(M_1)=\lambda M_y^2{C}_{M_y}^2=Var(M_1)$$

(2)

where $\lambda =\frac{1}{4}(\frac{1}{n}-\frac{1}{N})$ and $C_{M_y}=\frac{1}{\left[M_y{f}_y(M_y)\right]}$.

(ii) Ratio estimator

The ratio estimator for the population median with known population median of auxiliary variable $(M_x)$ has been introduced by Kuk and Mak [35], defined as:

$$M_2={\widehat{M}}_R={\widehat{M}}_y\left(\frac{M_x}{{\widehat{M}}_x}\right)$$

(3)

The bias and MSE of the ratio estimator up to the first-degree approximation is

$$\begin{array}{c}B(M_2)=\lambda M_y(C_{M_x}^2-C_{M_{yx}})\\ MSE(M_2)=\lambda M_y^2(C_{M_y}^2+C_{M_x}^2-2C_{M_{yx}})\end{array}\}$$

(4)

where $C_{M_x}=\frac{1}{\left[M_x{f}_x(M_x)\right]}$ and $C_{M_{yx}}={\rho }_c{C}_{M_y}{C}_{M_x}$. The constants $\lambda$ and $C_{M_y}$ are already defined above.

(iii) Ratio type estimators

Singh et al. [36] introduced a variety of ratio-type estimators for the population median with a known coefficient of variation $(C_x)$ and coefficient of kurtosis $({\beta }_2(x))$ of auxiliary variable, which are defined as:

$$M_3={\widehat{M}}_y\left(\frac{M_x+C_x}{{\widehat{M}}_x+C_x}\right)$$

(5)

$$M_4={\widehat{M}}_y\left(\frac{M_x+{\beta }_2(x)}{{\widehat{M}}_x+{\beta }_2(x)}\right)$$

(6)

$$M_5={\widehat{M}}_y\left(\frac{M_x{\beta }_2(x)+C_x}{{\widehat{M}}_x{\beta }_2(x)+C_x}\right)$$

(7)

$$M_6={\widehat{M}}_y\left(\frac{M_x{C}_x+{\beta }_2(x)}{{\widehat{M}}_x{C}_x+{\beta }_2(x)}\right)$$

(8)

The biases of the above mentioned ratio-type estimators for population median up to the first-degree approximation are

$$\begin{array}{c}B(M_3)=\lambda M_y(1+{\varphi }_1^2{C}_{M_x}^2-{\varphi }_1{C}_{M_{yx}})\\ B(M_4)=\lambda M_y(1+{\varphi }_2^2{C}_{M_x}^2-{\varphi }_2{C}_{M_{yx}})\\ B(M_5)=\lambda M_y(1+{\varphi }_3^2{C}_{M_x}^2-{\varphi }_3{C}_{M_{yx}})\\ B(M_6)=\lambda M_y(1+{\varphi }_4^2{C}_{M_x}^2-{\varphi }_4{C}_{M_{yx}})\end{array}\}$$

(9)

Similarly, the mean square errors (MSEs) for above mentioned ratio-type estimators for population median up to the first-degree approximation are

$$\begin{array}{c}MSE(M_3)=\lambda M_y^2(C_{M_y}^2+{\varphi }_1^2{C}_{M_x}^2-2{\varphi }_1{C}_{M_{yx}})\\ MSE(M_4)=\lambda M_y^2(C_{M_y}^2+{\varphi }_2^2{C}_{M_x}^2-2{\varphi }_2{C}_{M_{yx}})\\ MSE(M_5)=\lambda M_y^2(C_{M_y}^2+{\varphi }_3^2{C}_{M_x}^2-2{\varphi }_3{C}_{M_{yx}})\\ MSE(M_6)=\lambda M_y^2(C_{M_y}^2+{\varphi }_4^2{C}_{M_x}^2-2{\varphi }_4{C}_{M_{yx}})\end{array}\}$$

(10)

where ${\varphi }_1=\frac{M_x}{M_x+C_x}$, ${\varphi }_2=\frac{M_x}{M_x+{\beta }_2(x)}$, ${\varphi }_3=\frac{M_x{\beta }_2(x)}{M_x{\beta }_2(x)+C_x}$ and ${\varphi }_4=\frac{M_x{C}_x}{M_x{C}_x+{\beta }_2(x)}$. The other constant terms are already defined above.

3. Proposed Phase I Monitoring of Process Location by Median Charts

The location monitoring of the process is carried out using different median estimators defined in Section 2. The abovementioned median estimators $M_a(a=1,2,\dots ,6)$ have already been used in literature for the monitoring of location parameters in Phase II analysis. For example, the usual median estimator $(M_1)$ has been extensively examined in different charting structures under known and unknown parameters (cf. [8,14,15,17,37]. The other auxiliary information-based median estimators $(M_2-M_6)$ have only been studied in Phase II studies [12,13,38]. Therefore, none of the above-mentioned median estimators $(M_1-M_6)$ have been studied under the case of Phase I control charting structure.

Assume that there are $m (>1)$ independent subgroups each with size $n (>1)$. The data point are represented by $Y_{ji}$, which symbolizes the $i^{th}$ observation in $j^{th}$ subgroup, $i=1,2,\dots ,n$ and $j=1,2,\dots ,m$. In addition, assume that the underlying process distribution is continuous (e.g., normal). If the mean $({\mu }_0)$ and standard deviation $({\sigma }_0)$ in-control process parameters are not known, then the initial subgroups $(j=1,2,\dots ,m)$ each of size $n$ $\left\{Y_{j,1},Y_{j,2},\dots ,Y_{j,n}\right\}$ (called Phase I dataset) are used to estimate the unknown parameters. Suppose that the subgroups are independent (within and between subgroups) and $Y_{j,i} ~ N({\mu }_0,{\sigma }_0^2)$. There are numerous methods to estimate ${\mu }_0$ and ${\sigma }_0$, but the most common method for estimating them is defined as:

$${\widehat{\mu }}_0=\frac{1}{m}{\displaystyle \sum }_{j=1}^m{\overline{Y}}_j$$

(11)

$${\widehat{\sigma }}_0=\frac{1}{c_{4,n}}\left(\frac{1}{m}{\displaystyle \sum }_{j=1}^m{S}_j\right)$$

(12)

In Equations (11) and (12), the mean and standard deviation of $j^{th}$ subgroup are denoted by ${\overline{Y}}_j$ and $S_j$, respectively, and in normal case, the constant $c_{4,n}$ is defined as $c_{4,n}=E\left(\frac{S_j}{{\sigma }_0}\right)$. Generally, this combination is used in the case of the mean $(\overline{Y})$ control chart, but not suitable for the median $(\tilde{Y})$ control chart. We used the following estimates of ${\mu }_0$ and ${\sigma }_0$ to increase the efficiency of the median control chart.

$${\widehat{\mu }}_0^{\prime }=median(medians)=\{\begin{array}{ll}{\tilde{Y}}_{j,(\frac{m+1}{2})}& if m is odd\\ \frac{{\tilde{Y}}_{j,(\frac{m}{2})}+{\tilde{Y}}_{j,(\frac{m}{2}+1)}}{2}& if m is even\end{array}$$

(13)

where $\left\{{\tilde{Y}}_{j,(1)},{\tilde{Y}}_{j,(2)},\dots ,{\tilde{Y}}_{j,(n)}\right\}$ are the ordered medians of $j^{th}$ subgroup. Similarly, the standard deviation $({\sigma }_0)$ is estimated with the median absolute deviation (MAD), which is defined as the median of the absolute deviations from the median, mathematically represented as $MA{D}_i=1.4826\ast median(\left|Y_i-{\tilde{Y}}_j\right|)$, and is a robust measure in the case of outliers or non-normality. The details about MAD can be seen in [26,39,40,41]. An unbiased MAD-based estimator of ${\sigma }_0$ is described as:

$${\widehat{\sigma }}_0^{\prime }=\frac{1}{d_{2,MAD}}\left(\frac{1}{m}{\displaystyle \sum }_{j=1}^{m}MA{D}_j\right)$$

(14)

where $d_{2,MAD}$ is a constant formulated for the normal distribution. If the process parameters ${\mu }_0$ and ${\sigma }_0$ are unknown, then replace them by their estimators ${\widehat{\mu }}_0^{\prime }$ and ${\widehat{\sigma }}_0^{\prime }$ to generate the data for the estimation of $g_a$ (mean of estimator $M_a$) and $d_a$ (standard deviation of estimator $M_a$). The value of ${\widehat{\mu }}_0^{\prime }$ is calculated as the median of medians for $m$ subgroups and ${\widehat{\sigma }}_0^{\prime }$ is the median absolute deviation (MAD) of $m$ subgroups. The Phase I control chart is the plot of all charting statistics of $m$ subgroups on the estimated control limits. The estimated control limits for random variable charting statistic $M_a$ are defined as

$$\begin{array}{c}{\widehat{LCL}}_a={\widehat{\mu }}_0^{\prime }-K_a\frac{{\widehat{\sigma }}_0^{\prime }}{\sqrt{n}\ast d_{2,MAD}(a)}\\ {\widehat{CL}}_a={\widehat{\mu }}_0^{\prime }\\ {\widehat{UCL}}_a={\widehat{\mu }}_0^{\prime }+K_a\frac{{\widehat{\sigma }}_0^{\prime }}{\sqrt{n}\ast d_{2,MAD}(a)}\end{array}\} for a=1,2,\dots ,6$$

(15)

In the known parameter case, the lower control limit (LCL) and upper control limit (UCL) are constant, but for unknown parameter case, ${\widehat{LCL}}_a$ and ${\widehat{UCL}}_a$ are not constant and treated as random variables. It should be noted that, in the case of unknown parameters, the value of $K_a$ depends on the choices of $n$, $m$, ${\rho }_{xy}$ and the prefixed false alarm rate $(\alpha )$ or the in-control average run length $(AR{L}_0)$. For a given probability of type-I error,

$$P({\widehat{LCL}}_a\le M_a\le {\widehat{UCL}}_a)=1-\alpha , for a=1,2,\dots ,6$$

(16)

We will use the respective sample statistic $M_a$ $(for a=1,2,\dots ,6)$ as the plotting quantity on its corresponding charting structure. Furthermore, after introducing the shift in the mean of the study variable, an out-of-control signal will be observed after setting the limits for a specific control chart satisfying Equations (15) and (16). The process location parameter is said to be in-control if $M_a$ falls inside its respective control limits, otherwise it is out-of-control.

4. Performance Evaluation of Median Control Charts in Phase I

In this section, by using some performance measures, we compared the efficiency of all median control charts mentioned in Section 2. In the Phase I and Phase II analysis, there are several measures available to assess the performance of the control chart, including variance, mean square error (MSE), relative mean square error (RMSE), relative efficiency (RE), average time to signal (ATS), probability to detect out-of-control data in Phase I, average run length (ARL), probability to signal and different run length properties (cf. [1,22,26,42,43,44,45] and the references therein). We considered the relative efficiency (RE) measure for the comparison of estimators and the probability to signal measure to compare the performances of the proposed control charts using the Monte Carlo simulations approach. We computed the standardized variance of the median estimators (denoted as $S{V}_{M_a}$), proposed by Rousseeuw and Croux [46] and the relative efficiencies of the median estimators as exercised by [47,48] for comparison, and to assess the efficiency of the median estimators considered in this study. The $S{V}_{M_a}$ of a median estimator $M_a$ $(for a=1,2,\dots ,6)$ is calculated as

$$S{V}_{M_a}=\frac{nVAR(M_a)}{{\left[E(M_a)\right]}^2}$$

(17)

To get the natural measuring of the accuracy for a parameter, the denominator ${\left[E(M_a)\right]}^2$ is required (cf. [49]). By using $S{V}_{M_a}$, for any median estimator, the mathematical formula to compute relative efficiency (RE) is described as

$$R{E}_{M_a}=\frac{min(S{V}_{M_a})}{S{V}_{M_a}}$$

(18)

$S{V}_{M_a}$ and $R{E}_{M_a}$ are computed by generating ${10}^5$ samples of sizes $n=5, 7, 10 \mathrm{and} 12$ and considering correlations $\rho =0.20, 0.50, 0.80 \mathrm{and} 0.95$ by using the normal distribution. $S{V}_{M_a}$ are presented numerically in

Table 1. $d_{2,MAD}$ and standardized variance for different median estimators.

		${\mathit{M}}_1$	${\mathit{M}}_2$	${\mathit{M}}_3$	${\mathit{M}}_4$	${\mathit{M}}_5$	${\mathit{M}}_6$	${\mathit{M}}_1$	${\mathit{M}}_2$	${\mathit{M}}_3$	${\mathit{M}}_4$	${\mathit{M}}_5$	${\mathit{M}}_6$
$\mathit{n}$	$\mathit{\rho }$	${\mathit{d}}_{2,\mathit{M}\mathit{A}\mathit{D}}$						$\mathbf{Standardized}\mathbf{Variance}(\mathit{S}{\mathit{V}}_{{\mathit{M}}_{\mathit{a}}})$
5	0.20	0.5363	0.7254	0.7094	0.5966	0.7199	0.5349	0.0576	0.1032	0.0989	0.0707	0.1017	0.0572
	0.50	0.5363	0.6210	0.6075	0.5222	0.6163	0.5037	0.0576	0.0760	0.0729	0.0544	0.0749	0.0508
	0.80	0.5362	0.4558	0.4462	0.4084	0.4524	0.4605	0.0575	0.0412	0.0396	0.0334	0.0406	0.0425
	0.95	0.5358	0.2676	0.2626	0.2917	0.2657	0.4238	0.0575	0.0143	0.0138	0.0171	0.0141	0.0361
7	0.20	0.4584	0.6172	0.6041	0.5103	0.6127	0.4577	0.0589	0.1051	0.1008	0.0725	0.1036	0.0586
	0.50	0.4585	0.5321	0.5210	0.4490	0.5283	0.4318	0.0589	0.0784	0.0753	0.0563	0.0773	0.0522
	0.80	0.4581	0.3999	0.3917	0.3566	0.3970	0.3960	0.0588	0.0445	0.0427	0.0356	0.0439	0.0440
	0.95	0.4578	0.2458	0.2412	0.2585	0.2441	0.3645	0.0587	0.0169	0.0163	0.0188	0.0166	0.0373
10	0.20	0.3720	0.4936	0.4835	0.4109	0.4901	0.3704	0.0554	0.0965	0.0927	0.0673	0.0952	0.0549
	0.50	0.3717	0.4204	0.4119	0.3577	0.4174	0.3477	0.0553	0.0702	0.0675	0.0511	0.0692	0.0484
	0.80	0.3715	0.3079	0.3018	0.2790	0.3057	0.3177	0.0552	0.0378	0.0363	0.0311	0.0373	0.0404
	0.95	0.3714	0.1829	0.1797	0.2005	0.1817	0.2931	0.0552	0.0134	0.0129	0.0161	0.0132	0.0344
15	0.20	0.3186	0.4244	0.4158	0.3538	0.4214	0.3181	0.0609	0.1073	0.1031	0.0749	0.1058	0.0607
	0.50	0.3186	0.3687	0.3614	0.3132	0.3662	0.3008	0.0609	0.0811	0.0780	0.0588	0.0800	0.0543
	0.80	0.3189	0.2843	0.2788	0.2534	0.2823	0.2776	0.0610	0.0483	0.0465	0.0385	0.0477	0.0463
	0.95	0.3189	0.1895	0.1861	0.1913	0.1883	0.2571	0.0610	0.0215	0.0208	0.0220	0.0212	0.0397

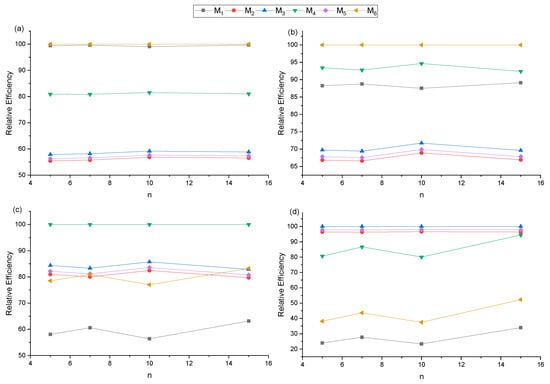

and $R{E}_{M_a}$ are presented graphically in Figure 1 for comparison purposes. In each plot, the relative efficiencies are plotted on the y-axis and sample sizes are on the $x$-axis.

Usually, samples in rational subgroups are obtained from the process introduced by Shewhart, to apply the control charting structure. The main aim of the rational subgroups is to maximize the chances of differences between subgroups and to minimize differences within subgroups in the presence of assignable causes [1]. For our study, we considered 30 subgroups $(m=30)$ each of size $n$ $(n=5, 7,10 \mathrm{and} 15)$ from the normal probability distribution. We divided subgroups into two portions as $m_0$ and $m_1$ (as $m=m_0+m_1$). The stable subgroups are considered to be $m_0$ while $m_1$ (remaining subgroups) have variations in the form of shifts in parameter. The probability of signaling for $m_1=3, 6, 9 \mathrm{and} 12$ was computed, which means that 3, 6, 9 or 12 samples out of 30 are considered to be contaminated with shift $(\delta )$. Phase I analysis is aimed preliminary, as quickly as possible, at the identification of these inconsistent (contaminated) samples. For the in-control (stable) samples, observations with a normal in-control mean and variance as ${\mu }_0=5$ and ${\sigma }_0=1$, respectively, were taken into account without loss of generality, whereas for the out-of-control situation, the sample observations are contaminated with the shift in mean of ${\mu }_1={\mu }_0+\delta {\sigma }_0$, where $\delta$ is the shift amount. The mean vector $\underset{\_}{\mu }$ with the in-control mean of study variable $Y$ as ${\mu }_0$ and known mean of auxiliary variable $X$ as ${\mu }_X$ and sigma matrix $\mathsf{\Sigma }$ with population variances of study and auxiliary variables as ${\sigma }_Y^2$ and ${\sigma }_X^2$, respectively for this bivariate normally distributed process are expressed as:

$$\underset{\_}{\mu }=\left(\begin{array}{c}{\mu }_0+\delta {\sigma }_Y\\ {\mu }_X\end{array}\right)=\left(\begin{array}{c}5+\delta \\ 5\end{array}\right), \mathsf{\Sigma }=\left(\begin{array}{cc}{\sigma }_Y^2& Cov(Y,X)\\ Cov(X,Y)& {\sigma }_X^2\end{array}\right)=\left(\begin{array}{cc}1& \rho \\ \rho & 1\end{array}\right)$$

(19)

For the dataset of $m$ samples (subgroups), the control limits specified in Section 3 are determined for the structures described in Section 2. For all control charts, the values of control limit multipliers $(K)$ are correctly chosen to achieve a pre-selected value of $\alpha$ (false alarm probability). We presented values of $K$ for $n=10$ and correlations as $\rho =0.20, 0.50, 0.80$ and $0.95$ in

Table 2. Control chart multipliers $(K_a)$ for obtaining $\alpha =0.01$ using $n=10$ at different levels of $\rho$.

$\mathit{\rho }$	${\mathit{M}}_1$	${\mathit{M}}_2$	${\mathit{M}}_3$	${\mathit{M}}_4$	${\mathit{M}}_5$	${\mathit{M}}_6$
0.20	5.824	7.712	7.581	6.210	7.630	5.640
0.50	5.800	7.011	6.720	5.474	6.872	5.340
0.80	5.680	4.910	4.803	4.360	4.838	4.900
0.95	5.712	2.905	2.806	3.151	2.859	4.462

.

First of all, we observe the probability that a single sample will be signaled (denoted by ${\alpha }^{\ast }$) and then, by using the relationship $\alpha =1-{(1-{\alpha }^{\ast })}^m$, we can calculate the overall false alarm probability $(\alpha )$ for $m$ samples. One may see [6,26,50,51] for further details. Once the control charts limits are fixed, median estimators $M_a$ $(for a=1,2,\dots ,6)$ were used to detect out-of-control signals according to their respective control limits. We repeat this process 10,000 times to fix the $\alpha =0.01$ and chose values of $K$ using $m=30$ and $n=5, 7, 10 \mathrm{and} 15$ for all median control charts. We also considered different values of $m_1$ as 3, 6, 9 and 12 and considered correlations $\rho =0.20, 0.50, 0.80 \mathrm{and} 0.95$ to investigate the signaling probabilities. Such $m_1$ values indicate the different situations in which the samples out of 30 are known to have a change in mean with shift $\delta$. The probability of signaling various $\delta$ values for $m_1=3, 6, 9 \mathrm{and} 12$ are graphically illustrated (see Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8).

5. Discussion and Comparative Analysis

In this section, we present a comparative debate based on calculations conducted in Section 4 for the various median control charts investigated in this study. The charts that have the highest probability of signaling out-of-control samples are considered better than others for a fixed false alarm probability $(\alpha )$. The results include the values of a constant $d_{2,MAD}(n)$ and standardized variance $S{V}_{M_a}$ defined in Equation (17), and are presented in Table 1. Figure 1 represents the graphical comparison of estimators considered in this study with respect to their relative efficiencies, defined in Equation (18). Table 2 represents the control chart multipliers $K_a$, defined in Equation (15) for correlations $\rho =0.20, 0.50, 0.80 \mathrm{and} 0.95$ and $n=10$.

Similarly, the comparison of the median control charts $(M_3 \mathrm{and} M_3)$ with respect to correlations is presented in Figure 7 for $m=30$, $n=10$, $m_1=6 \mathrm{and} 9$. Figure 8 represents the effect of unstable (or stable) subgroups effect on the efficiency of median charts $(M_3 \mathrm{and} M_3)$ for $m=30$, $n=10$, $\rho =0.5 \mathrm{and} 95$. The signaling probabilities of the median charts are provided in

Table 3. Probability to signal values for the different median charts when $m=30$, $n=10$, $\rho =0.80$ at various levels of $\delta$ and $m_1$ when $\alpha =0.01$.

	${\mathit{M}}_1$	${\mathit{M}}_2$	${\mathit{M}}_3$	${\mathit{M}}_4$	${\mathit{M}}_5$	${\mathit{M}}_6$	${\mathit{M}}_1$	${\mathit{M}}_2$	${\mathit{M}}_3$	${\mathit{M}}_4$	${\mathit{M}}_5$	${\mathit{M}}_6$
$\mathit{\delta }$	${\mathit{m}}_1=3$						${\mathit{m}}_1=6$
0.0	0.0104	0.0101	0.0101	0.0102	0.0104	0.0101	0.0104	0.0101	0.0101	0.0102	0.0104	0.0101
0.1	0.0092	0.0094	0.0091	0.0105	0.0101	0.0104	0.0082	0.0096	0.0095	0.0088	0.0097	0.0108
0.2	0.0091	0.0094	0.0088	0.0107	0.0102	0.0101	0.0099	0.0097	0.0100	0.0097	0.0099	0.0088
0.3	0.0094	0.0115	0.0106	0.0101	0.0117	0.0115	0.0093	0.0101	0.0101	0.0098	0.0111	0.0106
0.4	0.0110	0.0136	0.0146	0.0143	0.0142	0.0132	0.0105	0.0111	0.0115	0.0104	0.0121	0.0113
0.5	0.0132	0.0186	0.0200	0.0241	0.0207	0.0173	0.0102	0.0133	0.0131	0.0134	0.0141	0.0116
0.6	0.0172	0.0275	0.0289	0.0365	0.0290	0.0252	0.0134	0.0158	0.0162	0.0206	0.0165	0.0137
0.7	0.0273	0.0429	0.0460	0.0609	0.0463	0.0404	0.0146	0.0207	0.0225	0.0293	0.0222	0.0195
0.8	0.0404	0.0677	0.0712	0.1001	0.0710	0.0625	0.0207	0.0339	0.0347	0.0459	0.0358	0.0294
0.9	0.0608	0.1025	0.1099	0.1598	0.1092	0.0992	0.0271	0.0489	0.0542	0.0779	0.0524	0.0442
1.0	0.0886	0.1504	0.1662	0.2358	0.1610	0.1497	0.0395	0.0768	0.0852	0.1309	0.0825	0.0692
1.3	0.2077	0.3419	0.3720	0.5002	0.3620	0.3497	0.1033	0.2081	0.2316	0.3625	0.2249	0.2056
1.5	0.3971	0.5802	0.6125	0.7416	0.6028	0.5918	0.2467	0.4450	0.4855	0.6692	0.4730	0.4558
1.8	0.6018	0.7708	0.7939	0.8726	0.7851	0.7809	0.4681	0.7075	0.7474	0.8859	0.7322	0.7272
2.0	0.7650	0.8779	0.8896	0.9277	0.8857	0.8819	0.7010	0.8880	0.9104	0.9692	0.9028	0.9009
2.5	0.9137	0.9459	0.9486	0.9546	0.9475	0.9460	0.9505	0.9888	0.9912	0.9965	0.9903	0.9901
3.0	0.9491	0.9564	0.9568	0.9576	0.9567	0.9564	0.9926	0.9976	0.9979	0.9985	0.9977	0.9977
4.0	0.9576	0.9577	0.9577	0.9578	0.9577	0.9578	0.9986	0.9987	0.9988	0.9988	0.9987	0.9987
5.0	0.9577	0.9577	0.9577	0.9578	0.9577	0.9578	0.9988	0.9988	0.9988	0.9988	0.9988	0.9988
	${\mathit{m}}_{\mathbf{1}}=\mathbf{9}$						${\mathit{m}}_{\mathbf{1}}=\mathbf{12}$
0.0	0.0104	0.0101	0.0101	0.0102	0.0104	0.0101	0.0104	0.0101	0.0101	0.0102	0.0104	0.0101
0.1	0.0089	0.0102	0.0103	0.0104	0.0114	0.0108	0.0094	0.0115	0.0121	0.0099	0.0125	0.0101
0.2	0.0094	0.0108	0.0104	0.0110	0.0105	0.0083	0.0086	0.0114	0.0107	0.0101	0.0126	0.0084
0.3	0.0080	0.0090	0.0094	0.0085	0.0100	0.0082	0.0088	0.0096	0.0103	0.0083	0.0102	0.0066
0.4	0.0092	0.0089	0.0087	0.0067	0.0089	0.0085	0.0073	0.0058	0.0060	0.0047	0.0065	0.0062
0.5	0.0082	0.0066	0.0064	0.0061	0.0072	0.0080	0.0054	0.0041	0.0037	0.0030	0.0042	0.0040
0.6	0.0075	0.0047	0.0049	0.0050	0.0050	0.0060	0.0040	0.0026	0.0024	0.0014	0.0025	0.0018
0.7	0.0068	0.0050	0.0051	0.0054	0.0053	0.0047	0.0026	0.0010	0.0011	0.0016	0.0014	0.0012
0.8	0.0063	0.0042	0.0049	0.0067	0.0046	0.0050	0.0016	0.0006	0.0006	0.0009	0.0006	0.0006
0.9	0.0058	0.0055	0.0052	0.0100	0.0056	0.0062	0.0009	0.0000	0.0000	0.0008	0.0000	0.0003
1.0	0.0081	0.0076	0.0080	0.0155	0.0085	0.0082	0.0005	0.0000	0.0002	0.0010	0.0000	0.0001
1.3	0.0138	0.0280	0.0339	0.0643	0.0310	0.0269	0.0003	0.0000	0.0001	0.0010	0.0001	0.0001
1.5	0.0352	0.0971	0.1109	0.2059	0.1063	0.0947	0.0001	0.0008	0.0009	0.0040	0.0008	0.0007
1.8	0.0969	0.2456	0.2765	0.4538	0.2663	0.2448	0.0005	0.0030	0.0042	0.0137	0.0034	0.0045
2.0	0.2236	0.4724	0.5228	0.7366	0.5046	0.4876	0.0032	0.0140	0.0167	0.0444	0.0156	0.0138
2.5	0.6493	0.8884	0.9157	0.9813	0.9060	0.9076	0.0294	0.0994	0.1168	0.2489	0.1114	0.1020
3.0	0.9369	0.9923	0.9948	0.9993	0.9940	0.9941	0.1354	0.3540	0.4088	0.6732	0.3891	0.3771
4.0	0.9995	0.9999	0.9999	1.0000	0.9999	0.9999	0.7266	0.9497	0.9668	0.9967	0.9610	0.9590
5.0	1.0000	1.0000	1.0000	1.0000	1.0000	1.0000	0.9910	0.9998	0.9999	1.0000	0.9998	0.9998

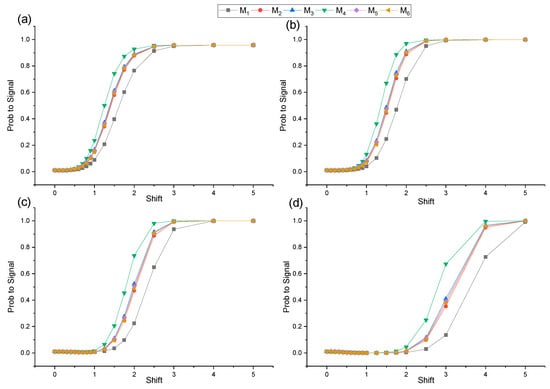

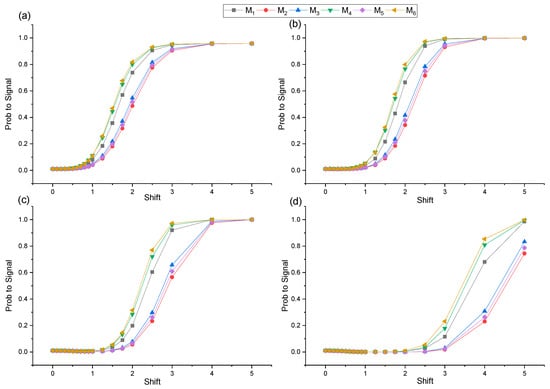

for $m=30$, $n=10$, $\rho =0.80$, $m_1=3, 6, 9 \mathrm{and} 12$ at various values of shift $(\delta )$. Similarly, the signaling probabilities for the median control charts are also presented in graphical forms for $m=30$, $n=10$, $m_1=3, 6, 9 \mathrm{and} 12$ $\rho =0.20, 0.50, 0.80 \mathrm{and} 0.95$ at various values of shift $(\delta )$ in Figure 2, Figure 3, Figure 4 and Figure 5. The effect of sample size on the performance of the median control charts $(M_3 \mathrm{and} M_3)$ is presented in Figure 6 for $m=30$, $m_1=6 \mathrm{and} 9$ $\rho =0.95$.

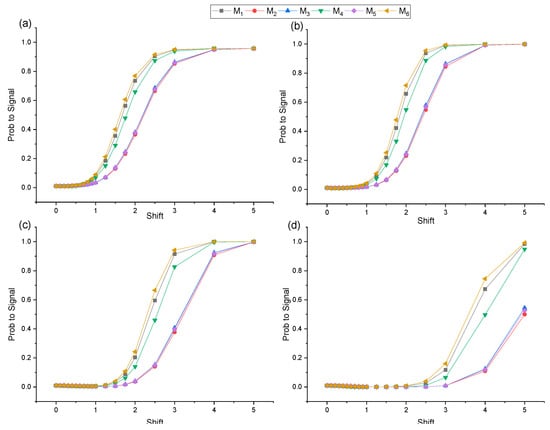

From Table 1, we can observe that the auxiliary information-based median estimators have less standardized variance as compared to the usual median estimator. Furthermore, within the comparison of auxiliary information based median estimators, $M_6$ has the lowest standardized variance for a small correlation between the study and auxiliary variables $(\rho )$, $M_4$ has the lowest standardized variance for a moderate correlation $(\rho )$ and $M_3$ has the lowest standardized variance for a large value of the correlation $(\rho )$. Alternatively, $M_2$ has the largest standardized variance for a low correlation and the usual median estimator $M_1$ has the largest standardized variance for a moderate and high correlation. Similar behavior can be observed from Figure 1 in the form of relative efficiencies.

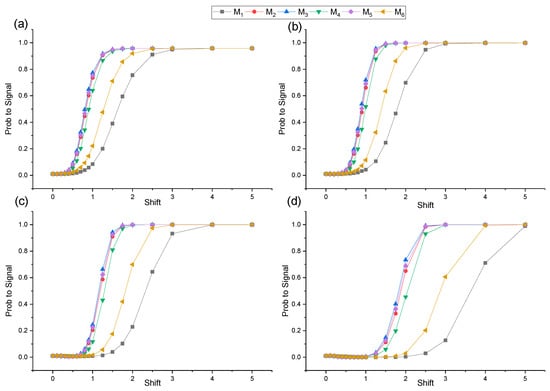

The charting structure of the $M_6$ control chart showed the highest signaling probability or best detection ability to detect an out-of-control signal at large values of shift $(\delta )$ followed by the usual median control chart $M_1$ for the small correlation coefficient $(\rho ),$ while the control chart structure of $M_2$ performs worst for the same situation at different values of $m_1$ (see Figure 2). Similarly, the control charting structure of $M_5$ performs better for small shifts $(i.e., \delta <0.8)$. Similarly, at $\rho =0.5$, control charting structures $M_4$ and $M_6$ have the largest signaling probabilities at small $(i.e. ,\delta <1.0)$ and large $(i.e., \delta \ge 1.0)$ shift values, respectively. Meanwhile, the structure of $M_2$ chart has the lowest signaling probabilities (see Figure 3).

From Figure 4 and Table 3, we observed that the design structure of the $M_4$ median chart exhibited the best performance while the $M_1$ median chart structure showed the worst performance at both large and small shift values for $\rho =0.8$ and $m_1=3 \mathrm{and} 6$. With the increasing value of $m_1$, the outer design structure of $M_4$ performs at a large value of shift $(i.e. ,\delta \ge 1.0)$ while the $M_1$ structure showed the best performance at small shift values $(i.e., \delta <1.0)$.

The design structure of the $M_3$ median chart showed the best performance at $\rho =0.95$ for different values of $m_1$ (see Figure 5). There are some other charts which showed their performances at different values of m1. For example, the $m_1=3$, $M_3$ chart has the largest signaling probabilities at shift values $(\delta \le 2.0)$, and at shift values $(2.0<\delta \le 3.0)$, the $M_4$ control chart has the largest signaling probabilities, and for $(\delta \ge 3.0)$, the $M_6$ chart has the highest detection ability. Similarly, for $m_1=6$, the $M_3$ median chart showed the best performance at $\delta \le 2.5$ and the outer design structure of the $M_4$ chart performs at $\delta >2.5$. For $m_1=9 \mathrm{and} 12$, the usual median control chart $M_1$ showed the best performance at a small shift $(i.e., \delta \le 0.8)$ and the structure of the $M_3$ median chart has the largest signaling probabilities at moderate and large shift values $(i.e., \delta >0.8)$.

Performance tests for the median charts $(M_1-M_6)$ indicate that all charts boost the probability of signaling in order to detect an out-of-control signal for an increased sample size $(n)$ and correlation coefficient $(\rho )$. We present this comparison for charts $M_3$ and $M_4$ at $\rho =0.95$ and $m_1=6 \mathrm{and} 9$ in Figure 6 and Figure 7. From Figure 6, the $M_3$ median design structure showed the best performance at $n=10$, while the $M_4$ median control chart showed the best performance at $n=15$. Both charting structures $M_3$ and $M_4$ exhibited poor performance at a small sample size.

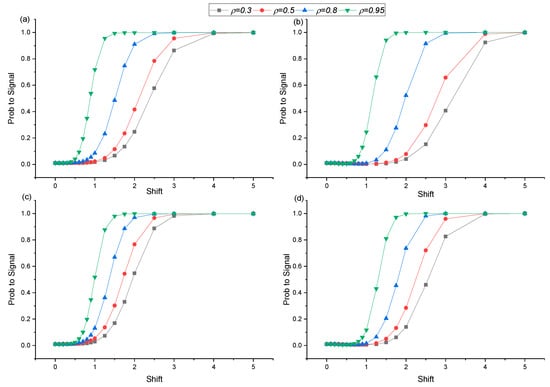

All charting structures improved the performance with increments in correlation. From Figure 7, we observe that the design structures of the $M_3$ and $M_4$ median control charts exhibited the best performance at a large correlation coefficient $(i.e.,\rho =0.95)$ and poor performance at a small value of correlation coefficient $(i.e., \rho =0.3)$.

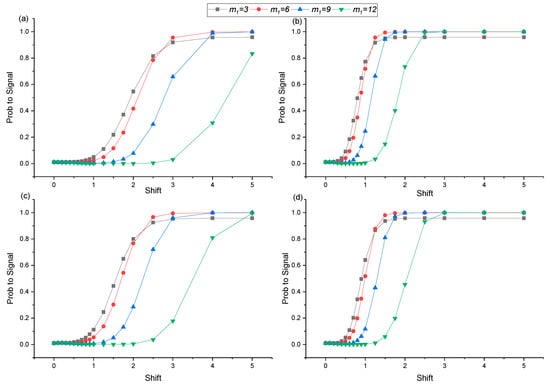

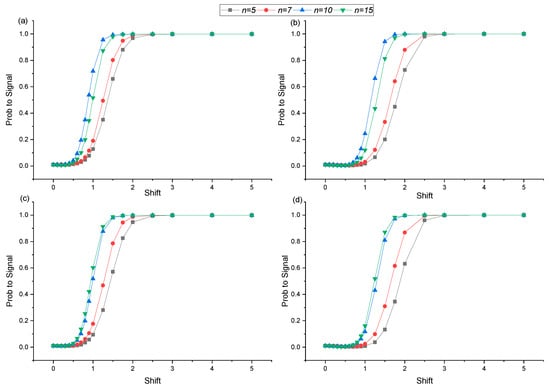

The comparison of different values of $m_1$ for the $M_3$ and $M_4$ median control charts in Figure 8 revealed that, for $\rho =0.5$, both the $M_3$ and $M_4$ median control charts have the largest signaling probabilities at $m_1=3$ against small and moderate values of shift $(i.e., \delta \le 2.5)$ followed by at $m_1=6$. Similarly, for $\rho =0.5$, both charting structures $M_3$ and $M_4$ have the following pattern of largest signaling probabilities at different values of shifts as: largest signaling probabilities at $m_1=3$ against $\delta \le 1.0$, at $m_1=6$ against $1.0<\delta \le 2.0$, at $m_1=9$ against $2.0<\delta \le 3.0$ and at $m_1=12$ against shift values $\delta >3.0$.

6. Practical Implementation

In this section, we considered the practical implantation of our proposed Phase I monitoring of location parameters with some real processes. For this purpose, we first considered some real process data, which are available online, and we selected the study variable and correlated the auxiliary variable from the process data. From the dataset, we selected random subgroups $m$, each of size $n$. After this, we calculated control limits for in-control initial sample $m_1$ to obtain prefixed false alarm rate $\alpha$. After obtaining the control limits, we added shift $\delta$ in the mean of study variable and calculated plotting statistics, and then observed the out-of-control samples. All of this algorithm is developed using R software.

6.1. Case Study-I

In this section, a real-life example is shown in the application of the proposed Phase I median control charts. For this purpose, we considered real data from the cement industry where the compression strength of concrete is crucial for the quality of cement production. In a laboratory experiment, this set of data on concrete compressive strength for a particular mixture were calculated and were firstly proposed in [52], before being used in many research articles (see [13]).

In this multivariate process, the study variable concrete compressive strength was monitored with some other auxiliary variables, such as cement, blast, fly ash, water, superplasticizer, coarse aggregate, fine aggregate, and age. For our study, we considered bivariate data on the measurement for concrete compressive strength (measured in $\mathrm{MPa}$), containing the study variable $Y$ and the quantity of cement (measured in $\mathrm{kg}$ in ${\mathrm{m}}^3$ mixture) as auxiliary variable $X$.

These variables were not scaled, so first we scaled these variables to make their mean set to five, with a variance of one for the similarity of the simulation study, mentioned in Section 4. The dataset contains 1030 observations, and we randomly selected 30 subgroups $(as m=30)$ each of size 10 $(as n=10)$. For this dataset, we considered the values of $m_1$ as six and nine, which means that out of 30 subgroups, six and nine samples are contaminated with shift $(\delta )$ 2.6 and 3, respectively. For illustration purposes, we considered two median estimators ($M_4$ and $M_6$) based on auxiliary variables and compared their performance with the usual median estimator ($M_1$). First, we constructed their control limits based on in-control samples $(m_0)$ and then analyzed their detection ability by introducing the shift $(\delta )$ in the mean of study variable. The values of plotting statistics ($M_1$, $M_4$ and $M_6$) for both cases $m_1=6$ with $\delta =2.5$ and $m_1=9$ with $\delta =3$ are presented in

Table 4. Plotting statistics of the median charts based on $M_1$, $M_4$ and $M_6$ for concrete data.

	${\mathit{m}}_1=6$$,\mathit{\delta }=2.5$			${\mathit{m}}_1=9$$,\mathit{\delta }=3.0$
	${\mathit{M}}_1$	${\mathit{M}}_4$	${\mathit{M}}_6$	${\mathit{M}}_1$	${\mathit{M}}_4$	${\mathit{M}}_6$
1	4.972	5.084	5.016	4.972	5.084	5.016
2	4.677	5.096	4.836	4.677	5.096	4.836
3	4.440	4.462	4.448	4.440	4.462	4.448
4	4.777	3.859	4.362	4.777	3.859	4.362
5	5.106	5.292	5.179	5.106	5.292	5.179
6	5.243	4.689	5.006	5.243	4.689	5.006
7	7.375	6.721	7.099	7.375	6.721	7.099
8	4.758	5.061	4.874	4.758	5.061	4.874
9	5.387	4.500	4.993	5.387	4.500	4.993
10	4.375	4.545	4.441	4.375	4.545	4.441
11	5.801	5.165	5.529	5.801	5.165	5.529
12	4.685	5.506	4.982	4.685	5.506	4.982
13	6.705	5.721	6.273	6.705	5.721	6.273
14	7.016	6.393	6.753	7.016	6.393	6.753
15	4.413	5.203	4.698	4.413	5.203	4.698
16	4.761	4.937	4.830	4.761	4.937	4.830
17	4.176	3.901	4.061	4.176	3.901	4.061
18	4.711	5.155	4.879	4.711	5.155	4.879
19	4.723	5.407	4.975	4.723	5.407	4.975
20	5.082	4.649	4.899	5.082	4.649	4.899
21	5.665	5.029	5.392	5.665	5.029	5.392
22	3.917	4.549	4.148	6.917	7.549	7.148
23	4.035	4.328	4.147	7.035	7.328	7.147
24	4.158	4.688	4.355	7.158	7.688	7.355
25	7.840	7.275	7.599	8.340	7.775	8.099
26	6.288	6.797	6.476	6.788	7.297	6.976
27	6.906	7.704	7.194	7.406	8.204	7.694
28	6.593	7.253	6.834	7.093	7.753	7.334
29	8.377	9.223	8.688	8.877	9.723	9.188
30	7.898	7.641	7.793	8.398	8.141	8.293

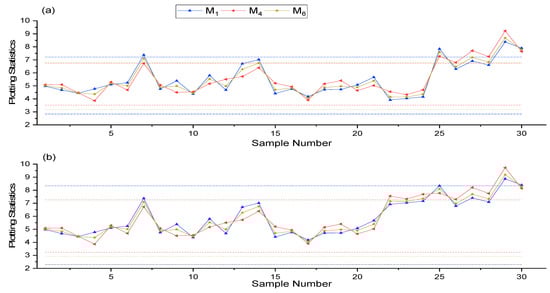

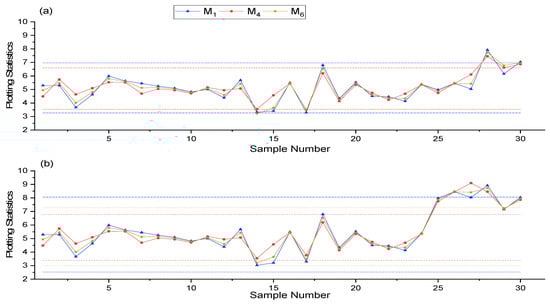

and their control limits (LCL and UCL) are presented in

Table 5. Control limits of the median charts based on $M_1$, $M_4$ and $M_6$ for the concrete data.

		${\mathit{M}}_1$		${\mathit{M}}_4$		${\mathit{M}}_6$
		LCL	UCL	LCL	UCL	LCL	UCL
$m_1=6$, $\delta =2.5$		2.836	7.217	3.521	6.730	3.170	6.805
$m_1=9$, $\delta =3.0$		2.297	8.333	3.236	7.259	2.916	7.278

. Similarly, the graphical display of plotting statistics with their respective control limits against $m_1=6$ with $\delta =2.5$ and $m_1=9$ with $\delta =3$ are shown in Figure 9.

From the results, it is observed that the plotting statistic $M_1$ detects shift at subgroup numbers 25, 29 and 30, whereas $M_4$ detects shift at subgroups 25, 26, 27, 28, 29 and 30. Similarly, $M_6$ detects shift at subgroups 25, 27, 28, 29 and 30 in case of ${\mathrm{m}}_1=6$ with $\mathsf{\delta }=2.5$. These results showed the superiority of $M_4$ chart over $M_6$ and $M_1$. Similarly, in the case of ${\mathrm{m}}_1=9$ with $\mathsf{\delta }=3$, again, the $M_4$ chart detects all nine out-of-control shifts, whereas $M_6$ and $M_1$ detect six and three, respectively, out-of-control subgroups. Similar findings of a higher detection ability of the control structure $M_4$ may be seen in Figure 9. It should be noted in both of the ${\mathrm{m}}_1$ choices in the two cases, the charting structure $M_4$ displayed the superior detection ability compared to $M_6$ and $M_1$. The superiority of the $M_4$ control chart may also be expected with the comparison of other charts considered in this study, which is based on the findings of Section 5.

6.2. Case Study-II

In this section, we provide another case study to demonstrate the application of our proposed auxiliary information-based median control charts for the Phase I monitoring of location parameters. For this purpose, we used real-life data of the non-iso-thermal continuous stirred tank chemical reactor (CSTR) process, as first provided by Marlin [53]. At a sampling interval of 30 s, the dataset was collected with 1024 values. The CSTR process mechanism includes nine process variables, and Yoon and MacGregor [54] and Xiangrong et al. [55] provide details of those variables of the process. The CSTR process has been extensively used for defect detection and diagnosis (see [54,55]). In this study, we considered outlet temperature $T$ (measured in $K$) as the study variable $Y$ and cooling temperature $T_C$ (measured in $K$) as the auxiliary variable $X$. We randomly selected 30 subgroups $(as m=30)$ each of size 10 $(as n=10)$ from the dataset consisting of 1024 values. Again, for this dataset, we considered the values of $m_1$ as three and six, which means that out of 30 subgroups, three and six samples are contaminated with shift $(\delta )$ 2.0 and 3.0, respectively. Again, in this case study, for illustration purposes, we considered two median estimators ($M_4$ and $M_6$) based on the auxiliary variable and compared their performance with the usual median estimator ($M_1$).

Initially, we constructed their control limits based on $m_0$ (in-control samples), which are presented in

Table 6. Control limits of the median charts based on $M_1$, $M_4$ and $M_6$ for the non-iso-thermal continuous stirred tank chemical reactor (CSTR) data.

		${\mathit{M}}_1$		${\mathit{M}}_4$		${\mathit{M}}_6$
		LCL	UCL	LCL	UCL	LCL	UCL
$m_1=3$, $\delta =2.0$		3.267	6.067	3.525	6.582	3.545	6.636
$m_1=6$, $\delta =3.0$		2.531	8.057	3.386	6.779	2.995	7.280

and the values of plotting statistics ($M_1$, $M_4$ and $M_6$) for both cases $m_1=3$ with $\delta =2.0$ and $m_1=6$ with $\delta =3$ are presented in

Table 7. Plotting statistics of the median charts based on $M_1$, $M_4$ and $M_6$ for CSTR Data.

	${\mathit{m}}_1=3$$,\mathit{\delta }=2.0$			${\mathit{m}}_1=6$$,\mathit{\delta }=3.0$
	${\mathit{M}}_1$	${\mathit{M}}_4$	${\mathit{M}}_6$	${\mathit{M}}_1$	${\mathit{M}}_4$	${\mathit{M}}_6$
1	5.297	4.485	4.939	5.297	4.485	4.939
2	5.291	5.737	5.461	5.291	5.737	5.461
3	3.671	4.632	4.003	3.671	4.632	4.003
4	4.629	5.094	4.804	4.629	5.094	4.804
5	5.988	5.534	5.798	5.988	5.534	5.798
6	5.630	5.527	5.588	5.630	5.527	5.588
7	5.445	4.693	5.117	5.445	4.693	5.117
8	5.243	5.035	5.158	5.243	5.035	5.158
9	5.092	4.940	5.030	5.092	4.940	5.030
10	4.821	4.709	4.776	4.821	4.709	4.776
11	5.010	5.147	5.064	5.010	5.147	5.064
12	4.388	4.940	4.593	4.388	4.940	4.593
13	5.685	5.071	5.423	5.685	5.071	5.423
14	3.023	3.543	3.211	3.023	3.543	3.211
15	3.208	4.571	3.642	3.208	4.571	3.642
16	5.490	5.442	5.471	5.490	5.442	5.471
17	3.291	3.774	3.469	3.291	3.774	3.469
18	6.795	6.190	6.539	6.795	6.190	6.539
19	4.334	4.137	4.253	4.334	4.137	4.253
20	5.525	5.340	5.449	5.525	5.340	5.449
21	4.509	4.748	4.602	4.509	4.748	4.602
22	4.456	4.232	4.364	4.456	4.232	4.364
23	4.131	4.684	4.336	4.131	4.684	4.336
24	5.373	5.360	5.368	5.373	5.360	5.368
25	4.979	4.745	4.882	7.979	7.745	7.882
26	5.456	5.444	5.452	8.456	8.444	8.452
27	5.034	6.101	5.413	8.034	9.101	8.413
28	7.921	7.457	7.726	8.921	8.457	8.726
29	6.153	6.213	6.177	7.153	7.213	7.177
30	7.036	6.865	6.966	8.036	7.865	7.966

. The graphical presentation of results are presented in Figure 10.

From the results of CSTR dataset, it is observed that the plotting statistic $M_1$ detects only two out-control samples at subgroup numbers 28 and 30, whereas $M_4$ detects four out-control samples at subgroups 17, 28, 29 and 30. Similarly, $M_6$ detects five out-control samples at subgroups 14, 17, 28, 29 and 30 in case of $m_1=3$ with $\delta =2.0$.

These results showed the superiority of the $M_6$ chart over $M_4$ and $M_1$. Similarly, in the case of $m_1=6$ with $\delta =3$, the $M_4$ chart detects all six out-of-control shifts at subgroups 25, 26, 27, 28, 29 and 30, whereas the $M_6$ chart detects five out-control shifts at subgroups 25, 26, 27, 28 and 30 and $M_1$ detects only two out-of-control shifts at subgroups 26 and 28.

Similar findings of a higher detection ability of the auxiliary information-based control charts can be seen in Figure 10. The superiority of auxiliary information-based control charts may also be expected with the other combinations of $m_1$ at different shifts, which is based on the findings of Section 5.

7. Conclusions

In this paper, we proposed the Phase I analysis of different auxiliary information-based median control charts for location monitoring. The control chart is a very common tool of SPC used to monitor process inconsistencies in quality characteristic(s) of interest. In the context of Phase I analysis, control charts often play a significant role alongside the use of both statistical exploratory (e.g., graphic) and confirmatory processes (e.g., hypothesis testing). They lead to a better understanding of what is really happening over time, to identify and promote the elimination of root(s) of assignable causes. A thorough Phase I analysis is the key part of the overall control and monitoring of the statistical process. Shewhart control charts are especially useful for Phase I analysis as they are simple to create and interpret, and they are efficient at detecting large changes in process parameters. There is no study available in literature which presents the Phase I analysis of location parameters using median charts. Therefore, we considered several median estimators to construct control limits in Phase I. This study examined the selection of an appropriate auxiliary information-based median control chart to monitor the process location parameters effectively in Phase I. We analyzed five auxiliary information-based median charts and compared them with usual median control chart. The efficiency of all six median estimators is evaluated in terms of standardized variance and relative efficiency, while probability to signal measure is used to evaluate the performance of control charts considered in this study. All auxiliary information-based control charts perform well in Phase I analysis. Furthermore, within the comparison of auxiliary information-based control charts, for small values of $m_1$, $M_6$ chart performs well, whereas, $M_4$ and $M_3$ control charts showed the best performance at a large value of $m_1$. The design structures of $M_5$ and $M_2$ also show reasonable performance for some special cases. The findings of the simulation study were also verified with the real-life industrial example which describes the applications of the proposed charts of this study.
