An Efficient and Accurate Method for the Conservative Swift–Hohenberg Equation and Its Numerical Implementation

Abstract

The conservative Swift–Hohenberg equation was introduced to reformulate the phase-field crystal model. A challenge in solving the conservative Swift–Hohenberg equation numerically is how to treat the nonlinear term to preserve mass conservation without compromising efficiency and accuracy. To resolve this problem, we present a linear, high-order, and mass conservative method by placing the linear and nonlinear terms in the implicit and explicit parts, respectively, and employing the implicit-explicit Runge–Kutta method. We show analytically that the method inherits the mass conservation. Numerical experiments are presented demonstrating the efficiency and accuracy of the proposed method. In particular, long time simulation for pattern formation in 2D is carried out, where the phase diagram can be observed clearly. The MATLAB code for numerical implementation of the proposed method is provided in Appendix.

1. Introduction

The phase-field crystal (PFC) model describes the microstructure of two-phase systems on atomic length and diffusive time scales and has been used to study grain growth, dendritic and eutectic solidification, and epitaxial growth [1,2]. The PFC model is the $H^{-1}$-gradient flow for the Swift–Hohenberg (SH) energy functional [3]:

$$\begin{array}{c}\hfill \mathcal{E}\left(\varphi \right):={\int }_{\mathsf{\Omega }}\left(\mathsf{\Phi }\left(\varphi \right)-{|\nabla \varphi |}^2+\frac{1}{2}{(\Delta \varphi )}^2\right)d\mathbf{x},\end{array}$$

(1)

where $\mathsf{\Omega }$ is a domain in ${\mathbb{R}}^d(d=1,2,3)$, $\varphi$ is the density field, $\mathsf{\Phi }\left(\varphi \right)=\frac{1}{4}{\varphi }^4-\frac{g}{3}{\varphi }^3+\frac{1-ϵ}{2}{\varphi }^2$, and $g\ge 0$ and $ϵ>0$ are positive constants with physical significance.

Recently, conservative SH equations were introduced to reformulate the PFC model [4,5]. In [4], Zhang and Yang derived the following equation:

$$\begin{array}{c}\hfill \frac{\partial \varphi }{\partial t}=-\left({\mathsf{\Phi }}^{\prime }\left(\varphi \right)+2\Delta \varphi +{\Delta }^2\varphi \right)+\tilde{\beta }\left(t\right),\end{array}$$

(2)

where $\tilde{\beta }\left(t\right)$ is a nonlocal Lagrange multiplier and $\tilde{\beta }\left(t\right)=\frac{1}{\left|\mathsf{\Omega }\right|}{\int }_{\mathsf{\Omega }}{\mathsf{\Phi }}^{\prime }\left(\varphi (\mathbf{x},t)\right)d\mathbf{x}$, and developed a second-order energy stable scheme by combining the invariant energy quadratization idea with the stabilization technique. However, the scheme involves solving a linear system with complicated variable coefficients. In [5], Lee introduced the following equation:

$$\begin{array}{c}\hfill \frac{\partial \varphi }{\partial t}=-\left({\mathsf{\Phi }}^{\prime }\left(\varphi \right)+2\Delta \varphi +{\Delta }^2\varphi \right)+{\left(\mathsf{\Phi }\left(\varphi \right)\right)}^r\beta \left(t\right),\end{array}$$

(3)

where ${\left(\mathsf{\Phi }\left(\varphi \right)\right)}^r\beta \left(t\right)$ is a nonlocal and local Lagrange multiplier and $\beta \left(t\right)=\frac{{\int }_{\mathsf{\Omega }}{\mathsf{\Phi }}^{\prime }\left(\varphi (\mathbf{x},t)\right)d\mathbf{x}}{{\int }_{\mathsf{\Omega }}{\left(\mathsf{\Phi }\left(\varphi \right(\mathbf{x},t\left)\right)\right)}^{r}d\mathbf{x}}$, and proposed mass conservative first- and second-order operator splitting methods. However, the methods lead to the necessity nonlinear equations to be solved at each time step thus require an iterative solver for solving the nonlinear equations.

Therefore, the aim of this paper is to present an efficient and accurate method that preserves mass conservation for solving the conservative SH Equation (3). We place the linear and nonlinear terms in the implicit and explicit parts, respectively, where an extra linear stabilizing term is added to improve the stability while preserving the simplicity. And we employ the implicit-explicit Runge–Kutta (RK) method [6]. As a result, our method is linear, high-order accurate in time, and mass conservative. We show analytically that the method inherits the mass conservation. In addition, the Fourier spectral method [5,7,8,9,10] is used for the spatial discretization. The MATLAB code for numerical implementation of the method in 2D is provided in Appendix A.

This paper is organized as follows. In Section 2, we construct the linear, high-order, and mass conservative method and show analytically that the method inherits the mass conservation. Numerical examples showing the efficiency and accuracy of the proposed method are presented in Section 3. Finally, conclusions are drawn in Section 4. In Appendix A, we provide the MATLAB code for numerical implementation of the proposed method in 2D.

2. Linear, High-Order, and Mass Conservative Method

For simplicity and clarity of exposition, we consider Equation (3) in one-dimensional space $\mathsf{\Omega }=[0,L]$ with a periodic boundary condition:

$$\begin{array}{c}\hfill \frac{\partial \varphi (x,t)}{\partial t}=-\left({\mathsf{\Phi }}^{\prime }\left(\varphi (x,t)\right)+2\frac{{\partial }^2\varphi (x,t)}{\partial x^2}+\frac{{\partial }^4\varphi (x,t)}{\partial x^4}\right)+{\left(\mathsf{\Phi }\left(\varphi \right(x,t\left)\right)\right)}^r\beta \left(t\right),\end{array}$$

(4)

where $\beta \left(t\right)=\frac{{\int }_{\mathsf{\Omega }}{\mathsf{\Phi }}^{\prime }\left(\varphi (x,t)\right)dx}{{\int }_{\mathsf{\Omega }}{\left(\mathsf{\Phi }\left(\varphi \right(x,t\left)\right)\right)}^{r}dx}$. Two- and three-dimensional cases are defined analogously. Let M be a positive integer, $\Delta x=\frac{L}{M}$ be the space step size, and $\Delta t$ be the time step size. Let ${\varphi }_m^n$ be an approximation of $\varphi (x_m,t^n)$, where $x_m=m\Delta x$ for $m=0,1,\dots ,M-1$ and $t^n=n\Delta t$. The discrete Fourier transform and its inverse transform are

$$\begin{array}{c}\hfill {\widehat{\varphi }}_k=\sum _{m=0}^{M-1}{\varphi }_m{e}^{-i{x}_m{\xi }_k}\end{array}$$

(5)

and

$$\begin{array}{c}\hfill {\varphi }_m=\frac{1}{M}\sum _{k=0}^{M-1}{\widehat{\varphi }}_k{e}^{i{x}_m{\xi }_k},\end{array}$$

(6)

where ${\xi }_k=\frac{2\pi k}{L}$.

To develop a linear, high-order (up to third-order), and mass conservative method for solving Equation (4), we treat $-\left(s\varphi (x,t)+2\frac{{\partial }^2\varphi (x,t)}{\partial x^2}+\frac{{\partial }^4\varphi (x,t)}{\partial x^4}\right)$ implicitly and $-\left({\mathsf{\Phi }}^{\prime }\left(\varphi (x,t)\right)-s\varphi (x,t)\right)+{\left(\mathsf{\Phi }\left(\varphi \right(x,t\left)\right)\right)}^r\beta \left(t\right)$ explicitly, where s is a non-negative number, and employ the implicit-explicit RK method. First- (S1), second- (S2), and third- (S3) order methods are as follows:

$$\begin{array}{ccc}\hfill \mathbf{S}\mathbf{1}:& & {\varphi }_m^{n+1}={\varphi }_m^n+\Delta t\left(p\left({\varphi }_m^{n+1}\right)+q\left({\varphi }_m^n\right)\right),\hfill \end{array}$$

(7)

$$\begin{array}{ccc}\hfill \mathbf{S}\mathbf{2}:& & {\varphi }_m^{\left(1\right)}={\varphi }_m^n+\Delta t\left(\gamma p\left({\varphi }_m^{\left(1\right)}\right)+\gamma q\left({\varphi }_m^n\right)\right),\hfill \end{array}$$

(8)

$$\begin{array}{ccc}& & {\varphi }_m^{n+1}={\varphi }_m^n+\Delta t\left(\gamma p\left({\varphi }_m^{n+1}\right)+(1-\gamma )p\left({\varphi }_m^{\left(1\right)}\right)+(1-\delta )q\left({\varphi }_m^{\left(1\right)}\right)+\delta q\left({\varphi }_m^n\right)\right),\hfill \end{array}$$

(9)

$$\begin{array}{ccc}\hfill \mathbf{S}\mathbf{3}:& & {\varphi }_m^{\left(1\right)}={\varphi }_m^n+\Delta t\left(\frac{1}{2}p\left({\varphi }_m^{\left(1\right)}\right)+\frac{1}{2}q\left({\varphi }_m^n\right)\right),\hfill \end{array}$$

(10)

$$\begin{array}{ccc}& & {\varphi }_m^{\left(2\right)}={\varphi }_m^n+\Delta t\left(\frac{1}{2}p\left({\varphi }_m^{\left(2\right)}\right)+\frac{1}{6}p\left({\varphi }_m^{\left(1\right)}\right)+\frac{1}{18}q\left({\varphi }_m^{\left(1\right)}\right)+\frac{11}{18}q\left({\varphi }_m^n\right)\right),\hfill \end{array}$$

(11)

$$\begin{array}{cc}\hfill {\varphi }_m^{\left(3\right)}={\varphi }_m^n+\Delta t& \hfill (\frac{1}{2}p\left({\varphi }_m^{\left(3\right)}\right)+\frac{1}{2}p\left({\varphi }_m^{\left(2\right)}\right)-\frac{1}{2}p\left({\varphi }_m^{\left(1\right)}\right)\\ \hfill & +\frac{1}{2}q\left({\varphi }_m^{\left(2\right)}\right)-\frac{5}{6}q\left({\varphi }_m^{\left(1\right)}\right)+\frac{5}{6}q\left({\varphi }_m^n\right)),\hfill \end{array}$$

(12)

$$\begin{array}{cc}\hfill {\varphi }_m^{n+1}={\varphi }_m^n+\Delta t& (\frac{1}{2}p\left({\varphi }_m^{n+1}\right)+\frac{1}{2}p\left({\varphi }_m^{\left(3\right)}\right)-\frac{3}{2}p\left({\varphi }_m^{\left(2\right)}\right)+\frac{3}{2}p\left({\varphi }_m^{\left(1\right)}\right)\hfill \\ \hfill & -\frac{7}{4}q\left({\varphi }_m^{\left(3\right)}\right)+\frac{3}{4}q\left({\varphi }_m^{\left(2\right)}\right)+\frac{7}{4}q\left({\varphi }_m^{\left(1\right)}\right)+\frac{1}{4}q\left({\varphi }_m^n\right)),\hfill \end{array}$$

(13)

where $p\left({\varphi }_m^{(·)}\right)=-\left(s{\varphi }_m^{(·)}+2\frac{{\partial }^2{\varphi }_m^{(·)}}{\partial x^2}+\frac{{\partial }^4{\varphi }_m^{(·)}}{\partial x^4}\right)$, $q\left({\varphi }_m^{(·)}\right)=-\left({\mathsf{\Phi }}^{\prime }\left({\varphi }_m^{(·)}\right)-s{\varphi }_m^{(·)}\right)+{\left(\mathsf{\Phi }\left({\varphi }_m^{(·)}\right)\right)}^r{\beta }^{(·)}$, ${\beta }^{(·)}=\frac{{\sum }_{m=0}^{M-1}{\mathsf{\Phi }}^{\prime }\left({\varphi }_m^{(·)}\right)}{{\sum }_{m=0}^{M-1}{\left(\mathsf{\Phi }\left({\varphi }_m^{(·)}\right)\right)}^r}$, $\gamma =\frac{2-\sqrt{2}}{2}$, and $\delta =1-\frac{1}{2\gamma }$.

For the method S1, Equation (7) can be transformed into the discrete Fourier space using (6):

$$\begin{array}{c}\hfill {\widehat{\varphi }}_k^{n+1}=\frac{{\widehat{\varphi }}_k^n+\Delta t{\widehat{q}}_k^n}{1+\Delta t\left(s-2{\xi }_k^2+{\xi }_k^4\right)},\end{array}$$

(14)

where ${\widehat{q}}_k^{(·)}=\mathcal{F}\left[q\left({\varphi }_m^{(·)}\right)\right]$ and $\mathcal{F}$ denotes the discrete Fourier transform. After updating ${\widehat{\varphi }}_k^{n+1}$ with ${\widehat{\varphi }}_k^n$, we recover ${\varphi }_m^{n+1}$ from ${\widehat{\varphi }}_k^{n+1}$ using (6). To satisfy the mass conservation property, we should have ${\sum }_{m=0}^{M-1}{\varphi }_m^{n+1}={\sum }_{m=0}^{M-1}{\varphi }_m^n$ for $n=0,1,\dots$. From Equation (14), we get

$$\begin{array}{c}\hfill \sum _{m=0}^{M-1}{\varphi }_m^{n+1}={\widehat{\varphi }}_0^{n+1}=\frac{{\widehat{\varphi }}_0^n+\Delta t{\widehat{q}}_0^n}{1+s\Delta t}=\frac{{\widehat{\varphi }}_0^n+s\Delta t{\widehat{\varphi }}_0^n}{1+s\Delta t}={\widehat{\varphi }}_0^n=\sum _{m=0}^{M-1}{\varphi }_m^n\end{array}$$

(15)

since

$$\begin{array}{ccc}\hfill {\widehat{q}}_0^{(·)}& =& \sum _{m=0}^{M-1}q\left({\varphi }_m^{(·)}\right)=-\sum _{m=0}^{M-1}({\mathsf{\Phi }}^{\prime }\left({\varphi }_m^{(·)}\right)-s{\varphi }_m^{(·)})+{\beta }^{(·)}\sum _{m=0}^{M-1}{\left(\mathsf{\Phi }\left({\varphi }_m^{(·)}\right)\right)}^r\hfill \\ & =& -\sum _{m=0}^{M-1}({\mathsf{\Phi }}^{\prime }\left({\varphi }_m^{(·)}\right)-s{\varphi }_m^{(·)})+\frac{{\sum }_{m=0}^{M-1}{\mathsf{\Phi }}^{\prime }\left({\varphi }_m^{(·)}\right)}{{\sum }_{m=0}^{M-1}{\left(\mathsf{\Phi }\left({\varphi }_m^{(·)}\right)\right)}^r}\sum _{m=0}^{M-1}{\left(\mathsf{\Phi }\left({\varphi }_m^{(·)}\right)\right)}^r=s\sum _{m=0}^{M-1}{\varphi }_m^{(·)}=s{\widehat{\varphi }}_0^{(·)}.\hfill \end{array}$$

(16)

Thus, the method S1 inherits the mass conservation. Next, for the method S2, we have

$$\begin{array}{c}\hfill {\widehat{\varphi }}_0^{\left(1\right)}=\frac{{\widehat{\varphi }}_0^n+\gamma \Delta t{\widehat{q}}_0^n}{1+\gamma s\Delta t}=\frac{{\widehat{\varphi }}_0^n+\gamma s\Delta t{\widehat{\varphi }}_0^n}{1+\gamma s\Delta t}={\widehat{\varphi }}_0^n\end{array}$$

(17)

from Equation (8) and

$$\begin{array}{ccc}\hfill \sum _{m=0}^{M-1}{\varphi }_m^{n+1}& =& {\widehat{\varphi }}_0^{n+1}=\frac{{\widehat{\varphi }}_0^n+\Delta t\left(-(1-\gamma )s{\widehat{\varphi }}_0^{\left(1\right)}+(1-\delta ){\widehat{q}}_0^{\left(1\right)}+\delta {\widehat{q}}_0^n\right)}{1+\gamma s\Delta t}\hfill \\ & =& \frac{{\widehat{\varphi }}_0^n+\Delta t\left(-(1-\gamma )s{\widehat{\varphi }}_0^n+(1-\delta )s{\widehat{\varphi }}_0^n+\delta s{\widehat{\varphi }}_0^n\right)}{1+\gamma s\Delta t}={\widehat{\varphi }}_0^n=\sum _{m=0}^{M-1}{\varphi }_m^n\hfill \end{array}$$

(18)

from Equation (9). For the method S3, we have ${\widehat{\varphi }}_0^{\left(3\right)}={\widehat{\varphi }}_0^{\left(2\right)}={\widehat{\varphi }}_0^{\left(1\right)}={\widehat{\varphi }}_0^n$ from Equations (10)–(12) and

$$\begin{array}{ccc}\hfill \sum _{m=0}^{M-1}{\varphi }_m^{n+1}& =& {\widehat{\varphi }}_0^{n+1}=\frac{{\widehat{\varphi }}_0^n+\Delta t\left(-\frac{s}{2}{\widehat{\varphi }}_0^{\left(3\right)}+\frac{3s}{2}{\widehat{\varphi }}_0^{\left(2\right)}-\frac{3s}{2}{\widehat{\varphi }}_0^{\left(1\right)}-\frac{7}{4}{\widehat{q}}_0^{\left(3\right)}+\frac{3}{4}{\widehat{q}}_0^{\left(2\right)}+\frac{7}{4}{\widehat{q}}_0^{\left(1\right)}+\frac{1}{4}{\widehat{q}}_0^n\right)}{1+\frac{s\Delta t}{2}}\hfill \\ & =& {\widehat{\varphi }}_0^n=\sum _{m=0}^{M-1}{\varphi }_m^n\hfill \end{array}$$

(19)

from Equation (13). Thus, the methods S2 and S3 also inherit the mass conservation.

3. Numerical Experiments

3.1. Convergence Test

We demonstrate the convergence of the proposed methods with the initial condition [11,12]

$$\begin{array}{ccc}\hfill \varphi (x,0)& =& 0.07-0.02cos\left(\frac{2\pi (x-12)}{32}\right)+0.02{cos}^2\left(\frac{\pi (x+10)}{32}\right)\hfill \\ & & -0.01{sin}^2\left(\frac{4\pi x}{32}\right)\hfill \end{array}$$

(20)

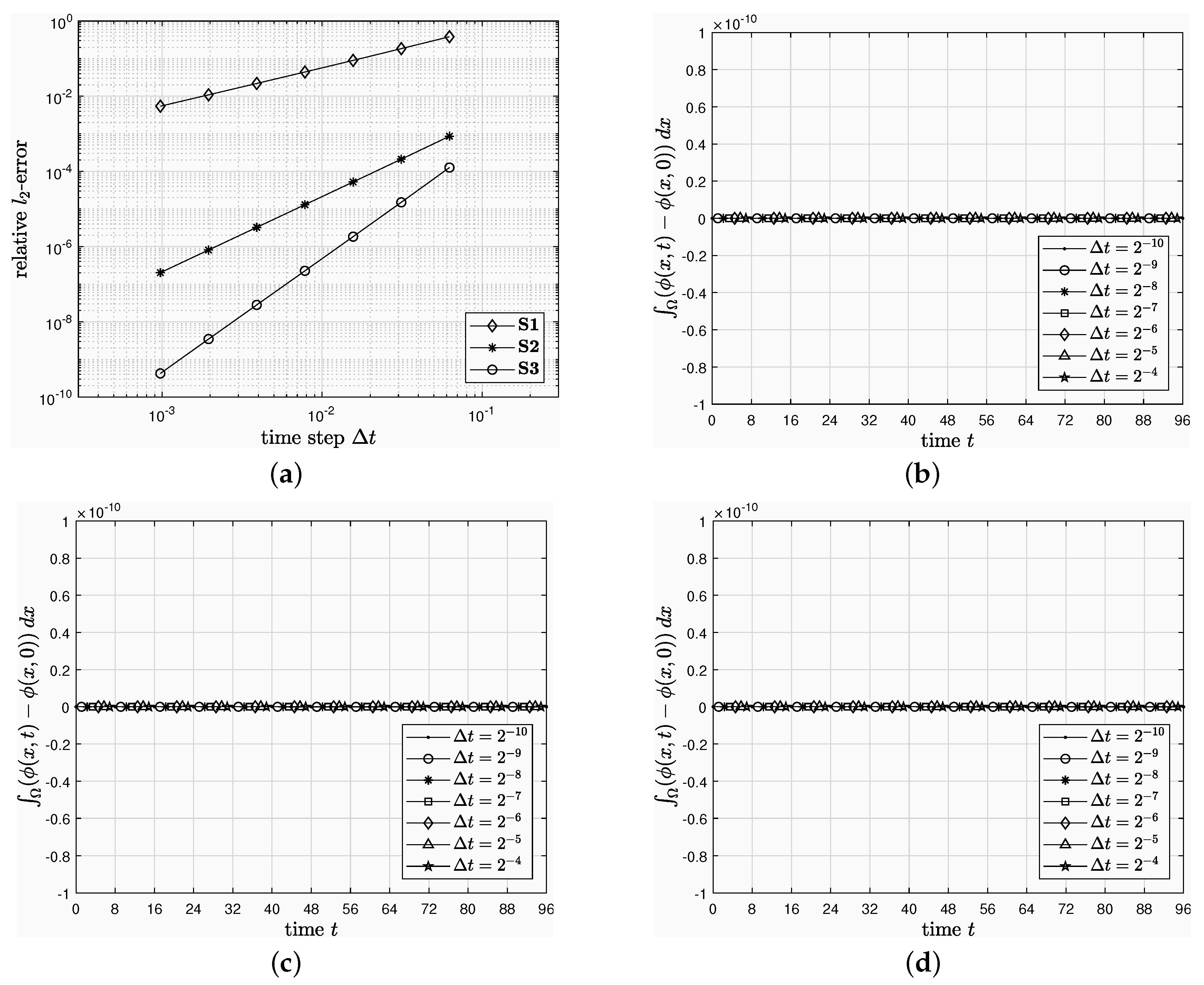

on $\mathsf{\Omega }=[0,32]$. We set $ϵ=0.25$, $g=0$, $r=0$, and $s=0$, and compute $\varphi (x,t)$ for $0<t\le 96$. The grid size is fixed to $\Delta x=\frac{1}{3}$ which provides enough spatial accuracy. To estimate the convergence rate with respect to $\Delta t$, simulations are performed by varying $\Delta t=2^{-10},2^{-9},\dots ,2^{-4}$. We take the quadruply over-resolved numerical solution using the method S3 as the reference solution. Figure 1a shows the relative $l_2$-errors of $\varphi (x,40)$ for various time steps. Here, the errors are computed by comparison with the reference solution. In addition, Figure 1b–d show the evolution of ${\int }_{\mathsf{\Omega }}(\varphi (x,t)-\varphi (x,0))dx$ using the methods S1–S3, respectively. Here, ${\int }_{\mathsf{\Omega }}(\varphi (x,t)-\varphi (x,0))dx$ is approximated by ${\sum }_{m=0}^{M-1}({\varphi }_m^n-{\varphi }_m^0)\Delta x$. It is observed that the methods give desired order of accuracy in time and conserve the total mass.

3.2. Efficiency of the Proposed Method

To show the efficiency of the proposed method, we take the initial condition (20) and parameter values used to create Figure 1. Figure 2 presents the CPU time (in seconds, averaged over 10 trials performed on Intel Core i5-7500 CPU at 3.40 GHz with 8 GB RAM) consumed using the methods S1–S3 for various time steps. The results suggest that the CPU time is almost linear with respect to the number of steps and the methods S2 and S3 are about two and four times more expensive than the method S1, respectively.

3.3. Phase Diagram in 2D

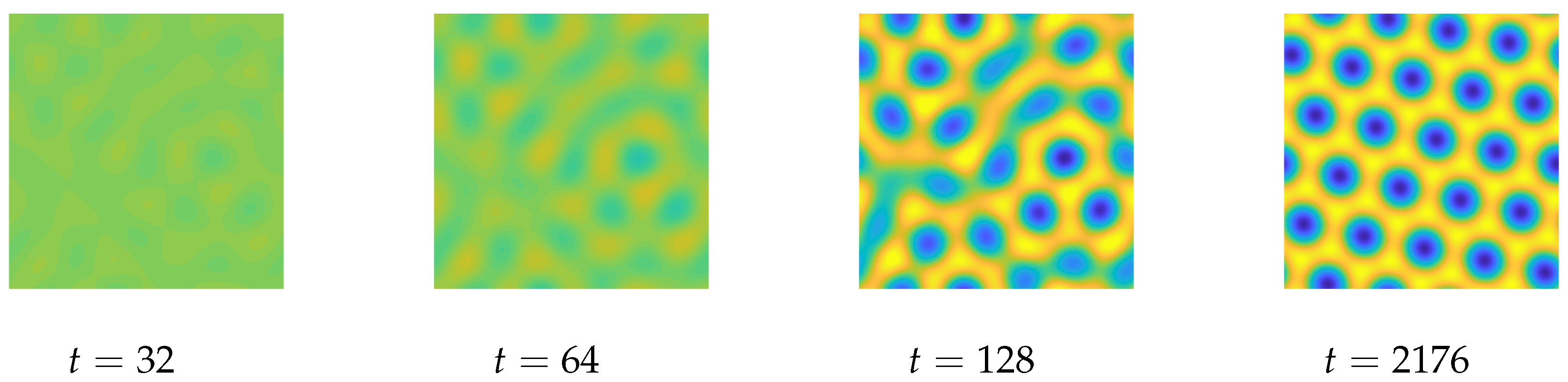

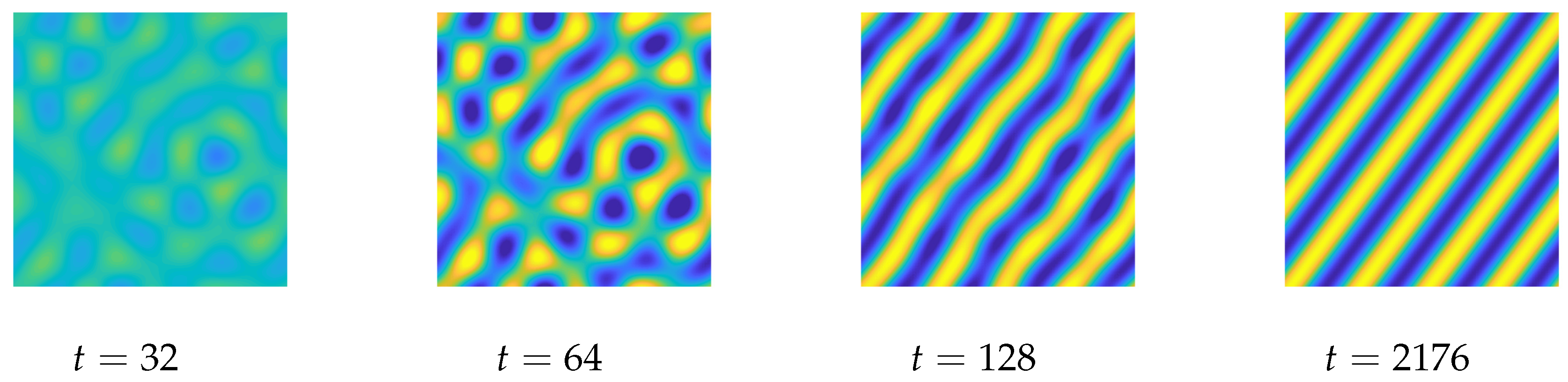

In 2D, the phase diagram contains striped, hexagonal, and constant states depending on the values of $\overline{\varphi }$ and $ϵ$ [1] (see Figure 3a). To verify that the proposed method does lead to the expected states, we take an initial condition as $\varphi (x,y,0)=\overline{\varphi }+\mathrm{rand}$ on $\mathsf{\Omega }=[0,32]\times [0,32]$. Here, rand is a random number between $-0.1$ and $0.1$ at the grid points, and we use $g=0$, $r=0$, $\Delta x=\Delta y=\frac{1}{3}$, $s=2$, and the method S3. For saving computational time, we choose different time steps as the solution evolves from random noisy stage to smooth stage: $\Delta t=\frac{1}{4}$ for $0<t\le 128$ and $\Delta t=4$ for $128<t\le 2176$. To estimate the phase diagram numerically, we calculate the indicator function defined similarly in [13]:

$$\begin{array}{c}\hfill \mathsf{\Lambda }\left(t\right)=\left\{\begin{array}{cc}{\int }_{\mathsf{\Omega }}|\varphi (\mathbf{x},t)-\overline{\varphi }|d\mathbf{x}\hfill & \mathrm{if}{\int }_{\mathsf{\Omega }}|\nabla (\varphi (\mathbf{x},t)-\overline{\varphi })|d\mathbf{x}\approx 0\hfill \\ \frac{{\int }_{\mathsf{\Omega }}|\varphi (\mathbf{x},t)-\overline{\varphi }|d\mathbf{x}}{{\int }_{\mathsf{\Omega }}|\nabla (\varphi (\mathbf{x},t)-\overline{\varphi })|d\mathbf{x}}\hfill & \mathrm{otherwise}\hfill \end{array}\right..\end{array}$$

(21)

Here, we set ${\int }_{\mathsf{\Omega }}|\nabla (\varphi (\mathbf{x},t)-\overline{\varphi })|d\mathbf{x}\approx 0$ if ${\int }_{\mathsf{\Omega }}|\nabla (\varphi (\mathbf{x},t)-\overline{\varphi })|d\mathbf{x}$ is less than ${10}^{-10}$. Figure 3b shows $\mathsf{\Lambda }\left(t\right)$ at $t=2176$ with various $\overline{\varphi }=0.02,0.04,\dots ,0.3$ and $ϵ=0.02,0.04,\dots ,0.3$. Results in Figure 3b are consistent with the phase diagram in Figure 3a. Sample time evolutions of $\varphi (x,y,t)$ with $(\overline{\varphi },ϵ)=(0.02,0.1)$, $(0.14,0.1)$, and $(0.26,0.1)$ are shown in Figure 4, Figure 5 and Figure 6, respectively. Figure 7 shows evolutions of $\mathcal{E}\left(t\right)$ and $\mathsf{\Lambda }\left(t\right)$ with $(\overline{\varphi },ϵ)$ used in Figure 4, Figure 5 and Figure 6. We remark that the solution $\varphi (x,y,t)$ with $(\overline{\varphi },ϵ)=(0.26,0.1)$ has a small but measurable perturbation from a constant state until $t=128$ (see Figure 6). In this case, ${\int }_{\mathsf{\Omega }}|\nabla (\varphi (\mathbf{x},t)-\overline{\varphi })|d\mathbf{x}\approx 0$ and $\mathsf{\Lambda }\left(t\right)$ is calculated using ${\int }_{\mathsf{\Omega }}|\varphi (\mathbf{x},t)-\overline{\varphi }|d\mathbf{x}/{\int }_{\mathsf{\Omega }}|\nabla (\varphi (\mathbf{x},t)-\overline{\varphi })|d\mathbf{x}$. Afterward, the solution evolves to a constant state, i.e., ${\int }_{\mathsf{\Omega }}|\varphi (\mathbf{x},t)-\overline{\varphi }|d\mathbf{x}\approx 0$ and ${\int }_{\mathsf{\Omega }}|\nabla (\varphi (\mathbf{x},t)-\overline{\varphi })|d\mathbf{x}\approx 0$. Thus, $\mathsf{\Lambda }\left(t\right)$ is calculated using ${\int }_{\mathsf{\Omega }}|\varphi (\mathbf{x},t)-\overline{\varphi }|d\mathbf{x}$ and approximately zero.

3.4. Comparison with Other Method

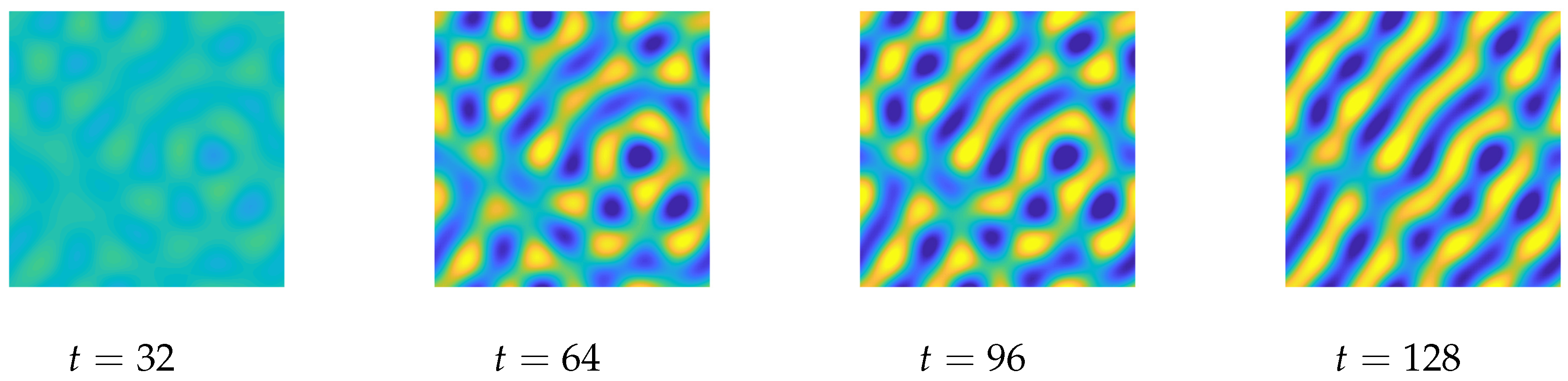

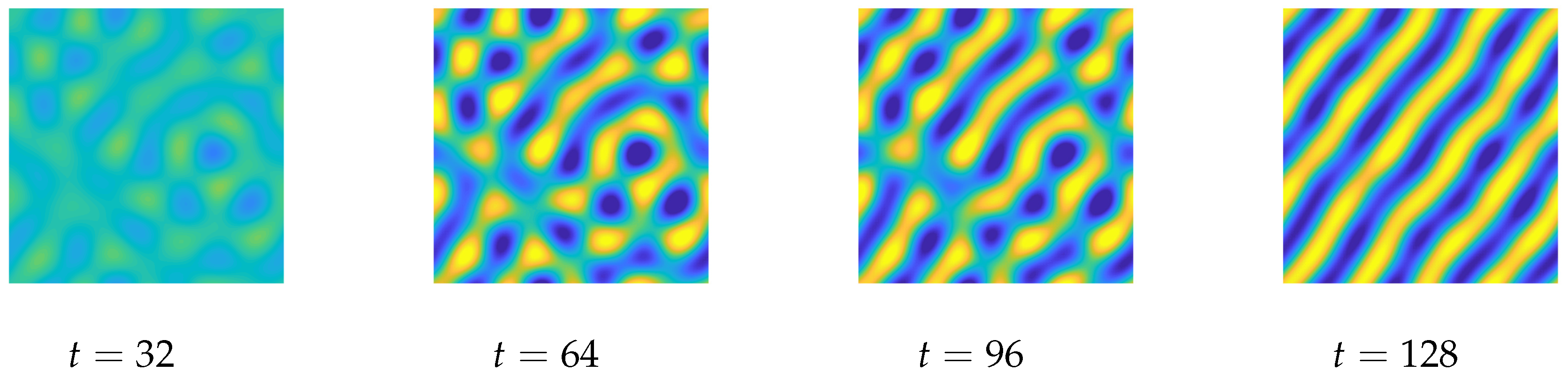

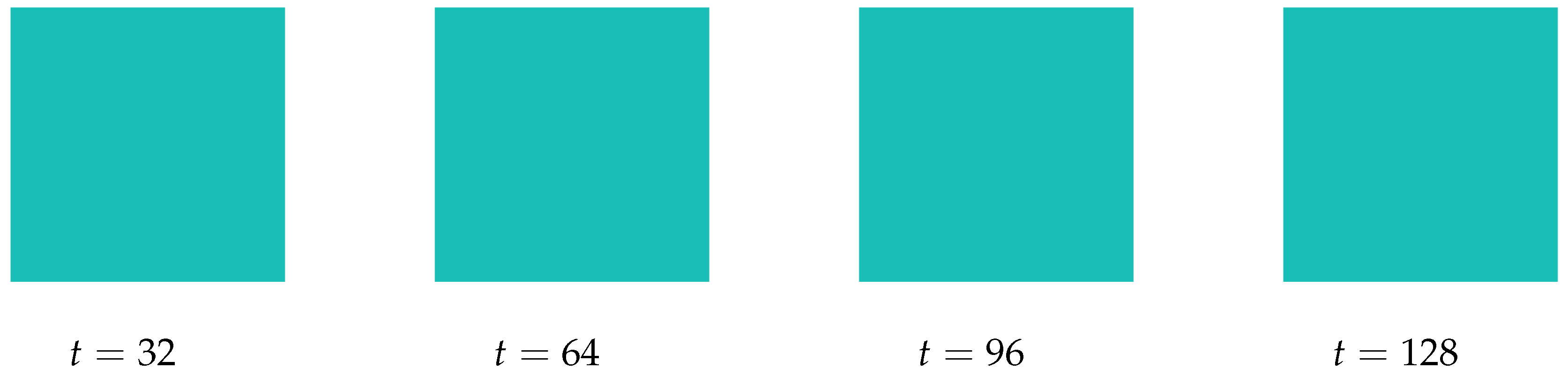

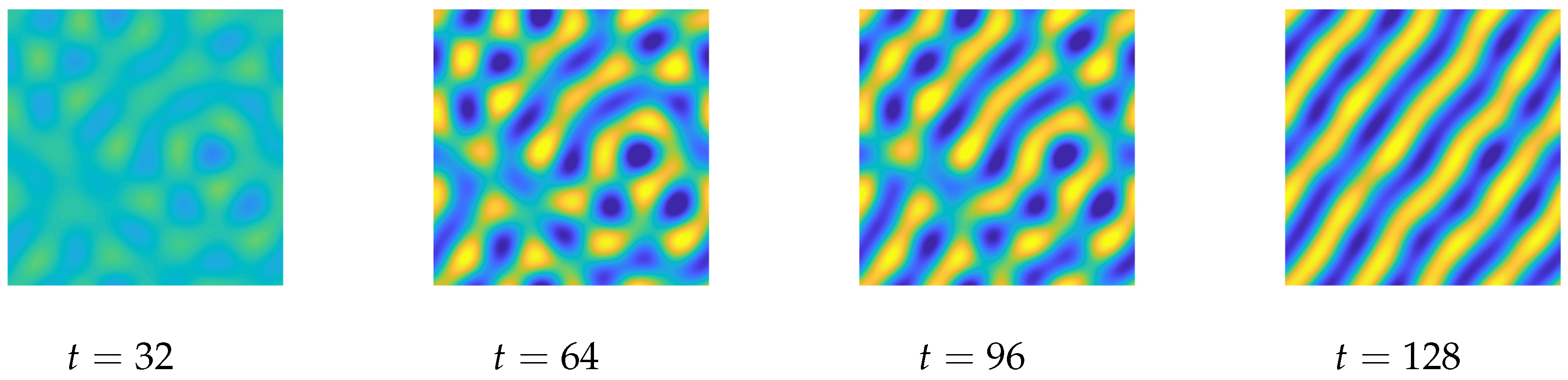

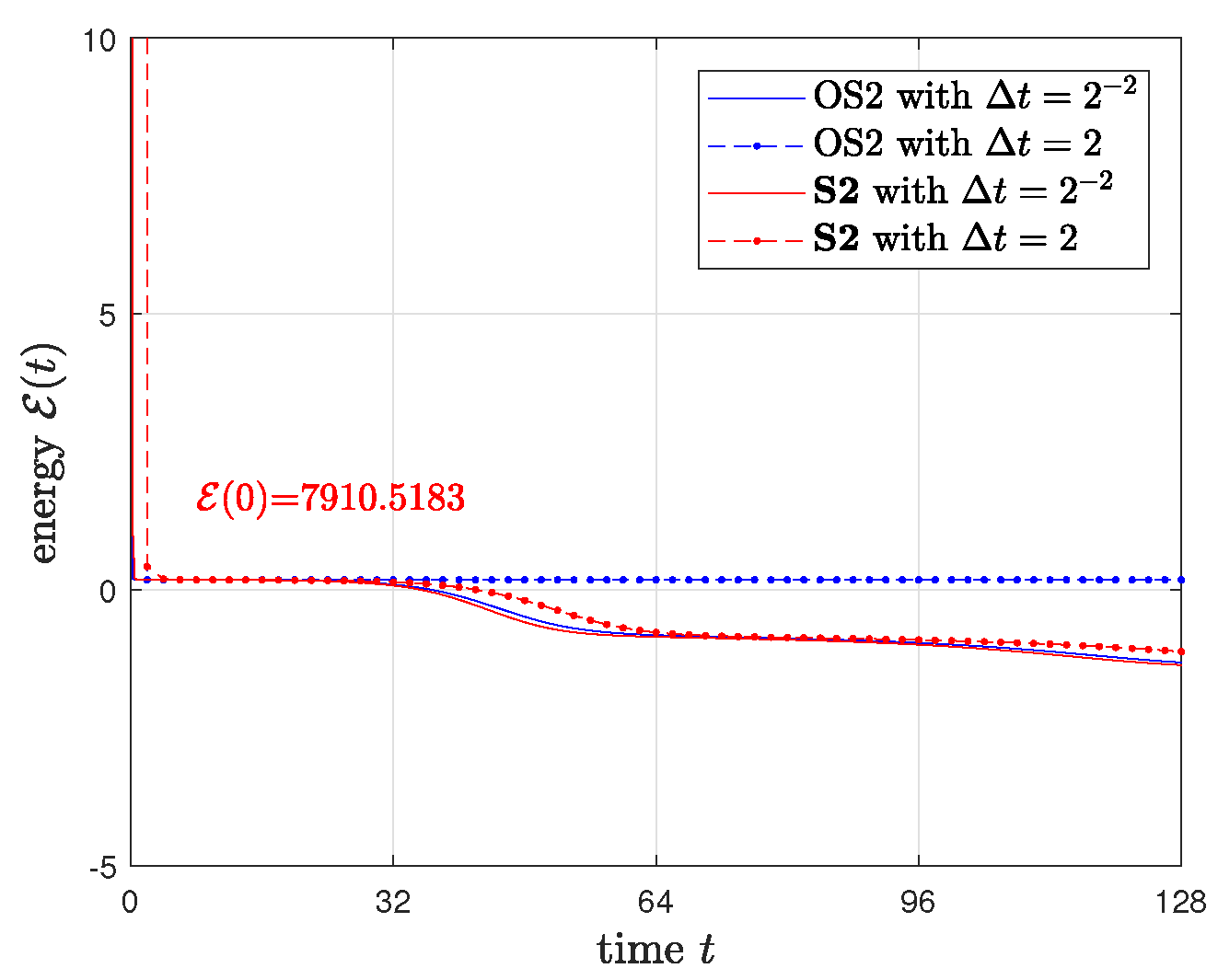

To compare the proposed method with other method, we solve the conservative SH Equation (3) using the proposed method S2 and the second-order operator splitting (OS2) method in [5] with the initial condition and parameter values used to create Figure 4 except for $\Delta t$. Figure 8 and Figure 9 show evolutions of $\varphi (x,y,t)$ using the method OS2 with $\Delta t=\frac{1}{4}$ and 2, respectively. The method OS2 with a smaller time step $\Delta t=\frac{1}{4}$ leads to the expected striped state, whereas a constant state is observed for $\Delta t=2$. Figure 10 and Figure 11 show evolutions of $\varphi (x,y,t)$ using the method S2 with $\Delta t=\frac{1}{4}$ and 2, respectively. The method S2 gives the striped state even for a large time step. Evolutions of $\mathcal{E}\left(t\right)$ for Figure 8, Figure 9, Figure 10 and Figure 11 are shown in Figure 12.

4. Conclusions

In this paper, we developed linear, first-, second-, and third-order, and mass conservative methods for the conservative SH equation by placing the linear and nonlinear terms in the implicit and explicit parts, respectively, and employing the implicit-explicit RK method. We confirmed that the proposed methods give desired order of accuracy in time, inherit the mass conservation, and are efficient (the CPU time was almost linear with respect to the number of steps and of stages). And we performed long time simulation for pattern formation in 2D, where the phase diagram can be observed clearly.
