Cluster Synchronization in Variable-Order Fractional Community Network via Intermittent Control

Abstract

In this paper, the cluster synchronization of a variable-order fractional community network with nonidentical dynamics is investigated. For achieving the cluster synchronization, intermittent controllers are designed, and the sufficient conditions with respect to system parameters, intermittent control instants and control gains are derived based on stability theory of fractional-order system and linear matrix inequalities (LMIs). To avoid verifying the LMIs, a corresponding simple corollary is provided. Finally, a numerical example is performed to verify the derived result.

1. Introduction

Many large-scale physical systems consisting of a large number of interactive individuals are modeled by various dynamical networks, including integer-order and fractional-order networks [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. The individuals and interactions are denoted by nodes and (undirected/directed) edges. A community structure is a typical topology structure in dynamical networks. The individuals in the same community usually have the same local dynamics and higher density of interactions. The individuals in different communities, however, have different local dynamics and lower density of interactions. Therefore, those in the same community tend to achieve the same goal and those in different communities achieve different goals, i.e., the community network achieves cluster synchronization [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20].

Dynamical networks, as we know, are difficult and even impossible to synchronize themselves with desired goals without external control. Many kinds of control schemes are adopted to design effective controllers to achieve cluster synchronization, such as intermittent control [1,2,3,4,5,6,7,8,9], impulsive control [10,11,12,13], pinning control [17,18,19], finite-time control [19,20], and so on. Intermittent control, as a typical discontinuous control scheme, has been widely used in real systems, such as heat systems, central air-conditioning, and so on. In [1], Zhou et al. investigated the cluster synchronization of a colored community integer-order network via intermittent pinning control. In [6], Liu et al. considered the cluster synchronization of a delayed integer-order network via intermittent pinning control.

On the other hand, a fractional-order system, in virtue of its memory and genetic characteristics, has been adopted to describe many physical systems, such as the fractional-order inductor [21], cohesive fracture model [22], quantum mechanics [36], and so on. Further, the synchronization and control of a fractional-order dynamical network have been widely investigated. In [32], the synchronization of fractional-order complex-variable dynamical networks is studied using an adaptive pinning control strategy based on a close center degree. In [33], the adaptive cluster synchronization of fractional-order complex networks with internal and coupling delays as well as time-varying disturbances is investigated via the fractional-order hybrid controllers. In [34], cluster synchronization for fractional-order complex network with non-delay and delay coupling is investigated through designing both static and adaptive feedback controllers. In [35], cluster synchronization of a fractional network with fixed order is investigated via periodically intermittent control. In the above-mentioned networks, the fractional orders are fixed, i.e., the present states always depend on the states from initial to present state, and the networks have long memory. Long memory, however, heavily increases the computational cost and reduces the performance in practical applications, for example, fast image encryption [24]. On the other hand, many real systems have only short memory, i.e., some past information is not needed and memory starts from a new state rather than the initial state. Furthermore, the fractional-orders may be variable as well [24,25,30,37,38,39,40,41,42,43,44,45]. In [40], the nutrient–phytoplankton–zooplankton model is extended using variable-order fractional derivatives. In [42], a triaxial creep model for salt rocks based on variable-order fractional derivatives is introduced. In [44], a three-cell population cancer model with variable-order fractional derivative with power, exponential and Mittag–Leffler memories is proposed. In [45], the constitutive relation for viscoelasticity is described by a variable-order fractional system with short memory. In [25], a new fractional variable-order creep model with short memory is introduced. In [24], new variable-order fractional chaotic systems are developed for fast image encryption. In [31], short memory fractional different equations are introduced for new memristor and neural network design. In [30], the Mittag–Leffler stability analysis of tempered fractional neural networks with short memory and variable-order is investigated. Up to now, the cluster synchronization of a variable-order fractional dynamical network is seldom studied via intermittent control.

Motivated by the above discussions, we consider the cluster synchronization of a variable-order fractional dynamical network by designing proper intermittent controllers. The main contributions are two-fold: (1) We generalize the results about intermittent control and cluster synchronization of integer-order networks to a fractional-order network. (2) We design effective aperiodically intermittent controllers and derive the synchronization conditions. In Section 2, we introduce the network model and some preliminaries. In Section 3, based on the stability theory of the fractional-order system and mathematical analysis technique, we derive the sufficient conditions for achieving cluster synchronization with respect to the system parameters, intermittent control instants and control gains. In Section 4, we perform a numerical example to illustrate the effectiveness of the derived results. In Section 5, we conclude this paper.

2. Model and Preliminaries

In this section, some basic definitions, lemmas and notations about the Caputo fractional-order calculus are presented, which are useful throughout this paper. In addition, the mathematical model of a variable-order fractional complex network is proposed.

Definition 1

([46]). The fractional integral of order α for a function $f\left(t\right)$ is defined as

$${}_{t_0}^C{I}_t^{\alpha }f\left(t\right)=\frac{1}{\Gamma \left(\alpha \right)}{\int }_{t_0}^t{(t-\tau )}^{\alpha -1}f\left(\tau \right)\mathrm{d}\tau ,$$

where $t\ge t_0$ and $\alpha >0$. For simplicity, denote $I_{t_0}^{\alpha }f\left(t\right)$ as ${}_{t_0}^C{I}_t^{\alpha }f\left(t\right)$.

Definition 2

([46]). The Caputo fractional derivative of function $f\left(t\right)$ is defined as

$${}_{t_0}^C{D}_t^{\alpha }f\left(t\right)=\frac{1}{\Gamma (m-\alpha )}{\int }_{t_0}^t{(t-\tau )}^{m-\alpha -1}{f}^{\left(m\right)}\left(\tau \right)\mathrm{d}\tau ,$$

where $t>t_0$, $m-1<\alpha <m$, $m\in {\mathbb{Z}}^{+}$. Let $m=1$, $0<\alpha <1$, then

$${}_{t_0}^C{D}_t^{\alpha }f\left(t\right)=\frac{1}{\Gamma (1-\alpha )}{\int }_{t_0}^t{(t-\tau )}^{-\alpha }{f}^{\prime }\left(\tau \right)\mathrm{d}\tau .$$

For simplicity, denote $D_{t_0}^{\alpha }f\left(t\right)$ as ${}_{t_0}^C{D}_t^{\alpha }f\left(t\right)$.

Lemma 1

([46]). If $u\left(t\right),v\left(t\right)\in C^1[t_0,+\infty )$ and $0<\alpha <1$, then

$$\begin{array}{cc}\hfill \left(i\right)& D_{t_0}^{\alpha }{I}_{t_0}^{\alpha }u\left(t\right)=u\left(t\right),\hfill \\ \hfill \left(ii\right)& I_{t_0}^{\alpha }{D}_{t_0}^{\alpha }u\left(t\right)=u\left(t\right)-u\left(t_0\right),\hfill \\ \hfill \left(iii\right)& D_{t_0}^{\alpha }(u\left(t\right)\pm v\left(t\right))=D_{t_0}^{\alpha }u\left(t\right)\pm D_{t_0}^{\alpha }v\left(t\right).\hfill \end{array}$$

Lemma 2

([47]). Let $V\left(t\right)$ be a continuous function on $[t_0,+\infty )$ and satisfies

$$D_{t_0}^{\alpha }V\left(t\right)⩽\theta V\left(t\right),$$

where $0<\alpha <1$ and θ is a constant, then

$$V\left(t\right)⩽V\left(t_0\right)E_{\alpha }\left(\theta {(t-t_0)}^{\alpha }\right),$$

where $E_{\alpha }(·)$ is the Mittag–Leffler function.

Lemma 3

([48]). Let $x\left(t\right)\in \mathbb{R}$ be a continuous and derivable function. Then, for any time instant $t>t_0$,

$$\frac{1}{2}{D}_{t_0}^{\alpha }{x}^2\left(t\right)⩽x\left(t\right)D_{t_0}^{\alpha }x\left(t\right),\forall \alpha \in (0,1).$$

Then, when $x\left(t\right)\in {\mathbb{R}}^n$ is continuous and derivable, it implies

$$\frac{1}{2}{D}_{t_0}^{\alpha }\left[x^T\left(t\right)Qx\left(t\right)\right]⩽x^T\left(t\right)Q{D}_{t_0}^{\alpha }x\left(t\right),\forall \alpha \in (0,1),$$

where $Q\in {\mathbb{R}}^{n\times n}$ is a positive definite matrix.

Consider a variable-order fractional community network consisting of N nodes and m communities with $2\le m\ll N$. The set of the nodes can be divided into $\{1,\cdots ,N\}={\mathcal{C}}_1\bigcup {\mathcal{C}}_2\bigcup \cdots \bigcup {\mathcal{C}}_m$, where

$${\mathcal{C}}_1=\{r_0+1,\cdots ,r_1\},{\mathcal{C}}_2=\{r_1+1,\cdots ,r_2\},\cdots ,{\mathcal{C}}_m=\{r_{m-1}+1,\cdots ,r_m\},$$

with $r_0=0,r_m=N$.

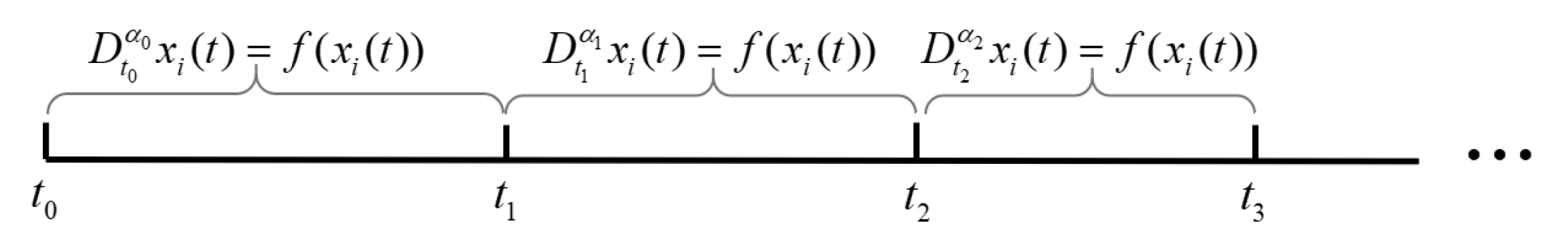

The node dynamics of the pth community is chosen as the following variable-order fractional system with short memory

$$D_{t_k}^{{\alpha }_k}{x}_i\left(t\right)=f_p\left(x_i\left(t\right)\right),t\in [t_k,t_{k+1}],i\in C_p,$$

(1)

where $0<{\alpha }_k<1,k=0,1,\cdots$, $x_i\left(t\right)={(x_{i1}\left(t\right),x_{i2}\left(t\right),\cdots ,x_{in}\left(t\right))}^T\in {\mathbb{R}}^n$, $f_p:{\mathbb{R}}^n\to {\mathbb{R}}^n$ is the nonlinear vector function, the time sequence $\left\{t_k\right\}$ satisfies $0=t_0<t_1<\cdots <t_k<t_{k+1}<\cdots$ and ${lim}_{k\to +\infty }{t}_k=+\infty$. Figure 1 shows an example of a variable-order fractional system with short memory.

The community network is described by

$$D_{t_k}^{{\alpha }_k}{x}_i\left(t\right)=f_p\left(x_i\left(t\right)\right)+c\sum _{l=1}^m\sum _{j\in C_l}{g}_{ij}\Gamma x_j\left(t\right),t\in [t_k,t_{k+1}],i\in C_p,p=1,2,\cdots ,m,$$

(2)

$c>0$ is the coupling strengths, $\Gamma =diag({\gamma }_1,{\gamma }_2,\cdots ,{\gamma }_n)>0$ is the inner coupling matrix, $G={\left(g_{ij}\right)}_{N\times N}$ is the outer coupling matrix. If node i is affected by node j$(j\ne i)$, then $g_{ij}\ne 0$; otherwise, $g_{ij}=0$, and the the diagonal elements of G are defined as $g_{ii}=-{\sum }_{j=1,j\ne i}^N{g}_{ij}$, $i=1,\cdots ,N$.

The matrix G can be written as

$$G=\left(\begin{array}{cccc}{G}_{11}& G_{12}& \cdots & G_{1m}\\ G_{21}& G_{22}& \cdots & G_{2m}\\ ⋮& ⋮& \ddots & ⋮\\ G_{m1}& G_{m2}& \cdots & G_{mm}\end{array}\right),$$

where $G_{uv}\in {\mathbb{R}}^{(r_u-r_{u-1})\times (r_v-r_{v-1})},u,v=1,2,\cdots ,m$.

Definition 3

([8]). Matrix $G=\left(g_{ij}\right)\in {\mathbb{R}}^{N\times N}$ is said to belong to class ${\mathcal{G}}_1$, if

$$g_{ij}\ge 0,i\ne j,g_{ii}=-\sum _{j=1,j\ne i}^N{g}_{ij},i=1,2,\cdots ,N,$$

and G is irreducible, denoted as $G\in {\mathcal{G}}_1$.

Definition 4

([8]). Matrix $G=\left(g_{ij}\right)\in {\mathbb{R}}^{N_1\times N_2}$ is said to belong to class ${\mathcal{G}}_2$ if its each row-sum is zero, i.e., ${\sum }_{j=1}^{N_2}{a}_{ij}=0$, $i=1,2,\cdots ,N_1$, denoted as $G\in {\mathcal{G}}_2$.

Definition 5

([8]). $G=\left(g_{ij}\right)\in {\mathbb{R}}^{N\times N}$, the indexes $\{1,2,\cdots ,N\}$ can be divided into m clusters,

$$\begin{array}{c}G=\left(\begin{array}{cccc}{G}_{11}& G_{12}& \cdots & G_{1m}\\ G_{21}& G_{22}& \cdots & G_{2m}\\ ⋮& ⋮& \ddots & ⋮\\ G_{m1}& G_{m2}& \cdots & G_{mm}\end{array}\right),G_{uv}\in {\mathbb{R}}^{(r_u-r_{u-1})\times (r_v-r_{v-1})},\end{array}$$

if $G_{uu}\in {\mathcal{G}}_1$, $G_{uv}\in {\mathcal{G}}_2$, $u,v=1,2,\cdots ,m$, then the matrix is said belong to ${\mathcal{G}}_3$, denoted as $G\in {\mathcal{G}}_3$.

Let $s_p\left(t\right)$ be a trajectory, which is satisfied with

$$D_{t_k}^{{\alpha }_k}{s}_p\left(t\right)=f_p\left(s_p\left(t\right)\right),t\in [t_k,t_{k+1}],p=1,2,\cdots ,m.$$

(3)

If

$$\underset{t\to \infty }{lim}\parallel x_i\left(t\right)-s_p\left(t\right)\parallel =0\mathrm{and}\underset{t\to \infty }{lim}\parallel s_p\left(t\right)-s_l\left(t\right)\parallel \ne 0,l\ne p,$$

where $i\in C_p$, $\parallel ·\parallel$ is the Euclidean norm, then the network is said to achieve cluster synchronization.

For achieving the cluster synchronization of the Community Network (2), we add feedback controllers $u_i\left(t\right)$ to the network. The controllers work when $t\in [t_{2\eta },t_{2\eta +1}]$ and rest when $t\in [t_{2\eta +1},t_{2\eta +2}]$, $\eta =0,1,\cdots$. As we know, the control scheme is called intermittent control, which is a typical discontinuous control scheme. We write the network with intermittent controllers as

$$\begin{array}{cc}\hfill D_{t_{2\eta }}^{{\alpha }_{2\eta }}{x}_i\left(t\right)& =f_p\left(x_i\left(t\right)\right)+c\sum _{l=1}^m\sum _{j\in C_l}{g}_{ij}\Gamma x_j\left(t\right)+u_i\left(t\right),t\in [t_{2\eta },t_{2\eta +1}],\hfill \\ \hfill D_{t_{2\eta +1}}^{{\alpha }_{2\eta +1}}{x}_i\left(t\right)& =f_p\left(x_i\left(t\right)\right)+c\sum _{l=1}^m\sum _{j\in C_l}{g}_{ij}\Gamma x_j\left(t\right),t\in [t_{2\eta +1},t_{2\eta +2}],\hfill \end{array}$$

(4)

where $i\in C_p$, $p=1,2,\cdots ,m$, $\eta =0,1,\cdots$, $u_i\left(t\right)=-c{h}_i\Gamma (x_i\left(t\right)-s_p\left(t\right))$, $h_i>$ is feedback gain.

Remark 1.

We call $u_i\left(t\right)$ continuous feedback controllers if they work for $t\in [t_k,t_{k+1}]$ and impulsive controllers if they only work for $t=t_k$, $k=0,1,2,\cdots$. If $t_{2\eta +2}-t_{2\eta }$ and $t_{2\eta +1}-t_{2\eta }$ are constants for $\eta =0,1,\cdots$, we call $u_i\left(t\right)$ periodically intermittent controllers. That is, the designed controllers in this paper are aperiodically intermittent controllers.

Denote $e_i\left(t\right)=x_i\left(t\right)-s_p\left(t\right)$, $i\in {\mathcal{C}}_p$, $E_p\left(t\right)={(e_{r_{p-1}+1}^T\left(t\right),\cdots ,e_{r_p}^T\left(t\right))}^T$, $E\left(t\right)=(E_1^T\left(t\right),\cdots ,E_m^T{\left(t\right))}^T$, $F_p\left(E_p\right)={({(f_p(x_{r_{p-1}+1})-f_p\left(s_p\right))}^T,\cdots ,{(f_p(x_{r_p})-f_p\left(s_p\right))}^T)}^T$, $H_p=diag$$(h_{r_{p-1}+1},\cdots ,h_{r_p})$, $p=1,\cdots ,m$, $H=diag(H_1,H_2,\cdots ,H_m)$. Then, we have the error system

$$\begin{array}{cc}\hfill D_{t_{2\eta }}^{{\alpha }_{2\eta }}{E}_p\left(t\right)& =F_p\left(E_p\left(t\right)\right)+c\sum _{l=1}^m(G_{pl}\otimes \Gamma )E_l\left(t\right)-c(H_p\otimes \Gamma )E_p\left(t\right),t\in [t_{2\eta },t_{2\eta +1}],\hfill \\ \hfill D_{t_{2\eta +1}}^{{\alpha }_{2\eta +1}}{E}_p\left(t\right)& =F_p\left(E_p\left(t\right)\right)+c\sum _{l=1}^m(G_{pl}\otimes \Gamma )E_l\left(t\right),t\in [t_{2\eta +1},t_{2\eta +2}].\hfill \end{array}$$

(5)

Assumption A1.

Suppose that there exists a positive definite matrix $\Delta =diag({\delta }_1,{\delta }_2,\cdots ,{\delta }_n)$ such that

$$\begin{array}{c}\hfill {(u-v)}^T(f_p\left(u\right)-f_p\left(v\right))⩽{(u-v)}^T\Delta (u-v),\end{array}$$

for any $u,v\in {\mathbb{R}}^n$.

Assumption A2.

Suppose that there exist two positive constants δ and T such that

$$\left\{\begin{array}{c}\underset{\eta }{inf}(t_{2\eta +1}-t_{2\eta })=\delta >0,\hfill \\ \underset{\eta }{sup}(t_{2\eta +2}-t_{2\eta })=T<+\infty ,\hfill \end{array}\right.$$

where $\eta =0,1,2,\cdots$.

3. Main Result

In this section, we derive the sufficient conditions for achieving cluster synchronization with respect to the system parameters, intermittent control instants and control gains.

Theorem 1.

Suppose Assumptions A1 and A2 hold and $G\in {\mathcal{G}}_3$. Controlled Network (4) can achieve cluster synchronization if there exist positive constants $a_1$, $a_2$ and $0<ϵ<1$ such that the following inequalities hold:

$$\begin{array}{cc}\hfill & \left(i\right)I_N\otimes \Delta +c(G^S\otimes \Gamma )-c(H\otimes \Gamma )+\frac{a_1}{2}(I_N\otimes I_n)⩽0,\hfill \\ \hfill & \left(ii\right)I_N\otimes \Delta +c(G^S\otimes \Gamma )-\frac{a_2}{2}(I_N\otimes I_n)⩽0,\hfill \\ \hfill & \left(iii\right)E_{{\alpha }_{2\eta }}(-a_1{\delta }^{{\alpha }_{2\eta }})E_{{\alpha }_{2\eta +1}}\left(a_2{(T-\delta )}^{{\alpha }_{2\eta +1}}\right)<ϵ,\eta =0,1,\cdots ,\hfill \end{array}$$

where $G^S=\frac{G+G^T}{2}$.

Proof.

Consider the following Lyapunov function:

$$V\left(t\right)=\frac{1}{2}\sum _{p=1}^m{E}_p^T\left(t\right)E_p\left(t\right).$$

Then the derivative of $V\left(t\right)$ along the trajectories of Equation (5) gives:

When $t\in [t_{2\eta },t_{2\eta +1}]$,

$$\begin{array}{cc}\hfill D_{t_{2\eta }}^{{\alpha }_{2\eta }}V\left(t\right)⩽& \sum _{p=1}^m{E}_p^T\left(t\right)D_{t_{2\eta }}^{{\alpha }_{2\eta }}{E}_p\left(t\right)\hfill \\ \hfill =& \sum _{p=1}^m{E}_p^T\left(t\right)\left(F_p\left(E_p\left(t\right)\right)+c\sum _{l=1}^m(G_{pl}\otimes \Gamma )E_l\left(t\right)-c(H_p\otimes \Gamma )E_p\left(t\right)\right)\hfill \\ \hfill ⩽& \sum _{p=1}^m{E}_p^T\left(t\right)F_p\left(E_p\left(t\right)\right)+c\sum _{p=1}^m\sum _{l=1}^m{E}_p^T\left(t\right)(G_{pl}\otimes \Gamma )E_l\left(t\right)\hfill \\ \hfill & -c\sum _{p=1}^m{E}_p^T\left(t\right)(H_p\otimes \Gamma )E_p\left(t\right)\hfill \\ \hfill ⩽& E^T\left(t\right)(I_N\otimes \Delta )E\left(t\right)+c{E}^T\left(t\right)(G^S\otimes \Gamma )E\left(t\right)-c{E}^T\left(t\right)(H\otimes \Gamma )E\left(t\right)\hfill \\ \hfill ⩽& E^T\left(t\right)\left(I_N\otimes \Delta +c(G^S\otimes \Gamma )-c(H\otimes \Gamma )+\frac{a_1}{2}(I_N\otimes I_n)\right)E\left(t\right)\hfill \\ \hfill & -\frac{a_1}{2}{E}^T\left(t\right)E\left(t\right)\hfill \\ \hfill ⩽& -a_{1}V\left(t\right).\hfill \end{array}$$

By Lemma 2, we have

$$V\left(t\right)⩽V\left(t_{2\eta }\right)E_{{\alpha }_{2\eta }}(-a_1{(t-t_{2\eta })}^{{\alpha }_{2\eta }}),t\in [t_{2\eta },t_{2\eta +1}]$$

(6)

and

$$V\left(t_{2\eta +1}\right)⩽V\left(t_{2\eta }\right)E_{{\alpha }_{2\eta }}(-a_1{(t_{2\eta +1}-t_{2\eta })}^{{\alpha }_{2\eta }}).$$

Similarly, when $t\in [t_{2\eta +1},t_{2\eta +2}]$,

$$\begin{array}{cc}\hfill D_{t_{2\eta +1}}^{{\alpha }_{2\eta +1}}V\left(t\right)& ⩽\sum _{p=1}^m{E}_p^T\left(t\right)D_{t_{2\eta +1}}^{{\alpha }_p}{E}_p\left(t\right)\hfill \\ \hfill & =\sum _{p=1}^m{E}_p^T\left(t\right)\left(F_p\left(E_p\left(t\right)\right)+c\sum _{l=1}^m(G_{pl}\otimes \Gamma )E_l\left(t\right)E_p\left(t\right)\right)\hfill \\ \hfill & ⩽\sum _{p=1}^m{E}_p^T\left(t\right)F_p\left(E_p\left(t\right)\right)+c\sum _{p=1}^m\sum _{l=1}^m{E}_p^T\left(t\right)(G_{pl}\otimes \Gamma )E_l\left(t\right)\hfill \\ \hfill & ⩽E^T\left(t\right)(I_N\otimes \Delta )E\left(t\right)+c{E}^T\left(t\right)(G^S\otimes \Gamma )E\left(t\right)\hfill \\ \hfill & ⩽E^T\left(t\right)\left(I_N\otimes \Delta +c(G^S\otimes \Gamma )-\frac{a_2}{2}(I_N\otimes I_n)\right)E\left(t\right)+\frac{a_2}{2}{E}^T\left(t\right)E\left(t\right).\hfill \\ \hfill & ⩽a_{2}V\left(t\right).\hfill \end{array}$$

which implies,

$$V\left(t\right)⩽V\left(t_{2\eta +1}\right)E_{{\alpha }_{2\eta +1}}\left(a_2{(t-t_{2\eta +1})}^{{\alpha }_{2\eta +1}}\right)$$

(7)

and

$$\begin{array}{cc}\hfill V\left(t_{2\eta +2}\right)& ⩽V\left(t_{2\eta +1}\right)E_{{\alpha }_{2\eta +1}}\left(a_2{(t_{2\eta +2}-t_{2\eta +1})}^{{\alpha }_{2\eta +1}}\right)\hfill \\ \hfill & ⩽V\left(t_{2\eta }\right)E_{{\alpha }_{2\eta }}(-a_1{(t_{2\eta +1}-t_{2\eta })}^{{\alpha }_{2\eta }})E_{{\alpha }_{2\eta +1}}\left(a_2{(t_{2\eta +2}-t_{2\eta +1})}^{{\alpha }_{2\eta +1}}\right).\hfill \end{array}$$

Thus, for any positive integer l, we have

$$\begin{array}{cc}\hfill V\left(t_{2l}\right)& ⩽V\left(0\right)\prod _{\eta =0}^{l-1}{E}_{{\alpha }_{2\eta }}(-a_1{(t_{2\eta +1}-t_{2\eta })}^{{\alpha }_{2\eta }})E_{{\alpha }_{2\eta +1}}\left(a_2{(t_{2\eta +2}-t_{2\eta +1})}^{{\alpha }_{2\eta +1}}\right)\hfill \\ \hfill & ⩽V\left(0\right)\prod _{\eta =0}^{l-1}{E}_{{\alpha }_{2\eta }}(-a_1{\delta }^{{\alpha }_{2\eta }})E_{{\alpha }_{2\eta +1}}\left(a_2{(T-\delta )}^{{\alpha }_{2\eta +1}}\right)\hfill \\ \hfill & ⩽V\left(0\right){ϵ}^l\hfill \end{array}$$

and ${lim}_{l\to +\infty }V\left(t_{2l}\right)=0$. Then, for $t\in [t_{2l},t_{2l+1}]$, we have $V\left(t\right)⩽V\left(t_{2l}\right)E_{{\alpha }_{2l}}(-a_1{(t-t_{2l})}^{{\alpha }_{2l}})$ from Equation (6), i.e., ${lim}_{l\to +\infty }V\left(t\right)=0$ and ${lim}_{l\to +\infty }V\left(t_{2l+1}\right)=0$. Similarly, for $t\in [t_{2l+1},t_{2l+2}]$, we also have ${lim}_{l\to +\infty }V\left(t\right)=0$ from Equation (7). Therefore, ${lim}_{t\to +\infty }V\left(t\right)=0$, i.e., ${lim}_{t\to +\infty }\parallel e_i\left(t\right)\parallel =0$ and the cluster synchronization is achieved. □

Let ${\delta }^{*}=max\{{\delta }_i,i=1,2,\cdots ,n\}$, $g^{*}={\lambda }_{max}(G^S\otimes \Gamma )$, and $h^{*}={\lambda }_{max}(H\otimes \Gamma )$, we have the following corollary.

Corollary 1.

Suppose all Assumptions in Theorem 1 hold. Controlled Network (4) can achieve cluster synchronization if there exist positive constants $a_1$, $a_2$ and $0<ϵ<1$ such that the following inequalities hold:

$$\begin{array}{cc}\hfill & \left(i\right){\delta }^{*}+c{g}^{*}-c{h}^{*}+\frac{a_1}{2}⩽0,\hfill \\ \hfill & \left(ii\right){\delta }^{*}+c{g}^{*}-\frac{a_2}{2}⩽0,\hfill \\ \hfill & \left(iii\right)E_{{\alpha }_{2\eta }}(-a_1{\delta }^{{\alpha }_{2\eta }})E_{{\alpha }_{2\eta +1}}\left(a_2{(T-\delta )}^{{\alpha }_{2\eta +1}}\right)<ϵ,\eta =0,1,\cdots .\hfill \end{array}$$

Remark 2.

For any given Network (4), by simple calculations, we can choose proper $a_2$ satisfying condition ($ii$) in Theorem 1, and then choose a proper $a_1$ satisfying condition ($iii$). Finally, we can choose feedback gains $h_i$ such that condition (i) holds.

Remark 3.

In this paper, the variable-order function is a piecewise constant function. When ${\alpha }_k=\alpha$ for all $k=0,1,\cdots$, the variable-order fractional network degenerates to a conventional fractional-order network in [49]. Furthermore, condition (iii) in Theorem 1 (or Corollary 1) is rewritten as $E_{\alpha }(-a_1{\delta }^{\alpha })E_{\alpha }\left(a_2{(T-\delta )}^{\alpha }\right)<ϵ$, which is similar to condition (iii) in Theorem 1 of Ref. [49]. That is, the obtained results generalize the results in Ref. [49] from constant order to variable order.

Remark 4.

If we choose ${\alpha }_k=1,k=0,1,\cdots$, then Network (4) is an integer-order network, and condition (iii) in Theorem 1 (or Corollary 1) is rewritten as $e^{-a_1\delta +a_2(T-\delta )}<ϵ<1$. Further, we have $-a_1\delta +a_2(T-\delta )=lnϵ<0$, which is similar to the condition in Theorem 1 of Ref. [8]. That is, we generalize the results in Ref. [8] from integer-order network to fractional-order network.

4. Simulation Results

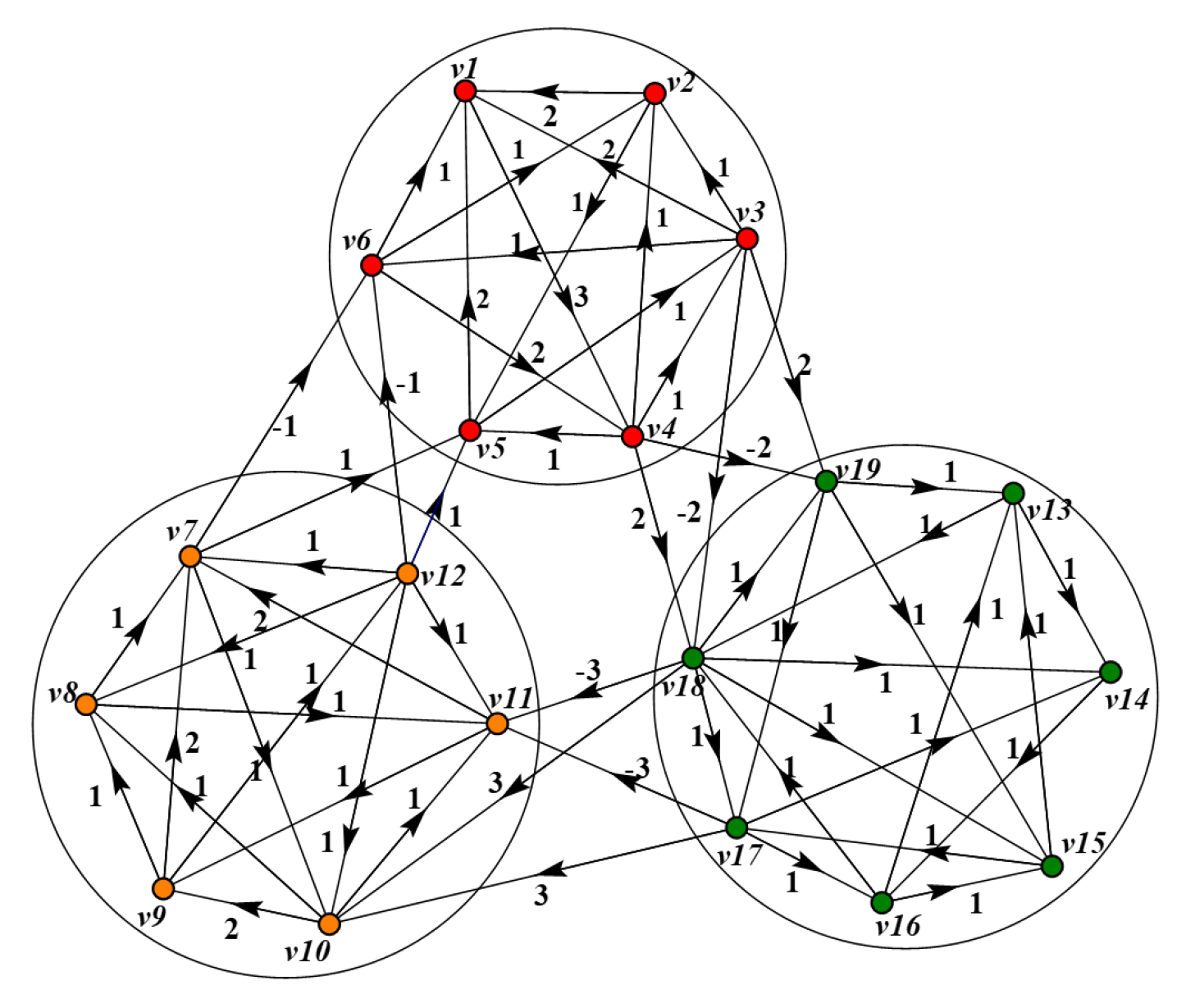

Consider a variable-order fractional community network consisting of 19 nodes and 3 communities. The topology of the network is shown in Figure 2.

The node dynamics of the pth community is chosen as a variable-order Chen system [24]:

$$\left\{\begin{array}{c}{D}_{t_k}^{{\alpha }_k}{x}_{i1}={\tilde{a}}_p(x_{i2}-x_{i1}),\hfill \\ D_{t_k}^{{\alpha }_k}{x}_{i2}=(\tilde{c}-{\tilde{a}}_p)x_{i1}-x_{i1}{x}_{i3}+\tilde{c}{x}_{i2},\hfill \\ D_{t_k}^{{\alpha }_k}{x}_{i3}=x_{i1}{x}_{i2}-\tilde{b}{x}_{i3},\hfill \end{array}\right.$$

(8)

where $i=1,2,\cdots ,19$, $p=1,2,3$, $k=0,1,\cdots$, $0<{\alpha }_k<1$. The coefficients are ${\tilde{a}}_1=30$, ${\tilde{a}}_2=35$, ${\tilde{a}}_3=40$, $\tilde{b}=3$ and $\tilde{c}=28$. According to [50,51], when $0.93⩽{\alpha }_k⩽0.99$, the variable-order Chen system exhibits a chaotic orbit.

The variable orders ${\alpha }_k$ of the variable-order fractional Chen system (System (8)) are chosen, as shown in

Table 1. The variable orders in System (8).

k	0	1	2	3	4	5	6	7
${\alpha }_k$	0.99	0.97	0.98	0.96	0.99	0.93	0.95	0.94
k	8	9	10	11	12	13	14	15
${\alpha }_k$	0.97	0.95	0.96	0.95	0.97	0.99	0.98	0.98

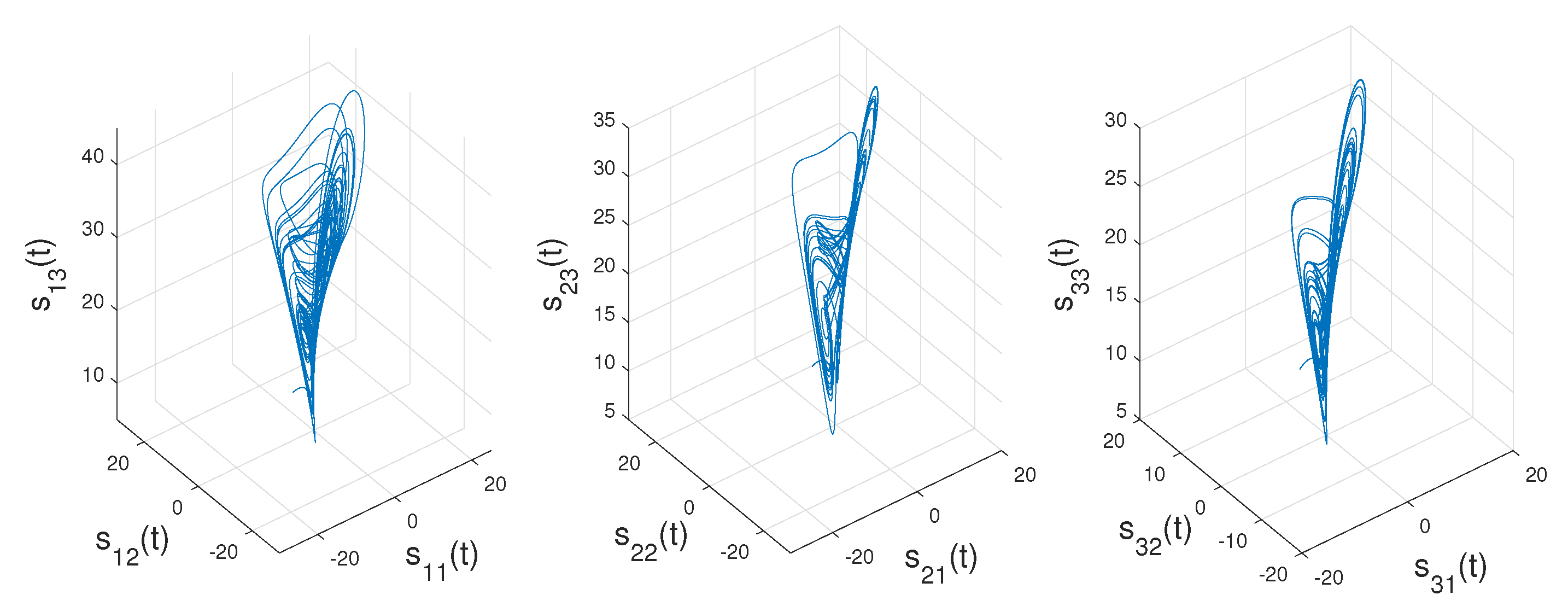

, and the chaotic orbits are shown in Figure 3. From Figure 3, we have $\left(\right|s_{11}|,|s_{12}|,|s_{13}\left|\right)<(24,28,54)$, $\left(\right|s_{21}|,|s_{22}|,|s_{23}\left|\right)<(21,24,38)$, $\left(\right|s_{31}|,|s_{32}|,|s_{33}\left|\right)<(17,18,28)$.

For the node dynamics of the pth community, we have

$$\begin{array}{cc}\hfill & {(x_i-s_p)}^T(f_p\left(x_i\right)-f_p\left(s_p\right))\hfill \\ \hfill & =e_i^T{({\tilde{a}}_p{e}_{i2}-\tilde{a}{e}_{i1},(\tilde{c}-\tilde{a})e_{i1}-x_{i1}{x}_{i3}+s_{p1}{s}_{p3}+\tilde{c}{e}_{i2},x_{i1}{x}_{i2}-s_{p1}{s}_{p2}-\tilde{b}{e}_{i3})}^T\hfill \\ \hfill & ={\tilde{a}}_p{e}_{i1}{e}_{i2}-\tilde{a}{e}_{i1}^2+(\tilde{c}-\tilde{a})e_{i1}{e}_{i2}+e_{i2}(-x_{i1}{e}_{i3}-e_{i1}{s}_{p3})+\tilde{c}{e}_{i2}^2+e_{i3}(x_{i1}{e}_{i2}+e_{i1}{s}_{p2})-\tilde{b}{e}_{i3}^2\hfill \\ \hfill & =-{\tilde{a}}_p{e}_{i1}^2+\tilde{c}{e}_{i2}^2-\tilde{b}{e}_{i3}^2+\tilde{c}{e}_{i1}{e}_{i2}-s_{p3}{e}_{i1}{e}_{i2}+s_{p2}{e}_{i1}{e}_{i3}\hfill \\ \hfill & ⩽(-{\tilde{a}}_p+\frac{\tilde{c}+\left|s_{p3}\right|}{2\eta }+\frac{|s_{p2}|}{2\rho })e_{i1}^2+(\tilde{c}+\frac{\tilde{c}+\left|s_{p3}\right|}{2}\eta )e_{i2}^2+(-\tilde{b}+\frac{|s_{p2}|}{2}\rho )e_{i3}^2\hfill \\ \hfill & ⩽{\lambda }_p{(x_i-s_p)}^T(x_i-s_p),\hfill \end{array}$$

where ${\lambda }_p=max\{-{\tilde{a}}_p+\frac{\tilde{c}+\left|s_{p3}\right|}{2\eta }+\frac{|s_{p2}|}{2\rho },\tilde{c}+\frac{\tilde{c}+\left|s_{p3}\right|}{2}\eta ,-\tilde{b}+\frac{|s_{p2}|}{2}\rho \}$. By simple calculations, we can choose $\Delta =diag(50.14,50.14,50.14)$ such that Assumption 1 holds.

The network with intermittent controllers is written as

$$\left\{\begin{array}{c}{D}_{t_{2\eta }}^{{\alpha }_{2\eta }}{x}_i\left(t\right)=f_p\left(x_i\left(t\right)\right)+c{\displaystyle \sum _{l=1}^m}{\displaystyle \sum _{j\in C_l}}{g}_{ij}\Gamma x_j\left(t\right)-c{h}_i\Gamma (x_i\left(t\right)-s_p\left(t\right)),t\in [t_{2\eta },t_{2\eta +1}],\hfill \\ D_{t_{2\eta +1}}^{{\alpha }_{2\eta +1}}{x}_i\left(t\right)=f_p\left(x_i\left(t\right)\right)+c{\displaystyle \sum _{l=1}^m}{\displaystyle \sum _{j\in C_l}}{g}_{ij}\Gamma x_j\left(t\right),t\in [t_{2\eta +1},t_{2\eta +2}].\hfill \end{array}\right.$$

We choose $\delta ={inf}_{\eta }(t_{2\eta +1}-t_{2\eta })=0.04>0$, $T={sup}_{\eta }(t_{2\eta +2}-t_{2\eta })=0.06<+\infty$ in Assumption 2.

In numerical simulations, we choose $c=1$, $\Gamma$ as an identity matrix, the time sequence $\left\{t_k\right\}$ in

Table 2. The time sequence $\left\{t_k\right\}$.

k	0	1	2	3	4	5	6	7
$t_k$	0	$0.04$	$0.05$	$0.10$	$0.11$	$0.15$	$0.17$	$0.21$
k	8	9	10	11	12	13	14	15
$t_k$	$0.22$	$0.27$	$0.28$	$0.32$	$0.34$	$0.38$	$0.40$	0.42

, the initial values are $s_p\left(0\right)={(-9,-5,14)}^T$, $p=1,2,3$$x_i\left(0\right)={(25sin(3(i-1)+1),25sin(3(i-1)+2),25sin(3(i-1)+3))}^T$. By simple calculations, we have $g^{*}=0.9636$. Then we choose $h^{*}=89$, $a_1=74.5$ and $a_2=103$ such that

$$\begin{array}{cc}\hfill & \left(i\right){\delta }^{*}+c{g}^{*}-c{h}^{*}+\frac{a_1}{2}=-0.6464⩽0,\hfill \\ \hfill & \left(ii\right){\delta }^{*}+c{g}^{*}-\frac{a_2}{2}=-0.3964⩽0,\hfill \\ \hfill & \left(iii\right)E_{{\alpha }_{2\eta }}(-a_1{\delta }^{{\alpha }_{2\eta }})E_{{\alpha }_{2\eta +1}}\left(a_2{(T-\delta )}^{{\alpha }_{2\eta +1}}\right)⩽0.9910<1.\hfill \end{array}$$

i.e., the conditions in Corollary 1 are satisfied, and cluster synchronization is achieved. The trajectories of $x_{ij}$ and $s_{pj}$, $i=1,2,\cdots ,19$, $j=1,2,3,p=1,2,3$ are shown in Figure 4.

5. Conclusions

The cluster synchronization of a variable-order fractional community network is studied via intermittent control. The local dynamics of different communities are nonidentical. The synchronization conditions are derived according to the stability theory of a fractional-order system and LMIs. Furthermore, the obtained result is verified to be correct by a numerical example.
