An Agent-Based Model-Driven Decision Support System for Assessment of Agricultural Vulnerability of Sugarcane Facing Climatic Change

Abstract

In recent years, there have been significant changes in weather patterns, mainly caused by sharp increases in temperature, increases in carbon dioxide, and fluctuations in precipitation levels, negatively impacting agricultural production. Agricultural systems are characterized by being vulnerable to the variation of biophysical and socioeconomic factors involved in the development of agricultural activities. Agent-based models (ABMs) enable the study, analysis, and management of ecosystems through their ability to represent networks and their spatial nature. In this research, an ABM is developed to evaluate the behavior and determine the vulnerability in the sugarcane agricultural system; allowing the capitalization of knowledge through characteristics such as social ability and autonomy of the modeled agents through fuzzy logic and system dynamics. The methodology used includes information networks for a dynamic assessment of agricultural risk modeled by time series, system dynamics, uncertain parameters, and experience; which are developed in three stages: vulnerability indicators, crop vulnerability, and total system vulnerability. The development of ABM, a greater impact on the environmental contingency is noted due to the increase in greenhouse gas emissions and the exponential increase in extreme meteorological phenomena threatening the cultivation of sugarcane, making the agricultural sector more vulnerable and reducing the yield of the harvest.

1. Introduction

In Mexico, agricultural activities have a greater impact on the rural and industrial environment as it is the main source of income and food supplies through the exploitation of natural resources and positions itself as one of the main means of employment for the rural population [1].

Agricultural activities that heavily depend on the weather have a high vulnerability because of changes in climate patterns, mainly rainfall and extreme weather phenomena such as drought, extreme rain, hailstorms, and cyclones are having negative effects on agricultural activities causing the loss of crops globally and a decrease in food security [2]. The main impacts on the agricultural sector include, but are not limited to, severe damage to crops, soil erosion, inability to cultivate due to soil water saturation, adverse effects on water quality, water stress, and increased death of livestock [3]. Nevertheless, when speaking of the vulnerability of agricultural activities to climate change, not only extreme meteorological phenomena should be considered but also the expected environmental impacts such as incidence of forest fires, increase in pests and diseases, problems with water quality, and temperature variation; this results in lower crop yields caused by heat in warmer environments. As weather conditions change, the behavior of production areas should adapt to new changes and increasingly depend on the availability of water, mainly plants that do not have an irrigation system and are dependent on rainwater. An increase in the vulnerability rate among agricultural producers is therefore estimated due to the limited access to physical and material resources that make it possible to deal with environmental changes.

In this regard, agribusiness sugarcane has great potential for mitigating climate change through diversification in cogeneration and sustainable production of by-products as an effective means of curbing greenhouse gas emissions through the use of NPK (nitrogen-phosphorus-potassium) fertilizers [4]. Global food production contributes 26% to greenhouse gas emissions, of which 7.02% is from crop production [5]. According to the Food and Agriculture Organization, pollutant emissions from agriculture in developing countries rose 32% between 1990 and 2005, and this trend is expected to continue to meet the demands of food products by a growing population.

The main objective of this study is an assessment of vulnerability to climate change in the agricultural sector through agent-based modeling (ABM) by identifying socioeconomic and ecological variables to determine vulnerability and agricultural risk in the cultivation of sugarcane. The categorization of vulnerability is vital in decision making, allows determining the degree of vulnerability-risk existing in the system through the determination and identification of impact variables for the development of scenarios with effective adaptation measures to mitigate the impact. The purpose of the research is to assist in the decision-making process to maximize crop yields by generating work schemes that lead to the development of adaptation and/or mitigation actions to address climate change.

Agent-based models (ABMs) are characterized by their ability to analyze heterogeneous agents and their interactions to simulate emergent properties of the system [6]. The ABMs comprise several autonomous and independent virtual agents with their own goals [7]. The system under investigation is characterized by autonomous and independent agents (vulnerability indicator and crop yield agent), which transmit information to determine the vulnerability of the system (agent-total vulnerability of the system). While the flow of information handles virtual agents defined by variables that form information networks represented by models of the system dynamics and fuzzy logic. Based on the above, the research hypothesis is whether the development of the decision support system for the assessment of the agricultural vulnerability of sugarcane will allow the generation of alternative scenarios through an agent-based approach to minimize levels of vulnerability by means of the implementation of a reactive agent.

The sections that define this research are: Firstly, Background, this section shows the review of the literature on the impact of climate vulnerability in the agricultural sector. It then describes the methodology used in developing research based on intelligent agents and artificial intelligence techniques in Materials and Methods. In the Results and Discussion section, the research contributions are shown under the context of climate change in the sugarcane agricultural system. Finally, in the Conclusion section, the contribution of the proposed methodology to the identification of the critical variables of the system in the vulnerability assessment is mentioned.

2. Background

The effects of climate change on the agricultural supply chain have been compounded over the past 20 years by increasing demand for food and increasing population density. The expansion of arable land, pastures, plantations, and urban areas in the world, as well as the increase in the consumption of energy, water, and fertilizers, have led to changes in the land cover through the development of uncontrolled agriculture and the use of biofuels, which cause many environmental and socio-economic impacts such as greenhouse gas emissions, water availability, and pollution, deforestation, loss of biodiversity, loss of access to land [8].

The effects generated by climate change have had serious repercussions on the environment, mainly impacting agricultural systems. These impacts are mainly based on variations in variables such as temperature and precipitation levels. As a consequence, these variations have significant impacts on crops, with grain crops being the most affected by phenomena such as droughts and heat waves. The latter has the greatest impact on flowering, reproductive phase, and crop yields due to its influence on crop physiological processes such as pollination and photosynthesis at the soil level, generating crop losses; heat stress in crops indicates that even moderate increases in temperature reduce the yield of crops such as corn, beans, rice, and peanuts. High night temperatures can negatively influence crop yields. The incidence of weather events produces significant changes in crop yields, mainly affecting the economic sector of the agricultural supply chain [9,10,11,12].

Extreme weather events are recorded in Central America, which severely affect agriculture and rural livelihoods [13]. Government agencies have taken action to combat climate threats, such as implementing environmental policies to reduce uncertainty [14] through the management of agricultural resources [15]. Likewise, soil degradation [16] has a significant impact on agricultural activities and makes it impossible to reproduce plants, which is why it is necessary to develop soil management practices to reverse this problem [17].

Determining factors that increase risk requires a comprehensive analysis of the physical condition of the region, land use, biodiversity, and period [18,19]. Implementing agro-climate models enables the quantification of the impacts, the optimization of the management of agricultural practices, and predicting future trends in crop behavior [10,20,21].

A vulnerability assessment system in an agricultural system that combines biophysical and socio-economic aspects was developed in western Austria [20]. The research aims to quantify the effects of the biophysical aspects (variability of climate change, soil, topography, and agronomic conditions). With the development and application of models to minimize the impact of the vulnerability in agriculture due to climate change, areas of improvement (fertilization, irrigation types, etc.) in agricultural production systems have been discovered to increase their profitability.

Within agricultural evaluation systems, decision support systems (DSS) play an important role in agricultural decision-making to improve agricultural productivity. [21] Developed a multi-criteria analysis where they evaluate and select the most suitable support system for sustainable agribusiness. The analysis was developed in fuzzy logic through the construction of linguistic variables modeled by fuzzy sets with the objective is to determine sustainable agricultural performance by analyzing three critical factors, including (i) the technology employed; (ii) organization including type and scale of farm and budget; and (iii) environment. The authors implemented the model developed in the Australian region, where agricultural productivity is threatened by increasing degradation of soil quality, increasing cost of nutrient inputs and land uses. In addition to the three critical factors mentioned above, the authors added criteria (iv) economic and (v) social. As a result of the research, it was shown that the technology factor offers a greater competitive advantage to maximize agricultural yield, therefore; the study provides an effective methodology for agricultural management evaluation.

In the evaluation of agricultural systems, resource limitation is a preponderant factor; [22] developed a model for planning the performance of irrigation systems in Turkey. The model estimates daily reference evapotranspiration values through models developed in deep learning-based gated recurrent units (GRUs) and tree-based models. The developed models consider meteorological variables such as maximum and minimum temperature, wind speed, relative humidity, dew point temperature, and duration of sunshine times. The models obtained determined that the maximum temperature was determinant in the estimation of evapotranspiration.

Platforms powered by models based on agricultural information systems were developed using artificial intelligence to characterize and analyze climate vulnerability [23]. These models can estimate crop production and yield and quantify environmental variables such as water and nitrogen balances, organic substances, greenhouse gas emissions, etc. These models are supported by information systems based on vulnerability indicators to identify climate-relevant risks during the management of agricultural activity [24]. The agro-climatic indicators are generated through simulations of climatic conditions that represent impact variables that characterize the system (length of heatwaves, number of frost days, precipitation, and temperature). The results achieved make it possible to identify areas of opportunity that minimize the risks and impacts on agriculture in the face of climate change.

Models have been developed based on the distribution of climate classes and based on data on the biodiversity of the climate in a given area [25]. The data show a high level of bias. For this reason, it is necessary to use alternative sources of information to reduce the distortion. The modeling was carried out through the knowledge of the expert, with six categories defined to describe the diversity of the climate based on the influencing variables (temperature and precipitation) of the model to reduce the risk of bias during modeling.

Studies have been developed on the analysis of multi-agent systems for ecosystem management and found that the greatest advantage of agent-based modeling (ABM) is the combination of spatial nature and the ability to represent networks [26]. Benefits of implementing ABM include: (i) ability to couple social and environmental models, (ii) ability to examine environmental management strategies, and (iii) ability to model individual entities in decision making through their interactions; Therefore, the greatest challenge is to show that ABMs can provide new insights into the complex natural systems [6]. ABMs are typically used to model land use, land cover, and information exchange over networks that are integrated by agents on a larger or smaller scale; where the agents interact directly to weave every link within the network [27]. ABMs are used to create new models that adopt different approaches that include microeconomic models and empirical rules [28,29]. Implementing ABM integrates economic, social, and environmental components [30].

The methodologies analyzed in the background to address this problem are mostly integrated by models and information systems based on environmental indicators for the management of agricultural practices, characterization of biophysical aspects, and farm management, mainly. Among the techniques used for the development of these investigations are agroclimatic models developed through simulation and fuzzy logic with the objective of environmental characterization. The methodology developed in this research provides a macro-model based on ABM’s that integrates experience and knowledge of the actors involved (fuzzy logic) and simulation of uncertain parameters and decision variables (system dynamics). The interaction of the techniques used above allows the communication of information networks made up of environmental and socioeconomic factors for the development of indicators that allow a dynamic and systemic study of the agricultural system under study.

The previous studies address the problem of climate change in agricultural systems under an environmental approach using modeling and simulation; however, the results of these approaches focus on the development of agroclimatic indicators constructed from climate simulations, handling socioeconomic factors as isolated factors, and in some cases, these are not considered in the modeling.

For this reason, the proposed systems in this research include an integral analysis of all the elements of the agricultural system under study, allowing an area of opportunity to comprehensively identify the behavior pattern of the agricultural system facing climate change. The present research proposes an agent-based model considering environmental, socioeconomic, and agricultural factors for the global integration of the agricultural system under study based on experience, knowledge and modeling the uncertainty of the system through fuzzy logic and system dynamics. Agent-based modeling offers the creation of new models at micro and macro levels that allow the evaluation of agricultural vulnerability and risk through scenarios of quantitative impacts generated by climate change to propose work schemes that lead to adaptation actions.

3. Materials and Methods

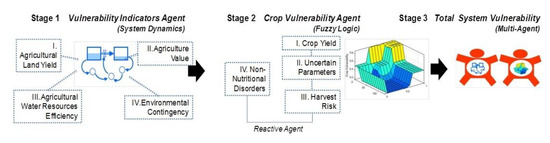

The following section describes the three primary stages of the methodology used in this work, as shown in Figure 1. In the first stage, the socio-economic and environmental variables that determine vulnerability and agricultural risk were identified. With the variables obtained, it is proposed to develop a model for assessing vulnerability in the agricultural sector using an agent-based modeling approach (ABM) called Agent Vulnerability Indicators, which comprises four networks developed by system dynamics. Each network includes information on land use, water resources, land value, and gas emissions. In the second stage, the Crop Agent is developed with the help of artificial intelligence techniques (fuzzy logic) to determine the vulnerability of the study crop (sugarcane). The flow of information between the agents of stages 1 and 2 then determines the global vulnerability of sugarcane in the agricultural sector (Stage 3).

To achieve a better representation of the agricultural system, the developed model deals with complex representations for the decision-making process, considering risk, learning, and social interactions between agents. The multi-agent model, therefore, has a knowledge base which is composed of: (i) probability distributions which are defined by a database, and (ii) specialist knowledge.

According to the ABM approach, the agents that represent each of the stages of the multi-agent system are entities that demonstrate autonomy and proactivity (active agents). While passive entities are represented by each of the variables that integrate the information networks (sub-models of system dynamics and fuzzy logic).

Table 1. Agent classification.

Agent	Role	Activities
Vulnerability indicators	Active	Models the behavior of networks to bring information to the decision center.
Crop vulnerability	Decision	It is in charge of decision-making when modifying agricultural practices to minimize vulnerability in the crop.
Non-nutritional disorders	Reactive	It provides a stimulus-response to unexpected events in the system.
Total system vulnerability	Active	Models the information obtained by the agents to determine the level of vulnerability in the system.
Information network variables (population of agents)	Passive	Store information through databases.

describes the agents used in the multi-agent system and their major functions according to the classification of Yancato-Gurmán [31].

Each of the stages of the methodology is described below.

• Stage 1. Evaluation of vulnerability in the agricultural sector: Agent of Vulnerability Indicators

The agent-based model (ABM) developed is a stochastic model in which the variables store and represent random quantities that are defined by probability distributions that change over time. The system dynamics methodology [32] enables the modeling and simulation of complex systems such as agricultural systems. This enables the behavior of the system to be simulated by feeding back information between the individual variables to understand and improve the interaction of their components [33].

For the modeling of the vulnerability indicator agent, the causal diagram was developed to represent the structure of the system and the flowchart that can simulate its behavior (Figure 2).

3.1. Conceptualization

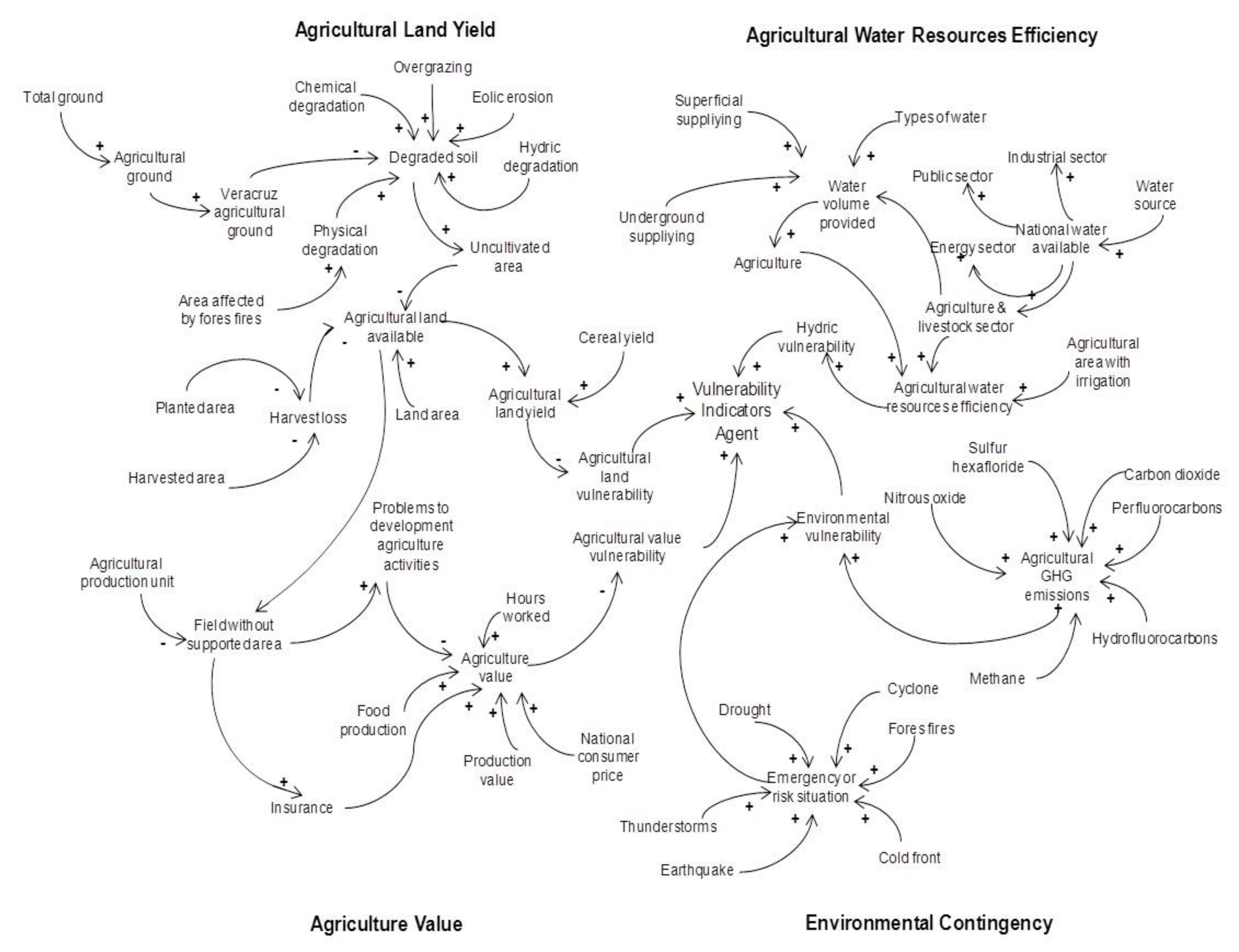

For the realization of the causal diagram (Figure 2), the major variables that describe the vulnerability indicators in economic and environmental aspects were identified. The indicators [34] are used to organize and systematize information for planning, evaluation, and decision-making and they enable the creation of information systems based on census data from regional, national, or supranational contexts.

The Agricultural land yield model makes it possible to estimate the availability of land for the development of agricultural activities and the degree of vulnerability in using agricultural land due to overuse or deterioration of land. The Agriculture value model can estimate the added value of agricultural activities from the flow of information related to productivity in the agricultural sector, problems in developing agricultural activities, the value of the harvest, hours worked and insurance for agricultural development.

The Agricultural water resources efficiency model enables the vulnerability of water resources in the agricultural sector to be estimated, as around 79% of agricultural activities carried out in Mexico do not have an irrigation system [35]. The Environmental contingency model considers greenhouse gas emissions and serious environmental phenomena which, due to their frequency and magnitude, endanger the agricultural harvest.

The variables that feed the Vulnerability Indicator Agent model are modeled by probability distributions describing historical data for the period 2001–2018 [36,37,38,39,40,41,42,43,44,45,46,47].

Table 2. Variables of vulnerability indicators agent model.

Variable	Definition	Units
Agricultural Ground	Extension of agricultural land	Ha
Total Ground	Extension of land in Mexican territory	Ha
Area affected by Forest Fires	Extent of land affected by forest fires	Ha
Physical Degradation	Soil degradation caused by physical aspects: Compaction (Fc), Loss of function and productivity (Fu), Waterlogging (Fa), Decreased water availability (Fd), Embedding and sealing (Fe)	Ha
Chemical Degradation	Chemical-originated soil degradation: Reduction of fertility and organic matter content (Qd), Pollution (Qp), Salinization and/or alkalization (Qs), Eutrophication (Qe)	Ha
Overgrazing	Agricultural area affected by intensive grazing for a long period	Ha
Eolic Erosion	Surface wear due to wind	Ha
Hydric Erosion	Segregation and sedimentation of water particles in the soil due to rain or surface runoff	Ha
Uncultivated Area	Area unsuitable for agricultural activities due to severe or extreme degradation	Ha
Planted/Harvested Area	Agricultural area planted and harvested	Ha
Farmland	Extension of land available for cultivation	Ha
Cereal Land	Extension of land for cereal production	Ha
Crop Land	Extension of permanent land for cultivation	Ha
Cereal Yield	Cereal yield per hectare harvested	Kg/Ha
Agricultural Land Yield	Agricultural area yield per hectare	Kg/Ha
Agricultural Production Unit	Agricultural statistical unit for measuring agricultural production in a given area	m2
Field Support Area	Agricultural area with some kind of support for carrying out agricultural activities	Ha
Agricultural Problems	Main problems for the development of agricultural activities, directly related to the farmer	-
Insurance	Agricultural area with insurance for agricultural activities. It can have different types of origin	Ha
NCPI	National Consumer Price Index, indicator to estimate the evolution of prices of properties and services in Mexico	-
Indexes	Indicator to estimate food production, hours worked, etc.	%
GDP	Gross Domestic Product, base 2013	MUS$
Agriculture Value	Agricultural value added in relation to GDP	MUS$
Water Source	Origin of water according to its type of source: water well, storage, river, dam, spring, open water well, etc.	Hm3
Water Supplying	Underground and superficial water supply	Hm3
National Water Availability	Volume of available water, which is distributed to various sectors	Hm3
Types of Water	Volume of water according to its classification: white water, treated wastewater, brackish water, raw sewage, etc.	Hm3
Water Efficiency	Efficiency of water resources for the development of agricultural activities	Kg/m3
Emergency Risk Situation	Natural events classified as a state of emergency or disaster which put agricultural activities at risk. includes: forest fires, storms, cold front, frost, cyclones, earthquakes, droughts	Events
Agriculture GHG Emissions	Greenhouse gases emissions (GHG) produced by the development of agricultural activities	Gt CO2eq
CO2 Emissions	Carbon dioxide emissions; colorless, dense, non-reactive gas that is part of the closest layer of the atmosphere to Earth	Gt CO2eq
CH4 Emissions	Methane emissions produced by the decomposition of organic matter	Gt CO2eq
N2O Emissions	Nitrous oxide emissions are the main pollutant of the ozone layer	Gt CO2eq
HFC Emissions	Hydrofluorocarbons are the third generation of refrigerant gases	Gt CO2eq
PFC Emissions	Perfluorocarbons are synthetic compounds containing fluorine and carbon atoms. They are colorless gases that are not flammable at room temperature	Gt CO2eq
SF6 Emissions	Sulfur hexafluoride is an inorganic compound that under normal conditions of pressure and temperature is a non-toxic and non-flammable gas. SF6 is five times heavier than air.	Gt CO2eq

Ton/Ha: tons per hectare; m²: square meters; MUS$: millions of dollars; Hm³: cubic hectometer; Kg/m³: kilograms per cubic meter; Gt CO₂eq: gigatons of carbon dioxide equivalent.

describes the main variables used in the models that make up the agent of the vulnerability indicators [36,38,40,41,48,49,50,51].

Table 2 shows the causal diagram of the Vulnerability Indicator Agent model. The relationships between the variables are represented by arrows accompanied by a positive (+) or negative (−) sign, indicating the type of influence one variable has on another. Positive relationships indicate that an increase or decrease in variable A has the same effect on variable B; Negative relationships indicate that an increase or decrease in variable A has an inverse effect on variable B [52].

3.2. Formulation

To formulate the model, predictions of the variables of interest were made and the equations for each subsystem were determined. To evaluate the behavior of the system over time, the trend of the time series used in the simulation model was determined.

Table 3. Analysis of trend of vulnerability indicators agent.

Time Series	Kind of Trend	Mathematical Model
Total ground	No trend	9299303
Agricultural ground	Downward	69.17% 54.89 < % < 73.38
Area affected by fores fires	Upward	$f\left(t;\mu ,\sigma \right)=\frac{1}{t\left(0.242966\right)\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(\ln \left(t\right)-349617\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(242966\right)}^2$}\right.}$
Land area	No trend	12,578,2926
Cereal yield	Downward	$f\left(t\right)=\frac{1}{754\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-2369\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(754\right)}^2$}\right.}$
Agricultural production unit	No trend	20
Field support area; Ha	Upward	$f\left(t\right)=\frac{1}{8.81E^5\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-127.7E^5\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(8.81E^5\right)}^2$}\right.}$
Insurance application	Upward	3.79% 3.15 < % < 5.82
Obtaining insurance	Upward	9.48% 9.41 < % < 9.67
National Consumer Price Index	Upward	$f\left(t\right)=\frac{1}{34.9\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-69.43\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(34.9\right)}^2$}\right.}$
Inflation	No trend	6.5%
Productivity index	Upward	$f\left(t\right)=\frac{1}{2.47\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-99.85\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(2.47\right)}^2$}\right.}$
Hours worked index	Upward	$f\left(t\right)=\frac{1}{6.08\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-103.8\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(6.08\right)}^2$}\right.}$
Harvest index	Upward	$f\left(t;\mathsf{\lambda }, \mathrm{k}\right)=\frac{3.01}{82.5}{\left(\frac{\mathrm{t}}{82.5}\right)}^{3.01-1}{\mathrm{e}}^{-{\left(\frac{\mathrm{t}}{82.5}\right)}^{3.01}}$
Food production index	Upward	$f\left(t;\mathsf{\lambda }, \mathrm{k}\right)=\frac{2.6}{77.7}{\left(\frac{\mathrm{t}}{77.7}\right)}^{2.6-1}{\mathrm{e}}^{-{\left(\frac{\mathrm{t}}{77.7}\right)}^{2.6}}$
GDP (fourth quarter of 2018)	No trend	18,512,407
Production value index	Upward	$f\left(t\right)=\frac{1}{0.014\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-0.137\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(0.014\right)}^2$}\right.}\ast PIB Pa$
Water availability for agricultural	No trend	76%
Underground suppliying(UndS)	Upward	$f\left(t;\mu ,\sigma \right)=\frac{1}{t\left(23.6\right)\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(\ln \left(t\right)-504.8\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(23.6\right)}^2$}\right.}$
Superficial suppliying (SupS)	Upward	$f\left(t;\mu ,\sigma \right)=\frac{1}{t\left(162.4\right)\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(\ln \left(t\right)-2383\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(162.4\right)}^2$}\right.}$
Planted Area	Upward	$f\left(t\right)=\frac{1}{1.41E^6\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-{2.12}^7\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(1.41E^6\right)}^2$}\right.}$
Harvested Area	Upward	$f\left(t;\mathsf{\lambda }, \mathrm{k}\right)=\frac{12.26}{1.97E^8}{\left(\frac{\mathrm{t}}{1.97E^8}\right)}^{12.26-1}{\mathrm{e}}^{-{\left(\frac{\mathrm{t}}{1.97E^8}\right)}^{12.26}}$
Fores fires	Upward	$f\left(t\right)=\frac{1}{2204\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(t-7971\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(2204\right)}^2$}\right.}$
Drougth	Upward	$f\left(t\right)=0.004e^{-0.004t}$.
Earthquake	Upward	$f\left(t\right)=0.004e^{-0.004t}$
Cyclone	Upward	$f\left(t\right)=0.003e^{-0.003t}$
Cold front	Upward	$f\left(t\right)=0.0085e^{-0.0085t}$
Thunderstorm	Upward	$f\left(t\right)=0.025e^{-0.025t}$
Cereal land	Downward	$f\left(t;\mathsf{\lambda }, \mathrm{k}\right)=\frac{14.63}{0.08}{\left(\frac{\mathrm{t}}{0.08}\right)}^{14.63-1}{\mathrm{e}}^{-{\left(\frac{\mathrm{t}}{0.08}\right)}^{14.63}}$
Farmland	Downward	$f\left(t;\mu ,\sigma \right)=\frac{1}{t\left(0.012\right)\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(\ln \left(t\right)-0.106\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(0.012\right)}^2$}\right.}$
Agricultural land	Downward	$f\left(t;\mu ,\sigma \right)=\frac{1}{t\left(0.021\right)\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(\ln \left(t\right)-0.527\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(0.021\right)}^2$}\right.}$
Crop land	Downward	$f\left(t;\mu ,\sigma \right)=\frac{1}{t\left(0.0024\right)\sqrt{2\pi }}{e}^{\raisebox{1ex}{$-{\left(\ln \left(t\right)-0.010\right)}^2$}\!\left/ \!\raisebox{-1ex}{$2{\left(0.024\right)}^2$}\right.}$
CO2	Upward	$f\left(t\right)=13438e^{-13438t}$
CH4	Upward	$f\left(t\right)=64986e^{-64986t}$
NO2	Upward	$f\left(t\right)=32669e^{-32669t}$
Hydric erosion	Upward	$f\left(t\right)=Agricultural ground\ast 0.119$
Eolic erosion	Upward	$f\left(t\right)=Agricultural ground\ast 0.0949$
Overgrazing	Upward	$f\left(t\right)=Agricultural ground\ast 0.028$
Physical degradation	Upward	$f\left(t\right)=\left(Agricultural ground\ast 0.057\right)+Area affected by fores fires$
Chemical degradation	Upward	$f\left(t\right)=Agricultural ground\ast 0.1783$

shows the type of trend for each analyzed time series and the mathematical model used when t > 0.

The agent model for vulnerability indicators has a period (t > 0) for 12 sugarcane harvest cycles and was developed in the Anylogic^® Personal Learning Edition software (free software for student version) in the library for dynamic systems. Below is the mathematical formulation for the basic elements of the model where time series are used for its development.

(a) Degraded soil (DS). The variable is represented by the flow of variables: hydric erosion (HE), wind erosion (WE), overgrazing (Og), chemical degradation (CD), and physical degradation (PD).

$$\frac{dDS}{dt}=D{s}_{t=1}+\left(HE+EE+Og+CD+PD\right)$$

(1)

(b) Agricultural land available (AreaAgr), indicates the land that is available for the development of agricultural activities, except for the non-cultivable area due to soil degradation and the agricultural area with harvest loss due to weather events.

$$\begin{gathered} \frac{dArea Agr}{dt}=AreaAg{r}_{t=1}+Area Available \\ -\left[\frac{dDS}{dt}+\left(Planted Area-Harvested Area\right)\right] \end{gathered}$$

(2)

$$\begin{array}{ll}Area Available& =Cereal Land+Farmland+Agricultural Land\\ & +Crop Land\end{array}$$

(3)

(c) Field without supported area (FWSA). Area without government and/or private support for the development of agricultural activities.

$$FWSA=\left(\frac{dAreaAgr}{dt}-Field support area\right)\ast Agricultural Production Unit$$

(4)

(d) Agricultural value (AgrValue). The total value of agriculture concerning GDP; includes time series food production index (FPi), production value index (PVi), harvest index (Hi), hours worked index (HWi), national expected consumer price index (NCPIexp), productivity index (Pi) and the problems for the development of the agricultural activities index (PRi).

$$\frac{dAgrValue}{dt}=AgrValu{e}_{t=1}+\left(FPi+PVi+Hi+HWi+NCPIexp+Pi-PRi\right)\ast GDP$$

(5)

(e) Hydric resources available (HyRes). Volume from different supply sources (well, river, spring, water dam, open-air water well, water bank, and other sources).

$$\frac{dHyRes}{dt}=HyRe{s}_{t=1}+\left(\frac{1}{9722\sqrt{2\pi }}{e}^{-{\left(x-4.64E^5\right)}^2/2{\left(9722\right)}^2}\right)0.76$$

(6)

(f) Water Resource Efficiency (WREff) indicates the efficiency of underground and surface water supply in the agricultural sector for the geographical area of the study case.

$$\frac{dWREff}{dt}=WREf{f}_{t=1}+\frac{\frac{dHyRes}{dt}}{\left[\left(\frac{1}{0.0272\sqrt{2\pi }}{e}^{-{\left(x-0.7637\right)}^2/2{\left(0.0272\right)}^2}\right)\left(UndS+SupS\right)\right]}$$

(7)

(g) Greenhouse gas emissions (GHG). Total greenhouse gas emissions from developing agricultural activities.

$$\frac{dGHG}{dt}=GH{G}_{t=1}+\sum \left(S{F}_6+PFC+N_{2}O+C{O}_2+C{H}_4+HFC\right)$$

(8)

(h) Environmental Disasters (ED). Includes meteorological phenomena (drought, earthquake, cyclone, cold front, and thunderstorm) and forest fires that have been cataloged in a state of emergency or a disaster and endanger the safety of the harvest.

$$\frac{dED}{dt}=E{D}_{t=1}+\sum \left(Emergency or risk events\right)$$

(9)

3.3. Implementation

The Vulnerability Indicator Agent Model was developed in the Anylogic^® software in the system dynamics library and is simulated throughout twelve cycles. The networks that incorporate vulnerability indicator agents are described below:

The network for available agricultural land makes it possible to estimate the main types of soil degradation in the agricultural sector and to determine the non-cultivable area. The available agricultural area is determined as a potentially arable area, whereby this strongly and extremely affected area is discarded. Thus, determining the performance and vulnerability of the agricultural area.

The agricultural value network values the agricultural area with the support of the field and activities with some kind of insurance for its development. The subsidies granted to the field are directly related to the specific characteristics of the farmers (age, gender, level of education, access to technology, etc). Therefore, the agent was assigned a logistic probability function based on the farmer’s attributes. The lack of rural support for agricultural activity development is one factor that increases vulnerability to the value of agriculture. The level of vulnerability to the value of agriculture can then be estimated using the agricultural performance indices.

The agricultural water resource efficiency network is determined from the amount of water available to the agricultural sector from both underground and surface sources, as well as the agricultural area where an irrigation system is used.

The environmental contingency network comprises two modules. The first module determines the amount of GHG emissions from the agricultural sector. The second module makes it possible to estimate the amount of potentially hazardous weather events.

• Stage 2. Development of the cultivation model: Sugarcane (Study case)

106 crops are harvested in the state of Veracruz; with a production of 21,282,823.66 tons and a harvested area of 290,600.64 ha for 2018, sugarcane is the most harvested crop in the region [51]. The case study was developed in the coastal plain in the southern zone of the Sotavento plain in the Mexican state of Veracruz. Whose latitude and longitude are 18 ° 36′35.8″ N 95 ° 31′34.7″ W.

Due to the continuity of the Los Tuxtlas mountain region, the soil is varied and has flat parts near the coast and on hills. It is a warm, regular climate with an average temperature of 25 °C; the average annual rainfall varies between 2000 mm and covers an area of 13,208 hectares.

The Simpson Crop Diversity Index was used to determine whether the study area might have agricultural vulnerability. A_t represents the total harvested area in Ha, Nc the total number of reported crops, Aj the sugarcane harvest in Ha. The relationship between the Simpson crop diversity index and agricultural vulnerability is as follows: when the Simpson index is close to 1, there is low vulnerability, because there are a high number of crops. Contrarily, because the index is close to 0 the vulnerability will be high due to the small number of crops.

$$Id=1-\frac{{({{\displaystyle \sum }}_{i=1}^{Nc}Aj)}^2}{A{t}^2}$$

(10)

The index obtained is 0.7565, which indicates that the approximate vulnerability of 0.32 is classified as low to moderate [48]. To determine the vulnerability of sugarcane production, the Crop Vulnerability Agent model was developed using fuzzy logic.

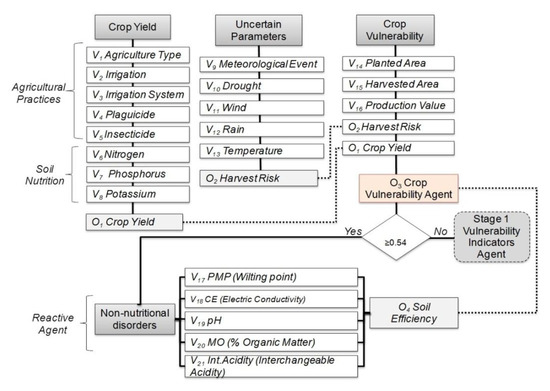

Figure 3 shows the methodology used.

Agent-based modeling (ABM) makes it possible to propose different scenarios with active entities and to see what is happening in a problem, i.e., to examine the possible states of the system under investigation. ABMs are a proprietary artificial intelligence technology with the ability to emulate entities, processes, and uncertain flows in distributed environments where each entity makes a local decision based on its knowledge and behavioral patterns [7].

The Crop Vulnerability Agent model comprises three fuzzy logic models: crop yield, uncertain parameters, and crop vulnerability. The crop yield model determines the crop yield under optimal production conditions concerning agricultural practices and soil nutrition. The uncertain parameters model enables the modeling of uncontrollable variables related to climatological phenomena that affect agricultural production. The crop vulnerability model includes variables related to agricultural production. If the vulnerability is greater than or equal to 0.54, it is assumed that there is a high vulnerability in agricultural production related to non-nutritional disorders as physical and chemical indicators of the edaphic environment related to precipitation and water storage capacity through the soil [53]. Otherwise, if the vulnerability of the crop is less than 0.54; the results obtained in stage 1 can be used to determine the overall vulnerability of the agricultural sugarcane production system.

Fuzzy logic models are designed in MatLab^® using the Mamdani inference engine, which comprises membership functions for the twenty-one input variables and four output variables. Fuzzy logic is based on implementing linguistic variables for processing imprecise and fuzzy natural language, which comprises numbers and human expressions [54].

A linguistic variable takes on values with words that make it possible to describe the state of an object or phenomenon. These words can be represented by fuzzy sets [55]. Membership functions are used to define the value of the associated linguistic variable, i.e., they indicate the extent to which the linguistic variable belongs to the fuzzy set.

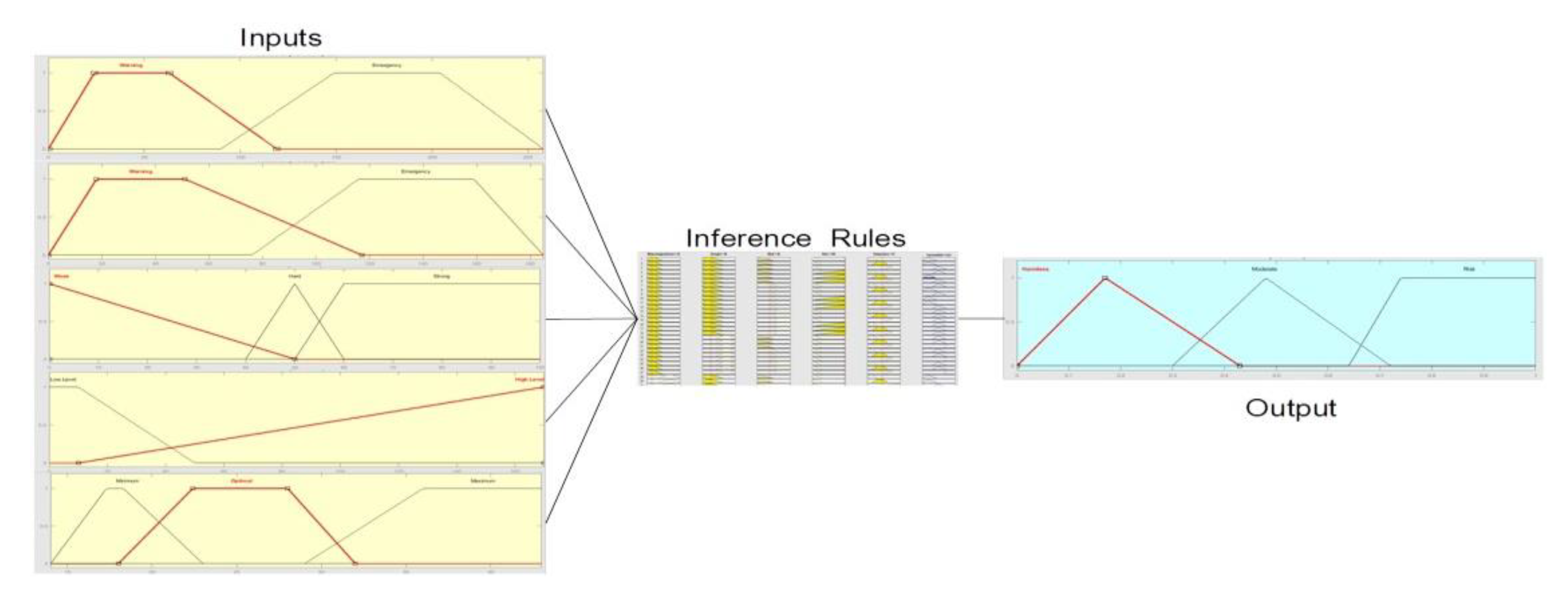

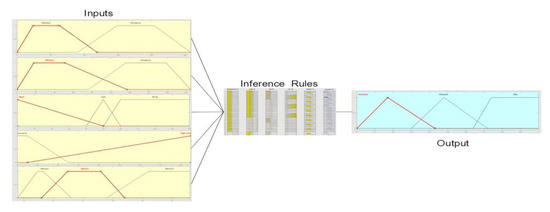

Figure 4 graphically describes the fuzzy sets corresponding to each linguistic variable of the developed fuzzy models.

The fuzzy sets for modeling the membership functions of the variables (input-output) are modeled by a triangular function (Tr) from three points and a trapezoidal function (T) from four points. The functions that represent these equations are shown below:

$$Tr\left(r;a,b,c\right)=\left\{\begin{array}{c}\begin{array}{c}0; a<r\\ 1-\left(\frac{b-r}{b-a}\right); a\le r\le b\\ 1-\left(\frac{r-b}{c-b}\right); a\le r\le c\end{array}\\ 0; c>r\end{array}\right\}$$

(11)

$$T\left(t;a,b,c,d\right)=\left\{\begin{array}{c}\begin{array}{c}0; t<a\\ 1-\left(\frac{b-t}{b-a}\right); a\le t\le b\\ 1; b\le t\le c\\ 1-\left(\frac{t-c}{d-c}\right); c\le t\le d\end{array}\\ 0; t>d\end{array}\right\}$$

(12)

In the fuzzy logic process, the characterization of system behavior uses inference rules that are established through expertise and knowledge to characterize the behavior of the system [56]. The inference rules are based on the so-called fuzzy sets and a fuzzy inference system based on rules of the form IF-THEN, which are created using a Fuzzy Associative Memory (FAM) [57].

The FAM are matrices that represent the consequences of each rule defined for each combination of two or more inputs and enable a clear graphical representation of the relationships between two linguistic variables, input, and output variables. For this, all the possible combinations of rules with the input variables must be explicitly specified.

Table 4. Variables of sugar cane model.

Variable	Definition	Units	Input Output
V1 Agriculture Type	Modality in which agricultural activities are carried out: open or protected	Mode	I
V2 Irrigation	Water mode used in the development and reproduction of the crop: rainfall or irrigated	Mode	I
V3 Irrigation System	Irrigation system used: gravity, canal, sprinkler, trickle or pipeline	Mode	I
V4 Plaguicida, V5 Insecticide	Agricultural practices for the control of pests that affect the crop. The control over these becomes a determinant to ensure agricultural production	Application	I
V6 Nitrogen, V7 Phosphorus, V8 Potassium	Variables refer to soil nutrition; which is an agricultural practice which is used to supply nutrients to the soil and the roots of the sugarcane, with the aim of maximizing production yields and crop quality	Kg ha−1	I
		Kg P2O5 ha−1	I
		Kg K2O ha-1	I
O1 Crop Yield	Ratio of total production of a certain crop harvested per hectare	Ton/Ha		O
V9 Meteorological Events	Hydro meteorological phenomena declared as a state of “emergency” endangering the safety of the crop	Events	I
V10 Drought	Events with lack of rain for a prolonged period of time producing dryness in agricultural fields and water shortages	Events	I
V11 Wind	Uncertain event directly affecting crop yield and quality	Km/hr	I
V12 Rain	Uncertain event which in turn provides the water for the crops	mm/month	I
V13 Temperature	Uncertain parameter representing the physical magnitude that reflects the amount of heat in the environment	°C	I
O3 Harvest Risk	Interaction of climatic parameters to determine risk in the crop	Risk Level		O
V14 Planted Area	Agricultural area on which the crop seed is deposited	Ton	I
V15 Harvested Area	Agricultural area on which production of the desired crop was obtained	Ton	I
V16 Production Value	Monetary value obtained from the sale of agricultural production	Thousands of US$	I
O3 Crop Vulnerability	Grade to which the crop may be adversely affected by the interaction of physicochemical factors, agricultural practices, climatic phenomena, etc.	Vulnerability Level		O
V17 Wilting point (PMP)	Minimum moisture point at which a plant can no longer extract water from the soil and cannot recover from water loss even if the ambient humidity is saturated	PMP Level	I
V18 Electric Conductivity (CE)	Measures the concentration of soluble salts present in the soil solution	dS/m	I
V19 pH	Measurement to determine the degree of alkalinity or acidity present in soil	pH Level	I
V20 Organic Matter (MO)	Heterogeneous compound formed by the accumulation of partially or completely decomposed materials of animal and/or plant origin	%	I
V21 Interchangeable Acidity (Int.Acidity)	Amount of exchangeable hydrogen ions per fraction of organic matter in the soil to determine the amount of improvers for optimum pH	cMol*Kg−1	I
O4 Soil Efficiency	Water storage capacity of the soil based on physicochemical indicators of the soil environment	Efficiency Level		O

describes the variables used in designing fuzzy logic models, and each of them indicates the unit of measurement and the type of variable (input or output) in the expert system [4,54,58,59].

i.

Development of the fuzzy logic model to predict crop yield: sugarcane

The crop yield model makes it possible to predict the behavior of the crop concerning the quantity produced (harvest) per plot used (sown area). The model is fed by eight input variables that describe the type of agriculture used (open sky or protected), the type of irrigation (temporary or watering), and the management of agricultural practices to control the occurrence of pests and diseases affecting the crops as well as the nutrition of the soil by providing the necessary NPK (nitrogen-phosphorus-potassium) nutrients to maximize crop yields [53] and the irrigation system used (gravity, channels, sprinkler, drip or pipe).

ii.

Development of the fuzzy logic model of uncertain parameters to predict harvest risk

Characterizing the sugarcane production system is important to control or predict the behavior of variables that affect crop yield and to model uncertain parameters that may interfere with crop production. The uncertain parameters model increases the relationship of uncontrolled variables that may be present in sugarcane production and that have a positive or negative impact on that performance. These uncertain parameters mainly include the variable “meteorological events” such as cyclones, hurricanes, tropical storms etc., that have been declared in a state of emergency or “disaster” that could have negative consequences on the sugarcane production system. The variable “drought” mainly affects the fertility of agricultural soils.

The variables “wind”, “rain” and “temperature” are the prevailing hydro climatological conditions for the development and growth of the crop; these variables represent the uncertain parameters. Uncertain parameters help predict crop productivity behavior and determine harvest risk (output variable). The inference rules are validated by open data provided by government agencies [4,36,58,60].

iii.

Development of the fuzzy logic model to predict the vulnerability of the crop: sugar cane

The crop vulnerability model determines the level of vulnerability of agricultural sugarcane production to assess the adaptive capacities and increase the resilience of the agricultural production system. The model is fed with historical data for the period 2001–2018 of sugarcane production, the output variables of the crop yield, and uncertain parameter models. The rules have been validated using historical open data from the agricultural sugarcane production system in the state of Veracruz [4,58,59,61].

iv

Development of the fuzzy logic model of non-nutritional disorders to predict the efficiency of the cultivation soil (Reactive Agent)

The model of diffuse non-nutritional disorders assumes the role of a reactive agent. Its function is to respond to stimuli from the environment in which it is located [62]. If the vulnerability score is ≥0.54 and the vulnerability is rated Medium to High, the reactive agent will be activated. The relationship of the reactive agent model to crop vulnerability is that the higher the soil efficiency, the lower the vulnerability. Non-nutritional disorders are indicators of edaphic status and the risk of waterlogging in the agricultural sector [63]. The rules are validated by the expertise of the results obtained from previous research on geographical and edaphic information on precision agriculture of sugarcane in Mexico [53].

Appendix A describes the parameters used when designing the networks: input variables, the structure of fuzzy sets (linguistic labels and intervals), knowledge base (inference rules), and output variables.

4. Results

This section presents the results of the development of the agent-based model (ABM). Where the major benefits stand out: (i) a combination of social and environmental models; (ii) Management of environmental aspects and (iii) Modeling of information networks, which are composed of individual entities that serve as decision-making aids. The properties to consider in the ABMs depend on the goal and focus of the agent. Therefore, the decision-making process is adaptable to the characteristics and perspectives of the model. The ABM simulation was carried out for a twelve-cycle analysis of sugarcane cultivation.

• Stage 1: Results obtained from the dynamic models (Agent vulnerability indicators)

The vulnerability indicator is viewed as an empirical model because (i) there is uncertainty, (ii) information networks are comprising databases, and (iii) emerging phenomena are considered. Emerging phenomena are properties of the system and not of individual agents; therefore, they cannot be examined in isolation [64]. Furthermore, one disadvantage of ABMs is their ability to get complex easily, which is why a sensitivity analysis must be performed to validate them. According to Forrester and Senge [65], system dynamics models can be tested and validated through dimensional consistency and extreme conditions.

(a) Dimensional consistency is used to analyze whether equations and time series are correctly connected. In this case, the output values of the sub-models use kilograms per hectare (kg/Ha) to determine the yield of the agricultural crop; kilograms per cubic meter (kg/m³) to measure the efficiency of water resources in the agricultural sector; Millions of dollars (USD) to determine the value of agriculture concerning GDP, and gigatons of carbon dioxide equivalent (Gt CO2eq) to measure the amount of greenhouse gas emissions emitted by the agricultural sector. To standardize the output values of the networks for the vulnerability, a factor on a scale of 0 to 1 has been assigned. 1 is the highest vulnerability value.

(b) Extreme conditions make it possible to identify errors in the model structure and to analyze the behavior of different scenarios given possible variations. For the analysis under extreme conditions, the critical variables of the system were modified: available national water, available agricultural land, greenhouse gas emissions, and emergency or risk situation. The sensitivity analysis of water availability can estimate the production of water resources under different scenarios over time. The value of agriculture and the yield of agricultural land can be visualized through a sensitivity analysis of the availability of agricultural hectares. The greenhouse gas emissions and the increase in hydrometeorological events because of climate change enable the environmental vulnerability to be assessed. The variations were made through a sensitivity analysis of five scenarios that projected the value of the registered trend for 2018. The projections of the scenarios were made: eliminating the trend (−100%), halving the trend (−50%) followed the current trend without modifications (0%), and for trend increases (+50% and +100%). The sensitivity analysis was carried out in the Stella^TM software.

Table 5. Values of interest variables for each simulated scenario.

Variable	Value
	−100% Trend	−50% Trend	Trend (0%)	50% Trend	100% Trend
Agricultural water resources efficiency	1.34	1.51	1.69	1.88	2.06
Agricultural land available	4,896,459	5,496,168	6,095,876	6,695,585	7,295,293
GHG emissions	70,397	121,396	172,396	223,395	274,394
Emergency or risk situation	4808	6371	7935	9498	11,061

shows the values that were obtained after performing the sensitivity analysis. As observed for a decrease in trend (−100% and −50%), the values obtained when simulating the critical variables are lower; this can be detrimental to water resource efficiency and available agricultural land and can make the system more vulnerable. Likewise, a reduction in GHG emissions and the presence of risky events help reduce vulnerability. Contrarily, an increase in the trend (50% and 100%) has a positive effect on the development of agricultural activities due to the use of water resources and land use. However, this has a negative impact on the environment. A sensitivity analysis, therefore, makes it possible to observe the behavior and dynamics of the system, which gives validity and robustness.

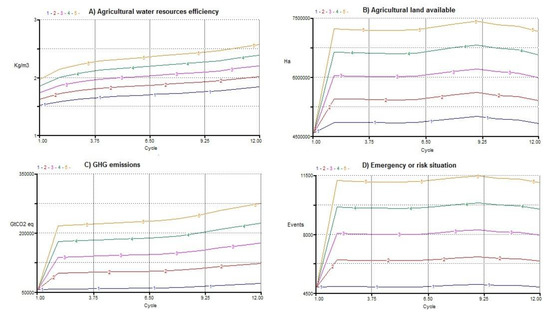

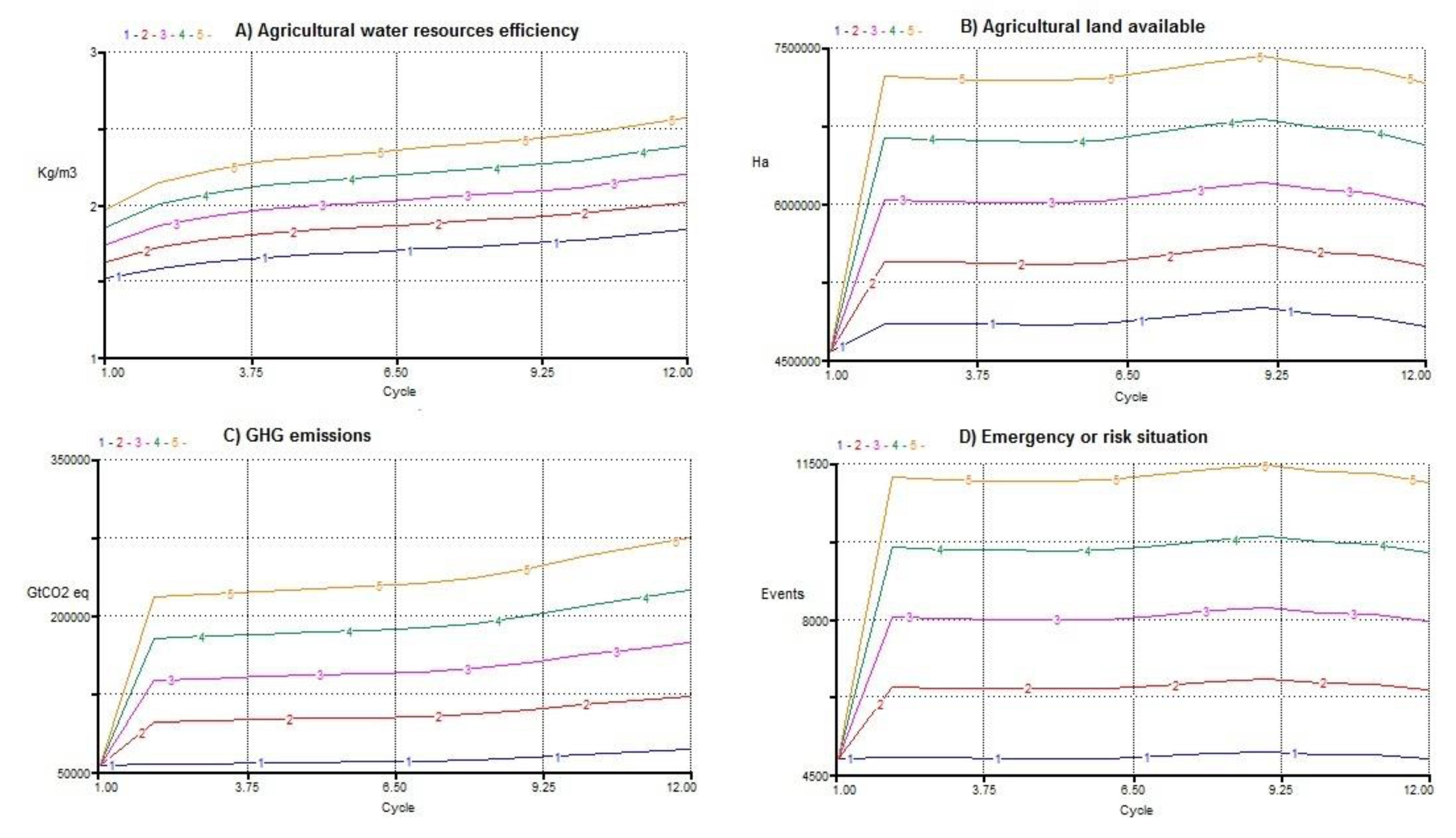

Figure 5A shows the effects of the variable National Available Water (Hm³) on the behavior of the Agricultural water resources efficiency network (kg/m³) over a validation period of twelve cycles. Scenarios 1 and 2 show a decrease in the trend, scenario 3 the current trend, and scenarios 4 and 5 show an increase in the trend.

When validating the networks for agricultural yields and agricultural values, the trend of the Total ground variable was changed, as an increase or decrease in this variable has a direct effect on the variable “available agricultural land” (Figure 5B). The sensitivity analysis shows a decrease in scenarios 1 and 2 given the decrease in the trend, while an increase in the trend increases the value achieved in scenarios 4 and 5. For the estimation of the available agricultural land, the resulting non-cultivable area is excluded. The environmental contingency network comprises two critical variables: greenhouse gas emissions and emergency or risk situations. Emissions from the agricultural sector contribute around 12% to total greenhouse gas emissions at the national level (INECC). The Intergovernmental Panel on Climate Change (IPCC) classifies the national inventory of emissions by chemical compounds for the main environmental items, divided into categories and sectors [66].

The emissions are divided into six greenhouse gases contained in the Kyoto Protocol: carbon dioxide, methane, nitrous oxide, hydrofluorocarbons, perfluorocarbon, and sulfur hexafluoride [67]. For the variable emergency or risk situation, the number of events within this classification that were reported by the National Center for Disaster Management (CENAPRED) was counted. Figure 5C,D show the results obtained in the sensitivity analysis for twelve culture cycles.

The efficiency of water resources depends on the volume of water available. The agricultural sector accounts for around 76% of the national water volume. The efficiency of water resources in Mexico averages 1.45 kg/m³ for the years 1994–2016, with 2012 being the year with the highest yield of 1.86 kg/m³ [40]. Figure 6A shows the behavior of the efficiency of the water resources concerning the water volume.

As can be seen, as the availability of water for the development of agricultural activities increases, the efficiency of water resources increases in the same way. Following the historical trend, an increase in the trend in water availability can be observed through simulation cycles; However, the efficiency of water resources remains semi-constant (cycles 10–12), which is because a decrease in crop yield has been observed.

The projected results for twelve growth cycles following the current trend of the system are shown below (Figure 6B). As can be seen, an increase in the yield per hectare cultivated increases the value of agriculture. The most promising scenario is in cycle 4 with 3806.64 kg/ha and $ 740,404.64 million. The GDP value achieved in the fourth quarter of 2018 was used to project the agricultural value variables [68].

It can be seen, that in Scenarios 1 and 2, when the trend decreases, GHG decreases, and there are fewer incidents that put agricultural harvests at risk. Conversely, if the trend increases, environmental contingency will increase. The sensitivity analysis based on the causal diagram (Figure 2) shows the expected behavior in the sub-model, why it can be concluded that the network vulnerability indicator agent is robust and valid. Figure 6C shows the results of simulating twelve crops of the critical variables of the environmental contingency network. The expected value is affected by the projection of historical data trends from 2001 to 2018. With the results obtained, an exponential increase is observed in both time series. The increase in the GHG emissions variable at the end of the simulation shows an increase of 21.5%. The increase in total emissions from the agricultural sector is determined by the source emissions from methane, nitrous oxide, and carbon dioxide [42]. The trend of risk or emergency events is between 9% and 11% between the individual cycles. However, this number is expected to continue to increase due to changes in climatological factors, which could have a significant impact on crop safety for some regions in Mexico.

Table 6. Values of interest variables for each simulated cycle.

Cycle	Variables
	Water Volume Available	Water Resources Efficiency	Land Available	Land Yield	Agricultural Value		GHG Emissions	Emergency or Risk Situation
	Hm3	Hg/m3	Ha	Kg/Ha	Mill US$	%GDP	Gt CO2 eq	Events
1	251,773.89	1.45	7,227,184.35	3676.06	18,743.80	2.060	159,964.05	6774.44
2	273,972.29	1.64	7,206,865.98	3757.75	30,735.37	3.379	166,960.44	7570.99
3	309,046.29	1.71	7,190,620.79	3722.91	26,778.92	2.944	173,457.32	7660.92
4	304,838.15	1.75	7,182,446.01	3806.64	36,383.52	4.000	177,753.08	7493.91
5	321,256.42	1.79	7,195,389.17	3691.39	31,181.25	3.428	176,422.15	7866.49
6	319,024.29	1.82	7,275,353.99	3653.58	29,259.90	3.216	180,710.70	8598.80
7	324,990.54	1.85	7,362,793.28	3770.19	31,747.40	3.490	179,379.77	8547.41
8	315,145.00	1.88	7,425,284.69	3770.10	32,340.86	3.555	183,372.56	9395.35
9	324,001.19	1.92	7,333,854.86	3734.56	24,244.44	2.665	184,259.85	9408.19
10	356,892.50	1.97	7,295,293.55	3714.15	27,219.68	2.992	189,287.81	9151.24
11	345,194.27	2.02	7,157,878.98	3802.90	25,964.10	2.854	190,470.86	9767.92
12	371,708.19	2.06	7,103,162.95	3747.27	24,884.65	2.735	194,315.76	9857.86

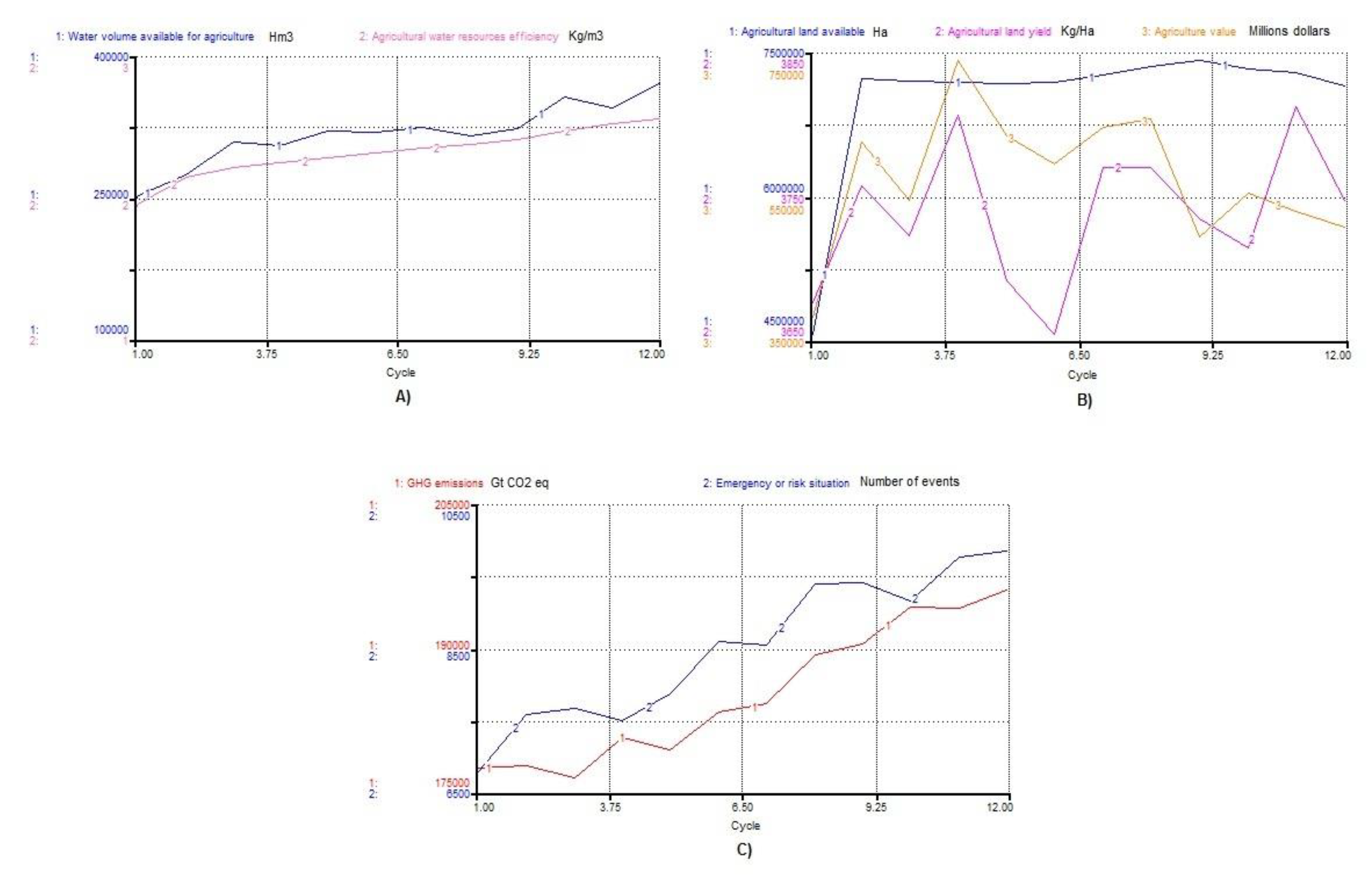

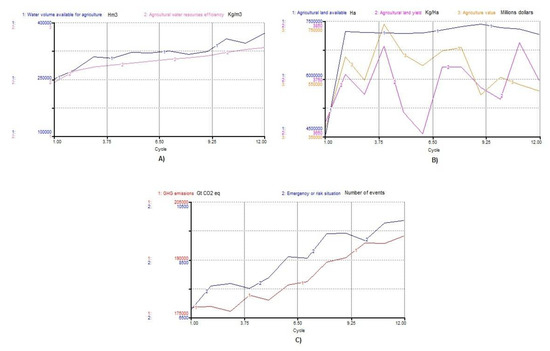

shows the results of the variables of interest during the twelve-cycle simulation. The data for the agricultural value variable is expressed in millions of dollars using the exchange rate as a reference and the percentage of GDP relative to the fourth quarter of 2018.

• Stage 2: Results obtained from the fuzzy models

The input parameters for each variable represent the data reported by the industrial sugar mill to the case study. Once the parameters have been introduced into the fuzzy model, the diffusion process converts the fuzzy parameters of the input variables through the values of the degree of membership of the fuzzy sets into a numerical value for the output variable and for activating inference rules Appendix B describes the input parameters for each fuzzy model.

The value for the sugarcane yield in the fuzzy model is 65.1 tons/ha, a value that is considered to be moderate to high in terms of vulnerability. This value may indicate that the soil is deficient in N-P-K nutrients or that pests and diseases are affecting the crops. Figure 7 shows a comparison of the historical data reported by the Information Service for Agriculture and Fisheries (SIAP) for the last 12 cycles with the results of the fuzzy model.

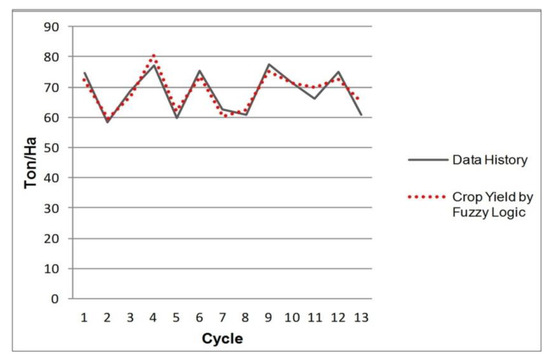

The results obtained in Figure 7 show a correlation between the data obtained by the fuzzy model and the historical data given for the sugarcane yield. The correlation coefficient obtained is 94.65%. The results presented below (Figure 8) show the response surfaces that were obtained with a higher cultivation yield. The highest expected yield varies between 76 and 81 tons/ha in terms of the variables N-P-K (nitrogen, phosphorus, and potassium) related to soil nutrition. Using fertilizers is crucial for the productivity of the plantations. Using fertilizers provides the nutrients that are deficient in agricultural soils due to soil degradation or the effects of climate change. Using fertilizers prevents the loss of nutrients through leaching and counteracts the effects of saline solution that inhibit root growth.

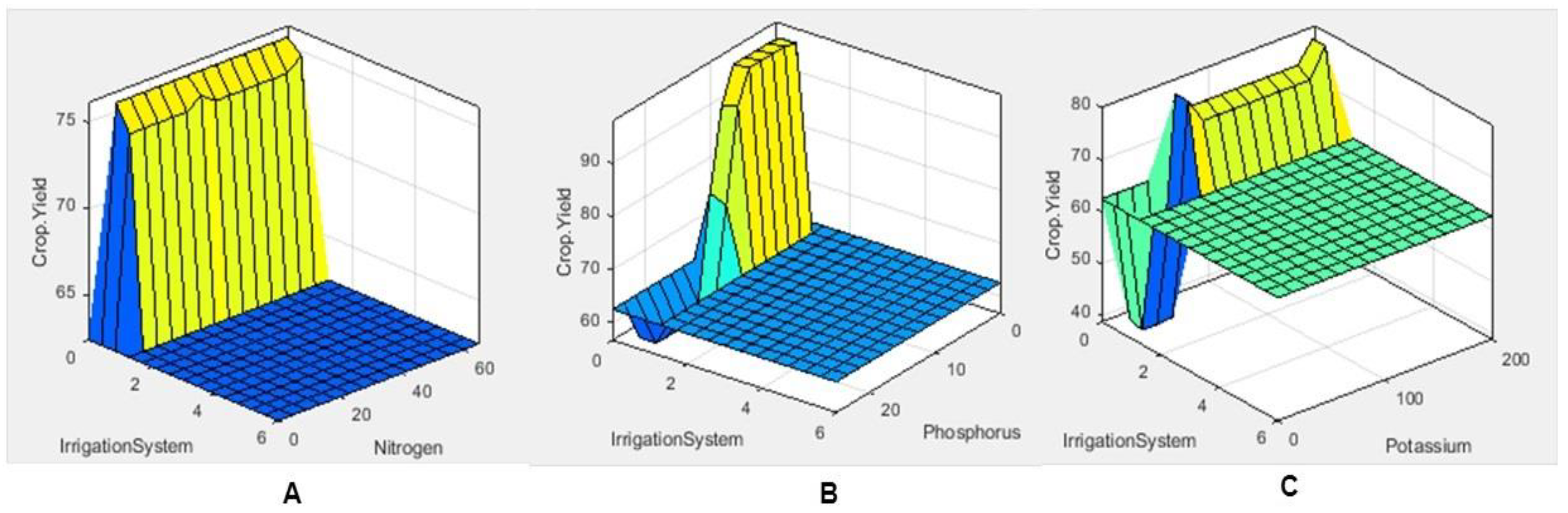

The addition of nitrogen (N) is important in the formation of plant material (sprouts) and can stimulate the intensive growth phase (Figure 8A). Lack of nitrogen can cause premature leaf death and leaf blade discoloration. The highest expected value of the crop yield is related to the addition of phosphorus (P) (Figure 8B), as this is required in larger proportions during the development phase of the crop but if the recommended values are exceeded (>Extreme weather events are recorded in Central America, which severely affect agriculture and rural 15 kg P₂O₅ ha⁻¹). It reduces the yield, the sugar concentration, the sucrose content in the juice, and the purity of the culture [4]. Potassium (K) increases the yield of the stems and the sugar concentration in the cane, a potassium deficiency reduces the accumulation of sugar in the stems, degrading the quality of the crop (Figure 8C). As observed in the response surfaces, there is no interaction with the variable “irrigation system” since sugarcane is produced under rainy conditions. The most suitable medium for plant growth is when the rainfall regime is around 1500 mm, considering that the plant uses 50–100 m³ of water to produce one ton of sugarcane (fresh weight). Based on the 2017 National Agricultural Survey (ENA) report, it was found that 80% of agricultural sugarcane producers had no problems with water for cultivation, so there was no need to introduce an irrigation system.

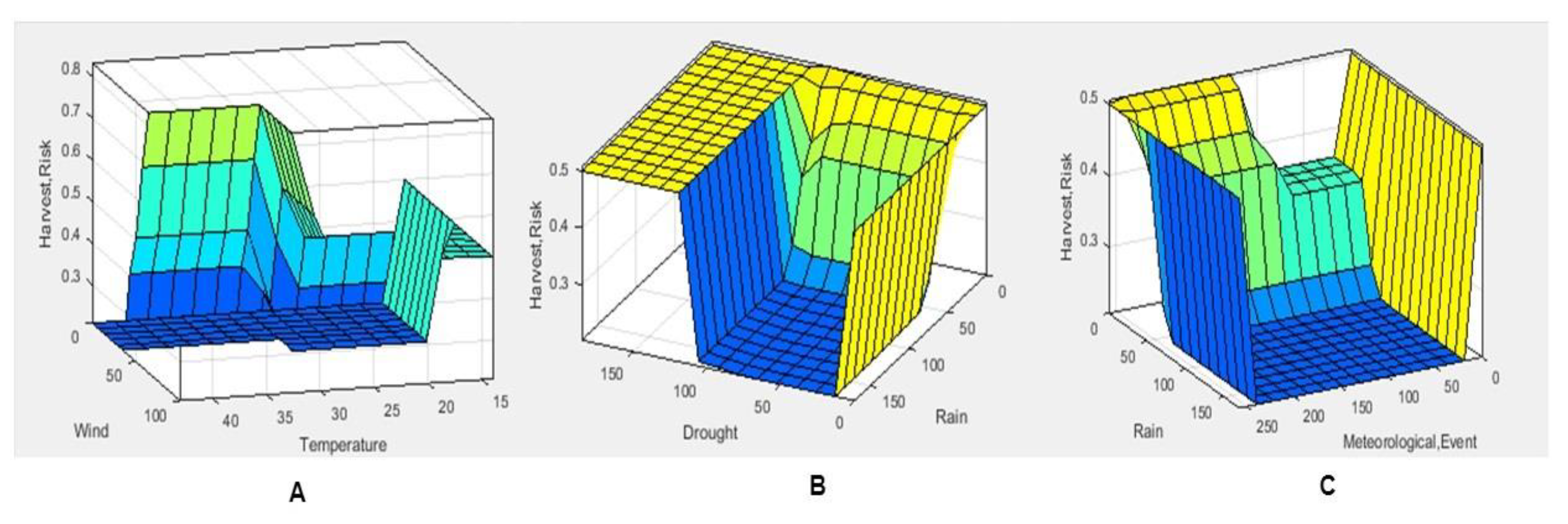

The result after the diffusion process is a harvest risk of 0.21, which is classified as low risk and is categorized under the “harmless” linguistic label. Figure 9A shows the interaction of the variables that may increase the harvest risk, with a value of up to 0.85 being considered high risk. Temperature is one factor that is highly related to the growth of the plantation. It has optimal values between 25 and 38 °C. Values outside this range have a negative effect on the regrowth or germination of sugarcane. Values above 38 °C reduce the photosynthesis process of the culture and alternate the sucrose concentration. Besides the temperature, wind speed is a decisive factor that increases the risk of harvesting. In agricultural areas with strong winds, water loss is high due to rapid evaporation from the soil surface. Winds at speeds over 60 km/h destroy the vegetation by losing leaves due to the mechanical effect they have on the sugarcane.

The water requirement during sugarcane growth is higher compared to most crops, between 50 and 70% of the roots are distributed in the first 30 cm depth. This is the area where nutrients and water are more absorbed. During periods of drought, when conditions of low humidity prevail, the roots of the crop tend to grow deeper and look for water resources. This will cause the water to be mainly concentrated in the roots, and less concentrated in other parts of the plant, thereby reducing the production capacity of the crops. Figure 9B shows the relationship between drought and rain variables, where the observed risk level is higher than 0.45, which is considered a “moderate to high” risk.

Hydrometeorological phenomena are usually accompanied by gusts of wind above 120 km/h and torrential rainfall, which increases the risk of harvest due to the mechanical action exerted on the crop. Figure 9C shows the relationship of the variables rain and meteorological events, in which an incidence of over 160 events with an emergency declaration and precipitation over 100 mm is observed, whereby the harvest risk is increased to a “moderately high” level.

The proportion of events in the study region concerning those reported at the national level is approximately 23.74%; however, in 2004, 2010, and 2013 there was an increase due to hydrometeorological events with a declaration of “disaster”, according to reports from the National Center for Civil Protection (CENAPRED).

These events are related to extremely atypical rainfall (2004), heavy rainfall from Hurricane Karl and Cyclone Mathew (2010), and tropical storms: Barry, Fernando, Manuel, and Hurricane Ingrid (2013).

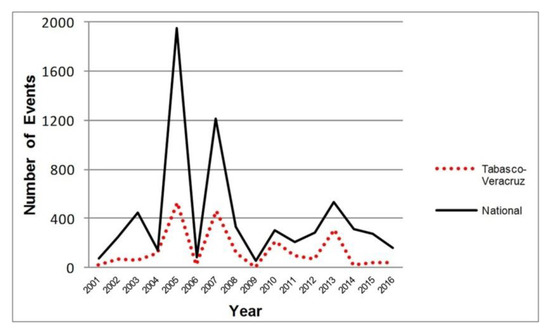

Figure 10 shows a history of the hydrometeorological events reported in Mexico in the period 2001–2016 [36]. The percentage of events recorded in the Tabasco-Veracruz state region.

With the results of the fuzzy models (crop yield and harvest risk) and the data on agricultural sugarcane production (cultivated area, harvested area, and production value), the degree of vulnerability of the crop was determined through the diffuse crop vulnerability model. The vulnerability of the crop obtained is 0.265 (“low-medium” level). Mexico has 55 sugar mills, of which Veracruz has 20. This makes Mexico the state with the highest sugar production nationwide (2,620,194 tons). The observed yield from sugar production is related to changes in climatic conditions caused by global warnings, such as changes in rainfall and extreme weather events, which adversely affect agricultural production and increase the risk of harvesting.

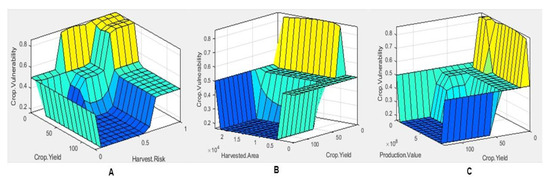

Figure 11A shows the relationship between the variables crop yield and harvest risk. An increase in vulnerability is observed in the results obtained in the response area, increasing the risk of harvesting and reducing the yield per hectare.

With the increasing impact of climate change, there is a need to develop strategies to increase productivity and maximize the potential of the agro-food sector. The relationship between the yield of sugarcane production (harvested area) is not proportional; Although the planted area is large, it does not ensure that the expected crop yield will be the same (Figure 11B), but mainly depends on various factors related to good management of agricultural practices and climatic factors. One of the major challenges facing the sugar sector is the global supply of sugar due to increasing competition in the sweetener manufacturing market. Therefore, the sugarcane agribusiness strives to increase profitability and sustainability to ensure a quality offer with competitiveness in the market and to maintain a stable production value. Figure 11C shows the relationship between production value and crop yield.

The agricultural supply chain is affected by climate change, and the socio-economic changes in agricultural production demand due to fluctuations in food and net import demand have reduced agricultural production efficiency [69,70]. On the other hand, in the medium term, the uncertainty of Mexico’s geographic location and the scale and frequency of extreme events may greatly increase the vulnerability of the agricultural sector [45]. Faced with the increased vulnerability of sugarcane production, proper management of the physicochemical indicators of the edaphic environment can increase the yield of sugarcane per hectare. The non-nutrition disorders model has the function of a reactive agent because it can model the physicochemical indicators of the edaphic condition of the sugar mill supply area to predict the efficiency of agricultural soil. So it helps to resist the vulnerability of crops. Through the fuzzy model, agricultural soil efficiency of 0.783 (“average optimal”) was obtained.

The main soils of the agricultural land are Vertisole, Gleysole, Cambiosole, and Lithosole. The former is characteristic soils that are very hard and tend to create deep cracks during periods of drought. Gleysols are soils that tend to accumulate water during periods of higher rainfall. Cambisols and lithosols are soils that are very prone to erosion.

The results obtained in the response surfaces show a higher efficiency (≈>0.77), which results from the interaction of the variables organic matter and pH (Figure 12A).

Organic matter makes it possible to reduce problems related to nutrient deficiencies in agricultural soils because organic matter provides the necessary micronutrients (Mg²⁺, Cu²⁺, Fe²⁺, Mn²⁺, and Zn²⁺) to minimize the deficit. The pH value determines the availability of micronutrients contained in organic matter. Optimal pH values in agricultural soil are between 4.8 and 7.2; pH values below 4 acidify agricultural soils due to the presence of exchangeable aluminum, altering the development of the crop root and reducing the productivity of sugarcane. As can be seen in Figure 12B, pH values above 4.5 increase the efficiency of soils by values above 0.68. PH values between 2.8 and 4 result in a soil efficiency below 0.53. Electrical conductivity is a potential indicator for estimating soil and nutrient properties [71]. Figure 12C shows the relationship between electrical conductivity and organic matter. The response surfaces show high soil efficiency (>0.8) which is higher than the results obtained in the relationship between organic matter and pH.

For a model to be classified according to the agent approach (ABM), it must be reactive. The reactivity of an intelligent agent refers to the fact that it can analyze the state within the system in which it is immersed to react appropriately to changes caused by the environment [7]. The function of the fuzzy reactive agent model is one of “learning”. This is activated to reduce the vulnerability of the crop when vulnerability values above 0.54 are obtained. If the vulnerability values are greater than 0.54, the reactive agent is activated to reduce the vulnerability (cycles 3, 8, and 10). If the vulnerability values are below 0.54, the reactive agent is inactive. Figure 13 shows the results at the end of the twelve-cycle simulation. As observed, when the cycles exceed the optimal vulnerability levels, the reactive agent activates and decreases by 8% (± 3%).

Table 7. Crop vulnerability results.

Cycle	Scenario 1	Scenario 2	Reactive Agent
1	0.45	0.45	0.73
2	0.22	0.22	0.79
3	0.57	0.49	0.6
4	0.32	0.32	0.78
5	0.3	0.3	0.74
6	0.32	0.32	0.62
7	0.28	0.28	0.66
8	0.54	0.5	0.81
9	0.49	0.49	0.69
10	0.59	0.53	0.67
11	0.4	0.4	0.78
12	0.31	0.31	0.59
Final value: Crop vulnerability agent 0.37

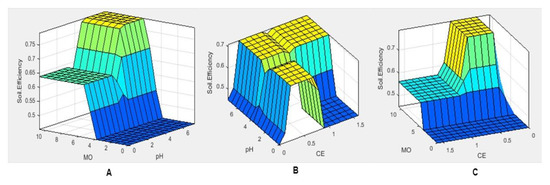

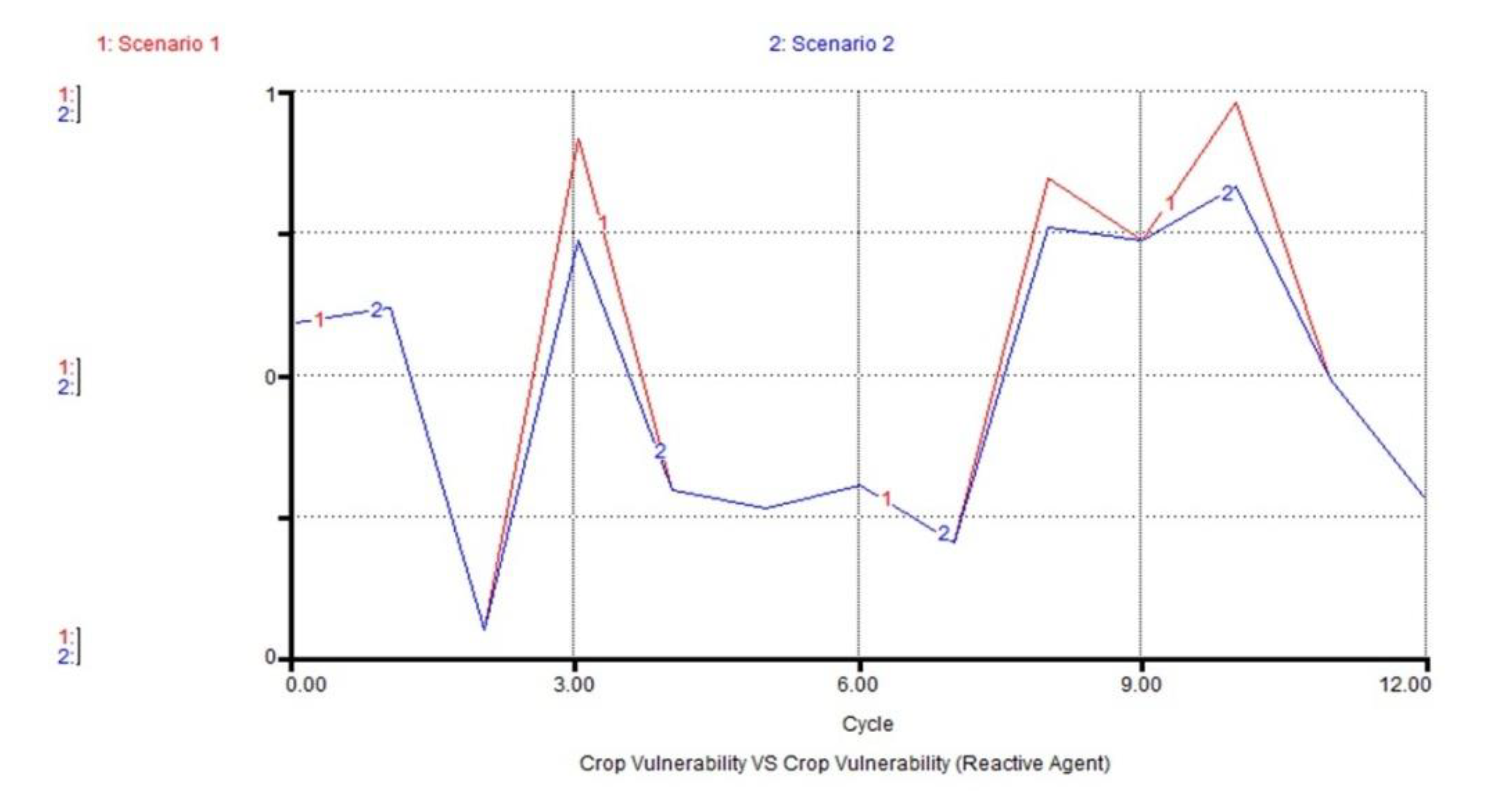

shows the soil efficiency obtained from the diffuse reactive agent model and the results in the vulnerability scenarios over twelve sugarcane cultivation cycles. Scenario 1 shows the results of crop vulnerability from the fuzzy models. In scenario 2 it is observed that the interaction of the reactive agent reduces the vulnerability when it exceeds values of 0.54. The final vulnerability value for the model is 0.37, which indicates a low level of vulnerability.

In the multi-agent system, the crop vulnerability agent handles the decision-making process about the reactive agent and the flow of information provided by the agent networks as vulnerability indicators. The vulnerability indicators of the agent network form a decision support system for long-term land development strategies and prospects.

• Step 3: Determination of total vulnerability of the system

With the results obtained in step 1, a vulnerability factor was assigned to each value obtained (

Table 8. Vulnerability scale.

Vulnerability		Land Yield	Agriculture Value	Water Resources Efficiency	GHG Emissions	Emergency or Risk Situation
Scale	Label	Value (Kg/Ha)	Value (% GDP)	Value (kg/m3)	Value (Gt CO2 eq)	Value (Events)
0–0.37	Low	>4464	>5.2	>2.2	<60,000	<4100
0.38–0.68	Medium	3262–4464	3.4–5.2	1–2.2	60,000–190,000	4100–15,950
0.69–1	High	<3262	<3.4	<1	>190,000	>15,950

). The vulnerability weighting for the Agricultural Land Yield and Agricultural Value Networks was determined based on the 2017 Grain Yield and Global Agricultural Value Added by the United Nations Food and Agriculture Organization [72] and the World Bank [39].

The allocation of the vulnerability value for the networks for resource efficiency and environmental contingency (GHG emissions—emergency or risk situation) was carried out based on historical data observed from 2001 to 2018 [43,45,47,48,50,73]. The vulnerability scale for each expected value of the variable of interest is shown below.

Based on the vulnerability scale,

Table 9. Vulnerability results (Vulnerability Indicators Agent).

Land Yield	Agriculture Value	Water Resources Efficiency	Environmental Contingency
			GHG Emissions	Emergency or Risk Situation	Final Value
0.58	0.89	0.59	0.58	0.43	0.49
0.56	0.69	0.51	0.58	0.45	0.51
0.56	0.73	0.47	0.66	0.47	0.55
0.53	0.38	0.46	0.67	0.47	0.55
0.58	0.64	0.45	0.66	0.47	0.55
0.59	0.71	0.44	0.68	0.49	0.57
0.55	0.64	0.42	0.67	0.48	0.56
0.55	0.61	0.42	0.68	0.5	0.58
0.57	0.78	0.42	0.68	0.5	0.58
0.56	0.73	0.4	0.68	0.5	0.58
0.53	0.75	0.39	0.69	0.51	0.59
0.57	0.79	0.39	0.70	0.51	0.59
Vulnerability Indicators Agent: 0.56

shows the results at the end of the twelve-cycle simulation; with a final vulnerability value of 0.56 being obtained. Average vulnerability is related to environmental contingency and resource depletion in the agricultural sector which affects crop yield and the value of agriculture.

5. Discussion

The results obtained in stages 1 (Table 9) and 2 (Table 7) were used to determine the overall vulnerability of the system, with an average level (0.47) being obtained. The results obtained in Stage 2 showed vulnerability values that were below those obtained in Stage 1; because implementing techniques including response surfaces reduces the number of simulations used to estimate parameters and results [74]. In the multi-agent system, the communication between the agents offers the possibility of interacting with one another as shown in the vulnerability values in stages 1 and 2; As the vulnerability is lower in stage 2, this is an indication that the crop has a low harvest risk due to weather conditions and the good management of the agricultural practices used, which helps to minimize the impact of the external factors mentioned in stage 1.

Autonomy allows the agent to act without the direct intervention of another agent. In this case, the vulnerability indicator agent’s performance and the crop yield agent’s performance are not interdependent because they are independent, and each agent has its role. However, they work together for the same general objective (stage 3) and respond appropriately to changes in the system (reactive agent).

Multi-agent systems can characterize complex study systems [73], which are mainly complex systems that intervene with various actors or agents. Different from other techniques, implementing a multi-agent system for assessing vulnerabilities under the ABM approach provides the following advantages:

i.

Dynamism, by examining complex systems, problems at the micro-level are tackled, as there is a connection between cause and effect in the causal diagram (Figure 2) and macro-level, where the relationships between the elementary subsystems are examined.

ii.

Flexibility, in this case, the interaction of a reactive agent gives the multi-agent system flexibility to make changes within the system to achieve the goal. In stage 2, the vulnerability can be reduced by performing the reactive agent (non-nutritional disorders model) (Figure 13).

iii.

Adaptability. The multi-agent system developed as a generic model serves as the basis for assessing the vulnerability of crops with characteristics similar to sugarcane by varying the dynamic variables of the model concerning the characteristics of the crops and the cultivation area as well as changes in mainly the inference engine of fuzzy models.

For the aforementioned in the discussion section, we can conclude that the contribution to the state of the art and to knowledge is a model based on decision support agents, contributing mainly in the following aspects:

Model integrated by agro climatic indicators of vulnerability capable of representing structural causes of the system under conditions of uncertainty and dynamism.

The study system is modeled through time series; system dynamics; uncertain parameters; data mining and expertise; facilitating the study; understanding and analysis of the object of study allowing to evaluate different scenarios resulting from variations in the trend in aspects such as agricultural production; and incidence of meteorological phenomena or reduction of resources.

The development and implementation of the agent-based model (ABM) allows the capitalization of knowledge and information through the autonomy and social ability of the agents modeled through artificial intelligence techniques.

The development of the reactive agent showed a decrease in the levels of vulnerability as shown in Table 7; Therefore, the ABM not only seeks the characterization of the system to determine the vulnerability existing in the sugarcane crop, rather, it allows decisions to be made with the objective of minimizing levels of vulnerability in order to increase crop yield and production value.

The validation of the agent-based model, consists of three steps: (i) the dynamic models were verified by calculating the vulnerability indexes for each information network (Figure 2), the results obtained were compared with the vulnerability scale established by the Mexican Institute of Water Technology (IMTA) [48]. (ii) For the validation of the fuzzy logic models, the results obtained in twelve simulation cycles were compared against historical data reported by the case study mill (Figure 7), obtaining a correlation coefficient of 0. 9465; finally, (iii) for the validation of the agent model, a qualitative verification of the results obtained from the proposed methodology was carried out through the adaptation schemes for the sugarmill (case study), which were endorsed by the company’s agronomists, who considered them consistent with the system’s behavior pattern. The implementation of the work schemes will be carried out in the next planting cycle for the year 2022.

6. Conclusions

Agricultural systems are anthropogenic ecosystems in continuous evolution that respond not only to climatic but also to socio-economic and institutional changes related to the production process. The loss of biodiversity of crops and fauna and the impact of climate change accelerates the spread of viruses and infectious diseases transmitted from animals to humans, such as COVID-19. Among the factors that increase this condition are deforestation, changes in land use, and excessive agriculture, which affect the agricultural supply chain related to the supply and demand of agricultural products [75,76]

The modeling of uncertain parameters enables estimates of behavioral patterns and possible impacts within the system. In this sense, the vulnerability must be analyzed as a systemic and dynamic condition.

Agent-based models (ABM) can analyze and simulate newly occurring properties of the system through the interaction and information flow of virtual agents. The developed ABM comprises agent networks designed with the help of artificial intelligence techniques that allow the study of the behavior and interactions of the agents who integrate the networks.

The vulnerability indicator agent showed a greater impact on environmental contingency due to the increase in GHG emissions and the exponential growth of meteorological phenomena that endanger the agricultural harvest. Likewise, factors such as crop loss, depletion of resources, and loss of soil fertility jeopardize the proper development of agricultural activities, affecting the value of agriculture and consequently making the agricultural sector more vulnerable. The crop vulnerability agent demonstrated the optimal production conditions in terms of agricultural practices and soil nutrition to achieve a higher yield from the sugarcane crop. The highest expected yield varies between 76 and 81 tons/ha in terms of the variables N-P-K (nitrogen, phosphorus, and potassium) related to soil nutrition. Using fertilizers is critical to the productivity of the plantations; Since it contributes to the nutrient deficiencies in agricultural soil that arise from soil degradation or the effects of climate change, counteracting saline effects that inhibit the growth of sugarcane roots.

The reactive agent enables the modeling of physicochemical indicators of the edaphic condition in the supply area of the sugar mill to predict the efficiency of the agricultural soil. In this way, the vulnerability of the harvest is counteracted, and the sugarcane harvest vulnerability is reduced by 8%. Applying the agent-based model, a vulnerability of 0.47 was obtained, which was considered to be moderate.

This research contributes to the state-of-the-art knowledge of a decision support system through an agent-based model to assess the vulnerability of agriculture to sugarcane growing by developing scenarios dynamically and simultaneously to propose work programs leading to the mitigation climatic change of and carry out adaptation measures.

This research provides (i) an agent-based methodology integrated by different techniques for modeling and developing environmental and socioeconomic indicators to generate adaptation schemes for the agricultural system under study facing climate change; and, (ii) models for knowledge and experience management through fuzzy logic and models that allow representing the uncertainty of the system under study by means of system dynamics simulation to obtain socioeconomic indicators. With the methodology and models developed, an agent-based macro-model was obtained to address problems related to crop vulnerability to climate change. The macro-model obtained serves as a generic model, which can be adapted to crops with similar characteristics to sugarcane, management of similar agricultural practices, and edaphic and climatological conditions similar to those in the study area.
