Identifying Root Causes of Important Service Failures across Medical Examination Processes with Integration of 4M1E, ITLV, GRA, DEMATEL and FMEA

Abstract

Medical examination plays an essential role in most medical treatment processes, and thus, the quality of service relevant to medical examination has great impact on patient satisfaction. The targeted hospital has long been faced with the problem that patient satisfaction of its medical examination department is below average. An assessment model, integrating 4M1E, ITLV, GRA, DEMATEL and FMEA, was developed in this study to identify the root causes of important service failures across medical examination processes, where (1) a cause-and-effect diagram was enhanced with 4M1E, identifying the list of failure modes relevant to service quality over the medical examination process with the 4M1E analysis framework, (2) FMEA experts were enabled to report their assessment results in their preferred ways by using the ITLV scheme, (3) causes of failure to failure modes with was figured out with DEMATEL, and (4) the evaluation results were improved by integrating GRA. Experimental results obtained by the proposed approach are compared with several benchmarks, and it was observed that (1) the results obtained by the proposed model are more suitable when FMEA experts prefer using different assessment languages versus other approaches; (2) the proposed model can figure out the key root causes according to their impact on overall failure modes.

1. Introduction

Medical examination plays an essential part in the majority of medical treatment processes, and thus, the quality of service relevant to medical examination processes has great impact on patient satisfaction. Shanghai Pulmonary Hospital, a medium-size specialized hospital located in Shanghai, China, has long been faced with the problem that patient satisfaction of its medical examination department is below average, according to patient satisfaction reports of this hospital. Considering that more and more hospitals have regarded patient satisfaction as the most important indicator measuring service quality in recent years [1], it is essential to reveal the key factors resulting in nonsatisfaction of patients and to give valuable suggestions for improving service quality for the targeted medical examination department.

According to the literature, it was observed that there are few research studies on improving the service quality of medical examination, and most studies focus on either specific problems or certain medical examination activities such as the performance of C-arm X-ray machines, service assessments of radiographers’ experiences relevant to patient safety incidents, etc. [1,2,3,4,5]. However, few studies assess the service quality relevant to medical examination from the perspective of the entire process, i.e., from the time the patient makes an appointment for examination to receiving the final examination report.

When the literature review was extended to include studies concerning service quality improvement for organizations other than the medical examination department, it was observed that many hybrid assessment models have been developed to draw on each other’s strengths. For example, Raziei et al. (2018) combined SERVQUAL with group decision making and QFD [6], Serkan and Semih (2019) integrated SERVQUAL and QFD with FMEA [7], and Tuzkaya et al. (2019) combined IVIF and PROMETHEE to overcome service quality problems from the perspectives of patients [8]. The ITLV scheme (2-tuple linguistic variables) has been successfully combined by some researchers, such as Li and He (2021), with assessment models to reduce both the uncertainty of evaluation information and the diversity of evaluation results [9].

Furthermore, it was observed that fuzzy techniques are widely applied in service quality assessment to deal with uncertainties. For instance, Liu et al. (2019) enhanced the performance of a fuzzy multi-attribute decision-making model by using grey relational analysis (GRA) when evaluating hospital service performance [10]. Yucesan and Gul (2020) combined Pythagorean FAHP and Pythagorean fuzzy technique to provide an accurate decision-making process for evaluating hospital service quality [11]. Alkafaji and Al-Shamery (2020) improved a service quality evaluation model by using fuzzy inference that can assess the quality of service in a similar way to the human experts of healthcare [12]. Akram et al. (2022) proposed a decision-making approach retaining the fascinating traits of the conventional VIKOR method in the context of the enrich multidimensional complex Fermatean fuzzy N-soft set [13]. Akram et al. (2022) developed a structure by the fusion of Fermatean fuzzy sets and linguistic term sets to deal with decision-making problems involving qualitative information [14]. Yüksel and Dinçer (2022) utilized hesitant 2-tuple interval-valued Pythagorean fuzzy DEMATEL to enhance the performance of the evaluation model [15].

Among the existing approaches, observed in the literature, developed for service quality improvement, it can be observed that FMEA (failure mode and effect analysis) and its variants have been widely used. A further literature review showed that FMEA and its variants can help prevent possible failure during service delivery in various fields from the perspectives of the entire process. For instance, Najafpour et al. (2017) applied FMEA to improve the efficiency of the blood transfusion process in a teaching general hospital [16]. Sayyadi Tooranloo et al. (2018) utilized FMEA to evaluate knowledge management failure factors in an intuitionistic fuzzy environment [17]. Mete (2019) applied a variant of FMEA to assess occupational risks in a natural gas pipeline construction project [18]. Lo et al. (2020) applied FMEA to identify critical failure modes of individual equipment components or processes to improve the development of plans [19]. Zhou et al. (2021) developed a FMEA-based approach to facilitate risk analysis of product design under uncertainty [20]. Although the traditional FMEA model suffers from several drawbacks when assessing the risk prioritization of potential failure modes, many efforts have been made to enhance the performance of the FMEA model in service quality evaluation so that many enhanced FMEA models can be successfully applied in various field for service quality improvement [21,22,23,24,25,26].

Encouraged by the success of FMEA models, this study aims at developing an advanced FMEA model for improving the service quality of medical examination in the targeted hospital concerning patient satisfaction, from the perspective of the entire medical examination process, where the following approaches have been integrated with FMEA to improve the FMEA assessment results: (1) The cause-and-effect diagram enhanced by 4M1E (man, machine, material, method and environment) structure was applied to systematically identify both the list of potential failure modes (FMs) and that of failure causes (CFs). (2) The ITLV (2-tuple linguistic variables), a multi-grained language scheme, was utilized to improve the collection of assessment opinions from FMEA experts. (3) DEMATEL (decision-making trial and evaluation laboratory) was applied to reveal the relationships between CFs and FMs. (4) The GRA (grey relation analysis) method was adopted to address the loss and uncertainty of decision makers’ judgements.

The rest of the paper is organized as follows: In Section 2, the theorical framework of our FMEA model is introduced. In Section 3, the case study of the targeted hospital is detailed. Discussions about this study are given in Section 4, and this paper concludes in Section 5.

2. Methodology

2.1. General Procedure of the Proposed Assessment Model

The general procedure of the FMEA model, an advanced service quality assessment model developed in this study, is as follows:

Step 1: Confirming central theme

In this study, the FMEA model is developed to identify potential risks involving the quality of services relevant to the medical examination process in the targeted hospital.

Step 2: Establishing a team with authority and representativeness

Five professionals, including two technicians, two nurses and one report physician, who have been responsible for various job positions across the medical examination process in the targeted hospital over one year, are invited as FMEA experts.

Step 3: Drawing the flowchart

The list of activities involved in the examination process are identified based on full discussions with the invited FMEA experts, and the flowchart of process is confirmed by those FMEA experts as well.

Step 4: Identifying the list of failure modes, failure causes and effects of failure

After full discussions with the expert group, we identify not only the failure modes and their possible effect, but also failure causes with the cause-and-effect diagram enhanced by the 4M1E structure.

Step 5: Scoring and computing the RPN

First, the ITLV (interval 2-tuple linguistic variables) is applied to integrate the evaluation data collected from FMEA experts with multi-grained language.

Then, GRA is used to ranking FMs (failure modes) according to their RPNs.

Afterward, DEMATEL is applied to identify the root causes for each failure mode.

Step 6: Devising and carrying out solutions

Based on the results obtained in Step 5, suggestions are given to improve the service quality across the medical examination process in the targeted hospital.

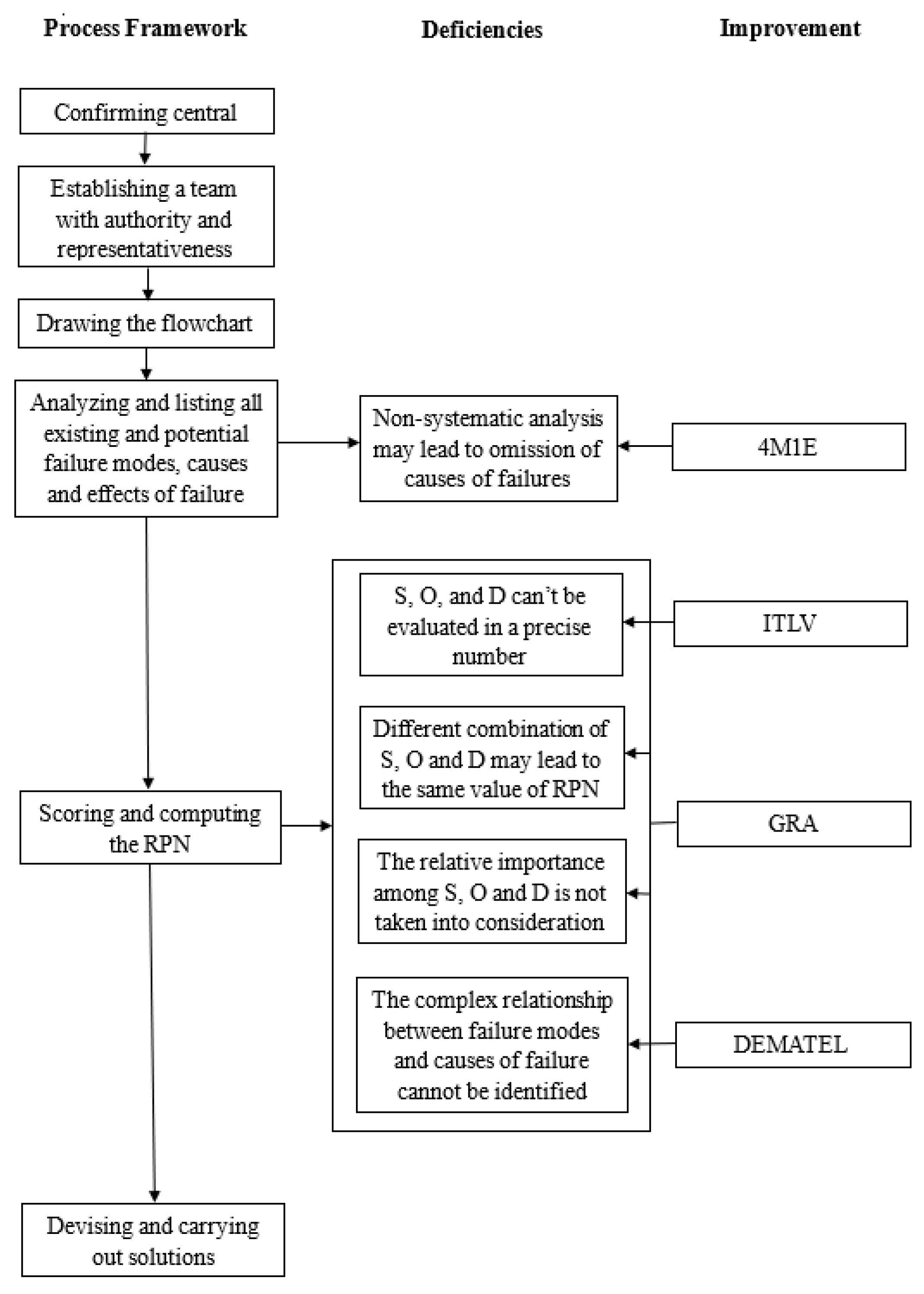

For better understanding, the contribution of the hybridization mechanism to improve the performance of traditional FMEA is depicted in Figure 1, and details about how each component works are given in the rest of this section.

Figure 1. Comparison between the proposed FMEA and traditional one.

2.2. Linguistic Variables

2.2.1. 2-Tuple Linguistic Variables

2-tuple linguistic variables were firstly identified by Herrera and Martinez based on the concept of symbol translation [1]. In this study, applied is the generalized 2-tuple linguistic variables model raised by Chen and Tai in 2005 based on the concept of 2-tuple linguistic variables to deal with and compare linguistic variables from linguistic evaluation sets with different granularity [27]. Here below are some definitions relevant to 2-tuple linguistic variables.

Definition 1.

Let $S=\left\{S_0,S_1,\dots ,S_g\right\}$ be a linguistic term set and $\beta \in \left[0,1\right]$ be a value representing the result of standardization. Then, the generalized translation function $\Delta$ used to obtain the 2-tuple linguistic variable equivalent to $\beta$ can be defined as follows [1]:

$$\Delta :\left[0,1\right]\to S\times \left[-\frac{1}{2g},\left.\frac{1}{2g}\right)\right.$$

(1)

$$\Delta \left(\beta \right)=\left(S_i,\alpha \right),with \left\{\begin{array}{c}{S}_i,i=round\left(\beta ·g\right)\\ \alpha =\beta -\frac{i}{g},\alpha \in \left[-\frac{1}{2g},\left.\frac{1}{2g}\right)\right.\end{array}\right.$$

(2)

where:

(a)

round means rounding off operation;

(b)

$·$ means normal multiplication;

(c)

$S_i$ is the closet linguistic evaluation to $\beta$;

(d)

$\alpha$ is the value of the symbolic translation depending on g;

(e)

$g$ is linked with the number of linguistic terms in S. For example, there are 5 linguistic terms in S; then, $g=4$ and $\alpha \in \left[-0.125,\left.0.125\right)\right.$

Definition 2.

Let $S=\left\{S_0,S_1,\dots ,S_g\right\}$ be a linguistic term set and $\left(S_i,\alpha \right)$ be a 2-tuple. The function ${\Delta }^{-1}$ that can translate a 2-tuple linguistic variable to its equivalent numerical value $\beta \in \left[0,1\right]$, which can be used to compare different multi-granularity linguistic terms, can be defined as follows:

$${\Delta }^{-1}: S\times \left[-\frac{1}{2g},\left.\frac{1}{2g}\right)\to \left[0,1\right]\right.$$

(3)

$${\Delta }^{-1}\left(S_i,\alpha \right)=\frac{i}{g}+\alpha =\beta$$

(4)

Definition 3.

Let $\left(S_k,{\alpha }_1\right)$ and $\left(S_l,{\alpha }_2\right)$ be two 2-tuples, and define the following rules:

• If $k<l$, then $\left(S_k,{\alpha }_1\right)<\left(S_l,{\alpha }_2\right)$;
• If $k=l$, then

  (1)

  If ${\alpha }_1={\alpha }_2$, then $\left(S_k,{\alpha }_1\right)=\left(S_l,{\alpha }_2\right)$;

  (2)

  If ${\alpha }_1<{\alpha }_2$, then $\left(S_k,{\alpha }_1\right)<\left(S_l,{\alpha }_2\right)$;

  (3)

  If ${\alpha }_1>{\alpha }_2$, then $\left(S_k,{\alpha }_1\right)>\left(S_l,{\alpha }_2\right)$.

In the operation of 2-tuple linguistic variables, function $\Delta$ and function ${\Delta }^{-1}$ ensure no information loss during translation.

Definition 4.

Let $X=\left\{\left(r_1,{\alpha }_1\right),\left(r_2,{\alpha }_2\right),\dots ,\left(r_n,{\alpha }_n\right)\right\}$ be a 2-tuple set and $W={\left(W_1,W_2,\dots ,W_n\right)}^T$ be their associated weights, with $W_i\in \left[0,1\right],i=1,2,\dots ,n$, $\sum _{i=1}^n{W}_i=1$. The 2-tuple weighted average (TWA) is defined as

$$TWA\left(X\right)=\Delta \left(\frac{1}{n}{\sum }_{i=1}^n{W}_i{\Delta }^{-1}\left(r_i,{\alpha }_i\right)\right)=\Delta \left(\frac{1}{n}{\sum }_{i=1}^n{W}_i{\beta }_i\right)$$

(5)

2.2.2. Interval 2-Tuple Linguistic Variables (ITLV)

Definition 5.

Let $S=\left\{S_0,S_1,\dots ,S_g\right\}$ be a linguistic term set. An interval 2-tuple linguistic variable is composed of two 2-tuples, denoted by $\left[\left(S_i,{\alpha }_1\right),\left(S_j,{\alpha }_2\right)\right]$, with $i<j$ and ${\alpha }_1<{\alpha }_2$. $S_i\left(S_j\right)$ and ${\alpha }_1\left({\alpha }_2\right)$ represent the linguistic label of the predefined linguistic term set S and symbolic translation.

Interval 2-tuple linguistic variable has the same meaning with $\left[{\beta }_1,{\beta }_2\right]$ (${\beta }_1$,${\beta }_2\in \left[0,1\right],$ ${\beta }_1\le {\beta }_2$) and is derived by the following function:

$$\Delta \left[{\beta }_1,{\beta }_2\right]=\left[\left(S_i,{\alpha }_1\right),\left(S_j,{\alpha }_2\right)\right] with \left\{\begin{array}{c}{S}_i, i=round\left({\beta }_1·g\right)\\ S_j, j=round\left({\beta }_2·g\right)\\ {\alpha }_1={\beta }_1-\frac{i}{g},{\alpha }_1\in \left[-\frac{1}{2g},\left.\frac{1}{2g}\right)\right.\\ {\alpha }_2={\beta }_2-\frac{i}{g},{\alpha }_2\in \left[-\frac{1}{2g},\left.\frac{1}{2g}\right)\right.\end{array}\right.$$

(6)

On the contrary, there always exists function ${\Delta }^{-1}$, which can convert $\left[\left(S_i,{\alpha }_1\right),\left(S_j,{\alpha }_2\right)\right]$ into $\left[{\beta }_1,{\beta }_2\right]$(${\beta }_1$,${\beta }_2\in \left[0,1\right],$ ${\beta }_1\le {\beta }_2$). Function ${\Delta }^{-1}$ is defined as follows:

$${\Delta }^{-1}\left[\left(S_i,{\alpha }_1\right),\left(S_j,{\alpha }_2\right)\right]=\left[\frac{\mathrm{i}}{g}+{\alpha }_1,\frac{\mathrm{i}}{g}+{\alpha }_2\right]=\left[{\beta }_1,{\beta }_2\right]$$

(7)

when $S_i=S_j$ and ${\alpha }_1={\alpha }_2$, the interval 2-tuple linguistic variable can be simplified as a 2-tuple one.

Definition 6.

Let $\tilde{X}=\left\{\left[\left(r_1,{\alpha }_1\right),\left(t_1,{\epsilon }_1\right)\right],\left[\left(r_2,{\alpha }_2\right),\left(t_2,{\epsilon }_2\right)\right],\dots ,\left[\left(r_n,{\alpha }_n\right),\left(t_n,{\epsilon }_n\right)\right]\right\}$ be an interval 2-tuple set, and W = ${\left(W_1,W_2,\dots ,W_n\right)}^T$ be their associated weights, with $W_i\in \left[0,1\right],i=1,2,\dots ,n$, $\sum _{i=1}^n{W}_i=1$. Then, the interval 2-tuple weighted average (ITWA) is defined as

$$ITWA\left(\tilde{X}\right)=\Delta \left[{\sum }_{i=1}^n{W}_i{\Delta }^{-1}\left(r_i,{\alpha }_i\right),{\sum }_{i=1}^n{W}_i{\Delta }^{-1}\left(t_i,{\epsilon }_i\right)\right]$$

(8)

Definition 7.

Let $\tilde{a}=\left[\left(r_1,{\alpha }_1\right),\left(t_1,{\epsilon }_1\right)\right]$ and $\tilde{b}=\left[\left(r_2,{\alpha }_2\right),\left(t_2,{\epsilon }_2\right)\right]$ be two interval 2-tuples, then the normalized Euclidean distance between $\tilde{a}$ and $\tilde{b}$ is defined as following:

$$d\left(\tilde{a},\tilde{b}\right)=\Delta \sqrt{\left[{\left({\Delta }^{-1}\left(r_1,{\alpha }_1\right)-{\Delta }^{-1}\left(r_2,{\alpha }_2\right)\right)}^2+{\left({\Delta }^{-1}\left(t_1,{\epsilon }_1\right)-{\Delta }^{-1}\left(t_2,{\epsilon }_2\right)\right)}^2\right]}$$

(9)

2.3. Grey Relation Analysis (GRA)

Grey theory was proposed in 1982 and is widely used in situations with multiple input, imperfection and uncertain information, especially in [28]. Grey theory is composed of 6 main research methods, and GRA is one of the most important of them.

Supposing that $X=\left\{X_0,X_1,\dots ,X_m\right\}$ is a grey relational factor set, $X_0\in X$ represents the reference sequence and $X_i$, $i=1,2,\dots ,m$, represents the comparative sequence. $X_0$ and $X_i$ contain n elements, indicated as $X_0=\left(x_0\left(1\right),x_0\left(2\right),\dots ,x_0\left(k\right),\dots ,x_0\left(n\right)\right)$, $X_i=\left(x_i\left(1\right),x_i\left(2\right),\dots ,x_i\left(k\right),\dots ,x_i\left(n\right)\right)$, $i=1,2,\dots ,n$, $k=1,2,\dots ,n$.

$x_0\left(k\right)$ and $x_i\left(k\right)$ are the kth elements of reference and comparative sequence, and their grey relation coefficient can be calculated through the following equation:

$$\gamma \left(x_0\left(k\right),x_i\left(k\right)\right)=\frac{\underset{i}{\mathit{min}} \underset{k}{\mathit{min}}\left|x_0\left(k\right)-x_i\left(k\right)\right|+\xi \underset{i}{\mathit{max}} \underset{k}{\mathit{max}}\left|x_0\left(k\right)-x_i\left(k\right)\right|}{\left|x_0\left(k\right)-x_i\left(k\right)\right|+\xi \underset{i}{\mathit{max}} \underset{k}{\mathit{max}}\left|x_0\left(k\right)-x_i\left(k\right)\right|}$$

(10)

ξ is the distinguishing coefficient, $\xi \in \left[0,1\right]$. $\xi =0.5$ is applied.

The grey relational degree between $x_0$ and $x_i$ is indicated by the following equation:

$$\phi \left(x_0,x_i\right)=\frac{1}{n}{\sum }_{k=1}^n\gamma \left(x_0\left(k\right),x_i\left(k\right)\right)$$

(11)

2.4. Decision-Making Trial and Evaluation Laboratory (DEMATEL)

DEMATEL was proposed by the Battelle Memorial Institute of the Geneva Research Center to resolve complex social issues through setting up a matrix to compute the direct and indirect relationships between elements [28].

DEMATEL can be divided into 5 steps as follows.

Step 1: List and define the factors in a complex system, and then, design a form to demonstrate their causal relationship.

Step 2: Establish an initial direct-relation matrix X. Value in the matrix represents the incidence between factors, obtained by pairwise comparisons in terms of influences and directions. $x_{ij}$ is denoted as the degree to which factor i affects factor j.

$$X=\left[\begin{array}{cccc}0& x_{12}& \dots & x_{1n}\\ x_{21}& 0& \dots & x_{2n}\\ ⋮& ⋮& \ddots & ⋮\\ x_{n1}& x_{n2}& \cdots & 0\end{array}\right]$$

Step 3: Normalize the initial direct-relation matrix X. The normalized direct-relation matrix (N) can be obtained by the following equation:

$$\lambda =\frac{1}{ma{x}_{1\le i\le n}{\sum }_{j=1}^n{x}_{ij}}$$

(12)

$$N=\lambda X$$

(13)

Step 4: Calculate the total relation matrix (T).

$$T=\underset{k\to \infty }{\mathit{lim}}\left(N+N^2+\cdots +N^k\right)=N{\left(I-N\right)}^{-1}$$

(14)

Step 5: Calculate the sum of every row and column in matrix T. Let $R_i$ be sum of the $i^{th}$ row and $C_j$ be sum of the $j^{th}$ column. $R_j$ and $C_j$ contain the direct and indirect relationships among factors.

$$R_j={\sum }_{j=1}^n{t}_{ij} \left(i=1,2,\dots ,n\right)$$

(15)

$$C_j={\sum }_{i=1}^n{t}_{ij} \left(j=1,2,\dots ,n\right)$$

(16)

2.5. GRA-DEMATEL-Based FMEA (GD-FMEA Method)

In this subsection, the GD-FMEA method is combined with the interval 2-tuple linguistic variables, where GRA and DEMATEL will be demonstrated.

Supposing that (a) an expert team is composed of l expert $\left(D{M}_k, k=1,2,\dots ,l\right)$, and ${\lambda }_k$ is their associated weights, in which $k=1,2,\dots l, {\lambda }_k>0$, and ${\sum }_{k=1}^l{\lambda }_k=1$; (b), there are m causes of failure $\left(C{F}_i, i=1,2,\dots ,m\right)$ with n risk factors $\left(R{F}_j, j=1,2,\dots ,n\right)$. Weights represent the importance of each expert when they evaluate the risk. Every expert can use a different linguistic term set $S$ ($S=\left\{S_0,S_1,\dots ,S_g\right\}$) to evaluate CFs. Let $D_k={\left(d_{ij}^k\right)}_{m\times n}$ be the linguistic evaluation matrix of the kth expert, where $d_{ij}^k$ is the linguistic assessment provided by $D{M}_k$ on the assessment of $C{F}_i$, with respect to $R{F}_j$. Let $w_j^k$ be the linguistic weight of risk factor $R{F}_j$ given by $D{M}_k$ to reflect its relative importance in the determination of risk priorities of causes of failure and failure modes. Based on the previously mentioned assumptions, the GD-FMEA method can be divided into the following steps:

Step 1: Establish a team with authority and representativeness, and then, list flowchart, failure modes, causes and effect of failure.

Step 2: Experts use different linguistic term sets to evaluate the risk factors and CFs; then, convert the linguistic decision matrix $D_k={\left(d_{ij}^k\right)}_{m\times n}$ into an interval 2-tuple linguistic decision matrix $\tilde{R}={\left({\tilde{r}}_{ij}^k\right)}_{m\times n}={\left(\left[\left(r_{ij}^k,0\right), \left(t_{ij}^k,0\right)\right]\right)}_{m\times n}$, where $r_{ij}^k$, $t_{ij}^k\in S,$ $S=\left\{S_0,S_1,\dots ,S_g\right\}$ and $r_{ij}^k<t_{ij}^k$.

Step 3: Aggregate the experts’ opinions to construct a collective interval 2-tuple linguistic decision matrix $\tilde{R}={\left({\tilde{r}}_{ij}\right)}_{m\times n}$ and obtain the aggregated 2-tuple linguistic weight of each risk factor $\omega ={\left[\left({\omega }_j,{\alpha }_{\omega j}\right)\right]}_{1\times n}$, where

$$\begin{gathered} {\tilde{R}}_{ij}=\left[\left(r_{ij},{\alpha }_{ij}\right),\left(t_{ij},{\epsilon }_{ij}\right)\right]=ITWA{\left({\tilde{r}}_{ij}^k\right)}_{m\times n} \\ =\left(\left[\right(r_{ij}^1,0), (t_{ij}^1,0\left)\right], \left[\right(r_{ij}^2,0), (t_{ij}^2,0\left)\right],\dots , \left[\right(r_{ij}^l,0), (t_{ij}^l,0\left)\right]\right) \\ =\Delta \left[{\sum }_{k=1}^l{\lambda }_k{\Delta }^{-1}\left(r_{xij}^k,0\right),{\sum }_{k=1}^l{\lambda }_k{\Delta }^{-1}\left(t_{ij}^k,0\right)\right], i=1,2,\dots m,j=1,2,\dots ,n \end{gathered}$$

(17)

$$\left({\omega }_j,{\alpha }_{\omega j}\right)=\left[TWA\left({\omega }_j^1,0\right),\left({\omega }_j^2,0\right),\dots ,\left({\omega }_j^l,0\right)\right]=\Delta \left[{\sum }_{k=1}^l{\lambda }_k{\Delta }^{-1}\left({\omega }_j^k,0\right)\right]$$

(18)

Step 4: Calculate the weight of risk factors (S, O, D)

Based on the aggregated weights of risk factors ${\left({\omega }_j,{\alpha }_{\omega j}\right)}_{1\times n}$, the normalized risk factor weights can be obtained as follows:

$$\overline{{\omega }_j}=\frac{{\Delta }^{-1}\left({\omega }_j,{\alpha }_{\omega j}\right)}{{{\displaystyle \sum }}_{j=1}^n{\Delta }^{-1}\left({\omega }_j,{\alpha }_{\omega j}\right)},j=1,2,\dots ,n$$

(19)

Step 5: This step is related to GRA; thus, it can be subdivided into four steps:

(1)

Determine the reference sequence $r_0$

$$r_0={\left(r_{ij}\right)}_{1\times n}=\left[\left(s_0,0\right),\left(s_0,0\right),\dots ,\left(s_0,0\right)\right]$$

(20)

(2)

Calculate the distances (differences) between the comparative sequences and the reference one, and establish the distance matrix $D_0={\left[d\left({\tilde{r}}_{ij},r_{0j}\right)\right]}_{m\times n}$

$$D\left({\tilde{r}}_{ij},r_{0j}\right)=\Delta \sqrt{\frac{1}{2}\left[{\left({\Delta }^{-1}\left(r_{ij},{\alpha }_{ij}\right)-{\Delta }^{-1}\left(s_0,0\right)\right)}^2+{\left({\Delta }^{-1}\left(t_{ij},{\epsilon }_{ij}\right)-{\Delta }^{-1}\left(s_0,0\right)\right)}^2\right]}$$

(21)

(3)

Calculate the grey relational coefficient ${\gamma }_{ij}$

The grey relational coefficient represents how close ${\tilde{r}}_{ij}$ is to $r_{0j}$. The larger the grey relational coefficient is, the closer ${\tilde{r}}_{ij}$ and $r_{0j}$ are:

$${\gamma }_{ij}=\Delta \left(\frac{{\Delta }^{-1}{\delta }_{min}+\zeta {\Delta }^{-1}{\delta }_{max}}{{\Delta }^{-1}{\delta }_{ij}+\zeta {\Delta }^{-1}{\delta }_{max}}\right), i=1,2,\dots ,m,j=1,2,\dots ,n$$

(22)

where ${\delta }_{ij}=d\left({\tilde{r}}_{xij},r_{xij}\right)$, ${\delta }_{min}=\underset{xi}{min}\underset{j}{min}{\delta }_{ij}$, ${\delta }_{max}=\underset{xi}{max}\underset{j}{max}{\delta }_{ij}$, the distinguishing coefficient $\xi \in \left[0,1\right]$. $\xi =0.5$ is applied.

(4)

Estimate the grey relational degree ${\phi }_i$

$${\phi }_i=\Delta \left({{\displaystyle \sum }}_{j=1}^n\overline{{\omega }_j}{\Delta }^{-1}{r}_{ij}\right)$$

(23)

Step 6: Construct the initial relation matrix Y based on the result of Step 5.

Step 7: Normalize matrix Y to obtain the normalized relation matrix H. This step can be subdivided into two steps.

(1)

Calculate the sum of every row and column and use Equation (12) to obtain the reciprocal of the maximum of summed columns and rows.

(2)

Use Equation (13) to obtain the normalized relation matrix H.

Step 8: Calculate the direct and indirect relative severity matrix T.

Use Equation (14) to obtain the direct and indirect severity matrix T.

Step 9: Calculate the value of (R + C) and (R − C) based on Equation (15) and Equation (16).

(R + C) represents the total relationships between the cause and effect of specific criteria.

(R − C) represents influence, the differences between the cause and effect of specific criteria [29].

3. Case Study

In this section, it will be demonstrated how the GD-FMEA is applied to derive the root causes of failures resulting in poor service quality across the medical examination process in the targeted hospital located in Shanghai, China, and the steps are as follows.

Step 1: Define the list of failure modes (FMs) and corresponding causes of failure (CFs).

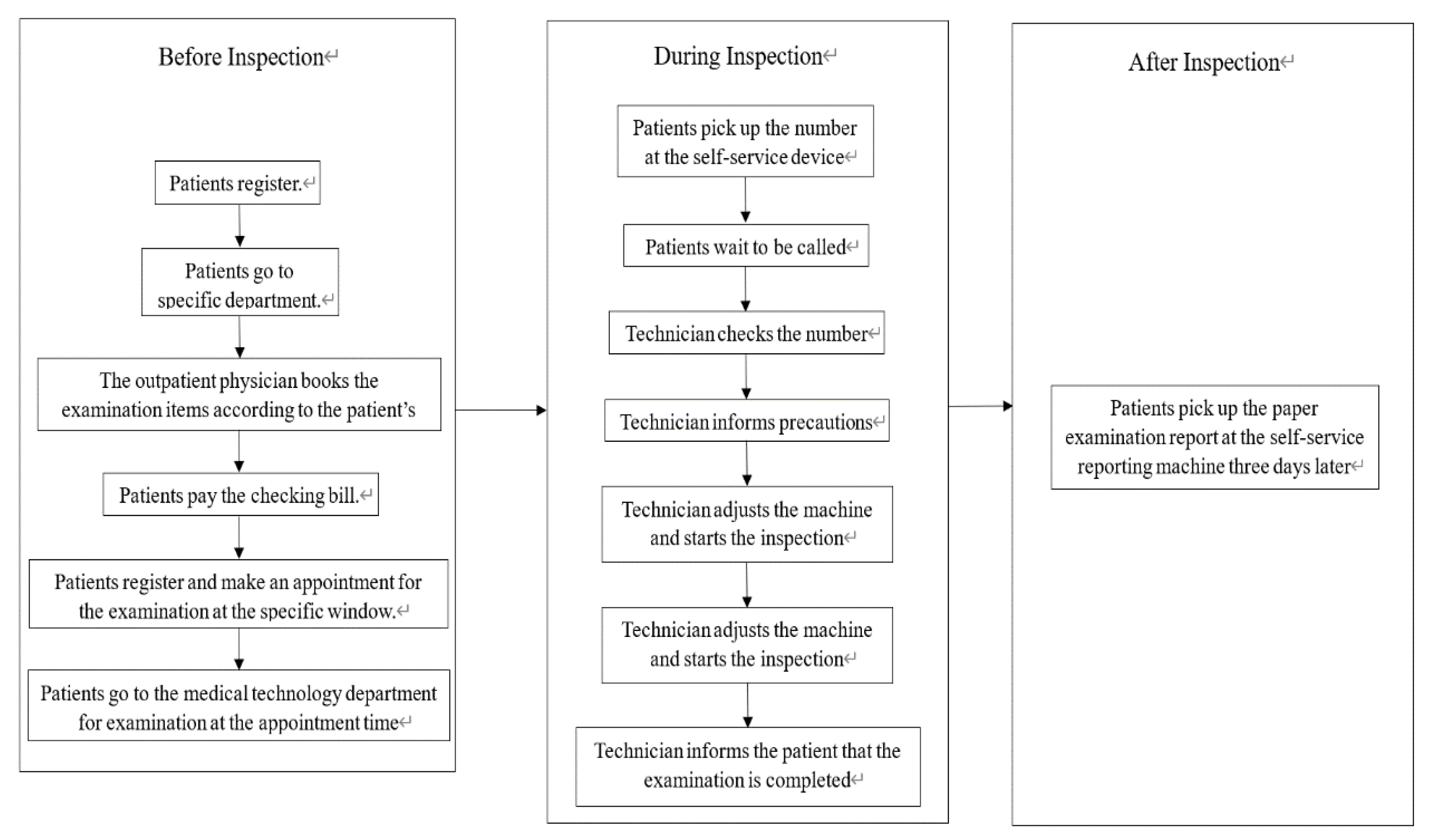

As shown in Figure 2, the process relevant to a medical examination in the targeted hospital consists of three stages, where the pre-inspection process starts from the registration of the patient until the arrival of the patient at the medical technology department at the appointment time; the per-inspection process consists of all the relevant activities carried out during the inspection; and the post-inspection process refers to obtaining the examination report after the inspection.

Figure 2. The flowchart of inspection.

Based on literature review and after full discussion with the FMEA experts, the list of FMs defined in this study is constructed as shown in Table 1, where the corresponding CFs are identified with the cause-and-effect diagram enhanced by the 4M1E mechanism, as shown Figure 3, for FM₁, as an example.

Table 1. List of FMs across the medical examination process in the targeted hospital.

FMs	Description of FM	Factors	CF	Description of CF
FM1	Waiting too long in the queue for an examination	Man	CF1	Patients are not familiar with treatment process, which makes them queue repeatedly
			CF2	Times for activities are not well arranged by the staff
			CF3	Technician missed certain inspection items or performed the wrong inspection
			CF4	Report physician writes wrong patient’s name on report
			CF5	Staff acts wrongly out of personal considerations
		Method	CF6	Assigned too many appointments to the time block
		Environment	CF7	The guide is not clear, making patients line up repeatedly
FM2	Poor management at reception	Man	CF5	Staff acts wrongly out of personal considerations
			CF8	Technicians do not verify the number, resulting in queue cutting
FM3	Patients do not appear on time	Environment	CF9	Room numbers are ambiguous
			CF10	Prompt tone sounds lightly
FM4	Checking part is not right	Man	CF3	Technician missed certain inspection items or performed the wrong inspection
			CF11	Patient and item names are not confirmed
			CF12	The outpatient physician does not book the examination items according to the patient’s needs
FM5	Machines go wrong	Man	CF13	Technical staff does not identify potential faults
			CF14	Technicians fail to operate the instrument as required
			CF15	Patients do not use the self-service number machine according to the regulations
			CF16	Patients do not use the self-service reporting machine according to the regulations
		Machine	CF17	Medical technical inspection equipment is not regularly maintained
			CF18	Self-service number machines are not regularly maintained
			CF19	Self-service reporting machines are not regularly maintained
			CF20	Software system of medical technical inspection equipment failures
			CF21	Software system of self-service number machine failures
			CF22	Software system of self-service reporting machine failures
		Environment	CF23	The instrument placement environment does not meet the requirements
FM6	Report does not tally with patient’s symptom	Man	CF4	Report physician writes wrong patient’s name on report
			CF24	Report physician inputs error of examination result
			CF25	Technician uninforms precautions
FM7	Patients do not fetch report on time	Man	CF16	Patients do not use the self-service reporting machine according to the regulations
		Machine	CF22	Software system of self-service reporting machine failures
			CF26	Self-service reporting machine goes wrong
		Material	CF27	Insufficient material such as paper and ink

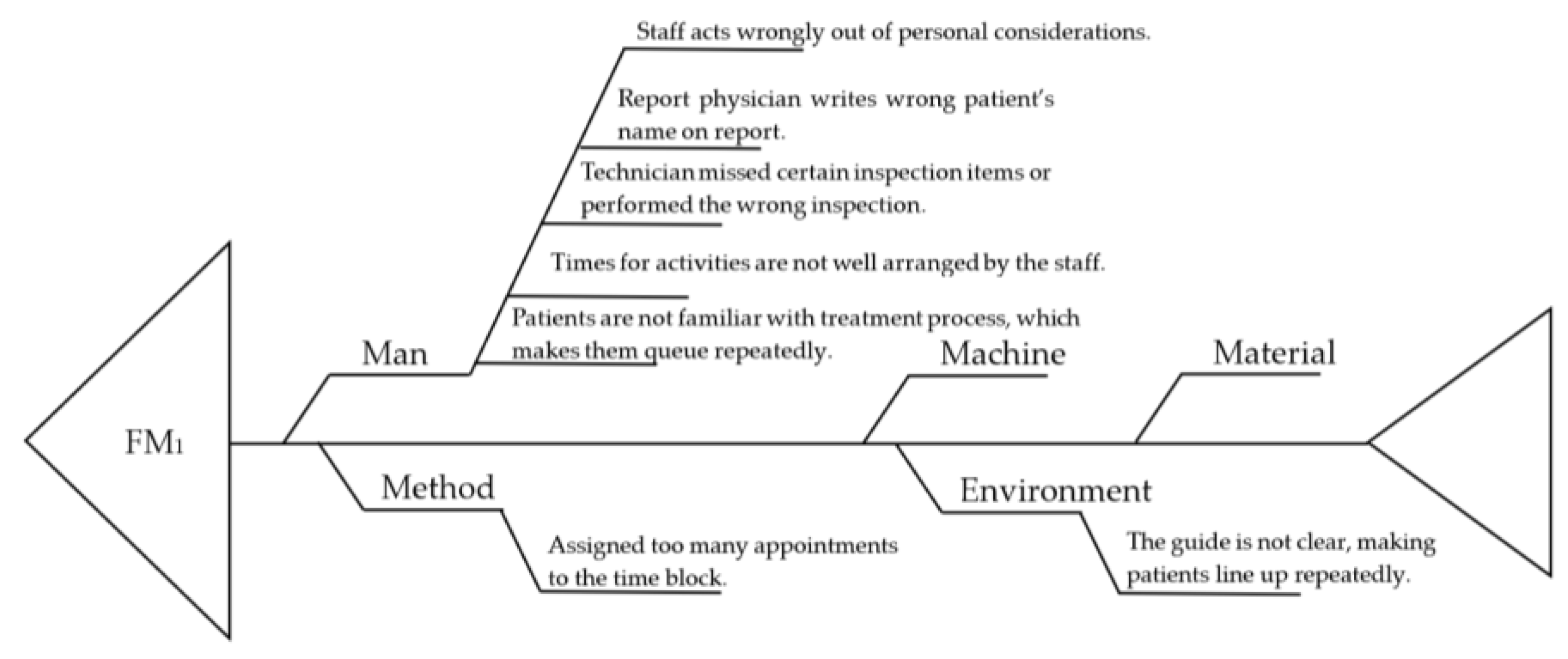

Figure 3. Cause-and-effect diagram enhanced by 4M1E scheme for identifying root causes of failure relevant to FM₁.

Step 2: Collect individual assessment results from FMEA experts.

To ensure the quality of assessment data, the FMEA expert team is composed of five experts, called decision makers (DMs) hereafter, who are senior professionals invited from the medical technology department in the targeted hospital, including two technicians responsible for medical examination operations, two nurses for on-site services at the targeted medical examination department, and one report physician. Considering the job responsibilities of these experts can be regarded as having equally important impact on the satisfaction of the patient partaking in the medical examination; their respective weights are set the same, i.e., 0.2 for each.

Furthermore, when collecting individual assessment data from the FMEA team, three linguistic term sets, whose structures are shown in Table 2, are provided in the questionnaires to enable the experts to fill in the questionnaires using their favorite rating system.

Table 2. Three linguistic term sets applied in this study (EL: Extremely Low; VL: Very Low; ML: Moderately Low; M: Moderate; MH: Moderately High; H: High; VH: Very High; EH: Extremely High).

Set	EL	VL	L	ML	M	MH	H	VH	EH
A		a0	a1		a2		a3	a4
B		b0	b1	b2	b3	b4	b5	b6
C	c0	c1	c2	c3	c4	c5	c6	c7	c8

According to the questionnaires collected from the FMEA experts, noted as DM₁ to DM₅, it was observed that DM₁ preferred set C, DM₄ selected set B, and the other three experts, i.e., DM₂, DM₃ and DM₅, used set A.

As for the collection of experts’ opinions on the importance of risk factors, we applied a five-granularity linguistic term set D = {d₀ = very unimportant (VU), d₁ = unimportant (U), d₂ = medium(M), d₃ = important (I), d₄ = very important (VI)}.

Since data collected from FMEA experts are multi-linguistic, they are firstly converted uniformly into interval 2-tuple linguistic variables. Table 3, Table 4 and Table 5 show the 2-tuple linguistic variables corresponding to Severity (S), Occurrence (O), Detection (D).

Table 3. Interval 2-tuple linguistic variables for Severity (S).

	DM1	DM2	DM3	DM4	DM5
FM1-CF1	[(c0,0),(c0,0)]	[(a4,0),(a4,0)]	[(a3,0),(a3,0)]	[(b2,0),(b2,0)]	[(a1,0),(a1,0)]
FM1-CF2	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b0,0),(b0,0)]	[(a1,0),(a1,0)]
FM1-CF3	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a0,0),(a0,0)]	[(b0,0),(b0,0)]	[(a0,0),(a0,0)]
FM1-CF4	[(c8,0),(c8,0)]	[(a1,0),(a1,0)]	[(a0,0),(a0,0)]	[(b0,0),(b0,0)]	[(a0,0),(a0,0)]
FM1-CF5	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a0,0),(a0,0)]	[(b0,0),(b0,0)]	[(a1,0),(a1,0)]
FM1-CF6	[(c7,0),(c7,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a1,0),(a1,0)]
FM1-CF7	[(c5,0),(c5,0)]	[(a2,0),(a2,0)]	[(a3,0),(a3,0)]	[(b1,0),(b1,0)]	[(a1,0),(a1,0)]
FM2-CF5	[(c4,0),(c4,0)]	[(a1,0),(a1,0)]	[(a1,0),(a1,0)]	[(b0,0),(b0,0)]	[(a0,0),(a0,0)]
FM2-CF8	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a1,0),(a1,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM3-CF9	[(c6,0),(c6,0)]	[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM3-CF10	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM4-CF3	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM4-CF11	[(c8,0),(c8,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b0,0),(b0,0)]	[(a0,0),(a0,0)]
FM4-CF12	[(c7,0),(c7,0)]	[(a0,0),(a0,0)]	[(a2,0),(a2,0)]	[(b0,0),(b0,0)]	[(a0,0),(a0,0)]
FM5-CF13	[(c6,0),(c6,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a1,0),(a1,0)]
FM5-CF14	[(c6,0),(c6,0)]	[(a3,0),(a3,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM5-CF15	[(c4,0),(c4,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a1,0),(a1,0)]
FM5-CF16	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a1,0),(a1,0)]
FM5-CF17	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a1,0),(a1,0)]
FM5-CF18	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a1,0),(a1,0)]
FM5-CF19	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b4,0),(b4,0)]	[(a1,0),(a1,0)]
FM5-CF20		[(a3,0),(a3,0)]	[(a3,0),(a3,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM5-CF21	[(c4,0),(c4,0)]	[(a3,0),(a3,0)]	[(a3,0),(a3,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM5-CF22	[(c6,0),(c6,0)]	[(a3,0),(a3,0)]	[(a3,0),(a3,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM5-CF23	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM6-CF4	[(c7,0),(c7,0)]	[(a3,0),(a3,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a0,0),(a0,0)]
FM6-CF24		[(a3,0),(a3,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM6-CF25	[(c7,0),(c7,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM7-CF16	[(c6,0),(c6,0)]	[(a4,0),(a4,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM7-CF22	[(c7,0),(c7,0)]	[(a4,0),(a4,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM7-CF26	[(c6,0),(c6,0)]	[(a3,0),(a3,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM7-CF27	[(c4,0),(c4,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]

Table 4. Interval 2-tuple linguistic variables for Occurrence (O).

	DM1	DM2	DM3	DM4	DM5
FM1-CF1	[(c3,0),(c3,0)]	[(a4,0),(a4,0)]	[(a3,0),(a3,0)]	[(b2,0),(b2,0)]	[(a1,0),(a1,0)]
FM1-CF2	[(c1,0),(c1,0)]	[(a2,0),(a2,0)]	[(a3,0),(a3,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM1-CF3	[(c6,0),(c6,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM1-CF4	[(c8,0),(c8,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM1-CF5	[(c4,0),(c4,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM1-CF6	[(c7,0),(c7,0)]	[(a0,0),(a0,0)]	[(a3,0),(a3,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM1-CF7	[(c5,0),(c5,0)]	[(a1,0),(a1,0)]	[(a3,0),(a3,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM2-CF5	[(c4,0),(c4,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM2-CF8	[(c0,0),(c0,0)]	[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM3-CF9	[(c0,0),(c0,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM3-CF10	[(c1,0),(c1,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM4-CF3	[(c0,0),(c0,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM4-CF11	[(c4,0),(c4,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM4-CF12	[(c4,0),(c4,0)]	[(a0,0),(a0,0)]	[(a2,0),(a2,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM5-CF13	[(c0,0),(c0,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM5-CF14	[(c0,0),(c0,0)]	[(a3,0),(a3,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a1,0),(a1,0)]
FM5-CF15	[(c4,0),(c4,0)]	[(a0,0),(a0,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a1,0),(a1,0)]
FM5-CF16	[(c4,0),(c4,0)]	[(a0,0),(a0,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a1,0),(a1,0)]
FM5-CF17	[(c2,0),(c2,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM5-CF18	[(c2,0),(c2,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM5-CF19	[(c2,0),(c2,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM5-CF20		[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM5-CF21	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM5-CF22	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM5-CF23	[(c0,0),(c0,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM6-CF4	[(c1,0),(c1,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM6-CF24		[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM6-CF25	[(c1,0),(c1,0)]	[(a1,0),(a1,0)]	[(a3,0),(a3,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM7-CF16	[(c4,0),(c4,0)]	[(a1,0),(a1,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a1,0),(a1,0)]
FM7-CF22	[(c1,0),(c1,0)]	[(a0,0),(a0,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM7-CF26	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM7-CF27	[(c2,0),(c2,0)]	[(a2,0),(a2,0)]	[(a2,0),(a2,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]

Table 5. Interval 2-tuple linguistic variables for Detection (D).

	DM1	DM2	DM3	DM4	DM5
FM1-CF1	[(c0,0),(c0,0)]	[(a4,0),(a4,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM1-CF2	[(c0,0),(c0,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM1-CF3	[(c1,0),(c1,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b2,0),(b2,0)]	[(a0,0),(a0,0)]
FM1-CF4	[(c0,0),(c0,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a1,0),(a1,0)]
FM1-CF5	[(c0,0),(c0,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM1-CF6	[(c7,0),(c7,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM1-CF7	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM2-CF5	[(c0,0),(c0,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM2-CF8	[(c0,0),(c0,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a0,0),(a0,0)]
FM3-CF9	[(c6,0),(c6,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b0,0),(b0,0)]	[(a0,0),(a0,0)]
FM3-CF10	[(c6,0),(c6,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM4-CF3	[(c1,0),(c1,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM4-CF11	[(c8,0),(c8,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a0,0),(a0,0)]
FM4-CF12	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM5-CF13	[(c0,0),(c0,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a0,0),(a0,0)]
FM5-CF14	[(c0,0),(c0,0)]	[(a4,0),(a4,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM5-CF15	[(c6,0),(c6,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM5-CF16	[(c4,0),(c4,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM5-CF17	[(c6,0),(c6,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM5-CF18	[(c6,0),(c6,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM5-CF19	[(c6,0),(c6,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a1,0),(a1,0)]
FM5-CF20		[(a4,0),(a4,0)]	[(a4,0),(a4,0)]	[(b3,0),(b3,0)]	[(a1,0),(a1,0)]
FM5-CF21	[(c6,0),(c6,0)]	[(a4,0),(a4,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a0,0),(a0,0)]
FM5-CF22	[(c4,0),(c4,0)]	[(a4,0),(a4,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a0,0),(a0,0)]
FM5-CF23	[(c2,0),(c2,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM6-CF4	[(c8,0),(c8,0)]	[(a0,0),(a0,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM6-CF24		[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM6-CF25	[(c1,0),(c1,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a0,0),(a0,0)]
FM7-CF16	[(c2,0),(c2,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a1,0),(a1,0)]
FM7-CF22	[(c7,0),(c7,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b5,0),(b5,0)]	[(a1,0),(a1,0)]
FM7-CF26	[(c4,0),(c4,0)]	[(a2,0),(a2,0)]	[(a4,0),(a4,0)]	[(b4,0),(b4,0)]	[(a1,0),(a1,0)]
FM7-CF27	[(c4,0),(c4,0)]	[(a1,0),(a1,0)]	[(a4,0),(a4,0)]	[(b1,0),(b1,0)]	[(a1,0),(a1,0)]

Interval 2-tuple linguistic variables for the importance of risk factors are shown in Table 6.

Table 6. Interval 2-tuple linguistic variables for the importance of risk factors.

	DM1	DM2	DM3	DM4	DM5
S	(d1,0)	(d4,0)	(d3,0)	(d4,0)	(d2,0)
O	(d2,0)	(d4,0)	(d3,0)	(d3,0)	(d1,0)
D	(d3,0)	(d4,0)	(d3,0)	(d3,0)	(d3,0)

Step 3: Construct an aggregated interval 2-tuple linguistic decision matrix.

Use Equation (17) to construct the aggregated interval 2-tuple linguistic decision matrix $\tilde{R}={\left({\tilde{r}}_{ij}\right)}_{m\times n}$, and use Equation (18) to obtain the aggregated 2-tuple linguistic weight of each risk factor $\mathsf{\omega }={\left[\left({\omega }_j,{\alpha }_{\omega j}\right)\right]}_{1\times n}$, as shown in Table 7.

Table 7. Interval 2-tuple linguistic decision matrix $\tilde{\mathrm{R}}$.

	S	O	D
FM1-CF1	$\Delta$[0.467,0.467]	$\Delta$[0.542,0.542]	$\Delta$[0.467,0.467]
FM1-CF2	$\Delta$[0.350,0.350]	$\Delta$[0.342,0.342]	$\Delta$[0.233,0.233]
FM1-CF3	$\Delta$[0.200,0.200]	$\Delta$[0.417,0.417]	$\Delta$[0.342,0.342]
FM1-CF4	$\Delta$[0.250,0.250]	$\Delta$[0.533,0.533]	$\Delta$[0.333,0.333]
FM1-CF5	$\Delta$[0.250,0.250]	$\Delta$[0.283,0.283]	$\Delta$[0.300,0.300]
FM1-CF6	$\Delta$[0.458,0.458]	$\Delta$[0.358,0.358]	$\Delta$[0.508,0.508]
FM1-CF7	$\Delta$[0.458,0.458]	$\Delta$[0.392,0.392]	$\Delta$[0.500,0.500]
FM2-CF5	$\Delta$[0.200,0.200]	$\Delta$[0.283,0.283]	$\Delta$[0.300,0.300]
FM2-CF8	$\Delta$[0.283,0.283]	$\Delta$[0.267,0.267]	$\Delta$[0.300,0.300]
FM3-CF9	$\Delta$[0.417,0.417]	$\Delta$[0.217,0.217]	$\Delta$[0.350,0.350]
FM3-CF10	$\Delta$[0.400,0.400]	$\Delta$[0.275,0.275]	$\Delta$[0.383,0.383]
FM4-CF3	$\Delta$[0.467,0.467]	$\Delta$[0.233,0.233]	$\Delta$[0.358,0.358]
FM4-CF11	$\Delta$[0.400,0.400]	$\Delta$[0.333,0.333]	$\Delta$[0.533,0.533]
FM4-CF12	$\Delta$[0.275,0.275]	$\Delta$[0.233,0.233]	$\Delta$[0.433,0.433]
FM5-CF13	$\Delta$[0.467,0.467]	$\Delta$[0.267,0.267]	$\Delta$[0.333,0.333]
FM5-CF14	$\Delta$[0.600,0.600]	$\Delta$[0.500,0.500]	$\Delta$[0.433,0.433]
FM5-CF15	$\Delta$[0.400,0.400]	$\Delta$[0.350,0.350]	$\Delta$[0.433,0.433]
FM5-CF16	$\Delta$[0.450,0.450]	$\Delta$[0.350,0.350]	$\Delta$[0.333,0.333]
FM5-CF17	$\Delta$[0.583,0.583]	$\Delta$[0.317,0.317]	$\Delta$[0.383,0.383]
FM5-CF18	$\Delta$[0.583,0.583]	$\Delta$[0.350,0.350]	$\Delta$[0.383,0.383]
FM5-CF19	$\Delta$[0.483,0.483]	$\Delta$[0.350,0.350]	$\Delta$[0.433,0.433]
FM5-CF20	$\Delta$[0.400,0.400]	$\Delta$[0.300,0.300]	$\Delta$[0.150,0.150]
FM5-CF21	$\Delta$[0.400,0.400]	$\Delta$[0.267,0.267]	$\Delta$[0.533,0.533]
FM5-CF22	$\Delta$[0.550,0.550]	$\Delta$[0.367,0.367]	$\Delta$[0.633,0.633]
FM5-CF23	$\Delta$[0.433,0.433]	$\Delta$[0.367,0.367]	$\Delta$[0.333,0.333]
FM6-CF4	$\Delta$[0.658,0.658]	$\Delta$[0.392,0.392]	$\Delta$[0.433,0.433]
FM6-CF24	$\Delta$[0.450,0.450]	$\Delta$[0.317,0.317]	$\Delta$[0.283,0.283]
FM6-CF25	$\Delta$[0.458,0.458]	$\Delta$[0.325,0.325]	$\Delta$[0.308,0.308]
FM7-CF16	$\Delta$[0.550,0.550]	$\Delta$[0.400,0.400]	$\Delta$[0.533,0.533]
FM7-CF22	$\Delta$[0.542,0.542]	$\Delta$[0.192,0.192]	$\Delta$[0.642,0.642]
FM7-CF26	$\Delta$[0.467,0.467]	$\Delta$[0.400,0.400]	$\Delta$[0.583,0.583]
FM7-CF27	$\Delta$[0.317,0.317]	$\Delta$[0.317,0.317]	$\Delta$[0.433,0.433]
Weight	0.700	0.650	0.800
Normalized Weight	0.326	0.302	0.372

Step 4: Normalize the weights of risk factors.

Use Equation (19) to normalize the weights of risk factors, as shown in the last line of Table 7.

Step 5: Set reference sequence.

Use Equation (20) to determine the following reference sequence.

$$r_0=\left[\left(a_4,0\right),\left(a_4,0\right),\left(a_4,0\right)\right]$$

Step 6: Establish distance matrix.

Use Equation (21) to calculate the distances (differences) between the comparative sequences and the reference one, and then, establish the distance matrix $D_0={\left[d\left({\tilde{r}}_{ij},r_{0j}\right)\right]}_{m\times n}$, as shown in Table 8.

Table 8. The distance matrix $D_0$ for pairs of FMs and CFs.

Pairs	S	O	D
FM1-CF1	$\Delta$(3.533)	$\Delta$(3.458)	$\Delta$(3.533)
FM1-CF2	$\Delta$(3.650)	$\Delta$(3.658	$\Delta$(3.767)
FM1-CF3	$\Delta$(3.800)	$\Delta$(3.583)	$\Delta$(3.658)
FM1-CF4	$\Delta$(3.750)	$\Delta$(3.467)	$\Delta$(3.667)
FM1-CF5	$\Delta$(3.750)	$\Delta$(3.717)	$\Delta$(3.700)
FM1-CF6	$\Delta$(3.542)	$\Delta$(3.642)	$\Delta$(3.492)
FM1-CF7	$\Delta$(3.542)	$\Delta$(3.608)	$\Delta$(3.500)
FM2-CF5	$\Delta$(3.800)	$\Delta$(3.717)	$\Delta$(3.700)
FM2-CF8	$\Delta$(3.717)	$\Delta$(3.733)	$\Delta$(3.700)
FM3-CF9	$\Delta$(3.583)	$\Delta$(3.783)	$\Delta$(3.650)
FM3-CF10	$\Delta$(3.600)	$\Delta$(3.725)	$\Delta$(3.617)
FM4-CF3	$\Delta$(3.533)	$\Delta$(3.767)	$\Delta$(3.642)
FM4-CF11	$\Delta$(3.600)	$\Delta$(3.667)	$\Delta$(3.467)
FM4-CF12	$\Delta$(3.725)	$\Delta$(3.767)	$\Delta$(3.567)
FM5-CF13	$\Delta$(3.533)	$\Delta$(3.733)	$\Delta$(3.667)
FM5-CF14	$\Delta$(3.400)	$\Delta$(3.500)	$\Delta$(3.567)
FM5-CF15	$\Delta$(3.600)	$\Delta$(3.650)	$\Delta$(3.567)
FM5-CF16	$\Delta$(3.550)	$\Delta$(3.650)	$\Delta$(3.667)
FM5-CF17	$\Delta$(3.417)	$\Delta$(3.683)	$\Delta$(3.617)
FM5-CF18	$\Delta$(3.417)	$\Delta$(3.650)	$\Delta$(3.617)
FM5-CF19	$\Delta$(3.517)	$\Delta$(3.650)	$\Delta$(3.567)
FM5-CF20	$\Delta$(3.600)	$\Delta$(3.700)	$\Delta$(3.850)
FM5-CF21	$\Delta$(3.600)	$\Delta$(3.733)	$\Delta$(3.467)
FM5-CF22	$\Delta$(3.450)	$\Delta$(3.633)	$\Delta$(3.367)
FM5-CF23	$\Delta$(3.567)	$\Delta$(3.633)	$\Delta$(3.667)
FM6-CF4	$\Delta$(3.342)	$\Delta$(3.608)	$\Delta$(3.567)
FM6-CF24	$\Delta$(3.550)	$\Delta$(3.683)	$\Delta$(3.717)
FM6-CF25	$\Delta$(3.542)	$\Delta$(3.675)	$\Delta$(3.692)
FM7-CF16	$\Delta$(3.450)	$\Delta$(3.600)	$\Delta$(3.467)
FM7-CF22	$\Delta$(3.458)	$\Delta$(3.808)	$\Delta$(3.358)
FM7-CF26	$\Delta$(3.533)	$\Delta$(3.600)	$\Delta$(3.417)
FM7-CF27	$\Delta$(3.683)	$\Delta$(3.683)	$\Delta$(3.567)

Step 7: Calculate grey relational coefficients.

Determine the grey relational coefficient ${\gamma }_{ij}$ by using Equation (22), of which the results are shown in Table 9.

Table 9. The grey relational coefficient for pairs of FMs and CFs.

Pairs	S	O	D
FM1-CF1	$\Delta$(0.965)	$\Delta$(0.978)	$\Delta$(0.965)
FM1-CF2	$\Delta$(0.945)	$\Delta$(0.943)	$\Delta$(0.925)
FM1-CF3	$\Delta$(0.920)	$\Delta$(0.956)	$\Delta$(0.943)
FM1-CF4	$\Delta$(0.928)	$\Delta$(0.977)	$\Delta$(0.942)
FM1-CF5	$\Delta$(0.928)	$\Delta$(0.934)	$\Delta$(0.936)
FM1-CF6	$\Delta$(0.963)	$\Delta$(0.946)	$\Delta$(0.972)
FM1-CF7	$\Delta$(0.963)	$\Delta$(0.952)	$\Delta$(0.971)
FM2-CF5	$\Delta$(0.920)	$\Delta$(0.934)	$\Delta$(0.936)
FM2-CF8	$\Delta$(0.934)	$\Delta$(0.931)	$\Delta$(0.936)
FM3-CF9	$\Delta$(0.956)	$\Delta$(0.923)	$\Delta$(0.945)
FM3-CF10	$\Delta$(0.953)	$\Delta$(0.932)	$\Delta$(0.950)
FM4-CF3	$\Delta$(0.965)	$\Delta$(0.925)	$\Delta$(0.946)
FM4-CF11	$\Delta$(0.953)	$\Delta$(0.942)	$\Delta$(0.977)
FM4-CF12	$\Delta$(0.932)	$\Delta$(0.925)	$\Delta$(0.959)
FM5-CF13	$\Delta$(0.965)	$\Delta$(0.931)	$\Delta$(0.942)
FM5-CF14	$\Delta$(0.989)	$\Delta$(0.971)	$\Delta$(0.959)
FM5-CF15	$\Delta$(0.953)	$\Delta$(0.945)	$\Delta$(0.959)
FM5-CF16	$\Delta$(0.962)	$\Delta$(0.945)	$\Delta$(0.942)
FM5-CF17	$\Delta$(0.986)	$\Delta$(0.939)	$\Delta$(0.950)
FM5-CF18	$\Delta$(0.986)	$\Delta$(0.945)	$\Delta$(0.950)
FM5-CF19	$\Delta$(0.968)	$\Delta$(0.945)	$\Delta$(0.959)
FM5-CF20	$\Delta$(0.953)	$\Delta$(0.936)	$\Delta$(0.912)
FM5-CF21	$\Delta$(0.953)	$\Delta$(0.931)	$\Delta$(0.977)
FM5-CF22	$\Delta$(0.980)	$\Delta$(0.948)	$\Delta$(0.995)
FM5-CF23	$\Delta$(0.959)	$\Delta$(0.948)	$\Delta$(0.942)
FM6-CF4	$\Delta$(1.000)	$\Delta$(0.952)	$\Delta$(0.959)
FM6-CF24	$\Delta$(0.962)	$\Delta$(0.939)	$\Delta$(0.934)
FM6-CF25	$\Delta$(0.963)	$\Delta$(0.941)	$\Delta$(0.938)
FM7-CF16	$\Delta$(0.980)	$\Delta$(0.953)	$\Delta$(0.977)
FM7-CF22	$\Delta$(0.978)	$\Delta$(0.919)	$\Delta$(0.997)
FM7-CF26	$\Delta$(0.965)	$\Delta$(0.953)	$\Delta$(0.986)
FM7-CF27	$\Delta$(0.939)	$\Delta$(0.939)	$\Delta$(0.959)

Step 8: Estimate grey relational degrees.

Determine the grey relational degree ${\phi }_i$ by using Equation (23), of which the results are shown in Table 10.

Table 10. The grey relational degree of FM–CF pairs.

Pairs	Grey Relational Degree	2-Tuple
FM1-CF1	$\Delta$(0.969)	(a4,-0.030)
FM1-CF2	$\Delta$(0.937)	(a4,-0.063)
FM1-CF3	$\Delta$(0.940)	(a4,-0.060)
FM1-CF4	$\Delta$(0.948)	(a4,-0.052)
FM1-CF5	$\Delta$(0.933)	(a4,-0.067)
FM1-CF6	$\Delta$(0.962)	(a4,-0.038)
FM1-CF7	$\Delta$(0.963)	(a4,-0.037)
FM2-CF5	$\Delta$(0.930)	(a4,-0.069)
FM2-CF8	$\Delta$(0.934)	(a4,-0.066)
FM3-CF9	$\Delta$(0.942)	(a4,-0.058)
FM3-CF10	$\Delta$(0.946)	(a4,-0.054)
FM4-CF3	$\Delta$(0.946)	(a4,-0.053)
FM4-CF11	$\Delta$(0.959)	(a4,-0.041)
FM4-CF12	$\Delta$(0.940)	(a4,-0.060)
FM5-CF13	$\Delta$(0.946)	(a4,-0.054)
FM5-CF14	$\Delta$(0.972)	(a4,-0.027)
FM5-CF15	$\Delta$(0.953)	(a4,-0.047)
FM5-CF16	$\Delta$(0.949)	(a4,-0.051)
FM5-CF17	$\Delta$(0.959)	(a4,-0.041)
FM5-CF18	$\Delta$(0.960)	(a4,-0.040)
FM5-CF19	$\Delta$(0.958)	(a4,-0.042)
FM5-CF20	$\Delta$(0.933)	(a4,-0.067)
FM5-CF21	$\Delta$(0.955)	(a4,-0.045)
FM5-CF22	$\Delta$(0.976)	(a4,-0.024)
FM5-CF23	$\Delta$(0.949)	(a4,-0.055)
FM6-CF4	$\Delta$(0.970)	(a4,-0.030)
FM6-CF24	$\Delta$(0.945)	(a4,-0.055)
FM6-CF25	$\Delta$(0.947)	(a4,-0.053)
FM7-CF16	$\Delta$(0.971)	(a4,-0.029)
FM7-CF22	$\Delta$(0.967)	(a4,-0.033)
FM7-CF26	$\Delta$(0.969)	(a4,-0.031)
FM7-CF27	$\Delta$(0.947)	(a4,-0.053)

Step 9: Construct initial relation matrix among FMs and CFs.

Use the grey relational degrees obtained in Step 8 to construct the initial relation matrix Y among FMs and CFs, as shown in Table 11.

Table 11. The initial relation matrix Y.

H	CF1	CF2	…	CF26	CF27	FM1	FM2	…	FM6	FM7
CF1						0.937
CF2						0.906
…
CF26										0.937
CF27										0.945
FM1
FM2
…
FM6
FM7

Step 10: Construct direct and indirect relation matrix among FMs and CFs.

Use Equation (13) and Equation (14) to obtain the direct and indirect relation matrix T among FMs and CFs, as shown in Table 12.

Table 12. The direct and indirect relation matrix T among FMs and CFs.

H	CF1	CF2	…	CF26	CF27	FM1	FM2	…	FM6	FM7
CF1						0.499
CF2						0.482
…
CF26										0.499
CF27										0.503
FM1
FM2
…
FM6
FM7

Step 11: Calculate the direct and indirect relative relationships.

Use Equation (15) and Equation (16) to calculate R for CFs and C for FMs, as shown in Table 13 and Table 14, respectively.

Table 13. Values of R for CFs.

CFs	R	CFs	R
CF1	0.499	CF15	0.490
CF2	0.482	CF16	0.988
CF3	0.970	CF17	0.493
CF4	0.987	CF18	0.494
CF5	0.959	CF19	0.493
CF6	0.495	CF20	0.480
CF7	0.495	CF21	0.492
CF8	0.481	CF22	1.000
CF9	0.485	CF23	0.488
CF10	0.487	CF24	0.486
CF11	0.493	CF25	0.487
CF12	0.484	CF26	0.499
CF13	0.487	CF27	0.503
CF14	0.500

Table 14. Values of C for FMs.

FMs	C	FMs	C
FM1	3.423	FM5	5.409
FM2	0.959	FM6	1.473
FM3	0.972	FM7	1.999
FM4	1.464

Step 12: Rank the priority of FMs and CFs.

Since the worst case is set as the reference sequence, it is reasonable to conclude that the bigger the value of R, the more significant a CF is, and similarly, the bigger C is, the higher priority FM must have. According to the results shown in Table 13, it can be observed that CF₂₂, CF₁₆, CF₄, CF₃, and CF₅, whose values are close to 1, are considered as significant. With the results shown in Table 14, FM₅, FM₁ and FM₇ are ranked as the top three failures modes resulting in poor service quality at the targeted medical examination department.

Considering that some failure causes may have impact on more than one failure mode, it is also interesting to further analyze the overall impact of causes to those three critical failure modes: FM₅, FM₁ and FM₇. Considering the meanings of R and C, the priority of CFs relevant to these three critical FMs is ranked according to the descending order of (R + C), such that the bigger the value of (R + C) obtained, the higher priority a CF has, and more attention must be paid to improve the activities relevant to this CF. As shown in Table 15, it can be observed that the top five CFs have a firm relationship with the top three FMs and the top two CFs have great impact on FM₅ and FM₇.

Table 15. Priority of CFs relevant to the top three FMs.

No.	CF	FM	R + C	Priority	No.	CF	FM	R + C	Priority
1	CF22	FM5	1.000	1	12	CF7	FM1	0.495	10
2	CF22	FM7	1.000	1	13	CF18	FM5	0.494	11
3	CF16	FM5	0.988	2	14	CF17	FM5	0.493	13
4	CF16	FM7	0.988	2	15	CF19	FM5	0.493	14
5	CF4	FM1	0.987	3	16	CF21	FM5	0.492	15
6	CF3	FM1	0.970	4	17	CF15	FM5	0.490	16
7	CF5	FM1	0.959	5	18	CF23	FM5	0.488	17
8	CF14	FM5	0.500	6	19	CF27	FM7	0.487	21
9	CF1	FM1	0.499	8	20	CF2	FM1	0.482	25
10	CF26	FM7	0.499	8	21	CF20	FM5	0.48	27
11	CF6	FM1	0.495	9	22	CF13	FM5	0.487	29

Furthermore, a comparison among the proposed GD-FMEA, an enhanced VIKOR (CFFS-VIKOR) [13], and a GRA-FMEA (G-FMEA) [21] is conducted to evaluate the performance of GD-FMEA. The results obtained by CFFS-VIKOR contain two parts, where CFFS-VIKOR-A corresponds to the assessment data collected with the five-granularity assessment language (Set A) and CFFS-VIKOR-C corresponds to the nine-granularity assessment language (set C). The results regarding the priorities of FMs and critical FM-related CFs are shown in Table 16 and Table 17, respectively.

Table 16. Comparison regarding the priorities of FMs.

	GD-FMEA	G-FMEA	CFFS-VIKOR-A	CFFS-VIRO-C
FM1	2	2	2	2
FM2	7	7	7	7
FM3	6	6	6	6
FM4	5	5	4	3
FM5	1	1	1	1
FM6	4	4	3	4
FM7	3	3	5	5

Table 17. Comparison regarding the priority of CFs related to FM₁, FM₄, FM₅, FM₆ and FM₇, which are ranked as the top three by at least one of the compared approaches.

		CFFS-VIKOR-A	CFFS-VIKOR-C	G-FMEA	GD-FMEA
FM1	CF1	1	6	6	8
FM1	CF2	23	24	24	25
FM1	CF3	12	12	19	4
FM1	CF4	2	2	4	3
FM1	CF5	26	27	27	5
FM1	CF6	7	4	8	9
FM1	CF7	19	17	7	10
FM4	CF3	12	12	19	4
FM4	CF11	5	1	10	12
FM4	CF12	18	20	23	24
FM5	CF13	10	10	18	29
FM5	CF14	3	3	2	6
FM5	CF15	27	22	14	16
FM5	CF16	15	13	3	2
FM5	CF17	9	9	11	13
FM5	CF18	4	7	9	11
FM5	CF19	17	16	12	14
FM5	CF20	11	18	26	27
FM5	CF21	13	5	13	15
FM5	CF22	8	8	1	1
FM5	CF23	6	14	15	17
FM6	CF4	2	2	4	3
FM6	CF24	16	15	21	22
FM6	CF25	14	11	16	20
FM7	CF16	15	13	3	2
FM7	CF22	8	8	1	1
FM7	CF26	20	19	5	8
FM7	CF27	25	26	17	21

4. Discussions

According to the results shown in Table 13, the FMs whose evaluation results (C) are significantly higher than the others are FM₅ (C = 5.409, machines go wrong) and FM₁ (C = 3.423, waiting too long in the queue for examination), where the former is related firmly with machine breakdown and the latter reveals the patients’ complaints about long waiting in the queue for examination. As for CFs, it can be observed that CF₂₂ (software system of self-service reporting machine does not work), CF₁₆ (patients do not use the self-service reporting machines according to the regulations), CF₄ (report physician writes wrong patient’s name on report), CF₃ (technicians missed certain inspection items or performed the wrong inspection) and CF₅ (staff acts wrongly out of personal considerations) are ranked as the top five. Furthermore, their evaluation results (R) are quite close to 1, indicating that those causes have great impact on poor quality of relevant services in the targeted services. Further analysis of the relationship between these top FMs and CFs shows that the top two causes of failures (CF₂₂ and CF₁₆) firmly relate with FM₅, which indicates that more and more patients derive the inspection report from the self-service reporting machine. Thus, not only the failures of the machine’s operating system but also improper operations of the machine may prevent the patients from successfully obtaining their inspection report, resulting in complaints from patients, and the hospital should not only ensure the normal status of the reporting machines but should also improve on-site assistance service for patients to derive inspection reports from the reporting machines. On the other hand, regarding the analysis of the significant causes related with FM₁, i.e., CF₃, CF₄ and CF₅, it can be concluded that all of them are human-related failures, although none of them relate to professionals, such as technicians and report physicians, but rather to nurses responsible for on-site reception and assistance services. Furthermore, it can be concluded that these three CFs are related to a lack of responsibility. Therefore, the suggestion for the targeted hospital is to organize a training program to improve the professionalism and responsibility of the staff, especially the examination technicians and the reporting physicians.

According to the comparison regarding the priority of FMs as shown in Table 16, it can be observed that the results of GD-FMEA and G-FMEA are the same, and the top two FMs identified by these two approaches are the same as the CFFS-VIKOR model. As for the CFFS-VIKOR, we observed that the results are not consistent when different assessment language sets are applied. Furthermore, it can be observed that regarding the results shown in Table 17, the results obtained by GD-FMEA are consistent with those obtained by G-FMEA and CFFS-VIKOR-A for the top four CFs, and the same results can be obtained through G-FMEA for the top six CFs. It is reasonable to conclude that the proposed assessment model is much more stable than the approaches using mono-assessment language set and is consistent with the other assessment approaches.

5. Conclusions

In this study, an assessment model, integrating 4M1E, ITLV, GRA, DEMATEL and FMEA, was developed to identify the root causes of important service failures across medical examination processes in a medium-sized specialty hospital, where (1) the cause-and-effect diagram was enhanced with 4M1E to identify the list of failure modes relevant to service quality over the medical examination process with 4M1E analysis framework, (2) FMEA experts were enabled to report their assessment results in their preferred ways by using ITLV scheme, (3) the causes of failure to failure modes were figured out with DEMATEL, and (4) the evaluation results were improved by integrating GRA. The case study was conducted in the targeted specialized hospital, which has long been faced with the problem that patient satisfaction of its medical examination department is below average. A comparison among the proposed GD-FMEA, CFFS-VIKOR and G-FMEA models was conducted to evaluate the performance of GD-FMEA. According to the comparison, the results obtained by GD-FMEA are consistent with those obtained by G-FMEA and CFFS-VIKOR-A for the top four CFs, and the same results were obtained as G-FMEA for the top six CFs. It is reasonable to conclude that the proposed assessment model was much more stable than approaches using mono-assessment language sets and was consistent with the other assessment approaches. CF₂₂ (software system of self-service reporting machine does not work), CF₁₆ (patients do not use the self-service reporting machines according to the regulations), CF₄ (report physician writes wrong patient’s name on report), CF₃ (technicians missed certain inspection items or performed the wrong inspection) and CF₅ (staff acts wrongly out of personal considerations) were ranked as the top five. Therefore, several suggestions are presented as follows:

• Strengthen the daily maintenance of inspection machines and self-service machines, including software and hardware;
• Train volunteers to operate the self-service machines and assign them to instruct patients at the self-service machines;
• Establish a two-person inspection mechanism for reports to reduce the occurrence of errors.
