Article

Enantioanalysis of Leucine in Whole Blood Samples Using Enantioselective, Stochastic Sensors

by
Raluca-Ioana Stefan-van Staden
1,2,* and
Oana-Raluca Musat
1,2
1
Faculty of Chemical Engineering and Biotechnologies, Politehnica University of Bucharest, 060042 Bucharest, Romania
2
Laboratory of Electrochemistry and PATLAB, 202 Splaiul Independentei Str., 060021 Bucharest, Romania
*
Author to whom correspondence should be addressed.
Chemosensors 2023, 11(5), 259; https://doi.org/10.3390/chemosensors11050259
Submission received: 30 March 2023 / Revised: 17 April 2023 / Accepted: 21 April 2023 / Published: 22 April 2023
(This article belongs to the Special Issue Recent Developments in Electrochemical Sensing)
Browse Figures
Versions Notes

Abstract

:
Enantioanalysis of amino acids became a key factor in the metabolomics of cancer. As a screening method, it can provide information about the state of health of patients. The main purpose of the study is to develop a highly reliable enantioanalysis method for the determination of D-, and L-leucine in biological samples in order to establish their role as biomarkers in the diagnosis of breast cancer. Two enantioselective stochastic sensors based on N-methyl-fullero-pyrrolidine in graphite and graphene nanopowder pastes were designed, characterized, and validated for the enantioanalysis of leucine in whole blood. Different signatures were recorded for the biomarkers when the stochastic sensors were used, proving their enantioselectivity. In addition, limits for detection on the order of ag L−1 were recorded for each of the enantiomers of leucine when the proposed enantioselective stochastic sensors were used. The wide linear concentration ranges facilitated the assay of the L-leucine in healthy volunteers, and also in patients confirmed with breast cancer. Recoveries of one enantiomer in the presence of the other enantiomer in whole blood samples, higher than 96.50%, proved that the enantioanalysis of enantiomers can be performed reliably from whole blood samples.

1. Introduction

Amino acids metabolism is of high importance for cell proliferation, as well as for personalized treatment and early diagnosis of cancer [1,2,3,4]. Amino acids have an important role in the redox process, energy regulation, biosynthesis, and maintenance of homeostasis [5]. They usually feed cancer cells by providing building blocks for cancer cell growth [5]. The major function of amino acids in mammalian cancer cells is as substrates for new protein synthesis [6].
Racemization of amino acids in the body, while cancer cells are forming, was shown for different amino acids, such as aspartic acid [7]. In addition, distortion of DNA can produce the D—enantiomer of an amino acid. While L-amino acids are the most common in healthy people, the enantioanalysis of different biological samples showed the presence of D-amino acids in patients confirmed with different types of cancer [2,3,4,8].
The first evidence for the presence of D-amino acids in cancer was given in 1939 by Kögl and Erxleben [9], when they reported that some D-amino acids including D-leucine were found in tumor proteins and that the development of the tumor was facilitated by the presence of these amino acids, including D-leucine. While initially the assay of a chiral compound was done despite its stereochemistry, the evidence that differentiation between enantiomers may conducive for the diagnosis of different diseases. Discovered in 1819 in its impure form, leucine is an amino acid with high implications in carcinogenesis [10]. In 1820, the crystalline form of leucine was extracted from muscles and wool [10]. The name leucine is given by the Greek word leukos, which has the meaning “white”; the motivation of the name is given by the fact that the purification of leucine extracted from natural products provided a white, crystalline state [10]. Leucine is an essential amino acid due to its proven biochemical properties: it contributes to protein synthesis and is involved in metabolomics including cancer metabolomics [10].
Leucine is well known for its involvement in controlling whole blood sugar levels and improving the growth/recovery of muscles and bone tissues. Leucine is also responsible for the synthesis of growth hormones. Leucine also has a role in the prevention of breaking muscle proteins due to injuries like stress [10]. Leucine is part of the branched-chain amino acid valine, isoleucine, and leucine. It is one of the two (the other being lysine) ketogenic amino acids.
Acetyl coenzyme A and acetoacetate are the main metabolic end products produced during leucine metabolism [11]. Leucine and β-hydroxy β-methylbutyric acid (one of the leucine metabolites), have shown a great role in the human body. They induce biosynthesis of proteins by phosphorylation reactions. The metabolism of the dietary leucine takes place in the liver, adipose tissue, and muscle tissue, with the synthesis of sterols and derivatives being a result of the metabolism of leucine in the adipose and muscle tissues [11]. The pathway of L-leucine in the body [11] shows that the branched-chain amino acid aminotransferase enzyme is responsible for the initial transformation of L-leucine into α-ketoisocaproate (known as α-KIC) [11]. Next, mitochondrial enzyme branched-chain α-ketoacid dehydrogenase converts α-KIC into isovaleryl-coenzyme A, which is further transformed using the isovaleryl-coenzyme A dehydrogenase into methylcrotonyl-coenzyme A [11]. L-leucine also contributes to the increase of biotin during deficiency, when the hydroxymethylbutyrate (HMB) can be synthesized from methylcrotonyl-coenzyme A using the enoyl-coenzyme A hydratase as well as an unknown thioesterase enzyme. The chain of reactions involved in the conversion of methylcrotonyl-coenzyme A into hydroxymethylbutyrate-coenzyme A ends with the final conversion into hydroxymethylbutyrate. In the liver an extremely small amount of α-KIC is metabolized using the cytosolic enzyme 4-hydroxyphenylpyruvate dioxygenase (KIC dioxygenase); in addition, in the liver, the main end product is the hydroxymethylbutyrate. The described chain of transformations—starting from L-leucine to α-KIC and then to HMB—is specific to healthy people [11]. Leucine aminomutase transforms a very small amount of L-leucine into β-leucine, which is transformed further into β-ketoisocaproate (β-KIC), β-ketoisocaproyl-coenzyme A, and acetyl-coenzyme A. HMB is transformed into β-hydroxy β-methylbutyryl-coenzyme A which undergoes transformation using the enoyl-coenzyme A hydratase with the main product β-methylcrotonyl-coenzyme A and hydroxymethylglutaryl-coenzyme A [11].
This article proposed the enantioanalysis of leucine in whole blood samples of patients, confirmed with breast cancer versus healthy volunteers. Leucine is an essential amino acid belonging to the branched-chain amino acids. The role of leucine in breast cancer biochemistry and treatment was studied in different occasions [12,13,14,15,16,17]. Xiao et al. [12] proved that leucine deprivation inhibits proliferation and induces apoptosis of human breast cancer cells. Troup et al. [13] showed that reduced expression of leucine is associated with poor outcomes in node-negative invasive breast cancer. Shennan et al. [14] studied the L-leucine transport in human breast cancer cells. The role of leucine as a zipper [15,16] was shown in studies by Lin et al. [15] and Jeong et al. [16]. The role of D-leucine as a new biomarker for breast cancer was also investigated.
Due to the complexity of the matrix of whole blood, and the low levels of leucine enantiomers in whole blood, the stochastic sensors were selected as new screening tools. Stochastic sensors are known for their reliability recorded in the biomedical analysis of different biological samples (whole blood, saliva, urine, tumoral tissue, cerebrospinal fluid) when amino acids [2,3,4] or proteins [17,18,19] were analyzed. They are able to perform qualitative analysis—for identification of the enantiomer [2,3,4,20,21,22,23,24]—when the signature of the enantiomer (toff value) is used, and also a quantitative analysis by using the ton value measured in between two signatures (toff values) (Scheme 1); they are also able to identify the stereochemistry of a compound, and also, they are able to distinguish the amino acids from a DNA chain.
The working principle of the stochastic sensors is based on current development. The principle of current development is based on channel conductivity; in the first stage, the enantiomer is getting into the channel and blocking it while the current intensity is dropping to zero (the signature of the enantiomer given by the toff value is characterized in this step); inside the channel, binding and redox processes take place, and equilibrium is achieved (ton value, used for the quantitative assay of the enantiomers, is characterized in this step).
While the first stage is used for identification of the enantiomer, the second stage is used for the determination of the concentration of each enantiomer.
Utilization of the stochastic sensors for biomedical analysis is based on the advantages of the stochastic sensors versus classical electrochemical sensors, which are that the signature of the enantiomers does not depend on the composition of the matrix, but only on the size and geometry of the enantiomer. In addition, the quantitative step takes place inside the channel, and therefore is less influenced by the composition of the sample from where the enantiomer is determined. Graphite and graphene matrices are well known for sensor design due to their conductivity and high reliability when they are used as a paste in the sensor’s design [25]. These matrices are able to keep the channel in the best shape needed for obtaining the stochastic signal. The fullerene derivative N-methyl-fullero-pyrrolidine was selected due to its capacity to provide the necessary channels for stochastic sensing. Fe2O3 was added to the graphite paste in order to improve its conductivity, which facilitated, at the selected potential (125 mV), signatures and values for ton on the order of seconds, and therefore, the reading was done with high reliability.
To date, for the assay of leucine, there was proposed a glassy carbon electrode modified with multiwall carbon nanotubes (presenting a limit of detection of 9 µmol L−1) [26], and high-performance liquid chromatography [27]. The enantioanalysis of leucine was done to date using a low-cost high-performance liquid chromatographic method [28] as well as amperometric biosensors based on diamond paste [29] able to provide limits of detection on the order of pmol L−1.
The applications of electrochemical sensors in biomedical analysis are guaranteed by the following advantages versus other methods of analysis, such as the enzyme-linked immunosorbent assay, high-performance liquid chromatography, electrophoresis, gas chromatography, and spectrometric methods of analysis: non-sampling, or a minimum sampling are required before any measurement is performed; wide working concentration ranges are available; the limits of detection are very low; the selectivity is quite high for the amperometric and potentiometric sensors, and can be improved by using a biological substance such as an enzyme or antibody; the sensitivity is also very high; they are cost-effective as such and also regarding the instrumentation needed to take up the signal and process it; and the time of analysis is far shorter than for any other analytical technique (analysis are usually performed within minutes or even seconds) [30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48].
The design of the sensors used in biomedical analysis influenced the response characteristics of the sensors (e.g., their sensitivity), and also had a role in improving the selectivity of determining the selected biomarkers in highly complex matrices such as biological samples. The utilization of nanomaterials for the design of electrochemical sensors proved to have a high role in the reliable assays of the amino acids in the biological samples [30]. Utilization of molecular imprinted polymers [29] is trending due to the reliable design of sensors, and the possibility of continuous in vivo monitoring of specific biomarkers. Hydrogels were used previously in the design of multifunctional platforms, also offering the possibility of high motion of the biomolecules to the detection side [37]. Utilization of nanorods proved to improve the response characteristics of the electrochemical sensors used for biomedical analysis [47]. Miniaturization of the detection cell to lab-on-a-chip type of design [30,33,37] favored easy transportation and handling of the system, especially for on-site type of measurements. In addition, to avoid cross-contamination, disposable sensors were developed for biomedical analysis [45]. These sensors can be easily be used for point-of-care diagnostics, where fast detection and minimum (preferably no sample preparation) sample preparation is needed [32,35,40]. Smartphones became preferable tools for signal acquisition, processing, and for sending the results to medical doctors and specialized databases and laboratories [35,36]. Commercialization of sensors for biomedical analysis needs smart, portable, and compact detection systems, on which the sensors should easily fit, connected to smartphones [38].
The novelty of the paper is given by the utilization of N-methyl-fullero-pyrrolidine as a modifier of graphite/Fe2O3 and of nanographene pastes, for the design of enantioselective stochastic sensors and their utilization for enantioanalysis of leucine in whole blood samples, also by the stochastic method capacity to perform an enantioselective molecular recognition of the enantiomers followed by their quantification, which may facilitate a highly reliable diagnosis of breast cancer. While most of the paper shows the analysis of leucine, and not its enantioanalysis, the main purpose of the study is to develop a highly reliable enantioanalysis method for the determination of D-, and L-leucine in biological samples in order to establish their role as biomarkers in the diagnosis of breast cancer.

2. Materials and Methods

L- and D-leucine, graphite, Fe2O3, graphene nanopowder, N-methyl-fullero-pyrrolidine, and paraffin oil were purchased from Sigma Aldrich. All solutions of L- and D-leucine were prepared using phosphate buffer of pH 7.40. The concentration range used for both enantiomers was between 1 × 10−20 and 1 × 10−2 mol L−1.
The design of the enantioselective stochastic sensor was done as follows: 100 mg of graphite/graphene nanopowder were physically mixed with 20 mg of N-methyl-fullero-pyrrolidine. To the graphite powder mixture there were added 10 mg Fe2O3. To each of the powders, 30µL of paraffin oil was added to form a homogeneous paste. Each of the pastes was placed in a nonconducting 3D plastic tube printed in our laboratory using a 3D printer. The inner diameter of each tube was 25 µm, and the length was 1 cm. A Ag wire was used to connect the paste with the external circuit.
The morphology of the designed pastes was investigated using scanning electron microscopy (SEM) (Inspect S, FEI Company, Eindhoven, The Netherlands). In order to obtain a good resolution of the microscopy images, the pastes were analyzed using the LFD detector (low vacuum), at a high voltage (HV) of 30 kV, and magnification of 1600×.
The morphology of the active surface of the stochastic sensors is shown in Figure 1.
In Figure 1, agglomerations of particles and channels in asymmetric formations can be observed.
The stochastic method is based on the utilization of the chronoamperometric technique. A potential of 125 mV versus Ag/AgCl was applied. The AUTOLAB/PGSTAT 12 Potentiostat/Galvanostat (Metrohm, The Netherlands) was used for all measurements. The electrochemical cell comprised the enantioselective stochastic sensor (as a working sensor), an Ag/AgCl reference electrode, and a Pt wire as an auxiliary electrode. The electrochemical measurements were performed at 125 mV vs. Ag/AgCl, and at 25 °C. Diagrams like those shown in Figure 2 were obtained when the whole blood was screened. A standard solution of enantiomers as well as whole blood samples spiked with standard solutions of enantiomers were used for the calibration of the enantioselective stochastic sensors; no differences between the response characteristics of the sensors were recorded when the calibration was done for the standard solution or in whole blood samples. Based on the signatures of the enantiomers of leucine (values of toff), the enantiomers were identified in the diagrams recorded for whole blood samples. In between two signatures, the ton was read and used for the determination of response characteristics of the sensors; linear regression method was used to determine a, and b parameters of the calibration equation in the form of 1/ton = a + b × Cenantiomer. The unknown concentration of the enantiomer was determined using the calibration equation.
The whole blood samples obtained from confirmed patients with breast cancer as well as whole blood samples from healthy volunteers were provided by the University Hospital Bucharest under the protocol approved by the University of Medicine and Pharmacy “Carol Davila”, from Bucharest (ethics committee approval no 75/2015). No pretreatment of the samples was required before analysis. The samples were placed into an electrochemical cell; the diagram was recorded. First of all, the molecular recognition of L- and D-leucine was performed by identifying their signatures (toff values) in the diagrams. Their concentrations were determined according to the stochastic method described above.

3. Results and Discussions

3.1. Response Characteristics

The stochastic mode was used for the determination of the response characteristics of the enantioselective stochastic sensors. The response characteristics are given in Table 1.
All response characteristics reported in Table 1 were obtained by applying a potential of 125 mV versus Ag/AgCl (as reference electrode), at a constant temperature of 25 °C.
The signatures of the two enantiomers are different when the same stochastic sensor was used, proving that the sensors are enantioselective, and they can be used for the simultaneous assay of the two enantiomers in biological samples. Linear concentration ranges are wide: twelve decades of concentration for L-leucine, seven decades of concentration for the D-leucine when the sensor based on graphite/Fe2O3 was used, and twelve decades of concentration for D-leucine when the sensor based on nanographene was used, allowing the enantioanalysis of leucine in whole blood samples despite people’s state of health. Very low limits of detection (determined as the lowest value of concentration from the linear concentration range)—all in the order of ag L−1—were recorded; for the assay of L-leucine the lowest limit of detection was recorded when the enantioselective stochastic sensor based on graphite/Fe2O3 was used, while for the assay of D-leucine the lowest limit of detection was recorded for the enantioselective stochastic sensor based on nanographene. L-leucine was determined with the highest sensitivity when the sensor based on graphite/Fe2O3 was used, while D-leucine was determined with the highest sensitivity when the sensor based on nanographene was used.

3.2. Selectivity of the Enantioselective Stochastic Sensors

The selectivity of the stochastic sensors is given by the difference between the signatures (toff values) recorded for the enantiomers of leucine and those obtained for CA15-3, CEA, HER2, p53, Ki67, maspin, CA19-9, and L- and D-serine—the usual biomarkers used for the establishment of the diagnostic of breast cancer.
Results shown in Table 2 prove that none of the other biomarkers interfere in the enantioanalysis of leucine despite the matrix used for the stochastic sensor’s design.

3.3. Stability and Reproducibility Measurements

Ten enantioselective stochastic sensors from each of the two types designed for the enantioanalysis of leucine were constructed. Response characteristics were measured for one month on a daily basis. The variation in sensitivities of the proposed sensors was lower than 0.15%; accordingly, the design of the proposed stochastic sensors is reproducible. In addition, variations of the sensitivities were lower than 1.20% for measurements made during the one month, proving the one-month stability of the stochastic sensors.

3.4. Enantioanalysis of Leucine in Whole Blood Samples

The whole blood samples collected from the patients were used without any processing. The measurements were performed accordingly with the description of the stochastic method from above. After the diagrams were obtained (Figure 2), the signatures of the L- and D-leucine were identified. For each of the L- and D-enantiomers, readings of ton values (in between two consecutive toff values were done) were performed for the determination of the concentrations of L- and D-leucine. The ton values were introduced in the equations of calibration (Table 1) for the determination of the concentrations of the enantiomers of leucine. Validation tests were performed for the assay of L- and D-leucine in whole blood samples.
To validate the sensors, synthetic mixtures of enantiomers (in different ratios) were spiked into the whole blood samples, and the recovery of enantiomers was performed (Table 3). Determinations of the enantiomers of leucine were performed before and after the addition of the mixtures, in order to calculate the recovery of the known amount added. Different ratios of the enantiomers were selected in order to determine if the ratio of the enantiomers influenced in any way the reliability of the enantioanalysis of leucine (Table 3).
Table 3 shows that high recoveries of the enantiomers were obtained in the whole blood, despite the ratios between L- and D-leucine in the whole blood. This proved the accuracy and high reliability of the measurements performed with the enantioselective stochastic sensors, despite the ratio of which the enantiomers are found in the whole blood sample.
Real whole blood samples collected from patients confirmed with breast cancer and healthy volunteers were analyzed using the enantioselective stochastic sensors. Results obtained are shown in Table 4.
A paired Student t-test was conducted at a confidence level of 99.90%. At the 99.00% confidence level, the tabulated theoretical value is 4.032. The calculated t-values for each enantiomer of leucine were less than 3.10 (which is less than the tabulated value 4.13), indicating that there is no statistically significant difference between the results obtained using the proposed enantioselective stochastic sensors (Table 4), and that enantioselective stochastic sensors can be relied upon for the molecular identification and quantification of L- and D-leucine in whole blood samples. Furthermore, the D-leucine was only found in the samples collected from confirmed patients with breast cancer, and not in the whole blood from healthy volunteers.
Compared with the sensors proposed earlier for the analysis [24] and enantioanalysis [27] of leucine, the proposed enantioselective stochastic sensors have a far lower limit of detection (on the order of ag L−1). In addition, a wider linear concentration range was recorded for the proposed sensors than for those reported before [24,27]. High selectivity was recorded versus other biomarkers that may be present in the whole blood of patients with breast cancer. High recoveries of one enantiomer in the presence of the other enantiomer as well as the results of paired Student t-tests proved that the enantioselective stochastic sensors can reliably be used for the enantioanalysis of leucine in whole blood samples. Compared with the method proposed earlier by Hormozi Jangi, et al. [49] this screening method provides wider linear concentration ranges, higher sensitivities, and higher accuracy for the enantioanalysis of L- and D-leucine when they are mixed in different ratios.

4. Conclusions

Two enantioselective stochastic sensors were designed, characterized, and validated for the enantioanalysis of leucine in whole blood samples. The utilization of nanographene as a matrix for the sensor’s design favored the decrease of the limit of detection of D-leucine to 1 ag L−1. The sensors are not only enantioselective but also selective versus a series of other biomarkers such as CA15-3, CEA, HER2, maspin, Ki67, CA19-9, and p53, which are the main biomarkers used in the diagnosis of breast cancer. The proposed enantioselective stochastic sensors proved to have great features in biomedical analysis. Their utilization for the screening of whole blood samples can bring the screening test very close to a diagnostic test, because the D-leucine was only found in confirmed patients with breast cancer, and not in healthy volunteers. Accordingly, D-leucine may be considered a biomarker for breast cancer.

Author Contributions

Conceptualization, R.-I.S.-v.S. and O.-R.M.; methodology, R.-I.S.-v.S. and O.-R.M.; validation, R.-I.S.-v.S. and O.-R.M.; investigation, O.-R.M.; writing—original draft preparation, R.-I.S.-v.S. and O.-R.M.; writing—review and editing, R.-I.S.-v.S. and O.-R.M.; supervision, R.-I.S.-v.S.; project administration, R.-I.S.-v.S.; funding acquisition, R.-I.S.-v.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Nucleus Program within the framework of the National Plan for Research, Development and Innovation 2022–2027, carried out with the support of the Ministry of Research, Innovation and Digitization, project number PN 23 27 03 01.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Ethics Committee of the University Hospital Bucharest, approval no 75/2015.

Informed Consent Statement

Written informed consent has been obtained from the patient(s) to perform the research using the collected samples.

Data Availability Statement

No data are available to be shared.

Acknowledgments

The authors want to thank Paula Sfirloaga for performing the SEM analysis of the pastes designed for the construction of the stochastic sensors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ragni, M.; Fornelli, C.; Nisoli, E.; Penna, F. Amino acids in cancer and cachexia: An integrated view. Cancers 2022, 14, 5691. [Google Scholar] [CrossRef] [PubMed]
  2. Ilie-Mihai, R.M.; Stefan-van Staden, R.I.; Magerusan, L.; Coros, M.; Pruneanu, S. Enantioanalysis of tryptophan in whole blood samples using stochastic sensors—A screening test for gastric cancer. Chirality 2020, 32, 215–222. [Google Scholar] [CrossRef] [PubMed]
  3. Stefan-van Staden, R.I.; Ilie-Mihai, R.M.; Magerusan, L.; Coros, M.; Pruneanu, S. Enantioanalysis of glutamine-a key factor in establishing the metabolomics process in gastric cancer. Anal. Bioanal. Chem. 2020, 412, 3199–3207. [Google Scholar] [CrossRef] [PubMed]
  4. Stefan-van Staden, R.I.; Bogea, M.I.; Ilie-Mihai, R.M.; Gheorghe, D.C.; Aboul-Enein, H.Y.; Coros, M.; Pruneanu, S.M. NS Decorated Graphenes Modified with 2,3,7,8,12,13,17,18-Octaethyl-21H,23H-Porphine Manganese (III) Chloride Based 3D Needle Stochastic Sensors for Enantioanalysis of Arginine-a Key Factor in the Metabolomics and Early Detection of Gastric Cancer. Anal. Bioanal. Chem. 2022, 414, 6521–6530. [Google Scholar] [CrossRef] [PubMed]
  5. Lieu, E.L.; Nguyen, T.; Rhyne, S.; Kim, J. Amino acids in cancer. Exp. Mol. Med. 2020, 52, 15–30. [Google Scholar] [CrossRef]
  6. Vettore, L.; Westbrook, R.L.; Tennant, D.A. New aspects of amino acid metabolism in cancer. Br. J. Cancer 2020, 122, 150–156. [Google Scholar] [CrossRef]
  7. Ritz-Timme, S.; Collins, M.J. Racemization of aspartic acid in human proteins. Ageing Res. Rev. 2002, 1, 43–59. [Google Scholar] [CrossRef]
  8. Bastings, J.J.A.J.; van Eijk, H.M.; Damink, S.W.O.; Rensen, S.S. D-amino acids in health and diseases: A focus on cancer. Nutrients 2019, 11, 2205. [Google Scholar] [CrossRef]
  9. Kögl, F.; Erxleben, H. Zur ätiologie der malignen tumoren. Z. Physiol. Chem. 1939, 258, 57–95. [Google Scholar] [CrossRef]
  10. Dawson, R.M.C.; Elliott, D.C.; Elliott, W.H.; Jones, K.M. Data for Biochemical Research, 3rd ed.; Clarendon Press: Oxford, UK, 1989. [Google Scholar]
  11. Zanchi, N.E.; Gerlinger-Romero, F.; Guimarães-Ferreira, L.; de Siqueira Filho, M.A.; Felitti, V.; Lira, F.S.; Seelaender, M.; Lancha, A.H. HMB supplementation: Clinical and athletic performance-related effects and mechanisms of action. Amino Acids 2011, 40, 1015–1025. [Google Scholar] [CrossRef]
  12. Xiao, F.; Wang, C.; Yin, H.; Chen, S.; Fang, J.; Guo, F. Leucine deprivation inhibits proliferation and induced apoptosis of human breast cancer cells via fatty acid synthase. Oncotarget 2016, 7, 63679–63689. [Google Scholar] [CrossRef] [PubMed]
  13. Troup, S.; Njue, C.; Kliewer, E.V.; Parisien, M.; Roskelley, C.; Chakravarti, S.; Roughley, P.J.; Murphy, L.C.; Watson, P.H. Reduced expression of the small leucine-rich proteoglycans, lumican, and decorin is associated with poor outcome in node-negative iinvasive breast cancer. Clin. Cancer Res. 2003, 9, 207–214. [Google Scholar] [PubMed]
  14. Shennan, D.B.; Thomson, J.; Gow, I.F.; Travers, M.T.; Barber, M.C. L-leucine transport in human breast cancer cells (MCF-7 and MDA-MB-231): Kinetics, regulation by estrogen and molecular identity of the transporter. Biochem. Biophys. Acta-Biomater. 2004, 1664, 206–216. [Google Scholar] [CrossRef] [PubMed]
  15. Lin, Y.; Zhou, X.; Peng, W.; Wu, J.; Wu, X.; Chen, Y.; Cui, Z. Expression and clinical implications of basic leucine zipper ATF-like transcription factor 2 in breast cancer. BMC Cancer 2021, 21, 1062. [Google Scholar] [CrossRef]
  16. Jeong, J.; Park, S.; An, H.T.; Kang, M.; Ko, J. Small leucine zipper protein functions as a negative regulator of estrogen receptor α in breast cancer. PLoS ONE 2017, 12, e0180197. [Google Scholar] [CrossRef]
  17. Junior, R.P.; Martins Sonehara, N.; Jardim-Perassi, B.V.; Pal, A.; Asad, Y.; Chuffa, L.G.A.; Chammas, R.; Raymand, F.I.; Zuccari, D.A.P.C. Presence of human breast cancer xenograft changes the diurnal profile of amino acids in mice. Sci. Rep. 2022, 12, 1008. [Google Scholar] [CrossRef]
  18. Stefan-van Staden, R.I.; Gheorghe, D.C.; Pogacean, F.; Pruneanu, S. Simultaneous analysis of MLH1, MSH2, MSH6, PMS2 and KRAS in patients with gastric and colon cancer using stochastic sensors. Chemosensors 2022, 10, 380. [Google Scholar]
  19. Gheorghe, D.C.; Stefan-van Staden, R.I. Molecular recognition and quantification of HER-3, HER-4 and HRG-α in whole blood and tissue samples using stochastic sensors. Micromachines 2022, 13, 1749. [Google Scholar]
  20. Jia, W.; Hu, C.; Wang, Y.; Liu, Y.; Wang, L.; Zhang, S.; Zhu, Q.; Gu, Y.; Zhang, P.; Ma, J.; et al. Identification of single-molecule catecholamine enantiomers using a programmable nanopore. ACS Nano 2022, 16, 6615–6624. [Google Scholar] [CrossRef]
  21. Wang, J.; Prajapati, J.D.; Gao, F.; Ying, Y.L.; Kleinekathofer, U.; Winterhalter, M.; Long, Y.T. Identification of single amino acid chiral and positional isomers using an electrostatically asymmetric nanopore. J. Am. Chem. Soc. 2022, 144, 15072–15078. [Google Scholar] [CrossRef]
  22. Ensslen, T.; Sarthak, K.; Aksimentiev, A.; Behrends, J.C. Resolving isomeric posttranslational modifications using a biological nanopore as a sensor of molecular shape. J. Am. Chem. Soc. 2022, 144, 16060–16068. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, Y.; Zhang, S.; Wang, Y.; Wang, L.; Cao, Z.; Sun, W.; Fan, P.; Zhang, P.; Chen, H.Y.; Huang, S. Nanopore identification of alditol epimers and their application in rapid analysis of alditol-containing drinks and healthcare products. J. Am. Chem. Soc. 2022, 144, 13717–13728. [Google Scholar] [CrossRef] [PubMed]
  24. Kang, X.F.; Cheley, S.; Guan, X.; Bayley, H. Stochastic detection of enantiomers. J. Am. Chem. Soc. 2006, 128, 10684–10685. [Google Scholar] [CrossRef]
  25. Coros, M.; Pruneanu, S.; Stefan-van Staden, R.I. Recent progress in the graphene-based electrochemical sensors and biosensors. A review. J. Electrochem. Soc. 2020, 167, 037528. [Google Scholar] [CrossRef]
  26. Rezaei, B.; Mirahmadi Zare, Z. Modified glassy carbon electrode with multiwall carbon nanotubes as a voltametric sensor for determination of leucine in biological and pharmaceutical samples. Anal. Lett. 2008, 41, 2267–2286. [Google Scholar] [CrossRef]
  27. Horber, F.F.; Khal, J.; Lecavalier, L.; Krom, B.; Haymond, M.W. Determination of leucine and α-ketoisocaproic acid concentrations and specific activity in plasma and leucine specific actitivies in proteins using high-performance liquid chromatography. J. Chromatogr. B 1989, 495, 81–94. [Google Scholar] [CrossRef]
  28. Tojo, M.; Murakami, M.; Nagata, Y. Simple and low-cos high performance liquid chromatographic method for determination of D- and L-amino acids. J. Chromatogr. Sci. 2012, 50, 393–395. [Google Scholar] [CrossRef]
  29. Stefan-van Staden, R.I.; Muvhulawa, L.S. Determination of L- and D-enantiomers of leucine using amperometric biosensors based on diamond paste. Instrum. Sci. Technol. 2006, 34, 475–481. [Google Scholar] [CrossRef]
  30. Behyar, M.B.; Hasanzadeh, M.; Seidi, F.; Shadjou, N. Sensing of amino acids: Critical role of nanomaterials for the efficient biomedical analysis. Microchem. J. 2023, 188, 108452. [Google Scholar] [CrossRef]
  31. Karasu, T.; Özgür, E.; Uzum, L. MIP-on-a-chip: Artificial receptors on microfluidic platforms for biomedical applications. J. Pharm. Biomed. Anal. 2023, 226, 115257. [Google Scholar] [CrossRef]
  32. Macovei, D.G.; Irimes, M.B.; Hosu, O.; Cristea, C.; Tertis, M. Point-of-care electrochemical testing of biomarkers involved in inflammatory and inflammatory-associated medical conditions. Anal. Bioanal. Chem. 2023, 415, 1033–1063. [Google Scholar] [CrossRef] [PubMed]
  33. Özyurt, I.; Uludag, I.; Ince, B.; Sezginturk, M.K. Lab-on-a-chip systems for cancer biomarker diagnosis. J. Pharm. Biomed. Anal. 2023, 226, 115266. [Google Scholar] [CrossRef] [PubMed]
  34. Aslam, N.; Zhou, H.; Urbach, E.K.; Turner, M.J.; Walsworth, R.L.; Lukin, M.D.; Park, H. Quantum sensors for biomedical applications. Nat. Rev. Phys. 2023, 5, 157–169. [Google Scholar] [CrossRef] [PubMed]
  35. Udhani, R.; Kothari, C.; Sarvaiya, J. A comprehensive study: Traditional and cutting-edge analytical techniques for the biomarker based detection of the micronutrients & POC sensing directions for next-generation diagnostic. Crit. Rev. Anal. Chem. 2023. [Google Scholar] [CrossRef]
  36. Scott, A.; Pandey, R.; Saxena, S.; Osman, E.; Li, Y.; Soleymani, L. A smartphone operated electrochemical reader and actuator that streamlines the operation of electrochemical biosensors. ECS Sens. Plus 2022, 1, 014601. [Google Scholar] [CrossRef]
  37. Tong, Z.; Shen, C.; Li, Q.; Yin, H.; Mao, H. Combining sensors and actuators with electrowetting-on-dielectric (EWOD): Advanced digital microfluidic systems for biomedical applications. Analyst 2023, 148, 1399–1421. [Google Scholar] [CrossRef]
  38. Juanola-Feliu, E.; Colomer-Farrarous, J.; Miribel-Catala, P.; Samitier, J.; Valls-Pasola, J. Market challenges facing academic research in commercializing nano-enabled implantable devices for in vivo biomedical analysis. Technovation 2012, 32, 193–204. [Google Scholar] [CrossRef]
  39. Hu, Y.; Li, J.; Yu, X.; Yang, J.; Li, Y. A simple jet multifunctional sensing platform inspired by healing-assembly hydrogels serving motion and sweat monitoring. Sens. Actuators B 2023, 378, 133173. [Google Scholar] [CrossRef]
  40. Fan, R.; Li, Y.; Park, K.W.; Du, J.; Chang, L.H.; Strieter, E.R.; Andrew, T.L. A strategy for accessing nanobody-based electrochemical sensors for analyte detection in complex media. ECS Sens. Plus 2022, 1, 010601. [Google Scholar] [CrossRef]
  41. Chaudhary, V.; Kaushik, A.; Furukawa, H.; Khosla, A. Review—Towards 5th generation AI and IoT driven sustainable intelligent sensors based on 2D MXenes and borophene. ECS Sens. Plus 2022, 1, 013601. [Google Scholar] [CrossRef]
  42. Hyodo, T.; Sakata, W.; Ueda, T.; Shimizu, Y. Effects of surface modification of Platinum electrodes with Gold on Hydrogen-sensing properties of diode-type sensors. ECS Sens. Plus 2022, 1, 013602. [Google Scholar] [CrossRef]
  43. Sornambikai, S.; Amir, H.; Bhuvaneshwari, G.; Ponpandian, N.; Viswanathan, C. Review—Systematic review on electrochemical biosensing of breast cancer miRNAs to develop alternative DCIS diagnostic tool. ECS Sens. Plus 2022, 1, 021602. [Google Scholar] [CrossRef]
  44. Moonla, C.; Lee, D.H.; Rokaya, D.; Rasitanon, N.; Kathayat, G.; Lee, W.Y.; Kim, J.; Jeerapan, I. Review—Lab-in-a-mouth and advanced point-of-care sensing systems: Detecting bioinformation from the oral cavity and saliva. ECS Sens. Plus 2022, 1, 021603. [Google Scholar] [CrossRef]
  45. Singh, S.; Wang, J.; Cinti, S. Review—An overview on recent progress in screen-printed electroanalytical (bio)sensors. ECS Sens. Plus 2022, 1, 023401. [Google Scholar] [CrossRef]
  46. Shekhar, S.; Yadav, A.K.; Khosla, A.; Solanki, P.R. Review—Interleukins profiling for biosensing applications: Possibilities and the future of disease detection. ECS Sens. Plus 2022, 1, 041601. [Google Scholar] [CrossRef]
  47. Ramírez, S.; Díaz, F.; Silva, C.P.; Pavez, J.; Silva, J.F. Molecular anchoring with 4-mercaptobenzoic acid and 4-aminothiophenol for using active nanorods in the detection of dopamine. ECS Sens. Plus 2022, 1, 045201. [Google Scholar] [CrossRef]
  48. Manjunatha, C.; Shwetha, K.P.; Athreya, Y.; Kumar, G.; Kamath, M.K.S. Perspective—Supercapacitor-powered flexible wearable strain sensors. ECS Sens. Plus 2023, 2, 017002. [Google Scholar] [CrossRef]
  49. Hormozi Jangi, S.R.; Akhond, M. Ultrasensitive label-free enantioselective quantification of D-/L-leucine enantiomers with a novel detection mechanism using an ultra-small high-quantum yield N-doped CDs prepared by a novel highly fast solvent-free method. Sens. Actuators B 2021, 339, 129901. [Google Scholar] [CrossRef]
Chemosensors 11 00259 sch001 550

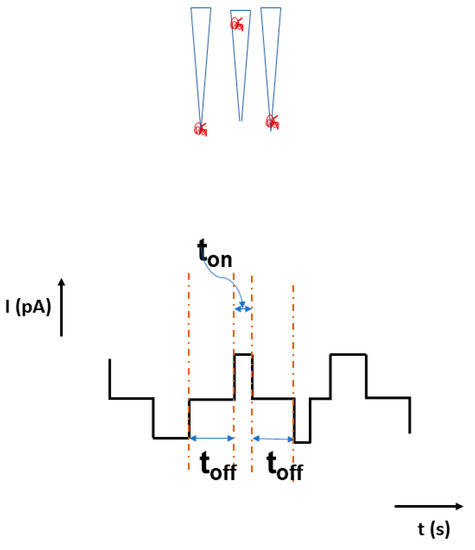

Scheme 1. Current development for stochastic sensors.
Scheme 1. Current development for stochastic sensors.
Chemosensors 11 00259 sch001
Chemosensors 11 00259 g001 550
Figure 1. SEM images for (a) graphite paste based enantioselective stochastic sensor and (b) nanographene paste based enantioselective stochastic sensor.
Figure 1. SEM images for (a) graphite paste based enantioselective stochastic sensor and (b) nanographene paste based enantioselective stochastic sensor.
Chemosensors 11 00259 g001
Chemosensors 11 00259 g002a 550Chemosensors 11 00259 g002b 550

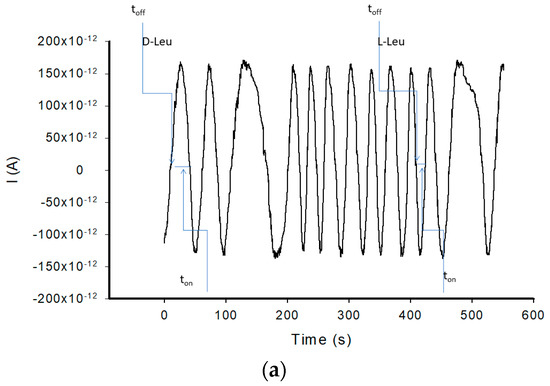

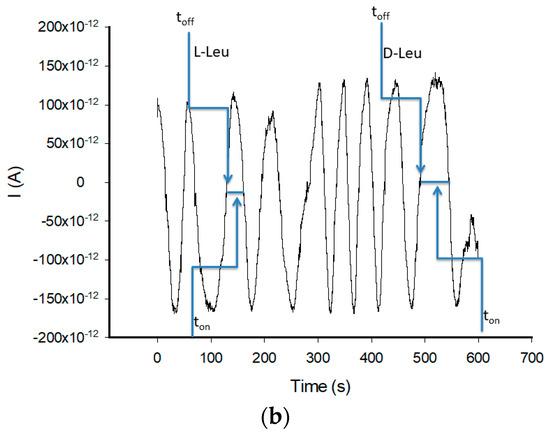

Figure 2. Examples of diagrams obtained for the screening of whole blood samples using the (a) graphite paste based enantioselective stochastic sensor and (b) nanographene paste based enantioselective stochastic sensor.
Figure 2. Examples of diagrams obtained for the screening of whole blood samples using the (a) graphite paste based enantioselective stochastic sensor and (b) nanographene paste based enantioselective stochastic sensor.
Chemosensors 11 00259 g002aChemosensors 11 00259 g002b
Table
Table 1. Characteristics of response for the enantioselective stochastic sensors used for the enantioanalysis of leucine.
Table 1. Characteristics of response for the enantioselective stochastic sensors used for the enantioanalysis of leucine.
Stochastic Sensor Based on N-Methyl-fullero-pyrrolidine andLeucineSignature toff (s)Equation of Calibration 1, RSensitivity,
s−1 g−1 L		Limit of Determination, ag L−1Linear Concentration Range, g L−1
Graphite/Fe2O3L0.61/ton = 0.04 + 8.17 × 1013C
r = 0.9993		8.17 × 101310.001 × 10−17–1 × 10−5
D0.81/ton = 0.01 + 1.42 × 1013C
r = 0.9994		1.42 × 1013100.001 × 10−16–1 × 10−9
NanographeneL2.21/ton = 0.02 + 3.44 × 1012C
r = 0.9995		3.44 × 1012100.001 × 10−16–1 × 10−4
D0.91/ton = 0.02 + 1.35 × 1015C
r = 0.9996		1.35 × 10151.001 × 10−18–1 × 10−6
1 <C> = mol L−1; <ton> = s.
Table
Table 2. Selectivity of the stochastic sensors.
Table 2. Selectivity of the stochastic sensors.
Stochastic Sensor Based on N-Methyl-fullero-pyrolidine andCA15-3CEAHER2MaspinKi67CA19-9p53L-LeucineD-LeucineL-SerineD-Serine
Signature (s)
Graphite/Fe2O31.11.52.21.93.02.43.50.60.80.21.7
Nanographene0.20.63.02.53.22.81.72.20.91.32.0
Table
Table 3. Recovery tests of L- and D-leucine in whole blood samples (N = 10).
Table 3. Recovery tests of L- and D-leucine in whole blood samples (N = 10).
Recovery %
L:D1:991:501:251:125:150:199:1
EnantiomerLDLDLDLDLDLDLD
Graphite/Fe2O3 based sensor99.10 ± 0.0596.98 ± 0.0297.95 ± 0.0499.18 ± 0.0299.00 ± 0.0298.75 ± 0.0398.82 ± 0.0298.99 ± 0.0199.15 ± 0.0199.10 ± 0.0399.99 ± 0.0197.98 ± 0.0298.16 ± 0.0399.90 ± 0.02
Nanographene based sensor99.32 ± 0.0296.50 ± 0.0398.00 ± 0.0299.53 ± 0.0399.18 ± 0.0399.65 ± 0.0298.09 ± 0.0199.99 ± 0.0399.13 ± 0.0299.76 ± 0.0299.12 ± 0.0397.00 ± 0.0497.43 ± 0.0299.66 ± 0.03
Table
Table 4. Enantioanalysis of leucine in whole blood samples using enantioselective stochastic sensors (N = 10).
Table 4. Enantioanalysis of leucine in whole blood samples using enantioselective stochastic sensors (N = 10).
Sample No.State of HealthL-Leucine, pg mL−1D-Leucine, ng mL−1
Stochastic Sensor Based on N-Methyl-fullero-pyrrolidine andGraphite/Fe2O3NanographeneGraphite/Fe2O3Nanographene
1Confirmed with breast cancer8.62 ± 0.028.08 ± 0.013.52 ± 0.023.30 ± 0.03
20.48 ± 0.010.49 ± 0.035.00 ± 0.034.75 ± 0.02
38.25 ± 0.018.71 ± 0.030.20 ± 0.010.18 ± 0.02
415.48 ± 0.0216.02 ± 0.031.87 ± 0.021.69 ± 0.03
56.11 ± 0.015.50 ± 0.031.00 ± 0.021.00 ± 0.03
61.24 ± 0.030.98 ± 0.022.00 ± 0.012.17 ± 0.02
73.47 ± 0.012.93 ± 0.022.60 ± 0.032.58 ± 0.01
80.08 ± 0.010.07 ± 0.0233.10 ± 0.0235.01 ± 0.01
92.91 ± 0.012.26 ± 0.035.23 ± 0.035.00 ± 0.01
108.30 ± 0.038.12 ± 0.011.17 ± 0.031.18 ± 0.01
1Healthy volunteers18.21 ± 0.0118.34 ± 0.02- *- *
220.58 ± 0.0220.84 ± 0.01- *- *
35.48 ± 0.015.12 ± 0.03- *- *
432.25 ± 0.0232.40 ± 0.01- *- *
57.12 ± 0.017.15 ± 0.03- *- *
627.16 ± 0.0227.19 ± 0.01- *- *
752.01 ± 0.0351.15 ± 0.02- *- *
84.89 ± 0.014.68 ± 0.03- *- *
951.97 ± 0.0352.53 ± 0.01- *- *
1043.47 ± 0.0143.50 ± 0.02- *- *
t-test2.963.01
* D-leucine was not found.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Stefan-van Staden, R.-I.; Musat, O.-R. Enantioanalysis of Leucine in Whole Blood Samples Using Enantioselective, Stochastic Sensors. Chemosensors 2023, 11, 259. https://doi.org/10.3390/chemosensors11050259

AMA Style

Stefan-van Staden R-I, Musat O-R. Enantioanalysis of Leucine in Whole Blood Samples Using Enantioselective, Stochastic Sensors. Chemosensors. 2023; 11(5):259. https://doi.org/10.3390/chemosensors11050259

Chicago/Turabian Style

Stefan-van Staden, Raluca-Ioana, and Oana-Raluca Musat. 2023. "Enantioanalysis of Leucine in Whole Blood Samples Using Enantioselective, Stochastic Sensors" Chemosensors 11, no. 5: 259. https://doi.org/10.3390/chemosensors11050259

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
