Recent Progress in Multifunctional Gas Sensors Based on 2D Materials

by
Zhifang Liu
1,†,
Zirui Qiao
2,†,
Chen-Yuan Li
3 and
Yilin Sun
1,*
1
School of Integrated Circuits and Electronics, Beijing Institute of Technology, Beijing 100081, China
2
Department of Chemistry, Tsinghua University, Beijing 100084, China
3
Key Laboratory of Advanced Light Conversion Materials and Biophotonics, Department of Chemistry, Renmin University of China, Beijing 100872, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Chemosensors 2023, 11(9), 483; https://doi.org/10.3390/chemosensors11090483
Submission received: 19 July 2023 / Revised: 9 August 2023 / Accepted: 24 August 2023 / Published: 1 September 2023
(This article belongs to the Special Issue Emerging 2D Materials for Sensing Applications)
Browse Figures
Versions Notes

Abstract

:
The detection of specific gas components under various working conditions while at the same time realizing other functions with the same devices has emerged through great efforts due to these devices’ superior energy-saving and high-efficiency properties. Although so-called multifunctional gas sensors have been fabricated with various novel materials, two-dimensional (2D) materials with unique physical and chemical properties used in multifunctional gas sensors have not yet been well studied. In this review, we summarize up-to-date multifunctional gas sensors based on different 2D materials, including graphene and its derivatives, transition metal dichalcogenides (TMDs), MXenes, etc. The progress of machine learning and artificial intelligence used in emerging powerful sensors is introduced. Their sensing abilities and mechanisms are discussed, and further smart devices equipped with IoT platforms and 5G communication are expected for future electronic use.

1. Introduction

With the increasing global awareness of environmental monitoring, workplace safety supervision, healthcare, and counter-terrorism efforts, gas sensors have garnered significant attention across various domains. Their pivotal role in effectively detecting hazardous gases (CO2, CO, NO2, etc.), targeted disease gases (NH3, H2S, etc.), humidity, and explosives (volatile organic compounds) has made them indispensable tools in addressing these crucial challenges [1,2,3]. From indoor air quality to harmful gas emissions in industrial production processes, the ability to accurately and efficiently measure gases plays a vital role in safeguarding our well-being. Moreover, it is crucial to successfully distinguish multiple gases, for example, H2 in air and other gases, which could form potentially explosive mixtures. Electrochemical sensors have been applied to solve the issue, implying potential fire-control applications [4,5]. Numerous clinical studies have also established associations between specific constituents of volatile molecules found in exhaled human breath and a range of significant ailments, including COVID-19, asthma, diabetes, acute respiratory distress syndrome, renal and liver diseases, lung cancer, and numerous other medical ailments [3]. Up to now, the development of intelligent microsystems has been hindered by the limitations of single-function materials, which entail complex integration manufacturing processes and unsatisfactory electrochemical/sensing performance [6]. Moreover, a cross effect arises from the assessment of unwanted substances, which distorts the accuracy of measurements [4].
The versatility of flexible, stretchable, and wearable gas sensors has captured significant interest due to their wide-ranging applications, from electronic skins to health-monitoring systems [7,8]. Of particular note is their integration with strain sensors, offering a multifunctional capability for detecting both human motions and gases over the full range [9], which holds great promise for preventive medicine and healthcare. As the future of gas sensor development unfolds, it becomes imperative to explore novel device design concepts to further enhance their potential and impact [10,11,12].
In the entire gas sensor fabrication process, the most crucial stage is undeniably the selection of the core sensing material. Among most of the promising sensing candidates, 2D material-based chemical gas sensors receive the most attention, because they possess an intrinsic large surface area and various absorption sites for the specific sensitive detection of different molecules, including graphene and its derivates [13,14], MXenes [15], transition metal dichalcogenides (TMDs) [16], black phosphorous [17], etc. The exceptional suitability of 2D materials for room- or low-temperature gas sensing can be attributed to their high surface accessibility, distinctive structural characteristics, and remarkable physicochemical properties [18]. The distinctive 2D geometry of these materials offers a direct exposure of the active sites to analyte molecules, creating a short mass transport pathway that facilitates rapid response and recovery times [19]. Aside from their promising sensing ability, 2D materials also possess properties like high mechanical strength, high conductivity, tunable electronic structure, etc., which make them candidates for multifunctional gas sensors (Figure 1). Here in this review, multifunctional gas sensors based on different 2D materials are summarized and discussed, especially those focused on graphene, TMDs, and MXenes. Moreover, different kinds of applications are illustrated, including motion detection, photodetection, temperature sensing, pressure sensing, and human healthcare. Smart gas sensors for artificial intelligence are also illustrated. We aim to give a new perspective for the future development of sensors and encourage practical applications of research in this area.

2. Multifunctional Gas Sensors Based on Different 2D Materials

In this section, graphene, TMDs, MXenes, 2D MOFs, and g-C3N4 are selected as representative 2D materials, whose properties range widely and almost cover all kinds of multifunctional gas-sensing devices. For each material, their unique characteristics are discussed and compared, and the pioneering works are summarized.

2.1. Graphene and Its Derivatives

Carbon-based materials have garnered significant attention due to their exceptional attributes, including superior electrical conductivity, flexibility, thermal stability, and low toxicity [20], showing applications in biomedical engineering, catalysis, flexible electronics, and sensors [21]. Among them, graphene and its derivatives, including graphene oxide (GO), reduced graphene oxide (rGO), and heteroatom-doped graphene, etc., stand out for their natural 2D properties. Graphene-based gas sensors inherit several advantages, including a high specific surface area for adsorbing and sensing gas molecules, outstanding electrical conductivity, and excellent mechanical properties, which facilitate the facile processing of various electronic devices [22]. Furthermore, the majority of graphene-based gas sensors offer the advantage of operating at room temperature, which proves highly advantageous for practical gas-sensing applications, as it ensures both applicability and energy efficiency. It is well known that perfect graphene has a zero bandgap with Dirac cone and semimetal properties [23], which is unsatisfying for sensors. Physical and chemical modifications, including architectural design, defect engineering, surface functionalization, elemental doping, etc., have been introduced to enhance the sensing ability of graphene. Therefore, most modified graphene-based materials reveal p-type semiconductor behavior, showing a tendency to adsorb O2 and H2O molecules in air [22]. In the case of oxidizing gases such as NO2, SO2, and Cl2, which possess electron-withdrawing abilities, the concentration of the primary charge carriers (holes) on graphene increases due to the decrease in electron concentration. Consequently, the conductivity of the graphene-based sensor improves, manifesting the sensing signal as a reduction in resistance. Conversely, when it comes to reducing gases like NH3, CO, and H2S, which have electron-donating abilities, the sensor demonstrates a sensing signal characterized by an increase in resistance [24].
Attributed to the unique physical and chemical properties of graphene and its derivates, multifunctional graphene-based gas sensors integrating various applications have been widely reported (Table 1) [6,25,26,27,28,29,30,31,32,33]. Intrinsic graphene possesses remarkably high electrical conductivity and mechanical strength and a substantial specific surface area, rendering it an outstanding platform for chemical sensing applications [24,34,35,36]. Nevertheless, the prevalent gas nanosensors predominantly rely on electrical methods or refractive index sensing, which typically lack the ability to identify specific molecular species. Addressing this limitation, Dai et al. [37] made a significant breakthrough with the label-free identification of gas molecules through the detection of their rotational–vibrational modes using graphene plasmon. Graphene nanoribbons with 25–100 nm widths were filled up to 90% for broad midinfrared spectral range plasmon-field enhancement. The fabricated sensing device was equipped with a high-precision piezometer, a flowmeter, and a home-made infrared-transparent gas chamber (Figure 2A, left). The graphene plasmon devices for the specific recognition of NO, N2O, NO2, and SO2 were tested in real time and under low concentrations (800 ppm for SO2). Aside from real-time analysis, the components of the gas could also be monitored during chemical reactions (NO oxidation reaction) (Figure 2A, right). The chamber filled with reactant NO gas was clearly identified at 1838 and 1906 cm−1 based on its rotational–vibrational mode, whose intensity decreased with the injection of O2 and the emergence of new peaks at 1590 and 1610 cm−1, which coincided with the rotational–vibrational mode of NO2. These real-time measurements exhibit exceptional selectivity, enabling direct observation of chemical reactions—a capability with tremendous potential for applications that demand in situ analysis of chemical processes [37].
As mentioned before, graphene itself possesses a zero bandgap that hinders its sensing ability, which could be overcome by modification and hybridization. A notable technique, laser-induced graphene (LIG), offers a simple and rapid synthesis of porous graphene, providing numerous active surface sites for gas–solid interactions, thus significantly boosting gas-sensing capabilities [38]. With the modified laser processing parameters (0.6 W, 500 PPI image density, and 0 mm focus), the obtained LIG electrode with needle morphology exhibited impressive performance characteristics, including the largest response of 4‰, rapid response and recovery times of 113/296 s, and an ultrahigh signal-to-noise ratio (SNR) of 463 to 1 ppm NO at room temperature. The sensitivity to NOx against other gas molecules was attributed to the lower LUMO of NOx molecules, making LIG a potential candidate to distinguish trace NOX from dominant CO2 and other interfering reducing gases. The high sensitivity of LIG to NOx over other gas molecules could be attributed to the lower LUMO of NOx molecules, making LIG capable of distinguishing low-concentration NOx from high-concentration CO2 and other interfering gases with reducing characteristics (Figure 2B) [29]. Taking advantage of the excellent specific sensing ability of LIG and the water-resistant property of the PDMS membrane, breath analysis of patients with asthma/chronic obstructive pulmonary disease (COPD) could be conducted with NOX biomarkers [29].
Chemosensors 11 00483 g002
Figure 2. (A) Left: Experimental scheme of graphene-based plasmon device for gas identification. Right: Identification of gas molecules during chemical reactions. (Reproduced with permission from [37]. Copyright 2019, Springer Nature). (B) Selectivity test of the gas sensor based on laser-induced graphene to NOx over other interfering gases. (Reproduced with permission from [29]. Copyright 2022, Springer Nature). (C) Gas-sensing performance of PUF-PPy-GO. (Reproduced with permission from [39]. Copyright 2021, Elsevier). (D) Applications of the self-powered chemoelectric humidity (CEH) sensors in respiratory monitoring, telemedicine, sleep apnea syndrome (SAS) diagnosis, and treatment. (Reproduced with permission from [31]. Copyright 2021, Springer Nature). (E) Schematic illustration of Cu(OH)2 nanowire/GO composite-based QCM humidity sensor. (Reproduced with permission from [40]. Copyright 2020, Elsevier). (F) Schematic of the fabrication of SA/rGO/PPy composite fabric and corresponding NH3 sensor and wearable closed-loop point-of-care. (Reproduced with permission from [41]. Copyright 2021, Elsevier). (G) Schematic setup for the sensor to monitor human breath and speech from the mouth with corresponding sensor frequency spectra. (Reproduced with permission from [42]. Copyright 2021, Elsevier). (H) Left, process for the construction of the 3D N-rGO/CNT-MnO2 hybrid. Right, TEM images of as-prepared N-rGO/CNT-MnO2 composites. (Reproduced with permission from [43]. Copyright 2020, Elsevier). (I) Left, schematic of the synthetic process of ZnS NPs/N-rGO. Right, energy band diagram of rGO-ZnS and corresponding proposed sensing mechanism. (Reproduced with permission from [44]. Copyright 2021, Elsevier).
Figure 2. (A) Left: Experimental scheme of graphene-based plasmon device for gas identification. Right: Identification of gas molecules during chemical reactions. (Reproduced with permission from [37]. Copyright 2019, Springer Nature). (B) Selectivity test of the gas sensor based on laser-induced graphene to NOx over other interfering gases. (Reproduced with permission from [29]. Copyright 2022, Springer Nature). (C) Gas-sensing performance of PUF-PPy-GO. (Reproduced with permission from [39]. Copyright 2021, Elsevier). (D) Applications of the self-powered chemoelectric humidity (CEH) sensors in respiratory monitoring, telemedicine, sleep apnea syndrome (SAS) diagnosis, and treatment. (Reproduced with permission from [31]. Copyright 2021, Springer Nature). (E) Schematic illustration of Cu(OH)2 nanowire/GO composite-based QCM humidity sensor. (Reproduced with permission from [40]. Copyright 2020, Elsevier). (F) Schematic of the fabrication of SA/rGO/PPy composite fabric and corresponding NH3 sensor and wearable closed-loop point-of-care. (Reproduced with permission from [41]. Copyright 2021, Elsevier). (G) Schematic setup for the sensor to monitor human breath and speech from the mouth with corresponding sensor frequency spectra. (Reproduced with permission from [42]. Copyright 2021, Elsevier). (H) Left, process for the construction of the 3D N-rGO/CNT-MnO2 hybrid. Right, TEM images of as-prepared N-rGO/CNT-MnO2 composites. (Reproduced with permission from [43]. Copyright 2020, Elsevier). (I) Left, schematic of the synthetic process of ZnS NPs/N-rGO. Right, energy band diagram of rGO-ZnS and corresponding proposed sensing mechanism. (Reproduced with permission from [44]. Copyright 2021, Elsevier).
Chemosensors 11 00483 g002
Graphene oxide (GO) and reduced graphene oxide (rGO) are the most widely studied derivatives of graphene. GO is obtained by the strong oxidation of graphene under acidic conditions (Hummer’s methods) with modified surface oxygen-containing groups such as carboxyls, epoxides, and hydroxyls, which are beneficial for the adsorption of gas molecules [45]. However, the introduction of functional groups to GO inevitably causes topological defects in the graphene lattice at the same time, which leads to a decrease in electrical conductivity. Therefore, a controlled reduction (chemical, thermal, UV, etc.) of GO for the production of rGO could reobtain electrical conductivity, as well as showing more defects and dangling bonds than pristine graphene, resulting in better sensing properties [46]. Combined with other materials forming heterostructures, GO and rGO with different properties enable sensing applications in different working environments. For example, polyurethane foam (PUF)–polypyrrole (PPy) integrated with GO was synthesized via impregnation, making the surface morphology smoother due to the uniform and homogeneous surface of GO sheets [39]. The introduction of GO with its oxygen-containing functional groups onto PUF was verified using Fourier transform infrared (FT-IR) and X-ray photoelectron spectroscopy (XPS). The vital role of GO was verified in enhanced detection signals (Figure 2C). Moreover, the incorporation of GO reduced the maximum strain of the PUF, enabling enhanced flexibility and stretchability of the material, which make it suitable for flexible biosensors that require both biocompatibility and electroconductivity [39]. Utilizing the abundant hydrophilic groups of GO, Zhang and colleagues fabricated GO/silk fibroin (SF) with a hygroscopic LiBr gel matrix, which showed a strong correlation between the output current and humidity levels, leading to remarkable sensitivity (0.09 μA/s/1%), swift response time (1.05 s), and rapid recovery (0.80 s) [31]. As the obtained device was sensitive to humidity, it was set to respond to different respiratory frequencies simulating the relaxed, normal, and exercise states of humans, which showed totally different signal lineshapes (Figure 2D). Moreover, leveraging the capabilities of GO/SF sensors, an exceptionally integrated all-in-one respiratory monitoring–diagnosing–treatment system was developed, which allowed for the real-time collection of respiratory data and transmission through wireless networks to centralized platforms. These multifunctional humidity sensors could be used for telemedicine, the treatment of sleep apnea syndrome, or human–machine interaction (Figure 2D), inspiring new pathways for designing and fabricating power-free devices for portable and wearable applications [31]. Incorporated with other metal-based materials, sensing devices can present unique properties. A quartz crystal microbalance (QCM) humidity sensor was based on Cu(OH)2 nanowires/GO composites according to the in situ growing and drop-casting method (Figure 2E). Scanning electron microscopy (SEM) images revealed the successful combination in which GO was scattered on the Cu(OH)2 nanowires like a transparent mesh and still maintained its crumpled shape. The synergetic effect of Cu(OH)2 and GO was verified by their enhanced sensing performance against humidity, which was further used for respiratory monitoring [40].
rGO has remarkable inherent characteristics that make it an ideal material for various applications. Notably, it demonstrates remarkable stability, boasting a large theoretical specific surface area and featuring structural defects on its surface. These distinctive features empower rGO to provide a plethora of binding sites for efficient gas adsorption [47,48]. However, the employment of chemoresistive sensor-based single-phase rGO is generally limited due to its considerable recovery time and poor selectivity because of its weak van der Waals interactions with gas molecules [49]. Therefore, Bi et al. [41] reported a self-assembled rGO-PPy composite associated with sodium alginate fabric (SA) using π-π stacking and electrostatic interaction (Figure 2F). The optimal loading rate of rGO (5 mg·mL−1) ensured the sensing of NH3 at low concentrations (2–16 ppm). The synergistic effect of PPy and rGO contributed to an extraordinary sensing response of 10.7%, reaching a minimal detection limit of 2 ppm. The durability of the composites was tested, including tests of tensile strength (95.48 MPa breaking strength) and thermal stability. With its contributions of flexibility and Joule heating ability (42.4 °C, 3 V) under a safe range for human beings, rGO-PPy was ideal for practical usage in closed-loop drug delivering systems (Figure 2F) [41]. Another example was the incorporation of P-type rGO and N-type WS2, both with 2D layered structures, for improving humidity-sensing abilities due to the abundant oxygen-containing functional groups in rGO and the regulation of electron transfer between the P-N heterointerface. Raman spectroscopy was conducted to characterize the interactions between H2O and sensing materials, the result of which showed a distinguishable shift in the A1g peak of WS2 and rGO, which revealed the water molecules’ absorption and the electron transfer to rGO. Based on their high sensitivity and quick recovery time, P-N WS2-rGO humidity sensors were applied for the recognition of voice patterns. By evaluating the moisture content patterns in the breath during speech, the sensor demonstrated the capability to discern distinct voice signatures emanating from people’s mouths (Figure 2G) [42].

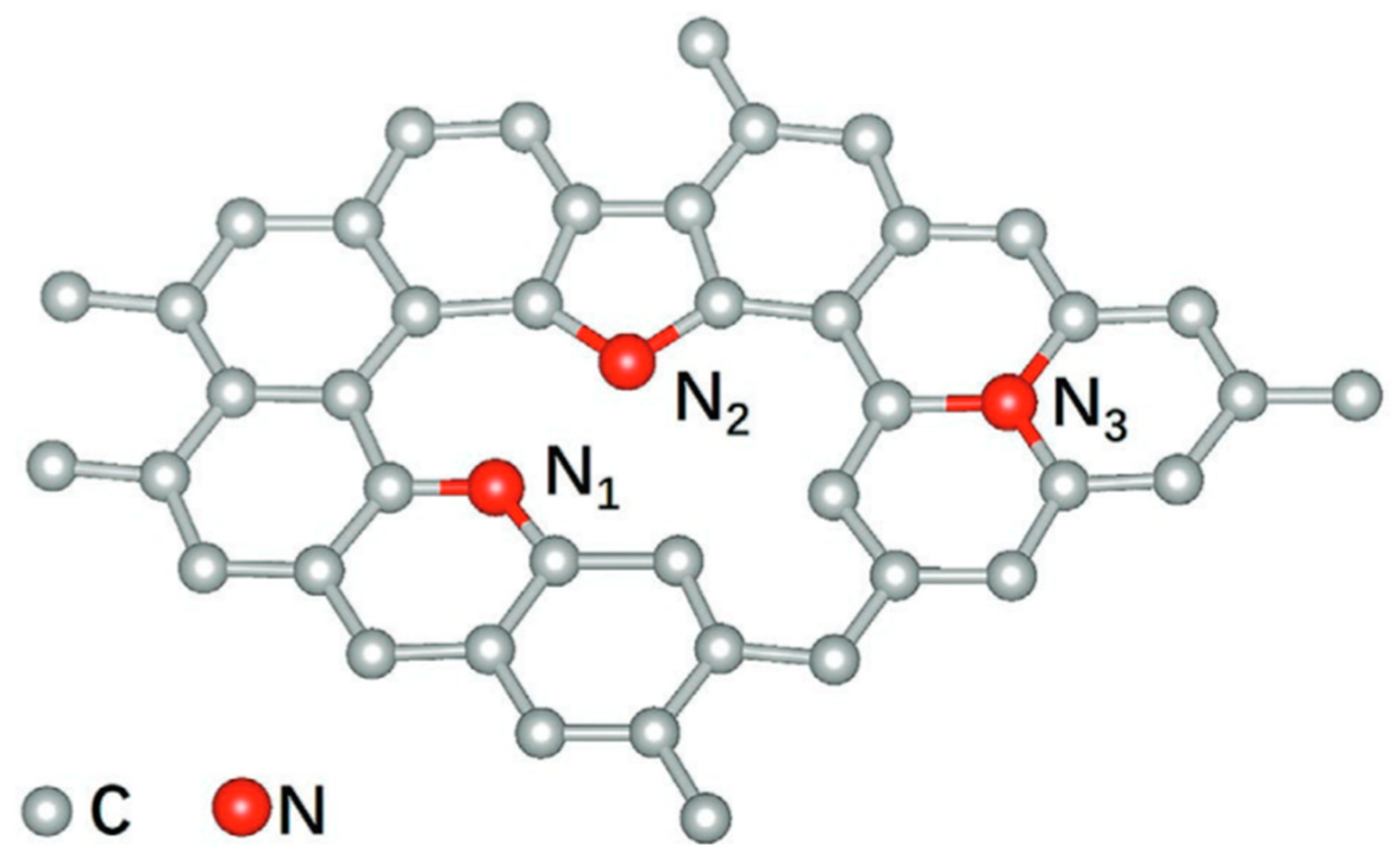

Among the numerous modification approaches available, heteroatom doping stands out as an important method for regulating the electronic structure and introducing additional active sites to the inert lattice plane of graphene, which are highly important in multifunctional devices [50]. The introduction of a dopant atom can result in the creation of numerous active sites in graphene. In fact, a dopant atom with the distinct electronegativity of “C” disrupts the electroneutrality in graphene and generates unbalanced locally charged regions, serving as active sites within the graphene structure. Moreover, unpaired electrons in dopants give rise to a localized distribution of molecular orbitals, enhancing the chemical reactivity of graphene. Additionally, active sites can be perceived as structural flaws that arise from the disparity in size and consequent lattice strain in graphene [51]. Taking into account electronegativity, the size of the doping atoms, etc., boron-, nitrogen-, sulfur-, and phosphorus-doped graphene have been reported for different specific applications. Figure 3 [50] shows a typical chemical model of N-doped graphene, with the doping sites of N atoms in different chemical environments, whose effects on the sensing process could be distinct.

2.2. Transition Metal Dichalcogenides (TMDs)

In the 2D realm, transition metal dichalcogenides (TMDs) display versatile chemistry and tunable size-related electronic structures with variable 1–2 eV bandgaps [52,53]. For instance, bulk MoS2 exhibits an indirect bandgap of 1.3 eV, while a direct bandgap of 1.8 eV is formed in its monolayer form [54]. Atomically thin 2D TMDs typically have a formula of MX2, where M represents a transition metal atom and X denotes a chalcogen atom (such as S, Se, or Te), comprising approximately 60 members [55]. In the X-M-X structure, the sulfur group element’s atomic layer is sandwiched between layers of metal atoms, giving rise to a structure reminiscent of two hexagonal plane layers [56]. Depending on their chemical composition and structural combinations, these materials exhibit a wide range of properties, spanning from semiconducting behavior (e.g., MoS2, WS2) to semimetallic properties (e.g., WTe2, TiSe2), metallic characteristics (e.g., NbS2, VSe2), and even superconductivity (e.g., NbSe2, TaS2) [57]. Due to their unique properties, for example, tunable bandgaps, strong exciton binding energy, and photoluminescence properties, TMDs have been widely used in photodetectors. Moreover, in the gas-sensing field, one of the most intriguing characteristics of TMD sensors lies in their remarkable ability to detect gas molecules at room temperature (RT), owing to the distinctive electronic properties derived from their atomically thin 2D structure [16]. Recent advancements have demonstrated that the creation of heterostructures serves as an effective approach to manipulating the sensing properties of TMD materials (Table 2); combining them together with other functional materials makes TMD-based devices potential candidates for multifunctional sensors.
It is well known that the fabrication of atomic precise heterostructures requires advanced instruments, which is time-consuming and difficult with large-scale production, hindering their practical applications. Therefore, the development of in situ nondestructive processing methods for the preparation of TMD-based heterostructures is of great urgency. Liu et al. [66] reported a laser patterning method for direct oxidation of metallic NbS2 into Nb2O5, forming a NbS2-Nb2O5-NbS2 heterostructure which was constructed with a remarkable configuration, featuring an ultrathin Nb2O5 channel with both ends connected to two metallic TMD (NbS2) electrodes. This ingenious design ensures the formation of naturally perfect interface contacts, ensuring robust electrical signals in a two-terminal sensor. Due to the effective modulation of Nb2O5 surface conduction, the NbS2-Nb2O5-NbS2 heterostructure exhibits exceptional sensitivity in detecting temperature, humidity, and NH3. The positive temperature coefficient of resistance of these sensors can reach an impressive range of 15–20% per degree Celsius. In a humid environment, the electrical conductance undergoes a significant change of approximately three orders of magnitude as the relative humidity (RH) fluctuates from 30% to 90%. Moreover, the sensitivity (ΔR/R) of NH3 at a concentration of 50 ppm reaches an outstanding level of 80%, accompanied by a low detection limit of 1 ppm. The fabrication of flexible devices on a PET substrate was feasible despite the fragile characteristics of Nb2O5 ceramic due to the small thickness of the heterostructure (Figure 4). During the bending test, the electrical conductivity of our flexible device demonstrated remarkable stability, with minimal changes observed even at bending radii as low as 3 mm. Furthermore, the device retains its performance after undergoing 200 bending cycles at a bending radius of 10 mm, thus highlighting its exceptional flexibility and reliability (Figure 4) [66].
Strain engineering has garnered considerable attention due to its vast potential in manipulating the electrical, optoelectronic, magnetic, and electrochemical properties of TMDs, black phosphorus, and other 2D materials [57,68]. A strain-enhanced PtSe2 wireless wearable gas sensor was fabricated for the ultrasensitive detection of trace NH3 [67].

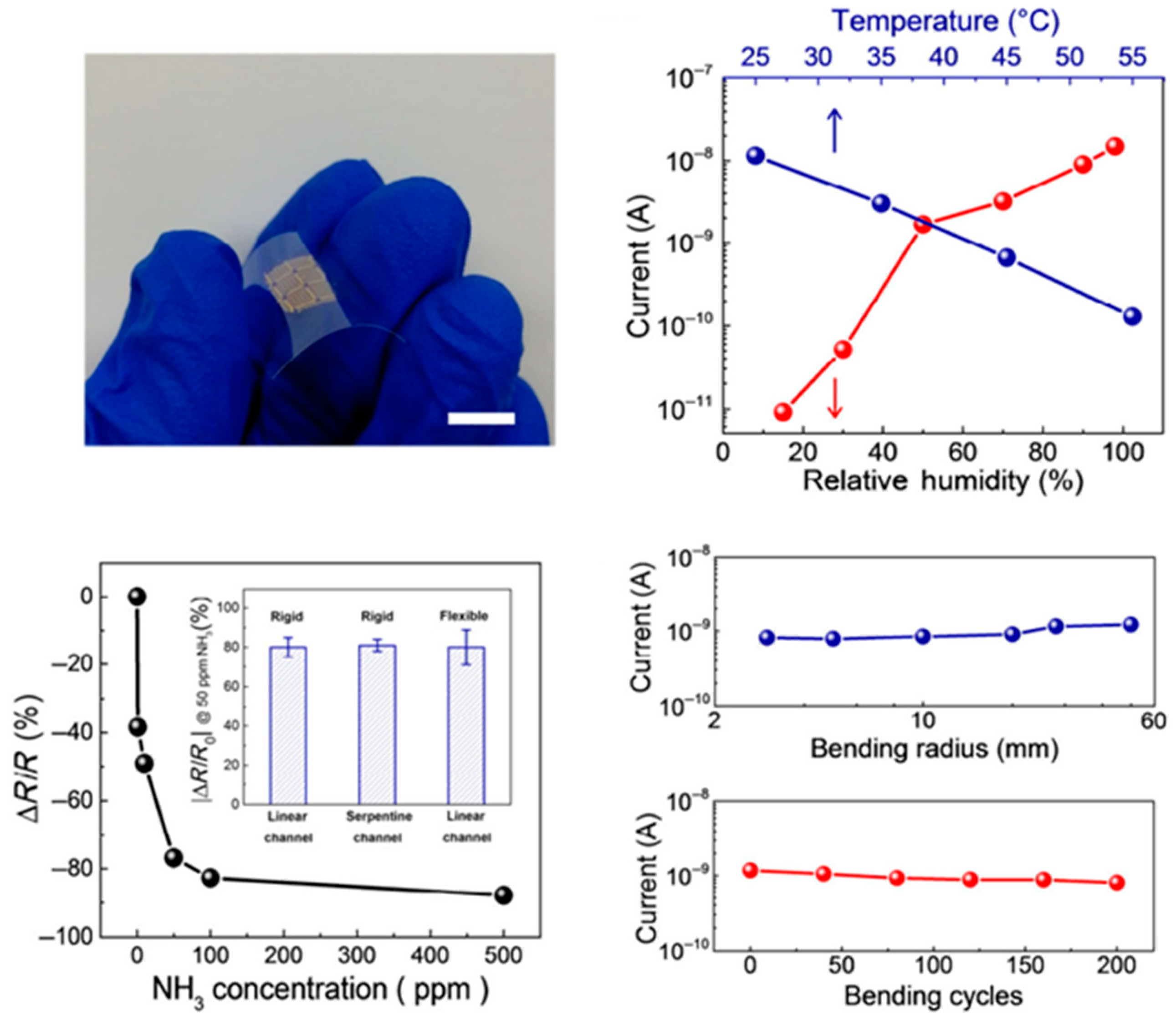

PtSe2 nanosheets were directly grown on a polyimide substrate and subsequently integrated with spiral interdigital electrodes, offering distinct advantages over traditional parallel interdigital electrodes and resulting in a more effective sensing area, thereby significantly enhancing the accuracy of the sensors. Real-time sensing tests demonstrated a significant enhancement in the sensitivity of PtSe2, reaching 31.67% ppm−1 at a strain curvature of 1/4 mm−1, which was approximately 300% higher than the flat state. The mechanism behind this enhancement was attributed to the distortion of the horizontal lattice of PtSe2 with strain, which resulted in a decrease in adsorption energy. The wireless sensing platform, incorporating a Bluetooth module, ensured seamless real-time monitoring with cloud server support, which could prove to be invaluable for various healthcare and industrial applications (Figure 5). The system exhibited remarkable consistency in maintaining high sensitivity and stability even in low-concentration ranges of molecule detection. Notably, it showcased average responses of 11.2% and 27.3% in five cycles at 1 and 5 ppm, respectively, underscoring its exceptional performance in detecting and monitoring trace gas concentrations. Additionally, the data fluctuations remained within a minimal range of 10%, further emphasizing the system’s reliability [67].

2.3. MXenes

MXenes represent a diverse family of 2D compounds comprising metal carbides, nitrides, and carbonitrides, exhibiting a unique architecture characterized by the arrangement of two or more layers of a transition metal (M atoms) in a honeycomb-like lattice. These M layers are interleaved with carbon and/or nitrogen layers (X atoms), which occupy the octahedral sites situated between the adjoining transition metal layers [69]. In the last decade, MXene materials have experienced a remarkable expansion, owing to their exceptional electrical, mechanical, and chemical properties derived from their distinctive 2D structure. MXenes are usually represented by the equation Mn+1XnTx (n = 1–4); M and X are transition metals and contain C/N as mentioned above, and Tx is regarded as a surface terminal group (O/OH/F/S and Cl), featuring a unique combination of metallic conductivity and colloidal processability [70]. Over 70 MAX phases and more than 30 distinct stoichiometric forms of MXenes have already been discovered, with numerous additional ones predicted to exist [71]. Gas sensors based on MXenes exhibit excellent capabilities in detecting volatile organic compounds (VOCs) and nonpolar gases, including ammonia, ethanol, and acetone, even at room temperature. This remarkable sensitivity can be attributed to their metallic core channels and surface functional groups, which contribute to the formation of strong adsorption energies for these specific gas molecules [69]. Attributed to the moderate mechanical strength of MXenes (M-X bonds endow a high elastic constant that exceeds 500 GPa) [18], when incorporating flexible substrates, MXenes open up a wide range of practical applications involving flexible multifunctional sensing devices (Table 3).
Since the invention of the triboelectric nanogenerator (TENG) by Wang and colleagues in 2012 [82], self-powered flexible devices have emerged rapidly based on TENGs. Numerous studies have demonstrated the effectiveness of TENGs in enhancing gas-sensing performance and reducing power consumption in gas sensors, especially with MXenes as the sensing materials that could operate at low-power consumption of mW to μW. For instance, Wang et al. [72] successfully developed a gas sensor using Ti3C2Tx/WO3, which exhibited a notable response to NO2 gas stimulation at room temperature (Figure 6A). VOCs are prevalent air pollutants known for their toxicity to humans. Therefore, it is of the utmost importance to detect VOCs rapidly, selectively, sensitively, and reversibly. When airborne VOCs interact with a gas sensor, the sensing layer undergoes a resistance change as the volatile gas reacts with the sensing layer, representing the primary mechanism behind gas sensor formation. Poly(vinyl alcohol)/silver (PVA/Ag) nanofibers are a high-performance TENG material, showing an output voltage of 530 V and power of 359 mW/m2. For a practical TENG device with a smaller size (1 × 2 × 3 cm3), a real-time test indicated that the prepared breath-driven TENG could differentiate various respiratory behaviors, making it highly promising for respiratory monitoring applications (Figure 6A). Further efforts were made for its biocompatibility for monitoring human movement and harvesting human kinetic energy, and it successfully distinguished different movements (elbow bend, knee bend, and foot movement) based on voltage outputs (Figure 6A). This TENG-based Ti3C2Tx/WO3 gas sensor showed promising abilities in NO2 sensing, with an excellent response (~510%) at room temperature that was 15 times larger than that of the resistive sensor [72].
Similarly, different conducting polymers were used in TENG-based gas sensors. A MXene/cellulose acetate NFs (MXene/CA-NFs) combination was synthesized [77], with MXene as the negative layer and CA-NFs as the positive layer, with resulting high output power (∼1361 mW/m2@2 MΩ). The sensing material consisted of a MXene/TiO2 heterostructure, exhibiting selective detection of NH3 with a high response (6.84%, 10 ppm). In this context, the electron-enriched TiO2 acted as a catalyst, effectively attracting oxygen molecules to its surface and promoting the absorption of additional O2- anions. Simultaneously, MXene served as a selective matrix for NH3, facilitating the interaction between NH3 and the preadsorbed O2- anions. Furthermore, the conductive channel provided by MXene contributed to the overall reduction in resistance within the heterojunction sample, thereby accelerating the redox reaction even at room temperature. A self-powered NH3 sensor was embedded in the insoles of shoes to automate NH3 detection (Figure 6B), which could be conducted with gentle shoe tapping in ambient conditions, and with NH3 causing an integrated LED to light up [77]. In this situation, MXenes were used both as TENG and sensing materials, indicating their multifunctional properties. Aside from the combination with metal oxides, the MXene-based heterostructure also showed an enhanced sensing ability for ethanol and NH3 with β-Ni(OH)2 and MOF derivates, showing a similar sensing mechanism with more O2- generation (Figure 6C,D).

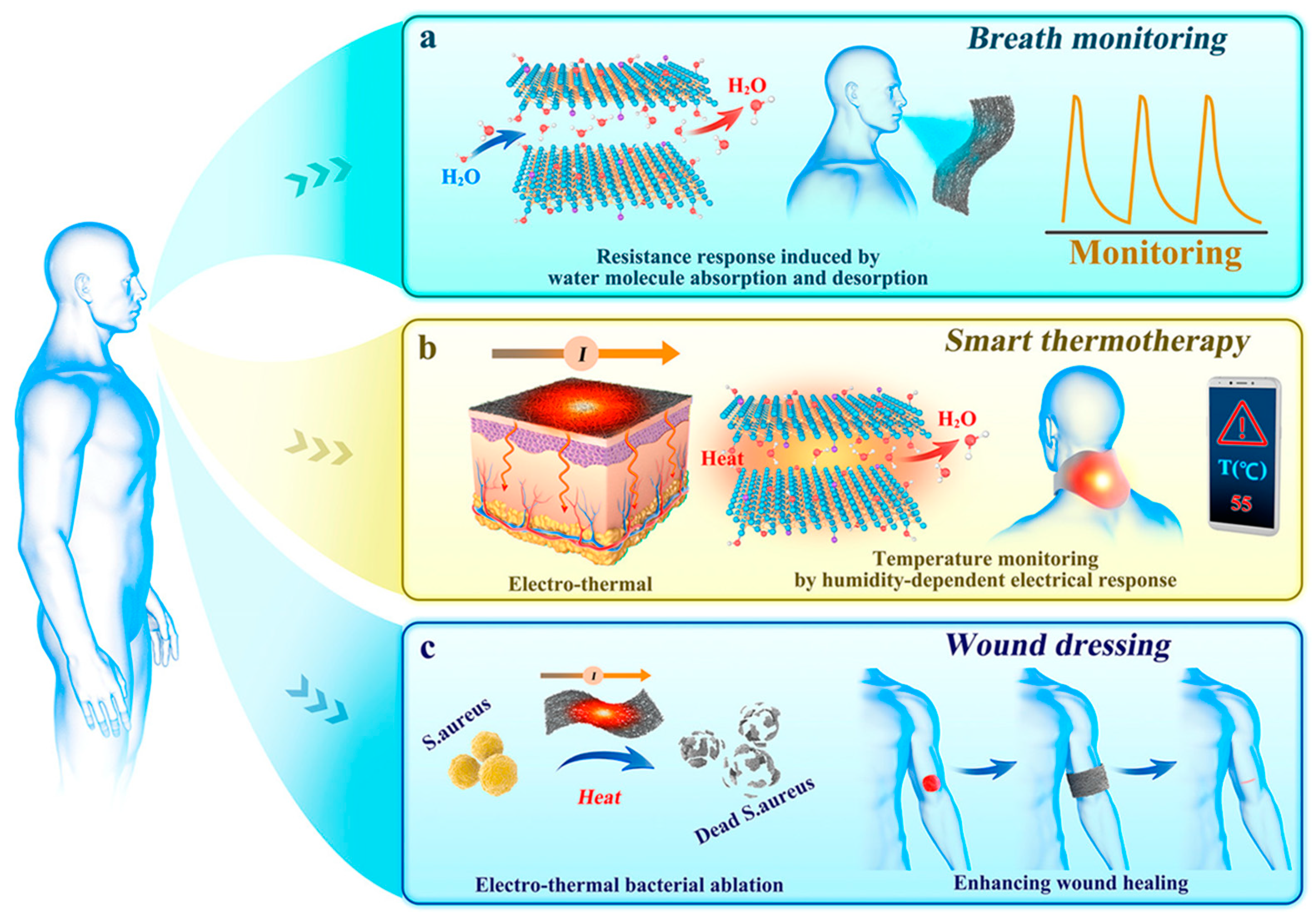

The development of gas sensors is of great importance for monitoring exhaled breath, body fluids, and humidity, which makes it useful in early disease diagnosis and further treatment. Therefore, MXene-based gas sensors for healthcare are now receiving a great amount of attention. Zhao et al. [81] (Figure 7) reported a Ti3C2Tx MXene fabric (M-fabric) with a fast humidity response (1.15 s response time, 8.71 s recovery time) with stability for more than 25 days which is potentially suitable for monitoring exhalation changes in patients. The same M-fabric also showed Joule heating ability and could reach 100 °C under 6 V input voltage within 16 s, allowing for application in personal thermal management devices. In fact, heat generated by M-fabric wearable thermal management devices could diffuse along the skin and muscle, which is beneficial for pain relief (Figure 7). Moreover, the Joule heating ability of M-fabric was also applied in bacterial ablation and infectious healing, exhibiting efficient elimination of S. aureus bacterial infection with almost 100% reparation of trauma (Figure 7) and without obvious organ damage [81]. Aside from wound treatment, dental diseases could also be evaluated by monitoring the release of specific gases like CH3SH, H2S, and NH3 in oral medicine. Therefore, Jin et al. [80] reported a cellulose/Ti3C2Tx MXene bioaerogel that could not only realize real-time multipoint detection of occlusal force but also the oral release of NH3. A small device (6 × 6 cm2) containing a 17 × 17 pixel array that is suitable for the human mouth was designed and fabricated, and could record in real time the intensity, contact position, shape, and force distribution of tooth contact. At the same time, cellulose/Ti3C2Tx MXene could distinguish between bite force signals and the NH3 gas signal, suggesting a multifunctional sensing platform that could help with clinical diagnosis of undetectable dental lesions. Interestingly, the cellulose/Ti3C2Tx MXene bioaerogel was degradable with 2 wt.% H2O2 in 10 min, further demonstrating its usefulness in practical dental diagnosis [80]. MXene-based sensors have also shown the probability of application in noninvasive disease diagnosis via urinary volatiles [83], electromagnetic interference shielding [78], etc.

2.4. Other 2D Materials

Aside from the aforementioned materials, other 2D materials, such as black phosphorous (BP) [84], 2D metal–organic frameworks (MOFs) [85,86], graphitic carbon nitride (g-C3N4) [87,88,89,90,91,92], etc., have been obtained and characterized as thin layered nanostructures which showed superior ability in gas sensing (Table 4). The diverse and distinctive electronic, physical, and chemical properties exhibited by two-dimensional materials, resulting from the confinement of electronic and magnetic states, have led to remarkable advancements.
Two-dimensional MOFs, in contrast to most two-dimensional materials, have an inherent porosity that offers advantages in terms of analyte absorption into the material and presents distinctive avenues for surface interactions that are not accessible in nonporous two-dimensional materials. Furthermore, the structural modularity of MOFs, which can be achieved through the use of synthetically tunable molecular building blocks, enables precise customization of host–guest interactions embedded within the scaffold [93]. Smith et al. successfully integrated 2D conductive MOFs, specifically M3HHTP2 (where M represents Ni and Cu), into polymeric device chips that were equipped with prepatterned graphitic electrodes. The outcome of this process was the formation of mats comprising randomly oriented MOF nanowires, which had a thickness of approximately 15 μm. The resulting devices exhibited promising performance in distinguishing between gas-phase NH3, NO, and H2S at concentrations ranging from 10 to 80 ppm [85]. MOF-based multifunctional electrically conductive textiles were also fabricated using direct solution-phase growth of Ni3HHTP2 and Ni3HITP2 MOFs on flexible fabric-based substrates. This innovative approach, termed self-organized frameworks on textiles (SOFT), leveraged the porosity of both the MOF and the fabric, resulting in textiles with excellent mechanical stability. The SOFT sensors exhibited remarkable capabilities as they were able to simultaneously detect, capture, and filter NO and H2S gases with sub ppm limits of detection (0.16 ppm for NO and 0.23 ppm for H2S) [86]. Importantly, the chemiresistive response of the SOFT sensors remained largely unaffected by the presence of humidity (18% relative humidity) and could be fully recovered by washing with water [86].
Table 4. Summary of other multifunctional gas sensors.
Table 4. Summary of other multifunctional gas sensors.
Sensing MaterialsTarget GasOther FunctionsRef.
BPNS-PEI-TPPSHCl, NH3
  • Surface-enhanced Raman scattering
[84]
2D M3HHTP2NH3, NO, H2S
  • Distinguishing different gases
[85]
2D Ni3HHTP22D Ni3HITP2NO, H2S
  • Detecting, capturing, and filtering gas simultaneously
[86]
MoSi2As4NH3, NO2
  • FET integration switching
[94]
Au-InSeNH3, NO2
  • Wearable measurement system
[95]
g-C3N4-Fe-CuMethane
  • Humidity detection
  • Soil moisture content detection
[88]
Au–TiO2-g-C3N4VOAs
  • Photocatalyst
[89]
Nb-doped g-C3N4NH3
  • Photocatalyst
[90]
ZnO/Ag/g-C3N4NO2
  • Photocatalyst
[91]
CeO2/g-C3N4Humidity
  • Human physiological detection
[92]
g-C3N4/GaNNO2
  • UV photodetector
[87]
Graphitic carbon nitride (g-C3N4) is a metal-free semiconductor composed of carbon and nitrogen, two elements abundant in the Earth’s crust. This material exhibits visible-light activity, possessing a bandgap of approximately 2.7 eV (corresponding to a wavelength of around 460 nm). Thanks to its exceptional optical properties of effective light harvesting, g-C3N4 has found wide application as a photocatalyst for processes such as water splitting, pollution degradation, and CO2 reduction. In terms of gas sensing, g-C3N4 boasts an intrinsic crystal structure reminiscent of 2D layered graphite materials, which imparts it with fascinating physicochemical properties, a unique electronic structure, and remarkable chemical stability. When exposed to light irradiation, g-C3N4 demonstrates an augmented adsorption capacity for various gases, consequently enhancing its sensing capabilities. Khasim et al. [88] successfully synthesized composites of g-C3N4 filled with FeO and CuO, which showed superior methane sensing ability at the ppb level, with high sensitivity, short response/recovery times, and long-term stability. The presence of amino groups in g-C3N4 led to hydrogen bonding and continuously binding with water molecules, verifying its humidity-sensing performance. The synthesized composites were utilized for the practical detection of water content in soil samples, yielding responses of 72% for black clay soil and 59% for red garden soil. These results highlight the suitability of these composites as ideal platforms for monitoring diverse greenhouse conditions and agricultural applications [88]. g-C3N4 is an excellent photocatalyst, and integrating its photocatalytic capability with its gas-sensing ability in a single device enables the realization of multifunctionality in one single device, with potentially enhanced gas-sensing performance under light irradiation conditions. Malik et al. [89] reported an Au–TiO2-g-C3N4 nanohybrid which exhibited enhanced photocatalytic degradation performance toward a variety of azo dyes due to its superior ability to generate superoxide anionic free radicals. Similarly, when molecular oxygen trapped electrons in the conduction band of TiO2 and g-C3N4, this resulted in the creation of reactive oxygen species, which was responsible for the activation of gas molecules. The sensing tests confirmed the proposed mechanism, with excellent sensing performance toward the volatile organic amines (VOAs) commonly present in the indoor climate [89]. For other gases, like NO2 [91] and NH3 [90], the enhanced sensing properties of g-C3N4 were also shown, indicating its universality as a gas sensor. Moreover, like other 2D materials, g-C3N4 could serve as a highly flexible sensor for detection of human body physiological information [92].
As sensing materials, 2D materials exhibit different sensing mechanisms and demonstrate diverse sensing capabilities due to their various structural types and their responsiveness to different types of gases. The underlying principle of the vast majority of gas sensors is based on the interaction between gas molecules and the sensing material, which leads to changes in the physical and chemical properties of the sensing material, including in chemiresistive, colorimetric, electrochemical, surface acoustic wave, and magnetic sensors, enabling gas detection. The most widely recognized sensing mechanisms for 2D materials are the surface-adsorbed oxygen ion mechanism and the charge-transfer mechanism. For example, as mentioned before, most modified graphene-based materials reveal p-type semiconductor behavior, showing a tendency to adsorb O2 and H2O molecules in air [22]. In the case of oxidizing gases such as NO2, SO2, and Cl2, which possess electron-withdrawing abilities, the concentration of the primary charge carriers (holes) on graphene increases due to the decrease in electron concentration. Consequently, the conductivity of the graphene-based sensor improves, manifesting the sensing signal as a reduction in resistance. Similarly, in other 2D materials, when exposed to various gases, the sensing materials undergo charge-transfer reactions with the adsorbed gases, resulting in different directions and quantities of charge transfer, leading to varying changes in the materials’ resistance. This mechanism can reasonably explain sensing phenomena in materials such as TMDs, graphene and its derivatives, and MXenes. Efforts have been made with the fabrication of different kinds of junctions (Schottky junctions, and p–n, n–n, and p–p junctions), which focuses on the modulation of band structures and interfacial charge-transfer characteristics. Another important sensing mechanism, which is called the surface-adsorbed oxygen ion mechanism, often requires adsorption of negative oxygen ions on the surface of metal oxides, especially in oxygen vacancies or other defects on the surface of 2D materials [96,97].
In recent decades, the combination of different materials and the formation of composite structures have resulted in a combination of detection principles. Table 5 lists representative 2D sensing materials (including composites with 2D materials) for the detection of different gases with performance differences, from which one can conclude that designing sensors with high sensitivity and selectivity against specific gas molecules requires precise selection of sensing materials, defect engineering, and interface engineering [96,97].

3. Smart Gas Sensors for Artificial Intelligence

The human body is an extraordinary integrated system that boasts numerous captivating design features. Taking inspiration from these remarkable qualities, a diverse range of functional devices have already been developed and implemented in the form of flexible intelligent robots, including optoelectronics for computer vision, electronic skin for machine touch, and versatile algorithms for speech recognition. With this backdrop, there is a growing demand for the development of a flexible and intelligent electronic nose (e-nose), which, thus far, remains unexplored territory [108]. Emerging technologies, together with advancements in artificial intelligence (AI) subdivisions such as robotics, deep learning (DL), and machine learning (ML), have paved the way for the development of novel techniques for food quality control, disease diagnosis, and explosive detection [109]. With the help of DL and ML, predictions on sensing materials about their structure, physicochemical properties, and stability could be conducted [110,111], together with simulation and visualization without conducting real experiments. Moreover, AI and ML tools have firmly discarded the anticipation-based hit–trial strategies and upgraded data analysis and reasoning-based sensing studies.

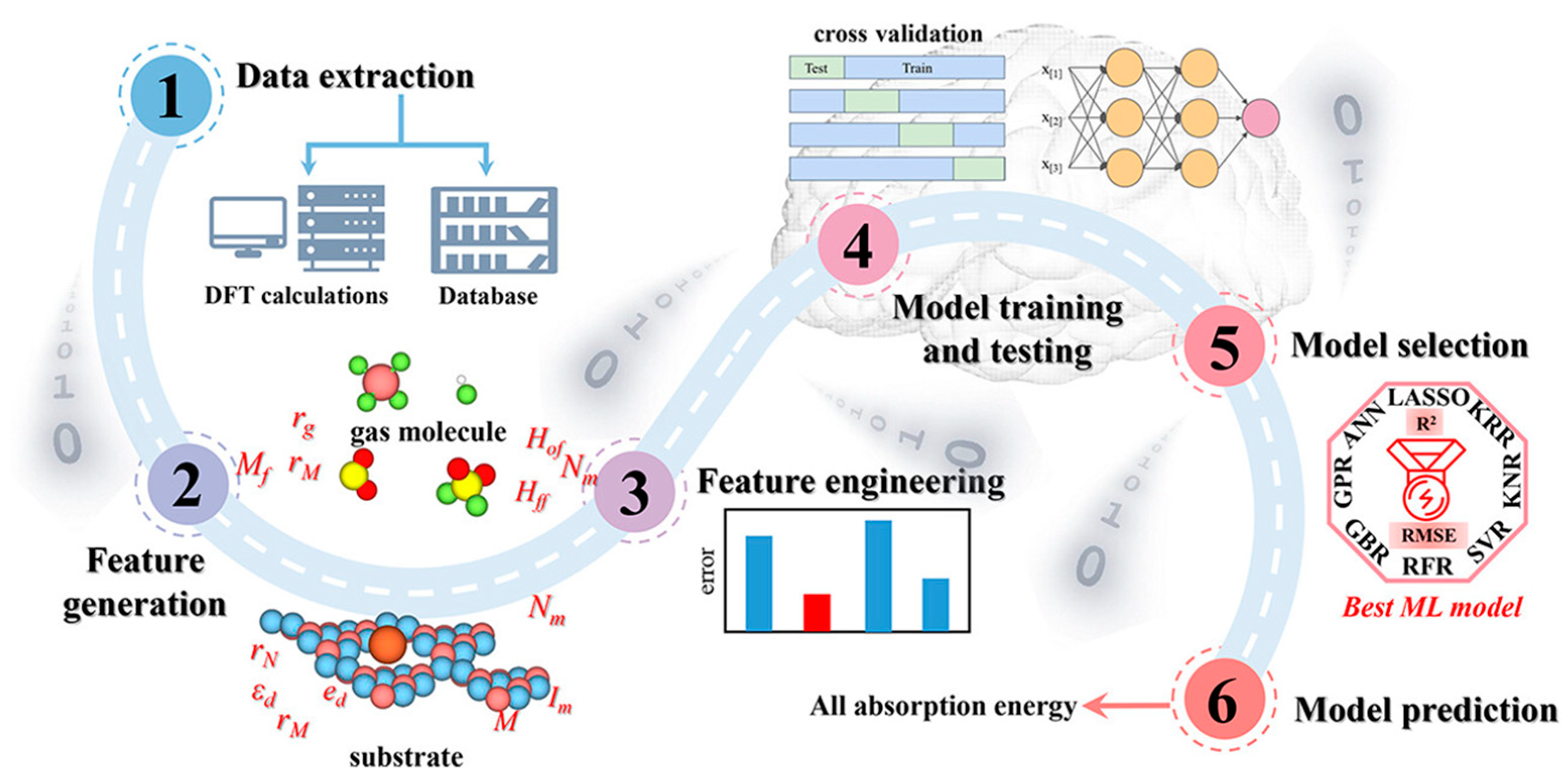

For example, Wan et al. [112] reported a state-of-the-art DFT and ML hybrid scheme for the accessibility analysis of transition metal (TM)/g-C3N4 heterostructures. The research was entirely based on computational simulation; at first, 28 different potential TM/g-C3N4 structures were predicted and modeled, followed by the bond analysis of the template analyte molecule CF3SO2F, indicating that CF4, SO2F2, SO2, and HF were the most energetically favorable products. Furthermore, ML was employed to investigate the interaction strength between 28 different TM/g-C3N4 structures and four decomposed products (a total of 112 combinations), which was costly with the first principal calculations. The ML workflow is depicted in Figure 8 [112]; an adsorption model of 28 randomly selected gas-TM/g-C3N4 systems was first studied using DFT calculations, followed by feature generation, engineering, model training and testing, model selection, and finally, model prediction. The 84 ML-predicted adsorption energies ranged from −2.84 to −0.05 eV, showing no obvious changing tendency with the change in the TM atom, indicating the dual influence of the TM atom and decomposition gases on interaction strength. Based on the ML-predicted adsorption energy, a high-throughput screening process for parameters like recovery time, sensitivity, selectivity, and stability was conducted. Finally, four promising gas-sensing materials, Sc/g-C3N4, Pd/g-C3N4, Zn/g-C3N4, and Cd/g-C3N4 for CF4, HF, SO2, and SO2F2, respectively, were determined [112]. Another significant application for AI is to distinguish different components in mixed gases. By extracting features from the sensing data of a single specific gas component and modeling, even though the sensing data of the mixture were totally different and complex, one could classify each component with ML, indicating its practical application in gas sensing in different work conditions [113,114]. Herein, we only propose and emphasize the importance of AI-based smart gas sensors, rather than going into detail about specific scientific issues in computer science. The initial conditions of the ML process in the presented literature are summarized in Table 6. It is emphasized that for readers interested in more detailed coding and algorithms, milestone works have already been reviewed [115,116].

4. Conclusions and Outlook

We have summarized the current research on multifunctional gas sensors based on 2D materials with varieties of different applications, such as motion detection used in respiratory monitoring, photodetection, catalysts, temperature sensing, pressure sensing, human healthcare, etc. Utilizing the unique physical and chemical properties of different kinds of 2D materials, self-powered, low-energy-consuming, human-suitable wearable smart devices have been the most attractive research topic and many breakthroughs have already been made. In this review, we first summarized the multifunctional gas sensors based on graphene and its derivates, including GO, rGO, and doped graphene. As one of the largest kinds of material in the 2D material family, graphene/GO/rGO vary in their surface chemistry due to the participation of oxygen-containing functional groups; therefore, they are suitable in diverse working conditions. Second, TMD-based multifunctional gas sensors were summarized and discussed. TMD itself is a promising material with tunable bandgaps and mechanical strength; hence, a combination of TMDs and other functional materials—sensors with different dimensions in the field of smart wearables—was fabricated and tested. Third, we discussed MXenes, which were born and developed in the last 10 years and which have metallic core channels and surface functional groups which contribute to the formation of strong adsorption energies for these specific gas molecules. The MXene-based sensors played an important role in medical healthcare monitoring. Fourth, other 2D materials such as MOFs and g-C3N4 with dual abilities in catalysis and gas sensing were discussed. Lastly, AI and ML techniques have been recently introduced to sensors, and could be applied for the prediction and designing of new sensing materials and complex signal processes.
Although we have listed many outstanding, noteworthy, and distinctive two-dimensional materials and their practical applications in multifunctional gas sensors in this review, there is a portion that has been overlooked, which includes other rapidly evolving families of two-dimensional materials with diverse electronic characteristics and chemical compositions. These novel 2D materials possess distinct mechanical, magnetic, electrical, and other physical properties compared with traditional materials, thereby presenting potential application capabilities in a broader range of research fields. Moreover, by using DFT calculations for the design of novel 2D materials, researchers have obtained a significant number of materials that have not yet been successfully synthesized but which also deserve attention and investigation, as some theoretical calculations have indicated their potential for outstanding performance in gas-sensing applications. Furthermore, while we have provided an overview of some representative applications of multifunctional gas sensors, the underlying physicochemical mechanisms and the design of and improvements in next-generation devices specific to each application have not been mentioned in this review, due to the complexity of the mechanisms involved in each distinct application. And we have only focused on some of the most current and trending applications, neglecting many other areas of application. Although such achievements have already been made, due to the rapid development of the IoT platform and fifth-generation (5G) communication, the practical use of existing sensing devices out of the lab is an issue of great urgency, and some research has realized their real-time sensing and monitoring in smartphones, laptops, etc. Developments should also be made in interdisciplinary areas, for example, medical monitoring using other biomarkers and disease diagnosis in other organs, environmental detection of VOCs as pollution source, fire alarms, and energy-harvesting devices. Moreover, to improve the sensing performance, the combination of other functional materials (metal oxides, carbon nanotubes, polymers) would inevitably make the sensing mechanisms more complicated to understand, which would lead to neglecting the intrinsic abilities of these 2D materials. Therefore, the competition between sensing performance and the adding of new compounds should be balanced. Attention should be paid to these brand-new materials. It is hoped that this review can provide a clear vision for the future development of 2D material-based sensors and encourage innovative studies and practical applications of research in this area.
