Case Report

The Need to Shift from Morphological to Structural Assessment for Carotid Plaque Vulnerability

by
Yuqiao Xiang
1,†,
Xianjue Huang
2,†,
Jessica Benitez Mendieta
1,
Jiaqiu Wang
1,
Phani Kumari Paritala
1,
Thomas Lloyd
3 and
Zhiyong Li
1,2,*
1
School of Mechanical, Medical and Process Engineering, Queensland University of Technology, Brisbane, QLD 4000, Australia
2
School of Biological Science and Medical Engineering, Southeast University, Nanjing 210096, China
3
Department of Radiology, Princess Alexandra Hospital, Brisbane, QLD 4102, Australia
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biomedicines 2022, 10(12), 3038; https://doi.org/10.3390/biomedicines10123038
Submission received: 13 October 2022 / Revised: 18 November 2022 / Accepted: 22 November 2022 / Published: 24 November 2022
(This article belongs to the Section Molecular and Translational Medicine)
Browse Figures
Review Reports Versions Notes

Abstract

:
Degree of luminal stenosis is generally considered to be an important indicator for judging the risk of atherosclerosis burden. However, patients with the same or similar degree of stenosis may have significant differences in plaque morphology and biomechanical factors. This study investigated three patients with carotid atherosclerosis within a similar range of stenosis. Using our developed fluid–structure interaction (FSI) modelling method, this study analyzed and compared the morphological and biomechanical parameters of the three patients. Although their degrees of carotid stenosis were similar, the plaque components showed a significant difference. The distribution range of time-averaged wall shear stress (TAWSS) of patient 2 was wider than that of patient 1 and patient 3. Patient 2 also had a much smaller plaque stress compared to the other two patients. There were significant differences in TAWSS and plaque stresses among three patients. This study suggests that plaque vulnerability is not determined by a single morphological factor, but rather by the combined structure. It is necessary to transform the morphological assessment into a structural assessment of the risk of plaque rupture.

1. Introduction

Atherosclerosis is one of the main underlying causes of cardiovascular disease (CVD) [1]. Morphological features and biomechanical environment have been found to play an important role in the progression and rupture of atherosclerotic plaques [2,3,4]. The degree of luminal stenosis is typically considered an important indicator for judging the risk of atherosclerosis burden. Moreover, plaque morphology has been recognized to be critically important to better assess plaque vulnerability [5,6,7]. Biomechanical modelling can provide the mechanical interaction between blood flow and plaque, which has been reported recently to be a functional tool to evaluate the risk of plaque rupture [8]. However, it remains unknown if there are significant differences in plaque morphology and biomechanical factors among patients with the same or similar degrees of stenosis. Thus, improved knowledge is needed to understand why we should shift from morphological to functional risk assessment for plaque vulnerability.
An increasing number of studies have suggested that hemodynamic factors play a key role in the initiation, development, and progression of atherosclerosis [9,10,11]. The development and progression of atherosclerotic plaque is usually found in areas with complex flow patterns, such as the carotid artery bifurcation [12,13,14]. Mathematical and numerical models have been developed to study the mechanobiological processes of plaque progression and identify possible prevention and treatment strategies [15,16,17,18]. Local hemodynamic forces have a profound impact on the formation and progression of plaque in the carotid area [19,20]. For this reason, the importance of wall shear stress (WSS) has been widely explored to identify its relationship with the progression and rupture of carotid plaque. Low WSS induces endothelial cell phenotypic transition and an atherogenic gene expression [21,22]. Conversely, high WSS is associated with plaque instability, which can further lead to rupture, platelet aggregation, and atherosclerosis progression [23,24].
Computational fluid dynamics (CFD), a numerical field of fluid dynamics, has received increasing attention as a tool for the study of cardiovascular hemodynamics [25,26,27]. The interaction between the blood domain and deforming arterial walls is not typically considered, and CFD simulations are usually restricted only to the blood flow analysis. However, fluid–structure interaction (FSI) models combining CFD with structural finite element analysis (FEA) have been provided to give a more accurate estimation of the real vascular system and have been used to assess both fluid dynamic and structural behaviors in human atherosclerotic carotid plaques [28,29,30].
Using the FSI modelling approach developed over the last few years, we aimed to investigate the difference in the functional (biomechanical) factors in patients who have a similar luminal stenosis, thus providing an example to illustrate why there is a need to shift from morphological plaque assessment to a functional evaluation of plaque rupture risk. This study analyzed and compared the biomechanical factors of three patients with a similar carotid stenosis. First, different components of the carotid plaque were segmented based on magnetic resonance imaging (MRI), including the lumen, outer walls, lipids, and calcification. By deriving the coordinates of the atherosclerotic plaque tissue, the material properties of different tissues were directly mapped to each finite element corresponding to the coordinates. Finally, a two-way fluid–structure coupling calculation was performed on the model, and patient-specific flow and pressure conditions were used in the calculation. A variety of biomechanical risk factors of the three patients were analyzed and compared.

2. Materials and Methods

2.1. Patients and MRI

Three patients with similar carotid stenoses who were planned for carotid endarterectomy (CEA) were included in this study. The degrees of stenosis were calculated according to the North American Symptomatic Carotid Endarterectomy Trial (NASCET) method [31]. Patient demographics are provided in Table 1. The clinical study was conducted at the Princess Alexandra Hospital (PAH) in Brisbane, Australia. This study was approved by the Metro South Human Research Ethics Committee (HREC/17/QPAH/181) and patient consent forms were obtained. This study was performed in accordance with the guidelines of the Declaration of Helsinki.
Before performing CEA, multi-contrast MRI was performed at the carotid bifurcation of each patient on a 3T whole body system (Magnetom Prisma, Siemens, Malvern, PA, USA). Four contrast-weighted imaging sequences (including T1-weighted (T1W), T2-weighted (T2W), proton-density-weighted (PDW), and time-of-flight (TOF)) were obtained to allow for the identification of the different plaque components. Additionally, 2D electrocardiogram (ECG)-gated phase-contrast MRI (PC-MRI) images at approximately 40 equidistant time frames in the cardiac cycle were acquired to record the mass flow profile at three different locations, including common carotid artery (CCA), maximum stenotic region, and internal carotid artery (ICA).

2.2. Segmentation and Reconstruction

The lumen centerline was determined as the least-cost path between user-defined seed points in the CCA, ICA, and external carotid artery (ECA). Two least-cost paths were computed using the Dijkstra algorithm, one between ICA and CCA, and the other between ECA and CCA. Subsequently, initial contours were generated according to the positions of the two centerlines, and an improved active contour model [32] was used to detect the lumen. The outer wall was segmented using a path-tracing method based on the circle model [33,34]. After detecting the lumens, the tracking algorithm was applied to radial profile gradients to detect the outer wall of the vessel. In brief, a notion of the local minimal path that aimed at restricting the tracking to given orientations and distance was pioneered. To segment the plaque components, a k-means clustering algorithm [35,36] was used to perform tissue clustering between the inner and outer walls. The accuracy of the method and the segmentation result have been evaluated by experienced radiologists at the Princess Alexandra Hospital.

2.3. Material Mapping Method

The solid geometric models were meshed with the proximity and curvature size function in Ansys Meshing (version 19.0, ANSYS, Canonsburg, PA, USA). An in-house MATLAB code was designed to generate the 3-dimensional coordinates of segmented artery components, including arterial walls, lipids, and calcification. By deriving the coordinates of the atherosclerotic plaque tissue, the material properties of different tissues were mapped to each element in the meshed structure corresponding to the coordinate data. The linear elastic material properties (Young’s modulus) were assigned to each component (arterial tissue, 0.6 MPa; calcification, 10 MPa; lipids, 0.02 MPa), Poisson’s ratio for each component was set as 0.48 [37,38,39]. An interpolation method was applied between the material properties of different components, which provided a transitional region between plaque components and the arterial wall.

2.4. FSI Computational Model

Blood flow was assumed to be laminar, Newtonian, viscous, and incompressible. The viscosity and density of blood were assigned as 0.00345 Pa·s and 1050 kg/m3, respectively [40]. The fluid domain was meshed with tetrahedral elements with a size of 0.3 mm, as a result of mesh independence testing. The no-slip boundary condition was assumed to be the fluid domain, which was widely used in simulations of stenosed carotid bifurcations [41,42]. Patient-specific time-dependent mass flow rate waveforms acquired from PC-MRI at CCA were set as the inlet boundary condition. Figure 1 shows the inlet boundary conditions used for the three patients. Based on the mass flow rate profile, the pressure profile (as outlet boundary condition at ICA and ECA) was scaled within the range of measured diastolic and systolic pressure values of each patient. In the structural participant, fixed supports were added to the side edges of the geometries at three ends (CCA, ICA, and ECA). The inner surface of the arterial wall, which is in contact with the lumen, was set as fluid–solid interface for data transfer. The coupled FSI plaque models were solved by a commercial finite element package ANSYS Workbench (version 19.0, 2019, ANSYS Inc., Canonsburg, PA, USA). The system coupling component was used for the allowance of pressure/force data transfer and displacement information between the two participants (fluid and structural) in FSI. No external load was applied to the vessel wall, and the blood vessel only received the pressure transferred from the fluid participant [38]. The calculation time step was set to 0.01 s for two-way FSI simulation. For the data transfer at each time step, linear ramping data was transferred between structural and CFD in the minimum iteration number, which was five iterations. All simulations were achieved with the same machine (Intel(R) Xeon(R) CPU E5-2680 v4 @2.40 GHz, 56 cores; RAM: 128 GB), while the average computational time was 60 h for one simulation.

2.5. Analysis of FSI Result

Time-averaged wall shear stress (TAWSS) and oscillatory shear index (OSI) were used to evaluate the flow behavior in the carotid bifurcation. These parameters were defined as:
T A W S S = 1 T   ∫ 0 T τ w d t
O S I = 1 2   1 − ∫ 0 T τ W d t ∫ 0 T τ W d t
where τ W is the instantaneous wall shear stress and T is the cardiac cycle period. The maximum principal stress (Stress-P1) values were used to evaluate the stress distribution within the plaque. Data analysis and visualization were performed with R software (version 4.2.0).

3. Results

3.1. Carotid Plaque Morphology

Although their degrees of carotid stenosis were similar, the plaque components of the segmented carotid bifurcations, especially the calcification content, showed a significant difference. Figure 2a shows the reconstruction result of the carotid bifurcations of three patients, where Figure 2b shows the example of segmented contour plots on T1W images of patient 1.
Table 2 shows the carotid plaque morphology of three patients. A large calcification volume was found in patient 2, which was 22.4 times the volume of patient 1 and 7.4 times the volume of patient 3. The highest value of lipid volume was found in patient 3, which was 5.5 times the volume of patient 1 and 4.87 times the volume of patient 2, respectively. The thinnest fibrous cap thickness of patient 1 and patient 3 was 0.729 mm and 0.676 mm, respectively. Patient 2 had a relatively thicker fibrous cap, of which the thinnest thickness was 1.186 mm.

3.2. PC-MRI and CFD Comparison

A qualitative comparison between the PC-MRI measurements and CFD simulation results was performed for all three patients. Figure 3 shows the comparison of patient 1, where the axial velocity at systole in the same cross-section at the ICA was selected for comparison. In all three cases, the overall flow pattern was found to be similar. However, CFD results were found to overestimate the maximal velocity values. Compared with PC-MRI measurements, the maximum velocity values from CFD simulation were found to be 26.6% higher for patient 1, 23.9% higher for patient 2, and 18.6% higher for patient 3.

3.3. WSS-Based Descriptors

High WSS was found at the stenotic location. Figure 4 shows the WSS distribution for the three patients at peak systolic phase. A region of interest was defined for each patient, starting from the bifurcation apex and covering the stenotic area at the ICA with a length of 17 mm. The WSS range of patient 2 was found to be higher than the WSS value of patient 1 and patient 3.
Figure 5 shows the TAWSS and OSI distribution for the three patients. High values of TAWSS were found in the area near the stenotic region (Figure 5a). Also, the high TAWSS value of each carotid artery model could be found at the bifurcation apex and the significant narrowing of the ICA branch. For OSI, a high value of OSI could be found at either the CCA branch near the bifurcation apex or the ICA branch downstream of the stenosis, as marked with red circles (Figure 5b).
Figure 6 shows the distribution of TAWSS values at the region of interest (as highlighted in Figure 4) of the three patients. A relatively lower TAWSS value was found in patient 1 and 3 than that in patient 2. For the three patients, the mean value and the standard deviation of TAWSS at the region of interest were evaluated (patient 1, 5.45 ± 6.44 Pa; patient 2, 14.62 ± 13.72 Pa; patient 3, 6.99 ± 6.34 Pa). Significant differences in the TAWSS were observed where the range of TAWSS of patient 2 was wider than that of patient 1 and 3.

3.4. Plaque Stress

The maximum principal stress (Stress-P1) values were used to evaluate the stress distribution within each plaque. High Stress-P1 value could be found near the plaque area where the fibrous cap was thin. In addition, high Stress-P1 was found in the region near the lumen with a large curvature.
At peak systole, the stress distribution and the Stress-P1 and the corresponding zoomed views (excluding the plaque structure) are shown in Figure 7a. The calculated maximum Stress-P1 values for the three patients were 133.1 kPa, 116.9 kPa, and 127.4 kPa, respectively. For the analysis of plaque stress, a region of interest was defined for each patient, which selected the plane with the local Stress-P1 as the central plane and covered a length of 13 mm. The mean value and the standard deviation of stress values in the regions of interest were 22.221 ± 16.579 kPa for patient 1, 13.098 ± 20.378 kPa for patient 2, and 21.075 ± 17.391 kPa for patient 3. Figure 7b shows the distribution of the Stress-P1 in the ROI. There were significant differences in plaque stress among the three patients. Patient 2 was found to have a much smaller plaque stress compared to the other two patients.

4. Discussion

The area [43], shape [39], and location [44] of calcification were closely related to the stability of the plaque. Large areas of calcification provided stability to the plaque, making it harder and less likely to rupture [45,46]. Different patterns of fiber organization around the calcifications also had effects on the stress distribution in plaque tissue [47]. The interaction effects produced by calcifications and lipids can be complex and significant [48]. Differences in the volume and location of calcifications were observed among patient 1, 2, and 3. Patient 2 had a larger calcification volume than patient 1 and patient 3. The location of calcification in relation to lipid of patient 2 also showed obvious difference compared to patient 1 and patient 3. These variances in calcification may contribute to the differences in stress distribution.
Plaque rupture risk stratification has been discussed for approximately two decades. Growing evidence has shown that luminal stenosis alone is not sufficient for assessing the atheroma burden [49], and plaque morphology [50] has been widely considered to be crucial for determining whether a plaque is at high risk of rupture, particularly for patients with a moderate stenosis. More recently, image-based biomechanical modelling has been developed to provide hemodynamic (such as WSS-based descriptors) and wall stress parameters, which has shown its potential for use as a functional tool to better assess plaque structural stability. However, there is still a lack of a quantitative evaluation of plaque vulnerability.
Our results are consistent with those of previous studies [30,43] that highlighted the crucial role of considering both the morphology and the mechanical properties of different plaque components in addition to the degree of carotid stenosis in determining plaque vulnerability. Although the American Heart Association (AHA) has summarized a classification of atherosclerosis [51], the understanding of why such a morphological classification is linked with plaque vulnerability has not been fully illustrated. From the perspective of structural evaluation, plaque rupture is considered to be a structural failure when the plaque cannot resist the hemodynamic blood pressure and shear stress imposed on it [52,53]. Quantification of plaque morphology provided basic information for the structural assessment of plaque vulnerability [54]. For patients with similar luminal stenoses, significant differences may be found in plaque morphology. In our study, the fibrous cap thickness of three patients showed no significant difference. However, the lipid core and calcification volume showed significant differences. Significant differences were also found in TAWSS and plaque stresses among the three patients, where the distribution of TAWSS and Stress-P1 of patient 1 showed a similar trend to that of patient 3. Our result showed that the TAWSS distribution range of patient 2 was wider than that of the other patients, where the mean TAWSS value was 2.7 times the value of patient 1 and 2.1 times the value of patient 3. Patient 2 also had a smaller plaque stress distribution, when compared with patient 1 and 3. The maximum Stress-P1 value of patient 2 was 13.8% smaller than that of patient 1, and 8.9% smaller than that of patient 3. For local plaque stress distribution in the selected plane, patient 2 was found to have the smallest mean stress value among the three patients, which was 69.7% smaller than that of patient 1 and 60.9% smaller than that of patient 3. Between patient 1 and patient 2, the major difference in morphological factor was found in the calcification volume. However, between patient 1 and patient 3, only the lipid volume showed a significant difference. These may suggest that the functional assessment of plaque vulnerability is not dependent on a single morphological parameter, but rather a combined structure. Biomechanical parameters described in this study (such as TAWSS, OSI, and maximum principal stress) can well reflect the differences and changes in terms of the hemodynamic shear stress and plaque stress of the carotid artery structure.
Therefore, there is a need to shift morphological plaque assessment to a structural evaluation of plaque rupture risk, where the true vulnerability is assessed by integrating the plaque structure with its surroundings.
This study had some limitations. In this study, blood flow was assumed to be laminar. Blood flow through stenotic carotid bifurcations may experience transition to turbulence, the presence of which may have some effects on plaque rupture [55,56]. The material properties were based on previous studies, and linear elastic behavior was assumed for arterial tissue, calcification, and lipids. The estimation of patient-specific plaque material properties can be further improved through non-invasive techniques, such as ultrasound elastography and in vivo MRI [57,58,59]. Another limitation was the limited number of patients. Further large-scale studies are needed to provide more statistically reliable information.

5. Conclusions

In this study, three patients with carotid atherosclerosis within a similar range of stenosis were studied. Through the developed FSI modelling approach, the biomechanical risks of three patients were compared. Although their degrees of carotid stenosis were similar, the plaque components, distribution of TAWSS, and Stress-P1 showed significant differences.
This study illustrated that the plaque structural stability was significantly different among three patients, although their degree of stenosis was at a similar level. Therefore, it suggests that plaque vulnerability is not determined by a single morphological factor but rather by a combined structure. There is a need to shift from morphological to structural assessment of plaque rupture risk.

Author Contributions

Conceptualization, Y.X. and Z.L.; methodology, Y.X., X.H., and J.B.M.; investigation, Y.X. and X.H.; resources: T.L. and Z.L.; data curation, T.L.; writing—original draft preparation, Y.X.; writing—review and editing, Y.X., X.H., J.B.M., J.W., P.K.P., and Z.L.; visualization, Y.X. and X.H.; supervision, Z.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Australian Research Council (DP200103492, DP200101970) and National Nature Science Foundation of China (NSFC:11972118, 12172089, 61821002).

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Metro South Human Research Ethics Committee (HREC/17/QPAH/181).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ross, R. Atherosclerosis—An Inflammatory Disease. N. Engl. J. Med. 1999, 340, 115–126. [Google Scholar] [CrossRef] [PubMed]
  2. Lusby, R.J.; Woodcock, J.P.; MacHleder, H.I.; Ferrell, L.D.; Jeans, W.D.; Skidmore, R.; Sheddon, E.J.; Baird, R.N. Transient Ischaemic Attacks: The Static and Dynamic Morphology of the Carotid Artery Bifurcation. Br. J. Surg. 1982, 69, S41–S44. [Google Scholar] [CrossRef] [PubMed]
  3. Takaya, N.; Yuan, C.; Chu, B.; Saam, T.; Polissar, N.L.; Jarvik, G.P.; Isaac, C.; McDonough, J.; Natiello, C.; Small, R.; et al. Presence of Intraplaque Hemorrhage Stimulates Progression of Carotid Atherosclerotic Plaques: A High-Resolution Magnetic Resonance Imaging Study. Circulation 2005, 111, 2768–2775. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Takaya, N.; Yuan, C.; Chu, B.; Saam, T.; Underbill, H.; Cai, J.; Tran, N.; Polissar, N.L.; Isaac, C.; Ferguson, M.S.; et al. Association between Carotid Plaque Characteristics and Subsequent Ischemic Cerebrovascular Events: A Prospective Assessment with MRI—Initial Results. Stroke 2006, 37, 818–823. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Chai, J.T.; Biasiolli, L.; Li, L.; Alkhalil, M.; Galassi, F.; Darby, C.; Halliday, A.W.; Hands, L.; Magee, T.; Perkins, J.; et al. Quantification of Lipid-Rich Core in Carotid Atherosclerosis Using Magnetic Resonance T2 Mapping: Relation to Clinical Presentation. JACC Cardiovasc. Imaging 2017, 10, 747–756. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Libby, P.; Pasterkamp, G. Requiem for the “Vulnerable Plaque”. Eur. Heart J. 2015, 36, 2984–2987. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Van Der Toorn, J.E.; Bos, D.; Ikram, M.K.; Verwoert, G.C.; Van Der Lugt, A.; Ikram, M.A.; Vernooij, M.W.; Kavousi, M. Carotid Plaque Composition and Prediction of Incident Atherosclerotic Cardiovascular Disease. Circ. Cardiovasc. Imaging 2022, 15, e013602. [Google Scholar] [CrossRef] [PubMed]
  8. Tang, D.; Kamm, R.D.; Yang, C.; Zheng, J.; Canton, G.; Bach, R.; Huang, X.; Hatsukami, T.S.; Zhu, J.; Ma, G.; et al. Image-Based Modeling for Better Understanding and Assessment of Atherosclerotic Plaque Progression and Vulnerability: Data, Modeling, Validation, Uncertainty and Predictions. J. Biomech. 2014, 47, 834–846. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Ku, D.N.; Giddens, D.P.; Zarins, C.K.; Glagov, S. Pulsatile Flow and Atherosclerosis in the Human Carotid Bifurcation. Positive Correlation between Plaque Location and Low and Oscillating Shear Stress. Arteriosclerosis 1985, 5, 293–302. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Nakagawa, H.; Morikawa, Y.; Mizuno, Y.; Harada, E.; Ito, T.; Matsui, K.; Saito, Y.; Yasue, H. Coronary Spasm Preferentially Occurs at Branch Points. Circ. Cardiovasc. Interv. 2009, 2, 97–104. [Google Scholar] [CrossRef] [PubMed]
  11. Peiffer, V.; Sherwin, S.J.; Weinberg, P.D. Does Low and Oscillatory Wall Shear Stress Correlate Spatially with Early Atherosclerosis? A Systematic Review. Cardiovasc. Res. 2013, 99, 242–250. [Google Scholar] [CrossRef]
  12. Kleinstreuer, C.; Hyun, S.; Buchanan, J.R.; Longest, P.W.; Archie, J.P.; Truskey, G.A. Hemodynamic Parameters and Early Intimal Thickening in Branching Blood Vessels. Crit. Rev. Biomed. Eng. 2017, 45, 319–382. [Google Scholar] [CrossRef] [PubMed]
  13. Huo, Y.; Wischgol, T.; Kassab, G.S. Flow Patterns in Three-Dimensional Porcine Epicardial Coronary Arterial Tree. Am. J. Physiol.—Heart Circ. Physiol. 2007, 293, H2959–H2970. [Google Scholar] [CrossRef] [Green Version]
  14. Davies, P.F. Hemodynamic Shear Stress and the Endothelium in Cardiovascular Pathophysiology. Nat. Clin. Pract. Cardiovasc. Med. 2009, 6, 16–26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Yang, Y.; Jäger, W.; Neuss-Radu, M.; Richter, T. Mathematical Modeling and Simulation of the Evolution of Plaques in Blood Vessels. J. Math. Biol. 2016, 72, 973–996. [Google Scholar] [CrossRef] [Green Version]
  16. Thon, M.P.; Hemmler, A.; Glinzer, A.; Mayr, M.; Wildgruber, M.; Zernecke-Madsen, A.; Gee, M.W. A Multiphysics Approach for Modeling Early Atherosclerosis. Biomech. Model. Mechanobiol. 2018, 17, 617–644. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Hirschhorn, M.; Tchantchaleishvili, V.; Stevens, R.; Rossano, J.; Throckmorton, A. Fluid–Structure Interaction Modeling in Cardiovascular Medicine—A Systematic Review 2017–2019. Med. Eng. Phys. 2020, 78, 1–13. [Google Scholar] [CrossRef] [PubMed]
  18. Pozzi, S.; Redaelli, A.; Vergara, C.; Votta, E.; Zunino, P. Mathematical Modeling and Numerical Simulation of Atherosclerotic Plaque Progression Based on Fluid-Structure Interaction. J. Math. Fluid Mech. 2021, 23, 1–21. [Google Scholar] [CrossRef]
  19. Zarins, C.K.; Giddens, D.P.; Bharadvaj, B.K.; Sottiurai, V.S.; Mabon, R.F.; Glagov, S. Carotid Bifurcation Atherosclerosis. Quantitative Correlation of Plaque Localization with Flow Velocity Profiles and Wall Shear Stress. Circ. Res. 1983, 53, 502–514. [Google Scholar] [CrossRef] [Green Version]
  20. Korshunov, V.A.; Schwartz, S.M.; Berk, B.C. Vascular Remodeling: Hemodynamic and Biochemical Mechanisms Underlying Glagov’s Phenomenon. Arterioscler. Thromb. Vasc. Biol. 2007, 27, 1722–1728. [Google Scholar] [CrossRef]
  21. Malek, A.M.; Alper, S.L.; Izumo, S. Hemodynamic Shear Stress and Its Role in Atherosclerosis. J. Am. Med. Assoc. 1999, 19, 426–434. [Google Scholar] [CrossRef] [PubMed]
  22. He, X.; Ku, D.N. Pulsatile Flow in the Human Left Coronary Artery Bifurcation: Average Conditions. J. Biomech. Eng. 1996, 118, 74–82. [Google Scholar] [CrossRef]
  23. Eshtehardi, P.; Brown, A.J.; Bhargava, A.; Costopoulos, C.; Hung, O.Y.; Corban, M.T.; Hosseini, H.; Gogas, B.D.; Giddens, D.P.; Samady, H. High Wall Shear Stress and High-Risk Plaque: An Emerging Concept. Int. J. Cardiovasc. Imaging 2017, 33, 1089–1099. [Google Scholar] [CrossRef] [PubMed]
  24. Han, D.; Starikov, A.; Hartaigh, B.; Gransar, H.; Kolli, K.K.; Lee, J.H.; Rizvi, A.; Baskaran, L.; Schulman-Marcus, J.; Lin, F.Y.; et al. Relationship between Endothelial Wall Shear Stress and High-Risk Atherosclerotic Plaque Characteristics for Identification of Coronary Lesions That Cause Ischemia: A Direct Comparison with Fractional Flow Reserve. J. Am. Heart Assoc. 2016, 5, e004186. [Google Scholar] [CrossRef] [PubMed]
  25. Gallo, D.; Steinman, D.A.; Morbiducci, U. Insights into the Co-Localization of Magnitude-Based versus Direction-Based Indicators of Disturbed Shear at the Carotid Bifurcation. J. Biomech. 2016, 49, 2413–2419. [Google Scholar] [CrossRef]
  26. Guerciotti, B.; Vergara, C. Computational Comparison between Newtonian and Non-Newtonian Blood Rheologies in Stenotic Vessels. In Lecture Notes in Applied and Computational Mechanics; Wriggers, P., Lenarz, T., Eds.; Springer International Publishing: Cham, Switzerland, 2018; Volume 84, pp. 169–183. [Google Scholar]
  27. Yao, X.; Dai, Z.; Zhang, X.; Gao, J.; Xu, G.; Cai, Y.; Li, Z. Carotid Geometry as a Predictor of In-Stent Neointimal Hyperplasia: A Computational Fluid Dynamics Study. Circ. J. 2019, 83, 1472–1479. [Google Scholar] [CrossRef] [Green Version]
  28. Younis, H.F.; Kaazempur-Mofrad, M.R.; Chan, R.C.; Isasi, A.G.; Hinton, D.P.; Chau, A.H.; Kim, L.A.; Kamm, R.D. Hemodynamics and Wall Mechanics in Human Carotid Bifurcation and Its Consequences for Atherogenesis: Investigation of Inter-Individual Variation. Biomech. Model. Mechanobiol. 2004, 3, 17–32. [Google Scholar] [CrossRef]
  29. Tang, D.; Teng, Z.; Canton, G.; Yang, C.; Ferguson, M.; Huang, X.; Zheng, J.; Woodard, P.K.; Yuan, C. Sites of Rupture in Human Atherosclerotic Carotid Plaques Are Associated With High Structural Stresses. Stroke 2009, 40, 3258–3263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Bennati, L.; Vergara, C.; Domanin, M.; Malloggi, C.; Bissacco, D.; Trimarchi, S.; Silani, V.; Parati, G.; Casana, R. A Computational Fluid-Structure Interaction Study for Carotids with Different Atherosclerotic Plaques. J. Biomech. Eng. 2021, 143, 091002. [Google Scholar] [CrossRef]
  31. Ferguson, G.G.; Eliasziw, M.; Barr, H.W.K.; Clagett, G.P.; Barnes, R.W.; Wallace, M.C.; Taylor, D.W.; Haynes, R.B.; Finan, J.W.; Hachinski, V.C.; et al. The North American Symptomatic Carotid Endarterectomy Trial. Stroke 1999, 30, 1751–1758. [Google Scholar] [CrossRef] [PubMed]
  32. Chan, T.F.; Vese, L.A. Active Contours without Edges. IEEE Trans. Image Process. 2001, 10, 266–277. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Vincent, L. Minimal Path Algorithms for the Robust Detection of Linear Features in Gray Images. Ismm 1998, 12, 331–338. [Google Scholar]
  34. Bégin, S.; Dupont-Therrien, O.; Bélanger, E.; Daradich, A.; Laffray, S.; De Koninck, Y.; Côté, D.C. Automated Method for the Segmentation and Morphometry of Nerve Fibers in Large-Scale CARS Images of Spinal Cord Tissue. Biomed. Opt. Express 2014, 5, 4145–4161. [Google Scholar] [CrossRef] [Green Version]
  35. Adame, I.M.; Van Der Geest, R.J.; Wasserman, B.A.; Mohamed, M.A.; Reiber, J.H.C.; Lelieveldt, B.P.F. Automatic Segmentation and Plaque Characterization in Atherosclerotic Carotid Artery MR Images. Magn. Reson. Mater. Physics Biol. Med. 2004, 16, 227–234. [Google Scholar] [CrossRef] [PubMed]
  36. Arthur, D.; Vassilvitskii, S. K-Means++: The Advantages of Careful Seeding. In Proceedings of the Eighteenth Annual ACM-SIAM Symposium on Discrete Algorithms, New Orleans, LA, USA, 7–9 January 2007; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 2007; pp. 1027–1035. [Google Scholar]
  37. Paritala, P.K.; Yarlagadda, P.K.D.V.; Wang, J.; Gu, Y.T.; Li, Z. Numerical Investigation of Atherosclerotic Plaque Rupture Using Optical Coherence Tomography Imaging and XFEM. Eng. Fract. Mech. 2018, 204, 531–541. [Google Scholar] [CrossRef]
  38. Wang, J.; Paritala, P.K.; Mendieta, J.B.; Komori, Y.; Raffel, O.C.; Gu, Y.; Li, Z. Optical Coherence Tomography-Based Patient-Specific Coronary Artery Reconstruction and Fluid–Structure Interaction Simulation. Biomech. Model. Mechanobiol. 2020, 19, 7–20. [Google Scholar] [CrossRef]
  39. Benitez, J.; Fontanarosa, D.; Wang, J.; Paritala, P.K.; McGahan, T.; Lloyd, T.; Li, Z. Evaluating the Impact of Calcification on Plaque Vulnerability from the Aspect of Mechanical Interaction Between Blood Flow and Artery Based on MRI. Ann. Biomed. Eng. 2021, 49, 1169–1182. [Google Scholar] [CrossRef]
  40. Mendieta, J.B.; Fontanarosa, D.; Wang, J.; Paritala, P.K.; McGahan, T.; Lloyd, T.; Li, Z. The Importance of Blood Rheology in Patient-Specific Computational Fluid Dynamics Simulation of Stenotic Carotid Arteries. Biomech. Model. Mechanobiol. 2020, 19, 1477–1490. [Google Scholar] [CrossRef]
  41. Xu, P.; Liu, X.; Zhang, H.; Ghista, D.; Zhang, D.; Shi, C.; Huang, W. Assessment of Boundary Conditions for CFD Simulation in Human Carotid Artery. Biomech. Model. Mechanobiol. 2018, 17, 1581–1597. [Google Scholar] [CrossRef] [PubMed]
  42. Zhou, H.; Meng, L.; Zhou, W.; Xin, L.; Xia, X.; Li, S.; Zheng, H.; Niu, L. Computational and Experimental Assessment of Influences of Hemodynamic Shear Stress on Carotid Plaque. Biomed. Eng. Online 2017, 16, 1–11. [Google Scholar] [CrossRef] [Green Version]
  43. Tang, D.; Yang, C.; Zheng, J.; Woodard, P.K.; Saffitz, J.E.; Sicard, G.A.; Pilgram, T.K.; Yuan, C. Quantifying Effects of Plaque Structure and Material Properties on Stress Distributions in Human Atherosclerotic Plaques Using 3D FSI Models. J. Biomech. Eng. 2005, 127, 1185–1194. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Z.Y.; Howarth, S.; Tang, T.; Graves, M.; U-King-Im, J.; Gillard, J.H. Does Calcium Deposition Play a Role in the Stability of Atheroma? Location May Be the Key. Cerebrovasc. Dis. 2007, 24, 452–459. [Google Scholar] [CrossRef]
  45. Wong, K.K.L.; Thavornpattanapong, P.; Cheung, S.C.P.; Sun, Z.; Tu, J. Effect of Calcification on the Mechanical Stability of Plaque Based on a Three-Dimensional Carotid Bifurcation Model. BMC Cardiovasc. Disord. 2012, 12, 1–18. [Google Scholar] [CrossRef] [Green Version]
  46. Huang, H.; Virmani, R.; Younis, H.; Burke, A.P.; Kamm, R.D.; Lee, R.T. The Impact of Calcification on the Biomechanical Stability of Atherosclerotic Plaques. Circulation 2001, 103, 1051–1056. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Gijsen, F.J.H.; Vis, B.; Barrett, H.E.; Zadpoor, A.A.; Verhagen, H.J.; Bos, D.; Van Der Steen, A.F.W.; Akyildiz, A.C. Morphometric and Mechanical Analyses of Calcifications and Fibrous Plaque Tissue in Carotid Arteries for Plaque Rupture Risk Assessment. IEEE Trans. Biomed. Eng. 2021, 68, 1429–1438. [Google Scholar] [CrossRef]
  48. Kadry, K.; Olender, M.L.; Marlevi, D.; Edelman, E.R.; Nezami, F.R. A Platform for High-Fidelity Patient-Specific Structural Modelling of Atherosclerotic Arteries: From Intravascular Imaging to Three-Dimensional Stress Distributions. J. R. Soc. Interface 2021, 18, 20210436. [Google Scholar] [CrossRef]
  49. Walker, C. Advances in Carotid Imaging: Beyond Luminal Stenosis. Vasc. Dis. Manag. 2017, 14, E114. [Google Scholar]
  50. Fleg, J.L.; Stone, G.W.; Fayad, Z.A.; Granada, J.F.; Hatsukami, T.S.; Kolodgie, F.D.; Ohayon, J.; Pettigrew, R.; Sabatine, M.S.; Tearney, G.J.; et al. Detection of High-Risk Atherosclerotic Plaque: Report of the NHLBI Working Group on Current Status and Future Directions. JACC Cardiovasc. Imaging 2012, 5, 941–955. [Google Scholar] [CrossRef] [PubMed]
  51. Stary, H.C.; Chandler, A.B.; Dinsmore, R.E.; Fuster, V.; Glagov, S.; Insull, W.; Rosenfeld, M.E.; Schwartz, C.J.; Wagner, W.D.; Wissler, R.W. A Definition of Advanced Types of Atherosclerotic Lesions and a Histological Classification of Atherosclerosis. Circulation 1995, 92, 1355–1374. [Google Scholar] [CrossRef]
  52. Finet, G.; Ohayon, J.; Rioufol, G. Biomechanical Interaction between Cap Thickness, Lipid Core Composition and Blood Pressure in Vulnerable Coronary Plaque: Impact on Stability or Instability. Coron. Artery Dis. 2004, 15, 13–20. [Google Scholar] [CrossRef]
  53. Ohayon, J.; Finet, G.; Gharib, A.M.; Herzka, D.A.; Tracqui, P.; Heroux, J.; Rioufol, G.; Kotys, M.S.; Elagha, A.; Pettigrew, R.I. Necrotic Core Thickness and Positive Arterial Remodeling Index: Emergent Biomechanical Factors for Evaluating the Risk of Plaque Rupture. Am. J. Physiol.—Hear. Circ. Physiol. 2008, 295, H717–H727. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Li, Z.Y.; Tang, T.; U-King-Im, J.; Graves, M.; Sutcliffe, M.; Gillard, J.H. Assessment of Carotid Plaque Vulnerability Using Structural and Geometrical Determinants. Circ. J. 2008, 72, 1092–1099. [Google Scholar] [CrossRef] [PubMed]
  55. Lee, S.E.; Lee, S.W.; Fischer, P.F.; Bassiouny, H.S.; Loth, F. Direct Numerical Simulation of Transitional Flow in a Stenosed Carotid Bifurcation. J. Biomech. 2008, 41, 2551–2561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Lancellotti, R.M.; Vergara, C.; Valdettaro, L.; Bose, S.; Quarteroni, A. Large Eddy Simulations for Blood Dynamics in Realistic Stenotic Carotids. Int. J. Numer. Method. Biomed. Eng. 2017, 33, e2868. [Google Scholar] [CrossRef]
  57. Huang, C.; Pan, X.; He, Q.; Huang, M.; Huang, L.; Zhao, X.; Yuan, C.; Bai, J.; Luo, J. Ultrasound-Based Carotid Elastography for Detection of Vulnerable Atherosclerotic Plaques Validated by Magnetic Resonance Imaging. Ultrasound Med. Biol. 2016, 42, 365–377. [Google Scholar] [CrossRef]
  58. Wang, Q.; Canton, G.; Guo, J.; Guo, X.; Hatsukami, T.S.; Billiar, K.L.; Yuan, C.; Wu, Z.; Tang, D. MRI-Based Patient-Specific Human Carotid Atherosclerotic Vessel Material Property Variations in Patients, Vessel Location and Long-Term Follow Up. PLoS ONE 2017, 12, e0180829. [Google Scholar] [CrossRef] [Green Version]
  59. Pozzi, S.; Domanin, M.; Forzenigo, L.; Votta, E.; Zunino, P.; Redaelli, A.; Vergara, C. A Surrogate Model for Plaque Modeling in Carotids Based on Robin Conditions Calibrated by Cine MRI Data. Int. J. Numer. Method. Biomed. Eng. 2021, 37, e3447. [Google Scholar] [CrossRef]
Biomedicines 10 03038 g001 550
Figure 1. Inlet boundary conditions used for three patients.
Figure 1. Inlet boundary conditions used for three patients.
Biomedicines 10 03038 g001
Biomedicines 10 03038 g002 550

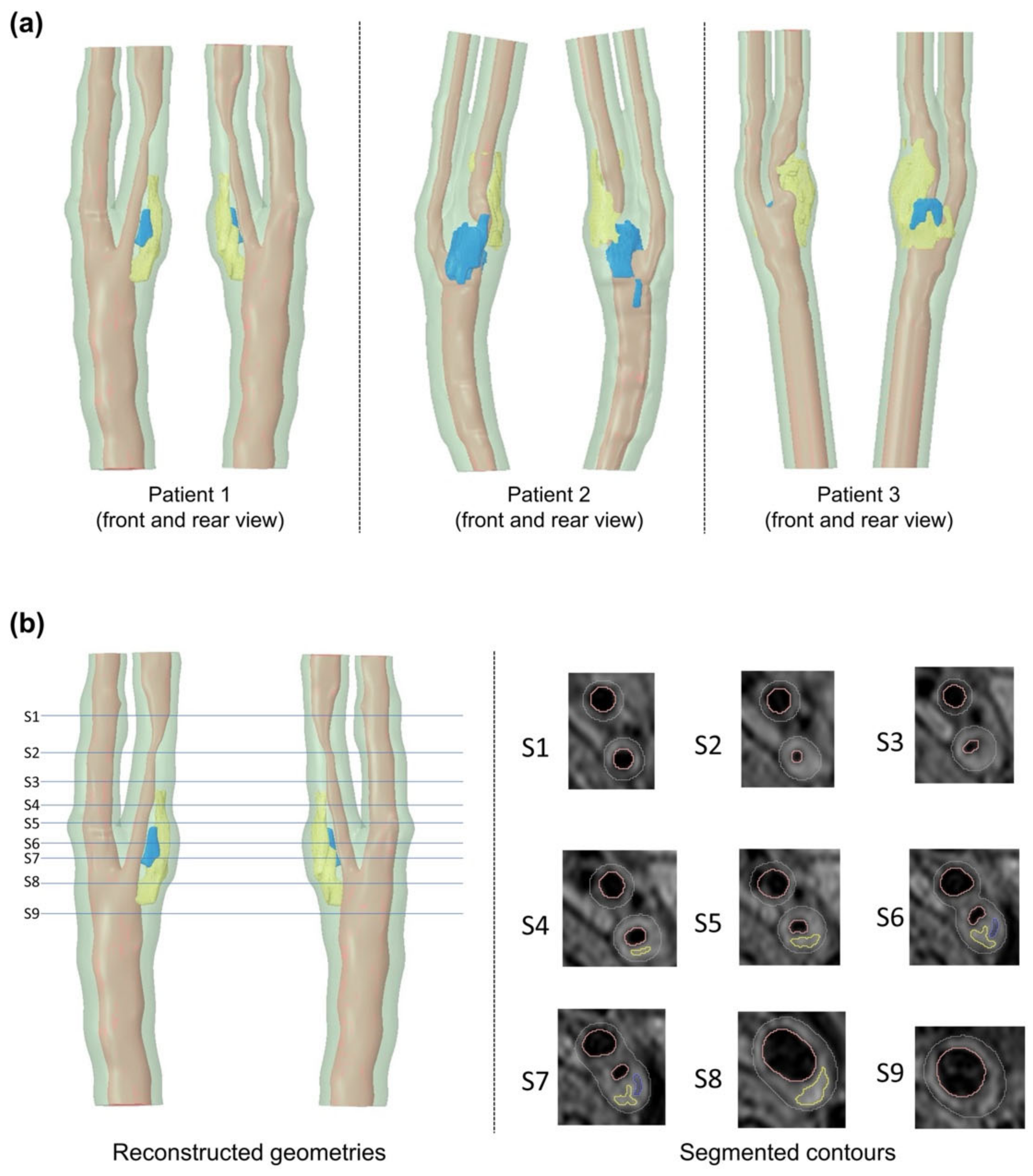

Figure 2. Reconstructed carotid bifurcation models showing: (a) carotid bifurcation geometries of three patients, and (b) segmented contour plots on T1W images of patient 1 (light red = lumen, green = arterial tissue, yellow = lipids, blue = calcification).
Figure 2. Reconstructed carotid bifurcation models showing: (a) carotid bifurcation geometries of three patients, and (b) segmented contour plots on T1W images of patient 1 (light red = lumen, green = arterial tissue, yellow = lipids, blue = calcification).
Biomedicines 10 03038 g002
Biomedicines 10 03038 g003 550

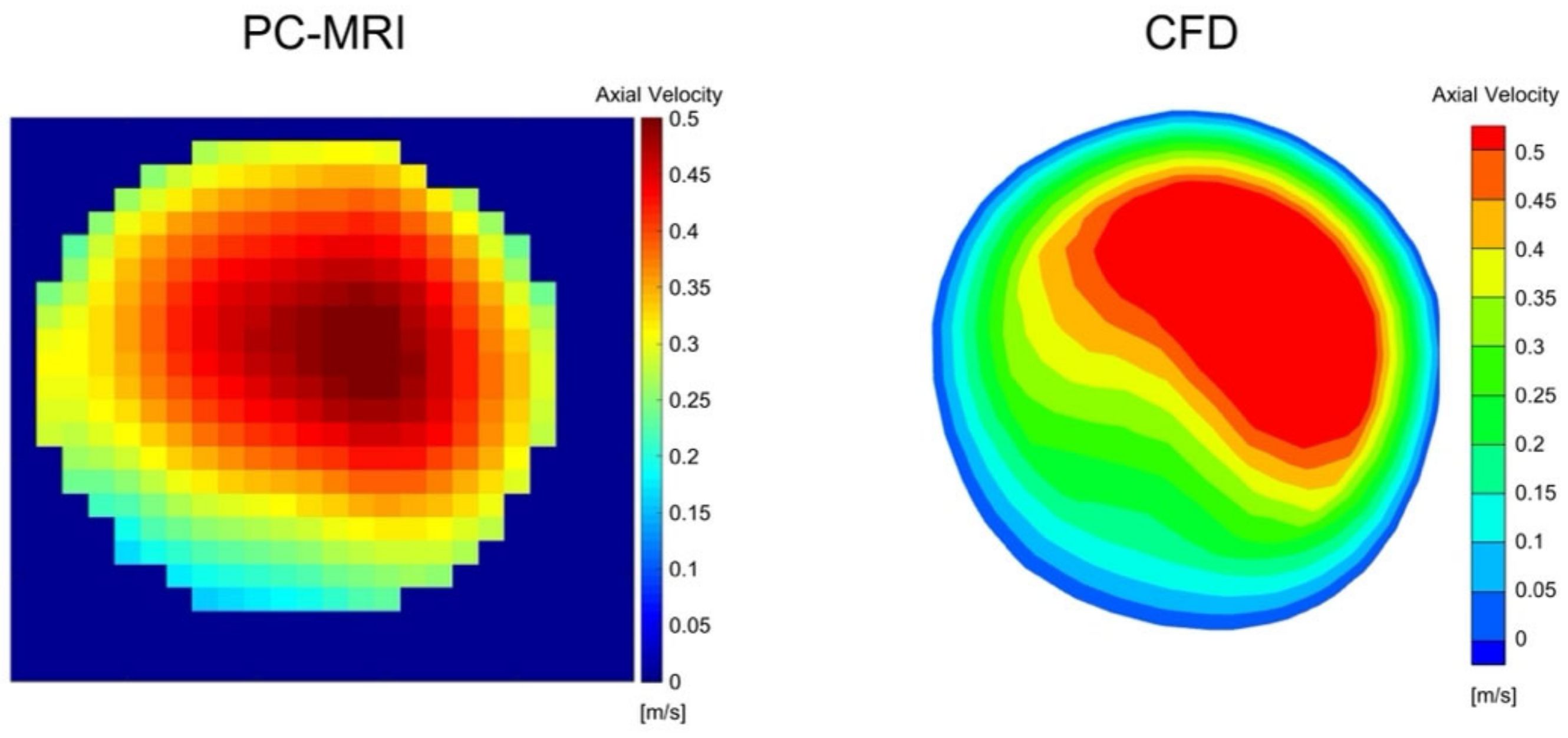

Figure 3. Velocity comparison between PC-MRI measurements and CFD simulations at the location of ICA of patient 1.
Figure 3. Velocity comparison between PC-MRI measurements and CFD simulations at the location of ICA of patient 1.
Biomedicines 10 03038 g003
Biomedicines 10 03038 g004 550

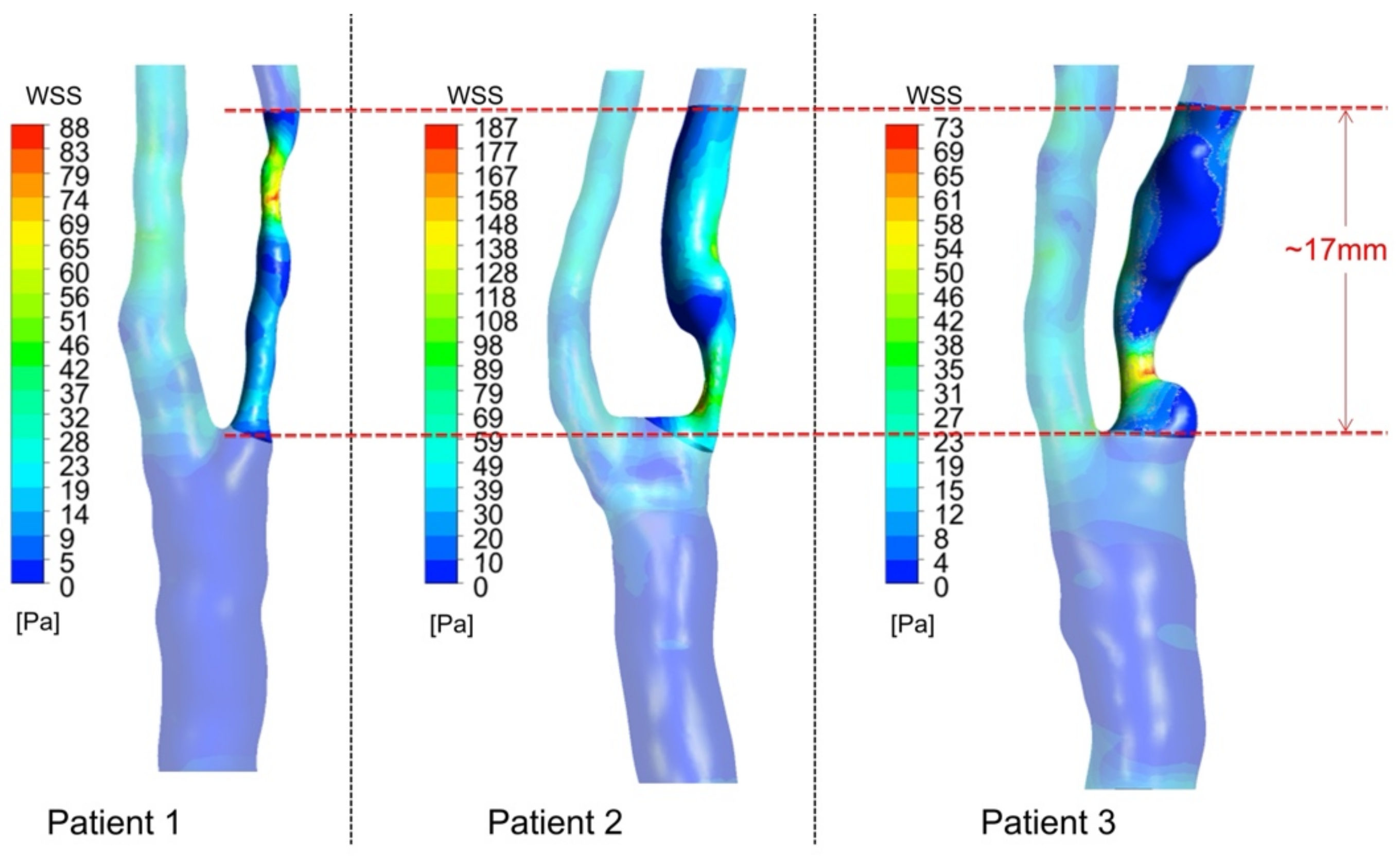

Figure 4. Result of wall shear stress (WSS) distribution at peak systole.
Figure 4. Result of wall shear stress (WSS) distribution at peak systole.
Biomedicines 10 03038 g004
Biomedicines 10 03038 g005 550

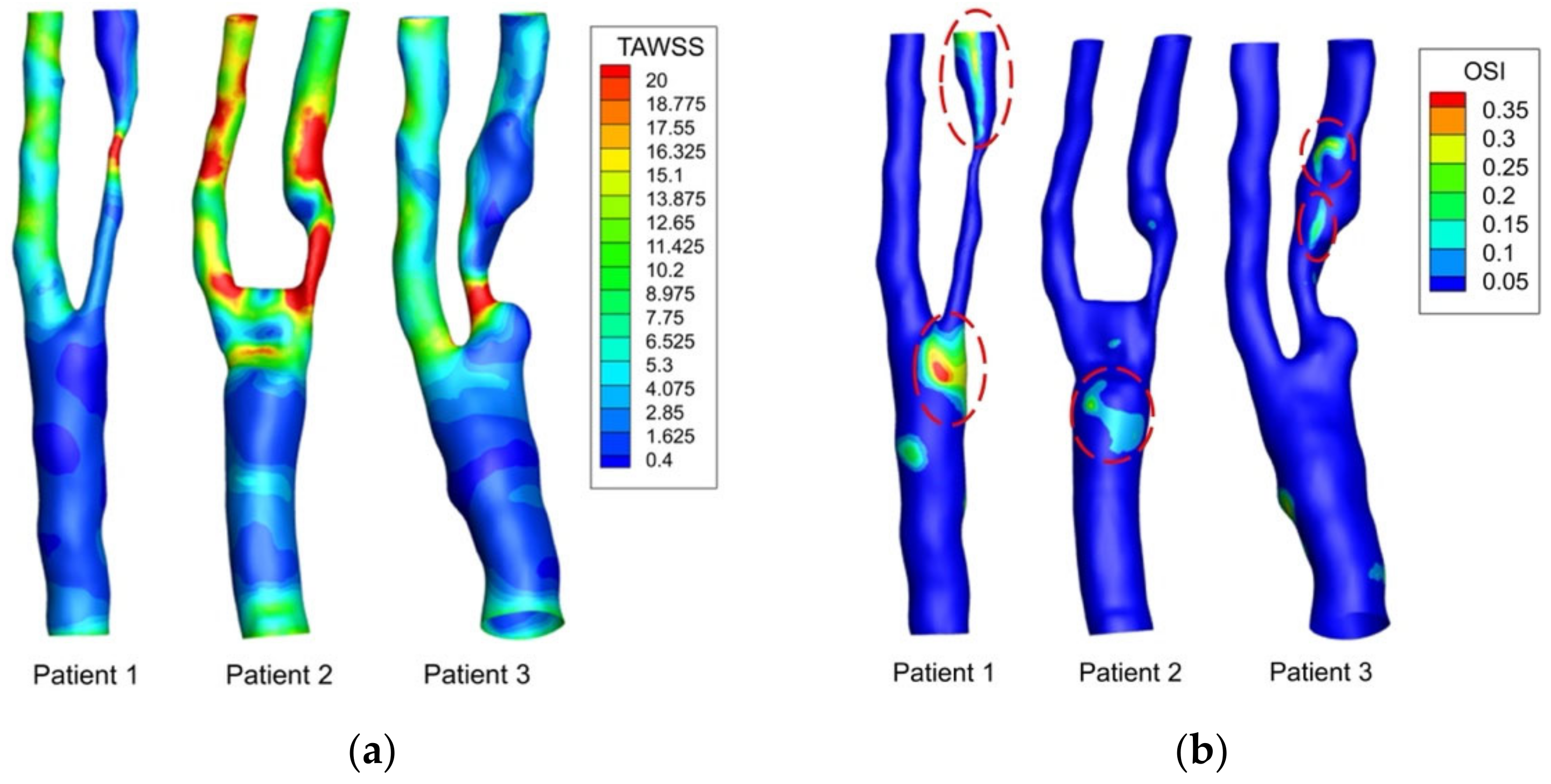

Figure 5. Result of (a) time-averaged wall shear stress (TAWSS) and (b) oscillatory shear index (OSI) distribution for three patients.
Figure 5. Result of (a) time-averaged wall shear stress (TAWSS) and (b) oscillatory shear index (OSI) distribution for three patients.
Biomedicines 10 03038 g005
Biomedicines 10 03038 g006 550
Figure 6. Violin plot of TAWSS values at region of interest in three patients. For each patient, the median value is shown in black-colored line and the mean value is shown in red-colored line.
Figure 6. Violin plot of TAWSS values at region of interest in three patients. For each patient, the median value is shown in black-colored line and the mean value is shown in red-colored line.
Biomedicines 10 03038 g006
Biomedicines 10 03038 g007 550

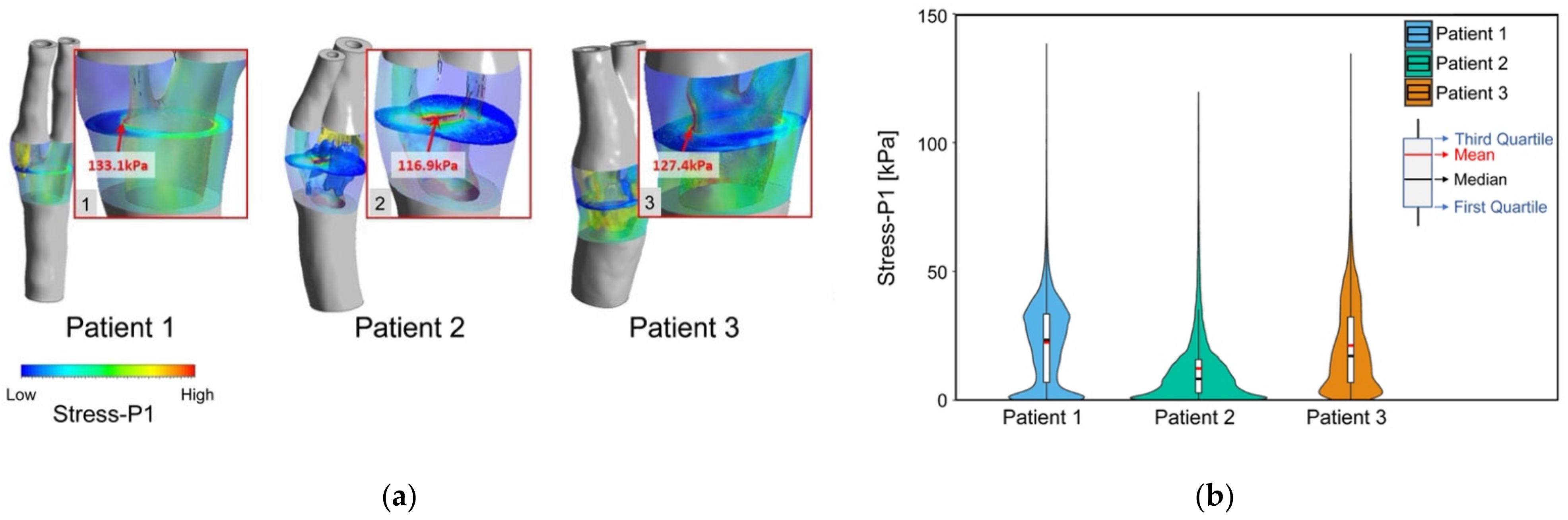

Figure 7. Result of Stress-P1 of three patients at peak systole. Images (a) (1–3) show contour maps of Stress-P1 for the selected region of interest and corresponding zoomed views excluding the plaque structure, with arrows showing the local maximum Stress-P1 in plaque; (b) violin plot of the Stress-P1 in the region of interest of each patient.
Figure 7. Result of Stress-P1 of three patients at peak systole. Images (a) (1–3) show contour maps of Stress-P1 for the selected region of interest and corresponding zoomed views excluding the plaque structure, with arrows showing the local maximum Stress-P1 in plaque; (b) violin plot of the Stress-P1 in the region of interest of each patient.
Biomedicines 10 03038 g007
Table
Table 1. Patient demographics.
Table 1. Patient demographics.
Patient IDPatient 1Patient 2Patient 3
Age427770
SexMaleFemaleMale
Degree of stenosis81%83%82%
BMI (kg/m2)21.21622.3
HypertensionYesYesYes
HypercholesterolemiaYesNoYes
Diabetes MellitusNoNoNo
SmokingFormerCurrentCurrent
Table
Table 2. Carotid plaque morphology differences among three patients.
Table 2. Carotid plaque morphology differences among three patients.
Patient IDPatient 1Patient 2Patient 3
Calcification volume (mm3)3.4477.3810.43
Lipid volume (mm3)42.7948.59236.79
Thinnest fibrous cap thickness (mm)0.7291.1860.676
