Alveolar Nitric Oxide in Chronic Obstructive Pulmonary Disease—A Two-Year Follow-Up
by
, , ,
Marieann Högman
1,*
,
Andreas Palm
1,
Johanna Sulku
2,
Björn Ställberg
3,
Karin Lisspers
3,
Kristina Bröms
3,
Christer Janson
1 and
Andrei Malinovschi
4 1
Department of Medical Sciences, Respiratory, Allergy and Sleep Research, Uppsala University, 751 85 Uppsala, Sweden
2
Department of Pharmacy, Uppsala University, 751 23 Uppsala, Sweden
3
Department of Public Health and Caring Sciences, Family Medicine and Preventive Medicine, Uppsala University, 751 22 Uppsala, Sweden
4
Department of Medical Sciences, Clinical Physiology, Uppsala University, 751 85 Uppsala, Sweden
*
Author to whom correspondence should be addressed.
Biomedicines 2022, 10(9), 2212; https://doi.org/10.3390/biomedicines10092212
Submission received: 19 April 2022
/
Revised: 1 July 2022
/
Accepted: 5 September 2022
/
Published: 7 September 2022
(This article belongs to the Special Issue Role of NO in Disease: Good, Bad or Ugly)
Abstract
:Chronic obstructive pulmonary disease (COPD) affects the airways and gas exchange areas. Nitric oxide (NO) production from the airways is presented as FENO50 and from the gas exchange areas as alveolar NO (CANO). We aimed to evaluate, over two years, the consistency of the CANO estimations in subjects with COPD. A total of 110 subjects (45 men) who completed the study were included from primary and secondary care settings. CANO was estimated using the two-compartment model. CANO increased slightly during the two-year follow-up (p = 0.01), but FENO50 remained unchanged (p = 0.24). Among the subjects with a low CANO (<1 ppb) at inclusion, only 2% remained at a low level. For those at a high level (>2 ppb), 29% remained so. The modified Medical Research Council dyspnoea scale (mMRC) score increased at least one point in 29% of the subjects, and those subjects also increased in CANO from 0.9 (0.5, 2.1) ppb to 1.8 (1.1, 2.3) ppb, p = 0.015. We conclude that alveolar NO increased slightly over two years, together with a small decline in lung function. The increase in CANO was found especially in those whose levels of dyspnoea increased over time.
1. Introduction
Chronic obstructive pulmonary disease (COPD) affects the conducting airways and gas exchange areas. Post-bronchodilator spirometry sets a COPD diagnosis in individuals with typical respiratory symptoms such as dyspnoea and chronic cough, often together with a history of relevant exposure to smoke, usually cigarette smoke. Emphysema with the destruction of lung parenchyma can develop after many years of smoking and cannot be reversed.
In a meta-analysis, the fraction of exhaled nitric oxide (FENO) was slightly increased in persons with COPD compared to healthy controls [1]. FENO is further increased if there is an eosinophilic inflammation, such as type-2 inflammation [2]. Tobacco smoke will interfere with nitric oxide (NO) production in the airway epithelia. Patients with COPD who are currently smoking will therefore have a lower FENO than ex-smokers. Additionally, ex-smokers have lower values than never-smokers [3]. Thus, the clinical significance of FENO in stable COPD patients is unclear, as was summarised in a recent scoping review [4].
The NO production in the lungs can be traced to the exhalation gas. Fractional exhaled nitric oxide at 50 mL/s (FENO50) represents the NO production in the airways, and the alveolar NO (CANO) represents production from the gas exchange areas. In COPD, there is an involvement in the lung parenchyma, which can manifest as emphysema. Higher values of CANO in COPD patients have been reported [5,6,7,8], but also values that did not differ from healthy controls [9]. There are also methodological issues associated with the estimation of CANO, which were reviewed in 2017 by a European Respiratory Society task force [10]. The task force recommended two methods to determine estimation: the linear method by Tsoukias & George and the non-linear Högman-Meriläinen algorithm. Both methods refer to Fick’s first law of diffusion, where a bolus of gas (alveolar gas) transported up into the conducting airways picks up NO driven by a concentration gradient from the bronchial wall. These methods are explained, and the equations for the calculations can be found together with the usefulness of these methods in respiratory diseases in Högman et al., 2014, 2017 [11,12].
A limited number of studies have followed CANO values in patients with COPD over a more extended period. Lehouck et al. followed 22 patients in stable condition for four months. There were no statistically significant differences in the CANO values compared to those at inclusion [9]. Lázár et al. investigated patients in a stable disease state and patients experiencing an acute exacerbation, and they found that the CANO values were elevated compared to healthy controls [13]. However, no difference was found between the stable and the exacerbated patients. In 26 patients, there was no difference between the CANO at the time of the acute exacerbation and discharge from the hospital. Two other studies looked at the effect of corticosteroid treatment after one week [14] and after four weeks [15]. Both studies showed no difference in CANO between the visits.
This study aimed to evaluate, over two years, the consistency of the CANO estimations in subjects with COPD and the associations of the CANO changes to the clinical progression of the disease.
2. Materials and Method
2.1. Study Design and Subjects
The research subjects were recruited from the Swedish multicentre study: Tools Identifying Exacerbations in COPD (TIE-study) [16]. Those included were participants over the age of 40 with a diagnosis of COPD from primary and secondary care settings who came from one of the research centres that could measure CANO at inclusion and at the one and two-year follow-ups (Figure 1). The measurements were performed only when the study participants were in a stable disease state, i.e., no exacerbation within the last three weeks. Recruitment to the study occurred from September 2014 until October 2016. The study was completed in October 2018.
2.2. Methods
The COPD diagnosis was set by a physician and confirmed by spirometry. The measurement was obtained using a post-bronchodilator (400 µg salbutamol) forced expiratory volume in one second (FEV1) divided by the highest value of vital capacity (VC) or forced vital capacity (FVC) with a ratio of <0.70 (SpiroPerfect spirometer, Welch Allyn, Skaneateles Falls, NY, USA). FEV1 and FVC are presented as per cent predicted using Swedish reference values [17,18].
According to the 2005 standardised measurements recommendation, the measurement of exhaled NO was performed at a flow of 50 mL/s (FENO50) [19]. In addition to FENO50, exhaled NO at flows of 20, 100, and 300 mL/s were measured in duplicate for the non-linear Högman-Meriläinen algorithm (HMA) modelling of NO exchange. The NO analyser was equipped with the software for the HMA estimation (Eco Medics CLD 88, Eco Medics, Dürnten, Switzerland). HMA estimates the CANO, airway wall NO content (CawNO), the diffusing capacity of NO from the airway wall (DawNO), and FENO50. For quality control, the measured and the estimated FENO50 were compared for a difference not exceeding 5 ppb [10]. For subjects who could not perform the HMA, the linear modelling method was applied with flows of 100, 200, and 300 mL/s and an r-value > 0.95 [10].
Blood cell counts analysing neutrophils (B-Neu) and eosinophils (B-Eos) were performed (Cell-Dyn 4000, Abbott, Abbott Park, IL, USA and Sysmex XN-10, Sysmex America Inc, Lincoinshire, IL, USA). Additionally, questionnaires including the COPD Assessment Test (CAT), the Clinical COPD Questionnaire (CCQ) and the modified Medical Research Council Dyspnoea Scale (mMRC) were used [20]. A clinical difference in CAT was set at ≥2 points [21] and CCQ at ≥0.4 points [22]. For statistical comparisons, mMRC scores were grouped as <2 and ≥2. Questions regarding demographics, smoking habits, comorbidities and inhaled COPD treatment were also assessed. The research nurse reviewed the answers to the questionnaires with the research subjects to assure accuracy.
2.3. Data Analysis
To classify the COPD subjects’ disease severity, the GOLD risk assessment version 2021 with assessments of airflow limitations and symptoms/risk of exacerbations (CAT scale) was used together with the history of exacerbations/hospitalisations. An exacerbation was defined as an unscheduled health care visit, and/or a course of oral corticosteroids, and/or a course of antibiotics due to COPD deterioration (questionnaire assessed). Information about hospitalisation admittance was retrieved from hospital records. A questionnaire gathered the exacerbation history for the year prior to each visit.
Binominal test, Pearson χ2-test, Kolmogorov–Smirnov normality test, and non-parametric tests, i.e., McNemar χ2-test, Mann–Whitney U test, Friedman’s test and Spearman’s rho (SPSS, v. 24 for Windows, SPSS Inc., Chicago, IL, USA) were used for the statistical calculations. Descriptive statistics are given as frequencies and percentages, mean ± SD, or median with lower quartile (Q1) and upper quartile (Q3). A p-value of p < 0.05 was considered significant.
3. Results
Of the 221 included subjects, 111 did not complete the study. Non-completion was due to death, lack of participation in all follow-up visits, or incomplete data collection (Figure 1). FENO50 could not be collected from six subjects, and the CANO estimations were missing from 51 subjects. More severe disease was found in the subjects who did not complete the study, as validated by lung function, higher B-Neu levels, lower FENO50 and higher CANO values. The symptom burden according to the CAT, CCQ, and mMRC was also higher, and they had a greater number of comorbidities, exacerbations, and treatments with triple therapy (an inhaled corticosteroid in combination with a long-acting beta-2-agonist and a long-acting muscarinic antagonist) than the subjects who completed the study, see Table 1. The CANO and FENO50 were 2.3 (0.6, 3.5) and 12 (5, 15) ppb, respectively in participants who died before completing the study. The 51 subjects whose NO modelling was missing had a FEV1.0 of 1.33 (0.94, 1.56) L and a FVC of 2.40 (1.97, 2.96) L.
A total of 110 subjects completed the two-year follow-up. They were aged 68 ± 8 years and 59% were women. Among the comorbidities reported were: asthma (33%) and chronic bronchitis (25%). However, the distribution of CANO was not different from those subjects who did not report asthma or chronic bronchitis, p = 0.81 and p = 0.26, respectively. Other comorbidities were hypertension (46%), anxiety/depression (21%), heart disease (19%), and diabetes (5%). Additional characteristics of the study participants are presented in Table 2 and Figure 1.
Most of our subjects could perform the multiple flows for the HMA to estimate the CANO, but the linear model was used for two subjects at the inclusion, for seven subjects at the one-year visit and for 24 subjects at the two-year visit. There was no statistically significant change in FENO50 between the visits. FENO50 was lower in subjects who were currently smoking at inclusion compared to ex-smokers, FENO50 9 (6, 16) ppb and 15 (11, 24) ppb respectively, p = 0.004. CawNO was also lower, 34 (21, 94) ppb and 74 (36, 154) ppb respectively, p = 0.018, while DawNO and CANO were not affected by smoking status (p = 0.56 respectively p = 0.27). CANO increased during the study period while the other parameters of the HMA did not change (Table 2). CANO had no correlation to age. There was no statistically significant difference in CANO between females and males, 1.3 (0.7, 2.3) ppb and 1.3 (0.5, 2.0) ppb respectively, p = 0.38. CANO was 1.3 (0.6, 2.1) ppb in subjects without ICS and 1.3 (0.5, 2.2) ppb in subjects taking ICS, p = 0.68. During the two-year follow-up, the FEV1 % predicted was not significantly changed, but the FVC % predicted decreased slightly (p < 0.001), see Table 2. There were no correlations between lung function and FENO50 or CANO at any point in time. Additionally, there was no correlation between the change in FENO50 or CANO and the change in lung function.
To evaluate the consistency of the CANO measurements, we divided the participants into three groups: low <1 ppb, medium 1–2 ppb, and high >2 ppb (Figure 2). Only 2% of the subjects who had a low CANO at inclusion consistently remained at a low level at the last follow-up. In the medium group 18% remained at the same level, and in the high CANO group 29% remained the same.
The symptom burden assessed by CAT and CCQ did not change during the two-year follow-up period (Table 2). A clinical increase in CAT scores was seen in 44 subjects, but there was no difference in the change in CANO in those with and those without an increase (p = 0.38). In CCQ scores, a clinical decrease was seen in 36 subjects also without a difference in the change in CANO (p = 0.08). There were changes in the mMRC dyspnoea scores over the study period, with a shift toward higher values as illustrated in Figure 3 and seen in Table 2. The subjects were divided into two groups, one that increased their mMRC scores by 1–3 points (n = 32) and another that scored minus 1 or had the same value (n = 78) between inclusion and the two-year follow-up. The distribution of CANO at inclusion was the same for the two mMRC groups. As seen in Figure 4, the subjects who had an increase in their mMRC, also had an increase in CANO.
4. Discussion
This study showed that over a period of two years, subjects with COPD who had stable treatment had a progression of the disease; as evidenced by slightly lower FVC measurements, higher CANO values, and a shift towards higher dyspnoea scores. The subjects who increased their dyspnoea scores had a higher CANO. Only a third of our subjects with a higher CANO value, defined as above 2 ppb, remained at the same level after two years.
When CANO values from this study were compared to those from healthy subjects, the values from the COPD subjects were found to be slightly lower. The subjects completing the study aged 47–83 years had a CANO of 1.3 that increased to 1.7 ppb, the subjects not completing aged 40–87 years had at inclusion a CANO of 1.5 ppb, and the healthy comparison subjects from the literature aged 50–78 years had 2.2 (1.5, 2.9) ppb [11]. CANO increases with age in healthy subjects [11], but there was no correlation between age and CANO among our COPD subjects.
CANO values have been found to be not increased in COPD patients [9], but contradictory results with higher values have also been found [5,6,23]. These divergent results might be related to differences in the populations studied, but also to methodological aspects. For example, the lowest flow to use with the linear method is 100 mL/s [10], and using a flow lower than that will give a falsely high CANO level. However, we found higher CANO values in a small sample of COPD patients when using the HMA as in the present study [8]. This difference is, therefore, most likely due to the subjects being in different stages of the disease, since CANO increased with disease progression. The subjects who did not complete the study and had a higher disease burden had higher CANO values than the subjects who completed the study.
Good consistency of CANO estimation over the follow-up period was lacking. Only 29% of our subjects with a higher CANO value, defined as above 2 ppb, remained at the same level after two years. However, in this study, there was an increase in CANO over time. The increase was mainly seen in participants that had increased problems with dyspnoea. In COPD, the alveolar region is involved with the formation of emphysema, which is known to affect the gas exchange and ventilation to perfusion ratio (VA/Q) matching [24], which starts already in GOLD stage 1 (FEV1-% predicted ≥80) [25]. Further investigation is needed to determine if the loss of lung volume causes a compensatory upregulation of NO in the peripheral lung. McCurdy et al. studied physical performance and CANO in COPD patients. They found higher CANO values with shorter travel distances in a walking test [7], which gives the hypothesis for compensatory upregulation credibility. Another possibility is that the uptake of the inhaled NO that is produced in the airways is not homogenous, such that some of the inhaled NO is exhaled at high flows giving a higher CANO.
In contrast to the NO from the airways, as well as the content of NO in the airway wall, the effect of smoking was not seen in CANO or in the diffusing capacity of NO from the airway wall in this study. That CANO is not affected by smoking has been shown previously [3]. The contrary has also been shown, but then the highest flow was too low, which allowed NO to be picked up from the airway [9,12]. In a study examining smoking cessation over a four-week period, the airway NO gradually increased, while CANO remained unchanged [26]. This suggests that CANO might be a useful marker since many COPD patients are still smoking or are trying to quit.
Most of our research subjects could perform the NO modelling with multiple flows. There were only two subjects in the completed group at inclusion that could not perform the lowest flow of 20 mL/s. It was more difficult at the two-year follow-up since, for 24 subjects, we had to use the linear model that excludes the low flow. Among all of the subjects, both completed and non-completed, NO modelling was missed in 22% for whatever reason (performance, analyser, or simply not done). Lazar et al. missed 7% in their stable subjects due to an inability to complete a flow of 250 mL/s and as much as 32% in the subjects that had an exacerbation at inclusion [13]. Karvonen et al. had a higher rate of successful results with the linear model compared to the HMA [27]. We can conclude that NO modelling with multiple flows cannot be accomplished in all patients.
A limitation of this study was that we were not able to follow the subjects who did not complete the study and had more severe disease. We do not know what the reasons were for the missing values, but during the follow-up period, there were more subjects that required the use of higher flows for the NO analysis. This points to a more severe disease as the possible reason. It could be seen as a limitation that different methods of estimating CANO were used, but they are partially based on the same measurements, and it has been found that the estimation of CANO with the linear and the non-linear methods do not differ [12]. To strengthen the clinical value of CANO, it would have been interesting to evaluate both hyperinflation and lung diffusion capacity (DLCO) from a pulmonary function perspective, and have a computerized tomography assessment of emphysema in the present study.
The strength of this study is that we have longitudinal data on estimated CANO over a two-year period and could analyse changes over time in relation to changes in disease burden. Another strength is that the subjects were examined in a stable disease state at all time points. Our study population involved patients from both primary and secondary care settings, making these results relevant to most of the patients. We have used validated questionnaires at all three visits and the same research nurse reviewed these questionnaires with the subjects. Finally, COPD was physician-diagnosed and verified by spirometry at the inclusion in the study.
5. Conclusions
Alveolar NO increased slightly over the follow-up period, together with a small decline in lung function. There was a lack of consistency in the alveolar NO values, with only a third of our subjects with higher CANO values, remaining at the same level after two years. The increase in CANO was found especially in those whose levels of dyspnoea increased over time.
Author Contributions
M.H. and A.M. initiated, and together with C.J., B.S., K.B., J.S. and K.L. conceptualized the TIE study. M.H., A.M., B.S., J.S. and A.P. contributed to the data analysis performed in this manuscript. M.H. had full access to the study data and wrote the initial draft. All authors have analysed and interpreted the data, contributed with critical revision of the manuscript, and approved the final version to be published. All authors have read and agreed to the published version of the manuscript.
Funding
This work was supported by the Uppsala-Örebro Regional Research Council; the Centre for Research and Development, Uppsala University/Region Gävleborg; the Centre for Clinical Research, Uppsala University; County Council Dalarna; the Swedish Heart and Lung Association; the Bror Hjerpstedt Foundation; and the Uppsala County Association Against Heart and Lung Diseases.
Institutional Review Board Statement
The protocol was approved by the Regional Review Board in Uppsala, Sweden (Dnr 2013/358) 28 April 2014.
Informed Consent Statement
A written informed consent was obtained from all subjects involved in the study. The study was conducted in accordance with the Declaration of Helsinki.
Data Availability Statement
Data cannot be made freely available as they are subject to secrecy in accordance with the Swedish Public Access to Information and Secrecy Act, but can be made available to researchers upon request (subject to a secrecy review).
Acknowledgments
The authors would like to thank all of the study participants for giving their time and providing valuable information for this study. We are grateful to Lise-Lotte Sundgren, the research nurse at the Gävle study site. The authors wish to thank Robin Quell for proofreading and editing this manuscript.
Conflicts of Interest
All authors declare no conflict of interest. J.S. is today an employee at Medical Affairs, GlaxoSmithKline (GSK), 169 29 Solna, Sweden, but when this work was done, she was a PhD student at Uppsala university and employed at Region Gävleborg. GSK has in no way influenced on the TIE study or this manuscript.
Abbreviations
| B-Eos | blood eosinophils |
| B-Neu | blood neutrophils |
| BMI | body mass index |
| CANO | alveolar NO |
| CAT | COPD Assessments Test-scores |
| CawNO | NO content in airway wall |
| COPD | chronic obstructive pulmonary disease |
| DawNO | NO diffusion capacity over airway wall |
| FENO50 | fraction of exhaled NO at 50 mL/s |
| FEV1 | forced expiratory volume in 1 s |
| FVC | forced vital capacity |
| HMA | Högman Meriläinen algorithm |
| mMRC | modified Medical Research Council dyspnoea scale |
| NO | nitric oxide |
References
- Lu, Z.; Huang, W.; Wang, L.; Xu, N.; Ding, Q.; Cao, C. Exhaled nitric oxide in patients with chronic obstructive pulmonary disease: A systematic review and meta-analysis. Int. J. Chronic Obstr. Pulm. Dis. 2018, 13, 2695–2705. [Google Scholar] [CrossRef] [PubMed]
- Rio Ramirez, M.T.; Juretschke Moragues, M.A.; Fernandez Gonzalez, R.; Alvarez Rodriguez, V.; Aznar Andres, E.; Zabaleta Camino, J.P.; Romero Pareja, R.; Esteban de la Torre, A. Value of exhaled nitric oxide (FENO) and eosinophilia during the exacerbations of chronic obstructive pulmonary disease requiring hospital admission. COPD 2018, 15, 369–376. [Google Scholar] [CrossRef]
- Malinovschi, A.; Janson, C.; Holmkvist, T.; Norbäck, D.; Meriläinen, P.; Högman, M. Effect of smoking on exhaled nitric oxide and flow-independent nitric oxide exchange parameters. Eur. Respir. J. 2006, 28, 339–345. [Google Scholar] [CrossRef]
- Mostafavi-Pour-Manshadi, S.M.; Naderi, N.; Barrecheguren, M.; Dehghan, A.; Bourbeau, J. Investigating fractional exhaled nitric oxide in chronic obstructive pulmonary disease (COPD) and asthma-COPD overlap (ACO): A scoping review. COPD 2018, 15, 377–391. [Google Scholar] [CrossRef]
- Brindicci, C.; Ito, K.; Resta, O.; Pride, N.B.; Barnes, P.J.; Kharitonov, S.A. Exhaled nitric oxide from lung periphery is increased in COPD. Eur. Respir. J. 2005, 26, 52–59. [Google Scholar] [CrossRef]
- Williamson, P.A.; Clearie, K.; Menzies, D.; Vaidyanathan, S.; Lipworth, B.J. Assessment of small-airways disease using alveolar nitric oxide and impulse oscillometry in asthma and COPD. Lung 2011, 189, 121–129. [Google Scholar] [CrossRef] [PubMed]
- McCurdy, M.R.; Sharafkhaneh, A.; Abdel-Monem, H.; Rojo, J.; Tittel, F.K. Exhaled nitric oxide parameters and functional capacity in chronic obstructive pulmonary disease. J. Breath Res. 2011, 5, 016003. [Google Scholar] [CrossRef]
- Högman, M.; Holmkvist, T.; Wegener, T.; Emtner, M.; Andersson, M.; Hedenström, H.; Meriläinen, P. Extended NO analysis applied to patients with COPD, allergic asthma and allergic rhinitis. Respir. Med. 2002, 96, 24–30. [Google Scholar] [CrossRef]
- Lehouck, A.; Carremans, C.; De Bent, K.; Decramer, M.; Janssens, W. Alveolar and bronchial exhaled nitric oxide in chronic obstructive pulmonary disease. Respir. Med. 2010, 104, 1020–1026. [Google Scholar] [CrossRef]
- Horvath, I.; Barnes, P.J.; Loukides, S.; Sterk, P.J.; Högman, M.; Olin, A.C.; Amann, A.; Antus, B.; Baraldi, E.; Bikov, A.; et al. A European Respiratory Society technical standard: Exhaled biomarkers in lung disease. Eur. Respir. J. 2017, 49, 1600965. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Högman, M.; Lehtimäki, L.; Dinh-Xuan, A.T. Utilising exhaled nitric oxide information to enhance diagnosis and therapy of respiratory disease—Current evidence for clinical practice and proposals to improve the methodology. Expert Rev. Respir. Med. 2017, 11, 101–109. [Google Scholar] [CrossRef]
- Högman, M.; Thornadtsson, A.; Hedenstierna, G.; Meriläinen, P. A practical approach to the theoretical models to calculate NO parameters of the respiratory system. J. Breath Res. 2014, 8, 016002. [Google Scholar] [CrossRef]
- Lazar, Z.; Kelemen, A.; Galffy, G.; Losonczy, G.; Horvath, I.; Bikov, A. Central and peripheral airway nitric oxide in patients with stable and exacerbated chronic obstructive pulmonary disease. J. Breath Res. 2018, 12, 036017. [Google Scholar] [CrossRef]
- Fan, X.; Zhao, N.; Yu, Z.; Yu, H.; Yin, B.; Zou, L.; Zhao, Y.; Qian, X.; Sai, X.; Qin, C.; et al. Clinical utility of central and peripheral airway nitric oxide in aging patients with stable and acute exacerbated chronic obstructive pulmonary disease. Int. J. Gen. Med. 2021, 14, 571–580. [Google Scholar] [CrossRef] [PubMed]
- Lehtimäki, L.; Kankaanranta, H.; Saarelainen, S.; Annila, I.; Aine, T.; Nieminen, R.; Moilanen, E. Bronchial nitric oxide is related to symptom relief during fluticasone treatment in COPD. Eur. Respir. J. 2010, 35, 72–78. [Google Scholar] [CrossRef] [PubMed]
- Högman, M.; Sulku, J.; Ställberg, B.; Janson, C.; Bröms, K.; Hedenström, H.; Lisspers, K.; Malinovschi, A. 2017 Global initiative for chronic obstructive lung disease reclassifies half of COPD subjects to lower risk group. Int. J. Chronic Obstr. Pulm. Dis. 2018, 13, 165–173. [Google Scholar] [CrossRef]
- Hedenström, H.; Malmberg, P.; Agarwal, K. Reference values for lung function tests in female. Regression equations with smoking variables. Bull. Eur. Physiopathol. Respir. 1985, 21, 551–557. [Google Scholar]
- Hedenström, H.; Malmberg, P.; Fridriksson, H.V. Reference values for pulmonary function test in men: Regression equations which include tobacco smoking variables. Upsala J. Med. Sci. 1986, 91, 299–310. [Google Scholar] [CrossRef]
- American Thoracic Society; European Respiratory Society. ATS/ERS recommendations for standardized procedures for the online and offline measurement of exhaled lower respiratory nitric oxide and nasal nitric oxide, 2005. Am. J. Respir. Crit. Care Med. 2005, 171, 912–930. [Google Scholar] [CrossRef]
- Bestall, J.C.; Paul, E.A.; Garrod, R.; Garnham, R.; Jones, P.W.; Wedzicha, J.A. Usefulness of the Medical Research Council (MRC) dyspnoea scale as a measure of disability in patients with chronic obstructive pulmonary disease. Thorax 1999, 54, 581–586. [Google Scholar] [CrossRef]
- Kon, S.S.; Canavan, J.L.; Jones, S.E.; Nolan, C.M.; Clark, A.L.; Dickson, M.J.; Haselden, B.M.; Polkey, M.I.; Man, W.D. Minimum clinically important difference for the COPD Assessment Test: A prospective analysis. Lancet Respir. Med. 2014, 2, 195–203. [Google Scholar] [CrossRef] [Green Version]
- Kocks, J.W.; Tuinenga, M.G.; Uil, S.M.; van den Berg, J.W.; Stahl, E.; van der Molen, T. Health status measurement in COPD: The minimal clinically important difference of the clinical COPD questionnaire. Respir. Res. 2006, 7, 62. [Google Scholar] [CrossRef] [PubMed]
- Gelb, A.F.; Flynn, T.C.; Krishnan, A.; Fraser, C.; Shinar, C.M.; Schein, M.J.; Osann, K. Central and peripheral airway sites of nitric oxide gas exchange in COPD. Chest 2010, 137, 575–584. [Google Scholar] [CrossRef]
- Gunnarsson, L.; Tokics, L.; Lundquist, H.; Brismar, B.; Strandberg, A.; Berg, B.; Hedenstierna, G. Chronic obstructive pulmonary disease and anesthesia: Formation of atelectasis and gas exchange impairment. Eur. Respir. J. 1991, 4, 1106–1116. [Google Scholar]
- Rodriguez-Roisin, R.; Drakulovic, M.; Rodriguez, D.A.; Roca, J.; Barbera, J.A.; Wagner, P.D. Ventilation-perfusion imbalance and chronic obstructive pulmonary disease staging severity. J. Appl. Physiol. 2009, 106, 1902–1908. [Google Scholar] [CrossRef] [PubMed]
- Högman, M.; Holmkvist, T.; Wålinder, R.; Meriläinen, P.; Ludviksdottir, D.; Håkansson, L.; Hedenström, H. Increased nitric oxide elimination from the airways after smoking cessation. Clin. Sci. 2002, 103, 15–19. [Google Scholar] [CrossRef] [PubMed]
- Karvonen, T.; Kankaanranta, H.; Saarelainen, S.; Moilanen, E.; Lehtimäki, L. Comparison of feasibility and estimates of central and peripheral nitric oxide parameters by different mathematical models. J. Breath Res. 2017, 11, 047102. [Google Scholar] [CrossRef] [Green Version]

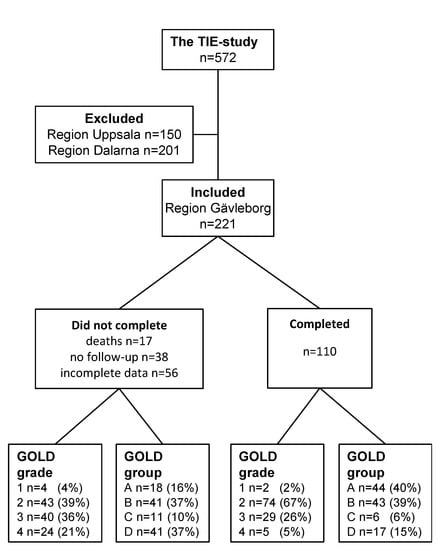

Figure 1.
Flow chart of excluded and included COPD subjects. Subjects were grouped according to whether they completed or did not complete the study. Further grouping at inclusion was according to the GOLD 2021 assessment of airflow limitations (GOLD grade) and symptom/risk of exacerbation (GOLD group) (https://goldcopd.org, accessed on 1 March 2022).
Figure 1.
Flow chart of excluded and included COPD subjects. Subjects were grouped according to whether they completed or did not complete the study. Further grouping at inclusion was according to the GOLD 2021 assessment of airflow limitations (GOLD grade) and symptom/risk of exacerbation (GOLD group) (https://goldcopd.org, accessed on 1 March 2022).

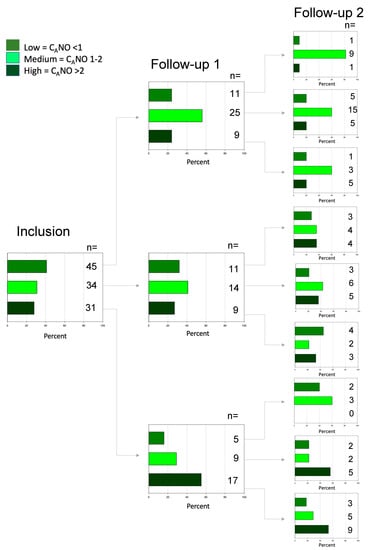

Figure 2.
The estimation of CANO at inclusion and each follow-up during the two-year period. The subjects are grouped in low <1 ppb, medium 1–2 ppb, and high >2 ppb.
Figure 2.
The estimation of CANO at inclusion and each follow-up during the two-year period. The subjects are grouped in low <1 ppb, medium 1–2 ppb, and high >2 ppb.

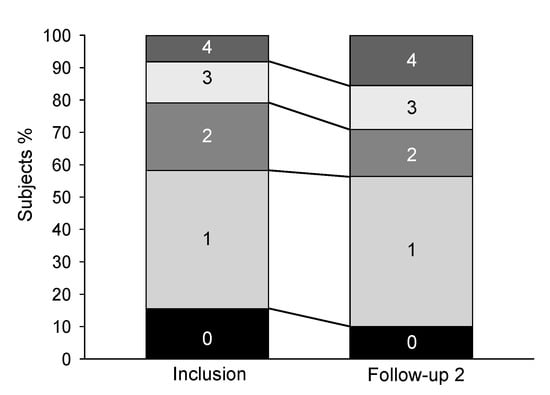

Figure 3.
The modified Medical Research Council dyspnoea scale (mMRC) (ordinal scale 0–4) at inclusion and after two years.
Figure 3.
The modified Medical Research Council dyspnoea scale (mMRC) (ordinal scale 0–4) at inclusion and after two years.

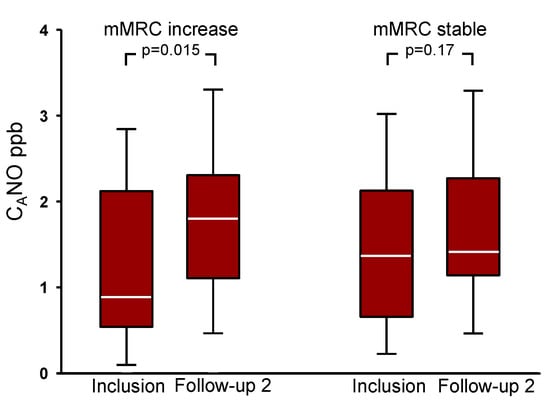

Figure 4.
CANO values for the subjects that increased their modified Medical Research Council dyspnoea scale (mMRC) by 1–3 points (n = 32, left) and the subjects that had a stable mMRC, minus 1 or the same value (n = 78, right) at inclusion and after two years. The horizontal line in each box corresponds to the median value, the upper and lower margins correspond to Q1 and Q3, and the whiskers correspond to the 10th and 90th percentiles.
Figure 4.
CANO values for the subjects that increased their modified Medical Research Council dyspnoea scale (mMRC) by 1–3 points (n = 32, left) and the subjects that had a stable mMRC, minus 1 or the same value (n = 78, right) at inclusion and after two years. The horizontal line in each box corresponds to the median value, the upper and lower margins correspond to Q1 and Q3, and the whiskers correspond to the 10th and 90th percentiles.
Table 1.
Characteristics of the study subjects at inclusion who completed or did not complete the study.
Table 1.
Characteristics of the study subjects at inclusion who completed or did not complete the study.
| Did Not Complete n = 111 | Completed n = 110 | p-Value | |
|---|---|---|---|
| Women n (%) | 67 (60%) | 65 (59%) | 0.847 |
| Age years | 69 ± 8 | 68 ± 8 | 0.113 |
| Current daily smokers n (%) | 25 (23%) | 28 (26%) | 0.506 |
| BMI | 26 (23, 30) | 27 (23, 32) | 0.185 |
| Comorbidity | |||
| Asthma | 45% | 33% | 0.060 |
| Chronic bronchitis | 45% | 25% | 0.002 |
| Heart infarction/angina | 11% | 12% | 0.813 |
| Heart failure | 6% | 1% | 0.032 |
| Heart fibrillation | 19% | 6% | 0.005 |
| Hypertension | 47% | 46% | 0.836 |
| Diabetes | 13% | 5% | 0.034 |
| Anxiety/depression | 30% | 21% | 0.132 |
| Lung function | |||
| FEV1.0 L | 1.17 (0.79, 1.51) | 1.53 (1.24, 1.86) | <0.001 |
| FEV1.0 % predicted | 45 (31, 58) | 57 (49, 67) | <0.001 |
| FVC L | 2.38 (1.89, 3.16) | 2.83 (2.47, 3.45) | <0.001 |
| FVC % predicted | 57 (47, 74) | 67 (61, 76) | <0.001 |
| Inflammatory markers | |||
| B-Neu 109/L | 5.4 (4.3, 6.1) | 4.3 (3.5, 4.9) | <0.001 |
| B-Eos 109/L | 0.14 (0.08, 0.23) | 0.18 (0.10, 0.28) | 0.094 |
| Exhaled NO | |||
| FENO50 ppb | 11 (6, 17) 1 | 14 (9, 21) | 0.006 |
| CANO ppb | 1.5 (0.9, 2.7) 2 | 1.3 (0.6, 2.1) | 0.043 |
| CawNO ppb | 35 (16, 95) 2 | 65 (30, 136) | 0.007 |
| DawNO mL/s | 22 (10, 34) 2 | 15 (7, 30) | 0.084 |
| Symptom burden | |||
| CAT | 14 (9, 22) | 11 (6, 16) | <0.001 |
| mMRC ≥ 2 | 65 (59%) | 46 (42%) | 0.013 |
| CCQ | 2.0 (1.1, 3.1) | 1.3 (0.7, 2.1) | <0.001 |
| Exacerbations | |||
| Questionnaire ≥ 1 (%) | 67 (61%) | 48 (44%) | <0.001 |
| Inhaled treatment | |||
| ICS + LABA + LAMA 3 | 73 (66%) | 46 (42%) | <0.001 |
1 Missing 6 subjects, 2 missing 51 subjects; 3 regular treatment with inhaled corticosteroids (ICS) in combination with long-acting beta-2-agonist (LABA), and long-acting muscarinic antagonist (LAMA). Body mass index (BMI), forced expiratory volume at 1 s (FEV1.0), forced vital capacity (FVC), blood neutrophils (B-Neu), blood eosinophils (B-Eos), fraction of exhaled nitric oxide at 50 mL/s (FENO50), alveolar NO (CANO), airway wall NO content (CawNO), diffusing capacity of NO from the airway wall (DawNO), COPD Assessment Test (CAT), modified Medical Research Council dyspnoea scale (mMRC), Clinical COPD Questionnaire (CCQ). Data are given in percentage, median (Q1, Q3), or mean ± SD.
Table 2.
Characteristics of the subjects completing the study at inclusion, and their one and two-year follow-ups.
Table 2.
Characteristics of the subjects completing the study at inclusion, and their one and two-year follow-ups.
| Inclusion n = 110 | 1-Year n = 110 | 2-Year n = 110 | p-Value | |
|---|---|---|---|---|
| Current daily smokers n (%) | 28 (26%) | 22 (20%) | 27 (24%) | 1.0 |
| BMI | 27 (23, 32) | 27 (23, 31) | 27 (24, 31) | 0.559 |
| Lung function | ||||
| FEV1.0 L | 1.53 (1.24, 1.86) | 1.53 (1.20, 1.94) | 1.49 (1.15, 1.89) | 0.024 |
| FEV1.0 % predicted | 57 (49, 67) | 58 (48, 68) | 56 (46, 66) | 0.429 |
| FVC L | 2.83 (2.47, 3.45) | 2.78 (2.27, 3.18) | 2.68 (2.23, 3.27) | <0.001 |
| FVC % predicted | 67 (61, 76) | 66 (57, 76) | 65 (56, 76) | 0.007 |
| Inflammatory markers | ||||
| B-Neu 109/L | 4.3 (3.5, 4.9) | 4.3 (3.2, 5.3) | 4.2 (3.6, 5.4) | 0.890 |
| B-Eos 109/L | 0.18 (0.10, 0.28) | 0.17 (0.11, 0.29) | 0.16 (0.11, 0.24) | 0.072 |
| Exhaled NO | ||||
| FENO50 ppb | 14 (9, 21) | 14 (9, 23) | 13 (8, 19) | 0.238 |
| CANO ppb | 1.3 (0.6, 2.1) | 1.5 (1.0, 2.2) | 1.7 (1.1, 2.3) | 0.013 |
| CawNO ppb | 65 (30, 136) | 49 (21, 111) | 52 (25, 96) | 0.089 |
| DawNO mL/s | 15 (7, 30) | 18 (9, 36) | 16 (6, 33) | 0.553 |
| Symptom burden | ||||
| CAT | 11 (6, 16) | 10 (6, 15) | 11 (7, 17) | 0.523 |
| mMRC n 0/1/2/3/4 | 17/47/23/14/9 | 16/48/20/14/12 | 11/51/16/15/17 | |
| CCQ | 1.3 (0.7, 2.1) | 1.3 (0.8, 2.1) | 1.3 (0.8, 2.4) | 0.537 |
| Exacerbations ≥ 1/year | 48 (44%) | 25 (23%) | 29 (27%) | 0.002 |
| Treatment | ||||
| No regular treatment n (%) | 21 (19%) | 22 (20%) | 18 (16%) | 0.863 |
| Bronchodilators 1 n (%) | 26 (24%) | 22 (20%) | 27 (25%) | |
| ICS 2 n (%) | 63 (57%) | 63 (57%) | 64 (58%) | |
| SABA last week | 50 (45%) | 48 (44%) | 47 (43%) | 0.584 |
1 Regular treatment with long-acting beta-2-agonist and/or long-acting or short-acting muscarinic antagonist alone or in combination, 2 regular treatment with inhaled corticosteroid alone or in any combination with bronchodilators. Body mass index (BMI), forced expiratory volume at 1 s (FEV1.0), forced vital capacity (FVC), blood neutrophils (B-Neu), blood eosinophils (B-Eos), fraction of exhaled nitric oxide at 50 mL/s (FENO50), alveolar NO (CANO), airway wall NO content (CawNO), diffusing capacity of NO from the airway wall (DawNO), COPD Assessment Test (CAT), modified Medical Research Council dyspnoea scale (mMRC), Clinical COPD Questionnaire (CCQ), inhaled corticosteroids (ICS), short-acting beta-2-agonist (SABA). Data are given in percentage or median (Q1, Q3).
