Article

Single-Cell RNA Sequencing and Microarray Analysis Reveal the Role of Lipid-Metabolism-Related Genes and Cellular Immune Infiltration in Pre-Eclampsia and Identify Novel Biomarkers for Pre-Eclampsia

1
Department of Obstetrics and Gynecology, Renmin Hospital of Wuhan University, Wuhan 430060, China
2
Department of Pancreato-Biliary Surgery, The First Affiliated Hospital, Sun Yat-sen University, Guangzhou 510080, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Biomedicines 2023, 11(8), 2328; https://doi.org/10.3390/biomedicines11082328
Submission received: 1 July 2023 / Revised: 15 August 2023 / Accepted: 17 August 2023 / Published: 21 August 2023
(This article belongs to the Section Drug Discovery, Development and Delivery)

Abstract

:
Pre-eclampsia (PE) is a gestational hypertensive disorder that is characterized by hypertension and proteinuria, typically occurring after 20 weeks of gestation. Despite its global impact on pregnant women, the precise pathogenic mechanisms of PE remain unclear. Dysregulated lipid metabolism and immune cell infiltration contribute to PE development. Our study aimed to identify lipid-metabolism-related genes (LMRG-PEs) and investigate their association with immune infiltration. We utilized the “Seurat” R package for data quality control, cell clustering, and marker gene identification. The “SingleR” package enabled the matching of marker genes to specific cell types. Pseudotemporal ordering analysis was conducted using the “Monocle” package. Weighted correlation network analysis (WGCNA), gene set variation analysis (GSVA), and gene set enrichment analysis (GSEA) approaches were employed to explore lipid-metabolism-related genes, while potential targeted drugs were predicted using the drug–gene interaction database (DGIdb). Hub gene expression was validated through RT–qPCR. By analyzing single-cell RNA sequencing data, we identified and classified 20 cell clusters into 5 distinct types. Differential gene expression analysis revealed 186 DEGs. WGCNA identified 9 critical modules and 265 genes significantly associated with PE diagnosis, emphasizing the importance of the core genes PLA2G7 and PTGS2. RT–qPCR confirmed the significantly decreased expression of PLA2G7 and PTGS2 in PE patient tissues. These findings offer valuable insights into the molecular mechanisms of PE, particularly those involving lipid metabolism and immune infiltration. The identified hub genes have potential as therapeutic targets and biomarkers for future research and clinical applications.

Graphical Abstract

1. Introduction

PE is a placenta-dependent disorder that is defined as the presence of new-onset hypertension, proteinuria, and multiple organ dysfunction (mainly that of the kidney, brain, and liver) occurring after 20 weeks of gestation [1,2]. It carries an estimated risk of 2% to 8% during pregnancy, making it a prevalent condition associated with significant maternal and neonatal morbidity and mortality [2]. PE is widely recognized as a complex interaction among multiple genetic components [3,4], angiogenic factors [5], metabolic pathways [6], immunologic aberrations [7], and certain acquired risk factors [8,9,10]. PE is hard to predict since it is usually symptomless in the early phase. Seizures, dyspnea, epigastric pain, and profound placental abruption are indicative symptoms of a critical terminal phase [11,12,13]. The diagnosis and prediction of PE was established by assessing the presence of de novo hypertension and proteinuria, as well as the identification of placental or maternal-derived circulating biomarkers [14].
At present, the clinical outcomes of PE are improved by implementing preventive measures, a timely diagnosis, vigilant monitoring, and the appropriate administration of medications, as deemed necessary. PE continues to be a significant contributor to morbidity and mortality in both developing and developed nations, despite the routine utilization of aspirin [15,16,17] and other promising therapeutic interventions. In PE, levels of soluble fms-like tyrosine kinase-1 (sFlt-1) increase, whilst placental growth factor (PlGF) levels decrease. sFlt-1, acting as an antagonist to PlGF, can lead to vascular issues and potentially early-onset PE. An elevated sFlt-1 to PlGF ratio is associated with this risk, and effective screening through this ratio has been implemented in the second and third trimesters [18]. Once diagnosed, PE necessitates delivery of the placenta and fetus as the sole definitive therapeutic approach, rather than pursuing expectant management [2]. Palliative treatment primarily encompasses the administration of antihypertensive therapy to prevent maternal intracranial hemorrhage, in addition to the use of magnesium sulfate (MgSO4) as an anticonvulsant therapy [14,19]. Nonsteroidal anti-inflammatory drug (NSAID) medications should continue to be used preferentially over opioid analgesics for controlling postpartum pain [20]. Research has shown that the administration of low-dose aspirin from early pregnancy until 36 weeks can effectively lower the likelihood of developing PE [17]. Since PE syndrome is hard to predict, we are committed to performing bioinformatics for screening to identify PE-related biomarkers and therapeutic targets, as well as help develop effective diagnostic strategies and appropriate treatment and predict the prognosis of patients [21,22].
Although PE significantly contributes to maternal and fetal morbidity and mortality, the underlying pathophysiological mechanisms remain poorly understood. Consequently, this knowledge gap presents a critical opportunity for the advancement of innovative diagnostic approaches and therapeutic interventions. From a pathophysiological perspective, the primary cause of PE lies in placental dysfunction rather than fetal factors [14]. This placental defect is most likely associated with abnormal lipid metabolism [23] and partial breakdown of maternal–fetal immune tolerance [24,25]. Fatty acid oxidation (FAO) disorders and dyslipidemia are involved in the pathogenesis of PE through oxidative stress and inflammatory endothelial cell injury [23,26,27]. The deposition of lipids within the endothelium leads to heightened atherosclerosis, culminating in the development of abnormally constricted spiral arterioles in PE and subsequent impairment of placental perfusion [22,28]. Numerous studies [29,30] have consistently demonstrated that the pathogenesis of PE is influenced by an autoantibody known as AT1-AA, which specifically targets the angiotensin II type 1 receptor. Prior investigations have shown that LXA4, an endogenous lipid mediator known for its anti-inflammatory and pro-resolution properties, exerts a suppressive effect on the production of AT1-AA through the activation of caspase-1 [31]. This study offers valuable insights into the molecular mechanisms underlying PE, unveiling novel therapeutic targets and identifying potential biomarkers. Additionally, it serves as a reference for future research and highlights the utility of bioinformatics analysis in investigating PE pathologies in humans.
In view of the importance of placental lipid metabolism and immune cell infiltration in the etiology of PE [32,33], this study aimed to investigate PE pathogenesis by identifying the pivotal LMRG-PE module (lipid-metabolism-related genes) and provide insights for future research. Utilizing single-cell RNA sequencing data, five distinct cell types in PE were identified, including monocytes and NK cells, suggesting their potential involvement in PE development. Weighted gene co-expression network analysis (WGCNA) identified two hub genes associated with PE. ROC curve analysis revealed PLA2G7 and PTGS2 as potential biomarkers for PE diagnosis. GSEA and GSVA indicated their associations with lipid metabolism, immune responses, and cellular processes, supporting their roles in PE pathogenesis. This study contributes to understanding the molecular mechanisms of PE and identifies potential diagnostic biomarkers and therapeutic targets.

2. Materials and Methods

2.1. Patients and Sample Collection

Sixteen placental tissue samples were collected from patients with PE and matched healthy control individuals from the Obstetrics and Gynecology Department, Renmin Hospital of Wuhan University (Wuhan, China) between July 2022 and October 2022 (Supplementary Table S1). We followed stringent inclusion criteria when procuring samples from patients with severe pre-eclampsia (Supplementary Figure S6). All collected samples originated from patients diagnosed with early-onset pre-eclampsia with severe complications. The 16 cases obtained represent the maximum sample volume that we could amass within the specified time frame. We enhanced the robustness of our study by employing four sampling points and acquiring multiple samples from disparate locations (Supplementary Figure S7). Informed consent was obtained from each participant prior to the study for the intended use of placental tissue samples. Placental tissues were collected from women undergoing cesarean section in the late stages of pregnancy. The placental specimens were rinsed with sterile PBS and subsequently preserved in liquid nitrogen for further analysis [34]. The collection of human samples was authorized by the Ethical Review Board of Renmin Hospital, Wuhan University (WDRY2021-K177) and conducted in accordance with the principles of the Helsinki Declaration.

2.2. Data Recruitment and Processing

The microarray-based RNA expression data corresponding to GSE48424 were retrieved from the GEO database (https://www.ncbi.nlm.nih.gov/geo/, accessed on 14 June 2023). This consisted of 19 PE patient samples and 19 control samples. The dataset was generated using the GPL6480 ([PrimeView] Affymetrix Human Gene Expression Array) platform. Additionally, the GSE192693 dataset contained single-cell RNA sequencing data from six PE samples and four normal samples based on 10× Genomics. For comprehensive processing of the scRNA-seq data, the following sequential steps were taken. The initial step of the analysis involved preprocessing the scRNA-seq data using the “Seurat” package. This preprocessing encompassed several procedures, including assessing the proportion of mitochondrial genes using the PercentageFeatureSet function and conducting correlation analysis to explore relationships between sequencing depth, mitochondrial gene sequences, and total intracellular sequences [35].
To ensure robust analysis, gene filtering was applied, requiring a minimum expression in at least 5 cells. Furthermore, a stringent selection process was implemented to retain cells that met specific criteria. These criteria encompassed gene expression counts ranging from over 300 to under 5000, mitochondrial content below 10%, and a minimum UMI count of 1000 per cell. Upon completing the data filtering steps, normalization of the scRNA-seq data was carried out using the LogNormalize method, enhancing the accuracy of downstream analysis and interpretation.
For downstream analysis, the top 20 principal components (PCs) were subjected to Seurat’s Elbow plot program. Primary cell clusters were identified using Seurat’s Find Clusters tool with a resolution of 1.2. These clusters were subsequently visualized using two-dimensional t-SNE or UMAP plots. Each cell was classified into a recognized biological cell type using conventional markers established in prior studies. From the MSigDB database [36], we obtained a total of 418 LMRGs.

2.3. Identification of DEGs and Construction of Weighted Gene Co-Expression Networks

The limma package in R was used to identify DEGs with adjusted p < 0.05 and |Log2 fold change| > 1. Heatmaps and volcano plots were generated utilizing the Pheatmap and ggplot2 packages in the data analysis process. The WGCNA package [37] was used to analyze the gene co-expression network of the GSE48424 dataset. The samples were subjected to clustering analysis, and outliers were subsequently removed from the dataset. A scale-free network was built with a soft threshold of β = 2. Module-gene correlations were calculated using WGCNA. Modules highly correlated with PE were selected. A total of 451 PE-related genes were obtained by intersecting DEGs and key module genes. They were cross-referenced with LMRG using “VennDiagram”. Finally, 11 LMRG-PE expression profiles were obtained.

2.4. KEGG and GO Enrichment Analysis

LMRG-PE was functionally annotated using the R package “clusterProfiler” [38], containing Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis. GO terms comprised biological processes (BPs), cellular components (CCs), and molecular functions (MFs) [39] and were utilized for the identification of biological characteristics pertaining to genes and genomes across all organisms. Enrichment pathway analysis using KEGG was performed to identify pathways associated with the studied conditions. A statistically significant threshold was set at an adjusted p < 0.05.

2.5. ROC Curve Analysis and Expression Analysis

Using the GSE48424 dataset, we employed 19 PE samples and 19 control samples to generate receiver operating characteristic (ROC) curves. Using the “pROC” package, a robust tool for assessing the diagnostic performance of genes, the area under the ROC curve (AUC) was computed. Core genes with an AUC > 0.7 were identified as valuable biomarkers for disease diagnosis. Boxplots generated utilizing the R package “ggplot2” were employed to visualize the expression levels of these core genes.

2.6. Correlation Analysis between Core Genes and Infiltrated Immune Cells

Immune infiltration analysis was conducted utilizing the single-sample gene set enrichment analysis (ssGSEA) algorithm. Correlation analysis was conducted using the Spearman method to assess the relationship between essential genes and 28 immune cell types. The results were visually presented. Furthermore, to determine the association between core genes and distinct immune cell populations, correlation analysis was performed.

2.7. Prediction of Networks Mutually Regulated by miRNAs and TFs

The miRNet database [40] was employed to predict the upstream transcription factors (TFs) and miRNAs. The resulting predictions were visualized using Cytoscape software v.3.8.2 (U.S. National Institute of General Medical Sciences (NIGMS), Bethesda, MD, USA).

2.8. Laboratory Measurements

This study involved RNA isolation, followed by quantitative reverse transcription polymerase chain reaction (qRT–PCR) analysis. The results obtained from this study were validated using qRT–PCR after RNA was isolated from human placental tissue. Total RNA extraction was performed using RNAiso Plus (TRIzol) reagent, followed by analysis using a NanoDrop 2000 spectrophotometer. Based on the instructions provided by the manufacturer, the TSK301 reverse-transcription system kit was used for the RT reaction and quantitative real-time PCR. The qRT–PCR analysis employed SYBR Green qRT–PCR Master Mix. (all from Servicebio, Wuhan, China). A primer was designed and synthesized by Wuhan Servicebio Co., Ltd. An amplification procedure of 40 cycles was conducted at 95 °C for 10 s, 60 °C for 30 s, and 60 °C for 30 s of denaturation, annealing, and extension, respectively. To normalize the expression levels of the target genes, GAPDH was utilized as an internal reference. The following is a list of the primer sequences for each signature:
  • PLA2G7: TCAATGACAACTCCTGCAAACTG (sense primer);
  • PLA2G7: TCCTCCTCTTGTTTCAGGGTTCT (antisense primer);
  • PTGS2: GGGTTGCTGGTGGTAGGAATG (sense primer);
  • PTGS2: CATAAAGCGTTTGCGGTACTCAT (antisense primer);
  • GAPDH: GGAAGCTTGTCATCAATGGAAATC (sense primer);
  • GAPDH: TGATGACCCTTTTGGCTCCC (antisense primer).

2.9. Statistics

In this study, all parametric analyses were performed using two-tailed tests, with a significance threshold set at p < 0.05. Statistical analysis was performed using R software v.4.1.3 (R Foundation for Statistical Computing, Vienna, Austria). Unless explicitly mentioned, group comparisons for categorical and continuous variables were respectively assessed using Fisher’s exact test and t-test assuming equal variances. ROC curve analysis and calculation of the AUC values were performed to assess the diagnostic accuracy of gene expression levels in predicting pre-eclampsia. Statistical significance was defined as p < 0.05, unless stated otherwise.

3. Results

3.1. scRNA-Seq Data Preprocessing and PCA

After data filtering, the scRNA sequencing dataset contained a total of 15,311 clean cells. Subsequent processing of the dataset using PCA, Harmony, and t-SNE techniques allowed us to examine the results. Following quality analysis of the PE scRNA-Seq data, we excluded zero low-quality cells. We observed a positive correlation between the number of detected genes and the total number of genes identified through sequencing.
Figure 1A displays a strong association between the number of UMIs and mRNAs, but no correlation was found between the number of UMIs/mRNAs and the content of mitochondrial genes. Violin plots before and after quality assurance are shown in Figure 1B,C. By performing variance analysis on 18,357 genes, we identified the top 2000 genes that exhibited the highest variation. Among them, the top 10 genes were HBB, HBA2, HBA1, IGHV3−66, ALAS2, IGKV3−15, JCHAIN, CA1, STMN1, and MZB1 (Figure 1E).
To estimate the available dimensions, we employed principal component analysis (PCA) and found no significant distinction between PE cells. Although the top 2000 genes underwent PCA dimension reduction, PC_1 and PC_2 did not demonstrate significant discriminatory capability among cells from different PE samples (Figure 1D). The distribution of cells from the pre-eclampsia and control groups is shown in Figure 2A. Finally, we selected 20 principal components (PCs) based on evaluation (p < 0.05) for subsequent analyses (Figure 2B).

3.2. Cell-Type Annotation and Single-Cell Differentiation Trajectory Analysis

Nineteen clusters were assigned to known cell lineages based on marker genes, as reported in a previous study. Cell annotation was performed using the R package “SingleR”, which identified a total of five cell types (Figure 2C). Monocytes were annotated to clusters 1, 3, 4, 5, 6, 7, 11, 14, and 18. NK cells were annotated to clusters 0 and 9. T cells were annotated to clusters 2, 10, 15, 17, and 19. Platelets were annotated to clusters 8 and 12. HSC-G-CSF was annotated to clusters 13 and 16.
Subsequent trajectory analysis was conducted on the annotated cells. To explore the potential relationships between different cell types, we performed pseudotime trajectory analysis. The results revealed that these cells could be divided into three states with a common origin (Figure 2D). Cluster 1 was found at the beginning of the trajectory, while most of the cells were mainly concentrated in states 4 to 15 (Figure 2E).

3.3. Immune Characterization Analysis

To investigate the relative proportion of the 22 immune cell types, the CIBERSORT algorithm was implemented on a dataset comprising 16 PE samples and 16 normal control samples. Additionally, to gain insights into the immune microenvironment of PE, the ssGSEA technique was employed to analyze specific immune cell types within the PE patient cohort (Figure 3A). Furthermore, a visually informative heatmap was generated to depict the ssGSEA estimation of immune cell infiltration (Figure 3B). The levels of activated NK cells and M2 macrophages were significantly elevated (p < 0.05) in the PE group (Figure 3C). Conversely, the abundance of neutrophils was higher in the normal control group. These observations strongly suggest the potential involvement of immune cells in mitigating the incidence rate of PE.

3.4. Identification of DEGs and Construction of Co-Expression Networks

Our investigation yielded a comprehensive set of findings. A total of 186 differentially expressed genes (DEGs) were identified. Of these DEGs, 67 genes were significantly upregulated and 119 genes were significantly downregulated in the PE samples compared with the control samples (Figure 4A). The heatmap displayed in Figure 4B illustrates the top 10 upregulated and downregulated DEGs. The sample clustering tree, as depicted in Figure 5A, indicated the absence of any abnormal samples. Subsequently, through thorough calculations, we determined that the optimal soft-thresholding power was set at 2 (Figure 5B,C). Consequently, a distinct color was assigned to each module in GSE48424, resulting in a total of nine modules. (Figure 5C,D). Furthermore, Figure 5D illustrates the outcomes of the module–feature relationship analysis, indicating a robust correlation between PE and the green module (correlation coefficient = −0.48, p value = 0.04). Consequently, a total of 265 genes belonging to the green module were selected for subsequent investigation and analysis.

3.5. Identification of LMRG-PE and Functional Enrichment Analysis

Then, after taking the intersection of PE-related genes and LMRGs, we obtained 11 LMRG-PEs (Figure 6A). The heatmap shows the expression of 11 candidate genes ordered by adjusted p-value (Figure 6C). To explore the pathways of 11 LMRG-PEs, KEGG analysis was performed. As depicted in Figure 6B, these 11 LMRG-PEs (liver metabolism-related genes associated with pre-eclampsia) are primarily enriched in processes related to primary bile acid biosynthesis, fat digestion and absorption, and arachidonic acid metabolism. GO analysis was conducted to explore the functional characteristics of these 11 LMRG-PEs, with the corresponding GO terms shown in Figure 6D. LMRG-PEs were found to be primarily involved in lipid metabolism and biosynthetic processes. In MF analysis (Figure 6E), LMRG-PE was involved in the activities of lipid transporters, steroid hydroxylase, and transmembrane transporters.

3.6. Expression Analysis of Core Genes at the Single-Cell Level and Bulk RNA-seq Level

In the single-cell expression analysis of the 11 LMRG-PEs, our findings revealed that PTGS2 was enriched in the control group (Supplementary Figure S3). Furthermore, both PTGS2 and PLA2G7 showed enrichment in monocytes. To assess the expression levels of these 11 LMRG-PEs between PE and control samples, we examined the GSE48424 dataset. Interestingly, we observed significantly lower expression levels of two key genes (PLA2G7 and PTGS2) in the PE samples, indicating the most prominent changes (Supplementary Figure S5A).
To evaluate the sensitivity and specificity of PE diagnosis, we performed ROC curve analysis, as illustrated in Supplementary Figure S5B. The diagnostic accuracy of PLA2G7 and PTGS2 in identifying PE was evident from their respective AUC values of 0.836 and 0.735, indicating high sensitivity and specificity.

3.7. Associations of Core Genes with Immune Cells

In this study, Spearman correlation analysis was conducted to investigate the potential association between PLA2G7 and PTGS2 and immune cell infiltration. During the correlation analysis, a positive relationship was observed between PLA2G7 and natural killer T cells, myeloid-derived suppressor cells (MDSCs), effector memory CD8 T cells, and central memory CD4 T cells. Conversely, a negative correlation was found between PLA2G7 and mast cells. (Figure 7A). PTGS2 exhibited a significantly positive correlation with neutrophil cells, mast cells, macrophages, eosinophil cells, central memory CD4 T cells, CD56 bright and CD56 dim natural killer (NK) cells, and activated CD4 T cells (Figure 7A). Specifically, we observed a close association between both PLA2G7 and PTGS2 and the functionalities of mast cells and central memory CD4 T cells.

3.8. GSEA and GSVA of Two Hub Genes

In this study, we conducted an exploration of the functional roles of PLA2G7 and PTGS2 through GSEA. The low-expression cohorts of PLA2G7 were found to be highly enriched in several pathways, including spliceosome, minoacyl-tRNA biosynthesis, olfactory transduction, and drug metabolism–cytochrome P450 pathways, as illustrated in Figure 7B. However, the low-expression cohorts of PTGS2 exhibited significant enrichment in Toll-like receptor signaling, Fc gamma R-mediated phagocytosis, limonene and pinene degradation, maturity onset diabetes of the young (MODY), metabolism of xenobiotics by cytochrome P450, and drug metabolism–cytochrome P450 pathways, as demonstrated in Figure 7C. Notably, both PLA2G7 and PTGS2 were found to be associated with drug metabolism–cytochrome P450 pathways.
Gene set variation analysis (GSVA) was utilized to conduct a comprehensive investigation of the expression levels of these two hub genes in the pathological condition of PE. The results revealed that the downregulation of PTGS2 expression was significantly associated with folate biosynthesis, dorsoventral axis formation, renal cell carcinoma, regulation of autophagy, glycosphingolipid biosynthesis (lacto and neolacto series), pantothenate and coenzyme A (CoA) biosynthesis, and O-glycan biosynthesis pathways. The downregulation of PLA2G7 expression was significantly associated with aminoacyl tRNA biosynthesis as depicted in Figure 7D,E.

3.9. Drug–Gene Networks and Prediction of Key miRNAs and TFs

Potential drugs or molecular compounds that could reverse the downregulation of PLA2G7 and PTGS2 in PE were determined using DGIdb. As shown in the drug–gene interaction network (Figure 8A), darapladib and rilapladib were found to interact with PLA2G7. In addition, sedalate, valdecoxib, and carprofen were found to interact with PTGS2. Utilizing miRNet, we established miRNA and TF regulatory networks pertaining to PLA2G7 and PTGS2. According to Figure 8B, ninety-one and twenty-three miRNAs were predicted to target PTGS2 and PLA2G7, respectively. Specifically, both miR-335-5p and miR-124-3p had the potential to be related not only to PTGS2, but also to PLA2G7. Some target miRNAs of PLA2G7 (e.g., miR-34a-5p, miR-126-3p, miR-27a-3p, miR-342-3p, miR-335-5p and miR-124-3p) and of PTGS2 (e.g., miR-21-3p, mir-155-5p, mir146a-5p, miR-181a-5p, miR-335-5p and miR-124-3p) are involved in lipid metabolism and immunity. We found that 43 TFs, such as JUN, PPARG, FOS, STAT3, and RELA, not only regulate PTGS2, but also participate in regulating lipid metabolism and immunity. No TFs were found to regulate PLA2G7.

3.10. Validation of the mRNA Expression Levels of Hub Genes

Tissue samples were subjected to qPCR analysis to validate the expression levels of PTGS2 and PLA2G7. Our findings from qRT–PCR analysis revealed that normal tissues exhibited significantly higher expression levels of PTGS2 and PLA2G7 than PE tissues. This observation suggests that these genes may function as novel suppressors in the context of PE (Figure 9A). These findings are consistent with the data obtained from the bioinformatics analysis (Supplementary Figure S5A).

4. Discussion

As a hypertensive disorder complicating pregnancy, PE induces fetal growth restriction, preterm birth, abortion, renal function damage, and other common complications [22]. It was reported that lipid metabolism, immune cell infiltration, oxidative stress, and inflammatory endothelial dysfunction played an important role in the pathogenesis of PE [22,26]. The objective of this study was to identify a pivotal LMRG-PE module to elucidate its pathogenesis and offer novel insights for future investigations.
This study employed publicly available databases to utilize single-cell RNA sequencing data to investigate the functional attributes associated with PE. Through dimensionality reduction and cell-type annotation, we identified five distinct cell types in PE. The majority of cells belonged to the monocyte and NK cell populations, suggesting potential involvement of monocyte and NK cells in the pathogenesis of PE. Additionally, we performed pseudotime analysis to visualize the clustering results of the cells along the trajectory of cellular differentiation. Then, we explored the relationship between PE and the immune system, highlighting the potential role of immune cells in reducing PE incidence. To identify markers associated with PE, we conducted differential gene expression analysis and subsequently constructed a weighted gene co-expression network using the WGCNA approach. The green co-expression module was chosen for analysis due to its highest correlation and strongest association with PE among the nine co-expression modules obtained. By combining DEG analysis and WGCNA, we identified common genes associated with PE, which were further narrowed down to 11 LMRG-PEs through intersection with literature-based marker-related genes. Enrichment analysis and PPI network analysis of these 11 genes revealed two significant hub genes, warranting further investigation. The reduced expression of placental lipases, including hormone-sensitive lipase, lipoprotein lipase, and endothelial lipase, may contribute to elevated levels of placental triglycerides in PE [6,41]. Previous studies have indicated that dyslipidemia can lead to elevated oxidative stress, endothelial dysfunction, and increased triglyceride levels as a consequence of diminished activity of lipoprotein lipases [42]. In PE, the occurrence of endothelial damage and lipid accumulation results in the development of atherosclerosis and abnormal narrowing of spiral arterioles [28].
After ROC curve analysis, we found that PLA2G7 and PTGS2 had high sensitivity and specificity in the diagnosis of PE. Thus, these two hub genes with decreased expression in the PE group might be potential biomarkers for predicting and diagnosing PE. Phospholipase A2 group VII (PLA2G7), also known as lipoprotein-associated phospholipase A2 (Lp-PLA2), is the gene encoding the protein platelet-activating factor acetylhydrolase (PAF-AH). This secreted enzyme plays a crucial role in the degradation of PAF into biologically inactive metabolites. Thromboxane production, platelet aggregation, and inflammation are mediated by the involvement of PAF and PAF-like oxidized phospholipids. The findings of this study suggest that the G994T variant of PLA2G7 may be linked to reduced or absent activity of PAF-AH and altered distribution of enzymatic activity across lipoproteins. These alterations have the potential to promote heightened inflammation and oxidative stress, thereby increasing susceptibility to PE [43]. Prostaglandin-endoperoxide synthase 2 (PTGS2), also referred to as cyclooxygenase 2 (COX-2), functions as a pivotal enzyme in prostaglandin biosynthesis and mitogenesis. It has been postulated that COX-2 plays a regulatory role in the invasion of human trophoblast cells [44,45,46]. Multifactorial pregnancy disorders, including impaired placentation characterized by inadequate trophoblast invasion, have the potential to result in PE [47]. Yi et al. [48] discovered that the upregulation of COX-2 expression is facilitated by TGF-β1 through the activation of SMAD2/3-SMAD4 signaling. Moreover, the inhibition of trophoblast cell invasion by TGF-β1 necessitates the induction of COX-2. Prior studies [44] have demonstrated the ability of vitamin D to mitigate the risk of PE by downregulating both COX-2 expression and PGE2 signaling.
According to the GSEA results, the expression of PLA2G7 exhibited significant associations with pathway enrichment in pathways related to spliceosomes [49], minoacyl-tRNA biosynthesis, olfactory transduction, and drug metabolism–cytochrome P450. In addition, the cohorts with low PTGS2 expression demonstrated noteworthy enrichment in immune-related pathways [50], including Toll-like receptor signaling and Fc gamma R-mediated phagocytosis. In GSVA, the downregulation of PTGS2 expression was significantly associated with various pathways [51], including folate biosynthesis, dorsoventral axis formation, renal cell carcinoma, regulation of autophagy, glycosphingolipid biosynthesis (lacto and neolacto series), pantothenate and CoA biosynthesis, and O-glycan biosynthesis. The downregulation of PLA2G7 expression was significantly associated with aminoacyl tRNA biosynthesis [52].
However, there are certain limitations in our study that should be acknowledged. First, we relied exclusively on target data sourced from the GEO public database and employed biological algorithms for analysis, which may introduce inherent limitations and biases. Additionally, while we identified 11 hub genes as potential biomarkers associated with lipid metabolism in PE, it is crucial to conduct larger-scale, multicenter, prospective clinical cohort studies to evaluate the clinical applicability and validity of our findings. Our investigation specifically targeted protein-coding genes; however, emerging evidence suggests that noncoding RNAs, including long noncoding RNAs (lncRNAs) and microRNAs, exert significant influences on the pathogenesis of PE. Therefore, in future research, we will aim to address multiple aspects. First, our study has identified PLA2G7 and PTGS2 as potential diagnostic biomarkers; however, further validation through larger, multicenter, and prospective clinical cohort studies is necessary to establish the clinical applicability and reliability of our findings. Second, there is increasing evidence supporting the significant role of noncoding RNAs, such as long noncoding RNAs (lncRNAs) and microRNAs, in the pathogenesis of PE. Hence, our future research will investigate the involvement of these noncoding RNAs in the development of PE. Third, we plan to explore the role of the immune system in PE development, building on the potential involvement of immune cells, as indicated by our study. Understanding the interplay between immune system components and PE could enhance our comprehension of the pathogenesis of this disorder and may lead to the identification of new targeted therapies. Fourth, to gain further insights into the cellular and molecular mechanisms related to PE, it is essential to conduct additional investigations on the pathways identified by GSEA and GSVA to be associated with the expression of PLA2G7 and PTGS2. By pursuing these future directions, our aim is to contribute to a more comprehensive understanding of PE, improve its diagnosis, and facilitate the development of potential therapeutics for this disorder.

5. Conclusions

In conclusion, our study utilizing single-cell analysis and WGCNA identified the potential involvement of PLA2G7 and PTGS2 in the progression of PE. The identification of these genes presents promising prospects as diagnostic biomarkers and therapeutic targets in the context of PE. To gain a comprehensive understanding of the functional mechanisms of these genes in the pathogenesis of PE, additional prospective and large-scale studies are imperative.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biomedicines11082328/s1, Figure S1: Cluster tree of this analysis and resolution was set as 1.2; Figure S2: The heatmap shows the expression of the top 8 marker genes in PC; Figure S3: Difference analysis of fatty acid metabolism-related genes between the PE and control groups. (A) The differential expression of fatty acid metabolism-related genes between the PE and control groups. (B) The differential expression of PTGS2, PLA2G7, CYP2C8, and CYP4B1. (C) The differential expression of fatty acid metabolism-related genes between the PE and control groups across 20 clusters. (D) The differential expression of fatty acid metabolism-related genes between the PE and control groups across 5 cell types; Figure S4: (A) The violin plot illustrates the expression of fatty acid metabolism-related genes in each cell type. (B) The violin plot illustrates the expression of PTGS2, PLA2G7, CYP2C8, and CYP4B1 in each cell type. (C) The heatmap shows the expression of the top 5 marker genes in different cell clusters; Figure S5: (A) Expression of hub genes (B) ROC of hub genes; Figure S6: Inclusion criteria for sample collection; Figure S7: The location where the sample was taken during sample collection; Table S1: Clinical features of PE and control subjects.

Author Contributions

Y.L. and B.X. conducted the experiment. Y.L. was involved in the data analysis. Y.L. and B.X. prepared figures and table. C.F. designed the study and helped draft the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Ethical Review Board of Renmin Hospital, Wuhan University (WDRY2021-K177) for studies involving humans.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

All data associated with this study are available in the main text or the supplementary materials.

Acknowledgments

The author of this article expresses gratitude for the collaborative efforts and contributions made by all members involved.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. ACOG. Gestational Hypertension and Preeclampsia: ACOG Practice Bulletin Number 202. Obstet. Gynecol. 2019, 133, 1. [Google Scholar] [CrossRef]
  2. Ives, C.W.; Sinkey, R.; Rajapreyar, I.; Tita, A.T.N.; Oparil, S. Preeclampsia-Pathophysiology and Clinical Presentations: JACC State-of-the-Art Review. J. Am. Coll. Cardiol. 2020, 76, 1690–1702. [Google Scholar] [CrossRef] [PubMed]
  3. Gammill, H.S.; Chettier, R.; Brewer, A.; Roberts, J.M.; Shree, R.; Tsigas, E.; Ward, K. Cardiomyopathy and Preeclampsia. Circulation 2018, 138, 2359–2366. [Google Scholar] [CrossRef]
  4. Laissue, P.; Vaiman, D. Exploring the Molecular Aetiology of Preeclampsia by Massive Parallel Sequencing of DNA. Curr. Hypertens. Rep. 2020, 22, 31. [Google Scholar] [CrossRef]
  5. Rana, S.; Burke, S.D.; Karumanchi, S.A. Imbalances in circulating angiogenic factors in the pathophysiology of preeclampsia and related disorders. Am. J. Obstet. Gynecol. 2022, 226, S1019–S1034. [Google Scholar] [CrossRef]
  6. Khaire, A.A.; Thakar, S.R.; Wagh, G.N.; Joshi, S.R. Placental lipid metabolism in preeclampsia. J. Hypertens. 2021, 39, 127–134. [Google Scholar] [CrossRef]
  7. Canfield, J.; Arlier, S.; Mong, E.F.; Lockhart, J.; VanWye, J.; Guzeloglu-Kayisli, O.; Schatz, F.; Magness, R.R.; Lockwood, C.J.; Tsibris, J.C.M.; et al. Decreased LIN28B in preeclampsia impairs human trophoblast differentiation and migration. FASEB J. 2019, 33, 2759–2769. [Google Scholar] [CrossRef] [PubMed]
  8. Brouwers, L.; van der Meiden-van Roest, A.J.; Savelkoul, C.; Vogelvang, T.E.; Lely, A.T.; Franx, A.; van Rijn, B.B. Recurrence of pre-eclampsia and the risk of future hypertension and cardiovascular disease: A systematic review and meta-analysis. BJOG Int. J. Obstet. Gynaecol. 2018, 125, 1642–1654. [Google Scholar] [CrossRef]
  9. Sanapo, L.; Bublitz, M.H.; Bourjeily, G. Sleep Disordered Breathing, a Novel, Modifiable Risk Factor for Hypertensive Disorders of Pregnancy. Curr. Hypertens. Rep. 2020, 22, 28. [Google Scholar] [CrossRef] [PubMed]
  10. Theilen, L.H.; Meeks, H.; Fraser, A.; Esplin, M.S.; Smith, K.R.; Varner, M.W. Long-term mortality risk and life expectancy following recurrent hypertensive disease of pregnancy. Am. J. Obstet. Gynecol. 2018, 219, 107.e1–107.e6. [Google Scholar] [CrossRef] [PubMed]
  11. Dimitriadis, E.; Rolnik, D.L.; Zhou, W.; Estrada-Gutierrez, G.; Koga, K.; Francisco, R.P.V.; Whitehead, C.; Hyett, J.; da Silva Costa, F.; Nicolaides, K.; et al. Pre-eclampsia. Nat. Rev. Dis. Primers 2023, 9, 8. [Google Scholar] [CrossRef] [PubMed]
  12. Melzer, K.; Schutz, Y.; Boulvain, M.; Kayser, B. Physical activity and pregnancy: Cardiovascular adaptations, recommendations and pregnancy outcomes. Sports Med. 2010, 40, 493–507. [Google Scholar] [CrossRef] [PubMed]
  13. Duhig, K.E.; Myers, J.; Seed, P.T.; Sparkes, J.; Lowe, J.; Hunter, R.M.; Shennan, A.H.; Chappell, L.C. Placental growth factor testing to assess women with suspected pre-eclampsia: A multicentre, pragmatic, stepped-wedge cluster-randomised controlled trial. Lancet 2019, 393, 1807–1818. [Google Scholar] [CrossRef] [PubMed]
  14. Burton, G.J.; Redman, C.W.; Roberts, J.M.; Moffett, A. Pre-eclampsia: Pathophysiology and clinical implications. Br. Med. J. 2019, 366, l2381. [Google Scholar] [CrossRef] [PubMed]
  15. ACOG. ACOG Committee Opinion No. 743-Low-Dose Aspirin Use During Pregnancy. Obstet. Gynecol. 2018, 132, e44–e52. [Google Scholar] [CrossRef] [PubMed]
  16. Duley, L.; Henderson-Smart, D.J.; Meher, S.; King, J.F. Antiplatelet agents for preventing pre-eclampsia and its complications. Cochrane Database Syst. Rev. 2007, 10, CD004659. [Google Scholar] [CrossRef] [PubMed]
  17. Rolnik, D.L.; Wright, D.; Poon, L.C.; O’Gorman, N.; Syngelaki, A.; de Paco Matallana, C.; Akolekar, R.; Cicero, S.; Janga, D.; Singh, M.; et al. Aspirin versus Placebo in Pregnancies at High Risk for Preterm Preeclampsia. N. Engl. J. Med. 2017, 377, 613–622. [Google Scholar] [CrossRef]
  18. Zeisler, H.; Llurba, E.; Chantraine, F.; Vatish, M.; Staff, A.C.; Sennström, M.; Olovsson, M.; Brennecke, S.P.; Stepan, H.; Allegranza, D.; et al. Predictive Value of the sFlt-1:PlGF Ratio in Women with Suspected Preeclampsia. N. Engl. J. Med. 2016, 374, 13–22. [Google Scholar] [CrossRef]
  19. Richter, A.E.; Scherjon, S.A.; Dikkers, R.; Bos, A.F.; Kooi, E.M.W. Antenatal Magnesium Sulfate and Preeclampsia Differentially Affect Neonatal Cerebral Oxygenation. Neonatology 2020, 117, 331–340. [Google Scholar] [CrossRef]
  20. ACOG. Gestational Hypertension and Preeclampsia: ACOG Practice Bulletin, Number 222. Obstet. Gynecol. 2020, 135, e237–e260. [Google Scholar] [CrossRef]
  21. Luo, S.; Cao, N.; Tang, Y.; Gu, W. Identification of key microRNAs and genes in preeclampsia by bioinformatics analysis. PLoS ONE 2017, 12, e0178549. [Google Scholar] [CrossRef] [PubMed]
  22. Meng, Y.; Li, C.; Liu, C.X. Immune cell infiltration landscape and immune marker molecular typing in preeclampsia. Bioengineered 2021, 12, 540–554. [Google Scholar] [CrossRef] [PubMed]
  23. Lee, S.M.; Moon, J.Y.; Lim, B.Y.; Kim, S.M.; Park, C.W.; Kim, B.J.; Jun, J.K.; Norwitz, E.R.; Choi, M.H.; Park, J.S. Increased biosynthesis and accumulation of cholesterol in maternal plasma, but not amniotic fluid in pre-eclampsia. Sci. Rep. 2019, 9, 1550. [Google Scholar] [CrossRef] [PubMed]
  24. Girardi, G. Complement activation, a threat to pregnancy. Semin. Immunopathol. 2018, 40, 103–111. [Google Scholar] [CrossRef] [PubMed]
  25. Yang, F.; Zheng, Q.; Jin, L. Dynamic Function and Composition Changes of Immune Cells During Normal and Pathological Pregnancy at the Maternal-Fetal Interface. Front. Immunol. 2019, 10, 2317. [Google Scholar] [CrossRef] [PubMed]
  26. Ding, X.; Yang, Z.; Han, Y.; Yu, H. Correlation of long-chain fatty acid oxidation with oxidative stress and inflammation in pre-eclampsia-like mouse models. Placenta 2015, 36, 1442–1449. [Google Scholar] [CrossRef] [PubMed]
  27. Huang, X.; Jain, A.; Baumann, M.; Korner, M.; Surbek, D.; Butikofer, P.; Albrecht, C. Increased placental phospholipid levels in pre-eclamptic pregnancies. Int. J. Mol. Sci. 2013, 14, 3487–3499. [Google Scholar] [CrossRef]
  28. Nelson, D.B.; Ziadie, M.S.; McIntire, D.D.; Rogers, B.B.; Leveno, K.J. Placental pathology suggesting that preeclampsia is more than one disease. Am. J. Obstet. Gynecol. 2014, 210, 66.e1–66.e7. [Google Scholar] [CrossRef]
  29. Zhang, Q.; Huang, Y.; Zhang, K.; Huang, Y.; Yan, Y.; Wang, F.; Wu, J.; Wang, X.; Xu, Z.; Chen, Y.; et al. Cadmium-induced immune abnormality is a key pathogenic event in human and rat models of preeclampsia. Environ. Pollut. 2016, 218, 770–782. [Google Scholar] [CrossRef]
  30. Zhang, Q.; Huang, Y.; Zhang, K.; Yan, Y.; Wu, J.; Wang, F.; Zhao, Y.; Xu, H.; Jiang, W.; Yu, D.; et al. Progesterone attenuates hypertension and autoantibody levels to the angiotensin II type 1 receptor in response to elevated cadmium during pregnancy. Placenta 2018, 62, 16–24. [Google Scholar] [CrossRef]
  31. Liu, H.; Cheng, F.; Xu, Q.; Huang, W.; Wang, S.; Sun, R.; Ye, D.; Zhang, D. Lipoxin A4 suppresses angiotensin II type 1 receptor autoantibody in preeclampsia via modulating caspase-1. Cell Death Dis. 2020, 11, 78. [Google Scholar] [CrossRef]
  32. Stadler, J.T.; Scharnagl, H.; Wadsack, C.; Marsche, G. Preeclampsia Affects Lipid Metabolism and HDL Function in Mothers and Their Offspring. Antioxidants 2023, 12, 795. [Google Scholar] [CrossRef]
  33. Bu, C.; Wang, Z.; Ren, Y.; Chen, D.; Jiang, S.W. Syncytin-1 nonfusogenic activities modulate inflammation and contribute to preeclampsia pathogenesis. Cell. Mol. Life Sci. 2022, 79, 290. [Google Scholar] [CrossRef] [PubMed]
  34. Pang, H.; Lei, D.; Chen, T.; Liu, Y.; Fan, C. The Enzyme 15-Hydroxyprostaglandin Dehydrogenase Inhibits a Shift to the Mesenchymal Pattern of Trophoblasts and Decidual Stromal Cells Accompanied by Prostaglandin Transporter in Preeclampsia. Int. J. Mol. Sci. 2023, 24, 5111. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, J.; Wen, T.; Li, Q.; Chen, Z.; Peng, X.; Wei, C.; Wei, Y.; Peng, J.; Zhang, W. Single-Cell Sequencing Revealed Pivotal Genes Related to Prognosis of Myocardial Infarction Patients. Comput. Math. Methods Med. 2022, 2022, 6534126. [Google Scholar] [CrossRef] [PubMed]
  36. Li, S.; Shui, K.; Zhang, Y.; Lv, Y.; Deng, W.; Ullah, S.; Zhang, L.; Xue, Y. CGDB: A database of circadian genes in eukaryotes. Nucleic Acids Res. 2017, 45, D397–D403. [Google Scholar] [CrossRef] [PubMed]
  37. Langfelder, P.; Horvath, S. WGCNA: An R package for weighted correlation network analysis. BMC Bioinform. 2008, 9, 559. [Google Scholar] [CrossRef]
  38. Yu, G.; Wang, L.G.; Han, Y.; He, Q.Y. clusterProfiler: An R package for comparing biological themes among gene clusters. Omics 2012, 16, 284–287. [Google Scholar] [CrossRef]
  39. The Gene Ontology Consortium. Expansion of the Gene Ontology knowledgebase and resources. Nucleic Acids Res. 2017, 45, D331–D338. [Google Scholar] [CrossRef]
  40. Fan, Y.; Xia, J. miRNet-Functional Analysis and Visual Exploration of miRNA-Target Interactions in a Network Context. Methods Mol. Biol. 2018, 1819, 215–233. [Google Scholar] [CrossRef]
  41. Barrett, H.L.; Kubala, M.H.; Scholz Romero, K.; Denny, K.J.; Woodruff, T.M.; McIntyre, H.D.; Callaway, L.K.; Dekker Nitert, M. Placental lipase expression in pregnancies complicated by preeclampsia: A case-control study. Reprod. Biol. Endocrinol. 2015, 13, 100. [Google Scholar] [CrossRef] [PubMed]
  42. Hentschke, M.R.; Poli-de-Figueiredo, C.E.; da Costa, B.E.; Kurlak, L.O.; Williams, P.J.; Mistry, H.D. Is the atherosclerotic phenotype of preeclamptic placentas due to altered lipoprotein concentrations and placental lipoprotein receptors? Role of a small-for-gestational-age phenotype. J. Lipid Res. 2013, 54, 2658–2664. [Google Scholar] [CrossRef] [PubMed]
  43. Zhou, M.; Chen, M.; Bai, H.; He, G.L.; Liu, Q.Q.; Guan, L.B.; Liu, X.H.; Fan, P. Association of the G994T and R92H genotypes of platelet-activating factor acetylhydrolase with risk of preeclampsia in Chinese women. Pregnancy Hypertens. 2020, 20, 19–26. [Google Scholar] [CrossRef] [PubMed]
  44. Cao, Y.; Jia, X.; Huang, Y.; Wang, J.; Lu, C.; Yuan, X.; Xu, J.; Zhu, H. Vitamin D stimulates miR-26b-5p to inhibit placental COX-2 expression in preeclampsia. Sci. Rep. 2021, 11, 11168. [Google Scholar] [CrossRef] [PubMed]
  45. Voutetakis, A.; Pervanidou, P.; Kanaka-Gantenbein, C. Aspirin for the Prevention of Preeclampsia and Potential Consequences for Fetal Brain Development. JAMA Pediatr. 2019, 173, 619–620. [Google Scholar] [CrossRef]
  46. Szczuko, M.; Kikut, J.; Komorniak, N.; Bilicki, J.; Celewicz, Z.; Ziętek, M. The Role of Arachidonic and Linoleic Acid Derivatives in Pathological Pregnancies and the Human Reproduction Process. Int. J. Mol. Sci. 2020, 21, 9628. [Google Scholar] [CrossRef] [PubMed]
  47. Steegers, E.A.P.; von Dadelszen, P.; Duvekot, J.J.; Pijnenborg, R. Pre-eclampsia. Lancet 2010, 376, 631–644. [Google Scholar] [CrossRef]
  48. Yi, Y.; Cheng, J.C.; Klausen, C.; Leung, P.C.K. TGF-beta1 inhibits human trophoblast cell invasion by upregulating cyclooxygenase-2. Placenta 2018, 68, 44–51. [Google Scholar] [CrossRef]
  49. Deng, M.; Yin, Y.; Zhang, Q.; Zhou, X.; Hou, G. Identification of Inflammation-Related Biomarker Lp-PLA2 for Patients with COPD by Comprehensive Analysis. Front. Immunol. 2021, 12, 670971. [Google Scholar] [CrossRef]
  50. Tu, B.; Fang, R.; Zhu, Z.; Chen, G.; Peng, C.; Ning, R. Comprehensive analysis of arachidonic acid metabolism-related genes in diagnosis and synovial immune in osteoarthritis: Based on bulk and single-cell RNA sequencing data. Inflamm. Res. 2023, 72, 955–970. [Google Scholar] [CrossRef]
  51. Feng, X.; Meng, X.; Guo, S.; Li, K.; Wang, L.; Ai, J. Identification of key genes and immune cell infiltration in recurrent implantation failure: A study based on integrated analysis of multiple microarray studies. Am. J. Reprod. Immunol. 2022, 88, e13607. [Google Scholar] [CrossRef]
  52. Han, Y.; Lee, S.; Lee, J.H.; Yoo, H.J. Potential Mechanisms of Improved Activity of Natural Killer Cells Induced by the Consumption of F-MRP for 8 weeks. Mol. Nutr. Food Res. 2021, 65, e2100337. [Google Scholar] [CrossRef] [PubMed]

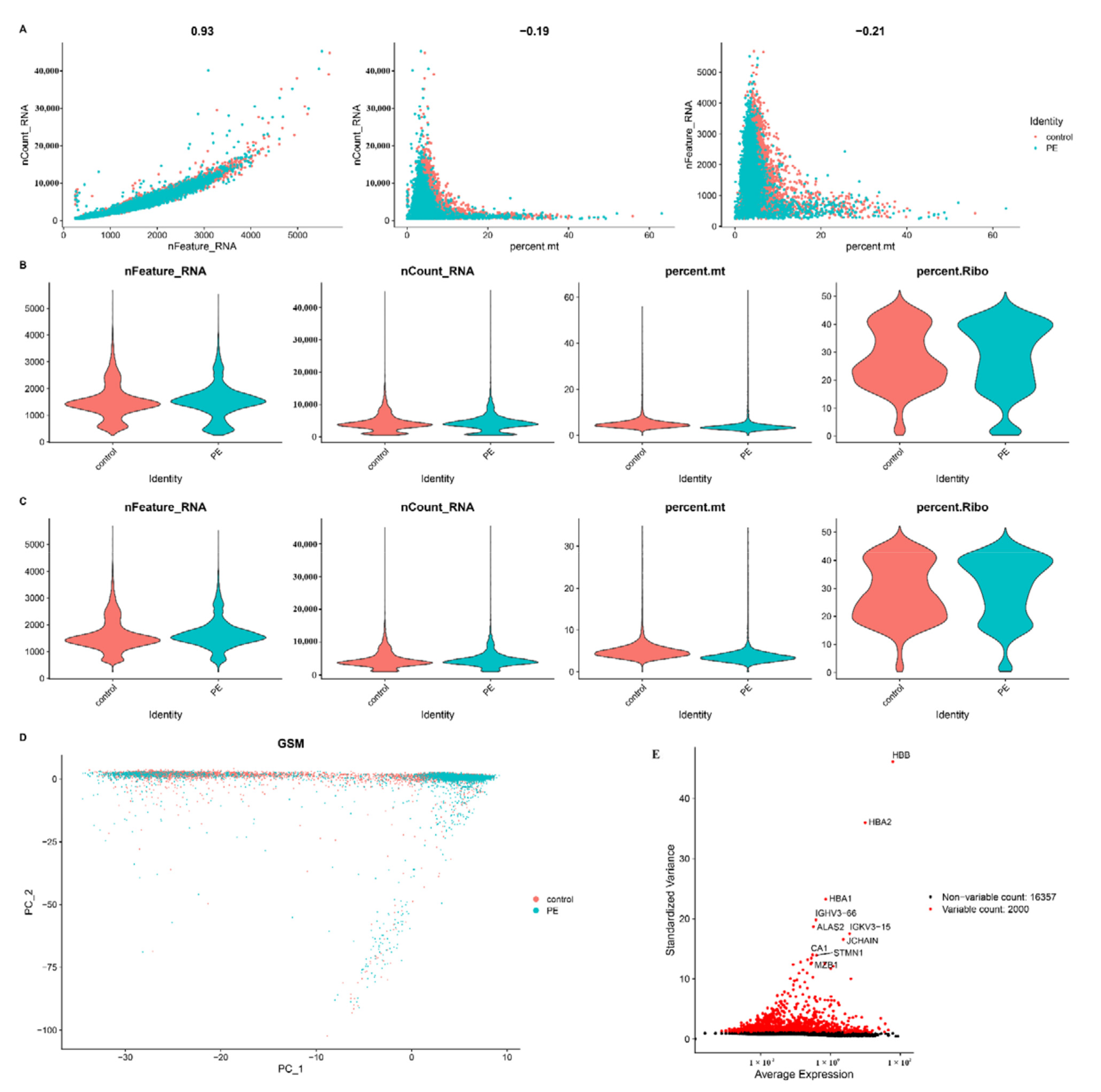

Figure 1. Single-cell sequencing analysis of PE and control samples. (A) Analysis of the correlation between nFeature and nCount, percent.mt and nCount, and percent.mt and nFeature. (B) Violin plots illustrating the RNA characteristic number (nFeature RNA) and absolute UMI count (nCount RNA) before quality control screening of cells. (C) The figure displays the total count number of each cell after quality analysis. (D) PCA plot. (E) Red dots represent the top 2000 high-variation genes obtained through variance analysis.
Figure 1. Single-cell sequencing analysis of PE and control samples. (A) Analysis of the correlation between nFeature and nCount, percent.mt and nCount, and percent.mt and nFeature. (B) Violin plots illustrating the RNA characteristic number (nFeature RNA) and absolute UMI count (nCount RNA) before quality control screening of cells. (C) The figure displays the total count number of each cell after quality analysis. (D) PCA plot. (E) Red dots represent the top 2000 high-variation genes obtained through variance analysis.
Biomedicines 11 02328 g001

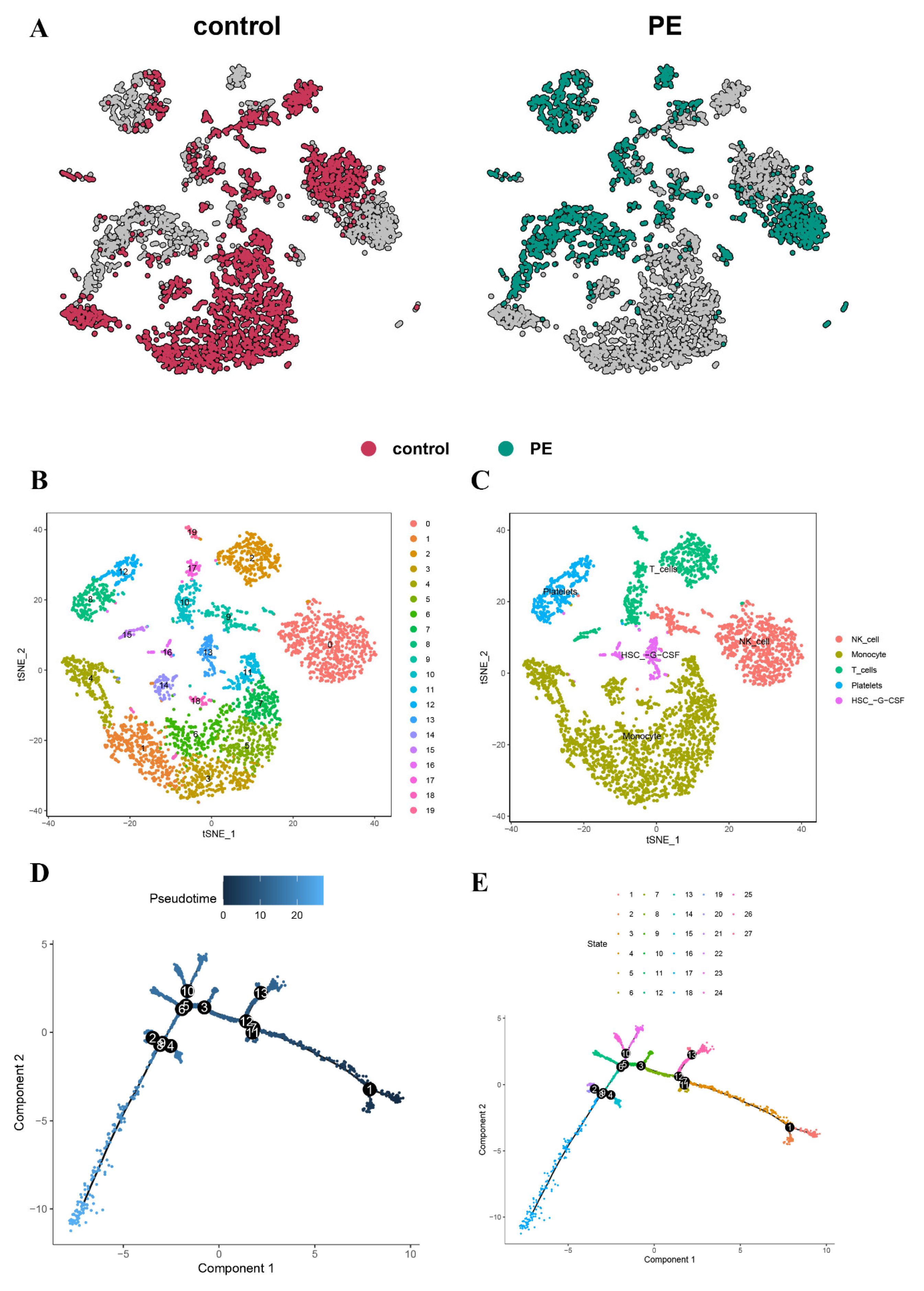

Figure 2. (A) The t-SNE plots represent tumor and normal cells in PE and normal samples, distinguished by different colors. (B) The t-SNE plot is colored according to various cell types. (C) Cell types are identified based on marker genes, enabling the reconstruction of the developmental relationship of trophoblast cells using pseudotime analysis. (D) The biaxial scatter plot visualizes the developmental trajectory of trophoblastic cells, with dark colors indicating early development. (E) The distribution of trophoblast states along the trajectory is illustrated.
Figure 2. (A) The t-SNE plots represent tumor and normal cells in PE and normal samples, distinguished by different colors. (B) The t-SNE plot is colored according to various cell types. (C) Cell types are identified based on marker genes, enabling the reconstruction of the developmental relationship of trophoblast cells using pseudotime analysis. (D) The biaxial scatter plot visualizes the developmental trajectory of trophoblastic cells, with dark colors indicating early development. (E) The distribution of trophoblast states along the trajectory is illustrated.
Biomedicines 11 02328 g002

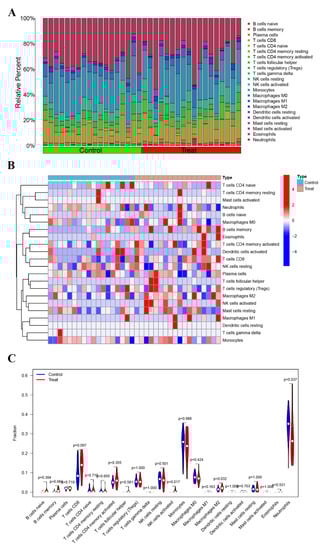

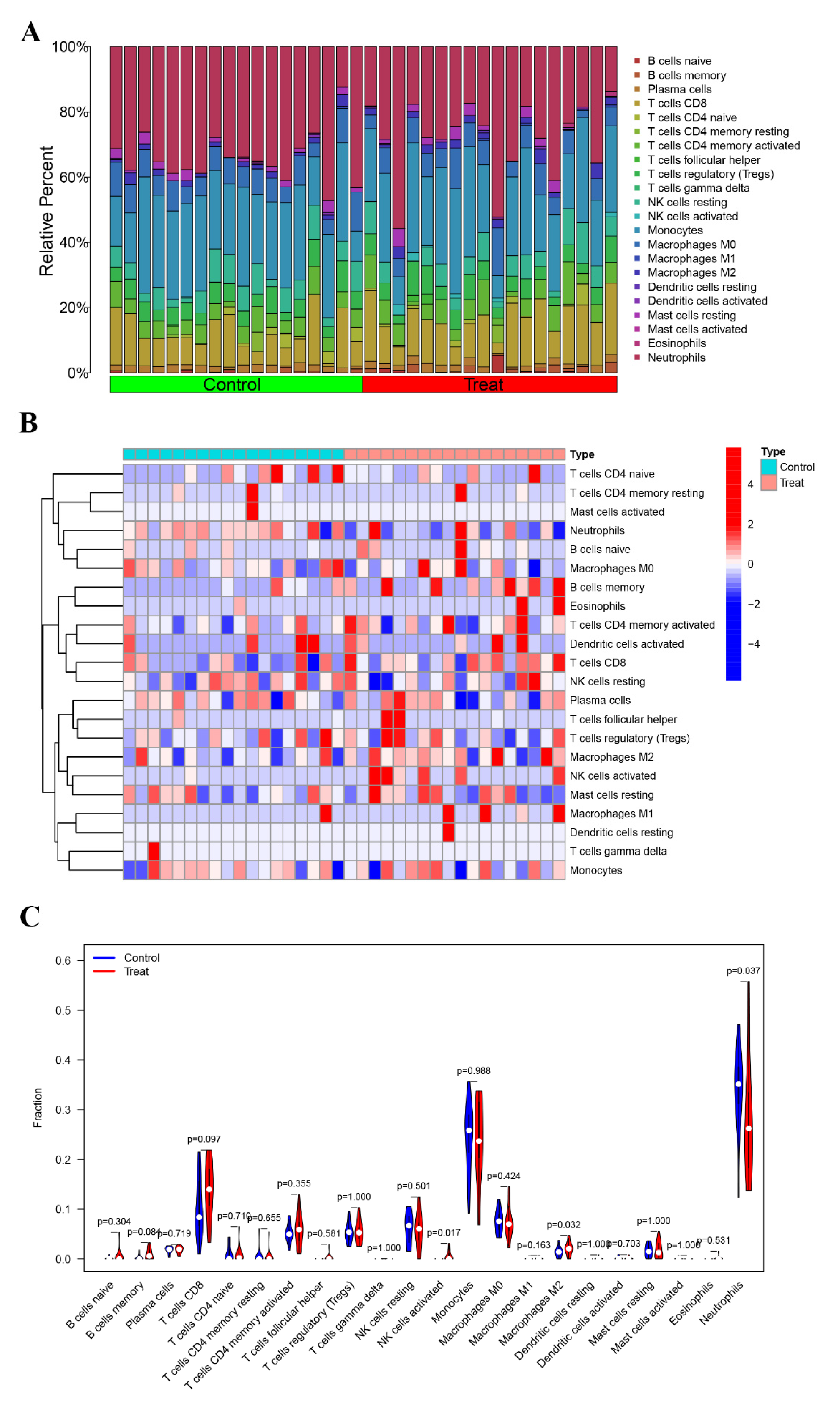

Figure 3. Immune infiltration analysis. (A) The bar plot visualizes the relative percentages of 22 immune cell types in each sample. Different colors represent distinct immune cell types. (B) Heatmap depicting the identification of differentially infiltrating immune cells. (C) The violin plot illustrates the differences in proportions of these immune cells between the control (Con) group and the PE group. The PE group is represented in red, and the Con group is represented in blue. A p-value < 0.05 indicates statistical significance.
Figure 3. Immune infiltration analysis. (A) The bar plot visualizes the relative percentages of 22 immune cell types in each sample. Different colors represent distinct immune cell types. (B) Heatmap depicting the identification of differentially infiltrating immune cells. (C) The violin plot illustrates the differences in proportions of these immune cells between the control (Con) group and the PE group. The PE group is represented in red, and the Con group is represented in blue. A p-value < 0.05 indicates statistical significance.
Biomedicines 11 02328 g003

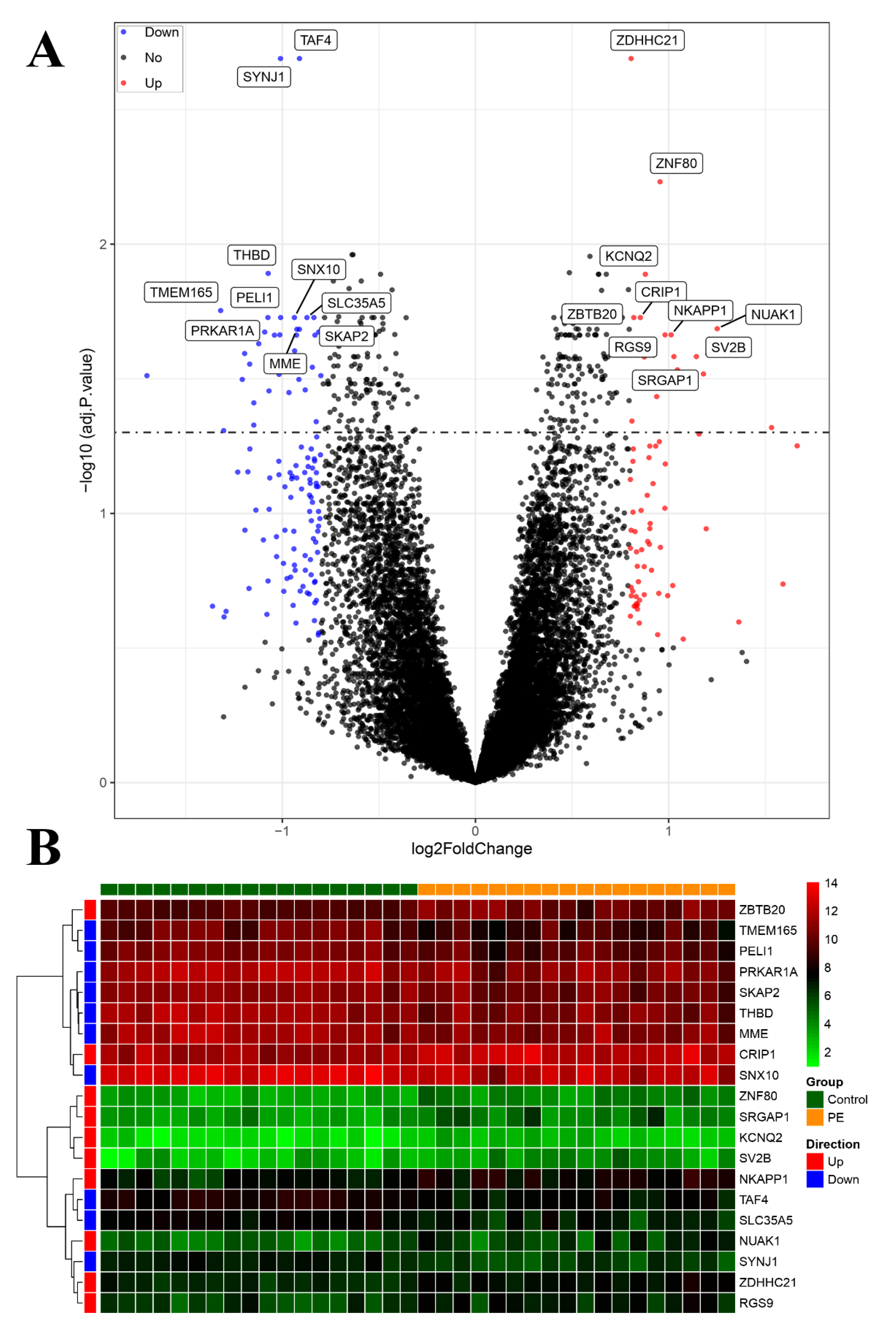

Figure 4. Visualization of differentially expressed genes (DEGs). (A) The volcano plot presents the DEGs identified based on the threshold (adjusted p-value < 0.05 and |logFC| > 1). (B) The heatmap displays the expression of the top 10 upregulated and downregulated genes, ordered by adjusted p-value.
Figure 4. Visualization of differentially expressed genes (DEGs). (A) The volcano plot presents the DEGs identified based on the threshold (adjusted p-value < 0.05 and |logFC| > 1). (B) The heatmap displays the expression of the top 10 upregulated and downregulated genes, ordered by adjusted p-value.
Biomedicines 11 02328 g004

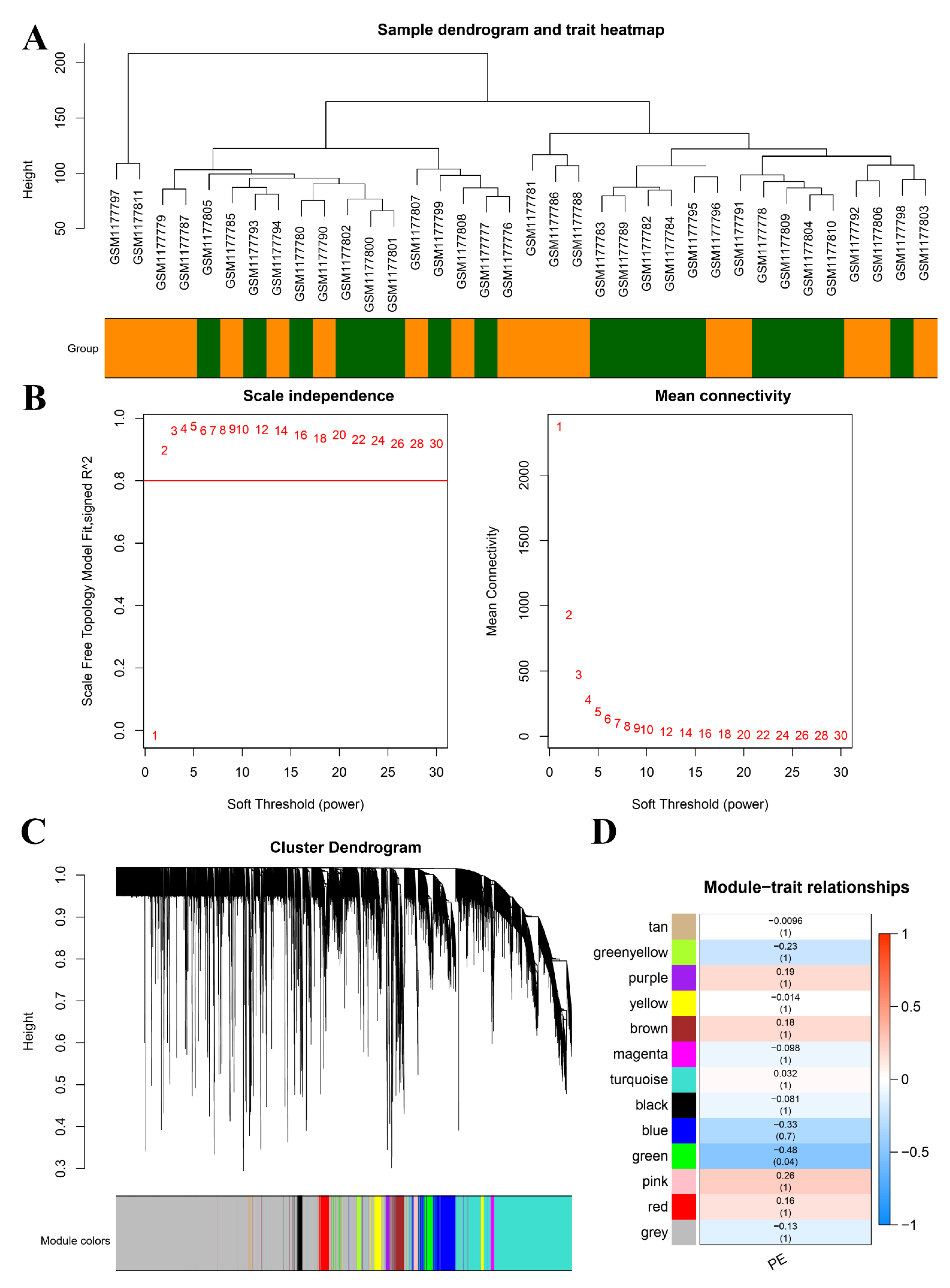

Figure 5. Construction of WGCNA co-expression modules and selection of hub modules. (A) Dendrogram of module eigengenes and heatmap of eigengene network. (B) Scale-free fit index for soft-thresholding powers. Left: relationship between soft-threshold and scale-free R2. Right: relationship between soft-threshold and mean connectivity. (C) Dendrogram of differentially expressed genes (DEGs) clustered in the training dataset. (D) Heatmap displaying the correlation between module eigengenes and pre-eclampsia (PE).
Figure 5. Construction of WGCNA co-expression modules and selection of hub modules. (A) Dendrogram of module eigengenes and heatmap of eigengene network. (B) Scale-free fit index for soft-thresholding powers. Left: relationship between soft-threshold and scale-free R2. Right: relationship between soft-threshold and mean connectivity. (C) Dendrogram of differentially expressed genes (DEGs) clustered in the training dataset. (D) Heatmap displaying the correlation between module eigengenes and pre-eclampsia (PE).
Biomedicines 11 02328 g005

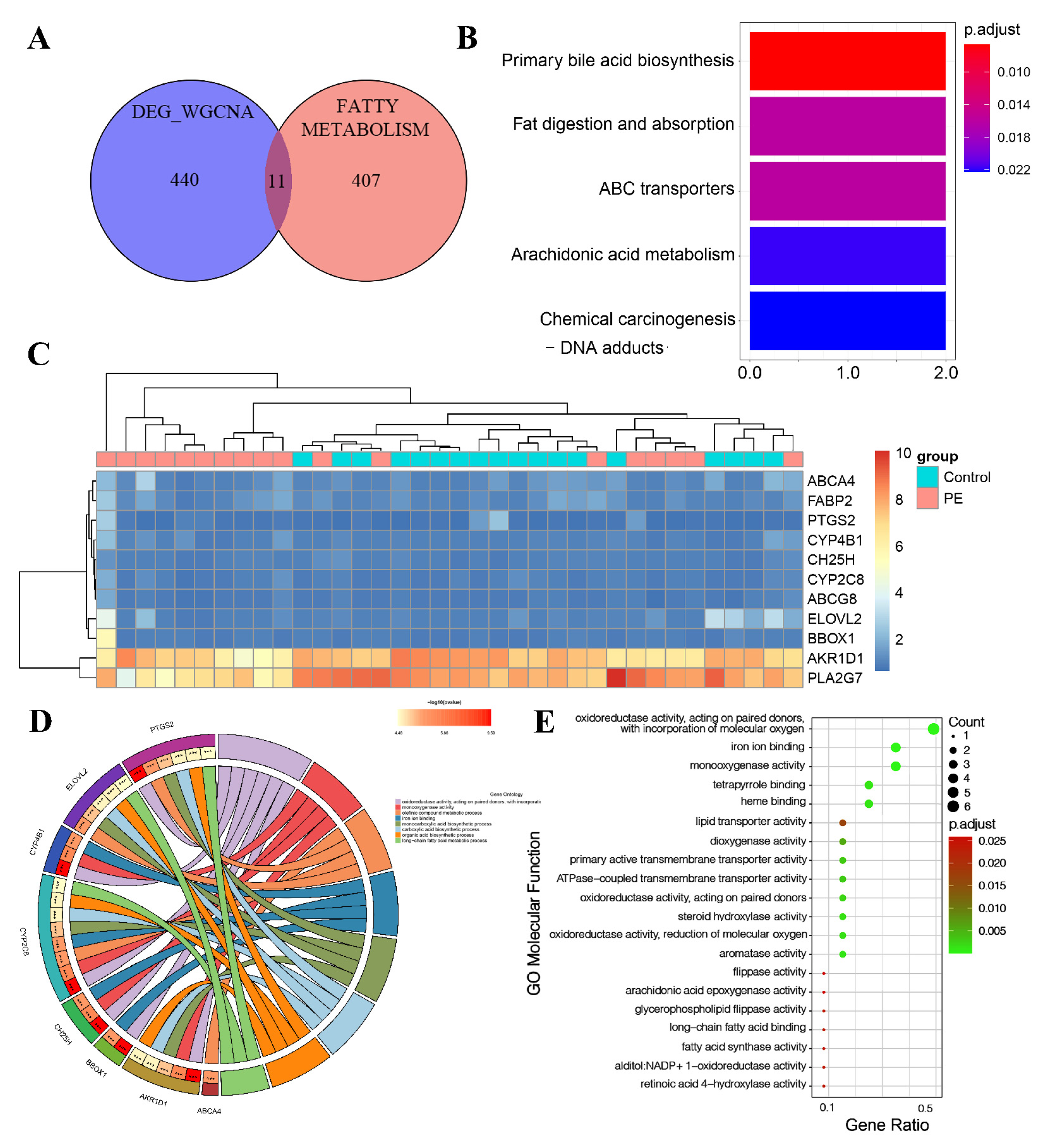

Figure 6. Screening of hub genes and candidate gene enrichment analysis. (A) Venn diagram illustrating the overlap of hub genes in the pre-eclampsia (PE)-related co-expression genes and LMRG (largest module of the weighted gene co-expression network analysis). (B) Heatmap displaying the expression of 11 candidate genes, ordered by adjusted p-value. (C) KEGG pathway analysis of the 11 candidate genes. (D) Gene Ontology enrichment analysis of the eleven hub genes in biological processes. (E) Gene Ontology enrichment analysis of the 11 hub genes in molecular functions. The color gradient from green to red represents the increasing significance of enrichment. The size of the dot represents the number of different genes included in the corresponding pathway.
Figure 6. Screening of hub genes and candidate gene enrichment analysis. (A) Venn diagram illustrating the overlap of hub genes in the pre-eclampsia (PE)-related co-expression genes and LMRG (largest module of the weighted gene co-expression network analysis). (B) Heatmap displaying the expression of 11 candidate genes, ordered by adjusted p-value. (C) KEGG pathway analysis of the 11 candidate genes. (D) Gene Ontology enrichment analysis of the eleven hub genes in biological processes. (E) Gene Ontology enrichment analysis of the 11 hub genes in molecular functions. The color gradient from green to red represents the increasing significance of enrichment. The size of the dot represents the number of different genes included in the corresponding pathway.
Biomedicines 11 02328 g006

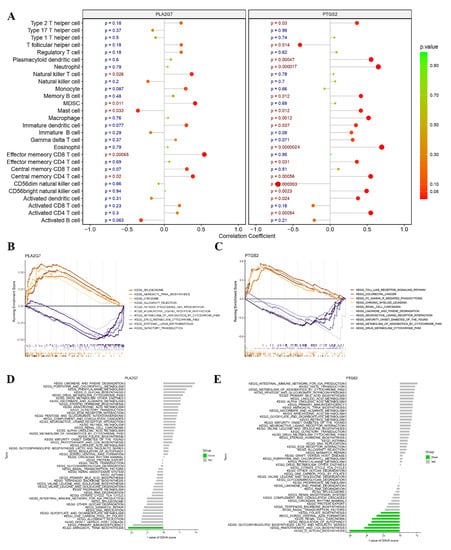

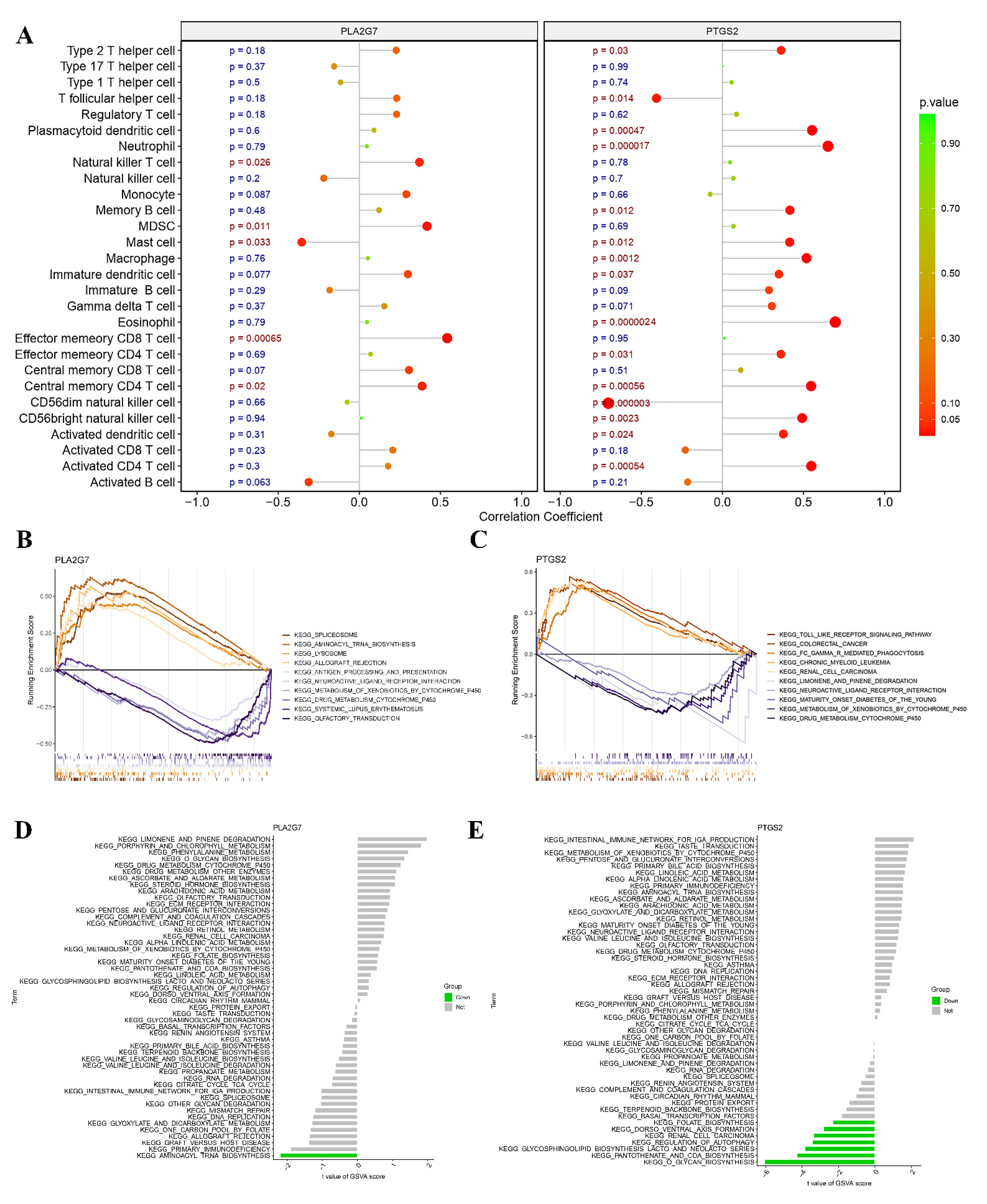

Figure 7. Relationship between the two hub genes and immune infiltration, gene set enrichment Analysis (GSEA), and targeted drugs. (A) Associations between immune cell infiltration and the two hub genes. (B,C) Top 5 pathways (based on GSEA enrichment score) enriched in the high-expression group and the low-expression group of PLA2G7 (B) and PTGS2 (C). (D,E) Gene set variation analysis (GSVA) of the two hub genes, PLA2G7 and PTGS2, in pre-eclampsia (PE).
Figure 7. Relationship between the two hub genes and immune infiltration, gene set enrichment Analysis (GSEA), and targeted drugs. (A) Associations between immune cell infiltration and the two hub genes. (B,C) Top 5 pathways (based on GSEA enrichment score) enriched in the high-expression group and the low-expression group of PLA2G7 (B) and PTGS2 (C). (D,E) Gene set variation analysis (GSVA) of the two hub genes, PLA2G7 and PTGS2, in pre-eclampsia (PE).
Biomedicines 11 02328 g007

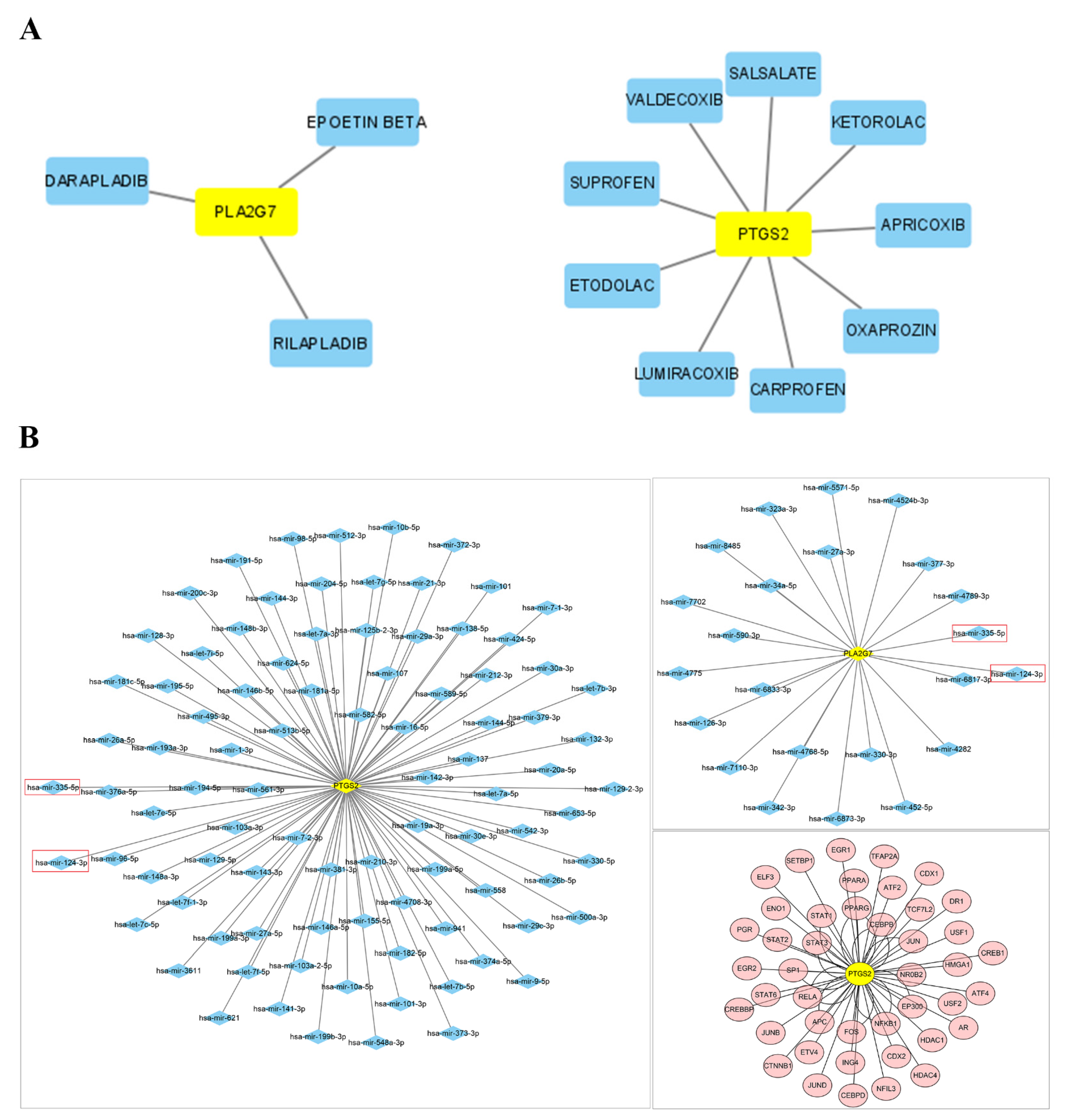

Figure 8. Network construction. (A) Drug–gene interaction network retrieved from the DGIdb database. Yellow nodes represent genes, and blue nodes represent drugs. (B) The networks of target gene–miRNA and target gene–TF. The red nodes are the TFs, the yellow nodes are the genes, and the blue nodes are the miRNAs. Red box highlights the emphasis on the potential association of miR-335-5p and miR-124-3p with both PTGS2 and PLA2G7.
Figure 8. Network construction. (A) Drug–gene interaction network retrieved from the DGIdb database. Yellow nodes represent genes, and blue nodes represent drugs. (B) The networks of target gene–miRNA and target gene–TF. The red nodes are the TFs, the yellow nodes are the genes, and the blue nodes are the miRNAs. Red box highlights the emphasis on the potential association of miR-335-5p and miR-124-3p with both PTGS2 and PLA2G7.
Biomedicines 11 02328 g008

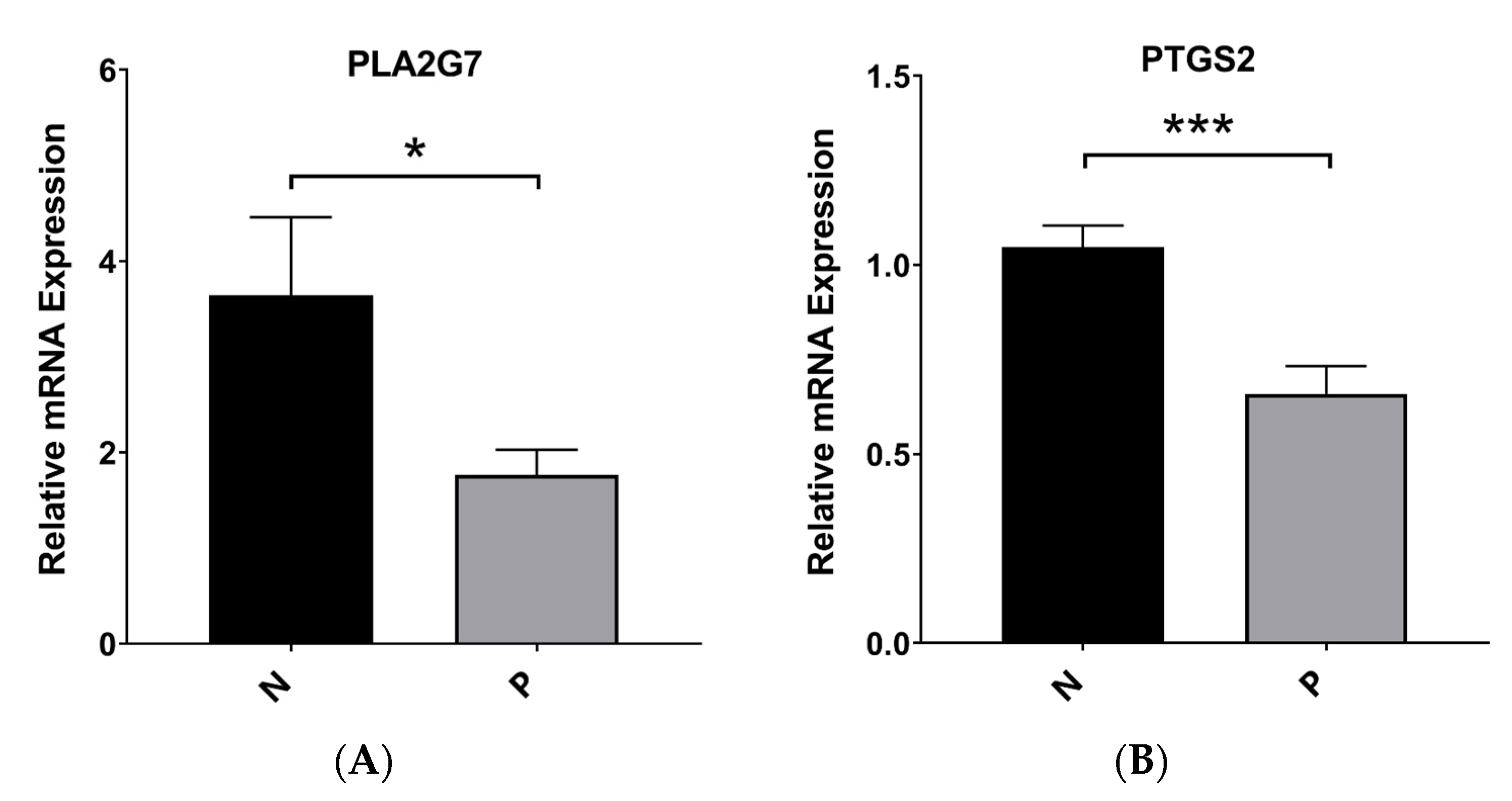

Figure 9. Robust experiment. (A) The mRNA expression of PLA2G7 in PE and normal samples. (B) The mRNA expression of PTGS2 in PE and normal samples. * p < 0.05 and *** p < 0.001.
Figure 9. Robust experiment. (A) The mRNA expression of PLA2G7 in PE and normal samples. (B) The mRNA expression of PTGS2 in PE and normal samples. * p < 0.05 and *** p < 0.001.
Biomedicines 11 02328 g009
