Impact of Shunt Placement on CSF Dynamics

by
Cyrille Capel
1,2,*,
Kimi Owashi
2,3,
Serge Metanbou
4,
Johann Peltier
1,2 and
Olivier Balédent
2,3
1
Department of Neurosurgery, Hospital University Center of Amiens-Picardie, 80054 Amiens, France
2
CHIMERE UR UPJV 7516, Jules Verne University, 80000 Amiens, France
3
Image Processing Department, Hospital University Center of Amiens-Picardie, 80054 Amiens, France
4
Radiology Department, Hospital University Center of Amiens-Picardie, 80054 Amiens, France
*
Author to whom correspondence should be addressed.
Biomedicines 2024, 12(1), 20; https://doi.org/10.3390/biomedicines12010020 (registering DOI)
Submission received: 29 November 2023 / Revised: 11 December 2023 / Accepted: 17 December 2023 / Published: 20 December 2023
(This article belongs to the Section Neurobiology and Clinical Neuroscience)
Browse Figures
Versions Notes

Abstract

:
Background: CSF dynamics are disturbed in chronic hydrocephalus (NPH). We hypothesise that these alterations reflect a disturbance of intracranial compliance. The aim of our study is to investigate the variations in intracranial hydrodynamics in NPH after ventricular shunt surgery. Patients and method: We included 14 patients with definite NPH. All patients improved after ventriculoperitoneal shunting. The patients underwent an analysis of intracranial haemodynamics by phase-contrast MRI (pcMRI) preoperatively, at 6 months postoperatively, and at 1 year postoperatively. We analysed the dynamics of intraventricular CSF at the level of the aqueduct of Sylvius (SVAQU) and CSF at the level of the high cervical subarachnoid spaces (SVCERV). We calculated the ratio between SVAQU and SVCERV, called CSFRATIO, which reflects the participation of intraventricular pulsatility in overall intracranial CSF pulsatility. Results: SVAQU significantly (p = 0.003) decreased from 240 ± 114 μL/cc to 214 ± 157 μL/cc 6 months after shunt placement. Six months after shunt placement, SVCERV significantly (p = 0.007) decreased from 627 ± 229 μL/cc to 557 ± 234 μL/cc. Twelve months after shunt placement, SVCERV continued to significantly (p = 0.001) decrease to 496 ± 234 μL/cc. CSFRATIO was not changed by surgery. Conclusions: CSF dynamics are altered by shunt placement and might be a useful marker of the shunt’s effectiveness—especially if pressure values start to rise again. The detection of changes in CSF dynamics would require a reference postoperative pcMRI measurement for each patient.

1. Introduction

A preoperative diagnosis of normal-pressure hydrocephalus (NPH) can be a challenge for clinicians. Various clinical scoring systems have been set up for the selection of patients requiring shunt placement and for objective postsurgical follow-up [1,2,3,4]. NPH is treated via the surgical placement of a ventricular shunt; the diagnosis is then made retrospectively, on the basis of the shunt’s effectiveness [1,5]. Various methods for the preoperative diagnosis of NPH have been developed: morphological MRI, clinical response after a cerebrospinal fluid (CSF) tap test, neuropsychological assessments, and analyses of intracranial pressure (ICP) during infusion. The latter technique provides information on the barometric properties of the craniospinal system. Phase-contrast MRI (pcMRI) enables the non-invasive analysis of craniospinal haemodynamics and CSF dynamics during the cardiac cycle (cc).
After shunt placement, there are hydrodynamic changes in terms of ICP analysis during infusion tests [6]. ICP exhibits pulsatility during the cc, which is a result of craniospinal haemodynamic and hydrodynamic interactions [7,8]. This aspect can be analysed non-invasively using pcMRI [9].
Under normal conditions, pulsatile CSF flows are driven by cerebral blood inflows and outflows. Arterial blood inflow varies throughout the cc, with a systolic arterial peak and a diastolic trough [8]. Venous blood outflow is less pulsatile, and peak systolic flow is lower and later than peak arterial blood inflow [8]. The lack of synchronisation between blood inflow and blood outflow results in changes in intracranial blood volume during the cc. The CSF moves to the spinal subarachnoid spaces through the foramen magnum during systole and returns to the intracranial compartment during diastole [8,9,10,11]. This CSF volume moves back and forth and so is referred to as the cervical stroke volume (SVCERV). SVCERV measured in the subarachnoid space is about 450 μL per cc [8]. Aqueductal CSF SV (SVAQU) corresponds to the volume of CSF displaced into the aqueduct of Sylvius during a single cc and is around 10 times smaller than SVCERV. pcMRI is the only quantitative, non-invasive tool for the investigation of neurofluid dynamics during the cc.
Patients with NPH present with CSF flow disorders, including intraventricular CSF hyperpulsatility [12,13,14,15,16]. SVAQU increases as NPH progresses [16]. However, no evidence of cervical CSF flow disorders has been found in patients with hydrocephalus [12]. In healthy individuals, intracranial CSF compliance is mainly due to CSF subarachnoid pulsations [8,17]. In people with NPH, intraventricular CSF pulsatility has a major role in intracranial compliance and in intracranial pressure damping during vascular expansion [12]. Some researchers have found that neither SVCERV nor SVAQU is correlated with ventricular volume [18]. Nevertheless, this point is subject to debate [19,20].
The value of pcMRI for the diagnosis of chronic hydrocephalus is also subject to debate. In the 1990s, it was suggested that SVAQU was a diagnostic marker for NPH [21,22,23]. Nevertheless, this notion was intensely debated in the 2000s and 2010s [14,24]. At present, SVAQU is not considered to be a diagnostic marker. CSF dynamics are closely related to cerebral haemodynamics. An overall analysis of craniospinal haemodynamics and hydrodynamics (i.e., neurofluid interactions) is therefore necessary [12,17,25].
As mentioned above, NPH is treated via shunt placement [26]. In a pcMRI analysis, Scollato et al. demonstrated that SVAQU decreases after shunt placement [27] in patients with clinical improvement and also in those without—although the decrease was greater in the former. Ringstad et al. reached a similar conclusion [19]. Other pcMRI studies have assessed postsurgery changes in CSF flow within the aqueduct but did not measure the SV [28]. To the best of our knowledge, postsurgery changes in overall, intraventricular, and subarachnoid CSF dynamics in people with NPH have not previously been studied. Hence, the objective of the present study was to compare CSF dynamics before and after shunt placement.

2. Materials and Methods

2.1. Patients

We retrospectively included patients with a diagnosis of NPH, as confirmed by clinical improvement after the ventriculoperitoneal placement of a flow-regulated shunt (OSVII, Integra Lifesciences®, Sophia-Antipolis, France). Clinical status was evaluated on the idiopathic NPH grading scale [4] before shunt placement and 6 months after shunt placement. We analysed gait disorders, the living situation, and urinary continence. An improvement was defined as an increase in the iNPH score of 10% or more.
All the patients underwent pcMRI before shunt placement and then 6 and 12 months after shunt placement. Patients with no improvements on the iNPH scale were excluded.

2.2. pcMRI Acquisition

In our diagnostic work-up, we added pcMRI sequences to conventional morphological sequences. Brain MRI was performed on a 3T machine (Philips Achieva: maximum gradient: 80 mT/m; rate of gradient increase: 120 mT m−1 ms−1) with the following imaging parameters: repetition time (TR): as low as possible, depending on the heart rate; echo time (TE) as minimum; field-of-view: 140 cm; matrix: 256 × 256; and slice thickness: 5 mm. Cardiac gating was achieved via a plethysmograph positioned on the finger. A total of 32 ccs were retrospectively reconstructed, and a single mean value was produced. We quantified CSF oscillations through the mesencephalic aqueduct and through the spinal subarachnoid spaces at the C2C3 intervertebral disc (Figure 1). For the examinations 6 and 12 months after shunt placement, the slice plane’s position was adjusted to match that used before shunt placement. The use of CSF dynamics within the aqueduct is common in the literature. Moreover, this location enables the analysis of intraventricular CSF dynamics, which do not behave in the same way as subarachnoid CSF. Analysis of the CSF at the level of the high cervical spine is the result of the overall dynamics of intracranial and intraventricular CSF. It bears witness to intracranial strain. Some authors have suggested that it is the mobile compliance of the craniospinal system that regulates intracranial pressure. We therefore proposed an analysis of these 2 regions.
The velocity encoding parameter (VENC) was adjusted so that it was as close as possible to the fluid’s expected maximum velocity. For CSF flow, we selected a value of 5 cm/s for the neck and a value of 10 cm/sec at the aqueduct. If only few pixels required aliasing, we applied an automatic aliasing correction algorithm during postprocessing [7]. If many pixels required aliasing, the pcMRI acquisition was repeated with twice the previous VENC. The acquisition lasted for 2 min.

2.3. Data Analysis

pcMRI acquisition data were analysed using in-house software (Flow 2.0—March 2021). The aqueduct and spinal subarachnoid areas were detected automatically by a dedicated segmentation algorithm [7].
CSF segmentation involved the creation of a new parametric image and then the application of a threshold to the new image. Firstly, to speed up the data processing steps, we quickly drew a rectangular region of interest (ROI) around the CSF spaces to be segmented. This ROI was then applied to the 32 timeframes of pcMRI phases, where the intensity of each phase pixel represents the velocity of the voxel. We produced a new parametric image by applying a fast Fourier transform to the time-domain matrix. The intensity of each pixel in the parametric image corresponds to the fundamental frequency of the person’s heart rate. Pixel intensity in the new image is higher for voxels exhibiting cardiac periodicity (such as the CSF) than for voxels which are not synchronised with the heart rate. We next extracted all the pixels with a velocity above a visually selected threshold; by choosing the right threshold value, we were able to identify tissue with a smaller fundamental component than CSF pulses (which have a large fundamental component). We have described this algorithm’s reproducibility and accuracy elsewhere [8].
The CSF flow dynamic curve was calculated and reconstructed with 32 points in order to represent typical CSF flow during the cc. To correct for eddy currents and calibrate the velocity, we selected a background area located close to our ROI. The software (Flow 2.0—March 2021) automatically calculated the CSF SVs in mL per cc [11].
Lastly, we defined the CSF SV ratio as SVAQU × 100/SVCERV; this corresponds to the intraventricular CSF’s contribution to the movement of the intracranial subarachnoid CSF into spinal subarachnoid spaces through the foramen magnum.

2.4. Statistical Analysis

We used paired Wilcoxon’s tests to compare SVs before and after shunting. We also applied Student’s t-test, after checking that the data were normally distributed. The threshold for statistical significance was set to p < 0.05 in all cases.

2.5. IRB/Ethics

The study protocol was approved by the local independent ethics committee (CPP Nord Ouest II, Amiens, France; reference: PI2023_843_0065). In line with French legislation on retrospective observational studies of clinical practice, patient consent was not required.

3. Results

Sixteen patients were included prospectively. However, two patients were lost to follow-up and so were excluded. Hence, 14 patients with confirmed NPH (mean ± standard deviation (SD) age: 71.6 ± 8.84; range: 52.2–86.5) were included in the final analysis.

3.1. CSF Dynamics before Shunting

Mean SVAQU was 240 ± 114 μL/cc (Table 1), mean SVCERV was 627 ± 229 μL/cc, and the CSF SV ratio was 40 ± 20%.

3.2. CSF Dynamics Evolution after Shunt Placement

Six months after shunt placement, mean SVAQU had decreased significantly (p = 0.03 in Wilcoxon’s test; p = 0.04 in Student’s t-test) from 240 ± 114 μL/cc to 214 ± 157 μL/cc. Twelve months after shunt placement, SVAQU continued to decrease significantly (p = 0.03 in Wilcoxon’s test; p = 0.03 in Student’s t-test) to 193 ± 145 μL/cc. In two patients, SVAQU increased. (Figure 2). The mean ± SD (range) percentage change in SVAQU was −20.34% ± 23.87 (+26.14%–−59.55%) at 6 months and −25.85% ± 29.26 (+32.30%–−62.82%) at 12 months.
Six months after shunt placement, mean SVCERV had decreased significantly (p = 0.008 in Wilcoxon’s test; p = 0.02 in Student’s t-test) from 627 ± 229 μL/cc to 557 ± 234 μL/cc. Twelve months after shunt placement, SVCERV continue to decrease significantly (p = 0.005 in Wilcoxon’s test; p = 0.003 in Student’s t-test) to 496 ± 234 μL/cc (Figure 3). In two patients, SVCERV increased. The mean ± SD (range) percentage change in SVCERV was +19.91% ± 22.61 (+23.02%–−55.47%) at 6 months and 29.46% ± 27.08 (max: +17.98%–−77.05%) at 12 months.
Mean CSFRATIO did not change significantly after shunt placement (Figure 4), with a value of 40 ± 20% before surgery, 40 ± 27% 6 months after surgery (p = 0.94 in Wilcoxon’s test;; p = 0.724 in Student’s t-test), and 42 ± 32% 12 months after surgery (p = 0.42 in Wilcoxon’s test; p = 0.2 in Student’s t-test).
All results are summarised in Table 1.

4. Discussion

Our analysis of CSF dynamics before and after shunt placement revealed early and late changes—mainly in the cervical subarachnoid spaces.

4.1. Preoperative Intraventricular CSF Dynamics (Aqueductal Stroke Volume)

In line with the literature data, we observed intraventricular CSF hyperpulsatility in our patient population: in an earlier study, we found mean SVAQU values of 196 ± 100 μL/cc in people with NPH and 51 ± 25 μL/cc in a control group [12]. Bradley [29] has suggested that intraventricular pulsatility is linked to centripetal strain during vascular expansion, which increases intraventricular CSF flushing to the subarachnoid spaces during systole. Of course, the decrease in ICP during diastole (due to cerebral venous aspiration by the heart) prompts the ventricles to fill with CSF.
Measurements of ICP during an infusion test showed an increase in resistance to CSF outflow (Rout) in NPH [30,31]. Rout reflects the resistance to CSF flow from the production sites to the resorption sites. Impaired CSF flow within the intracranial subarachnoid spaces can lead to impaired compliance and an increase in Rout. This can be compensated for by the pulsatility of intraventricular CSF. This observation indicates that intraventricular hyperpulsatility results from low CSF pulsatility in the intracranial subarachnoid spaces, which balances vascular blood expansion during the cc: an equivalent volume of intracranial CSF must flow into the spinal canal. Under normal conditions, 90% of this CSF volume arrives rapidly from the intracranial subarachnoid spaces, while only a very small proportion of ventricular CSF flows into the spinal canal.
As mentioned above, our results confirmed that SVAQU is abnormally high in people with NPH. This might be due to greater CSF flow resistance in the intracranial arachnoid spaces, which would limit the free flow of CSF into this compartment. Alternatively, ICP tissue compression might be redistributed during vascular systolic expansion, with a shift from a centrifugal flow to a centripetal flow in the ventricles. Consequently, the intraventricular CSF contributes to intracranial compliance.

4.2. Preoperative Global CSF Dynamics (Aqueductal and Cervical Stroke Volumes)

It has been reported that CSF pulsatility in the cervical subarachnoid spaces is slightly higher (by 30%) in healthy young adults than in healthy older adults [32]. Likewise, CSFRATIO is slightly higher in healthy young adults than in healthy older adults [32]. CSFRATIO reflects the contribution of intraventricular CSF flow to cervical CSF flow and to overall intracranial mobile compliance. According to the literature, CSFRATIO is around 10% in healthy adults and around 50% in adults with NPH [12]. With each cc and the associated variations in intracranial vascular volume, the CSF oscillates between the intracranial and spinal subarachnoid spaces. This phenomenon (i.e., mobile compliance) compensates for variations in intracranial volume [9]. Mobile compliance can be measured as the cervical CSF SV using pcMRI. Cervical CSF pulsation reflects overall intracranial compliance. Cervical CSF SV results from the pulsatility of the intracranial subarachnoid and intraventricular CSF flows. CSFRATIO represents the contribution of intraventricular CSF pulsatility to these overall dynamics and thus to mobile compliance. In people with NPH, intraventricular CSF and subarachnoid CSF contribute equally to compensate for vascular expansion. In a control population, subarachnoid CSF contributes predominantly to this process. This observation suggests that resistance to CSF flow into the intracranial subarachnoid spaces increases (e.g., due to the presence of the arachnoid membrane).

4.3. Impact of Shunt Placement on Intraventricular CSF Dynamics

Six months after shunt placement, we observed a very small but statistically significant decrease (relative to measurements before surgery) in SVAQU. This finding is consistent with the literature data [19,27]. Scollato et al. [27] observed that SVAQU decreased to near-normal values (i.e., by almost 100%) after shunt placement. In our study, the mean decreases were around 20% at 6 months and around 25% at 12 months. The decrease might be influenced by the type of shunt used. Scollato et al.’s study population had pressure-regulated shunts, whereas our population had flow-regulated shunts. Ringstad et al. reported a 32% decrease in SVAQU 12 months after surgery, and the decrease was greater for flow-regulated shunts than for pressure-regulating shunts [19].
A pressure-regulating shunt operates when the ICP exceeds the opening pressure. This opening is temporary and may not even occur in cases of low-pressure hydrocephalus. Flow-regulating shunts provide an alternative drainage pathway, which leads to continuous depletion and an increase in overall intracranial compliance over a longer timescale (i.e., beyond the cc). On the timescale of the cc, flow-regulating shunts maintain a fixed flow rate within a physiological pressure range. A pressure-regulated shunt may operate intermittently during a cc, resulting in ICP variations. As a result, a pressure-regulated shunt can allow variable compliance over a cc and can dampen intraventricular CSF dynamics more consistently than a flow-regulated shunt. Indeed, in a pressure-regulated shunt, flow is a direct function of the position (Trendelenburg or reverse Trendelenburg) as well as the pressure gradient upstream and downstream of the shunt.
We observed small but significant decreases in SVAQU 6 and 12 months after shunt placement. Scollato et al. observed decreases of up to 18% in the first month after shunt placement [27]. Some of Scollato et al.’s patients showed an increase in SVAQU after shunt placement, even though all experienced a clinical improvement. In the case of pressure-regulated shunts, this observation was thought to reflect an excessively high opening pressure setting [27]. In our study, all the implanted shunts were flow-regulated. Conceptually, however, shunts are palliative treatments for conditions whose underlying physiological mechanisms are not known. Therefore, shunts can produce clinical improvements without necessarily addressing the underlying hydrodynamics, and their effectiveness can vary from one patient to another as a function of the aetiology of NPH. The exact cause of idiopathic NPH is not known. At the Hydrocephalus 2023 congress, many experts suggested that the terminology of NPH should be revised to match our evolving physiological knowledge [33]. At present, there is no consensus on the aetiology of impairments in CSF pulsatility [12,19,25,32]. Furthermore, the physiology of CSF is complex and multifaceted; each new investigation reveals inter-individual differences, making it difficult to establish a consensus. Analyses of the overall haemodynamics and hydrodynamics of people with NPH reveal various impairments, such as vascular changes [34] and disruptions in spinal [12], intraventricular [12,13,14], and subarachnoid flows. Compliance of the craniospinal system might be impaired at various sites, with differences between individuals. All these variations contribute to a single nosological entity: NPH.

4.4. Impact of Shunt Placement on Cervical CSF Dynamics

We observed a slight decrease in cervical CSF dynamics (SVCERV) after surgery, which suggests a reduction in intracranial strain. Cervical subarachnoid CSF is influenced by intracranial strain during the cc, due to vascular expansion. During a cc, vascular volume varies because the arterial blood input is not immediately compensated for by the venous blood output. The intracranial space is limited, and the CSF serves as a mobile compliance mechanism for vascular volume changes by flushing through the foramen magnum. SVCERV corresponds to a combination of CSF pulsations in the intracranial subarachnoid space and in the intraventricular area. A decrease in SVAQU is consistent with a reduction in SVCERV. However, SVCERV appears to decrease over a long period.

4.5. Impact of Shunt Placement on Global Hydrodynamics

CSFRATIO did not change significantly after shunt placement. This ratio reflects intraventricular CSF’s compensation for vascular expansion. Vascular expansion relies on mobile compliance provided by the CSF in both the intracranial subarachnoid spaces and the intraventricular compartment. In control individuals, CSFRATIO is approximately 10%. In people with NPH, 40% to 50% of the CSF flowing through cervical subarachnoid spaces originates in the intraventricular compartment [12]. This phenomenon may be linked to changes in intracranial subarachnoid space flow [12] or (as suggested by Bradley [29]) centripetal strain within the cranium.
ICP monitoring during infusion studies has revealed an increase in resistance to CSF outflow from production sites to resorption sites [30,35,36,37]. After shunt placement, ICP and resistance to CSF outflow decrease, whereas the compensatory reserve increases; these signs indicate an improvement in CSF circulation and in resorption capacity [6]. ICP monitoring and infusion studies provide information on CSF dynamics and pressure-volume adaptations after surgery [6]. The ICP exhibits pulsatility during the cc. This pulsatility is a result of craniospinal haemodynamic and hydrodynamic interactions [7,8]. This aspect can be analysed non-invasively using pcMRI [9]. Some authors propose a non-invasive measurement of ICP based on measurements of the CSF and blood flows during a cardiac cycle from pcMRI [7]. This has not been validated by comparative studies between invasive and non-invasive measurements in a patient population.

4.6. Perspectives

Our study opens up a new field of exploration of chronic hydrocephalus, both physiologically and clinically. Indeed, from a physiological point of view, this study shows that shunt surgery for chronic hydrocephalus leads to clinical improvement, but the effect on the physiology of CSF flows is not constant. In some cases, there is a decrease in intraventricular or subarachnoid CSF pulsatility without returning close to the norms defined in control populations. Nonetheless, there is a change in CSF dynamics that needs to be considered. It may therefore be advisable to perform MRI with phase-contrast sequences to obtain a reference hydrodynamic balance. A change in baseline hydrodynamics could be a non-invasive marker of shunt dysfunction.

5. Conclusions

CSF dynamics are altered by shunt placement and might be a useful marker of the shunt’s effectiveness—especially if pressure values start to rise again. The detection of changes in CSF dynamics would require a reference postoperative pcMRI measurement for each patient.

Author Contributions

Conceptualisation, C.C. and O.B.; methodology, J.P. and C.C.; software, O.B.; validation, C.C., K.O., S.M. and O.B.; formal analysis, C.C. and K.O.; investigation, C.C., K.O., O.B. and J.P.; resources, C.C. and O.B.; data curation, O.B.; writing—original draft preparation, C.C.; writing—review and editing, C.C., O.B. and J.P.; visualisation C.C., S.M., K.O., J.P. and O.B.; supervision, O.B. and J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

CPP Nord Ouest II, Amiens, France; reference: PI2023_843_0065.

Informed Consent Statement

Not applicable. Retrospective analysis on clinical practice.

Data Availability Statement

Data are available up to 9 months after acceptance of the ethical agreement from the 6 April 2023.

Acknowledgments

To Faire Faces Institut for the research equipment (FIGURES ANR-10-EQUIPEX-1; France 2030).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anile, C.; De Bonis, P.; Albanese, A.; Di Chirico, A.; Mangiola, A.; Petrella, G.; Santini, P. Selection of patients with idiopathic normal-pressure hydrocephalus for shunt placement: A single-institution experience. J. Neurosurg. 2010, 113, 64–73. [Google Scholar] [CrossRef]
  2. Larsson, A.; Wikkelsö, C.; Bilting, M.; Stephensen, H. Clinical parameters in 74 consecutive patients shunt operated for normal pressure hydrocephalus. Acta Neurol. Scand. 1991, 84, 475–482. [Google Scholar] [CrossRef]
  3. Stein, S.C.; Langfitt, T.W. Normal-pressure hydrocephalus. Predicting the results of cerebrospinal fluid shunting. J. Neurosurg. 1974, 41, 463–470. [Google Scholar] [CrossRef]
  4. Hellström, P.; Klinge, P.; Tans, J.; Wikkelsø, C. A new scale for assessment of severity and outcome in iNPH. Acta Neurol. Scand. 2012, 126, 229–237. [Google Scholar] [CrossRef] [PubMed]
  5. Klinge, P.; Marmarou, A.; Bergsneider, M.; Relkin, N.; Black, P.M. Outcome of shunting in idiopathic normal-pressure hydrocephalus and the value of outcome assessment in shunted patients. Neurosurgery 2005, 57 (Suppl. S5), S40–S52. [Google Scholar] [CrossRef] [PubMed]
  6. Petrella, G.; Czosnyka, M.; Keong, N.; Pickard, J.D.; Czosnyka, Z. How does CSF dynamics change after shunting? Acta Neurol. Scand. 2008, 118, 182–188. [Google Scholar] [CrossRef] [PubMed]
  7. Alperin, N.J.; Lee, S.H.; Loth, F.; Raksin, P.B.; Lichtor, T. MR-Intracranial Pressure (ICP): A method to measure intracranial elastance and pressure noninvasively by means of MR imaging: Baboon and human Study. Radiology 2000, 217, 877–885. [Google Scholar] [CrossRef] [PubMed]
  8. Balédent, O.; Henry-Feugeas, M.C.; Idy-Peretti, I. Cerebrospinal fluid dynamics and relation with blood flow: A magnetic resonance study with semiautomated cerebrospinal fluid segmentation. Investig. Radiol. 2001, 36, 368–377. [Google Scholar] [CrossRef] [PubMed]
  9. Greitz, D.; Wirestam, R.; Franck, A.; Nordell, B.; Thomsen, C.; Ståhlberg, F. Pulsatile brain movement and associated hydrodynamics studied by magnetic resonance phase imaging. The Monro-Kellie doctrine revisited. Neuroradiology 1992, 34, 370–380. [Google Scholar] [CrossRef]
  10. Bhadelia, R.A.; Bogdan, A.R.; Kaplan, R.F.; Wolpert, S.M. Cerebrospinal fluid pulsation amplitude and its quantitative relationship to cerebral blood flow pulsations: A phase-contrast MR flow imaging study. Neuroradiology 1997, 39, 258–264. [Google Scholar] [CrossRef]
  11. Enzmann, D.R.; Pelc, N.J. Cerebrospinal fluid flow measured by phase-contrast cine MR. Am. J. Neuroradiol. 1993, 14, 1301–1307; discussion 1309–1310. [Google Scholar] [PubMed]
  12. Balédent, O.; Gondry-Jouet, C.; Meyer, M.-E.; De Marco, G.; Le Gars, D.; Henry-Feugeas, M.-C.; Idy-Peretti, I. Relationship between cerebrospinal fluid and blood dynamics in healthy volunteers and patients with communicating hydrocephalus. Investig. Radiol. 2004, 39, 45–55. [Google Scholar] [CrossRef] [PubMed]
  13. Bradley, W.G.; Scalzo, D.; Queralt, J.; Nitz, W.N.; Atkinson, D.J.; Wong, P. Normal-pressure hydrocephalus: Evaluation with cerebrospinal fluid flow measurements at MR imaging. Radiology 1996, 198, 523–529. [Google Scholar] [CrossRef] [PubMed]
  14. Dixon, G.R.; Friedman, J.A.; Luetmer, P.H.; Quast, L.M.; McClelland, R.L.; Petersen, R.C.; Maher, C.O.; Ebersold, M.J. Use of cerebrospinal fluid flow rates measured by phase-contrast MR to predict outcome of ventriculoperitoneal shunting for idiopathic normal-pressure hydrocephalus. Mayo Clin. Proc. 2002, 77, 509–514. [Google Scholar] [CrossRef] [PubMed]
  15. Choi, J.-U.; Huh, R.; Yun, P.-H.; Kim, D.-I. Quantitative assessment of cerebrospinal fluid hydrodynamics using a phase-contrast cine MR image in hydrocephalus. Child’s Nerv. Syst. 1999, 15, 461–467. [Google Scholar] [CrossRef]
  16. Scollato, A.; Tenenbaum, R.; Bahl, G.; Celerini, M.; Salani, B.; Di Lorenzo, N. Changes in aqueductal CSF stroke volume and progression of symptoms in patients with unshunted idiopathic normal pressure hydrocephalus. Am. J. Neuroradiol. 2008, 29, 192–197. [Google Scholar] [CrossRef]
  17. Capel, C.; Owashi, K.; Peltier, J.; Balédent, O. Hydrodynamic and Hemodynamic Interactions in Chronic Hydrocephalus. Biomedicines 2023, 11, 2931. [Google Scholar] [CrossRef]
  18. Bader, C.; Cyrille, C.; Jadwiga, Z.; Joel, D.; Fichten, A.; Catherine, G.-J.; Roger, B.; Olivier, B. Estimation of the Lateral Ventricles Volumes from a 2D Image and Its Relationship with Cerebrospinal Fluid Flow. BioMed Res. Int. 2013, 2013, 215989. [Google Scholar] [CrossRef]
  19. Ringstad, G.; Emblem, K.; Geier, O.; Alperin, N.; Eide, P. Aqueductal Stroke Volume: Comparisons with Intracranial Pressure Scores in Idiopathic Normal Pressure Hydrocephalus. Am. J. Neuroradiol. 2015, 36, 1623–1630. [Google Scholar] [CrossRef]
  20. Chiang, W.W.B.; Takoudis, C.G.; Lee, S.H.; Weis-McNulty, A.; Glick, R.; Alperin, N. Relationship between ventricular morphology and aqueductal cerebrospinal fluid flow in healthy and communicating hydrocephalus. Investig. Radiol. 2009, 44, 192–199. [Google Scholar] [CrossRef]
  21. Bradley, W.G. Cerebrospinal Fluid Dynamics and Shunt Responsiveness in Patients with Normal-Pressure Hydrocephalus. Mayo Clin. Proc. 2002, 77, 507–508. [Google Scholar] [CrossRef]
  22. Greitz, D. Radiological assessment of hydrocephalus: New theories and implications for therapy. Neurosurg. Rev. 2004, 27, 145–165; discussion 166–167. [Google Scholar] [CrossRef] [PubMed]
  23. Luetmer, P.H.; Huston, J.; Friedman, J.A.; Dixon, G.R.; Petersen, R.C.; Jack, C.R.; McClelland, R.L.; Ebersold, M.J. Measurement of cerebrospinal fluid flow at the cerebral aqueduct by use of phase-contrast magnetic resonance imaging: Technique validation and utility in diagnosing idiopathic normal pressure hydrocephalus. Neurosurgery 2002, 50, 534–543; discussion 543–544. [Google Scholar] [PubMed]
  24. Kahlon, B.; Annertz, M.; Ståhlberg, F.; Rehncrona, S. Is aqueductal stroke volume, measured with cine phase-contrast magnetic resonance imaging scans useful in predicting outcome of shunt surgery in suspected normal pressure hydrocephalus? Neurosurgery 2007, 60, 124–130. [Google Scholar] [CrossRef] [PubMed]
  25. Bateman, G.A. Toward a better understanding of normal pressure hydrocephalus. Am. J. Neuroradiol. 2001, 22, 596. [Google Scholar]
  26. Hill, M.E.; Lougheed, W.M.; Barnett, H.J. A treatable form of dementia due to normal-pressure, communicating hydrocephalus. Can. Med. Assoc. J. 1967, 97, 1309–1320. [Google Scholar] [PubMed]
  27. Scollato, A.; Gallina, P.; Gautam, B.; Pellicanò, G.; Cavallini, C.; Tenenbaum, R.; Di Lorenzo, N. Changes in aqueductal CSF stroke volume in shunted patients with idiopathic normal-pressure hydrocephalus. Am. J. Neuroradiol. 2009, 30, 1580–1586. [Google Scholar] [CrossRef]
  28. Egeler-Peerdeman, S.M.; Barkhof, F.; Walchenbach, R.; Valk, J. Cine phase-contrast MR imaging in normal pressure hydrocephalus patients: Relation to surgical outcome. Acta Neurochir. Suppl. 1998, 71, 340–342. [Google Scholar]
  29. Bradley, W.G. MR prediction of shunt response in NPH: CSF morphology versus physiology. Am. J. Neuroradiol. 1998, 19, 1285–1286. [Google Scholar]
  30. Boon, A.J.W.; Tans, J.T.J.; Delwel, E.J.; Egeler-Peerdeman, S.M.; Hanlo, P.W.; Wurzer, H.A.L.; Avezaat, C.J.J.; de Jong, D.A.; Gooskens, R.H.J.M.; Hermans, J. Dutch Normal-Pressure Hydrocephalus Study: Prediction of outcome after shunting by resistance to outflow of cerebrospinal fluid. J. Neurosurg. 1997, 87, 687–693. [Google Scholar] [CrossRef]
  31. Malm, J.; Kristensen, B.; Karlsson, T.; Fagerlund, M.; Elfverson, J.; Ekstedt, J. The predictive value of cerebrospinal fluid dynamic tests in patients with the idiopathic adult hydrocephalus syndrome. Arch. Neurol. 1995, 52, 783–789. [Google Scholar] [CrossRef] [PubMed]
  32. Lokossou, A.; Metanbou, S.; Gondry-Jouet, C.; Balédent, O. Extracranial versus intracranial hydro-hemodynamics during aging: A PC-MRI pilot cross-sectional study. Fluids Barriers CNS 2020, 17, 1. [Google Scholar] [CrossRef] [PubMed]
  33. Tipton, P.W.; Elder, B.D.; Cogswell, P.M.; Graff-Radford, N. Normal pressure hydrocephalus, or Hakim syndrome: Review and update. Neurol. Neurochir. Pol. 2023. [Google Scholar] [CrossRef] [PubMed]
  34. Bateman, G.A. Vascular Compliance in Normal Pressure Hydrocephalus. Am. J. Neuroradiol. 2000, 21, 1574–1585. [Google Scholar]
  35. Czosnyka, M.; Pickard, J.D. Monitoring and interpretation of intracranial pressure. J. Neurol. Neurosurg. Psychiatry 2004, 75, 813–821. [Google Scholar] [CrossRef]
  36. Eide, P.K.; Sorteberg, W. Diagnostic intracranial pressure monitoring and surgical management in idiopathic normal pressure hydrocephalus: A 6-year review of 214 patients. Neurosurgery 2010, 66, 80–91. [Google Scholar] [CrossRef]
  37. Marmarou, A.; Bergsneider, M.; Klinge, P.; Relkin, N.; Black, P.M. The Value of Supplemental Prognostic Tests for the Preoperative Assessment of Idiopathic Normal-pressure Hydrocephalus. Neurosurgery 2005, 57, S2–S17. [Google Scholar] [CrossRef]
Biomedicines 12 00020 g001

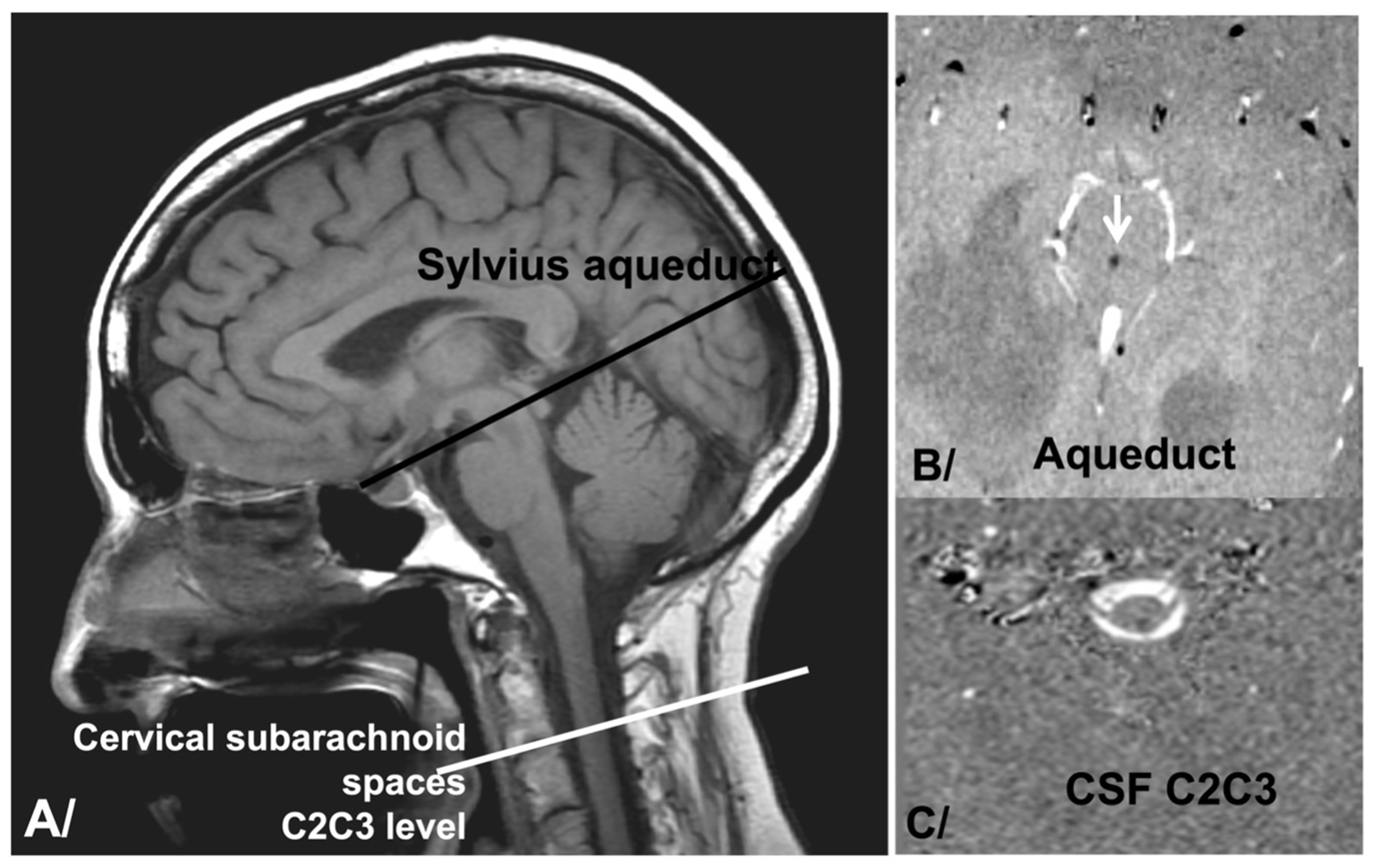

Figure 1. Slice plan positioning. (A) Positioning of pcMRI slice plane on sagittal T1 images at the level of the sylvian aqueduct to analyse intraventricular CSF dynamics and at the level of C2C3 intervertebral disc to analyse cervical subarachnoid CSF dynamics. (B) pcMRI acquisition at the level of the sylvian aqueduct (arrow). It appears in black due to the direction of the flow from the fourth ventricle to the third ventricle. (C) pcMRI acquisition of cervical subarachnoid spaces at the level of the C2C3 intervertebral disc (arrow). These spaces have the form of a white crown. It appears in white due to the craniocaudal direction of the flow.
Figure 1. Slice plan positioning. (A) Positioning of pcMRI slice plane on sagittal T1 images at the level of the sylvian aqueduct to analyse intraventricular CSF dynamics and at the level of C2C3 intervertebral disc to analyse cervical subarachnoid CSF dynamics. (B) pcMRI acquisition at the level of the sylvian aqueduct (arrow). It appears in black due to the direction of the flow from the fourth ventricle to the third ventricle. (C) pcMRI acquisition of cervical subarachnoid spaces at the level of the C2C3 intervertebral disc (arrow). These spaces have the form of a white crown. It appears in white due to the craniocaudal direction of the flow.
Biomedicines 12 00020 g001
Biomedicines 12 00020 g002

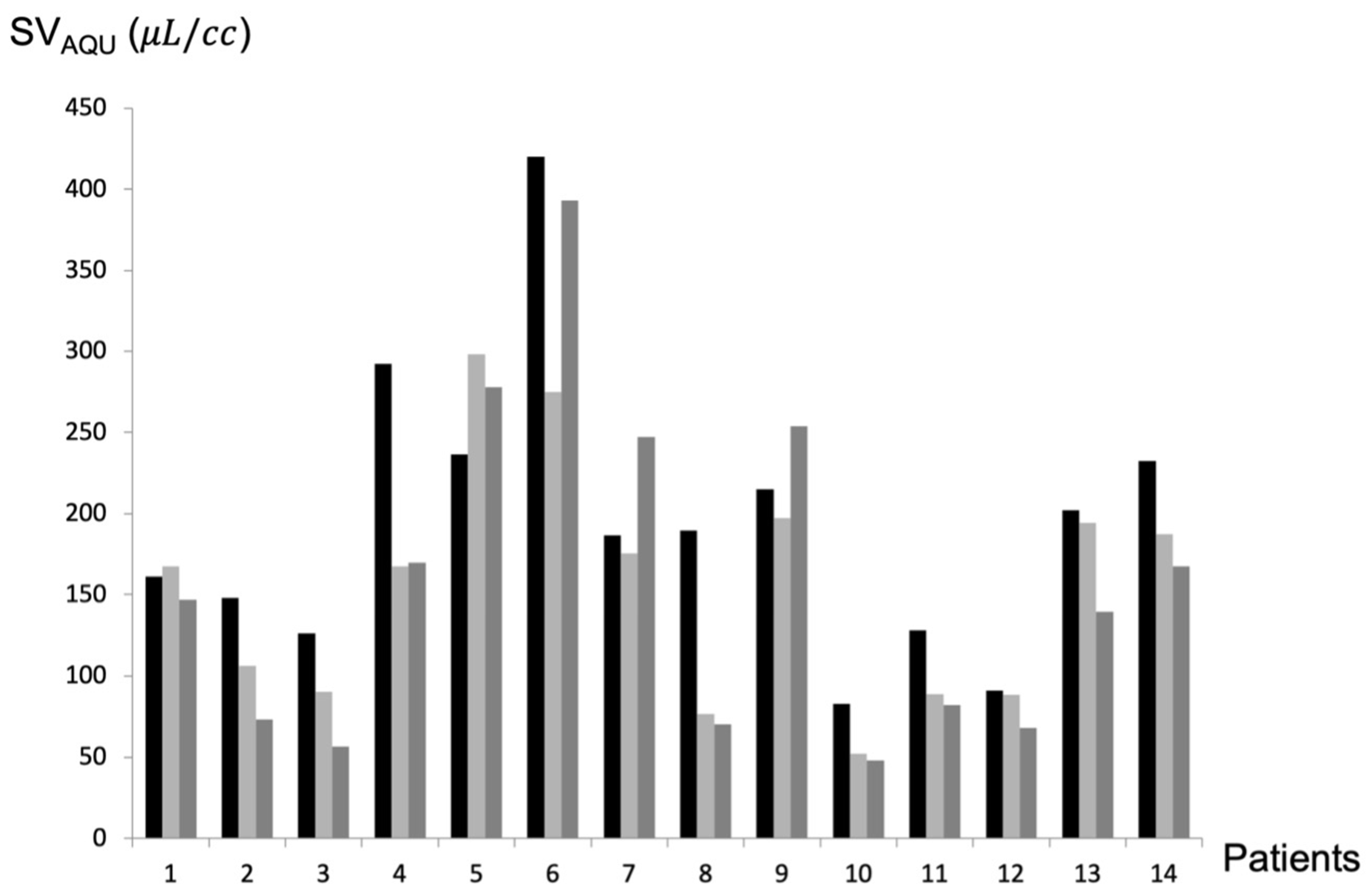

Figure 2. Aqueductal CSF stroke volume (SVAQU) evolution after shunt. SVAQU was measured for each patient before surgery (black line), 6 months after surgery (light grey), and 1 year after surgery (dark grey). SVAQU decreased after shunting, except for patients 1, 5, 7, and 9. cc: cardiac cycle.
Figure 2. Aqueductal CSF stroke volume (SVAQU) evolution after shunt. SVAQU was measured for each patient before surgery (black line), 6 months after surgery (light grey), and 1 year after surgery (dark grey). SVAQU decreased after shunting, except for patients 1, 5, 7, and 9. cc: cardiac cycle.
Biomedicines 12 00020 g002
Biomedicines 12 00020 g003

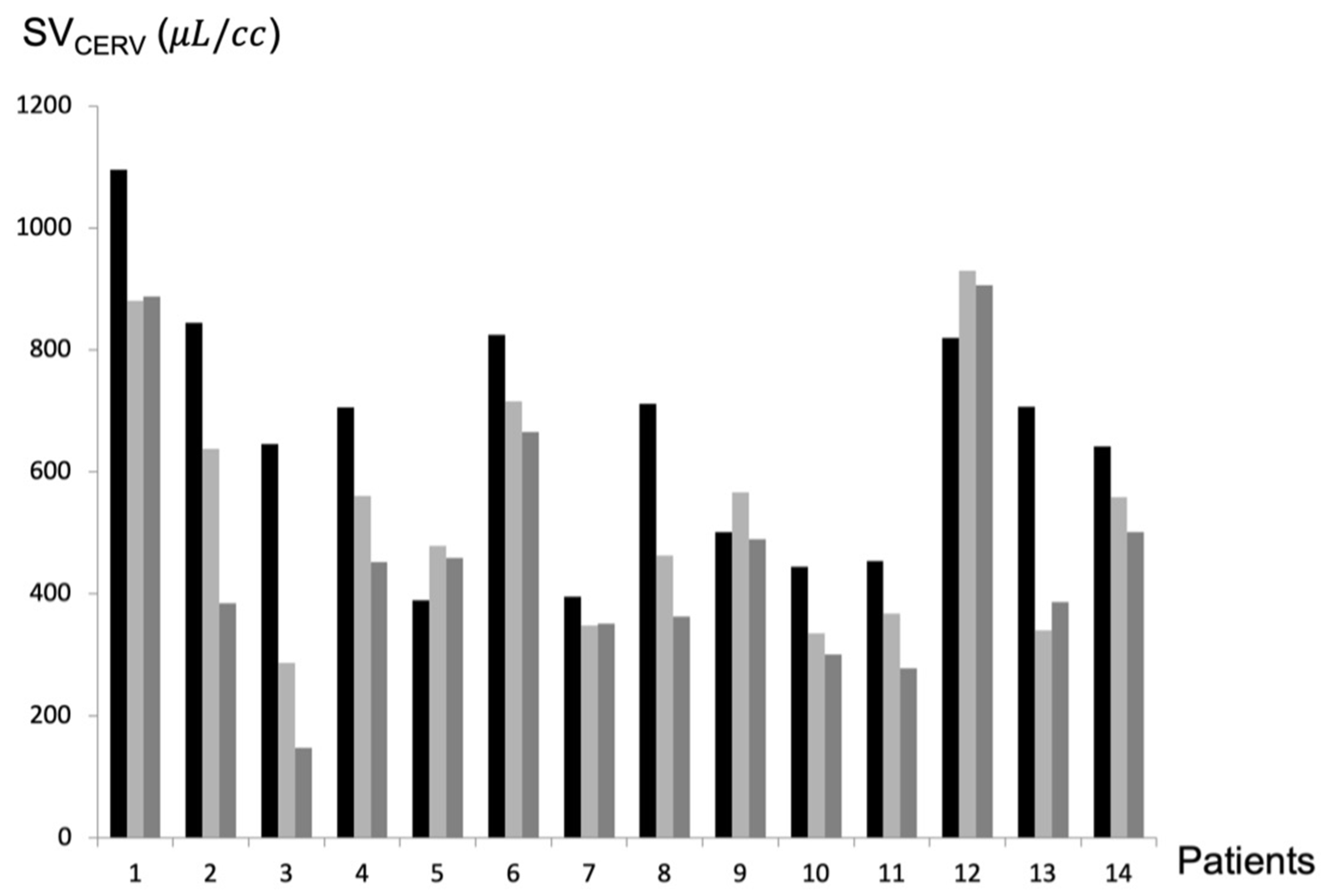

Figure 3. Cervical CSF stroke volume (SVCERV) evolution after shunt. SVCERV was measured for each patient before surgery (black line), 6 months after surgery (light grey), and 1 year after surgery (dark grey). SVCERV decreased after shunting, except for patients 9 and 12. cc: cardiac cycle.
Figure 3. Cervical CSF stroke volume (SVCERV) evolution after shunt. SVCERV was measured for each patient before surgery (black line), 6 months after surgery (light grey), and 1 year after surgery (dark grey). SVCERV decreased after shunting, except for patients 9 and 12. cc: cardiac cycle.
Biomedicines 12 00020 g003
Biomedicines 12 00020 g004
Figure 4. CSFRATIO evolution after shunt placement. CSFRATIO was calculated as follows: C S F R A T I O = a q u e d u c t a l   C S F   s t r o k e   v o l u m e c e r v i c a l   C S F   s t r o k e   v o l u m e × 100 . It was translated into percentages. It reflects the participation of intraventricular CSF in overall intracranial CSF pulsatility during a cardiac cycle. CSFRATIO was measured for each patient before surgery (black line), 6 months after surgery (light grey), and 1 year after surgery (dark grey).
Figure 4. CSFRATIO evolution after shunt placement. CSFRATIO was calculated as follows: C S F R A T I O = a q u e d u c t a l   C S F   s t r o k e   v o l u m e c e r v i c a l   C S F   s t r o k e   v o l u m e × 100 . It was translated into percentages. It reflects the participation of intraventricular CSF in overall intracranial CSF pulsatility during a cardiac cycle. CSFRATIO was measured for each patient before surgery (black line), 6 months after surgery (light grey), and 1 year after surgery (dark grey).
Biomedicines 12 00020 g004
Table 1. Craniospinal hydrodynamic evolution after surgery.
Table 1. Craniospinal hydrodynamic evolution after surgery.
Preoperative PCMRI
(T1)		PCMRI 6 Months after Surgery
(T2)		PCMRI 12 Months after Surgery
(T3)		p (Comparison of T1 and T2)p (Comparison of T2 and T3)p (Comparison of T1 and T3)
SVAQU240 ± 114 μL/cc214 ± 157 μL/cc193 ± 145 μL/cc0.0030.120.001
SVCERV627 ± 229 μL/cc557 ± 234 μL/cc496 ± 234 μL/cc0.0070.0010.001
CSFRATIO40 ± 20%40 ± 27%42 ± 32%0.520.090.12
SVAQU: stroke volume of intraventricular CSF measured at the level of the sylvian aqueduct; SVCERV: stroke volume of subarachnoid CSF measured at the level of the C2C3 intervertebral disc; CSFRATIO = SVAQU × 100/SVCERV; T1: preoperative phase-contrast MRI (pcMRI); T2: pcMRI 6 months after shunting; T3: pcMRI 1 year after shunting.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Capel, C.; Owashi, K.; Metanbou, S.; Peltier, J.; Balédent, O. Impact of Shunt Placement on CSF Dynamics. Biomedicines 2024, 12, 20. https://doi.org/10.3390/biomedicines12010020

AMA Style

Capel C, Owashi K, Metanbou S, Peltier J, Balédent O. Impact of Shunt Placement on CSF Dynamics. Biomedicines. 2024; 12(1):20. https://doi.org/10.3390/biomedicines12010020

Chicago/Turabian Style

Capel, Cyrille, Kimi Owashi, Serge Metanbou, Johann Peltier, and Olivier Balédent. 2024. "Impact of Shunt Placement on CSF Dynamics" Biomedicines 12, no. 1: 20. https://doi.org/10.3390/biomedicines12010020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
