1. Introduction
E-commerce aims to fulfill customer requests in the shortest delivery time, without misdelivery. E-commerce is a central store and fleet of moving containers on specific trip paths that serve a sequence of stations (i.e., customers). Every customer receives some products with different dimensions and may return other products as needed. The main challenge is how to stow maximum boxes (i.e., customer requirements) to satisfy the customers by Capital turnover acceleration (i.e., Circular economy). The stowage is a continuous process repeated at every station during the vehicle trip on their transition path by unloading and loading different rectangular boxes with different dimensions. The stowage aims to increase the capacity of the container by increasing the ingested transported boxes at the source station and the ability to receive returned boxes from customers during the trip. The problem may be identified as customizing some boxes in specific best-fit spaces to achieve maximum transported items.
The stowage process achieves mutual interest when transported items increase. The first reduces the transportation cost, and the second is meeting more customer requests, which partially reflects positively on reducing the delivery time. These objectives are the main core of the success of the e-commerce logistic system. Therefore, the stowage issue must be improved. The authors have suggested showing the container floor layout solution in a visual map to simplify the stowage activities during the trip. The first question is, what suitable methodologies help in suggesting the stowage map quickly because the transportation time span between the stations is short?
The authors have resorted to using metaheuristic techniques and chose the camel algorithm to be modified to achieve the main objective (i.e., customize the boxes in best-fit spaces that reduce the unused area of the container layout). The modification is undertaken by supporting the camel algorithm with some mathematical equations to help in precise the best-fit place with the minimum unused area and programming the whole statements of the proposed methodology by c-sharp software, version 2019, structure to create the map visually as will appear in the context and
Appendix A.
The second question is: How will the customer-requested products and their returned products (i.e., boxes) deal with the data during the trip? Bearing in mind that e-commerce data are big and rapidly changing. Therefore, the programming of the proposed methodology is important to manipulate all activities through the trip via the cloud and IoT enabling system [
1]. The proposed methodology studies the relation of logistic systems, which consists of four elements, e.g., source, products, distribution, and customer satisfaction, as illustrated in (

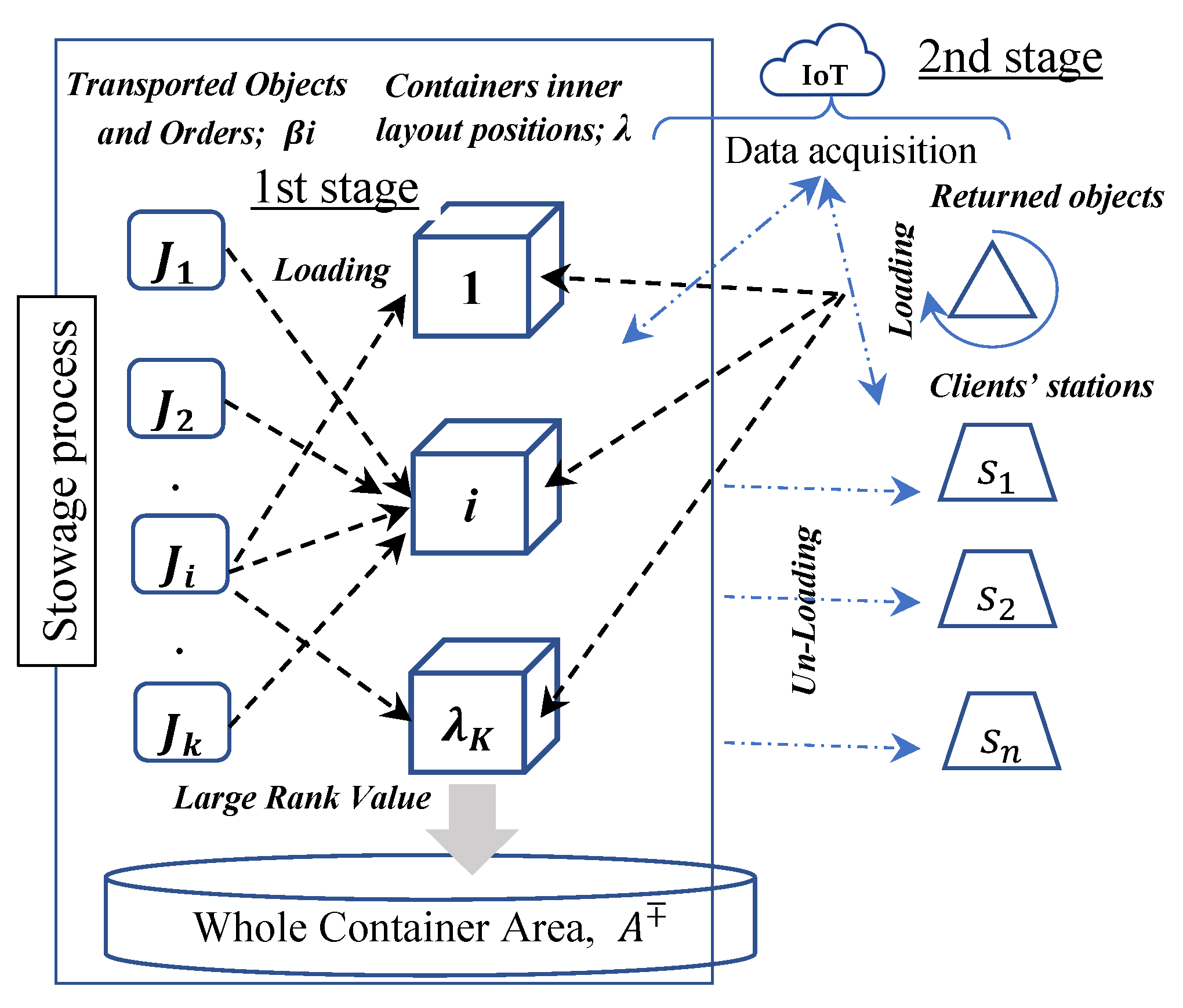

Figure 1), through two sequential stages; the first interested in classifying the objects according to the geometry rules and the second study the transportation cost to measure the efficiency of logistic stowage methodology according to visual lean which help in extract stow map. Therefore, the first half of the proposed methodology is named the oriented stowage map “OSM”.
The first stage of the proposed methodology has been explained in the next pseudocode, ‘stage-1: Algorithm 1’, which describes the main rules and geometrical specifications such as different vertices, centroid, width, length, edges, and fixed container size …, which are required for the stowage process and will be discussed in
Section 2.
Algorithm 1 Stage-1: Stowage Steps Geometrically |
Begin stage-1 do |
Step 1: Input a list of objects required to transport to specific customers at a specific station. |
Step 1.1: Record the initial specification data of the listed objects (x, y, rotate/not). |
Step 1.2: Set all objects where the width (parallel to the x-axis) is greater than their |
height which is parallel to the (y-axis). |
Step 1.3: Rank all objects in descending order according to their width ( direction). |
Step 2: Choose the geometric shape (Rectangular, Irregular, Circular, Polygon); |
Step 3: Determine the isometric (1D, 2D, 3D). |
Step 4: Identify the stowage orthogonality relation (Yes, or No). |
Step 4.1: Determine the degree of freedom df (Rotation, Orientation). |
Step 5: Determine the stowage technique (Guillotine, Non-guillotine). |
Step 6: Determine the container size (40 ft, 60 ft, customize). |

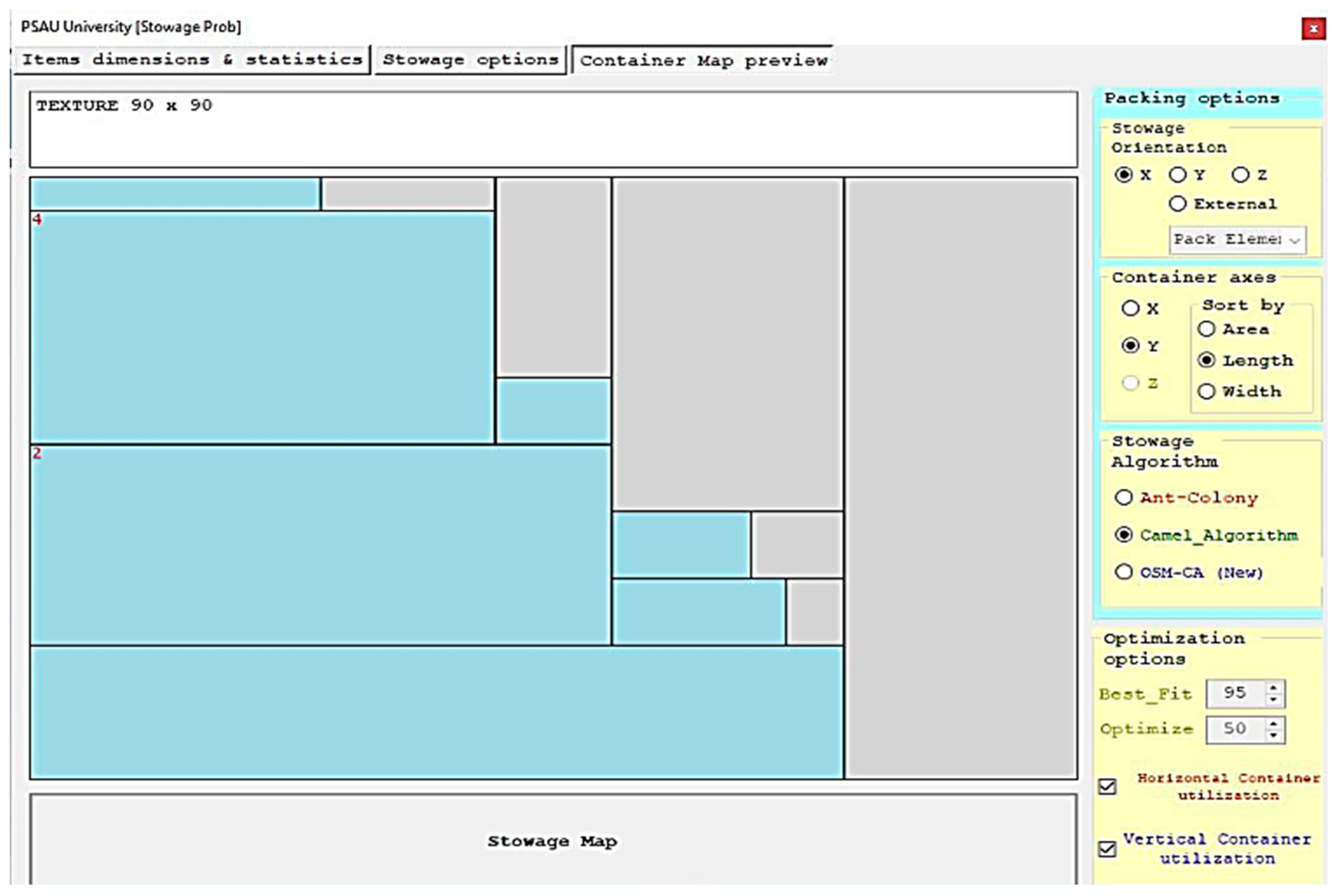

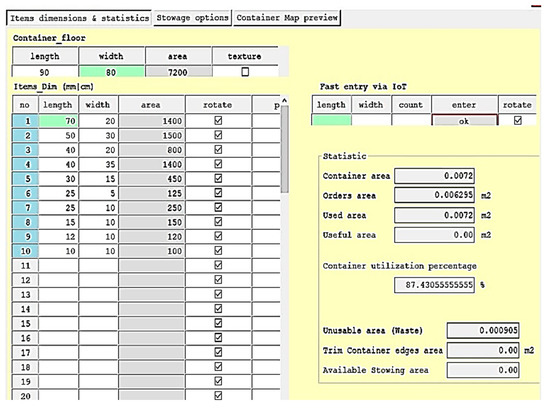

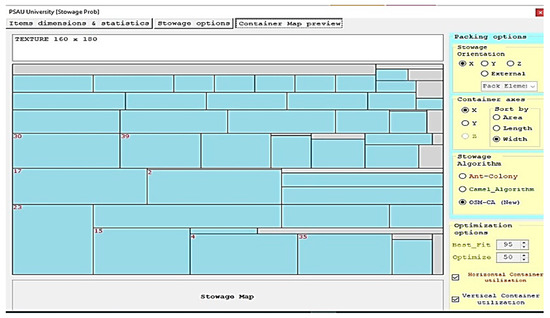

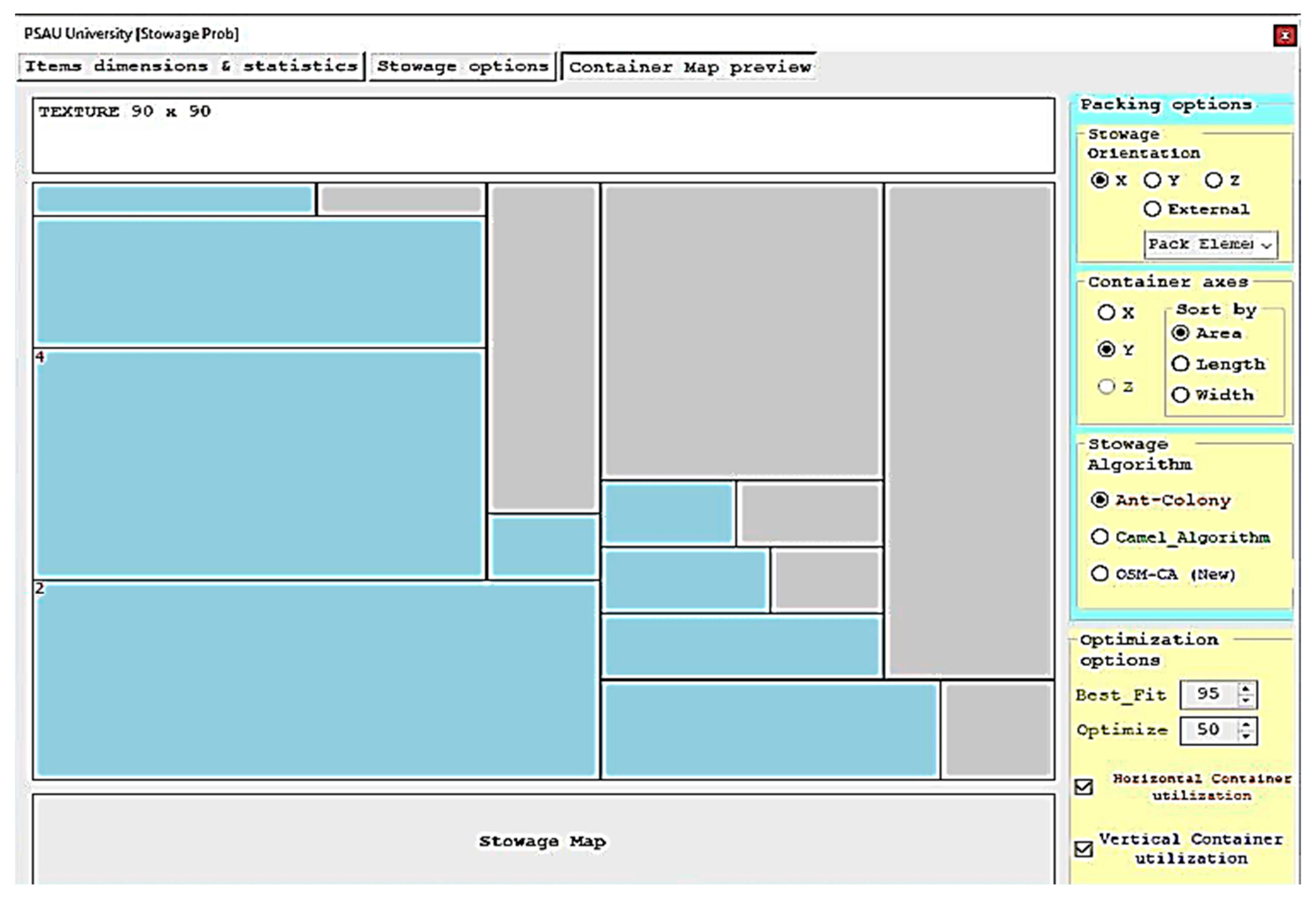

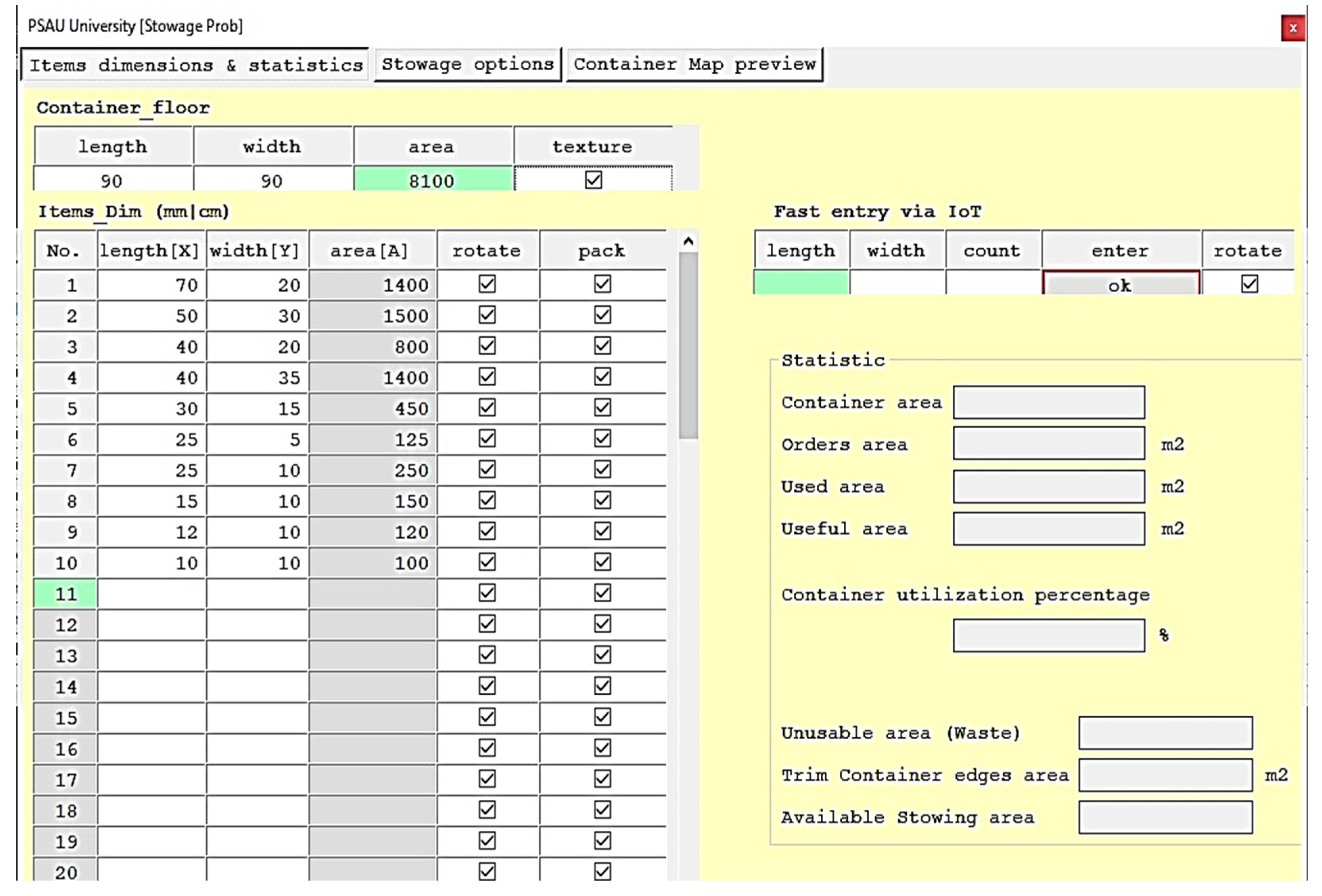

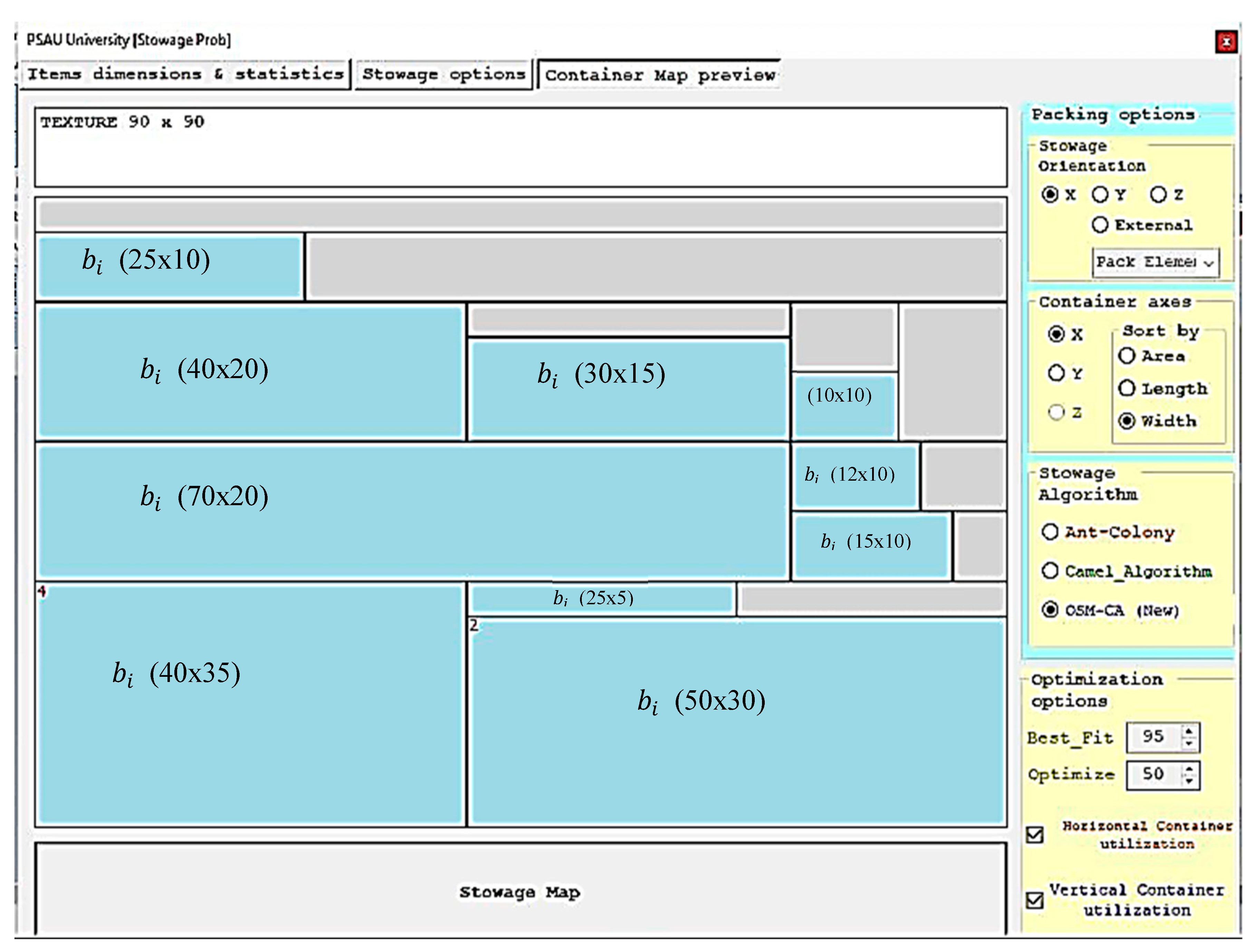

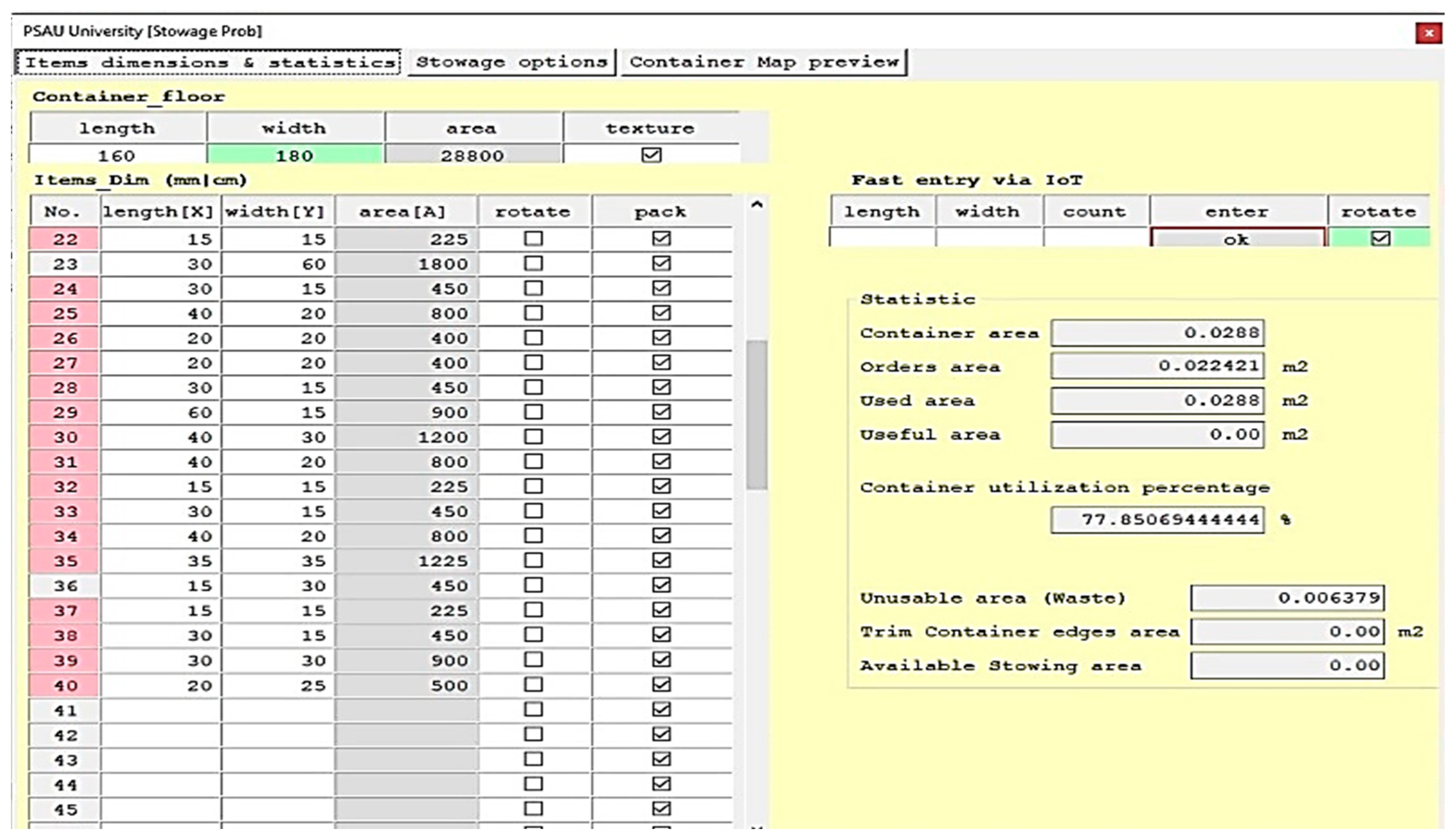

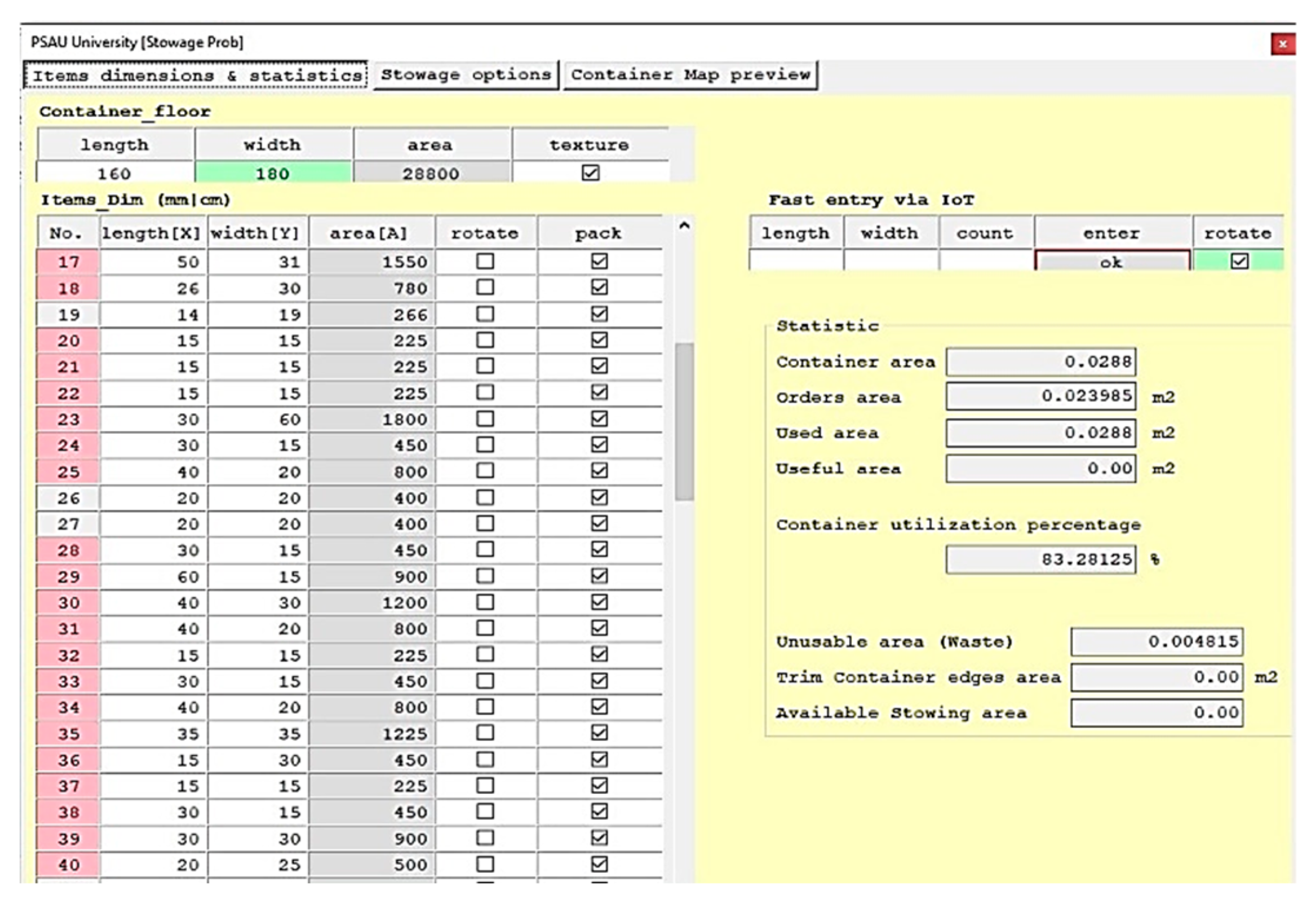

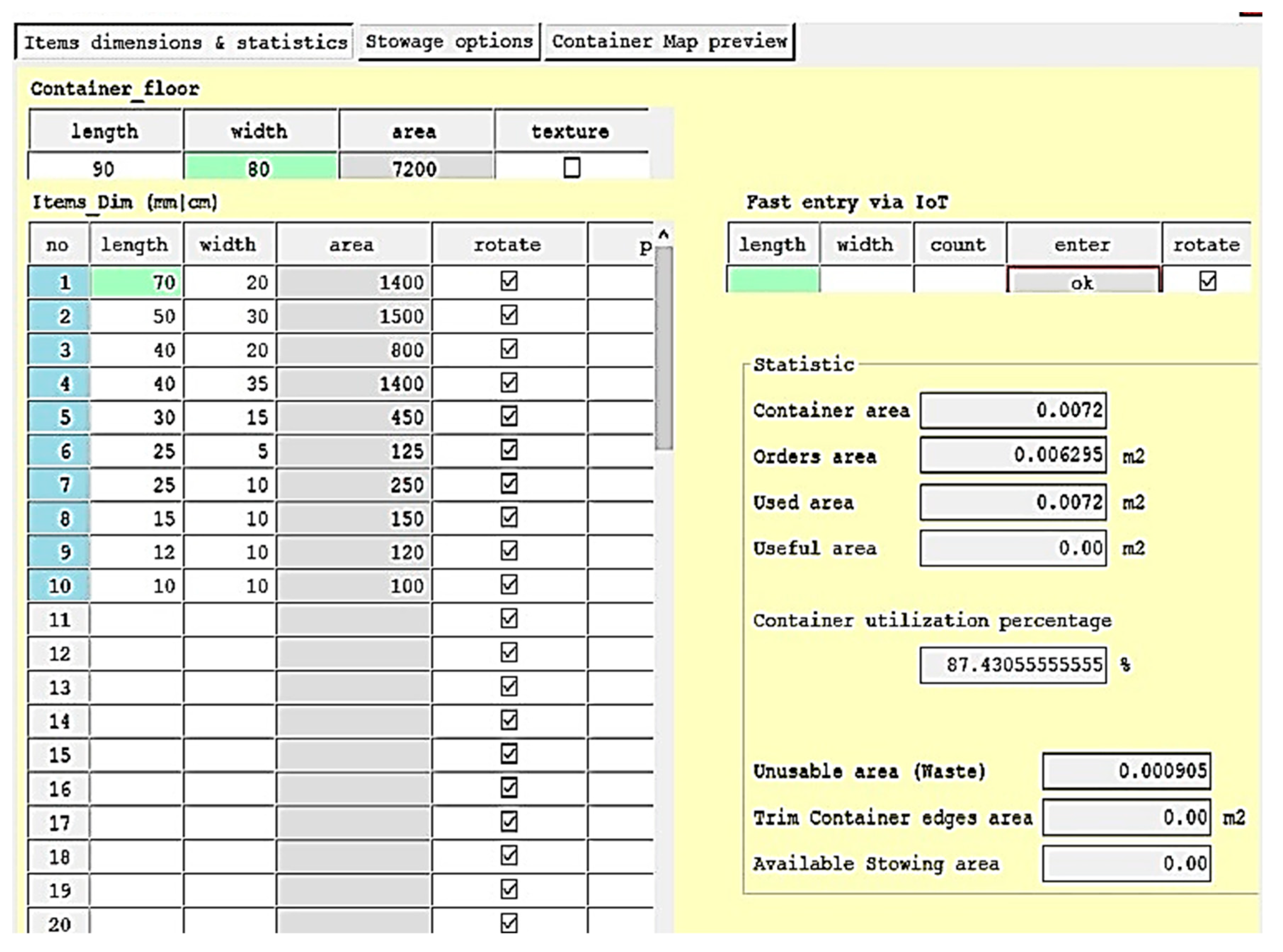

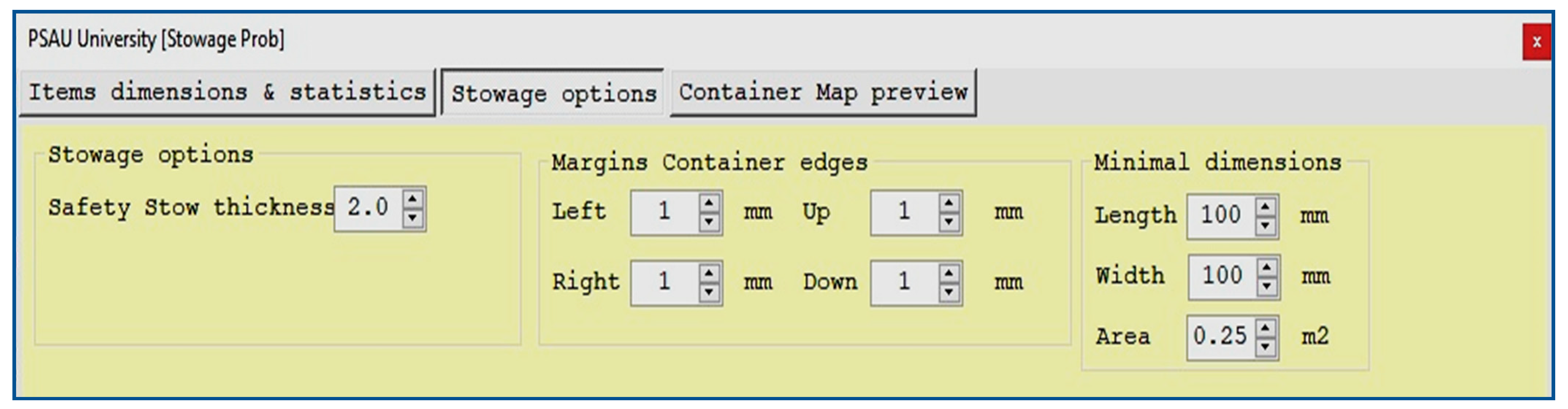

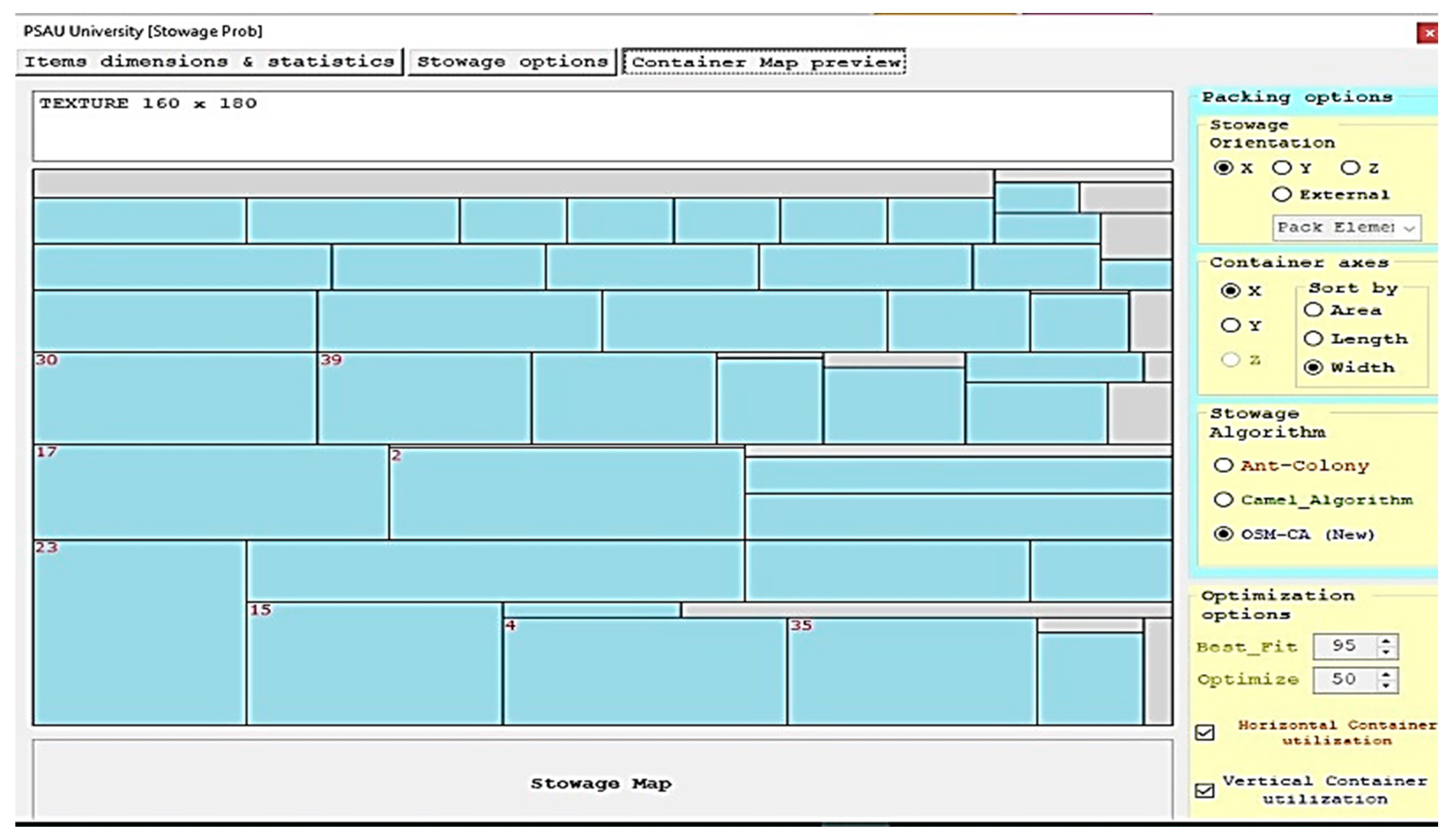

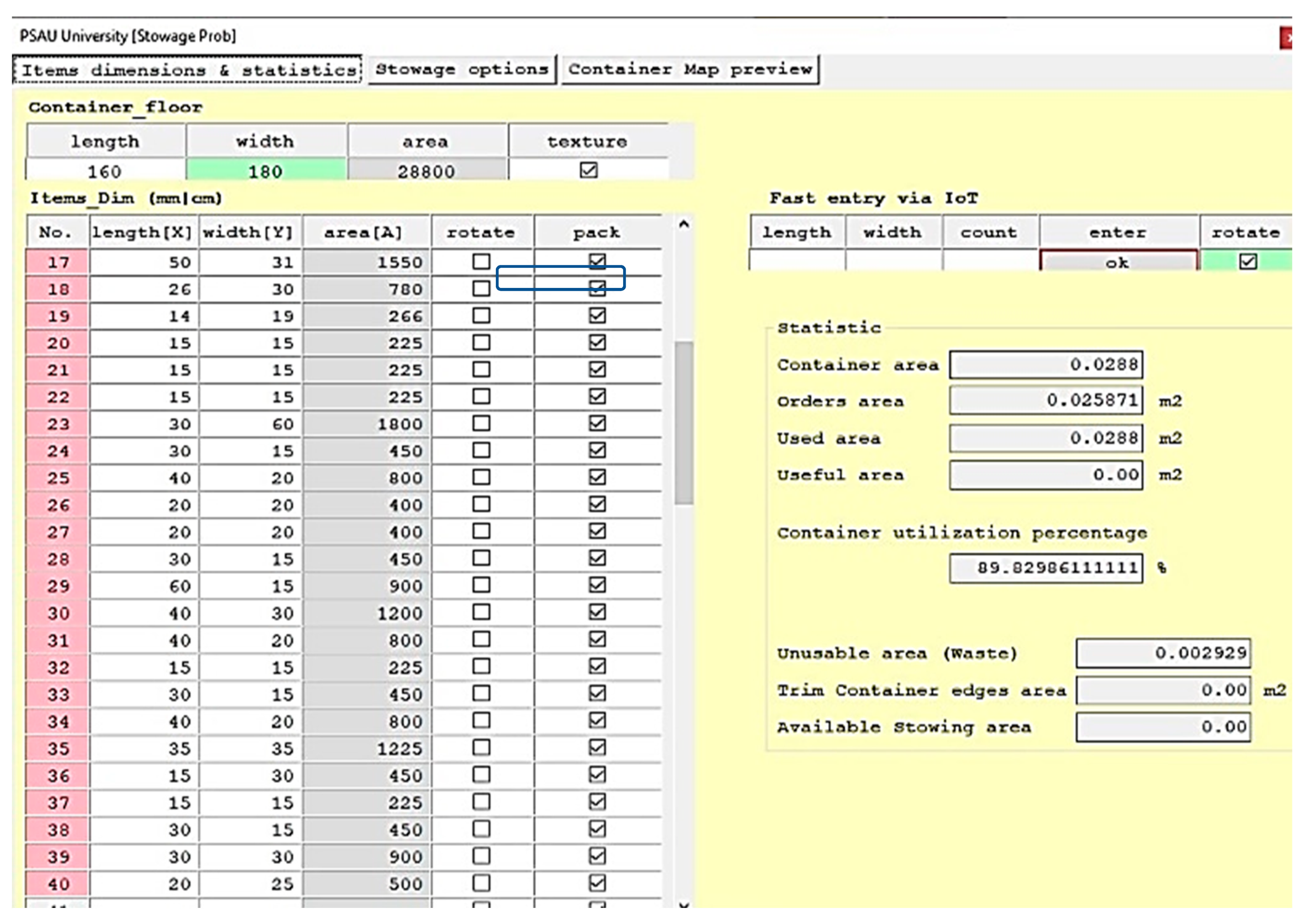

Step 7: Manage the GUI interface illustrate in the Appendix A. |
Step 8: Extract the stowage map according to: |
Step 8.1: Station Info. |
# of served stations in bypass path; |
# of served stations in backtrack path to collect the (re)turned objects (market policy). |
Step 8.2: Object Info. |
Step 8.2.1: if there a safety boundary around each object (Yes, No) |
● Vertices coordinates |
Step 8.2.2: Choose the first object that have long width in to stow if possible |
Elseif |
According to step 4.1 (can Rotate) |
Rotate and stow it if poosible |
Else |
Draw horizontal skyline (guilltine line) Stow the next object over the sky line: |
Step 8.2.2.1: Determine their vertices (four vertices for each stowed object). |
Step 8.2.2.2: Identify the BLC bottom left placement. |
● Identify the Edges |
Step 8.2.3: Use Eculidian distance between the verticies in same direction or to choose |
the object that create minimum edge (height difference between two adjacent objects). |
Step 9: Implement a branch and bound technique aided by the camel algorithm, which searches for a specific target that is the best fit or has the lowest waste area (empty spaces under the horizontal guillotine line). |
The logistic party focuses on distribution activities, planning, execution, handling/communication, storage, and delivery efficiency. One of the challenges of logistics is the stowage of objects in as little space as possible at the warehouse and/or vehicle container (
β), forcing us to predict accurately consuming products (
β′) areas [
2]. The e-commerce system has data characterized by rapid change and bigness. Therefore, the methodology recommends IoT manage this system online after digitizing e-commerce activities and all transported objects and the distribution points (i.e., stations) [
3,
4]. The IoT is nominated to verify and track the container’s objects during loading and unloading until the delivery destination and substitute that every delivered item is offset by a new one requested from the supplier or previous point on the distribution chain [
5]. This article addresses many objectives for the proposed methodology, which have been discussed in the stowage problem. The most important of them is to ingest the total stowage transported boxes (i.e., objects) to reduce their cost. They are then reducing the partial delivery time, particularly for objects with time-sensitive freight delivery and in emergency crises when prompt delivery is critical. Additionally, it receives the returned objects during the distribution chain easily [
6]. The proposed methodology consists of overlapping steps. The preliminary steps are based on the heuristic technique that helps obtain a semi-optimal solution for ranked objects at a temporary stowage map, while the late steps tackle numerically for enhancing the picked solution from the afore phase and dividing them into the group with the same guillotine boundary [
2,
6], then trying to replace and switch places between them to ingest all available transported objects. The underlying theory of e-commerce is that the data on all transactions within the warehouse or logistics stock system are digitally tracked through a unified and efficient structure. The IoT provides proactive data during distribution trips to calculate the best utilization for the space caused by unloading objects to be ready for (re)stowing by returned ones, as shown in (
Figure 2).
This article’s primary objective is to maximize the stowage utilization spaces in the minimum volumetric area to reduce its total transportation cost. The work was triggered by improving the camel algorithm movements over Dana Marsetiya et al. (2022) [
7] via supporting the meta-heuristic method by the mathematical procedures that can be programmed by the C-sharp software to enhance the searching process. The authors compare the results with those of Hong J. et al. (2018) and Dana et al. (2022), who studied the effect of the ant colony and camel algorithms on the acceleration of the transportation cycle [
7,
8].
The article is divided into seven sections, where it tackles the stowage problem geometrically in
Section 2 to introduce how the first oriented stowage map aims to exploit all spaces.
Section 3 discusses how to verify stowage free of overlapping or any geometric sketch defect by presenting how to measure the space utilization.
Section 4 explains the proposed methodology that will be easily managed via IoT and formulated in
Section 5, the results are discussed in
Section 6. Additionally, it presents an implementation example for transporting bathtubs of different sizes and discusses the results in
Section 6. Finally the work expounds the highlight results and their analysis in
Section 7. The article uses case study data for ceramic tile companies transporting different sizes as appeared in
Appendix A. We finally reviewed the conclusions to show the superiority of the proposed algorithm over the other two optimization algorithms.
2. The Stowage Problem Geometrically (Stage-1)
The stowage problem is an open arrangement with a deep and orthogonal axis [
5]. This problem relied primarily on the container’s floor’s geometric dimensions and other characteristics. The fundamental geometric restrictions dominated the stowage problems (i.e., combinatorial optimization problems), where no overlapping of objects in the same layer is allowed [
9,
10]. The review reveals that the researchers attempted to develop some methodologies similar to the rank-order stowage problem, where all stowage objects and containers’ floors are rectangles.

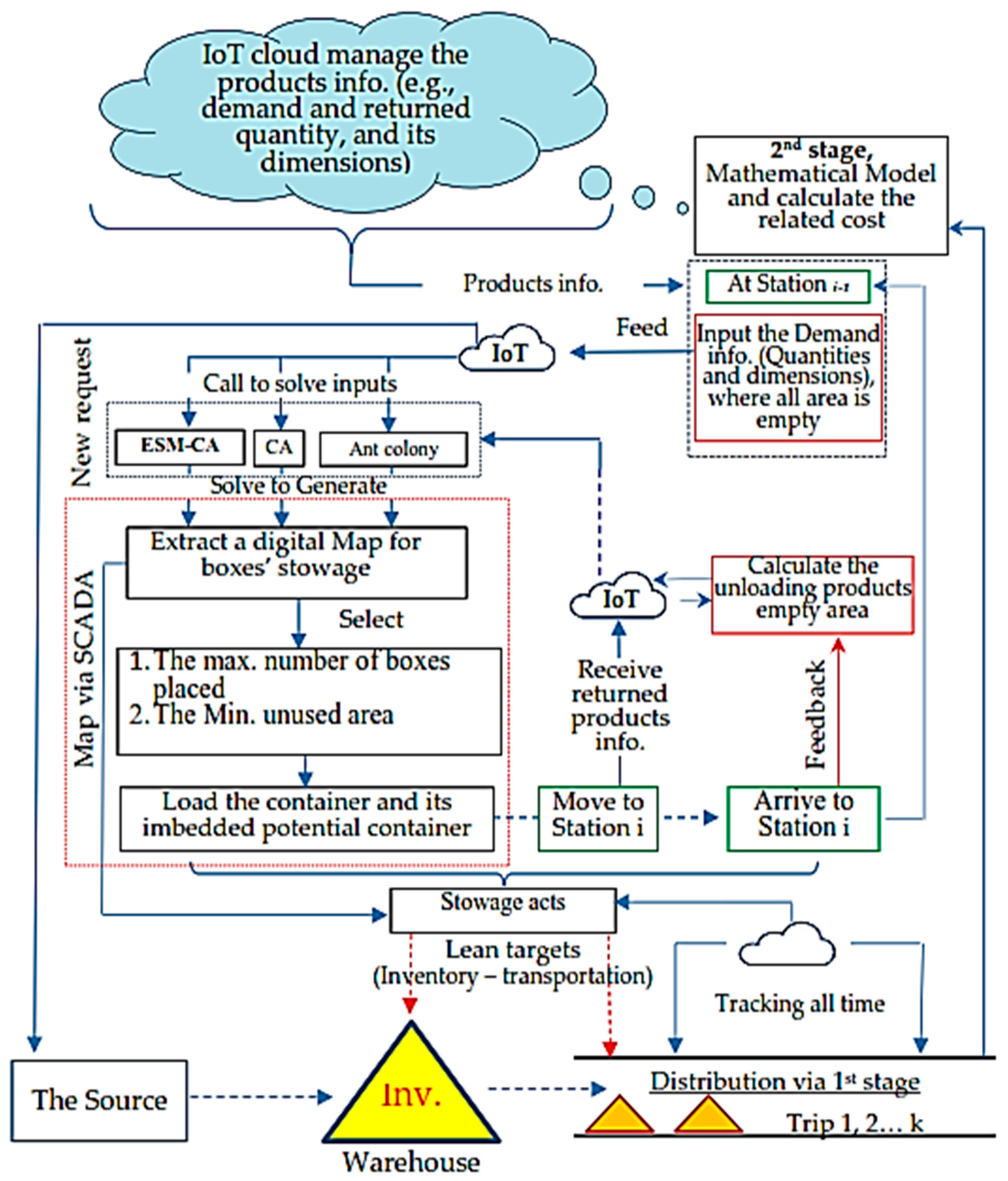

Figure 2 illustrates the structure flowchart (e.g., the constructive heuristic), which is considered the Origin of many modern heuristics. These methods are compared with exact solutions (e.g., LINGO results) [
7,
11,
12] by creating the most suitable oriented stowage map for different rectangular-sized products by implementing the camel algorithm. The heuristic steps are supported by mathematical equations [
13,
14] to enhance their solutions (i.e., increasing the storage capacity) by following the stowage map created in minimum time. This Guide Map existence must fit, as discussed by Imahori [
15], inversely with the speed of the container movement progress and be proportional to the change in demands and/or returns that affect the container’s planned spaces and transportation costs. Therefore, the authors propose a methodology called OSM-CA, “Oriented Stowage Map by Camel algorithm” Methodology.
There is an urgent need to create a stowage map for transportation objects during many sequential stations, marine logistics, warehouse capacity, massive stowage of shelves, aiming at loading acceleration, and multidimensional [
16,
17] resource scheduling. However, compared to the vast benchmarking examples of NP-hard combinatory problems, they are defined by quickly finding appropriate solutions. The “OSM-CA” creates n-branches of solutions to direct the driver to the final minimum stow depth and unused space at any station of their distribution trip. It begins with the ACO that is improved via the OSM-CA heuristic steps, supported by a mathematical model. The OSM-CA has been implemented and managed via an IoT platform to control vehicles, drawers, customers, and warehousing. The camels are responsible for placing boxes in container space under consideration of placing their boxes where their area is proportional to the pungent pheromone scent (i.e., the large box side ‘x’ | ‘y’ covers an extensive length of a container). The camels move in descending order on condition, placing their boxes to achieve the best-fit or minimum wasted area case at every guillotine skyline, except that the camels will not find the food and die. The heuristic steps guide the ant movements into multi-stowing branches. The first uses a succession of a horizontal pattern (or vertical) fills only that called “one-step guillotinable layout’s floor”. While the camels’ plan movement that does not have this property is called the “non-guillotine layout’s floor” [
18,
19,
20]. Otherwise, there is permission to orthogonally rotate (i.e., replace the width instead of length and vice versa via rotation 90°) the product that is ordered to stow from the first step and apply the second series [
21,

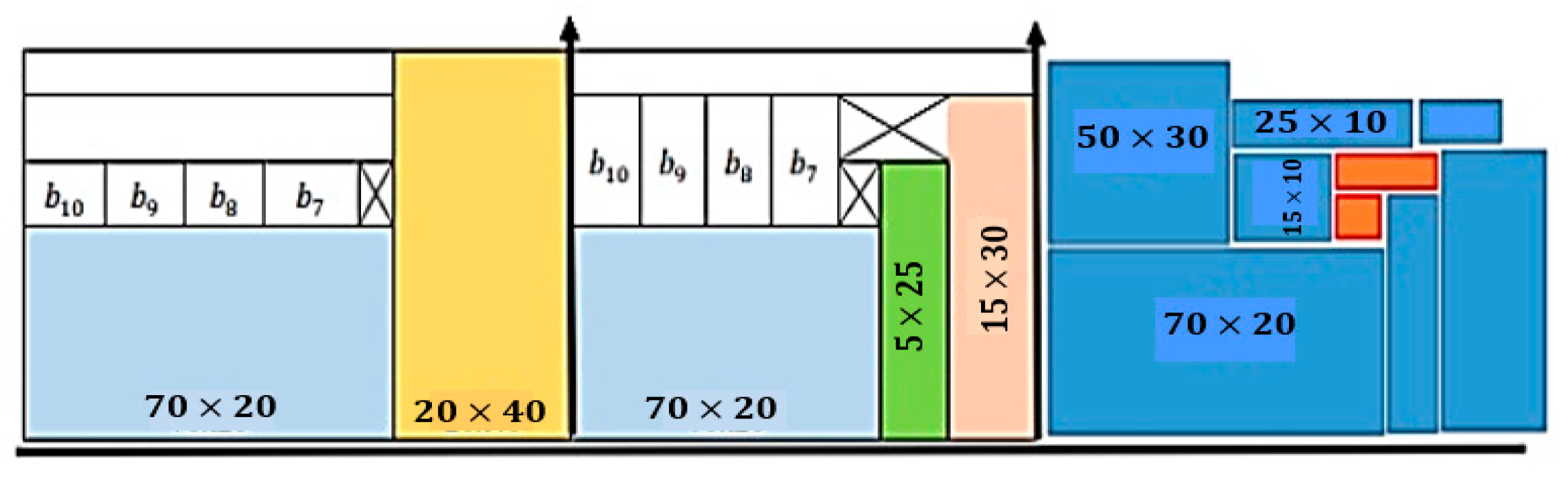

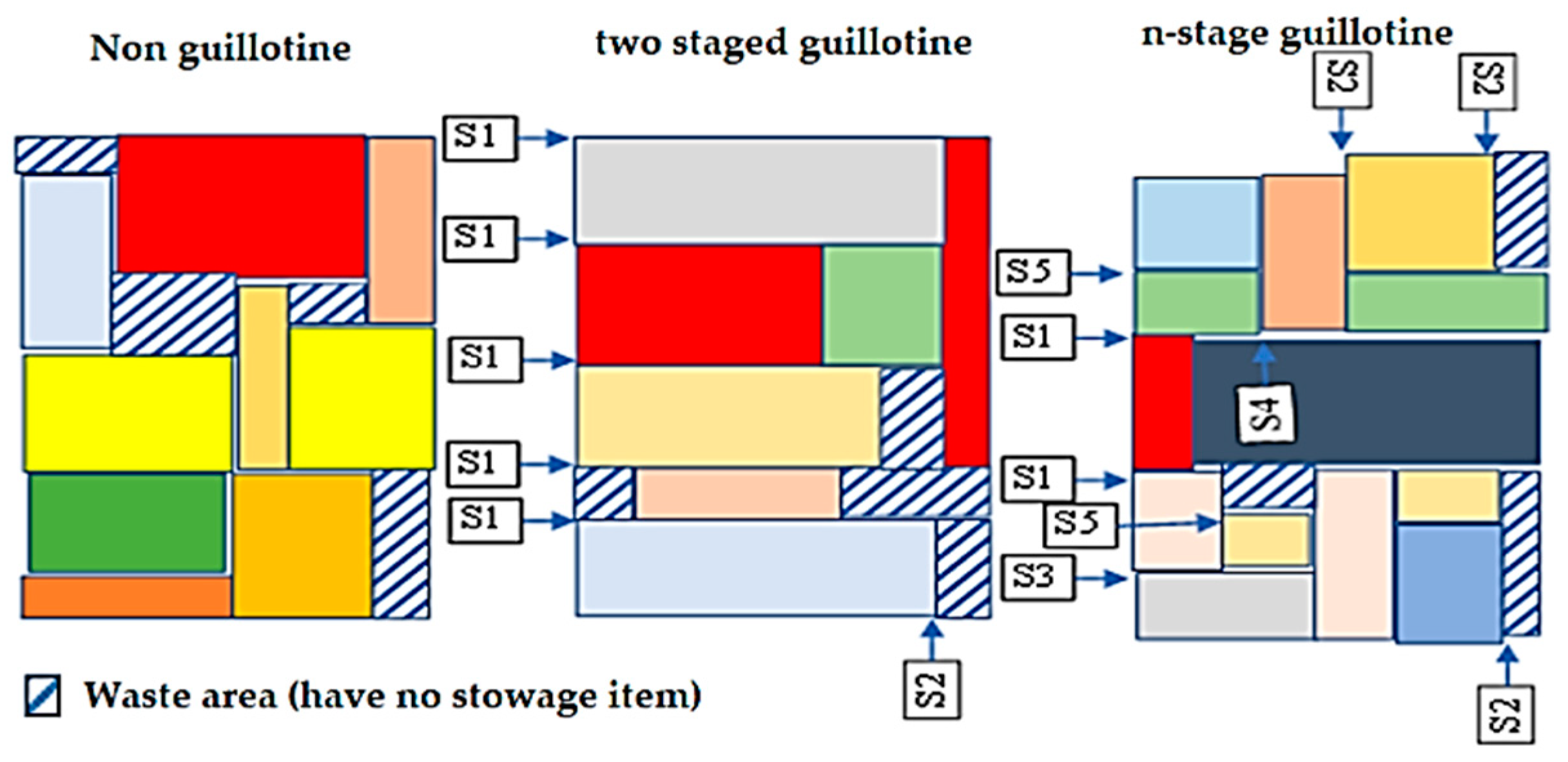

22] of guillotine steps (e.g., V or H), as illustrated in (
Figure 3). The number of phases necessary to completely cut the pattern provides another way to describe guillotinable designs. The pattern is referred to be “one-stage guillotinable” if all objects may be stowed in the container using only a series of horizontal (or vertical) cuts. The pattern is known as a “two-stage guillotinable pattern” [
15] if the orthogonal rotation of the pieces produced by the first stage cuts is required before applying the second set of guillotine cuts (now vertical or horizontal). The same logic also dictates that a third change in cutting direction is necessary for a three-stage guillotinable pattern and so on to reach no limit of stowage called n phases [
23]. In that case, the floor is designated as a “two-step guillotine layout’s floor” stowage with no limit on the number of guillotine lines is called n-level guillotinable layouts’ floor, where (
n − 1) is the number of stowage direction changes between
and
. Where
denotes the width of the rectangular object needed to be stowed, while
denotes their length (or height in 2D).
Definition 1. The dynamic stowage map (e-commerce policy) regularly evaluates the specific objects to be stored in the next period (i.e., the station on the journey path) and produces a potential bespoke container for those demanded and/or returned objects [
23].
4. The Proposed Methodology OSM-CA
The dynamic stowage problem is introduced in this section. This debate concerns a group of objects that must be transported along a specific path by a particular vehicle. The camel metaheuristics algorithm resorts to looking for lagoons’ positions in the container over four well-known strategies such as “positioning”, “fitness”, “level-plane”, and “profile”. While the numerical (i.e., exact) algorithm guarantees optimal solution, it may consume much time, generate exponential iterations of multi-branches [
21,
26], and be very hard if programmed. Whereas the heuristic steps, such as the greedy method [
27], local search algorithms as constructive steps [
28], or metaheuristic, as ACO and CA [
4,
29] find a most favorable, i.e.,
, solution quickly, its accuracy is not substantively. The prominent exact algorithms are the cutting plane [
30], branch-and-bound, branch-and-cut [
31,
32] and dynamic programming methods [
33]. The proposed methodology, “OSM-CA”, is based on a modified branch and bound heuristic steps to support the CA to obtain a local
solution and then enhance it by mathematical procedures to guarantee efficiency. Additionally, the authors exclude the cutting plane method despite being fast because of unreliability, while the branch/bound way is steadfast but consumes a long time to extract the solution.
Accordingly, the authors enhance the CA and branch-and-bound technique, especially after mathematical procedures. The pre-step of the first phase aims to prepare the problem by classifying objects
(i.e., boxes/orders) according to the ratio (
ri) among their
xi and
yi, which assumes that all boxes with r < 0.2 aside are roomed in the potential container side. The first aims to place boxes, which is achieved using a multilevel linked data structure (i.e., matrix of all boxes
bi (
xi,
yi)). At the same time, the container’s width is constant at the beginning of the proposed methodology and is called “
”. Available length is the key to selecting an appropriate box
bi and permits the camel to place its
bi. The fitness value, in this case, is not only based on the minimum Euclidean distance between adjacent boxes on both sides with the centroid of the grouped boxes to reduce the number of edges by measuring an angle that occurs when a correlation triangle appears, as discussed in (
Figure 4) above. However, also try to make the skyline close to horizontal as acute as possible.

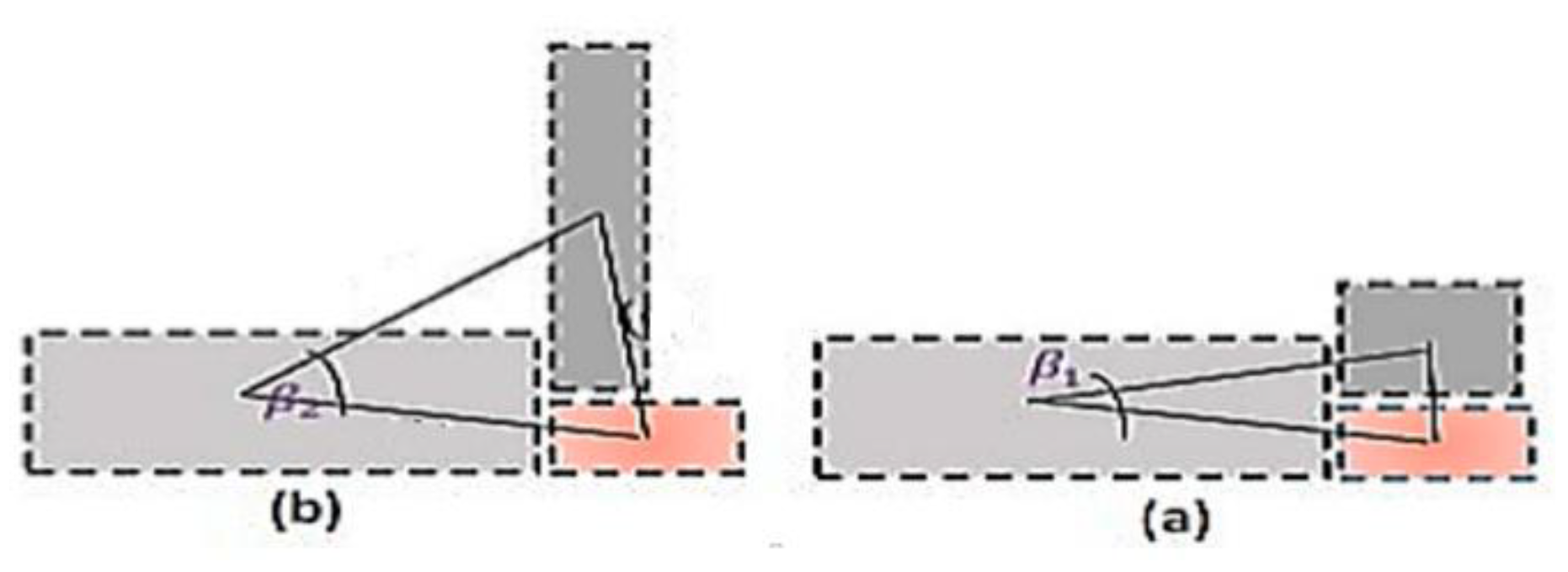

Figure 4 explains the two cases (a) and (b), which describe if selecting a box with a low edge height results in the least acute angle while selecting a box with a long edge height results in an acute angle of approximately 80 and vice versa. Therefore, it rep-resents a constraint when selecting a suitable box to remain the skyline close to be horizontally.
5. Problem Formulation
The objective is to ingest all e-requested orders (i.e., the boxes), which can be described as follows: a set of camels (
n) responsible for moving the selected boxes via a specific camel
,
, a set of generated branches
S for every repositioning under condition (fitness: Is wasted space reduced?),
, and a set of
p suitable replacement positions,
. The model assumptions modified for that which is cited in (Hong et al., 2018) [
7] when interested with costs. Any placement layouts’ floor of boxes considered a set of boxes devoted to each box’s corners (four vertices and centroid) and the container and concerning the following assumption in tackling the stowage problem [
33]. A set of objects will be transported on an available vehicle container for a given time, passing through Clients’ stations. These objects form
disjoint groups,
. The objects in a group require the same client and transportation means (i.e., drawer). Because the stowing of one group does not affect the stowing of another, the problem may be broken down into sub-problems for each group. As a result, the remainder of this essay will focus on one group’s issue. The authors tend to discuss the stowage problem as some objects seek the best-fit location to place via an actuator (camel, ant, etc.) that is proposed to be a camel according to the camel algorithm. The goal of the task is to maximize the overall profit from the box assignment, which is inversely related to the transportation expenses (e.g., involves the cost of health exhaustion, which implicates time consumption in front of the lagoon). Even though it does not follow the time windows, the OSM is regarded as a soft time window depending on the container receiving the box (best-fit case). The mathematical model for the matheuristic OSM approach was developed based on Ali et al., 2022 [
34]’s implementation of the camel algorithm ‘CA’. This approach improves the stowage outputs map that has been created. Accordingly, the article is based on (Hong et al., 2018) [
6] for testing the cost indicator while based on Dana Marsetiya Utama et al., 2022 [
7] Ali et al., 2019 [
34] for testing the area indicator, which is hands are proportional directly together and considered the basis of the proposed algorithm.
Table 2 indicates the parameters, variables, and decision variables used in the following procedures.
Table 2 shows the parameters used in the proposed methodology ‘OSM-CA’. The geometric attributes of boxes include dimensions, physical, weight, volume, color, direction, etc.:
Assumption 1. The container contains multi-reciprocity potential containers called drawers.
Assumption 2. Any two objects loaded cannot overlay in the container.
Assumption 3. The boxes’ assignment must be orthogonal, i.e., the sides or edges must be parallel to the container side as discussed in (Figure 5).
Assumption 4. Any box in the container may be easily rotated by 90 degrees [
33].

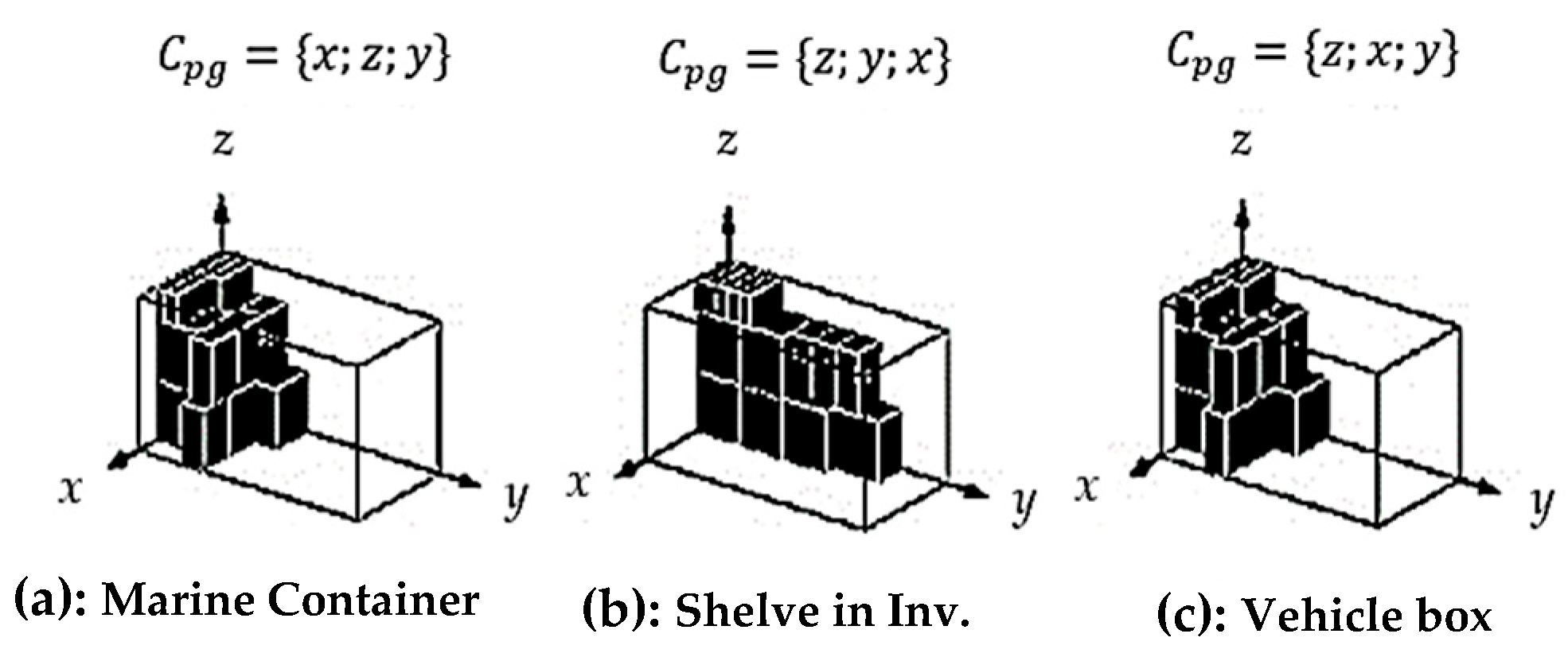

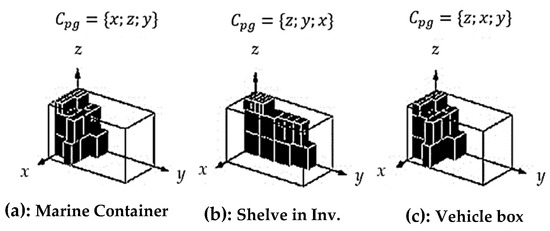

Assumption 5. As seen in the diagram illustrated in (Figure 6), boxes can be stacked on top of each other with some constraints (durability factor). The time it takes to prepare a vehicle for non-stowing and stowing objects is
and
, respectively. Let
represent the direct labor cost (USD/h) for the preparation and packing time. When a client order
requires
an item type,
. Each type of item’s
occupied area,
, which contains the essential inter-object spacing
in this study (as shown in
Appendix A). Let
be the total occupied area for a client’s order
(objects/client). (We presume that all areas in some unit of measurement may be written as integers). All objects must be stowed if possible. Therefore, every camel seeks the best fit area along time t to customize the selected object
elected from the matrix
, which ranked objects in descending order. If customizing is impossible, the object is stowed temporarily in a potential container
and reselect in the final customization stage in time
. (i.e., demand distributed during trip path). The expense of delivering each packing order to its designated drawer is
Let
be the total of a packing order and prep cost of not stowing an order
, at one drawer or not completely stowed (the cost of holding no orders or fail the Camel to find the suitable lagoon). Now think about group stowing,
. Let
if order
is in the specific drawer/client, and
otherwise. While in the case of stowing objects, let
, tends to achieve the object
, otherwise
. Let
be the vehicle prep cost to transport particular objects in the same drawer. Let
be the positions area required according to the stowing decision, where the total area of the stowed objects and the empty, serviceable area is
(i.e., whole container area).
, where
(the order’s number of pieces divided by the drawer’s number of parts). While the time required to load returned objects (backing orders) is
and the cost of it is,
. Let
be the total cost of loading returned orders. Formerly, for an agreed stowing decision,
the full prep and packing drawer cost for the group is the following sum:
The non-negative integer,
;
. Then, the wasted area value,
,
, and
. Where the
is the number of whole returned orders
that requires
(i.e., the extra spaces that the returned order,
, requires transported). Formerly, the authors can write the dynamic fitness function of searching the best stowage orders, as shown in Equation (2). At the same time, the challenge is to stow most boxes carried to reduce the total transportation cost (TTC), which is expressed in Equation (3). It is divided into two sections: the first discusses exhaustion consumption per distance, which is a cost of the searching process, and the second discusses the most expensive branch selection costs.
This problem is formulated as an NP-complexity problem, especially if all of the prep and extra drawer costs are zero. It is worth noting that, despite the extreme integer points, the linear programming relaxation does not yield an optimal solution because the goal function is nonlinear.
Equation (7) stipulates that transporting whole boxes must not surpass the camel’s carrying capability. According to Equations (8) and (9), each box must have a delivery service. As stipulated by Equations (10) and (11), each order’s service can only be fulfilled by a single camel: The time window limitations are defined by Equations (12) and (13). Finally, Equations (14) and (15) specify that the decision variables
and
are both binary amounts. Algorithm 1 contains the
pseudo-code for the proposed OSM-CA methodology. The first interests in identifying the procedures of the camel positions’ configuration at the BLC (bottom left corner); the second conversion of the camel positions to the trip sequence using the Large Rank Value (LRV) technique to sort the
and
in descending order; and final, trying to modify their locations as discussed in Equations (16)–(34).
When the variables
= 1, the two boxes surrounded by boxes
b and
Pk must not overlap with other boxes, as discussed in
Section 2 of the article. To avoid the surrounded boxes occupying the same portion of space, it is adequate for no overlying along at least one relative stowage position.
5.1. Step-1 (Stowage Boxes) Procedures
Initially chosen, the stowage layouts of the orthogonal boxes in the containers; an arrangement representation map developed by the authors, addressed enhancing the stowage methodology map and managing it via IoT “OSM-CA”. The following part goes through a general description of the recommended technique and an example explaining its sequential steps (
Figure 5) in a standard case.

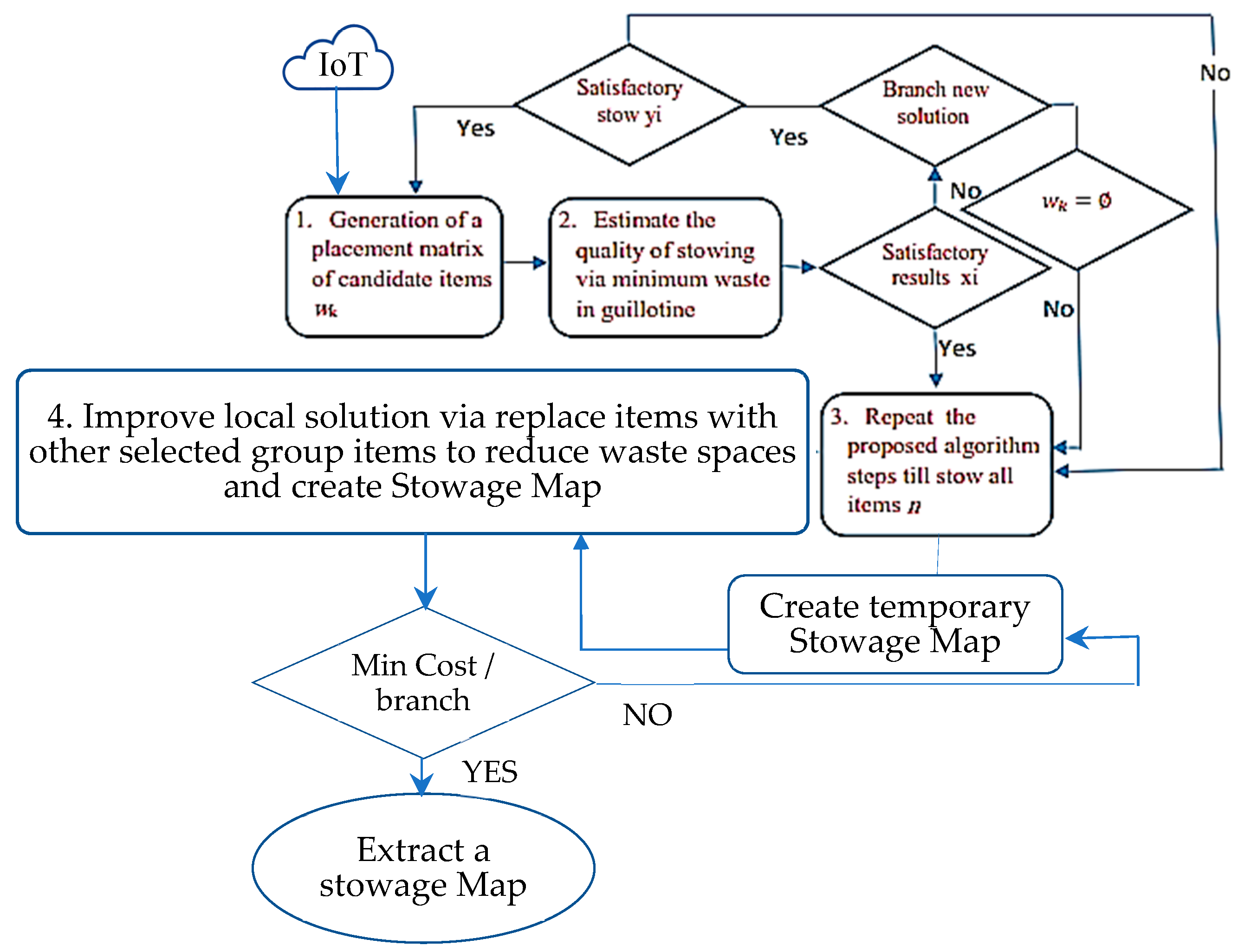

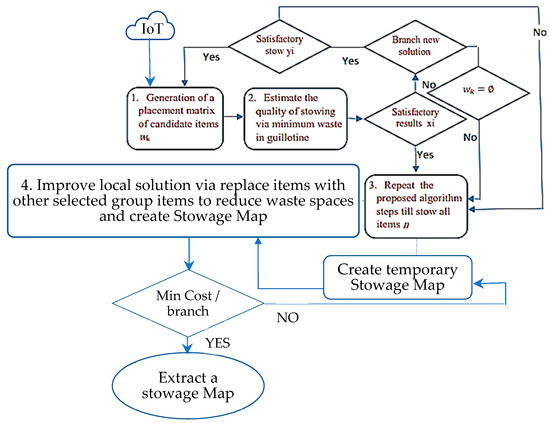

Figure 5.
The OSM-CA flowchart.
Figure 5.
The OSM-CA flowchart.
The proposed procedures aim to find a suitable placement of all boxes that have been candidates into the fewest number of trials under the next circumstances of correct placement acts:
- (1)
All vertices of boxes’ potential container , and the main container are parallel,
- (2)
All stowed boxes do not overlap with each other, i.e.,
- (3)
All stowed boxes are within the bounds of the containers, i.e.,
where the
is the selected coordinate of the assigned vertex, whereas
is the width of the selected box
to be assigned.
All regular shape classifies according to (.
- (4)
If ( then reside sticking right or left of container edges around its perimeter rotate 90° at the bottom of the container to make on the horizontal line. The = Euclidean distance between two inner boxes in the same guillotine layer.
- (5)
Check all . This is different from the guillotine layer above, considering that the stowage space is the available inner free space in the main container.
A random example of any dimensional stowage problem is represented by a location
wk, which holds a sequence of boxes selected for placing into the container, this
is a matrix that has some of the box’s attributes such as; width
xi, length
yi, centroid
ci, and the ratio between the width and length
) [
35], heights and their weights to classify the boxes before being stuck with container sides. Generating these matrices results in many branches of the solutions, which must be followed to stop at one of two decisions; the first is to create a sub-matrix and continue finding the solution or reach an empty matrix if it has
-ve or
values. The sub-matrix considered a branch-and-bound behavior via adopting some of the potential containers (PC, such as drawer;
) placed in a container at a specific point but ignored the core relationship between the boxes’ dimensions and their boxes [

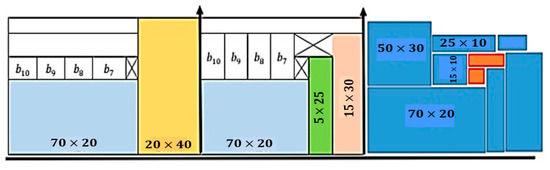

36]. Additionally, it missed the skyline path (i.e., an imaginary polygon bounded by the upper vertices of placed boxes). Each PC;
with a number,
k is described with an objected-vector containing dimensions of this box and adjacent to the BLC, which holding
.
In a container, all existing free orthogonal spaces are defined as a set of boxes. The steps of OSM-CA guarantee the correct placement of a box if this box overlays no borders of the potential place
in which it is positioned. In this case, a box is put at some point coordinates instead of inspecting the intersection, using a matrix test and stowing everything in its place [
37,
38]. This test means compromising among the camels to choose the most appropriate [
33]. The rule of correct placement for box
in a potential place
k is expressed with the inefficient:
, as illustrated in (
Figure 6).
Figure 6.
Load of potential orthogonal container (drawer).
Figure 6.
Load of potential orthogonal container (drawer).
- (6)
A set of
β boxes with the dimensions
Additionally, located at an origin of coordinates of the original potential container
k:
Which are generated under the following overlap constraints:
- (7)
A set of
β boxes with the dimensions
Additionally, located at
β points vertices with coordinates
Which are produced under the following restrictions of overlap:
: The centroid of the box to calculate the Euclidian distance between and neighbor .
: is the width of the selected box to be assigned.
Illustrative Example (The Positions’ Configuration)
The camel’s location is determined by adjusting several parameters used in the camel’s configuration phase, such as the total camel caravan (N), traveling iterations (iter), maximum and lowest temperatures, and visibility value. The BLC defines the starting position at every trial (d) of the camel’s location in this study as determined by the number of problem nodes (lagoons). Equation (33) demonstrates how to pick the camel location’s configuration. The camel’s starting location is chosen randomly from some camel caravans and nodes (D). The camel’s value’s upper and lower limits are computed. The camel caravan location’s highest maximum is called,
. The camel caravan location’s bottom limit is called,
.
is a uniformly distributed random number in the range [0,1]. The
is calculated as follows:
The vector position of 10 nodes and 10 camel caravans is shown in the detected population. At this point, the camel
i ensures that each
d does not repeat itself. The camel population can be approved if each camel does not have the same quantity in one population (different lagoons and/or boxes). As a result of the application of LRV, the camels will be guided to sort their boxes according to the lagoon area, as illustrated in
Table 3. LRV is a straightforward way for converting a pair of (centroid, area) into a Stowage method behavior combinatorial issue. As a result, the serial numbers of camel places must be converted into a traveling sequence; this method is well-known for this purpose. The LRV concept is to sort the d positions of each camel in ascending order. The IoT is a dynamic dataset that manages the generated OSM solutions, which is programmed by C# for all candidates’ boxes in the logistic cycle to cope with unloading action and returned objects online on a specific trip [
4,
39].
- 1.
Create the main matrix
wk of all boxes
have permission to stow in the container according to the (
Figure 7) structure.
- 1.1.
Classify w.r.to and select the matrix that have # of , and the average calculated via
- 1.2.
Stowage the perimeter boxes In CCW direction and ignore the container’s topside because of its set height assumption as agreed.
- 1.3.
Calculate the
as aforementioned in Step 7 of a proposed methodology, for the illustrative example step shown in
Table 3.
Figure 7.
The OSM-CA plan representation.
Figure 7.
The OSM-CA plan representation.
Table 3.
The main matrix of orders information at station i − 1.
Table 3.
The main matrix of orders information at station i − 1.
| b1 | b2 | b3 | b4 | b5 | b6 | b7 | b8 | b9 | b10 | b11 | b12 | b13 | |
xi | 70 | 50 | 70 | 40 | 90 | 40 | 30 | 25 | 25 | 15 | 80 | 12 | 10 |
yi | 20 | 30 | 5 | 20 | 5 | 35 | 15 | 5 | 10 | 10 | 3 | 10 | 10 |
A | 1400 | 1500 | | 800 | | 1400 | 450 | 125 | 250 | 15 | | 120 | 100 | 6295 |
ri | 0.29 | 0.6 | 0.07 | 0.5 | 0.08 | 0.87 | 0.5 | 0.2 | 0.4 | 0.67 | 0.04 | 0.84 | 1 | |
- 1.4.
Stowage
that have
< 0.2 in a separate matrix
around the perimeter sides of the container and explained in
Table 4.
Table 4.
Matrix of .
Table 4.
Matrix of .
| | | |
| 70 | 90 | 80 |
| 5 | 5 | 3 |
| (1.5,40) | (2.5,45) | (2.5,35) |
| 0.07 | 0.056 | 0.038 |
- 2.
Create a matrix of the potential container, , which have all boxes bi ready to stowed.
- 2.1.
If any have many objects , collect them besides to make a group as one box have maximum width = and if there is some not collected to this box, create a new box till its width (this constraint if all objects belongs to one client).
- 3.
Set all , where .
- 4.
Arrange all in descending order according to .
- 5.
Determine the origin of the main container
, which is preferred at the bottom left corner (BLC) [
40].
- 6.
Determine the ratio between the width and length of ri = (xi/yi), and classify all that its ri less than in .
- 7.
Determine all vertex coordinates of the stowed boxes to determine the skyline polygon in CCW order for the free space side. Where; means that vertex of box #1 at container #2 placed one of their vertices at (0, 0) and determine the second vertex in the same horizontal edge; by this way, select the other vertex coordinates.
- 8.
Assume that at the first stowage step. Otherwise, determine for these vertices and calculate the .
- 9.
Create the , which represents a potential container matrix that contains all , ready to stowed/arrangement and consider this matrix a formed of chromosome chain, which is a key to generating a suitable layout’s floor.
.
,
- 9.1.
The key goals in both searches are to cross the closest guillotine line (i.e., make the skyline horizontal) and reduce the fitness value by touching the nearest vertex.
- 9.1.1.
Allowing a box to cut the guillotine line is not permitted, and it is preferred to be in the far-right or far-left of the usable placement line, considering the previous step, 9.1, and explained in
Table 5.
- 10.
.
Table 5.
Sub-matrix after classification step.
Table 5.
Sub-matrix after classification step.
Old | b1 | b2 | b4 | b6 | b7 | b8 | b9 | b10 | b12 | b13 |
New | b1 | b2 | b3 | b4 | b5 | b6 | b7 | b8 | b9 | b10 |
xi | 70 | 50 | 40 | 40 | 30 | 25 | 25 | 15 | 12 | 10 |
yi | 20 | 30 | 20 | 35 | 15 | 5 | 10 | 10 | 10 | 10 |
Cbi | (35,10) | (25,15) | (20,10) | (20,17.5) | (15,7.5) | (12.5,2.5) | (12,5.5) | (7.5,5) | (6,5) | (5,5) |
- 10.1.
Reside
at
matrix that belongs to one class divisible for stowing, as shown in (
Figure 7).
- 10.1.1.
Assume is one class generated from a large one, if will subject to classify, then compute the average of ri and sort it into two classes, one has the objects that have ri greater than this average, and another has objects that have less than average ri.
- 10.2.
Extract vertices, .
- 10.3.
Select and calculate the next .
- 10.4.
Then, = 20 [search in .
- 10.4.1.
Create a matrix
(1-1) as shown in
Table 6.
Table 6.
The selected boxes suited to be placed.
Table 6.
The selected boxes suited to be placed.
Xi branch | | | |
| 15 | 12 | 10 |
| 10 | 10 | 10 |
| \ | (85.6) | (75.5) |
| 1.5 | 1.2 | 1 |
Waste in X | 5 | 8 | 10 |
Waste in Y | 0 | 0 | ----- |
- 10.4.1.1.
New .
- 10.4.1.2.
When zero appears, it means best-fit case and choose .
Then, the placement boxes are and observe the .
- 10.5.
Then, = 20 [search in .
- 10.5.1.
Create a matrix
(1-1) as shown in
Table 7.
- 10.5.1.1.
New
. Where there are no
. Therefore, considered ∅. and stop to stow the first trial.
Table 7.
Sub-matrix excludes products according to Xavi.
Table 7.
Sub-matrix excludes products according to Xavi.
| b3 | b5 | b6 | b7 | b8 | b9 | b10 |
xi | 40 | 30 | 25 | 25 | 15 | 12 | 10 |
| 20 | 15 | 5 | 10 | 10 | 10 | 10 |
Cbi | (80,20) | (82.5,15) | (72.5,12.5) | | | | |
ri | 2 | 2 | 5 | 2.5 | 1.5 | 1.2 | 1 |
Unused area | 0 | 5 | 15 | 10 | 10 | 10 | 10 |
| -ve | 0 | ------ | 5 | 5 | 5 | 5 |
- 10.5.1.2.
Select zero waste to achieve the best fit condition.
Branch, then searching in
to find two other branches to stow boxes, as shown in
Table 8.
- 10.6.
Record the vertices of all free spaces to draw the skyline polygon, as shown in
Table 8.
Table 8.
Select preferred Origin to the Camel or box bi.
Table 8.
Select preferred Origin to the Camel or box bi.
| b1 | b10 | b9 | b1 | b3 | b1 | b5 | b6 |
| (0,20) | (--,--) | (80,10) | (0,20) | (70,40) | (0,20) | (70,25) | (75,30) |
| (--,--) | (70,10) | (--,--) | (--,--) | (70,20) | (--,--) | (70,20) | (75,20) |
| (70,10) | (80,10) | (--,--) | (--,--) | (--,--) | (--,--) | (--,--) | (--,--) |
| (70,20) | (--,--) | (80,12) | (70,20) | (--,--) | (70,20) | (--,--) | (90,30) |
| (70, 10) | (0,20) | (0,20) |
- 10.6.1.
The selected vortex for branch based on is (70, 10) to be the next origin and determine Xavi.
- 10.6.1.1.
Determine .
- 10.6.2.
The selected vortex for branch based on is (0, 20).
- 10.6.2.1.
Determine
, as shown in
Table 9.
- 10.6.3.
The selected vortex for branch based on is (0, 20).
- 10.6.3.1.
Determine .
- 10.6.3.1.1.
Select the maximum
, as shown in
Table 7, and create the next submatrix
, after disposing of all stowed boxes in the selected case above. For this specific branch found
were stowed in a specific location as shown in
Table 9.
Table 9.
Branch and bound for bi at Xavi < 70.
Table 9.
Branch and bound for bi at Xavi < 70.
Left bracnch | b2 | b4 | b5 | b6 | b7 | b8 | b9 | b10 |
| 50 | 40 | 30 | 25 | 25 | 15 | 12 | 10 |
| 30 | 35 | 15 | 5 | 10 | 10 | 10 | 10 |
| 1.67 | 1.1428 | 2 | 5 | 2.5 | 1.5 | 1.2 | 1 |
Stowage (max), minimum waste area | 20 | 30 | 40 | 45 | 45 | 55 | 58 | 60 |
10 | 20 | 30 | 35 | 35 | 45 | 48 | |
-ve | 8 | 18 | 23 | 23 | 33 | | |
-ve | -ve | 3 | 8 | 8 | | | |
-ve | -ve | -ve | -ve | stop collecting boxes |
Right bracnch | b2 | b3 | b4 | b7 | b8 | b9 | b10 | |
| 50 | 40 | 40 | 25 | 15 | 12 | 10 | |
| 30 | 20 | 35 | 10 | 10 | 10 | 10 | |
| 1.67 | 2 | 1.1428 | 2.5 | 1.5 | 1.2 | 1 | |
Stowage (max), minimum waste area | 20 | 30 | 30 | 45 | 55 | 58 | 60 | |
10 | 20 | 20 | 35 | 45 | 48 | | |
-ve | 8 | 8 | 23 | 33 | | | |
-ve | -ve | -ve | 8 | | | | |
-ve | -ve | -ve | 10 | 10 | 10 | 10 | |
-ve | -ve | -ve | 0 | 0 | 0 | 0 | |
-ve | -ve | -ve | stop collecting boxes | |
- 10.6.3.1.1.1.
.
- 10.6.3.2.
Select the maximum
and create the next submatrix
after disposing of all stowed boxes in the selected case. Stowed boxes were
, as illustrated in (
Figure 8).
Figure 8.
Two branches of stowing based on or .
Figure 8.
Two branches of stowing based on or .
- 10.6.3.2.1.
.
- 10.7.
When searching about vertices and determine , for . Therefore, close this space and raise the vortex to the nearest upper vertex beside the box.
- 10.7.1.
Repeat the previous steps for testing .
- 10.7.1.1.
Select the maximum
, as illustrated in
Table 10, and following the guillotine line at height 25 then 30 or only for 10 unit-length, and create the next submatrix
after disposal, all stowage/placement boxes were
, as shown in
Table 11.
Table 10.
Branch and bound for bi at Xavi < 20.
Table 10.
Branch and bound for bi at Xavi < 20.
| b2 | b3 | b4 | b5 | b6 | b7 | b8 |
| 50 | 40 | 40 | 30 | 25 | 25 | 15 |
| 30 | 20 | 35 | 15 | 5 | 10 | 10 |
| 20 | 30 | 30 | 40 | 45 | 45 | 55 |
| --- | Not meet a condition 9.1 | |
Place min wastage and then search about minimum fitness nearest guillotine line | |
Table 11.
Branch and bound for bi at Yavi < 10.
Table 11.
Branch and bound for bi at Yavi < 10.
| b6 | b7 | b8 |
| 25 | 25 | 15 |
| 5 | 10 | 10 |
| 5 | 2.5 | 1.5 |
| 5 | 0 | 0 |
| --- | Best fit |
- 10.7.1.2.
When no
found, and try to test the same
, in this case, found
and preferred
, as shown in (
Figure 9 and
Figure 10).
- 10.7.2.
Re-record the vertices of all accessible spaces to draw the skyline polygon, as shown in
Table 12.
- 10.7.2.1.
Determine
, as illustrated in
Table 13. Then, choose
.
Figure 9.
Branch of stowing vertically.
Figure 9.
Branch of stowing vertically.
Table 12.
The vertices of all free space.
Table 12.
The vertices of all free space.
| | | |
| | | |
| | | |
| | | |
| | | |
Min | (80, 12) |
Table 13.
Sub-matrix to determine the preferred box bi.
Table 13.
Sub-matrix to determine the preferred box bi.
| | |
| 25 | 25 |
| 5 | 10 |
| 5 | 2.5 |
| 5 | 0 |
Figure 10.
Improve the shortest depth branch.
Figure 10.
Improve the shortest depth branch.
At this level of solution, as illustrated in (
Figure 11), the problem is divided into two independent branches, the first based on
, and the second branch has two branches based on
, or allow rotation conditions.
, and reach , remain {}
, and reach , remain {}
, and reach , remain {
Figure 11.
Continuo restoring to reduce the waste in stowage area.
Figure 11.
Continuo restoring to reduce the waste in stowage area.
All object centroids are considered a vertex of a triangle bound by three conjoined boxes of a replaced object with another that reduces the unused space (i.e., ff the angle
at the centroid vertex of the main item (which not replaced) must be minimum to move the centroid of another inserted object to a horizontal position and
. Otherwise, choose inserted objects that reduce
angle. (
Figure 4) illustrates the role, when investigating from
, then an arrangement of (
Figure 12A) preferred than (
Figure 12B) illustrates that the angle
is
When an item is replaced from its potential container it is required to reorder all boxes around this item. The advanced algorithm of replacing an orthogonal item i from container j includes the following steps.
- 11.
Create a new free orthogonal potential container that replaces objects with similar dimensions equal to the dimensions of the original replaced item, . Put into the container a box with the dimensions , at a point with the coordinates equal to the coordinates of the box placed into another layer in the same container : .
- 12.
The replacement is subject to two restrictions as follows: The demand based on sequence (classify, select, stow, improve) and the solution effectiveness of the required order
for a long trip, and the customers’ requirements rate is variable [
33,
41,
42].
- 12.1.
- 12.2.
- 12.2.1.
.
- 12.3.
divide this matrix into some subsets considering the following rules: (To achieve this rule, verify each item’s validity before combining it with others, {best-fit} case).
- 12.4.
This means that a better selection category aligns the heights of the grouped objects with the tallest of them to lead the skyline to be horizontal.
- 12.4.1.
, test with all best-fit of others in matrix .
- 13.
It is assumed that objects will permanently be assigned to a specific space and not disposed of, as the customer requirements for these objects always exist in the market in minimum lead-trip. Therefore, the management emphasizes triggering the tour to meet the end-user needs via sequential steps. As cited by M. Schuster et al. [
2], autonomation is willing to bear the carrying cost associated with the additional units transporting objects.
- 14.
In point (12) of the OSM-CA, make a new free orthogonal potential container
that contains all of the products subject to the replacement act [
38]. Products that are in the container but are not adjacent to the container’s edges will be replaced in this example; in other words, they will improve the positions of the objects that belong to the second-class matrix
, as illustrated in (
Figure 12) and
Table 14, where
Figure 12 illustrates the main two branches (A) and (B) of the final solution deduced from stage 1 implementation.
Table 14.
The branches solutions obtained from stage-I.
Table 14.
The branches solutions obtained from stage-I.
| X | Y | ![Processes 10 02252 i001]() | | X | Y |
| 90 | 77 | | 98 | 80 |
| 90 | 90 | | 98 | 93 |
| 90 | 80 | | 98 | 83 |
Figure 12.
Proposed solution for two branches.
Figure 12.
Proposed solution for two branches.
5.2. Calculate the Transportation Cost (Stage-2)
This section discusses the OSM-CA to solve the stowing problem for each group. The orders (objects) in groups,
. Therefore, the total number of feasible solutions are,
. The computational effort searching is proportional to,
. Thus, as
increases, the computational effort does not increase exponentially [
43,
44], unlike other enumeration techniques that could be used. The OSM-CA presented finding the optimal (least-cost and area) stowing decision as discussed in Algorithm 2.
Algorithm 2 Stage-2: OSM-CA pseudo-codes. |
Begin |
: Configuration: Set parameters, , Caravan size (N), the visibility threshold, and |
initialize each camel’s position from Equation (21). |
: Sort the location of each camel using LRV; determine the fitness value of each camel using |
Equation (1b); |
Determine the current best location and fitness in the initial solution. |
: While (iter < number of trip step) do |
do Number camel caravan size (N) |
Compute the temperature of camel (Tdi, iter) using Equation (22). |
Compute the endurance of camel (Edi, iter) using Equation (23) |
If vi, iter ( 0 to 1) < visibility edge, then |
Modify the camel position using Equation (24) |
Otherwise |
Modify the Camel position using Equation (21) |
End If |
While i = 1: |
Convert position camel to travel sequence using LRV and determine the total distribution cost in each camel. If fitness, the new positions are preferred. The new best is the global best and saves the best solution (fitness and location) |
End If |
Assign new visibility for each camel |
: End While |
: Output the best solution |
End |
Let (j, x) be the lowest cost of any stowing decision considering the first j (objects) and required area x on the last unplanned drawer.
Configuration: . if .
Recursion: If
, then
, in this case, no orders are stowage. While if
then
. In this situation, also order
had not been stowed, or order
added its
(returns) to the drawer and needs an extra area
for order
that fit onto the last returns to the stowage. In this case, the portion of order
on the new area of the returns drawer has an area
, and the portion on the last returns drawer that has an area
. Therefore, the area on the last assigning drawer for these returns describes as
before adding order
to the stowage map. If
, then
. In this case, either order
was not stowed, or order
added its
, but the extra area of order
fits onto the last unplanned area for the returns objects. This step means
, the complexity of tackling this problem is
. This preparation allows for identifying a case that can be solved immediately. Note that
is an upper bound for the cost of stowing order,
. If
, then the cost of adding the order to the nest is less than or equal to the cost of excluding it. If
then stowing no orders is the only solution that could cost less than stowing every order. To decide, compare
(the cost of stowing no orders) to,
, which means (the cost of stowing every order). If the first quantity is smaller, stowing no orders is the optimal solution. Otherwise, stowing every order is an optimal solution [
45].
- 15.
Linear Programming Reduction: We build and solve a linear programming relaxation of the dynamic stowing problem to construct an efficient heuristic. The variables have been changed to be continuous, and the objective function has been changed to be linear.
Can define the ideal stowage according to: Let be the whole cost of stowing orders, as expressed in Equation (35). If , indicate non-stowing case (all . Otherwise, some . Let If , indicates a non-stowing situation also. While if , then the optimal solution is to stow order , when ) and if
Calculate the estimated total cost of stowing order for all , in group :
.
.
is empty = Ø or , then stow nothing. Otherwise, since , stow order if and only if .
If the
is the stowage map that the heuristic creates and
is an optimal stowage for the OSM-CA, then
. While for any solution
is the cost of the solution, where discussed by Equation (36)
Transportation managers must first arrange the orders needed during each timespan into clusters, relying on their form and size to use dynamic stowing OSM-CA, via the following indicators expressed in Equations (35) and (36).
, indicates the whole prep and penalty cost of each order, , whether it is not stowed and/or transported.
, the whole required area to stow order, .
, the serviceable area of a returns items.
, the labor and drawer loading cost of returns objects.
, the vehicle prep cost for a stowage.
Aimed at any order,
, calculating,
, via determining the planned packing items;
N(
X), and calculate
, multiple the parts inside the order by the needed area per part as expressed in Equation (37), (including useless and/or interpreted spacing) [
46,
47]. The data have been aggregated dynamically via IoT to feed the proposed algorithm. Therefore,
6. Results and Discussion
With the advancement of sophisticated and digital manufacturing technology, it is now possible to completely utilize circular resources. However, there is currently a dearth of study that examines how digital technology may affect the development of a circular economy in the context of supply chains [
48,
49]. This study aims to evaluate the impact of technological innovation on CE practices and their connection to economic and environmental performance, as discussed by Khan, S. et al. (2022) [
50,
51]. Only in China can economic expansion and frequent travel play such a big role in pushing up crude oil imports. Foreign direct investment and industrialization both play a significant influence [
52]. As a result, the suggested methodology is based on maximizing the volume of items transported while simultaneously decreasing the number of transportation trips. Consequently, cut back on fuel usage. There are three differences between the proposed methodology and the classic placement approaches for strip packing or others. The first is the limited container size (width, length, and height), which represents the standard size. The search for customizing specific objects using a modified camel algorithm aided by the mathematical procedures interested in the parameters shown in
Table 2 to fit best the inner of the container. The modified metaheuristic can be programmed using C-Sharp software to create the visual map for the stowage object inner in this fixed area, which is discussed in
Section 5.2. Finally, track the map (loading and unloading and loading returned objects from different stations along the trip path), which form the main framework discussed in
Figure 2. The branch-and-bound methodology [
4,
47,
53,
54] may be classic in the implementation of small-size problems. At the same time, customizing many objects is considered to be an NP-hard problem and needs an innovative methodology to help achieve the e-commerce target discussed before. In 2020–2021, the sudden (COVID-19), the “black swan” outbreak, struck every country, sparking a global pandemic, which led to badly disrupted logistic activities for manufacturing companies, and retailer stores, consequently increasing the delivery lead time and customer grumbles [
55]. Therefore, the proposed methodology interested in increasing the number of transported items to reduce the delivery lead time and partially satisfy customers. E-commerce data are characterized by quick growth [
56], which pushes the researchers to create modern analysis models to simplify the management of these data means using IoT and sustainable supply chain management (SSCM) [
57], which refreshes the circular economy, also referred to as “Blockchain” technology, as a distributed digital ledger technology, guarantees security, visibility, traceability, and transparency and promises ease for environmental and global supply chain problems. Retailer distribution is an example of a circular economy that must be sustainable [
58,
59]. This concept is compatible with the proposed, which works on accelerating the distribution cycling of e-commerce. Some researchers identified and faced some influential barriers to using the IoT and analyzed the causes of weak supply chain sustainability [
60]. Therefore, the authors have interested in tackling the problem from its root by trying to increase transported items and accelerate the circular economy and enhance the e-commerce processes.
Table 15 shows the tuned parameters for ACO, Camel algorithm, and dynamic OSM-CA. Both ACO, CA, and proposed heuristics that the numerical model supported are compared with LINGO exact output (Mathematical Model).
Table 16 shows the ranges for the assumed cost of moving the actuators to their original location and the cost of replacement achieved.
Figure 13 illustrates the percentage of deviation for the four data sets identified (
Table 1) about the optimal solution extracted by LINGO (mathematical model) and shows the superiority of the proposed methodology over the native camel and ant-colony algorithms by 0.417% and 2.0528%. While if the problem size is over 500 objects, the LINGO consumes significant time, exceeds 24 h, and often fails to extract the solution, as illustrated in (
Figure 14). The results deviations are represented and summarized in
Table 17,
Table 18 and
Table 19 in Relative Percentage Deviation (
). The total cost and related area are also shown in the same tables, where
is calculated as in Equation (38).
The computational analysis shows that OSM-CA provides better results than ACO or CA solo. The proposed methodology provides significantly better solutions with a difference of about 3.045% for ACO, 1.75% for CA, and 1.47% for OSM-CA from the optimal solutions. The p-values are calculated for the average deviations between ACO and OSM-CA to be 0.0056, which is <0.05.

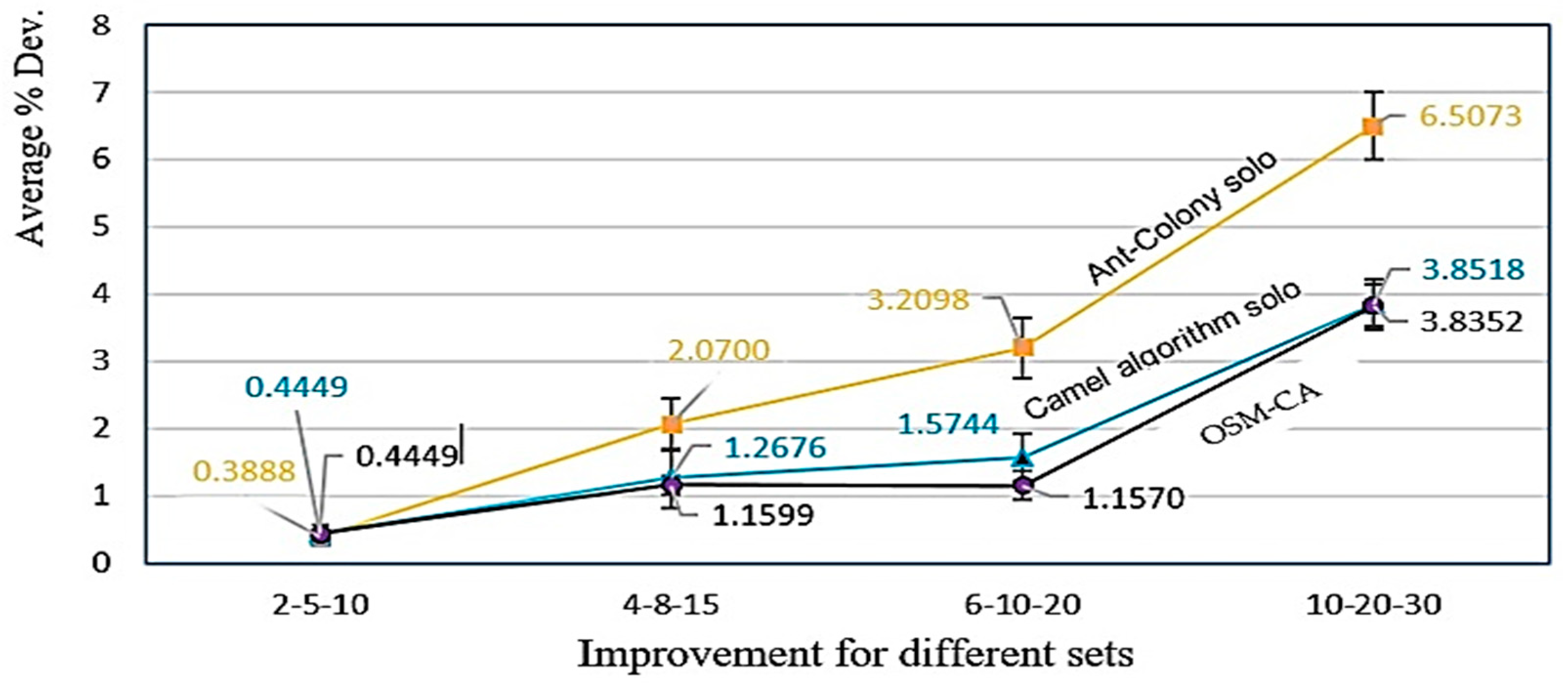

Figure 13.
The deviation of proposed methodology OSM-CA and ACO, CA methods with Mathematical equation effect result.
Figure 13.
The deviation of proposed methodology OSM-CA and ACO, CA methods with Mathematical equation effect result.

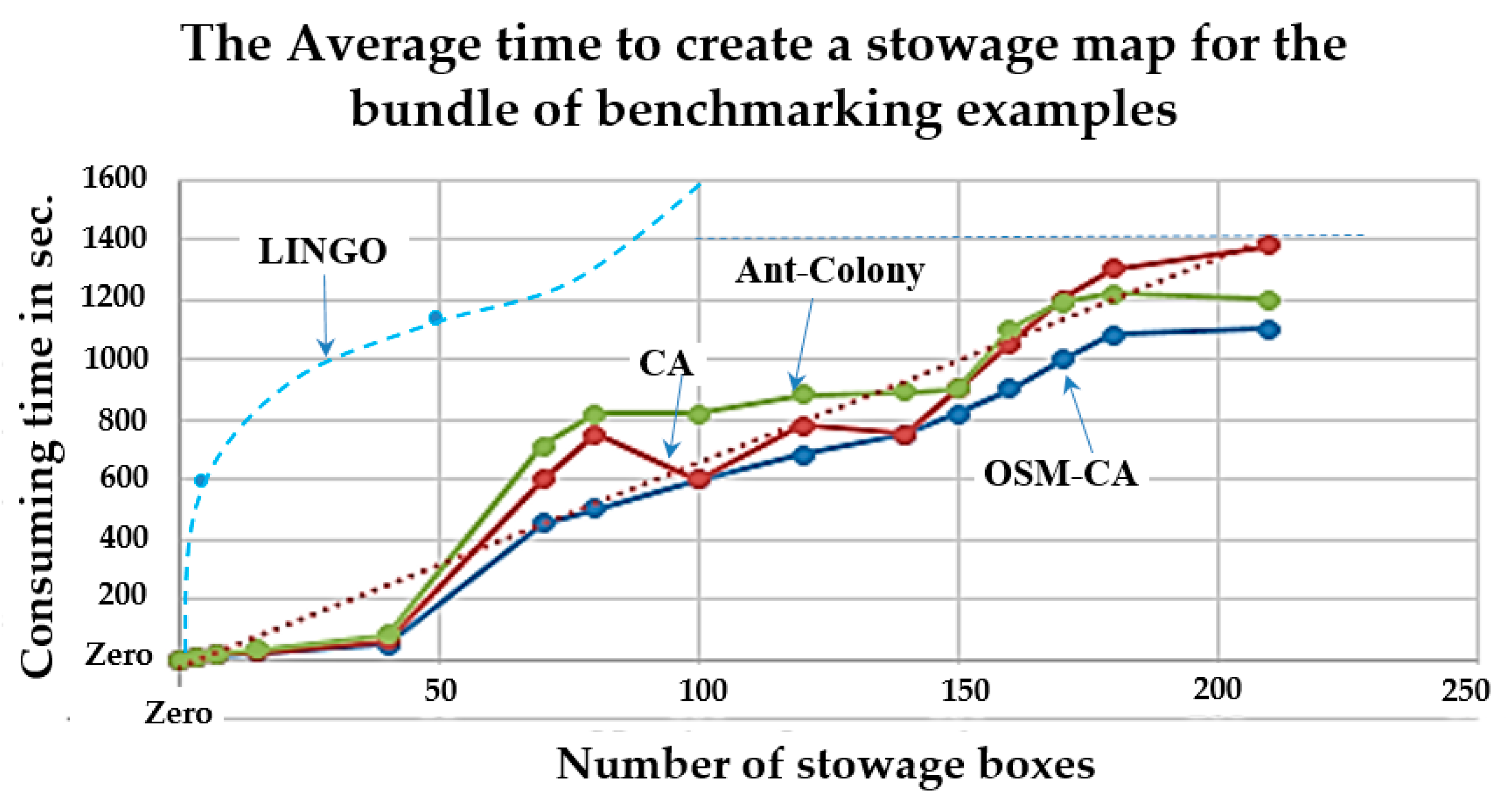

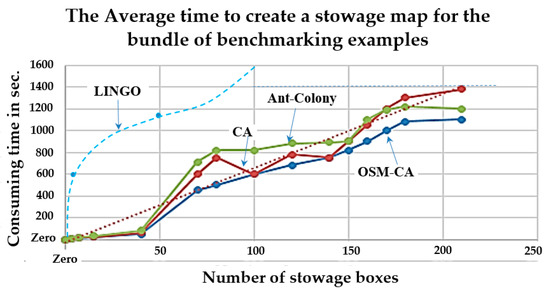

Figure 14.
The time required to create a stowage map for each drawer (potential container).
Figure 14.
The time required to create a stowage map for each drawer (potential container).
Analysis of Results
Excellent e-commerce needs a quick decision for loading the demands and/or the returned objects during the transportation path, which may cause the arrival time among the stations to be less than 20 min. As the number of instances and/or the boxes grow to more than 100 that must be stowed at the same time, the mathematical models cannot find an exact solution via LINGO software for running over 9 h to present a stowage solution in the available space that appears after unloading the requested objects at clients’ stations. Therefore, the authors developed one of the optimization algorithms (i.e., the camel algorithm) by embedding mathematical equations to make oriented stowage and programming it with the C-sharp software to present a visual solution named alluded “stowage map”, which is named (OSM-CA) using a Laptop that has processor Core i5 and 16G Ram. This map helps increase the stowing capacity for the transported products, reducing the total transportation costs, the number of trips, and the waiting time at each station (i.e., Lean objectives). The Lean-IoT achieves many of the lean objectives and provides evidence of the effectiveness of the proposed OSM-CA methodology, as illustrated in
Figure 13 and
Figure 14 and shown in
Table 17,
Table 18 and
Table 19. On average, the proposed algorithm gives a much better solution than the precise solution, with a difference of roughly 1.47% for OSM-CA. The findings of the computational study demonstrate that OSM-CA is cumulative superior to the ant-colony and CA solo by 12% and 5%, respectively, as shown in (
Figure 13).
Appendix A explains the comparability between the proposed algorithm and the other two algorithms, such as the ant-colony and the camel algorithm.
Table 17.
Results obtained using LINGO, ACO, CA, and OSM-CA for group 1 that distributed 10 different boxes area in a container dimension × = 720,000 mm2.
Table 17.
Results obtained using LINGO, ACO, CA, and OSM-CA for group 1 that distributed 10 different boxes area in a container dimension × = 720,000 mm2.
Prob. Inst. | Total Unused Area mm2 | Unused Area Deviation % | Prob. Inst. | Total Unused Area mm2 | Unused Area Deviation % |
---|
LINGO | ACO | CA | OSM-CA | ACO | CA | OSM-CA | LINGO | ACO | CA | OSM-CA | ACO | CA | OSM-CA |
---|
1 | 5190 | 6900 | 6750 | 6295 | 0.32% | 0.30% | 0.21% | 16 | 13,322 | 13,411 | 13,407 | 13,401 | 0.67% | 0.64% | 0.6% |
2 | 11,497 | 11,511 | 11,499 | 11,491 | 0.12% | 0.02% | −0.1% | 17 | 15,790 | 15,816 | 15,790 | 15,790 | 0.16% | 0.00% | 0.0% |
3 | 15,037 | 15,090 | 15,064 | 15,061 | 0.35% | 0.18% | 0.2% | 18 | 16,894 | 16,927 | 16,894 | 16,891 | 0.20% | 0.00% | 0.0% |
4 | 13,097 | 13,130 | 13,099 | 13,092 | 0.25% | 0.02% | 0.0% | 19 | 15,565 | 15,582 | 15,565 | 15,561 | 0.11% | 0.00% | 0.0% |
5 | 11,981 | 12,199 | 12,309 | 12,303 | 1.82% | 2.74% | 2.7% | 20 | 16,971 | 17,077 | 17,028 | 17,022 | 0.62% | 0.34% | 0.3% |
6 | 11,477 | 11,560 | 11,500 | 11,500 | 0.72% | 0.20% | 0.2% | 21 | 14,891 | 14,982 | 14,961 | 14,961 | 0.61% | 0.47% | 0.5% |
7 | 15,612 | 15,887 | 15,839 | 15,832 | 1.76% | 1.45% | 1.4% | 22 | 13,728 | 13,736 | 13,728 | 13,721 | 0.06% | 0.00% | −0.1% |
8 | 15,573 | 15,780 | 15,843 | 15,841 | 1.33% | 1.73% | 1.7% | 23 | 14,054 | 14,068 | 14,054 | 14,052 | 0.10% | 0.00% | 0.0% |
9 | 14,221 | 14,249 | 14,221 | 14,220 | 0.20% | 0.00% | 0.0% | 24 | 15,784 | 16,077 | 16,035 | 16,031 | 1.86% | 1.59% | 1.6% |
10 | 12,785 | 12,799 | 12,785 | 12,781 | 0.11% | 0.00% | 0.0% | 25 | 13,719 | 13,775 | 13,735 | 13,731 | 0.41% | 0.12% | 0.1% |
11 | 12,138 | 12,281 | 12,211 | 12,210 | 1.18% | 0.60% | 0.6% | 26 | 12,897 | 12,942 | 12,904 | 12,900 | 0.35% | 0.05% | 0.0% |
12 | 13,769 | 13,992 | 13,961 | 13,961 | 1.62% | 1.39% | 1.4% | 27 | 13,534 | 13,578 | 13,536 | 13,531 | 0.33% | 0.01% | 0.0% |
13 | 13,824 | 13,843 | 13,824 | 13,821 | 0.14% | 0.00% | 0.0% | 28 | 10,117 | 10,192 | 10,125 | 10,121 | 0.74% | 0.08% | 0.0% |
14 | 14,934 | 15,062 | 15,008 | 15,001 | 0.86% | 0.50% | 0.4% | 29 | 14,377 | 14,438 | 14,424 | 14,421 | 0.42% | 0.33% | 0.3% |
15 | 11,808 | 11,879 | 11,870 | 11,870 | 0.60% | 0.53% | 0.5% | 30 | 14,253 | 14,263 | 14,253 | 14,251 | 0.07% | 0.00% | 0.0% |
The average deviation | 0.61% | 0.45% | 0.42% |
Table 18.
The comparison among different groups for an unused area .
Table 18.
The comparison among different groups for an unused area .
| LINGO Time Window | ACO | Time Window | CA | Time Window | OSM-CA | Time Window |
---|
10 boxes | 3 min | 0.3888% | 6 s | 0.4449% | 6 s | 0.4449% | 6 s |
50 boxes | 67 min | 2.070% | 13.2 s | 1.2676% | 17 s | 1.1599% | 17 s |
100 boxes | 490 min | 3.2098% | 75 s | 1.5744% | 38 s | 1.5570% | 38 s |
500 boxes | 1440 min | 6.5073% | 108 s | 3.8518% | 90 s | 3.8352% | 60 s |
| | 3.045% | | 1.75% | | 1.47% | |
Table 19.
The expected transportation costs obtained using LINGO and OSM-CA [
4].
Table 19.
The expected transportation costs obtained using LINGO and OSM-CA [
4].
| TheInstances Results | | TheInstances Results | | TheInstances Results | | TheInstances Results |
Prob. Inst. | LINGO | OSM-CA | Dev.% | Prob. Inst. | LINGO | OSM-CA | Dev. | Prob. Inst. | LINGO | OSM-CA | Dev. | Prob. Inst. | LINGO | OSM-CA | Dev. |
1 | 128,040 | 128,524 | 0.38% | 1 | 177,854 | 178,112 | 0.15% | 1 | 236,721 | 237,741 | 0.43% | 1 | 314,390 | 323,986 | 3.05% |
2 | 114,971 | 114,997 | 0.02% | 2 | 209,060 | 209,832 | 0.37% | 2 | 228,294 | 228,752 | 0.20% | 2 | 280,884 | 284,218 | 1.19% |
3 | 150,375 | 150,646 | 0.18% | 3 | 167,758 | 167,990 | 0.14% | 3 | 210,147 | 211,125 | 0.47% | 3 | 335,035 | 354,308 | 5.75% |
4 | 130,971 | 130,997 | 0.02% | 4 | 179,626 | 179,906 | 0.16% | 4 | 228,458 | 229,740 | 0.56% | 4 | 312,855 | 325,247 | 3.96% |
5 | 119,819 | 123,098 | 2.74% | 5 | 202,973 | 203,677 | 0.35% | 5 | 247,414 | 248,696 | 0.52% | 5 | 286,988 | 298,794 | 4.11% |
6 | 114,775 | 115,001 | 0.20% | 6 | 166,785 | 168,870 | 1.25% | 6 | 219,715 | 223,004 | 1.50% | 6 | 324,858 | 332,985 | 2.50% |
7 | 156,127 | 158,396 | 1.45% | 7 | 182,584 | 185,930 | 1.83% | 7 | 216,806 | 220,383 | 1.65% | 7 | 315,778 | 328,988 | 4.18% |
8 | 155,732 | 158,438 | 1.74% | 8 | 154,217 | 154,532 | 0.20% | 8 | 230,437 | 230,437 | 0.00% | 8 | 307,531 | 317,144 | 3.13% |
9 | 142,211 | 142,211 | 0.00% | 9 | 179,461 | 180,010 | 0.31% | 9 | 225,189 | 225,857 | 0.30% | 9 | 342,149 | 355,502 | 3.90% |
10 | 127,857 | 127,857 | 0.00% | 10 | 173,401 | 175,910 | 1.45% | 10 | 238,507 | 239,051 | 0.23% | 10 | 355,439 | 365,249 | 2.76% |
11 | 121,383 | 122,113 | 0.60% | 11 | 195,559 | 197,057 | 0.77% | 11 | 227,820 | 229,522 | 0.75% | 11 | 321,067 | 338,172 | 5.33% |
12 | 137,696 | 139,617 | 1.40% | 12 | 185,327 | 185,890 | 0.30% | 12 | 212,515 | 214,867 | 1.11% | 12 | 356,106 | 368,258 | 3.41% |
13 | 138,248 | 138,248 | 0.00% | 13 | 171,036 | 174,245 | 1.88% | 13 | 242,507 | 246,847 | 1.79% | 13 | 326,465 | 344,397 | 5.49% |
14 | 149,346 | 150,085 | 0.49% | 14 | 203,715 | 204,715 | 0.49% | 14 | 276,236 | 280,983 | 1.72% | 14 | 345,003 | 354,941 | 2.88% |
15 | 118,089 | 118,701 | 0.52% | 15 | 156,007 | 161,107 | 3.27% | 15 | 245,646 | 248,857 | 1.31% | 15 | 303,481 | 308,457 | 1.64% |
16 | 133,229 | 134,079 | 0.64% | 16 | 193,382 | 193,690 | 0.16% | 16 | 231,457 | 232,862 | 0.61% | 16 | 326,392 | 332,121 | 1.76% |
17 | 157,904 | 157,904 | 0.00% | 17 | 206,042 | 206,837 | 0.39% | 17 | 238,796 | 238,930 | 0.06% | 17 | 350,396 | 359,350 | 2.56% |
18 | 168,949 | 168,949 | 0.00% | 18 | 214,247 | 215,589 | 0.63% | 18 | 258,653 | 258,975 | 0.12% | 18 | 314,917 | 342,152 | 8.65% |
19 | 155,656 | 155,656 | 0.00% | 19 | 224,956 | 228,345 | 1.51% | 19 | 229,847 | 235,665 | 2.53% | 19 | 284,996 | 300,637 | 5.49% |
20 | 169,718 | 170,284 | 0.33% | 20 | 178,472 | 178,702 | 0.13% | 20 | 278,730 | 281,972 | 1.16% | 20 | 305,625 | 317,187 | 3.78% |
21 | 148,915 | 149,618 | 0.47% | 21 | 197,683 | 200,418 | 1.38% | 21 | 258,885 | 259,288 | 0.16% | 21 | 338,830 | 348,824 | 2.95% |
22 | 137,285 | 137,285 | 0.00% | 22 | 186,321 | 186,753 | 0.23% | 22 | 224,956 | 236,313 | 5.05% | 22 | 319,456 | 339,354 | 6.23% |
23 | 140,544 | 140,544 | 0.00% | 23 | 211,361 | 215,005 | 1.72% | 23 | 214,213 | 217,430 | 1.50% | 23 | 288,152 | 301,301 | 4.56% |
24 | 157,845 | 160,355 | 1.59% | 24 | 166,220 | 166,220 | 0.00% | 24 | 244,412 | 251,303 | 2.82% | 24 | 322,640 | 336,138 | 4.18% |
25 | 137,194 | 137,353 | 0.12% | 25 | 191,598 | 191,976 | 0.20% | 25 | 227,719 | 230,432 | 1.19% | 25 | 342,406 | 365,571 | 6.77% |
26 | 128,974 | 129,044 | 0.05% | 26 | 232,565 | 233,243 | 0.29% | 26 | 250,476 | 261,000 | 4.20% | 26 | 335,441 | 340,769 | 1.59% |
27 | 135,349 | 135,362 | 0.01% | 27 | 161,654 | 162,481 | 0.51% | 27 | 227,589 | 228,077 | 0.21% | 27 | 333,252 | 341,876 | 2.59% |
28 | 101,177 | 101,255 | 0.08% | 28 | 191,584 | 193,258 | 0.87% | 28 | 240,589 | 242,381 | 0.74% | 28 | 310,810 | 322,600 | 3.79% |
29 | 143,779 | 144,241 | 0.32% | 29 | 156,107 | 158,644 | 1.63% | 29 | 202,918 | 205,225 | 1.14% | 29 | 324,880 | 331,498 | 2.04% |
30 | 142,535 | 142,535 | 0.00% | 30 | 161,654 | 181,459 | 12.25% | 30 | 229,604 | 231,205 | 0.70% | 30 | 328,657 | 344,555 | 4.84% |
The average deviation | 0.67% | The average deviation | 2.23% | The average deviation | 1.19% | The average deviation | 1.7% |
Table 19 indicates the efficiency of the proposed OSM-CA for cost indicators. The authors observe that the deviation for Group 2 is unpredictable, where the expected was lower than Group 3, but have no answer except them devoid of biased results.
7. Conclusions
This work has been adopted by several famous e-commerce companies in KSA and Egypt. The proposed algorithm “OSM-CA” justifies and explains the metaheuristics development to tackle large problems in minimum time and can handle them via the IoT [
61]. The stowage map extracted more rapidly than LINGO by 60% at stowing 100 objects have different sizes, while superior to the ant colony and CA over all 400 stowed objects by 27% and 9%, respectively. The OSM-CA achieved a 28% reduction in the waiting time at various stations, reduced the over-processing activities by 35%, which accelerated the logistic trip (i.e., reflected on the total delivery time), and reduced the holding and transportation costs by the same amount, as shown in
Table 20. On the sidelines of the article, if the number of trips is reduced due to increasing in stowage capacity through transportation, the fuel consumption is reduced [
24,
49,
61]. The main innovation of this work is extracting a visual stowage map guide for the driver for customizing the objects in an assigned area that achieves minimum waste in the stowage areas or unused spaces, as expounded in

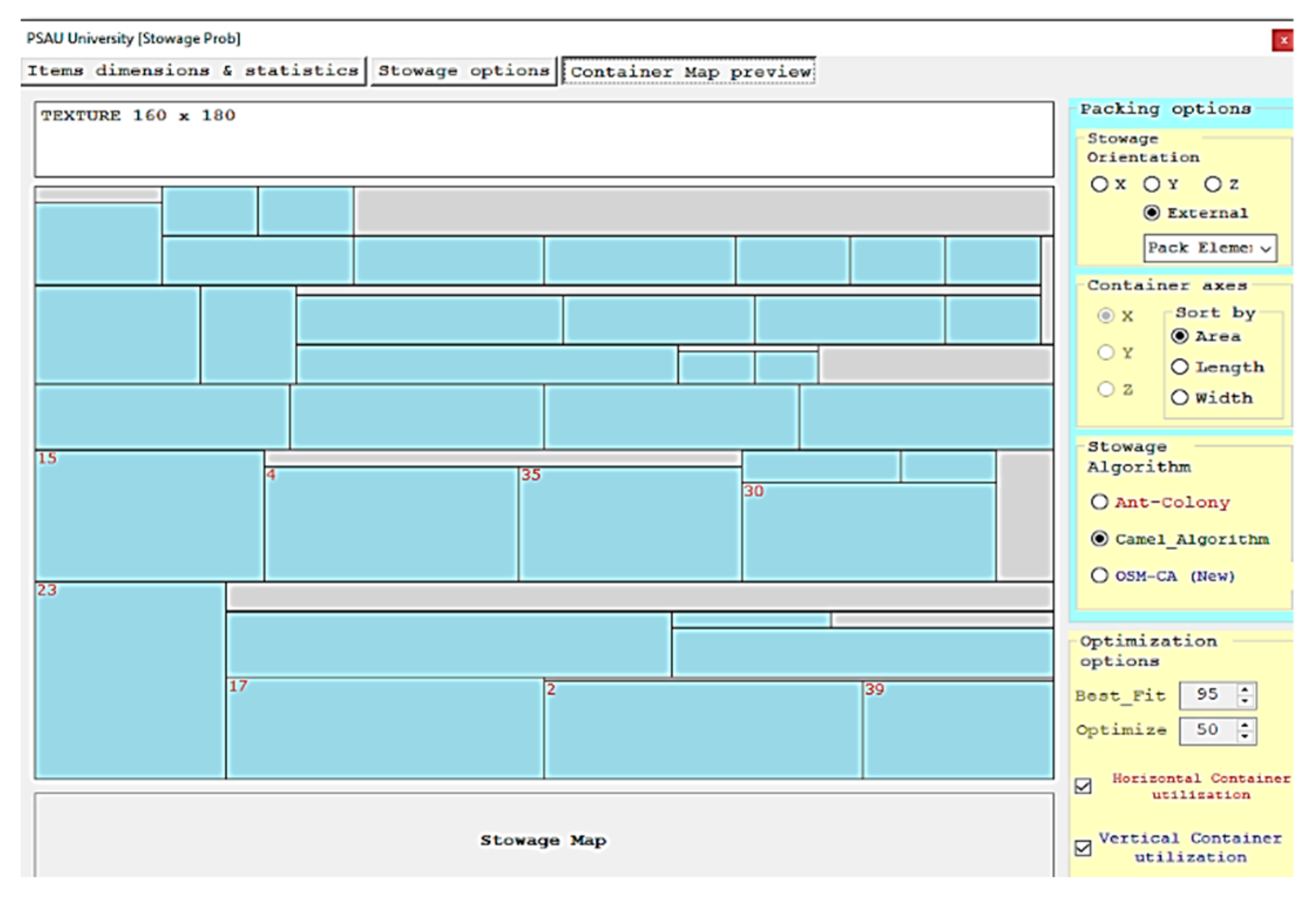

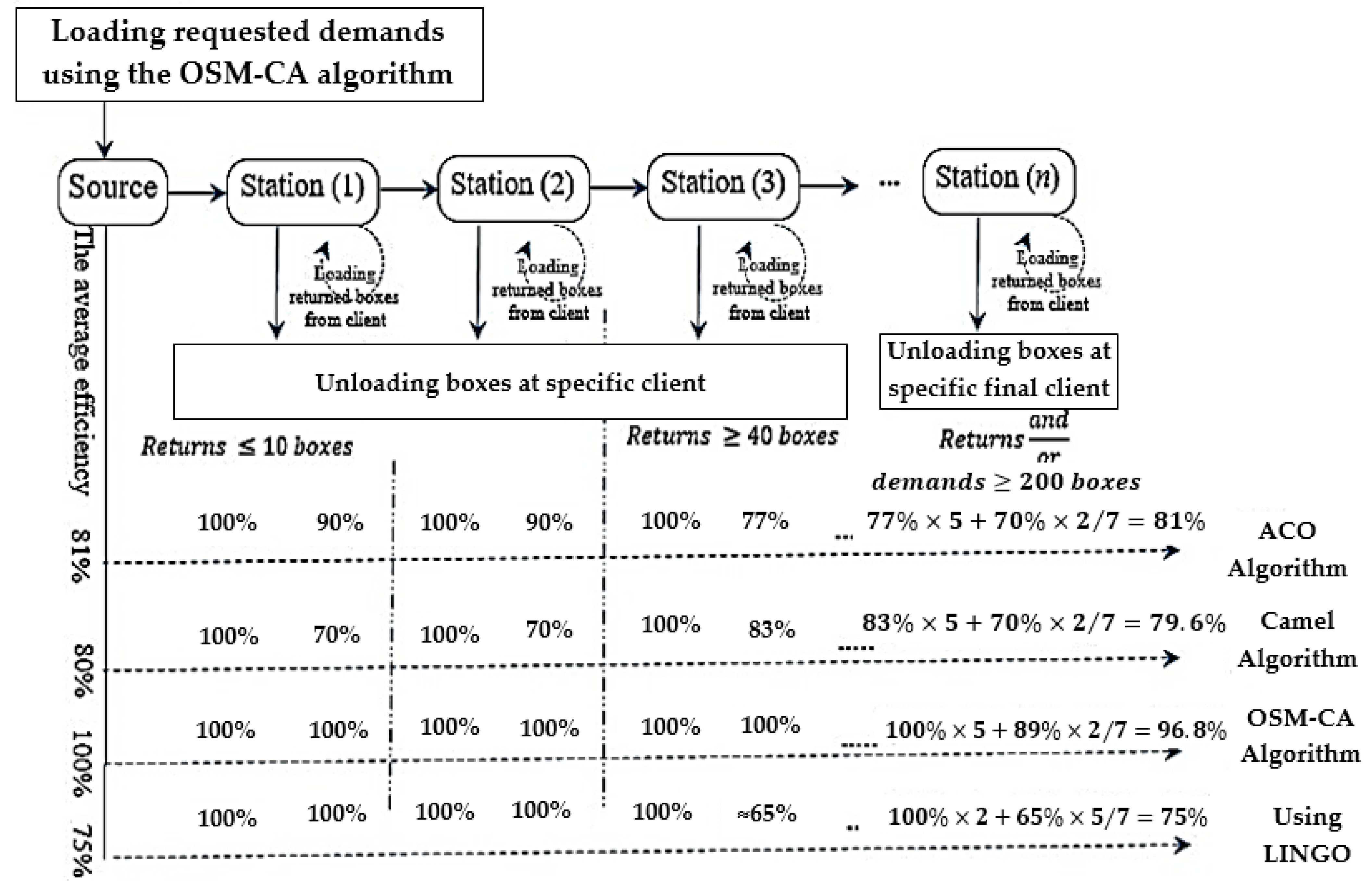

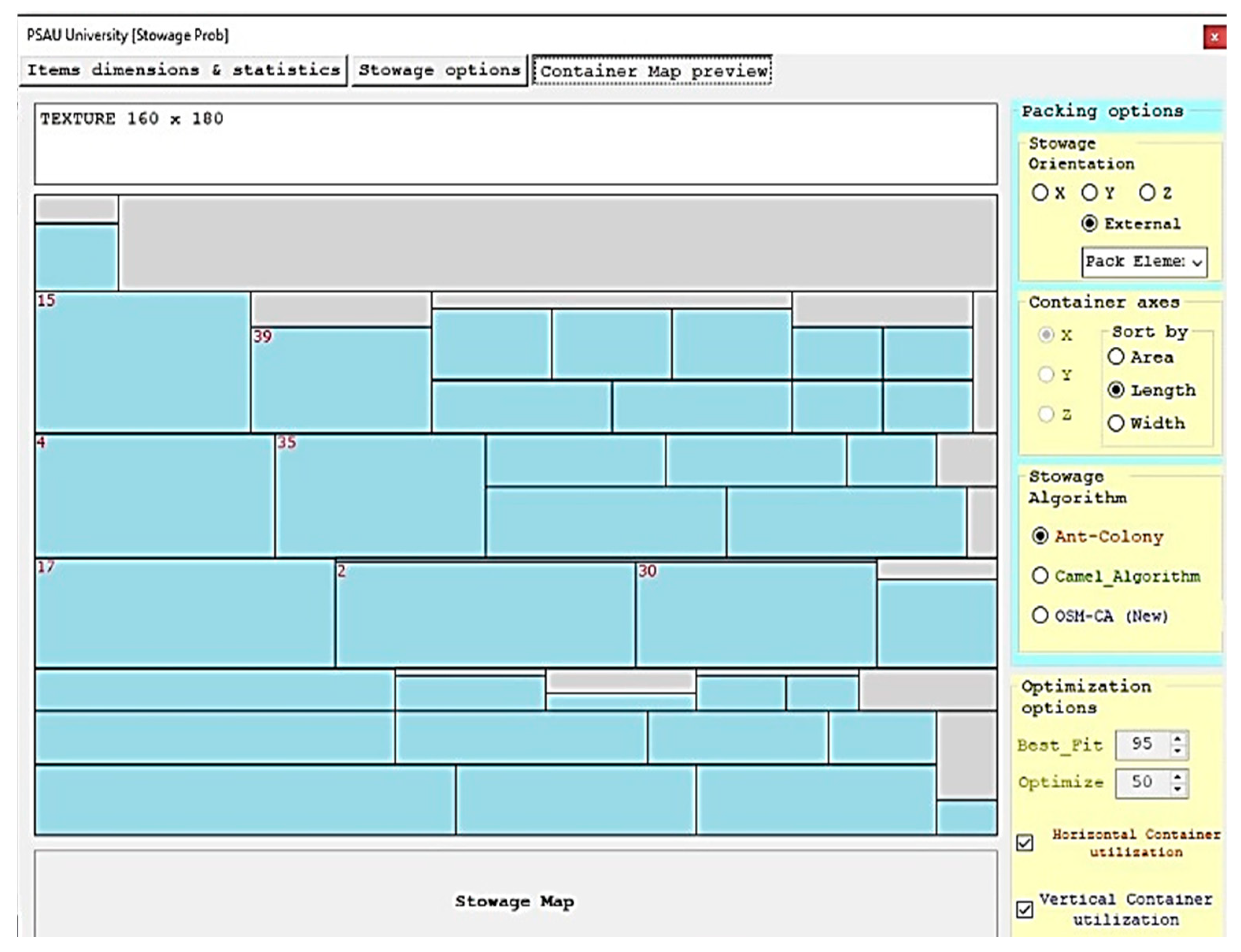

Appendix A.
In
Appendix A (
Figure A1) illustrates the data inputs for the returned objects at a specific station aggregated via IoT to be stowed in preferred spaces that achieve the article’s objectives. Those who adopt the proposed methodology enhance their e-commerce for specific products of many different sizes (i.e., bathtubs). They manage their transportation system via IoT for seven stations (i.e., aggregate the clients’ demands, extract the stowage map to indicate preferred loading locations, exchange the returned products until they reach the next station by minute, and select the oriented products). They emphasize the superiority of OSM-CA over the competitors discussed in this article by quickly creating the visual stowage map, which is considered a helpful guide for the stowage process.
Figure A2 illustrates the synopsis of the aggregated data of the objects that must be loaded and unloaded at different stations on the transportation path for one of the most famous companies in Egypt, which is based on data derived from
Table 17,
Table 18 and
Table 19.
Figure A2 illustrates that the mathematical model loses its efficiency in finding a preferred solution with an increase in the number of products that must be stowed in over 200 boxes.
Figure A3 discusses if the safety boundary between the stowed boxes is urgent or may be neglected.
Figure A4 and
Figure A5 illustrate the excellence of the ant-colony, which stows nine objects out of ten over the camel algorithm, which stows seven objects only, while the proposed stows all ten objects, as illustrated in (
Figure A6) and (
Figure A7). While if the number of objects transported increases over 400, the camel algorithm presents a preferred stowage map, reducing the unused area in the container.
Figure A8,
Figure A9,
Figure A10,
Figure A11,
Figure A12 and
Figure A13 discuss the contribution of OSM-CA in decreasing the unused stowed area in the containers over their competition, as shown in
Table 19. The authors implement the stowing in the potential containers called drawers as discussed by Ahmed M. Abed et al. (2022) [
48,
53] with two sizes: 80 × 90 and 160 × 180 inches.
