Article

Supercritical CO2 Impregnation of Clove Extract in Polycarbonate: Effects of Operational Conditions on the Loading and Composition

by
Amanda Martins Jordão
1,†,
Isabela Trindade Coutinho
1,†,
Eric Keven Silva
2,
Ilka Tiemy Kato
1,
Maria Angela A. Meireles
2,
Lígia Passos Maia-Obi
1,
Bruno Guzzo da Silva
3 and
Mathilde Champeau
1,*
1
Center of Engineering, Modelling, and Applied Social Sciences, Federal University of ABC, Santo André 09210-580, SP, Brazil
2
School of Food Engineering, University of Campinas (UNICAMP), R. Monteiro Lobato 80, Campinas 13083-862, SP, Brazil
3
Center for Natural and Human Sciences, Federal University of ABC, Santo André 09210-580, SP, Brazil
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Processes 2022, 10(12), 2661; https://doi.org/10.3390/pr10122661
Submission received: 25 October 2022 / Revised: 4 December 2022 / Accepted: 8 December 2022 / Published: 10 December 2022
(This article belongs to the Section Chemical Processes and Systems)
Browse Figures
Versions Notes

Abstract

:
The development of active packaging for food storage containers is possible through impregnation of natural extracts by supercritical CO2-assisted impregnation processes. The challenge of scCO2-impregnation of natural extracts is to control the total loading and to ensure that the composition of the loaded extract may preserve the properties of the crude extract. This study aimed at investigating the scCO2-impregnation of clove extract (CE) in polycarbonate (PC) to develop antibacterial packaging. A design of experiments was applied to evaluate the influences of temperature (35–60 °C) and pressure (10–30 MPa) on the clove loading (CL%) and on the composition of the loaded extract. The CL% ranged from 6.8 to 18.5%, and the highest CL% was reached at 60 °C and 10 MPa. The composition of the impregnated extract was dependent on the impregnation conditions, and it differed from the crude extract, being richer in eugenol (81.31–86.28% compared to 70.06 in the crude extract). Differential scanning calorimetry showed a high plasticizing effect of CE on PC, and high CL% led to the cracking of the PC surface. Due to the high loading of eugenol, which is responsible for the antibacterial properties of the CE, the impregnated PC is promising for producing antibacterial food containers.

Graphical Abstract

1. Introduction

Natural extracts have appeared as potential antimicrobial and antioxidant agents for use in food, cosmetic and pharmaceutical applications. They are especially attractive because they are obtained from natural sources and are environmentally friendly [1,2,3]. For instance, many natural extracts are already classified by the Food and Drug Administration (FDA) as Generally Recognized as Safe (GRAS), including clove, oregano, peppermint, thyme, basil, tea tree, and cinnamon essential oils [4], allowing their application for human consumption in food. Recently, natural extracts have been loaded into polymeric matrices to develop active food packaging [5,6,7], drug release systems [8,9], and repellent and antioxidant fabrics [10,11]. By loading natural extracts into polymers, some shortcomings related to their high volatility and hydrophobicity are overcome while their properties are maintained [12,13].
Among the natural extracts, clove extract (CE) is known for its antibacterial, antifungal, and insecticidal properties, similar to those of synthetic preservatives [14,15,16,17,18]. CE is mainly obtained from flower buds, rich in eugenol, and contains eugenyl acetate, β-caryophyllene, and α-humulene. CE, or its majoritarian component eugenol, has been impregnated in LLDPE films [19,20,21], polyamide fibers [22,23], pectin films [24], bacterial cellulose membranes [25], and gelatin–chitosan films [26].
The most common techniques to load polymeric matrices with natural extracts are casting [27,28,29,30], extrusion [31,32], and supercritical carbon dioxide (scCO2) impregnation [33,34]. The advantage of using scCO2 impregnation compared to the more conventional processes is that it does not require high temperatures or organic solvents, which could promote extract degradation or require a solvent removal step, respectively. In this technique, supercritical CO2 (above 31 °C and 7.4 MPa) solubilizes the natural extract compounds, and then the solution of {CO2 + compounds} diffuses into the polymeric matrix. After a determined contact time, the CO2 is easily removed by decreasing the system’s pressure, whereas the extract remains impregnated into the matrix. The variables of this process are pressure, temperature, depressurization rate, and time. Pressure and temperature directly affect the solubility of the extract in scCO2 and the diffusivity of the solution {CO2 + compounds} into the polymeric matrix. Depressurization rate and temperature must be controlled to avoid compounds being dragged out with the CO2 and the foaming of the matrix. Finally, the supercritical impregnation is also a kinetic process; thus, the time impacts the final loading. Moreover, the interaction between the matrix and the compounds will also affect the partition of the compounds between the polymer and the CO2 phase [35,36,37,38].

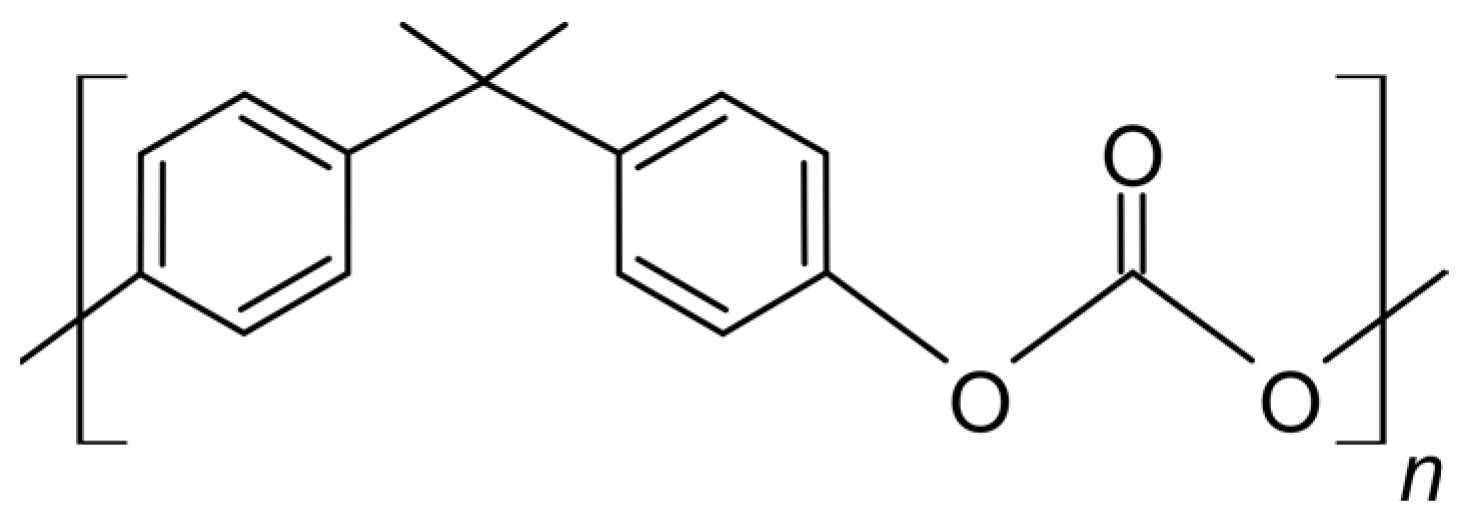

Polycarbonates (PC) are a group of polymers with a carbonate group in their structure. Overall, PCs are transparent, rigid, and have high impact strength, ductility, and impact resistance, in addition to a high glass transition temperature (Tg above 140 °C) [39,40]. The combination of these properties allows them to be applied as engineering thermoplastic in many areas, including rigid food packaging, construction, and automotive [39,41,42,43]. PC has been impregnated with compounds using scCO2 in order to develop antimicrobial systems [44], for dyeing [45,46], and to make composites [47,48]. Herein, we aimed to impregnate CE in PC to produce food containers with antibacterial properties.
The bioactivity of a natural extract may be attributed to a specific compound or group of compounds. In some cases, the activity of natural extracts is based on the synergy between their several compounds [49,50,51]. Furthermore, their complex composition allows natural extracts to act in multiple sites [52,53]. Therefore, the challenge of scCO2 impregnation of natural extracts is not limited to controlling the total loading. It is also essential to ensure that the loaded extract’s composition may preserve the crude extract’s bioactivity. This can be ensured by impregnating the compound or the group of compounds responsible for the desired bioactivity. Thus, it is crucial to evaluate the influence of the operational conditions on the composition of the impregnated extract, in addition to the total loading. According to the literature, only a few studies focused on quantifying the relative amounts of the impregnated compounds and explaining why these differ in composition from the crude extract [8,11,54]. Since CE is composed of only four compounds, it can be used as a model to understand the influences of operational conditions on the extract composition.
Thus, the present study aimed to impregnate CE into PC using scCO2, to develop food containers with antibacterial properties, and to rationalize the effects of temperature (35–60 °C) and pressure (10–30 MPa) on the clove loading (CL%) and on the composition of the loaded extract. For this, a face-centered design was applied to determine the optimized pressure and temperature for CL%, and to evaluate the effects on the relative amounts of the four compounds of CE (i.e., eugenol, eugenyl acetate, β-caryophyllene, and α-humulene). The differences in proportions of the compounds in the crude extract and in the impregnated one were explained by taking into account the Hansen-type solubility parameters and the polymer–compounds interactions. The impact of the impregnation on the morphological and thermal properties was also studied.

2. Materials and Methods

2.1. Materials

Pellets of bisphenol-A polycarbonate (LEXAN HP1R grade for healthcare products) were supplied by SABIC Innovative Plastics (São Paulo, Brazil). Carbon dioxide (purity 99.985%) was purchased from Oxilumen (São Paulo, Brazil). Silicone oil (Synth, 350 cps) was used for thermostated baths. Ethyl acetate (purity 100%) was obtained from Synth (São Paulo, Brazil) and used as received. Deuterated chloroform (CDCl3, 99.8%) containing 0.05% v/v tetramethylsilane (TMS) as the internal reference was purchased from Cambridge Isotope Laboratories and used in the NMR analysis. Helium (99.9% purity) for gas chromatography analyses was purchased from White Martins (Campinas, Brazil). The analytic standards of eugenol, eugenyl acetate, β-caryophyllene, and α-humulene were bought from Sigma-Aldrich (Barueri, Brazil).

2.2. Supercritical CO2 Extraction

The clove (Eugenia caryophyllus) extract was obtained from grounded raw material via supercritical fluid extraction (SFE) using carbon dioxide as the solvent. The extraction equipment utilized in this study was a pilot-scale SFE (Thar Technologies, Pittsburgh, PA, USA). The extraction was performed using a 5 L extractor. The solvent flow rate was 50 gCO2/min. The extraction process conditions were 15 MPa and 40 °C. The temperature and pressure conditions were optimized according to Prado and Meireles [55] and Prado et al. [56]. The structures of the four main compounds of clove extract obtained by SFE are presented in Figure 1.

2.3. Characterization of PC Chemical Structure by 1H NMR

Approximately 50 mg of PC was dissolved in 0.6 mL of CDCl3, and the spectrum was recorded in a Varian VNMRS 500 MHz at 27 °C, using 30,000 transients. 1H NMR (CDCl3-d1) d (ppm): 1.68 (s, -C-(CH3)2, 6H), 7.17 (d, -CH-CH-C-O-, 4H), 7.25 (d, -CH-CH-C-C(CH3)2-, 4H), corresponding to poly(bisphenol A carbonate) with high purity [57]. The 1H NMR spectrum is presented in Supplementary Materials. The chemical structure of poly(bisphenol A carbonate) is represented in Figure 2.

2.4. Preparation of PC Films

PC pellets were used as received. The polymeric films used in the impregnation process were obtained by hot pressing on a hydraulic press with heating (model SL-11, Solab). For this process, the pressure was increased from 0 ton to 6 ton in 10 min, and the temperature was kept constant at 280 °C. Teflon sheets were used for contact between the press and the samples. The thickness of the films was 0.4 mm. The films were cut into squares of approximately 1 cm2, corresponding to approximately 50 mg per sample.

2.5. scCO2 Impregnation Method

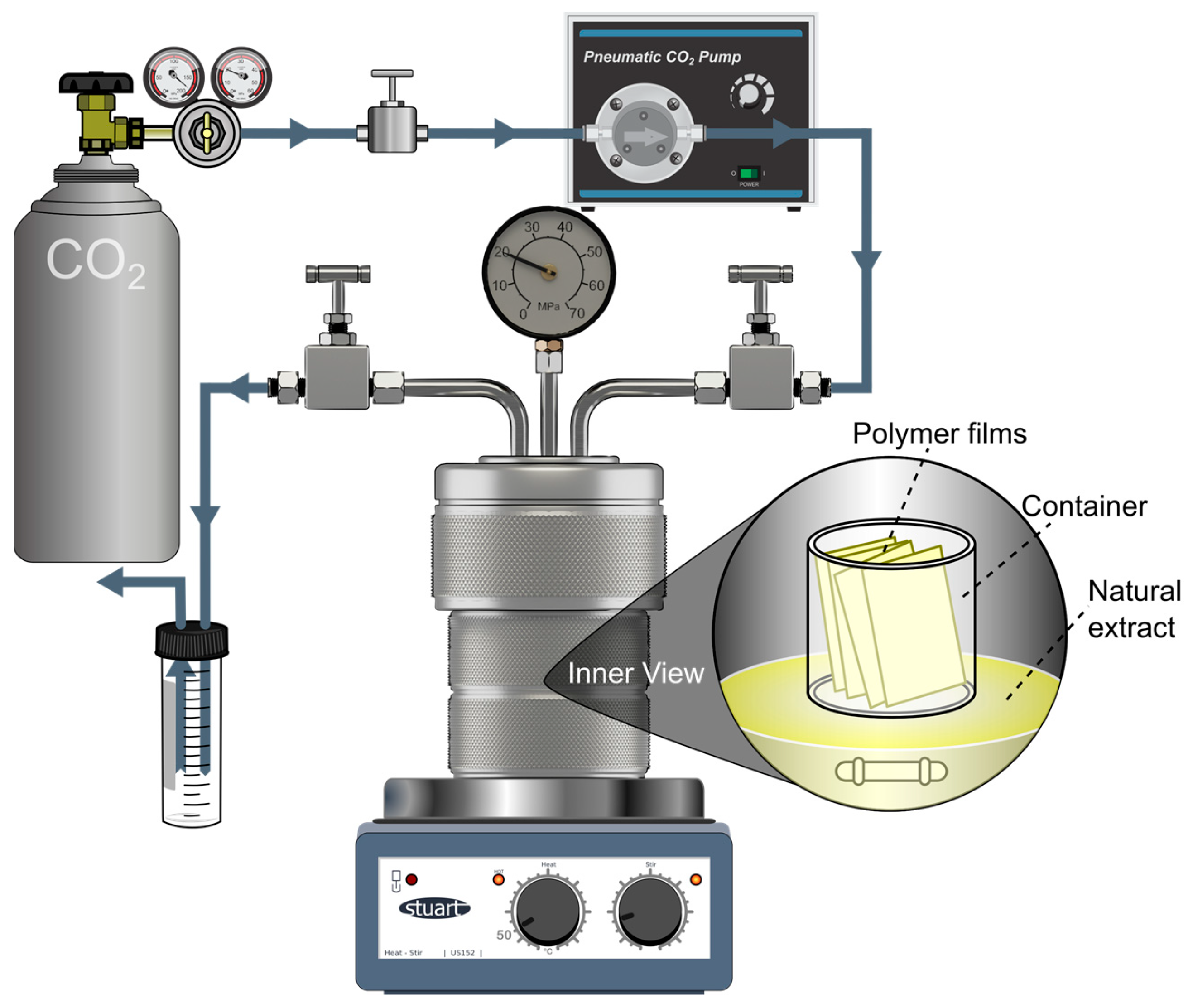

The scCO2 impregnations were carried out in a batch process, and the scheme of the experimental set-up is presented in Figure 3. Approximately 1 mL of clove extract was placed at the bottom of a 10 mL stainless steel high-pressure cell. The amount permitted the saturation of the CO2 phase. A stirrer bar was also added to the cell to ensure the homogeneity of the CO2 phase. Finally, for all batches, around 300 mg of polymer was placed above the compound(s) in a single glass container to physically separate the films from the natural extract. All these films were carefully placed so they did not touch each other. The high-pressure cell was closed and immersed in a thermostated water bath. Then, a high-pressure pump (pneumatic pump) introduced CO2. Once the desired pressure was achieved, the magnetic stirring was turned on (100 rpm), and the temperature and pressure were kept constant for the impregnation time, which was set to 3 h after preliminary tests. After the impregnation time, the high-pressure cell was dipped in dry ice (−78 °C) to freeze the scCO2 and avoid the extract’s removal during depressurization. Once system pressure decreased to values between 0.7 and 1 MPa due to the temperature decrease and dry-ice formation, the cell was opened to carry on the depressurization (2 s).

2.6. Design of Experiment

The design of experiments methodology was used to evaluate the influences of pressure (10–30 MPa) and temperature (35–60 °C) on scCO2 impregnation of CE in PC. Therefore, for two factors (pressure and temperature), the experimental design consisted of factorial assays (22 = 4 assays at levels of −l and +1), including four axial points (at levels of −1 and +1) and three replicates at the central points (at level 0). Thus, a face-centered design (FCD) was developed using 11 tests (Table 1). The maximum and minimum levels of pressure and temperature were defined according to data published in the literature for scCO2 impregnation to enhance loading and to avoid the extract thermodegradation [36,37]. The impregnation time (3 h) was defined after preliminary tests (Supplementary material).
The experimental design allowed the study of a wide range of scCO2 densities (289.9 to 929.1 kg/m3). All assays were performed in triplicate and in random order. Data were analyzed using the Protimiza Experimental Design software, with a significance level of 5%. Initially, the effects of pressure and temperature were calculated, and the results were used to determine the regression coefficients (β0, β1, β11, β2, β22, and β12) of the coded model (Equation (1)).
C L % = β 0 + β 1 x 1 + β 11 x 1 2 + β 2 x 2 + β 22 x 2 2 + β 12   x 1 x 2
Equation (1) is a quadratic polynomial equation that relates the total clove extract loading (CL%) to the coded values (Table 1) of pressure (x1) and temperature (x2). Analysis of variance (ANOVA) was used to verify the fitting quality of the model. Response surfaces (three-dimensional (3D) plots) and their respective contour plots were obtained based on the validated models and were later used to define the optimal conditions for scCO2 impregnation.

2.7. Clove Extract Loading

The clove extract loading (CL%) was defined as the mass of CE impregnated in the polymeric matrix per mass of polymer and was measured gravimetrically using a balance (precision 10−4 g, model AY-220, Marte, Shimadzu) and calculated using Equation (2).
C L % = m a f t e r   i m p r e g n a t i o n − m b e f o r e   i m p r e g n a t i o n m b e f o r e   i m p r e g n a t i o n × 100
where m a f t e r   i m p r e g n a t i o n is the mass of the film after the impregnation and m b e f o r e   i m p r e g n a t i o n is the mass of the film before the impregnation.
For each operational condition, the impregnation was performed by placing at least three PC films in the high-pressure cell. The results presented are the average loadings of all the samples. The samples were weighed 48 h after impregnation to ensure that the CO2 was removed from the polymer. The impregnated samples were stored at −20 °C until further analysis.
In order to confirm that the measured mass corresponded to the compounds impregnated in the polymer bulk, some samples were weighted, and their surfaces were cleaned with tissue paper soaked with ethanol and weighted again. No mass variation was observed, confirming that all the extract was impregnated in the polymer bulk and not deposited on the polymer surface.

2.8. Composition of the Impregnated Extract

The loading of each of the four majoritarian compounds of CE was obtained by extracting the impregnated extract from the polymeric films and quantifying it using gas chromatography (GC). For the extraction, one film was immersed in 5 mL of ethyl acetate in a closed flask. This flask was sonicated in an ultrasound bath (Unique, model 750 A, 25 kHz) for 1 h every day for one week, at room temperature. Preliminary tests confirmed that this procedure permitted the complete extraction of the impregnated extract. All compounds are soluble in ethyl acetate.
The crude CE composition and the composition of the impregnated extract (i.e., recovered from the impregnated films by extraction) were determined using a gas chromatograph with a flame ionization detector. A chromatograph GC–FID (Shimadzu, CG17A, Kyoto, Japan) equipped with a capillary column of fused silica DB-5 (J&W Scientific, 30 m × 0.25 mm × 0.25 μm, Folsom, CA, USA) was used. For each sample, 1 μL of the ethyl acetate/extract solution was injected into the chromatograph using a split ratio of 1:20. Helium was used as carrier gas and flowed at 1.1 mL/min. The injector and the detector temperatures were 220 and 240 °C, respectively. The column was heated from 60 °C to 246 °C at 3 °C/min. Eugenol (C10H12O–CAS 97-53-0), eugenyl acetate (C12H12O3–CAS 93-28-7), β-caryophyllene (C15H24–CAS 87-44-5), and α-humulene (C15H24–CAS 116-04-1) were identified by comparing the retention indices with chemical standards (25.440, 28.266, 29.710, and 32.656 min, respectively). Their quantification was performed using external standard calibration curves, so the mass m G C , X of each compound was determined. For the quantification of compounds, calibration curves for all compounds were analyzed in the range 0.04–1.0 mg/mL. The proportion of each compound present in the impregnated extract (PX%) was calculated using Equation (3).
( P x % ) = m G C , X m i m p r e g n a t i o n × 100
where X represents the compound, m G C , X is the mass of the impregnated compound obtained by GC, and m i m p r e g n a t i o n is the mass of the impregnated extract. The reported value for the proportion of each compound is the average of two samples prepared in two different impregnation batches. The central point of the DoE was performed in triplicate
The crude extract was analyzed right after its extraction from clove buds and again when the impregnations were performed. No composition variation was observed over time when storing the crude extract at 8 °C and in the dark.

2.9. Attenuated Total Reflectance Fourier-Transform Infrared Spectroscopy

The impregnation of the CE was evaluated by comparing the FTIR spectra of the neat PC, the clove extract, and impregnated PC (sample impregnated with CL = 18.5% prepared at 60 °C and 10 MPa). For Fourier-transform infrared spectroscopy (FTIR), a Spectrum Two FTIR spectrometer from PerkinElmer was used in ATR mode (diamond crystal doped with zinc selenide ATR accessory). The analyses were performed at room temperature with resolution of 1 cm−1, in 16 scans from 700 to 4000 cm−1. The surfaces of the impregnated PC samples were first cleaned with ethanol to avoid the interference of any compounds deposited on their surfaces. The sample was stored for two hours to allow the ethanol to evaporate before the measurement.

2.10. Thermal Analysis

Differential scanning calorimetry (DSC) analyses were performed to evaluate the impact of CO2 treatment and of the impregnation process on the thermal properties and crystallinity of the PC. The instrument Q200 from TA Instruments was used. The neat PC, scCO2-treated PC, and impregnated PC films were analyzed. The scCO2-treated PC and impregnated PC were prepared at 60 °C and 10 MPa, but the scCO2-treated PC was prepared in the absence of extract. Small film pieces with 7 to 8.5 mg were sealed in an aluminum pan, and the thermograms of the first heating cycle were obtained by heating the pans from 25 to 240 °C at a heating rate of 10 °C∙min−1. The second heating cycle was also obtained by cooling the samples to −80 °C at a rate of 20 °C∙min−1 and heated again to 240 °C at a rate of 10 °C∙min−1. The crystallinity of the samples was obtained using Equation (4).
χ = ∆ H f − ∆ H c W   ·   ∆ H 100 f × 100
where ∆ H f (J·g−1) is the experimental fusion enthalpy, ∆ H c (J·g−1) is the experimental crystallization enthalpy, W is the polymer mass fraction, and ∆ H 100 f is the fusion enthalpy of 100% crystalline polymer, 109.6 J·g−1 for the PC [58].

2.11. Scanning Electron Microscopy

The films morphology of neat PC, scCO2-treated PC, and impregnated PC films were evaluated by SEM using a JEOL JSM 6010LA microscope. The cross-section of the samples were analyzed after cryogenic fracture. The samples were sputtered with a 15 nm layer of gold.

3. Results and Discussion

3.1. Influences of the Impregnation Conditions on the Clove Extract Loading

The clove extract loading (CL%) obtained for each experimental condition in PC is reported in Table 1 and Figure 4. High loadings were obtained: CL% ranged from 6.8% (30 MPa and 47.5 °C) to 18.5% (10 MPa and 60 °C), and the standard deviation was 0.7% (calculated with the central-point test). These results indicate that the impregnation yield depends on the pressure and temperature used in the impregnation of CE in PC.

3.1.1. Effects of Pressure

In isothermal conditions, scCO2 pressure had a negative effect on CL% (Figure 4); i.e., an increase in pressure resulted in a decrease in the extract loading. These negative effects can be explained by the increased density of scCO2 with pressure. Regarding the polymer/CO2 system, Tang et al. [59] and Zhao et al. [60] reported an increase in the CO2 sorption in PC with an increase in pressure at a constant temperature of between 40 and 80 °C [60,61], which should favor the impregnation. They found that the CO2 sorption rises from 7.6 to 12.98 wt% by increasing the pressure from 10 to 30 MPa at 60 °C [61]. On the other hand, an increase in pressure tends to increase the solubility of CE [62,63], along with the solubility of its individual compounds, in scCO2 [64,65]. The values are reported in Supporting Information—Table S1. A high solubility means high affinity of the solutes for CO2. This can lead to the partitioning of the solutes for the CO2 phase, to the detriment of the polymer phase, which is deleterious to its impregnation [11,36,37]. Thus, CE–CO2 interactions were probably favored over the CE–PC interactions at higher pressures, negatively affecting the CL% in PC.
Varona et al. [66] reported similar results for the supercritical impregnation of lavandin essential oil in starch modified with n-octenyl succinate (OSA). They investigated the effect of pressure in the range of 10–12 MPa and observed that the amount of essential oil impregnated per unit mass of OSA-starch decreased with increasing pressure. In another study, Belizón et al. [36] investigated the effect of pressure in the range of 10–20 MPa and observed that the most favorable conditions for impregnating mango polyphenols into a multilayer polyethylene terephthalate (PET)/polypropylene (PP) food-grade film were obtained at 10 MPa.

3.1.2. Effects of Temperature

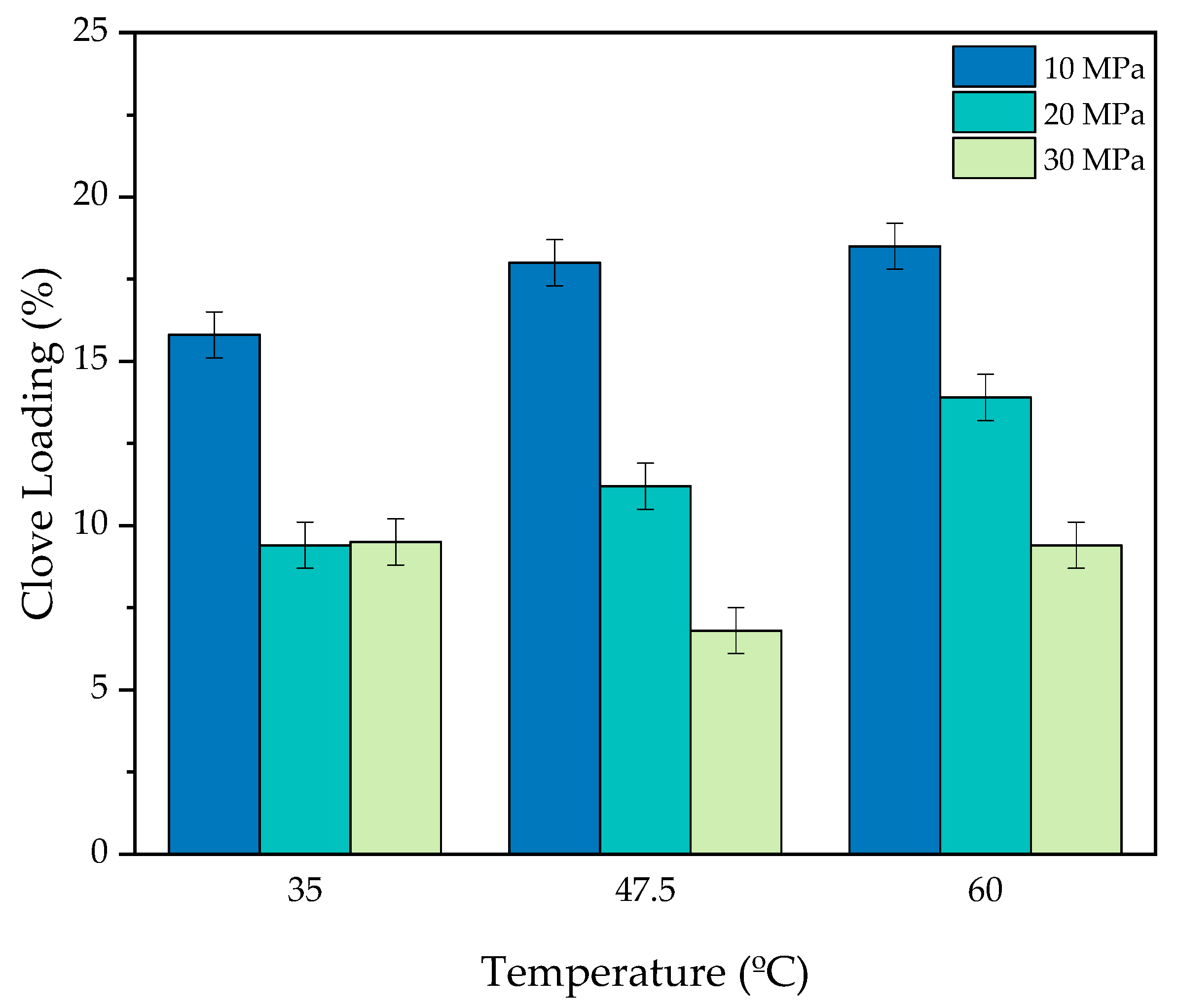

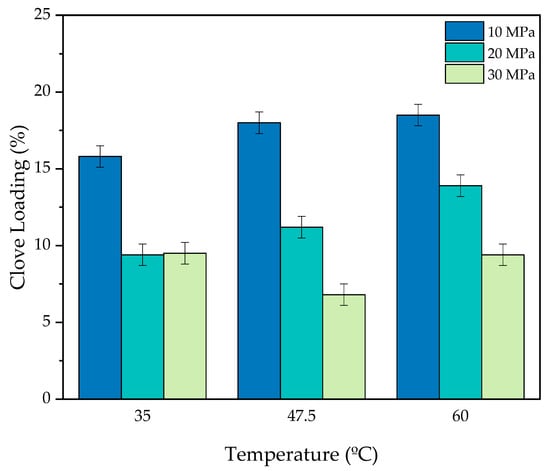

ScCO2 temperature globally positively affected CL% in PC (Figure 4). Temperature impacts the extract solubility in scCO2 and the CO2 sorption of PC. The influence of temperature on the solubility of a solute in scCO2 depends on the pressure. Below the so-called crossover pressure, the solubility of the solute decreases with increasing temperature due to the decrease in CO2 density. However, above the crossover pressure, the solubility increases due to the increase in the vapor pressure of the solute that overcoming the effect of the CO2 density diminution. The crossover pressure of CE can be estimated from the results of Wei et al. [63] at the intersection of the three isotherms, which is between 9 and 12 MPa [63] (Figure 5).
The general influence of the temperature on the CO2 sorption in PC is related to the CO2 density [60,61] and to the plasticizing effect of CO2 on PC [61,67]. CO2 can increase PC chain mobility, which is favorable for CO2 sorption, but it has also been reported to enhance PC crystallization and thus be detrimental to CO2 sorption [67]. Crystallization of PC after scCO2 treatment was observed in the literature [67,68,69]. However, in the range of temperatures investigated, no crystallization was expected [45,67] which was further confirmed by DSC curves (Section 3.5). Concerning CO2 density, it tends to decrease with increasing temperature in isobaric conditions. Tang et al. [59] reported that at a CO2 density lower than 700 kg/m3, a decrease in CO2 sorption with an increase in temperature occurred. The contrary was observed at densities greater than 700 kg/m3 due to increased chain mobility, which permitted accommodating more CO2 molecules [61]. Zhao et al. [60] reported a similar trend with a change in the effect of temperature observed at 11.2 MPa. Below 11.2 MPa, the CO2 sorption in PC ranged from 3.85 to 5.87 m/m% at 80 and 40 °C, respectively. Between 11.2 and 18 MPa, the CO2 sorption increased to a small extent up to 6.56 m/m% at 40 °C, whereas it rose to 7.83 wt% at 60 °C [60]. The authors suggested that the PC glass transition temperature (Tg) must have been reached at 11.2 MPa. Above this point, the increase in CO2 sorption favored chain mobility and CO2 sorption, whereas below this point the decrease in CO2 density was adverse to CO2 diffusivity in PC, and consequently, CO2 sorption. Note that the absorbed CO2 has a strong plasticizing effect on PC, since the Tg drops from ~ 140 °C to a temperature between 40 and 60 °C in situ [61,70].
Thus, the positive effect of temperature on CL% is dominated by different phenomena depending on the temperature. At 10 MPa, the pressure is close to the crossover pressure of CE (Figure 5), and the CO2 density varies between 712.8 and 289.9 kg/m3 at 35 and 60 °C. Thus, the increase in temperature leads to a decrease in both the extract solubility in CO2 and, to a small extent, the CO2 sorption in PC. The decrease in extract solubility in CO2 must increase the affinity of the extract for the polymer phase and favor the impregnation, dominating the negative effect of CO2 sorption.

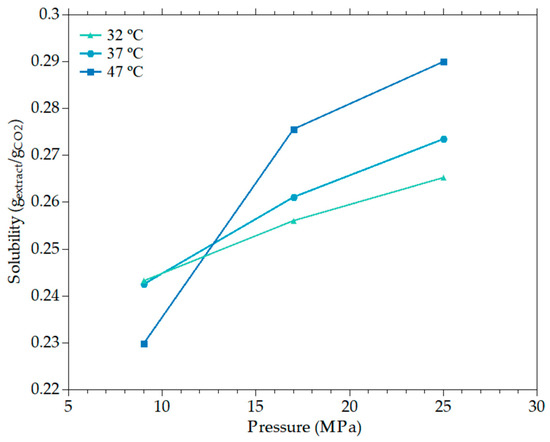

At 20 and 30 MPa, the temperature tends to increase the extract solubility (above the crossover pressure) and the CO2 sorption in PC due to high chain mobility. Furthermore, an increase in temperature may have caused an increase in the free volume of the matrix (i.e., swelling), thereby enhancing the extract loading while reducing the resistance to solute diffusion in PC. Thus, as a result of all these combined factors, the temperature positively affected CL% [35,36,37,38,71,72].
Medeiros et al. [19] investigated the impregnation of CE in linear low-density polyethylene, an apolar polymer, in the temperature range of 25–45 °C and at 15 and 25 MPa. The higher impregnation yield was obtained at 45 °C (the effect of pressure was insignificant), leading to a CL% of 4.02% [19].

3.1.3. Optimum Conditions for the Clove Extract Loading

Based on the experimental data (Table 1) and with the aid of the Protimiza Experimental Design software, a mathematical model (Equation (5)) was obtained that relates the extract loading (CL%) to the coded values of pressure (x1) and temperature (x2).
C L % = 10.47 − 4.43 x 1 + 1.82 x 1 2 + 1.18 x 2 + 1.07 x 2 2 − 0.70 x 1 x 2
To assess the quality of the model’s fit (Equation (5)), Table 2 presents the ANOVA data. The model can be considered valid, wherein the coefficient of determination (R2) is 0.9433 (the model represents 94.33% of the experimental data), that is, close to unity. Moreover, Fregression/residuals ≥ Ftab and Flack of fit/pure error ≤ Ftab. Thus, when adjusting to the experimental data, the model can be used for predictive purposes, thereby satisfying the requirements for the construction of the response surface and contour plot (Figure 6).

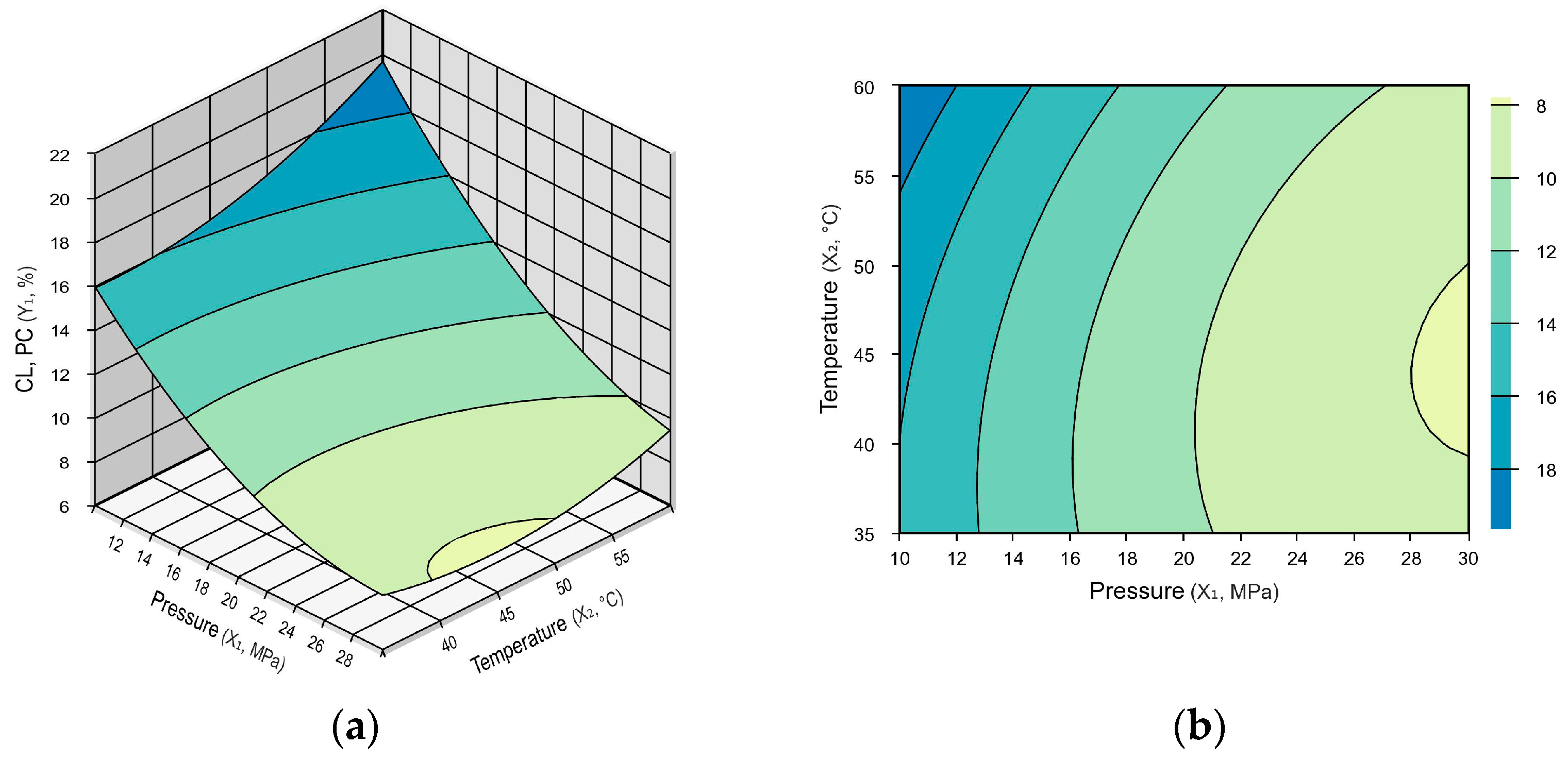

As observed in Figure 6, the model confirmed that increasing the pressure from the lowest (10 MPa) to the highest (30 MPa) level induced a decrease in CL%. The negative effect of pressure outweighed the effect of temperature. As shown in Figure 6b, the maximal CL% (>18%) can be achieved within the following optimal ranges: pressures of 10–12 MPa and temperatures of 55–60 °C. Furthermore, the optimal values (> 18%) in Table 1 are a pressure of 10 MPa and a temperature of 60 °C.

3.2. Influences of the Impregnation Conditions on the Composition of the Loaded Extract

GC analysis confirmed that the crude CE from Eugenia caryophyllus is composed of four main compounds: eugenol, eugenyl acetate, β-caryophyllene, and α-humulene (Table 3). Eugenol is the majoritarian compound (70.1%), followed by eugenyl acetate (17.06%). Both compounds are phenylpropanoids and have a tri-substituted phenyl group. Eugenyl acetate is derived from eugenol, having an acetate ester instead of the hydroxyl group in eugenol. β-caryophyllene (10.67%) and α-humulene (2.20%) are two sesquiterpenes; they are bicyclic and monocyclic, respectively. α-Humulene is a ring-opened isomer of β-caryophyllene. Both are commonly found as a mixture in various extracts.
The extraction of the compounds from impregnated PC was performed in ethyl acetate for one week; we submitted the solution to ultrasound for 1 h per day. Preliminary tests proved that this procedure was efficient in guaranteeing the complete extraction and that no compounds were detected in a second extraction in a fresh solvent. This confirms the efficiency of the protocol tested with other systems [54,73].
Table 3 shows the compositions of the extracts impregnated into PC in the different conditions and the crude CE. These results indicate that the composition of the extract impregnated in PC depends on the impregnation conditions. First, eugenol content significantly increased from 70.06 to values ranging between 81.31 and 86.28%, whereas the eugenyl acetate decreased from 17.06 to 11.22–13.86%, depending on the conditions. The proportions of the two sesquiterpenes were lower in the loaded extract than in the crude one. The content of β-caryophyllene dropped from 10.67 to 2.07–4.83%, whereas the content of α-humulene decreased from 2.20 to values below 0.51. These results suggest the selectivity of the impregnation process. Cejudo Bastante et al. [54] also reported the selective character of the process, as only four of the eleven compounds of the red grape pomace extract were impregnated in jute fibers [74]. Catechin and p-coumaric acid, which are two low-molecular weight phenolic compounds, were the compounds impregnated in higher proportions, even though they were not the main compounds of the extract. On the other hand, anthocyanins present in high quantity in the extract were not impregnated. In a previous study, Cejudo Bastante et al. [54] observed that the proportions of compounds in the impregnation of olive leaf extract polyphenols in PET/PP films varied with the pressure (10–40 MPa) and time (5 min to 22 h). Oleuropein was the majoritarian compound in the impregnated films, representing 58 to 71% of the total polyphenols, depending on the impregnation pressure. The authors also highlighted that the proportions of the compounds varied with time. They explained that each compound had a different affinity for CO2 and for the polymer, and different molecular weights (the higher the molecular weight, the lower the diffusion coefficient in the matrix).
The coded models and the results of the analysis of variance (ANOVA) are presented in Table 4. In this study, coded statistical models (the quadratic polynomial equation) were used to predict the compositions of the extracts impregnated into PC (eugenol, eugenyl acetate, β-caryophyllene, α-humulene) as a function of the pressure and temperature. The adjustment quality of these models was evaluated using the ANOVA results, and the experimental data were analyzed in the Protimiza Experimental Design software at a fixed significance level of 0.05.
The models to describe β-caryophyllene and α-humulene proportions in the loaded extract were not valid because the values of the determination coefficient (R2) were lower than 90% (R2 = 89.53 and 84.69%, respectively). In contrast, the models used to describe eugenol and eugenyl acetate were valid, as the R2 values were greater than 90% (93.76 and 94.56%, respectively). Moreover, the data presented in Table 4 shows that Fcal,1 was greater than Ftab,1, and that Fcal,2 was less than Ftab,2. When adjusting the experimental data, the model could be used for predictive purposes, which meets the requirements for constructing the response surfaces (Figure 7).

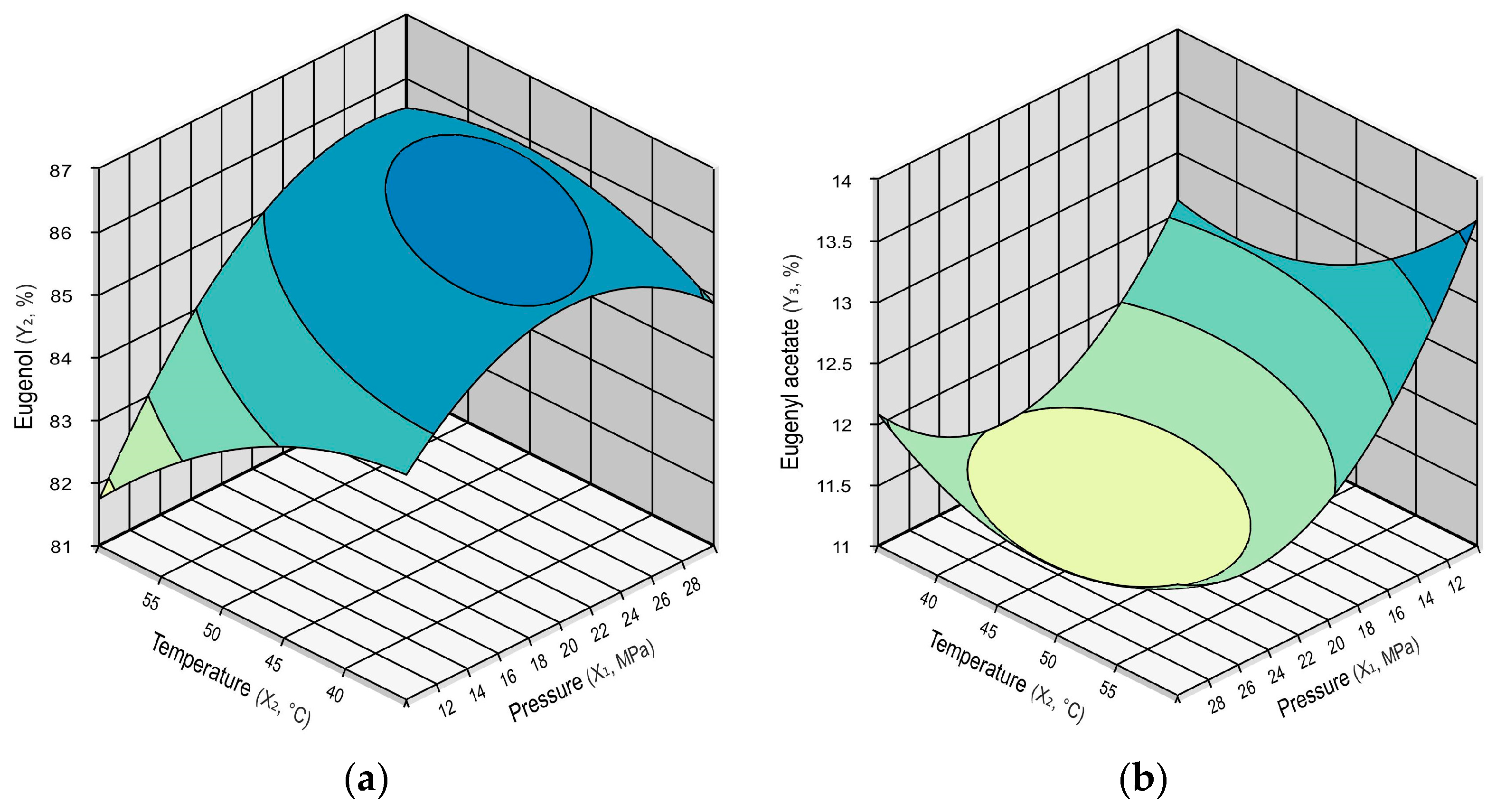

As seen in Figure 7, the pressure and temperature exhibited statistically significant effects (with 95% confidence) on the eugenol and eugenyl acetate content in the extract impregnated into PC. As shown in Figure 7a, there was a positive correlation (p-value < 0.05) between the pressure and the overall eugenol content. Thus, the higher the pressure used in the impregnation, the higher the proportion of eugenol in the loaded extract. However, there was a negative correlation (p-value < 0.05) between the temperature and the proportion of eugenol in the extract. The higher the impregnation temperature, the lower the content of eugenol. As shown in Figure 7b, there was a negative correlation (p-value < 0.05) between the pressure and the eugenyl acetate content. The higher the impregnation pressure, the lower the eugenyl acetate content in the loaded extract.
As mentioned in Section 3.1.1, the high solubility of a compound in scCO2 does not ensure its plentiful impregnation in the polymer, but on the contrary, it can favor its partitioning in the CO2 phase. However, a high affinity of a compound for the matrix is the driving force for its partitioning in the polymer. The differences between the compositions of the crude and impregnated extracts can be accounted for by the affinities between PC and the diverse compounds, which are evaluated by their solubility parameters and by the establishment of strong interactions such as H-bonds between a compound and PC [75,76,77]. The Hansen-type solubility parameters at 25 °C were estimated by the group contribution method, using Van Krevelen and Hoftyzer’s method, and are reported in Table 5 for PC and the four compounds of CE. β-caryophyllene and α-humulene have low affinity for PC, as shown by their very different solubility parameters. Moreover, they do not possess chemical groups that can establish strong secondary bonds with the matrix, and they have high molecular volumes. Thus, the two sesquiterpenes had lower proportions in the impregnated PC than in the crude CE. Conversely, eugenol was impregnated in a higher proportion than according to its proportion in the crude extract. The solubility parameter of eugenol is not the most similar to that of PC, but its loading is promoted by H-bonding between OH groups of eugenol and the C=O group of the carbonate of PC. The lower proportion of eugenyl acetate in the impregnated extract compared to the crude extract (11.22–13.86 vs. 17.06%) is more difficult to explain. Eugenol and eugenyl acetate exhibit similar solubility in scCO2 (see Supplementary Materials—Table S1), and their molecular volumes are similar, so their diffusion in PC should be comparable. Eugenyl acetate has a similar solubility parameter to PC’s, suggesting a good affinity, but it may compete with eugenol during the impregnation process [11,54].
It has been reported that CE and eugenol have antimicrobial activity against food-borne pathogens. Cui et al. [15] reported that 0.5 mg/mL of CE irreversibly affects the cell membrane of Listeria monocytogenes, causing its extermination by 99.99% after 8 h. Pérez-Conesa et al. [78] observed cellular destruction of Escherichia coli O157:H7 (strains 4388 and 43895) after 10–20 min exposure to 0.9% eugenol. In a study conducted by Móran et al. [79], eugenol showed high antimicrobial activity (bacterial growth inhibition >90% at 100 µg/mL) towards Staphylococcus epidermidis and Staphylococcus aureus. Data from the literature indicates that PC impregnated with CE would also have antibacterial properties.
Table
Table 5. Estimation of Hansen-type solubility parameters at 25 °C by the group contribution method, using the Van Krevelen and Hoftyzer method [80].
Table 5. Estimation of Hansen-type solubility parameters at 25 °C by the group contribution method, using the Van Krevelen and Hoftyzer method [80].
Polymer/Compoundδd
(Mpa0.5)		δp
(MPa0.5)		δh
(MPa0.5)		Solubility Parameter (δt) (MPa0.5)|δt PC − δt compound| (MPa0.5)
PC17.93.16.919.4-
Eugenol18.54.112.222.53.1
Eugenyl Acetate17.53.37.219.30.1
β-caryophyllene15.20.00.015.24.2
α-humulene15.70.00.015.73.7

3.3. ATR-FTIR

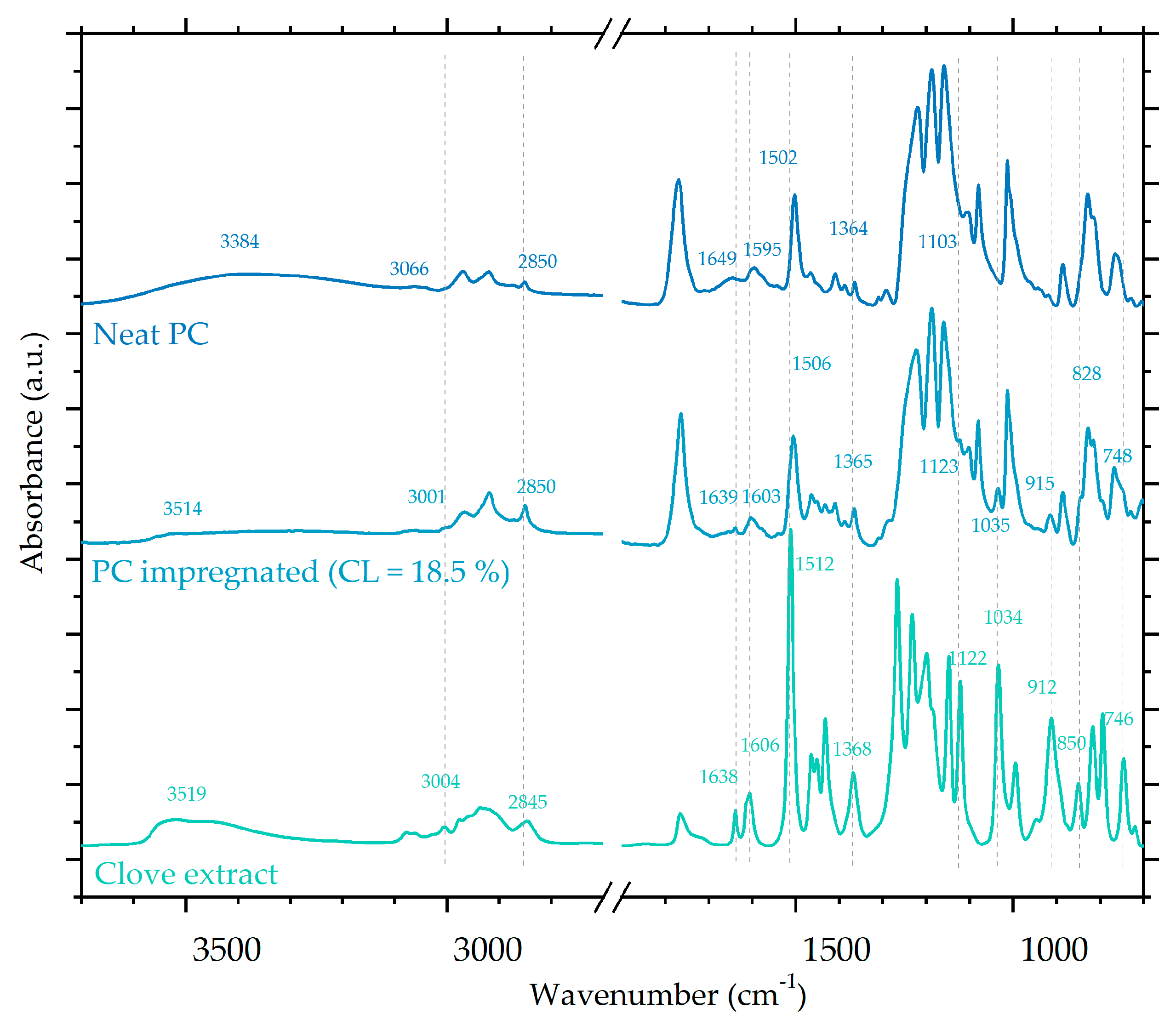

The FTIR spectra of clove extract, neat PC, and impregnated PC are shown in Figure 8. Peak assignments are presented in Supporting Material D. The characteristic peaks of clove extract are centered at 1765 cm−1 due to C=O stretching in eugenyl acetate; 1638 cm−1 due to vibrations of allyl groups in eugenol and eugenyl acetate; 1606 and 1512 cm−1 due to C=C vibrations in the aromatic rings in eugenol and eugenyl acetate [81]; 1266, 1232, and 1199 cm−1 due to =C-O-C asymmetric stretching and =C-O-H vibrations in eugenol and eugenyl acetate; 1148, 1122, and 1034 cm−1 due to C-O-C stretching in eugenol and eugenyl acetate [82]; and 912 cm−1 due to =C-H bending of aliphatic groups [81]. The characteristic peaks of PC are 1769 cm−1 due to C=O stretching; 1502, 1014, and 828 cm−1 due to C=C vibrations in aromatic rings [82]; and 1220, 1188, and 1159 cm−1 due to O-C-O stretching [83]. The spectrum of impregnated PC exhibits characteristic peaks of clove extract, evidencing its impregnation in high concentration; the peaks centered at 1638, 1122, 1034, and 912 cm−1 present in the clove extract spectrum could be clearly observed on the impregnated PC spectrum at 1639, 1123, 1035 and 915 cm−1; other peaks were superposed on the neat PC peaks, causing their broadening [81,82,83,84,85].

3.4. Film Morphology

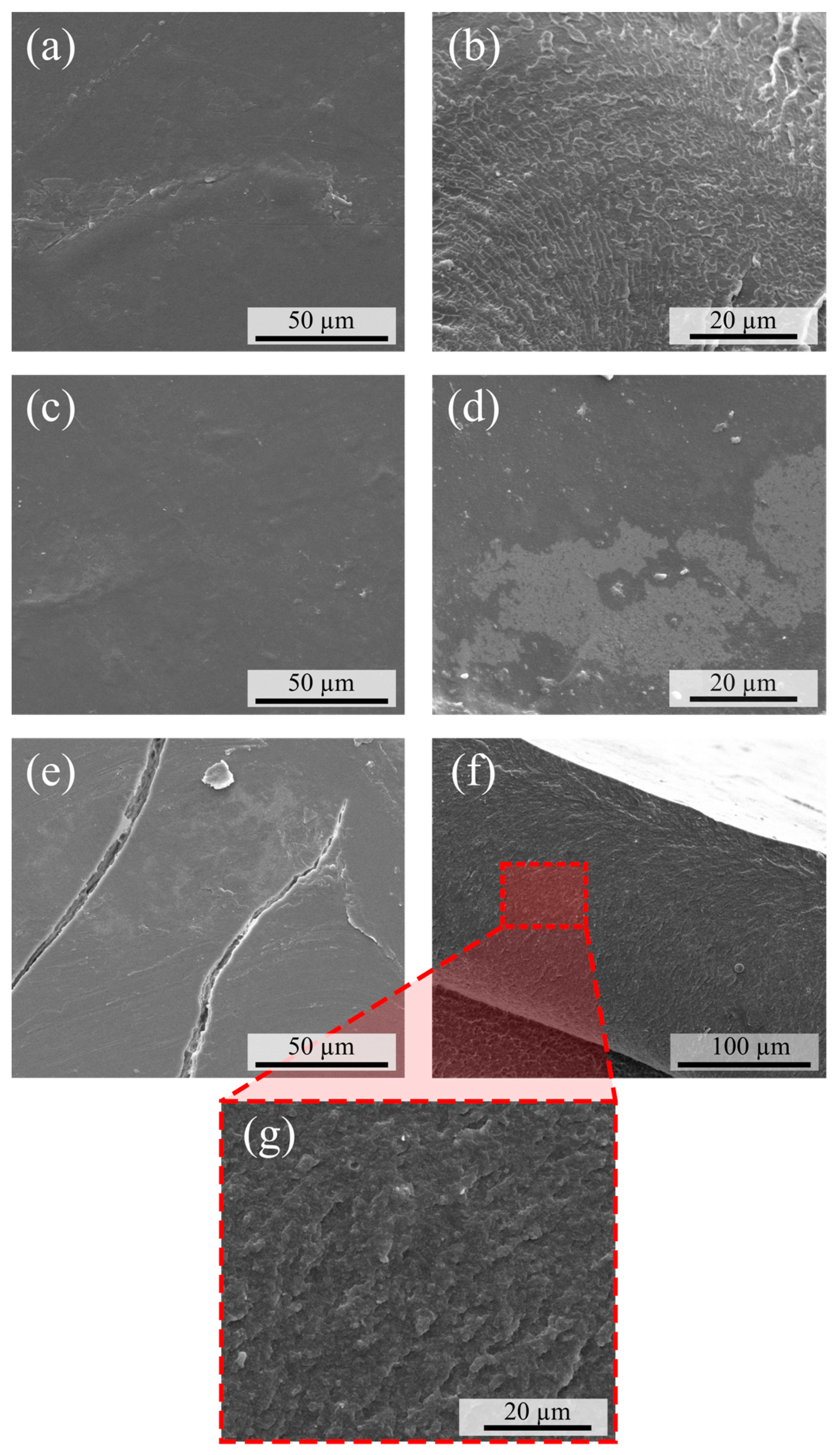

SEM images enable the analysis of the impact of impregnation on the film’s surface and cross-sectional morphologies. Figure 9 shows the cross-section and surface of neat PC, scCO2-treated, and of PC impregnated at 60 °C and 10 MPa. The cross-sections of neat PC (Figure 9b) and scCO2-treated PC (Figure 9d) were dense and homogeneous, and their surfaces were smooth and free of cracks (Figure 9a,c). The SEM images show that submitting PC to CO2 in such impregnation and depressurization conditions did not impact the morphology and did not create pores. Ma et al. studied PC foaming using scCO2 as a blowing agent and showed that microcellular structures were formed after saturating PC with CO2 at 60 °C and depressurizing at 60 °C for 30 s [86]. On the other hand, in the present study, the high-pressure cell was quenched down to −78 °C, which resulted in the CO2 freezing and a pressure reduction to about 2 MPa. Then, the pressure cell was opened, and the frozen sample was left at room temperature. This way, the remaining gaseous CO2 was slowly released, avoiding the bubble nucleation and growth from the dissolved CO2 in PC, which justifies the smooth surface and dense cross-sections observed in the SEM images (Figure 9c,d) [77].
Regarding the morphology of impregnated PC, surface cracking was observed (Figure 9e), and the cross-section obtained by cryo-fracture was also dense, and no micro-pores were observed after high clove loading (18.5%). The surface cracking might result from the high CL% accommodated into the matrix and from the plasticizing effect of CE. Jiang et al. observed that the infusion of the plasticizer tributyl citrate in poly(bisphenol A carbonate) at ambient pressure and 60 °C for 12 h resulted in the formation of pores and of a network of cracks on the surface and of pores that were present in a greater extent compared to our results [87]. Another possibility is that the samples suffered mechanical stress during the process. These cracks must influence the release kinetics of CE, which will be an issue for future investigation.

3.5. DSC Analysis

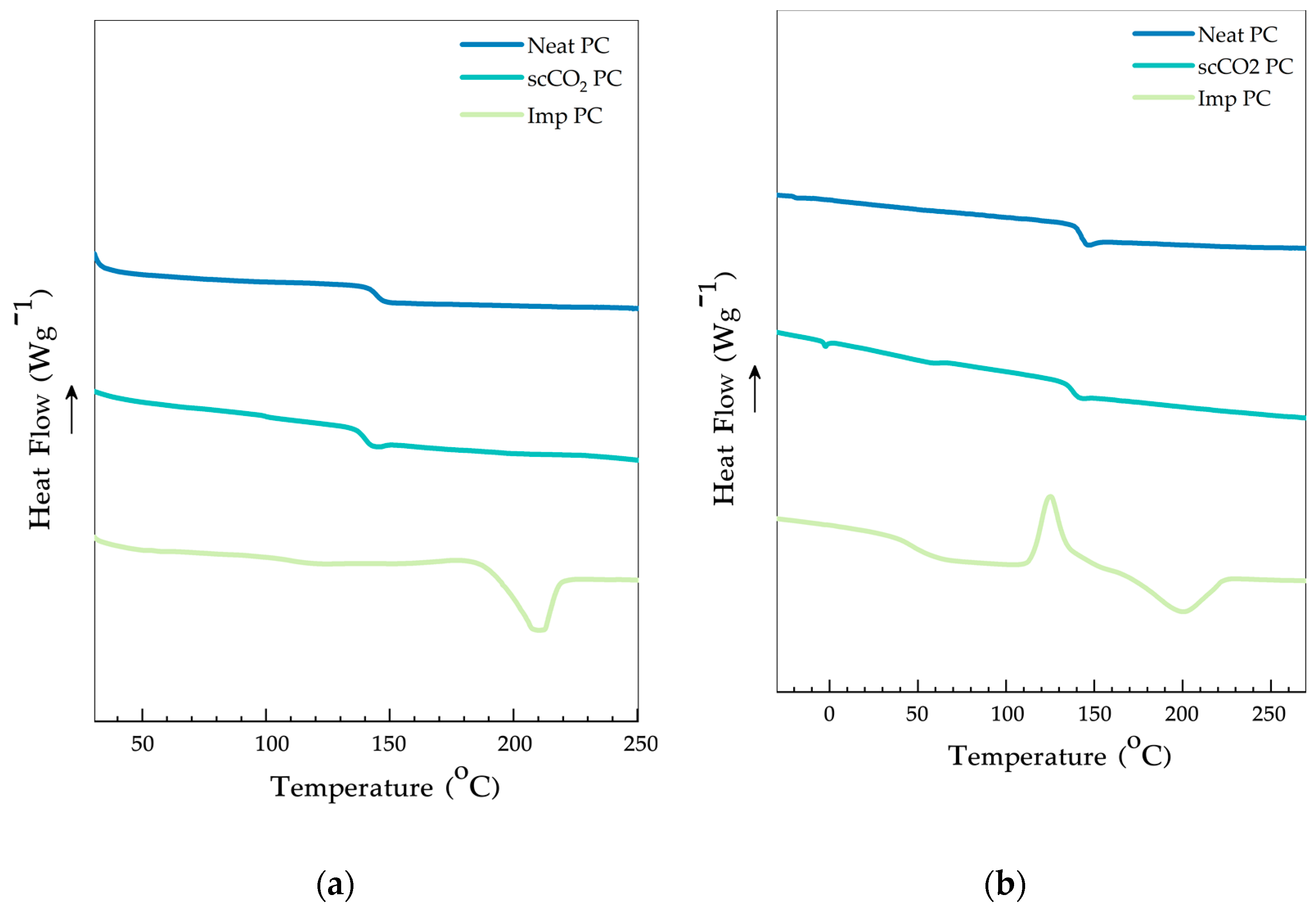

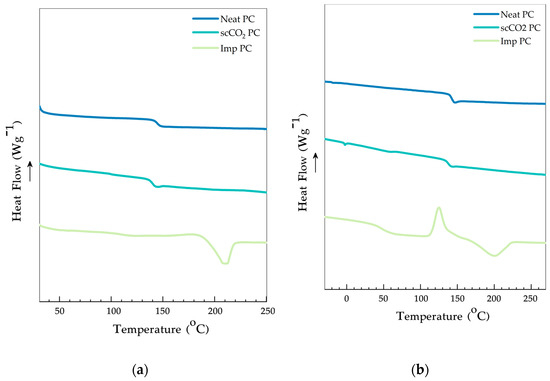

The DSC thermograms of neat PC, scCO2-treated PC, and PC impregnated at 60 °C and 10 MPa, which is the condition that resulted in the highest CL%, are compared in Figure 10. As shown in the first heating curve, the Tg of neat PC slightly decreased from 144.3 to 139.8 °C after scCO2 treatment and dropped to 109.9 °C after impregnation. Other authors have reported that PC can crystallize when submitted to scCO2 above its glass transition [61,67], which was estimated to be lower than 60 °C at 40 MPa [61] due to the interaction of the carbonyl group of PC interacting with CO2 [61,88]. The impregnated PC film was semi-crystalline with a crystallinity of 18.6% and a melting temperature (Tm) of 207.8 °C. The crystallinity can be explained by the plasticizing effect of the scCO2–clove-extract solution on PC chains, which led to crystallization. The plasticizing effect of the clove extract was also demonstrated in DSC second-heating thermograms (Figure 10b), which accounts for the PC in the presence of 18.5% of CE getting rid of the thermal history produced by the impregnation process. Tg was decreased to 47.7 °C, which is below the working impregnation temperature, and a large melting peak from 174.9 to 220 °C was observed in the impregnated PC. Furthermore, an exothermic peak appeared at 124.5 °C, indicating that the presence of CE facilitates the cold crystallization of PC. Both CO2 and CE plasticize PC during the impregnation process, enhancing CO2 sorption and impregnation. However, the increased mobility of the chains leads to their reorganization and crystallization in situ, which is detrimental for the impregnation (since it reduces the amorphous regions that are the ones impregnated [75]), though high CL% were obtained after an impregnation time of 3 h.

4. Conclusions

This study investigated the impregnation of clove extract (CE) into PC by scCO2 to develop rigid food packaging with antibacterial properties. The influences of the impregnation conditions on the composition of the loaded extract were also explored by determining the proportions of the four compounds of CE. Face-centered design models were applied to evaluate the influences of temperature (35–60 °C) and pressure (10–30 MPa) on the total clove loading and the composition of the loaded extract. The clove loading (CL%) ranged from 6.8 to 18.5%, and the maximal CL% was reached at 60 °C and 10 MPa. The temperature favored the impregnation, whereas the pressure was deleterious. The composition of the extract impregnated in PC was different from the crude extract, suggesting the selectivity of the impregnation process. The eugenol content increased from 70.06 to 81.31–86.28%. The eugenyl acetate, β-caryophyllene, and α-humulene contents decreased from 17.06 to 11.22–13.86%, 10.67 to 2.07–4.83%, and 2.20 to below 0.51%, respectively. The pressure enhanced the eugenol content, whereas it decreased the eugenyl acetate content in the loaded extract. Moreover, the temperature decreased the eugenol content. The results were rationalized using the Hansen-type solubility parameters and the intermolecular interactions between PC and each compound. Differential scanning calorimetry showed a high plasticizing effect of CE on PC, which is responsible for increased chain mobility that is favorable to the impregnation, and a concomitant in situ crystallization of the polymer, which is deleterious to the impregnation. Besides that, the high loading of the polymer was responsible for the cracking of the PC surface, but no pores were observed on the cross-section. The impregnated polymer is promising for antibacterial food containers due to the high loading of clove extract that is enabled and the high eugenol content.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pr10122661/s1. Figure S1: 1H NMR of polycarbonate. Figure S2: Evolution of the clove extract loading in PC with impregnation time in the conditions of highest CO2 density (35 °C; 30 MPa), and of lowest CO2 density (60 °C; 10 MPa) among the investigated conditions. Table S1: Solubility of oil extract and of its four individual compounds in scCO2 in conditions close to the one studied. Data reported from the literature. Table S2: FTIR peak assignments of clove extract, neat PC and impregnated PC. References [65,81,82,83,84,85,89] are cited in the supplementary materials

Author Contributions

Conceptualization, M.C.; methodology, M.C., B.G.d.S. and M.A.A.M.; formal analysis, A.M.J., I.T.C., I.T.K., L.P.M.-O., E.K.S. and B.G.d.S.; investigation, A.M.J., I.T.C., I.T.K., L.P.M.-O., E.K.S., B.G.d.S. and M.C.; resources, M.C., data curation, A.M.J., I.T.C., I.T.K., L.P.M.-O., E.K.S., B.G.d.S. and M.C.; writing—original draft preparation, A.M.J., I.T.C., L.P.M.-O., E.K.S., B.G.d.S. and M.C.; writing—review and editing, A.M.J., I.T.C., L.P.M.-O., E.K.S., B.G.d.S. and M.C.; supervision, M.C., B.G.d.S. and M.A.A.M.; project administration, M.C.; funding acquisition, M.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by FAPESP (Fundação de Amparo à Pesquisa do Estado de São Paulo), processes numbers 2018/23902-3 and 2020/04761-0. This study was partially financed by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brasil (CAPES)—Finance Code 001, for the master scholarship of I.T.C.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank the multiuser facilities (UFABC) for the experimental support and Rafael Kenji Nishihora for the artwork in Figure 3.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Mukurumbira, A.R.; Shellie, R.A.; Keast, R.; Palombo, E.A.; Jadhav, S.R. Encapsulation of Essential Oils and Their Application in Antimicrobial Active Packaging. Food Control 2022, 136, 108883. [Google Scholar] [CrossRef]
  2. Maisanaba, S.; Llana-Ruiz-Cabello, M.; Gutiérrez-Praena, D.; Pichardo, S.; Puerto, M.; Prieto, A.I.; Jos, A.; Cameán, A.M. New Advances in Active Packaging Incorporated with Essential Oils or Their Main Components for Food Preservation. Food Rev. Int. 2017, 33, 447–515. [Google Scholar] [CrossRef]
  3. Sharma, S.; Barkauskaite, S.; Jaiswal, A.K.; Jaiswal, S. Essential Oils as Additives in Active Food Packaging. Food Chem. 2021, 343, 128403. [Google Scholar] [CrossRef] [PubMed]
  4. U.S. Food and Drug Administration. Essential, D. Oils, Oleoresins (Solventfree), and Natural Extractives (Including Distillates), 2014. In Code of Federal Regulations, Title 21; 2014. Available online: https://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfcfr/cfrsearch.cfm?fr=182.20 (accessed on 7 December 2022).
  5. Cejudo Bastante, C.; Cran, M.J.; Casas Cardoso, L.; Mantell Serrano, C.; Martínez de la Ossa, E.J.; Bigger, S.W. Effect of Supercritical CO2 and Olive Leaf Extract on the Structural, Thermal and Mechanical Properties of an Impregnated Food Packaging Film. J. Supercrit. Fluids 2019, 145, 181–191. [Google Scholar] [CrossRef]
  6. Cejudo Bastante, C.; Casas Cardoso, L.; Mantell Serrano, C.; Martínez de la Ossa, E.J. Supercritical Impregnation of Food Packaging Films to Provide Antioxidant Properties. J. Supercrit. Fluids 2017, 128, 200–207. [Google Scholar] [CrossRef]
  7. Milovanovic, S.; Hollermann, G.; Errenst, C.; Pajnik, J.; Frerich, S.; Kroll, S.; Rezwan, K.; Ivanovic, J. Supercritical CO2 Impregnation of PLA/PCL Films with Natural Substances for Bacterial Growth Control in Food Packaging. Food Res. Int. 2018, 107, 486–495. [Google Scholar] [CrossRef] [PubMed]
  8. Dias, A.M.A.; Rey-Rico, A.; Oliveira, R.A.; Marceneiro, S.; Alvarez-Lorenzo, C.; Concheiro, A.; Júnior, R.N.C.; Braga, M.E.M.; de Sousa, H.C. Wound Dressings Loaded with an Anti-Inflammatory Jucá (Libidibia Ferrea) Extract Using Supercritical Carbon Dioxide Technology. J. Supercrit. Fluids 2013, 74, 34–45. [Google Scholar] [CrossRef] [Green Version]
  9. da Silva, C.V.; Pereira, V.J.; Rosa, P.T.V.; Cabral-Albuquerque, E.C.M.; Vieira De Melo, S.A.B.; Costa, G.M.N.; Dias, A.M.A.; de Sousa, H.C.; Braga, M.E.M. Effect of ScCO2 Sorption Capacity on the Total Amount of Borage Oil Loaded by ScCO2 Impregnation/Deposition into a Polyurethane-Based Wound Dressing. J. Supercrit. Fluids 2016, 115, 1–9. [Google Scholar] [CrossRef]
  10. Pajnik, J.; Stamenić, M.; Radetić, M.; Tomanović, S.; Sukara, R.; Mihaljica, D.; Zizovic, I. Impregnation of Cotton Fabric with Pyrethrum Extract in Supercritical Carbon Dioxide. J. Supercrit. Fluids 2017, 128, 66–72. [Google Scholar] [CrossRef]
  11. Sanchez-Sanchez, J.; Fernández-Ponce, M.T.; Casas, L.; Mantell, C.; de la Ossa, E.J.M. Impregnation of Mango Leaf Extract into a Polyester Textile Using Supercritical Carbon Dioxide. J. Supercrit. Fluids 2017, 128, 208–217. [Google Scholar] [CrossRef]
  12. Banerjee, S.; Bagchi, B.; Pal, K.; Bhandary, S.; Kool, A.; Hoque, N.A.; Biswas, P.; Thakur, P.; Das, K.; Karmakar, P.; et al. Essential Oil Impregnated Luminescent Hydroxyapatite: Antibacterial and Cytotoxicity Studies. Mater. Sci. Eng. C 2020, 116, 111190. [Google Scholar] [CrossRef] [PubMed]
  13. Jia, J.; Duan, S.; Zhou, X.; Sun, L.; Qin, C.; Li, M.; Ge, F. Long-Term Antibacterial Film Nanocomposite Incorporated with Patchouli Essential Oil Prepared by Supercritical CO2 Cyclic Impregnation for Wound Dressing. Molecules 2021, 26, 5005. [Google Scholar] [CrossRef] [PubMed]
  14. Bajpai, V.K.; Baek, K.-H. Biological Efficacy and Application of Essential Oils in Foods—A Review. J. Essent. Oil Bear. Plants 2016, 19, 1–19. [Google Scholar] [CrossRef]
  15. Cui, H.; Zhang, C.; Li, C.; Lin, L. Antimicrobial Mechanism of Clove Oil on Listeria Monocytogenes. Food Control 2018, 94, 140–146. [Google Scholar] [CrossRef]
  16. Fu, Y.; Zu, Y.; Chen, L.; Shi, X.; Wang, Z.; Sun, S.; Efferth, T. Antimicrobial Activity of Clove and Rosemary Essential Oils Alone and in Combination. Phytother. Res. 2007, 21, 989–994. [Google Scholar] [CrossRef] [PubMed]
  17. Briozzo, J.; Núncez, L.; Chirife, J.; Herszage, L.; D’aquino, M. Antimicrobial Activity of Clove Oil Dispersed in a Concentrated Sugar Solution. J. Appl. Bacteriol. 1989, 66, 69–75. [Google Scholar] [CrossRef]
  18. Ahmad, N.; Alam, M.K.; Shehbaz, A.; Khan, A.; Mannan, A.; Hakim, S.R.; Bisht, D.; Owais, M. Antimicrobial Activity of Clove Oil and Its Potential in the Treatment of Vaginal Candidiasis. J. Drug Target 2005, 13, 555–561. [Google Scholar] [CrossRef]
  19. Medeiros, G.R.; Ferreira, S.R.S.; Carciofi, B.A.M. High Pressure Carbon Dioxide for Impregnation of Clove Essential Oil in LLDPE Films. Innov. Food Sci. Emerg. Technol. 2017, 41, 206–215. [Google Scholar] [CrossRef]
  20. Medeiros, G.R.; Guimarães, C.; Ferreira, S.R.S.; Carciofi, B.A.M. Thermomechanical and Transport Properties of LLDPE Films Impregnated with Clove Essential Oil by High-Pressure CO2. J. Supercrit. Fluids 2018, 139, 8–18. [Google Scholar] [CrossRef]
  21. Goñi, M.L.; Gañán, N.A.; Strumia, M.C.; Martini, R.E. Eugenol-Loaded LLDPE Films with Antioxidant Activity by Supercritical Carbon Dioxide Impregnation. J. Supercrit. Fluids 2016, 111, 28–35. [Google Scholar] [CrossRef]
  22. Mosquera, J.E.; Goñi, M.L.; Martini, R.E.; Gañán, N.A. Supercritical Carbon Dioxide Assisted Impregnation of Eugenol into Polyamide Fibers for Application as a Dental Floss. J. CO2 Util. 2019, 32, 259–268. [Google Scholar] [CrossRef]
  23. Mosquera, J.E.; Goñi, M.L.; Martini, R.E.; Gañán, N.A. Mass Transfer Kinetics of CO2 and Eugenol in the Supercritical Impregnation of Polyamide Fibers: Experimental Data and Modeling. J. Supercrit. Fluids 2020, 166, 105030. [Google Scholar] [CrossRef]
  24. Nisar, T.; Wang, Z.-C.; Yang, X.; Tian, Y.; Iqbal, M.; Guo, Y. Characterization of Citrus Pectin Films Integrated with Clove Bud Essential Oil: Physical, Thermal, Barrier, Antioxidant and Antibacterial Properties. Int. J. Biol. Macromol. 2018, 106, 670–680. [Google Scholar] [CrossRef] [PubMed]
  25. Junka, A.; Żywicka, A.; Chodaczek, G.; Dziadas, M.; Czajkowska, J.; Duda-Madej, A.; Bartoszewicz, M.; Mikołajewicz, K.; Krasowski, G.; Szymczyk, P.; et al. Potential of Biocellulose Carrier Impregnated with Essential Oils to Fight Against Biofilms Formed on Hydroxyapatite. Sci. Rep. 2019, 9, 1256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Radovic, M.; Adamovic, T.; Pavlovic, J.; Rusmirovic, J.; Tadic, V.; Brankovic, Z.; Ivanovic, J. Supercritical Co2 Impregnation of Gelatin-Chitosan Films with Clove Essential Oil and Characterization Thereof. Chem. Ind. Chem. Eng. Q. 2019, 25, 119–130. [Google Scholar] [CrossRef] [Green Version]
  27. Li, M.; Zhang, F.; Liu, Z.; Guo, X.; Wu, Q.; Qiao, L. Controlled Release System by Active Gelatin Film Incorporated with β-Cyclodextrin-Thymol Inclusion Complexes. Food Bioproc. Tech. 2018, 11, 1695–1702. [Google Scholar] [CrossRef]
  28. Varghese, S.A.; Siengchin, S.; Parameswaranpillai, J. Essential Oils as Antimicrobial Agents in Biopolymer-Based Food Packaging—A Comprehensive Review. Food Biosci. 2020, 38, 100785. [Google Scholar] [CrossRef]
  29. Ocak, B. Properties and Characterization of Thyme Essential Oil Incorporated Collagen Hydrolysate Films Extracted from Hide Fleshing Wastes for Active Packaging. Environ. Sci. Pollut. Res. 2020, 27, 29019–29030. [Google Scholar] [CrossRef]
  30. Felix de Andrade, M.; Diego de Lima Silva, I.; Alves da Silva, G.; David Cavalcante, P.V.; Thayse da Silva, F.; Bastos de Almeida, Y.M.; Vinhas, G.M.; Hecker de Carvalho, L. A Study of Poly (Butylene Adipate-Co-Terephthalate)/Orange Essential Oil Films for Application in Active Antimicrobial Packaging. LWT 2020, 125, 109148. [Google Scholar] [CrossRef]
  31. Perale, G.; Casalini, T.; Barri, V.; Müller, M.; Maccagnan, S.; Masi, M. Lidocaine Release from Polycaprolactone Threads. J. Appl. Polym. Sci. 2010, 117, 3610–3614. [Google Scholar] [CrossRef]
  32. Tian, Y.; Jacobs, E.; Jones, D.S.; McCoy, C.P.; Wu, H.; Andrews, G.P. The Design and Development of High Drug Loading Amorphous Solid Dispersion for Hot-Melt Extrusion Platform. Int. J. Pharm. 2020, 586, 119545. [Google Scholar] [CrossRef] [PubMed]
  33. Mir, S.A.; Shah, M.A.; Dar, B.N.; Wani, A.A.; Ganai, S.A.; Nishad, J. Supercritical Impregnation of Active Components into Polymers for Food Packaging Applications. Food Bioproc. Tech. 2017, 10, 1749–1754. [Google Scholar] [CrossRef]
  34. Champeau, M.; Thomassin, J.M.; Tassaing, T.; Jérôme, C. Drug Loading of Polymer Implants by Supercritical CO2 Assisted Impregnation: A Review. J. Control. Release 2015, 209, 248–259. [Google Scholar] [CrossRef] [PubMed]
  35. Kazarian, S.G.; Brantley, N.H.; West, B.L.; Vincent, M.F.; Eckert, C.A. In Situ Spectroscopy of Polymers Subjected to Supercritical CO2: Plasticization and Dye Impregnation. Appl. Spectrosc. 1997, 51. [Google Scholar] [CrossRef]
  36. Belizón, M.; Fernández-Ponce, M.T.; Casas, L.; Mantell, C.; Martínez De La Ossa-Fernández, E.J. Supercritical Impregnation of Antioxidant Mango Polyphenols into a Multilayer PET/PP Food-Grade Film. J. CO2 Util. 2018, 25, 56–67. [Google Scholar] [CrossRef]
  37. Ameri, A.; Sodeifian, G.; Sajadian, S.A. Lansoprazole Loading of Polymers by Supercritical Carbon Dioxide Impregnation: Impacts of Process Parameters. J. Supercrit. Fluids 2020, 164, 104892. [Google Scholar] [CrossRef]
  38. de Souza, A.C.; Dias, A.M.A.; Sousa, H.C.; Tadini, C.C. Impregnation of Cinnamaldehyde into Cassava Starch Biocomposite Films Using Supercritical Fluid Technology for the Development of Food Active Packaging. Carbohydr. Polym. 2014, 102, 830–837. [Google Scholar] [CrossRef] [Green Version]
  39. Delpech, M.C.; Coutinho, F.M.B.; Habibe, M.E.S. Bisphenol A-Based Polycarbonates: Characterization of Commercial Samples. Polym. Test 2002, 21, 155–161. [Google Scholar] [CrossRef]
  40. Jadhav, V.D.; Patil, A.J.; Kandasubramanian, B. Polycarbonate Nanocomposites for High Impact Applications. In Handbook of Consumer Nanoproducts; Springer Nature Singapore: Singapore, 2022; pp. 257–281. [Google Scholar] [CrossRef]
  41. Marsh, K.; Bugusu, B. Food Packaging—Roles, Materials, and Environmental Issues. J. Food Sci. 2007, 72, R39–R55. [Google Scholar] [CrossRef]
  42. Domiński, A.; Konieczny, T.; Duale, K.; Krawczyk, M.; Pastuch-Gawołek, G.; Kurcok, P. Stimuli-Responsive Aliphatic Polycarbonate Nanocarriers for Tumor-Targeted Drug Delivery. Polymers 2020, 12, 2890. [Google Scholar] [CrossRef]
  43. Ganivada, M.N.; Kumar, P.; Kanjilal, P.; Dinda, H.; das Sarma, J.; Shunmugam, R. Polycarbonate-Based Biodegradable Copolymers for Stimuli Responsive Targeted Drug Delivery. Polym. Chem. 2016, 7, 4237–4245. [Google Scholar] [CrossRef]
  44. Mölders, N.; Renner, M.; Errenst, C.; Weidner, E. Incorporation of Antibacterial Active Additives inside Polycarbonate Surfaces by Using Compressed Carbon Dioxide as Transport Aid. J. Supercrit. Fluids 2018, 132, 83–90. [Google Scholar] [CrossRef]
  45. Varga, D.; Alkin, S.; Gluschitz, P.; Péter-Szabó, B.; Székely, E.; Gamse, T. Supercritical Fluid Dyeing of Polycarbonate in Carbon Dioxide. J. Supercrit. Fluids 2016, 116, 111–116. [Google Scholar] [CrossRef]
  46. de Almeida Fin de Lima, F.; dos Santos, O.A.A.; Pinheiro, N.; de Lima, F.D.A.F.; Santos, O.A.A.; Pinheiro, N. Impregnação de Filmes Do Compósito de Policarbonato (PC) e Sílica-Gel (Si) Com Corante Fotocrômico Em Fluido Supercrítico. Acta Scientiarum. Technol. 2010, 32, 69–74. [Google Scholar] [CrossRef] [Green Version]
  47. Liao, X.; Wang, J.; Li, G.; He, J. Effect of Supercritical Carbon Dioxide on the Crystallization and Melting Behavior of Linear Bisphenol A Polycarbonate. J. Polym. Sci. B Polym. Phys. 2004, 42, 280–285. [Google Scholar] [CrossRef]
  48. Monnereau, L.; Urbanczyk, L.; Thomassin, J.-M.M.; Alexandre, M.; Jérôme, C.; Huynen, I.; Bailly, C.; Detrembleur, C. Supercritical CO2 and Polycarbonate Based Nanocomposites: A Critical Issue for Foaming. Polymer 2014, 55, 2422–2431. [Google Scholar] [CrossRef]
  49. Adorjan, B.; Buchbauer, G. Biological Properties of Essential Oils: An Updated Review. Flavour Fragr. J. 2010, 25, 407–426. [Google Scholar] [CrossRef]
  50. El Asbahani, A.; Miladi, K.; Badri, W.; Sala, M.; Addi, E.H.A.; Casabianca, H.; El Mousadik, A.; Hartmann, D.; Jilale, A.; Renaud, F.N.R.; et al. Essential Oils: From Extraction to Encapsulation. Int. J. Pharm. 2015, 483, 220–243. [Google Scholar] [CrossRef]
  51. Baser, K.H.C.; Buchbauer, G. (Eds.) Handbook of Essential Oils; CRC Press: Boca Raton, FL, USA, 2015. [Google Scholar] [CrossRef]
  52. Bakkali, F.; Averbeck, S.; Averbeck, D.; Idaomar, M. Biological Effects of Essential Oils—A Review. Food Chem. Toxicol. 2008, 46, 446–475. [Google Scholar] [CrossRef]
  53. Yap, P.S.X.; Yiap, B.C.; Ping, H.C.; Lim, S.H.E. Essential Oils, A New Horizon in Combating Bacterial Antibiotic Resistance. Open Microbiol. J. 2014, 8, 6–14. [Google Scholar] [CrossRef] [Green Version]
  54. Cejudo Bastante, C.; Casas Cardoso, L.; Fernández Ponce, M.T.; Mantell Serrano, C.; Martínez de la Ossa-Fernández, E.J. Characterization of Olive Leaf Extract Polyphenols Loaded by Supercritical Solvent Impregnation into PET/PP Food Packaging Films. J. Supercrit. Fluids 2018, 140, 196–206. [Google Scholar] [CrossRef]
  55. Prado, J.M.; Prado, G.H.C.; Meireles, M.A.A. Scale-up Study of Supercritical Fluid Extraction Process for Clove and Sugarcane Residue. J. Supercrit. Fluids 2011, 56, 231–237. [Google Scholar] [CrossRef] [Green Version]
  56. Prado, J.M.; Meireles, M.A.A. Comparative Study on Efficiency of Extraction and Separation Steps of Supercritical Fluid Extraction. In Proceedings of the VIII Iberoamerican Conference on Phase Equilibria and Fluid Properties For Process Design, Praia da Rocha, Portugal, 17–21 October 2009. [Google Scholar]
  57. Khan, F.; Khanna, S.; Hor, A.-M.; Sundararajan, P.R. The Role of Molecular Volume and the Shape of the Hole Transport Molecule in the Morphology of Model Charge Transport Composites. Can J. Chem. 2010, 88, 247–259. [Google Scholar] [CrossRef]
  58. Mercier, J.P.; Legras, R. Correlation between the Enthalpy of Fusion and the Specific Volume of Crystallized Polycarbonate of Bisphenol A. J. Polym. Sci. Part B Polym. Lett. 1970, 8, 645–650. [Google Scholar] [CrossRef]
  59. Tang, M.; Huang, Y.C.; Chen, Y.P. Sorption and Diffusion of Supercritical Carbon Dioxide into Polysulfone. J. Appl. Polym. Sci. 2004, 94, 474–482. [Google Scholar] [CrossRef]
  60. Zhao, J.J.; Zhao, Y.P.; Yang, B. Investigation of Sorption and Diffusion of Supercritical Carbon Dioxide in Polycarbonate. J. Appl. Polym. Sci. 2008, 109, 1661–1666. [Google Scholar] [CrossRef]
  61. Tang, M.; Du, T.B.; Chen, Y.P. Sorption and Diffusion of Supercritical Carbon Dioxide in Polycarbonate. J. Supercrit. Fluids 2004, 28, 207–218. [Google Scholar] [CrossRef]
  62. Sugiura, K.; Ogawa, S.; Tabata, I.; Hori, T. Impregnation of Tranilast to the Poly(Lactic Acid) Fiber with Supercritical Carbon Dioxide and the Release Behavior of Tranilast. J. Fiber Sci. Technol. 2005, 61, 159–165. [Google Scholar] [CrossRef]
  63. Wei, M.C.; Lin, P.H.; Hong, S.J.; Chen, J.M.; Yang, Y.C. Development of a Green Alternative Procedure for the Simultaneous Separation and Quantification of Clove Oil and Its Major Bioactive Constituents. ACS Sustain. Chem. Eng. 2016, 4, 6491–6499. [Google Scholar] [CrossRef]
  64. Rodrigues, V.M.; Sousa, E.M.B.D.; Monteiro, A.R.; Chiavone-Filho, O.; Marques, M.O.M.; Angela, M.; Meireles, A. Determination of the Solubility of Extracts from Vegetable Raw Material in Pressurized CO2: A Pseudo-Ternary Mixture Formed by Cellulosic Structure+solute+solvent. J. Supercrit. Fluids 2002, 22, 21–36. [Google Scholar] [CrossRef]
  65. Guan, W.Q.; Li, S.F.; Hou, C.X.; Yan, R.; Ma, J. Determination and Correlation of Solubilities of Clove Oil Components in Supercritical Carbon Dioxide. J. Chem. Ind. Eng. (China) 2007, 58, 1077–1081. [Google Scholar]
  66. Varona, S.; Rodríguez-Rojo, S.; Martín, Á.; Cocero, M.J.; Duarte, C.M.M. Supercritical Impregnation of Lavandin (Lavandula Hybrida) Essential Oil in Modified Starch. J. Supercrit. Fluids 2011, 58, 313–319. [Google Scholar] [CrossRef]
  67. Sun, Y.; Matsumoto, M.; Kitashima, K.; Haruki, M.; Kihara, S.I.; Takishima, S. Solubility and Diffusion Coefficient of Supercritical-CO2 in Polycarbonate and CO2 Induced Crystallization of Polycarbonate. J. Supercrit. Fluids 2014, 95, 35–43. [Google Scholar] [CrossRef]
  68. Beckman, E.; Porter, R.S. Crystallization of Bisphenol a Polycarbonate Induced by Supercritical Carbon Dioxide. J. Polym. Sci. 1987, 25, 1511–1517. [Google Scholar] [CrossRef]
  69. Li, G.; Park, C.B. A New Crystallization Kinetics Study of Polycarbonate under High-Pressure Carbon Dioxide and Various Crystallinization Temperatures by Using Magnetic Suspension Balance. J. Appl. Polym. Sci. 2010, 118, 2898–2903. [Google Scholar] [CrossRef]
  70. von Schnitzler, J.; Eggers, R. Mass Transfer in Polymers in a Supercritical CO2-Atmosphere. J. Supercrit. Fluids 1999, 16, 81–92. [Google Scholar] [CrossRef]
  71. Fernández-Ponce, M.T.; Casas, L.; Mantell, C.; Rodríguez, M.; Martínez De La Ossa, E. Extraction of Antioxidant Compounds from Different Varieties of Mangifera Indica Leaves Using Green Technologies. J. Supercrit. Fluids 2012, 72, 168–175. [Google Scholar] [CrossRef]
  72. Ushiki, I.; Hayashi, S.; Kihara, S.; Takishima, S. Solubilities and Diffusion Coefficients of Carbon Dioxide and Nitrogen in Poly(Methyl Methacrylate) at High Temperatures and Pressures. J. Supercrit. Fluids 2019, 152, 104565. [Google Scholar] [CrossRef]
  73. Bentayeb, K.; Rubio, C.; Batlle, R.; Nerín, C. Direct Determination of Carnosic Acid in a New Active Packaging Based on Natural Extract of Rosemary. Anal. Bioanal. Chem. 2007, 389, 1989–1996. [Google Scholar] [CrossRef]
  74. Cejudo-Bastante, C.; Arjona-Mudarra, P.; Fernández-Ponce, M.T.; Casas, L.; Mantell, C.; Martínez de la Ossa, E.J.; Pereyra, C. Application of a Natural Antioxidant from Grape Pomace Extract in the Development of Bioactive Jute Fibers for Food Packaging. Antioxidants 2021, 10, 216. [Google Scholar] [CrossRef]
  75. Champeau, M.; Thomassin, J.M.; Tassaing, T.; Jerome, C. Drug Loading of Sutures by Supercritical CO2 Impregnation: Effect of Polymer/Drug Interactions and Thermal Transitions. Macromol. Mater. Eng. 2015, 300, 596–610. [Google Scholar] [CrossRef]
  76. Ma, S.L.; Lu, Z.W.; Wu, Y.T.; Zhang, Z.B. Partitioning of Drug Model Compounds between Poly(Lactic Acid)s and Supercritical CO2 Using Quartz Crystal Microbalance as an in Situ Detector. J. Supercrit. Fluids 2010, 54, 129–136. [Google Scholar] [CrossRef]
  77. Coutinho, I.; Champeau, M. Synergistic Effects in the Simultaneous Supercritical CO2 Impregnation of Two Compounds into Poly(L- Lactic Acid) and Polyethylene. J. Supercrit. Fluids 2020, 166, 105019. [Google Scholar] [CrossRef]
  78. Pérez-Conesa, D.; Cao, J.; Chen, L.; McLandsborough, L.; Weiss, J. Inactivation of Listeria Monocytogenes and Escherichia coli O157:H7 Biofilms by Micelle-Encapsulated Eugenol and Carvacrol. J. Food Prot. 2011, 74, 55–62. [Google Scholar] [CrossRef] [PubMed]
  79. Morán, A.; Gutiérrez, S.; Martínez-Blanco, H.; Ferrero, M.A.; Monteagudo-Mera, A.; Rodríguez-Aparicio, L.B. Non-Toxic Plant Metabolites Regulate Staphylococcus Viability and Biofilm Formation: A Natural Therapeutic Strategy Useful in the Treatment and Prevention of Skin Infections. Biofouling 2014, 30, 1175–1182. [Google Scholar] [CrossRef]
  80. van Krevelen, D.W.; te Nijenhuis, K. Properties of Polymers: Their Correlation with Chemical Structure; Their Numerical Estimation and Prediction Drom Additive Group Contributions; Elsevier: Amsterdam, The Netherlands, 2009. [Google Scholar] [CrossRef]
  81. Nagaraju, P.G.; Sengupta, P.; Chicgovinda, P.P.; Rao, P.J. Nanoencapsulation of Clove Oil and Study of Physicochemical Properties, Cytotoxic, Hemolytic, and Antioxidant Activities. J. Food Process Eng. 2021, 44, e13645. [Google Scholar] [CrossRef]
  82. Socrates, G. Infrared and Raman Characteristic Group Frequencies: Tables and Charts, 3rd ed.; J.Wiley and Sons: New York, NY, USA, 2004. [Google Scholar]
  83. Musto, P.; Wu, L.; Karasz, F.E.; MacKnight, W.J. Fourier Transform Infrared Spectroscopy Investigations of Polybenzimidazole/Poly(Bisphenol-A Carbonate) Blends. Polymer 1991, 32, 3–11. [Google Scholar] [CrossRef]
  84. Ishaq Lerrick, R. Direct Oxidation of Eugenol Using a Permanganate. Molekul 2009, 4, 48. [Google Scholar] [CrossRef]
  85. Coulier, L.; Kaal, E.R.; Hankemeier, T. Towards Early Detection of the Hydrolytic Degradation of Poly(Bisphenol A)Carbonate by Hyphenated Liquid Chromatography and Comprehensive Two-Dimensional Liquid Chromatography. Polym. Degrad Stab. 2006, 91, 271–279. [Google Scholar] [CrossRef]
  86. Ma, Z.; Zhang, G.; Yang, Q.; Shi, X.; Shi, A. Fabrication of Microcellular Polycarbonate Foams with Unimodal or Bimodal Cell-Size Distributions Using Supercritical Carbon Dioxide as a Blowing Agent. J. Cell. Plast. 2014, 50, 55–79. [Google Scholar] [CrossRef]
  87. Jiang, S.; Guan, R.; Chen, H.; Zhao, J.; Zha, S.; Ke, Z. Effect of TBC Plasticization on Thin Polycarbonate Sheet. J. Wuhan Univ. Technol. -Mater. Sci. Ed. 2014, 29, 553–560. [Google Scholar] [CrossRef]
  88. Shieh, Y.-T.; Liu, K.-H. The Effect of Carbonyl Group on Sorption of CO2 in Glassy Polymers. J. Suprecrit. Fluids 2003, 25, 261–268. [Google Scholar] [CrossRef]
  89. Wei, M.C.; Xiao, J.; Yang, Y.C. Extraction of α-Humulene-Enriched Oil from Clove Using Ultrasound-Assisted Supercritical Carbon Dioxide Extraction and Studies of Its Fictitious Solubility. Food Chem. 2016, 210, 172–181. [Google Scholar] [CrossRef]
Processes 10 02661 g001 550

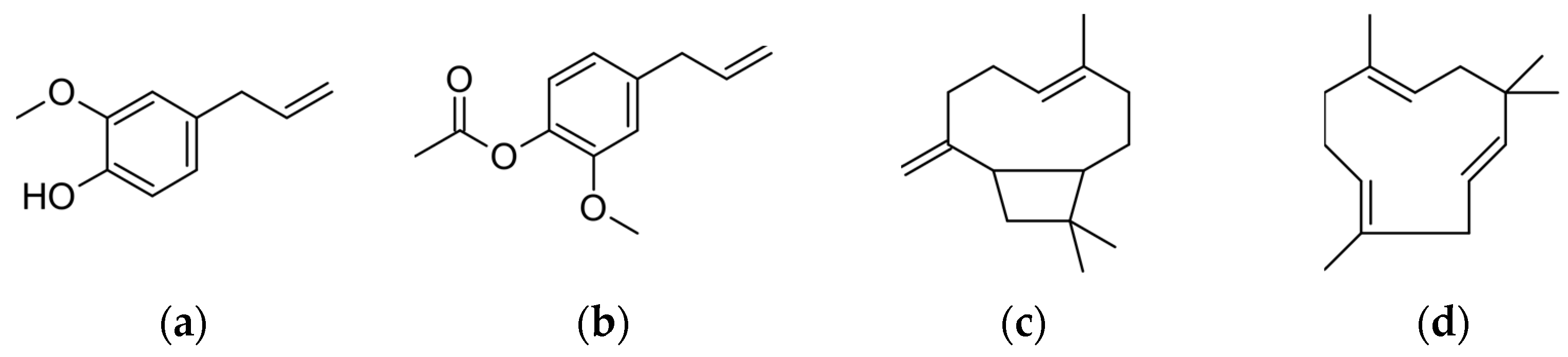

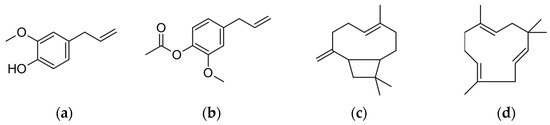

Figure 1. Structures of the four main compounds of clove extract (obtained by scCO2): (a) eugenol, (b) eugenyl acetate, (c) β-caryophyllene, and (d) α-humulene.
Figure 1. Structures of the four main compounds of clove extract (obtained by scCO2): (a) eugenol, (b) eugenyl acetate, (c) β-caryophyllene, and (d) α-humulene.
Processes 10 02661 g001
Processes 10 02661 g002 550
Figure 2. Structure of poly(bisphenol A carbonate).
Figure 2. Structure of poly(bisphenol A carbonate).
Processes 10 02661 g002
Processes 10 02661 g003 550
Figure 3. Scheme of the experimental set-up.
Figure 3. Scheme of the experimental set-up.
Processes 10 02661 g003
Processes 10 02661 g004 550
Figure 4. Influences of pressure (10–30 MPa) and temperature (35–60 °C) on the clove extract loading (CL%) in PC. Standard deviation of 0.7%.
Figure 4. Influences of pressure (10–30 MPa) and temperature (35–60 °C) on the clove extract loading (CL%) in PC. Standard deviation of 0.7%.
Processes 10 02661 g004
Processes 10 02661 g005 550

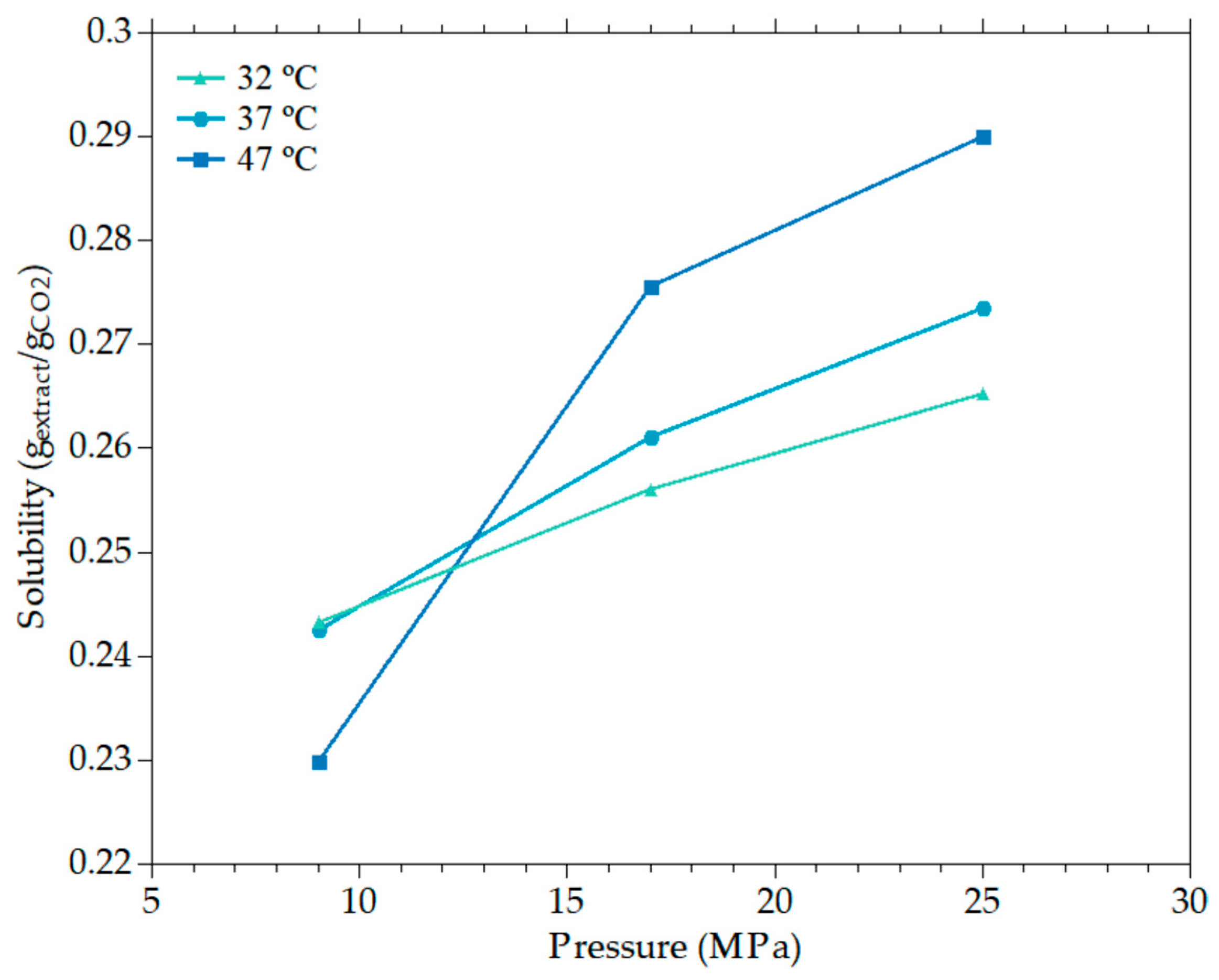

Figure 5. Solubility of clove extract in scCO2 [63].
Figure 5. Solubility of clove extract in scCO2 [63].
Processes 10 02661 g005
Processes 10 02661 g006 550
Figure 6. (a) Response surface and (b) contour plot for extract loading (CL%) of clove extract in PC as functions of pressure and temperature.
Figure 6. (a) Response surface and (b) contour plot for extract loading (CL%) of clove extract in PC as functions of pressure and temperature.
Processes 10 02661 g006
Processes 10 02661 g007 550
Figure 7. The response surface for (a) eugenol; (b) eugenyl acetate.
Figure 7. The response surface for (a) eugenol; (b) eugenyl acetate.
Processes 10 02661 g007
Processes 10 02661 g008 550
Figure 8. ATR—FTIR spectra of crude clove extract, neat PC, and PC impregnated with clove extract at 60 °C and 10 MPa with CL = 18.5%.
Figure 8. ATR—FTIR spectra of crude clove extract, neat PC, and PC impregnated with clove extract at 60 °C and 10 MPa with CL = 18.5%.
Processes 10 02661 g008
Processes 10 02661 g009 550
Figure 9. SEM images of the surfaces (left column) and cross-sections (right column) of (a,b) neat PC film, (c,d) PC only submitted to scCO2 at 60 °C and 10 MPa, and (e–g) PC impregnated with clove extract at 60 °C and 10 MPa with CL% = 18.5%.
Figure 9. SEM images of the surfaces (left column) and cross-sections (right column) of (a,b) neat PC film, (c,d) PC only submitted to scCO2 at 60 °C and 10 MPa, and (e–g) PC impregnated with clove extract at 60 °C and 10 MPa with CL% = 18.5%.
Processes 10 02661 g009
Processes 10 02661 g010 550
Figure 10. DSC thermograms of (a) the first heating and (b) second heating of neat PC, PC after scCO2 treatment, and PC impregnated with clove extract (CL = 18.5%) at 60 °C and 10 MPa.
Figure 10. DSC thermograms of (a) the first heating and (b) second heating of neat PC, PC after scCO2 treatment, and PC impregnated with clove extract (CL = 18.5%) at 60 °C and 10 MPa.
Processes 10 02661 g010
Table
Table 1. Supercritical impregnation experiments and their clove extract loading (CL%) in PC.
Table 1. Supercritical impregnation experiments and their clove extract loading (CL%) in PC.
AssayPressure (MPa) 1Temperature (°C) 1scCO2 Density (kg/m3)CL (%)
110 (−1)35 (−1)712.815.8
230 (+1)35 (−1)929.19.5
310 (−1)60 (+1)289.918.5
430 (+1)60 (+1)829.79.4
510 (−1)47.5 (0)432.718.0
630 (+1)47.5 (0)880.46.8
720 (0)35 (−1)865.79.4
820 (0)60 (+1)723.713.9
920 (0)47.5 (0)798.611.2
1020 (0)47.5 (0)798.69.8
1120 (0)47.5 (0)798.610.2
1 Coded values in parentheses.
Table
Table 2. Analysis of variance (ANOVA) of the predictive model for the clove extract loading in PC.
Table 2. Analysis of variance (ANOVA) of the predictive model for the clove extract loading in PC.
Variation SourceSum of SquaresDegrees of FreedomMean SquareF 1Ftab 2p-Value
Regression143.2528.616.65.050.00392
Residuals8.651.7
Lack of fit7.632.54.919.160.17552
Pure error1.020.5
Total151.810
R 2,394.33%
1 F distribution (calculated); 2 F distribution (tabulated); 3 coefficient of determination.
Table
Table 3. Compositions of the extracts impregnated into PC and the crude clove extract, shown as percentage weight for each compound.
Table 3. Compositions of the extracts impregnated into PC and the crude clove extract, shown as percentage weight for each compound.
AssayPressure
(MPa) 		Temperature
(°C) 1		Eugenol
(%)		Eugenyl Acetate
(%)		β-Caryophyllene
(%)		α-Humulene
(%)
110 (−1)35 (−1)84.62 ± 0.2912.57 ± 0.132.33 ± 0.140.48 ± 0.03
230 (+1)35 (−1)85.25 ± 0.6511.95 ± 0.692.32 ± 0.050.48 ± 0.01
310 (−1)60 (+1)81.31 ± 0.7313.86 ± 0.794.83 ± 0.050.00 ± 0.00
430 (+1)60 (+1)85.43 ± 1.2812.02 ± 1.392.13 ± 0.130.43 ± 0.02
510 (−1)47.5 (0)84.16 ± 0.6812.53 ± 0.353.31 ± 0.330.00 ± 0.00
630 (+1)47.5 (0)85.52 ± 0.4411.55 ± 0.322.43 ± 0.090.50 ± 0.04
720 (0)35 (−1)85.52 ± 0.0311.67 ± 0.002.33 ± 0.020.49 ± 0.01
820 (0)60 (+1)85.39 ± 0.0511.64 ± 0.062.16 ± 0.010.51 ± 0.01
920 (0)47.5 (0)86.2811.222.070.43
1020 (0)47.5 (0)85.8011.592.190.43
1120 (0)47.5 (0)85.9611.232.340.47
Clove extract 70.0617.0610.672.20
1 Coded values in parentheses.
Table
Table 4. Coded models and results of analysis of variance (ANOVA).
Table 4. Coded models and results of analysis of variance (ANOVA).
Model aRegression/
Residual		Lack of Fit/
Pure Error		R2
Fcal,1 bFtab,1 cFcal,2 bFtab,2 c
Eugenol = 86.04 + 1.02 x1 − 1.24 x12 − 0.54 x2 − 0.63 x22 + 0.87 x1 x2155.055.819.1693.76%
Eugenyl acetate = 11.29 − 0.57 x1 + 0.83 x12 + 0.22 x2 + 0.45 x22 − 0.30 x1 x217.45.051.619.1694.56%
β-caryophyllene = 2.20 − 0.60 x1 + 0.66 x12 + 0.36 x2 + 0.04 x22 − 0.67 x1 x28.65.051219.1689.53%
α-humulene = 0.43 + 0.15 x1 − 0.17 x12 − 0.08 x2 + 0.08 x22 + 0.11 x1 x25.55.0534.519.1684.69%
a x1: coded pressure; x2: coded temperature; b Fcal: F distribution (calculated); c Ftab: F distribution (tabulated).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jordão, A.M.; Coutinho, I.T.; Silva, E.K.; Kato, I.T.; Meireles, M.A.A.; Maia-Obi, L.P.; da Silva, B.G.; Champeau, M. Supercritical CO2 Impregnation of Clove Extract in Polycarbonate: Effects of Operational Conditions on the Loading and Composition. Processes 2022, 10, 2661. https://doi.org/10.3390/pr10122661

AMA Style

Jordão AM, Coutinho IT, Silva EK, Kato IT, Meireles MAA, Maia-Obi LP, da Silva BG, Champeau M. Supercritical CO2 Impregnation of Clove Extract in Polycarbonate: Effects of Operational Conditions on the Loading and Composition. Processes. 2022; 10(12):2661. https://doi.org/10.3390/pr10122661

Chicago/Turabian Style

Jordão, Amanda Martins, Isabela Trindade Coutinho, Eric Keven Silva, Ilka Tiemy Kato, Maria Angela A. Meireles, Lígia Passos Maia-Obi, Bruno Guzzo da Silva, and Mathilde Champeau. 2022. "Supercritical CO2 Impregnation of Clove Extract in Polycarbonate: Effects of Operational Conditions on the Loading and Composition" Processes 10, no. 12: 2661. https://doi.org/10.3390/pr10122661

APA Style

Jordão, A. M., Coutinho, I. T., Silva, E. K., Kato, I. T., Meireles, M. A. A., Maia-Obi, L. P., da Silva, B. G., & Champeau, M. (2022). Supercritical CO2 Impregnation of Clove Extract in Polycarbonate: Effects of Operational Conditions on the Loading and Composition. Processes, 10(12), 2661. https://doi.org/10.3390/pr10122661

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
