High Efficiency and High Voltage Conversion Ratio Bidirectional Isolated DC–DC Converter for Energy Storage Systems

Abstract

In this paper, a novel high-efficiency bidirectional isolated DC–DC converter that can be applied to an energy storage system for battery charging and discharging is proposed. By integrating a coupled inductor and switched-capacitor voltage doubler, the proposed converter can achieve isolation and bidirectional power flow. The proposed topology comprises five switches and a common core coupled inductor that uses only a set of complementary pulse-width-modulated signals to control and achieve high voltage gain without requiring high turn ratios or excessive duty cycles. Moreover, the proposed topology can recover the leakage inductance energy to improve the conversion efficiency. The main switches exhibit zero-voltage switching, which reduces the switching losses. A 500-W bidirectional converter is used to verify the feasibility of the proposed bidirectional converter through theoretical analysis and experiments. The experimental results indicate that the highest efficiency of the proposed converter in the step-up and step-down modes is 97.59% and 96.5%, respectively.

1. Introduction

Since the industrial revolution, fossil fuels have been used for generating power. The resulting emissions have caused serious damage to the environment. Therefore, countries worldwide have realized the importance of renewable energy and advocate for renewable energy generation systems [1]. However, renewable energy generation varies with changes in the weather and environment. To overcome this problem, an energy storage system is required. When excess renewable energy is produced, the excess electrical energy can be stored in an energy storage system. This energy can then be used when the electricity demand peaks. A distributed generation system [2,3] is required to support a renewable energy system, as shown in Figure 1.

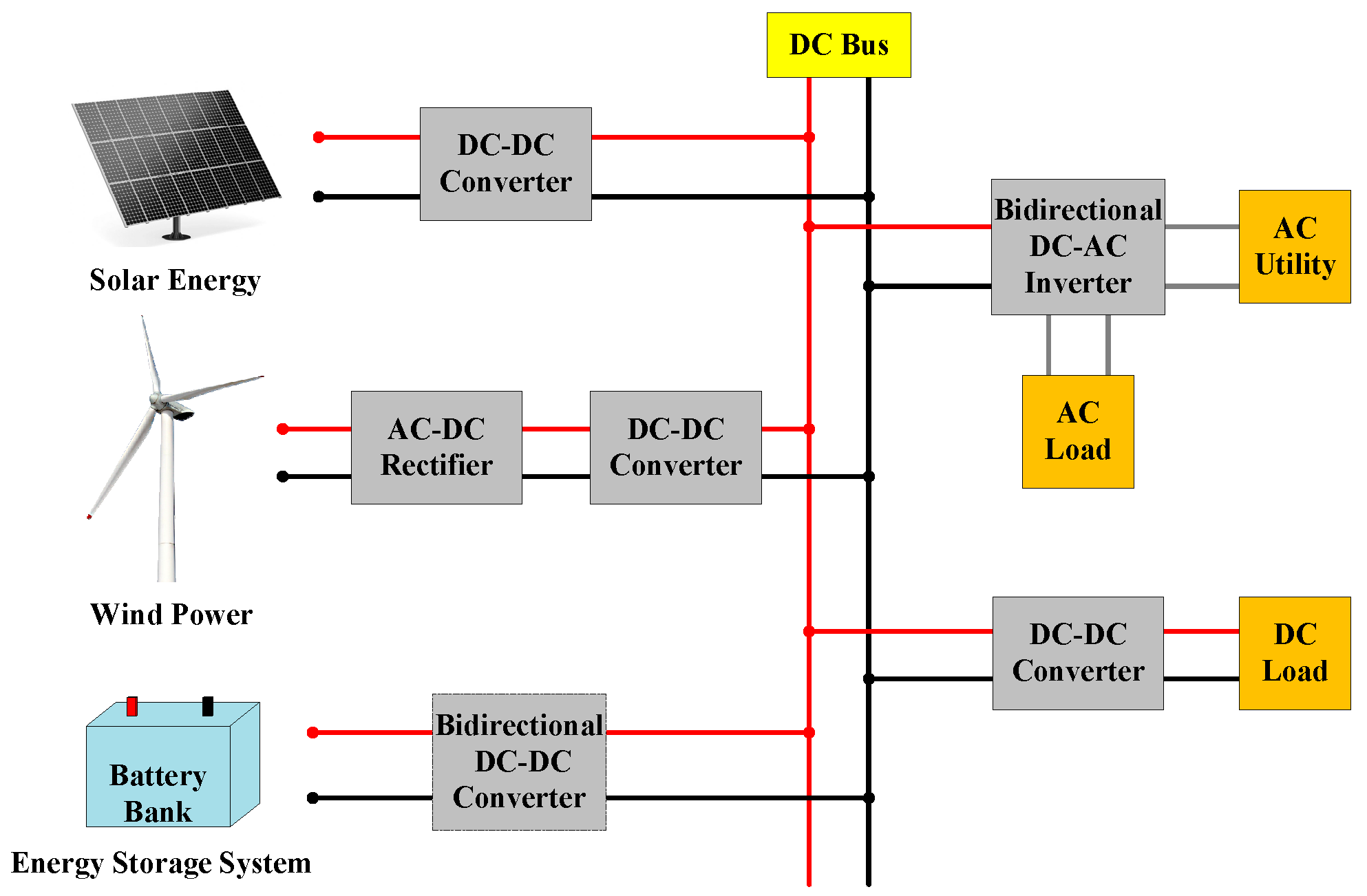

In an energy storage system, a DC–DC converter is required to transfer energy between a battery and a DC bus. DC–DC converters are of two main types: isolated converters and nonisolated converters. Common nonisolated bidirectional converters are derived from the boost converter, buck-boost converter, single-ended primary-inductor converter, and other unidirectional converters that exhibit advantages such as low cost, high stability, and high practicability. However, nonisolated bidirectional converters are limited by their duty cycle and low voltage conversion ratio. Therefore, switched-capacitor [4,5,6], coupled-inductor [7], and cascaded [8,9,10] converters are used to improve the voltage gain.

Existing isolated bidirectional converters are mostly derived from forward-flyback converters [11,12] and bridge converters [13,14,15]. Isolated bidirectional converters exhibit advantages such as high stability and practicability; however, their circuit design is more complicated than that of nonisolated bidirectional converters. Rapid advancements have been made in bidirectional DC–DC converter technology. In recent years, studies have focused on increasing the conversion efficiency and reducing the number of components to improve the stability of converters.

A bidirectional buck-boost converter is a common topology that is mostly used in battery chargers [16,17,18,19]. A study proposed a nonisolated bidirectional quasi-Z-source DC–DC converter with high voltage gain; however, this converter does not have soft-switching technology and thus has a low conversion efficiency [20]. Another study developed a nonisolated interleaved converter with a three-phase interleaved switched-capacitor topology. This converter has advantages such as a high voltage gain and high power transmission; however, phase-shift control technology is required to control the aforementioned converter [21]. Coupled inductors have been incorporated into DC–DC nonisolated converters to increase the voltage gain of these converters [22,23,24]. Switches with zero-voltage switching (ZVS) can increase the conversion efficiency; however, a higher number of circuit components increases the cost of a converter [22,24]. Switches without ZVS require fewer components but exhibit higher losses than do those with ZVS [23]. A bidirectional forward-flyback converter with a simple circuit and low current ripple but a low voltage gain and complex control method was proposed in [25]. An isolated interleaved DC–DC converter with an interleaved topology that includes a voltage doubler (used to achieve high voltage gain and ZVS to increase efficiency) has been developed to reduce the current ripple; however, the circuit of this converter requires a complex control method and many components [26]. DC–DC converters with a wide input voltage range and high voltage gain have been developed [27,28]. One study used an additional active clamp to recycle the leakage inductor energy to increase the number of components and decrease the converter efficiency [27]. Another study used a current-fed topology to increase the output current of the low-voltage side of a converter to make this side suitable for battery charging; however, high current flows through the components of this converter, which results in it exhibiting high losses [28]. In contrast to the conventional dual-active-bridge converter, the bidirectional isolated bridge converter has been combined with a push–pull converter and full-bridge converter to reduce the number of switches required and thus the switching losses; however, the control method of the bidirectional isolated bridge converter is complex [29]. Another study used a three-winding coupled inductor and a half-wave voltage doubler to increase the voltage gain and lower the components of the circuit; however, the turns ratio of coupled inductor is high, which causes larger volume of the circuit [30]. In the present paper, a novel high-efficiency isolated DC–DC converter is proposed for an energy storage system. This converter can transfer energy between a battery and a DC bus. Since the common voltages of batteries and DC buses are 48 and 400 V, respectively, the low and high side voltages of the proposed converter are 48 and 400 V, respectively.

2. Circuit Architecture and Operation Principle

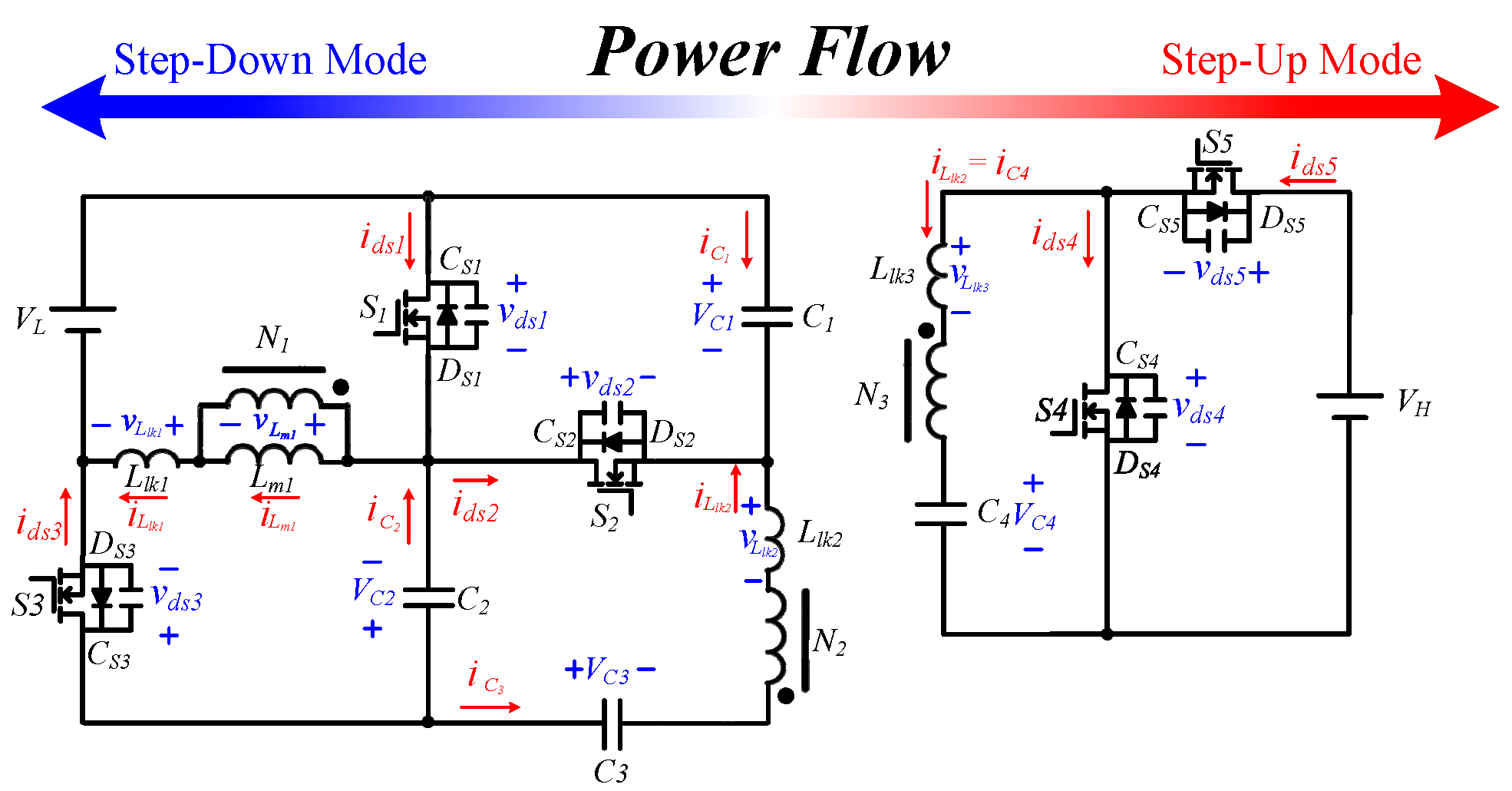

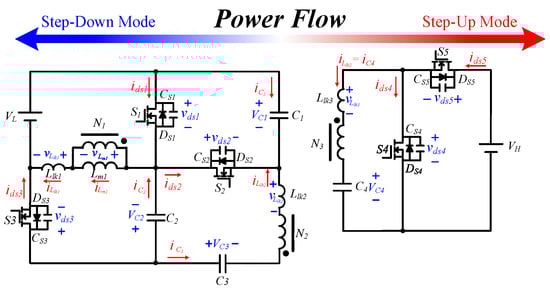

Figure 2 displays the circuit architecture of the proposed bidirectional converter. In this figure, V_H and V_L denote the high-voltage-side and low-voltage-side power ports, respectively. The coupled inductor consists of the leakage inductances L_lk1, L_lk2, and L_lk3 as well as the magnetizing inductance L_m1. Moreover, the turn ratio of the inductor is represented by n. The proposed converter contains five switches (S₁–S₅). The body diodes D_S1–D_S5 and parasitic capacitances C_S1–C_S5 are the parasitic elements of S₁–S₅, respectively. The proposed converter also contains the capacitors C₁–C₄. The operating principles and operation mode of the proposed topology in the step-up and step-down modes are analyzed.

This section discusses the operating principles of the proposed topology in the step-up and step-down modes. The voltage polarity and current direction of the components in the proposed topology are illustrated in Figure 2. To simplify our analysis of the operating principles, the following assumptions were made:

(1)

The internal resistance and parasitic effects can be ignored.

(2)

The voltages of the capacitors and currents of the inductors increase and decrease linearly.

(3)

The capacitances of C₁, C₂, C₃, and C₄ are infinite.

(4)

All the magnetic components operate in the continuous-current mode (CCM).

(5)

The number of turns N₁ = N₂ < N₃, and N₂/N₁ = N₃/N₁ = n.

2.1. Step-Up Mode

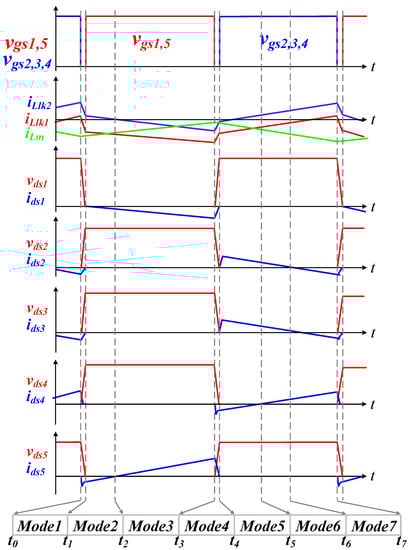

In the step-up mode, the complementary pulse-width-modulated (PWM) signal comprises two sets of signals: (i) v_gs1 and (ii) v_gs2,3. The gate signal of S₁ is the complementary waveform of S₂ and S₃. The signals of S₄ and S₅ are in the OFF state. The theoretical waveforms of the proposed topology in the step-up mode are displayed in Figure 3, and one operating cycle features five operation modes as shown in Figure 4a–e.

(1)

Mode 1 [t₀–t₁]

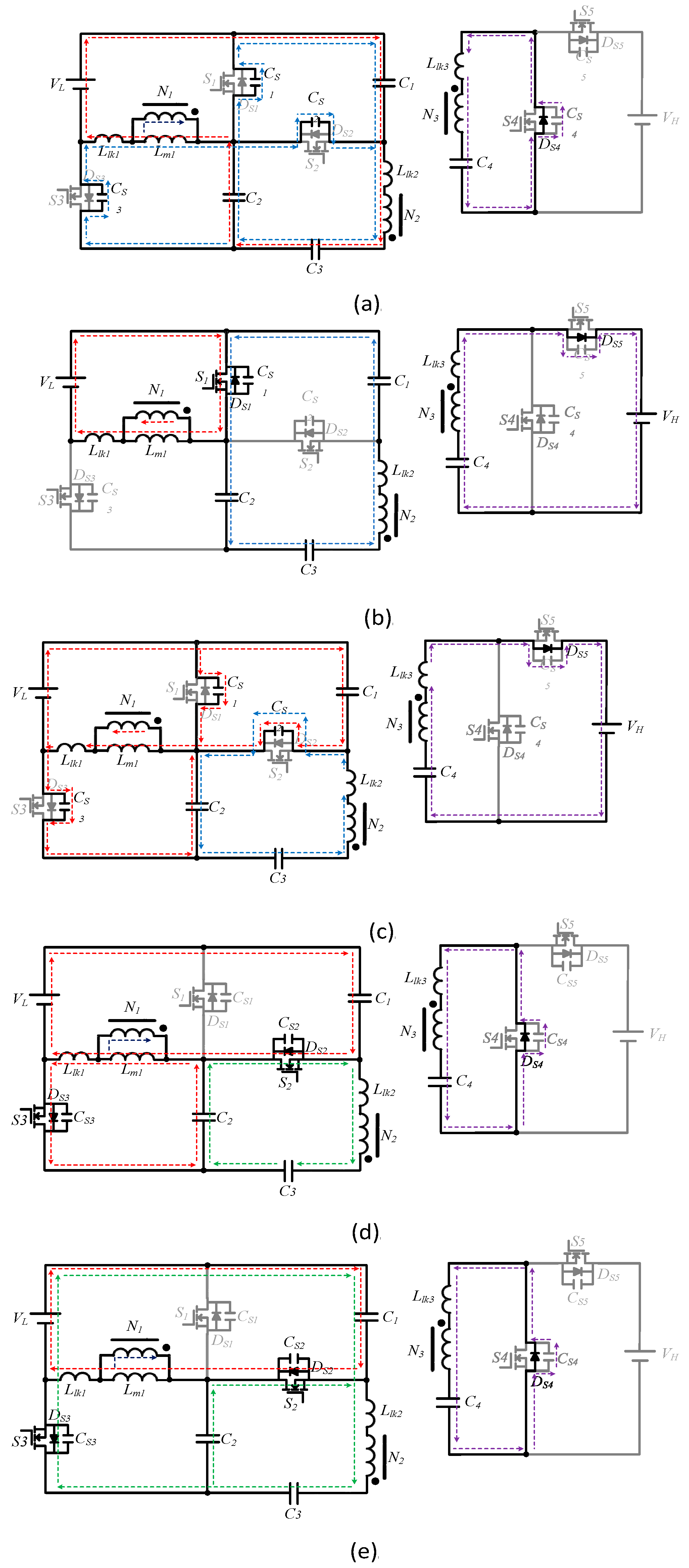

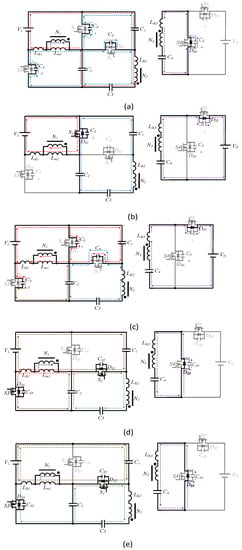

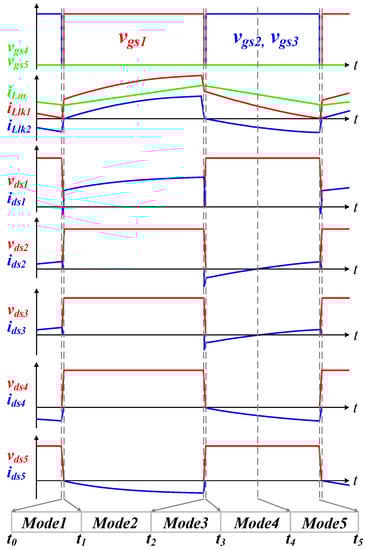

The equivalent circuit for the Mode 1 operation in the step-up mode is displayed in Figure 4a. This mode is operated in a dead-time period, and all switch signals are in the OFF state in Mode 1. At the beginning of this mode at time t = t₀, the low-voltage side V_L and leakage inductance L_lk1 charge the capacitors C₁ and C₂. Mode 1 operation is followed by Mode 5 operation. To achieve ZVS, the energy of the parasitic capacitance of S₁ is released through L_lk2, and the energy of L_lk2 is recycled by C₁ and C₂. The energy of the magnetizing inductance L_m1 and C₃ is transferred to the high-voltage-side capacitor C₄ through the coupled inductor, and L_lk3 releases energy to C₄. Mode 1 ends when S₁ is turned on.

(2)

Mode 2 [t₁–t₂]

The equivalent circuit for Mode 2 operation is illustrated in Figure 4b. When S₁ is completely turned on at time t = t₁, the low-voltage side V_L supplies energy to the magnetizing inductance L_m1 and leakage inductance L_lk1. Moreover, a part of the energy of V_L is transferred to the high-voltage side V_H through the coupled inductor. The capacitors C₁ and C₂ release energy to C₃ and the leakage inductance L_lk2, and a part of this energy is transferred to V_H through the coupled inductor. The capacitor C₄ releases energy to L_lk3 and V_H.

(3)

Mode 3 [t₂–t₃]

The equivalent circuit for Mode 3 operation is depicted in Figure 4c. This mode is operated in a dead-time period, and all switch signals are in the OFF state in Mode 3. To achieve ZVS, the energy of the S₃ parasitic capacitance is absorbed into the leakage inductance L_lk1, and the energy of the S₂ parasitic capacitance is absorbed into the leakage inductance L_lk2. The energy of L_lk1 is released to C₁ and C₂, and the energy of L_lk2 is released to C₂ and C₃. The capacitor C₄ and leakage inductance L_lk3 release energy to V_H. Mode 3 ends when S₂ and S₃ are completely turned on.

(4)

Mode 4 [t₃–t₄]

The equivalent circuit for Mode 4 operation is displayed in Figure 4d. When S₂ and S₃ are completely turned on at time t = t₃, the leakage inductance L_lk1 continuously releases energy to C₁ and C₂. Capacitor C₃ charges C₂ and L_lk2. Moreover, a part of the energy of C₃ is transferred to C₄ and L_lk3 through the coupled inductor. The magnetizing inductance L_m1 charges C₄ and L_lk3. Mode 4 ends when the capacitor voltage of C₂ is higher than the voltage of N₁.

(5)

Mode 5 [t₄–t₅]

The equivalent circuit for Mode 5 operation is illustrated in Figure 4e. At time t = t₄, the switch signals are the same as those in Mode 4. In Mode 5, L_lk1 releases energy to C₁, and C₃ charges C₁, C₂, and L_lk2. Moreover, a part of the aforementioned energy is transferred through the coupled inductor to C₄ and L_lk3. Mode 5 ends when the current of L_lk1 decreases to 0.

2.2. Step-Down Mode

In the step-down mode, the complementary PWM signal comprises two sets of signals: (1) v_gs1,₅ and (2) v_gs2,₃,₄. The gate signals of S₁ and S₅ are complementary waveforms of those of S₂, S₃, and S₄. The theoretical waveforms of the proposed topology in the step-down mode are shown in Figure 5, and one operating cycle contains seven operation modes Figure 6a–g.

(1)

Mode 1 [t₀–t₁]

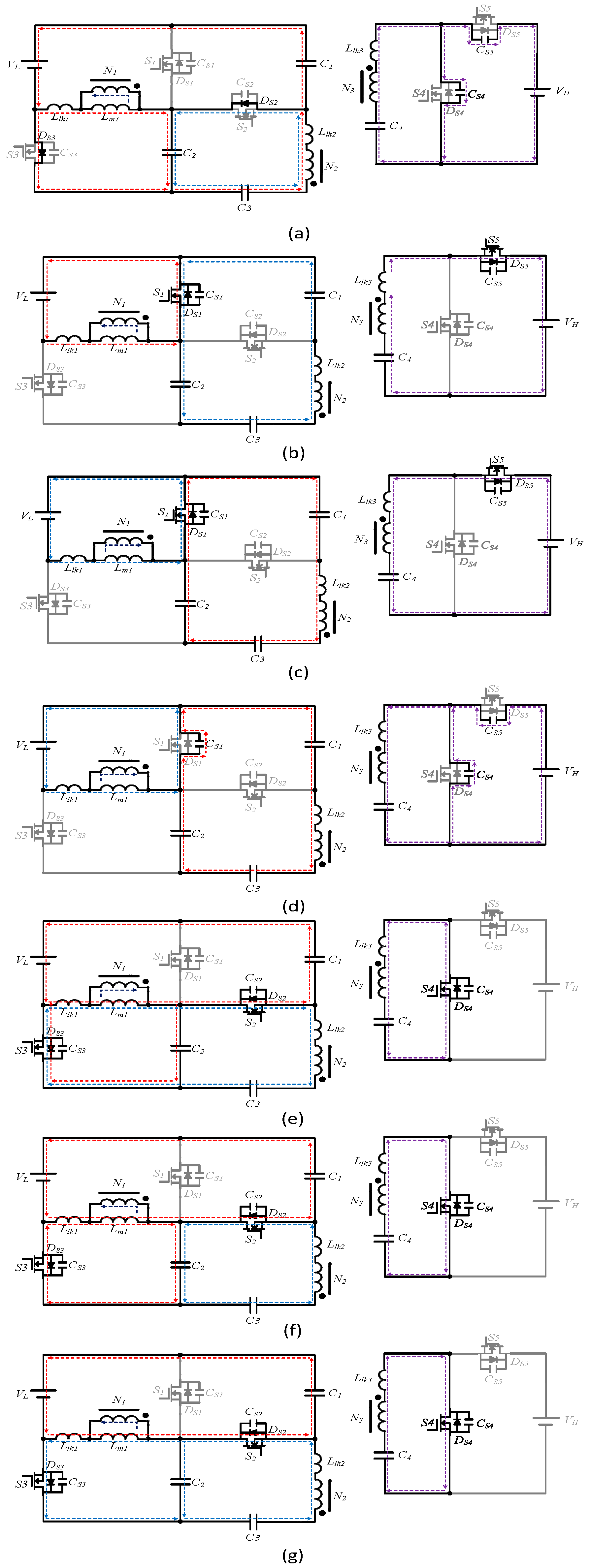

The equivalent circuit for Mode 1 operation in the step-down mode is illustrated in Figure 6a. This mode is operated in a dead-time period, and all switch signals are in the OFF state. To achieve ZVS, the energy of the parasitic capacitance S₅ is absorbed into the leakage inductance L_lk3. Moreover, C₁ and the magnetizing inductance L_m1 charge the low-voltage side V_L, L_lk1, and C₃. Mode 1 is followed by Mode 5. C₂ and L_lk2 release energy to C₃, and Mode 1 ends when S₁ and S₅ are completely turned on.

(2)

Mode 2 [t₁–t₂]

The equivalent circuit for Mode 2 operation is displayed in Figure 6b. When S₁ and S₅ are completely turned on at time t = t₁, C₁, C₂, and L_lk2 charge C₃ continuously. The magnetizing inductance L_m1 continuously transfers energy to V_L. The energy of L_lk3 and C₄ is released to the high-voltage side V_H. Mode 2 ends when the leakage inductance current i_Llk3 decreases to 0.

(3)

Mode 3 [t₂–t₃]

The equivalent circuit for Mode 3 operation is depicted in Figure 6c. At time t = t₂, the switch signals are the same as those in Mode 2. The high-voltage side V_H provides energy to the low-voltage side V_L through the coupled inductor, and the magnetizing inductance L_m1 charges V_L. Moreover, C₃ releases energy to C₁, C₂, and L_lk2.

(4)

Mode 4 [t₃–t₄]

The equivalent circuit for Mode 4 operation is shown in Figure 6d. This mode is operated in a dead-time period, and all switch signals are in the OFF state. To achieve ZVS, the energy of the parasitic capacitance S₄ is absorbed into the leakage inductance L_lk3. The leakage inductance L_lk1 charges V_L, and the energy of L_lk2 is released to C₁ and C₂. Moreover, V_L continuously transfers energy to V_L through the coupled inductor. Mode 4 ends when S₃ and S₄ are completely turned on.

(5)

Mode 5 [t₄–t₅]

The equivalent circuit for Mode 5 operation is displayed in Figure 6e. When S₂, S₃, and S₄ are completely turned on at time t = t₄, the capacitor C₁ and leakage inductance L_lk1 provide energy to V_L. The capacitors C₂ and C₃ charge L_lk1 and L_m1, and L_lk3 releases energy to C₄. Moreover, a part of this energy is transferred to V_L through the coupled inductor. Mode 5 ends when the switch current of S₄ decreases to 0.

(1)

Mode 6 [t₅–t₆]

The equivalent circuit for Mode 6 operation is illustrated in Figure 6f. At time t = t₅, the switch signals are the same as those in Mode 5. The capacitor C₁ and leakage inductance L_lk1 continuously provide energy to V_L. The capacitor C₂ charges L_lk1, L_lk2, and C₃, and C₄ charges L_m1 through the coupled inductor. Mode 6 ends when the switch currents i_ds2 and i_ds3 decrease to 0.

(2)

Mode 7 [t₆–t₇]

The equivalent circuit for Mode 7 operation is shown in Figure 6g. At time t = t₆, the switch signals are the same as those in Mode 6. The capacitor C₁ and leakage inductance L_lk1 continuously provide energy to V_L. The capacitor C₂ charges L_lk2 and C₃, and C₄ continuously charges L_m1 through the coupled inductor. Mode 7 ends when S₂, S₃, and S₄ are completely turned off.

3. Steady-State Analysis

In the step-up mode, the complementary PWM signal comprises two sets of signals, the switching period is D₁T_S, v_gs1 is turned ON for time D₁T_S, and v_gs2,3 is turned ON for time (1 − D₁)T_S.

In the step-down mode, the complementary PWM signal comprises two sets of signals, v_gs1,5 is turned ON for time D₃T_S, and v_gs2,₃,₄ is turned OFF for time (1 − D₃)T_S. The steady-state analysis of the proposed topology is based on the following assumptions:

(1)

All internal resistances and parasitic effects are ignored.

(2)

The currents of the inductors and voltages of the capacitors increase and decrease linearly.

(3)

N₂/N₁ = n.

(4)

All magnetic components are operated in the CCM.

(5)

The capacitances of C₁, C₂, C₃, and C₄ are infinite.

3.1. Step-Up Mode

(1)

Voltage Gain Analysis

On the basis of Kirchoff’s voltage law (KVL), the voltage of the magnetizing inductance V_Lm1 for time D₁T_S can be expressed as follows:

$$V_{Lm1}=V_L=V_{c3}-V_{c2}-V_{c1}+V_L+\frac{V_H-V_{c4}}{n}=L_{m1}\frac{\Delta i_{Lm1,on}}{D_1{T}_S}$$

(1)

For time (1 − D₁)T_S, the voltage of the magnetizing inductance V_Lm1 can be expressed as follows:

$$V_{Lm1}=V_L-V_{c1}=-V_{c2}=-\frac{V_{c4}}{n}-V_{c3}=L_{m1}\frac{\Delta i_{Lm1,off}}{(1-D_{1)}{T}_S}$$

(2)

When volt-second balance is achieved for the inductor at time (1 − D₁)T_S, the following equation is satisfied:

$$\Delta i_{Lm1,on}=\Delta i_{Lm1,off}$$

(3)

By substituting (1) and (2) into (3), the following expressions are obtained for the voltages of C₁, C₂, C₃, and C₄:

$$V_{C1}=\frac{1}{\left(1-D_1\right)}{V}_L$$

(4)

$$V_{C2}=\frac{D_1}{\left(1-D_1\right)}{V}_L$$

(5)

$$V_{C3}=\frac{1}{\left(1-D_1\right)}{V}_L$$

(6)

$$V_{C4}=\frac{N{D}_1}{\left(1-D_1\right)}{V}_L$$

(7)

In Mode 2 of the step-up mode, the relationship among V_H, V_C4, and V_L is as follows:

$$V_H=V_{c4}+n{V}_L$$

(8)

By substituting (7) into (8), the voltage gain in the step-up mode (G_step-up) is obtained as follows:

$$G_{step-up}=\frac{V_H}{V_L}=\frac{n}{\left(1-D_1\right)}$$

(9)

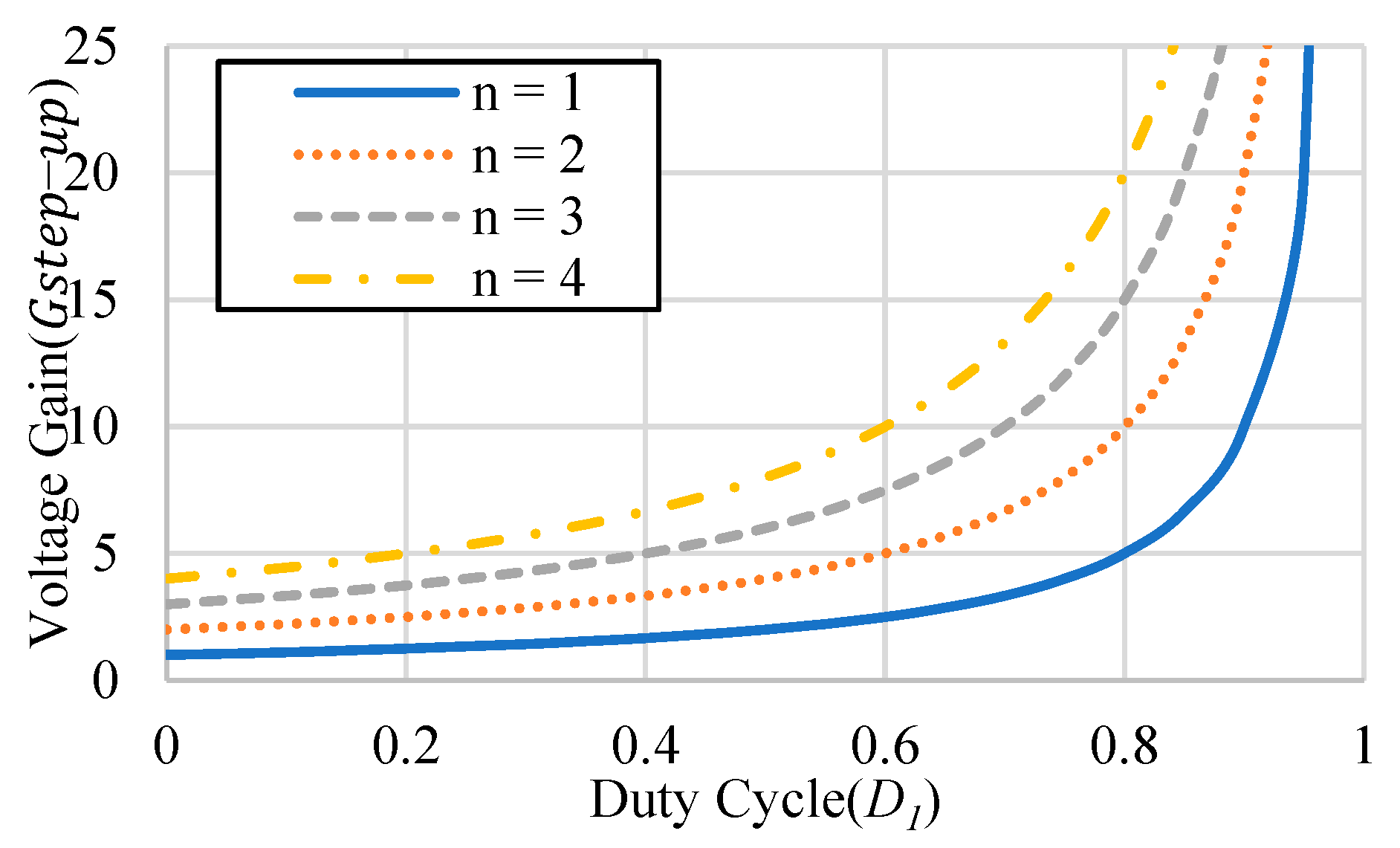

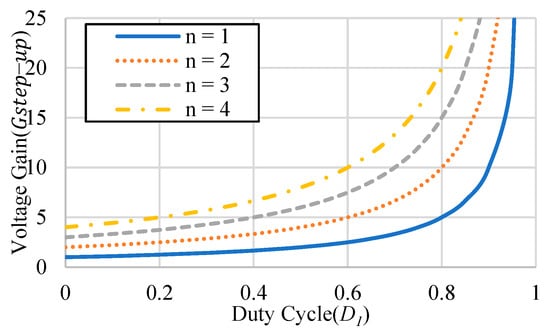

Figure 7 presents the relationship between the voltage gain and the duty cycle in the step-up mode.

(2)

Voltage Stress Analysis

According to the equivalent circuit at time D₁T_S, the voltage across S₂ is V_C1, and the voltage across S₃ is the sum of V_C2 and V_L. The voltage stress of S₄ is V_H. The voltage stresses of the switches at the aforementioned time are expressed as follows:

$$V_{S2,stress}=V_{C1}=\frac{1}{1-D_1}{V}_L=\frac{1}{n}{V}_H$$

(10)

$$V_{S3,stress}=V_{C2}+V_L=\frac{1}{1-D_1}{V}_L=\frac{1}{n}{V}_H$$

(11)

$$V_{S4,stress}=V_H=\frac{n}{\left(1-D_1\right)}{V}_L$$

(12)

On the basis of the equivalent circuit at time (1 − D₁)T_S, the voltage stress of S₁ is V_C1, and the voltage across S₅ is V_H. The voltage stresses of the switches at the aforementioned time are expressed as follows:

$$V_{S1,stress}=V_{C1}=\frac{1}{1-D_1}{V}_L=\frac{1}{n}{V}_H$$

(13)

$$V_{S5,stress}=V_H=\frac{n}{\left(1-D_1\right)}{V}_L$$

(14)

3.2. Step-Down Mode

(1)

Voltage Gain Analysis

On the basis of KVL, the voltage of the magnetizing inductance V_Lm1 for time D₃T_S can be expressed as follows:

$$V_{Lm1}=\frac{V_H-V_{c4}}{n}=V_{c3}-V_{c2}+\frac{V_H-V_{c4}}{n}-V_{c1}+V_L=L_{m1}\frac{\Delta i_{Lm1,on}}{D_3{T}_S}$$

(15)

For time (1 − D₃)T_S, the voltage of the magnetizing inductance V_Lm1 can be expressed as follows:

$$V_{Lm1}=V_L-V_{c1}=-V_{c2}=\frac{V_{c4}}{n}=\frac{V_{c4}}{n}-V_{c3}=L_{m1}\frac{\Delta i_{Lm1,off}}{(1-D_{3)}{T}_S}$$

(16)

When volt–second balance is achieved for the inductor at time (1 − D₃)T_S, the following equation is satisfied:

$$\Delta i_{Lm1,on}=\Delta i_{Lm1,off}$$

(17)

By substituting (15) and (16) into (17), the voltages of C₁, C₂, C₃, and C₄ can be determined using the following equations:

$$V_{C1}=\frac{1}{\left(1-D_3\right)}{V}_L$$

(18)

$$V_{C2}=\frac{D_3}{\left(1-D_3\right)}{V}_L$$

(19)

$$V_{C3}=\frac{2D_3}{\left(1-D_3\right)}{V}_L$$

(20)

$$V_{C4}=V_H{D}_3$$

(21)

By substituting (21) into (15), the voltage gain in the step-up mode (G_step-down) is obtained as follows:

$$G_{step-down}=\frac{V_L}{V_H}=\frac{\left(1-D_3\right)}{n}$$

(22)

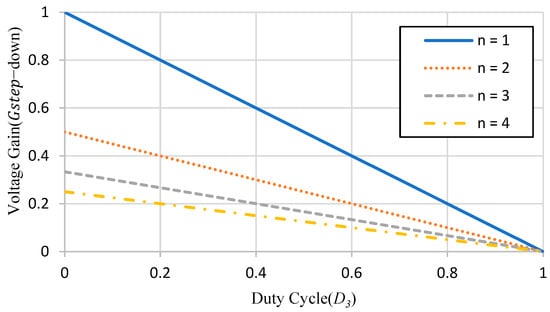

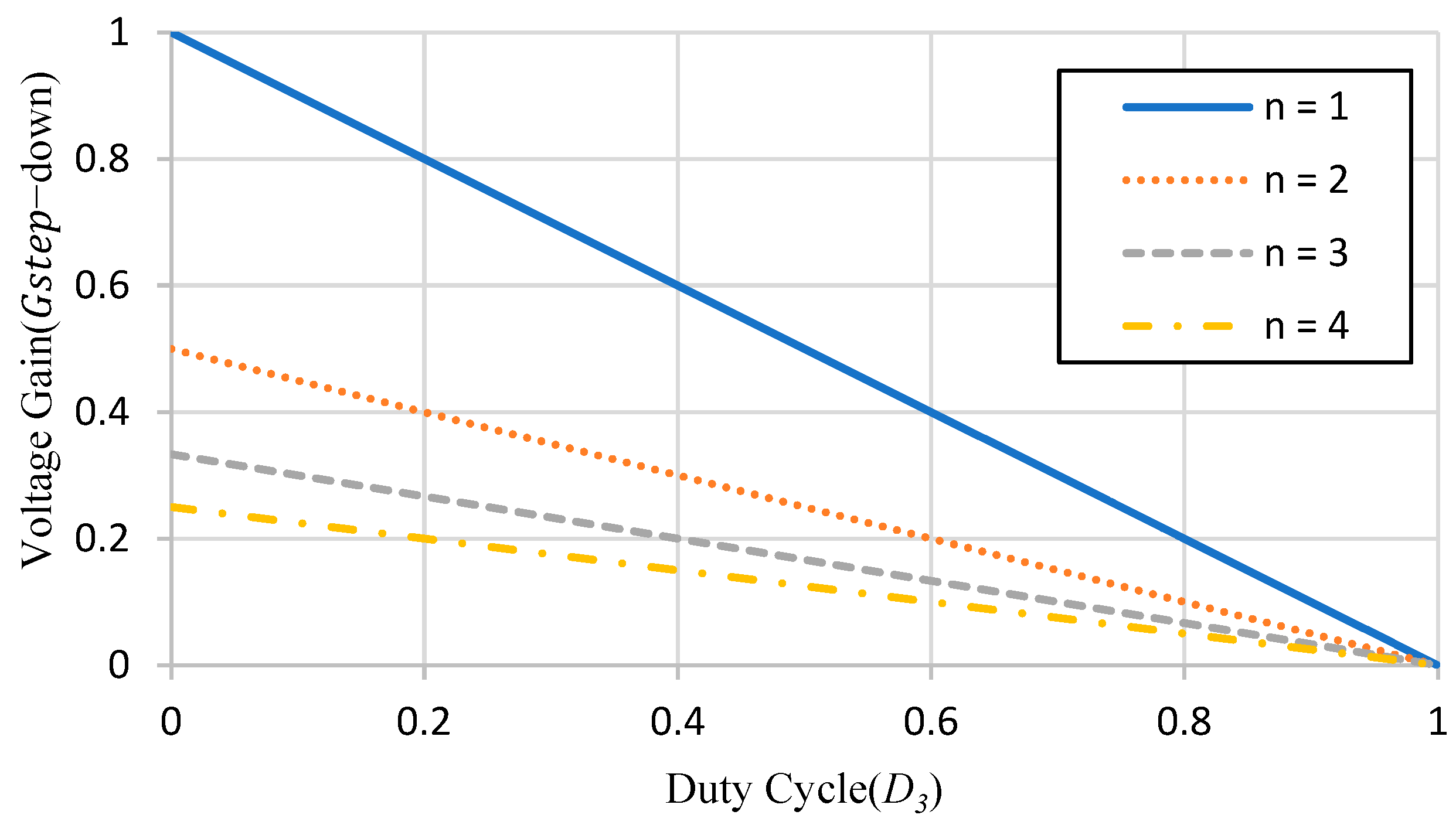

Figure 8 illustrates the relationship between the voltage gain and the duty cycle in the step-down mode.

(2)

Voltage Stress Analysis

According to the equivalent circuit at time D₃T_S, the voltage across S₂ is V_C1, and the voltage across S₃ is the sum of V_C2 and V_L. The voltage stress of S₄ is V_H. The voltage stresses of the switches at the aforementioned time are expressed as follows:

$$V_{S2,stress}=V_{C1}=\frac{1}{n}{V}_H=\frac{1}{1-D_3}{V}_L$$

(23)

$$V_{S3,stress}=V_{C2}+V_L=\frac{1}{n}{V}_H=\frac{1}{1-D_3}{V}_L$$

(24)

$$V_{S4,stress}=V_H=\frac{n}{\left(1-D_3\right)}{V}_L$$

(25)

According to the equivalent circuit at time (1 − D₃)T_S, the voltage across S₁ is V_C1, and the voltage stress of S₅ is V_H. The voltage stresses of the switches at the aforementioned time are expressed as follows:

$$V_{S1,stress}=V_{C1}=\frac{1}{n}{V}_H=\frac{1}{1-D_3}{V}_L$$

(26)

$$V_{S5,stress}=V_H=\frac{n}{\left(1-D_3\right)}{V}_L$$

(27)

3.3. Magnetic Component Design

(1)

Step-Up Mode

In the step-up mode, the magnetic components of the proposed converter are designed to operate in the CCM, and the maximum current of L_m1 is determined using the following equation:

$$i_{Lm1,max}=i_{Lm1,avg}+\frac{\Delta i_{Lm1}}{2}$$

(28)

The minimum current of L_m1 is expressed as follows:

$$i_{Lm1,max}=i_{Lm1,avg}-\frac{\Delta i_{Lm1}}{2}$$

(29)

When the magnetic components are operated in the boundary conduction mode (BCM), the currents i_{Lm1, min} are 0. The current i_{Lm1, min} is expressed as follows:

$$i_{Lm1,min}=0=\frac{n}{1-D_1}{I}_H-\frac{\left(1-D_1\right)D_1}{2L_{m1}{f}_{s}N}{V}_H$$

(30)

After (30) is simplified, L_m1,BCM is obtained as follows:

$$L_{m1,BCM}=\frac{{(1-D_1)}^2{D}_1}{2f_s{n}^2}\frac{V_H}{I_{H,BCM}}$$

(31)

The circuit parameters in the step-up mode are as follows: V_H = 400 V, turn ratio n = 4, switching frequency = 40 kHz, and high-voltage-side current I_H = 0.375 A.

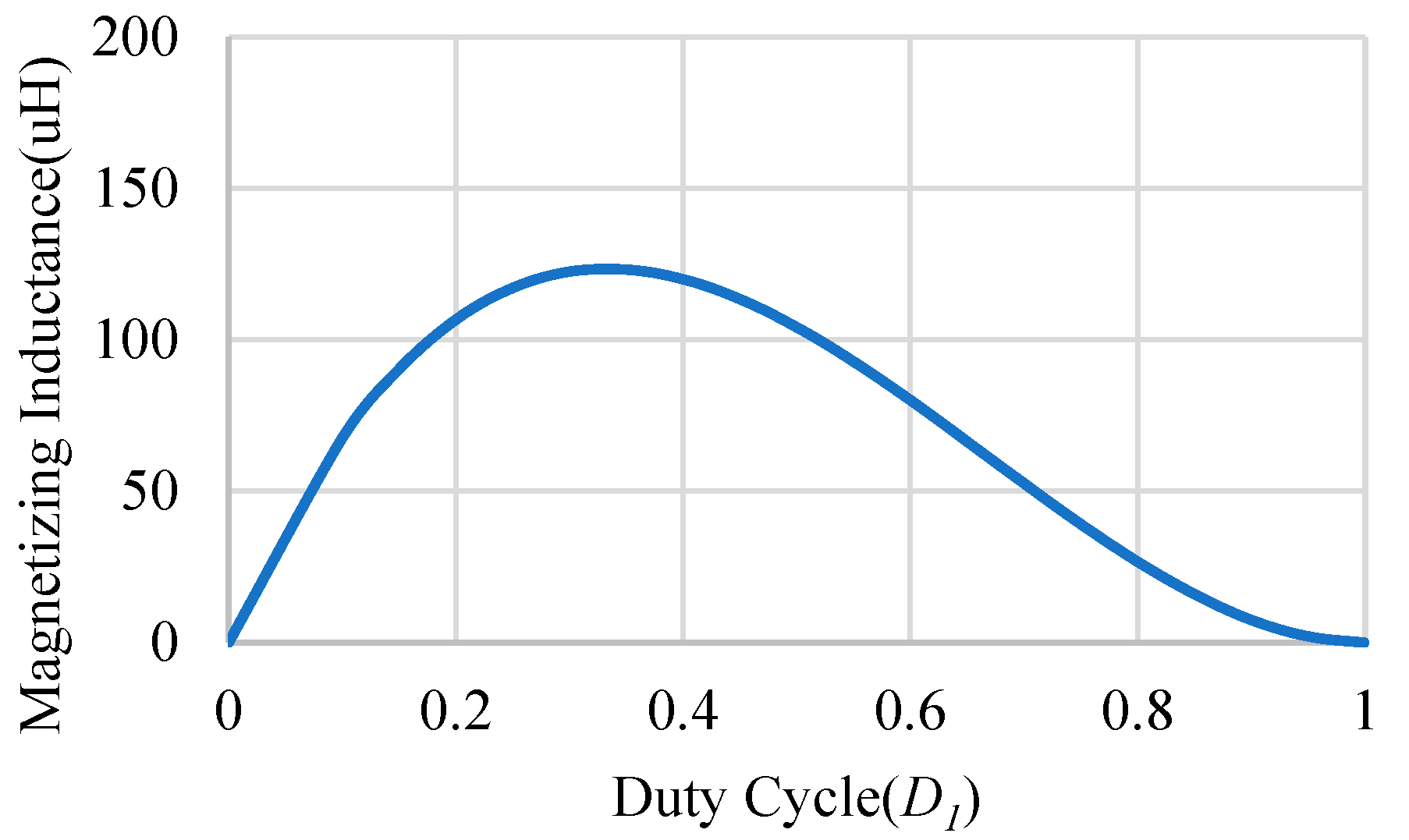

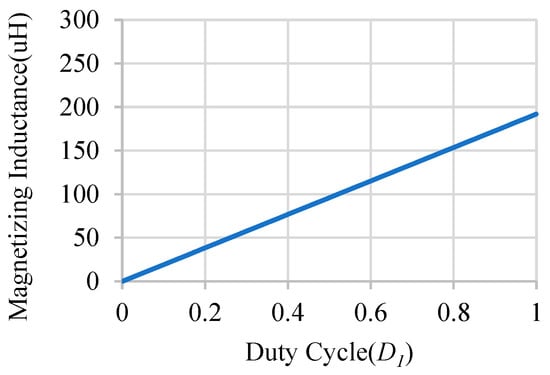

By substituting the aforementioned parameters into (31), the curve of L_m1 operated in BCM can be plotted (Figure 9). When the inductance of L_m1 is higher than that in the L_m1 curve for the BCM, L_m1 operates in the CCM.

(2)

Step-Down Mode

In the step-down mode, the magnetic components of the proposed converter are designed to operate in the CCM, and the maximum current of L_m1 is determined as Equations (28) and (29).

When the magnetic components are operated in the BCM, the current i_{Lm1, min} is 0. This current can be expressed as follows:

$$i_{Lm1,min}=0=I_L-\frac{D_3}{2L_{m1}{f}_s}{V}_L$$

(32)

After (32) is simplified, L_m1,BCM can be obtained as follows:

$$L_{m1,BCM}=\frac{D_3}{2f_s}\frac{V_L}{I_{L,BCM}}$$

(33)

The circuit parameters in the step-down mode are as follows: V_L = 48 V, n = 4, switching frequency = 40 kHz, and low-voltage-side current I_L = 3.125 A.

By substituting these parameters into (33), the curve of L_m1 operated in the BCM can be plotted (Figure 10). When the inductance of L_m1 is greater than that in the L_m1 curve for the BCM, L_m1 operates in the CCM.

4. Experimental Results

The measured waveforms were used to verify the feasibility of the proposed topology. The key waveforms in the step-up and step-down modes were measured separately. Finally, the conversion efficiency of the proposed topology in the step-up and step-down modes were measured.

Table 1. Electrical Specifications of the Proposed Topology.

Parameter	Specification
High-side power PH	500 W
Low-side power PL	500 W
High-side voltage VH	400 V
High-side current IH	1.25 A
Low-side voltage VL	48 V
Low-side current IL	10.416 A
Switching frequency fs	40 kHz
Power switches S1, S2 and S3	IRFP4568
Power switches S4 and S5	IXFH60N50P3
Magnetizing inductance Lm1	200 µH
Leakage inductance Llk1 and Llk2	2 µH
Capacitor C1, C2, C3 and C4	50 µF
Turns ratio n	4

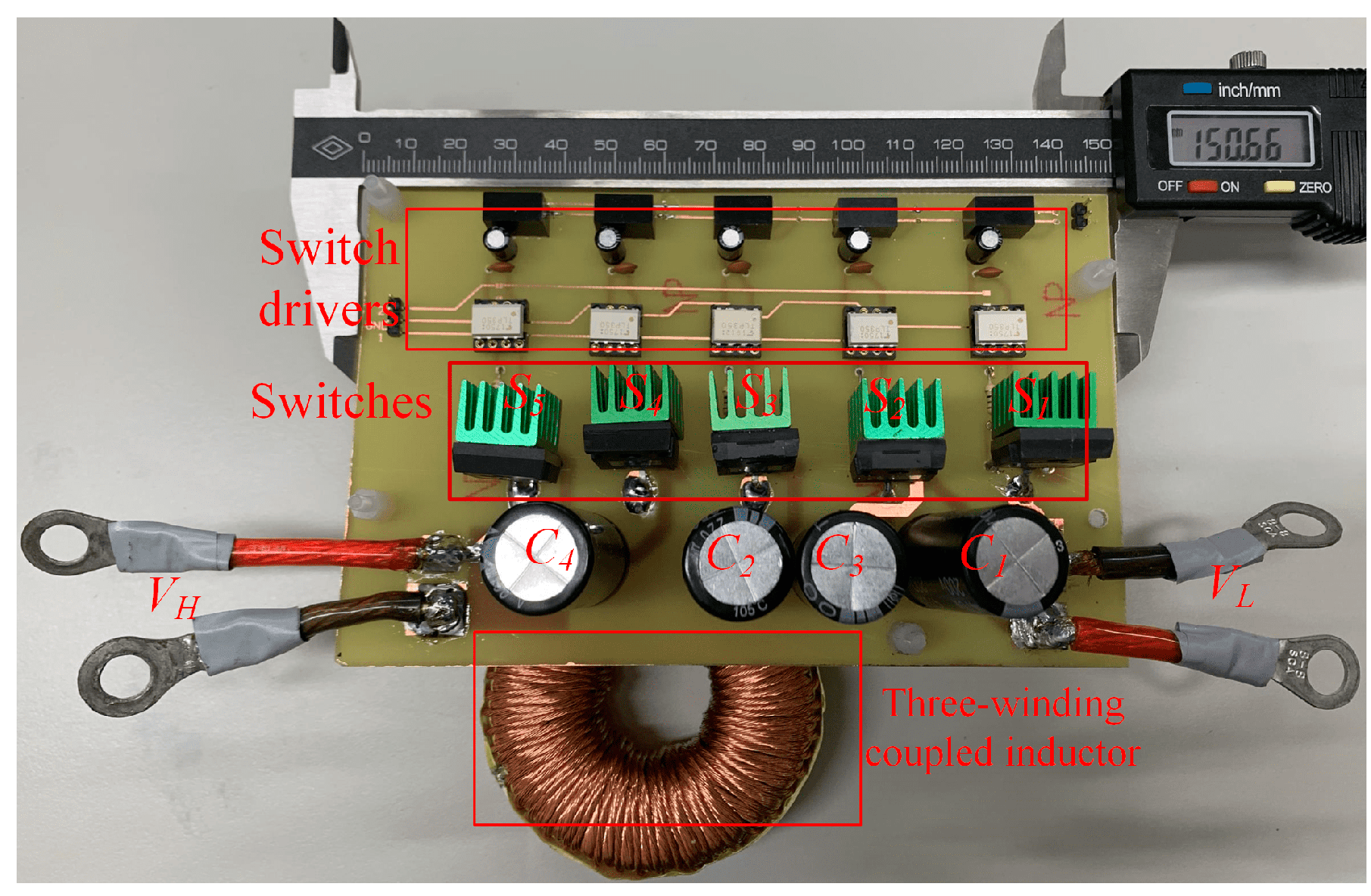

shows the electrical specifications and component parameters of the proposed topology, and a photograph of the proposed bidirectional isolated DC–DC converter is displayed in Figure 11.

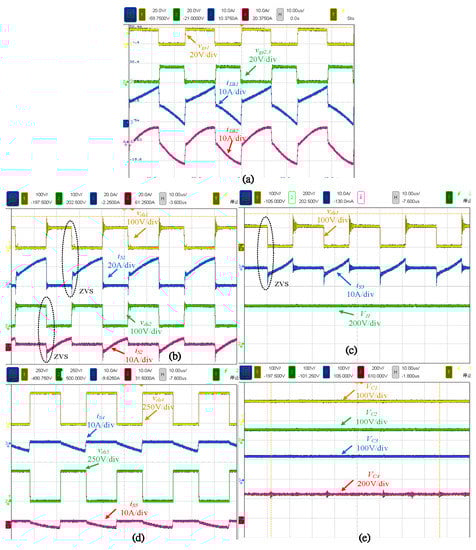

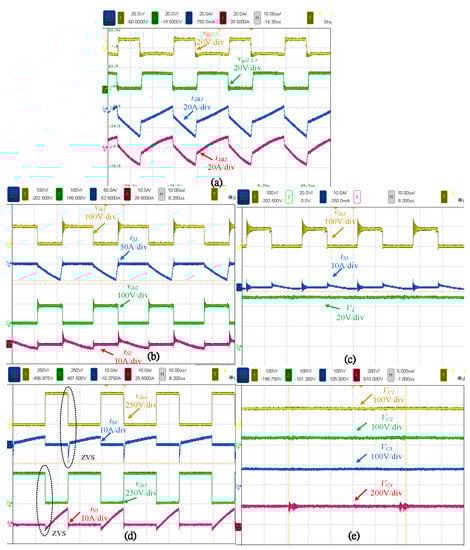

Figure 12a–e shows the key waveforms measured in the step-up mode. Figure 12a displays the measured waveforms of the complementary signals v_gs1 and v_gs2,3 and the leakage inductance currents i_Llk1 and i_Llk2. Figure 12b depicts the measured waveforms of the voltage and current of the switches S₁ and S₂. These switches exhibited ZVS in the step-up mode, and their voltage stress was 100 V. Figure 12c illustrates the measured waveforms of the voltage and current of S₃ and of the output voltage V_H. The switch S₃ exhibited ZVS in the step-up mode, and its voltage stress was 100 V. Figure 12d shows the measured waveforms of the voltage and current of S₄ and S₅. The voltage stress of these switches was 400 V. Figure 12e depicts the measured waveforms of the capacitors C₁–C₄.

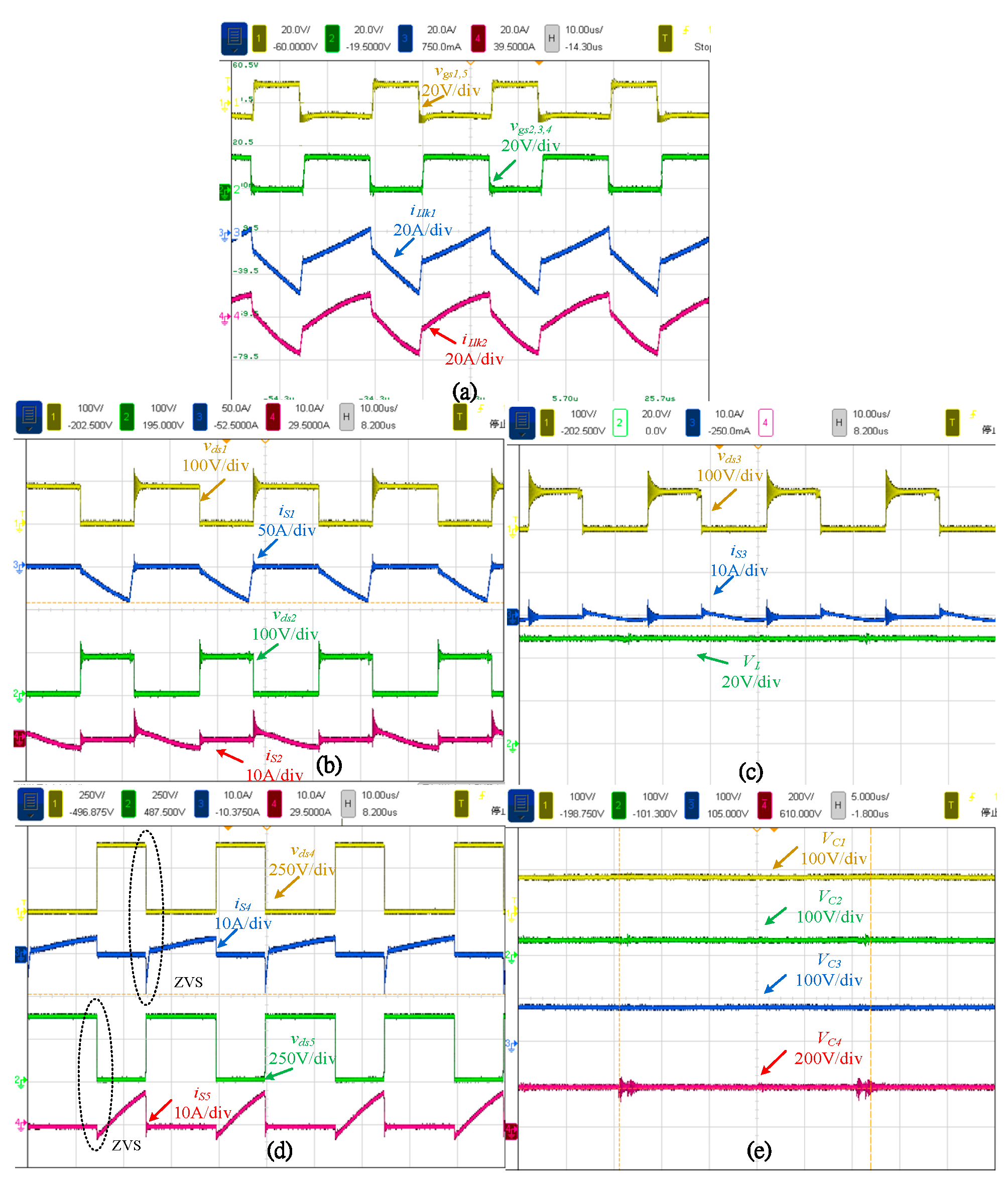

Figure 13a–e displays the key waveforms measured in the step-down mode. Figure 13a shows the measured waveforms of the complementary signals v_gs1,5 and v_gs2,3,4 and the leakage inductance currents i_Llk1 and i_Llk2. Figure 13b depicts the measured waveforms of the voltage and current of S₁ and S₂. The voltage stress of S₁ and S₂ was 100 V. Figure 13c displays the measured waveforms of the voltage and current of S₃ and of the output voltage V_H. The voltage stress of S₃ was 100 V, and the output voltage of the converter was 48 V. Figure 13d shows the measured waveforms of the voltage and current of S₄ and S₅. These switches exhibited ZVS, and their voltage stress was 400 V. Figure 13e displays the measured waveforms of C₁–C₄.

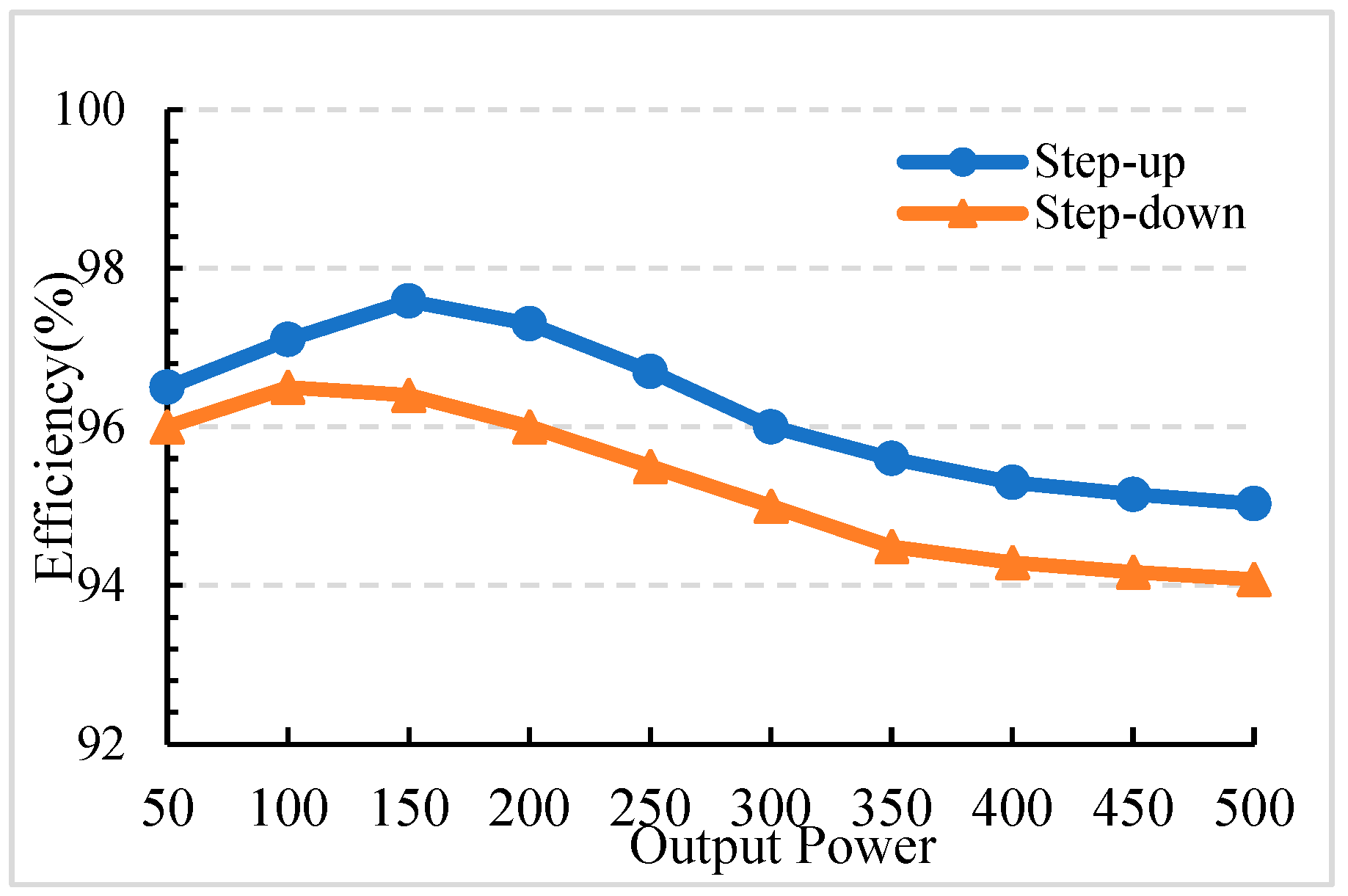

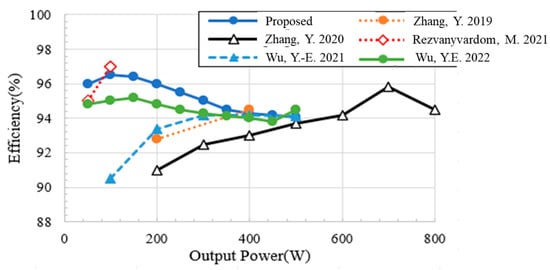

Figure 14 displays the conversion efficiency of the proposed converter in the step-up and step-down modes. The highest conversion efficiency in the step-up mode was 97.59% at 150 W, and the conversion efficiency at full load was 95.03%. The highest conversion efficiency in the step-down mode was 96.5% at 100 W, and the conversion efficiency at full load was 94.08%.

Table 2. Comparison between the proposed converter and related bidirectional converters.

	Converter in [20]	Converter in [21]	Converter in [24]	Converter in [27]	Converter in [30]	Proposed Converter
$G_{step-up}\left(\frac{V_H}{V_L}\right)$	$\frac{2+D}{\left(1-D\right)}$	$\frac{3}{\left(1-D\right)}$	$\frac{3D+n}{n\left(1-D\right)}$	$\frac{n}{{\left(1-D\right)}^2}$	$\frac{n}{\left(1-D\right)}$	$\frac{n}{\left(1-D\right)}$
$G_{step-down}\left(\frac{V_L}{V_H}\right)$	$\frac{D}{\left(3-D\right)}$	$\frac{D}{3}$	$\frac{nD}{n+3\left(1-D\right)}$	$\frac{{\left(1-D\right)}^2}{n}$	$\frac{1-D}{n}$	$\frac{1-D}{n}$
VL	40–120 V	30–100 V	48 V	24–48 V	48 V	48 V
VH	400 V	400 V	120 V	400 V	400 V	400 V
Switches	5	8	4	6	4	5
Magnetic Components	2	3	2	2	1	1
Capacitors	6	6	0	3	4	4
Diodes	0	0	1	0	0	0
Efficiency of step-up mode	94.09%	95.8%	98%	95.6%	96.8%	97.59%
Efficiency of step-down mode	94.41%	95.9%	97%	94.2%	95.2%	96.5%
Isolated	No	No	No	Yes	Yes	Yes

presents a comparison between the proposed converter and those developed in [20,21,24,27,30]. In general, the proposed converter has fewer components, a higher efficiency, and a higher voltage gain than do the other converters, which indicates that the proposed converter can be widely used in numerous industries. Among the compared converters, the converter developed in [24] has the fewest components but has a low voltage gain and the lowest output power. Figure 15 and Figure 16 depict the voltage gain of the compared converters in the step-up and step-down modes, respectively. The converter developed in [27] has the highest voltage gain among all the compared converters but has a lower efficiency and a higher number of components than does the converter proposed in this paper. The converter in [30] has fewer switches but lower efficiency.

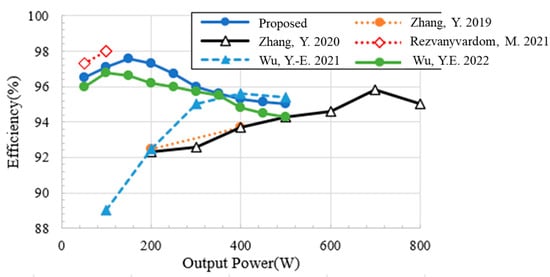

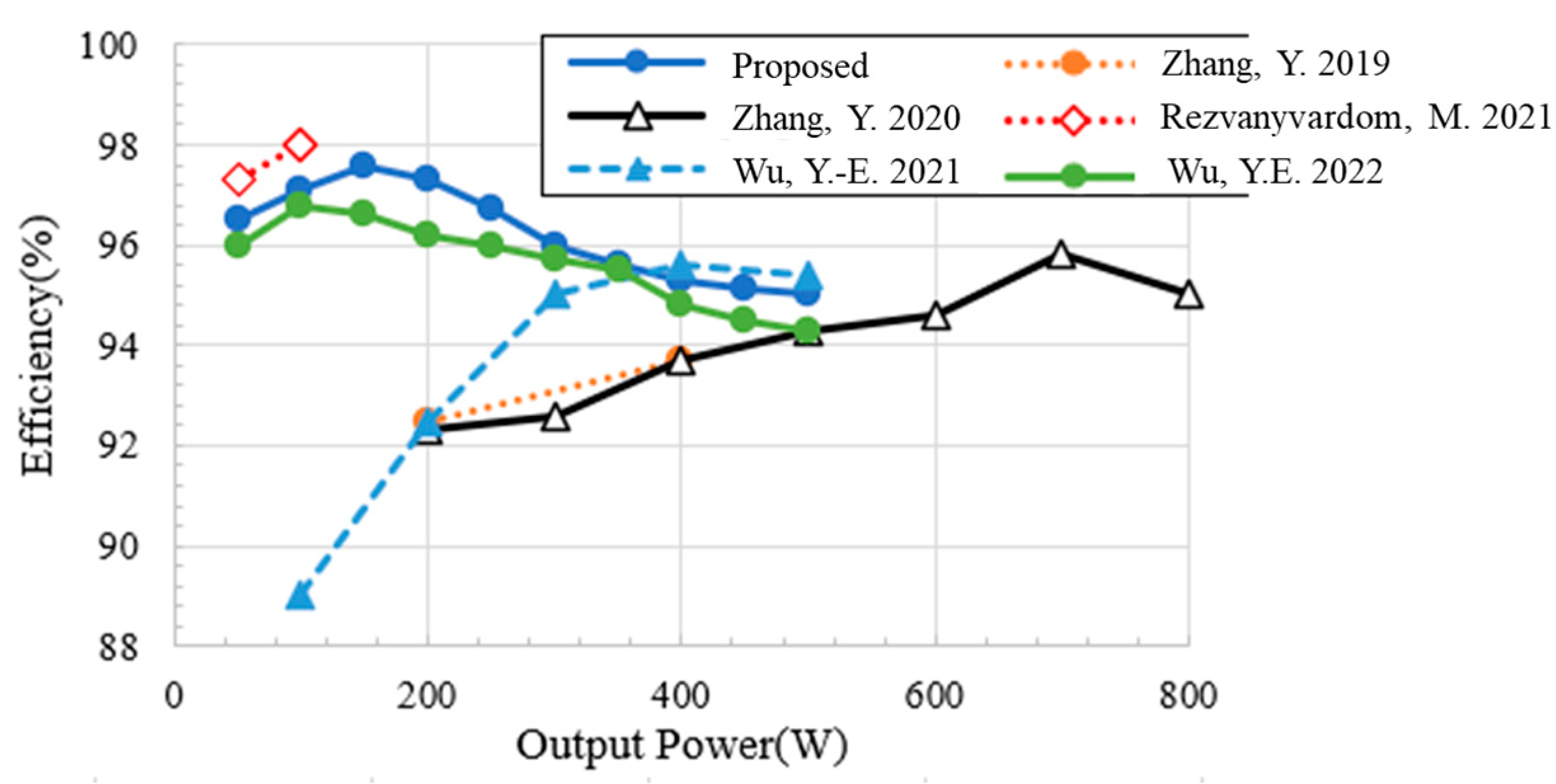

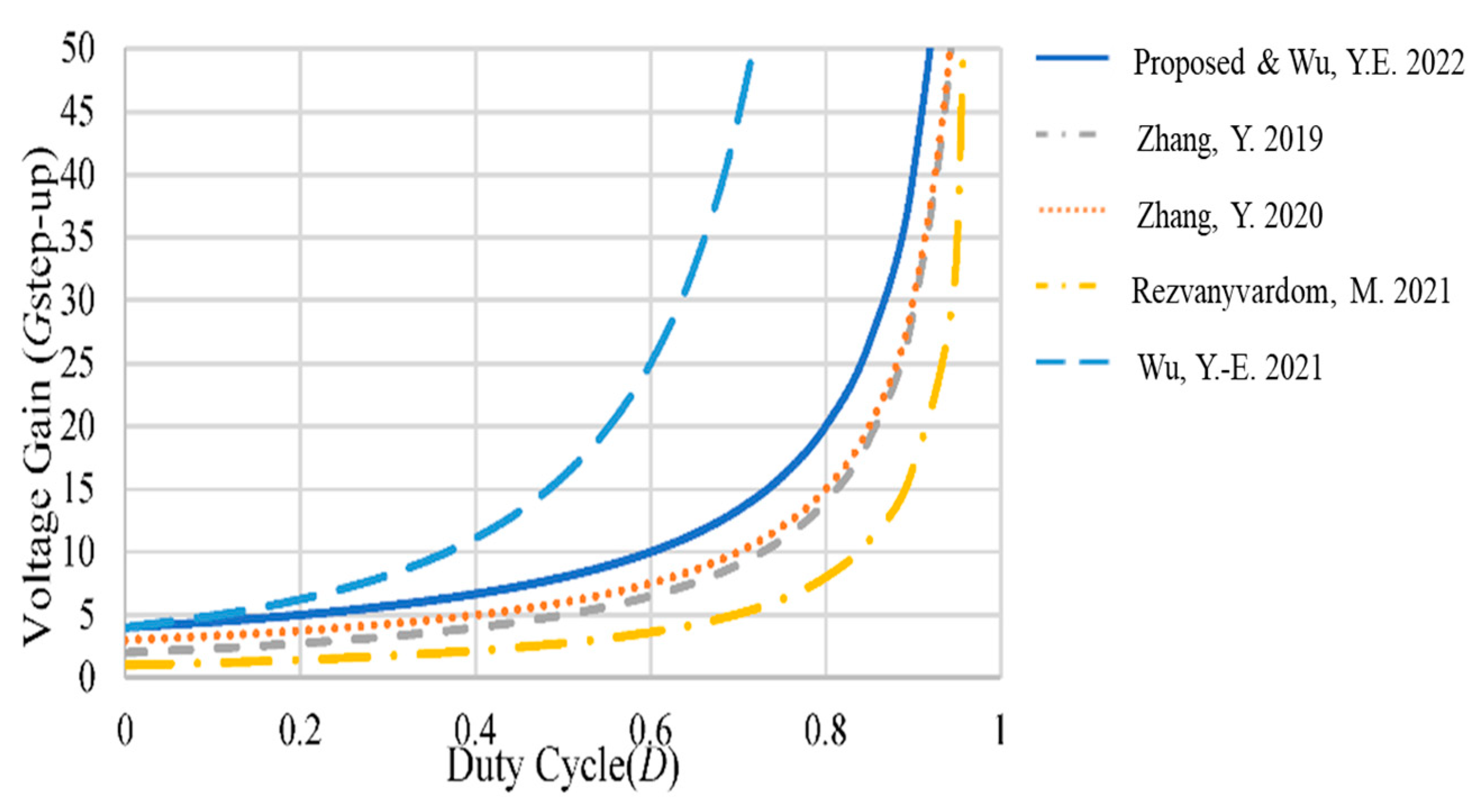

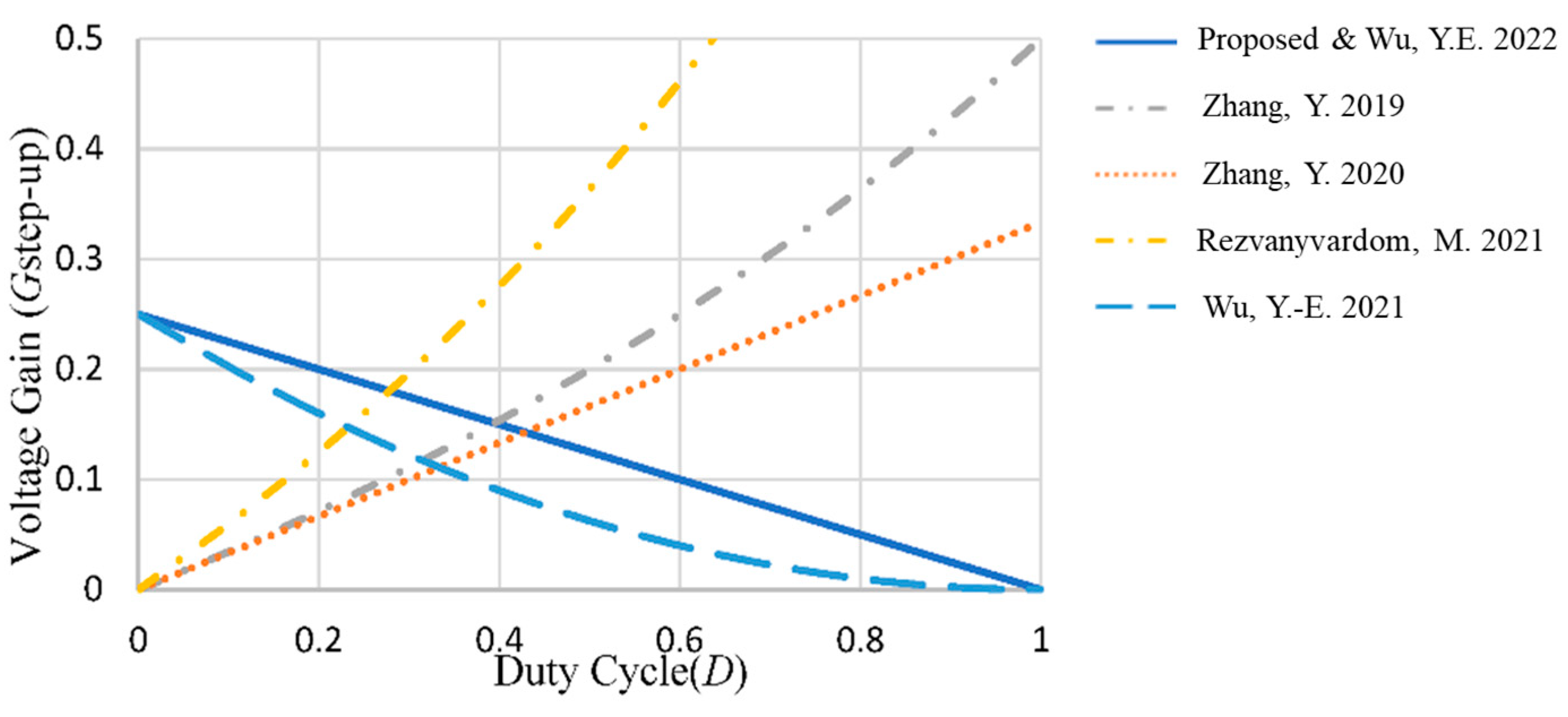

Figure 17 and Figure 18 depict the conversion efficiency of the compared converters in the step-up and step-down modes, respectively. The converter developed in [20] does not have a high conversion efficiency and has insufficient voltage gain. The converter developed in [21] has the highest output power but requires a highly complex control method. The converter developed in [24] has the highest efficiency but has a low output power and insufficient voltage gain. The converter developed in [27] has the highest voltage gain but has insufficient efficiency when the load level is less than half the full load and contains a high number of components. The converter in [30] has fewer components, but efficiency is lower. Finally, the converter proposed in this paper has a high conversion efficiency and voltage gain in the step-up and step-down modes.

5. Conclusions

In this paper, a novel high-efficiency bidirectional isolated DC–DC converter is proposed for an energy storage system. This converter only requires one complementary PWM signal to control the step-up and step-down modes. Partial switches are used in this converter to achieve ZVS, which can increase the converter efficiency. The feasibility of the proposed topology was examined through theoretical analysis, simulations, and experiments. In the experiments, the maximum efficiency of the proposed converter in the step-up and step-down modes was 97.59% and 96.5%, respectively.

In conclusion, the advantages of the proposed converter are as follows: (1) it has a simple circuit structure, (2) it only requires one complementary PWM signal to control the step-up and step-down modes, (3) it achieves a high voltage gain and high efficiency, (4) its input and output power supplies are separated through galvanic isolation, (5) the current of its low-voltage side is continuous in the CCM, and (6) ZVS is achieved using specific switches to reduce its switching loss.
