Mechanical and Durability Properties of CCD-Optimised Fibre-Reinforced Self-Compacting Concrete

Abstract

The accelerated advancement of industrialization, urbanization, and technology produces an enormous amount of waste materials that are channelled into the environment, contaminating the soil, water and air. This exceedingly large volume of waste in the planet’s environment has made it challenging and difficult to handle; thus, it is urgent to facilitate alternative methods of waste disposal. Moreover, the consumption of concrete raw materials increases as a consequence of a sudden increase in concrete usage. In this study, printed circuit boards (PCB), cutting waste (e-waste) (0%, 5%, 10%, 15%, 20%) and recycled concrete aggregate (construction and demolition waste) (0%, 20%, 40%, 60%, 80%, 100%) replace the fine and coarse aggregate; this is utilised in the making of self-compacting concrete (SCC). To mitigate the impact of shrinkage and micro-cracks produced during loading, synthetic fibres (polypropylene fibres) (0%, 0.25%, 0.5%, 0.75%, 1%) are incorporated into the dense matrix of concrete. Based on the experiments conducted, it is concluded that the optimum percentages of e-waste, recycled aggregate and synthetic fibres are 10%, 60% and 0.5%, respectively. It is proposed to use response surface methodology for the statistical modelling of fibre-reinforced self-compacting concrete (FRSCC) ingredients, which will diminish the number of experiments conducted during optimisation. Experimental optimisation of ingredients was carried out by determining the workability properties (slump flow, L-Box, V-Funnel and Sieve test), strength properties (compressive, split tensile, flexural at 7, 14, 28 days of curing) and durability properties against chemical exposure (sulphuric and hydrochloric acid attack, sulphate attack at 29 and 90 days of immersion). In the statistical optimisation process, the central composite design (CCD) is utilised, and it is concluded that the optimum percentages of e-waste, recycled aggregate and synthetic fibres are 9.90%, 51.35% and 0.503%, respectively, as these produce a compressive strength (CS) of 47.02 MPa at the end of the 28th day of curing, whereas FRSCC created with experimentally optimised ingredients shows a strength of 46.79 MPa with the use of 60% of recycled aggregate, 10% of e-waste and 0.5% polypropylene fibre. Hence, it is observed that the CCD-optimised ingredients were the optimum dosage of ingredients based on the compressive strength values at 28 days. It is concluded that the FRSCC specimens created with CCD-optimised parameters show better resistance against loading and chemical exposure, as these show minimum weight and strength loss when compared to FRSCC with experimentally optimised parameters.

1. Introduction

It has been estimated, around the world, that the requirement of cement will be expected to skyrocket to 4.42 billion metric ton at the end of 2021, which accelerates every year at a rate of 0.3%. India has become the second-largest consumer of cement after China, registering 328 million metric tons (MMT) at the end of 2019, which is anticipated to reach 379 MMT in 2022. An increase in construction activities consumes enormous amounts of raw materials, producing drastic environmental impacts in various ways [1]. On the other hand, the worldwide market for aggregates was 51.7 billion tons at the end of 2019, with an annual growth rate of 5.2%. It is, therefore, essential that scientists, engineers, and researchers find new alternatives for the ingredients of concrete. Even though thousands of studies have been conducted all around the world, it is quite difficult to find a unique alternative based on the varying requirements [2].

As a result of thousands of studies, self-compacting concrete (SCC) experienced an early growth in the field of construction and is utilised in most high-rise constructions with exceptional deformability and segregation resistance [3] the prime advantage of adopting SCC in the field is to eliminate the use of vibrators which compact themselves among congested reinforcements [4]. Self-compacting ability in concrete was achieved because of the improved resistance to segregation between the aggregate and binder phase when the concrete flows through the complex forms of reinforcements. SCC has numerous advantages in the field of construction over the normal concrete, such as improved constructability, strength, durability and easier pumping without external vibrations through all areas of formwork [5,6]. However, SCC has a major drawback: the cost of construction is comparatively high when compared with normal concrete due to the use of auxiliary equipment for transportation and pumping [7,8].

e-Waste refers to electronic devices that are no longer used or desired, and are often thrown away or given away for reuse. These items can include computers, laptops, tablets, smartphones, TVs, and other electronic equipment. The rapid upgrading of technology produces excessive quantities of e-wastes (EWs) that are discarded directly in dump yards. The EWs do not decompose over time; therefore, these become suitable for use as treated materials. Around the world, India is the 5th biggest producer of EW and contributes 5% of the world’s overall EW generation. Over the years, numerous efforts have been undertaken to reduce the issues associated with the e-waste management and some of the researchers found that the use of treated e-wastes in concrete as aggregates is useful and reduces the problem of direct disposal of e-waste into the environment [9,10]. Using EW as a fine aggregate in concrete is a way to reuse and recycle e-waste, and it can also potentially reduce the demand for traditional aggregate materials, such as sand. PCBs are one of the most common EW, which are disintegrated into smaller pieces and proposed to be utilised as a fine aggregate, with a size of less than 4.75 mm, in concrete, and it is used to fill the voids between the larger coarse aggregate particles [11]. There are several potential benefits in using EW as a fine aggregate in concrete. These include the reuse and recycling of EW, reduced demand for traditional aggregate materials, reduction in cost, and improvements in the strength and performance of the resulting concrete. PCBs are ground, using mechanical grinding equipment that is operated electronically, and added into the concrete matrix [11].

The development of infrastructure was accompanied by new constructions with innovative and aesthetic appearances. Some of these constructions were built over the site of demolished structures. About 24% of the debris generated during demolition is dumped in landfills after the demolition of the structures; this is a practice that inevitably creates several socio-economic problems [12]. This concrete debris could be recycled and reused for certain activities at the construction site; they are proposed to be utilised as an alternative to coarse aggregate in concrete. In M40 grade concrete, the best results could be produced with a mix consisting of 15% RCA and 25% steel slag, which could reduce the amount of waste disposed of in the site [13,14].

The replacement of fine and coarse aggregates in concrete was partly or entirely replaced with crushed PCB waste (0% to 20% at an interval of 5%) and recycled concrete aggregate (0% to 100% at an interval of 20%), respectively, in SCC mixes of grade M30. The proposed idea might result in lightweight concrete because its self-weight is reduced, and reduction in self-weight of ingredients of concrete would not compromise the self-compacting nature of concrete [15]. The purpose of this study is to establish guidelines for the preparation of SCC mixes using fibres. The experimental design, contour and surface plots were used for predicting and optimising the parametric responses. The importance of this study is in the composition and proportion of the constituent materials in SCC.

While constructing high-rise structures, continuous or periodic application of loads on structures will cause serious damage and result in irreparable collapse. Addition of fibres in concrete increases the flexural strength and crack resistance against the periodic loadings [16]. Vibrations can also cause the concrete to shrink, which can be avoided by incorporating polypropylene fibres (PF), which are incorporated into the concrete mix at varying proportions (0% to 1% at an interval of 0.25%) [17,18]. Based on the characteristics of concrete and fibres, the nature and performance of fibre-reinforced concrete (FRC) may alter [19]. The conglomeration of fibres that hold a significant platform is fibre concentration, geometry, orientation, and distribution. Furthermore, the use of one type of fibre may only enhance the properties of FRC to a limited extent [20]. The use of fibres in concrete specimens significantly elevates the toughness indices and rigidity and enhances their overall performances [21].

The incorporation of three independent variables at varying levels will result in the execution of numerous experiments, which could aid in the pinpoint determination of significant results. In order to optimise the parameters, the response surface methodology (RSM) is predominantly used, a process in which the output response (dependent) is affected by several input parameters (independent) [22,23]. To identify the optimal operating conditions for the system specified in this study, CCD is employed, which is a full and fractional design, with the approximate relationship between input and output variables. The strength and durability properties of FRSCC from experimentally optimised and CCD-optimised mixes were compared with each other.

Research Significance

The construction industry and researchers have long been interested in finding ways to combine the positive benefits of different materials or techniques. Some recent developments in this area include fibre-reinforced concrete, self-compacting concrete, high-strength concrete, and self-curing concrete. The aim of this study is to find a way to combine the benefits of fibre-reinforced concrete and self-compacting concrete without sacrificing the performance of either. To achieve this, the researchers propose adding polypropylene fibres to self-compacting concrete mixes, which they believe will improve the strength of the material without hindering its ability to flow through complex, congested reinforcement areas. This approach could have significant benefits for the construction industry.

2. Materials

In this study, fibre-reinforced SCC (FRSCC) was created with a variety of ingredients that contributes to the specific characteristics of concrete. Generally, concrete is categorized into two phases: cement and aggregate phase. In the cement phase, OPC 53 grade acts as the binding agent, and fly ash (obtained from Mettur, Tamilnadu, thermal power plant) acts as a viscosity modifying agent. In the aggregate phase, aggregates consume more than 65% of the volume of concrete and make the concrete more rigid and compact. In this study, both fine and coarse aggregates were replaced partly or wholly with mechanically ground e-waste and recycled concrete aggregates, respectively.

2.1. Cement

Commercially available Portland cement of grade 53 compliant with the guidelines of IS 12269:2013, which has a high quicklime content, was utilised in this investigation [24]. The physical properties investigated in this investigation are tabulated in

Table 1. Cement properties.

Property	Bulk Density	Consistency	Specific Gravity	Specific Surface Area (m2/kg)	Setting Time		Strength
					Initial	Final	14th Day	28th Day
Value	1670 kg/m3	29.5%	3.13	295	1.25 h	6.25 h	45.77 MPa	57.12 MPa

.

2.2. Fly Ash

Fly ash obtained from the combustion of coal as a by-product from the thermal power plant was utilised in this investigation, which conforms to the guidelines mentioned in IS 3812:2013 [25]. The physical properties of fly ash investigated in this study are tabulated in

Table 2. Fly ash properties.

Property	Bulk Density	Moisture Content	Residue Retained on 45 µ Sieve	Specific Gravity	Specific Surface Area
Value	1150 kg/m3	0.40%	24.6%	2.18	480 m2/kg

and the element distribution values are shown in

Table 3. Chemical composition of cement and fly ash.

OPC 53		Fly Ash
Composition	Value	Composition	Value
CaO	64.22	SiO2	59.02
SiO2	22.74	Al2O3	27.94
Al2O3	4.71	Fe2O3	8.30
Fe2O3	4.80	MgO	2.19
SO3	2.10	LOI	1.65
MgO	0.95	SO3	1.09
K2O	0.76	Na2O	0.75
TiO2	0.33	CaO	0.07
ZrO2	0.01

.

2.3. Fine Aggregate

Due to the rapid growth in urbanization and industrialization, alternative materials for fine and coarse aggregate must be found. A fine aggregate in concrete is considered as the element that binds everything together and makes the concrete act as an artificial rock. It is highly responsible for the improvement of workability, uniformity of mix, thermal expansion and strength, and reduces the shrinkage effect, bleeding and segregation. In this study, naturally available river sand sufficiently small to pass through a 4.75-milimetre IS sieve was used as the fine aggregate, which is replaced partly by mechanically crushed and ground e-waste (EW) conforming to the standards set out in IS 383:2016. This study examines the various properties of the fine aggregate utilised in this investigation, which are summarized in

Table 4. Fine aggregate properties.

Property	Dry Rodded Bulk Density	Fineness Modulus	Gradation Zone	Specific Gravity	Water Absorption
River sand	1870 kg/m3	2.58	II	2.16	1.10%
e-waste	795 kg/m3	2.95	II	1.48	0.30%

[26].

2.4. Coarse Aggregate

Coarse aggregates create a solid and hard mass of concrete with cement and fine aggregates, which consumes the majority of volume in concrete. In this study, naturally available crushed granite rock stones sufficiently small to pass through a 20-milimetre sieve and retained on a 12.5-milimetre sieve were utilised in this investigation. In order to reduce the problems associated with the quarrying of aggregates, it is proposed to utilise the recycled concrete aggregate in concrete after consecutive operations of primary and secondary dismantling. Hence, crushed granite aggregates (CGA) are replaced partly or wholly with recycled concrete aggregate (RCA), which are compliant with IS 383:2016, and the properties examined in this investigation are illustrated in

Table 5. Coarse aggregate properties.

Property	Dry Rodded Bulk Density	Fineness Modulus	Specific Gravity	Water Absorption
CGA	1475 kg/m3	6.92	2.83	0.90%
RCA	1280 kg/m3	6.70	2.49	2.70%

. Both the aggregates were from dust and other impurities [26].

2.5. Polypropylene Fibres

Addition of fibres in concrete enhances the strength and stiffness, thereby reducing the porosity and permeability. In this study, polypropylene fibre (Recron 3S) was used as the synthetic mono fibre in the creation of fibre-reinforced SCC with a length and aspect ratio of 12 mm and 400 mm, respectively (Supplementary Figure S1). This fibre is currently used by engineers as a short, discontinuous material for the manufacture of fibre-reinforced SCC. According to the calculation, fibre strength under axial tension and unit weight of fibre material are 655 MPa and 9.1 kN/m³.

2.6. Chemical Admixture

In order to achieve the required slump, the designed mixture proportion must have enough workability to fulfil the required guidelines. The addition of materials that are not conventionally used in concrete may reduce the workability of the fresh concrete. When fly ash was used, the effect of grain size and particle size distribution play a vital role in deciding the workability of the concrete. To meet the requirement, chemical admixtures were used to attain the desired slump. The optimum dosage of SP is dependent on the type of SP and the water-to-binder ratio (W/B). To modify the workability of concrete, CONPLAST SP430 was used in all cases where 3% cement weight was required.

2.7. Water

During this investigation, the mixing and hardening of concrete was carried out with locally available potable water, used in accordance with the guidelines mentioned in IS 456:2000, which is free from harmful quantities of oils, acids, bases, salt, sugar and organic matter [27].

3. Experimental Programme

3.1. Mix Proportions

By considering the four major aspects (filling and passing ability, segregation resistance, viscosity) of SCC, the mix design on FRSCC was conducted in agreement with IS 10262:2019 [28]. After consecutive trial batches of preparation, the mix proportion was finalized as 1:1.56:1.68 with a constant w/c ratio of 0.41. To alter the viscous nature of concrete, fly ash was added into the concrete matrix by 54% according to the weight of cement.

3.2. Specimen Preparation

In this study, different specimens of varying sizes were cast, including cube specimens (150 × 150 × 150 mm), cylindrical specimens (150 × 300 mm) and prism specimens (100 × 100 × 500 mm). It is proposed to replace fine and coarse aggregate with crushed e-waste and recycled concrete aggregate in varying levels of replacement [29]. For each mix, three specimens were cast and tested after the prescribed days of curing (7, 14, 28 days) and the acceptance criteria for each mix should be less than 15% of the average value. If the test results were higher than the acceptable limit, the test was repeated for that mix. The average value from each mix was used to evaluate the mechanical and durability properties.

3.3. Optimisation of Ingredients Using an Experimental Program

3.3.1. Optimisation of RCA Content in SCC

As part of the initial investigation, RCA content was replaced with natural coarse aggregate available in SCC, and river sand was used as the main material and without the addition of fibres. Fresh properties of SCC were assessed by conducting various tests, such as the slump flow test, L-Box text, Sieve test and V-Funnel test, in accordance with IS 10262:2019 [28]. Tests were conducted on fresh properties of SCC according to the guidelines of IS1199 (Part 6) and the observed results are tabulated in

Table 6. Fresh properties of RCA content in SCC.

RCA Replacement (%)	Slump Flow (mm)	L-Box	Sieve Test	V-Funnel Test (s)
0	683 (SF2)	0.87	17.1 (SR1)	9.97 (V2)
20	697 (SF2)	0.90	15.2 (SR1)	8.6 (V2)
40	705 (SF2)	0.91	13.8 (SR2)	7.38 (V1)
60	728 (SF2)	0.92	12.8 (SR2)	7.31 (V1)
80	747 (SF2)	0.93	12.1 (SR2)	7.18 (V1)
100	762 (SF3)	0.98	11.5 (SR2)	6.9 (V1)

[30].

The main characteristics of fresh SCC to flow into and fill all spaces within the formwork under its own weight can be observed. Workability of SCC can be influenced by several factors, including the size and shape of the coarse aggregate, the ratio of fine to coarse aggregate, the type and amount of admixtures used, and the water-to-cement ratio. Replacement of conventional coarse aggregate with RCA will reduce the self-weight of concrete mixes. This helps to increase the flowability and segregation resistance of the mixture, which allows it to flow and compact more easily. Slump flow describes the flowability of a fresh concrete mix in an unconfined condition. Without addition of RCA in SCC, it shows slump flow in the class of SF2, which is applicable in the construction of concrete walls and columns. Increasing percentages of RCA replacement in SCC will enhance the slump flow characteristics of fresh SCC. Full replacement of coarse aggregate with RCA will lead the concrete to flow inside the heavily reinforced structures and structures with complex shapes and form works with a slump flow class of SF3. Based on the visual observations, additional information on the segregation resistance and uniformity was obtained. It is found that fresh concrete has the ability to remain in homogeneous composition and, based on the segregation class of resistance, replacing percentages of RCA in SCC will modify the nature of concrete and transform the concrete from SR1 to SR2. Full replacement of coarse aggregate in SCC will be helpful in the applications with a confinement gap of less than 80 mm and a flow distance of more than 5 m. Based on the viscous nature of SCC, it is found that the concrete with V1 viscous class will have the ability to flow through the congested reinforcements. It is concluded that 100% replacement of coarse aggregate with RCA shows better results than the concrete mixes created with low or zero levels of RCA.

Table 7. Optimisation of RCA content in SCC.

Mix ID	Compressive Strength (MPa)				Split Tensile Strength (MPa)			Flexural Strength (MPa)
	7th Day	14th Day	28th Day	% Change	7th Day	14th Day	28th Day	7th Day	14th Day	28th Day
RCA00	26.98	37.26	42.24	-	2.78	3.23	3.37	3.92	4.71	5.13
RCA20	26.39	36.44	41.33	2.2% ↓	2.75	3.19	3.32	3.88	4.66	5.08
RCA40	25.75	35.55	40.34	4.5% ↓	2.71	3.14	3.28	3.84	4.60	5.02
RCA60	25.16	34.74	39.44	6.6% ↓	2.68	3.10	3.24	3.80	4.56	4.97
RCA80	24.33	33.59	38.16	9.7% ↓	2.63	3.05	3.18	3.74	4.48	4.90
RCA100	23.82	32.87	37.37	11.5% ↓	2.60	3.01	3.14	3.70	4.44	4.85

shows the strength characteristics of SCC created with varying percentages of RCA.

Unlike workability properties, strength properties of SCC mixes are gradually reduced over the varying replacement levels of RCA. It is also observed that it is possible to create an SCC mix by replacing the percentages of RCA either partially or completely (Figure 1). Commencing from 0% to 100%, each mix created with RCA complied with self-compatibility standards [31]. An increase in the percentage of RCA content in concrete will decrease the strength, elastic modulus, and thermal conductivity, while porosity and water absorption will be increased [32].

The strength properties of the concrete decreased consistently as the curing time increased. At 28 days of curing, the compressive strength of the concrete decreased by 2.2%, 4.5%, 6.6%, 9.7%, and 11.5% when the replacement of recycled concrete aggregate (RCA) content increased from 20% to 100% at intervals of 20%. According to IS 10262:2019, the target strength for M30 grade concrete is 38.25 MPa [28]. From Figure 2, it is also evident that the target strength could not be obtained at 80 and 100% replacement of RCA, but it resulted in 99% and 97% of target strength after the completion of the 28 days. A similar trend was observed in strength values against split tensile and flexural characteristics. Based on these findings, 60% replacement of RCA was considered the optimum replacement percentage for the further stages of the investigation, which yields 3.11% strength higher than the target strength expected at 28 days.

3.3.2. Optimisation of RCA Content in SCC

During the next stages of investigation, fine aggregate was replaced with varying percentages of crushed e-waste (EW), and polypropylene fibre was added at varying levels, whereas the RCA content was kept as constant at 60% [33]. The fresh properties of SCC were assessed by conducting various tests, such as the slump flow test, L-Box text, Sieve test and V-Funnel test in accordance with IS 10262:2019 [28]. The tests were conducted on fresh and hardened properties of SCC according to the guidelines of IS1199 (Part 6) and the observed results are tabulated in

Table 8. Fresh properties of EW and fibre content in SCC.

Mix ID	Ingredients (%)			Slump Flow (mm)	L-Box	Sieve Test	V-Funnel Test (s)
	RCA	PF	EW
CC	0	0	0	762 (SF3)	0.87	11.5 (SR2)	6.9 (V1)
FRSCC-0-0	60	0	0	705 (SF2)	0.92	13.8 (SR2)	7.38 (V1)
FRSCC-0-5	60	0	5	716 (SF2)	0.92	12.9 (SR2)	7.23 (V1)
FRSCC-0-10	60	0	10	773 (SF3)	0.93	12.1 (SR2)	7.1 (V1)
FRSCC-0-15	60	0	15	789 (SF3)	0.95	11.4 (SR2)	6.6 (V1)
FRSCC-0-20	60	0	20	814 (SF3)	0.97	10.2 (SR2)	6.24 (V1)
FRSCC-0.25-0	60	0.25	0	697 (SF2)	0.89	14.5 (SR2)	7.93 (V1)
FRSCC-0.25-5	60	0.25	5	752 (SF2)	0.90	13.5 (SR2)	7.77 (V1)
FRSCC-0.25-10	60	0.25	10	768 (SF3)	0.92	12.7 (SR2)	7.63 (V1)
FRSCC-0.25-15	60	0.25	15	792 (SF3)	0.93	12.0 (SR2)	7.09 (V1)
FRSCC-0.25-20	60	0.25	20	801 (SF3)	0.95	10.7 (SR2)	6.71 (V1)
FRSCC-0.5-0	60	0.5	0	678 (SF2)	0.90	15.4 (SR1)	8.56 (V2)
FRSCC-0.5-5	60	0.5	5	733 (SF2)	0.92	14.4 (SR2)	8.38 (V2)
FRSCC-0.5-10	60	0.5	10	748 (SF2)	0.95	13.5 (SR2)	8.23 (V2)
FRSCC-0.5-15	60	0.5	15	771 (SF3)	0.97	12.7 (SR2)	7.66 (V1)
FRSCC-0.5-20	60	0.5	20	784 (SF3)	0.98	11.4 (SR2)	7.24 (V1)
FRSCC-0.75-0	60	0.75	0	660 (SF2)	0.92	16.4 (SR1)	9.33 (V2)
FRSCC-0.75-5	60	0.75	5	713 (SF2)	0.94	15.5 (SR1)	9.14 (V2)
FRSCC-0.75-10	60	0.75	10	728 (SF2)	0.95	14.4 (SR2)	8.97 (V2)
FRSCC-0.75-15	60	0.75	15	751 (SF2)	0.97	13.6 (SR2)	8.34 (V2)
FRSCC-0.75-20	60	0.75	20	765 (SF3)	0.99	12.1 (SR2)	7.89 (V1)
FRSCC-1.0-0	60	1.0	0	643 (SF1)	0.94	17.7 (SR1)	10.26 (V2)
FRSCC-1.0-5	60	1.0	5	694 (SF2)	0.96	16.6 (SR1)	10.05 (V2)
FRSCC-1.0-10	60	1.0	10	709 (SF2)	0.99	15.6 (SR1)	9.87 (V2)
FRSCC-1.0-15	60	1.0	15	731 (SF2)	1.02	14.7 (SR2)	9.17 (V2)
FRSCC-1.0-20	60	1.0	20	744 (SF2)	1.05	13.1 (SR2)	8.68 (V2)

. The strength properties of FRSCC at 7, 14, and 28 days of curing were examined as per IS 516 (1959) [34].

By keeping the RCA content constant, fine aggregate was replaced with varying percentages of crushed e-waste; the addition of fibres into the SCC mixes does not compromise the self-compacting nature of concrete to some extent. Similar to conventional SCC, FRSCC was also formulated to create high flowability and resistance to segregation. The addition of fibres into the SCC mixes gradually reduces the rheological properties of SCC at a fresh state (Figure 3). However, the type, size and orientation of the fibres greatly affects the flowability of the mixture. On the other hand, the replacement of river sand with e-waste will comparatively reduce the self-weight of SCC mixes and reduce the porosity of concrete mixes. The slump flow characteristics of FRSCC denote that the slump classes of concrete mixes changes from SF2 to SF3 during the incorporation of EW and fibre content. A slump flow of 762 mm was observed in CC specimens, whereas the flow was reduced to 643 mm in FRSCC-1.0-0 specimens. A consistent decrease in slump flow of SCC by 1.1%, 3.8%, 6.4%, 8.8% is observed for the specimens created with 0.25%, 0.5%, 0.75%, 1.0% of PF, respectively, with optimised RCA content. Similar behaviour was observed in L-Box, V-Funnel and sieve tests. It is concluded that the SCC mixes can be produced with varying percentages of e-waste as fine aggregate and polypropylene fibres while keeping the RCA content constant at 60%.

From

Table 9. Optimisation of EW and fibre content in SCC.

Mix ID	Compressive Strength (MPa)				Split Tensile Strength (MPa)			Flexural Strength (MPa)
	7th Day	14th Day	28th Day	% Change	7th Day	14th Day	28th Day	7th Day	14th Day	28th Day
CC	26.98	37.26	42.24	-	2.78	3.23	3.37	3.92	4.71	5.13
FRSCC-0-0	25.16	34.74	39.44	6.6% ↓	2.68	3.10	3.24	3.80	4.56	4.97
FRSCC-0-5	25.80	35.81	40.11	5.0% ↓	2.88	3.41	3.62	3.91	4.91	5.37
FRSCC-0-10	26.88	37.31	41.78	1.1% ↓	2.94	3.48	3.70	3.99	5.01	5.48
FRSCC-0-15	25.93	36.00	40.32	4.5% ↓	2.89	3.42	3.63	3.92	4.92	5.39
FRSCC-0-20	25.24	35.04	39.26	7.1% ↓	2.85	3.37	3.58	3.86	4.86	5.32
FRSCC-0.25-0	26.47	36.74	41.15	2.6% ↓	2.92	3.45	3.67	3.96	4.97	5.44
FRSCC-0.25-5	27.24	37.80	42.33	0.2% ↑	2.96	3.50	3.72	4.01	5.04	5.52
FRSCC-0.25-10	28.27	39.24	43.92	4.0% ↑	3.02	3.57	3.79	4.09	5.14	5.62
FRSCC-0.25-15	27.07	37.57	42.07	0.4% ↓	2.95	3.49	3.71	4.00	5.03	5.50
FRSCC-0.25-20	26.30	36.50	40.88	3.2% ↓	2.91	3.44	3.66	3.94	4.96	5.43
FRSCC-0.5-0	27.65	38.37	42.96	1.7% ↑	2.98	3.53	3.75	4.04	5.08	5.56
FRSCC-0.5-5	28.66	39.78	44.52	5.4% ↑	3.04	3.59	3.82	4.12	5.17	5.66
FRSCC-0.5-10	30.14	41.82	46.79	10.8% ↑	3.12	3.68	3.91	4.22	5.30	5.80
FRSCC-0.5-15	28.20	39.14	43.81	3.7% ↑	3.01	3.56	3.79	4.08	5.13	5.62
FRSCC-0.5-20	27.22	37.78	42.3	0.1% ↑	2.96	3.50	3.72	4.01	5.04	5.52
FRSCC-0.75-0	26.60	36.92	41.35	2.1% ↓	2.93	3.46	3.68	3.97	4.98	5.46
FRSCC-0.75-5	27.58	38.27	42.85	1.4% ↑	2.98	3.52	3.74	4.04	5.07	5.55
FRSCC-0.75-10	28.99	40.23	45.03	6.6% ↑	3.06	3.61	3.84	4.14	5.20	5.69
FRSCC-0.75-15	27.13	37.65	42.16	0.2% ↓	2.96	3.50	3.71	4.01	5.03	5.51
FRSCC-0.75-20	26.19	36.35	40.71	3.6% ↓	2.90	3.43	3.65	3.94	4.94	5.41
FRSCC-1.0-0	25.59	35.52	39.79	5.8% ↓	2.87	3.40	3.61	3.89	4.89	5.35
FRSCC-1.0-5	26.53	36.82	41.24	2.4% ↓	2.92	3.46	3.67	3.96	4.98	5.45
FRSCC-1.0-10	27.90	38.71	43.34	2.6% ↑	3.00	3.54	3.76	4.06	5.10	5.59
FRSCC-1.0-15	26.10	36.23	40.58	3.9% ↓	2.90	3.43	3.64	3.93	4.94	5.41
FRSCC-1.0-20	25.19	34.97	39.18	7.2% ↓	2.85	3.37	3.58	3.86	4.85	5.31

, it is observed that the self-compact nature of concrete is not affected by variations in EW and PF composition. The concrete mix FRSCC-0.5-10 reaches a compressive strength of 30.14 MPa in 7 days, whereas it reaches 41.82 MPa and 46.79 MPa at 14 days and 28 days, respectively. At this time, the performance of FRSCC-0.5-10 samples was better than CC by 10.8%. This trend remains more or less the same on the SCC mixes created with varying levels of EW and PF. At 28 days, CC mixes show 42.24 MPa of compressive strength, which was greatly affected by the addition and replacement of ingredients in SCC. From the trends in the graph (Figure 4), the initial addition of optimum RCA content reduces the 28-day compressive strength by 1.09%, whereas replacement of EW and addition of PF creates better bonding between the ingredients of concrete (Supplementary Figure S2). For 5% and 10% replacement of fine aggregate with EW with zero fibre content, this is 3.98% and 10.77% higher than the CC mixes at 28 days. However, a further increase in replacement of EW (15% and 20%) leads to a negative impact on the strength properties, which shows 6.61% and 2.60% higher strength values than the CC mixes. A similar trend was observed in split tensile and flexural strength properties of FRSCC mixes created with varying percentages of EW and PF with optimum RCA content. Both SCC and FRSCC have the ability to move and settle without external vibration and have a high degree of workability, making them easy to pour and shape into complex forms. However, FRSCC offers an added advantage in terms of mechanical strength and resistance to cracking due to the inclusion of fibres in the mix. Hence, it is concluded that based on the strength properties at all ages of curing, 10% replacement of crushed e-waste was considered the optimum value of replacement for a constant percentage of replacement with RCA.

The initial strength gain of mixes with a 0.5% addition of polypropylene fibre was higher when compared with the other mixes. The enhancement of strength properties at all ages of curing is due to the pozzolanic action of fly ash and earlier formation of calcium silicate hydrates. Fly ash is a siliceous argillaceous material with 59.02% SiO₂ and 27.94% Al₂O₃. For a successful addition of fly ash to meet self-compacting ability criteria, we need it in the mix in a specific quantity. According to Gebretsadik, Belayhun et al. (2021) [35], ultrasonic pulse velocity (UPV) and resonance frequency (RF) measurements are used to evaluate the mechanical properties of FRC, especially for steel fibres. The study concluded that these non-destructive techniques can be useful for optimising the design of steel FRC systems, as well as for quality control and in situ monitoring of steel FRC structures [35].

In light of the test results, it is concluded that better results and yielded stability were observed when 10% EW replaces the fine aggregate in concrete, irrespective of the fibre concentration [36]. It is also observed that the target strength was achieved in all SCC mixes created with varying levels of EW and fibre content. After a 10% replacement level of EW, segregation occurs, causing a rapid decrease in strength [37]. According to Dhanraj et al. (2017) [38], EW is replaced with fine aggregate in concrete in order to reduce the weight and it can offer fine strength along with durability just as conventional concrete. Moreover, the inferred results indicate that the EW performs better, and can be used as a substitute for the fine aggregate portion of conventional concrete [15]. It is also observed that an addition of 0.5% PF enhances the strength of concrete by 10.8% compared to the the conventional mixes made without RCA, EW, and PF [39,40]. Likewise, the other strength properties, such as split tensile and flexural strengths, express the behaviour in the same way as compressive strength. Hence, it is concluded that the optimum amount of ingredients for FRSCC is 60% of RCA, 10% EW and 0.5% of PF, which pertains to the experimental investigations.

4. Statistical Models

A two-level statistical experiment was exclusively designed to assess the impact of two diverse levels for each variable on the pertinent properties of SCC. Using a two-step factorial approach, we tested each variable a minimum number of times. In this study, three key parameters (RCA, EW, PF) have been described, and test trials were created. Since the expected response does not vary linearly with the selected variable, and to allow quantification of the prediction of responses, central composite design (CCD) was chosen, where the response could be modelled linearly, interactively, fully, and quadratic [41,42]. The CCD model is an integral part of response surface methodology. CCD optimisation models have two prime advantage: they more accurate and do not require a three-level factorial experiment for building a 2nd-order quadratic model [43].

In light of the increasing error in response prediction, as the distance is increased from the centre of the modelled area, it is prudent to limit the practice of models to a range that is limited by values corresponding to limits (−α to +α). The parameters are carefully calibrated to achieve a CCD in which the effect of each factor has been carefully assessed at three diverse levels in coded values of −α, 0, +α. The strength of FRSCC at 28 days was given Equation (1), which is a full quadratic model [44,45].

CS = C₀ + C₁A + C₂B + C₃C + C₄AB + C₅AC + C₆BC + C₇A² + C₈B² + C₉C²

(1)

where C₀ to C₉ are regression coefficients, A, B, and C indicate independent variables which are considered input factors, and CS indicates dependent variables which are considered as output response.

The study was conducted according to the CCD to predict the coded values of the design range of input parameters (see

Table 10. Coded values of design range of input parameters.

Factor	Name	Limits		Mean	Std. Dev.	Coded Values
		Min.	Max.			−α	−1	0	1	+α
A	RCA (%)	20	100	60	29.02	20	40	60	80	100
B	EW (%)	0	20	10	7.25	0	5	10	15	20
C	PF (%)	0	1	0.5	0.363	0	0.25	0.5	0.75	1
R1	CS—28th day (MPa)	35.72	47.58	42.41	75.33	35.72	39.07	42.41	45	47.58

), and the points were measured conferring to the design matrix; responses are shown in

Table 11. Design matrix and responses.

Std	Run	Input Factors			Output Response
		A: RCA Replacement (%)	B: EW Replacement (%)	C: Fibre Addition (%)	R1: CS @ 28th Day (MPa)
1	19	20	0	0	41.33
2	16	100	0	0	37.37
3	15	20	20	0	41.24
4	8	100	20	0	35.72
5	17	20	0	1	38.69
6	3	100	0	1	39.15
7	10	20	20	1	40.38
8	13	100	20	1	38.26
9	6	20	10	0.5	42.79
10	5	100	10	0.5	40.82
11	1	60	0	0.5	42.96
12	4	60	20	0.5	42.30
13	9	60	10	0	41.78
14	14	60	10	1	43.34
15	20	60	10	0.5	46.79
16	11	60	10	0.5	47.58
17	7	60	10	0.5	46.81
18	18	60	10	0.5	46.52
19	2	60	10	0.5	47.33
20	12	60	10	0.5	46.95

. Responses were expressed using a polynomial equation as a function of the independent variables of the three parameters in Equation (1).

Khayat et al. (2000) carried out a CCD model with five factors: w/c ratio, cement, viscosity modifier dosage, superplasticizer dosage, the volume of fine and coarse aggregate content varied. Concrete properties at 7 and 28 days were examined for fresh and hardened concrete [46].

As a result of the ANOVA for the quadratic model used in the CCD, the model’s F-value and p-value are 14.52 and less than 0.05 implies that the model is significant. In this case, A, B, C, A², B², and C² are significant model terms. p-Values greater than 0.10 specify that the model terms are not significant [47]. If there are many insignificant model terms, the model reduction will expand the model. The predicted R² of 0.6866 is a sensible agreement with the adjusted R² of 0.8649, i.e., the variance is less than 0.2. Model precision measures the signal-to-noise ratio [

Table 12. Summary of statistical model using CCD.

Response	Standard Deviation			Regression Equation
	Predicted	Adjusted	Final	Coded Factors	Actual Factors
CS @ 28th day (MPa)	0.6866	0.8649	0.9289	+46.12 − 1.31A − 0.16B + 0.238C − 0.5175AB + 0.9775AC + 0.3175BC − 3A2 − 2.18B2 − 2.25C2	+37.83 + 0.181A + 0.466B + 5.905C − 0.0013AB + 0.0489AC + 0.0635BC − 0.0019A2 − 0.0218B2 − 8.996C2

]. A ratio greater than 4 is desirable in CCD, whereas the model shows 11.626, which is an adequate signal [48].

When the equation is written as a coded factor, it can be used to predict the response at certain levels of each factor. By default, the high and low levels of the factors are coded as +1 and −1, respectively. To categorize the comparative impact of factors over the factor coefficients, coded equations are used. The equation in terms of actual factors offers an indication about the response for given levels of each factor.

By comparing the predicted results with the actual results in

Table 13. Comparison of predicted vs. actual results.

Input Factors			Output Response (CS) (MPa)
A: RCA (%)	B: EW (%)	C: PF (%)	Actual (A)	Predicted (P)	A/P
20	0	0	41.33	40.69	0.98
100	0	0	37.37	36.93	0.99
20	20	0	41.24	40.77	0.99
100	20	0	35.72	34.93	0.98
20	0	1	38.69	38.58	1.00
100	0	1	39.15	38.73	0.99
20	20	1	40.38	39.93	0.99
100	20	1	38.26	38.00	0.99
20	10	0.5	42.79	44.42	1.04
100	10	0.5	40.82	41.58	1.02
60	0	0.5	42.96	44.02	1.02
60	20	0.5	42.3	43.70	1.03
60	10	0	41.78	43.55	1.04
60	10	1	43.34	44.03	1.02
60	10	0.5	46.79	46.04	0.98
60	10	0.5	47.58	46.04	0.97
60	10	0.5	46.81	46.04	0.98
60	10	0.5	46.52	46.04	0.99
60	10	0.5	47.33	46.04	0.97
60	10	0.5	46.95	46.04	0.98
Mean					1.00
Standard deviation					0.0224

and analysing the data in Figure 5, it is possible to evaluate the accuracy of the proposed model or equation. The close correlation between the predicted and actual values suggests that the model has a strong relationship with the underlying data. This indicates that the proposed regression equation is a reliable representation of the relationships in the data. The contour and response surface plots are drawn against the input parameters such as RCA, EW, and PF content. They are useful to determine the optimum parameter responses and visualising the results of parameters in the statistical model so they can be better comprehended. The obtained plots are shown in the following figures that indicates the lowest compression strength are indicated in dark blue color, translation state from low to medium was indicated in light blue, green color indicates the medium compressive strength and peak compressive strength are indicates in red color.

The optimisation analysis was carried out using the developed mathematical regression model in order to obtain the optimal composition of RCA, EW and PF by considering the 28 days’ strength which is dependent on input variables. Table 13 summarizes the optimum solutions determined by the software according to the set of optimisation criteria. From Figure 6, the best solution of all the optimum solutions referred to the case of achieving the desired compressive strength at 28 days. While considering all three input factors, the desirability of achieving the target strength was merely close to 1. Based on the response surface plots and contour plots, the constituents of FRSCC were optimised with a highest desirability range of 0.94, which determines that 51.35% of RCA replacement, 9.90% of EW replacement, and 0.503% of PF addition exhibits improved results compared to the optimum results obtained from the experimental investigation. The optimised results obtained from CCD were experimentally validated again and shown in

Table 14. Experimental validation.

Input Parameters	Optimised Values	Output Response
		Predicted (P)	Experimental (E)	P/E
RCA	51.35	46.27	47.02	0.98
EW	9.90
PF	0.503

.

It is observed that the predicted results are well-correlated with the experimental results and provide a stronger validation of (P/E) = 1 ± 0.1 in compressive strength of FRSCC.

Overall, statistical analysis has several benefits compared to experimental analysis. One advantage is that it tends to be quicker and more cost-effective, and it can be used to analyse large amounts of data. Additionally, statistical analysis can be applied to data from a variety of sources, including observations and naturalistic settings, while experimental analysis may have ethical limitations or require controlled conditions.

5. Durability Studies on FRSCC

Irrespective of strength properties, it is essential to understand the behaviour of FRSCC under stimulated aggressive environments such as acid and sulphate exposure. A compressive strength test was conducted on specimens which are directly exposed to chemicals. There are several factors which decide the durability characteristics of concrete, such as mix design, quality of materials and workmanship, curing conditions, etc. After the prescribed period of curing, the specimens were immersed in chemical solutions for a period of 28 and 90 days. Borrero, Edgar et al. (2021) [49] investigated the effect of different curing regimes (such as wet curing, ambient and laboratory curing, moist and dry curing) on the durability and mechanical properties of concrete. They found that proper curing is an essential factor which can influence the strength and durability properties. They also found that the type of curing had a significant impact on the frost resistance and chloride penetration of the concrete specimens, and concluded that the wet-oven-curing regime resulted in the highest compressive strength and durability compared to other curing conditions [49].

5.1. Acid Attack Test

Acid attack test was conducted on specimens which are created with experimentally and statistically optimised ingredients and the results were compared with the behaviour of conventional concrete mixes; the test was carried out as per the guidelines mentioned in ASTM C642. Two different acidic exposures were created with the use of 2% sulphuric acid (H₂SO₄) and 2% hydrochloric acid (HCl) solutions [40]. The weight loss and strength loss assessment were performed after the successful immersion of specimens inside the solution. The observed results were tabulated in

Table 15. Acid attack test results.

Exposure		Immersion Period	CC	EX-OP	ST-OP
H2SO4	Weight (kg)	0th Day	8.14	7.87	7.75
	Weight Loss (%)	28th day	6.24	5.91	5.86
		90th Day	13.87	11.22	10.54
	Strength (MPa)	0th Day	42.24	46.79	47.02
	Strength Loss (%)	28th day	6.31	5.94	5.73
		90th Day	12.75	11.59	11.31
HCl	Weight (kg)	0th Day	8.14	7.87	7.75
	Weight Loss (%)	28th day	4.37	3.91	3.80
		90th Day	7.90	7.56	7.32
	Strength (MPa)	0th Day	42.24	46.79	47.02
	Strength Loss (%)	28th day	5.50	5.18	5.04
		90th Day	10.11	9.87	9.81

EX-OP—experimentally optimised; ST-OP—statistically optimised.

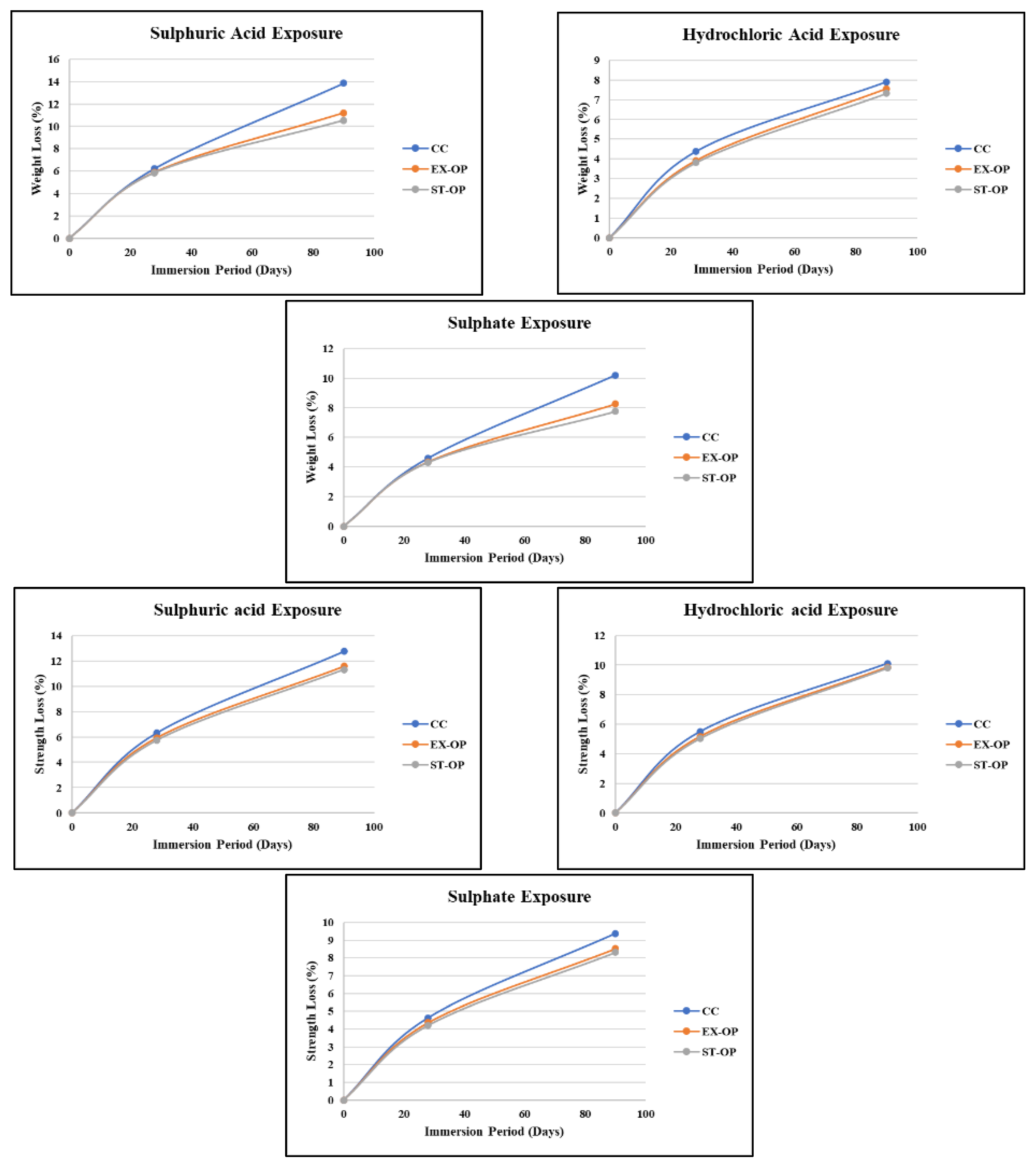

and illustrated in Figure 7.

It is observed that the specimens created with ST-OP show better results against the acidic exposure when compared with the CC mixes. ST-OP shows a weight loss of 5.86% and 10.54% from the CC mixes for a period of 28 and 90 days of immersion in a sulphuric acid solution. On the other hand, EX-OP shows 5.91% and 11.22% from the CC mixes, which explains that the specimens created with both statistically and experimentally optimised produce excellent resistance against acidic exposure. Comparatively, more or less same strength loss was observed in both specimens with a standard deviation of ±0.18%. A similar trend was observed in specimens immersed in a HCl solution. ST-OP shows a weight loss of 3.91% and 7.56% from the CC mixes for a period of 28 and 90 days of immersion in a hydrochloric acid solution. In contrast, EX-OP shows 3.80% and 7.32% weight loss from the CC mixes. Strength loss values of specimens range between 0.04% and 0.1%.

The addition of fibres and replacement of fine and coarse aggregate with EW and RCA results in reduced weight loss against the acid exposure, accompanied by a reduced production of reaction compounds during the deterioration process. Primary compounds produced during the hydration process, resulting in the formation of secondary ettringite and calcium silicate hydrate gel, refined the pore structure, reduced the larger capillary pores to smaller ones and ultimately blocked these pores, playing a key role in resistance of the concrete to the ingression of harmful chemicals [40,50].

5.2. Sulphate Attack Test

A sulphate attack test was conducted on specimens which were created with experimentally and statistically optimised ingredients and the results were compared with the behaviour of conventional concrete mixes; the test was carried out as per the guidelines mentioned in ASTM C642. Sulphate solutions were created with the help of 2% sodium thiosulphate (Na₂SO₄). The weight loss and strength loss assessment were performed after the successful immersion of specimens inside the solution. The observed results were tabulated in

Table 16. Acid attack test results.

Exposure		Immersion Period	CC	EX-OP	ST-OP
Na2SO4	Weight (kg)	0th Day	8.14	7.87	7.75
	Weight Loss (%)	28th day	4.59	4.35	4.31
		90th Day	10.20	8.26	7.75
	Strength (MPa)	0th Day	42.24	46.79	47.02
	Strength Loss (%)	28th day	4.64	4.37	4.22
		90th Day	9.38	8.53	8.32

and illustrated in Figure 7.

Similarly to acidic exposure, a similar behaviour was exerted by the FRSCC specimens created with EX-OP and ST-OP ingredients against sulphate exposure. ST-OP shows a weight loss of 4.31% and 7.75% from the CC mixes for a period of 28 and 90 days of immersion in sulphate solution. In contrast, EX-OP shows values of 4.35% and 8.26% weight loss from the CC mixes. More or less the same strength loss was observed in both specimens with a standard deviation of ±0.14%. The intrusion of sulphate ions for a longer period reduces the surface capillary pores, which will result in comparatively reduced strength loss [51].

According to Figure 7, it appears that concrete mixes containing zero RCA, EW and PF (CC mixes) experience significant weight loss and reduced 28-day strength. However, when optimised ingredients are used, the strength and weight loss of the resulting concrete is significantly improved. It is believed that the use of these optimised ingredients enhances the strength and performance of the concrete by increasing the formation of calcium silicate hydrates, which helps to reduce the surface pores and decrease the infiltration of acids and sulphates. This leads to improved concrete performance.

6. Conclusions

The following are the conclusions inferred from the experimental investigation and statistical analysis performed on optimising the ingredients of FRSCC with fine aggregate replaced with EW, along with coarse aggregate replaced with RCA and polypropylene fibres.

• Recycling and waste materials can be used to make SCC mixes without compromising their self-compacting ability properties such as flowability, passing ability, segregation resistance and viscosity.
• Full replacement of coarse aggregate with RCA shows better results on workability properties than the concrete mixes devised with low or zero levels of RCA.
• Addition of fibres into the SCC mixes is also possible without compromising the self-compacting ability nature of concrete.
• At 28 days of curing, the compressive strength of the conventional concrete decreased by 2.2%, 4.5%, 6.6%, 9.7%, and 11.5% when the replacement of recycled concrete aggregate (RCA) content increased from 20% to 100% at intervals of 20%.
• FRSCC-0.5-10 with a constant percentage of RCA reaches a compressive strength of 30.14 MPa in 7 days, whereas it reaches 41.82 MPa and 46.79 MPa at 14 days and 28 days, respectively. The optimum percentages of e-waste, recycled aggregate, and synthetic fibres are 10%, 60%, and 0.5%, respectively, considering the target strength into account.
• One of the advantages of implementing the RSM models in the prediction analysis is that the obtained models are experimentally validated and the interaction between the input and output variables can be determined within a short duration.
• Full quadratic models are capable of determining how constituent materials affect the properties of SCC in CCD.
• The CCD model is suitable in exhibiting a smaller amount of fir loss when compared to the other models with an R² value of 0.929 for the compressive strength of FRSCC.
• Based on the CCD by RSM, the optimum percentages of e-waste, recycled aggregate, and synthetic fibres are 9.90%, 51.35%, and 0.503%, respectively, which shows 47.02 MPa strength at 28 days. It is also observed that predicted results are well correlated with the experimental results and provide a stronger validation of (P/E) = 1 ± 0.05 in compressive strength of FRSCC.
• ST-OP specimens show better results against the acidic exposure when compared with the CC mixes, as they show a weight loss of 5.86% and 10.54% from the CC mixes for a period of 28 and 90 days of immersion in a sulphuric acid solution. On the other hand, EX-OP shows 5.91% and 11.22% from the CC mixes, which explains that the specimens created with both statistically and experimentally optimised methods produce excellent resistance against acidic exposure.
• ST-OP shows a weight loss of 3.91% and 7.56% from the CC mixes for a period of 28 and 90 days of immersion in a hydrochloric acid solution. However, EX-OP shows 3.80% and 7.32% from the CC mixes.
• ST-OP shows a weight loss of 4.31% and 7.75% from the CC mixes for a period of 28 and 90 days of immersion in a sulphate solution. On the other hand, EX-OP shows 4.35% and 8.26% from the CC mixes.

Shortcomings and Recommendations for Future Work

It has been observed that there are several potential drawbacks in using fibre-reinforced self-compacting concrete (FRSCC) with varying percentages of recycled concrete aggregate (RCA), e-waste (EW), and polypropylene fibres (PF). One of the main challenges is the difficulty in the placing and finishing of fibrous elements in the SCC mixes due to their thixotropic nature and reduced fluidity, which can increase the cost of production. Additionally, FRSCC may not be suitable for certain applications or structures, limiting its design options.

There are various directions for future research on fibre-reinforced self-compacting concrete (FRSCC). One important aspect to consider is the long-term performance of FRSCC, including its durability, corrosion resistance, thermal resistance, and aging behaviour. Additionally, further investigation is needed to identify the optimal types and amounts of fibres to use in order to achieve the desired mechanical properties and performance.
