Influence of Chemical Grafting Method on the Performance of SiO2 Nanocomposite Pour Point Depressant

by
ZhengNan Sun
,
Biao Yan
,
GuoLin Jing
*,
YiHai Yang
,
HongJing Li
and
FuNing Zhang
Provincial Key Laboratory of Oil & Gas Chemical Technology, College of Chemistry & Chemical Engineering, Northeast Petroleum University, Daqing 163318, China
*
Author to whom correspondence should be addressed.
Processes 2023, 11(4), 1159; https://doi.org/10.3390/pr11041159
Submission received: 20 February 2023 / Revised: 29 March 2023 / Accepted: 7 April 2023 / Published: 10 April 2023
Browse Figures
Versions Notes

Abstract

:
Differences in the synthesis methods can affect the performance of nanocomposite materials. The synthesis methods of SiO2-based nanocomposite pour point depressants synthesized by chemical hybrid are mostly in situ polymerization and chemical grafting. However, there are still some gaps in the synthesis of nanocomposites using chemical grafting. In this paper, the amino-modified Nano-SiO2 and octamethyl methacrylate-maleic anhydride copolymer was used to prepare PM18-g-NSiO2 by an amidation reaction, and the product was compared with PM18/SiO2 prepared by the solution blending method. The characterization results of FT-IR and SEM showed that the chemical bond formed between PM18 and NSiO2 and PM18-g-NSiO2 showed a more regular morphology structure. The results of rheological tests showed that the optimal concentration of PM18-g-NSiO2 and PM18/SiO2 is 300 mg·kg−1, but the decrease of PM18-g-NSiO2 is 19 °C, while the decrease of PM18/SiO2 is only 13 °C. The lowest viscosity of model oil added PM18-g-NSiO2 was only 214 mPa·s while PM18/SiO2 reached 453 mPa·s. The wax crystal structure after adding PM18-g-NSiO2 is also more regular and smaller compared to PM18/SiO2. We concluded that differences in the synthesis methods may lead to the different coverage of the polymer on the surface of the nanoparticle.

Graphical Abstract

1. Introduction

Unconventional crude oil occupies an important proportion of crude oil production. As a kind of unconventional crude oil, the significance of waxy crude oil in production and life is also obvious [1]. In order to solve the problem that wax crystals are easy to precipitate, connect and deposit at low temperatures due to the high paraffin content of waxy crude oil, which leads to economic losses and serious safety risks [2,3], the chemical reagent method has gradually become the focus of research due to its advantages of low cost and high efficiency. Pour point depressant (PPD) is a commonly used chemical reagent [4,5]. Polymethacrylate [6,7] is a typical comb-like polymer PPD. Because of its long side chain alkyl structure, it is easy to crystallize with wax and has an excellent effect of pour point reduction and the function of shear resistance. However, the complexity of crude oil composition leads to the selectivity of polymer PPDs for crude oil, which means single polymer PPDs cannot satisfy the needs of various types of crude oil [8]. For this problem, the common modification method is to introduce new monomers [9,10,11] or perform nanohybridization [12,13,14].
Because it is cheap and easy to obtain and has stable properties as well, Nano-SiO2 is widely used to modify polymer PPDs. The synthesis methods of nanocomposite pour point depressants (NPPDs) can be divided into the physical blending method (solvent blending method [15], melt blending method [16]) and chemical hybrid method (chemical grafting method [17], in-situ polymerization method [18]). Yao et al. [19,20] found that different physical mixing methods can lead to different sizes of modified nanoclay/POA nanocomposites, which affects the dispersity in crude oil. Yang’s research group [21,22] also found that the melt blending method enhanced the interaction between polymer and nanoparticles, thus promoting the adsorption of polymer and further enhancing the nucleation of EVA. These results all indicate that the different synthesis methods of the nanocomposite particles can affect the properties of the nanocomposite materials.
The nanocomposites synthesized by SiO2 are mainly prepared by the physical blending method [23,24,25], but the physical blending method is faced with the problem of poor compatibility between the nanoparticles and polymer. Norrman [26] and Yang [27] et al. showed that when the POA/SiO2 NPPD was formed by solution blending, POA was adsorbed to the surface of nanosilica by mono-layer adsorption, and the coverage of POA was an important factor affecting the performance of NPPDs. However, for long-distance pipeline transportation, POA is easy to desorb from the nanosilica surface, thus reducing the properties of nanocomposites. In order to improve dispersion and stability, NPPDs synthesized by the chemical hybridization method mainly use carbon-carbon double bonds for in-situ polymerization [28]. However, there are still some problems with complex processes, requiring additional reagents and low yield. Compared with in-situ polymerization, the chemical grafting method provides a new approach for the industrialized production of high-performance nanocomposite pour point depressants due to its mild synthesis conditions and simple operation. Liu [17] used the esterification reaction to branch GO with EVAL. The results showed that EVAL-GO had good oil dispersion and compatibility with organic solvents. EVAL-GO has a better effect than EVAL on the waxy crude oil and significantly improves the low-temperature fluidity of Daqing waxy crude oil. Due to the low price of nano-silica, it has potential market value to study the preparation of high-performance silica nanocomposite pour point depressants by the chemical grafting method.
So, in order to obtain a simpler and more rapid method of preparing polymethacrylate/nano-SiO2 NPPDs, polymethacrylate/nanosilica NPPDs were prepared by an amidation reaction for chemical grafting. By co-polymerizing MAH and methacrylate high carbon alcohol esters, a certain amount of anhydride group is introduced in the methacrylate polymer and then reacted with amino-modified nano-silica to obtain the desired product. At the same time, this paper compared the nanoparticles synthesized by the solution blending method with the chemical grafting method. By comparing with the NPPDs prepared by the traditional solution blending method, we found that the nanocomposite particles synthesized by the grafting method show better oil dispersion and stability, and their effect is also more excellent, which further proves that the different synthesis methods of NPPDs will affect the performance of NPPDs.

2. Materials and Methods

2.1. Materials

Nanosilica (average particle size 30 nm), Octadecyl methacrylate (AR), 3-Aminopropyl triethoxysilane (KH550) (AR), dodecane (AR), maleic anhydride (AR) and Dibenzoyl peroxide (BPO) (CP) were purchased from Shanghai Aladdin Bio-Chem Technology Co., Ltd. (Shanghai, China). Ethanol (AR) was purchased from Shenyang Huadong Reagent Factory (Shenyang, China). Toluene (AR) was purchased from Tianjin Damao Chemical Reagent Factory (Tianjin, China). -35# diesel was obtained by PetroChina Co., Ltd. (Beijing, China). 59# paraffin was supplied by Daqing Petrochemical Company (Daqing, China).

2.2. Sample Prepartiom

2.2.1. Preparation of Octadecyl Methacrylate/Maleic Anhydride Copolymer (PM18)

The reaction used toluene as a solvent, and BPO as an initiator. PM18 was prepared from Octetanyl methacrylate and maleic anhydride (where the molar ratio between Octetanyl methacrylate and maleic anhydride is 6:1) in a three-neck flask. The reaction continued for 6 h at 80 °C. Finally, the products were washed several times with cold methanol solution. PM18 was obtained after the solid was vacuum-dried [29].

2.2.2. Preparation of PM18/SiO2 Nanocomposite Pour Point Depressant

PM18 was added into toluene, stirring with ultrasound at 60 °C until PM18 was completely dissolved. SiO2 whose mass is equaled to PM18 was added into the solution, stirring with ultrasound for 3 h at 80 °C. Finally, PM18/SiO2 NPPDs were separated by vacuum distillation.

2.2.3. Preparation of Amino Modified Nanosilica

Amminated NanoSilica was modified with silane coupling agent KH550 via grafting the amino group onto the surface of Nano-SiO2. The reaction steps are as follows: KH550 whose weight is 5 wt% of Nano-SiO2 was added into a three port flask containing ethanol aqueous solution (where the mass ratio between ethanol and water is 9:1), and stirred at 30 °C for 1.5 h. Then nano-SiO2 was added to the above solution. After ultrasonic stirring for 0.5 h, the mixture was heated to 75 °C and then refluxed for 3 h. The finished solution was separated by centrifugation to obtain the product. The solid was washed using ethanol and deionized water 2~3 times, respectively, and then dried in a vacuum at 50 °C for 12 h to obtain amino modified SiO2. After grinding, the amino modified nano SiO2 was labeled as NSiO2. The modification mechanism is shown in Scheme 1.

2.2.4. Preparation of PM18-g-NSiO2 Nanocomposite Pour Point Depressant

PM18 was weighed and added into toluene, stirring it with ultrasound at 60 °C until PM18 was completely dissolved, then NSiO2 whose mass is the same as PM18 was added into the solution, stirring it with ultrasound for 3 h at 90 °C. The product was separated by vacuum distillation and washed several times with a methanol solution to obtain PM18-g-NSiO2 NPPD. The specific synthesis mechanism is shown in Scheme 2.

2.2.5. Preparation of Waxy Model Oil

-35# diesel oil was used as solvent oil. A certain amount of 58# paraffin section was added to -35# diesel oil (the mass ratio between 58# paraffin and -35# diesel oil is 3:17), then stirred at 70 °C for 2 h to mix paraffin components and diesel oil. After that, the mixture was cool to room temperature.

2.3. Characterization

2.3.1. Nanocomposite Pour Point Depressant Properties Characterization

The NPPDs were analyzed by Fourier transform infrared (FT-IR) spectrometry (TENSOR27, Bruker, Germany), Scanning Electron microscopy (SEM) analysis (Σ IGMA scanning electron microscope, Zeiss, Jena, Germany).

2.3.2. Model Oil Properties Characterization

Pour Point Test

The pour point of the model oil before and after dosing was measured using the Chinese petroleum and natural gas industry standard SY/T 0541-94 [30]. First, the model oil is kept constant for 1 h in a water bath at 60 °C. Then a certain quality of model oil and PPD were mixed and stirred evenly at 60 °C for 0.5 h. The sample was put into the pour point measuring device and was cooled at the cooling rate of 0.5 °C/min. When the temperature reached 50 °C, the measuring tube was taken out and tilted 45° after each 2 °C temperature drop. When the sample temperature was close to the estimated pour point, the above steps were repeated after each 1 °C temperature drop. When the measuring tube is tilted for 5 s, and the oil sample remains stationary, the temperature can be recorded as the pour point of the sample. For each sample, the test was repeated three times.

Viscosity Curves Test

The rheological properties of model oil without and after the addition of the agent were measured by Brookfield rotational viscometer (DV-II+Pro) equipped with a heating/cooling system. First, the model oil was kept for 1 h in a water bath at 60 °C. Model oil and PPD were mixed and stirred evenly at 60 °C for 0.5 h. The sample was put into the measuring device while cutting for 5 min at a constant shear rate of 20 S−1. The apparent viscosity was measured from 60 °C to 20 °C at a cooling rate of 0.5 °C/min.

Polarized Optical Microscopy (POM)

The results of POM can effectively observe the morphological changes of wax crystals before and after adding PPDs [31]. A polarizing microscope fitted with an IMc5 camera (Zeiss, Germany) was used to test the model oil. The model oil which had been heated for 1 h at 60 °C was stirred for 0.5 h at 60 °C each time after adding agents. The sample was put into the sample table and cooled to 15 °C at a cooling rate of 0.5 °C/min for observation. The same steps were finished after treating PPDs.

3. Results

3.1. Characterization Analysis

3.1.1. FT-IR Analysis

The FT-IR spectra of PM18, PM18/SiO2 and PM18-g-NSiO2 are shown in Figure 1. According to the FT-IR spectrum of PM18, the stretching vibration peaks of C-H provided by octadecyl methacrylate are at 2847 cm−1 and 2924 cm−1. The C=O stretching vibration peak of octadecyl methacrylate is at 1730 cm−1, and the C=O and C-O-C stretching vibration peaks of maleic anhydride are at 950 cm−1 and 1780 cm−1. The above absorption peaks show that the product is the target product. As shown in Figure 1b–d, SiO2, PM18/SiO2 and PM18-g-NSiO2 display Si-O-Si bending and stretching vibration peaks at 800 cm−1 and 1096 cm−1. Both PM18/SiO2 and PM18-g-NSiO2 have the characteristic absorption peaks of PM18 at 1730 cm−1, 2847 cm−1 and 2924 cm−1 [32]. These results combined with the results of SEM indicated that PM18 had been successfully covered on the surface of nano silica. Compared with Figure 1c,d, PM18-g-NSiO2 displays a new characteristic absorption peak belonging to amide N-C=O that appeared at 1640 cm−1, indicating that the NSiO2 surface formed a chemical bond with PM18 in PM18-g-NSiO2 [33].

3.1.2. SEM Analysis

The SEM picture of the NPPD dispersed in dodecane solvent after 48 h is shown in Figure 2. It can be seen from Figure 2A that the unmodified nano silica agglomerated seriously because the surface energy of nano silica is large, and the surface of nano silica is rich in active hydroxyl groups, which can be bonded to each other through hydrogen bonding. As shown in Figure 2B,C, when a certain amount of PM18 is coated on the surface of nanosilica, the size of nanosilica increases while the surface energy decreases, and the agglomeration of nanoparticles is improved [34]. It is worth noting that comparing the morphology of PM18/SiO2 and PM18-g-NSiO2, the morphology of PM18-g-NSiO2 is more regular, and the particle size is larger and the dispersion is more uniform. Combined with the result of FT-IR that PM18 did not form a chemical bond with unmodified SiO2 and the conclusion of monolayer adsorption by Jing [23] and Norrman [26], we may suppose that the nanosilica in PM18/SiO2 prepared by physical adsorption alone has poor compatibility with PM18. When PM18/SiO2 is dispersed in dodecane solvent for a period of time, part of PM18 will be desorbed from the surface of the nanosilica, reducing the stability of PM18/SiO2 in organic solvents and causing the agglomeration of nanocomposites; In PM18-g-NSiO2, because of the stable chemical bond formed between the surface of nano silica and PM18, PM18 is firmly wrapped on the surface of the nanosilica, which improves the stability of PM18-g-NSiO2 in organic solvents.

3.2. Effect Evaluation of Nano-SiO2 PPD Synthesized by Different Method on Model Oil

3.2.1. Pour Point

The pour point change of 15 wt% wax-containing model oil after adding different kinds and doses of PPDs is shown in Figure 3. With the increase in PPD dose, the pour point of model oil shows a trend of decreasing first and then increasing. At the same time, compared with the traditional methacrylate PPD PM18, the optimal dosage of NPPD is significantly reduced, and all NPPDs show a better effect on decreasing the pour point. The best pour point depressing performance is obtained with a 300 mg·kg−1 dosage of PM18/SiO2 and PM18-g-NSiO2, in which the pour point drops from 30 °C to 17 °C and 11 °C, respectively. At the same time, compared with the same dosage of PM18/SiO2, PM18-g-NSiO2 can further improve the low-temperature fluidity of oil. This is because the coverage of polymer on the surface of nanoparticles is the key factor to determine the effect of NPPD. Compared with simple physical adsorption, making the surface of nanoparticles form a stable chemical bond with polymer through grafting can effectively improve the stability of polymer on the surface of nanoparticles, prevent polymer shedding from the surface of nanoparticles, and effectively improve the effect of NPPD.

3.2.2. Rheology Properties

The viscosity curves of the model oil before and after adding different doses of PM18-g-NSiO2 are presented in Figure 4 while the viscosity of model oil with different additives is presented in Figure 5.
In Figure 4, adding a spot of PM18-g-NSiO2 can significantly reduce the low-temperature viscosity of model oil. With the increase in PM18-g-NSiO2 dosages, the trend of the viscosity of the model oil system first decreases and then increases. When adding 200 mg·kg−1, 300 mg·kg−1, and 500 mg·kg−1, the viscosity of the model oil at 20 °C is 573 MPa·s, 214 MPa·s and 259 MPa·s, respectively. The above results may be related to the fact that PM18-g-NSiO2 can provide the nucleation site, and will promote wax crystallization and change the wax crystal structure [35]. With the increase in the dose of PM18-g-NSiO2, the NPPD will induce the formation of more and smaller wax crystals. Although the smaller size has weaker structural strength at lower temperatures and is easier to be destroyed, with a further decrease in temperature the excessive wax crystals form a three-dimensional network structure with a stronger structure, resulting in the viscosity of the oil increasing and the fluidity becoming poor.
In Figure 5, it is shown that the viscosity of the model oil adding PM18 is lower in a certain temperature range below WAT, compared with the model oil containing any NPPD. However, Compared with PM18, the overall viscosity of the system with NPPDs changed gently, and NPPDs can effectively promote the flow of oil samples at low temperatures. At 20 °C, the model oil viscosity of the three kinds of PPD are 1217 mPa·s, 453 mPa·s, 214 mPa·s, respectively. This result is consistent with the experimental result in Figure 3 to a certain extent. This is because NPPDs dispersed in the model oil system are more likely to interact with wax crystals and act as crystal nuclei to promote wax crystallization resulting in more small wax crystals being formed in the model oil [36]. The smaller wax crystals are more likely to inhibit the flow of the model oil, exhibiting a higher viscosity than the model oil with PM18. At the same time, it would be easier to destroy at lower temperatures. Therefore, the model oil system with NPPDs added has better fluidity at low temperatures.
It is worth noting that PM18-g-NSiO2 can further improve the low-temperature fluidity of oil samples compared with PM18/SiO2 prepared by conventional physical adsorption. Compared with the model oil system with PM18/SiO2 at 20 °C, the viscosity of model oil with PM18-g-NSiO2 is further reduced by 52.8%. These results show that the grafting method can effectively improve the stability of polymer on the surface of nanosilica, inhibit the desorption of polymer from the surface of silicon dioxide to maintain stable polymer coverage and improve the effect of the nanocomposite pour-point depressant.

3.2.3. Microscopic Study

In order to further analyze the action mechanism between NPPD and model oil, the changes in wax crystal morphology and structure in model oil before and after adding agents were studied using a polarizing microscope [37,38]. The results are shown in Figure 6. It can be seen that the shape, size and quantity of wax crystals are different in the model oil before and after adding different kinds of PPDs. Wax crystal morphology in pure model oil shows large flake growth, and the NPPD can change the wax crystal morphology, reduce the size of the wax crystal and disperse the wax crystal by interacting with the wax crystal through heterogeneous nucleation. As shown in Figure 6c,d, after adding PM18/SiO2 and PM18-g-NSiO2, the wax crystal morphology in the model oil changed from a large irregular crystal shape to an irregular small block structure and regular elliptical structure, indicating that the heterogeneous nucleation effect of PM18-g-NSiO2 is significantly enhanced compared with PM18/SiO2. This is because, in the PM18/SiO2 NPPDs, there is no chemical bond between PM18 and the SiO2, and only physical adsorption in action, which lead to the poor compatibility between PM18 and SiO2. As a result, PM18 is easy to desorb from the surface of nano SiO2, and the stability of PM18/SiO2 in the waxy oil is poor. At the same time, the desorbed PM18 and PM18/SiO2 have crystallization competition for wax crystals, resulting in the formation of irregular small block structures in the system. Compared with simple physical adsorption, the stable chemical bond formed between the surface of nanoparticles and polymer by the grafting method can effectively improve the stability of polymer on the surface of nanoparticles and prevent the polymer from desorbing from the surface of nanoparticles, so as to effectively improve the heterogeneous nucleation of NPPD and form the regular elliptical structure. At the same time, compared with the irregular small block structure, the regular oval structure releases more originally wrapped liquid oil, greatly reducing the wax oil interface area, and thus further improving the low-temperature fluidity of the wax-containing model oil [39].

3.3. Proposed Mechanism

Based on the above experimental results, we analyzed the mechanism of PM18-g-NSiO2 NPPD on model oil (shown in Figure 7). As shown in Figure 7, compared with simple physical adsorption, the grafting method can form a stable chemical bond between the surface of nanoparticles and polymers, and prevent the polymer from desorbing from the surface of nanoparticles, so as to effectively improve the stability of polymers on the surface of nanoparticles and enhance the dispersion of NPPDs in the oil phase. Furthermore, due to the NPPDs can provide the nucleation site of wax crystal, the guiding effect on the nucleation of wax crystal is enhanced through the long-chain molecular structure of polymer on the surface of nanoparticles and the eutectic of wax crystal [40,41]. On the other side, nanomaterials have high surface energy. In order to maintain the energy stability of the system, wax crystals in the model oil with added NPPDs tend to be more compact than those in the model oil with the same amount of pure polymer PPDs [42], so as to reduce the interface area and reduce the surface energy. In addition, the precipitated wax crystals grow evenly on the surface of the nanoparticles to form a regular morphology and structure. The compact wax crystal aggregate makes more liquid oil originally wrapped to be released [43], greatly reducing the wax oil interface area, reducing the friction dissipation energy between wax crystal and liquid crude oil when crude oil flows, further reducing the viscosity of crude oil at low temperature and further improving the fluidity.

4. Discussion

In this work, PM18-g-NSiO2 was synthesized simply and efficiently by the amidation reaction. The results of the rheological tests showed that when adding 300 mg·kg−1 PM18-g-NSiO2 and PM18/SiO2, and the pour points were reduced by 19 °C and 13 °C, respectively. The viscosity of model oil after adding PM18-g-NSiO2 at the optimal dose was only 214 mPa·s while that of added PM18/SiO2 reached 453 mPa·s. Compared with PM18/SiO2, PM18-g-NSiO2 has the best flow modification effect on the model oil, which can effectively change the wax crystal into smaller irregular block structures and regular ellipses, and the heterogeneous nucleation effect is significantly increased [44]. We concluded that different synthesis methods of nanocomposite pour-point depressant can effectively affect the coverage of polymer on the surface of nanoparticles and thus affect the effect of pour-point depressant.

Author Contributions

Conceptualization, Z.S. and G.J.; methodology, Z.S.; validation, Z.S., Y.Y. and H.L.; formal analysis, Z.S. and F.Z.; investigation, F.Z. and B.Y.; resources, G.J.; data curation, Z.S.; writing—original draft preparation, Z.S. and B.Y.; writing—review and editing, Z.S. and B.Y.; visualization, Z.S., Y.Y. and H.L.; supervision, G.J.; project administration, Z.S. and G.J.; funding acquisition, Z.S. and G.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China [52076036] and Northeast Petroleum University (No. 15071120528, 1305021861, 15041260351).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Kapustin, N.O.; Grushevenko, D.A. Global prospects of unconventional oil in the turbulent market: A long term outlook to 2040. Oil Gas Sci. Technol.—Rev. d’IFP Energ. Nouv. 2018, 73, 67. [Google Scholar] [CrossRef]
  2. Cao, J.; Liu, L.; Liu, C.; He, C. Phase transition mechanisms of paraffin in waxy crude oil in the absence and presence of pour point depressant. J. Mol. Liq. 2022, 345, 116989. [Google Scholar] [CrossRef]
  3. Ragunathan, T.; Husin, H.; Wood, C.D. Wax Formation Mechanisms, Wax Chemical Inhibitors and Factors Affecting Chemical Inhibition. Appl. Sci. 2020, 10, 479. [Google Scholar] [CrossRef] [Green Version]
  4. Olajire, A.A. Review of wax deposition in subsea oil pipeline systems and mitigation technologies in the petroleum industry. Chem. Eng. J. Adv. 2021, 6, 100104. [Google Scholar] [CrossRef]
  5. Guo, W.; Li, H.; Li, Z.; Chen, C. The effect of dynamic cooling on the flow properties of PPD-treated crude oil. Pet. Sci. Technol. 2018, 36, 1787–1793. [Google Scholar] [CrossRef]
  6. Xia, X.; Li, C.; Dai, S.; Duan, Z.; Lian, W.; Yao, B.; Sun, G.; Yang, F. Modification effect of macroporous comb-like polymeric pour point depressants on the flow behavior of model waxy oils. Fuel 2022, 314, 123113. [Google Scholar] [CrossRef]
  7. Yang, T.; Wu, J.; Yuan, M.; Li, X.; Yin, S.; Su, B.; Yan, J.; Lin, H.; Xue, Y.; Han, S. Influence of polar groups on the depressive effects of polymethacrylate polymers as cold flow improvers for diesel fuel. Fuel 2021, 290, 120035. [Google Scholar] [CrossRef]
  8. Oliveira, L.M.S.L.; Nunes, R.C.P.; Melo, I.C.; Ribeiro, Y.L.L.; Reis, L.G.; Dias, J.C.M.; Guimarães, R.C.L.; Lucas, E.F. Evaluation of the correlation between wax type and structure/behavior of the pour point depressant. Fuel Process. Technol. 2016, 149, 268–274. [Google Scholar] [CrossRef]
  9. Ren, F.; Lu, Y.; Sun, B.; Wang, C.; Yan, J.; Lin, H.; Xue, Y.; Han, S. Structure regulation and influence of comb copolymers as pour point depressants on low temperature fluidity of diesel fuel. Energy 2022, 254, 124438. [Google Scholar] [CrossRef]
  10. Sun, B.; Chen, F.; Lin, H.; Xue, Y.; Han, S. Influence of comb type terpolymers of methyl benzyl acrylate-co-hexadecene-maleic anhydride with tetradecyl pendant on cold flow properties of diesel fuel. Colloids Surf. A Physicochem. Eng. Asp. 2023, 658, 130636. [Google Scholar] [CrossRef]
  11. Yuan, M.; Li, X.; Xue, Y.; Lin, H.; Han, S. Methylcyclohexyl methacrylate–methacrylate copolymers: An effective cold flow improver for the biodiesel blends. Res. Chem. Intermed. 2022, 48, 2665–2681. [Google Scholar] [CrossRef]
  12. Jia, X.; Fu, M.; Xing, X.; Wei, L.; Song, Y.; Zhang, L.; Geng, X.; Guo, H. Submicron carbon-based hybrid nano-pour-point depressant with outstanding pour point depressant and excellent viscosity depressant. Arab. J. Chem. 2022, 15, 104157. [Google Scholar] [CrossRef]
  13. Al-Sabagh, A.M.; Betiha, M.A.; Osman, D.I.; Mahmoud, T. Synthesis and characterization of nanohybrid of poly(octadecylacrylates derivatives)/montmorillonite as pour point depressants and flow improver for waxy crude oil. J. Appl. Polym. Sci. 2019, 136, 47333. [Google Scholar] [CrossRef]
  14. Zhao, Z.-B.; Tai, L.; Zhang, D.-M.; Wang, Z.-F.; Jiang, Y. Preparation of poly (octadecyl methacrylate)/silica-(3-methacryloxypropyl trimethoxysilane)/silica multi-layer core-shell nanocomposite with thermostable hydrophobicity and good viscosity break property. Chem. Eng. J. 2017, 307, 891–896. [Google Scholar] [CrossRef]
  15. Li, N.; Mao, G.; Wu, W.; Liu, Y. Effect evaluation of ethylene vinyl acetate/nano-montmorillonite pour-point depressant on improving the flow properties of model oil. Colloids Surf. A Physicochem. Eng. Asp. 2018, 555, 296–303. [Google Scholar] [CrossRef]
  16. Huang, H.; Wang, W.; Peng, Z.; Ding, Y.; Li, K.; Li, Q.; Gong, J. The influence of nanocomposite pour point depressant on the crystallization of waxy oil. Fuel 2018, 221, 257–268. [Google Scholar] [CrossRef]
  17. Liu, Y.; Sun, Z.N.; Jing, G.L.; Liu, S.; Yang, Y.H.; Xu, J.Q. Synthesis of chemical grafting pour point depressant EVAL-GO and its effect on the rheological properties of Daqing crude oil. Fuel Process. Technol. 2021, 223, 107000. [Google Scholar] [CrossRef]
  18. Mahmoud, T.; Betiha, M.A. Poly(octadecyl acrylate-co-vinyl neodecanoate)/Oleic Acid-Modified Nano-graphene Oxide as a Pour Point Depressant and an Enhancer of Waxy Oil Transportation. Energy Fuels 2021, 35, 6101–6112. [Google Scholar] [CrossRef]
  19. Yao, B.; Li, C.X.; Yang, F.; Zhang, Y.; Xiao, Z.Q.; Sun, G.Y. Structural properties of gelled Changqing waxy crude oil benefitted with nanocomposite pour point depressant. Fuel 2016, 184, 544–554. [Google Scholar] [CrossRef]
  20. Yao, B.; Li, C.X.; Yang, F.; Sjoblom, J.; Zhang, Y.; Norrman, J.; Paso, K.; Xiao, Z.Q. Organically modified nano-clay facilitates pour point depressing activity of polyoctadecylacrylate. Fuel 2016, 166, 96–105. [Google Scholar] [CrossRef]
  21. Zhu, H.; Li, C.; Xiu, Z.; Zhao, Z.; Mu, K.; Dai, H.; Wang, F.; Yang, F.; Yao, B. Effect of Ethylene-Vinyl Acetate Copolymer/Amino-Functionalized Polymethylsilsesquioxane Composite Wax Inhibitor on the Rheological and Wax Depositing Characteristics of Waxy Crude Oil. Energy Fuels 2020, 34, 8120–8128. [Google Scholar] [CrossRef]
  22. Yao, B.; Li, C.; Zhang, X.; Yang, F.; Sun, G.; Zhao, Y. Performance improvement of the ethylene-vinyl acetate copolymer (EVA) pour point depressant by small dosage of the amino-functionalized polymethylsilsesquioxane (PAMSQ) microsphere. Fuel 2018, 220, 167–176. [Google Scholar] [CrossRef]
  23. Jing, G.L.; Sun, Z.N.; Tu, Z.Y.; Bian, X.D.; Liang, Y. Influence of Different Vinyl Acetate Contents on the Properties of the Copolymer of Ethylene and Vinyl Acetate/Modified Nano-SiO2 Composite Pour-Point Depressant. Energy Fuels 2017, 31, 5854–5859. [Google Scholar] [CrossRef]
  24. Sun, Z.; Jing, G.; Tu, Z. Effect of modified nano-silica/EVA on flow behavior and wax crystallization of model oils with different wax contents. J. Dispers. Sci. Technol. 2017, 39, 71–76. [Google Scholar] [CrossRef]
  25. Li, N.; Mao, G.; Liu, Y. Effect of the Evaluation and Mechanism Analysis of a Novel Nanohybrid Pour Point Depressant on Facilitating Flow Properties of Crude Oil. Energy Fuels 2018, 32, 10563–10570. [Google Scholar] [CrossRef]
  26. Norrman, J.; Solberg, A.; Sjöblom, J.; Paso, K. Nanoparticles for Waxy Crudes: Effect of Polymer Coverage and the Effect on Wax Crystallization. Energy Fuels 2016, 30, 5108–5114. [Google Scholar] [CrossRef]
  27. Yang, F.; Paso, K.; Norrman, J.; Li, C.X.; Oschmann, H.; Sjoblom, J. Hydrophilic Nanoparticles Facilitate Wax Inhibition. Energy Fuels 2015, 29, 1368–1374. [Google Scholar] [CrossRef]
  28. Mao, J.; Kang, Z.; Yang, X.; Lin, C.; Zheng, L.; Zuo, M.; Mao, J.; Dai, S.; Xue, J.; Ouyang, D. Synthesis and Performance Evaluation of a Nanocomposite Pour-Point Depressant and Viscosity Reducer for High-Pour-Point Heavy Oil. Energy Fuels 2020, 34, 7965–7973. [Google Scholar] [CrossRef]
  29. El-Ghazawy, R.A.; Atta, A.M.; Kabel, K.I. Modified maleic anhydride-co-octadecene copolymers as flow improver for waxy Egyptian crude oil. J. Pet. Sci. Eng. 2014, 122, 411–419. [Google Scholar] [CrossRef]
  30. SY/T 0541-94; Test Method for Gel Point of Crude Oils. China Petroleum and Chemical Press: Beijing, China, 1994.
  31. Sharma, R.; Deka, B.; Mahto, V.; Barifcani, A.; Vuthaluru, H. Experimental investigation into the development and evaluation of ionic liquid and its graphene oxide nanocomposite as novel pour point depressants for waxy crude oil. J. Pet. Sci. Eng. 2022, 208, 109691. [Google Scholar] [CrossRef]
  32. Soldi, R.A.; Oliveira, A.R.S.; Barbosa, R.V.; César-Oliveira, M.A.F. Polymethacrylates: Pour point depressants in diesel oil. Eur. Polym. J. 2007, 43, 3671–3678. [Google Scholar] [CrossRef]
  33. Jie, Z.; Guo, Z.; Du, W.; Gu, X.; Wang, M.; Zhang, Z.; Ma, Y.; Chen, G. Preparation and Performance of Vegetable Oils Fatty Acids Hydroxylmethyl Triamides as Crude Oil Flow Improvers. Pet. Chem. 2018, 58, 1070–1075. [Google Scholar] [CrossRef]
  34. Tai, Y.; Qian, J.; Zhang, Y.; Huang, J. Study of surface modification of nano-SiO2 with macromolecular coupling agent (LMPB-g-MAH). Chem. Eng. J. 2008, 141, 354–361. [Google Scholar] [CrossRef]
  35. Zhang, F.; Liu, J.; Zhu, X.; Jin, D.; Yang, T.; Yin, S.; Lin, H.; Han, S.; Xue, Y. Performance improvement of the benzyl methacrylate-methacrylate copolymers pour point depressant by hybrid with nano-silica for diesel fuels. Energy Sources Part A Recovery Util. Environ. Eff. 2020, 42, 1–9. [Google Scholar] [CrossRef]
  36. Ning, X.; Song, X.; Zhang, S.; Wang, Y.; Feng, Y. Insights into Flow Improving for Waxy Crude Oil Doped with EVA/SiO2 Nanohybrids. ACS Omega 2022, 7, 5853–5863. [Google Scholar] [CrossRef]
  37. Maleki, A.; Hosseini-Dastgerdi, Z.; Rashidi, A. Effect of nanoparticle modified polyacrylamide on wax deposition, crystallization and flow behavior of light and heavy crude oils. J. Dispers. Sci. Technol. 2021, 42, 1–11. [Google Scholar] [CrossRef]
  38. Zhao, Z.; Xue, Y.; Xu, G.; Zhou, J.; Lian, X.; Liu, P.; Chen, D.; Han, S.; Lin, H. Effect of the nano-hybrid pour point depressants on the cold flow properties of diesel fuel. Fuel 2017, 193, 65–71. [Google Scholar] [CrossRef]
  39. Vakili, S.; Mohammadi, S.; Mirzaei Derazi, A.; Mahmoudi Alemi, F.; Hayatizadeh, N.; Ghanbarpour, O.; Rashidi, F. Effect of metal oxide nanoparticles on wax formation, morphology, and rheological behavior in crude oil: An experimental study. J. Mol. Liq. 2021, 343, 117566. [Google Scholar] [CrossRef]
  40. Zhang, X.; Li, N.; Wei, Z.; Han, S.; Dai, B.; Lin, H. Synthesis of nano-hybrid polymethacrylate-carbon dots as pour point depressant and combined with ethylene-vinyl acetate resin to improve the cold flow properties of diesel fuels. Energy 2022, 253, 124186. [Google Scholar] [CrossRef]
  41. Xue, Y.; Chen, F.; Sun, B.; Lin, H.; Dai, B.; Han, S. Effect of nanocomposite as pour point depressant on the cold flow properties and crystallization behavior of diesel fuel. Chin. Chem. Lett. 2022, 33, 2677–2680. [Google Scholar] [CrossRef]
  42. Sharma, R.; Mahto, V.; Vuthaluru, H. Synthesis of PMMA/modified graphene oxide nanocomposite pour point depressant and its effect on the flow properties of Indian waxy crude oil. Fuel 2019, 235, 1245–1259. [Google Scholar] [CrossRef]
  43. Zhang, J.; Yu, H.L.; Liang, Y.; Sun, Z.N.; Liu, Y.; Jing, G.L. Influence of EVA/nano-sepiolite on the wax crystal and rheological property of Daqing crude oil. J. Dispers. Sci. Technol. 2021, 42, 1125–1131. [Google Scholar] [CrossRef]
  44. Huang, H.; Li, K.; Wang, D.; Liang, P.; Yang, J.; Ding, Y.; Gong, J. Further Discussion of Nanocomposite Pour Point Depressants on the Influence of Paraffin Wax Crystallization: A Novel Small Angle X-ray Diffraction Study. Cryst. Growth Des. 2022, 22, 6870–6878. [Google Scholar] [CrossRef]
Processes 11 01159 sch001 550

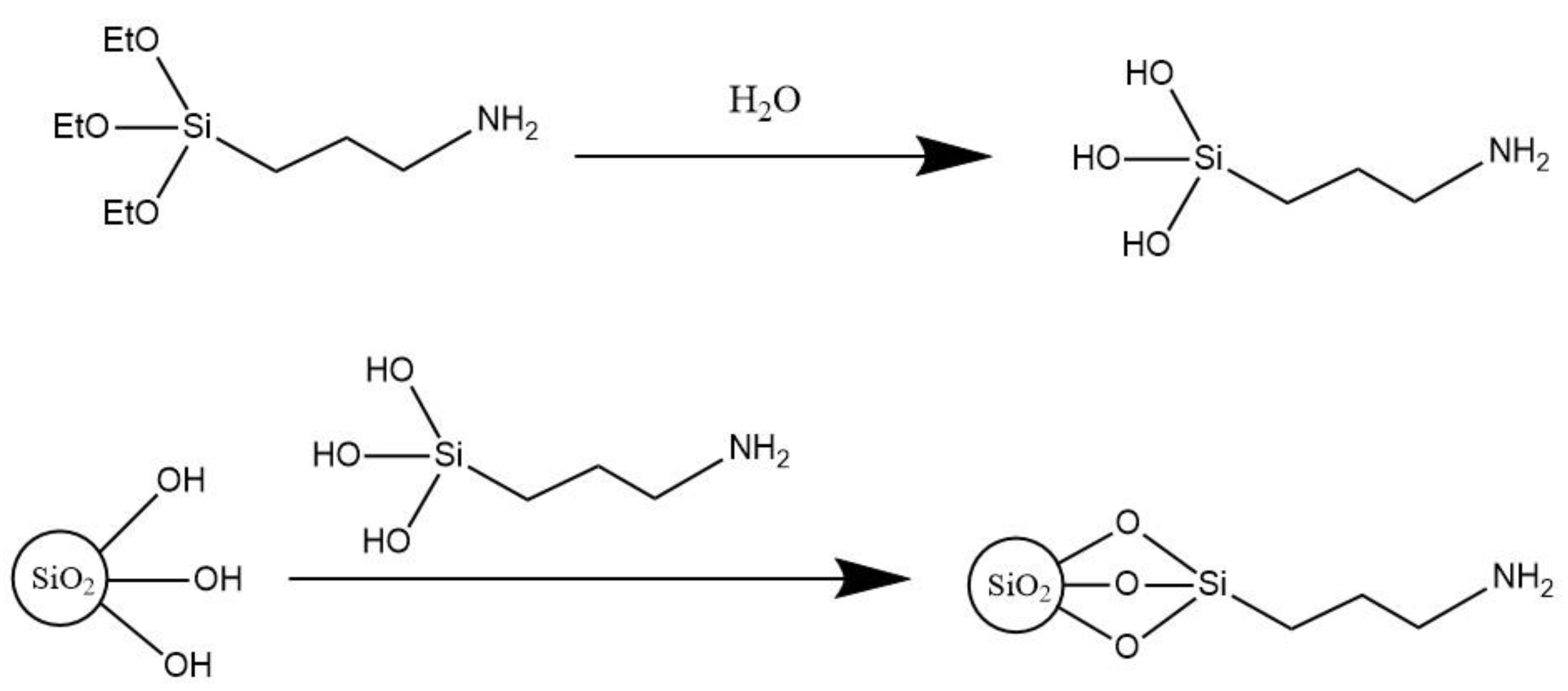

Scheme 1. Synthesis Mechanism of NSiO2.
Scheme 1. Synthesis Mechanism of NSiO2.
Processes 11 01159 sch001
Processes 11 01159 sch002 550

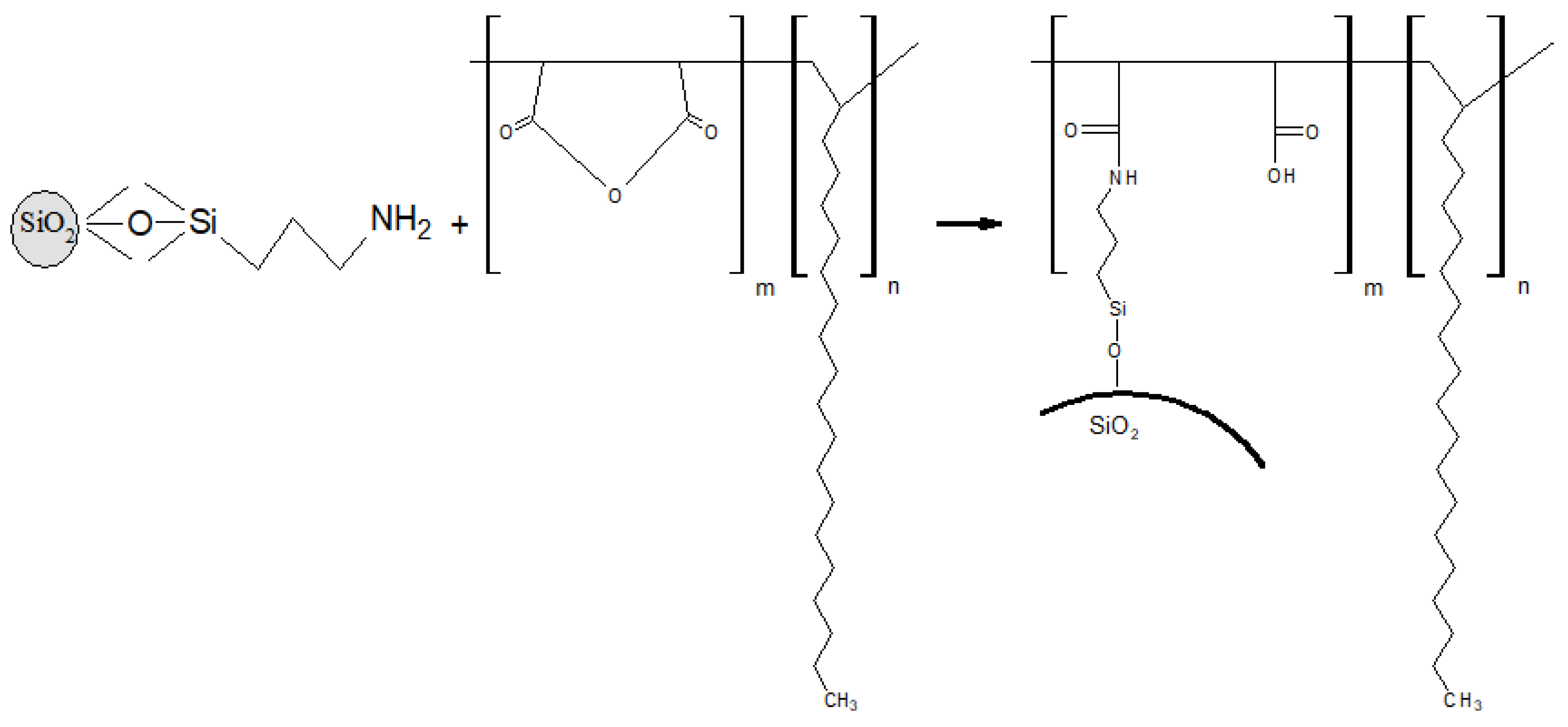

Scheme 2. Synthesis Mechanism of PM18-g-NSiO2.
Scheme 2. Synthesis Mechanism of PM18-g-NSiO2.
Processes 11 01159 sch002
Processes 11 01159 g001 550

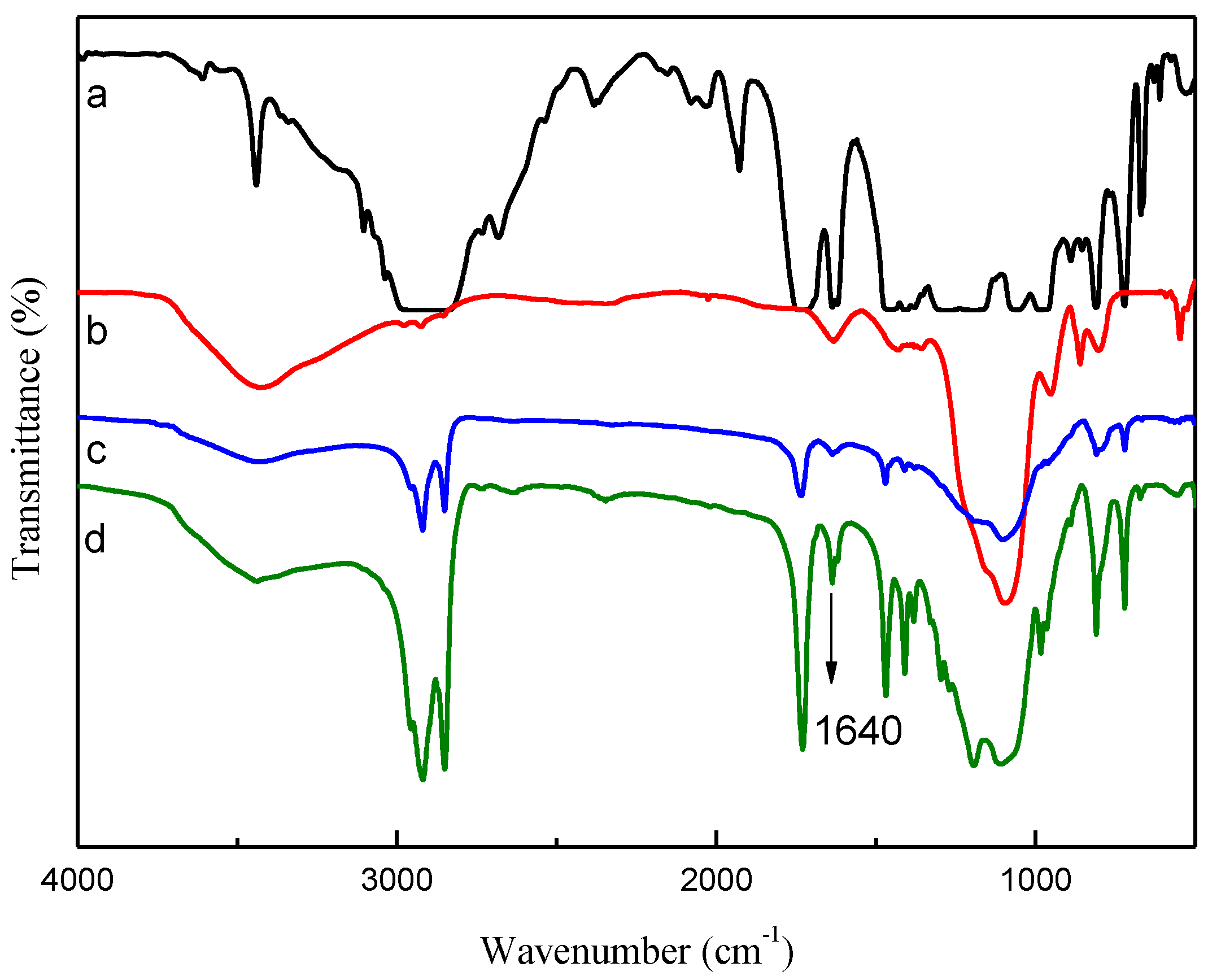

Figure 1. FT-IR spectra of (a) PM18; (b) SiO2; (c) PM18/SiO2; (d) PM18-g-NSiO2.
Figure 1. FT-IR spectra of (a) PM18; (b) SiO2; (c) PM18/SiO2; (d) PM18-g-NSiO2.
Processes 11 01159 g001
Processes 11 01159 g002 550

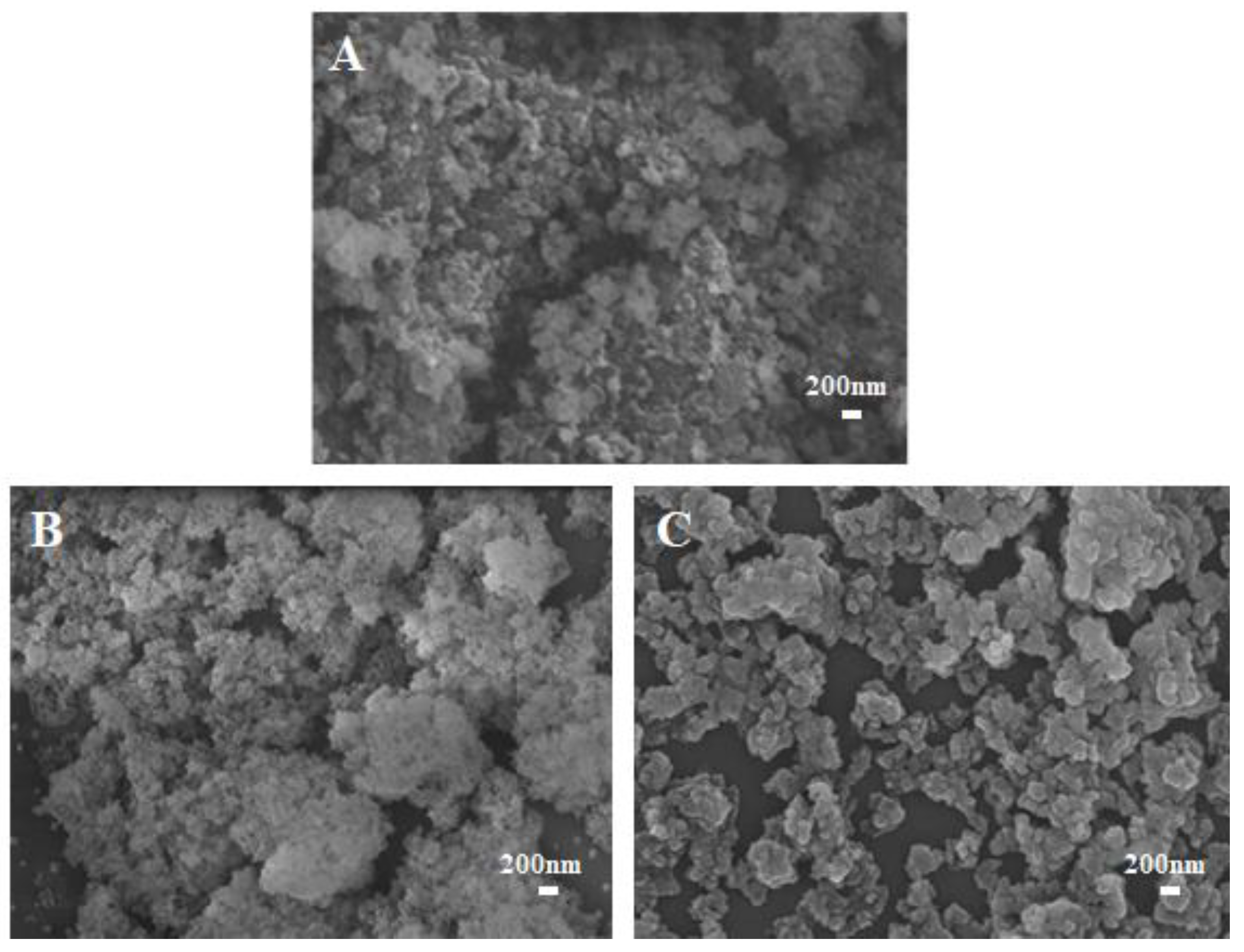

Figure 2. SEM images of SiO2 and NPPDs dispersed in dodecane after 48 h: (A) SiO2; (B) PM18/SiO2; (C) PM18-g-NSiO2.
Figure 2. SEM images of SiO2 and NPPDs dispersed in dodecane after 48 h: (A) SiO2; (B) PM18/SiO2; (C) PM18-g-NSiO2.
Processes 11 01159 g002
Processes 11 01159 g003 550

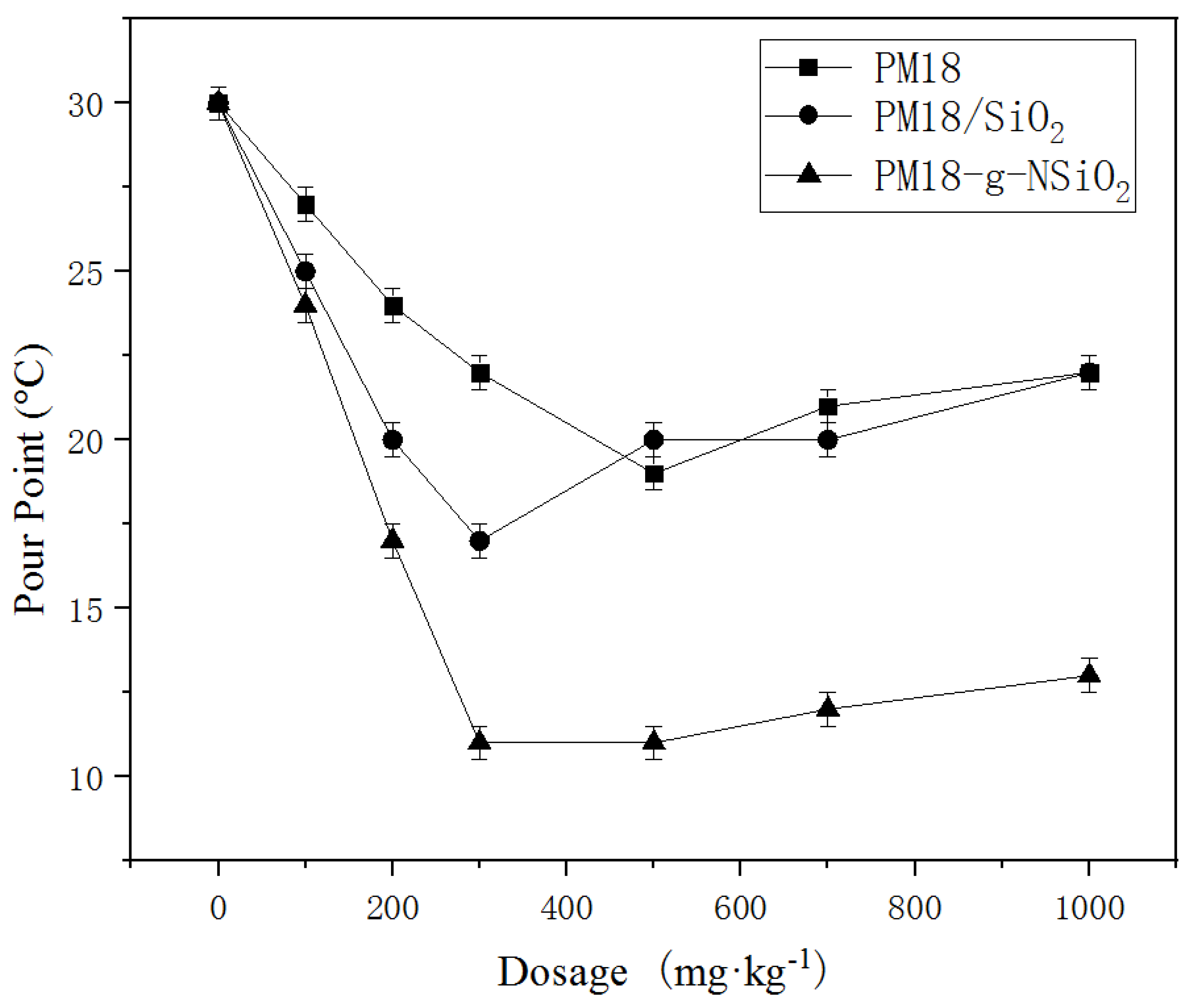

Figure 3. Pour point of 15 wt% model oil adding different kinds of NPPD.
Figure 3. Pour point of 15 wt% model oil adding different kinds of NPPD.
Processes 11 01159 g003
Processes 11 01159 g004 550

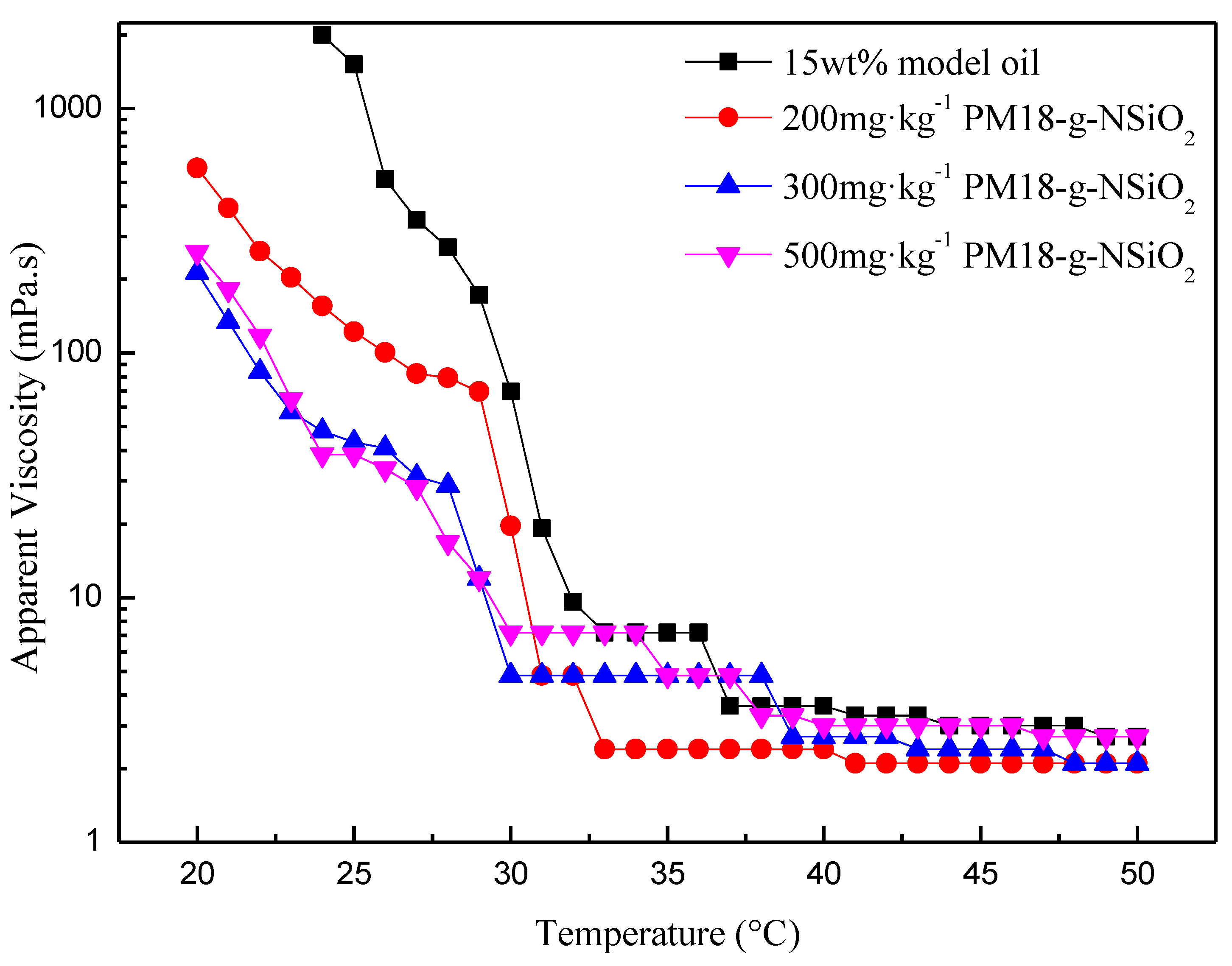

Figure 4. Semi-logarithmic curves of the viscosity versus temperature for the 15% wax model oil untreated and treated with PM18-NSiO2.
Figure 4. Semi-logarithmic curves of the viscosity versus temperature for the 15% wax model oil untreated and treated with PM18-NSiO2.
Processes 11 01159 g004
Processes 11 01159 g005 550

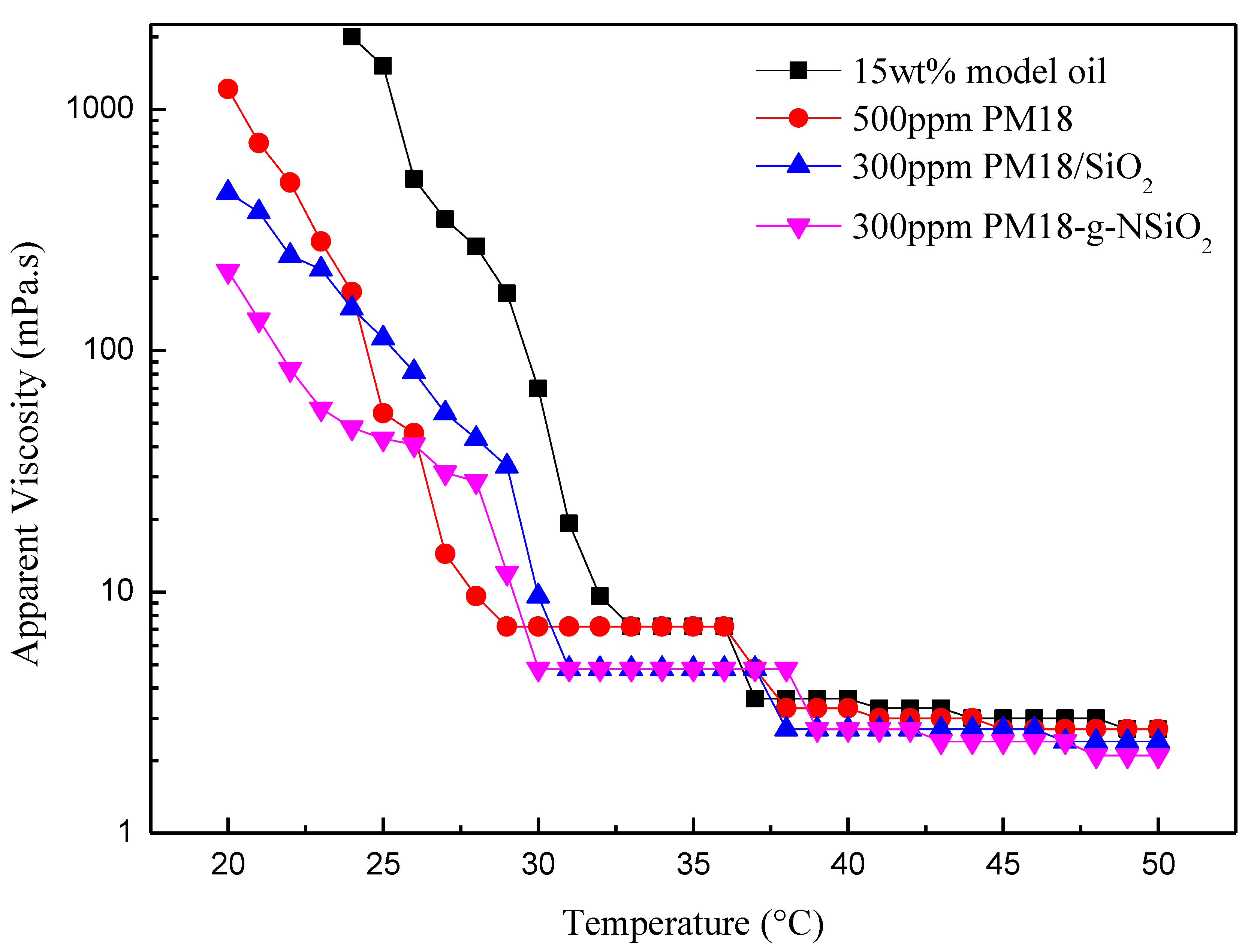

Figure 5. Semi-logarithmic curves of the viscosity versus temperature for the 15% wax model oil untreated and treated with different individual PPDs.
Figure 5. Semi-logarithmic curves of the viscosity versus temperature for the 15% wax model oil untreated and treated with different individual PPDs.
Processes 11 01159 g005
Processes 11 01159 g006 550

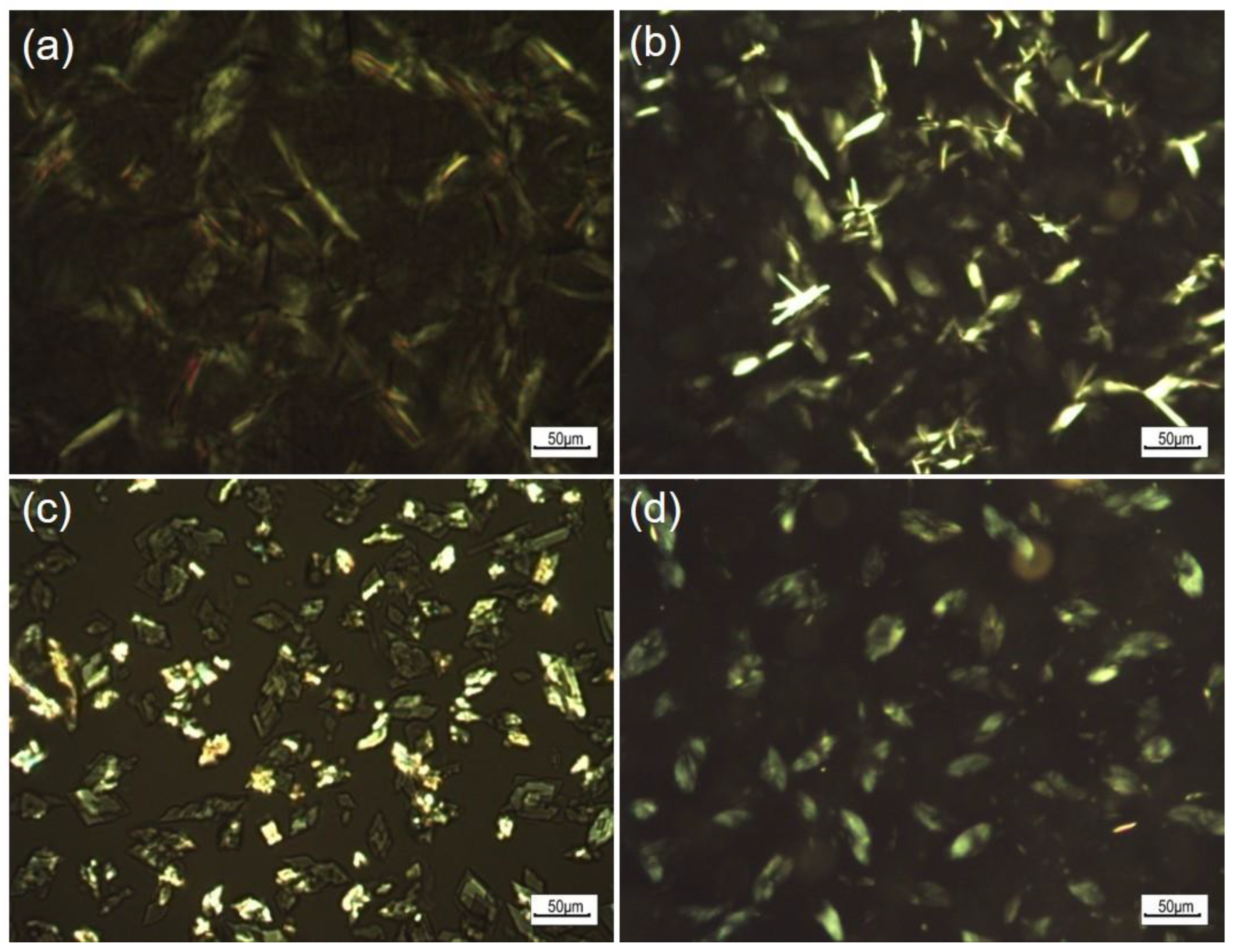

Figure 6. The polarized optical microscope images of the 15 wt% model oil in the (a) untreated (b) 500 mg·kg−1 PM18; (c) 300 mg·kg−1 PM18/SiO2; (d) 300 mg·kg−1 PM18-g-NSiO2.
Figure 6. The polarized optical microscope images of the 15 wt% model oil in the (a) untreated (b) 500 mg·kg−1 PM18; (c) 300 mg·kg−1 PM18/SiO2; (d) 300 mg·kg−1 PM18-g-NSiO2.
Processes 11 01159 g006
Processes 11 01159 g007 550

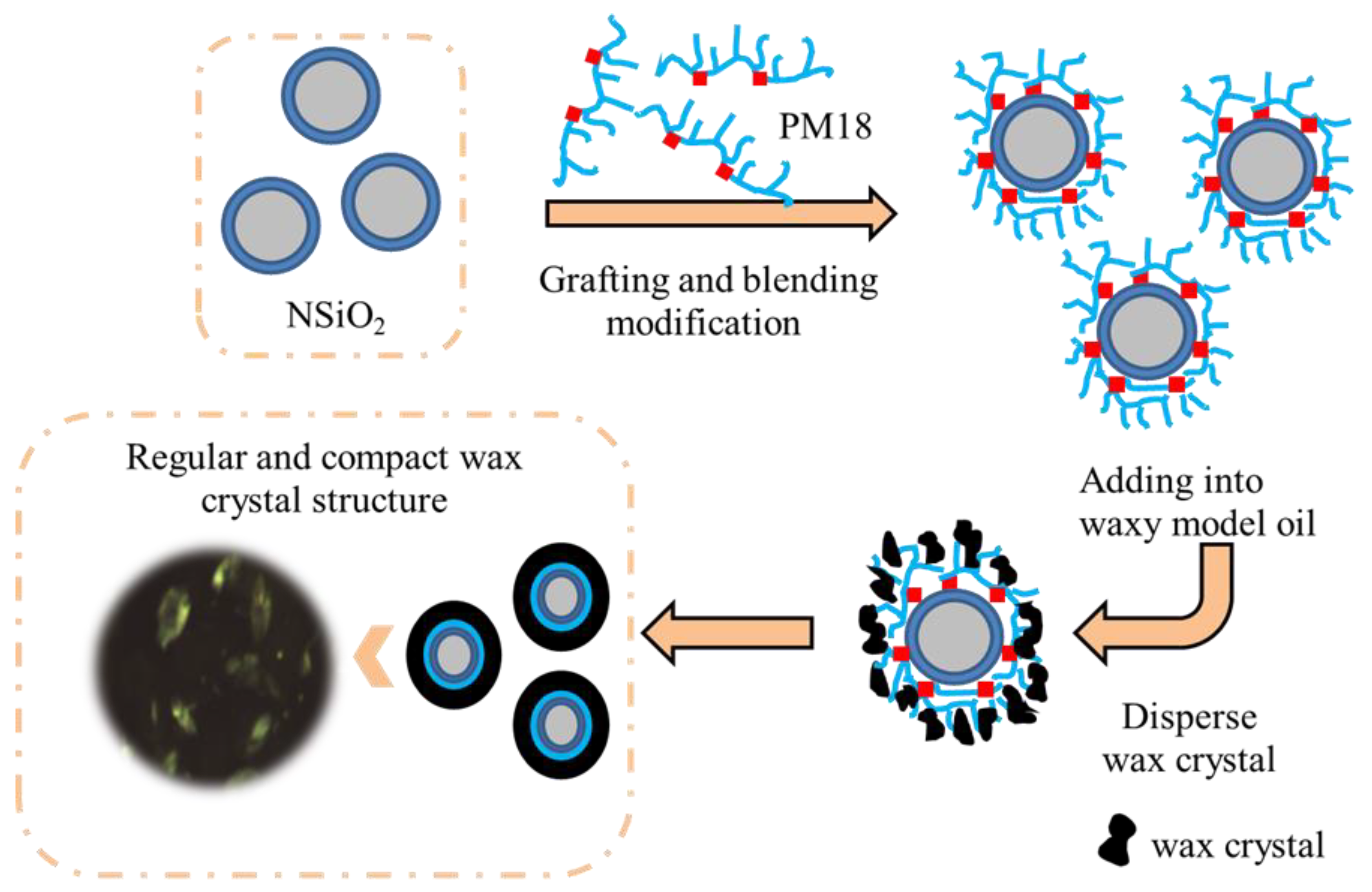

Figure 7. Schematic diagram of the flow improving mechanism of PM18-g-NSiO2 on waxy model oil.
