Processes of Metal Oxides Catalyst on Conversion of Spent Coffee Grounds into Rich-Synthesis Gas by Gasification

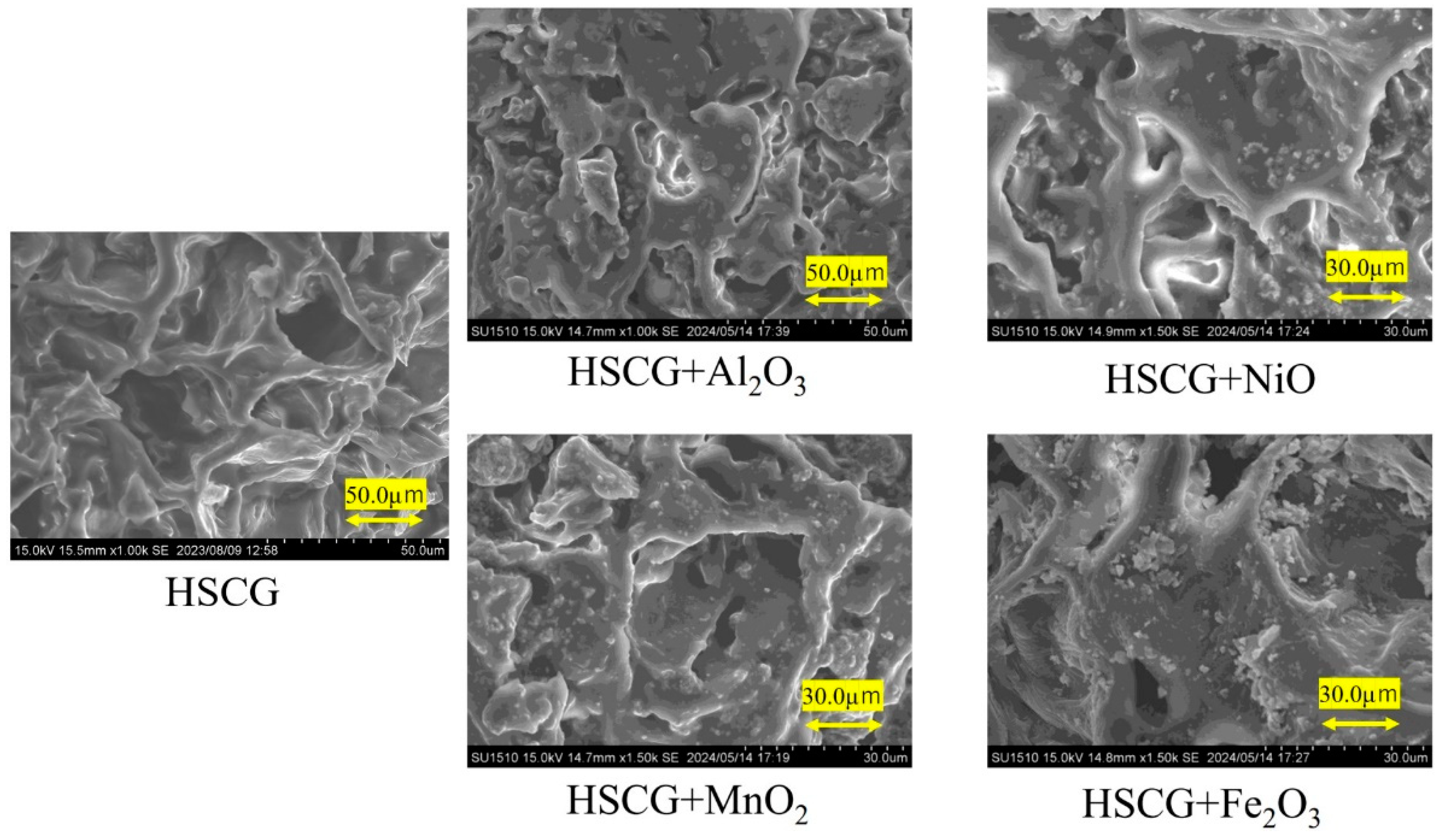

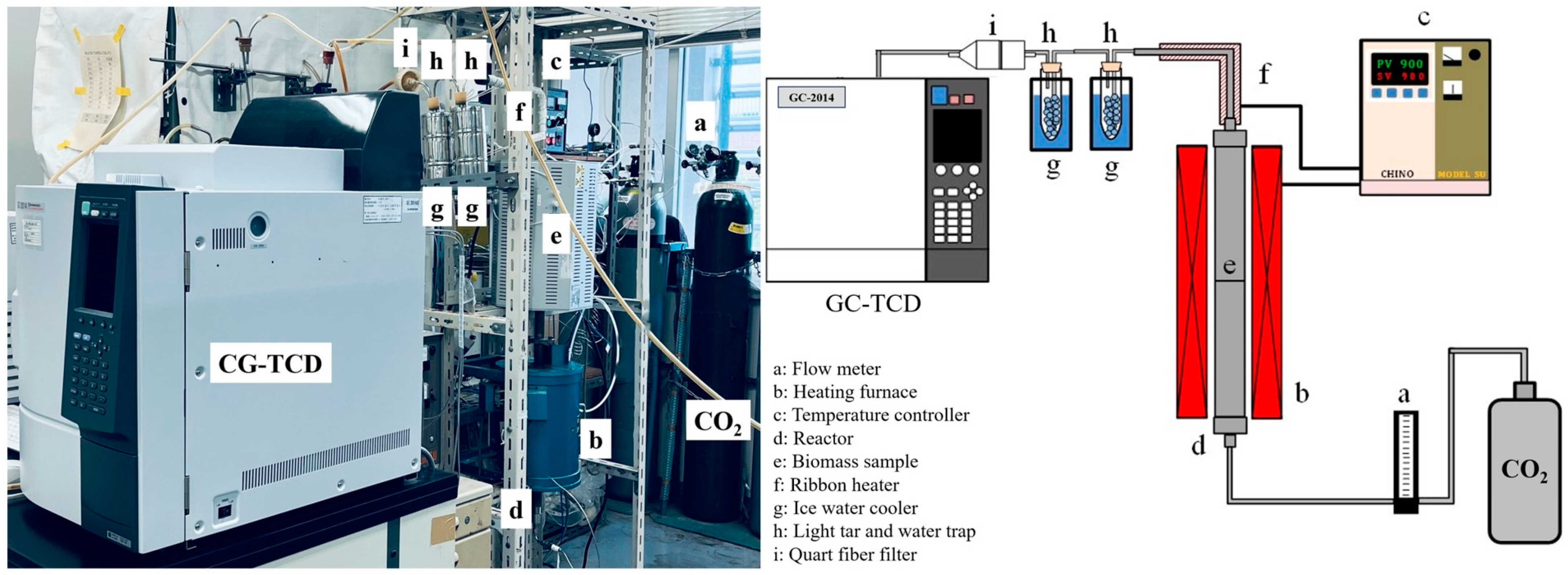

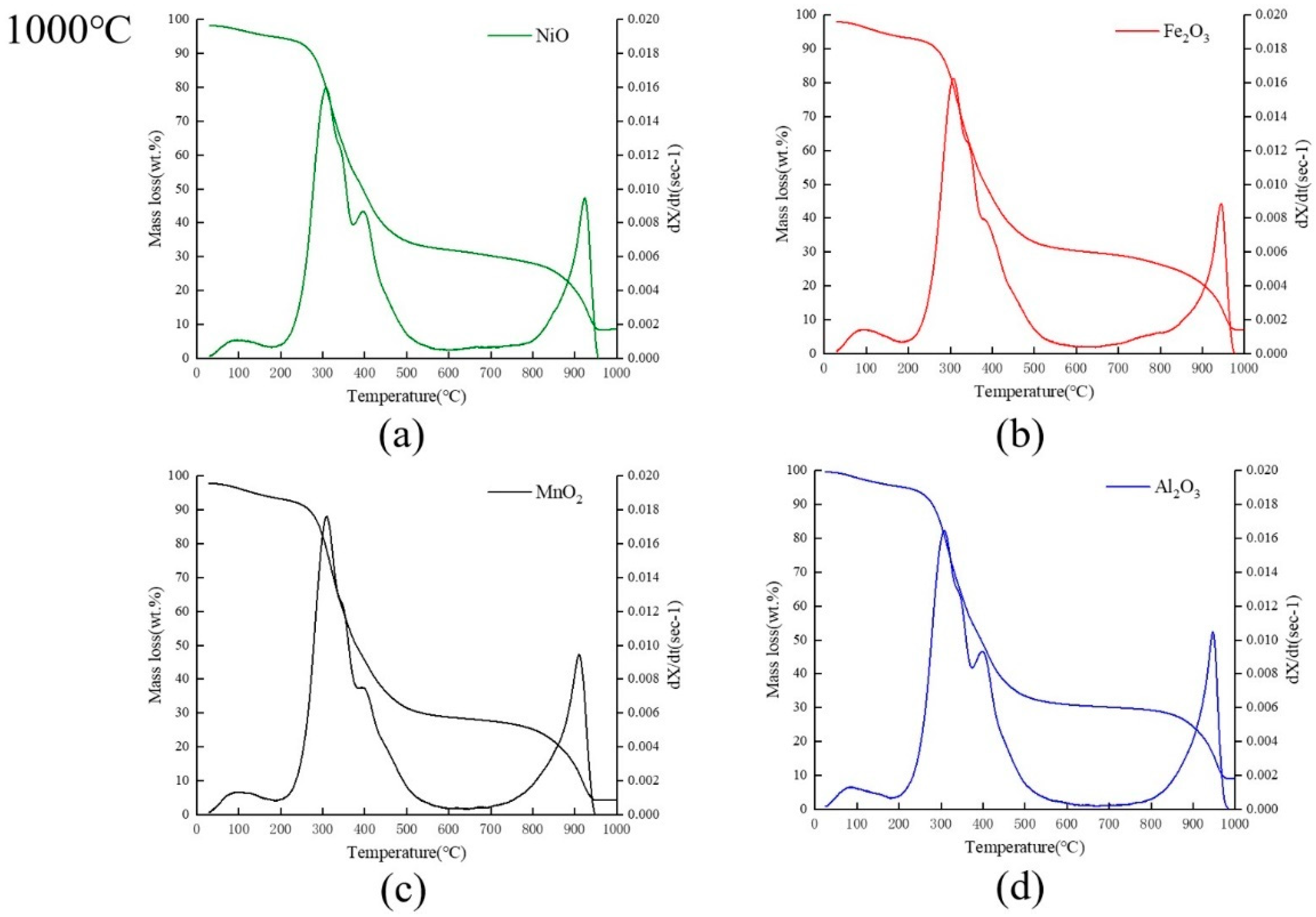

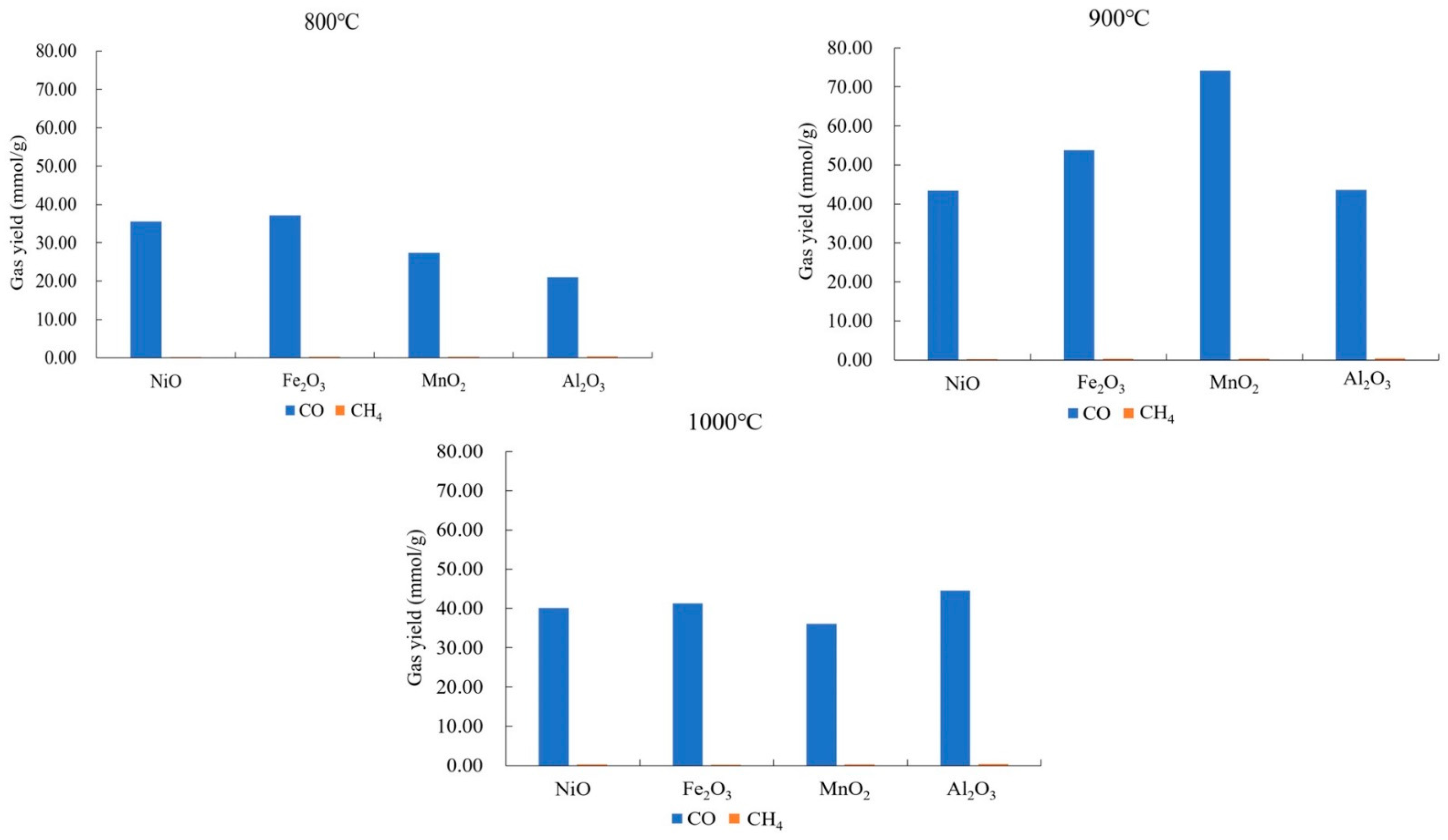

Spent coffee grounds (SCGs), a waste product of the coffee industry, present a significant untapped resource for fuel production. This study aims to optimize the gasification of SCG using various metal catalysts (NiO, MnO₂, Al₂O₃, and Fe₂O₃) to maximize syngas yield. SCG samples were gasified at different temperatures (800 °C, 900 °C, 1000 °C) and analyzed using Scanning Electron Microscopy (SEM), Thermogravimetric Analysis (TG-DTA), and Fourier Transform Infrared (FTIR) spectroscopy to evaluate catalyst performance and reaction mechanisms. The findings indicated that utilizing mixing techniques for physical contact to introduce catalysts led to a uniform distribution of catalyst particles throughout the sample. The decomposition rate of the gasification experiment after adding the catalyst was 24% faster than that of the pure SCGs. In the gasification experiment, the MnO₂ catalyst showed the highest CO production, which was 71% higher than that of NiO under the same conditions. At this temperature, MnO₂ generated around 171% more CO than at 800 °C, surpassing the yields observed with other catalysts. The study concludes that Mn emerged as the most promising catalyst, significantly improving both CO and CH₄ yields. Selecting the appropriate metal catalyst and optimizing operational temperatures are crucial for enhancing the efficiency of SCG gasification.
