The Adsorption of Durene and Prehnitene on Metal–Organic Frameworks

by
Tianyou Wang
,
Yanyang Wu
*,
Jiabo Rao
,
Xudong Wang
,
Bin Wu
,
Kui Chen
and
Lijun Ji
School of Chemical Engineering, East China University of Science and Technology, Shanghai 200237, China
*
Author to whom correspondence should be addressed.
Processes 2024, 12(11), 2331; https://doi.org/10.3390/pr12112331
Submission received: 24 September 2024 / Revised: 14 October 2024 / Accepted: 23 October 2024 / Published: 24 October 2024
(This article belongs to the Section Separation Processes)
Browse Figures
Versions Notes

Abstract

:
Tetratoluene has the following three isomers: durene (DR), prehnitene (PR), and isodurene (IR). DR and PR often coexist during the separation of C10 heavy aromatics at different levels. They are both important organic chemical raw materials and their separation is the key to the high-efficiency industrial utilization of C10 heavy aromatics. In this paper, six metal–organic frameworks (MOFs), including ZU-61, MIL-101, UIO-66, UIO-66-NH2, Mg-MOF-74, and MIL-53(Al), were used as the adsorbents of DR and PR. Their skeletons were structurally optimized using VASP software (latest v. 6.4.3). The adsorption capacity and isosteric heats of both pure components and mixtures (the molar ratio was 1:1) in gas were calculated using Grand Canonical Monte Carlo simulation from 10 kPa to 300 kPa at 298 K. The results indicated that all adsorption processes were physical. ZU-61, UIO-66, UIO-66-NH2, and Mg-MOF-74 presented suitable capacity differences for DR and PR at 300 kPa. The selectivity values of these frameworks were all above 1.5. Thus, the four MOFs were prepared using the solvothermal method and characterized by SEM and XRD. Then, the competitive adsorption of DR and PR in liquid on the four MOFs was carried out as well. The results showed good agreement with the simulation in general, with a lower adsorption attained capacity due to the different phase states of both DR and PR. This study can guide the separation of tetratoluene isomers in C10 heavy aromatics.

Graphical Abstract

1. Introduction

In recent years, C10 heavy aromatics have gained a great deal of attention with the development of the coal chemical and petrochemical industries. An appreciable amount of tetratoluene exists in C10 heavy aromatics [1]. It involves three isomers: durene (DR), prehnitene (PR), and isodurene (IR). The isomers mainly contain DR and PR, and the content of IR is relatively low during enrichment [2]. Meanwhile, DR is widely used in fields such as machinery [3,4], aerospace [5,6], nanotechnology [7,8], and membrane separation [9,10,11]. PR can also play an important role in various fields such as machinery [12], electronics [12,13], and aerospace [14]. The separation of DR and PR is difficult due to their similar properties, which restricts the efficient utilization of C10 heavy aromatics [15].
In this paper, UIO-66, UIO-66-NH2, Mg-MOF-74, ZU-61, MIL-101, and Al-MIL-53 were preliminary selected as adsorbents for use in the separation of DR and PR according to the insights of our previous research. The adsorption isotherms and isosteric heats of both pure components and mixture were calculated via Grand Canonical Monte Carlo (GCMC) simulation using Materials Studio 2019. MOFs with high selectivity were prepared by the solvothermal method and characterized via X-ray diffraction (XRD) and scanning electron microscopy (SEM). Subsequently, their adsorption behavior towards DR and PR was investigated.

2. Literature Review

At present, the main reported separation methods for DR and PR are extractive distillation [16,17], melt crystallization [18,19], and recrystallization [20]. In general, DR is first concentrated via extraction distillation. Then, DR with a purity between 93% and 95% is obtained via melt crystallization at around 253.15 K [21,22,23]. Recrystallization is normally carried out for further purification. Li et al. [24] used ethanol as a solvent for recrystallization purification. They investigated crystallization conditions and finally increased the purity of DR to 99%. However, there is still a long way to go before the industrial separation of DR and PR due to the large investment required, the low yield of DR, and the complicated separation process [25].
Adsorption can be a promising method for the separation of DR and PR. It draws a lot of attention, especially in the search for a new and structurally designed adsorbent [26]. Metal–organic frameworks (MOFs) are a type of three-dimensional crystalline material combined with metal clusters and organic linkers [27]. They are highly recommended as adsorbents due to their strong stability [28,29], large porous volumes [30,31], high specific surface areas [32], and adjustability due to flexible structures [33,34]. MOFs have been widely applied in the adsorption of aromatic isomers. Many studies focus on the separation of xylene isomers [35,36]. MIL-120(Al) showed high selectivity values of 11.5 and 8.3 for p-xylene/o-xylene and p-xylene/m-xylene, respectively [37]. The selectivity of o-xylene/m-xylene on MIL-68(Al) was 8.1 [38]. Yang [39] found that anion-pillared MOF SIFSIX-1-Cu showed strong affinity with m-xylene via a competition adsorption experiment involving p-xylene and m-xylene. We obtained p-xylene with a purity of 99% after adsorption and the subsequent processes.
In the meantime, the adsorption mechanism has been investigated via molecular simulation [40]. Kim et al. [41] investigated the adsorption mechanism of p-xylene towards DUT-8 using GCMC simulation and Density Functional Theory (DFT). The results showed that the presence of the DABCO ligand was responsible for the preferential adsorption of p-xylene due to the packing of molecules. Ji et al. [42] found that the adsorption capacity and heat of m-xylene were significantly smaller than those of p-xylene and o-xylene on Cu-HKUST-1, which could be a suitable adsorbent for xylene isomers.

3. Methodology and Analysis

3.1. Simulation

3.1.1. Structure Optimization

The crystal structures of MOFs were downloaded from the Cambridge Crystal Data Centre (CCDC). The MOFs’ structures were optimized and then DDEC charges were calculated using the Vienna Ab initio Simulation Package (VASP) [43,44]. In the meantime, the structures of DR and PR were optimized, with the objective of using a minimum amount of energy for the system. This was performed via the Universal Force Field (UFF) in Materials Studio 2019 using the Forcite module [45]. Energy, force, and displacement converged to within 10−4 kcal/mol, 0.005 kcal/(mol·Å), and 5 × 10−5 Å, respectively. In the optimization, long-range electrostatic and van der Waals interactions were calculated via an atom-based summation method [46].

3.1.2. Simulation Methods

GCMC simulation was performed with the sorption module in Materials Studio 2019. The skeletons of MOFs were expanded to 2 × 2 × 1 supercells and kept rigid during the simulation to satisfy the periodic boundary conditions [47,48]. Adsorption isotherms and isosteric heats of both pure components and mixtures in gas were calculated from 10 kPa to 300 kPa at 298 K using the configurational bias sampling method. The partial pressure of DR or PR in a mixture was related to the fugacity, which was calculated via the Peng–Robinson equation [49]. It varied from 5 kPa to 150 kPa. The insertion, rotation, deletion, and movement of adsorbates had the same probability of occurring throughout the calculations [50]. A total of 2 × 106 steps was set. The first 106 steps were used to reach equilibrium, while the last ones were for production.
Established based on previous empirical parameters and experimental data, a force field is a collection of functional formulas or parameters. In this study, all atoms of adsorbents and adsorbates were described via the commonly used universal force field (UFF), which can be used to describe the interaction between organic materials. Long-range electrostatic interactions were described via the Ewald summation method [51], where the Ewald accuracy and cutoff distance were 0.001 kcal/mol and 12.5 Å, respectively. The van der Waals interactions were calculated by an atom-based summation method [52]. Truncation, cutoff distance, and spline width were a cubic spline, 12.5 Å, and 1 Å, respectively. The interaction potential Eij was calculated using a Lennard-Jones (LJ) potential function with a Lorentz–Berthelot mixing rule [53]. Relevant functions are shown in Equations (1)–(3). LJ parameters were taken from Materials Studio 2019 and are listed in Table 1.
E i j = 4 ε i j σ i j r i j 12 − σ i j r i j 6 + q i q j 4 π ε 0 r i j
ε i j = ε i ε j
σ i j = 1 2 σ i + σ j
where rij (Å) is the distance between particles i and j; ε (kcal/mol) is the potential well depth; σ (Å) is the intermolecular radius when the potential energy function is 0; q (e) is the atomic charge; and ε0 (F/m) is the dielectric constant at vacuum conditions.
The adsorption capacity calculated via GCMC simulation was always the absolute adsorption capacity, while that measured by the experiment was the excess adsorption capacity [53]. The conversion of the two kinds of capacity was calculated as follows:
N e x = N a b s − V g ρ g
where Nex is the excess adsorption capacity; Nabs is the absolute adsorption capacity; Vg (cm3/g) is the pore volume of the adsorbent; and ρ g (g/cm3) is the density of adsorbate obtained using the Peng–Robinson equation.

3.1.3. Adsorption Heat

Some energy was released as isosteric heat of adsorption Qst when an adsorbate was adsorbed on MOFs. It could be calculated using GCMC simulation via Equation (5) [54].
Q s t = U n − U n n 2 − n 2 + k B T
where the brackets represent the ensemble average; U (kJ/mol) is the potential energy; n is the number of adsorbate molecules; kB (J/K) is the Boltzmann constant; and T (K) is temperature.

3.2. Experiment

3.2.1. Synthesis

In this paper, UIO-66, UIO-66-NH2, ZU-61, and Mg-MOF-74 were prepared via the solvothermal method.

UIO-66

We added 190.3 mg of ZrCl4, 133 mg of 1,4-dicarboxybenzene (BDC), and 5.4 g of HCl into 81.7 mL of N,N-dimethylformamide (DMF) in sequence. The solution was stirred magnetically for 2 h. This was followed by ultrasonic treatment for 20 min. Then, it was poured into a high-pressure hydrothermal reactor lined with polytetrafluoroethylene and heated at 393 K for 24 h. After cooling to room temperature, the solid product was obtained by centrifugation. It was washed with methanol and DMF three times, respectively. The product was obtained after being dried overnight at 333 K [17].

UIO-66-NH2

The solution including 2-amino-BDC, ZrCl4, HCl, and DMF was prepared at a certain molar ratio (2:2:1:76) under magnetic stirring. It was transferred to a high-pressure hydrothermal reactor lined with polytetrafluoroethylene and reacted at 453 K for 24 h. After cooling to room temperature, the solution was centrifuged at 6000 r/min. The solid was washed with ethanol and DMF three times, respectively. Product was obtained after being vacuum-dried at 363 K [55].

ZU-61

We added 0.74 g of NiO and 1.584 g of Nb2O5 to 5 mL of HF (48–50%), respectively. The mixed solution was poured into a high-pressure hydrothermal reactor lined with polytetrafluoroethylene and reacted at 413 K for 24 h to obtain NiNbOF5. Then, 0.41 g of NiNbOF5 was added to 20 mL of H2O and 0.35 g of 4,4-bipyridine was added to 40 mL of ethylene glycol. The two solutions were mixed together and then stirred at 338 K for 1 h. The mixture was soaked in methanol for 24 h. The product was obtained after centrifugation [56].

Mg-MOF-74

We added 0.6432 g of MgNO3·4H2O, 0.2972 g of 2,5-dihydroxy-BDC, and 2 mL of deionized water to 18 mL of N-Methyl-2-pyrrolidone, respectively. The solution was stirred for 30 min and poured into a high-pressure hydrothermal reactor at 393 K for 24 h. It was washed with N-Methyl-2-pyrrolidone 3 times and soaked in methanol for 4 days. The target product was prepared after drying the solids in a vacuum-drying oven at 423 K for 6 h, followed by centrifugation [57].

3.2.2. Batch Adsorption

The batch adsorption of DR and PR (molar ratio was 1:1) on UIO-66, UIO-66-NH2, ZU-61, and Mg-MOF-74, respectively, was carried out at 298 K under stirring. A certain number of MOFs were added into the solution, with n-hexane acting as the solvent. After adsorption, samples were analyzed by high-performance liquid chromatography. The adsorption of each material was assessed three times for accuracy. The adsorption capacity of DR or PR is calculated as follows:
Q t = ( C 0 − C t ) × m 1 m 2
where Qt (mg/g) is the adsorption capacity; C0 and Ct (mg/g) are the mass concentrations of DR or PR before and after adsorption; m1 (g) is the mass of solution; and m2 (g) is the mass of adsorbent [58].

3.2.3. Selectivity

Selectivity α is an important parameter in adsorption. It reflects the separation ability of MOFs. Higher selectivity leads to a stronger ability to separate one component from a mixture. The adsorption of each material was repeated three times for accuracy. The selectivity can be calculated as follows:
α = y 1 / y 2 x 1 / x 2
where y1 and y2 (mg/g) are the adsorption capacity of components 1 and 2 (the component with a higher adsorption capacity is designated as component 1) and x1/x2 are the molar ratios of two components before adsorption [59].

3.2.4. Regeneration

After adsorption, ZU-61 was centrifuged and then washed with methanol for 4 h, which was repeated 3 times. Afterwards, the adsorbent was dried in a vacuum oven at 333 K for 8 h. Then, it was used for the next adsorption. This process was repeated for 5 cycles.

4. Results and Discussion

4.1. Validation of Force Field Parameters

To verify the accuracy of the force field used in this study, we calculated the adsorption isotherm of CH4 on Mg-MOF-74 via GCMC simulation. Then, the result was compared with the reported experimental data [60]. This comparison is shown in Figure 1. It is evident that the simulation result was consistent with the experimental data. So, the force field used in this study was effective and accurate.

4.2. Structure

The structures of DR and PR after optimization are shown in Figure 2. The optimized crystalline structures of MOFs are shown in Figure S1.
The atomic charges of DR and PR were calculated by the QEq method and all charges are listed in Table S1. The calculated values presented symmetry, which could be explained by the fact that the molecular structures of both DR and PR were symmetrical. For convenience, the minimum symmetry units were classified and their charges are listed in Table 2. There were 5 atoms in the minimum unit of DR and 8 atoms in that of PR.

4.3. Adsorption of Pure Components

4.3.1. Isotherms of DR

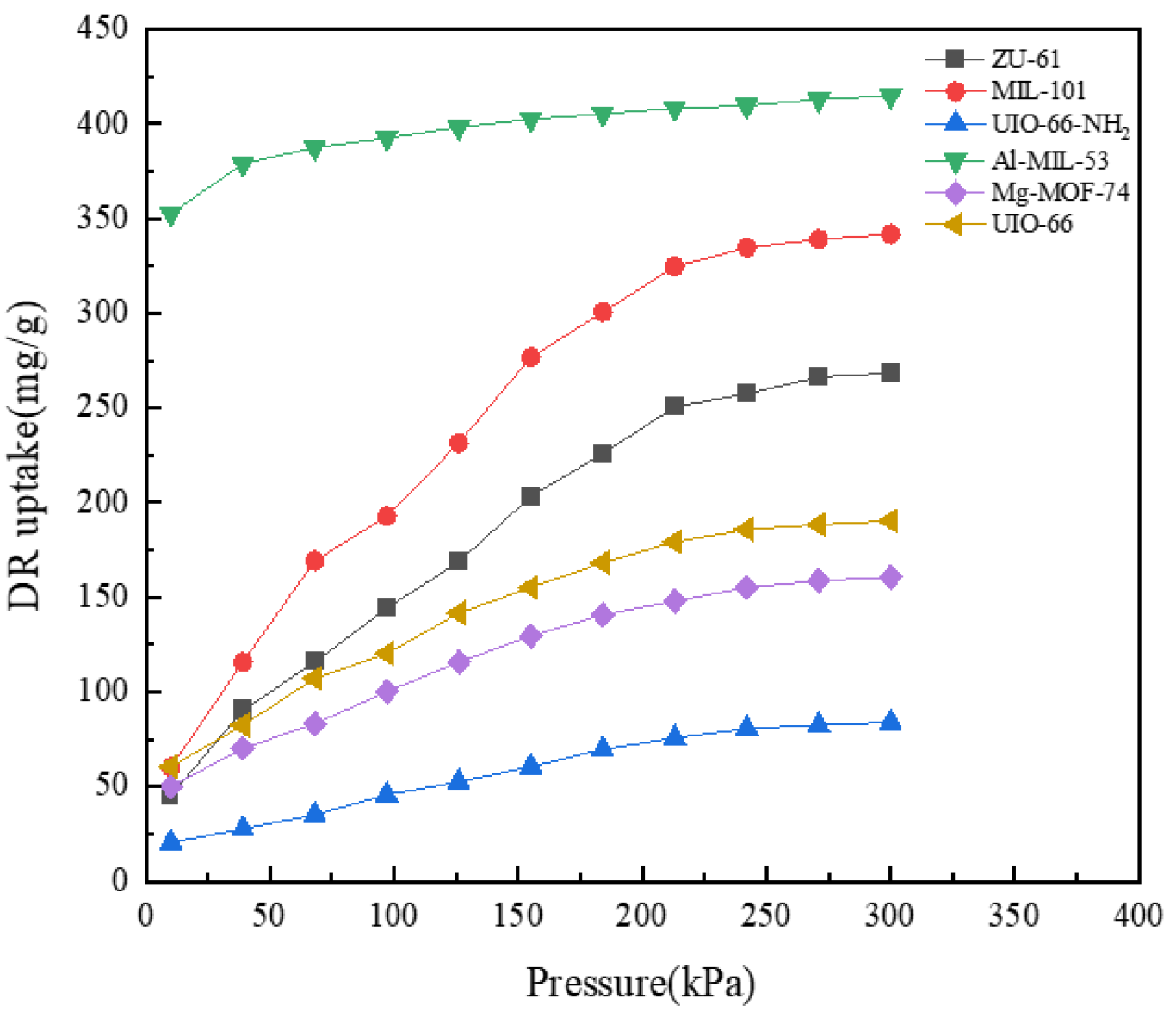

The adsorption isotherms of pure DR at 298 K are shown in Figure 3. Its adsorption capacity on all MOFs increased with increasing pressure and approximately reached equilibrium at 300 kPa. Al-MIL-53 presented the biggest adsorption capacity of 414.89 mg/g, while UIO-66-NH2 showed the smallest capacity of 83.96 mg/g at equilibrium. This could be attributed to the larger surface area and pore volume of Al-MIL-53 compared to the smaller values of UIO-66-NH2 [28,55]. The adsorption isotherms of DR on both UIO-66 and Mg-MOF-74 showed similar trends. The adsorption capacity increased from 60.58 mg/g and 50.14 mg/g to 190.38 mg/g and 160.67 mg/g, respectively. Big variations in adsorption capacity were observed for both ZU-61 and MIL-101, with increases of 222.94 mg/g and 281.43 mg/g, respectively. This could be explained by their flexible skeletons, which vary, after which the pore volume increases as pressure rises [56,61].
At pressures no greater than 30 kPa, the adsorption capacity of DR presented a decreasing order: Al-MIL-53 > UIO-66 > MIL-101 > Mg-MOF-74 > ZU-61 > UIO-66-NH2. However, at the range of 30–300 kPa, the order changed to the following: Al-MIL-53 > MIL-101 > ZU-61 > UIO-66 > Mg-MOF-74 > UIO-66-NH2. Obviously, the adsorption capacity of UIO-66-NH2 was less than that of UIO-66. It might be due to the introduction of amino groups, improving spatial hindrance and thus reducing the affinity of DR towards MOFs [62].

4.3.2. Isotherms of PR

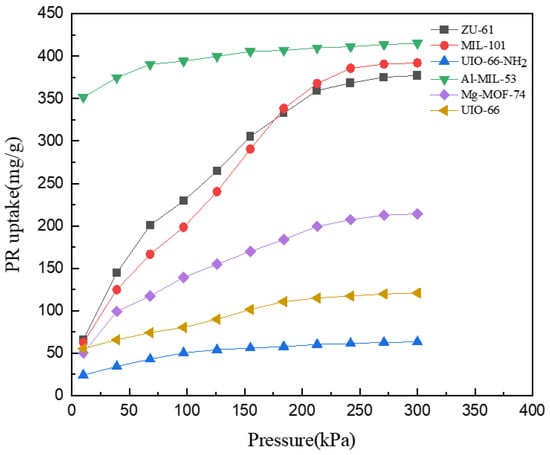

The adsorption isotherms of PR are shown in Figure 4. PR presented a similar tendency to DR. The adsorption capacity increased rapidly from 10 to 200 kPa and gradually reached equilibrium at the range of 200–300 kPa. For PR, similar to the isomers of DR, Al-MIL-53 presented the biggest adsorption capacity at 415.28 mg/g while UIO-66-NH2 presented the smallest at 63.19 mg/g. ZU-61 and MIL-101 showed similar performances, and their isotherms intersected at around 180 kPa. ZU-61 presented greater capacity when pressure increased from 10 to 180 kPa, while MIL-101 performed better when pressure was in the range of 180–300 kPa. This could be explained by the ‘breathe’ effect of the MIL-101 skeleton. The increasing pressure increased pore volume, which led to the adsorption capacity increasing faster than that of ZU-61 [63].

4.3.3. Adsorption Heats of Pure Components

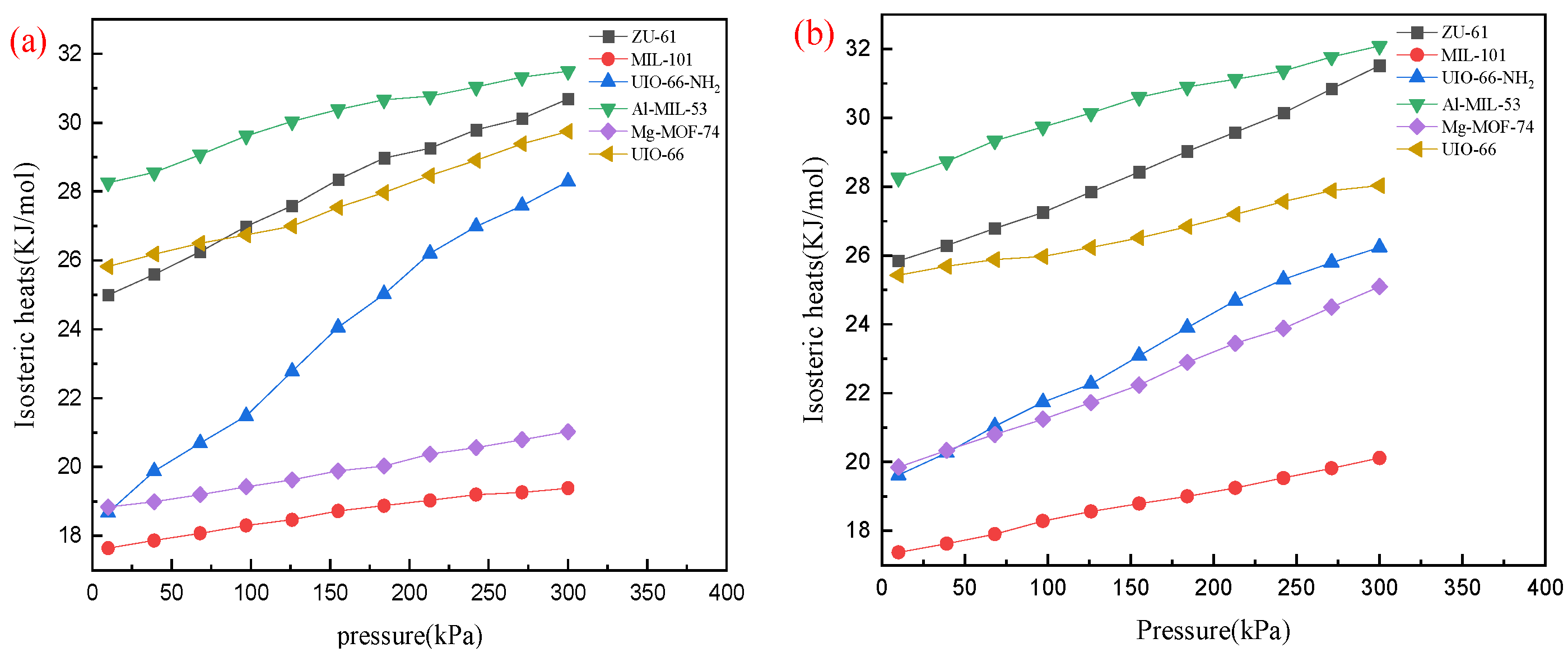

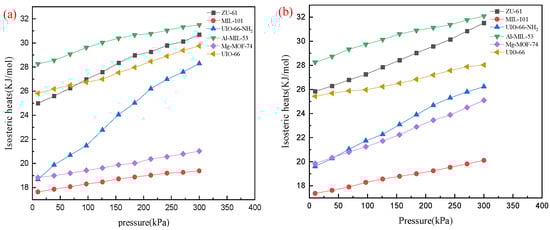

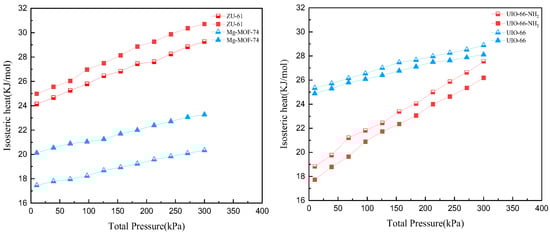

The isosteric heats of DR and PR on MOFs from 10 kPa to 300 kPa at 298 K are shown in Figure 5. All the isosteric heats of DR or PR fell in the range of 17–32 kJ/mol. ZU-61, Al-MIL-53, and UIO-66 presented higher isosteric heats. In general, the isosteric heats of the other three MOFs could be listed in the following order: UIO-66-NH2 > Mg-MOF-74 > MIL-101. In addition, the adsorption heat of DR on UIO-66-NH2 showed maximum variation from 18.68 kJ/mol to 28.30 kJ/mol.
A higher isosteric heat was released when the interaction between the adsorbate and adsobent became stronger. Thus, isosteric heat reflected the interaction between adsorbate and adsorbent [64]. The highest isosteric heat on Al-MIL-53 meant the strongest adsorbate–adsorbent interaction, which provides a reasonable explanation for it having the highest capacity.
In the meantime, the isosteric heat can be used to classify the adsorption process as either physical or chemical. It is physical when isosteric heat is < 40 kJ/mol, but chemical when isosteric heat is >80 kJ/mol [65]. Therefore, the adsorption processes on six MOFs were all physical.

4.4. Adsorption of Mixture

4.4.1. Isotherms of Mixture

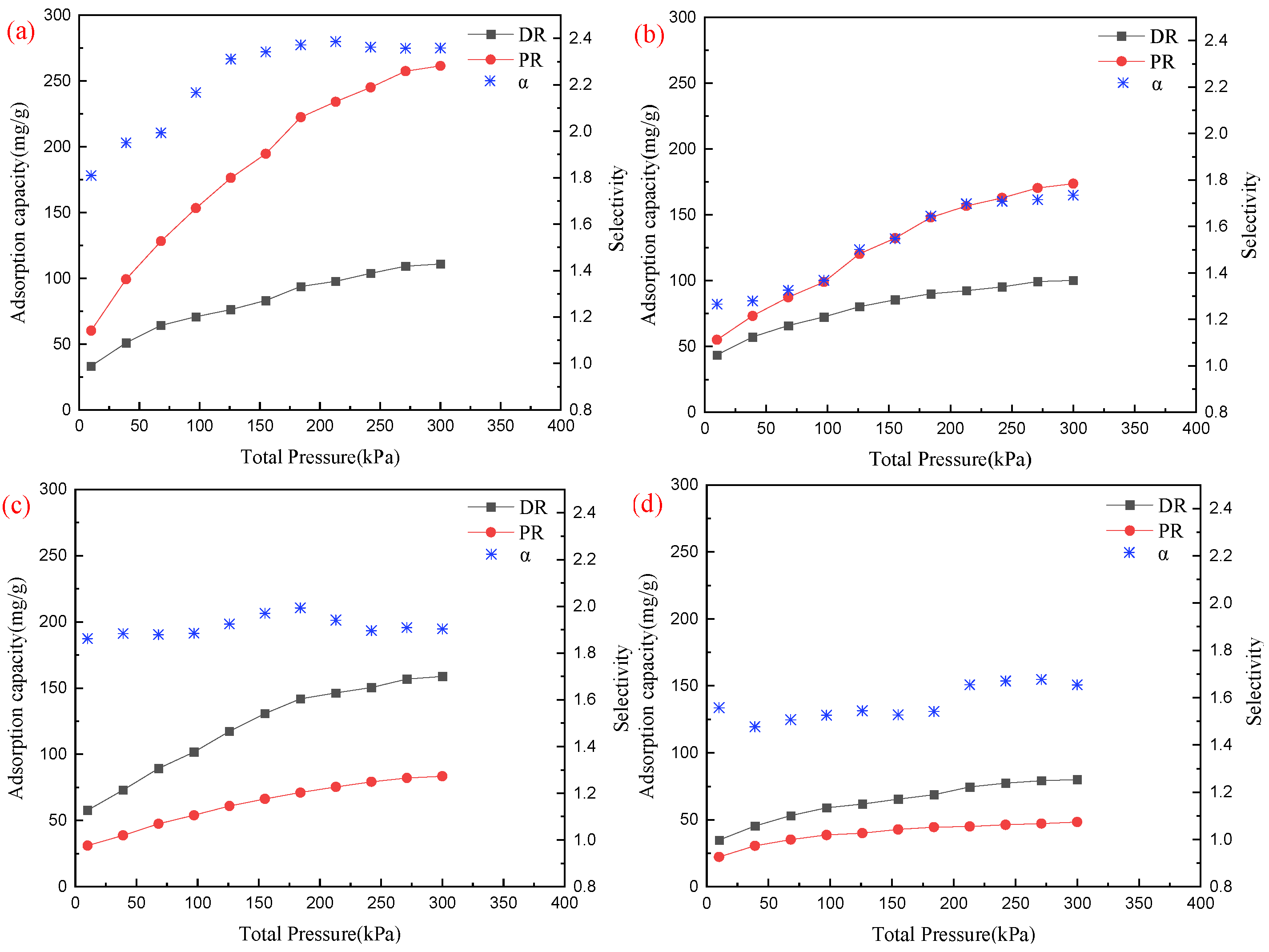

The adsorption capacities of DR and PR on six MOFs at 300 kPa are listed in Table 3. Capacity differences were calculated accordingly. ZU-61, Mg-MOF-74, UIO-66, and UIO-66-NH2 presented different performances for DR and PR. The adsorption capacity of PR was higher than that of DR on ZU-61 and Mg-MOF-74, while the adsorption capacity of DR was higher than that of PR on UIO-66 and UIO-66-NH2, which reflects the different affinity of DR and PR towards MOFs. Their selectivity values were all above 1.5 and can be listed in a decreasing order as follows: ZU-61 > UIO-66 > Mg-MOF-74 > UIO-66-NH2. Al-MIL-53 showed a big adsorption capacity but low selectivity. Meanwhile, MIL-101 presented the lowest selectivity among all the six MOFs. This meant that the separation of DR and PR by Al-MIL-53 or MIL-101 was hard to perform. So, this paper further selected ZU-61, Mg-MOF-74, UIO-66, and UIO-66-NH2 to simulate the adsorption of mixtures.
The adsorption capacity and selectivity of DR and PR on ZU-61, Mg-MOF-74, UIO-66, and UIO-66-NH2, at pressures ranging from 10 kPa to 300 kPa, were calculated according to the information above. The results are shown in Figure 6.
The selectivity values of PR/DR on both ZU-61 and Mg-MOF-74 were greater than 1 and increased with the increase in pressure from 10 to 200 kPa. They were then maintained at around 2.35 and 1.73, respectively. ZU-61 presented larger adsorption capacities of 261.39 mg/g and 110.85 mg/g for PR and DR at 300 kPa, respectively, which might be attributed to the pillar anion that can form a synergetic H bond and provide possible adsorption sites [66]. Meanwhile, the square structure of ZU-61 underwent deformation during adsorption and the pillar anion NbOF52− rotated to fit the different shapes of isomers. This self-adjustment property enabled the discrimination of isomers with subtle differences [61,66]. Then, the variations in the adsorption capacity of PR and DR on ZU-61 were bigger than those on Mg-MOF-74, with increases of 201.15 mg/g and 77.57 mg/g from 10 kPa to 300 kPa, respectively. The adsorption capacity of DR on Mg-MOF-74 was similar to that on ZU-61 while the adsorption capacity of PR on Mg-MOF-74 was much lower than that on ZU-61, especially at high pressures. So, the selectivity of PR/DR on Mg-MOF-74 was lower than that on ZU-61.
On the contrary, UIO-66 and its functionalized MOF UIO-66-NH2 presented high selectivity values of DR/PR that were greater than 1. Their selectivity changed little and remained at around 1.88 and 1.60 with the increase in pressure, which meant that the increasing rates of the adsorption capacity of DR on two MOFs were similar to those of PR. The adsorption capacities of DR and PR on UIO-66-NH2 reached 80.03 mg/g and 48.38 mg/g at 300 kPa, which were smaller than those of the other three MOFs. The molecular dynamics diameters of both DR and PR were higher than the pore diameter of UIO-66-NH2. Most molecules adhered to the surface rather than the inner pore during adsorption. This could explain its low capacity, similar for both DR and PR, which became one of the reasons for its relatively low selectivity [67]. UIO-66 showed a higher adsorption capacity than UIO-66-NH2, which could be explained by the bigger surface area and pore volume. The adsorption capacity of DR and PR on UIO-66 increased from 57.78 mg/g and 31.03 mg/g to 158.81 mg/g and 83.44 mg/g, respectively.
According to the above, ZU-61 presented the highest selectivity and largest capacity in the adsorption of DR and PR. The structure of ZU-61 was optimized by VASP software in order to understand the adsorption mechanism of ZU-61. As shown in Figure S1, (a) ZU-61 consisted of 4,4′-bipyridine and the rotational ligand NbOF52−, which were alternately connected and then formed a square pore space. The anion pillar NbOF52− provided accessible Lewis basic sites, which served as adsorption sites. The electrostatic potentials of DR and PR are shown in Figure 7. The adjacent methyl groups at the benzene ring of PR shower stronger electron acceptability than DR, which indicated that PR bound to anion pillars more easily than DR. The ionic strength could also affect the adsorption, which is more pronounced with stronger polarity. This effect could be explained by the enhancement of the polar interactions in combination with the salting-out effect [68].

4.4.2. Adsorption Heats of Mixture

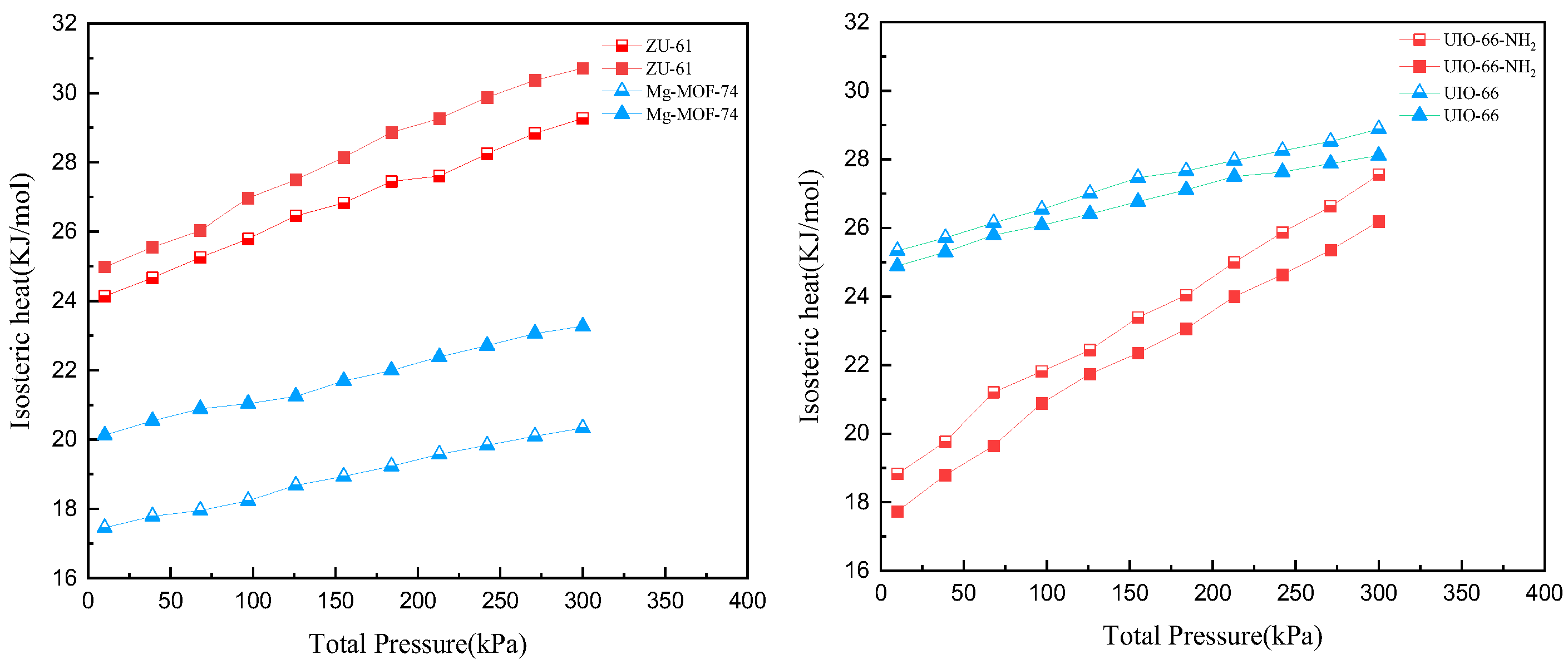

The isosteric heats of DR and PR in mixtures were calculated at pressures ranging from 10 kPa to 300 kPa, as shown in Figure 8. The adsorption heats of DR and PR on the four MOFs all increased with the increasing pressure. The isosteric heats and thus the interactions between DR (or PR) and MOFs followed a decreasing order: ZU-61 > UIO-66 > UIO-66-NH2 > Mg-MOF-74.
According to Figure 8, ZU-61 and Mg-MOF-74 presented higher isosteric heats for PR than for DR, while UIO-66 and UIO-66-NH2 presented higher isosteric heats for DR than for PR. This could explain the capacity differences between DR and PR in mixture. Meanwhile, the heat differences between DR and PR on ZU-61 and Mg-MOF-74 were bigger than those on UIO-66 and UIO-66-NH2, which showed agreement with the results of capacity differences on four MOFs.

4.5. Experimental Results

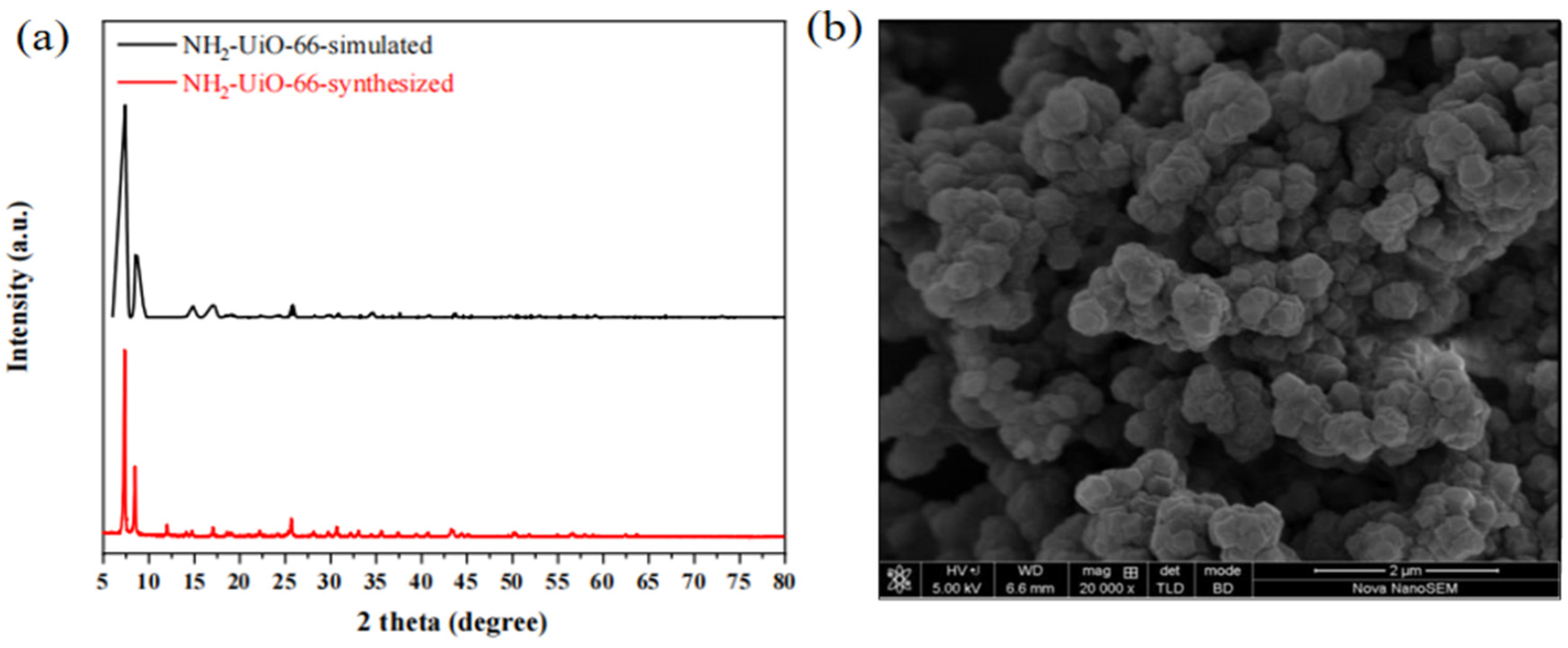

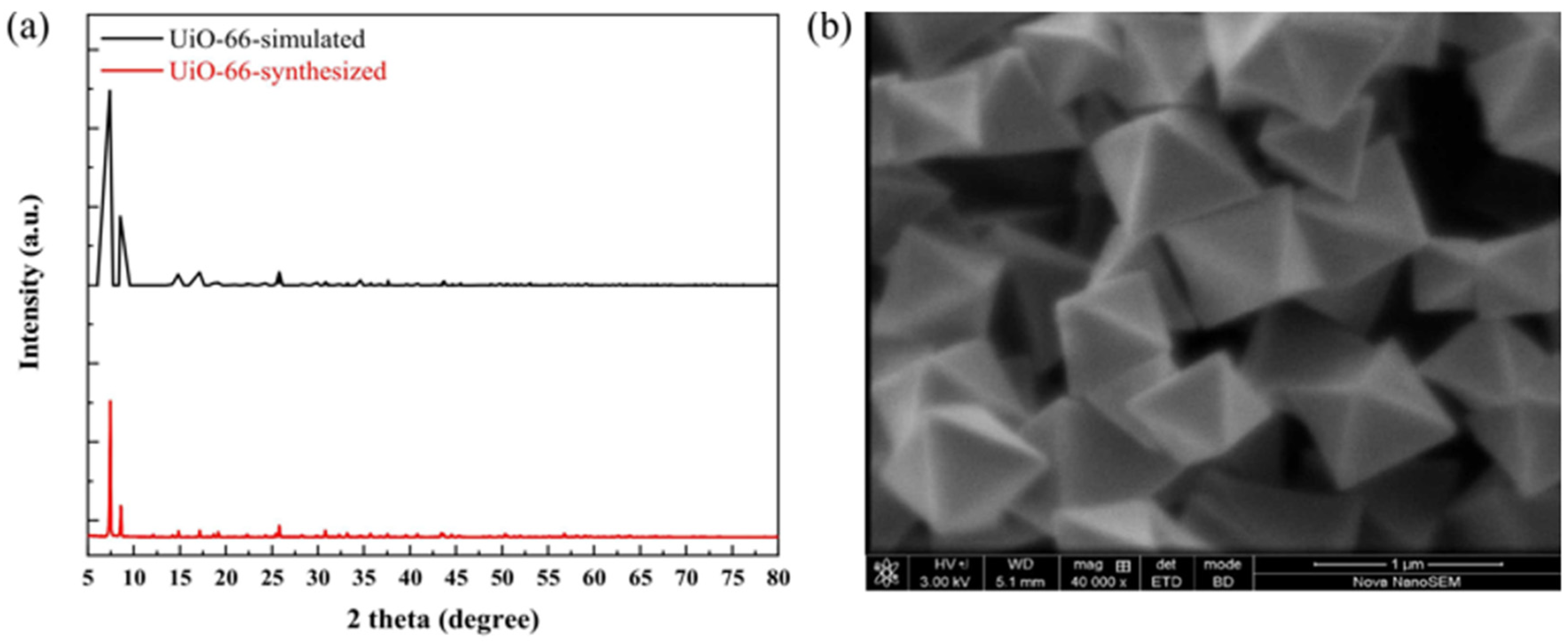

The four MOFs of UIO-66, UIO-66-NH2, Mg-MOF-74, and ZU-61 were prepared via the solvothermal method and characterized by XRD and SEM. The results are shown in Figure 9, Figure 10, Figure 11 and Figure 12 and were consistent with those in the simulation and the literature [17,55,56,57]. The major diffraction peaks were sharp, and no characteristic peaks of impurity were observed. The pore sizes of four MOFs were distributed around 0.72 nm, 0.66 nm, 0.91 nm, and 0.85 nm, respectively (Figure S3). The competitive adsorption performances of DR and PR on UIO-66, UIO-66-NH2, Mg-MOF-74, and ZU-61 are listed in Table 4.
UIO-66 and UIO-66-NH2 shower a bigger capacity for DR than PR. This was contrary to the values obtained for ZU-61 and Mg-MOF-74, which were consistent with the simulation result. Among the four MOFs, ZU-61 presented the best performance while UIO-66 and Mg-MOF-74 fell in the middle regarding both the adsorption capacity and selectivity. UIO-66-NH2 showed a lower adsorption capacity for both DR and PR, with a H atom on a benzene ring being modified by -NH2. This might be explained by the presence of -NH2, increasing the spatial hindrance and then reducing the pore volume and specific surface area [62].
Compared with the values in Table 3 and Table 4, the experimental results presented good agreement with the simulation in general, with lower capacity and selectivity than the simulation values. This could be explained by the following reasons. (1) The simulation proceeded using gas. According to the section addressing the validation of force field parameters, the values calculated using the method in this paper were quite close to the experimental data relating to gas adsorption found in the literature. In general, the adsorption application of MOFs in industry is utilized in the liquid phase, but there is no liquid phase simulation method. So, DR and PR were adsorbed as liquids in the experiments but treated as gases in the simulation, where the rate of mass transfer was faster than that seen in the experiments. Thus, the adsorption capacity and selectivity in simulation were higher than those in experiments [69,70]. (2) In the simulation, the adsorption capacity of MOFs was calculated at 300 kPa, while the adsorption experiments proceeded at atmospheric pressures rather than at high pressures and temperatures. (3) The experimentally synthesized MOFs might contain small defects, which would result in a decrease in pore volume compared to the ideal model used in the simulation.

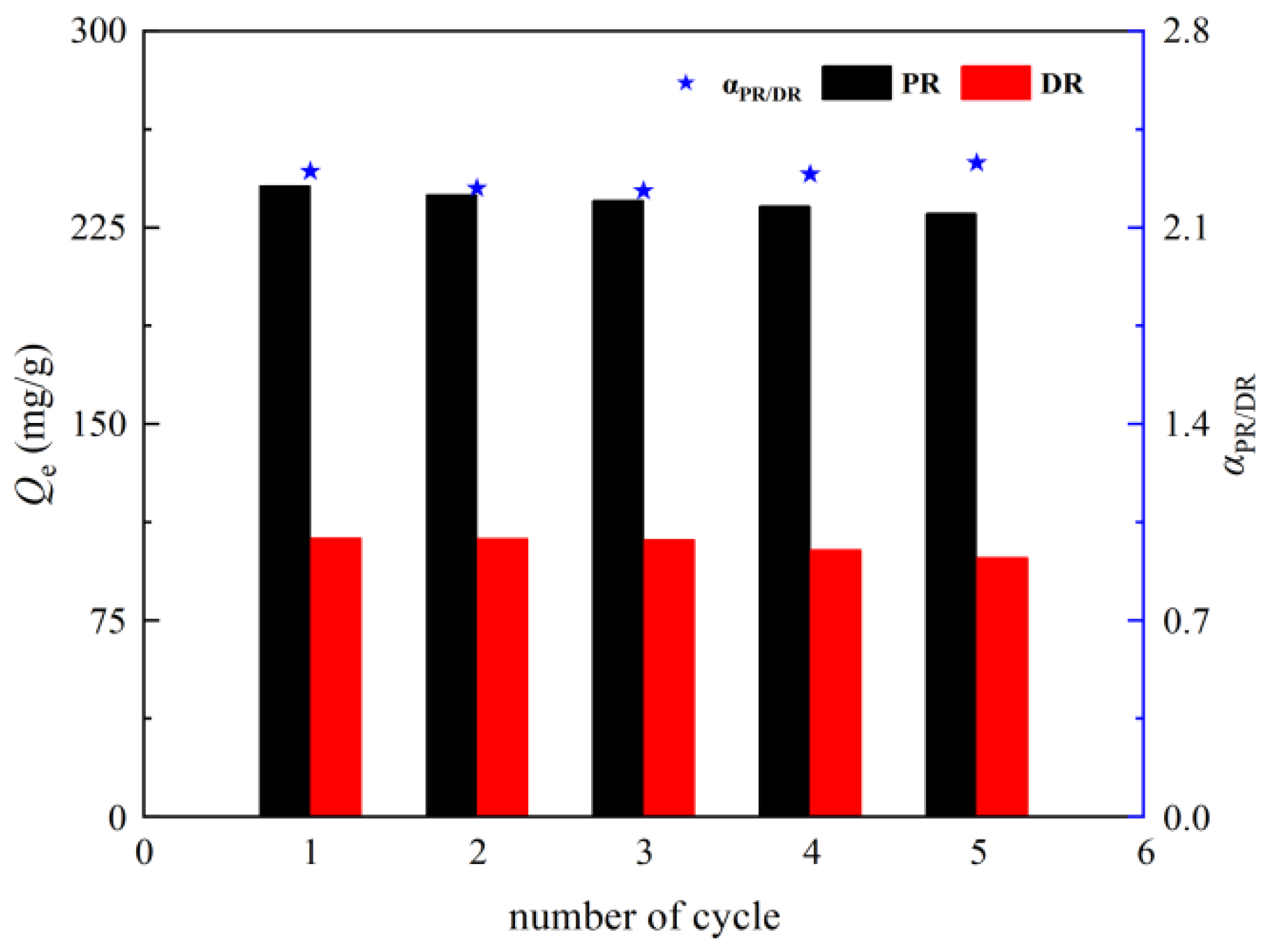

Regeneration is important for industrial applications. The adsorption performances of ZU-61 for both PR and DR were investigated for five cycles. As shown in Figure 13, adsorption capacity of both PR and DR gradually decreased and then leveled off as the number of cycles increased. In the fifth cycle, the adsorption amount was 96% of that seen in the first cycle, and the selectivity of PR/DR on ZU-61 changed little during regeneration. This indicated that ZU-61 had good recycling performances and practical applicability.

5. Conclusions Implications and Future Works

The adsorption of DR and PR on the MOFs, including UIO-66, UIO-66-NH2, ZU-61, Mg-MOF-74, Al-MIL-53, and MIL-101, was studied by simulation and experiments in this paper. The adsorption capacity and isosteric heats of both pure components and mixtures from 10 kPa to 300 kPa at 298 K were calculated via GCMC simulation. The adsorption capacity of both DR and PR increased with increasing pressure. All isosteric heats were <40 kJ/mol, which meant that all processes were physical. For mixtures (where the molar ratio was 1), the adsorption capacity values of DR on UIO-66, UIO-66-NH2, ZU-61, and Mg-MOF-74 at 300 kPa were 158.81 mg/g, 80.03 mg/g, 110.85 mg/g, and 100.14 mg/g, respectively, while those of PR were 83.44 mg/g, 48.38 mg/g, 261.39 mg/g, and 176.67 mg/g, respectively. The selectivity of the four MOFs could reach 1.90, 1.65, 2.36, and 1.76, respectively.
The four MOFs of ZU-61, Mg-MOF-74, UIO-66, and UIO-66-NH2 were prepared solvothermally and characterized by SEM and XRD. The results were inconsistent with the literature and simulation. Competitive adsorption experiments of DR and PR were further carried out on UIO-66, UIO-66-NH2, ZU-61, and Mg-MOF-74 at 298 K. The adsorption capacities of DR were 146.27 mg/g, 70.58 mg/g, 103.75 mg/g, and 95.82 mg/g, respectively, while those of PR were 79.49 mg/g, 44.39 mg/g, 239.66 mg/g, and 165.77 mg/g, respectively. Their selectivity values were 1.84, 1.59, 2.31, and 1.73. The experimental results showed good agreement with the simulation in general, with lower adsorption capacity and selectivity. This could mainly be attributed to the fact that DR and PR were adsorbed as liquids in experiments but treated as gases in simulation, meaning the rate of mass transfer was faster than that in the experiments.
This study can guide the separation of tetratoluene isomers in C10 heavy aromatics.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pr12112331/s1, Figure S1: Optimized Structures of MOFs; Figure S2: Optimized structures of tetratoluene; Figure S3: The snapshot of four synthesized MOFs; Figure S4: The pore size distribution of four MOFs; Table S1: Atomic charges of DR and PR; Table S2: Adsorption capacity of DR and PR from 10 kPa to 300 kPa.

Author Contributions

T.W.: planning and execution of experiment, data analysis, writing—original draft. Y.W.: planning of experiment, writing—review and editing, supervision. J.R.: execution of experiment, data analysis. X.W.: execution of experiment, data analysis. B.W.: writing—review and editing. K.C.: writing—review and editing. L.J.: writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Oh, J.; Choi, Y.; Shin, J.; Kim, K.; Lee, J.K. Synergistic shape selectivity of H-Beta and H-ZSM-5 for Xylene-rich BTX production by hydrocracking of heavy-aromatic compounds. Fuel Process. Technol. 2023, 249, 107856. [Google Scholar] [CrossRef]
  2. Goncalves, J.C.; Ferreira, A.F.P.; Rodrigues, A.E. Minimum Cross Diameter for C6–C10 Aromatic Compounds. Chem. Eng. Technol. 2019, 42, 1169–1173. [Google Scholar] [CrossRef]
  3. Ke, D.; Wang, M.J.; Ruan, J.C.; Chen, X.Z.; Zhou, S.D. Efficient, continuous oxidation of durene to pyromellitic dianhydride mediated by a V-Ti-P ternary catalyst: The remarkable doping effect. Chinese J. Chem. Eng. 2023, 55, 156–164. [Google Scholar] [CrossRef]
  4. Li, M.Z.; Jiao, L.K.; Nawaz, M.A.; Cheng, L.K.; Meng, C.; Yang, T.H.; Tariq, M.; Liu, D.H. A one-step synthesis method of durene directly from syngas using integrated catalyst of Cu/ZnO/Al2O3 and Co-Nb/HZSM-5. Chem. Eng. Sci. 2019, 200, 103–112. [Google Scholar] [CrossRef]
  5. Wang, Z.H.; Li, S.S.; Chen, C.H.; Jiang, Q.S.; Liu, D.H. Efficient synthesis of durene from syngas utilizing composite catalyst of Zr/Al activity-regulated CuZn oxides and alkali-treated HZSM-5-PEG. Fuel 2024, 378, 132800. [Google Scholar] [CrossRef]
  6. Lai, Y.J.; Hong, B.; Zhou, W.; Wen, D.L.; Xie, Y.F.; Luo, F.; Ye, L.M.; Zuo, J.C.; Yuan, Y.Z. Upgrading Trimethylbenzene to Durene by CO2-Mediated Methylation over Cu-Boosted ZnZrOx Integrated with HZSM-5. ACS Catal. 2024, 14, 11780–11793. [Google Scholar] [CrossRef]
  7. Hayek, A.; Yahaya, G.O.; Alsamah, A.; Alghannam, A.A.; Jutaily, S.A.; Mokhtari, I. Pure-and sour mixed-gas transport properties of 4,4′-methylenebis(2,6-diethylaniline)-based copolyimide membranes. Polymer 2019, 166, 184–195. [Google Scholar] [CrossRef]
  8. Li, G.Z.; Si, A.H.; Zhuang, Y.; Pang, S.Y.; Cui, Y.H.; Baeyens, J.; Qin, P.Y. A defects-free ZIF-90/6FDA-Durene membrane based on the hydrogen bonding/covalent bonding interaction for gas separation. J. Membr. Sci. 2022, 661, 120910. [Google Scholar] [CrossRef]
  9. Yu, S.; Lim, C.S.; Seo, B. Tuning the free volume of polynorbornene-based membranes by blending 6FDA-durene to improve H2 permselectivity. J. Ind. Eng. Chem. 2018, 62, 197–208. [Google Scholar] [CrossRef]
  10. Hossain, I.; Al Munsur, A.; Kim, T.H. A Facile Synthesis of (PIM-Polyimide)-(6FDA-Durene-Polyimide) Copolymer as Novel Polymer Membranes for CO2 Separation. Membranes 2019, 9, 113. [Google Scholar] [CrossRef]
  11. Jusoh, N.; Yeong, Y.F.; Lau, K.K.; Shariff, A.M. Enhanced gas separation performance using mixed matrix membranes containing zeolite T and 6FDA-durene polyimide. J. Membr. Sci. 2017, 525, 175–186. [Google Scholar] [CrossRef]
  12. Lyu, Q.M.; Cai, Y.F.; Wang, S.L.; Sun, W.Z.; Zhao, L. Experiments and Kinetic Modeling on the Co/Mn/Br Catalyzed Oxidation of Prehnitene to Mellophanic Acid in the Liquid Phase. Ind. Eng. Chem. Res. 2020, 59, 19226–19234. [Google Scholar] [CrossRef]
  13. Merkelbach, J.; Frank, W. Synthesis, detailed geometric analysis and bond-valence method evaluation of the strength of pi-arene bonding of two isotypic cationic prehnitene tin(II) complexes: [{1,2,3,4-(CH3)4C6H2}2Sn2Cl2] [MCl4]2 (M = Al and Ga). Acta Crystallogr. Sect. E Crystallogr. Commun. 2019, 75, 1051–1056. [Google Scholar] [CrossRef]
  14. Lyu, Q.M.; Sun, W.Z.; Zhao, L. Thermodynamic analysis and kinetic simulation of liquid phase oxidation of prehnitene to mellophanic acid. CIESC J. 2021, 72, 1009–1017. [Google Scholar] [CrossRef]
  15. Ma, L.; Hou, M.; Wang, Y.M.; Tong, W.Y.; Zheng, J.L. Organosiloxane membranes for heavy aromatic oil fractionation. Chem. Commun. 2024, 60, 8083–8086. [Google Scholar] [CrossRef]
  16. Guan, Y. Domestic and Foreign C10 Comprehensive Utilization Technology and Development trend. Chem. Ind. 2017, 35, 32–37. [Google Scholar] [CrossRef]
  17. Mao, X.X.; Wu, Y.Y.; Zhang, X.C.; Cai, Y.Q.; Wu, B.; Chen, K.; Ji, L.J. Separation of durene and prehnitene by metal-organic framework UIO-66. Colloids Surf. A: Physicochem. Eng. Asp. 2022, 641, 127904. [Google Scholar] [CrossRef]
  18. Shiau, L.D. Purification of durene from the mixture of durene and isodurene by stripping crystallization. Korean J. Chem. Eng. 2021, 38, 2510–2518. [Google Scholar] [CrossRef]
  19. Wen, D.L.; Zuo, J.C.; Han, X.Q.; Liu, J.; Ye, L.M.; Yuan, Y.Z. Synthesis of durene by methylation of 1,2,4-trimethylbenzene with syngas over bifunctional CuZnZrOx-HZSM-5 catalysts. Catal. Sci. Technol. 2022, 12, 2555–2565. [Google Scholar] [CrossRef]
  20. Ren, H.; Yang, W.; Zhang, B. Opportunities for separation and utilization of C9+ heavy aromatics from reformation in China. Mod. Chem. Ind. 2020, 40, 11–14. [Google Scholar] [CrossRef]
  21. Cong, S.; Liu, Y.; Li, H.; Li, X.G.; Zhang, L.H.; Wang, L. Purification and separation of durene by static melt crystallization. Chin. J. Chem. Eng. 2015, 23, 505–509. [Google Scholar] [CrossRef]
  22. Zhu, M.H.; Liu, Y.D.; Wang, L.T.; Huang, Z.B.; Yuan, P.Q. Selective extraction of aromatics from residual oil with subcritical water. Chem. Eng. Res. Des. 2024, 202, 444–454. [Google Scholar] [CrossRef]
  23. Li, J. Production Technology and Industry Progress Research of 1,2,4,5-Tetramethylbenzene. Shandong Chem. Ind. 2023, 52, 113–115. [Google Scholar] [CrossRef]
  24. Li, X.G.; Liu, Y.; Li, H.; Cong, S.; Xu, C.; Wang, L. Purification of by-product durene in methanol synthetic oil by crystallization. Chem. Eng. 2013, 41, 14–18. [Google Scholar]
  25. Jusoh, N.; Yeong, Y.F.; Cheong, W.L.; Lau, K.K.; Shariff, A.M. Facile fabrication of mixed matrix membranes containing 6FDA-durene polyimide and ZIF-8 nanofillers for CO2 capture Petrochemical Technology. J. Ind. Eng. Chem. 2016, 44, 164–173. [Google Scholar] [CrossRef]
  26. Rezki, M.; Septinai, N.L.W.; Iqbal, M.; Adhika, D.R.; Wenten, I.G.; Yuliarto, B. Review-Recent Advance in Multi-Metallic Metal Organic Frameworks(MM-MOFs) and Their Derivatives for Electrochemical Biosensor Application. J. Electrochem. Soc. 2022, 169, 017504. [Google Scholar] [CrossRef]
  27. Zhang, W.Q.; Li, X.J.; Ding, X.M.; Hua, K.; Sun, A.L.; Hu, X.X.; Nie, Z.W.; Zhang, Y.S.; Wang, J.C.; Li, R.L.; et al. Progress and opportunities for metal-organic framework composites in electrochemical sensors. RSC Adv. 2023, 13, 10800–10817. [Google Scholar] [CrossRef]
  28. Kulak, H.; Polat, H.M.; Kavak, S.; Keskin, S.; Uzun, A. Improving CO2 Separation performance of MIL-53(Al) by incorporating 1-n-butyl-3-methylimidazolium methyl sulfate. Energy Technol. 2019, 7, 1900157. [Google Scholar] [CrossRef]
  29. Sun, Y.X.; Jia, X.; Huang, H.L.; Guo, X.Y.; Qiao, Z.H.; Zhong, C.L. Solvent-free mechanochemical route for the construction of ionic liquid and mixed-metal MOF composites for synergistic CO2 fixation. J. Mater. Chem. A 2020, 8, 3180–3185. [Google Scholar] [CrossRef]
  30. Skarmoutsos, I.; Eddaoudi, M.; Maurin, G. Highly tunable sulfur hexafluoride separation by interpenetration control in metal organic frameworks. Microporous Mesoporous Mater. 2019, 281, 44–49. [Google Scholar] [CrossRef]
  31. Li, J.; Wang, X.X.; Zhao, G.X.; Chen, C.L.; Chai, Z.F.; Alsaedi, A.; Hayat, T.; Wang, X.K. Metal-organic framework-based materials superior adsorbents for the capture of toxic and radioactive metal ions. Chem. Soc. Rev. 2018, 47, 2322–2356. [Google Scholar] [CrossRef] [PubMed]
  32. Konneryh, H.; Matsagar, B.M.; Chen, S.S.; Prechtl, M.H.G.; Shieh, F.K.; Wu, K.C.W. Metal-organic framework(MOF) derived catalysts for fine chemical production. Coordin. Chem. Rev. 2020, 416, 213319. [Google Scholar] [CrossRef]
  33. Jiang, J.X.; Shi, Y.; Wu, M.J.; Rezakazemi, M.; Aminabhavi, T.M.; Huang, R.Z.; Jia, C.; Ge, S.B. Biomass-MOF composites in wastewater treatment, air purification, and electromagnetic radiation adsorption—A review. Chem. Eng. J. 2024, 494, 152932. [Google Scholar] [CrossRef]
  34. Liu, C.; Qiao, J.; Zhang, X.; Xu, D.M.; Wu, N.N.; Lv, L.F.; Liu, W.; Liu, J.R. Bimetallic MOF-derived porous CoNi/C nanocomposites with ultra-wide band microwave absorption properties. New J. Chem. 2019, 43, 16546–16554. [Google Scholar] [CrossRef]
  35. Zhao, Y.J.; Zhao, H.F.; Liu, D.H. Selective Adsorption and Separation of o-Xylene Using an Aluminum-Based Metal-Organic Framework. Ind. Eng. Chem. Res. 2021, 60, 17143–17149. [Google Scholar] [CrossRef]
  36. He, Z.J.; Yang, Y.X.; Bai, P.; Guo, X.H. Metal-organic framework MIL-53(Cr) as a superior adsorbent: Highly 8 efficient separation of xylene isomers in liquid phase. J. Ind. Eng. Chem. 2019, 77, 262–272. [Google Scholar] [CrossRef]
  37. Bae, H.J.; Kim, S.I.; Choi, Y.; Kim, K.M.; Bae, Y.S. High p-xylene selectivity in aluminum-based metal-organic framework with 1-D channels. J. Ind. Eng. Chem. 2023, 117, 333–341. [Google Scholar] [CrossRef]
  38. Lin, Y.H.; Zhang, J.; Pandey, H.; Dong, X.L.; Gong, Q.H.; Wang, H.; Yu, L.; Zhou, K.; Yu, W.; Huang, X.X.; et al. Efficient separation of xylene isomers by using a robust calcium-based metal-organic framework through a synergetic thermodynamically and kinetically controlled mechanism. J. Mater. Chem. A. 2021, 9, 26202–26207. [Google Scholar] [CrossRef]
  39. Yang, L.P.; Liu, H.B.; Yuan, D.H.; Xing, J.C.; Xu, Y.P.; Liu, Z.M. Efficient Separation of Xylene Isomers by a Pillar-Layer Metal-Organic Framework. ACS Appl. Mater. Interfaces 2021, 13, 41600–41608. [Google Scholar] [CrossRef]
  40. Feng, L.; Liu, J.J.; Abu-Hamdeh, N.H.; Bezzina, S.; Malekshah, R.E. Molecular dynamics and quantum simulation of different cationic dyes removal from contaminated water using UiO-66-(COOH)2 metal-organic framework. J. Mol. Liq. 2022, 349, 118085. [Google Scholar] [CrossRef]
  41. Kim, S.I.; Lee, S.; Chung, Y.G.; Bae, Y.S. The Origin of p-Xylene Selectivity in a DABCO Pillar-Layered Metal-Organic Framework: A Combined Experimental and Computational Investigation. ACS Appl. Mater. Interfaces 2019, 11, 31227–31236. [Google Scholar] [CrossRef] [PubMed]
  42. Ji, G.J.; Xiang, T.; Zhou, X.Q.; Chen, L.; Zhang, Z.H.; Lu, B.B.; Zhou, X.J. Molecular dynamics simulation of adsorption and separation of xylene isomers by Cu-HKUST-1. RSC Adv. 2022, 12, 35290–35299. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, V.; Xu, N.; Liu, J.C.; Tang, G.; Geng, W.T. VASPKIT: A user-friendly interface facilitating high-throughput computing and analysis using VASP code. Comput. Phys. Commun. 2021, 267, 108033. [Google Scholar] [CrossRef]
  44. Sun, A.Q.; Wu, Y.; He, Z.J.; Bai, P.; Lyu, J.F.; Guo, X.H. Manipulated adsorption of C8 aromatics in MIL-53(Cr) through pre-adsorbing water molecules. J. Taiwan Inst. Chem. E 2021, 122, 222–230. [Google Scholar] [CrossRef]
  45. Chen, K.M.; Liu, P.X.; Wang, Y.; Ren, Y.H.; Liu, J.H.; Chen, Y.; Li, J.P.; Li, L.B. Structural functionalization in robust metal-organic frameworks for p-xylene separation with superior adsorption capacity. Microporous Mesoporous Mater. 2023, 360, 112705. [Google Scholar] [CrossRef]
  46. Ribeiro, R.P.P.L.; Mota, J.P.B. Surface Area and Porosity of Co3(ndc)3(dabco) Metal-Organic Framework and Its Methane Storage Capacity: A Combined Experimental and Simulation Study. J. Phys. Chem. C 2021, 125, 2411–2423. [Google Scholar] [CrossRef]
  47. Xu, Z.W.; Ni, K.Y.; Mao, J.M.; Luo, T.K.; Lin, W.B. Monte Carlo Simulations Reveal New Design Principles for Efficient Nanoradiosensitizers Based on Nanoscale Metal-Organic Frameworks. Adv. Mater. 2021, 33, 2104249. [Google Scholar] [CrossRef]
  48. Yuvaraj, A.R.; Jayarama, A.; Sharma, D.; Nagarkar, S.S.; Duttagupta, S.P.; Pinto, R. Role of metal-organic framework in hydrogen gas storage: A critical review. Int. J. Hydrogen. Energ. 2024, 59, 1434–1458. [Google Scholar] [CrossRef]
  49. Han, B.; Chakraborty, A. Tailoring Zirconium-based metal organic frameworks for enhancing Hydrophilic/Hydrophobic Characteristics: Simulation and experimental investigation. J. Mol. Liq. 2021, 341, 117381. [Google Scholar] [CrossRef]
  50. Jing, B.Y.; Xia, D.; Wang, G.Q. Adsorption and Self-Diffusion of R32/R1234yf in MOF-200 Nanoparticles by Molecular Dynamics Simulation. Processes 2022, 10, 1714. [Google Scholar] [CrossRef]
  51. Mao, M.; Wu, X.X.; Hu, Y.; Yuan, Q.H.; He, Y.B.; Kang, F.Y. Charge storage mechanism of MOF-derived Mn2O3 as high performance cathode of aqueous zinc-ion batteries. J. Energy Chem. 2021, 52, 277–283. [Google Scholar] [CrossRef]
  52. Vo, T.K.; Bae, Y.S.; Chang, B.J.; Moon, S.Y.; Kim, J.H.; Kim, J. Highly CO Selective Cu(I)-Doped MIL-100(Fe) Adsorbent with High CO/CO2 Selectivity due to π Complexation: Effects of Cu(I) Loading and Activation Temperature. Microporous Mesoporous Mater. 2019, 274, 17–24. [Google Scholar] [CrossRef]
  53. Zhang, Y.Y.; Hu, G.F.; Gao, X.T.; Zhang, Z.X.; Cui, P. Simulation study on functional group-modified Ni-MOF-74 for CH4/N2 adsorption separation. J. Comp. Chem. 2024, 45, 1515–1524. [Google Scholar] [CrossRef]
  54. Chen, Y.B.; Tang, J.L.; Wang, S.X.; Zhang, L.B. Facile preparation of a remarkable MOF adsorbent for Au(III) selective separation from wastewater: Adsorption, regeneration and mechanism. J. Mol. Liq. 2022, 349, 118137. [Google Scholar] [CrossRef]
  55. Li, Y.; Lin, H.; Yu, Q.L.; Ma, N.; Dai, W. UiO-66-NH2 nanoparticles supported on layered double hydroxides as an excellent adsorbent for levofloxacin capture. Particuology 2024, 92, 155–165. [Google Scholar] [CrossRef]
  56. Li, Y.J.; Cui, J.Y.; Wang, Q.J.; Yang, L.F.; Chen, L.Y.; Xing, H.B.; Cui, X.L. Responsive shape recognition of styrene over ethylbenzene with excellent selectivity and capacity in a hybrid porous material. Chem. Eng. J. 2023, 453, 139456. [Google Scholar] [CrossRef]
  57. Zhou, J.W.; Liu, M.; Chen, X.; Bai, S.Y.; Sun, J.H. Interfacial growth strategy for synthesizing Mg-MOF-74@clinoptilolites with hierarchical structures for enhancing adsorptive separation performance of CO2/CH4, CH4/N2 and CO2/N2. Surf. Interfaces 2024, 54, 105106. [Google Scholar] [CrossRef]
  58. Li, L.C.; Xu, Y.L.; Zhong, D.J.; Zhong, N.B. CTAB-surface-functionalized magnetic MOF@MOF composite adsorbent for Cr(VI) efficient removal from aqueous solution. Colloids Surf. A Physicochem. Eng. Asp. 2020, 586, 124255. [Google Scholar] [CrossRef]
  59. Yu, K.; Ahmed, I.; Wong, D.I.; Lee, W.I.; Ahn, W.S. Highly efficient adsorptive removal of sulfamethoxazole from aqueous solutions by porphyrinic MOF-525 and MOF-545. Chemosphere 2020, 250, 126133. [Google Scholar] [CrossRef] [PubMed]
  60. Wu, H.; Zhou, W.; Yildirim, T. High-Capacity Methane Storage in Metal−Organic Frameworks M2(dhtp): The Important Role of Open Metal Sites. J. Am. Chem. Soc. 2009, 131, 4995–5000. [Google Scholar] [CrossRef]
  61. Chen, S.; Li, Y.J.; Yang, L.F.; Zhang, X.M.; Yang, Z.L.; Zhou, L.; Cui, X.L.; Xing, H.B. Anion-pillared porous materials with suitable pore size for the efficient discrimination of cyclohexene from cyclohexane. Sep. Purif. Technol. 2022, 302, 122095. [Google Scholar] [CrossRef]
  62. Li, T.; Cheng, C.X.; Zhang, K.F.; Yang, J.; Han, G.S.; Wang, X.J.; Wang, Z.P.; Wang, L.G. UiO-66-NH2 nanocomposites incorporated cellulose acetate for forward osmosis membranes of high desalination performance. Environ. Technol. 2024, 45, 16–27. [Google Scholar] [CrossRef] [PubMed]
  63. Yu, Z.Z.; Anstine, D.M.; Boulfelfel, S.E.; Gu, C.K.; Colina, C.M.; Sholl, D.S. Incorporating Flexibility Effects into Metal-Organic Framework Adsorption Simulations Using Different Models. ACS Appl. Mater. Interfaces 2021, 13, 61305–61315. [Google Scholar] [CrossRef] [PubMed]
  64. Yeganegi, S.; Gholami, M.; Sokhanvaran, V. Molecular simulations of adsorption and separation of acetylene and methane and their binary mixture on MOF-5, HKUST-1 and MOF-505 metal-organic frameworks. Mol. Sim. 2017, 43, 260–266. [Google Scholar] [CrossRef]
  65. Chen, B.; Li, Y.H.; Li, M.X.; Cui, M.F.; Xu, W.S.; Li, L.B.; Sun, Y.H.; Wang, M.Z.; Zhang, Y.; Chen, K.W. Rapid adsorption of tetracycline in aqueous solution by using MOF-525/graphene oxide composite. Microporous Mesoporous Mater. 2021, 328, 111457. [Google Scholar] [CrossRef]
  66. Cui, X.L.; Niu, Z.; Shan, C.; Yang, L.F.; Hu, J.B.; Wang, Q.J.; Lan, P.C.; Li, Y.J.; Wojtas, L.; Ma, S.Q.; et al. Efficient separation of xylene isomers by a guest-responsive metal-organic framework with rotational anionic sites. Nat. Commun. 2020, 11, 5456. [Google Scholar] [CrossRef]
  67. Bai, Y.H.; Chen, H.H.; Cheng, H.; Ding, Z.X.; Yuan, R.S.; Li, Z.H. Coupling physical adsorption and photocatalysis over CdS/UiO-66-NH2 for efficient removal of hydrogen sulfide. Sep. Purif. Technol. 2024, 341, 126956. [Google Scholar] [CrossRef]
  68. Kyriakopoulos, G.; Xiarchos, I.; Doulia, D. Treatment of contaminated water with pesticides via adsorption. Int. J. Environ. Technol. Manag. 2006, 6, 515–524. [Google Scholar] [CrossRef]
  69. Song, W.H.; Yao, J.; Ma, J.S.; Li, A.F.; Li, Y.; Sun, H.; Zhang, L. Grand canonical Monte Carlo simulations of pore structure influence on methane adsorption in micro-porous carbons with applications to coal and shale systems. Fuel 2018, 215, 196–203. [Google Scholar] [CrossRef]
  70. Frank, H.O.; Paesani, F. Molecular driving forces for water adsorption in MOF-808: A comparative analysis with UiO-66. J. Chem. Phys. 2024, 160, 094703. [Google Scholar] [CrossRef]
Processes 12 02331 g001

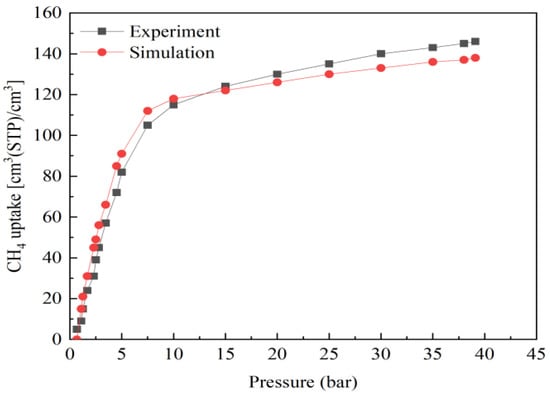

Figure 1. The validation of the CH4 adsorption field using Mg-MOF-74.
Figure 1. The validation of the CH4 adsorption field using Mg-MOF-74.
Processes 12 02331 g001
Processes 12 02331 g002

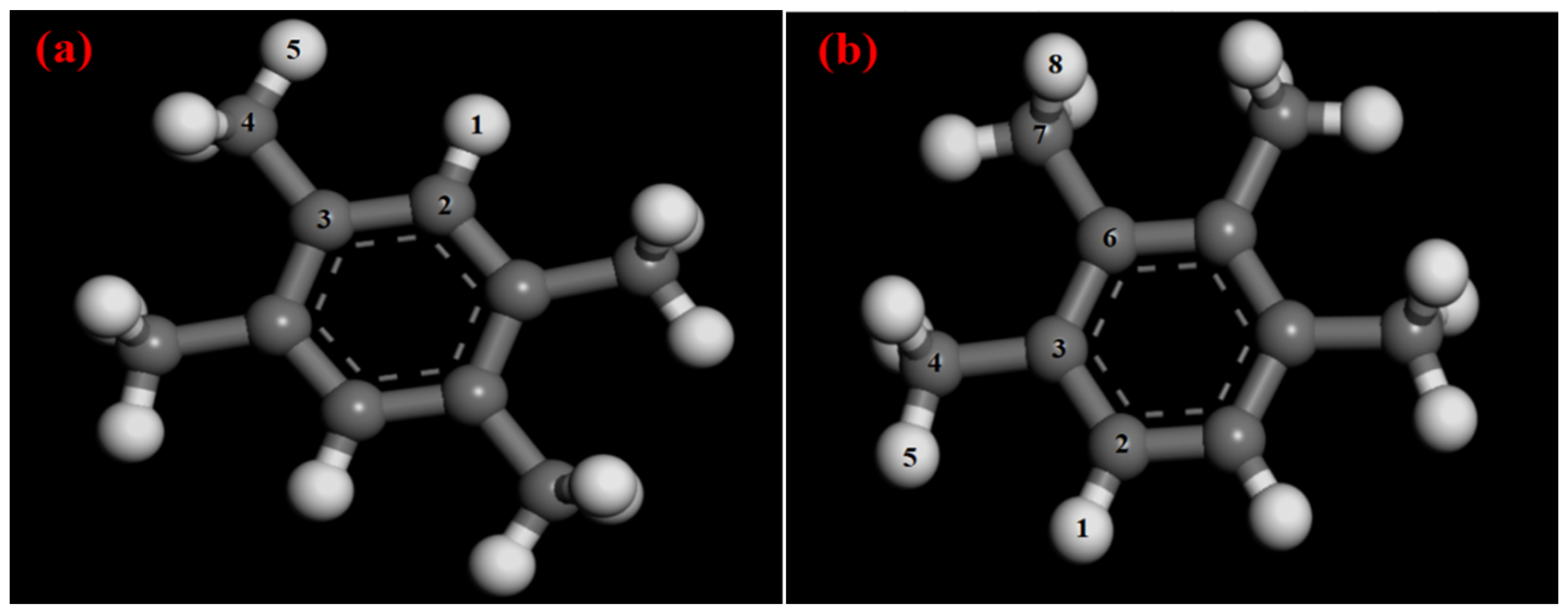

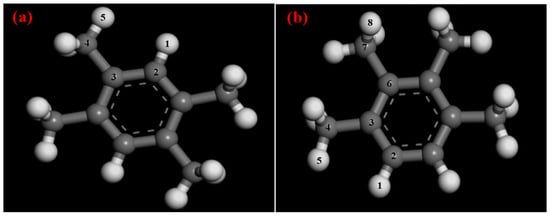

Figure 2. Optimized structures of tetratoluene: (a) DR; (b) PR.
Figure 2. Optimized structures of tetratoluene: (a) DR; (b) PR.
Processes 12 02331 g002
Processes 12 02331 g003
Figure 3. Adsorption isotherms of DR at 298 K.
Figure 3. Adsorption isotherms of DR at 298 K.
Processes 12 02331 g003
Processes 12 02331 g004
Figure 4. Adsorption isotherms of PR at 298 K.
Figure 4. Adsorption isotherms of PR at 298 K.
Processes 12 02331 g004
Processes 12 02331 g005
Figure 5. Isosteric heats for different MOFs at 298 K: (a) DR; (b) PR.
Figure 5. Isosteric heats for different MOFs at 298 K: (a) DR; (b) PR.
Processes 12 02331 g005
Processes 12 02331 g006
Figure 6. Adsorption capacity and selectivity from 10 kPa to 300 kPa: (a) ZU-61; (b) Mg-MOF-74; (c) UIO-66; (d) UIO-66-NH2.
Figure 6. Adsorption capacity and selectivity from 10 kPa to 300 kPa: (a) ZU-61; (b) Mg-MOF-74; (c) UIO-66; (d) UIO-66-NH2.
Processes 12 02331 g006
Processes 12 02331 g007

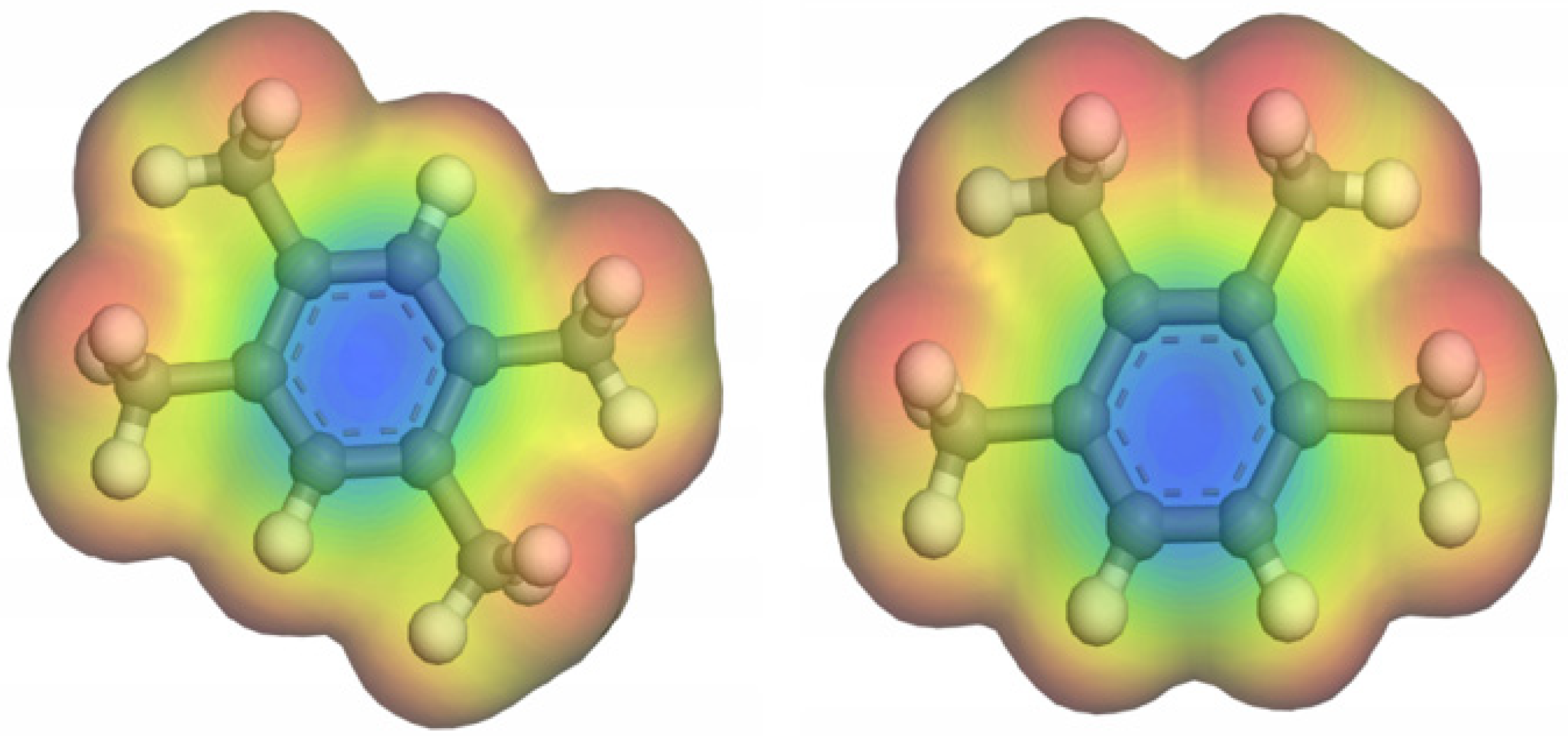

Figure 7. Molecular electron density of DR and PR.
Figure 7. Molecular electron density of DR and PR.
Processes 12 02331 g007
Processes 12 02331 g008
Figure 8. Isosteric heats of DR (hollow data points) and PR (solid data points) from 10 kPa to 300 kPa.
Figure 8. Isosteric heats of DR (hollow data points) and PR (solid data points) from 10 kPa to 300 kPa.
Processes 12 02331 g008
Processes 12 02331 g009

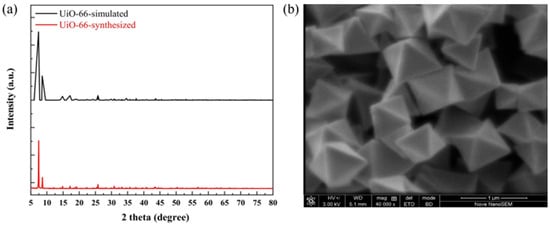

Figure 9. The characterization of UIO-66: (a) XRD; (b) SEM.
Figure 9. The characterization of UIO-66: (a) XRD; (b) SEM.
Processes 12 02331 g009
Processes 12 02331 g010
Figure 10. The characterization of UIO-66-NH2: (a) XRD; (b) SEM.
Figure 10. The characterization of UIO-66-NH2: (a) XRD; (b) SEM.
Processes 12 02331 g010
Processes 12 02331 g011

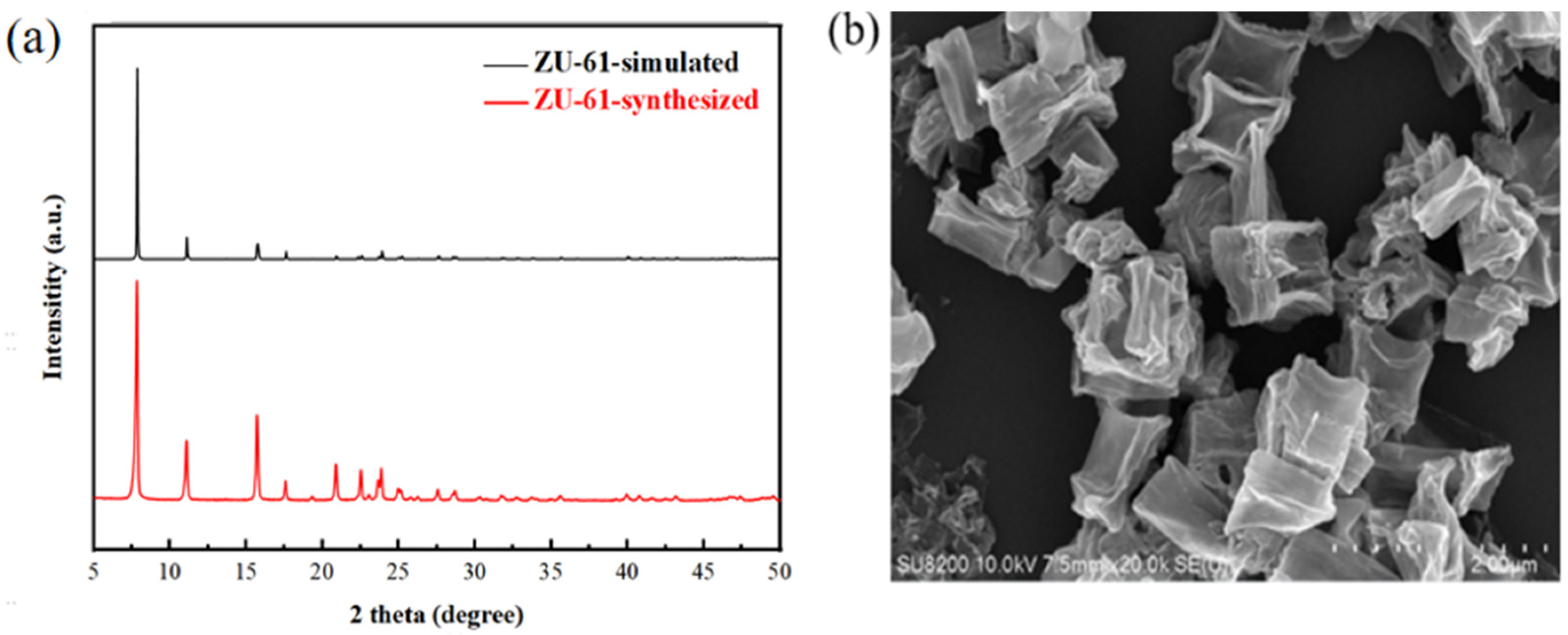

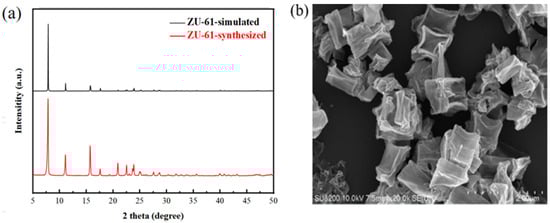

Figure 11. The characterization of ZU-61: (a) XRD; (b) SEM.
Figure 11. The characterization of ZU-61: (a) XRD; (b) SEM.
Processes 12 02331 g011
Processes 12 02331 g012

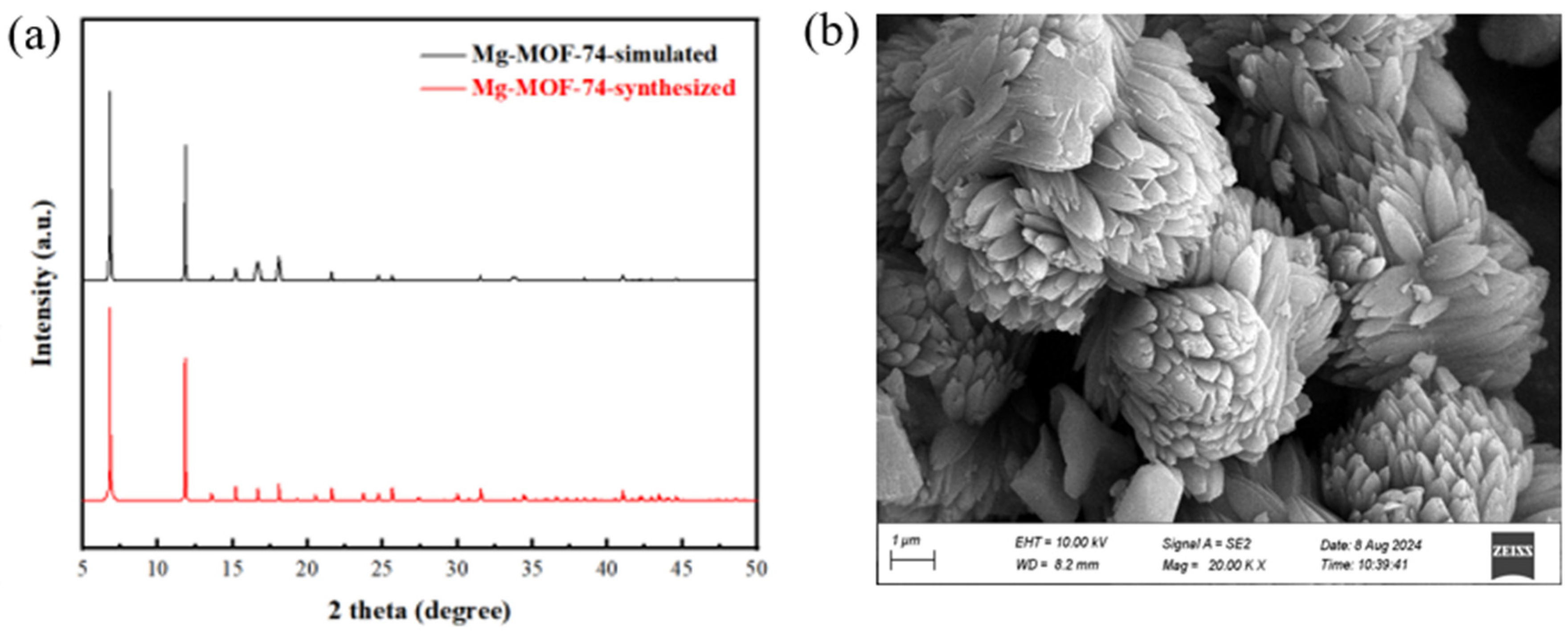

Figure 12. The characterization of Mg-MOF-74: (a) XRD; (b) SEM.
Figure 12. The characterization of Mg-MOF-74: (a) XRD; (b) SEM.
Processes 12 02331 g012
Processes 12 02331 g013
Figure 13. Effects of cycle numbers on the adsorption capacity of PR and DR.
Figure 13. Effects of cycle numbers on the adsorption capacity of PR and DR.
Processes 12 02331 g013
Table 1. Lennard-Jones parameters.
Table 1. Lennard-Jones parameters.
Atom TypeLJ ParametersAtom Type
CjHjNjOjZrjFjNijMgjAljCrj
Ciε (kcal/mol)0.1050.0680.0850.0720.0850.072 0.040 0.108 0.230 0.040
σ (Å)3.8513.3693.7563.6763.4883.608 3.343 3.436 4.175 3.437
Hiε (kcal/mol)0.0680.0440.0550.0510.0550.047 0.026 0.070 0.149 0.026
σ (Å)3.3692.8863.2733.1933.0053.125 2.860 2.954 3.693 2.955
i for DR (or PR) and j for MOFs.
Table 2. Atomic charges of DR and PR.
Table 2. Atomic charges of DR and PR.
Charges/e
12345678
DR0.0938−0.09620.0334−0.40180.1223---
PR0.0959−0.11040.0341−0.40230.12120.0462−0.39720.1170
Table 3. The adsorption capacity of a mixture on six MOFs at 300 kPa.
Table 3. The adsorption capacity of a mixture on six MOFs at 300 kPa.
ZU-61MIL-101UIO-66-NH2Al-MIL-53Mg-MOF-74UIO-66
Capacity
(mg/g)		DRPRDRPRDRPRDRPRDRPRDRPR
110.85 261.39 196.20 204.05 80.03 48.38 241.48 324.58 100.14 176.67 158.81 83.44
Capacity
difference
(mg/g)		150.54 7.85 31.65 83.10 76.53 75.37
α2.36 1.04 1.65 1.34 1.76 1.90
Table 4. Adsorption capacity of DR and PR on the four MOFs.
Table 4. Adsorption capacity of DR and PR on the four MOFs.
MOFsUIO-66UIO-66-NH2ZU-61Mg-MOF-74
Adsorption capacity of DR (mg/g)146.2770.58103.7595.82
Adsorption capacity of PR (mg/g)79.4944.39239.66165.77
α1.841.592.311.73
n3333
SD of DR0.170.150.210.16
SD of PR0.200.090.080.22
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, T.; Wu, Y.; Rao, J.; Wang, X.; Wu, B.; Chen, K.; Ji, L. The Adsorption of Durene and Prehnitene on Metal–Organic Frameworks. Processes 2024, 12, 2331. https://doi.org/10.3390/pr12112331

AMA Style

Wang T, Wu Y, Rao J, Wang X, Wu B, Chen K, Ji L. The Adsorption of Durene and Prehnitene on Metal–Organic Frameworks. Processes. 2024; 12(11):2331. https://doi.org/10.3390/pr12112331

Chicago/Turabian Style

Wang, Tianyou, Yanyang Wu, Jiabo Rao, Xudong Wang, Bin Wu, Kui Chen, and Lijun Ji. 2024. "The Adsorption of Durene and Prehnitene on Metal–Organic Frameworks" Processes 12, no. 11: 2331. https://doi.org/10.3390/pr12112331

APA Style

Wang, T., Wu, Y., Rao, J., Wang, X., Wu, B., Chen, K., & Ji, L. (2024). The Adsorption of Durene and Prehnitene on Metal–Organic Frameworks. Processes, 12(11), 2331. https://doi.org/10.3390/pr12112331

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
