Unveiling the Superiority of Innovative Carbonated Self-Nanoemulsifying Drug Delivery Systems in Improving the Stability of Acid-Labile Drugs: Atorvastatin as a Model Drug

by
Abdelrahman Y. Sherif
* and
Mohamed A. Ibrahim
Department of Pharmaceutics, College of Pharmacy, King Saud University, Riyadh 11451, Saudi Arabia
*
Author to whom correspondence should be addressed.
Processes 2024, 12(6), 1169; https://doi.org/10.3390/pr12061169
Submission received: 30 April 2024 / Revised: 28 May 2024 / Accepted: 5 June 2024 / Published: 6 June 2024
(This article belongs to the Section Pharmaceutical Processes)
Browse Figures
Versions Notes

Abstract

:
Atorvastatin (AT) is widely prescribed by physicians during the treatment of hyperlipidemia. The self-nanoemulsifying drug delivery system (SNEDDS) is used to overcome its low drug solubility and bioavailability. However, the presence of free fatty acids in SNEDDS formulation resulted in remarkable AT degradation. This study explores innovative carbonated SNEDDS to enhance the stability of AT within SNEDDS formulation. Various types of SNEDDS formulations were prepared and evaluated. In vitro dissolution was performed to examine the ability of SNEDDS formulation to enhance AT dissolution. The solidified SNEDDS formation was prepared using Syloid adsorbent (AT-SF6). In addition, sodium bicarbonate was loaded within the best formulation at various concentrations to prepare carbonated SNEDDS (AT-CF6). Kinetics of drug degradation were studied over 45 days to assess AT stability in SNEDDS formulations. It was found that the SNEDDS formulation was able to enhance the dissolution of AT by about 1.5-fold compared with the pure drug formulation. AT-SF6 did not reduce the degradation rate of the drug compared with AT-F6. However, AT-CF6 formulations showed that increasing the concentration of incorporated sodium bicarbonate significantly reduced the degradation rate of AT. It was found that sodium bicarbonate in AT-CF6 significantly reduced the degradation rate of AT (0.00019) six-fold compared with AT-F6 (0.00115). The obtained results show that carbonated SNEDDS is a promising approach to enhance the stability of acid-labile drugs and their pharmaceutical application.

1. Introduction

Stability of drug molecules in prepared pharmaceutical formulations is a critical factor that directly influences their efficacy, safety, and shelf life. Instability issues could be attributed to incompatibility between drug molecules and the formulation excipients [1,2]. Consequently, understanding the definite reason for the instability factor could significantly facilitate the stabilization of drugs during the development of pharmaceutical formulations [3].
Oral pharmaceutical formulations are considered to be a superior route of administration due to their simplicity, safety, and ease of self-administration [4]. However, orally administered therapeutic molecules face various barriers that can negatively affect their bioavailability [5,6]. Therefore, various drug delivery systems have been invented to overcome this limitation. Interestingly, the development of innovative nano-based pharmaceutical formulations has received considerable attention due to their success in enhancing drug delivery and efficacy [7,8]. These include self-nanoemulsifying drug delivery systems (SNEDDS) [9], solid lipid nanoparticles [10], nanostructural lipid carriers [11], liposomes [12], and polymeric nanoparticles [13].
Among them, SNEDDS offers various advantages over other drug delivery systems. This is attributed to the ease of preparation by simply mixing its components (surfactant, co-surfactant, and oil) and its applicability for large-scale production [14]. Furthermore, the anhydrous nature of SNEDDS formulations resulted in a significant enhancement in drug loading capacity for poorly water-soluble drugs [15]. In addition, this provides an additional advantage in terms of stability in vitro, where it only forms nanoemulsion droplets in vivo upon mild agitation produced by peristaltic movement [16].
The reported studies showed that direct contact between the drug and free fatty acid in SNEDDS formulation potentiates the chemical degradation of sensitive drug molecules [17,18,19]. Therefore, solidification of SNEDDS was performed to enhance the stability of loaded drugs [20]. However, numerous studies showed that the solidification of the SNEDDS formulation did not slow down the degradation rate of loaded drugs [17,21]. In light of this, there is a demand for innovative strategies to enhance the stability of acid-labile drugs in the SNEDDS formulation and protect them from chemical degradation.
Herein, sodium bicarbonate has been utilized for the first time as an alkalinizing agent to stabilize the loaded acid-labile drugs within the SNEDDS formulation. This is expected to increase the pH of the microenvironment in the SNEDDS formulation, which could enhance drug stability. Therefore, acid-labile drugs should be employed in the present study to compare the effect of traditional solidified SNEDDS and innovative carbonated SNEDDS on drug stability.
Atorvastatin (AT) is one of the most prescribed antihyperlipidemic agents as a result of its efficacy and safety [22]. It exerts its pharmacological effect by inhibiting hydroxy-3-methyl-glutaryl-coenzyme A, which prevents de novo cholesterol synthesis [23]. However, poor drug solubility limits its bioavailability [24]. Therefore, SNEDDS formulation was used in the literature with a remarkable increment in AT bioavailability and therapeutic activity [25,26,27,28,29,30,31]. Moreover, various studies have shown that AT suffers from chemical degradation when exposed to acid microenvironments [32,33]. Therefore, it is expected that the previously developed AT-loaded SNEDDS formulations in the literature could suffer from drug degradation during storage. This could be attributed to the presence of free fatty acids within the SNEDDS formulation [34]. The expected instability aligns with previously published data showing that an acidic microenvironment is responsible for the chemical degradation of acid-labile drugs [35].
Therefore, the present study aims to cover the existing gap in the stabilization of acid-labile drug (AT) using carbonated SNEDDS as a novel strategy. This is achieved through the preparation of carbonated liquid SNEDDS to increase the microenvironment pH of SNEDDS formulation, which in turn enhances drug stability. To achieve this objective, liquid, solid, and carbonated SNEDDS formulations were prepared and subjected to pharmaceutical characterization. The drug degradation rate was studied to investigate the impact of solidification and alkalinization on the stability of the acid-labile drug.

2. Materials and Methods

2.1. Materials

Atorvastatin calcium (AT) was generously supplied by Riyadh Pharma (Riyadh, Saudi Arabia). Tween-85 (T-85) was obtained from Merck-Schuchardt OHG (Hohenbrunn, Germany). Hydrogenated castor oil (HCO-30) was supplied by Nicole Chemical Co. (Tokyo, Japan). LauroglycolTM 90 (LG) and Labrasol ALF (LB) were provided by Gattefosse (Saint-Priest, France). Kolliphor-EL (K-EL), Kollisolv® PEG 400 (PEG-400), and Imwitor-308 (I-308) were purchased from BASF (Ludwigshafen, Germany). Span-80 (S-80) was supplied by Merck (Darmstadt, Germany). Black seed oil (BSO) was purchased from Wadi Al-Nahil Investment Group (Riyadh, Saudi Arabia). All other reagents were of analytical grade and used without further purification.

2.2. UPLC Method for Drug Quantification

Dionex™ ultra-performance liquid chromatography (UPLC) system (Thermo Scientific, Bedford, MA, USA) was used to estimate AT concentration in the SNEDDS formulation. The mobile phase consisting of acetonitrile: 10mM, Ammonium format buffer: 0.1%, Formic acid solution (4.5:4.5:1) was eluted using a Dionex Pump System through Acquity® UPLC BEH C18 column (2.1 × 50 mm, 1.7 μm) placed in a Dionex column oven chamber with a flow rate of 0.4 mL/min. The injection volume of samples was 2 µL, with a run time of 5 min. The Column temperature was kept at 30 ± 0.01 °C. The absorbance of AT was detected at 245 nm using Dionex Photodiode Array (PDA) detector. Peaks analysis was performed using the Chromeleon Client Program. Drug concentration was estimated using the injected calibration curve ranging from 5.0 to 50.0 µg/mL.

2.3. Preparation of SNEDDS Formulations

The drug-free SNEDDS formulation was prepared by mixing its components (surfactant, cosurfactant, and black seed oil) as listed in Table 1. SNEDDS components were flipped ten times and mixed using a vortex mixer for approximately 15 min at 800 rpm until a homogenous mixture was obtained. The prepared formulations were subjected to miscibility, emulsification, and AT solubility studies to select for the optimized formulation.

2.4. Preparation of Carbonated SNEDDS Formulation C-F6

The F6 was selected based on miscibility, globule size, and drug solubility, and was alkalinized by adding different concentrations of sodium bicarbonate. About 5 g of the SNEDDS formulation was placed in a 5 mL cylindrical beaker. After that, sodium bicarbonate was added in various amounts (5, 10, 25, and 37.5 mg) to prepare C-F6 (1.0 mg/g), C-F6 (2.0 mg/g), C-F6 (5.0 mg/g), C-F6 (7.5 mg/g) formulations, respectively. The dispersion was subjected to stirring using a magnetic stirrer at 1000 rpm for 24 h. Then, the prepared formulations were left for 24 h, and the bottom of the beaker was checked visually for any precipitated carbonate. The formulation showed that sodium bicarbonate precipitation was excluded from the study, and other formulations were subjected to further assessment.

2.5. Preparation of AT-Loaded SNEDDS Formulation

A solidified SENDDS formulation was prepared as a counterpart to carbonated SNEDDS to compare the effect of both formulations on AT stability. To prepare AT-F6, 100 mg of the drug was mixed with 4900 mg of the SNEDDS formulation. This mixture was stirred using a magnetic stirrer at 1000 rpm at room temperature (22 ± 2.0 °C) until the AT was completely dissolved. The mixture was stirred until all the AT was completely dissolved. AT-loaded carbonated SNEDDS was prepared using a similar procedure. To prepare AT-loaded solidified formulation, the selected liquid SNEDDS formula was mixed with an equal amount of SYLOID 244 FP (1:1) in a plastic container. The resulting mixture was manually blended to ensure that the formulation was completely adsorbed by SYLOID. The prepared formulations were stored at room temperature (22 ± 2.0 °C) for further analysis.

2.6. Miscibility Study

To ensure a homogenous distribution of components, the prepared SNEDDS (F1–F16) formulations were subjected to a miscibility study, as previously described, with minor modifications [36]. The formulations were centrifuged at 10,000 rpm for 10 min to facilitate the separation of immiscible components. The miscibility of SNEDDS components was checked visually to confirm the presence or absence of phase separation. Only homogenous formulations were subjected to the subsequent studies.

2.7. Emulsification Study

Within a 25 mL plastic container, SNEDDS formulations were diluted with deionized water (1:1000) and mixed using a magnetic stirrer for 5 min at 250 rpm. The appearance of dispersed systems was checked visually to check the ability of SNEDDS formulation to form a homogenous dispersion system [37]. In addition, the surface of the dispersed system was checked to confirm the integration of BSO within the dispersed system [37].

2.8. Particle Size, PDI, and Zeta Potential Measurement

Physicochemical properties of dispersed formulation (1:1000) in distilled water were measured using Zetasizer. Particle size was measured using Dynamic Light Scattering mode, while zeta potential was evaluated using Laser Doppler Velocimetry mode. The value was represented as an average of three measurements for each formulation.

2.9. AT Solubility

The SNEDDS formulations that showed accepted miscibility and drug solubility, and the carbonated SNEDDS formulations were mixed with an excess amount of AT in a 4 mL glass vial. The mixtures were vigorously mixed to enhance the spreading of AT, then subjected to magnetic stirring at 1000 rpm. During the experiment, the mixture was monitored visually, and an additional amount of AT was added if the previous amount was completely dissolved. After 24 h, the mixture was centrifuged at 14,000 rpm for 10 min to precipitate the undissolved AT. Within 2 mL Epindorph, an accurately weighted amount of supernatant was diluted with 1.8 mL acetonitrile and sonicated for about 15 min to ensure complete drug extraction. AT concentration in the ACN was estimated using the developed UPLC method [38].

2.10. AT Content

AT content within the prepared SNEDDS formulation was measured as follows. An accurately weighed amount of SNEDDS formulation was placed in 2 mL Epindorph and diluted with 1.8 mL acetonitrile. Afterward, it was subjected to sonication for 15 min to ensure complete drug extraction from SNEDDS formulation. After that, drug concentration was measured using the UPLC method following appropriate dilution [36].

2.11. In vitro Dissolution Study

The in vitro dissolution study was performed to investigate the impact of SNEDDS formulation on the dissolution profile of Pure AT and TQ. Dissolution apparatus type II (LOGAN Inst. Corp., Franklin, NJ, USA) was utilized during the present study. Dissolution study was performed in 900 mL phosphate buffer (pH 6.8), and the temperature was set at 37.0 ± 0.5 °C. The test pure APIs and SNEDDS formulations were placed in hard gelatin capsules. During the experiment, the paddle stirrer was set at a speed of 50 rpm. At predetermined intervals (5, 10, 15, 30, 45, and 60 min), about 1.5 mL was withdrawn from the media, and the drug concentration was measured using the developed UPLC method. Dissolution efficiency was calculated to investigate the impact of SNEDDS on the dissolution profile of AT and TQ [39].

2.12. Characterization of Solid SNEDDS Formulation

2.12.1. FTIR

The FTIR spectrum of AT, adsorbent, and solidified SNEDDS was recorded using an FTIR spectrophotometer (FT-IR Nicolet 380; Thermo Fisher Scientific, Madison, WI, USA). This analysis assessed the possible chemical interaction between AT and Syloid adsorbent. The samples were prepared using the compressed disc technique, where a small amount of the sample was mixed with potassium bromide and pressed into a disc using a hydraulic press. The resulting disc was scanned over a range of 600 to 4000 cm−1.

2.12.2. DSC

Thermal analysis of AT, adsorbent, and solidified SNEDDS was performed using the DSC−8000 Perkins Elmer (Waltham, MA, USA). The investigated sample was accurately weighed and sealed in a standard aluminum pan. Thermal scanning was performed over a range of 30–180 °C at a heating rate of 10 °C/min. Pyris Manager software version 10.1 (Pyris Elmer, Waltham, MA, USA) was used to access and estimate the solid state of the samples.

2.12.3. PXRD

The crystallinity of AT within the prepared solid SNEDDS formulation was performed using an X-ray diffractometer instrument (Ultima IV, Rigaku Inc., Tokyo, Japan). This was achieved through examining AT, adsorbent, and solidified SNEDDS using the PXRD instrument. Samples were analyzed at a scan rate of 1° per minute over a range of 3° to 40°. The X-ray diffractometer employed monochromatic radiation with a wavelength of 1.54 Å (Cu Kα’ 1) to collect the data. The system operated at a voltage of 40 kV and a current of 40 mA.

2.13. pH Measurement

pH measurements were conducted for each formulation to assess the effect of sodium bicarbonate on the pH of F6 formulations. A pH electrode was placed in a beaker containing the selected SNEDDS containing different concentrations of sodium bicarbonate compared to a carbonate-free one, and the pH value was recorded. Three measurements were taken for each formulation, and the average value was used to represent the pH of each formulation.

2.14. Stability Study

This experiment aimed to compare the impact of solidification and sodium bicarbonate on the chemical stability of AT within SNEDDS formulations. The thermal stability was examined under accelerated conditions. Formulations were placed in a 4 mL glass vial and were closed tightly using a screwed cap. The glass vials were placed in a stability chamber (Binder GmbH, Tuttlingen, Germany), and the temperature was maintained at 40 ± 2 °C and 15 ± 5% relative humidity. Drug concentrations within the prepared formulations were determined using the developed UPLC method following 15, 30, and 45 days.

2.15. Degradation Kinetic Study

Zero-, first-, and second-order kinetic models were utilized to investigate the degradation rate of AT within the prepared formulations [40].
Zero - order   kinetic   model :   C t = C 0 − k   t
First - order   kinetic   model :   C t = C 0   e − k   t
Sec ond - order   kinetic   model :   1 C t = 1 C 0 + k 2 t

3. Results and Discussion

3.1. UPLC Method for Estimation of AT

Figure 1A,B shows the chromatogram obtained from the injected blank and AT solution, respectively. The detected retention time of AT was about 2.38 min. A forced degradation study revealed that AT was well-resolute from the detected degradation products of the drug, as shown in the chromatogram presented in Figure 1C–F. The main degradation product was detected in acidic conditions at 4.12 min with a resolution of 9.9 from the AT peak. However, oxidative stress shows a degradation peak at 4.1 min with a resolution of 9.8 from the AT peak. In addition, the initial peak at void volume corresponds to the presence of hydrogen peroxide. Therefore, it is clear from the chromatograms that the UPLC method was able to separate the drug from the main degradation products.

3.2. Evaluation of SNEDDS Formulations

Black seed oil (BSO) is a well-known bioactive ingredient used during the preparation of SNEDDS formulation to enhance its therapeutic activity [36,37]. Thymoquinone (TQ) is one of the phytochemical components present in BSO with antihyperlipidemic activity [41,42]. In addition, various studies showed that the administration of TQ significantly reduced cardiac damage induced by hyperlipidemia [43,44]. Therefore, BSO was utilized in the current study during the formulation of SNEDDS not only to enhance the bioavailability of AT, but also to augment AT therapeutic activity.
A previous study showed that BSO has low miscibility when mixed with different types of surfactants and cosurfactants [36]. Therefore, different types of SNEDDS components were used in the present study to prepare homogeneous SNEDDS with good emulsification properties. Table 2 shows the evaluation results of miscibility and emulsification in terms of physical appearance and system separation. Formulations (F1, F3, F5, F7, F9, and F13–15) were excluded from the study, owing to their inability to form homogenous SNEDDS. In contrast, formulations (F2, F4, F6, F8, F10–12, and F16) were able to form homogeneous formulations. The immiscibility of the SNEDDS formulation could attributed to the difference between mixed components [37].
Homogenous formulations were subjected to an emulsification study. It was found that F8 was unable to disperse the observation of aggregated particles in the media, as shown in Figure 2A. In addition, system separation was observed with F2, F4, and F10–12 formulations, which indicates the inability of surfactant and cosurfactant to incorporate oil within the dispersed system. Figure 2B,C show the turbid and semi-turbid appearance of the dispersed system, respectively, whereas Figure 2D shows oil floating on the surface during the experiment. On the contrary, Figure 2E,F shows that F6 and F16 were able to form homogenous dispersion systems with clear and bluish appearance, respectively. Therefore, the F6 and F16 formulations were subjected to further assessment to select for the optimum formulation.
Table 3 shows that the particle size of the dispersed F6 and F16 formulations were in the nanosize scale with a particle size of 46.62 and 85.91 nm, respectively. The dispersed SNEDDS formulations exhibited a negative zeta potential value of −35.2 and −21.2 mV, respectively. The obtained nanoemulsions could significantly boost the bioavailability of administrated AT following oral administration [25]. This is attributed to the enhancement in drug solubility, which makes it available for absorption to systemic circulation. Moreover, it has been reported that the dispersed SNEDDS formulation is able to enhance permeability through the intestinal membrane [45]. In addition, the F6 and F16 were subjected to a solubility study, and AT solubility was found to be 58.21 and 7.88 mg/g, respectively. Therefore, F6 was selected as the optimized formulation, owing to its superiority in AT solubility. This allows for the loading of AT within the minimal amount of SNEDDS formulation, and reduces the total dosage of administrated SNEDDS formulation [46].

3.3. In vitro Dissolution Study

In vitro dissolution of pure AT and TQ was studied against the drug-loaded SNEDDS formulation (Figure 3). It was found that the selected formulation was able to increase the initial AT and TQ dissolved in the media within the first 5 min from 7.3 and 3.0 to 88.2 and 82.3%, respectively. In addition, the selected optimized formulation enhances the dissolution efficiency of AT and TQ by 1.5- and 7-fold, respectively. The obtained results agree with previously published studies that showed that the prepared SNEDDS formulations could significantly enhance the bioavailability of both drugs following oral administration [47,48].

3.4. Evaluation of Solidified SNEDDS

3.4.1. FTIR

The FTIR analysis of AT, Syloid adsorbent, and solid SNEDDS (Figure 4) was performed to investigate the impact of solidification on the crystalline state of the drug. The FTIR spectrum of AT shows characteristic peaks at 3665.9 (hydroxyl group), 3361.53 (N-H stretch), 3235.56 (O-H stretching), two peaks between 3000 and 2900 (aromatic and alkyl C-H bond stretch), 1650 (C=O stretch), and 1581 cm⁻1 (N-H bend) that are in alignment with previously published data [49,50,51]. Syloid adsorbent has characteristic peaks at 1071 cm⁻1 and 799 cm⁻1 (Si-O-Si stretching vibrations), which agrees with previously published data and indicates its silicate structure [52]. The observed new peak in the solid SNEDDS spectrum at 1736 cm⁻1 (ester carbonyl stretching) could correspond to esterified glycerol present in the used oil during the preparation of SNEDDS formulation [53]. Furthermore, O-H peaks were significantly reduced and shifted, indicating hydrogen bonding formation between AT and SNEDDS components [23]. This could suggest that AT is present in the amorphous state and solubilized within the prepared solid SNEDDS formulation. Therefore, DSC and PXRD examinations were performed to check the crystalline state of AT within the prepared solid SNEDDS.

3.4.2. DSC

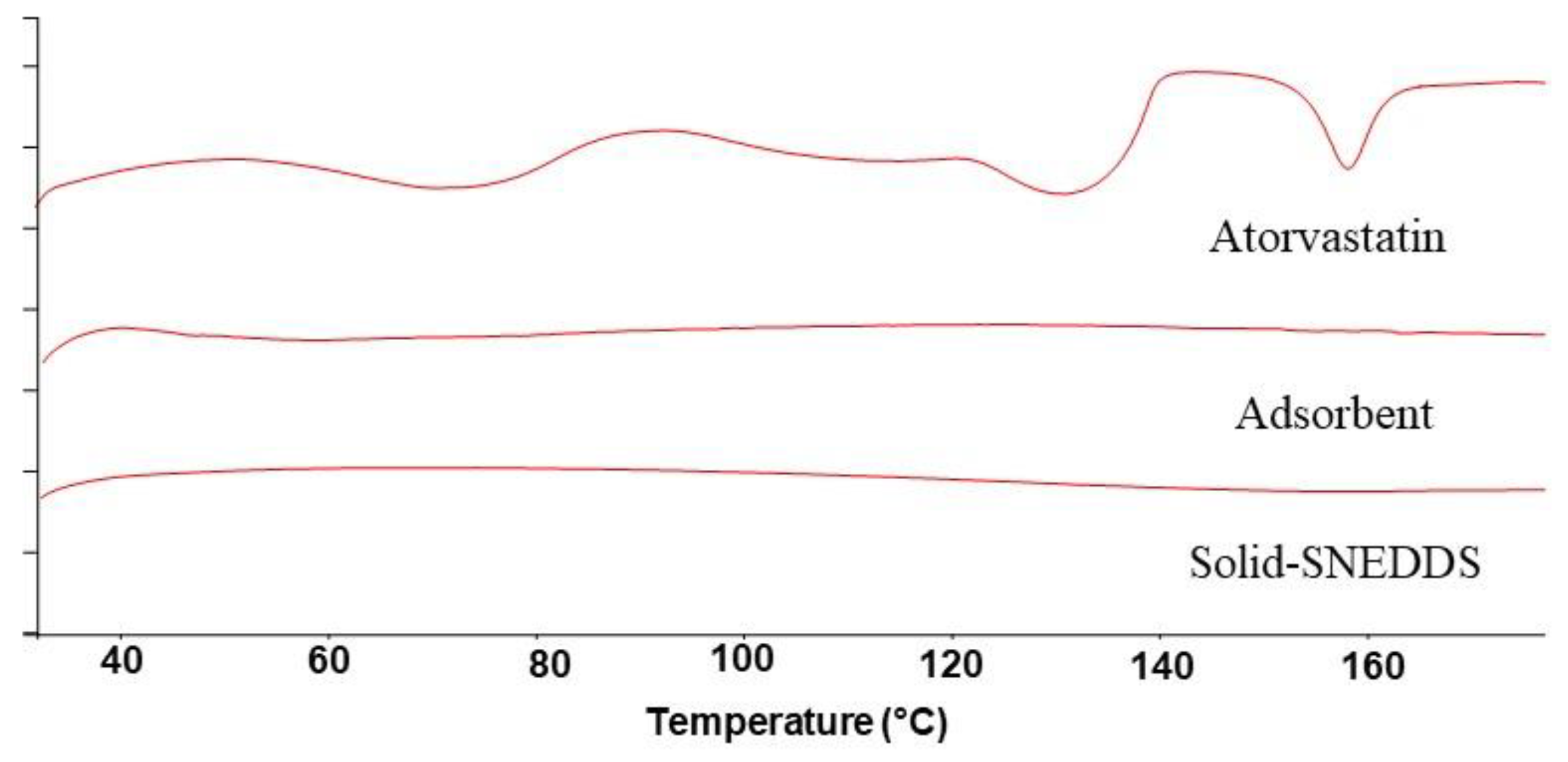

Figure 5 shows thermograms of AT, adsorbent, and solidified SNEDDS. It has been found that the AT thermogram has an endothermic peak at 132.8 °C, which could be attributed to water loss that is in harmony with previously published data [54,55]. In addition, the main endothermic peak was observed at 158.2 °C, which could be attributed to the melting of AT. In addition, endothermic peaks of AT were absent in the prepared solidified SNEDDS formulation. The obtained results agree with previously published studies by Tashish et al. [56], indicating that AT could be present in an amorphous state due to its solubilization. This is achieved through the adsorption of liquid SNEDDS containing solubilized AT by a solid adsorbent.

3.4.3. PXRD

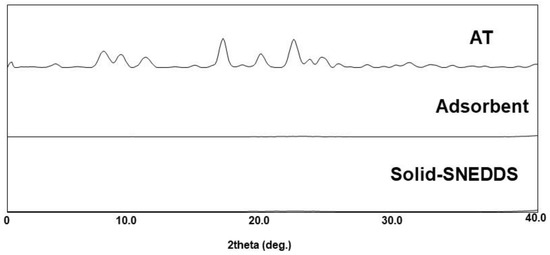

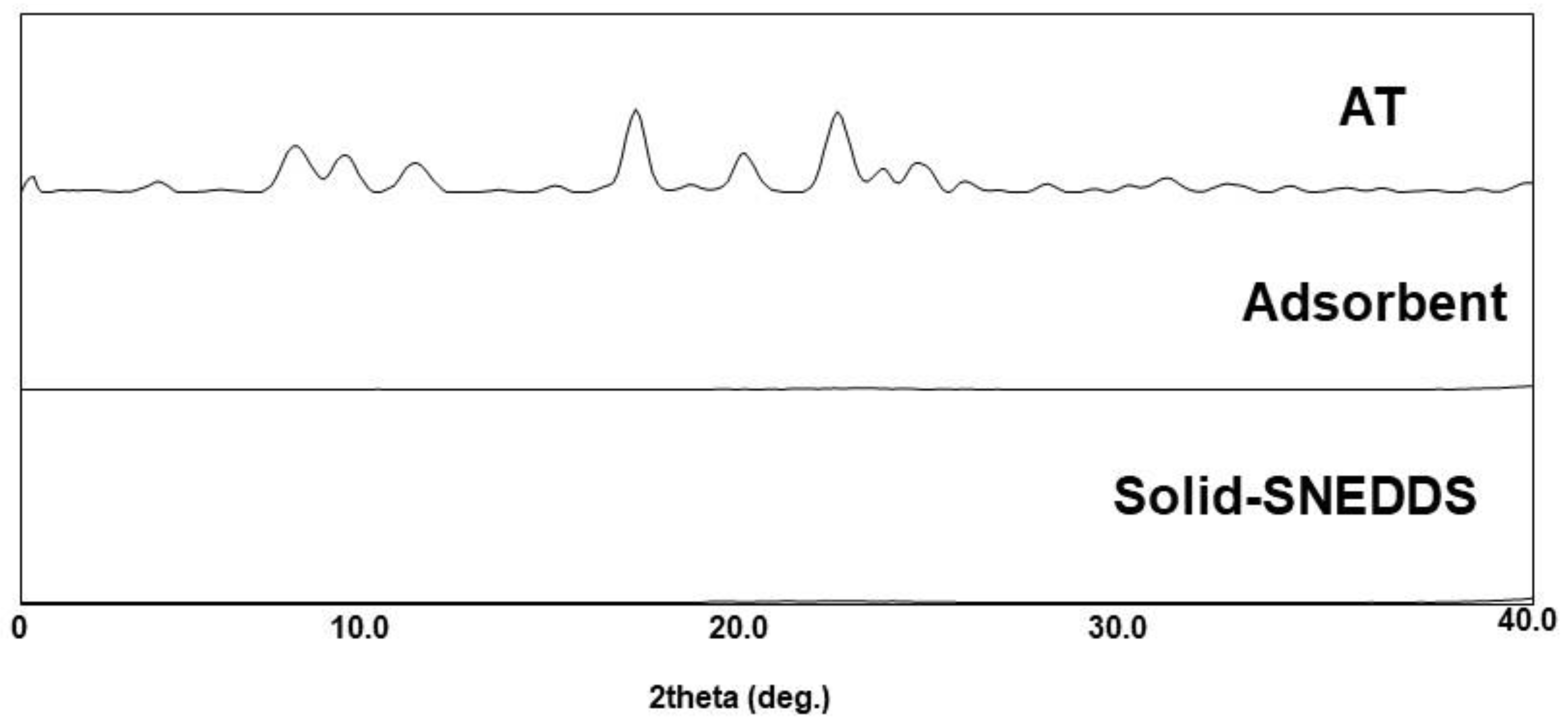

Powder X-ray diffractometry was performed to investigate the crystalline state of AT within the prepared solid SNEDDS formulation. Figure 6 shows that AT has characteristic crystalline peaks between 9.0 and 23.0° aligned with previous published studies [54,57]. However, it was found that AT peaks were completely absent in the chromatogram of solid SNEDDS formulation. The obtained results, in harmony with previously published data, showed that the solidification of drug-loaded SNEDDS formulation using an adsorbent resulted in a complete transformation of the drug from a crystalline to an amorphous state [19,56]. This finding is also in harmony with the DSC, indicating the presence of AT in the amorphous state.

3.5. Kinetic Stability of AT in Liquid and Solid SNEDDS Formulation

AT is an acid-labile drug susceptible to chemical degradation when incorporated within SNEDDS formulation due to the presence of free fatty acids [32]. Therefore, several strategies have been employed to enhance the stability of drugs loaded in SNEDDS formulations. Among these strategies, solidification of SNEDDS through adsorption technology is commonly utilized due to its effectiveness, simplicity, and cost efficiency [58]. In this study, AT-loaded solid F6 formulation (AT-SF6) was prepared and subjected to a stability study to evaluate the efficacy of the traditional solidification method in protecting acid-labile drugs.

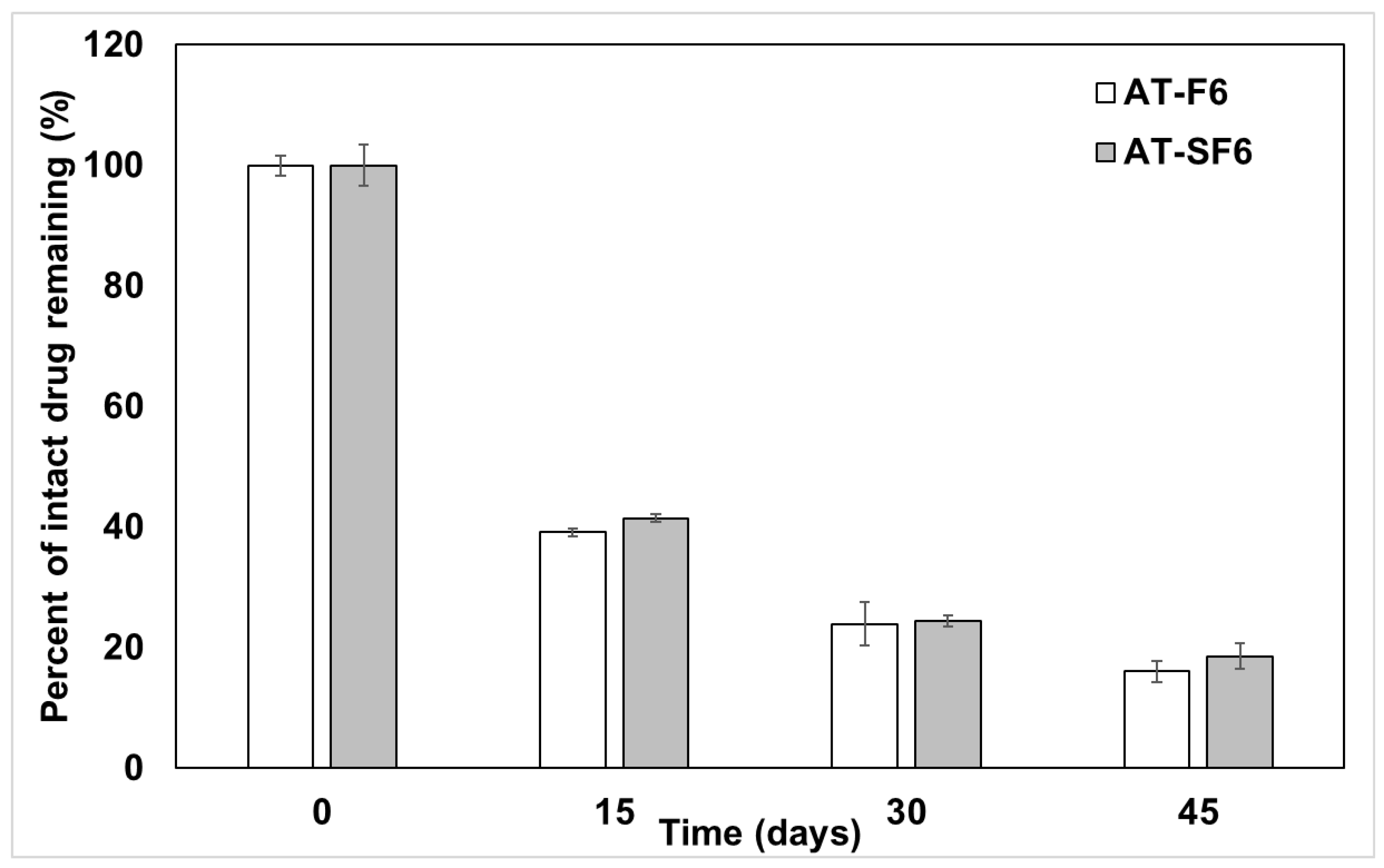

Figure 7 shows the percentage of intact AT remaining following incubation of AT-F6 and AT-SF6 formulations in the stability chamber. The percentage of drugs remaining at the end of the experiment was found to be 16.06 ± 1.74 and 18.60 ± 2.17% for AT-F6 and AT-SF6, respectively. Statistical analysis revealed that solidification did not significantly enhance AT protection. Regression analysis of obtained data was performed based on three kinetic models (zero, first, and second order). Table 4 presents the coefficient of determination and slope values obtained from zero-, first-, and second-order equations. The coefficient of determination for both formulations was close to 1 when considering the second-order equation. This indicates that the degradation rate of AT in both formulations follows a second-order kinetics model. Figure 8 shows the observed linear trend in the case of the second-order equation for solid and liquid F6 formulation.
The obtained results indicate that solidification did not effectively slow down the degradation rate of the loaded acid-labile drug. This agrees with previously published data, where solidified formulations did not remarkably protect drugs from chemical degradation [17,21]. This could be attributed to the acidic microenvironment generated around AT (acid-labile drug). Therefore, an alternative strategy is required to resolve the instability issue of acid-labile drugs in SNEDDS formulations.

3.6. Evaluation of Carbonated SNEDDS

To overcome the low pH microenvironment in the SNEDDS formulation, sodium bicarbonate was selected as an alkalization agent. Carbonated SNEDDS formulations with varying concentrations of sodium bicarbonate were prepared to assess their impact on the stability of the loaded drug. This could minimize the susceptibility of acid-labile drugs to chemical degradation, and provide a promising approach to utilize SNEDDS for these medications.
Table 5 illustrates the physicochemical characterization of CF6 formulations compared to F6 in terms of pH value, particle size, zeta potential, and AT solubility. The results showed that incorporating sodium bicarbonate in SNEDDS formulation significantly raises the pH of the F6 formulation. Additionally, an increase in the concentration of sodium bicarbonate leads to a reduction in the particle size of the dispersed SNEDDS formulation. Moreover, it was found that SNEDDS formulations containing sodium bicarbonate had a higher zeta potential value compared to the uncarbonated SNEDDS. Notably, there is a significant improvement in AT solubility with increasing sodium bicarbonate concentrations. This is in alignment with previous studies that highlight the pH-dependent nature of AT solubility [59]. Therefore, it is expected that carbonated SNEDDS formulation not only enhances AT’s stability, but also increases AT’s loading capacity within the carbonated SNEDDS formulation.

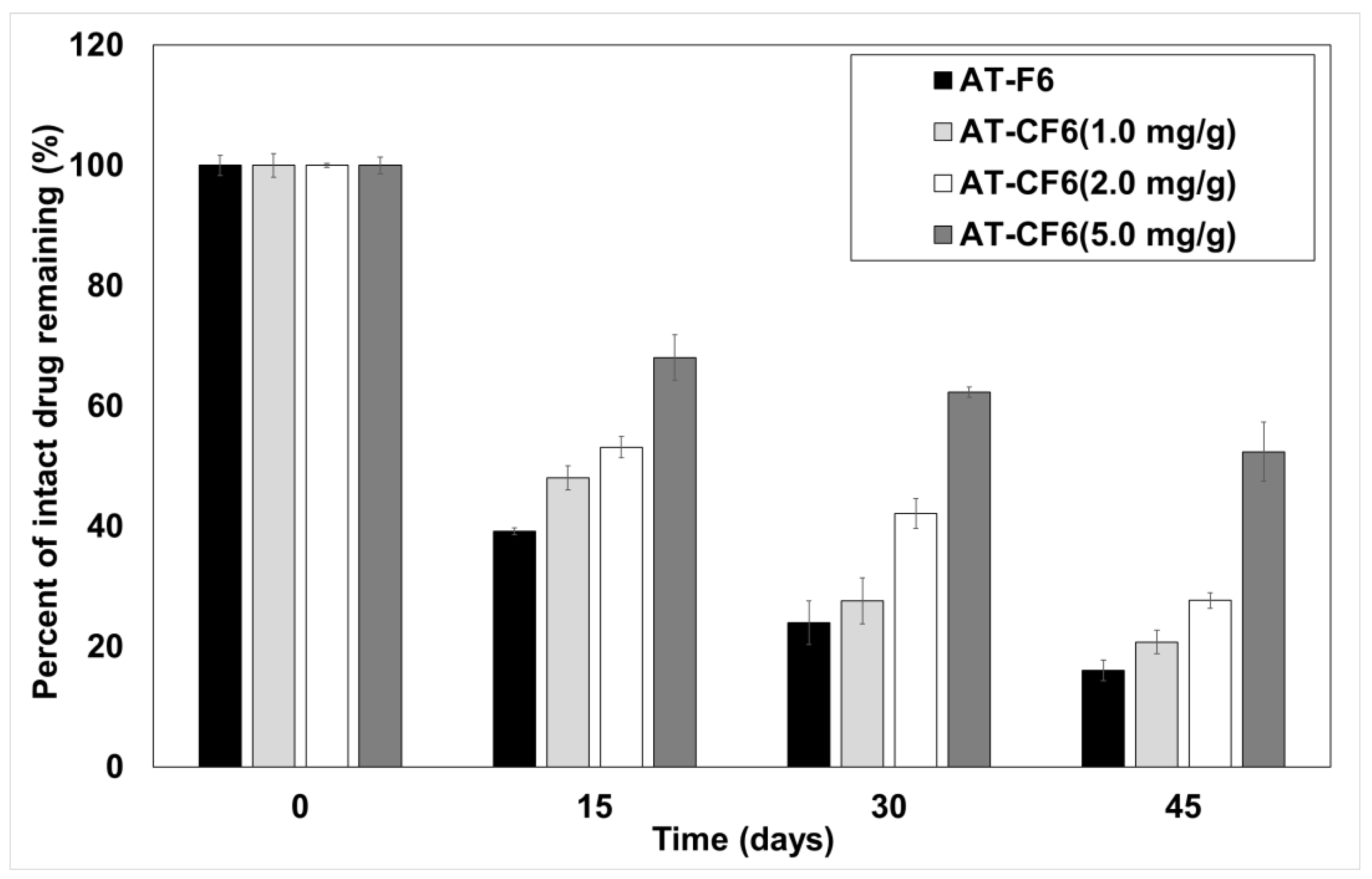

3.7. Kinetic Stability of AT in Liquid and Carbonated SNEDDS Formulation

AT is an acid-labile drug, whereas free fatty acids are naturally present in oils, which could reduce the stability of AT within the proposed SNEDDS formulation [32,35]. It has been utilized in different types of solid dosage forms to enhance the stability of acid-labile drugs [60,61]. However, none of these studies evaluated the potential impact of sodium bicarbonate as a stabilizing agent in SNEDDS formulations to protect acid-labile drugs from chemical degradation.
The solubility of sodium bicarbonate was studied within the optimized SNEDDS formulation, and maximum solubility was attained at 5 mg/g loading. Intact AT within CF6 was measured using the developed UPLC method at predetermined intervals (0, 15, 30, and 45 days). Figure 9 shows the percentage of AT remaining intact within F6 and CF6 formulations throughout the experiment. Statistical analysis revealed that sodium bicarbonate loading significantly enhances AT stability within the CF6 formulation compared to F6 formulation.

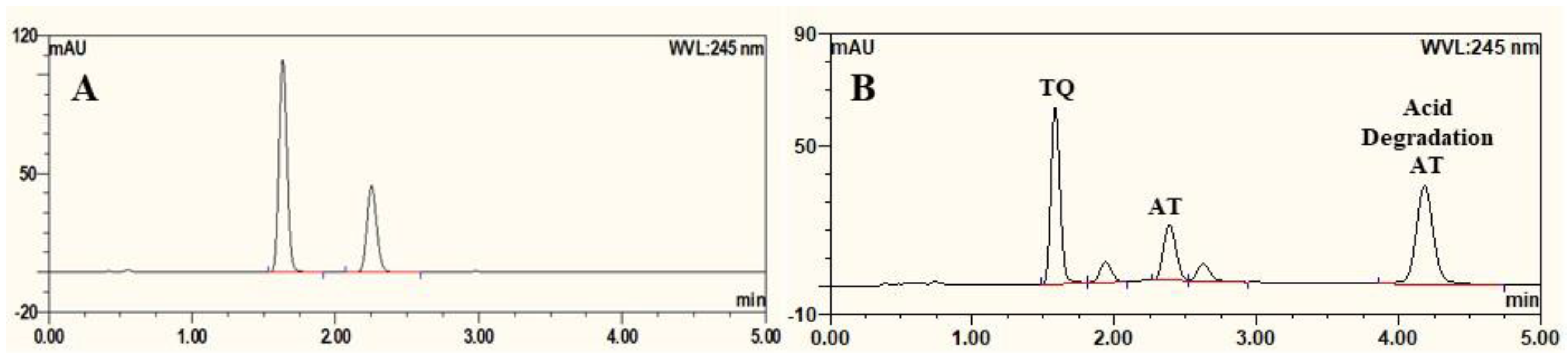

Figure 10A shows the chromatogram of the SNEDDS formulation at zero time. It shows the parent peak of AT at 2.3 min, along with an additional peak at 1.6 min. This peak corresponds to the bioactive thymoquinone present in the SNEDDS formulation. In addition, Figure 10B shows a chromatogram of the SNEDDS formulation following incubation in the stability chamber. AT’s main acid degradation peak was observed along with two additional degradation peaks at 1.9 and 2.6 min. These two peaks could result from any incompatibility between AT and SNEDDS components.

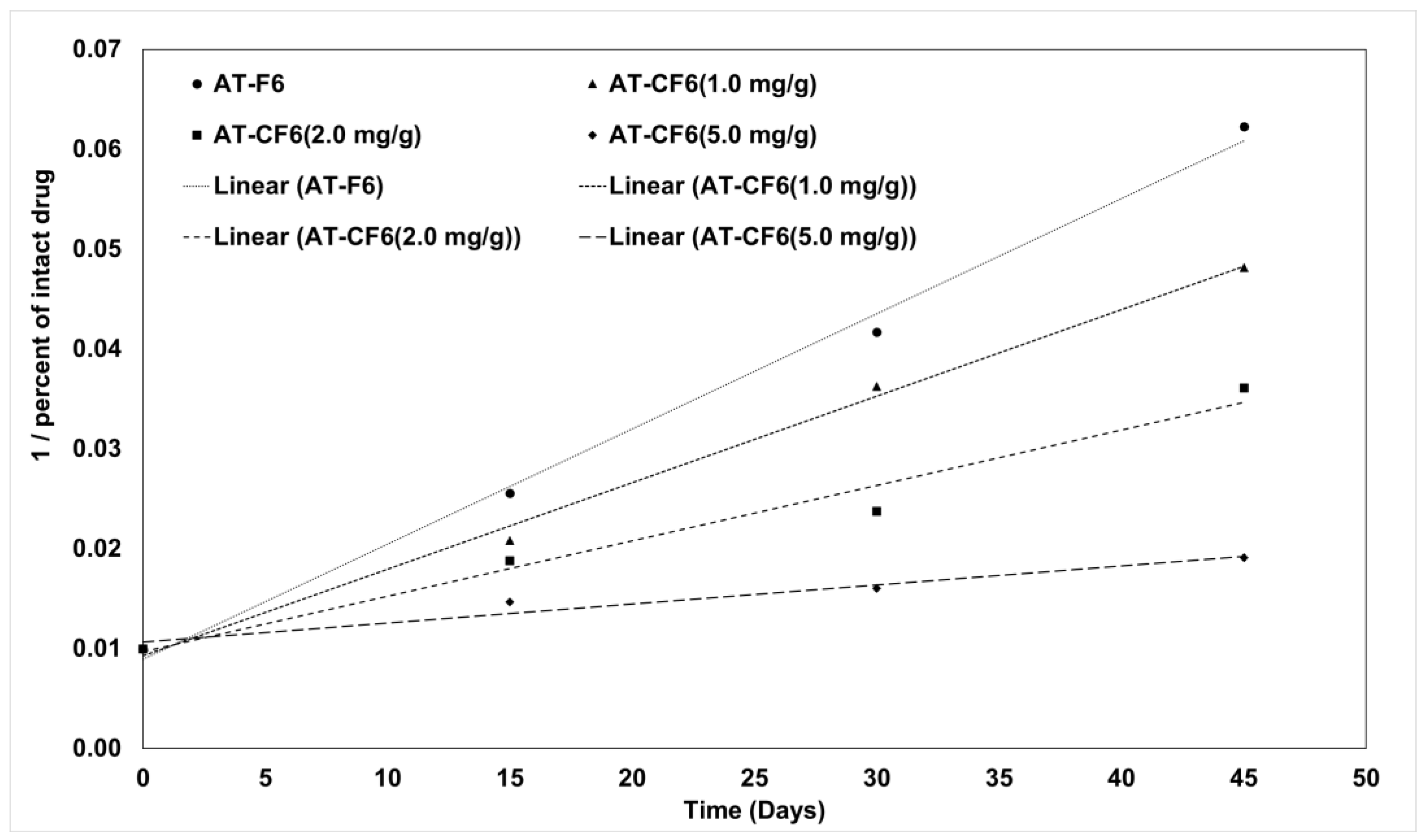

Kinetic analysis of drug degradation was performed using zero-, first-, and second-order equations. The coefficient of determination values indicates that AT degradation in all formulations follows a second-order equation (Table 6). Figure 11 shows the plotting of time against the reciprocal of intact AT concentration remaining in the SNEDDS formulation. The linear trend of the plotted data indicated that AT degradation follows a second-order equation.

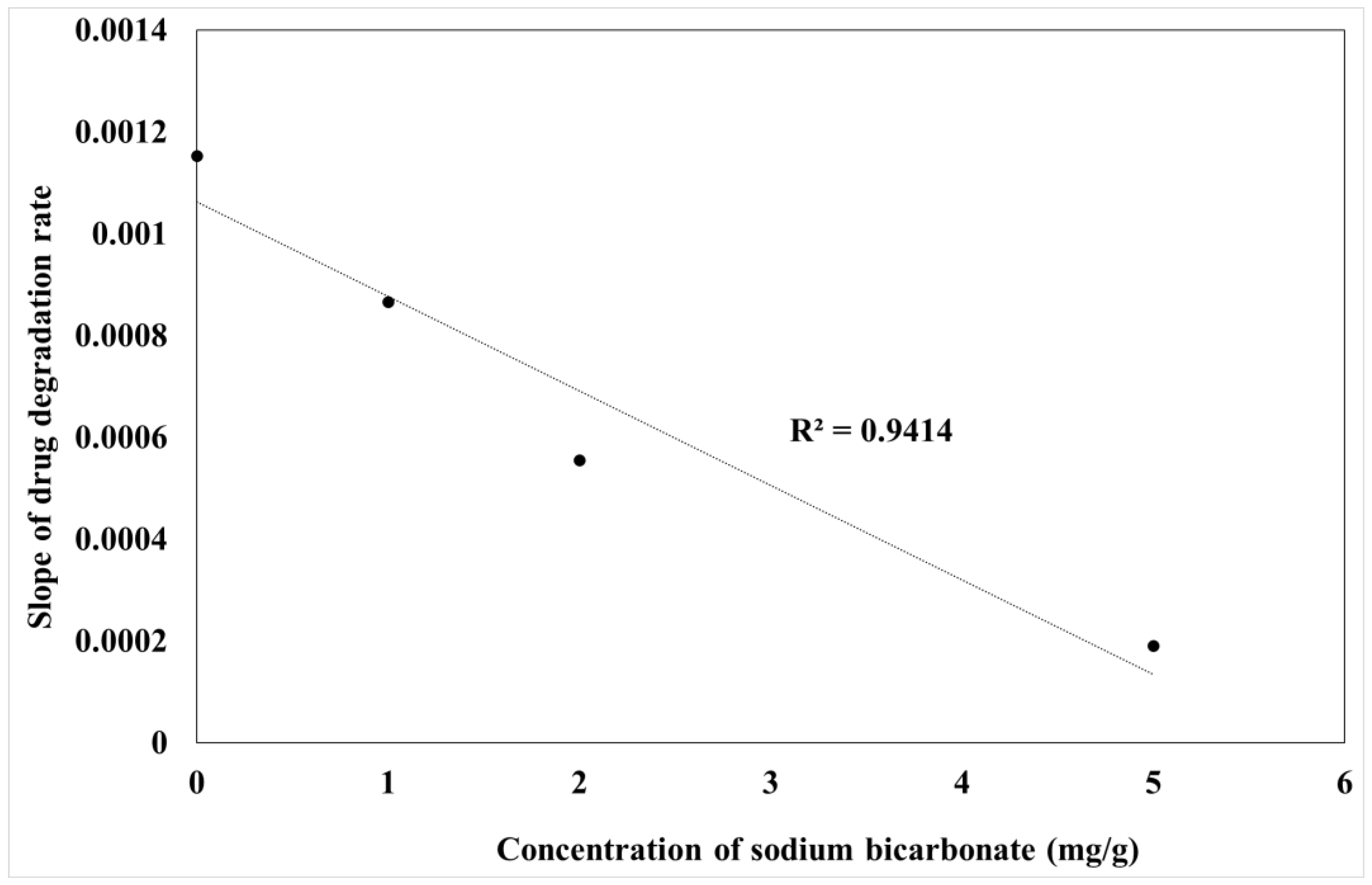

The slope of the second-order equation was plotted against its corresponding sodium bicarbonate concentration, as shown in Figure 12. It was found that there was an inverse relationship between sodium bicarbonate concentration and the rate of drug degradation. Therefore, it could be concluded that sodium bicarbonate significantly increases the stability of acid-labile drugs in the SNEDDS formulation compared to the solidification approach. This aligns with the current results, which show that increasing sodium bicarbonate concentration increases the SNEDDS formulation’s pH. This decreases the exposure of AT to acidic microenvironments and protects AT from chemical degradation [33,62]. The results of these studies provide valuable insights into the potential of sodium bicarbonate as a reliable stabilization strategy for acid-labile drugs within SNEDDS formulation.

3.8. Future Prospective

In the present study, the alkalinization agent was used for the first time, unlike in the literature, to enhance the stability of acid-labile drugs within the acidic microenvironment of the SNEDDS formulation. This could potentially allow for the usage of SNEDDS as a pharmaceutical formulation to enhance the therapeutic outcomes of poorly water-soluble drugs. However, limited sodium bicarbonate solubility in SNEDDS formulation (<7.5 mg/g) is the major challenge to increase its stabilization effect. Therefore, further studies are still required to address this issue. Moreover, further research and experimentation are necessary to fully evaluate the efficacy of sodium bicarbonate and its potential impact on the stability and performance of acid-labile drugs in SNEDDS formulations.

4. Conclusions

The self-nanoemulsifying drug delivery system (SNEDDS) showed outstanding results in enhancing the solubility and bioavailability of poorly water-soluble drugs. However, the presence of free fatty acids in SNEDDS formulation resulted in remarkable drug degradation. Therefore, innovative carbonated SNEDDS was utilized to overcome the instability issue of acid-labile drugs. The present study reveals that sodium bicarbonate has superior stabilization efficacy over the solidification approach for acid-labile drugs. Moreover, the stabilization effect produced by sodium bicarbonate was significantly enhanced by increasing its concentration. Further studies are required to explore the potential stabilization effect of sodium bicarbonate on different acid-labile drugs in SNEDDS formulations.

Author Contributions

Conceptualization, A.Y.S.; methodology, A.Y.S. and M.A.I.; software, A.Y.S.; validation, A.Y.S.; formal analysis, A.Y.S.; investigation, A.Y.S.; resources, A.Y.S.; data curation, A.Y.S.; writing—original draft preparation, A.Y.S.; writing—review and editing, A.Y.S. and M.A.I.; visualization, A.Y.S.; supervision, M.A.I.; project administration, M.A.I.; funding acquisition, M.A.I. All authors have read and agreed to the published version of the manuscript.

Funding

The authors extend their appreciation to the Researchers Supporting Project number (RSP2024R171), King Saud University, Riyadh, Saudi Arabia.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Acknowledgments

The authors extend their appreciation to the Researchers Supporting Project number (RSP2024R171), King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wu, Y.; Levons, J.; Narang, A.S.; Raghavan, K.; Rao, V.M. Reactive impurities in excipients: Profiling, identification and mitigation of drug–excipient incompatibility. Aaps Pharmscitech 2011, 12, 1248–1263. [Google Scholar] [CrossRef] [PubMed]
  2. Bharate, S.S.; Bharate, S.B.; Bajaj, A.N. Interactions and incompatibilities of pharmaceutical excipients with active pharmaceutical ingredients: A comprehensive review. J. Excip. Food Chem. 2016, 1, 3–26. [Google Scholar]
  3. Krishnamurthy, R.; Manning, M.C. The stability factor: Importance in formulation development. Curr. Pharm. Biotechnol. 2002, 3, 361–371. [Google Scholar] [CrossRef] [PubMed]
  4. Ouyang, J.; Zhang, Z.; Deng, B.; Liu, J.; Wang, L.; Liu, H.; Koo, S.; Chen, S.; Li, Y.; Yaremenko, A.V.; et al. Oral drug delivery platforms for biomedical applications. Mater. Today 2023, 62, 296–326. [Google Scholar] [CrossRef]
  5. Poovi, G.; Damodharan, N. Lipid nanoparticles: A challenging approach for oral delivery of BCS Class-II drugs. Future J. Pharm. Sci. 2018, 4, 191–205. [Google Scholar] [CrossRef]
  6. Xu, Y.; Shrestha, N.; Préat, V.; Beloqui, A. Overcoming the intestinal barrier: A look into targeting approaches for improved oral drug delivery systems. J. Control. Release 2020, 322, 486–508. [Google Scholar] [CrossRef] [PubMed]
  7. Jiang, Z.; Han, X.; Zhao, C.; Wang, S.; Tang, X. Recent advance in biological responsive nanomaterials for biosensing and molecular imaging application. Int. J. Mol. Sci. 2022, 23, 1923. [Google Scholar] [CrossRef] [PubMed]
  8. He, X.; Jiang, Z.; Akakuru, O.U.; Li, J.; Wu, A. Nanoscale covalent organic frameworks: From controlled synthesis to cancer therapy. Chem. Commun. 2021, 57, 12417–12435. [Google Scholar] [CrossRef] [PubMed]
  9. Tran, P.; Park, J.-S. Recent trends of self-emulsifying drug delivery system for enhancing the oral bioavailability of poorly water-soluble drugs. J. Pharm. Investig. 2021, 51, 439–463. [Google Scholar] [CrossRef]
  10. Tan, S.L.J.; Billa, N. Improved bioavailability of poorly soluble drugs through gastrointestinal muco-adhesion of lipid nanoparticles. Pharmaceutics 2021, 13, 1817. [Google Scholar] [CrossRef] [PubMed]
  11. Beloqui, A.; del Pozo-Rodríguez, A.; Isla, A.; Rodríguez-Gascón, A.; Solinís, M.Á. Nanostructured lipid carriers as oral delivery systems for poorly soluble drugs. J. Drug Deliv. Sci. Technol. 2017, 42, 144–154. [Google Scholar] [CrossRef]
  12. Daeihamed, M.; Dadashzadeh, S.; Haeri, A.; Faghih Akhlaghi, M. Potential of liposomes for enhancement of oral drug absorption. Curr. Drug Deliv. 2017, 14, 289–303. [Google Scholar] [CrossRef] [PubMed]
  13. Umerska, A.; Gaucher, C.; Oyarzun-Ampuero, F.; Fries-Raeth, I.; Colin, F.; Villamizar-Sarmiento, M.G.; Maincent, P.; Sapin-Minet, A. Polymeric nanoparticles for increasing oral bioavailability of curcumin. Antioxidants 2018, 7, 46. [Google Scholar] [CrossRef]
  14. Mehanna, M.M.; Mneimneh, A.T. Formulation and applications of lipid-based nanovehicles: Spotlight on self-emulsifying systems. Adv. Pharm. Bull. 2021, 11, 56. [Google Scholar] [CrossRef] [PubMed]
  15. Mohsin, K.; Alamri, R.; Ahmad, A.; Raish, M.; Alanazi, F.K.; Hussain, M.D. Development of self-nanoemulsifying drug delivery systems for the enhancement of solubility and oral bioavailability of fenofibrate, a poorly water-soluble drug. Int. J. Nanomed. 2016, 11, 2829–2838. [Google Scholar]
  16. Rehman, F.U.; Shah, K.U.; Shah, S.U.; Khan, I.U.; Khan, G.M.; Khan, A. From nanoemulsions to self-nanoemulsions, with recent advances in self-nanoemulsifying drug delivery systems (SNEDDS). Expert Opin. Drug Deliv. 2017, 14, 1325–1340. [Google Scholar] [CrossRef] [PubMed]
  17. Shahba, A.A.-W.; Ahmed, A.R.; Alanazi, F.K.; Mohsin, K.; Abdel-Rahman, S.I. Multi-layer self-nanoemulsifying pellets: An innovative drug delivery system for the poorly water-soluble drug cinnarizine. Aaps Pharmscitech 2018, 19, 2087–2102. [Google Scholar] [CrossRef] [PubMed]
  18. Alshadidi, A.; Shahba, A.A.-W.; Sales, I.; Rashid, M.A.; Kazi, M. Combined curcumin and lansoprazole-loaded bioactive solid self-nanoemulsifying drug delivery systems (Bio-SSNEDDS). Pharmaceutics 2021, 14, 2. [Google Scholar] [CrossRef] [PubMed]
  19. Alhasani, K.F.; Kazi, M.; Ibrahim, M.A.; Shahba, A.A.; Alanazi, F.K. Self-nanoemulsifying ramipril tablets: A novel delivery system for the enhancement of drug dissolution and stability. Int. J. Nanomed. 2019, 14, 5435–5448. [Google Scholar] [CrossRef] [PubMed]
  20. Mandić, J.; Pobirk, A.Z.; Vrečer, F.; Gašperlin, M. Overview of solidification techniques for self-emulsifying drug delivery systems from industrial perspective. Int. J. Pharm. 2017, 533, 335–345. [Google Scholar] [CrossRef] [PubMed]
  21. Shahba, A.A.-W.; Alanazi, F.K.; Abdel-Rahman, S.I. Stabilization benefits of single and multi-layer self-nanoemulsifying pellets: A poorly-water soluble model drug with hydrolytic susceptibility. PLoS ONE 2018, 13, e0198469. [Google Scholar] [CrossRef] [PubMed]
  22. Khan, F.N.; Dehghan, M.H.G. Enhanced bioavailability and dissolution of atorvastatin calcium from floating microcapsules using minimum additives. Sci. Pharm. 2012, 80, 215–228. [Google Scholar] [CrossRef] [PubMed]
  23. Shaker, M.A.; Elbadawy, H.M.; Shaker, M.A. Improved solubility, dissolution, and oral bioavailability for atorvastatin-Pluronic® solid dispersions. Int. J. Pharm. 2020, 574, 118891. [Google Scholar] [CrossRef]
  24. Han, J.; Wei, Y.; Lu, Y.; Wang, R.; Zhang, J.; Gao, Y.; Qian, S. Co-amorphous systems for the delivery of poorly water-soluble drugs: Recent advances and an update. Expert Opin. Drug Deliv. 2020, 17, 1411–1435. [Google Scholar] [CrossRef]
  25. Kassem, A.M.; Ibrahim, H.M.; Samy, A.M. Development and optimisation of atorvastatin calcium loaded self-nanoemulsifying drug delivery system (SNEDDS) for enhancing oral bioavailability: In vitro and in vivo evaluation. J. Microencapsul. 2017, 34, 319–333. [Google Scholar] [CrossRef]
  26. Kumar Mantri, S.; Pashikanti, S.; VRamana Murthy, K. Development and characterization of self-nanoemulsifying drug delivery systems (SNEDDS) of atorvastatin calcium. Curr. Drug Deliv. 2012, 9, 182–196. [Google Scholar] [CrossRef] [PubMed]
  27. Venkatesh, M.; Mallesh, K. Self-nano emulsifying drug delivery system (SNEDDS) for oral delivery of atorvastatin-formulation and bioavailability studies. J. Drug Deliv. Ther. 2013, 3, 131–140. [Google Scholar] [CrossRef]
  28. Reddy, M.S. Formulation and in vitro characterization of solid-self nanoemulsifying drug delivery system of atorvastatin calcium. Asian J. Pharm. (AJP) 2017, 11. [Google Scholar] [CrossRef]
  29. Yadav, K.S.; Arora, S.; Yasaswi, P.S.; Nirale, P.; Solanki, A.; Bhat, J. Self-nano-emulsifying Drug Delivery Systems of Atorvastatin Calcium Liquid Filled in Hard Shell Capsules for Improved Oral Bioavailability in Rabbits. Curr. Nanosci. 2024, 20, 554–563. [Google Scholar] [CrossRef]
  30. Yeom, D.W.; Son, H.Y.; Kim, J.H.; Kim, S.R.; Lee, S.G.; Song, S.H.; Chae, B.R.; Choi, Y.W. Development of a solidified self-microemulsifying drug delivery system (S-SMEDDS) for atorvastatin calcium with improved dissolution and bioavailability. Int. J. Pharm. 2016, 506, 302–311. [Google Scholar] [CrossRef]
  31. Kadu, P.J.; Kushare, S.S.; Thacker, D.D.; Gattani, S.G. Enhancement of oral bioavailability of atorvastatin calcium by self-emulsifying drug delivery systems (SEDDS). Pharm. Dev. Technol. 2011, 16, 65–74. [Google Scholar] [CrossRef] [PubMed]
  32. Govindarajan, R.; Landis, M.; Hancock, B.; Gatlin, L.A.; Suryanarayanan, R.; Shalaev, E.Y. Surface acidity and solid-state compatibility of excipients with an acid-sensitive API: Case study of atorvastatin calcium. AAPS PharmSciTech 2015, 16, 354–363. [Google Scholar] [CrossRef] [PubMed]
  33. Oliveira, M.A.; Yoshida, M.I.; Belinelo, V.J.; Valotto, R.S. Degradation kinetics of atorvastatin under stress conditions and chemical analysis by HPLC. Molecules 2013, 18, 1447–1456. [Google Scholar] [CrossRef] [PubMed]
  34. Ameta, R.K.; Soni, K.; Bhattarai, A. Recent advances in improving the bioavailability of hydrophobic/lipophilic drugs and their delivery via self-emulsifying formulations. Colloids Interfaces 2023, 7, 16. [Google Scholar] [CrossRef]
  35. Sherif, A.Y.; Shahba, A.A.-W. Development of a Multifunctional Oral Dosage Form via Integration of Solid Dispersion Technology with a Black Seed Oil-Based Self-Nanoemulsifying Drug Delivery System. Biomedicines 2023, 11, 2733. [Google Scholar] [CrossRef] [PubMed]
  36. Shahba, A.A.-W.; Sherif, A.Y.; Elzayat, E.M.; Kazi, M. Combined Ramipril and Black Seed Oil Dosage Forms Using Bioactive Self-Nanoemulsifying Drug Delivery Systems (BIO-SNEDDSs). Pharmaceuticals 2022, 15, 1120. [Google Scholar] [CrossRef] [PubMed]
  37. Kazi, M.; Alhajri, A.; Alshehri, S.M.; Elzayat, E.M.; Al Meanazel, O.T.; Shakeel, F.; Noman, O.; Altamimi, M.A.; Alanazi, F.K. Enhancing oral bioavailability of apigenin using a bioactive self-nanoemulsifying drug delivery system (Bio-SNEDDS): In vitro, in vivo and stability evaluations. Pharmaceutics 2020, 12, 749. [Google Scholar] [CrossRef] [PubMed]
  38. Alshora, D.H.; Ibrahim, M.A.; Sherif, A.Y. Optimization and Validation of Sensitive UPLC-PDA Method for Simultaneous Determination of Thymoquinone and Glibenclamide in SNEDDs Formulations Using Response Surface Methodology. Separations 2023, 10, 577. [Google Scholar] [CrossRef]
  39. Inugala, S.; Eedara, B.B.; Sunkavalli, S.; Dhurke, R.; Kandadi, P.; Jukanti, R.; Bandari, S. Solid self-nanoemulsifying drug delivery system (S-SNEDDS) of darunavir for improved dissolution and oral bioavailability: In vitro and in vivo evaluation. Eur. J. Pharm. Sci. 2015, 74, 1–10. [Google Scholar] [CrossRef]
  40. Youssef, N.A.; Shaban, S.A.; Ibrahim, F.A.; Mahmoud, A.S. Degradation of methyl orange using Fenton catalytic reaction. Egypt. J. Pet. 2016, 25, 317–321. [Google Scholar] [CrossRef]
  41. Asgary, S.; Sahebkar, A.; Goli-Malekabadi, N. Ameliorative effects of Nigella sativa on dyslipidemia. J. Endocrinol. Investig. 2015, 38, 1039–1046. [Google Scholar] [CrossRef] [PubMed]
  42. Majdalawieh, A.F.; Yousef, S.M.; Abu-Yousef, I.A. Thymoquinone, a major constituent in Nigella sativa seeds, is a potential preventative and treatment option for atherosclerosis. Eur. J. Pharmacol. 2021, 909, 174420. [Google Scholar] [CrossRef] [PubMed]
  43. Al-Oanzi, Z.H.; Alenazy, F.O.; Alhassan, H.H.; El-Aassar, M.R.; Alzarea, A.I.; Alzarea, S.I.; Abbas, A.M.; Alanazi, M.H.; Al-Enazi, M.M. Effects of Thymoquinone Alone or in Combination with Losartan on the Cardiotoxicity Caused by Oxidative Stress and Inflammation in Hypercholesterolemia. J. Cardiovasc. Dev. Dis. 2022, 9, 428. [Google Scholar] [CrossRef] [PubMed]
  44. Xu, J.; Zhu, L.; Liu, H.; Li, M.; Liu, Y.; Yang, F.; Pei, Z. Thymoquinone reduces cardiac damage caused by hypercholesterolemia in apolipoprotein E-deficient mice. Lipids Health Dis. 2018, 17, 173. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, C.-Y.; Yen, C.-C.; Hsu, M.-C.; Wu, Y.-T. Self-nanoemulsifying drug delivery systems for enhancing solubility, permeability, and bioavailability of sesamin. Molecules 2020, 25, 3119. [Google Scholar] [CrossRef] [PubMed]
  46. Yadav, P.; Rastogi, V.; Verma, A. Application of Box–Behnken design and desirability function in the development and optimization of self-nanoemulsifying drug delivery system for enhanced dissolution of ezetimibe. Future J. Pharm. Sci. 2020, 6, 7. [Google Scholar] [CrossRef]
  47. Rathore, C.; Hemrajani, C.; Sharma, A.K.; Gupta, P.K.; Jha, N.K.; Aljabali, A.A.A.; Gupta, G.; Singh, S.K.; Yang, J.-C.; Dwivedi, R.P.; et al. Self-nanoemulsifying drug delivery system (SNEDDS) mediated improved oral bioavailability of thymoquinone: Optimization, characterization, pharmacokinetic, and hepatotoxicity studies. Drug Deliv. Transl. Res. 2023, 13, 292–307. [Google Scholar] [CrossRef] [PubMed]
  48. Gardouh, A.R.; Nasef, A.M.; Mostafa, Y.; Gad, S. Design and evaluation of combined atorvastatin and ezetimibe optimized self-nano emulsifying drug delivery system. J. Drug Deliv. Sci. Technol. 2020, 60, 102093. [Google Scholar] [CrossRef]
  49. Al-Kazemi, R.; Al-Basarah, Y.; Nada, A. Dissolution enhancement of atorvastatin calcium by cocrystallization. Adv. Pharm. Bull. 2019, 9, 559. [Google Scholar] [CrossRef] [PubMed]
  50. Naqvi, A.; Ahmad, M.; Minhas, M.U.; Khan, K.U.; Batool, F.; Rizwan, A. Preparation and evaluation of pharmaceutical co-crystals for solubility enhancement of atorvastatin calcium. Polym. Bull. 2020, 77, 6191–6211. [Google Scholar] [CrossRef]
  51. Singh, S.Y.; Salwa Shirodkar, R.K.; Verma, R.; Kumar, L. Enhancement in dissolution rate of atorvastatin trihydrate calcium by formulating its porous tablet using sublimation technique. J. Pharm. Innov. 2020, 15, 498–520. [Google Scholar] [CrossRef]
  52. Kapourani, A.; Katopodis, K.; Valkanioti, V.; Chatzitheodoridou, M.; Cholevas, C.; Barmpalexis, P. Evaluation of suitable polymeric matrix/carriers during loading of poorly water soluble drugs onto mesoporous silica: Physical stability and in vitro supersaturation. Polymers 2024, 16, 802. [Google Scholar] [CrossRef] [PubMed]
  53. Yeo, S.; An, J.; Park, C.; Kim, D.; Lee, J. Design and characterization of phosphatidylcholine-based solid dispersions of aprepitant for enhanced solubility and dissolution. Pharmaceutics 2020, 12, 407. [Google Scholar] [CrossRef] [PubMed]
  54. Shahraeini, S.S.; Akbari, J.; Saeedi, M.; Morteza-Semnani, K.; Abootorabi, S.; Dehghanpoor, M.; Rostamkalaei, S.S.; Nokhodchi, A. Atorvastatin solid lipid nanoparticles as a promising approach for dermal delivery and an anti-inflammatory agent. AAPS PharmSciTech 2020, 21, 263. [Google Scholar] [CrossRef] [PubMed]
  55. Shete, G.; Puri, V.; Kumar, L.; Bansal, A.K. Solid state characterization of commercial crystalline and amorphous atorvastatin calcium samples. AAPS PharmSciTech 2010, 11, 598–609. [Google Scholar] [CrossRef] [PubMed]
  56. Tashish, A.Y.; Shahba, A.A.-W.; Alanazi, F.K.; Kazi, M. Adsorbent precoating by lyophilization: A novel green solvent technique to enhance cinnarizine release from solid self-nanoemulsifying drug delivery systems (S-SNEDDS). Pharmaceutics 2022, 15, 134. [Google Scholar] [CrossRef] [PubMed]
  57. Kim, M.-S.; Jin, S.-J.; Kim, J.-S.; Park, H.J.; Song, H.-S.; Neubert, R.H.; Hwang, S.-J. Preparation, characterization and in vivo evaluation of amorphous atorvastatin calcium nanoparticles using supercritical antisolvent (SAS) process. Eur. J. Pharm. Biopharm. 2008, 69, 454–465. [Google Scholar] [CrossRef] [PubMed]
  58. Li, L.; Zhou, C.H.; Xu, Z.P. Self-nanoemulsifying drug-delivery system and solidified self-nanoemulsifying drug-delivery system. In Nanocarriers for Drug Delivery; Elsevier: Amsterdam, The Netherlands, 2019; pp. 421–449. [Google Scholar]
  59. Ariaeinia, M.; Rahimpour, E.; Mirzaeei, S.; Fathi Azarbayjani, A.; Jouyban, A. Thermodynamic analysis of atorvastatin calcium in solvent mixtures at several temperatures. Phys. Chem. Liq. 2023, 61, 275–284. [Google Scholar] [CrossRef]
  60. He, W.; Yang, M.; Fan, J.H.; Feng, C.X.; Zhang, S.J.; Wang, J.X.; Guan, P.P.; Wu, W. Influences of sodium carbonate on physicochemical properties of lansoprazole in designed multiple coating pellets. Aaps Pharmscitech 2010, 11, 1287–1293. [Google Scholar] [CrossRef] [PubMed]
  61. Alsulays, B.B.; Kulkarni, V.; Alshehri, S.M.; Almutairy, B.K.; Ashour, E.A.; Morott, J.T.; Alshetaili, A.S.; Park, J.-B.; Tiwari, R.V.; Repka, M.A. Preparation and evaluation of enteric coated tablets of hot-melt extruded lansoprazole. Drug Dev. Ind. Pharm. 2017, 43, 789–796. [Google Scholar] [CrossRef] [PubMed]
  62. Vukkum, P.; Babu, J.M.; Muralikrishna, R. Stress degradation behavior of atorvastatin calcium and development of a suitable stability-indicating LC method for the determination of atorvastatin, its related impurities, and its degradation products. Sci. Pharm. 2013, 81, 93–114. [Google Scholar] [CrossRef]
Processes 12 01169 g001

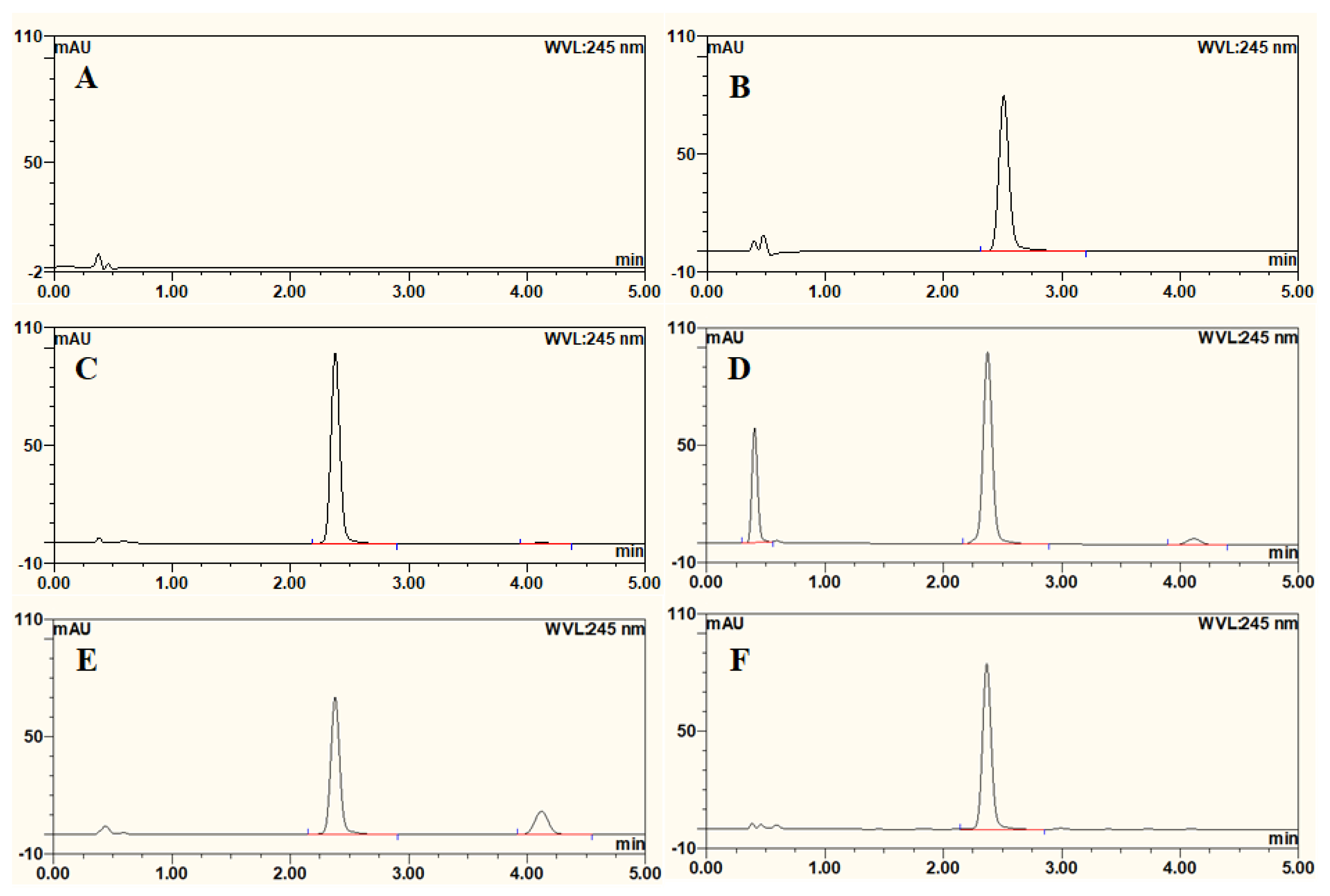

Figure 1. Chromatograms of (A) blank (B) standard solution, along with forced degradation obtained following exposure to (C) thermal-, (D) oxidative-, (E) acid-, and (F) base-stress conditions.
Figure 1. Chromatograms of (A) blank (B) standard solution, along with forced degradation obtained following exposure to (C) thermal-, (D) oxidative-, (E) acid-, and (F) base-stress conditions.
Processes 12 01169 g001
Processes 12 01169 g002

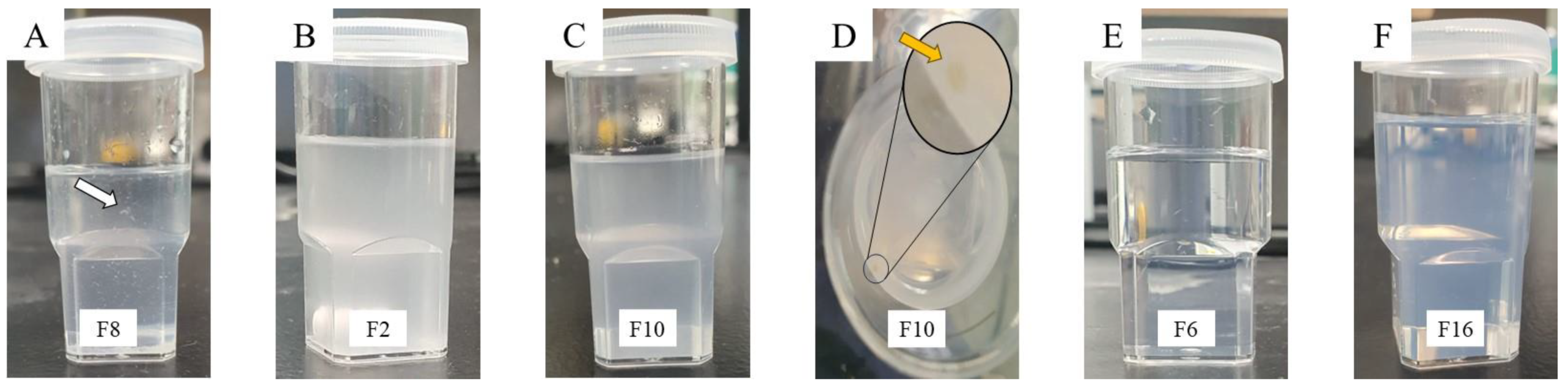

Figure 2. Physical appearance of dispersed SNEDDS formulations, whereas (A) shows the undispersed F8 formulation, (B) turbidity of dispersed F2, (C) semi-turbidity of dispersed F10, (D) floating oil on the surface of dispersed F10, (E) clarity of dispersed F6, and (F) bluish appearance of dispersed F16.
Figure 2. Physical appearance of dispersed SNEDDS formulations, whereas (A) shows the undispersed F8 formulation, (B) turbidity of dispersed F2, (C) semi-turbidity of dispersed F10, (D) floating oil on the surface of dispersed F10, (E) clarity of dispersed F6, and (F) bluish appearance of dispersed F16.
Processes 12 01169 g002
Processes 12 01169 g003

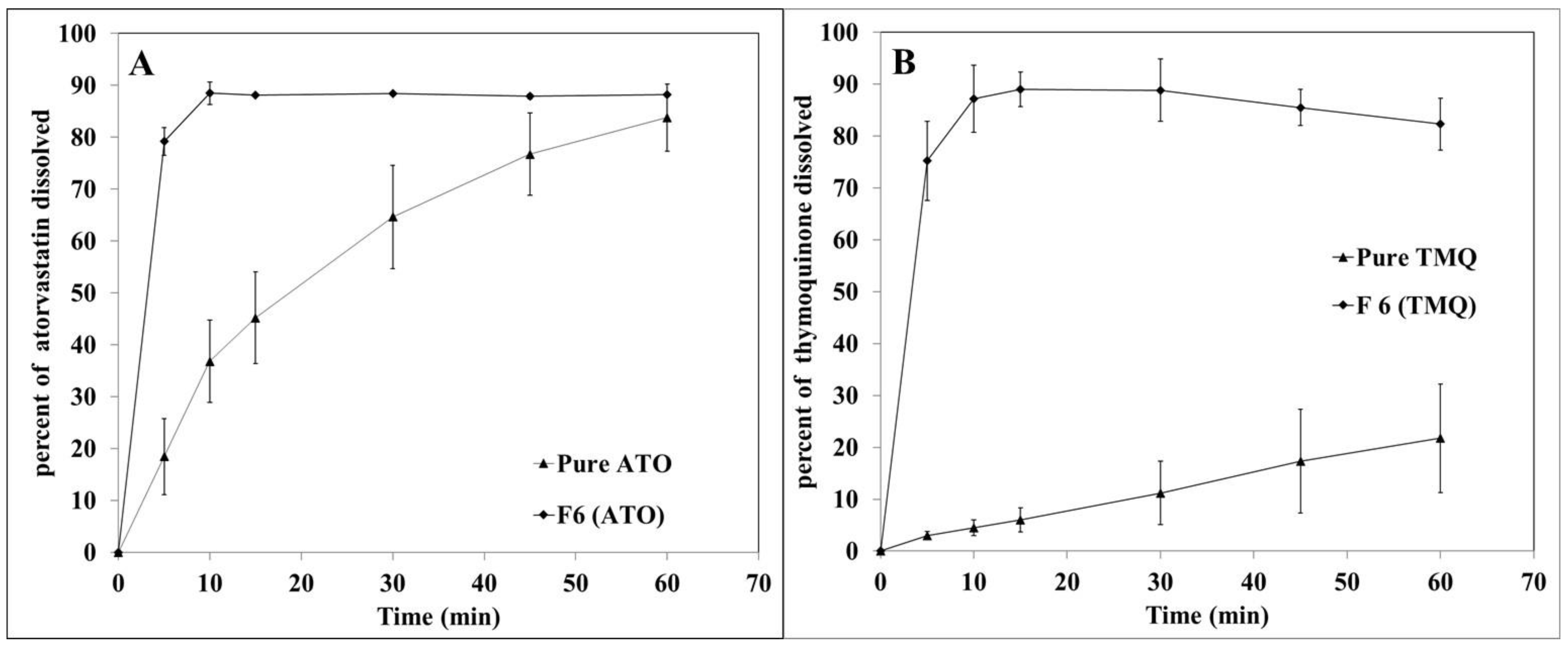

Figure 3. In vitro dissolution profile of (A) atorvastatin and (B) thymoquinone. The data were presented as the mean ± SD, with N = 3.
Figure 3. In vitro dissolution profile of (A) atorvastatin and (B) thymoquinone. The data were presented as the mean ± SD, with N = 3.
Processes 12 01169 g003
Processes 12 01169 g004

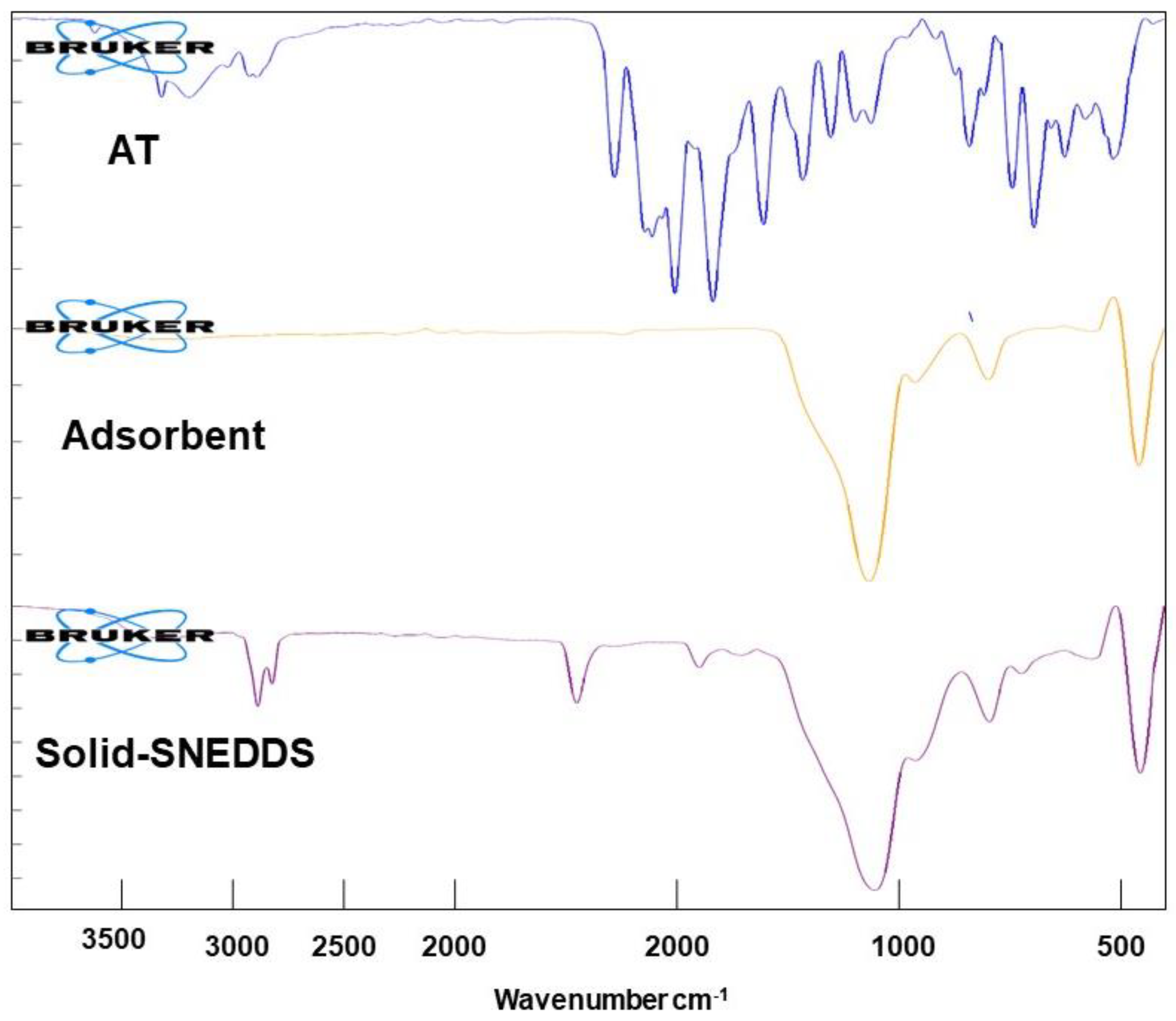

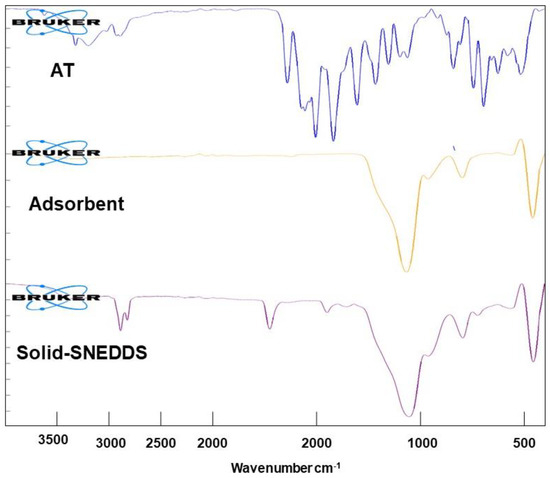

Figure 4. FTIR of AT, adsorbent, and solidified SNEDDS.
Figure 4. FTIR of AT, adsorbent, and solidified SNEDDS.
Processes 12 01169 g004
Processes 12 01169 g005
Figure 5. DSC of atorvastatin, adsorbent, and solidified SNEDDS.
Figure 5. DSC of atorvastatin, adsorbent, and solidified SNEDDS.
Processes 12 01169 g005
Processes 12 01169 g006
Figure 6. PXRD of atorvastatin, adsorbent, and solidified SNEDDS.
Figure 6. PXRD of atorvastatin, adsorbent, and solidified SNEDDS.
Processes 12 01169 g006
Processes 12 01169 g007
Figure 7. The histogram shows the percent of atorvastatin remaining within the liquid and solid SNEDDS formulation following incubation in the stability chamber. The data were presented as the mean ± SD, with N = 3.
Figure 7. The histogram shows the percent of atorvastatin remaining within the liquid and solid SNEDDS formulation following incubation in the stability chamber. The data were presented as the mean ± SD, with N = 3.
Processes 12 01169 g007
Processes 12 01169 g008
Figure 8. Second-order reaction kinetics for the degradation of atorvastatin in AT-F6 and AT-SF6 formulations.
Figure 8. Second-order reaction kinetics for the degradation of atorvastatin in AT-F6 and AT-SF6 formulations.
Processes 12 01169 g008
Processes 12 01169 g009
Figure 9. Histogram shows the percent of atorvastatin remaining within the liquid and the carbonated SNEDDS formulation following incubation in the stability chamber.
Figure 9. Histogram shows the percent of atorvastatin remaining within the liquid and the carbonated SNEDDS formulation following incubation in the stability chamber.
Processes 12 01169 g009
Processes 12 01169 g010
Figure 10. Chromatogram shows (A) atorvastatin and bioactive thymoquinone present in SNEDDS formulation, and (B) the resolution of parent atorvastatin peak from degradation peaks.
Figure 10. Chromatogram shows (A) atorvastatin and bioactive thymoquinone present in SNEDDS formulation, and (B) the resolution of parent atorvastatin peak from degradation peaks.
Processes 12 01169 g010
Processes 12 01169 g011
Figure 11. Second-order reaction kinetics for the degradation of atorvastatin in AT-F6 and AT-CF6 formulations.
Figure 11. Second-order reaction kinetics for the degradation of atorvastatin in AT-F6 and AT-CF6 formulations.
Processes 12 01169 g011
Processes 12 01169 g012
Figure 12. Correlation between concentration of sodium bicarbonate concentration and slope of AT degradation rate.
Figure 12. Correlation between concentration of sodium bicarbonate concentration and slope of AT degradation rate.
Processes 12 01169 g012
Table 1. Composition of prepared drug-free SNEDDS formulation.
Table 1. Composition of prepared drug-free SNEDDS formulation.
Formulation
Code		Surfactant (%)Co-Surfactant (%)Bioactive Oil (%)
T-85HCO-30LBK-ELPEGI-308S-80LGBSO
F140 30 30
F240 30
F340 30
F440 30
F5 40 30
F6 40 30
F7 40 30
F8 40 30
F9 40 30
F10 40 30
F11 40 30
F12 40 30
F13 4030
F14 40 30
F15 40 30
F16 40 30
The amounts of SNEDDS components are expressed as weight percentages. T-85; Tween-85, HCO-30; Hydrogenated castor oil, LB; Labrasol ALF, K-EL; Kolliphor-EL, PEG-400; Kollisolv® PEG 400, I-308; Imwitor-308, S-80; Span-80, LG; LauroglycolTM 90, BSO; Black seed oil.
Table 2. Evaluation results of prepared drug-free BIO-SNE DDS formulations.
Table 2. Evaluation results of prepared drug-free BIO-SNE DDS formulations.
Formulation CodeMiscibilityPhysical AppearanceSystem Separation
F1Immiscible------------
F2MiscibleTurbidDispersible system with floating oil
F3Immiscible------------
F4MiscibleTurbidDispersible system with floating oil
F5Immiscible------------
F6MiscibleClear solutionUniform dispersion
F7Immiscible------------
F8MiscibleSuspended systemIndispensable system
F9Immiscible------------
F10MiscibleSemi-turbid solutionDispersible system with floating oil
F11MiscibleSemi-turbid solutionDispersible system with floating oil
F12MiscibleSemi-clear solutionDispersible system with floating oil
F13Immiscible------------
F14Immiscible------------
F15Immiscible------------
F16MiscibleBluish solutionUniform dispersion
Table 3. Pharmaceutical assessment results of AT-loaded BIO-SNEDDS.
Table 3. Pharmaceutical assessment results of AT-loaded BIO-SNEDDS.
Formulation CodeParticle Size (nm)Zeta Potential (mV)AT Solubility (mg/mL)
F646.62 ± 0.12−35.2 ± 3.658.21 ± 2.56
F1685.91 ± 1.11−21.2 ± 1.17.88 ± 0.19
The data were presented as the mean ± SD, with N = 3.
Table 4. Comparison of the slope and coefficient of the determination values derived from fitting data of F6 and S-F6 formulations to zero-, first-, and second-order equations.
Table 4. Comparison of the slope and coefficient of the determination values derived from fitting data of F6 and S-F6 formulations to zero-, first-, and second-order equations.
F6S-F6
Zero-orderSlope−1.779926884−1.741588269
r20.8215466660.821816861
First orderSlope−0.039844248−0.037165163
r20.9579161080.94371274
Second orderSlope0.0011530330.000987203
r20.9953199890.997570124
Table 5. Physicochemical characterization of F6 and C-F6 formulations.
Table 5. Physicochemical characterization of F6 and C-F6 formulations.
Formulation CodepHPS (nm)ZP (mV)AT Solubility (mg/mL)
F64.8 ± 0.0246.62 ± 0.12−35.2 ± 3.658.21 ± 2.56
CF6 (1.0 mg)5.9 ± 0.0532.42 ± 0.20−19.7 ± 1.473.89 ± 1.55
CF6 (2.0 mg)6.1 ± 0.0130.64 ± 0.38−11.6 ± 2.787.01 ± 4.35
CF6 (5.0 mg)6.9 ± 0.0323.95 ± 0.11−20.2 ± 2.391.85 ± 4.79
The data were presented as the mean ± SD, with N = 3.
Table 6. Comparison of the slope and coefficient of the determination values derived from fitting data of AT-F6 and AT-CF6 formulations to zero-, first-, and second-order equations.
Table 6. Comparison of the slope and coefficient of the determination values derived from fitting data of AT-F6 and AT-CF6 formulations to zero-, first-, and second-order equations.
AT-F6AT-CF6 (1.0 mg/g)AT-CF6 (2.0 mg/g)AT-CF6 (5.0 mg/g)
Zero-orderSlope−1.7799−1.7213−1.5198−0.9907
r20.821550.864080.884340.86853
First orderSlope−0.0398−0.0351−0.0272−0.0135
r20.957920.964740.967020.91776
Second orderSlope0.001150.000870.000560.00019
r20.995320.995650.973350.95475
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sherif, A.Y.; Ibrahim, M.A. Unveiling the Superiority of Innovative Carbonated Self-Nanoemulsifying Drug Delivery Systems in Improving the Stability of Acid-Labile Drugs: Atorvastatin as a Model Drug. Processes 2024, 12, 1169. https://doi.org/10.3390/pr12061169

AMA Style

Sherif AY, Ibrahim MA. Unveiling the Superiority of Innovative Carbonated Self-Nanoemulsifying Drug Delivery Systems in Improving the Stability of Acid-Labile Drugs: Atorvastatin as a Model Drug. Processes. 2024; 12(6):1169. https://doi.org/10.3390/pr12061169

Chicago/Turabian Style

Sherif, Abdelrahman Y., and Mohamed A. Ibrahim. 2024. "Unveiling the Superiority of Innovative Carbonated Self-Nanoemulsifying Drug Delivery Systems in Improving the Stability of Acid-Labile Drugs: Atorvastatin as a Model Drug" Processes 12, no. 6: 1169. https://doi.org/10.3390/pr12061169

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
