High-Temperature Permittivity and Microwave Pretreatment Characteristics of Nickel-Containing Sludge from Battery Production

Abstract

Permittivity is a vitally important parameter for the description of the absorption and heating characteristics of materials under microwave irradiation. In this paper, the permittivity of nickel-containing sludge (NCS), which is created during battery production as a cheap secondary resource, was measured at temperatures from 20 °C to 600 °C at 2.45 GHz using the cavity perturbation method. In addition, the loss tangent (tanδ) and penetration depth (Dp) of microwaves into the material were calculated. The results of the permittivity study show that the dielectric constant (ε′) and dielectric loss factor (ε″) of the NCS increase with increasing temperature. The variations of the loss tangent (tanδ) and penetration depth (Dp) with the temperature can be divided into two parts at 200 °C. The effect of the initial moisture content on the dielectric properties of the material is notably greater than that of the temperature, which was confirmed by the heating curve. After microwave pretreatment, the nickel-containing phase is transformed into NiO, while the weight of NCS is reduced by more than 20%, the particle size is significantly reduced and the leaching time reduce 20 min than that of conventional heating.

1. Introduction

Nickel-containing sludge (NCS) is a type of nocuous solid waste including Ni, Cd, Fe, Cu, Ca, and other main components that formed by chemical precipitation of nickel-containing wastewater produced during nickel plating [1,2]. If not handled properly, secondary pollution will occur, which will have a huge impact on the ecological environment and human health. At the same time, NCS contains valuable metals, which can be used as cheap secondary resources containing nickel. Currently, commonly used treatment methods include the separation and recovery of heavy metals [3,4] and stabilization treatment [5,6]. However, the composition of NCS is extremely complex. In addition to containing a lot of water, it also contains a lot of ash, inorganic particles, colloids, and other harmful substances [7]. If ammonium leaching [8] or sulfuric acid leaching [9] is carried out directly, huge amounts of equipment investments and chemical reagents will be wasted. Therefore, appropriate incineration pretreatment should be carried out before metal recovery to realize the enrichment of valuable metal elements and sludge reduction [10]. Therefore, it is very important to select an efficient pretreatment method for the comprehensive utilization of NCS.

Microwave heating sometimes exhibits some unique advantages over conventional heating, such as reducing the chemical reaction time and improving product quality [11,12]. Roy [13] described the application of microwave heating to sintering of a wide range of standard powdered metals and found that the mechanical properties of the final products were better than that of conventional heating. Furthermore, good results were also obtained when microwave heating was introduced to sludge pretreatment and stabilization. Liao [14] reported that both the volume and weight greatly reduce to 11.4% when the electroplating sludge was roasted at 600 °C for 10 min; in the subsequent sulfuric acid leaching process, the leaching rate of nickel and copper can reach more than 97%. Microwave heating technology is also used for the stabilization of heavy metal elements in sludge. Microwave can energize, mitigate, and assist the chemical binding of dipolar molecules and metal ions within a solid structure. With respect to the stabilization process, Menéndez et al. [15] confirmed that the leaching concentration of heavy metals from sludge after microwave treatment is lower than that obtained using traditional electric furnace heating treatment technologies. Chen [16], Hsies [17], and Chan [18] added strong wave-absorbing materials, such as iron, aluminum, and alumina powders, to the sludge to increase the microwave heating efficiency. They found that the leaching concentration of copper ions decreases significantly.

However, all above-mentioned studies lack the key parameters of microwave heating, that is, the high-temperature dielectric characteristics of materials. In general, the dielectric properties of materials are used to evaluate the microwave absorption capability of materials [19,20]. The dielectric properties of materials, especially at high temperature, are receiving increased attention. On the measurement of the high-temperature dielectric properties, as early as 1984 Araneta [21] had developed a technique to uncover the high-temperature microwave characterization of dielectric rods using a single microwave source. In addition, there are actually a lot reports about the cavity perturbation method was used to measure the complex permittivity. Lin [22] investigated the dielectric properties of spent adsorbent with zinc sulfate using the cavity perturbation technique at 2.45 GHz from 20 °C to 1000 °C and found that ε′ and ε″ of the sample significantly change with increasing temperature. Jiang [23] reported that the dielectric constants of the molybdenite concentrate increase as the temperature increases in the entire experimental range. Catalá-Civera [24] developed a dual-mode cylindrical cavity with a cross-coupling filter between two different microwave sources to heat and measure the dielectric properties of materials in situ and real-time over a wide temperature range. Furthermore, Li [25] described a broadband from 7 to 18 GHz and a high temperature range from room temperature to 1500 °C dielectric properties test system for low-loss materials using circular cavity method. Also the team of Dr. Kama Huang from the College of Electronics and Information Engineering, Sichuan University, studied the technology used for the measurement of dielectric properties in detail. Based on their study, the polarization characteristics of the chemical reaction system under the action of electromagnetic waves were deduced [26,27,28,29].

In the present study, the dielectric properties of NCS were explored at different temperatures and a frequency of 2.45 GHz. Both the loss tangent (tanδ) and penetration depth (Dp) were calculated using the measured dielectric constant (ε′) and the dielectric loss factor (ε″). In addition, the heating curves of NCS with power of 1000 W at different moisture content (dried, 4%, and 8%, dry basis) were studied. Finally, the changes of the microstructure and phase were analyzed by SEM (SPM-S3400N, Hitachi, Tokyo, Japan) and X-ray powder diffraction (XRD) (XRD-7000S/L, Shimadzu, Kyoto, Japan). These data may be useful for comprehensive sludge utilization regeneration, database perfection of dielectric properties, and understanding the microwave mechanism of heating.

2. Materials and Methods

2.1. Raw Materials

Raw NCS was obtained from a battery manufacturer in the Henan Province, China. The material provided for extracting nickel was dried through preliminary pressure filtration and exposed to the sun for a long time with a moisture content of about 4%.

After being dried in a constant temperature drying oven for 48 h, the samples were analyzed chemically and by XRD. The chemical composition and XRD pattern are shown in

Table 1. Chemical composition of the nickel-containing sludge (NCS) residue.

Composition	O	Ca	Mg	C	Ni	Fe	Si	Cd
Content (%)	53.42	14.09	8.67	8.30	8.02	4.64	1.57	0.71

and Figure 1.

Table 1 shows that the content of metallic elements in the NCS and nickel content is found to be above 8%. In addition, about 2% used oil, along with the cleaning wastewater, was found in the raw materials by gravimetric method.

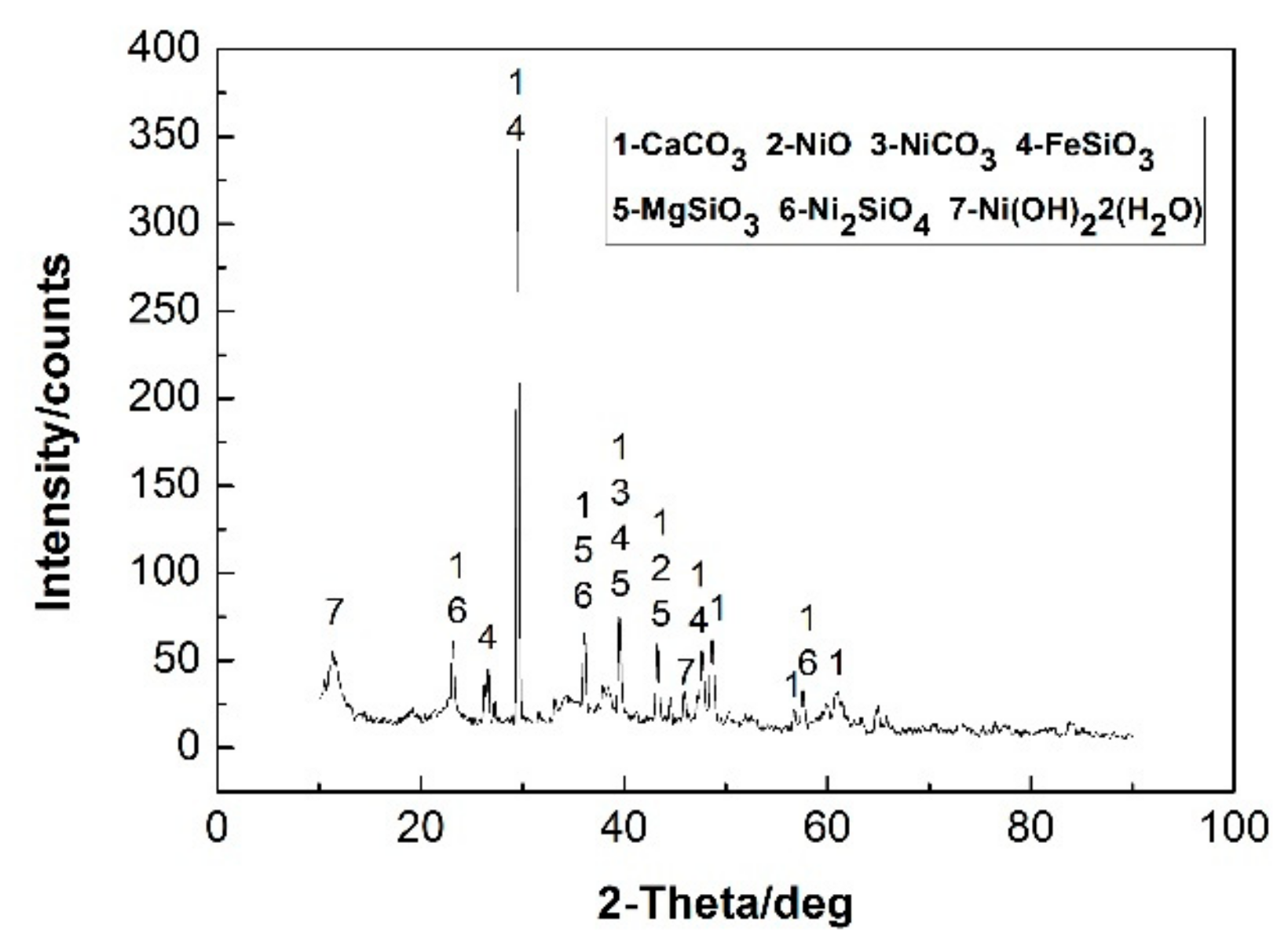

Figure 1 shows that the material composition is relatively complex; the main phase is CaCO₃. Magnesium mainly exists in form of MgSiO₃, while Ni mainly exists in form of NiO. Low amounts of NiCO₃ and Ni(OH)₂·2(H₂O) are also present, whereas Fe mainly exists as FeSiO₃.

2.2. Experimental Devices

2.2.1. Permittivity Measurement System

The cavity perturbation method has the advantages of accurate measurement and simple operation in the measurement of high temperature dielectric properties of solid materials which was used to measure the dielectric parameters of the NCS at different moisture contents and temperatures [30]. The testing equipment, which has been widely used for the measurement of the dielectric properties of materials was developed by Key Laboratory of Unconventional Metallurgy, Ministry of Education in Kunming University of Science and Technology [22,23]. A schematic of the system is shown in Figure 2.

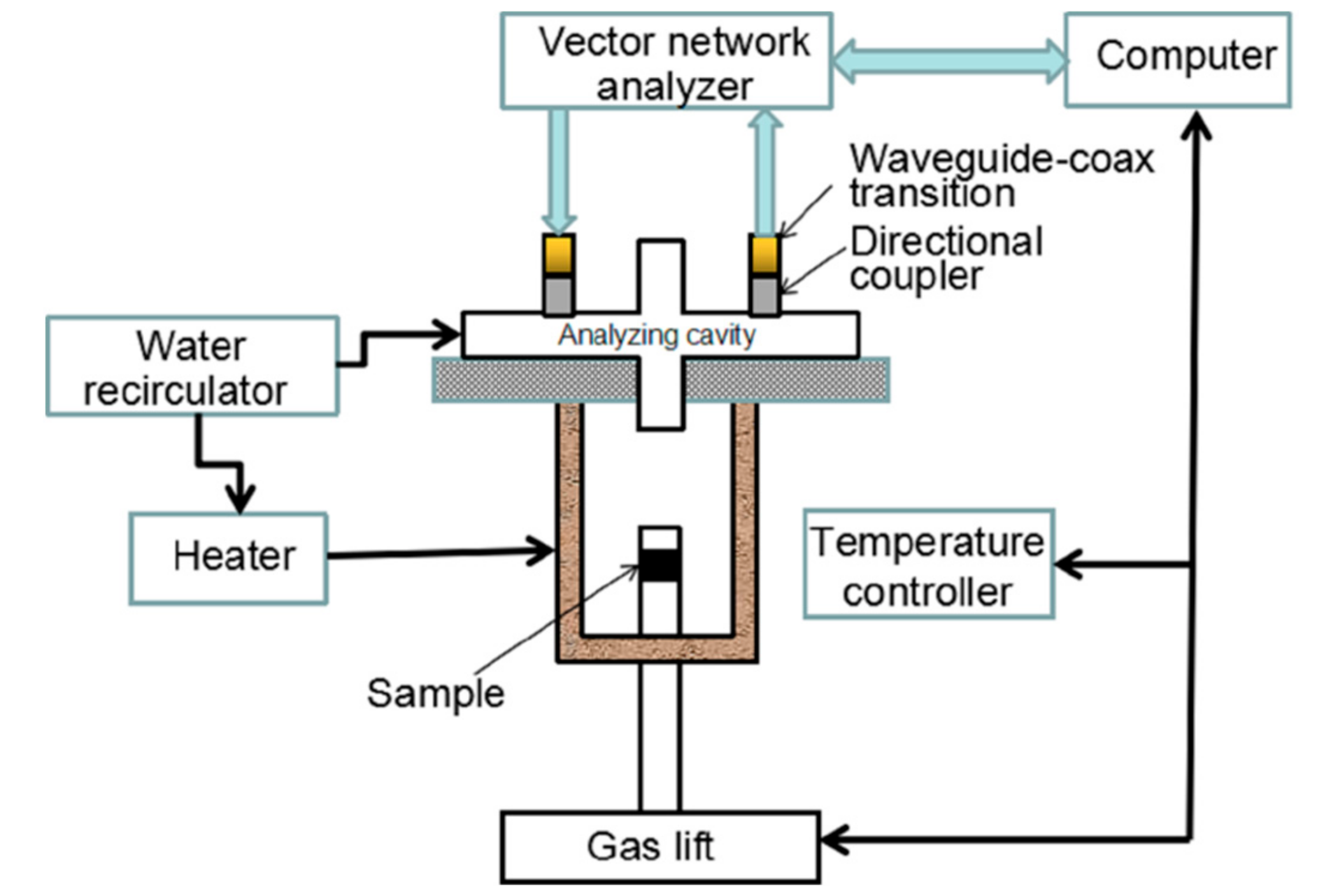

The device consists of a vector network analyzer (E5071C, Agilent, Santa Clara, CA, USA), waveguide–coax transition, directional coupler, electromagnetic induction heater, water recirculator, gas lift, and cylindrical cavity resonator with the inner dimensions of 190 mm height and 200 mm diameter(TM_0n0). The test control unit is connected to a computer via a USB data cable and software calculates the dielectric parameters. The system accuracy was estimated to be 3% in the dielectric constant and 10% in the loss factor during the tests, deionized water (the dielectric constant is 78 F/m) and the known data of molybdenite concentrate (the dielectric constant and loss factor are 5.47 F/m and 0.478 at 300 °C) reported by Jiang [23] were used as standards, resulting in 76.77 F/m, 5.34 F/m and 0.442, respectively, 1.58%, 2.37%, and 7.53% differences.

During the experiments, the test samples were placed into the heater of the permittivity measurement system with a small quartz tube (inner dimensions 4.0 mm, height 52 mm). When the NCS was heated to a preset temperature and subsequently lifted into the cavity resonator via the gas lift, the computer rapidly calculated the dielectric parameters using the test-cavity perturbation theory. After the test, the quartz tube was lowered into the heater and heated to a higher preset temperature to measure the permittivity at different temperatures. Each sample was measured three times and its average value was finally taken. In addition, the error of the three times measured value should be within 10%, if the deviation was too large, and took the fourth time.

2.2.2. Microwave Oven for the Pretreatment Experiments

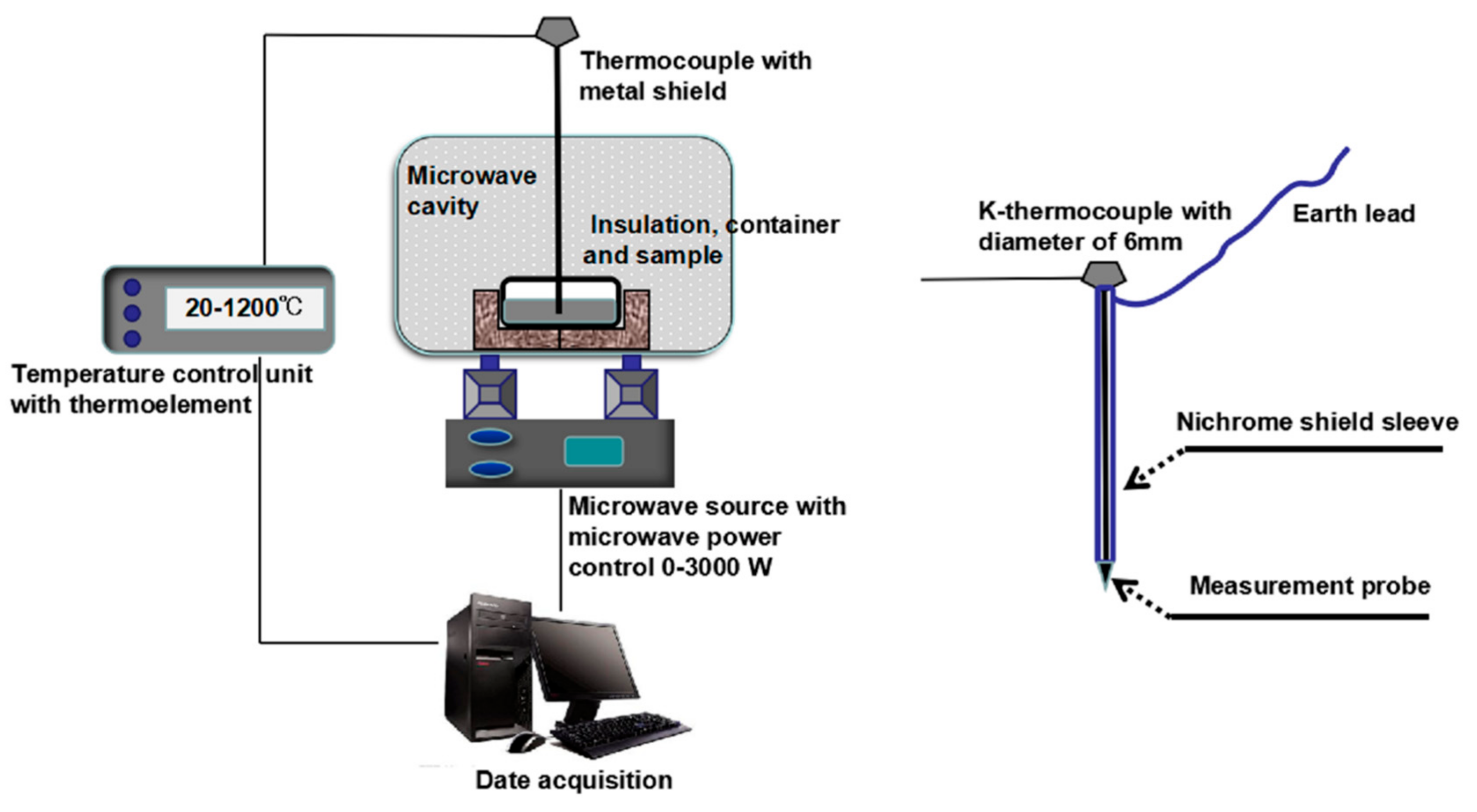

A microwave reactor which developed by Key Laboratory of Unconventional Metallurgy, Ministry of Education in Kunming University of Science and Technology with a power of 3 kW and a frequency of 2.450 GHz was used for the heating experiments. Its schematic is presented in Figure 3. The microwave heating system consists of a temperature control unit with a thermo-element, two magnetrons, a multimode cavity, a quartz glass container with a glass fiber wool, and a data acquisition computer. The thermocouple pyrometer with metallic shield layer was inserted into the center of the sample to measure the heating temperature. It is found that the error of the system is about ±3 °C (the temperature measured by the system after a period of microwave heating is 386 °C) by comparing the data obtained from infrared temperature measurement (after a period of microwave heating, the surface temperature of the material displayed by the infrared thermometer is 383 °C) and the data measured after the microwave source shutdown (the temperature measured by the system after the microwave shutdown for 5 s is 384 °C).

During the microwave heating experiments, a certain amount (100 g) sample play as a 15 mm thin layer loaded into a quartz glass container was placed inside the microwave oven and heated at a certain microwave power (1000 W) to different temperature.

2.3. Data Analysis and Mathematical Modeling

Complex permittivity is the fundamental property that determines the microwave absorption of a sample. The complex permittivity (ε*) can be expressed as:

$${\epsilon }^{*}={\epsilon }^{\prime }-j{\epsilon }^{\prime \prime }$$

(1)

where the real part (ε′) is often referred to as the dielectric constant, which reflects the ability of the material to store electromagnetic energy within its structure; the imaginary part (ε″) is the dielectric loss factor that characterizes the ability of the material to convert the stored electromagnetic energy into thermal energy. Another important parameter is the loss tangent (tanδ), which describes how well the material dissipates stored energy into heat at a given frequency and temperature. The loss tangent (tanδ) can be expressed as:

$$\tan \delta =\frac{{\epsilon }^{\prime \prime }}{{\epsilon }^{\prime }}$$

(2)

The power penetration depth (Dp) is defined as the depth at which the power of an applied microwave field is reduced to 1/e of its surface value and is expressed with the following equation:

$$D_p=\frac{{\lambda }_0}{2\sqrt{2}\pi \sqrt{{\epsilon }^{\prime }[\sqrt{1+{(\frac{{\epsilon }^{\prime \prime }}{{\epsilon }^{\prime }})}^2}-1]}}$$

(3)

where λ₀ is the wavelength (λ₀ = 12.24 cm at 2.45 GHz) and π is a constant. The penetration depth (Dp) of NCS can be calculated using Equation (3) and the measured data.

3. Results and Discussion

3.1. TG-DSC of the NCS

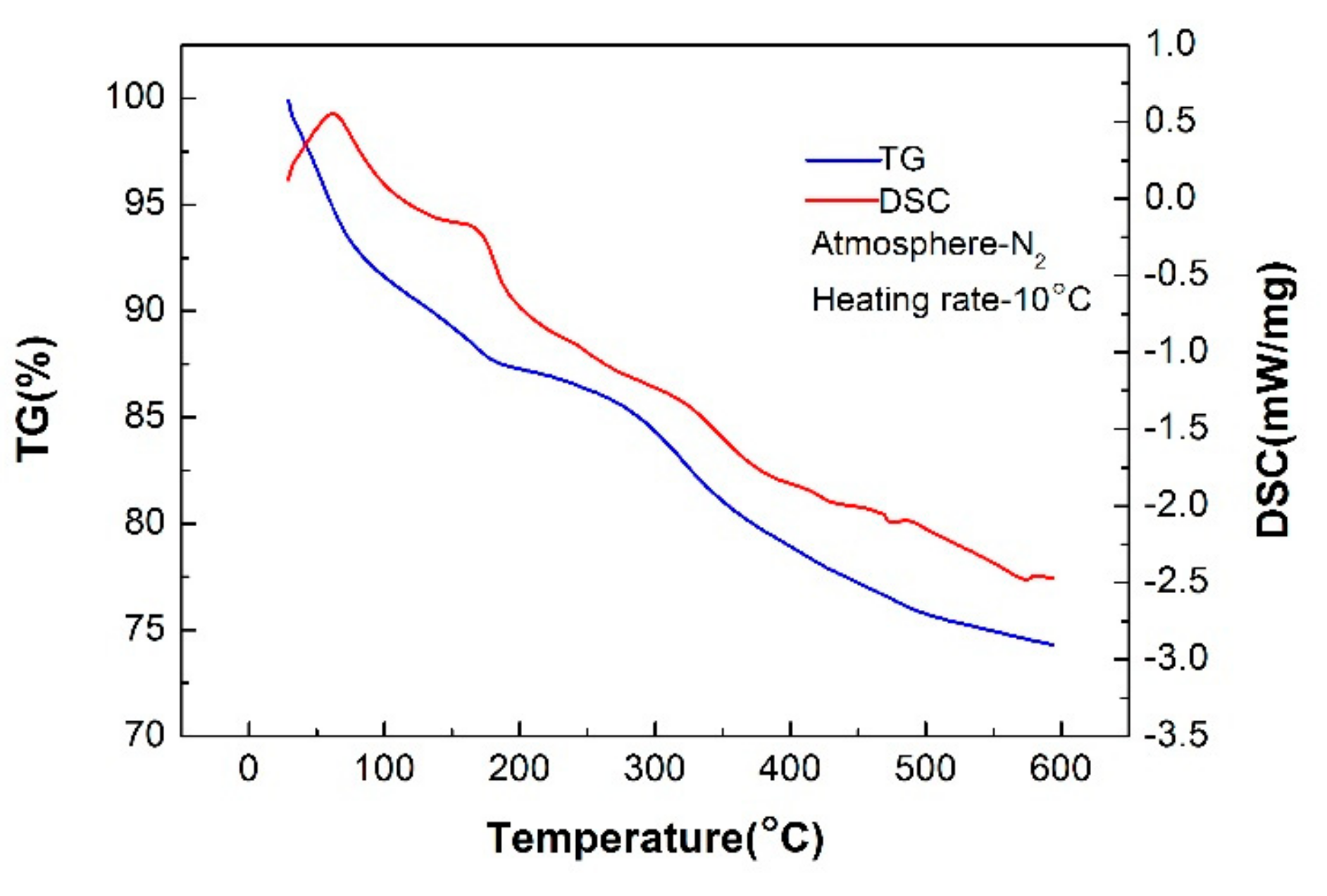

Figure 4 shows the thermal behavior of NCS concentrate (16.5835 mg) which was examined by the thermol-analytical instrument, NETZSCH SAT 449F5 (NETZSCH, Selb, Germany) under N₂ atmosphere at a 10 °C/min heating rate. It is evident that the weight of the NCS concentrate decreases with increasing temperature. The weight loss in the temperature range from 20 °C to 200 °C is ~12.5% based on the TG curve, while two endothermic peaks are observed in the DSC curve between 20 °C and 200 °C, corresponding to organics and water volatilization, respectively. Above 200 °C, the DSC curve continues to decrease and notable endothermic and exothermic peaks are not observed. The weight loss is ~13% from 200 °C to 600 °C based on the TG curve. During this process, NiCO₃ and Ni(OH)₂ will decompose to NiO [31,32].

3.2. Dielectric Properties of the NCS

The effect of the temperature on the dielectric properties of NCS at a frequency of 2.45 GHz is shown in Figure 5. Figure 5a shows that the dielectric constant of NCS gradually increases with increasing temperature from room temperature to 600 °C which is attributed to the formation of nickel oxide which relative to chemical reactions in the NCS, as will be stated in Figure 4. The NiO, same as Fe₂O₃, CuO, and MnO₂, can be quickly heated by microwave [33]. The dielectric constant gradually increases from 2.8 to 4.1 in this temperature range. The same tendency of the dielectric constant of the NCS to increase with increasing temperature is also observed in other ores and minerals [34]. Compared with kaolin ores [34] and natural ilmenite [35], the NCS exhibits a lower dielectric constant.

Figure 5b shows that the variation of the dielectric loss factor (ε″) of NCS with the temperature is the same as that of the dielectric constant (ε′). The loss factor slightly increases from 0.037 to 0.224 in this temperature range. However, a small change is observed in the curve of the dielectric loss factor at 300 °C because of the release of volatile matter and the phase transformation in this temperature range, which is confirmed by Figure 4.

Figure 5c shows the temperature dependence of the dielectric loss tangent at 2.45 GHz. Based on the statement of Laybourn [36], the NCS is a medium-loss material because its tanδ value ranges from 0.003–0.03 when the temperature is below 300 °C. It then transforms into a high-loss material at tanδ values above 0.03 when the temperature changes from 300 °C to 600 °C. At temperatures below 200 °C, the loss tangent reaches a stable level of 0.013 and then rapidly increases when the temperature is greater than 300 °C; the value of the loss tangent almost doubles compared with its average value in the range of 20 °C–600 °C, reaching a maximum value of 0.055.

Figure 5d presents the temperature dependence of the penetration depth at 2.45 GHz. Thee variation of DP is inverse to that of the dielectric loss tangent. The optimum thickness for uniform heat varies from 86 to 17 cm from room temperature to 600 °C. Based on the microwave roasting test for NCS, the material thickness has no effect on the uniformity of microwave heating.

Based on the analysis in Figure 5, the NCS is a medium-loss material at low temperature; its microwave heating efficiency is low, which agrees with literature data [15]. Chen [16], Hsies [17], and Chan [18] added strong wave-absorbing materials, such as iron, aluminum, and alumina powders, to the sludge to increase the microwave heating efficiency. However, the analysis of the dielectric properties of NCS with different moisture contents, which are shown in Figure 5, shows that the dielectric properties of NCS significantly increase with the moisture content. When the moisture content of the materials is ~4%, the value of the loss angle tangent (tanδ) of the NCS is far higher than that of the temperature. Therefore, the moisture content of the material can be reduced to ~4% in the drying stage of the material, which provides convenient conditions for subsequent microwave pretreatment. Note that the penetration depth of the microwaves will sharply drop below 4 cm with increasing moisture content.

3.3. Microwave Heating Curves of the NCS

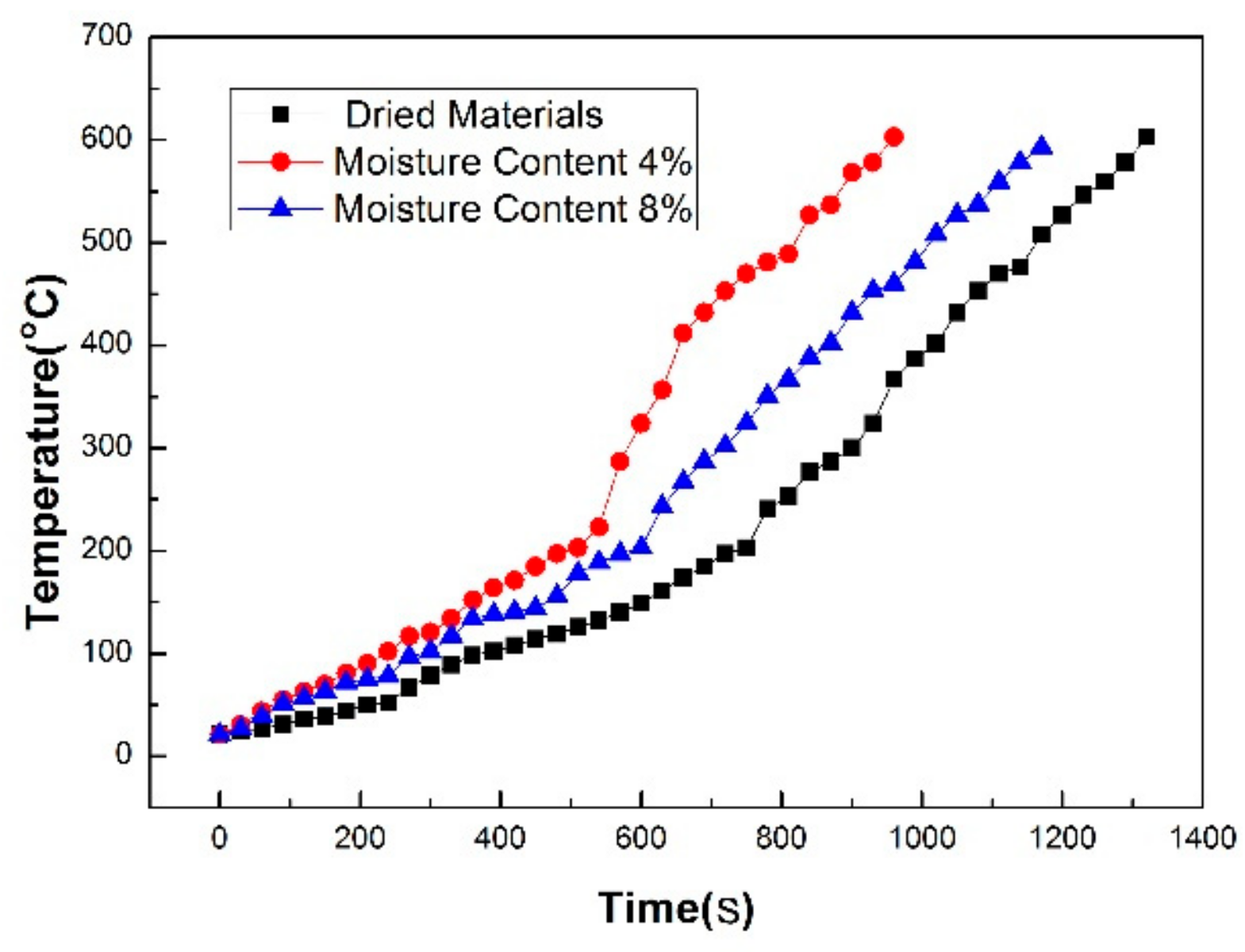

A nonlinear relationship is indicated by the heating rate curves of the NCS at different moisture contents, as shown in Figure 6. Figure 6 shows that the increase can be divided into two parts. The sample temperature slowly increases at a heating rate of 16.2 °C/min for dried materials in the temperature range of 20 °C–200 °C and rapidly increases at a heating rate of 42.1 °C/min for dried materials in the range of 200 °C–400 °C. These results are in good agreement with the dielectric properties of the NCS, as shown in Figure 5. At 20 °C–200 °C and lower ε′, ε″, and tanδ values, only a small fraction of the radiation energy is converted into thermal energy and the material temperature increases slowly. When the temperature is greater than 200 °C, the values of ε′, ε″, and tanδ swiftly increase and the material temperature rapidly increases in a relatively short time. In addition, the comparison of the heating characteristics of the materials with different moisture contents shows that the material containing a certain amount of water in the initial stage promotes the microwave heating efficiency. At an initial water content of 4% and 8%, the heating rate of the material is 36.4% and 11.1% higher, respectively, than that of the dried materials, which is confirmed by Figure 7.

3.4. Changes in Physical Properties of the NCS After Pretreatment

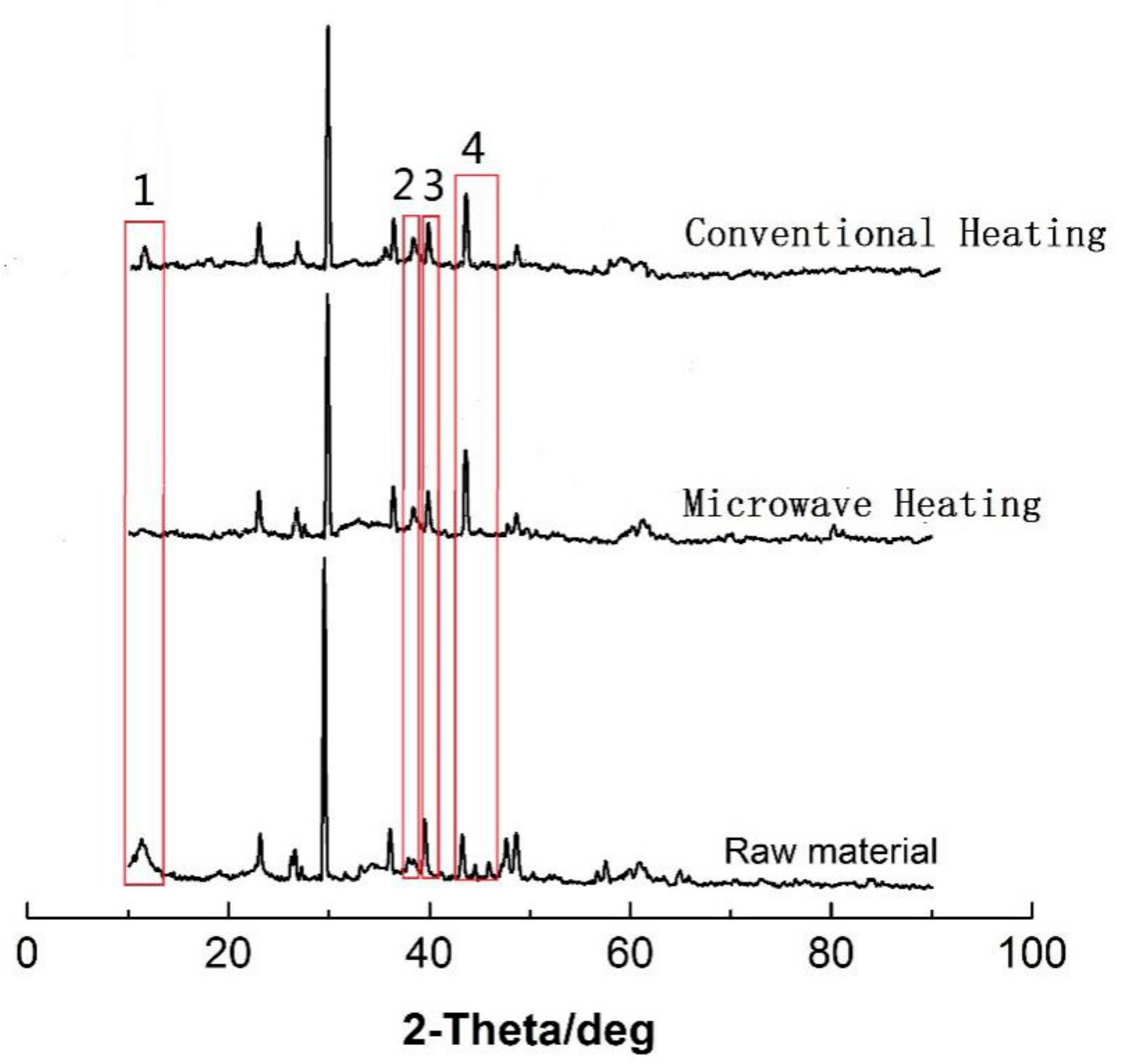

Figure 8 shows that the main phase of the sample is still CaCO₃ after microwave or conventional pretreatment, in addition to some silicates. Nickel carbonate and nickel hydroxide disappear (spots 1 and 3) and meanwhile the peak of nickel oxide significantly increases (spots 2 and 4 in Figure 8). Therefore, the main phases change of the materials after pretreatment is the transformation of nickel carbonate and nickel hydroxide to NiO. Compared with conventional heating, it can be found that the microwave heating process has a better treatment effect.

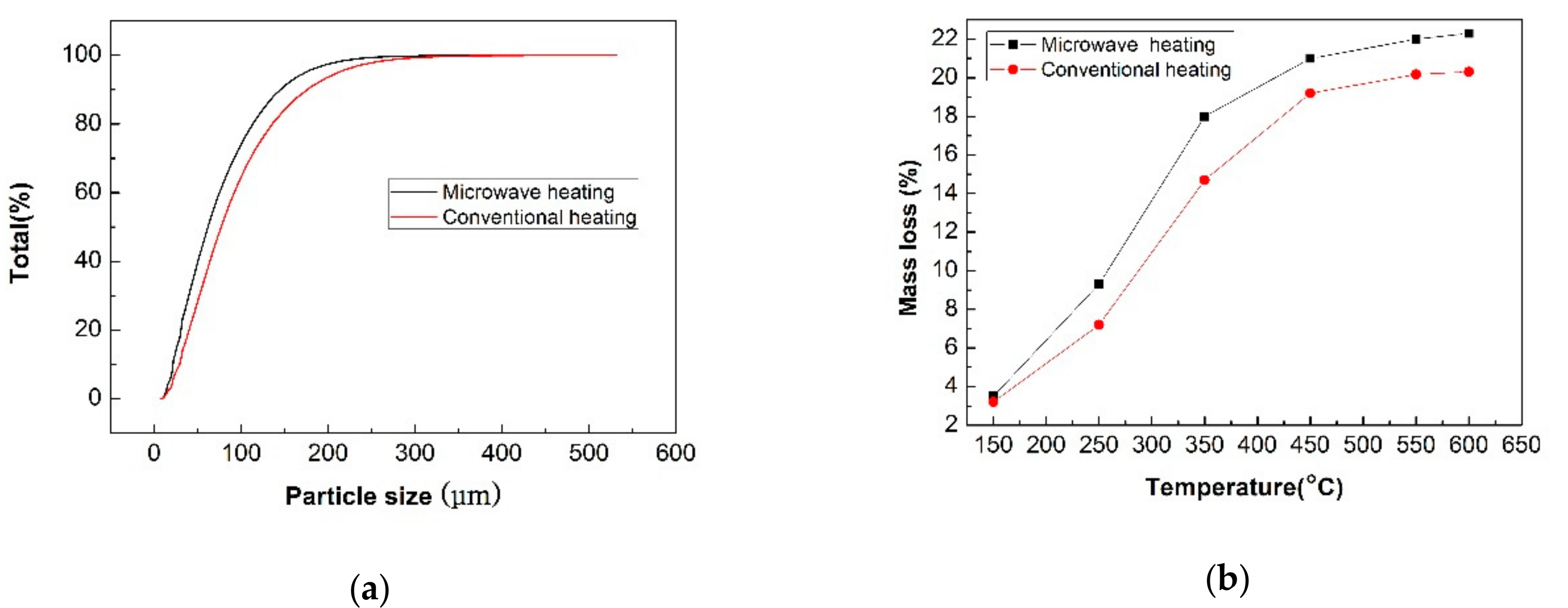

Figure 9 shows the changes in particle size of the roasted products and mass loss at different temperature by microwave and conventional heating. The particle size of the roasted products was examined by the particle size analyzer, Microtrac S3500 (Microtrac, Florida, US). It can be found from Figure 9a that the roasted products by microwave heating have a smaller particle size than that of conventional heating. The main reasons are the different absorption characteristics of each component in the NCS and the non-uniform electric field of the microwave field, which produces a large temperature gradient and makes the material particles crack. This characteristic of microwave is often used in assisting grinding, as Sahoo [37] and Kumar [38] report. In addition, the weight of NCS is reduced by more than 20% after roasted at 450 °C for 10 min in microwave field, shown in Figure 9b. The weight loss of microwave heating is 10% higher than that of conventional heating. Therefore, microwave roasting can promote the subsequent leaching process. It is also observed in Figure 9b that as the temperature continues to rise, the weight loss of material tends to be stable.

3.5. Effect of Microwave Pretreatment on Nickel Leaching Rate

In order to compare the effect of conventional and microwave pretreatment, acid leaching experiments were carried out at room temperature which is show in Figure 10. The leaching conditions were 0.35 mL/g of concentrated sulfuric acid, solid-liquid ratio 1:3 and material particle size of −100 μm.

Figure 10 shows that the nickel leaching rate can reach above 94% after conventional and microwave pretreatment at 450 °C. In particular, microwave pretreatment can reduce the leaching time of 20 min than that of conventional. This is because the microwave roasting can cause more holes and cracks in the NCS which will promote the migration of nickel. But when the pretreatment temperature risen to 750 °C, the leaching rate of nickel fell sharply to only about 60%. The main reason is that a coating will be formed around the nickel with the changes of microstructure or the mixture changes into glassy residue at high temperature which greatly reduce the rate of nickel dissolution [15,16].

3.6. Intensification Mechanism of the Microwave Heating Process

The power absorbed by the material is directly proportional to the loss factor, frequency, and intensity of the electric field, as shown in Equation (4):

$$P_d=2\pi f{E}_i^2{\epsilon }_0{\epsilon }^{\prime \prime }$$

(4)

where ε₀ is the permittivity of the free space (8.854 pF·m⁻¹); ε″ is the imaginary part of the complex permittivity, also known as the loss factor (F·m⁻¹); E_i is the internal electric field (V·m⁻¹); f denotes the frequency (Hz); and P_d is the power density dissipated in the heated material (W·m⁻³).

Based on this equation, microwave heating depends on two main parameters, that is, E and ε″.

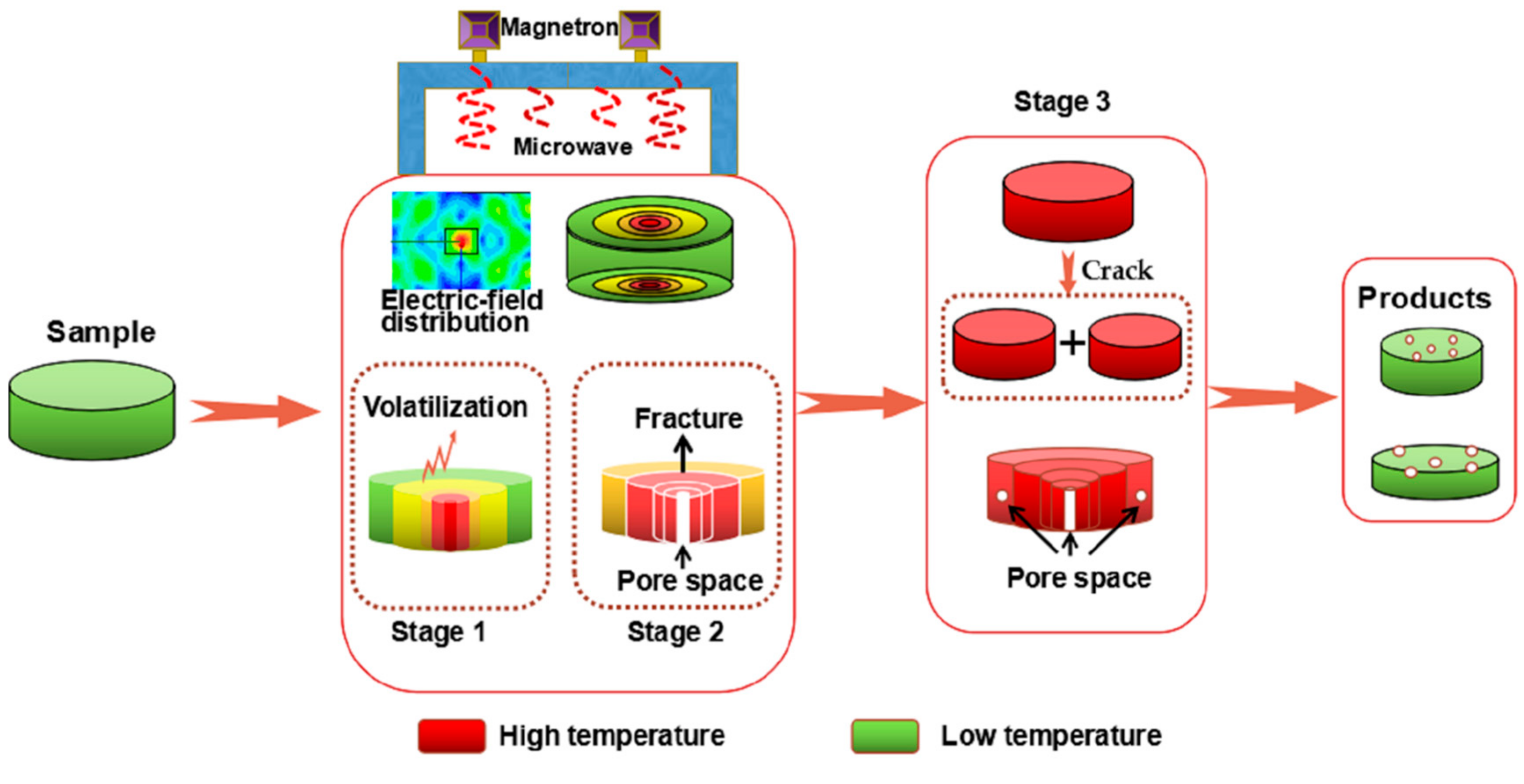

Therefore, the microwave roasting mechanism mainly contains the following steps:

Stage 1: At low temperatures, the dielectric loss of a mineral is relatively low and the penetration depth is high. Thus, the energy of the microwaves can be concentrated into an electric peak. Therefore, a state of flash heating and reaction occurs inside the material because of the highly localized electric field, which is indicated by the red area in Figure 11 (Stage 1).

Stage 2: As the temperature of the hot core area reaches the reaction stage (~200 °C), the NCS particles in the core quickly start the chemical reaction that generates a gaseous product. Many pores with different sizes are created, as shown in Figure 11 (Stage 2) and Figure 12b (the red circle). The uneven particles, loose structure, and large number of pores are conducive to the penetration and multiple reflection of microwaves in the NCS, which improve the microwave heating efficiency, as shown in Figure 6. At the same time, these porous microstructures are favorable for nickel leaching, as shown in Figure 10.

Stage 3: The heat in the hot core region is conducted to the nearby area, which can dramatically raise the dielectric loss of the material in the heated region, as shown in Figure 5b,c. Thus, this nearby region will absorb more microwave energy and undergo rapid heating, as indicated by Equation (4). The increase in the dielectric loss will decrease the penetration depth of the microwaves, as shown in Equation (3) and Figure 5d. The energy absorbed by the hot core region decreases; hence, the temperature increase rate decreases and the heat is continuously conducted outwards. The layer-by-layer reaction process continues until a uniform temperature and reaction state is reached, as shown in Figure 11 (Stage 3).

4. Conclusions

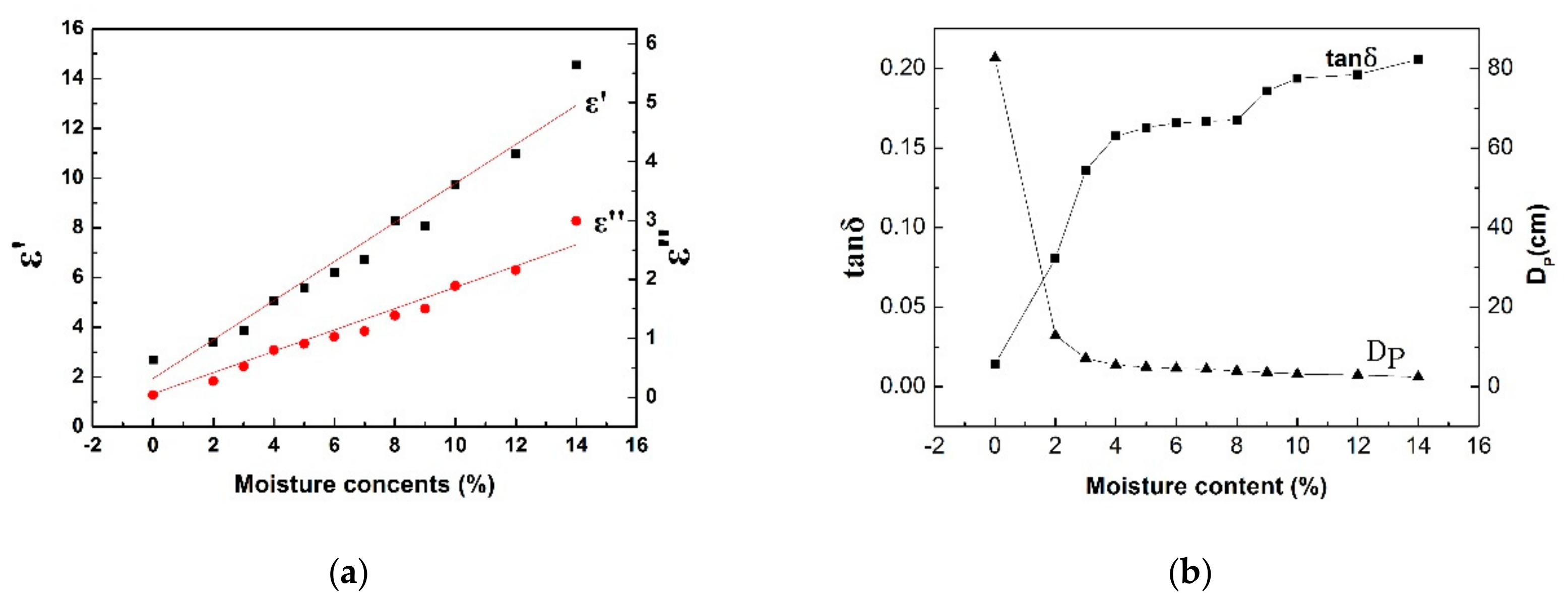

• The dielectric properties of the NCS were measured at different temperatures and moisture contents using the microwave cavity perturbation method at 2.45 GHz. The values of the dielectric constant and relative loss factor of the NCS increase with increasing temperature. The tanδ and DP are also determined using Equations (2) and (3). At temperatures below 200 °C, the tanδ value reaches a stable level of 0.013 and then rapidly increases when the temperature is greater than 300 °C, reaching a maximum value of 0.055. The optimum thickness for uniform heat varies from 86 to 17 cm from room temperature to 600 °C. The dielectric properties of NCS significantly increase with the moisture content. When the moisture content of the materials is ~4%, the value of the loss angle tangent (tanδ) of the NCS is far higher than that of the temperature.
• Within 22 min, the dried material temperature reaches more than 600 °C in a microwave field. The heating curve can be divided into two parts. The sample temperature slowly increases at a heating rate of 16.2 °C/min below 200 °C and rapidly increases at a heating rate of 42.1 °C/min from 200 °C to 600 °C. The comparison of the heating characteristics of the materials with different moisture contents shows that the heating rate of the material is 36.4% and 11.1% higher than that of the dried materials when the initial moisture content is 4% or 8%, respectively.
• The microwave pretreatment process for the NCS is feasible and the dried sample can be reduced by 21% without changing the major phases. The weight loss of microwave heating is 10% higher, the particle size of the roasted products is smaller and while the weight of NCS is reduced by more than 20%, the particle size is significantly reduced and the leaching time reduce 20 min than that of conventional heating. The microwave roasting mechanism was evaluated using modern analysis methods such as chemical analysis, XRD, and SEM.
