Productivity Models of Infill Complex Structural Wells in Mixed Well Patterns

Abstract

The mathematical models of productivity calculation for complex structural wells mainly focus on the single well or the regular well pattern. Previous research on the seepage theory of complex structural wells and vertical wells in mixed well pattern is greatly insufficient. Accordingly, this article presents a methodology of evaluating the productivity of infill complex structural wells in mixed well patterns. On the basis of the mirror-image method and source–sink theory, two semi-analytical models are established. These models are applied to the productivity prediction of an infill horizontal well inhorizontal-vertical well pattern and an infill multilateral well inmultilateral-vertical well pattern, respectively, in which the interference of other wells, the randomicity of well patterns, and the pressure drawdown along the horizontal laterals are taken into account. The semi-analytical models’ results are consistent with those calculated by the Eclipse reservoir simulator with the relative error of less than 15%. Results indicate that the bottom hole flowing pressure decreases logarithmically while the wellbore flow rate increases monotonically from the toe to the heel of the horizontal well. Due to the pseudo-hemispherical flow at each endpoint and the pseudo-linear flow at the center of the horizontal well, the drainage area at each endpoint is relatively larger than that at the center. The radial inflow at each endpoint of the horizontal segment is considerably greater than that at the center, which presents the U-shape distribution. The proposed methodology enhances and promotes the theory of productivity evaluation for complex structural wells in mixed well patterns.

1. Introduction

Complex structural wells including horizontal wells and multilateral wells have become a popular alternative for the development of oil and gas fields around the world because of their high flow efficiency due to larger contact area made with the reservoir and lower pressure drawdown at the same liquid volume [1]. As the process of oilfield development enters into the intermediary and later phase, the mixed well patterns of complex structural wells and conventional vertical wells have been widely applied to the implementation of adjustment plans [2]. The infilling horizontal wells or multilateral wells in mixed well patterns are of great significance to optimization of development strategies. Due to the complexity of seepage mechanism near the horizontal wellbore, the coupling between reservoir flow and wellbore conduit flow, and the interference of other wells in mixed well patterns [3], the original mathematical models based on time invariant flow are no longer applicable as a result of the change of flow regimes. Therefore, it is necessary to establish new productivity models of infill complex structural wells in mixed well patterns.

The productivity evaluation of complex structural wells under different reservoir conditions is an important topic in the field of complex structural wells. At present, studies have been conducted on the methods of production calculation for horizontal wells [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18] and multilateral wells [19,20,21,22,23], which are mainly divided into analytical methods and semi-analytical methods. The analytical model aims to directly build a calculation formula based on ideal assumptions. In the semi-analytical model, each branch of the complex structural well is divided into several infinitesimal sections, thus the productivity can be obtained by solving the system of linear equations combined with fluid flow rate and pressure drawdown for each infinitesimal in the wellbore. However, these methods mainly focus on building models of single well or regular well patterns, and little research has been conducted on the seepage theory of mixed well patterns of vertical wells and complex structural wells [24,25,26,27,28,29,30]. In view of the field problems involving the productivity prediction of infill wells in irregular well patterns, there are limitations in current mathematical models [31,32,33,34,35]. On the one hand, they are only suitable for the productivity calculation of the entire well pattern not for single infill wells; on the other hand, they are merely applied to the regular five-spot pattern, seven-spot pattern, and nine-spot pattern not for the irregularly mixed well pattern. More importantly, the pressure drop caused by wall friction and fluid acceleration along the horizontal lateral is not comprehensively taken into account during the coupling of reservoir seepage and wellbore conduit flow. In order to overcome the deficiencies of the existing models, Ye et al. [36] presented a productivity evaluation model for infill horizontal wells considering the interference of other wells and the wellbore friction, which is suitable for mixed horizontal injection and production patterns. Although this method did not take into consideration more complicated conditions, such as the mixed well pattern including multilateral-vertical wells, it provides us with an effective approach to solve these problems.

The objective of this article here is to present two semi-analytical models for the productivity evaluation of infill complex structural wells in mixed well patterns on the basis of the mirror-image method and source–sink theory. The first model is suitable for the infill horizontal well in horizontal-vertical well pattern, and the other for the infill multilateral well in multilateral-vertical well pattern. Then, the two models are applied to the study the seepage mechanism in terms of the bottom hole flowing pressure and the distribution of wellbore flow and radial flow along the horizontal segment. The main feature of this methodology is that the models take into account the interference of other wells, the randomicity of well patterns, and the pressure drawdown along the horizontal laterals. The application in the optimization of infill well location also indicates the significant practical value of the proposed models.

2. Productivity Model

2.1. Productivity Model of Mixed Horizontal-Vertical Well Pattern

2.1.1. Reservoir Flow Model

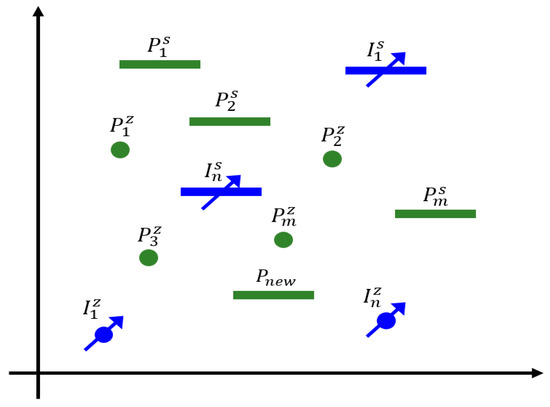

As is shown in Figure 1, in the deployment of mixed horizontal-vertical well pattern, we assume that the number of vertical producers including $P_1^z,P_2^z,\cdots ,P_m^z$ is m^z, the number of horizontal producer including $P_1^s,P_2^s,\cdots ,P_m^s$ is m^s, the number of vertical injectors including $I_1^z,I_2^z,\cdots ,I_n^z$ is n^z, the number of horizontal injectors including $I_1^s,I_2^s,\cdots ,I_n^s$ is n^s, and $P_{new}$ is the infill horizontal producer. The top and bottom boundaries of the reservoir are both closed, and the surrounding area is infinite. In order to analyze the well performance, the vertical interval and horizontal interval are both divided into N segments (Figure 2) [2,36].

The coordinates of an arbitrary point M in the vertical segment k (1 ≤ k ≤ N) of the uth vertical producer can be expressed as follows:

$$\{\begin{array}{l}{x}_z^p(u,k,t)=x_z^p,\\ y_z^p(u,k,t)=y_z^p,\\ ⋮\\ z_z^p(u,k,t)=z_z^p+(k+t-1)L/N,0\le t\le 1\end{array}.$$

(1)

The coordinates of an arbitrary point M in the horizontal segment k (1 ≤ k ≤ N) of the uth horizontal producer can be expressed as follows:

$$\{\begin{array}{l}{x}_s^p(u,k,t)=x_s^p+(k+t-1)L/N,\\ y_s^p(u,k,t)=y_s^p,\\ ⋮\\ z_s^p(u,k,t)=z_s^p,0\le t\le 1\end{array}.$$

(2)

The coordinates of an arbitrary point M in the vertical segment k (1 ≤ k ≤ N) of the vth vertical injector can be expressed as follows:

$$\{\begin{array}{l}{x}_z^i(v,k,t)=x_z^i,\\ y_z^i(v,k,t)=y_z^i,\\ ⋮\\ z_z^i(v,k,t)=z_z^i+(k+t-1)L/N,0\le t\le 1\end{array}.$$

(3)

The coordinates of an arbitrary point M in the horizontal segment k (1 ≤ k ≤ N) of the vth horizontal injector can be expressed as follows:

$$\{\begin{array}{l}{x}_s^i(v,k,t)=x_s^i+(k+t-1)L/N,\\ y_s^i(v,k,t)=y_s^i,\\ ⋮\\ z_s^i(v,k,t)=z_s^i,0\le t\le 1\end{array}.$$

(4)

The coordinates of an arbitrary point M in the horizontal segment k (1 ≤ k ≤ N) of the infill horizontal producer can be expressed as follows [37]:

$$\{\begin{array}{l}x(new,k,t)=x_{new}^p+(k+t-1)L/N,\\ y(new,k,t)=y_{new}^p,\\ ⋮\\ z(new,k,t)=z_{new}^p,0\le t\le 1\end{array},$$

(5)

where $x_z^p(u,k,t),y_z^p(u,k,t),z_z^p(u,k,t)$ are the coordinates of an arbitrary point in the segment k of the uth vertical producer; $x_z^p,y_z^p,z_z^p$ are the coordinates of the left end (well heel) of the uth vertical producer; $x_s^p(u,k,t),y_s^p(u,k,t),z_s^p(u,k,t)$ are the coordinates of an arbitrary point in the segment k of the uth horizontal producer; $x_s^p,y_s^p,z_s^p$ are the coordinates of the left end (well heel) of the uth horizontal producer; $x_z^i(v,k,t),y_z^i(v,k,t),z_z^i(v,k,t)$ are the coordinates of an arbitrary point in the segment k of the vth vertical injector; $x_z^i,y_z^i,z_z^i$ are the coordinates of the left end (well heel) of the vth vertical injector; $x_s^i(v,k,t),y_s^i(v,k,t),z_s^i(v,k,t)$ are the coordinates of an arbitrary point in the segment k of the vth horizontal injector; $x_s^i,y_s^i,z_s^i$ are the coordinates of the left end (well heel) of the vth horizontal injector; $x(new,k,t),y(new,k,t),z(new,k,t)$ are the coordinates of an arbitrary point in the segment k of the infill horizontal producer; $x_{new}^p,y_{new}^p,z_{new}^p$ are the coordinates of the left end (well heel) of the infill horizontal producer. L is the length of the entire horizontal section, m; N is the total number of the segments, dimensionless.

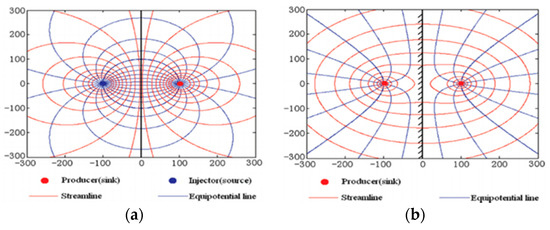

The mirror-image method and source–sink theory have been widely applied to the boundary effect reduction. As is shown in Figure 3a, assuming the constant pressure boundary is a mirror, we can project the producer (we call sink in the method) into an image injector (we call source in the method) at the symmetric coordinate to counteract the constant pressure boundary effect. As is shown in Figure 3b, in the same way, we can project the producer into an image producer at the symmetric coordinate to counteract the closed boundary effect [2].

On the basis of the method of images and the principle of superposition, we take the closed boundaries of the top and the bottom of the reservoir as mirrors. Thus, it is transformed into the problem of infinite well rows for horizontal producers, which is easy to solve. The potential of the producing segments of the infill horizontal well at any point M (x, y, z) in the infinite formation is:

$$\mathsf{\Phi }\left(x,y,z\right)={\displaystyle \sum _{k=1}^N{\mathsf{\Phi }}_k\left(x,y,z\right)}=\frac{1}{4\pi \Delta L_k}{\displaystyle \sum _{k=1}^N[q_r\left(k\right){\phi }_k(x,y,z)]}+C.$$

(6)

With:

$$\begin{array}{ll}{\phi }_i(x,y,z)=& {\displaystyle \sum _{n=-\infty }^{+\infty }\{{\xi }_k[x(new,k,t),y(new,k,t),2nh+z(new,k,t)]+}\\ & {\xi }_k[x(new,k,t),y(new,k,t),2nh-z(new,k,t)]+\\ & {\displaystyle \sum _{u=1}^{m^z}\frac{q_{u,z}^p(k)}{q_r(k)}{\xi }_k[x_z^p(u,k,t),y_z^p(u,k,t),2nh+z_z^p(u,k,t)]}+\\ & {\displaystyle \sum _{u=1}^{m^z}\frac{q_{u,z}^p(k)}{q_r(k)}{\xi }_k[x_z^p(u,k,t),y_z^p(u,k,t),2nh-z_z^p(u,k,t)]}+\\ & {\displaystyle \sum _{u=1}^{m^s}\frac{q_{u,s}^p(k)}{q_r(k)}{\xi }_k[x_s^p(u,k,t),y_s^p(u,k,t),2nh+z_s^p(u,k,t)]}+\\ & {\displaystyle \sum _{u=1}^{m^s}\frac{q_{u,s}^p(k)}{q_r(k)}{\xi }_k[x_s^p(u,k,t),y_s^p(u,k,t),2nh-z_s^p(u,k,t)]}-\\ & {\displaystyle \sum _{v=1}^{n^z}\frac{q_{v,z}^i(k)}{q_r(k)}{\xi }_k[x_z^i(v,k,t),y_z^i(v,k,t),2nh+z_z^i(v,k,t)]}-\\ & {\displaystyle \sum _{v=1}^{n^z}\frac{q_{v,z}^i(k)}{q_r(k)}{\xi }_k[x_z^i(v,k,t),y_z^i(v,k,t),2nh-z_z^i(v,k,t)]}-\\ & {\displaystyle \sum _{v=1}^{n^s}\frac{q_{v,s}^i(k)}{q_r(k)}{\xi }_k[x_s^i(v,k,t),y_s^i(v,k,t),2nh+z_s^i(v,k,t)]}-\\ & {\displaystyle \sum _{v=1}^{n^s}\frac{q_{v,s}^i(k)}{q_r(k)}{\xi }_k[x_s^i(v,k,t),y_s^i(v,k,t),2nh-z_s^i(v,k,t)]}\},n=0,\pm 1,\pm 2,\cdots \end{array}$$

(7)

where $q_{u,z}^p(k)\approx \frac{Q_{u,z}^p}{N},q_{v,z}^i(k)\approx \frac{Q_{v,z}^i}{N},q_{u,s}^p(k)\approx \frac{Q_{u,s}^p}{N},q_{v,s}^i(k)\approx \frac{Q_{v,s}^i}{N}$; $Q_{u,z}^p$ is the production of the uth vertical producer, m³/d; $Q_{v,z}^i$ is the injection rate of the vth vertical injector; $Q_{u,s}^p$ is the production of the uth horizontal producer, m³/d; $Q_{v,s}^i$ is the injection rate of the vth horizontal injector, m³/d.

For:

$${\xi }_k[x(new,k,t),y(new,k,t),z(new,k,t)]=\ln \frac{r_1(new,k)+r_2(new,k)+\frac{L}{N}}{r_1(new,k)+r_2(new,k)-\frac{L}{N}},$$

$$\begin{array}{c}{r}_1(new,k)=\sqrt{{[x(new,k,t=0)-x]}^2+{[y(new,k,t=0)-y]}^2+{[z(new,k,t=0)-z]}^2},\\ r_2(new,k)=\sqrt{{[x(new,k,t=1)-x]}^2+{[y(new,k,t=1)-y]}^2+{[z(new,k,t=1)-z]}^2}.\end{array}$$

In the same way, we can obtain the expressions of ${\xi }_k[x(u,k,t),y(u,k,t),z(u,k,t)]$ and ${\xi }_k[x(v,k,t),y(v,k,t),z(v,k,t)]$.

Once the distributions of the flow rates of $q_r(k),q_{u,z}^p(k),q_{v,z}^i(k),q_{u,s}^p(k),q_{v,s}^i(k)$ are known, all terms of flow pressure $p_{wf}(k)$ of the infill horizontal producer can be calculated. Hence Equation (6) is simplified to a linear equation system, and can be arranged in the form as follows:

$$\left[\begin{array}{ccccc}{\phi }_{11}& {\phi }_{12}& {\phi }_{13}& \cdots & {\phi }_{1N}\\ {\phi }_{21}& {\phi }_{22}& {\phi }_{23}& \cdots & {\phi }_{2N}\\ {\phi }_{31}& {\phi }_{32}& {\phi }_{33}& \cdots & {\phi }_{3N}\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ {\phi }_{N1}& {\phi }_{N2}& {\phi }_{N3}& \cdots & {\phi }_{NN}\end{array}\right]\left[\begin{array}{c}{q}_r(1)\\ q_r(2)\\ q_r(3)\\ ⋮\\ q_r(N)\end{array}\right]=\frac{4\pi K\Delta L}{{\mu }_o}\left[\begin{array}{c}{p}_e-p_{wf}(1)\\ p_e-p_{wf}(2)\\ p_e-p_{wf}(3)\\ ⋮\\ p_e-p_{wf}(N)\end{array}\right],$$

(8)

where φ_ij is the value of φ_j at the midpoint of the segment i of the infill horizontal producer, dimensionless; q_r(i) is the radial flow rate of the segment i of the infill horizontal producer, m³/d; p_e is the reservoir pressure, MPa; p_wf(i) is the flowing pressure of the segment i of the infill horizontal producer, MPa; K is the reservoir permeability, 10⁻³ µm²; µ_o is the oil viscosity, mPa·s; h is the net pay thickness, m.

The wellbore flow rate along the horizontal well can be expressed as follows:

$$q_l(k)={\displaystyle \sum _{j=k}^N{q}_r}(j),$$

(9)

where q_l(k) is the wellbore flow rate of the segment k of the infill horizontal producer, m³/d.

2.1.2. Wellbore Flow Model

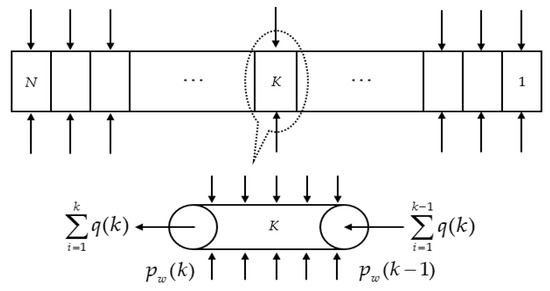

The wellbore pressures of each segment along the horizontal segment are not independent of each other, instead, they are related to each other via wellbore hydraulics. More specifically, the pressure difference between two adjacent segment midpoints is dependent on the radial flow into the two segments, the local pressure, and the fluid property [2,36].

The pressure drop along the horizontal well is caused by the wall friction and the fluid acceleration [3,11,12,38], and can be calculated by the correlation of pressure drop in the horizontal interval under the condition of open-hole completion proposed by Liu et al. [12]:

$$\begin{array}{l}\Delta p_{wf}(i)=\frac{L}{N}\left\{\frac{2f\rho }{{\pi }^2{D}^5}{\left[2q_l(i)-q_r(i)\frac{L}{N}\right]}^2+\frac{16\rho q_r(i)}{{\pi }^2{D}^4}\left[2q_l(i)-q_r(i)\frac{L}{N}\right]\right\},\\ p_{wf}(i)=p_{wf}(i-1)+0.5\left(\Delta p_{wf}(i-1)+\Delta p_{wf}(i)\right),(1\le i\le N+1)\end{array}$$

(10)

where p_wf is the flowing pressure of the well heel, p_wf(0) = p_wf, Δp_wf(0) = Δp_wf(N + 1) = 0, MPa; ρ is the fluid density, g/cm³; f is the wall friction factor, and can be calculated as follows:

$$\begin{array}{l}f=\frac{64}{N_{\mathrm{Re}}},N_{\mathrm{Re}}\le 2100\\ \frac{1}{\sqrt{f}}=1.14-2\lg (\frac{\tau }{D}+\frac{21.25}{N_{\mathrm{Re}}^{0.9}}),N_{\mathrm{Re}}\ge 2100\end{array}$$

By combing Equations (9) and (10), the following system of equations can be obtained:

$$f[q_r(i),p_{wf}(i)]=0.$$

(11)

As expected, the total number of Equations (8) and (11) is equal to 2N, which is the same as that of unknowns. Thus, the model has a unique solution.

2.1.3. Solution Procedure

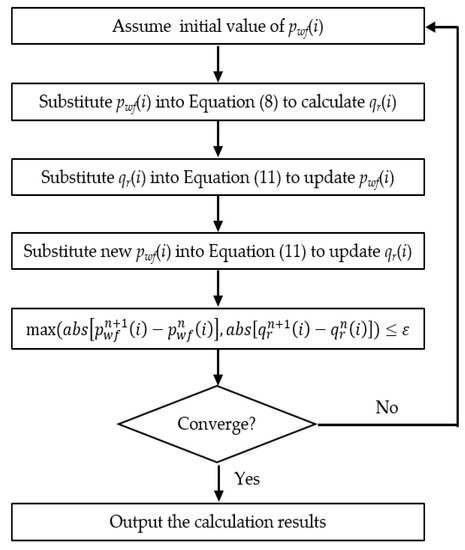

The iterative algorithm is an efficient way to solve this problem, and the solution procedure is shown in Figure 4.

2.2. Productivity Model of Mixed Multilateral-Vertical Well Pattern

2.2.1. Reservoir Flow Model

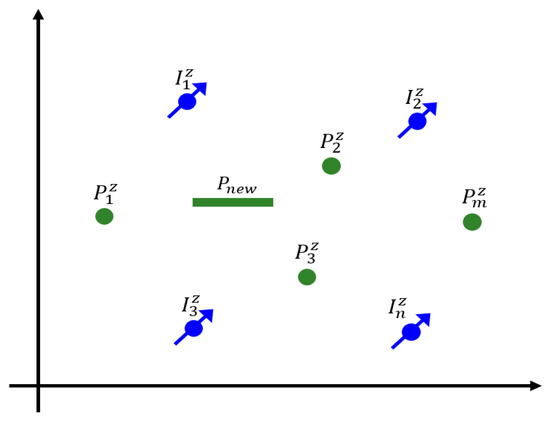

As is shown in Figure 5, in the deployment of mixed multilateral-vertical well pattern, we assume that the number of vertical producers including $P_1^z,P_2^z,\cdots ,P_m^z$ is m^z, the number of vertical injectors including $I_1^z,I_2^z,\cdots ,I_n^z$ is n^z, and $P_{new}$ is the infill multilateral well. The top and bottom boundaries of the reservoir are both closed, and the surrounding area is infinite. In order to analyze the well performance, the vertical interval is divided into N segments.

The coordinates of an arbitrary point M in the vertical segment k (1 ≤ k ≤ N) of the uth vertical producer can be expressed as follows:

$$\{\begin{array}{l}{x}_z^p(u,k,t)=x_z^p,\\ y_z^p(u,k,t)=y_z^p,\\ ⋮\\ z_z^p(u,k,t)=z_z^p+(k+t-1)L/N,0\le t\le 1\end{array}.$$

(12)

The coordinates of an arbitrary point M in the vertical segment k (1 ≤ k ≤ N) of the vth vertical injector can be expressed as follows:

$$\{\begin{array}{l}{x}_z^i(v,k,t)=x_z^i,\\ y_z^i(v,k,t)=y_z^i,\\ ⋮\\ z_z^i(v,k,t)=z_z^i+(k+t-1)L/N,0\le t\le 1\end{array}$$

(13)

where $x_z^p(u,k,t),y_z^p(u,k,t),z_z^p(u,k,t)$ are the coordinates of an arbitrary point in the segment k of the uth vertical producer; $x_z^p,y_z^p,z_z^p$ are the coordinates of the left end (well heel) of the uth vertical producer; $x_z^i(v,k,t),y_z^i(v,k,t),z_z^i(v,k,t)$ are the coordinates of an arbitrary point in the segment k of the vth vertical injector; $x_z^i,y_z^i,z_z^i$ are the coordinates of the left end (well heel) of the vth vertical injector.

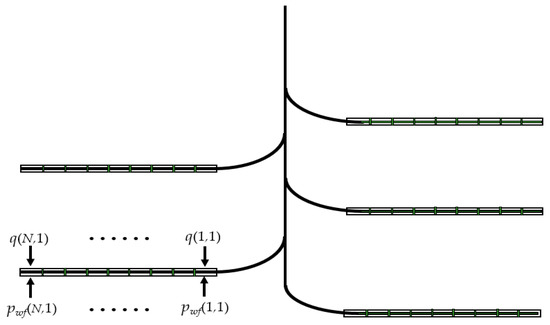

Figure 6 is the three-dimensional (3D) schematic of the infill multilateral well, we assume that each branch is symmetrically distributed on the same horizontal plane, the length of which is identical. The xoy coordinate system is established by taking the subpoint of the main hole in the xoy plane as the origin of coordinates, and the direction of the main hole as the z axis. Each branch is distributed counterclockwise around the z axis with the x axis as the starting direction.

M₀(x, y, z₀) is the bottom-hole coordinate of the main wellbore, and M_i(x_i,0, y_i.0, z_i,0) is the starting coordinate of the ith branch with the length of L_i (1 ≤ i ≤ M). M is the number of branches. The ith branch of the infill multilateral well is divided into N_i (1 ≤ i ≤ M) segments, thus the infinitesimal length of the ith branch is ΔL_i = L_i/N_i.

Accordingly, the coordinates of an arbitrary point M in the horizontal segment i (1 ≤ i ≤ M) of the infill multilateral well can be expressed as follows:

$$\{\begin{array}{l}x(i,j)=x_{i,0}+\Delta L_i[{\displaystyle \sum _{k=1}^{j-1}(\sin {\theta }_{i,k}\cdot \cos {\alpha }_{i,k})}+t\sin {\theta }_{i,j}\cdot \cos {\alpha }_{i,k}],\\ y(i,j)=y_{i,0}+\Delta L_i[{\displaystyle \sum _{k=1}^{j-1}(\sin {\theta }_{i,k}\cdot \sin {\alpha }_{i,k})}+t\sin {\theta }_{i,j}\cdot \sin {\alpha }_{i,k}],\\ z(i,j)=z_{i,0}+\Delta L_i[{\displaystyle \sum _{k=1}^{j-1}\cos {\theta }_{i,k}}+t\cos {\theta }_{i,j}],(1\le i\le M,0\le j\le N_i,0\le t\le 1)\end{array}$$

(14)

where x(i, j), y(i, j), z(i, j) are the coordinates of an arbitrary point in the ith branch of the infill multilateral producer; x_i,0, y_i,0, z_i,0 are the coordinates of the left end (well heel) in the ith branch of the infill multilateral producer; ɵ is the deviation angle of the ith segment of the infill multilateral producer; α is the azimuth angle of the ith segment of the infill multilateral producer.

As mentioned above, we can also transform this problem into the one of infinite well rows by using the method of images and the principle of superposition. Thus the potential of the producing segments of the infill multilateral well at any point M(x, y, z) in the infinite formation is:

$$f(x,y,z)={\displaystyle \sum _{i=1}^M{f}_i(x,y,z)}=\frac{1}{4\pi }{\displaystyle \sum _{i=1}^M{\displaystyle \sum _{j=1}^{N_j}\left[q_r(i,j){\phi }_{i,j}(x,y,z)\right]}}+C.$$

(15)

With:

$$\begin{array}{ll}{\phi }_{i,j}(x,y,z)=& {\displaystyle \sum _{n=-\infty }^{+\infty }[\frac{1}{\Delta L_i}{\xi }_{i,j}\left(x_{i,j},y_{i,j},2nh+z_{i,j}\right)+\frac{1}{\Delta L_i}{\xi }_{i,j}\left(x_{i,j},y_{i,j},2nh-z_{i,j}\right)}+\\ & \frac{1}{\Delta L}{\displaystyle \sum _{u=1}^{m^z}\frac{q_{u,z}^p(k)}{q_r(i,j)}{\xi }_k[x_z^p(u,k,t),y_z^p(u,k,t),2nh+z_z^p(u,k,t)]}+\\ & \frac{1}{\Delta L}{\displaystyle \sum _{u=1}^{m^z}\frac{q_{u,z}^p(k)}{q_r(i,j)}{\xi }_k[x_z^p(u,k,t),y_z^p(u,k,t),2nh-z_z^p(u,k,t)]}-\\ & \frac{1}{\Delta L}{\displaystyle \sum _{v=1}^{n^z}\frac{q_{v,z}^i(k)}{q_r(i,j)}{\xi }_k[x_z^i(v,k,t),y_z^i(v,k,t),2nh+z_z^i(v,k,t)]}-\\ & \frac{1}{\Delta L}{\displaystyle \sum _{v=1}^{n^z}\frac{q_{v,z}^i(k)}{q_r(i,j)}{\xi }_k[x_z^i(v,k,t),y_z^i(v,k,t),2nh-z_z^i(v,k,t)]}\end{array}$$

(16)

where $q_{u,z}^p(k)\approx \frac{Q_{u,z}^p}{N},q_{v,z}^i(k)\approx \frac{Q_{v,z}^i}{N}$; $Q_{u,z}^p$ is the production of the uth vertical producer, m³/d; $Q_{v,z}^i$ is the injection rate of the vth vertical injector, m³/d.

Once the distributions of the flow rates of $q_r(i,j),q_{u,z}^p(k),q_{v,z}^i(k)$ are known, all terms of flow pressure $p_{wf}(i,j)$ of the infill multilateral producer can be calculated. Hence Equation (15) is simplified to a linear equation system, and can be arranged in the form as follows:

$$A\left[\begin{array}{c}{q}_r(1,1)\\ q_r(1,2)\\ ⋮\\ q_r(1,N_1)\\ ⋮\\ q_r(M,N_M)\end{array}\right]=\frac{4\pi \sqrt{k_h{k}_v}}{{\mu }_o}\left[\begin{array}{c}{P}_e-P_{wf}(1,1)\\ P_e-P_{wf}(1,2)\\ ⋮\\ P_e-P_{wf}(1,N_1)\\ ⋮\\ P_e-P_{wf}(1,N_M)\end{array}\right].$$

(17)

With:

$$A=\left[\begin{array}{cccccc}{\varphi }_{(1,1)(1,1)}-{\varphi }_{e(1,1)}& \cdots & {\varphi }_{(1,1)(1,N_1)}-{\varphi }_{e(1,N)}& {\varphi }_{(1,1)(2,1)}-{\varphi }_{e(2,1)}& \cdots & {\varphi }_{(1,1)(M,N_M)}-{\varphi }_{e(M,N_M)}\\ ⋮& \ddots & ⋮& ⋮& \ddots & ⋮\\ {\varphi }_{(1,N_1)(1,1)}-{\varphi }_{e(1,1)}& \cdots & {\varphi }_{(1,N_1)(1,N_1)}-{\varphi }_{e(1,N)}& {\varphi }_{(1,N_1)(2,1)}-{\varphi }_{e(2,1)}& \cdots & {\varphi }_{(1,N_1)(M,N_M)}-{\varphi }_{e(M,N_M)}\\ {\varphi }_{(2,1)(1,1)}-{\varphi }_{e(1,1)}& \cdots & {\varphi }_{(2,1)(1,N_1)}-{\varphi }_{e(1,N)}& {\varphi }_{(2,1)(2,1)}-{\varphi }_{e(2,1)}& \cdots & {\varphi }_{(2,1)(M,N_M)}-{\varphi }_{e(M,N_M)}\\ ⋮& \ddots & ⋮& ⋮& \ddots & ⋮\\ {\varphi }_{(M,N_M)(1,1)}-{\varphi }_{e(1,1)}& \cdots & {\varphi }_{(M,N_M)(1,N_1)}-{\varphi }_{e(1,N)}& {\varphi }_{(M,N_M)(2,1)}-{\varphi }_{e(2,1)}& \cdots & {\varphi }_{(M,N_M)(M,N_M)}-{\varphi }_{e(M,N_M)}\end{array}\right]$$

where q_r(i, j) is the radial flow rate of the ith branch of the infill multilateral producer, 1 ≤ i ≤ M, 1 ≤ j ≤ N_i, m³/d; P_e is the reservoir pressure, MPa; P_wf(i, j) is the flow pressure of the ith branch of the infill multilateral producer, 1 ≤ i ≤ M, 1 ≤ j ≤ N_i, MPa; k_h is the reservoir horizontal permeability, 10⁻³ µm²; k_v is the reservoir vertical permeability, 10⁻³ µm²; µ_o is the oil viscosity, mPa·s.

2.2.2. Wellbore Flow Model

1. Pressure drop model of the horizontal lateral

The pressure drop along the horizontal interval is caused by the wall friction and the fluid acceleration. According to Equation (11), the pressure drop of the ith branch of the multilateral well along the horizontal interval can be calculated by:

$$F_{i,j}^{\prime }\left[q_r\left(i,j\right),p_{wf}\left(i,j\right)\right]=0.$$

(18)

2. Pressure drop model of the deviated segment

The branch holes enter the reservoir through the deviated segment. Although each deviated segment does not contribute to the production, the pressure drop in the deviated segments cannot be ignored. According to fluid seepage theory in the elbow, the pressure drop can be calculated by the following formula:

$$\Delta p_s=C_w\frac{4\times {10}^{-6}\rho {\lambda }_c{R}_c{Q}_W^2}{\pi d_w^5}+\frac{\rho g{R}_c}{{10}^6},$$

(19)

where ΔP_s the pressure drop along the deviated segment, MPa; R_c is curvature radius of the deviated segment, m; ρ is the fluid density, kg/m³; d_w is the wellbore diameter of the deviated segment, m; C_w is the similarity factor of the wellbore and deviated segment, dimensionless; λ_c is the friction factor of the deviated segment, dimensionless.

3. Pressure drop model of the vertical segment

According to the law of conservation of energy, the equation of pressure gradient in the pipe with inclination can be expressed as follows:

$$\frac{dP}{dz}=\rho g\sin \theta +\rho v\frac{dv}{dz}+f\frac{\rho v^2}{2d},$$

(20)

where dP/dz is the pressure loss per unit length, MPa/m; ρgsinθ is the pressure drop caused by the fluid gravity, MPa/m; ρv × dv/dz is the pressure drop caused by the fluid acceleration, MPa/m; f × ρv²/2d is the pressure drop caused by the friction, MPa/m; ρ is the fluid density, kg/m³; d is the pipe diameter, m. The friction factor f can be calculated by:

$$\begin{array}{l}f=\frac{64}{N_{\mathrm{Re}}},N_{\mathrm{Re}}\le 2100\\ \frac{1}{\sqrt{f}}=1.14-2\lg (\frac{\tau }{d}+\frac{21.25}{N_{\mathrm{Re}}^{0.9}}),N_{\mathrm{Re}}\ge 2100\end{array}$$

where N_Re is the Reynolds number, dimensionless.

4. Internal pressure drop model of the branch hole

The flowing pressure at the heel of the ith branch can be calculated by simultaneous Equations (19) and (20):

$$P_{wf}(i)=P_{mb}-\Delta P_{vi}-\Delta P_{wi}(1\le i\le M),$$

(21)

where P_mb is the flowing pressure of the main wellbore, MPa; ΔP_vi is the pressure drop of the vertical segment of the ith branch, MPa; ΔP_wi is the pressure drop of the deviated segment of the ith branch, MPa.

By combining Equations (20) and (24), the following system of equations can be obtained:

$$F_{i,j}\left[q_r\left(i,j\right),p_{wf}\left(i,j\right)\right]=0,(1\le i\le M,1\le j\le N_i).$$

(22)

As expected, the total number of equations of Equations (17) and (22) is equal to 2$(M\times N_i)$, which is the same as that of unknowns. Therefore, the solution of the coupling model is unique.

2.2.3. Solution Procedure

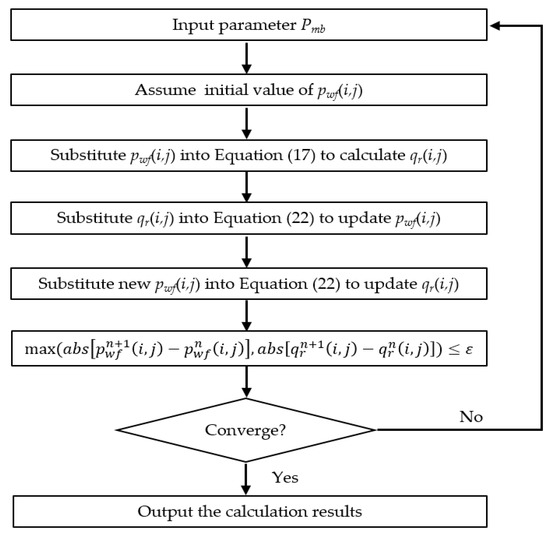

The coupling model can also be solved by using the iterative algorithm, and the solution procedure is shown in Figure 7.

3. Results and Discussion

3.1. Model Validation

The semi-analytical models can be applied to the productivity prediction of the infill horizontal well and the multilateral well in mixed well patterns. In order to verify the reliability of the models, two cases are considered, and the results calculated by the semi-analytical models are compared with those calculated by the Eclipse software (Schlumberger). In the first case, we selected a typical mixed well pattern of horizontal-vertical wells from a thin carbonate reservoir in the Middle East. There are three vertical producers (P₁₁, P₁₂, and P₁₃), one horizontal producer (P₁₄), one vertical injector (I₁₁), one horizontal injector (I₁₂), and P_1new is the infill horizontal producer. In the other case, the reservoir is a thick, multi-layer reservoir in the Middle East, multilateral wells are adopted to improve the degree of the reservoir development. The mixed well pattern of multilateral-vertical well includes two vertical producers (P₂₁ and P₂₂), one vertical injector (I₂₁), and P_2new is the infill multilateral producer with two branch holes.

The productivity models can be solved by VB modular programming of the object-oriented technology. The reservoir properties and wellbore geometry are listed in

Table 1. Productivity calculation parameters of P_1new.

Parameters (Unit)	Value
Net thickness (m)	6.0
Porosity (%)	15.3
Permeability (10−3 µm2)	88.5
Reservoir pressure (MPa)	38.6
Oil viscosity (mPa·s)	8.1
Horizontal length of P1new (m)	335
Wellbore radius of P1new (m)	0.1
Bottom hole flowing pressure (MPa)	36.6
Production rate of P11 (m3/d)	18.5
Production rate of P12 (m3/d)	21.6
Production rate of P13 (m3/d)	24.3
Production rate of P14 (m3/d)	56.8
Injection rate of I11 (m3/d)	68.5
Injection rate of I12 (m3/d)	79.2

and

Table 2. Productivity calculation parameters of P_2new.

Parameters (Unit)	Value
Net thickness-the 1st branch of P2new (m)	5.1
Net thickness-the 2nd branch of P2new (m)	9.4
Porosity (%)	22.1
Ratio of vertical to horizontal permeability (-)	0.1
Reservoir pressure (MPa)	20.3
Oil viscosity (mPa·s)	6.2
Length of the 1st branch of P2new (m)	200
Length of the 2nd branch of P2new (m)	140
Bottom hole flowing pressure (MPa)	10.0
Production rate of P21 (m3/d)	52.9
Production rate of P22 (m3/d)	67.8
Injection rate of I21 (m3/d)	125.5

. By inputting the same model parameters, the productivity evaluation of the two wells were conducted respectively with the semi-analytical models and the Eclipse simulator. The calculation results are shown in

Table 3. Results comparison of two methods.

Well Name		Actual Productivity (m3/d)	The Semi-Analytical Model		The Eclipse Simulator
			Productivity (m3/d)	Relative Error (%)	Productivity (m3/d)	Relative Error (%)
P1new		25.0	27.3	9.1	27.2	8.8
P2new	1st branch	197.7	220.7	11.7	221.3	11.9
	2nd branch	147.1	166.5	13.2	168.0	14.2
	Total	344.7	387.2	12.3	389.3	12.9

.

Table 3 indicates that the semi-analytical models have a high accuracy with the relative error of less than 15%. The results calculated by the models are consistent with those by the Eclipse numerical simulator, which verify the reliability of the productivity models. By taking into account the actual conditions, namely the interference of other wells in the well pattern, the coupling between the reservoir flow and wellbore flow, and the pressure drop along the horizontal lateral, the accuracy of the productivity prediction by the semi-analytical models is greatly improved.

3.2. Model Application

3.2.1. Study on Seepage Mechanism of Horizontal Well

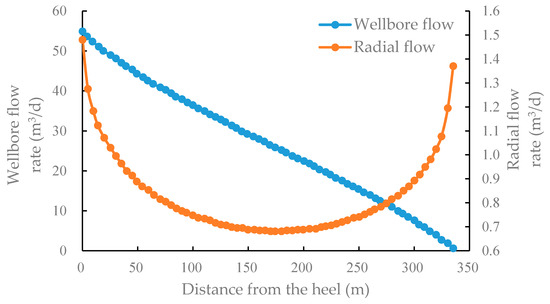

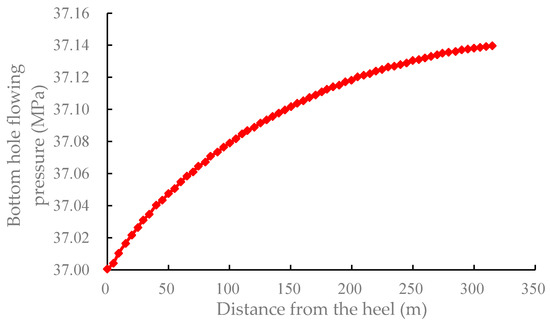

In the first case of model validation, we can further analyze the bottom hole flowing pressure, the distribution of wellbore flow rate and radial flow rate along the horizontal segment. Figure 8 and Figure 9 show that the bottom hole flowing pressure decreases logarithmically while the wellbore flow rate increases monotonically from the toe to the heel of the horizontal well. The reservoir flow coupled with variable mass wellbore flow results in this near wellbore dynamics. On one hand, the mass flow rate of fluid from the toe to the heel increases gradually. In this case, the fluid velocity along the main flow direction also increases with an accelerating pressure drop. The radial inflow of reservoir fluid along the horizontal wellbore disturbs the boundary layer of the main stream tube and affects its velocity profile, thus altering the wall friction resistance determined by the velocity distribution. These factors lead to the bottom hole flowing pressure decreasing in the form of logarithmic function. On the other hand, the radial inflow performance affects the distribution of pressure and pressure drop, and vice versa. Due to the pseudo-hemispherical flow at each endpoint (well heel and well toe) and the pseudo-linear flow at the center of the horizontal segment, the drainage area at each endpoint is relatively larger than that at the center. The radial flow rate at each endpoint of the horizontal segment is considerably greater than that at the center, and decreases quickly toward the intermediate section, which generally presents a U-shape distribution.

3.2.2. Optimization of Infilling Well Location

In the intermediary and later phase of oilfield development, infill wells are usually needed to improve the well pattern and the effect of tapping potential of remaining oil. Therefore, the key is the optimization of infill well location. The productivity models provide a shortcut for this target. Based on the understanding of geological conditions and development status, the productivity of infill well can be accurately predicted, and in combination with the findings of remaining oil distribution, the infill well location could be optimized.

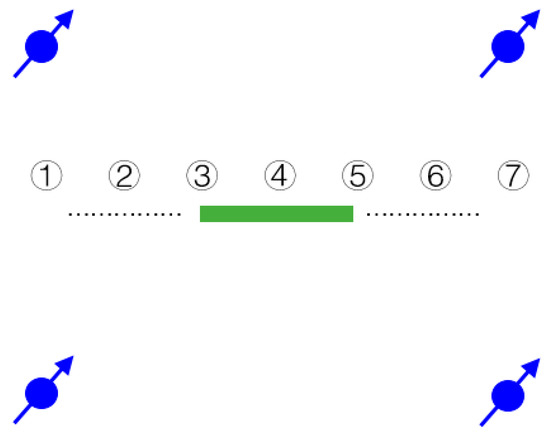

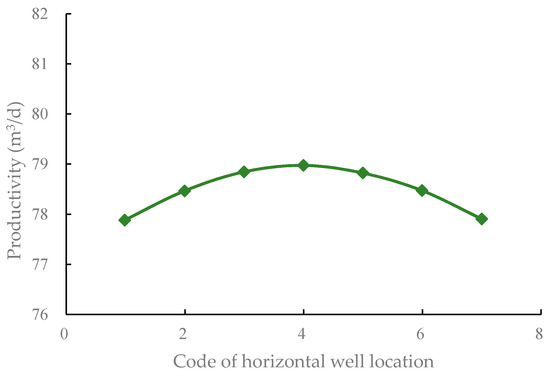

Taking the mixed five-spot well pattern of vertical injectors and horizontal producer as an example, we conducted a study on the productivity variation of horizontal well at different locations in the well pattern (Figure 10). The basic reservoir parameters refer to the first case of model validation. Figure 11 shows that the lateral shifting of horizontal well has some effects on the productivity, and the productivity at the center of the well pattern is relatively higher than that at other locations. However, this does not mean that the central location is the optimum selection for the horizontal well. In the adjustment of well pattern, geological condition and development factors, such as the distribution of flow field and remaining oil, should also be considered.

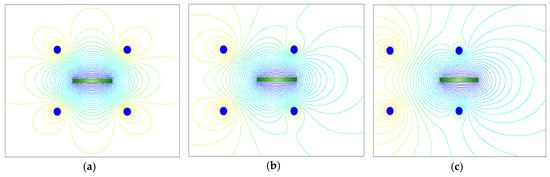

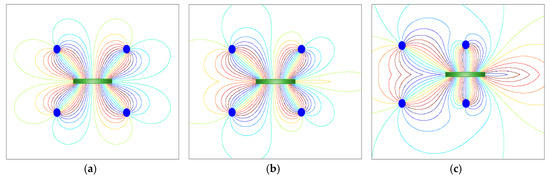

We made further study on the flow field distribution in the mixed well pattern so as to provide references for the optimization of infilling well location. Figure 12 and Figure 13 indicate that the equipotential lines and stream lines are symmetrically distributed along the x-axis as the horizontal well moves laterally. When the horizontal well is located at the center of the well pattern, both the equipotential lines and stream lines present a uniform distribution; when the horizontal well moves toward the right side, both of the two types of the lines on the right side become dense, while those on the left side are sparsely distributed, and vice versa. The more the horizontal well location changes, the more obvious this phenomenon is. The flow pattern almost presents a linear flow as the horizontal well locates at the line of the two vertical wells on the same side, which indicates a relatively higher swept efficiency. Therefore, in combination with the findings of productivity variation and flow fluid distribution, the infilling well location could be optimized. This improves the effect of well pattern adjustment considerably.

3.3. Discussion

In this study, the semi-analytical models for productivity evaluation of infill complex structural wells are built with the method of images and source–sink theory. Compared with the existing models, the advantages of the semi-analytical model lie in the following three aspects. Firstly, the models are suitable for mixed well patterns of vertical wells and complex structure wells; Secondly, both the interference of other wells in the well pattern and the pressure drawdown along the horizontal segment are taken into account, which makes the models more reliable. In addition, the models provide some insight into the seepage mechanism of complex structural wells such as the distribution of wellbore flow and radial flow along the horizontal segment. However, the semi-analytical models also have some limitations, the basic assumptions of the models are steady-state flow and closed top and bottom boundaries, and the productivity evaluation of different reservoir boundaries under the condition of unsteady-state flow still needs to be further studied.

4. Conclusions

In this paper, on the basis of the mirror-image method and the source–sink theory, two semi-analytical models are established to predict the productivity of infill horizontal wells and multilateral wells in mixed well patterns respectively, in which the interference of other wells, the randomicity of well pattern, and the pressure drawdown along the horizontal lateral are taken into account.

The application of the productivity models verifies the reliability and practicability. The results calculated by the models are consistent with those by the Eclipse numerical simulator, and the semi-analytical models have a high accuracy with the relative error of less than 15%.

The results indicate that the bottom hole flowing pressure decreases logarithmically while the wellbore flow rate increases monotonically from the toe to the heel of the horizontal segment. Due to the pseudo-hemispherical flow at each endpoint and the pseudo-linear flow at the center of the horizontal segment, the drainage area at each endpoint is relatively larger than that at the center. The radial flow rate at each endpoint of the horizontal segment is considerably greater than that at the center, which generally presents a U-shape distribution.

This study also proposes a practical and efficient approach for the study on the horizontal seepage mechanism, and the optimization of infilling well locations.
