Current State of Porous Carbon for Wastewater Treatment

Abstract

Porous materials constitute an attractive research field due to their high specific surfaces; high chemical stabilities; abundant pores; special electrical, optical, thermal, and mechanical properties; and their often higher reactivities. These materials are currently generating a great deal of enthusiasm, and they have been used in large and diverse applications, such as those relating to sensors and biosensors, catalysis and biocatalysis, separation and purification techniques, acoustic and electrical insulation, transport gas or charged species, drug delivery, and electrochemistry. Porous carbons are an important class of porous materials that have grown rapidly in recent years. They have the advantages of a tunable pore structure, good physical and chemical stability, a variable specific surface, and the possibility of easy functionalization. This gives them new properties and allows them to improve their performance for a given application. This review paper intends to understand how porous carbons involve the removal of pollutants from water, e.g., heavy metal ions, dyes, and organic or inorganic molecules. First, a general overview description of the different precursors and the manufacturing methods of porous carbons is illustrated. The second part is devoted to reporting some applications such using porous carbon materials as an adsorbent. It appears that the use of porous materials at different scales for these applications is very promising for wastewater treatment industries.

1. Introduction

Porous materials are defined as materials with cavities, or channels, called pores. Pores are empty spaces that exist between particles of any shape in materials. These empty spaces form the porosity of the materials, defined as the volume percentage of air in the material that correspond to the total volume occupied by the voids of the material divided by the total volume of the material [1]. The porous space is a continuity of absence of solid matter nested in the continuity of solid matter. It is essentially irregular in its forms and inconsistent also in its qualities, which can be given great complexity. There are two types of porosity: open porosity (on the external environment) and closed porosity. In all cases, it is generally characterized by its volume fraction (or by the density of the porous material) and the pore size distribution. The open porosity notably controls the adhesion properties of the coatings on the surface of the material [2].

Porous materials have attracted the attention of chemists and materials scientists, and the development of new porous materials has accelerated research development in recent decades [3,4,5]. This attention comes back not only to the commercial interest that porous materials have for their application in various fields such as separation [6,7], catalysis [7,8,9], adsorption [6,10,11,12,13,14,15], energy storage and conversion [16,17,18,19,20,21,22,23,24], and medicine [25,26], but also, because of the scientific interest in the challenges posed by their synthesis, their treatment and their characterization. Indeed, the progress of technology and the demand for porous materials have pushed researchers to develop synthesis methods allowing for controlling the parameters that determine the structural and textural characteristics of these materials. In this context, a lot of works have shown that controlling the pore size is essential for many specific applications. However, this technological and industrial development with the growth of the world population and domestic activities are causing a remarkable increase in water pollution. It is therefore necessary to purify wastewater before it is released into the environment. Thus, several wastewater treatment technologies have been developed, the adsorption of which on porous materials is proving to be one of the most promising techniques for the removal of pollutants from wastewater due to its affordable price and ease of disposal at large-scale use [27,28,29,30]. The most widely used adsorbents are activated carbons, and they are considered the most useful for the removal of organic and inorganic pollutants due to their structural variability (macro-, meso-, and micropores), their large specific surface area, and a wide availability of functional groups [29,31,32].

The purpose of this review is to discuss the preparation processes of porous carbons as well as the main carbon precursors used. In addition, the performance and characteristics of the resulting carbons are investigated. Finally, the contribution of activated carbon in the field of wastewater treatment will also be discussed in detail.

2. Classification of Porous Materials

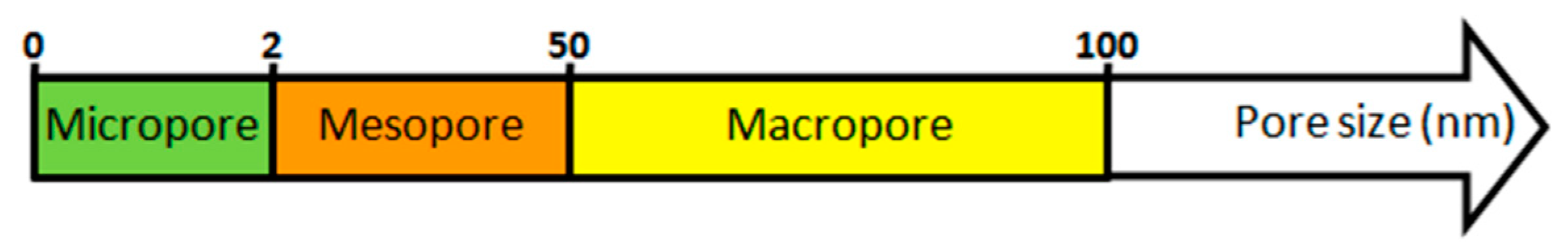

According to the International Union of Pure and Applied Chemistry-USA(IUPAC) [33,34], porous materials are classified according to the diameter of the pores (d_p) that constitute them, and the three classes are seen in Figure 1.

2.1. Microporous Materials

Microporous materials are those whose pore diameter is less than 2 nm (d_p < 2 nm). They can be prepared by the sol-gel process and are widely used in catalysis and adsorption.

2.2. Mesoporous Materials

In this category of materials, the pore diameter varies between 2 and 50 nm (2 nm < d_p < 50 nm). A distinction is made between crystalline mesoporous materials and ordered amorphous materials, which are intermediate between that of crystalline microporous solids of the zeolite type and disordered amorphous solids such as silica gel [35,36,37]. Mesoporous materials have several known applications such as catalysis, filtration, pollution control, optics, and even electronics.

2.3. Macroporous Materials

As these materials have fairly large pores (d_p > 50 nm), they find their use in the field of decontamination of polluted water with organic dyes and as a catalyst support for the photodegradation of the pollutant [20,38,39,40,41].

3. Graphite and Graphene

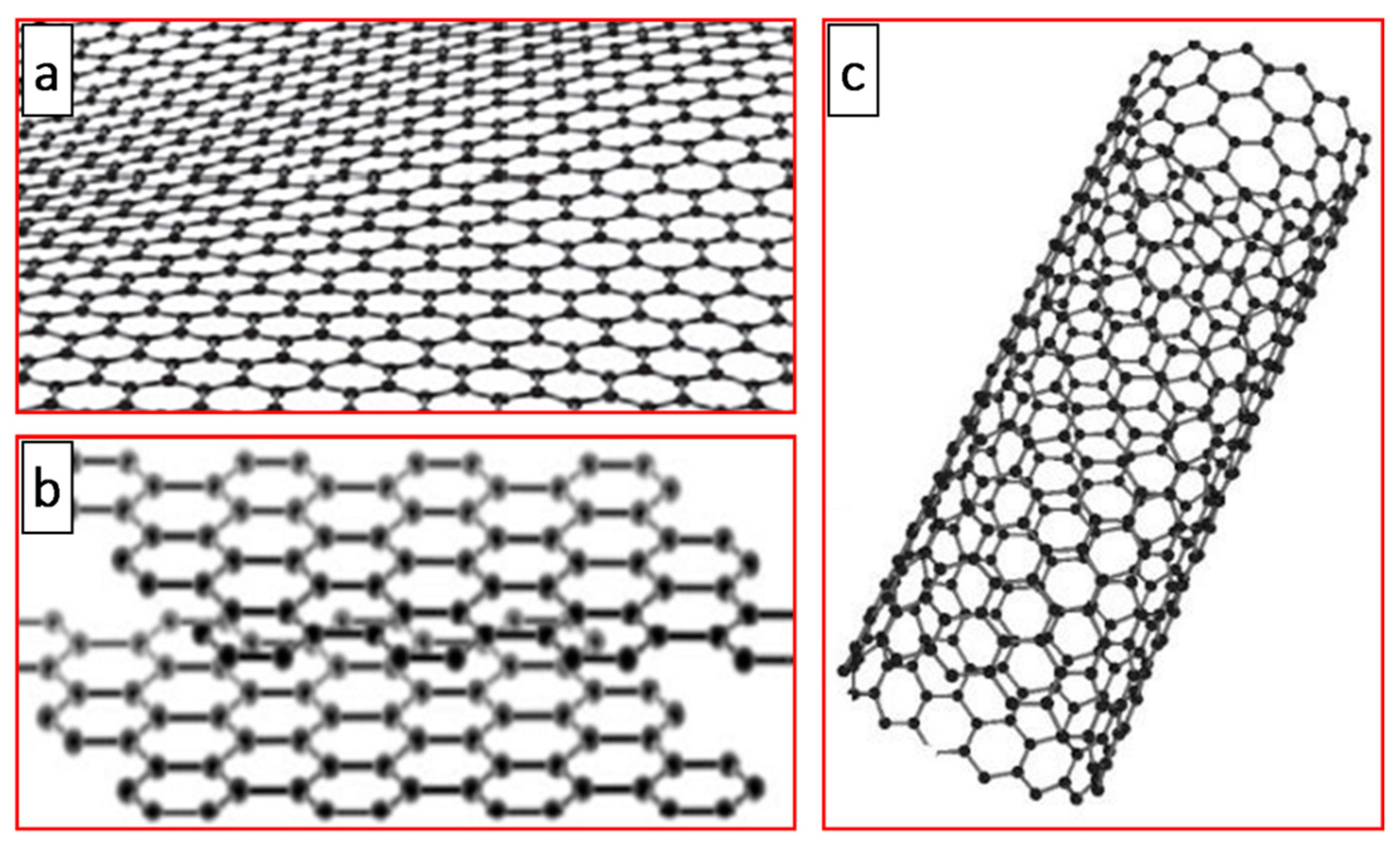

Graphite consists of interconnected carbon atoms arranged to hexagonally form flat networks in the form of layers stacked parallel to each other (Figure 2b) [42,43]. These layers are connected by low energy van der Waals type bonds. This explains the laminated morphology of graphite [42,43]. Graphite is characterized by high thermal and electrical conductivity, good chemical stability, and remarkable plasticity [43,44,45,46,47,48,49,50]. A good thermal and electrical conductivity is attributed to the delocalization of the π-electrons of the carbon atoms in graphite, and its plasticity can be explained by the possibility of sliding the sheets layers one onto the other [42,43]. These favorable characteristics make graphite interesting materials for improving the transfer and storage of thermal energy, for preparing anodes of lithium-ion batteries, and for electrochemical applications. In this context, Zhong et al. [51] used pitch-based graphite foams to increase the thermal diffusivity of paraffin wax for a thermal energy storage application. Later, Jana et al. [45] studied the effect of the addition of graphite on the conductivity of a tannin-based resin. They showed, contrary to what was expected a priori, that the smaller graphite particles were much more suitable for obtaining conductive matrices. Indeed, the use of small grains made the viscosity higher because of their higher surface and made it possible to obtain homogeneous foams with a higher density [45]. In 2019, Zhang et al. [52] showed that the use of graphitized mesoporous carbon as anode materials for lithium-ion batteries improved speed performance and had a good cycling stability with a reversible capacity of 248.3 mA h g⁻¹ at 1 C after 100 cycles. In the same context, porous graphitic carbon was synthesized from Eichhornia crassipes plants collected from the Coimbatore region, Tamilnadu-India, and has been used for the sustainable fabrication of hole-transporting materials electrode in perovskite solar cells [53].

Graphene is related to graphite, and it was isolated experimentally for the first time, in 2004, from graphite [54,55,56,57]. It is a planar material with a hexagonal structure (Figure 2a), often compared to a honeycomb network, in the form of a two-dimensional (2D) crystal consisting of a simple plane of carbon atoms in sp² hybridizations [58]. Graphene represents the basic unit of graphite, and it has a high optical transparency and remarkable rigidity with a tensile strength of more than 130 GPa [59]. It can be wrapped to form many other forms of carbon such as fullerenes, nanotubes, or stacked in graphite. It is important to note that the honeycomb structure of graphene gives it excellent stability with a high mobility of the electrons on its surface [59,60,61] and can be used in multiple applications in the fields of electronics (flexible screens, high frequency electronics, nanoelectronics, batteries, chargers), the environment (atmospheric pollution sensors, desalination of seawater), and health (targeted therapy). Generally, there are three main techniques for making graphene. The first allows us to isolate a single plane of graphene by the exfoliation of a graphite crystal using adhesive ribbon; this operation is repeated several times so that the film is sufficiently thin before depositing it on a substrate, which more often is silica [55,56,62]. The second method consists of an annealing at high temperature of a silicon carbide substrate, which induces the sublimation of Si, consequently producing a reorganization of the carbon atoms, leading to the formation of graphene planes on the surface [63,64,65]. The third method is based on chemical deposition on metals from hydrocarbons [44,62,66,67,68,69]. The first technique is widely used because it is simple and inexpensive and also because the properties of graphene are easily accessible [55,70,71].

The chemical properties of graphene are similar to those of graphite, and graphene can be used in multiple applications, in particular for field effect transistors due to the high mobility of the surface electrons. Because graphene has chemical stability in contact with electrolytes, mechanical elasticity and good electrical conductivity, it is widely used as a storage medium for lithium [72,73,74,75]. It is also used in gas sensors such as NO₂, CO, H₂S, H₂, NO, NH₃, and CO₂ [76,77,78,79,80,81,82,83,84,85], or even as a biosensor for the detection of dopamine [86,87], β-nicotinamide adenine dinucleotide [88], paracetamol [87,89], Kojic acid [90], uric acid [86,87], vanillin [91], and caffeic acid [92]. Graphene is also used as a drug carrier [93,94,95,96,97] and as a charge conductor in solar cells as well as a light collector including cells and photodetectors [53,60,61,62,98,99,100]. He et al. [101] prepared a three-dimensional graphene-CNTs@ Se aerogel, usingCNTs/selenium that is sandwiched between graphene nanosheets via an environmentally friendly solvothermal method. They showed that due to the 3D sandwich-type protection of the active Se, the cathode offers an initial coulombic efficiency of 92% as well as an excellent cyclic performance. This greatly facilitates the improvement of the specific energy density of Li-Se batteries [101]. Likewise, it has been shown that a graphene-CNTs-Li₂S hybrid aerogel could be effectively used as a high capacity cathode for Li-S batteries with a reversible discharge capacity as large as 1123.6 mA h g⁻¹, and a decrease in capacity of less than 0.02% per cycle [102,103]. The efficiency of these materials is attributed to the 3D structure, which is achieved by using two-dimensional (2D) graphene nanosheets and one-dimensional (1D) carbon nanotubes (CNTs), thus forming highly efficient channels for electron transfer and ionic diffusion [102,103]. This architecture was used for the development of a CoS₂-carbon nanotubes-graphene anode for high performance lithium-ion batteries that can deliver an initial discharge capacity of 993 mA h g⁻¹ at 100 mA g⁻¹ [104].

4. Carbon Nanotubes

Carbon nanotubes are an allotropic form of carbon (Figure 2c), observed for the first time in 1991 by Japanese researcher Sumio Iijima during the synthesis of fullerenes by an electric arc [105]. They have been characterized as graphene sheets that are wound on themselves in the form of microtubes and will later be renamed multiwall carbon nanotubes (MWCNTs). In 1993, the synthesis of single-walled carbon nanotubes (SWCNTs) was reported by optimizing the method of synthesis by an electric arc [106,107]. The multisheet nanotubes consist of several graphene sheets wound concentrically with a spacing between two sheets of approximately 3.6 Å, slightly greater than the spacing between two sheets in graphite. The diameter of the nanotubes varies, depending on the number of sheets, from 1 to 50 nm, and their lengths can reach 1 µm [43,105,108,109,110]. SWCNTs consist of a graphene sheet wound on itself, and they form a tube whose diameter is between 0.4 and 3 nm. Carbon nanotubes are therefore composed of one or more sheets of carbon atoms, as in graphite, wound on themselves forming a tube. Carbon nanotubes have good mechanical properties, good adhesion, and excellent electrical conductivity [43,111,112,113]. Some of these nanotubes have metallic properties [75,114,115], while others are semiconductors [116,117,118,119,120,121]. SWCNTs and MWCNTs are manufactured by almost the same method; the only distinction can appear on the use of the metal catalyst, generally nickel, iron, or cobalt, which is essential for the synthesis of fullerenes. They can be prepared mainly by arc discharge, laser ablation, and chemical vapor deposition [109,120,122,123,124,125,126], involving one of the following as carbon precursors: xylene, acetylene, toluene, methane, benzene, etc. [43]. On the industrial level, carbon nanotubes, with the particularity that they possess, residing in a small amount of impurities, are used in many forms such as the reinforcing elements of polymers and composites, nanoporous materials for energy storage, passive (nanometric conductors) or active components (diodes and transistors), and systems allowing for the vectorization of drug molecules for the treatment of certain diseases [120,121,122,127,128,129,130,131,132].

5. Activated Carbon

Activated carbon is porous, amorphous organic material with a complex structure, characterized by high carbon content [133]. These materials include a wide range of carbonaceous substances with different properties and characteristics (porosity, specific surface, chemical nature of the surface, density, etc.). Activated carbon can be produced from any substance with a high carbon content, whether of a vegetable, fossil, or material of a synthetic nature; examples include date stones [134,135], coffee grounds [133,136,137], almond shell [138], coconut shell [139], corncob wastes [140], Acacia glauca sawdust [141], waste potato residue [142,143], rice husk [144], sunflower piths [145], tomato stem [146], banana peel [147], etc.

5.1. Preparation of Activated Carbon

Generally, activated carbon is prepared in two stages. The first step is the carbonization of raw material to produce a carbon surface. This step is followed by the activation by chemical oxidation or heat treatment in order to further boost the surface of the material obtained (Figure 3).

5.1.1. Pyrolysis

Pyrolysis (carbonization) is the thermal decomposition of carbonaceous materials at high temperature between 400 and 800 °C, under an inert atmosphere. The resulting material is an amorphous solid rich in carbon. The remaining carbon atoms are grouped in sheets that arrange themselves irregularly, leaving gaps between them. These interstices give rise to a primary porosity of the charred product. It should be noted that the heat treatment strongly influences the texture of the materials [148]. Indeed, a gentle heating rate slightly modifies the carbon structure compared to the original structure of the material used and regenerates a reduced rate of volatile compounds. In the same context, the pyrolysis temperature and the residence time determine the mass loss and the nature of the surface of the biochar prepared.

The activated carbon can be obtained by the pyrolysis of carbon gels obtained by the sol-gel process. This process involves polycondensation reactions of organic precursors. In 1989, Pekala et al. introduced for the first time the synthesis of carbon aerogel by the polycondensation of resorcinol and formaldehyde in the presence of sodium carbonate as a basic catalyst [149,150]. Subsequently, numerous studies have vested in the preparation of polymers and activated carbon precursors by the condensation of hydroxylated benzene (phenol, catechol, 4-methylcatechol, m-cresol, hydroquinone, phloroglucinol, resorcinol, etc.) with aldehyde (formaldehyde, furfural, etc.) [151,152,153,154,155,156,157,158].

5.1.2. Activation

To improve the textural characteristics of the carbonate, it is necessary to subject it to an activation step. This involves opening the initial porosity and increasing accessibility to the internal structure, as well as creating new pores, eliminating the tar that clogs the pores and creating surface functions. This operation, therefore, leads to a loss of mass, and the estimation of the degree of activation can be determined by the “burn-off”:

$$\mathrm{Burn}-\mathrm{off} (\%){=\left(\right(\mathrm{m}}_{\mathrm{i}}{-\mathrm{m}}_{\mathrm{f}}{) 100)/\mathrm{m}}_{\mathrm{i}})$$

(1)

where m_i is initial mass and m_f is final mass. The burn-off provides information on the rate of activation progress and the nature of porosity. Activation can be carried out by a physical or chemical process.

Physical Activation

Physical activation consists of oxidation of biochar at high temperature (>700 °C) under a stream of an oxidizing gas such as water vapor, oxygen, and carbon dioxide. The reactions are shown in Equations (1)–(4).

$${\mathrm{C} + \mathrm{H}}_2\mathrm{O} \to { \mathrm{CO} + \mathrm{H}}_2\mathrm{C} + \mathrm{H}$$

(1)

$${\mathrm{C} + \mathrm{O}}_2\to { \mathrm{CO}}_2\mathrm{C} + \mathrm{O}$$

(2)

$$\mathrm{C} + 1/{2 \mathrm{O}}_2\to \mathrm{CO}\mathrm{C} + ½ \mathrm{O}$$

(3)

$${\mathrm{C} + \mathrm{CO}}_2\to 2 \mathrm{CO}\mathrm{C} + \mathrm{CO}$$

(4)

During physical activation, the development of the porosity of the biochar depends on the nature of the oxidizing gas used, and the pores changes from micro- to mesopores and macropores [27,31,159,160]. The porosity is more developed in the presence of water vapor than in the presence of carbon dioxide. Indeed, the size of the water molecules is smaller than that of carbon dioxide, which gives it a greater diffusion in the pores of carbon, thus causing the enlargement of the micropores in mesopores and macropores. Generally, carbon dioxide promotes the formation of a microporous network, while water vapor generates a mesoporous or macroporous network [29,31,159,160,161]. Furthermore, the use of oxygen is accompanied by a significant loss in mass [27,159]. It should be noted here that physical activation is preferred because of the low cost of preparation and its simple operation, making it possible to optimize the pyrolysis step and therefore producing better control of the porosity of the activated carbon. In fact, optimization of the yield and surface properties of activated carbon lies in optimizing the temperature, the activation time, and the flow rate of the gas (CO₂, vapor, N₂) [27,160].

Chemical Activation

The chemical activation is carried out with chemical reagents that promote dehydration and a structural reorganization of the pores of the carbonaceous material. The procedure consists of impregnating the carbonaceous material with the chemical agent then undergoing a heat treatment at a temperature between 400 and 900 °C. Various chemical agents can be used, namely salts of alkali metals (AlCl₃, ZnCl₂), acids (H₃PO₄, H₂SO₄), or bases (KOH, NaOH, K₂CO₃, Na₂CO₃) [134,140,162,163]. Zinc chloride was the main chemical activator used on a large scale. It is now abandoned due to environmental problems linked to the toxicity of residual zinc-derived compounds. Alkali metal hydroxides (KOH, NaOH) are also used successfully to obtain a high surface area reaching 3000 m²/g [164]. Alkali metal hydroxides are often used to enlarge microporosity, while zinc chloride is used to develop strong microporosity alongside small mesoporosity. It turns out that KOH is the most effective activator (effective in terms of large specific surface area and high microporosity) for preparing activated carbon from biomass [31,165,166,167]. Furthermore, orthophosphoric acid (H₃PO₄) is widely used in industry to impregnate lignocellulosic precursors and synthetic materials to provide active carbon with smaller pores than those activated with ZnCl₂ [168]. Indeed, phosphoric acid plays both the role of an acid catalyst to favor the reactions of the depolymerization of the macromolecules that constitute biomass (cellulose, hemicellulose, and lignin) while promoting the formation of crosslinking through reactions of dehydration, cyclization, and condensation, and a combining agent that subsequently reacts with organic matter to form phosphate esters and polyphosphates, both of which serve as bridges between the fragments of biopolymers that constitute the lignocellulosic biomass [31,169,170]. Furthermore, the addition (or insertion) of phosphate groups leads to a process of expansion of the carbonaceous material which, after the elimination of the acid, leaves the matrix in a developed state with an accessible porous structure [31].

5.2. Different Forms of Activated Carbon

Activated carbon is widely used in the industry for a variety of applications [171]. Each application requires a type and form of activated carbon. The most available forms in the markets are seen in Figure 4 and also presented in the following subsections.

5.2.1. Activated Carbon Powder (CAP)

It occurs in the form of fine particles of size less than 100 μm with average pore diameters of between 0.15 and 0.25 μm (Figure 4a). They are characterized by a large external surface and pores of reduced depths. This type of carbon is frequently used for the treatment of liquid effluents in batch mode.

5.2.2. Granular Activated Carbon (CAG)

The granular or granular activated carbon is formed by grains with a size between 0.5 and 10 mm (Figure 4b). These grains are known by a small pore diameter, a large internal surface, and a relatively small external surface. This type of carbon is intended for the treatment of gases and liquid effluents.

5.2.3. Extruded Activated Carbon

To make extruded activated carbon, the carbonaceous raw material is finely ground; a binder is added to this powder in order to obtain a paste which, by an extrusion device, produces extrudates of a determined length and width (Figure 4c). These extrudates are then charred and activated under a gas flow. These materials are used for gas phase applications.

5.2.4. Impregnated Activated Carbon

Activated carbon can also be impregnated with a reagent to optimize its adsorption capacities for certain molecules (Figure 4d). Thus, the removal of certain impurities from gas is facilitated by this type of material, whereas it would have been impossible on a conventional carbon adsorbent.

5.2.5. Activated Carbon Fabric (CAT)

The active carbon tissues are obtained by the carbonization of a synthetic precursor tissue of viscose or polyacrylonitrile type followed by activation Figure 4e). These fabrics are extremely porous materials with a very high specific surface of up to 2000 m²/g and a distribution of micropores of 90% of the total pore volume. These materials are known for their medicinal applications and in catalysis.

5.3. Application of Activated Carbon for Wastewater Treatment

Activated carbon has long been one of the most widely used materials in the industrial sector due to its essential role in the purification of liquids and the filtration of gases. However, innovations in the manufacture and use of activated carbon are driven by the need to reuse natural resources and prevent environmental pollution. Thus, a lot of progress has been made on the optimization of these carbonaceous materials, both in terms of their manufacture and their regeneration. This has prompted several industries—for example, the metallurgical, petroleum, food, pharmaceutical, chemical, and automotive industries—to use activated carbon for various uses. Currently, the main application of activated carbon lies in the adsorption processes of pollutants in the gas or liquid phases. In fact, activated carbon is in the category of amorphous carbon, which has been chemically improved into a porous structure, mostly microporous with a surface functionality that offers active carbon the properties of excellent materials for the adsorption of various chemical species [43,172,173,174]. This adsorption phenomenon is due to the existence of van der Waals type physical forces, inducing a higher concentration of the adsorbate at the interface than in the fluid. Adsorption can also be caused by the formation of covalent bonds between the active sites present on the surface of the carbon and the adsorbate, which is similar to a phenomenon of chemisorption. In this regard, a limited overview is presented on the use of active carbon for the adsorption of pollutants in the liquid phase, and in particular, the field of wastewater treatment. The physicochemical surface properties of activated carbon are generally governed by the nature of the starting materials, the activation methods, and the preparation conditions (

Table 1. The experimental conditions for activated carbons production, specific surface area (S_BET), and adsorption capacities against various toxicants.

Carbon Precursor	Activ. Temp./Activ. Time	Activation	Reagent	SBET (m2/g)	Dose (g/L)	Pollutant	Qmax (mg/g)/C0 (mg/L)	Ref.
Acacia erioloba	600 °C/1 h	Chemical	H2SO4	10.4	1	MB	1.5/25–500	[175]
Acacia glauca	450 °C/1 h	Chemical	H3PO4	311.2	2	4-NP	204.7/50–500	[141]
Acrylic fibrous waste	1200 °C	Physical	O2	280	2	MB	8.7/2–10	[176]
Apricot shell	400 °C/1.5 h	Chemical	H3PO4	307	-	Tetracycline	76.9 (FBA)	[177]
Ashitaba waste	800 °C/1.5 h	Chemical	ZnCl2	1228.5	0.01	Congo Red	345.1/0–100	[178]
					0.01	MB	289.2/0–50
Bamboo	600 °C/4 h	Chemical	H3PO4	1400	1	Reactive Black 5	489.9/10–1000	[179]
Bamboo waste + Ms	550 °C/0.5 h	Chemical	ZnCl2	289.5	8	Phenol	25.3/227.5	[180]
Banana peels	MW 700W/10 min	Chemical	KOH/NaOH	1038	2.5	MG	22.5/10	[147]
	800 °C/0.5 h	Chemical	K2CO3	1188	0.4	Me-Red	400/40–220	[181]
						MB	454.5/40–220
Banyan tree	500 °C/1 h	Chemical	KOH	988	2.5	Phenol	26.9/20–100	[182]
Bermuda grass	450 °C/2 h	Chemical	KOH	1833.6	0.5	Cr(VI)	403.2/0–200	[183]
Black cumin seeds	40 °C/48 h	Chemical	H2SO4	-	2	MB	16.8/100	[184]
					2	Pb2+	17.9/100
Black wattle bark waste	700 °C/2 h	Chemical	ZnCl2	414	1	Phenol	85.7/50–500	[185]
Caesalpinia ferrea	600 °C	Chemical	ZnCl2	1480	1.5	Captopril	535/120–2500	[186]
Carya illinoinensis	700 °C/2 h	Chemical + Physical	NaCl, CaCl2, KCl/CO2	490–808	2	Cu2+, Cd2+, Ni2+, Zn2+	0.011–0.368 mmol/g	[187]
Chamerion angustifolium	450 °C/0.5 h	Physical	-	117.7	0.8	Co2+	9.8/1–40	[188]
						Ni2+	10.1/1–40
Citrus limetta peels	250 °C/2 h	Chemical	FeCl3	-	1	F−	4.9/5–30	[28]
	500 °C/2 h	Chemical	FeCl3	-	1	F−	9.7/5–30
Coconut husk	350 °C/3 h	Chemical	KOH	1448	-	F−	6.7 (FBA)	[139]
Coconut shell	600 °C/1 h	Chemical	NaOH	876	1	MB	200/25–250	[189]
Cocos nucifera shell	275 °C/2 h	Physico chemical	ZnCl2/H2O	1652	1	Phenol Red	351/500	[190]
						Phenol	264/500
Coffee grounds	800 °C/1 h	Physico chemical	KOH/CO2	1865	1	Phenol	211/10–200	[136]
					1	MB	390/50–500
	950 °C/3 h	Physical	CO2	2407.8	0.66	MB	680/20−150	[29]
					0.66	MO	612/20−150
Coffee husk	800 °C/0.5h	Physical	H2O	383	1	Ni2+	57.1/30–120	[191]
Coffee spent				464	0.8		51.9/30–120
Corncob	400 °C/1.5 h	Chemical	H3PO4	1097	2	NH4+	17/10–40	[140]
Corncob	800 °C/1 h	Chemical	KOH	1054.2	0.02	Hg(II)	2.3/0.02–0.1	[192]
Corncob	800 °C/1.5 h	Chemical	NaOH	2381	0.2	Pb2+	381/10–500	[193]
Corncob	892 °C/40 min	Physical	H2O	-	0.4	Roxarsone	309.6/40–350	[194]
Date palm petiole	600 °C/2 h	Chemical	NaOH	655	4	Indigo carmine	53.7/10–200	[135]
Durian shell	900 °C/15 min	Physical	CO2	917	10	AMX	142.7/250	[195]
					10	Tetracycline	126/250
Eucalyptus residue	400 °C/3 h	Chemical	H3PO4	1545	0.2	MB	977/140–260	[196]
Eucalyptus sawdust	700 °C/75 min	Chemical	FeCl3	645.2	1	MB	162.8/50–500	[197]
Fox nutshell	600 °C/1 h	Chemical	ZnCl2	2869	5	Phenol	75.3	[198]
					0.4	MB	968.7
	700 °C/1 h		H3PO4	2636	0.4	Cr(VI)	74.9/35	[199]
Grape waste	600 °C/1 h	Chemical	ZnCl2	1455	0.6	MY	386/200–900	[200]
						MB	417/200–900
Grapefruit peels	800 °C/0.5 h	Chemical	K2CO3	1198	0.4	Me-Red	454.5/40–220	[181]
						MB	456.2/40–220
Guava seeds	750 °C/1.5 h	Chemical	NaOH	2573.6	1	AMX	570.4/400–800	[162]
Jackfruit-PPI-1	600 °C/1 h	Chemical	K2CO3	987	1	Disperse Blue 14	178.5/10–120	[201]
Maghara coal	550 °C/1.5 h	Chemical	NaOH	49	0.5	MB	28/10–50	[202]
Mandarin peels	800 °C/0.5 h	Chemical	K2CO3	1077	0.4	Me-Red	357.1/40–220	[181]
						MB	400/40–220
Olive stones	500 °C/3 h	Physical	N2	9.1	1	MB	769/50–1000	[203]
Opuntia ficus-indica	600 °C/2 h	Chemical	NaOH	331.5	6	4-NP	16.1/10–150	[204]
Palm shell	900 °C/1 h	Chemical	H2SO4 + K2S2O8	770	-	Bis-A	45.45	[205]
						4-ClP	163.9
						4-NP	166.7
						2,4-DNP	250.0
						2,4,6-TNP	142.0
PAN	800 °C/0.5 h	Chemical	K2CO3	2217	-	MCPA	4.2 mmol/g	[206]
						2,4-D	3.4 mmol/g
			KOH	2828	-	MCPA	5.1 mmol/g
						2,4-D	4.4 mmol/g
Parthenium hysterophorus	500 °C/2h	Chemical	H3PO4	256.5	90	Cr	0.7/40–100	[207]
Peanut shells	700 °C/3 h	Chemical	H2SO4	570	20	2,4-DNT-3-SO3 + 2,4-DNT-5-SO3	32	[208]
PET	800 °C/0.5 h	Chemical	K2CO3	1206	-	MCPA	2.4 mmol/g	[206]
					-	2,4-D	1.9 mmol/g
			KOH	1439	-	MCPA	2.6 mmol/g
					-	2,4-D	2.5 mmol/g
Phoenix dactylifera L.	500 °C/1 h	Chemical	KOH	817	0.15	Levofloxacin	101.3/50–250	[134]
	300 °C/ 0.5 h	Chemical	H3PO4	1225.5	5.25	Rh-B	196	[209]
	500 °C/1 h	Chemical	K2CO3	852	-	Ciprofloxacin	2 (FBA)	[210]
						Norfloxacin	1.9 (FBA)
Pinus eldarica	750 °C/3 h	Chemical	K2CO3	1201	0.1	SDS	347/10–125	[211]
Pomelo peels	800 °C/0.5 h	Chemical	K2CO3	836	0.4	Me-Red	208.3/40–220	[181]
						MB	222.2/40–220
Potato peels	400 °C/1 h	Chemical	H3PO4	904.5	0.5	Bis-A	445.9/0–300	[212]
Potato peels	500 °C/ 0.5 h	Chemical	H3PO4	676	10	Pb2+	8.9/100	[143]
Residue from biomass gasification	600 °C/1 h	Chemical	ZnCl2	259	5	Fe2+	20.5/25–125	[213]
						Cu2+	23.1/25–125
						Ni2+	18.2/25–125
Rice husk	950 °C/1 h	Chemical	K2CO3	1330	1	NO3−	8.1/15	[144]
Rice husk	800 °C/1.5 h	Chemical	NaOH	2786	0.2	Pb2+	492/10–500	[193]
Sargassum fusiforme	900 °C/0.5 h	Physical	CO2	1329	0.8	Congo Red	234/50–200	[159]
Sewage sludge	500 °C/1 h	Chemical	ZnCl2	721	0.1	FL, ANT, PYR, BeP, OP, NP, DBP, DEHP	0.07–2.8/ 0.01–0.3	[214]
Sugarcane bagasse	550 °C/0.5 h	Chemical	ZnCl2	182.9	0.2	Hg2+	11.5/1	[30]
	300 °C/1 h	Chemical	H3PO4	7.4	0.2	Hg2+	13.6/1
Sunflower piths	700 °C/1 h	Chemical	NaOH	2690	1	MB	965/50–1000	[145]
			KOH	2090	1	MB	580/50–1000
Syzygium cumini seed	900 °C/1 h	Chemical	KOH	747	6	F−	1.2/20.04	[215]
Tomato stem	700 °C/1 h	Chemical	FeCl2	971	1	Congo red	158.7/100–500	[146]
Tomato waste	600 °C/1 h	Chemical	ZnCl2	1093	0.6	MY	385/200–900	[216]
						MB	400/200–900
Tyre	750 °C	Chemical	KOH	700	0.5	Bis-A	123/5–80	[217]
Ulva lactuca	800 °C/3 h	Chemical	KOH	345.4	0.06	Cu2+	84.7/5–80	[163]
						Cd2+	84.6/5–80
						Cr3+	82/5–80
						Pb2+	83.3/5–80
Walnut shell	900 °C/1.5 h	Chemical	ZnCl2	1626.9	0.01	Congo Red	281.4/0–100	[178]
					0.01	MB	314.1/0–50
Waste carpets	700 °C/4 h	Chemical	H3PO4	953	8	MB	769.2/50–800	[218]
Waste tires	750 °C	Chemical	KOH	265	0.3	Pb2+	49.7/5–100	[219]
					0.3	Cd2+	10.4/5–100
					0.3	Cr3+	29.4/5–100
White sugar	700 °C/2 h	Chemical	NaOH	1144.7	0.8	Rh-B	123.4/25–100	[220]

).

As a result, the adsorption properties of activated carbon vary from source to source. Biomass is widely used for the production of activated carbon because of its great abundance, its renewability, and its low cost. In fact, various biomass wastes have been used to produce adsorbents by chemical or physical activation. Nowicki et al. [181] studied the influence of the precursor on the structural and sorption properties of methyl red (Me-Red) and methylene blue (MB)of activated carbon obtained by chemical activation with potassium carbonate involving grapefruit, mandarin, pomelo, and banana peels as precursors. They confirmed that this waste can be successfully used as precursors for the preparation of activated carbon that show a well-developed porous structure with specific surfaces of 836, 1198, 1077, and 1188 m²/g, respectively, optimizing the conditions activation (temperature, time, impregnation ratio). It turns out that the efficiency of removal of Me-Red and MB from aqueous solutions depends on the type of precursor used and that the adsorption capacity increases with the increase in the specific surface area of the adsorbent. Charcoal from grapefruit peels was found to be the most effective adsorbent with a sorption capacity of 456.2and 454.5 mg/g for MB and Me-Red, respectively. In the same context, Baysal et al. [145] found that the adsorption capacity of MB increases from 580 to 965 mg/g when the surface area of activated carbon obtained from sunflower piths increases from 2090 to 2690 m²/g. The increase in specific surface area was attributed to the nature of the activating agent where the highest value was obtained with sodium hydroxide [138]. Activation by potassium hydroxide mainly caused the development of micropores with a very narrow pore distribution. Thus, the sodium hydroxide appeared to be more reactive, which resulted in the micropores fusing to form mesopores [135,145,193,204]. Indeed, several studies have reported that potassium hydroxide is an activator that promotes the formation of activated carbon with a microporous structure [166,167,183,206,221]. However, some authors obtained a mesoporous structure by activation with potassium hydroxide [134]. Indeed, the structural properties of activated carbon also depend on the temperature and the duration of activation as well as the impregnation ratio. For example, the activated carbon obtained from a near of corn passes from a macroporous structure for a pyrolysis temperature of 800 °C and duration of 1 h [192] to a microporous structure for a pyrolysis temperature of 850 °C and duration of 3 h [221]. Likewise, the specific surface increases from 1054 to 1618 m²/g [192,221]. In this respect, the variation in the parameters of preparation of the activated carbon offers varied in the textural and structural properties. Consequently, there is a variation of the porosity, both in shape and in dimensions, of the functional groups and of the pH_ZCN. These properties with the conditions of application determine the applicability of the activated carbon. Large-pore activated carbon is effectively used for the adsorption of large pollutants and vice versa [135,179,204,206].

Da Paixao Cansado et al. [206] did a comparative study of the adsorption of pesticides on chemically prepared activated carbon involving K₂CO₃ and KOH. The aim was to obtain activated carbon from polymer waste (Polyacrylonitrile (PAN) and Polyethyleneterephthalate (PET)) and to determine their main characteristics, namely the characterization of their porosity, their functional groups on the surface, and their adsorption capacities for 4-chloro-2-methylphenoxyacetic acid (MCPA) and 2,4-dichlorophenoxyacetic acid (2,4-D). The results showed that these pollutants were better adsorbed on the activated carbon obtained with KOH, which has a microporosity and a specific surface area greater than that obtained with K₂CO₃ [206]. In the same context, Laksaci et al. [136] studied the influence of the combination of CO₂ with KOH on the morphological properties and the sorption capacities of adsorbents from coffee grounds for phenol and MB. Activation by KOH under CO₂ flow considerably improves the porous structure of the adsorbents. Indeed, the use of CO₂ makes it possible to increase the diameter of the pores and develop a narrow distribution of the size of the pores [136]. This improves the microporosity of the activated carbon and increases the adsorption for large organic molecules. The results showed that MB adsorbs better than phenol with adsorption capacities of 390 and 211 mg/g, respectively [136].

Activated carbon obtained from date palm petiole via chemical activation using sodium hydroxide showed a surface area of 655 m²/g, with a mesoporous structure [135]. This mesoporosity is a favorable structural property for use in the elimination of indigo carmine from aqueous solution in batch and continuous column systems. In batch mode, the adsorption was chemical and exothermic, and it underwent pseudo-second-order model kinetics. The adsorption mechanism is related to the physisorption enhanced by chemisorption. The adsorption capacity of the indigo carmine decreases from 53.76 to 32.57 mg/g if the temperature rises to 40°C [135]. However, in continuous mode, this activated carbon provides good efficiency removal of indigo carmine after three repetition cycles [135]. It appears that the adsorption is largely influenced by the pH of the solution and the pH_ZCN. The effect of pH on adsorption can manifest itself through two mechanisms: an electrostatic interaction between the functional groups of the adsorbent (carboxylic, phenolic, lactonic, basic functions, etc.) and the adsorbate, or a chemical reaction between adsorbent and adsorbate. In fact, at pH<pH_ZCN, the surface of the carbon is positively charged, which promotes the adsorption of the anions, while the adsorption of cations is favored at pH>pH_ZCN, where the surface of the carbon is negatively charged [28,29,30,135,159,176,184,196,211,222,223,224]. Tu et al. [183] studied the sorption properties of Bermuda grass derived activated carbon for Cr(VI) removal. Sorption of Cr(VI) ions depends on pH of the solution; the best Cr(VI) uptake was reported at pH 2.0 with a maximum adsorption capacity of 403.2 mg/g, and the removal mechanism was predominantly chemisorption. The same observations were reported by Bedada et al. [207] using activated carbon produced from Parthenium hysterophorus weed chemically activated by phosphoric acid. This is to highlight that mostly metal ions (Pb²⁺, Cd²⁺, Cr³⁺, Fe²⁺, Cu²⁺, Ni²⁺, Co²⁺, Hg²⁺, etc.) removal is favorable in the pH range 2–6 [143,163,188,192,213,219].

In addition, the search for inexpensive alternative resources as well as methods of preparing activated carbon has attracted the attention of scientific researchers. Several researchers are interested in converting waste from the polymer and textile industries into activated carbon as a favorable approach [176,206,217,218,219,225]. In this context, activated carbon derived from acrylic fiber waste is obtained by physical activation in the presence of air via controlled heat treatment and used as an adsorbent for the removal of MB from aqueous media [176]. The results indicate that the adsorption of MB on activated carbon requires a longer equilibrium time when the initial concentration of dye is increased with an adsorption capacity of 8.7 mg/g [176]. Likewise, Hassan and Elhadidy transformed carpet waste into activated carbon by activation with H₃PO₄ at different impregnation ratios [218]. They found that the specific surface area of activated carbon increases with the impregnation ratio, which reaches 953 m²/g for an impregnation ratio of 3. This carbon has a mesoporous structure promoting the adsorption of MB where the capacity of adsorption is 769.2 mg/g [218]. A study of the effects of the impregnation rate, the carbonization temperature, and the time on the characteristics of the active carbon produced from tomato waste by chemical activation with ZnCl₂, was carried out by Saygili and Güzel [216]. This study showed that the influence of the operating parameters on the properties of the pores of the carbons followed a sequence of carbonization temperature> carbonization time> impregnation rate. The activated carbon produced under optimal conditions has a specific surface of 1093 m²/g with a mesoporous structure. This carbon has been used effectively for the adsorption of large MB and metanil yellow (MY) molecules, showing maximum monolayer adsorption capacities of 400 mg/g for MB and 385 mg/g for MY [216]. The same observations were made by Wang et al. [167] during the preparation of carbon derived from peanut shell by activation by potassium hydroxide.

Certain inorganic anions constitute a group of pollutants in wastewater that are known by their toxic and carcinogenic effects. Among these ions are the nitrates (NO³⁻) and fluoride (F⁻) ions. It was reported that activated charcoal, derived from Rice husk developed by chemical activation using potassium carbonate as an activating agent followed by modification by urea, could remove the nitrate ions from aqueous solutions with a maximum adsorption capacity of 8.1 mg/g [144]. In addition, activated carbon has been used effectively for defluorination of water. By way of example, the citrus limetta peels give, by activation with FeCl₃, an activated carbon with a maximum monolayer capacity of 9.7 mg/g under the optimal adsorbent dosage conditions 1 g/L, a contact time of 240 min, and a temperature of 25 °C with fluoride concentration ranging from 5 to 30 mg/L [28].

It should be noted that an understanding of the activation process is a fundamental step for optimizing the preparation of activated carbon. Indeed, various chemical, physical, and physicochemical processes are used for the synthesis of activated carbon from different natural or synthetic resources. Chemical treatment involves the use of activating agents by impregnation followed by pyrolysis, whereas the physical process involves a high temperature heat treatment in the presence of vapor or carbon dioxide. However, the combination of these two methods has also been used for the production of activated carbon. It remains difficult to predict the physicochemical and morphological properties of carbons according to the treatment applied. It seems that the morphological, the physicochemical, the textural, and the surface properties of activated carbon change significantly by changing the activation time and temperature and the nature of the precursor used. The chemical nature of the surface of activated carbon depends on the type of heteroatoms, such as oxygen, nitrogen, sulfur, etc., that are present on the surface. These hetero atoms or groups accumulated on the surface either come from the starting material itself, or are incorporated during the activation process. This is largely related to the nature of the precursor. All these properties are of great importance for the use of carbons as an adsorbent of pollutants in aqueous solutions. Indeed, the adsorption of pollutants onto activated carbon is a complicated process, and various interactions can coexist during the process involving physical actions and/or chemical bonds. Thus, the adsorption mechanism referred to as electrostatic interactions, hydrogen bonds, π–π stacking interactions, pore filling, hydrophobic interactions, ion exchange, and also other interactions (n–π interactions, etc.) and complexation reactions can take place [30,184,187,194,197,203,205,220,226,227,228]. Figure 5 illustrates the principal interaction methods for adsorption of pollutants on activated carbon.

The micropores and mesopores of the porous network of activated carbon contribute to the adsorption of pollutants by pore-filling mechanisms according to their total volume and the size of the pollutant molecules, and this is influenced by the affinity of the adsorbent with respect to the pollutant [229]. The π–π stacking interactions are suggested for the sorption of aromatic compounds on the surface of activated carbon containing aromatic rings, suggesting the presence of graphene in the carbon [205]. Electrostatic interactions are encountered during the adsorption of ionic and ionizable compounds [30,135,230]. Positively charged compounds will tend to sorb onto negatively charged carbon surfaces, while anionic compounds will bind to positively charged sites. These interactions also involve the weak interaction forces and hydrogen bonds between the functional groups (carboxylic, lactonic, phenolic, etc.) present on the surface of the activated carbon and the functional groups of the adsorbate. In fact, the polar groups on the surface of the carbon facilitate the sorption of water and promote the formation of hydrogen bonds between the carbon and the sorbates containing electronegative elements [30,135,230,231]. Furthermore, the ion exchange and complexation processes are induced by the presence of cations or metal ions in the structure of the activated carbon [226,230,232].

6. Conclusions

Carbon materials are one of the most studied areas in the scientific community. Indeed, these materials have remarkable physical and chemical properties, and this explains their uses in various fields such as biology, chemistry of materials, energy storage, electrochemistry, and wastewater treatment. In addition, despite several advances made, researchers face many challenges concerning the synthesis, morphological uniformity, and reproducibility of carbonaceous materials. Graphene and graphite offer excellent electrical mobility that favors their use for the photodegradation of organic pollutants and the manufacture of anodes for lithium-ion batteries and pollution sensors. Thus, materials derived from graphene offer greater flexibility in modifying the properties of the catalyst according to specific requirements. In this respect, the morphological properties of carbon nanotubes combined with their chemical and thermal conduction properties give them an interesting future as a catalyst support. In the same context, activated carbon is widely used in the field of water treatment because of their adsorption properties that result from the diversity of chemical, structural, and textural composition. These properties are related to the precursors and the method of preparation of the activated carbon. In this review, the performance of the retention of pollutants from wastewater was detailed on the basis of recent examples from the literature. It turns out that mastering the methods of preparing carbonaceous materials for larger-scale production and understanding the many properties of these materials are important steps to be taken in order to be able to assist with their applications in the various areas of interest.
