Review

Elements of 3D Bioprinting in Periodontal Regeneration: Frontiers and Prospects

by
Ziyi Wang
1,2 and
Xin Huang
2,3,*
1
Hospital of Stomatology, Guanghua School of Stomatology, Sun Yat-sen University, Guangzhou 510030, China
2
Guangdong Provincial Key Laboratory of Stomatology, Sun Yat-sen University, Guangzhou 510055, China
3
Department of Periodontology, Guanghua School and Hospital of Stomatology, Sun Yat-sen University, Guangzhou 510055, China
*
Author to whom correspondence should be addressed.
Processes 2021, 9(10), 1724; https://doi.org/10.3390/pr9101724
Submission received: 24 August 2021 / Revised: 17 September 2021 / Accepted: 22 September 2021 / Published: 26 September 2021
(This article belongs to the Special Issue Recent Advances in 3D Bioprinting for Tissue Engineering)
Browse Figure
Versions Notes

Abstract

:
Periodontitis is a chronic infectious disease worldwide, caused by the accumulation of bacterial plaque, which can lead to the destruction of periodontal supporting tissue and eventually tooth loss. The goal of periodontal treatment is to remove pathogenic factors and control the periodontal inflammation. However, the complete regeneration of periodontal supporting tissue is still a major challenge according to current technology. Tissue engineering recovers the injured tissue through seed cells, bio-capable scaffold and bioactive factors. Three-D-bioprinting is an emerging technology in regeneration medicine/tissue engineering, because of its high accuracy and high efficiency, providing a new strategy for periodontal regeneration. This article represents the materials of 3D bioprinting in periodontal regeneration from three aspects: oral seed cell, bio-scaffold and bio-active factors.

1. Introduction

Periodontitis is a common oral infectious disease, the characteristic of which is chronic progressive periodontal tissue destruction [1,2]. Severe alveolar bone resorption caused by periodontitis is one of the leading causes of tooth loss in adults [3]. The aim of periodontitis treatment is not only to control inflammation via mechanical removal of plaque, but also to regenerate the periodontium. The traditional treatment of periodontitis can only achieve long junctional epithelium attachment, which cannot acquire a total periodontal regeneration [4].
Tissue engineering stands out as a top research interest area in medical fields. It combines biological theory and the principles of engineering, helping the injury tissue or organ to recover and restore their function through three elements: seed cells, biocompatible scaffold and bioactive factors [5]. Periodontal regeneration has been a focus of research in oral tissue engineering for a long time. Guide tissue regeneration (GTR) is a common regeneration surgery in periodontology. The stable periodontal alveolar bone recovery after conducting GTR has been proved by several reviews [6,7,8]. Stem cells isolated from the oral cavity have also been extensively studied in the field of periodontal tissue regeneration, and their potential in the field of periodontal regeneration has been recognized [6,7,9,10,11]. The microenvironment of the periodontal defect can greatly affect the success rate of GTR, and biocompatible scaffolds provide a stable healing environment for the periodontal tissue to recover. Therefore, creating suitable scaffolds is vital.
Due to the restricted area of the periodontal defects, the construction of scaffolds fitting to the defects’ size is challenging. Due to its high accuracy and high efficiency, 3D bioprinting becomes an emerging strategy. Existing 3D bioprinting methods are mainly divided into three types: extrusion, droplet-jet bioprinting and photocuring-based bioprinting [12,13]. In terms of 3D bioprinting, bio-inks are inevitable. As the main ingredient of 3D bioprinting, it is a composition of biocompatible materials, bioactive factors and cells, to create the ultimate shape of the intended construct, deciding the properties and the biological features of the 3D bioprinting scaffolds, finally influencing the results of periodontal restoration [14].
Thus, how to improve bio-ink to produce more effective implants is crucial. Studies on modifying periodontal scaffolds are carried out on three aspects: (1) find the proper seed cells, with regard to ethical and bio-safety concerns; (2) fabricate better scaffolds, with the innovation of new biocompatible materials and their future clinical application; (3) identify more effective bioactive factors to achieve the whole regeneration of periodontium. In this review, we will summarize the materials of 3D bioprinting technology in the field of periodontal regeneration from three aspects: oral seed cells, biocompatible scaffolds and bioactive factors.

2. Oral Stem Cell

Stem cells are a type of cell with multi-differentiation and self-renewal ability, which can be used as seed cells in tissue engineering. Stem cells can produce new stem cells and differentiate into “specific functional cells”, such as hemocytes, skin cells, osteocytes, etc. [9].
Due to their multidirectional differentiation and self-renewal ability, stem cells are believed to have a strong potential in regenerating injury tissues and recovering the original functions. This procedure requires bioactive factors or biocompatible scaffolds to promote stem cell proliferation and differentiation [6,9].
In the human body, stem cells are divided into embryonic stem cells and adult stem cells. Embryonic stem cells come from embryos and can differentiate into any cell. Adult stem cells usually exist in related tissues and are an important source of tissue self-renewal and repair. Recent studies have shown that adult stem cells are widely used in oral tissue engineering due to the rich sources of stem cells in the oral cavity [15]. Mesenchymal stem cells are a type of stem cells with great applicational potential. The main source is bone marrow and adipose tissue, but it can also be derived from other tissues, such as placenta, liver, skin, muscle and oral cavity. Stem cells obtained from oral and facial tissues have similar properties to mesenchymal stem cells in vitro, so they are called pluripotent stromal stem cells. They can differentiate into chondrocytes, osteoblasts, muscle cells and adipocytes. Adult stem cells acquired from oral tissue, related to periodontal regeneration, can be divided into dental group and non-dental groups [9,15,16,17,18,19]. (Figure 1), (Table 1).

2.1. Dental Stem Cells

2.1.1. Periodontal Ligament Stem Cells

Periodontal ligament is a vital structure connecting teeth and alveolar bone, and periodontal ligament stem cells (PDLSCs) are pluripotent stem cells extracted from periodontal ligament. PDLSCs are considered to be important stem cells for periodontal regeneration and mandibular defects repair [21]. They can differentiate into alveolar bone and periodontal ligament under the interaction with extracellular membranes, and play an important role in regeneration of oral hard tissue. Existing studies have shown that bone morphogenic proteins (BMPs) can induce the osteogenic effect of PDLSCs [24,43]. Sung-Ho Ha et al. found that Methylsulfonylmethane (MSM) could induce the proliferation and differentiation of PDLSCs into alveolar bone through Smad2/3/Runx2/OSX/OPN axis [20]. Panduwawala CP et al. co-cultured PDLSCs with human umbilical vein endothelial cells in immunodeficiency mice and found new periodontal ligament regenerated at weeks 4 and 8 [44]. Xuan et al. co-cultured M2 macrophages and PDLSCs, which can promote the matrix differentiation of PDLSCs [22]. In vivo, PDLSCs can both differentiate into bone-like mineral tissue and ligament-like fibric tissue with a certain arrangement depending on different growth factors. A single-center clinical trial used PDLSCs and GTR to treat periodontal intrabony defects, finding that alveolar bone height increased significantly with 12-month follow-up [45]. Thus, PDLSCs is considered as an important cell source of periodontal regeneration.

2.1.2. Stem Cells from Human Exfoliated Deciduous Teeth (SHEDs)

Stem cells from human exfoliated deciduous teeth (SHEDs) have stronger potential to differentiate into other cells in vivo than other stem cells [26]. SHEDs can differentiate into adipocytes, osteoblasts, odontoblasts, nerve cells, hepatocytes and endothelial cells. In the study by Thanaphum Osathanon et al., basic fibroblast growth factor (bFGF) and Jagged1 were found to induce osteogenic differentiation of SHEDs in rats by regulating the expression of alkaline phosphatase [28]. Some studies found cell sheets of SHEDs together with treated dentin matrix can achieve the regeneration of periodontal tissue consisting of periodontal ligament fibers, blood vessels and new alveolar bone [46]. The exfoliated human deciduous teeth stem cells have been used to regenerate periodontal tissue and repair alveolar bone defect because of its high proliferative ability, strong immunosuppressive ability of multiple differentiation, and low carcinogenic risk [27].

2.1.3. Stem Cells from Apical Papilla

Stem cells from apical papilla (SCAPs) are mesenchymal stem cells. It was found and extracted from immature root papilla. Proliferation and differentiation ability of dental papilla stem cells are stronger, which are considered to be important cells in oral regenerative medicine. Researches have shown SCAPs have strong potential in dentin regeneration, neurogenic regeneration and hepatocyte-like regeneration [29]. Shu Diao et al. found that activation of the WDR63 signaling pathway can promote osteogenic differentiation of dental papilla stem cells [30]. The study cultured SCAPs cell sheets and transplanted them into nude mice model, finding that SCAPs showed a strong mineral tissue regeneration potential, indicating SCAPs may be used in periodontal hard tissue repair such as alveolar bone defect.

2.1.4. Dental Follicle Stem Cells

Dental follicle is loose connective tissue around tooth germ. Dental follicle stem cells (DFCs) are pluripotent stem cells extracted from dental follicle. It can differentiate into osteoblasts, alveolar bone, dentin-like tissue, periodontal ligament tissue, adipocytes, chondrocytes, etc. [31]. Ling-Ling et al. found that DFCs could differentiate into alveolar bone-like morphology under the effect of recombinant human BMP-2n [47]. DFCs have broad application prospects in periodontal regeneration, bio-root regeneration, bone regeneration.

2.1.5. Tooth Germ Progenitor Cells

Tooth germ progenitor cells (TGPCs) are the mesenchymal stems obtained from the third molar during the late bell stage of tooth development [33]. Studies have found that TGPCs have strong proliferation and differentiation potential and can differentiate into osteoblasts, hepatocytes and neurogenic tissues [19,32,33]. BMPs, including BMP-2 and BMP-7, can induce the osteogenesis of TGPCs, indicating the TGPCs can be implemented in periodontal regeneration [48].

2.2. Non-Dental Stem Cells

2.2.1. Mesenchymal Stem Cells Derived from Alveolar Bone

Mesenchymal stem cells derived from alveolar bone (AB-MSCs) are found and extracted from alveolar bone, which is a convenient source of mesenchymal stem cells. AB-MSCs have multi-directional differentiation potential, which can differentiate into osteoblasts, adipocytes and chondrocytes [16,34]. Researchers have used stem cells derived from alveolar bone to repair maxillary cystic bone defects and received an obvious bone regeneration, which indicated AB-MSCs may act as a potential cell source for repairing alveolar bone defect caused by periodontitis [35].

2.2.2. Gingival Mesenchymal Stem Cells

Gingival mesenchymal stem cells (GMSCs) derive from gingiva, and have shown their potential in periodontitis treatments [37]. Studies showed the proliferation and osteogenic ability of the cells were promoted when cultured with the proper scaffold [38]. A systemic review showed that, compared with other stem cells, GMSCs are easy to obtain, high in proliferation rates and colony-forming efficiency, and can induce a stable periodontal tissue regeneration [36]. Therefore, GMSCs can be a substitute for PDLSCs in periodontal recovery.

2.2.3. Adipose Derived Stem Cells

Due to the easy accessibility of adipose tissue and the minimum injury caused by extracting them, adipose-derived stem cells are considered as promising seed cells for tissue engineering. In the study of Morikuni Tobita et.al., they found that adipose-derived stem cells could promote periodontal tissue regeneration with a small amount of newly-formed alveolar bone and periodontal ligament-like tissue observed after 8-week implantation [41]. Studies have reported that adipose-derived stem cells released a series of growth factors related to vascular formation and migration as well as immune-modulation capability and could contribute to the osteogenic differentiation of the periodontal ligament cell [39,40,42].

3. Biocompatible Materials and Scaffolds

In oral regenerative medicine, scaffolds and biomaterials are indispensable components. Biomaterial is a kind of material that can interact with both host and implant biological systems. It is often used in the medical field to replace the original structure or tissue. They can be used as attachment sites of cells from surrounding tissues, an important template for tissue regeneration, and a necessary cell source for tissue regeneration [49,50]. Therefore, biomaterials should process the features of bioactivity, biocompatibility, biodegradability and bio-inertia [51].
A variety of biological materials, such as natural organic, synthetic organic or inorganic materials, for oral and maxillofacial regeneration, have advantages and disadvantages. Natural organic substances include peptides (collagen or gelatin) and polysaccharides (alginate, chitosan, and agarose). Synthetic organic materials include polylactic acid (PLA), polycaprolactone (PCL), poly (lactic-co-glycolic acid) (PLGA) and polyglycolic acid (PGA) [49,50,51,52,53,54]. The most commonly used inorganic materials are bioactive ceramics, including glass ceramics or calcium phosphate materials, which have been widely studied as bone defect regeneration materials [12,55]. (Table 2).

3.1. Organic Polymers

Organic polymers have been widely studied in regeneration medicine, especially in the field of bone regeneration. The organic polymers used in regenerative medicine are mainly biodegradable polymers and have suitable biocompatibility.
Biodegradable polymers, whether natural or synthetic, are good materials for tissue engineering scaffolds. Its degradation mode is very important for its application. Biodegradable polymers are mainly divided into enzymatic degradation polymers and hydrolysis polymers [49].
Natural organic polymers, including chitosan, alginate, polypeptide or collagen, and hydrogels, are mainly degraded by enzymes due to their microenvironment. Due to its high plasticity, hydrogel is a good carrier of bioactive molecules and has good biocompatibility and cellular affinity. It becomes an important scaffold material in 3D bioprinting and has an important application in periodontal regeneration [52,56,57]. In the study by Premjit Arpornmaeklong et al., it was found that specific chitosan/collagen ratio in 3D bioprinting thermosensitive β-glycerophosphate (BGP) chitosan/collagen hydrogel could promote the release of natural flavonoids, thereby affecting the growth and bioactivity of human PDLSCs [56].
Synthetic organic materials such as PLA, PCL, PLGA and PGA are hydrolytic organic polymers. These materials have good physicochemical and mechanical properties, together with various degrading rates in different types. The degradation mechanism of hydrolytic materials involves the degradation of specific chemical bonds and subsequent small molecule diffusion and polymer surface erosion. Surface erosion of polymers forms micromechanical retention with surrounding tissues and enhances the mechanical properties of polymers. However, this kind of material has poor bio-conductivity [50,51,52,53]. Therefore, synthetic organic materials are used along with other materials to both enhance the strength of products and acquire certain bioactivity [58]. In the dog periodontal defect model, researchers placed PLGA and PLGA/FGF-2 scaffolds made by electrospinning and the formation of organized periodontal ligament-like tissue was observed. Meanwhile, in vitro, the PLGA/FGF-2 scaffolds can promote the proliferation of PDLSCs [60].

3.2. Inorganics Materials

Inorganics materials in regenerative medicine are usually bioactive ceramics, including bio-glass and calcium phosphate, including hydroxyapatite (HA) and β-tricalcium phosphate (TCP). These two materials have been studied in the field of hard tissue regeneration for a long time. Bioactive ceramic is a solid chemical combination with the surrounding bone tissue, and induces the regeneration of surrounding bone tissue. Hydroxyapatite is chemically and structurally similar to the main components of bone tissue, and has a certain bone induction effect, but it has a poor degrading rate in vivo and in vitro. The structure of β-tricalcium phosphate is similar to bone tissue, but its degradation rate is faster than hydroxyapatite in vivo. However, using pure TCP to fabricate the scaffold is too brittle to deal with. The strength can be increased by adding synthetic organic materials. Research has found that the printed hybrid TCP/PLA scaffolds showed improved stability and also activated osteoblasts migration [49,54].

3.3. Biocompatible Scaffolds

The periodontal ligament is a fibrous connective tissue structure that firmly binds the tooth roots to its surrounding alveolar bone, preventing tooth and alveolar bone from injury during chewing. The highly organized collagen fibers of periodontal ligament oriented perpendicularly to the cementum and the alveolar bone, which plays an important role in the health of periodontium. The existence of cementum and alveolar bone is vital for the function and total restoration of periodontal tissue [61].
In order to regenerate the alveolar bone and tooth cementum, scaffolds with living cells and/or bioactive molecules are needed to form a stable microenvironment. Stem cells such as PDLSCs and other mesenchymal stem cells have achieved a promising result [10,45]. Scaffolds mimics the structure of periodontal tissue for stem cells to conduct their function. They have the ability to guide and promote the recovery process. These scaffolds can consist of one or several components and can be implanted together with stem cells and biologically active factors [6,12,49,62].

3.3.1. Monophasic Scaffolds

The monophasic scaffolds have only one compartment, which meets the requirements of periodontal regeneration: bone-defect stabilization, selective cell proliferation as well as spatial-temporal control of the periodontal healing. Single monophasic scaffolds can directly induce the healing process of periodontal tissue. Carrel, J.P. et al. placed OsteoFlux® (OF), a 3D printed porous scaffold of layered strands of tricalcium phosphate (TCP) and hydroxyapatite (HA), onto the calvaria of 12 adult sheep [63]. They assessed the vertical bone growth led by OF and compared OF with particulate bovine bone and particulate TCP. Large volume reconstructions was prevented by the particles. While compared to the controllable linear pores, the arrangement of pores and inter-particle channels of particles cannot be controlled by practationers, accounting for limitation in osteoconduction of particle materials. Therefore, the authors observed a signficant increase in bone growth in the first eight weeks, but no difference in the total four months. Besides, the monophasic scaffolds can also serve as cell delivery and bioactive cues release vectors [12,64,65]. With macro- and micro-structure grooved on 3D printed PCL scaffold, Pilipchuk seeded human ligament cells, fibroblasts onto the micropattern and found that the macroscale and microscale features could promote soft mineralized and cementum-like tissue formation [64]. Though cell-based periodontal therapies could promote the periodontal repair, there are considerable limitations, including cell sources collection and culture. Scaffolds loaded with nanoparticles and growth factors can be clinical alternatives and could reach a latent positive outcome [66].

3.3.2. Multiphasic Scaffolds

In periodontium, the regeneration of the cementum and the periodontal ligament is equally important with the regeneration of the alveolar bone. Thus, for multi-tissue regeneration, monophasic scaffolds evolve into multiphasic scaffolds, which allow compartmentalized tissue healing that is eventually integrated into a cohesive system [67]. The spatial structure differs in that the multiphasic scaffolds have the closest architecture to the compartmentalized tissue. In other words, multiphasic scaffolds take the key points into consideration: (1) promote the formation of cementum and alveolar bone simultaneously, (2) the appropriate formation of the oriented periodontal ligament fibers that attach to the newly formed alveolar bone and cementum, showing the optimized spatiotemporally control over the periodontal restoration process [12,68].
Multiphasic scaffolds can be categorized into biphasic and triphasic scaffolds [62]. Wang, C.Y. manufactured gingival fibroblast cell-laden biphasic scaffolds by extrusion consist of collagen and strontium-doped calcium silicate. Authors placed the scaffolds onto rabbits cranial and found the bi-layer scaffold enhanced osteogenesis [69]. Costa et al. divided the scaffolds into bone and ligament parts. The bone compartment was made of β-TCP/PCL and seeded with osteoblasts. The ligament compartment consisted of cell sheet by electrospinning. Researchers implanted it subcutaneously on a slice of dentin in an athymic mouse. They observed the bone formation and the formation of oriented periodontal fibers with increased vascular formation [70]. Based on multiphasic scaffold concepts, Chen, X et.al. developed a triphasic scaffold that was made up of three different phases for each periodontium, respectively, and seeded with periodontal ligament cells. Researchers made the scaffolds with controlled released cementum protein 1, poly(ε-caprolactone) (PCL) and type I collagen (COL) by electrospinning. They then planted them in the defect rat model for eight weeks. They found after eight weeks, the cementum-like tissue had formed [71]. The use of triphasic scaffolds for periodontal tissue is relatively recent and needs further exploration because of its difficulty in clinical application. The regeneration of periodontal tissue relies on the coordination in the spatial-temporal scale and the main challenge is the regeneration of cementum.

3.4. 3D Bioprinting Techniques

Three-D bioprinting comes from 3D printing, also known as additive manufacturing, and is one of the practical and promising methods in tissue engineering. Three-D bioprinting overcomes the limitations of fabricating spatial heterogenetic scaffolds, as it aims to mimic the native structure of targeted tissue and individualize the shape to suit the periodontal defects [13,72]. The 3D bioprinting techniques can be categorized into extrusion, droplet-jet bioprinting, photocuring-based bioprinting and cell electrospinning. Extrusion is one of the popular 3D bioprinting techniques for the reason that it can use various biomaterials as well as cell spheroids, which can be printed through nozzles [13,73]. Collagen/strontium-doped calcium silicate bi-phasic scaffolds produced by extrusion with fibroblasts ladened could enhance osteogenesis in animal model [69]. Photocuring-based technique is considered as the trend for its high accuracy, speed and resolution. However, because of the limited light-sensitive materials to be used, it cannot be widely used [74,75]. Cell electrospinning receives much attentions as it can fabricate biomimicry scaffolds [76]. Electrospinning fabricated PLGA scaffolds loaded with FGF-2 could release FGF-2 continuously within 21 days and promote the proliferation of PDLSCs [60]. Based on the different principles of various 3D bioprinting techniques, strength and limitations are list as follows [73,77,78]. (Table 3).

4. Bioactive Factors

Bioactive factors act as a key regulating factor in periodontal regeneration. Bioactive molecules can regulate the differentiation of seed cells into periodontal tissues, mobilize the resident stem cells to the defect sites and the recruitment of immune cells to regulate the inflammatory response of damaged sites, thereby promoting periodontal tissue regeneration [6,20,80,81,82]. Platelet-derived growth factors (PDGFs), bone morphogenetic proteins (BMPs) and enamel matrix derivatives (EMD) are widely used [83]. PDGF is derived from autologous platelet concentrates. Researchers found PDGF can promote the proliferation of stem cells and inhibit collagen formation as well as enhancing the bone growth, representing a potential in promoting stem cell based alveolar bone repair [84,85]. BMPs are a major influence in osteo-inductivity. BMPs can simulate the function of alkaline phosphatase to simulate bone formation. Besides, BMPs can induce osteoblastic transformation of stem cells [66]. EMD is released during the formation of periodontal tissue. The function of alkaline phosphatase and the cellular viability are promoted when PDLSCs cultured with EMD [86,87]. Studies have also shown that drugs can promote the proliferation and differentiation of seed cells. In the study by Liu Qu et al., it was found that 3D printed hydrogels containing metformin nanocarriers could promote the differentiation of human deciduous tooth stem cells into bone tissue without affecting their cell viability [25]. In addition, the printed-hydrogel together with nanometal particles or other bioactive molecules can also promote the differentiation of different oral stem cells into periodontal tissue and bone tissue [23,88,89].
Meanwhile, bioactive factors play a vital role in endogenous cell homing. Endogenous cell homing is a new concept aiming to solve the problems aroused by vitro stem cell culture, which is to recruit the resident stem cell and direct them to periodontal tissue [6]. Stromal cell-derived factor-1α (SDF-1α) is the most common growth factor in recruiting stem cells of patients [6,90]. A study found exendin-4 together with SDF-1α could promote the cellular viability of PDLSCs [91]. In vivo, hydrogel loaded with SDF-1α can gather CD90+/CD34− stromal cells to achieve in situ periodontal tissue regeneration [57]. Researchers revealed the platelet-rich fibrin and treated dentin matrix could also attract PDLSCs and bone marrow mesenchymal stem cells and accelerate their cell proliferation rate [92]. Although it is still in the laboratory stage, stem-cell homing is a technique with potential, which is more effective, more economical and faster compared with vitro cell culture.
Bioactive molecules are essential to periodontal restoration, since they regulate the signal pathways directing the stem cell biological behaviors, including proliferation, differentiation and endogenous migration. Considering the complicated and interconnected pathways in cells, it is insufficient to figure out the function of a single bioactive factor, which means researches should focus on the function of multi-molecules to move forward in the field of periodontal regeneration.

5. Challenges and Prospects

Periodontitis is a chronic inflammation disease caused by bacteria. The loss of tooth sounding tissue caused by periodontitis is unrecoverable. Periodontal surgery is an effective restoration method, including GTR. The oral and maxillofacial region has been considered as a rich source of adult stem cells. Several studies and animal trials have proven that stem cells can perform a promising role in periodontal regeneration [20,24,35,38,47,60]. Due to individual heterogeneity, the reaction to implantation and technique sensitivity, the success rate of stem cells is uncertain and the clinical gain of the treatment differs according to different situations. In a randomized controlled trial, 20 patients were enrolled, 10 were treated with TCP, while the cell-treated group received cultured gingival fibroblasts on the TCP scaffold. The cell-treated group was observed to have a significant increase in bone gain after 6 months (average 3.14 mm) compared with the controlled (average 1.91 mm) [10]. Another randomized controlled trial with 29 patients used micrograft rich in autologous dental pulp stem cells. Clinical and radiographic exams were taken after 6 and 12 months. The bone defect fill is, on average, 3.9 mm for cell-treated regions versus 1.6 mm in the control. However, another randomized clinical trial using autologous PDLSCs with 30 patients enrolled and results indicating one-year follow-up showed that the cell-treated group did not appear significantly difference from the non-cell treated group (2.7 mm and 2.3 mm bone gain, respectively) [45]. This may present the problem of the stem cells used in periodontal repair, which is whether patients with periodontal defects can gain more benefits from the application of stem cells. Meanwhile, the ethical and bio-safety concerns cannot be avoided. Besides, both of the trials do not present with a large sample volume and are only carried out in a single center. Additionally, the longer-term effect of stem cells still needs to be confirmed via multi-center randomized trials [10,11,45].
The vigorous development of 3D bioprinting technology provides a new solution for periodontal tissue regeneration, scaffolds using biocompatible materials and bioactive particles building a regeneration micro-environment. The current challenge for fabricating the scaffolds is focused on how to regenerate the comparted tissue in the periodontium, respectively. The design of scaffolds, including micropattern and multiphasic structure, etc. provides the possible solutions. Besides, using 3D bioprinting techniques to produce scaffolds is both time-consuming and costly, because of individualized design and the high expense of relative equipment. Bioactive factors play multiple roles in periodontal restoration, including stem cell differentiation, immunomodulation and stem cell homing, etc. Drug delivery systems including nanoparticles and a controlled released system are the main trends of researches in bioactive factors, and the development of a more efficient delivery system is under research [93]. In the meantime, stem-cell homing induced by bioactive agents is a strategy with great implementation possibility, for the reason that stem-cell homing generates individual healing potential and can avoid the ethical concerns relating to the use of stem cells acquired from others. Therefore, future studies on searching for both innovative, effective and affordable scaffolds and bioactive molecules should be developed, which can greatly enhance the periodontal restoration [2,5,7,9,15,16,17,18,19].

Author Contributions

Z.W. and X.H. were responsible for the ideation; writing—original draft preparation, Z.W.; writing—review and editing, Z.W. and X.H. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by grants from Undergraduate Teaching Quality Engineering Project of Sun Yat-Sen University (No. 87000-31911131), Guangdong Financial Fund for High-Caliber Hospital Construction (No. 174-2018-XMZC-0001-03-0125/C-01).

Data Availability Statement

The study did not report any data.

Acknowledgments

Authors are thankful to Undergraduate Teaching Quality Engineering Project of Sun Yat-Sen University (No. 87000-31911131), Guangdong Financial Fund for High-Caliber Hospital Construction (No. 174-2018-XMZC-0001-03-0125/C-01).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

GlossaryAbbreviations
Guide Tissue RegenerationGTR
Bone Morphogenic ProteinsBMPs
MethylsulfonylmethaneMSM
Periodontal Ligament Stem CellsPDLSCs
Stem Cells from Human Exfoliated Deciduous TeethSHEDs
Basic Fibroblast Growth FactorbFGF
Stem Cells from Apical PapillaSCAPs
Dental Follicle Stem CellsDFCs
Tooth Germ Progenitor CellsTGPCs
Mesenchymal Stem Cells Derived from Alveolar BoneAB-MSCs
Gingival Mesenchymal Stem CellsGMSCs
Bone Morphogenic Protein-2BMP-2
Bone Morphogenic Protein-7BMP-7
Polylactic AcidPLA
PolycaprolactonePCL
Poly (Lactic-Co-Glycolic Acid)PLGA
Polyglycolic AcidPGA
Fibroblast Growth Factor-2FGF-2
Β-GlycerophosphateBGP
HydroxyapatiteHA
Β-Tricalcium PhosphateTCP
Platelet-Derived Growth FactorsPDGFs
Enamel Matrix DerivativesEMDs
Stromal Cell-Derived Factor-1αSDF-1α

References

  1. Slots, J. Periodontitis: Facts, fallacies and the future. Periodontol. 2000 2017, 75, 7–23. [Google Scholar] [CrossRef] [PubMed]
  2. Kim, W.J.; Soh, Y.; Heo, S.M. Recent Advances of Therapeutic Targets for the Treatment of Periodontal Disease. Biomol. Ther. 2021, 29, 263–267. [Google Scholar] [CrossRef] [PubMed]
  3. Tonetti, M.S.; Greenwell, H.; Kornman, K.S. Staging and grading of periodontitis: Framework and proposal of a new classification and case definition. J. Periodontol. 2018, 89 (Suppl. 1), S159–S172. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Deas, D.E.; Moritz, A.J.; Sagun, R.S., Jr.; Gruwell, S.F.; Powell, C.A. Scaling and root planing vs. conservative surgery in the treatment of chronic periodontitis. Periodontol. 2000 2016, 71, 128–139. [Google Scholar] [CrossRef] [PubMed]
  5. Tatullo, M.; Marrelli, M.; Paduano, F. The regenerative medicine in oral and maxillofacial surgery: The most important innovations in the clinical application of mesenchymal stem cells. Int. J. Med. Sci. 2015, 12, 72–77. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Liu, J.; Ruan, J.; Weir, M.D.; Ren, K.; Schneider, A.; Wang, P.; Oates, T.W.; Chang, X.; Xu, H.H.K. Periodontal Bone-Ligament-Cementum Regeneration via Scaffolds and Stem Cells. Cells 2019, 8, 537. [Google Scholar] [CrossRef] [Green Version]
  7. Nunez, J.; Vignoletti, F.; Caffesse, R.G.; Sanz, M. Cellular therapy in periodontal regeneration. Periodontol. 2000 2019, 79, 107–116. [Google Scholar] [CrossRef] [PubMed]
  8. Needleman, I.; Worthington, H.V.; Giedrys-Leeper, E.; Tucker, R. WITHDRAWN: Guided tissue regeneration for periodontal infra-bony defects. Cochrane Database Syst. Rev. 2019, 5, CD001724. [Google Scholar] [CrossRef]
  9. Han, J.; Menicanin, D.; Gronthos, S.; Bartold, P.M. Stem cells, tissue engineering and periodontal regeneration. Aust. Dent. J. 2014, 59 (Suppl. 1), 117–130. [Google Scholar] [CrossRef] [PubMed]
  10. Abdal-Wahab, M.; Abdel Ghaffar, K.A.; Ezzatt, O.M.; Hassan, A.A.A.; El Ansary, M.M.S.; Gamal, A.Y. Regenerative potential of cultured gingival fibroblasts in treatment of periodontal intrabony defects (randomized clinical and biochemical trial). J. Periodontal. Res. 2020, 55, 441–452. [Google Scholar] [CrossRef]
  11. Gorski, B.; Jalowski, S.; Gorska, R.; Zaremba, M. Treatment of intrabony defects with modified perforated membranes in aggressive periodontitis: A 12-month randomized controlled trial. Clin. Oral. Investig. 2018, 22, 2819–2828. [Google Scholar] [CrossRef] [Green Version]
  12. Raveau, S.; Jordana, F. Tissue Engineering and Three-Dimensional Printing in Periodontal Regeneration: A Literature Review. J. Clin. Med. 2020, 9, 4008. [Google Scholar] [CrossRef]
  13. Hong, N.; Yang, G.H.; Lee, J.; Kim, G. 3D bioprinting and its in vivo applications. J. Biomed. Mater. Res. B Appl. Biomater. 2018, 106, 444–459. [Google Scholar] [CrossRef] [PubMed]
  14. D’Avanzo, N.; Bruno, M.C.; Giudice, A.; Mancuso, A.; Gaetano, F.; Cristiano, M.C.; Paolino, D.; Fresta, M. Influence of Materials Properties on Bio-Physical Features and Effectiveness of 3D-Scaffolds for Periodontal Regeneration. Molecules 2021, 26, 1643. [Google Scholar] [CrossRef] [PubMed]
  15. Zhai, Q.; Dong, Z.; Wang, W.; Li, B.; Jin, Y. Dental stem cell and dental tissue regeneration. Front. Med. 2019, 13, 152–159. [Google Scholar] [CrossRef]
  16. Liu, J.; Yu, F.; Sun, Y.; Jiang, B.; Zhang, W.; Yang, J.; Xu, G.T.; Liang, A.; Liu, S. Concise reviews: Characteristics and potential applications of human dental tissue-derived mesenchymal stem cells. Stem. Cells 2015, 33, 627–638. [Google Scholar] [CrossRef] [PubMed]
  17. Hu, L.; Liu, Y.; Wang, S. Stem cell-based tooth and periodontal regeneration. Oral Dis. 2018, 24, 696–705. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Dave, J.R.; Tomar, G.B. Dental Tissue-Derived Mesenchymal Stem Cells: Applications in Tissue Engineering. Crit. Rev. Biomed. Eng. 2018, 46, 429–468. [Google Scholar] [CrossRef] [PubMed]
  19. Paz, A.G.; Maghaireh, H.; Mangano, F.G. Stem Cells in Dentistry: Types of Intra- and Extraoral Tissue-Derived Stem Cells and Clinical Applications. Stem Cells Int. 2018, 2018, 4313610. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Ha, S.H.; Choung, P.H. MSM promotes human periodontal ligament stem cells differentiation to osteoblast and bone regeneration. Biochem. Biophys. Res. Commun. 2020, 528, 160–167. [Google Scholar] [CrossRef] [PubMed]
  21. Tomokiyo, A.; Wada, N.; Maeda, H. Periodontal Ligament Stem Cells: Regenerative Potency in Periodontium. Stem Cells Dev. 2019, 28, 974–985. [Google Scholar] [CrossRef]
  22. Li, X.; He, X.T.; Kong, D.Q.; Xu, X.Y.; Wu, R.X.; Sun, L.J.; Tian, B.M.; Chen, F.M. M2 Macrophages Enhance the Cementoblastic Differentiation of Periodontal Ligament Stem Cells via the Akt and JNK Pathways. Stem Cells 2019, 37, 1567–1580. [Google Scholar] [CrossRef]
  23. Ma, Y.; Ji, Y.; Zhong, T.; Wan, W.; Yang, Q.; Li, A.; Zhang, X.; Lin, M. Bioprinting-Based PDLSC-ECM Screening for in Vivo Repair of Alveolar Bone Defect Using Cell-Laden, Injectable and Photocrosslinkable Hydrogels. ACS Biomater. Sci. Eng. 2017, 3, 3534–3545. [Google Scholar] [CrossRef]
  24. Hyun, S.Y.; Lee, J.H.; Kang, K.J.; Jang, Y.J. Effect of FGF-2, TGF-beta-1, and BMPs on Teno/Ligamentogenesis and Osteo/Cementogenesis of Human Periodontal Ligament Stem Cells. Mol. Cells 2017, 40, 550–557. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Qu, L.; Dubey, N.; Ribeiro, J.S.; Bordini, E.A.F.; Ferreira, J.A.; Xu, J.; Castilho, R.M.; Bottino, M.C. Metformin-loaded nanospheres-laden photocrosslinkable gelatin hydrogel for bone tissue engineering. J. Mech. Behav. Biomed. Mater. 2021, 116, 104293. [Google Scholar] [CrossRef] [PubMed]
  26. Taguchi, T.; Yanagi, Y.; Yoshimaru, K.; Zhang, X.Y.; Matsuura, T.; Nakayama, K.; Kobayashi, E.; Yamaza, H.; Nonaka, K.; Ohga, S.; et al. Regenerative medicine using stem cells from human exfoliated deciduous teeth (SHED): A promising new treatment in pediatric surgery. Surg. Today 2019, 49, 316–322. [Google Scholar] [CrossRef] [PubMed]
  27. Gao, X.; Shen, Z.; Guan, M.; Huang, Q.; Chen, L.; Qin, W.; Ge, X.; Chen, H.; Xiao, Y.; Lin, Z. Immunomodulatory Role of Stem Cells from Human Exfoliated Deciduous Teeth on Periodontal Regeneration. Tissue Eng. Part. A 2018, 24, 1341–1353. [Google Scholar] [CrossRef]
  28. Osathanon, T.; Nowwarote, N.; Manokawinchoke, J.; Pavasant, P. bFGF and JAGGED1 regulate alkaline phosphatase expression and mineralization in dental tissue-derived mesenchymal stem cells. J. Cell Biochem. 2013, 114, 2551–2561. [Google Scholar] [CrossRef] [PubMed]
  29. Kang, J.; Fan, W.; Deng, Q.; He, H.; Huang, F. Stem Cells from the Apical Papilla: A Promising Source for Stem Cell-Based Therapy. Biomed. Res. Int. 2019, 2019, 6104738. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Diao, S.; Yang, D.M.; Dong, R.; Wang, L.P.; Wang, J.S.; Du, J.; Wang, S.L.; Fan, Z. Enriched trimethylation of lysine 4 of histone H3 of WDR63 enhanced osteogenic differentiation potentials of stem cells from apical papilla. J. Endod. 2015, 41, 205–211. [Google Scholar] [CrossRef]
  31. Zhou, T.; Pan, J.; Wu, P.; Huang, R.; Du, W.; Zhou, Y.; Wan, M.; Fan, Y.; Xu, X.; Zhou, X.; et al. Dental Follicle Cells: Roles in Development and Beyond. Stem Cells Int. 2019, 2019, 9159605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Tasli, P.N.; Dogan, A.; Demirci, S.; Sahin, F. Myogenic and neurogenic differentiation of human tooth germ stem cells (hTGSCs) are regulated by pluronic block copolymers. Cytotechnology 2016, 68, 319–329. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Ikeda, E.; Yagi, K.; Kojima, M.; Yagyuu, T.; Ohshima, A.; Sobajima, S.; Tadokoro, M.; Katsube, Y.; Isoda, K.; Kondoh, M.; et al. Multipotent cells from the human third molar: Feasibility of cell-based therapy for liver disease. Differentiation 2008, 76, 495–505. [Google Scholar] [CrossRef] [PubMed]
  34. Cao, C.; Tarle, S.; Kaigler, D. Characterization of the immunomodulatory properties of alveolar bone-derived mesenchymal stem cells. Stem Cell Res. Ther. 2020, 11, 102. [Google Scholar] [CrossRef] [Green Version]
  35. Redondo, L.M.; Garcia, V.; Peral, B.; Verrier, A.; Becerra, J.; Sanchez, A.; Garcia-Sancho, J. Repair of maxillary cystic bone defects with mesenchymal stem cells seeded on a cross-linked serum scaffold. J. Craniomaxillofac. Surg. 2018, 46, 222–229. [Google Scholar] [CrossRef]
  36. Li, Q.; Yang, G.; Li, J.; Ding, M.; Zhou, N.; Dong, H.; Mou, Y. Stem cell therapies for periodontal tissue regeneration: A network meta-analysis of preclinical studies. Stem. Cell Res. Ther. 2020, 11, 427. [Google Scholar] [CrossRef]
  37. Gao, X.; Cao, Z. Gingiva-derived Mesenchymal Stem Cells and Their Potential Applications in Oral and Maxillofacial Diseases. Curr. Stem Cell Res. Ther. 2020, 15, 43–53. [Google Scholar] [CrossRef]
  38. Cristaldi, M.; Mauceri, R.; Campisi, G.; Pizzo, G.; Alessandro, R.; Tomasello, L.; Pitrone, M.; Pizzolanti, G.; Giordano, C. Growth and Osteogenic Differentiation of Discarded Gingiva-Derived Mesenchymal Stem Cells on a Commercial Scaffold. Front. Cell Dev. Biol. 2020, 8, 292. [Google Scholar] [CrossRef]
  39. Mohammed, E.; Khalil, E.; Sabry, D. Effect of Adipose-Derived Stem Cells and Their Exo as Adjunctive Therapy to Nonsurgical Periodontal Treatment: A Histologic and Histomorphometric Study in Rats. Biomolecules 2018, 8, 167. [Google Scholar] [CrossRef] [Green Version]
  40. Venkataiah, V.S.; Handa, K.; Njuguna, M.M.; Hasegawa, T.; Maruyama, K.; Nemoto, E.; Yamada, S.; Sugawara, S.; Lu, L.; Takedachi, M.; et al. Periodontal Regeneration by Allogeneic Transplantation of Adipose Tissue Derived Multi-Lineage Progenitor Stem Cells in vivo. Sci. Rep. 2019, 9, 921. [Google Scholar] [CrossRef]
  41. Tobita, M.; Uysal, A.C.; Ogawa, R.; Hyakusoku, H.; Mizuno, H. Periodontal tissue regeneration with adipose-derived stem cells. Tissue Eng. Part A 2008, 14, 945–953. [Google Scholar] [CrossRef]
  42. Kocan, B.; Maziarz, A.; Tabarkiewicz, J.; Ochiya, T.; Banas-Zabczyk, A. Trophic Activity and Phenotype of Adipose Tissue-Derived Mesenchymal Stem Cells as a Background of Their Regenerative Potential. Stem. Cells Int. 2017, 2017, 1653254. [Google Scholar] [CrossRef]
  43. Kang, W.; Liang, Q.; Du, L.; Shang, L.; Wang, T.; Ge, S. Sequential application of bFGF and BMP-2 facilitates osteogenic differentiation of human periodontal ligament stem cells. J. Periodontal. Res. 2019, 54, 424–434. [Google Scholar] [CrossRef]
  44. Panduwawala, C.P.; Zhan, X.; Dissanayaka, W.L.; Samaranayake, L.P.; Jin, L.; Zhang, C. In Vivo periodontal tissue regeneration by periodontal ligament stem cells and endothelial cells in three-dimensional cell sheet constructs. J. Periodontal. Res. 2017, 52, 408–418. [Google Scholar] [CrossRef]
  45. Chen, F.M.; Gao, L.N.; Tian, B.M.; Zhang, X.Y.; Zhang, Y.J.; Dong, G.Y.; Lu, H.; Chu, Q.; Xu, J.; Yu, Y.; et al. Treatment of periodontal intrabony defects using autologous periodontal ligament stem cells: A randomized clinical trial. Stem. Cell Res. Ther. 2016, 7, 33. [Google Scholar] [CrossRef] [Green Version]
  46. Yang, X.; Ma, Y.; Guo, W.; Yang, B.; Tian, W. Stem cells from human exfoliated deciduous teeth as an alternative cell source in bio-root regeneration. Theranostics 2019, 9, 2694–2711. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, R.; Li, C.; Zhang, S.; Ma, X.; Xiao, R.; Liu, H. Effects of rhBMP-2 on Bone Formation Capacity of Rat Dental Stem/Progenitor Cells from Dental Follicle and Alveolar Bone Marrow. Stem. Cells Dev. 2021, 30, 441–457. [Google Scholar] [CrossRef]
  48. Tasli, P.N.; Aydin, S.; Yalvac, M.E.; Sahin, F. Bmp 2 and bmp 7 induce odonto- and osteogenesis of human tooth germ stem cells. Appl. Biochem. Biotechnol. 2014, 172, 3016–3025. [Google Scholar] [CrossRef] [PubMed]
  49. Matichescu, A.; Ardelean, L.C.; Rusu, L.C.; Craciun, D.; Bratu, E.A.; Babucea, M.; Leretter, M. Advanced Biomaterials and Techniques for Oral Tissue Engineering and Regeneration—A Review. Materials 2020, 13, 5303. [Google Scholar] [CrossRef] [PubMed]
  50. Maurus, P.B.; Kaeding, C.C. Bioabsorbable implant material review. Oper. Tech. Sports Med. 2004, 12, 158–160. [Google Scholar] [CrossRef]
  51. Marin, E.; Boschetto, F.; Pezzotti, G. Biomaterials and biocompatibility: An historical overview. J. Biomed. Mater. Res. A 2020, 108, 1617–1633. [Google Scholar] [CrossRef]
  52. Gentile, P.; Chiono, V.; Carmagnola, I.; Hatton, P.V. An overview of poly(lactic-co-glycolic) acid (PLGA)-based biomaterials for bone tissue engineering. Int. J. Mol. Sci. 2014, 15, 3640–3659. [Google Scholar] [CrossRef]
  53. Elmowafy, E.M.; Tiboni, M.; Soliman, M.E. Biocompatibility, biodegradation and biomedical applications of poly(lactic acid)/poly(lactic-co-glycolic acid) micro and nanoparticles. J. Pharm. Investig. 2019, 49, 347–380. [Google Scholar] [CrossRef]
  54. Ferrage, L.; Bertrand, G.; Lenormand, P.; Grossin, D.; Ben-Nissan, B. A review of the additive manufacturing (3DP) of bioceramics: Alumina, zirconia (PSZ) and hydroxyapatite. J. Aust. Ceram. Soc. 2016, 53, 11–20. [Google Scholar] [CrossRef] [Green Version]
  55. Mansour, A.; Abu Nada, L.; El-Hadad, A.A.; Mezour, M.A.; Ersheidat, A.; Al-Subaie, A.; Moussa, H.; Laurenti, M.; Kaartinen, M.T.; Tamimi, F. Biomimetic trace metals improve bone regenerative properties of calcium phosphate bioceramics. J. Biomed. Mater. Res. A 2021, 109, 666–681. [Google Scholar] [CrossRef]
  56. Arpornmaeklong, P.; Sareethammanuwat, M.; Apinyauppatham, K.; Boonyuen, S. Characteristics and biologic effects of thermosensitive quercetin-chitosan/collagen hydrogel on human periodontal ligament stem cells. J. Biomed. Mater. Res. B Appl. Biomater. 2021, 109, 1656–1670. [Google Scholar] [CrossRef] [PubMed]
  57. Liu, S.; Wang, Y.N.; Ma, B.; Shao, J.; Liu, H.; Ge, S. Gingipain-Responsive Thermosensitive Hydrogel Loaded with SDF-1 Facilitates In Situ Periodontal Tissue Regeneration. ACS Appl. Mater. Interfaces 2021, 13, 36880–36893. [Google Scholar] [CrossRef] [PubMed]
  58. Park, J.; Lee, S.J.; Jung, T.G.; Lee, J.H.; Kim, W.D.; Lee, J.Y.; Park, S.A. Surface modification of a three-dimensional polycaprolactone scaffold by polydopamine, biomineralization, and BMP-2 immobilization for potential bone tissue applications. Colloids Surf. B Biointerfaces 2021, 199, 111528. [Google Scholar] [CrossRef] [PubMed]
  59. Verardi, S.; Lombardi, T.; Stacchi, C. Clinical and Radiographic Evaluation of Nanohydroxyapatite Powder in Combination with Polylactic Acid/Polyglycolic Acid Copolymer as Bone Replacement Graft in the Surgical Treatment of Intrabony Periodontal Defects: A Retrospective Case Series Study. Materials 2020, 13, 269. [Google Scholar] [CrossRef] [Green Version]
  60. Jiang, L.; Ding, Z.; Xia, S.; Liu, Y.; Lei, S.; Zhong, M.; Chen, X. Poly lactic-co-glycolic acid scaffold loaded with plasmid DNA encoding fibroblast growth factor-2 promotes periodontal ligament regeneration of replanted teeth. J. Periodontal. Res. 2020, 55, 488–495. [Google Scholar] [CrossRef] [PubMed]
  61. Sculean, A.; Chapple, I.L.C.; Giannobile, W.V. Wound models for periodontal and bone regeneration: The role of biologic research. Periodontol. 2000 2015, 68, 7–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Woo, H.N.; Cho, Y.J.; Tarafder, S.; Lee, C.H. The recent advances in scaffolds for integrated periodontal regeneration. Bioact Mater. 2021, 6, 3328–3342. [Google Scholar] [CrossRef] [PubMed]
  63. Carrel, J.P.; Wiskott, A.; Moussa, M.; Rieder, P.; Scherrer, S.; Durual, S. A 3D printed TCP/HA structure as a new osteoconductive scaffold for vertical bone augmentation. Clin. Oral Implant. Res. 2016, 27, 55–62. [Google Scholar] [CrossRef] [PubMed]
  64. Pilipchuk, S.P.; Monje, A.; Jiao, Y.; Hao, J.; Kruger, L.; Flanagan, C.L.; Hollister, S.J.; Giannobile, W.V. Integration of 3D Printed and Micropatterned Polycaprolactone Scaffolds for Guidance of Oriented Collagenous Tissue Formation In Vivo. Adv. Healthc. Mater. 2016, 5, 676–687. [Google Scholar] [CrossRef] [Green Version]
  65. Cho, H.; Tarafder, S.; Fogge, M.; Kao, K.; Lee, C.H. Periodontal ligament stem/progenitor cells with protein-releasing scaffolds for cementum formation and integration on dentin surface. Connect. Tissue Res. 2016, 57, 488–495. [Google Scholar] [CrossRef]
  66. Sheikh, Z.; Javaid, M.A.; Hamdan, N.; Hashmi, R. Bone Regeneration Using Bone Morphogenetic Proteins and Various Biomaterial Carriers. Materials 2015, 8, 1778–1816. [Google Scholar] [CrossRef]
  67. Ivanovski, S.; Vaquette, C.; Gronthos, S.; Hutmacher, D.W.; Bartold, P.M. Multiphasic scaffolds for periodontal tissue engineering. J. Dent. Res. 2014, 93, 1212–1221. [Google Scholar] [CrossRef]
  68. Zeng, W.Y.; Ning, Y.; Huang, X. Advanced technologies in periodontal tissue regeneration based on stem cells: Current status and future perspectives. J. Dent. Sci. 2021, 16, 501–507. [Google Scholar] [CrossRef]
  69. Wang, C.Y.; Chiu, Y.C.; Lee, A.K.; Lin, Y.A.; Lin, P.Y.; Shie, M.Y. Biofabrication of Gingival Fibroblast Cell-Laden Collagen/Strontium-Doped Calcium Silicate 3D-Printed Bi-Layered Scaffold for Osteoporotic Periodontal Regeneration. Biomedicines 2021, 9, 431. [Google Scholar] [CrossRef]
  70. Costa, P.F.; Vaquette, C.; Zhang, Q.; Reis, R.L.; Ivanovski, S.; Hutmacher, D.W. Advanced tissue engineering scaffold design for regeneration of the complex hierarchical periodontal structure. J. Clin. Periodontol. 2014, 41, 283–294. [Google Scholar] [CrossRef]
  71. Chen, X.; Liu, Y.; Miao, L.; Wang, Y.; Ren, S.; Yang, X.; Hu, Y.; Sun, W. Controlled release of recombinant human cementum protein 1 from electrospun multiphasic scaffold for cementum regeneration. Int. J. Nanomedicine. 2016, 11, 3145–3158. [Google Scholar] [CrossRef] [Green Version]
  72. Yu, N.; Nguyen, T.; Cho, Y.D.; Kavanagh, N.M.; Ghassib, I.; Giannobile, W.V. Personalized scaffolding technologies for alveolar bone regenerative medicine. Orthod. Craniofac. Res. 2019, 22 (Suppl. 1), 69–75. [Google Scholar] [CrossRef]
  73. Gu, Z.; Fu, J.; Lin, H.; He, Y. Development of 3D bioprinting: From printing methods to biomedical applications. Asian J. Pharm. Sci. 2020, 15, 529–557. [Google Scholar] [CrossRef]
  74. Trivedi, P.; Liu, R.; Bi, H.; Xu, C.; Rosenholm, J.M.; Akerfelt, M. 3D Modeling of Epithelial Tumors-The Synergy between Materials Engineering, 3D Bioprinting, High-Content Imaging, and Nanotechnology. Int. J. Mol. Sci. 2021, 22, 6225. [Google Scholar] [CrossRef]
  75. Della Bona, A.; Cantelli, V.; Britto, V.T.; Collares, K.F.; Stansbury, J.W. 3D printing restorative materials using a stereolithographic technique: A systematic review. Dent. Mater. 2021, 37, 336–350. [Google Scholar] [CrossRef]
  76. Hong, J.; Yeo, M.; Yang, G.H.; Kim, G. Cell-Electrospinning and Its Application for Tissue Engineering. Int. J. Mol. Sci. 2019, 20, 6208. [Google Scholar] [CrossRef] [Green Version]
  77. Ma, Y.; Xie, L.; Yang, B.; Tian, W. Three-dimensional printing biotechnology for the regeneration of the tooth and tooth-supporting tissues. Biotechnol. Bioeng. 2019, 116, 452–468. [Google Scholar] [CrossRef]
  78. Qu, M.; Wang, C.; Zhou, X.; Libanori, A.; Jiang, X.; Xu, W.; Zhu, S.; Chen, Q.; Sun, W.; Khademhosseini, A. Multi-Dimensional Printing for Bone Tissue Engineering. Adv. Healthc. Mater. 2021, 10, e2001986. [Google Scholar] [CrossRef]
  79. Zhuang, Y.; Lin, K.; Yu, H. Advance of Nano-Composite Electrospun Fibers in Periodontal Regeneration. Front. Chem. 2019, 7, 495. [Google Scholar] [CrossRef]
  80. Liu, J.; Chen, B.; Bao, J.; Zhang, Y.; Lei, L.; Yan, F. Macrophage polarization in periodontal ligament stem cells enhanced periodontal regeneration. Stem. Cell Res. Ther. 2019, 10, 320. [Google Scholar] [CrossRef]
  81. Chien, K.H.; Chang, Y.L.; Wang, M.L.; Chuang, J.H.; Yang, Y.C.; Tai, M.C.; Wang, C.Y.; Liu, Y.Y.; Li, H.Y.; Chen, J.T.; et al. Promoting Induced Pluripotent Stem Cell-driven Biomineralization and Periodontal Regeneration in Rats with Maxillary-Molar Defects using Injectable BMP-6 Hydrogel. Sci. Rep. 2018, 8, 114. [Google Scholar] [CrossRef]
  82. Nagai, K.; Ideguchi, H.; Kajikawa, T.; Li, X.; Chavakis, T.; Cheng, J.; Messersmith, P.B.; Heber-Katz, E.; Hajishengallis, G. An injectable hydrogel-formulated inhibitor of prolyl-4-hydroxylase promotes T regulatory cell recruitment and enhances alveolar bone regeneration during resolution of experimental periodontitis. FASEB J. 2020, 34, 13726–13740. [Google Scholar] [CrossRef]
  83. Mancini, L.; Romandini, M.; Fratini, A.; Americo, L.M.; Panda, S.; Marchetti, E. Biomaterials for Periodontal and Peri-Implant Regeneration. Materials 2021, 14, 3319. [Google Scholar] [CrossRef]
  84. Pan, J.; Deng, J.; Luo, Y.; Yu, L.; Zhang, W.; Han, X.; You, Z.; Liu, Y. Thermosensitive Hydrogel Delivery of Human Periodontal Stem Cells Overexpressing Platelet-Derived Growth Factor-BB Enhances Alveolar Bone Defect Repair. Stem. Cells Dev. 2019, 28, 1620–1631. [Google Scholar] [CrossRef]
  85. Mihaylova, Z.; Tsikandelova, R.; Sanimirov, P.; Gateva, N.; Mitev, V.; Ishkitiev, N. Role of PDGF-BB in proliferation, differentiation and maintaining stem cell properties of PDL cells in vitro. Arch. Oral. Biol. 2018, 85, 1–9. [Google Scholar] [CrossRef]
  86. Hisanaga, Y.; Suzuki, E.; Aoki, H.; Sato, M.; Saito, A.; Saito, A.; Azuma, T. Effect of the combined use of enamel matrix derivative and atelocollagen sponge scaffold on osteoblastic differentiation of mouse induced pluripotent stem cells in vitro. J. Periodontal. Res. 2018, 53, 240–249. [Google Scholar] [CrossRef] [PubMed]
  87. Li, G.; Hu, J.; Chen, H.; Chen, L.; Zhang, N.; Zhao, L.; Wen, N.; Yang, Y. Enamel matrix derivative enhances the proliferation and osteogenic differentiation of human periodontal ligament stem cells on the titanium implant surface. Organogenesis 2017, 13, 103–113. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. Zhang, Y.; Wang, P.; Wang, Y.; Li, J.; Qiao, D.; Chen, R.; Yang, W.; Yan, F. Gold Nanoparticles Promote the Bone Regeneration of Periodontal Ligament Stem Cell Sheets Through Activation of Autophagy. Int. J. Nanomed. 2021, 16, 61–73. [Google Scholar] [CrossRef] [PubMed]
  89. Ma, Y.; Ji, Y.; Huang, G.; Ling, K.; Zhang, X.; Xu, F. Bioprinting 3D cell-laden hydrogel microarray for screening human periodontal ligament stem cell response to extracellular matrix. Biofabrication 2015, 7, 044105. [Google Scholar] [CrossRef] [PubMed]
  90. Xu, X.Y.; Li, X.; Wang, J.; He, X.T.; Sun, H.H.; Chen, F.M. Concise Review: Periodontal Tissue Regeneration Using Stem Cells: Strategies and Translational Considerations. Stem. Cells Transl. Med. 2019, 8, 392–403. [Google Scholar] [CrossRef] [Green Version]
  91. Liang, Q.; Du, L.; Zhang, R.; Kang, W.; Ge, S. Stromal cell-derived factor-1/Exendin-4 cotherapy facilitates the proliferation, migration and osteogenic differentiation of human periodontal ligament stem cells in vitro and promotes periodontal bone regeneration in vivo. Cell Prolif. 2021, 54, e12997. [Google Scholar] [CrossRef] [PubMed]
  92. Ji, B.; Sheng, L.; Chen, G.; Guo, S.; Xie, L.; Yang, B.; Guo, W.; Tian, W. The combination use of platelet-rich fibrin and treated dentin matrix for tooth root regeneration by cell homing. Tissue Eng. Part A 2015, 21, 26–34. [Google Scholar] [CrossRef] [PubMed]
  93. Funda, G.; Taschieri, S.; Bruno, G.A.; Grecchi, E.; Paolo, S.; Girolamo, D.; Del Fabbro, M. Nanotechnology Scaffolds for Alveolar Bone Regeneration. Materials 2020, 13, 201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Processes 09 01724 g001 550

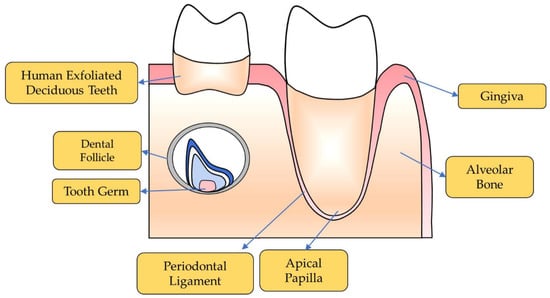

Figure 1. Stems cell sources in oral cavity.
Figure 1. Stems cell sources in oral cavity.
Processes 09 01724 g001
Table
Table 1. Characteristics of different types of oral seed cells.
Table 1. Characteristics of different types of oral seed cells.
Types SourcesDifferentiation and FunctionsReferences
DentalPeriodontal Ligament Stem CellsPeriodontal ligamentOsteoblasts
Adipocytes
Chondrocytes
Immunomodulation
Periodontal regeneration		[20,21,22,23,24]
Stem Cells from Human Exfoliated Deciduous TeethPulp of the human exfoliated deciduous teethAdipocytes
Osteoblasts
Odontoblasts
Nerve cells
Hepatocytes
Endothelial cells		[20,21,22,23,24,25,26,27,28]
Stem Cells from Apical PapillaApical papillaOdontoblasts
Nerve cells
Hepatocyte-like cells
Periodontal tissue		[25,26,27,28,29,30]
Dental Follicle Stem CellsDental follicleOsteoblasts
Odontoblasts
Periodontal ligament tissue
Adipocytes
Chondrocytes		[29,30,31]
Tooth Germ Progenitor CellsTooth germAdipocytes
Hepatocytes
Osteoblasts
Neurogenic tissues		[18,31,32,33]
Mesenchymal Stem Cells Derived from Alveolar BoneAlveolar boneOsteoblasts
Adipocytes
Chondrocytes
Immunomodulation		[18,32,33,34,35]
Non-dentalGingival Mesenchymal Stem CellsGingivaAdipocytes
Osteoblasts
Chondrocytes		[18,34,35,36,37,38]
Adipose Derived Stem CellsAdipose tissueOsteoblasts
Periodontal ligament-like tissue
Immunomodulation		[36,37,38,39,40,41,42]
Table
Table 2. The advantages and disadvantages of bio-materials.
Table 2. The advantages and disadvantages of bio-materials.
Types AdvantagesDisadvantagesRef.
Organic polymersNatural materialschitosan, alginate, polypeptide and collagenExcellent hydrophilicityPoor mechanical property
High degrading rate		[52,56,57]
Preferable biocompatibility
Weak cytotoxicity
Synthetic materialsPLA, PCL, PLGA and PGAProper degrading rateLack of bio-conductivity[52,58,59]
Good physicochemical and mechanical property
Inorganic polymersBio-ceramicsHA
TCP		Comparable structure with bone
Good osteoinductivity		Hard to degrade
Brittle		[49,54]
Table
Table 3. Strengths and limitations of different 3D bioprinting techniques.
Table 3. Strengths and limitations of different 3D bioprinting techniques.
3D Bioprinting TechniquesStrengthsLimitationsRef.
Photocuring-based bioprintinghigh speed
high printing resolution
good structural integrity and mechanical property
excellent cell viability		hard to operate
required photosensitive material with certain viscosity 		[73,74,75]
Extrusionsufficient mechanical propertylow cell viability caused by inevitable shear force[73,77]
Multi-choices of biomaterials limited printing accuracy (100 μm)
able to print high concentration cell fluidBio-ink with certain curing and shear thinning properties
Droplet-jet
bioprinting		Inkjetsimple to operatenarrow range of bio-active materials[73,74]
fairly affordable
excellent resolution and precision
fast speed		potential mechanical or thermal damage to cells
low cellular concentration
lack of structural strength
laser assisted bioprintinghigh speedcostly
long preparing stage
limited choice in bio-ink
possibility in containing metal residue		[73,77,78]
up to single cell accuracy
able to print different materials to regenerate native structure
Non-contacting and nozzle-free
Cell-Electrospinninggood cellular activities
similar to the structure of extracellular matrix
homogeneous cell density in structure		poor mechanical strength
hard to develop to 3D structure
poor accuracy of fiber deposition		[12,13,76,79]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, Z.; Huang, X. Elements of 3D Bioprinting in Periodontal Regeneration: Frontiers and Prospects. Processes 2021, 9, 1724. https://doi.org/10.3390/pr9101724

AMA Style

Wang Z, Huang X. Elements of 3D Bioprinting in Periodontal Regeneration: Frontiers and Prospects. Processes. 2021; 9(10):1724. https://doi.org/10.3390/pr9101724

Chicago/Turabian Style

Wang, Ziyi, and Xin Huang. 2021. "Elements of 3D Bioprinting in Periodontal Regeneration: Frontiers and Prospects" Processes 9, no. 10: 1724. https://doi.org/10.3390/pr9101724

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
