Separation and Rectification of Chloroacetyl Chloride from TiCl₄

Abstract

Titanium tetrachloride (TiCl₄) is an important intermediate material for the preparation of titanium products. The organic impurities in TiCl₄ are easily accumulated during the production of titanium sponges due to the problems of imperfect detection methods and the lack of effective control methods, resulting in a poor quality of sponge titanium. Among all impurities, chloroacetyl chloride (CAC) is the most important in TiCl₄. Herein, the determination of the CAC content in TiCl₄ solution, with a low detection limit of 0.633 ppm, was established by the standard addition method using Fourier transform infrared (FTIR) spectrometry. This test method presented good repeatability, excellent accuracy, and moderate precision. Furthermore, the influencing factors of CAC separation in the continuous rectification process, including the heating power (the ratio of total heating power to feed rate), reflux temperature, top tower pressure, and feed temperature were optimized based on an orthogonal experimental design. The experimental data demonstrated that the average CAC removal rate reached 78.94% ± 1.00% under the optimal distillation conditions, with 72.21% of the CAC removed via the off-gas system. Therefore, excellent control of the negative pressure of the tail gas is highly desirable for the removal of CAC impurities.

1. Introduction

Titanium tetrachloride (TiCl₄) is an important raw material for the production of titanium dioxide (TiO₂) and metallic titanium (Ti) [1,2,3,4]. Currently, the industrial production of TiCl₄ is mainly realized by the molten salt chlorination and fluid bed chlorination processes [5,6]. However, TiCl₄ products (crude TiCl₄, CTT) cannot be directly applied to produce TiO₂ or metallic Ti due to the presence of impurities. Based on their boiling points, the impurities in CTT can be divided into three categories: high-, low-, and close-boiling-point compounds. High-boiling-point substances such as FeCl₃ and AlCl₃ can be removed by distillation or sedimentation, whereas low-boiling-point substances such as SiCl₄ can be separated by rectification. The removal of close-boiling-point substances such as VOCl₃ requires chemical reaction and purification under distillation conditions [7,8,9,10].

However, the traces of carbonaceous and oxygenic impurities such as chloroacetyl chloride (CAC), dichloracetyl chloride (DCAC), trichloroacetyl chloride (TCAC), carbon disulfide (CS₂), titanium oxychloride (TiOCl₂), and carbon dioxide (CO₂) in purified TiCl₄ are difficult to detect by the existing methods, because TiCl₄ can easily react with moisture in the air to form corrosive hydrogen chloride gas. These impurities are accumulated during the production of Ti sponges and severely affect the product quality. Thus, it is necessary to strictly control the content of carbon and oxygen in purified TiCl₄, requiring the development of novel methods to detect the content of these impurities.

It has been reported that most carbonaceous and oxygenic impurities can be determined by infrared spectroscopy (IR). For instance, Bruno et al. [11] and Song et al. [12] have employed IR to measure the content of TiOCl₂ in TiCl₄ solution. Similarly, the contents of CO₂, CAC, DCAC, and TCAS can also be determined by IR [13,14,15]. However, the IR-based measurement systems are still disadvantageous in terms of device design and accuracy. Moreover, the separation behavior and influencing factors of the impurities during the purification process are still unclear.

Herein, we propose a simple and cost-effective CAC detection system, and evaluate the separation behavior of CAC during refinement. The results reveal that the CAC content in TiCl₄ can be rapidly and accurately determined by Fourier transform infrared spectroscopy (FTIR), and the major portion of CAC can be removed during the rectification process. Under optimal processing conditions, the CAC impurities in purified TiCl₄ were found to be 7.16 ppm, making it a high-quality feedstock for the production of titanium sponges.

2. Experimental Section

2.1. Standard Sample Preparation

Firstly, 0.2 g of CAC (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) was weighed and added into 1000 g of TiCl₄ (Analytical grade, Daomao Chemical Reagent Factory, Tianjin, China) to prepare a standard solution with a CAC concentration of 200 ppm. Then, the as-prepared solution was diluted to the CAC concentrations of 6.25 ppm, 12.50 ppm, 25.0 ppm, 50 ppm, and 75 ppm, using pure TiCl₄.

2.2. Determination of CAC in TiCl₄ Solution

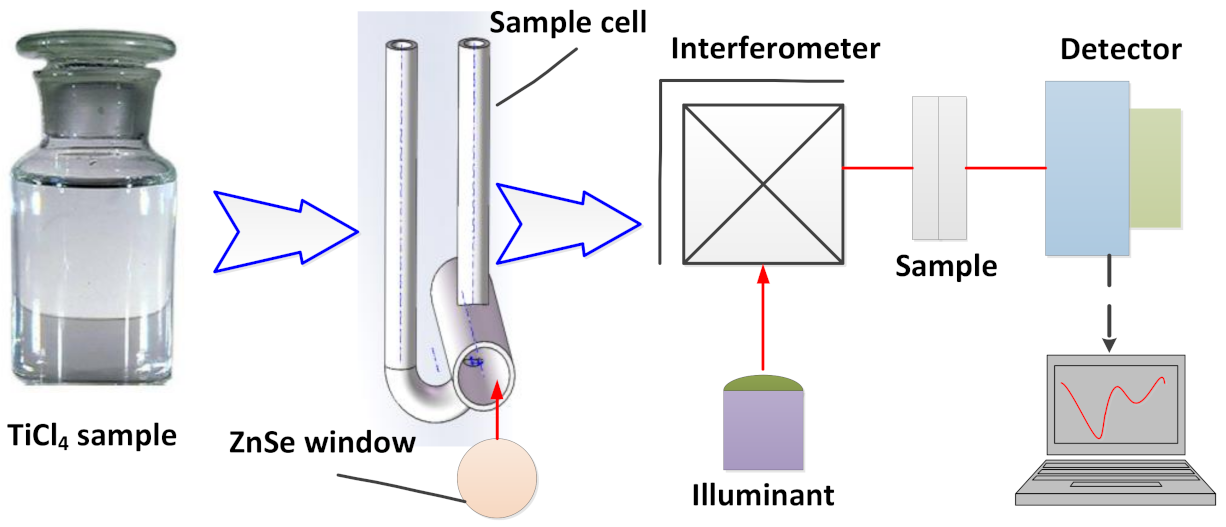

The sample cell was composed of a quartz tube, with an inner diameter of 8 mm and a length of 50 mm, and two pieces of ZnSe window, each with a diameter of 10 mm and a thickness of 2 mm. There were two thin tubes for both feeding and exhaust, each with an inner diameter of 1 mm. Dried ZnSe windows were glued to both ends of the quartz tube with AB glue, while ensuring the glue did not contaminate the sample. To prevent the influence of AB glue on the test, excessive amounts of AB glue should not be used. After natural drying for 30 min, 5 mL of as-prepared solution was added into the sample cell to check for sealing. Since there was no leaking, 5 mL of as-prepared solution was further added into the sample cell, and cotton balls were used to block the feeding and exhaust ports to prevent hydrolysis; otherwise, the sample cell would have required modification.

The CAC content in TiCl₄ solution was determined by Fourier transform infrared spectrometer (FTIR, Nicolet iS50, Thermo Fisher Scientific, Massachusetts, USA), and data processing was performed using OMNIC 8 software. The spectral resolution, data spacing, and scanning range were 4 cm⁻¹, 2 cm⁻¹, and 1000–4000 cm⁻¹, respectively. A background scan was measured with the blank sample cell. Then, the IR spectra of different CAC concentrations were determined. The schematic diagram of the equipment is shown in Figure 1.

According to the Lambert–Beer law [16], the relationship between the characteristic peak intensity and concentration of CAC can be given as:

$$A=\epsilon bc$$

(1)

where A represents the characteristic peak intensity, $\epsilon$ denotes the absorption coefficient, b refers to the length of sample cell, and c corresponds to CAC content.

2.3. Separation of CAC Impurities

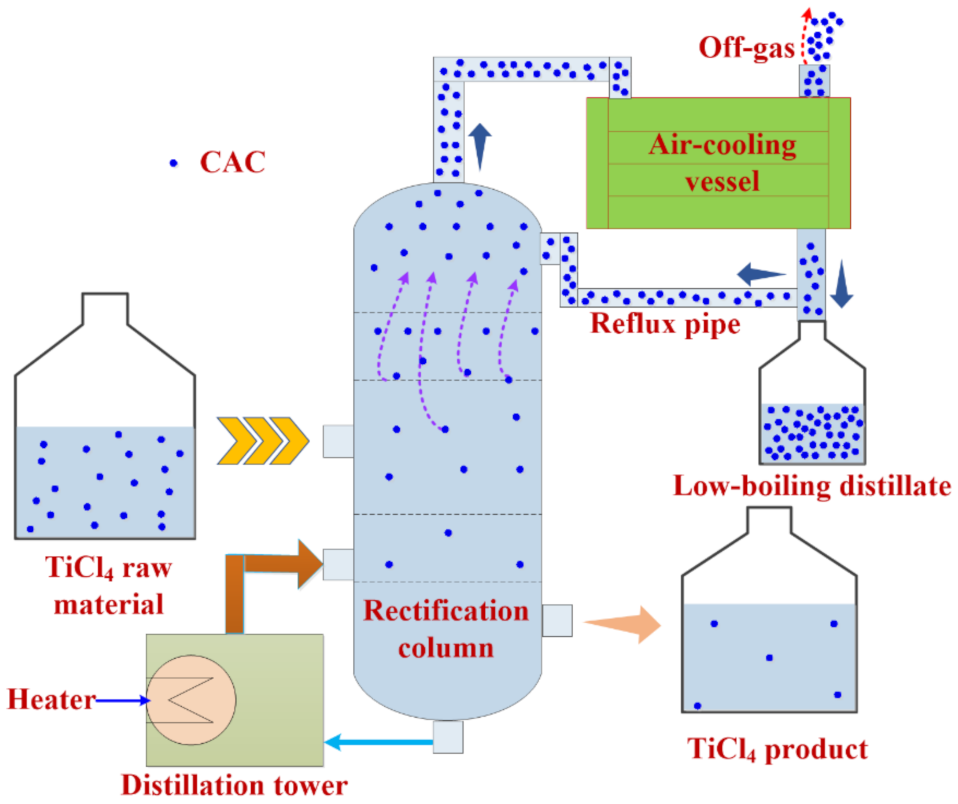

Distillation is an important and energy-consuming process used to separate liquid mixtures. Herein, the removal of CAC impurities was carried out using an industrial-scale rectification system. This equipment consisted of several major components, including an evaporation tower, a rectification column, an air-cooling vessel, and a low-boiling distillate (LBD) collecting tank. The holding capacity and installation power of the distillation tower were 8.83 m³ and 1200 kW, respectively. The main purpose of the electric heater is to form vertical upward steam during the rectification process. When the feed rate of TiCl₄ reached 12 t/h, the heat power of the heater was controlled at 1200 kW, which means the ratio of total heating power to feed rate was 100 kW t⁻¹. The rectification column, with a diameter of 1200 mm and a height of 15,740 mm, contained 44 pieces of sieving plates, with the feeding port located on the 22nd plate. The air-cooling vessel, with an area of 32 m², possessed a capacity of 2 m³. The schematic diagram of the equipment is shown in Figure 2.

The boiling point of TiCl₄ is higher than that of CAC, which is suitable for the distillation process. The separation coefficient of CAC to TiCl₄, however, is relatively small (3.8) [17,18]. Thus, it was necessary to estimate whether the sieving plates could meet the requirements for CAC removal. Figure 3a shows that when the process of chlorination and purification remained stable, the CAC content in TiCl₄ feed, distillate, and TiCl₄ product were 33.98 ± 0.15 ppm, 2485.87 ± 10.20 ppm, and 9.73 ± 0.11 ppm, respectively.

The reflux ratio and theoretical plate number of rectification column can be given as [19,20]:

$$x_F=\frac{A_F/M_A}{\left(A_F/M_A+B_F{/\mathrm{M}}_B\right)}$$

(2)

$$x_D=\frac{A_D/M_A}{\left(A_D/M_A+B_D{/\mathrm{M}}_B\right)}$$

(3)

$$x_W=\frac{A_W/M_A}{\left(A_W/M_A+B_W{/\mathrm{M}}_B\right)}$$

(4)

$$y_F=\frac{\alpha x_F}{1+\left(\alpha -1\right)x_F}$$

(5)

$$R_{\min }=\frac{x_D-y_F}{y_F-x_F}$$

(6)

$$R=K{R}_{min}$$

(7)

$$N_{\min }=\frac{\lg \left(\left(\frac{x_D}{1-x_D}\right)\left(\frac{1-x_W}{x_W}\right)\right)}{\lg \alpha }$$

(8)

where $x_F$, $x_D$, and $x_W$ represent the mole fraction of CAC in TiCl₄ raw material, distillate, and TiCl₄ product, respectively; $A_F$, $A_D$, and $A_W$ denote the mass fraction of CAC in TiCl₄ raw material, distillate, and TiCl₄ product, respectively; $A_F$, $A_D$, and $A_W$ denote the mass fraction of CAC in TiCl₄ raw material, distillate, and TiCl₄ product, respectively; $B_F$, $B_D$, and $B_W$ refer to the mass fraction of TiCl₄ in raw material, distillate, and product, respectively; $M_A$ and $M_B$ denote the molar mass of CAC and TiCl₄, respectively; $y_F$ represents the mole fraction of CAC in the gas phase during the vapor–liquid equilibrium; and $\alpha$ denotes the separation coefficient of CAC to TiCl₄. K represents reflux excessive coefficient, 1.5; $N_{min}$ denotes the minimum number of theoretical plates; $R$ represents the actual reflux ratio, and $R_{min}$ corresponds to the minimum reflux ratio.

Some calculation results for Equations (2)–(8) are shown in

Table 1. Some calculation results for the theoretical plate numbers.

Classification	Calculation Results	Classification	Calculation Results
$x_F$	5.707 × 10−5	$R_{min}$	24.73
$x_D$	4.168 × 10−3	$R$	37.10
$x_W$	1.634 × 10−5	$N_{min}$	4.15
$y_F$	2.168 ×10−4	$\frac{R-R_{min}}{R+1}$	0.32

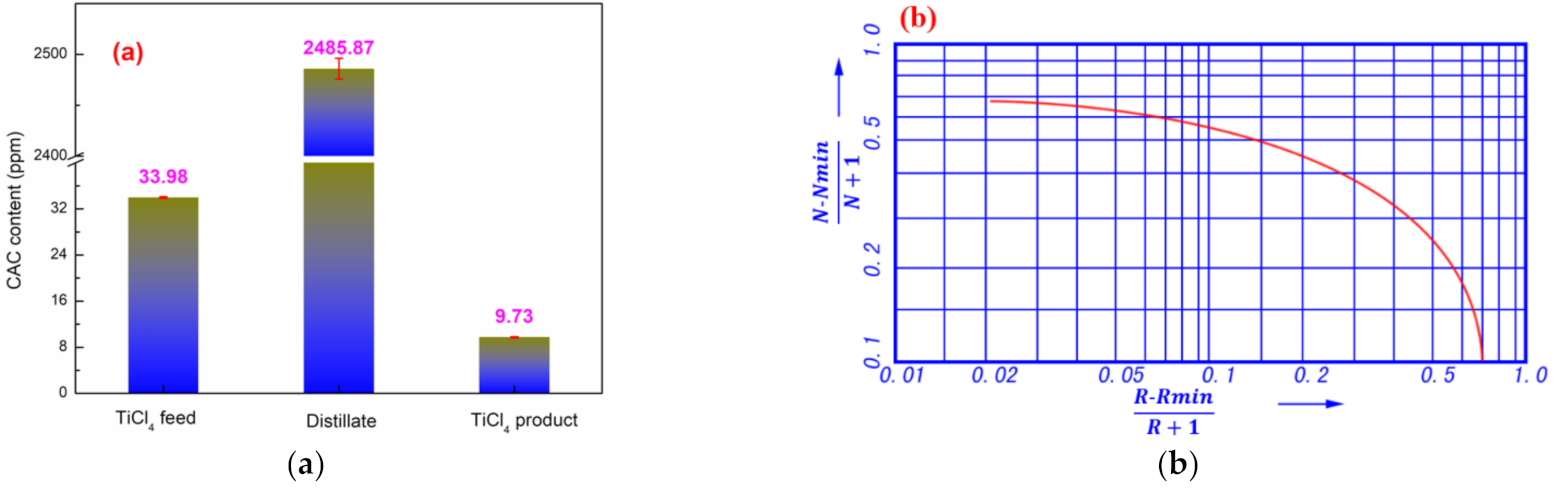

. Combining these with the Gillian correlation diagram (Figure 3b), the theoretical plate number of the rectification column is 7.31. On the basis of production experience [17], the plate efficiency is approximately 0.25, and the total number of trays is 7.31/0.25 ≈ 30, which is much less than 44. This suggests that the rectification column could satisfy the requirements of production; however, distillation efficiency is low. In general, the removal efficiency of the low-boiling-point substances, including CAC, is affected by the quality of raw materials, feed rate, reflux ratio (the ratio of reflux flow to outlet flow on the top of the tower), reflux pipe temperature, heating power, top pressure of the rectification tower, and feed temperature [21,22,23,24]. The reflux pipe temperature and top pressure were controlled by the air-cooling vessel and the tail gas fan, respectively. Therefore, an orthogonal design, based on an efficient, fast, and cost-effective experimental method [25], was employed to investigate the removal efficiency of CAC. The whole test was designed with an orthogonal array of L₁₆ (4⁵), which indicates that the experiment consisted of 4 levels, 5 factors, and 16 orthogonal tails (i.e., heating power per ton of TiCl₄ (50, 65, 85, and 100 kW t⁻¹), reflux ratio (30%, 40%, 50%, and 60%), reflux temperature (90, 100, 110, and 120 °C), top pressure of rectification tower (−2, 0, 2, and 4 kPa), and feed temperature (80, 95, 110, and 125 °C)). Each group of experiments was stably operated for 8 h and samples were collected every 2 h.

As the CAC concentration of the LBD was very high, it was diluted twice with a certain amount of pure TiCl₄. The removal efficiency of CAC can be given as:

$$\eta =\frac{w_f-w_r}{w_f}\times 100\%$$

(9)

where $\eta$ represents the removal efficiency, $w_f$ refers to the CAC content in the raw material, and $w_r$ denotes the CAC content in the rectification product.

3. Results and Discussion

3.1. CAC Determination

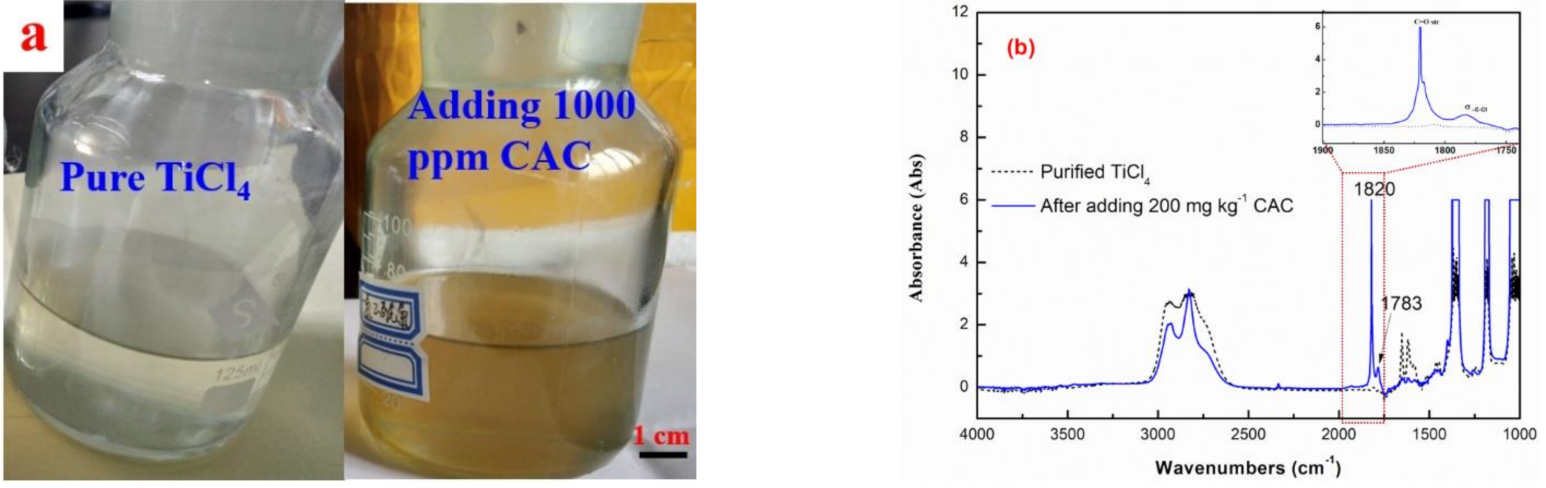

In order to study the effect of CAC impurity on the color of TiCl₄ solution, a certain amount of CAC was added into pure TiCl₄. It was found that the color of TiCl₄ product changed from transparent to yellowish after the addition of 1000 ppm CAC (shown in Figure 4a). This suggests that CAC impurities have a significant impact on the color of TiCl₄ products, because CAC impurity has good chemical stability in TiCl₄ solution and does not decompose easily under ordinary light and heat conditions, as reported by Yang et al. [11]. Figure 4b shows that the intensity of characteristic peaks, located at 1820 cm⁻¹ and 1783 cm⁻¹, increased significantly after the addition of CAC (200 ppm) into pure TiCl₄. However, the intensity of the peak at 1783 cm⁻¹ is only 0.65 Abs, much smaller than that of the peak at 1820 cm⁻¹. This is because the first peak at 1820 cm⁻¹ is the C=O stretching vibration of CAC, while the second peak at 1783 cm⁻¹ is the result of Fermi resonance interaction between the C=O and =C-Cl stretching vibrations [26]. Hence, the peak at 1820 cm⁻¹ was used as a characteristic peak for CAC detection.

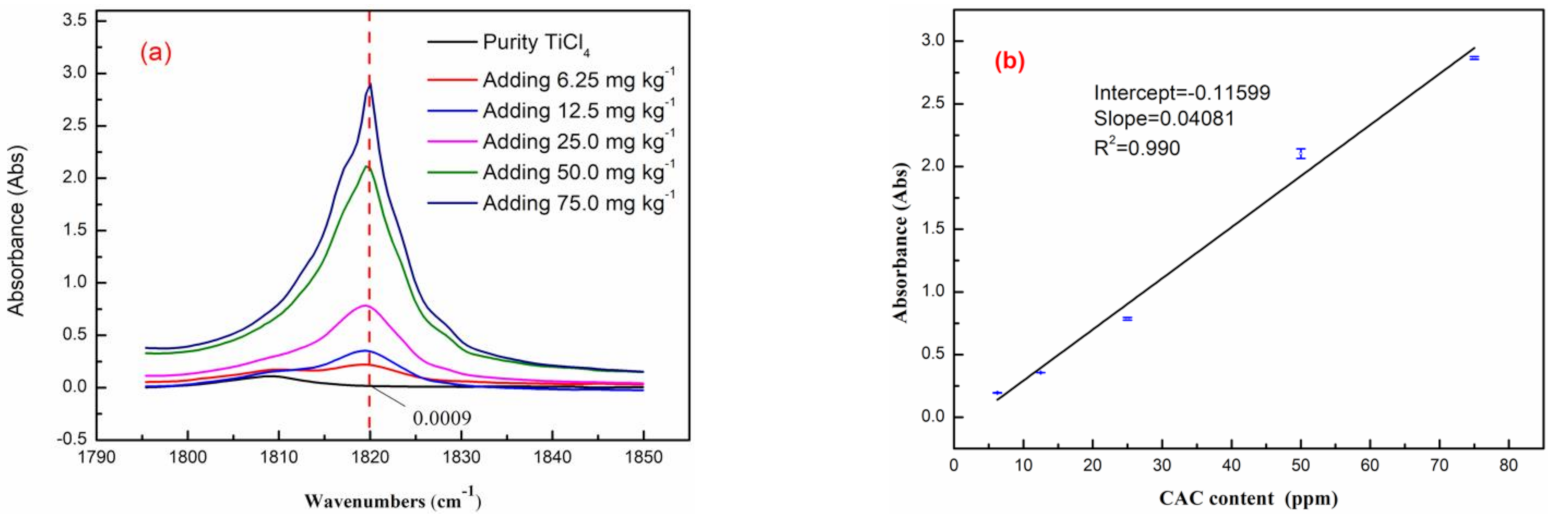

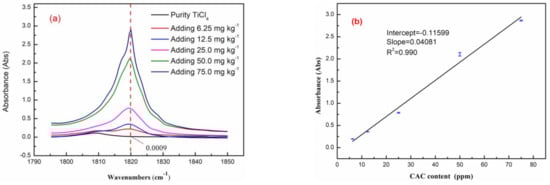

Figure 5a presents the influence of CAC content on FTIR spectra. Overall, the intensity of the characteristic peak, located at 1820 cm⁻¹, increases with increasing CAC content. Since the characteristic peak intensity of pure TiCl₄ is close to zero (0.009 Abs), all the determination results of CAC peak intensity are based on zero. The relationship between the characteristic peak intensity and CAC concentration is presented in Figure 5b, which shows that the CAC content (x) is linearly related to the characteristic peak intensity (y), as given below:

$$y=0.04081x-0.11599; {\mathrm{R}}^2=0.990$$

(10)

According to the Lambert–Beer law (Equation (1)), y ~ x should be a straight line passing through the origin. However, the y-intercept value of −0.11599 indicates that other impurities in pure TiCl₄ may affect the results.

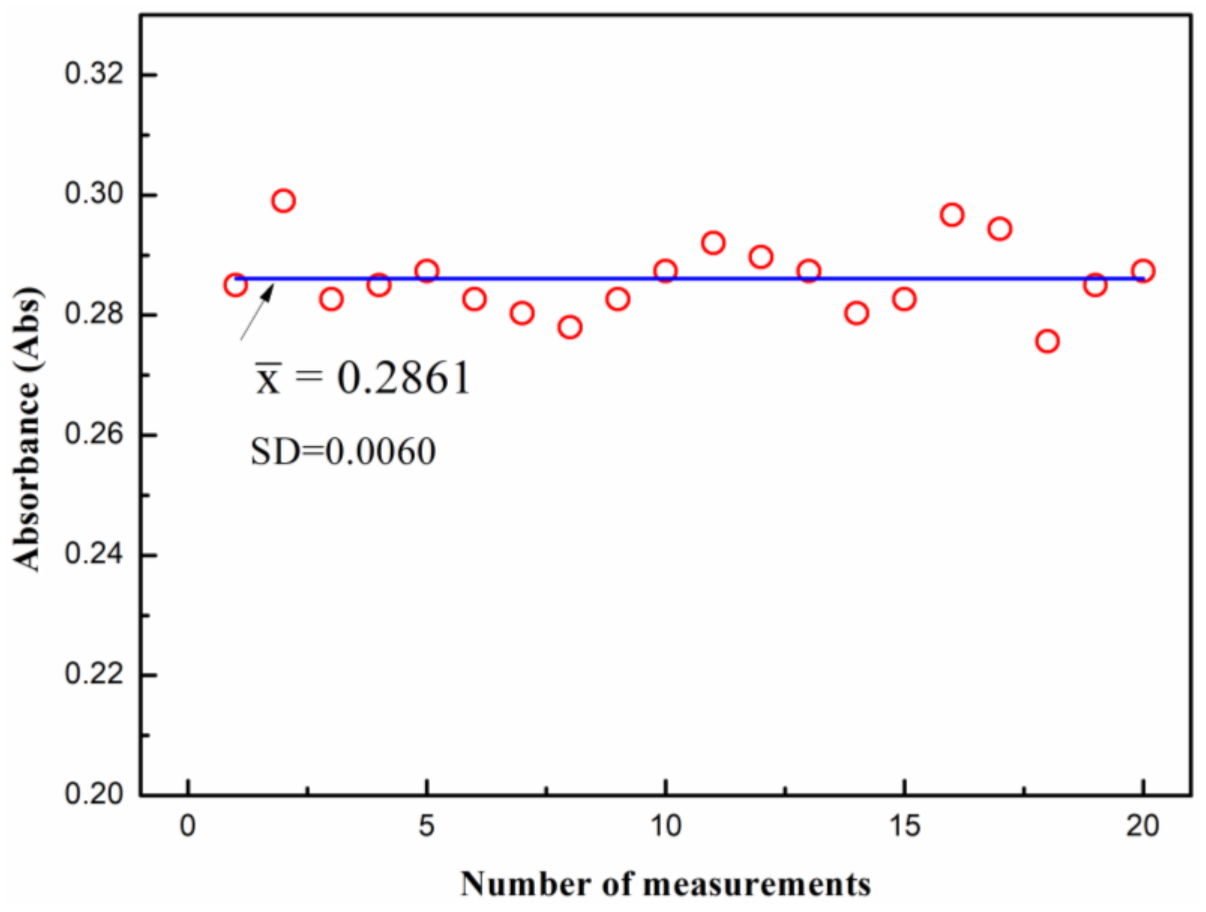

A TiCl₄ sample containing 10 ppm of CAC, was prepared, and the measurements were repeated 20 times to determine the detection limit. Figure 4 shows that the characteristic peak intensity of CAC was relatively stable with increasing measurement times. The fluctuation of the peak intensity values may have been caused by experimental error. The detection limit of CAC can be calculated according to Equation (11) [27]:

$$C_L=\frac{3SD}{\overline{X}}C$$

(11)

where C_L represents the detection limit, SD refers to the standard deviation, C denotes the CAC content in TiCl₄, and $\overline{X}$ represents the average values of repeated measurements.

Based on Figure 6 and Equation (11), the detection limit of CAC was found to be 0.633 ppm. To determine the precision of the proposed method, three batches of production samples were analyzed by FTIR.

Table 2. The precision of CAC determination (n = 5).

Batch Number	1# (ppm)	2# (ppm)	3# (ppm)	4# (ppm)	5# (ppm)	Mean Value (ppm)	RSD (%)
No. 1	4.83	4.86	4.92	4.77	4.85	4.85	1.12
No. 2	12.48	12.3	12.41	12.35	12.55	12.42	0.80
No. 3	44.72	44.25	44.51	44.66	44.59	44.55	0.41

shows that the relative standard deviation (RSD) remained lower than 2%, which indicates good repeatability and moderate precision [28,29].

To further evaluate the accuracy of the detection limit, the standard addition–recovery test was carried out using the refined TiCl₄. The results are shown in

Table 3. The standard recovery rate for CAC determination.

Batch Number	Before Standard Solution Addition (ppm)	CAC Content in Standard Solution (ppm)	After Standard Solution Addition (ppm)	Recovery Rate (%)
No. 1	12.48	20.00	32.55	100.6
No. 2	18.43	30.00	49.40	105.3
No. 3	23.88	40.00	62.74	95.2
No. 4	35.69	50.00	84.46	96.6
No. 5	42.18	20.00	62.54	100.9
No. 6	51.82	20.00	73.21	102.7

, where the mass ratio of the sample to the CAC standard solution was 1:1. The recovery of added standard can be calculated via Equation (12):

$$\eta =\frac{C_A{m}_A+C_S{m}_S}{C_D\left(m_A+m_B\right)}\times 100\%$$

(12)

where $\eta$ represents the recovery rate, $C_A$ denotes the mass fraction of CAC in TiCl₄ standard solution, $m_A$ refers to the added amount of CAC standard solution, $C_S$ represents the mass fraction of TiCl₄ sample, $m_A$ denotes the CAC sample weight, and $C_D$ corresponds to the CAC content after addition of the standard solution.

It can be seen from Table 3 that the recovery rate of the standard addition–recovery test ranged from 95.2% to 105.3%. Recovery rates exceeding 100% are most likely caused by detection and operation error. Thus, this method has excellent accuracy [30].

Table 4. Comparison of the CAC determination in TiCl₄.

Linear Equation	Correlation Coefficient (R2)	Detection Limit (ppm)	Characteristic Peak Position (cm−1)	Detection Method	Ref.
y = −0.00001571x + 1.00001785946	0.8995	3.159	1820	FTIR	[13]
-	-	0.50	1802	IR	[14]
y = 0.04081x − 0.11599	0.990	0.633	1820	FTIR	this work

shows the comparison results of CAC detection in TiCl₄ between this work and other literature reports. The correlation coefficient and detection limit in this work are better than those reported by Yang et al [13], though both studies used the same characteristic peak. However, the characteristic peak has obvious differences between IR and FTIR, although the detection limits are close. The above results suggest that the CAC determination method proposed in this work has good repeatability, excellent accuracy, and moderate precision.

3.2. Factors Influencing CAC Removal

Table 5. L₁₆ (4⁵) orthogonal design of the experiment and results.

No.	Factors					CAC Removal Efficiency (%)
	Heating Powder (kWt−1)	Reflux Ratio (%)	Reflux Temperature (°C)	Top Pressure of the Rectification Tower (kPa)	Feed Temperature (°C)
1	50	30	65	−2	80	65.23 ± 0.20
2	50	40	75	0	95	69.35 ± 0.15
3	50	50	85	2	110	75.37 ± 0.08
4	50	60	95	4	125	78.52 ± 0.18
5	65	30	75	2	125	68.40 ± 0.13
6	65	40	65	4	110	76.48 ± 0.11
7	65	50	95	−2	95	79.77 ± 0.19
8	65	60	85	0	80	80.05 ± 0.13
9	85	30	85	4	95	72.14 ± 0.12
10	85	40	95	2	80	76.30 ± 0.10
11	85	50	65	0	125	81.07 ± 0.11
12	85	60	75	−2	110	79.71 ± 0.14
13	100	30	95	0	110	76.43 ± 0.13
14	100	40	85	−2	125	80.00 ± 0.15
15	100	50	75	4	80	76.09 ± 0.12
16	100	60	65	2	95	78.69 ± 0.19
K1	72.117	70.550	75.368	76.177	74.417
K2	76.175	75.532	73.387	76.725	74.987
K3	77.305	78.075	76.890	74.690	76.998
K4	77.803	79.242	77.755	75.808	76.998
R	5.686	8.692	4.368	2.035	2.581

shows the factors and levels of the orthogonal design of the experiment for CAC removal efficiency. K₁, K₂, K₃, and K₄ are the average values of the specific removal efficiency during different test conditions, and R corresponds to the extreme difference analysis, where a large value of R represents the large contribution of a certain factor to CAC removal efficiency and vice versa [31]. Table 4 shows that the CAC removal efficiency is mainly influenced by the heating power, followed by reflux temperature, feed temperature, and tower top pressure.

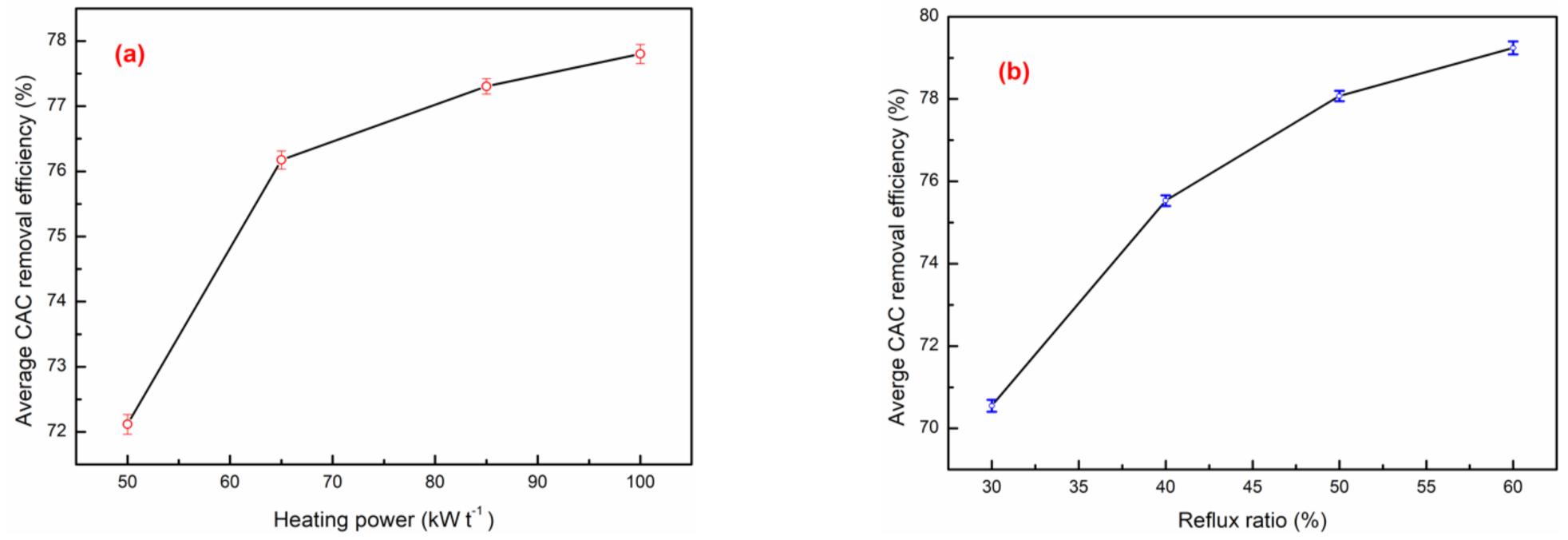

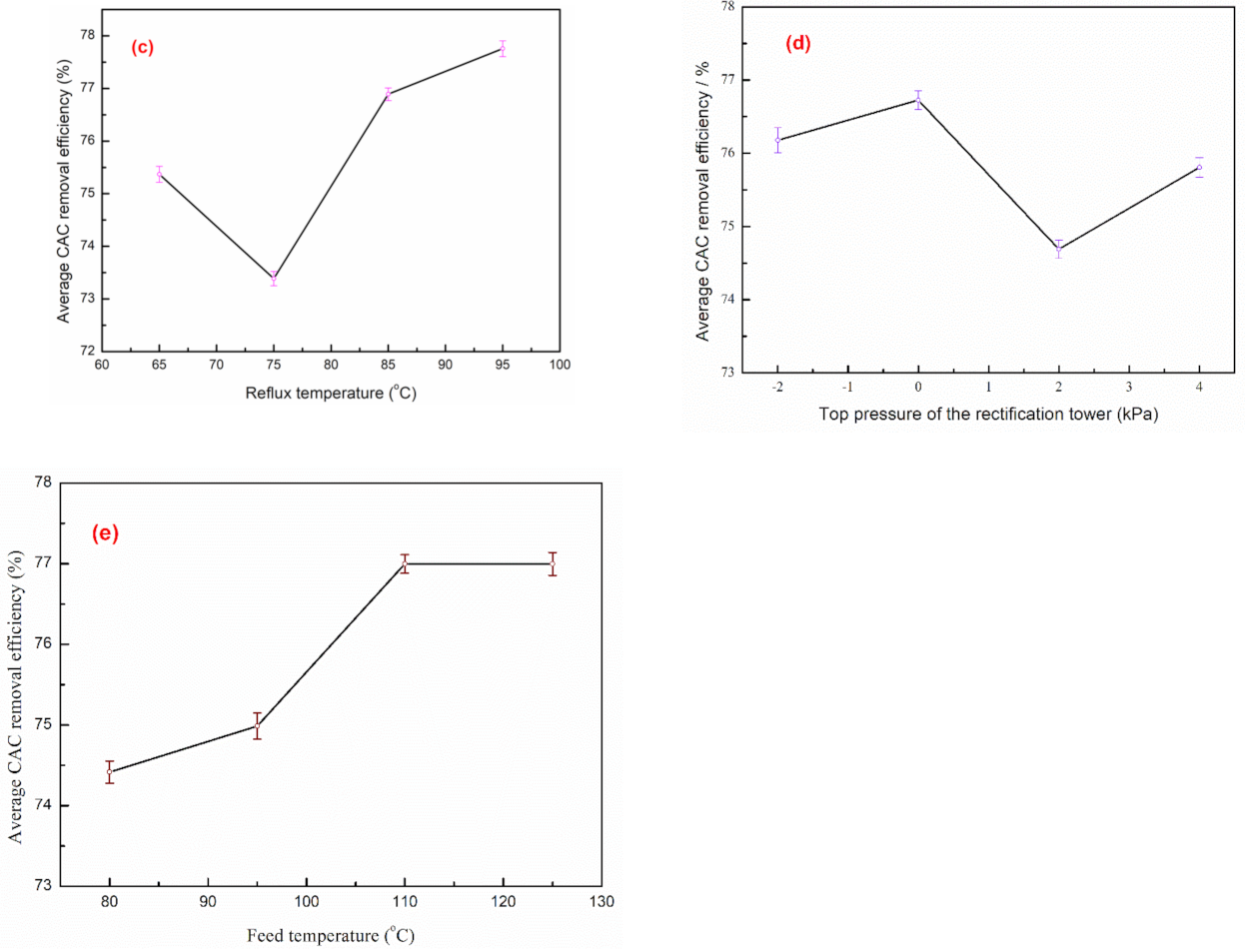

Based on the range analysis, the influence of four factors on CAC removal efficiency is shown in Figure 7. As shown in Figure 7a, the CAC removal rate in TiCl₄ gradually increased with the increase in heating power per ton of TiCl₄. However, when the heating power increased from 85 to 100 kW t⁻¹, the average removal efficiency increased by only 0.5%. Hence, the optimum heating power is 85 kW t⁻¹. Figure 7b shows the effect of reflux ratio on the CAC removal rate, which increased with increasing reflux ratio. However, note that an excessively high reflux ratio inevitably reduces the distillation efficiency. When the reflux ratio increased from 50% to 60%, the CAC removal rate exhibited a relatively small increase of ≈1.2%. Thus, the optimal reflux ratio is 50%. Furthermore, Figure 7c shows that the average removal efficiency of CAC initially increased with increasing reflux temperature, followed by a gradual decrease. Herein, the minimum removal rate of CAC was found to be 73.4% at the reflux temperature of 75 °C, which can be ascribed to gaseous SiCl₄, because a large amount of SiCl₄ was removed from the raw material due to its low boiling point (57.6 °C). However, the CAC removal rate increased with a further increase in reflux temperature and reached 77.8% at 95 °C. Figure 7d shows that the CAC removal rate remained constant when the tower top pressure was below zero. However, the CAC removal rate decreased under positive pressure because the gaseous CAC overflow was blocked. However, too small a negative pressure can increase TiCl₄ loss and decrease TiCl₄ yield. Thus, the optimal tower top pressure ranges from −2 to 0 kPa. Figure 7e shows that the CAC removal rate gradually increased with the increase of feed temperature. However, the increment was very small after 110 °C because the temperature was higher than the boiling point of CAC (106 °C). Hence, 110 °C is the optimal feed temperature.

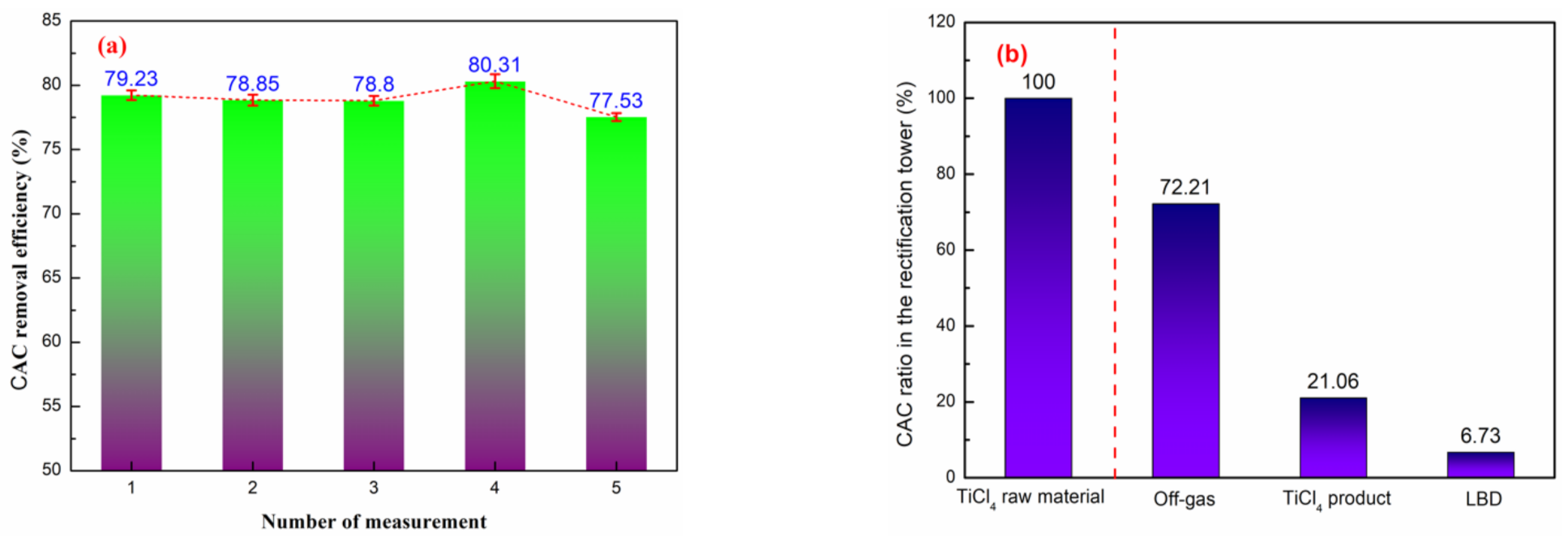

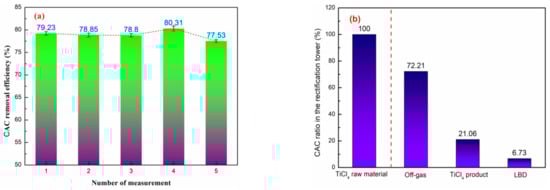

To verify the stability of optimal processing conditions, the stability experiment was carried out at the heating power of 85 kW t⁻¹, reflux ratio of 50%, reflux temperature of 95 °C, top tower pressure of −2 to 0 kPa, and feed temperature of 110 °C. Figure 8a shows that the average removal rate of CAC from TiCl₄ reached 78.94% ± 1.00% under optimal distillation conditions. The relatively low CAC removal efficiency can be ascribed to the fixed tray number in the continual rectifier. In addition, the CAC impurities are difficult to separate from TiCl₄ compared with other low-boiling-point impurities, such as SiCl₄. Figure 8b shows that the main outlet of CAC was the off-gas system, which could remove 72.21% of CAC impurities, followed by LBD. However, 21.06% of the CAC impurities were still left in the end product. Therefore, the negative pressure of the tail gas should be actively controlled for the efficient removal of CAC impurities.

4. Conclusions

The current study established a method for determining CAC content in TiCl₄ solution and demonstrated the separation behavior of CAC during rectification via FTIR analysis. The results revealed that the characteristic IR peak of CAC was located at 1820 cm⁻¹, and the characteristic peak intensity (y) linearly increased with increasing CAC content (i.e., $y=0.04081x-0.11599)$. Moreover, an orthogonal design of experiments was utilized to investigate the CAC removal efficiency and obtain the optimal parameters. Herein, the heating power of 85 kW t⁻¹, reflux ratio of 50%, reflux temperature of 95 °C, top tower pressure of −2 to 0 kPa, and feed temperature of 110 °C resulted in an average CAC removal rate of 78.94% ± 1.00%, with 72.21% of CAC impurities removed via the off-gas system. It is worth emphasizing that the negative pressure of the tail gas should be controlled to achieve excellent CAC removal efficiency.
