Resilience-Enhancing Solution to Mitigate Risk for Sustainable Supply Chain—An Empirical Study of Elevator Manufacturing

Abstract

As the complexity of supply chains increases, the enhancement of resilience for mitigating sustainable disruption risks in supply chains is an important issue. Quality function deployment (QFD) has been successfully applied in many domains to solve multicriteria decision-making (MCDM) problems. However, research on developing two houses of quality to connect sustainable supply chain disruption risks, resilience capacities, and resilience-enhancing features in elevator manufacturing supply chains by using the MCDM approach is lacking. This study aims to develop a framework for exploring useful decision-making by integrating the MCDM approach and QFD. By applying the framework, supply chain resilience can be improved by identifying the major sustainable risks and the key resilience to mitigate these risks. Important managerial insights and practical implications are obtained from the framework implementation in a case study of the elevator manufacturing industry. To strengthen resilience and thus mitigate key risks, the most urgent tasks are to connect the working site and the backstage to enhance product development and design and to share real-time job information. When these features are strengthened, agility, capacity, and visibility can be improved. Finally, unexpected events lead to changes in supplier delivery dates, and factors such as typhoon and lack of critical capacities/skilled employees with the greatest impact can be alleviated. This framework will provide an effective and pragmatic approach for constructing sustainable supply chain risk resilience in the elevator manufacturing industry.

1. Introduction

In today’s global economy, enterprises strive to stay responsive to evolving customer demands. Enterprises are obliged to work together in networks instead of competing as isolated entities [1]. In response to international competition and operations, manufacturers need to closely cooperate with their suppliers, distributors, and customers to construct a robust supply chain system [2]. As a result, manufacturers should design a supply chain system to obtain the required production resources and establish strategies to operate worldwide [3]. However, this operational strategy will increase the complexity of supply chains in terms of coordination and collaboration [4]. The increasing complexity and instability of supply chain systems in the face of risks have a significant negative influence on sustainable supply chain performance [5]. Furthermore, incorrect risk management can cause serious damage to businesses and lead to increased costs [6,7]. In 2015, the United Nations put forward the 2030 Agenda for Sustainable Development, which emphasized sustainable development and the role of enterprises in ensuring sustainable production and consumption patterns, namely, the importance of a sustainable supply chain (Goal 12, United Nations 2015). Faced with global competition, supply chain management academia and practitioners have focused on how to cope with sustainable supply chain disruption risks (SSCDRs) [8].

To overcome SSCDRs, resilience is an effective way to manage risks and recover from a supply chain disruption [9,10]. To mitigate these risks, resilient supply chains must be designed from a multidimensional and multidisciplinary perspective, including the preparation of events before they occur; providing an efficient and effective response when events occur and capacity to respond to events after they occurred. Resilient supply chains can return to their original state or to an improved state [11]. Thus, today’s enterprises are facing major challenges in terms of how to construct resilient supply chains to reduce risks [12,13].

Hosseini et al. (2019) proposed the hierarchical structure of a resilient supply chain, in which the bottom level is occupied by resilience-enhancing features (RFs), which enhance resilience capacities (RCs) [9]. Scholars have proposed the concept of RCs in different fields [14,15,16,17,18,19]; however, RFs are rarely included [9]. RFs and RCs to SSCDRs are of paramount importance to supply chains. However, the interactions between the two have not been thoroughly explored [9]. Although perceptible intersections exist between resilience and sustainability issues, very few papers have been published [9]. Multicriteria decision-making (MCDM) methods have been applied by researchers to resilient supplier problems [20,21], but MCDM methods have not been well-studied in the field of resilient supply chains [9]. In recent years, quality function deployment (QFD) has been successfully applied in many domains to solve MCDM problems, such as knowledge system selection [22], green building assessment [23], bike-sharing program evaluation [24], technical attribute prioritization [25], and fashion risk reduction [26]. However, research on developing two houses of quality (HoQs) to connect SSCDRs, RCs, and RFs for building the supply chain risk resilience of elevator manufacturing by integrating the MCDM approach and QFD is lacking. To address this gap, the present study discusses the following research questions.

(a)

What are the key SSCDRs, RCs, and RFs in elevator manufacturing supply chains?

(b)

How can supply chain risk resilience be built through integrative MCDM and QFD to provide decision support for elevator manufacturing supply chains?

(c)

How do the relationships between these three sets of variables affect finding feasible resilience solutions for mitigating SSCDRs for elevator manufacturing supply chains?

(d)

How can elevator manufacturers effectively improve supply chain resilience to address SSCDRs through the proposed framework?

Therefore, the objective of this study is to develop an MCDM-QFD framework for elevator manufacturing supply chains (EMSCs) to explore useful resilient decision making. By applying the framework, supply chain resilience can be improved by identifying the major SSCDRs and the RCs and RFs to mitigate these risks. The aim is also to investigate the relationships between these three sets of variables (SSCDRs, RCs, and RFs) and ultimately to prioritize resilience approaches for EMSCs. One of the largest elevator manufacturers in Taiwan is studied to demonstrate the validity of this framework. This framework provides managers with a clear idea of where to improve their sustainable supply chain resilience in response to their supply chain risks. This study also provides a practical contribution for enterprises in implementing resilient supply chains. The business and performance of other actors and stakeholders involved in EMSCs are affected by resilience level; thus, they will be interested in the results of this study.

The rest of this study is organized as follows: Section 2 identifies SSCDRs, RCs, and RFs from a review of the literature. Section 3 describes the integrated framework. Section 4 demonstrates a case implementation and discussion. Finally, Section 5 concludes the main contributions and the limitations of the study.

2. Literature Review

As an emerging discipline, SSCDRs and resilience have gained more attention recently among researchers. Major resilience directions for future research based on 155 articles published across 20 international peer-reviewed journals, as classified by Ali and Gölgeci (2019), include (1) drivers, barriers, and consequences; (2) moderators and mediators; (3) theoretical underpinnings; and (4) research methods [27]. These directions are interconnected. The exploration of mechanisms that explicate proposed relationships of supply chain resilience with other variables is an area of weakness in the current literature [28]. Thus, this study draws the link between SSCDRs, RCs, and RFs for EMSCs to construct supply chain risk resilience.

2.1. Sustainable Supply Chain Disruption Risks (SSCDRs)

Traditional sustainability includes social, environmental, and economic dimensions [29]. However, these three dimensions do not address the entire system of an organization. Therefore, Iddrisu and Bhattacharyya (2015) propose a five-dimensional sustainable development model that takes into account social, environmental, economic, technological, and institutional dimensions [30]. Valinejad and Rahmani (2018) used a five-dimensional approach to assess risks in the telecommunications sector [31]. Moktadir (2021) also used the five-dimensional method to identify 30 potential risk factors for the leather industry in Bangladesh [8].

Supply chain sustainability ensures the success and improvement of overall supply chain management in the long run. To ensure the sustainability of the supply chain, considering risk management is sufficient [5]. In the modern globalized era, disruption risks involved in supply chains cover a wider range and are more complex than before [32,33]. There are many studies that focus on risk management to obtain sustainable supply chains. To make the concept of risks easier to understand and manage, various scholars from different perspectives have proposed different classification methods.

The study by Mitroff and Alpaslan (2003) classified risks into three categories: natural disasters, events of vandalism, and human-designed system failures [34]. Christopher and Peck (2004) suggested that risks can be divided into five categories: process risk, control risk, supply risk, demand risk, and environmental risk [35]. Norrman and Lindroth (2004) and Vanany et al. (2008) categorized risks into three categories: operational accident risk, operational disaster risk, and strategic uncertainty risk [36,37]. Olson and Wu (2010) also classified risks into two categories: external and internal risks. The former includes natural risks, political system risks, competitor, and market risks; the latter includes available capacity risks, internal operational risks, and information system risks [38]. Sawik (2011) categorized risks into disruptive and operational risks. Disruptive risks include unplanned outages, unexpected events, and sudden breakdowns of material supply, while operational risks occur due to the uncertainty of internal operations [39]. Probohudono and Tower (2013) divided risks into five categories: business risk, strategic risk, operational risk, market risk, and credit risk [40]. Rangel et al. (2015) sorted 56 risk types according to existing conceptual similarities and then related to the five management processes intrinsic in a functional supply chain (plan, source, make, deliver, and return), which are mainly advocated by the supply chain operations reference model [41]. Ho et al. (2015) defined two kinds of risks: (i) macro-risks are adverse and relatively rare external events that may have strong and negative impacts (e.g., catastrophes such as 9/11, Hurricane Katrina, or the Tsunami in 2004). (ii) micro-risks refer to relatively periodic events, originating from internal activities of companies or relationships within partners (e.g., supplier losses or quality problems) [42]. Hudnurkar et al. (2017) classified risks into five categories: product characteristics, supply chain processes, supply chain infrastructure, external environment, and human resources [43]. Truong Quang and Hara (2018) classified risks into four categories: environment, flows of supply chains, degree of impact, and probability [44]. Mital et al. (2018) also sorted 17 risk types according to five categories: quality risks, cost risks, continuity of supply risks, supplier service risks, and buyer–supplier partnership risks [45]. Rostamzadeh et al. (2018) identified 44 risk types and classified risks into seven categories: environmental risks, organizational risks, supply risks, production/manufacturer risks, distribution risks, recycling risks, and information technology-related risks [46]. Abdel-Basset et al. (2019) classified risks into two categories: internal risks (managed risks) and external risks (uncontrolled risks). The former includes manufacturing risks, business risks, planning and control risks, mitigation and contingency risks, and cultural risks; the latter includes demand risks, supply risks, environmental risks, business risks, and physical plant risks [33].

On the basis of the above discussion and a comprehensive review of the literature [47,48,49,50,51,52,53,54,55,56,57], 130 risks concerning sustainable risks are listed and selected in this study (Appendix A). We suggest that SSCDRs can be categorized as follows: (1) external risks: including human disasters, operational risks, legal, and political risks, supplier and customer risks, environment and natural disasters and market trend risks (6 dimensions and 62 risks); and (2) internal risks: including physical accident risks, operational risks, personnel risks, strategic management risks, and information management risks (5 dimensions and 68 risks).

Given that different scholars have developed many different classifications, risk is classified into external and internal risk according to the criteria of whether the risk occurs inside or outside the enterprise. For example, human disasters are external risks. It covers 11 risks such as terrorist attacks, intellectual property risks, theft of goods, the impact of local events, flight accidents, power supply interruption, gas interruption, abnormal external IT equipment, incorrect repair or maintenance of equipment by outsourcing manufacturers, cultural and social factors, and incorrect media reports on the company. In addition, after analysis, these internal and external risks are all included in a five-dimensional sustainable development. Therefore, this study mitigates these SSCDRs and builds sustainable supply chains by virtue of resilience. These sustainable risks are evaluated in Section 4.

2.2. Resilience Capacities (RCs)

The theoretical underpinning pinning of this paper comes from the theory of resilience. The theory of resilience is one way of describing a system’s ability to cope with changing circumstances or disruptions. The theory helps to provide an understanding of whether a system can return to an equilibrium state after disruption or how a system must be transformed into a new desirable system if the change is irreversible [58]. The notion of resilience was first proposed by Holling (1973) and used to describe the stability of an ecosystem and its response to environmental disturbances [59]. Holling differentiates between two different types of resilience to take the existing understating of resilience into account. The first type is based on the understanding of resilience in materials science and is called “engineering resilience”. The second type of resilience is known as “ecological resilience” and describes the resilience of complex adaptive systems [58]. The theory of resilience can be found in many different fields, especially psychology [60], ecology [61], social sciences [62], and environmental science [63], and is being applied to the analysis of various systems.

On the basis of the resilience theory view, resilience considers the response to particular disruptions, that is, when the event is outside the range of changes and interruptions that the system can handle and the event is an accident [64]. Supply chains may be susceptible to a number of risks leading to different types of supply, production, and logistics disruptions [65]. Resilience plays an important role in supply chain risk management. Resilience is generally understood as the supply chain’s ability to withstand disruptions and recover after disruption [9,11]. Supply chain disruption risks and resilience has been developed as a well-defined area of research and has produced a wealth of academic results [66].

One of the first studies on supply chain resilience was presented by Fiksel (2003). Fiksel (2003) argued that the development of a resilient system is based on comprehensive system thinking, defined as the ability of the system to tolerate interference while maintaining its structure and function. Therefore, the basic properties of a resilient system are as follows: (1) diversity: there are many forms and behaviors; (2) efficiency: the ability to have low consumption of resources; (3) adaptability: flexibility to respond and adjust to new pressures; (4) cohesion: the ability to unify or connect systems [67].

Regarding what capacity should be covered within resilience, different research proposals cover different capacities. Reinmoeller and Van Baardwijk (2005) suggested that resilience consists of four capacities: adaptability, anticipation, flexibility, and knowledge [68]. Pereira (2009) defined resilience as a function of flexibility, agility, visibility, information sharing, and risk awareness [69]. Jüttner and Maklan (2011) proposed that RCs can improve flexibility, visibility, velocity, and collaboration [11]. Ponis and Koronis (2012) defined RCs that include agility, resilience, velocity, visibility, availability, redundancy, resource mobility, collaboration, and supply chain structure knowledge [70]. Simangunsong et al. (2012) subdivided RCs into flexibility, agility, capacity, adaptability, collaboration, information sharing, integration, financial strength, supply chain design, and risk awareness [71]. Soni et al. (2014) proposed ten enablers of resilience properties: agility, collaboration, information sharing, sustainability, risk and revenue sharing, trust, visibility, risk management culture, adaptive capacity, and structure [12]. Kamalahmadi and Parast (2016) suggested that resilience consists of 11 capacities: agility, flexibility, redundancy, velocity, visibility, collaboration, information sharing, financial strength, product stewardship, risk awareness, and knowledge [72]. Chowdhury and Quaddus (2017) defined resilience as a function of flexibility, capacity, velocity, efficiency, responsiveness, recovery, dispersion, collaboration, market position, information sharing, security, financial strength, and product stewardship [73]. Singh et al. (2019) subdivided RCs into flexibility, agility, redundancy, velocity, visibility, adaptability, collaboration, information sharing, market position, and security [74]. Based on the above, scholars believe that resilience has multidimensional capacities.

On the basis of the above discussion and a comprehensive review of the literature [9,69,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93], this study aggregates 20 RCs, as shown in

Table 1. The constituent elements of resilience capacities by scholars.

	(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)	(10	(11)	(12)	(13)	(14)	(15)	(16)	(17)	(18)	(19)	(20)	(21)	(22)	(23)	(24)	(25)	(26)	(27)	(28)	(29)	(30)
Agility	●			●	●			●		●		●				●	●	●		●		●	●	●	●	●	●		●	●
Flexibility	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●		●	●		●	●	●	●	●	●	●	●	●	●
Redundancy	●		●	●				●								●		●		●		●	●	●	●	●	●		●	●
Capacity										●	●		●	●					●	●	●						●
Velocity	●					●	●	●	●				●			●					●		●		●	●
Efficiency											●										●		●
Responsiveness									●												●	●	●						●
Competence									●
Visibility	●				●	●	●	●	●		●	●	●	●	●	●	●	●		●			●	●	●	●	●	●	●
Adaptability		●	●				●			●	●	●								●			●			●	●	●		●
Anticipation		●					●				●												●					●
Recovery											●										●		●				●	●	●
Dispersion			●	●							●										●		●
Collaboration	●		●			●	●	●	●	●	●	●	●	●	●	●	●	●		●	●		●	●	●	●	●		●	●
Market position									●		●									●	●	●	●			●		●	●
Information sharing	●			●	●					●		●			●	●				●	●	●		●		●	●
Security											●		●					●			●	●	●	●		●		●
Financial strength										●	●			●		●					●		●	●				●
Product stewardship											●					●					●
Risk awareness	●				●					●		●	●			●			●	●		●	●	●		●			●
Knowledge	●	●						●				●				●	●		●					●	●

(1) Christopher and Peck (2004) [35]; (2) Reinmoeller and Van Baardwijk (2005) [68]; (3) Sheffi and Rice (2005) [75]; (4) Priya Datta et al. (2007) [76]; (5) Pereira (2009) [69]; (6) Jüttner and Maklan (2011) [11]; (7) Carvalho et al. (2012b) [78]; (8) Ponis and Koronis (2012) [70]; (9) Carvalho et al. (2012a) [77]; (10) Simangunsong et al. (2012) [71]; (11) Pettit et al. (2013) [79]; (12) Soni et al. (2014) [12]; (13) Rajesh and Ravi (2015) [80]; (14) Wicher et al. (2016) [81]; (15) Rajesh (2016) [82]; (16) Kamalahmadi and Parast (2016) [72]; (17) Sahu et al. (2017) [83]; (18) Ali et al. (2017) [84]; (19) Brusset and Teller (2017) [85]; (20) Jain, V. et al. (2017) [86]; (21) Chowdhury and Quaddus (2017) [73]; (22) Yazdanparast et al. (2018) [87]; (23) Kochan and Nowicki (2018) [88]; (24) Karl et al. (2018) [89]; (25) Sabahi and Parast (2019) [90]; (26) Singh et al. (2019) [74]; (27) Hosseini, S et al. (2019) [9]; (28) López and Ishizaka (2019) [91]; (29) Han et al. (2020) [92]; (30) da Silva Poberschnigg et al. (2020) [93].

. The definitions for the chosen RCs are shown in Appendix B. These capacities will be evaluated in Section 4.

2.3. Resilience-Enhancing Features (RFs)

Hosseini et al. (2019) present a resilience hierarchy for supply chain resilience, as illustrated in Figure 1. The bottom layer is occupied by RFs that enhance RCs, such as the manufacturer’s surplus stock or having a backup supplier. Identifying RFs helps to better understand the resilience of supply chains. The vulnerability and recoverability of a supply chain is a function of resilience capacity. The supply chain with higher resilience is less vulnerable to disruption and requires less recovery effort. Supply chains that have less resilience capacity are more vulnerable and need to work harder to recover. Finally, supply chain resilience is located at the top of the hierarchy and is a function of the vulnerability and recoverability of the supply chain [9].

At present, no unified regulation has been developed on the related terms of resilience among various scholars. For example, some scholars call RFs resilience measures. Lam and Bai (2016) developed an original QFD method that connects customer requirements, maritime risks, and resilience measures simultaneously [94]. He et al. (2020) incorporated the results obtained by the Kano model and DEMATEL into QFD, converted customer requirements into risk factors and then into resilience measures [95]. Lücker and Seifert (2017) built up resilience in a pharmaceutical supply chain through inventory, dual sourcing, and agility capacity [96]. Chen et al. (2020) also established three resilience measures in the supply chain, namely, additional inventory, dual sourcing procurement, and agility [97]. They then discussed the correlation between the three. Other studies on resilience measures include postponement and flexible transport [98], multi-source procurement and safety stocks [99], information sharing between partners [100], robustness [101].

Some scholars call RFs resilience strategies. To cope with supply chain risks, resilience strategies can enhance the ability of a supply chain to recover after disruption. Resilience strategies can be used for emergency risk management of supply and demand sides of the supply chain [102]. Different scholars have proposed different strategies for resilience. Chopra and Sodh (2004) proposed eight resilience strategies: (1) add capacity, (2) add inventory, (3) redundant suppliers, (4) increase responsiveness, (5) increase flexibility, (6) aggregate or pool demand, (7) increase capabilities, and (8) have more customer accounts [103]. Tang (2006) proposed nine resilience strategies: (1) postponement, (2) strategic stock, (3) flexible supply base, (4) make and buy, (5) economic supply incentives, (6) flexible transportation, (7) revenue management, (8) dynamic assortment planning, and (9) silent product rollover [98]. Chowdhury and Quaddus (2015) proposed eight resilience strategies: (1) back-up capacity, (2) building relation with buyers and suppliers, (3) quality control, (4) skill and efficiency development, (5) ICT adoption, (6) demand forecasting, (7) responsiveness to customers, and (8) security system improvement [104]. Other studies on resilience strategies include contingency, sourcing contingency rerouting, and demand switching [105], increasing human resource skills through training and cross-skills training [106], change of supply chain management responsibilities, implementing hierarchical management of suppliers, seeking coordinated implementation of inventory management mode, and improving the pre-risk identification system [107]. In addition, the most discussed resilience strategies in supply chains are alternative markets, capacity extensions, and flexible allocations or flexible rerouting strategies [102,108,109,110,111,112,113].

Given that RFs are concrete measures to improve RCs, the meaning of RCs is difficult for decision-makers to understand. Furthermore, because this study requires decision-makers to understand the specific measures to enhance RCs, specific RFs must be identified first. On the basis of actual demand, the case company’s experts were interviewed on how RFs could enhance RCs. This study lists 22 explored RFs that the case company plans to adopt in this study. These features will be evaluated in Section 4.

2.4. Integrating Resilience and Sustainability for Supply Chain

The term resilience is often used in conjunction with terms such as sustainability. Resilience is focused on the response of a system to persistent stress or extreme disturbances. In contrast, sustainability is focused on the quality of life for present and future generations with respect to social, economic, and environmental factors [58]. Research on supply chain management supports the analysis of the relationship between resilience and sustainability [114]. Marchese et al. (2018) argue that resilience analysis is a necessary prerequisite for achieving sustainability. They believe that the activities of the firm are sustainable on the condition that the core activities are resilient to destructive events [115]. If supply chains are to meet the dimensions of sustainability, their operational processes need to be resilient in this sense. This requires an analysis of the impact of implementing resilience strategies in terms of sustainability. Therefore, business decision-makers need to explore resilience strategies by considering the dimensions of sustainability. They seek to establish effective responses to eliminate the impact of potential disruptions [116], while maintaining the sustainable dimensions of the supply chains [117,118,119].

In recent years, the relevant supply chain resilience and sustainability studies are as follows. Fahimnia and Jabbarzadeh (2016) developed a multi-objective optimization model for resiliently sustainable supply chains [117]. Ramezankhani et al. (2018) proposed a dynamic network data envelopment analysis framework to assess a supply chain performance from both sustainability and resilience viewpoints [116]. Ivanov (2018) analyzed disruption propagation in the supply chain with consideration of sustainability factors in order to design a resilient supply chain structure [118]. Zavala-Alcívar et al. (2018) developed a conceptual framework that integrates the fundamental elements for analyzing, measuring, and managing resilience to increase sustainability in the supply chain [120]. Khot and Thiagarajan (2019) evaluated supply chain management practices for effective sustainable and resilience practices in the automobile industry of India [121]. Shin and Park (2019) applied an interpretive structural modeling approach to identify and design improvement planning for supply chain resilience for a higher level of sustainability and competitive advantage [122]. Thaiprayoon et al. (2019) investigated the impact of supply chain resilience on sustainability performance and the mediating role of sustainability consciousness in Thailand’s manufacturing sector [123]. Ivanov (2020) offered a viable supply chain framework by integrating agility, resilience, and sustainability perspectives [124].

As supply chains become more complex, managing disruption risks and achieving resilience have become more critical. A desirable supply chain design should consider not only sustainability issues, but also consider the proactive and reactive resilience strategies in the case of disruptions. [9]. Research on supply chain resilience and sustainability has become increasingly common in various fields, but research in a manufacturing context is still relatively sparse. Based on the above literature discussion, this study proposes the concept of enhanced resilience strategy for risk mitigation of sustainable supply chain as shown in Figure 2.

3. Methodology

In this section, we first give a short literature review on the proposed MCDM-QFD approach, and then present the methodologies used in the later presentation. The methodologies of this paper are the focus group method (FGM), fuzzy Delphi method (FDM), failure mode and effect analysis (FMEA), and the VlseKriterijumska Optimizacija I Kompromisno Resenje (VIKOR) method.

3.1. The Proposed MCDM-QFD Approach

QFD is used to solve the design challenges of new services and products to effectively meet customer expectations [22,23]. A valid technique for converting customer requirements to technical attributes is through a relational matrix called the house of quality (HoQ). HoQ is the basic structure of QFD, including technical attributes, customer requirements’ importance weights, technical attributes, and the relationship matrix between customer requirements and technical attributes [24,25,26]. The first step in constructing the HoQ is to clarify the customer requirements so that they are well understood. Not all customer requirements have the same level of importance to customers, so a weighting technique should be used to weight customer requirements. Technical attributes are associated with customer requirements. The relationship matrix represents how each customer requirement affects its associated technical attributes, helping to determine the final importance of the technical attributes [125].

Among the numerous approaches available for conflict management, one of the most prevalent is MCDM. MCDM may be considered a complex and dynamic process [126]. To improve the practicality of QFD, scholars have integrated MCDM into QFD and proposed valuable extensions [22,24,127,128,129,130]. The VIKOR method is a highly useful MCDM technique and is used to solve discrete decision-making problems with non-commensurable and conflicting criteria. This method focuses on ranking and selecting from a set of alternatives and identifying compromise solutions to a problem with conflicting criteria, helping decision-makers make the final decision [131]. A compromise solution is the closest possible solution to an ideal situation, and a compromise means an agreement built through mutual concessions. The main advantage of the VIKOR method is that it introduces a multi-criteria ranking index to the ideal solution based on a specific measure of “closeness”, and the resulting compromise solution provides maximum group utility for the “majority” and minimum individual regret for the “opponents” [132,133]. Owing to its characteristics and functions, the VIKOR method has been widely studied and applied to group decision-making problems in recent years [134,135,136,137,138,139]. Therefore, this study proposed that the integrated FGM-FMEA-FDM-VIKOR framework-based QFD approach to building a sustainable risk resilience that can provide decision support for EMSCs by integrating MCDM and QFD.

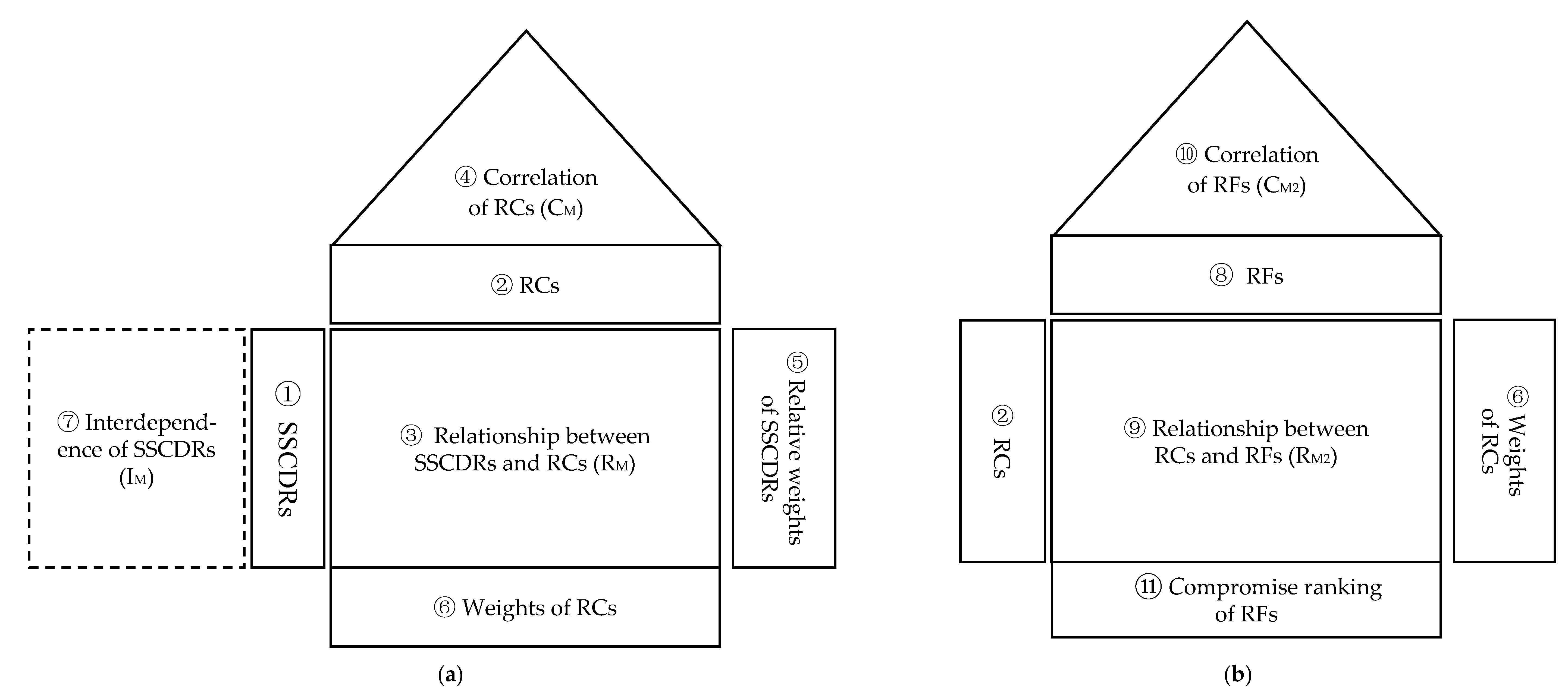

This study has two HoQs in the QFD framework. We propose an integrated framework to elaborate the connections between SSCDRs and RCs and the connections between RCs and RFs, which are used for improving RCs and mitigating SSCDRs. The first HoQ links SSCDRs into RCs. Hence, SSCDRs appear as ‘whats’ in this HoQ, because manufacturing systems should initially identify what the risk affects; whereas RCs appear as ‘hows’, because they directly affect the way by which SSCDRs are treated. Then, the second HoQ identifies the RFs that can improve the RCs defined in the first HoQ. Hence, the RCs represent resilient requirements to improve and appear as ‘whats’ in the second HoQ, whereas the RFs are listed as ‘hows’ because they are practical measures that the manufacturing system can use to improve the RCs. Moreover, as shown in Figure 3, the weights of the RCs calculated in the first HoQ are the starting point in constructing the second HoQ and can be directly used as importance weights in the second HoQ. Thus, the second HoQ can be constructed following similar steps as in the first HoQ. These steps in this study are shown in Figure 3 and Figure 4. The symbols in the text from ① to ⑪ correspond to the steps illustrated in Figure 3 and Figure 4.

3.2. HoQ 1: Linking SSCDRs and RCs

On the basis of the interview steps of FGM [140], a panel of experts initially determined important SSCDRs. Then, these experts confirmed potential causes and effects and further designed an FMEA questionnaire. Secondly, FMEA was used to obtain the RPNs. On the basis of the RPN value (weights), the top SSCDRs would be listed as key disruption risks ① These selected key disruption risks were further used to conduct the interdependent matrix (IM) ⑦. Based on the literature review in Table 1, key RCs, which were cited by at least five scholars, were selected for analysis ②. Then, we identified the correlation matrix of RCs (CM) ④ and the relational matrix of the key SSCDRs and RCs (RM) ③ Given that risks are interactional with one another [141,142,143], the integrated relational matrix of SSCDRs and RCs (IRM) is obtained by using Formula (1).

$${\mathrm{IR}}_{\mathrm{M}}={\mathrm{I}}_{\mathrm{M}}\times { \mathrm{C}}_{\mathrm{M}}\times {\mathrm{R}}_{\mathrm{M}}$$

(1)

Finally, we normalized RPNs as relative weights of key SSCDRs ⑤ and used the VIKOR method to obtain the weights and ranks of the RCs ⑥.

3.3. HoQ 2: Linking RCs and RFs

We used FDM to select key RFs ⑧ by experts’ threshold value. Then, we calculated the correlation matrix of the RFs ⑩ and the relational matrix of the RCs and the RFs ⑨. The VIKOR method normalized the integrated evaluation matrix, and the positive and negative ideal solutions were found. We used (1 − $Q_j$) as the weights ⑥ and calculated group utility, individual regret, and benefit ratio. Then, the VIKOR method proceeded with compromise sorting by conditional judgments for the RFs. Finally, we obtained the optimal scheme of the RFs to improve the RCs and mitigate the disruption risks. The proposed framework is shown in Figure 4.

3.4. Focus Group Method (FGM)

FGM has been a highly effective qualitative research tool; it makes it possible to gather detailed information regarding participant perceptions, opinions, beliefs, and attitudes regarding particular phenomena [144]. This method is well suited to explore and better understand the processes and intentions that drive supply chain members to determine SSCDRs, as interaction within the group helps participants better express and clarify their views [140]. The steps are described as follows [145]:

• Step A: Write down goals.
• Step B: Define target audience.
• Step C: Find a venue.
• Step D: Recruit participants.
• Step E: Design the questions.
• Step F: Moderate the group.
• Step G: Analyze.

3.5. FMEA

FMEA was proposed by NASA in 1963. This method has been extended and applied in various industries, assisting companies in identifying and quantifying potential deficiencies in the design stage [146]. The empirical evidence shows that the negative effects of supply chain disturbances can be categorized into a number of supply chain failure modes [78]. Therefore, we focused on the SSCDRs identified using FGM to determine the potential causes and effects. Given that different manufacturing systems are exposed to different disruption risks, their degree of occurrence and influence varies. Accordingly, the three criteria of severity (S), occurrence (O), and detection (D), should be discussed depending on the situation. This study referred to the corresponding semantic levels of international standards to design the FMEA questionnaire and calculate the risk priority numbers (RPNs) by using Formula (2).

RPN = S × O × D

(2)

3.6. Fuzzy Delphi Method (FDM)

Murray et al. (1985) developed an optimized FDM, which combines the traditional Delphi method and the fuzzy theory [147]. Experts’ judgments in FDM are represented by fuzzy numbers. This study used FDM to screen key RFs with experts’ threshold, because it can (1) reduce the survey numbers, (2) express the opinions of experts entirely, (3) become more rational in keeping with the needs, and (4) save more time and costs [148]. The steps are detailed as follows.

Step A: The FDM questionnaire was developed for the confirmed RFs. Each expert was requested to evaluate the content of each feature. The value range was indicated to target the level of importance of the evaluation targets. The minimum value of this value range represents the ‘most conservative cognitive value’ by the experts. By contrast, the maximum value of the value range represents the ‘most optimistic cognitive value’.

Step B: We calculated the most conservative value and the most optimistic value given by all the experts. Fuzzy theory was adopted to calculate the minimum value$C_L^i$, geometric mean$C_M^i$, and maximum value $C_U^i$in the conservative value, as well as the minimum value $O_L^i$, geometric mean $O_M^i$, and maximum value $O_U^i$in the optimistic value.

Step C: In accordance with Step B, the conservative value of the triangular fuzzy number for every assessment item i,$C^i=\left(C_L^i,C_M^i,C_U^i\right)$and the triangular fuzzy number of the ‘most optimistic cognitive value’ were obtained, $O^i=\left(O_L^i,O_M^i,O_U^i\right)$.

Step D: The consensus level $G^i$ was calculated. $G^i$refers to the ‘value importance level that has reached a consensus’ as far as opinions of experts are concerned. The higher the $G^i$ is, the higher the consensus on a particular assessment criterion among the experts will be. $G^i$ can be calculated in the following three ways.

(1) If the triangular fuzzy numbers show no overlap, then $\left(C_U^i\leqq O_L^i\right)$ signifies that the opinion intervals of the experts possess a consensus section. If so, then the evaluation item i ‘value importance level that has reached a consensus’ $G^i$ equals the average of$C_{M }^i$ and $O_M^i$, which is expressed as$G^i=\left(C_M^i+O_M^i\right)/2$.

(2) If two triangular fuzzy numbers overlap, then $\left(C_U^i>O_L^i\right)$ and $Z^{i }<M^i$, where $\left(Z^i=C_U^i-O_L^i\right)$ and $\left(M^i=O_M^i-C_M^i\right)$. In addition, the grey area of the fuzzy relationship is smaller than the interval between the experts’ evaluation criteria, ‘optimist cognitive of the geometric mean’, and ‘conservative cognitive of the geometric mean’. In that case, the ‘value importance that has reached a consensus’ of the assessment item is calculated based on Formula (3) [149].

$$G^i=\frac{[\left(C_U^i\times O_M^i\right)-\left(O_L^i\times C_M^i\right)\}}{\left[\left(C_U^i-C_M^i\right)+\left(O_M^i- O_L^i\right)\right]}$$

(3)

(3) If two triangular fuzzy numbers show an overlap, then $\left(C_U^i>O_L^i\right)$ and${ Z}^{i }<M^i$. This condition indicates a grey area with a fuzzy relationship ($Z^{i }$) is less than the interval range of evaluation criteria, ‘optimistic cognition of the geometric mean’ and ‘conservative cognition of the geometric mean’ ($M^i$). Thus, the opinion interval values of the experts had no consensus, and the opinions of the experts that gave extreme values and the opinions of other experts showed great disparities, leading to opinion divergence. Hence, criteria that have not undergone convergence were repeated (Steps A–D) until all criteria reached convergence and obtained the ‘value importance reached the consensus’ $G^i$.

Step E: All criteria that did not reach the threshold value were deleted after setting the threshold value of $G^i$.

3.7. VIKOR Method

The VIKOR method, proposed by Opricovic (1998), is a compromise sorting method in MCDM [150]. Though there are many approaches to handle issues related to business management, when there are conflict or substitution situations between indicators, it may cause deviations in the results [149]. The VIKOR method can overcome this problem and be used for ranking, sorting, and selecting a set of conflicting alternatives. The advantage of VIKOR can reflect the subjective preferences of decision-makers and determine more valid results than other methods for issues with conflicting criteria, as it is characterized by maximizing “group utility” and minimizing “individual regrets” of the “opponent” [132].

The VIKOR method evaluates every feasible alternative based on each criterion function. In Figure 5, $F^{*}$ is the ideal solution, $F_1^{*}$ is the ideal value of the first evaluation criterion, and $F_2^{*}$ is the ideal value of the second evaluation criterion. When the two assessment criteria have conflicting characteristics, in order to achieve the desired value of the first criterion, the performance of the second criterion must be sacrificed, and vice versa. Therefore, a compromise must be sought for the two conflicting criteria to reach an agreement. In the arc (non-inferior solution set), $F^c$ is a feasible solution closest to $F^{*}$in the feasible solution, so $F^c$is the best solution after a compromise has been reached.

The steps are as follows:

Step A. Normalize the original data

$$r_{ij}=\frac{u_{ij}}{{\sum }_{i=1}^m{u}_{ij}},1\le i\le m,1\le j\le n,u_{ij}\in B$$

(4)

Taking the first HoQ as an example, the original data $u_{ij}$ are normalized as r_ij, where B is the set of criteria, m is the number of disruption risks, and n is the number of RCs.

Step B. Find the positive ideal and negative ideal solution

$$f_i^{*}=\left[\left(ma{x}_j{f}_{ij}|i\in I_1\right), \left(mi{n}_j{f}_{ij}|i\in I_2\right)\right], {\forall }_i$$

(5)

$$f_i^{-}=\left[\left(mi{n}_j{f}_{ij}|i\in I_1\right), \left(ma{x}_j{f}_{ij}|i\in I_2\right)\right], {\forall }_i$$

(6)

In the above formula, $f_{ij}$ is the performance evaluation value of the alternative j on the i evaluation criteria, $I_1$ is a set of benefit-oriented criteria, $I_2$ is the set of cost-oriented criteria, $f_i^{*}$ is the positive ideal solution, and $f_i^{-}$ is the negative ideal solution.

Step C. Calculate the group utility${\mathit{S}}_{\mathit{j}}$and the individual regret${\mathit{R}}_{\mathit{j}}$

$$S_j={\displaystyle \sum }_{i=1}^n{w}_i\left(f_i^{*}-f_{ij}\right)/ \left(f_i^{*}-f_i^{-}\right)$$

(7)

$$R_j=\underset{i}{\mathit{max}}[w_i(f_i^{*}-f_{ij}) / \left(f_i^{*}-f_i^{-}\right)], j=1,2,3\dots J$$

(8)

where $w_i$ is the relative weight of disruption risks i. In this study, the normalized RPN values of FMEA were taken as the relative weights of disruption risks in the first HoQ. The sorting weights of the first HoQ were taken as the relative weights of RCs in the second HoQ.

Step D. Calculate${\mathit{Q}}_{\mathit{j}}$:${\mathit{Q}}_{\mathit{j}}$denotes the benefit ratio that can be generated by the alternative j.

$$Q_j=v\left(S_j-S^{*}\right) / \left(S^{-}-S^{*}\right)+\left(1-v\right)\left(R_j-R^{*}\right)/ \left(R^{-}-R^{*}\right)$$

(9)

where $S^{*}=\underset{j}{\mathit{min}}{S}_j,S^{-}=\underset{j}{\mathit{max}}{S}_j$; $R^{*}=\underset{j}{\mathit{min}}{R}_j,R^{-}=\underset{j}{\mathit{max}}{R}_j$. v ∈ [0, 1] is the decision-making mechanism coefficient, used as the weight of the strategy, where v > 0.5 indicates the basis of maximizing the group utility, v < 0.5 represents the basis of minimizing the individual regret, and v = 0.5 represents the basis of consensus decision-making.

Step E. According to the relationships of${\mathit{S}}_{\mathit{j}}$,${\mathit{R}}_{\mathit{j}}$, and${\mathit{Q}}_{\mathit{j}}$proceed to the ranking of the alternatives

When the following two conditions are satisfied, we can sort the alternatives according to the value of $Q_j$ (the smaller the better).

Condition 1: Acceptable benefits of the threshold conditions

$$Q^{″}-Q^{\prime }\ge 1/\left( J-1\right)$$

(10)

In the above Formula (10), according to the sorting of Q_j, Q’ represents the Q_j value of the first-ranked alternative, Q” represents the Q_j value of the second-ranked alternative, and J is the number of alternatives. This formula indicates that the difference between the two benefit rate ($Q_j$) values of the two adjacent alternatives must exceed the threshold 1/(J − 1) in order to confirm that the first-ranked alternative is significantly better than the second.

Condition 2: Acceptable decision reliability

After considering the ranking of Q values, the S value (S’) of the first-ranked alternative must also be better than the S value (S”) of the second-ranked alternative; or the R value (R’) of the first-ranked alternative must also be better than the R value (R”) of the second-ranked alternative. When there are several alternatives to be compared at the same time, using the above procedures, the following two alternatives should be examined to check if they are in line with Condition 2.

Step F. Decision rules

If the relationship between the first and the second-ranked alternatives is in line with Conditions 1 and 2 simultaneously, then the first alternative is accepted as the best one; if the relationship between the first-ranked alternative and the second-ranked alternative “only meets Condition 2”, then both the first and second-ranked alternatives are accepted as the best alternatives.

4. Empirical Study

This study focuses on the elevator manufacturer industry in Taiwan, which will allow us to verify the proposed framework. Given its product characteristics, the case company’s supply chain length is short, but its components come from many different types of supplier. The current case company’s supply chain is facing internal and external risks that have worried the managers. In this study, in-depth structured interviews were conducted with experts from different departments. The selected departments were chosen because they were the most relevant to the topic of SSCDRs and resilience. Views from different departments were gathered to make a holistic judgment. The data obtained were converted into two-phase HoQs.

4.1. First HoQ linking SSCDRs and RCs

Stage I: Confirmation of important SSCDRs using FGM

On the basis of the FGM, we invited eight experts to take part in a focus group interview to confirm the suitability of disruption risks affecting the supply chain. We screened a comprehensive list of 130 SSCDRs to form a list of 22. On the basis of these 22 important SSCDRs, the experts were invited to confirm the possible causes and effects and then further designed an FMEA questionnaire, as indicated in

Table 2. Important SSCDRs selected by FGM and causes and effects.

No.	SSCDR	Failure Effect	Possible Cause
1	Unexpected change demands from customers	1. Failure to meet customer requirements and supply interruption. 2. Temporary changes in production cause confusion and additional expenses.	1. Not fully understanding customer needs. 2. Customers placing orders without fully understanding the products.
2	Unexpected events lead to changes in supplier delivery dates	1. The supplier being unable to deliver on the scheduled time. 2. Additional loss when an uncasing scheme is adopted.	1. Insufficient strain and flexibility of supplier accident.
3	Typhoon	1. Damage to plant structure and inventory. 2. External water and electricity equipment is interrupted. 3. Employees cannot go to work and production is interrupted.	1. Natural disasters.
4	Customs obstruction	1. Customs detains products due to different perceptions of the products, resulting in delay or interruption of delivery. 2. Paying extra money.	1. Strict import and export regulations. 2. Not knowing the rules beforehand.
5	Insufficient customer payment	1. Using extra time for refunds. 2. Reducing the fluency of enterprise capital scheduling.	1. The customer has poor credit or is unable to pay. 2. Insufficient collection management mechanisms.
6	Adverse market changes (securities, exchange rates, and interest rates)	1. Fluctuations of exchange rate that cause the loss of receipt and payment. 2. Loss of raw material costs and product profits.	1. Dynamic and unstable market influence. 2. Insufficient risk management mechanism.
7	Misinterpretation of customer order information, resulting in product error	1. Misunderstandings that result in products that do not meet customer expectations.	1. Errors when the order was converted to the process file. 2. Insufficient checking mechanisms.
8	Product price	1. An inappropriate product price, affecting the downstream consumer market. 2. Procurement prices of upstream raw materials are inappropriate, affecting suppliers.	1. Poor overall control of product cost. 2. A price strategy of the enterprise that is not well formulated.
9	Damage to internal IT infrastructure or intrusion of information systems (viruses or software exceptions)	1. Abnormal operation of the product’s electronic components. 2. Non-operational enterprise IT equipment. 3. Important data loss.	1. Program abnormality/operation negligence. 2. Vicious attacks. 3. Inadequate protection of IT equipment.
10	Increase in the total cost of a supplier’s products (product cost, logistics, quality cost)	1. An increased price that cannot be accepted, but no alternative supplier or inventory exists.	1. Increased costs of products, logistics, and quality. 2. Insufficient risk management mechanism.
11	Supplier’s strategic adjustment resulted in delays in the shipment	1. Disruption of raw material supply and production. 2. Failure to deliver goods smoothly causes breach of contract.	1. Supplier prioritizes other buyers’ orders. 2. The relationship between the enterprise and suppliers is ordinary.
12	Poor quality of supply goods	1. Increased time and labor cost of reprocessing, return, and replacement. 2. Disruption of raw material supply and production. 3. Failure to deliver goods smoothly causes breach of contract.	1. Poor quality control of suppliers. 2. Demand is not communicated to the supplier correctly. 3. Supplier that is insufficiently capable to meet the demand.
13	Deterioration of employee relations	1. Inability to retain/attract talent. 2. Decline in employee productivity. 3. Reduced job satisfaction/loyalty.	1. Bad communication. 2. Unequal treatment. 3. Not having a good appeal pipeline.
14	Improper or poor personal qualities of employees	1. Affected the work quality of other employees. 2. Low productivity.	1. Poor emotional management. 2. Insufficient human resource management mechanism of enterprises.
15	Lack of critical capacities/skilled employees	1. Technology that cannot improve. 2. Unstable product quality. 3. New employees that cannot obtain a good education.	1. High technical requirements. 2. Inability to retain/attract talent. 3. Insufficient human resource management mechanism of enterprises
16	New employees and unskilled employees resulting in delayed delivery	1. Delivery delay. 2. Operation negligence.	1. Insufficient education and training. 2. Imperfect inspection process.
17	Lack of well-established or insufficient incentives (e.g., bonuses, promotions, etc.)	1. Low work morale/satisfaction. 2. The inability to retain/attract talent. 3. Difficulties in attracting good upstream and downstream cooperative enterprises.	1. System defects. 2. Obstacles from realistic factors.
18	Inefficient use of labor (ineffective/poor task allocation, resulting in reduced labor productivity)	1. Labor loss. 2. Causing employee dissatisfaction.	1. Not communicating properly before work. 2. Employees are incompetent.
19	Poor product design or malfunctions in the manufacturing process	1. The product does not meet the specifications and cannot be sold. 2. The customer is not satisfied with the use. 3. Existence of security risks.	1. Operation, environment, cost, and other factors were not fully considered during the design period. 2. Failing to establish proper control procedures.
20	Equipment damage leading it to be temporarily or permanently unavailable	1. Production interruption and delivery delay. 2. Loss of equipment maintenance.	1. Single operating equipment. 2. Improper use. 3. The equipment is not properly maintained.
21	Personnel changes in senior management	1. Low operational efficiency/shutdown of the management system. 2. Employees’ inadaptation to the new manager. 3. Education and training cannot be verified.	1. Management turnover/retirement. 2. Business strategy.
22	Data missing, unable to render full information	1. Relevant information is not available when required. 2. Business disruptions and declining productivity.	1. Hardware damage. 2. Software abnormalities. 3.Real-time backup mechanism lacking

.

As seen in the examples of the SSCDRs numbers 8 and 17, a successful supply chain largely depends on the consumption of products by downstream customers. Customer loyalty is largely influenced by retail prices and retail services, ultimately helping enterprises build a strong brand image based on product quality [151]. Procurement strategies are widely used to manage supply risks when firms face supply disruptions from upstream suppliers [152]. For the case company, the risk of product price may result in an improper product price affecting the consumer market, and the improper purchase price of upstream raw materials affecting suppliers. The possible reason for this result is that the overall control of the product cost is not good or the price strategy of the enterprise is not good. When faced with random demand, participants in the supply chain will increase their focus on risk. Examples include production, pricing, and investment in quality or service. In addition, different participants in the supply chain may have different degrees of risk aversion [153]. If strategic alliances and partnerships with suppliers are needed, not only punishment mechanisms but also incentive mechanisms should be considered [154]. A strike is a collective refusal of work by workers to express their protest [155]. For example, in 2019, United Auto Workers (UAW) and General Motors failed to reach an agreement on a new labor contract, and 46,000 workers went on strike. The strike shut down all factories in the US and affected the network of manufacturers that produce components. These suppliers were left with little to do but wait out the strike. For the case company, the lack of a perfect incentive mechanism may lead to effects such as the low morale/satisfaction of employees, the inability to retain/attract talent, and difficulty in attracting good suppliers, which may be caused by defects of the system or obstacles to various practical factors.

Stage II: Obtainment of key SSCDRs and RPNs using FMEA

Different manufacturing systems involve distinctive disruption risks, different possibilities of occurrence, and various degrees of influence. Accordingly, the three failure measurement items of severity (S), occurrence (O), and detection (D) should be discussed depending on the situation under investigation. This study referred to the international standard MIL-STD-882 to design an /FMEA questionnaire and calculate the RPNs. Finally, the questionnaires were completed, and the RPNs were calculated using Formula (2). According to the RPN values (weights), the top-10 factors will be listed as the key SSCDRs.

Table 3. FMEA screening results of key SSCDRs and RPNs.

	Key SSCDR	RPN	Order
SSCDR 1	Unexpected change demands from customers	14.28	10
SSCDR 2	Unexpected events lead to changes in supplier delivery dates	38.02	1
SSCDR 3	Typhoon	30.72	2
SSCDR 4	Damage to internal IT infrastructure or intrusion of information systems (viruses or software exceptions)	15.68	8
SSCDR 5	Misinterpretation of customer order information, resulting in product error	20.74	5
SSCDR 6	Poor quality of supply goods needed to be returned or reprocessed so as to affect downstream manufacturers or customers	24.00	4
SSCDR 7	Lack of critical capacities/skilled employees	26.40	3
SSCDR 8	New employees (unskilled employees) resulting in delayed delivery	14.96	9
SSCDR 9	Lack of well-established or insufficient incentives (bonuses, promotions, etc.)	19.20	7
SSCDR 10	Poor product design or malfunctions in the manufacturing process	19.58	6

shows the calculation results. These key SSCDRs would be included in Part ① of the first HoQ, as shown in Figure 3, Figure 4, and Figure 6. As shown in Table 3, the three SSCDRs with the highest RPN values are ‘unexpected events lead to changes in supplier delivery dates’, ‘typhoon’, and ‘lack of critical capacities/skilled employees’.

Stage III: Evaluation of interdependent matrix between SSCDRs (I_M)

Relevant studies show that risks contain interdependent effects [141,142,143]. To investigate the interdependent effects of SSCDRs, the expert panel was asked to evaluate the interdependent matrix. Taking the results of the FMEA, 10 key SSCDRs were further used to conduct the interdependent analysis. The assessors should consider whether a mutual influence exists between the risks, and they were required to use 0–1–2–3 scale for the evaluation. We took the total average of the evaluations as the final result.

Table 4. Interdependent matrix of key SSCDRs (I_M).

	SSCDR 1	SSCDR 2	SSCDR 3	SSCDR 4	SSCDR 5	SSCDR 6	SSCDR 7	SSCDR 8	SSCDR 9	SSCDR 10
SSCDR 1	0.0	1.4	0.0	0.0	2.0	2.2	0.0	0.4	0.0	2.0
SSCDR 2	1.8	0.0	0.0	1.0	2.2	2.6	0.0	1.4	0.0	1.0
SSCDR 3	1.8	2.4	0.0	2.2	0.0	3.0	0.0	0.0	0.0	0.2
SSCDR 4	0.0	2.4	0.0	0.0	2.0	2.0	0.0	0.0	0.0	2.0
SSCDR 5	1.0	2.2	0.0	0.0	0.0	2.0	0.0	0.0	0.0	2.0
SSCDR 6	0.2	2.8	0.0	0.0	1.0	0.0	0.0	0.0	0.0	2.0
SSCDR 7	1.2	2.4	0.0	2.2	3.0	2.6	0.0	2.4	2.0	2.6
SSCDR 8	1.2	3.0	0.0	1.8	3.0	3.0	2.2	0.0	2.0	1.8
SSCDR 9	0.0	0.2	0.0	0.0	0.2	0.2	3.0	2.0	0.0	2.0
SSCDR 10	2.0	2.2	0.0	0.0	3.0	3.0	0.0	0.0	0.0	0.0

shows the results. The interdependent matrix would be included in Part ⑦ of the first HoQ, as shown in Figure 3, Figure 4, and Figure 6.

Stage IV: Identification of correlation matrix between RCs (C_M)

Based on the review of RCs in Table 1, we only cited key RCs that have been proposed by more than five scholars in the reviewed literature. Eight RCs were selected in this study. The key RCs would be included in Part ② of the first HOQ, as shown in Figure 3, Figure 4, and Figure 6.

Relevant field experts were also invited to assess the correlation of RCs to understand whether they complement or conflict with one another. The degree of correlation between RCs was assessed using assessment scales of 0–1–2–3, which represent low, moderate, and high correlation, respectively. The correlation matrix shown in

Table 5. Correlation matrix of key RCs (C_M).

	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
RC 1 Agility	0	2.2	1.6	2.4	1.8	2.1	2.3	1.4
RC 2 Flexibility	2.2	0	1.2	0.8	0.4	2.8	1.6	0.4
RC 3 Capacity	1.6	1.2	0	2.2	0.8	1.6	1.9	0.6
RC 4 Velocity	2.4	0.8	2.2	0	1.2	0.8	1.8	0.6
RC 5 Visibility	1.8	0.4	0.8	1.2	0	1.9	0.4	2.6
RC 6 Adaptability	2.1	2.8	1.6	0.8	1.9	0	2.1	0.8
RC 7 Collaboration	2.3	1.6	1.9	1.8	0.4	2.1	0	1.2
RC 8 Risk awareness	1.4	0.4	0.6	0.6	2.6	0.8	1.2	0

would be included in Part ④ of the first HOQ, as shown in Figure 3, Figure 4, and Figure 6.

Stage V: Evaluation of relational matrix between SSCDRs and RCs (R_M)

The experts were further asked to assess the relationship between the SSCDRs and the RCs to depict the interrelated situation between the two groups of items. The degree of the relationship was also determined using assessment scales of 0–1–2–3. The relational matrix shown in

Table 6. Relational matrix of SSCDRs and RCs (R_M).

	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
(SSCDR 1) Unexpected change demands from customers	2.0	2.4	1.9	1.8	1.5	2.1	0.8	1.3
(SSCDR 2) Unexpected events lead to changes in supplier delivery dates	2.5	2.3	1.9	2.3	2.0	1.1	1.1	1.5
(SSCDR 3) Typhoon	0.1	0.5	0.3	0.4	1.3	0.8	0.1	1.9
(SSCDR 4) Damage to internal IT infrastructure or intrusion of information systems (viruses or software exceptions)	1.0	1.3	1.3	2.0	2.0	1.1	1.1	1.9
(SSCDR 5) Misinterpretation of customer order information, resulting in product error	2.0	1.3	1.4	0.9	2.0	0.8	0.5	1.4
(SSCDR 6) Poor quality of supply goods needed to be returned or reprocessed so as to affect downstream manufacturers or customers	1.9	1.9	1.1	2.5	1.4	1.1	1.9	1.1
(SSCDR 7) Lack of critical capacities/skilled employees	2.6	1.5	1.6	2.3	0.6	1.5	1.1	1.1
(SSCDR 8) New employees (unskilled employees) resulting in delayed delivery	1.3	1.1	1.1	1.4	0.8	1.1	1.4	1.5
(SSCDR 9) Lack of well-established or insufficient incentives (bonuses, promotions, etc.)	1.9	1.0	1.1	1.0	1.0	0.8	0.8	1.1
(SSCDR 10) Poor product design or malfunctions in the manufacturing process	2.0	1.6	2.0	2.5	2.1	1.6	1.5	1.4

would be included in Part ③ of the first HoQ, as shown in Figure 3, Figure 4, and Figure 6.

Stage VI: Calculation of integrated evaluation matrix between SSCDRs and RCs (Q_M1)

In this study, the VIKOR method was applied to calculate the weights of the RCs that need to be used to cope with the SSCDRs identified by the case company. As mentioned in the aforementioned literature, risks are interactional with one another. Therefore, the interdependence matrix (I_M) was considered in addition to the correlation matrix (C_M) and the relational matrix (R_M). Using Formula (1), the interdependence matrix (I_M) of the SSCDRs was multiplied by the correlation matrix (C_M) of the RCs and then multiplied by the relational matrix (R_M) between the SSCDRs and the RCs. The integrated evaluation matrix (Q_M1) is shown in

Table 7. Integrated evaluation matrix of SSCDRs and RCs (Q_M1).

QM1	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
SSCDR 1	171.43	115.32	129.24	126.05	112.83	161.41	148.71	101.99
SSCDR 2	203.35	136.55	151.15	145.22	135.34	185.73	175.31	116.15
SSCDR 3	217.74	140.77	161.97	149.65	140.63	196.98	185.07	121.39
SSCDR 4	184.28	123.71	138.84	136.56	121.41	175.36	161.5	110.58
SSCDR 5	171.94	114.83	129.49	122.26	111.03	158.19	149.16	98.04
SSCDR 6	137.89	93.08	102.43	103.41	91.868	131.56	123.36	83.195
SSCDR 7	367.54	247.63	273.6	268.23	248.13	340.9	319.96	214.11
SSCDR 8	366.1	252.79	278.21	272.69	250.97	345.55	328.71	215.3
SSCDR 9	155.48	114.18	121.25	115.38	110.83	140.68	142.29	85.805
SSCDR 10	212.78	144.46	160.41	158.66	142.73	204.48	190.66	126.34

.

Stage VII: RC prioritization

The sorting weights and ranks of the RCs for resisting SSCDRs could be obtained using the VIKOR method. Suggestions of RCs were proposed to the decision-makers in response to the effects of the SSCDRs in this study. The processes of the VIKOR method are as follows.

A. Normalize the original data:

The integrated evaluation matrix (Q_M1) of Table 7 was inserted into Formula (4) for normalization. After normalization, the matrix (Q_M2) would fall between [0, 1].

Table 8. Integrated evaluation matrix (Q_M2) after normalized (Q_M1).

QM2	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
SSCDR 1	0.013	0.008	0.009	0.009	0.008	0.012	0.011	0.007
SSCDR 2	0.015	0.010	0.011	0.011	0.010	0.014	0.013	0.009
SSCDR 3	0.016	0.010	0.012	0.011	0.010	0.014	0.014	0.009
SSCDR 4	0.014	0.009	0.010	0.010	0.009	0.013	0.012	0.008
SSCDR 5	0.013	0.008	0.010	0.009	0.008	0.012	0.011	0.007
SSCDR 6	0.010	0.007	0.008	0.008	0.007	0.010	0.009	0.006
SSCDR 7	0.027	0.018	0.020	0.020	0.018	0.025	0.023	0.016
SSCDR 8	0.027	0.019	0.020	0.020	0.018	0.025	0.024	0.016
SSCDR 9	0.011	0.008	0.009	0.008	0.008	0.010	0.010	0.006
SSCDR 10	0.016	0.011	0.012	0.012	0.010	0.015	0.014	0.009

shows the results.

B. Find the positive and negative ideal solutions:

The normalized matrix (Q_M2) of Table 8 was introduced into Formulas (5) and (6) to obtain the positive ideal solution$f_i^{*}$ and the negative ideal solution $f_i^{-}$ of the RCs, respectively.

Table 9. Positive ideal solution and negative ideal solution of RCs.

	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
${\mathit{f}}_{\mathit{i}}^{\mathit{*}}$	0.027	0.019	0.020	0.020	0.018	0.025	0.024	0.016
${\mathit{f}}_{\mathit{i}}^{\mathit{-}}$	0.010	0.007	0.008	0.008	0.007	0.010	0.009	0.006

shows the results.

C. Calculate group utility${{S}}_{{j}}$and individual regret$R_j$:

In this process, group utility $S_j$ and individual regret $R_j$ were calculated using Formulas (7) and (8), respectively, where $w_i$ is the relative weights of the normalized RPN of FMEA in Table 3. The relative weights of the SSCDRs shown in

Table 10. Relative weights of SSCDRs after normalization.

	SSCDR 1	SSCDR 2	SSCDR 3	SSCDR 4	SSCDR 5	SSCDR 6	SSCDR 7	SSCDR 8	SSCDR 9	SSCDR 10
RPN	14.28	38.02	30.72	15.68	20.74	24.00	26.40	14.96	19.20	19.58
${\mathit{w}}_{\mathit{i}}$	0.0639	0.1701	0.1374	0.0701	0.0928	0.1073	0.1181	0.0669	0.0859	0.0876

would be included in Part ⑤ of the first HoQ, as shown in Figure 3, Figure 4, and Figure 6.

Then, the relative weights $w_i$ were substituted into Formulas (7) and (8) to calculate group utility $S_j$ and individual regret $R_j$, respectively.

Table 11. Results of group utility ${\mathit{S}}_{\mathit{j}}$ and individual regret $R_j$.

	Weight	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
SSCDR 1	0.0639	0.0545	0.0550	0.0541	0.0553	0.0555	0.0550	0.0560	0.0548
SSCDR 2	0.1701	0.1216	0.1238	0.1229	0.1281	0.1236	0.1270	0.1270	0.1276
SSCDR 3	0.1374	0.0896	0.0964	0.0909	0.0999	0.0953	0.0954	0.0961	0.0977
SSCDR 4	0.0701	0.0560	0.0567	0.0556	0.0564	0.0571	0.0558	0.0571	0.0556
SSCDR 5	0.0928	0.0790	0.0801	0.0785	0.0824	0.0816	0.0812	0.0811	0.0823
SSCDR 6	0.1073	0.1073	0.1073	0.1073	0.1073	0.1073	0.1073	0.1073	0.1073
SSCDR 7	0.1181	0.0000	0.0038	0.0031	0.0031	0.0021	0.0026	0.0050	0.0011
SSCDR 8	0.0669	0.0004	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
SSCDR 9	0.0859	0.0793	0.0745	0.0767	0.0798	0.0756	0.0822	0.0780	0.0842
SSCDR 10	0.0876	0.0590	0.0594	0.0587	0.0590	0.0596	0.0577	0.0589	0.0590
${\mathit{S}}_{\mathit{j}}$	-	0.6468	0.6570	0.6478	0.6713	0.6577	0.6642	0.6666	0.6696
${\mathit{R}}_{\mathit{j}}$	-	0.1216	0.1238	0.1229	0.1281	0.1236	0.1270	0.1270	0.1276

shows the results.

D. Calculate the benefit ratio${{Q}}_{{j}}$:

We used Formula (9) to calculate the value of $Q_j$. We set v to 0.5 in VIKOR to maximize group utility and minimize individual regret. The calculation results of benefit ratio $Q_j$are shown in

Table 12. Calculation results of benefit ratio $Q_j$.

Coefficient Value v = 0.5	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
Q_0.1	0.0000	0.3465	0.1899	1.0000	0.3229	0.8256	0.8394	0.9353
Q_0.2	0.0000	0.3543	0.1733	1.0000	0.3364	0.8127	0.8357	0.9347
Q_0.3	0.0000	0.3622	0.1568	1.0000	0.3498	0.7999	0.8319	0.9340
Q_0.4	0.0000	0.3701	0.1402	1.0000	0.3633	0.7870	0.8282	0.9334
Q_0.5	0.0000	0.3780	0.1237	1.0000	0.3768	0.7742	0.8245	0.9327
Q_0.6	0.0000	0.3858	0.1071	1.0000	0.3903	0.7613	0.8207	0.9321
Q_0.7	0.0000	0.3937	0.0906	1.0000	0.4037	0.7484	0.8170	0.9314
Q_0.8	0.0000	0.4016	0.0741	1.0000	0.4172	0.7356	0.8133	0.9308
Q_0.9	0.0000	0.4094	0.0575	1.0000	0.4307	0.7227	0.8095	0.9301
where${\mathit{S}}^{\mathit{*}}\mathbf{=}\mathbf{0.6468}$;${\mathit{S}}^{\mathit{-}}\mathbf{=}\mathbf{0.6713}$;${\mathit{R}}^{\mathit{*}}\mathbf{=}\mathbf{0.1216}$;${\mathit{R}}^{\mathit{-}}\mathbf{=}\mathbf{0.1281}$

.

E. Sort RCs:

According to the two conditions of Section 3.7, $Q_j$ in Table 12 was inserted into Formula (10). If the two conditions are true, then they can be sorted on the basis of the value of $Q_j$.

Based on

Table 13. Sorting results of RCs.

v = 0.5	RC 1	RC 2	RC 3	RC 4	RC 5	RC 6	RC 7	RC 8
${\mathit{S}}_{\mathit{j}}$	0.6468	0.6570	0.6478	0.6713	0.6577	0.6642	0.6666	0.6696
${\mathit{R}}_{\mathit{j}}$	0.1216	0.1238	0.1229	0.1281	0.1236	0.1270	0.1270	0.1276
${\mathit{Q}}_{\mathit{j}}$	0.0000	0.3780	0.1237	1.0000	0.3768	0.7742	0.8245	0.9327
${\mathit{S}}_{\mathit{j}}$Ranking	1	3	2	8	4	5	6	7
${\mathit{R}}_{\mathit{j}}$Ranking	1	4	2	8	3	5	6	7
${\mathit{Q}}_{\mathit{j}}$Ranking	1	4	2	8	3	5	6	7
Sorting weight (1 −${\mathit{Q}}_{\mathit{j}}$)	1.0000	0.6220	0.8763	0.0000	0.6232	0.2258	0.1755	0.0673

, the first two values of $Q_j$were inserted into Formula (10), and the difference was $Q_3-Q_1=0.1237$, which is less than 1/(8 − 1) and thus does not meet Condition 1.

As shown in Table 13, the S1 value of agility is 0.6468, which is less than the S3 value of capacity (0.6478). Therefore, S1 shows better performance than S3. In addition, the agility R1 value (0.1216) is less than the capacity of R3 (0.1229), and R1 performance is better. Therefore, Condition 2 is met.

From the two results relating to the $Q_j$ value of the top two R1 and R3, according to the decision rules, the two RCs should be accepted as the best alternative simultaneously. This study aims to obtain the weight of each RC. Thus, we used the $Q_j$ value directly. However, the smaller the value of $Q_j$ is, the better the result will be. Thus, we used $(1-Q_j)$ as the sorting weights of the RCs in the first HoQ for the next HoQ. The sorting results shown in Table 13 would be included in Part ⑥ of the first HoQ, as shown in Figure 3, Figure 4, and Figure 6.

Table 13 shows that the three RCs with the highest sorting weights are RC1 (agility), RC3 (capacity), and RC5 (visibility).

After the completion of the FGM, FDM, and VIKOR method in the first HoQ, the sorting weights and ranks of the RCs could be obtained. The first HoQ results in this framework are shown in Figure 6.

4.2. Second HoQ linking RCs and RFs

Stage I: Selection of key RFs using fuzzy Delphi method

The second HoQ in this study was adopted to connect the RCs and RFs by FDM and VIKOR method.

Table 14. Fuzzy Delphi method (FDM) results of key RFs.

Dimension	RF	Gi	Rank	Selected RF
Leader	1. Allocation and input of enterprise resources	8.1895715	1	RF 1
	2. Leadership and training of department staff	7.6908634	2	RF 2
	3. Import risk-taking and control	5.4787590	16
	4. Establish a clear incentive and reward system	6.8877718	6	RF 3
	5. Businesses use multiple sources of supply	6.2738235	13
	6. Compliance with social and environmental issues	3.6329448	22
Culture	7. Direct communication and discussion at all levels	6.3781463	11
	8. Culture of responsibility and trust	7.0334403	5	RF 4
Personnel	9. Connection of the working site and the backstage	6.5110131	9	RF 5
	10. Recruit expert consultants for enhancement	5.0472184	18
	11. Choose to support and motivate employees	7.4531948	3	RF 6
	12. Customer response analysis and enhancement	6.7928714	8	RF 7
	13. Customer and supplier communication and cooperation	6.3085344	12
System/Technology	14. Purchase software that can integrate resources	6.2069831	14
	15. Automate trading activities	3.7292785	21
	16. Establish and train cross-functional departments	5.1121130	17
	17. Establish standard operating procedures	5.9091726	15
	18. Product development and design enhancement	6.8419593	7	RF 8
	19. Real-time sharing of job information	7.1249042	4	RF 9
Facilities	20. Equipment update and maintenance	6.3794848	10
	21. Improve internal facility layout	4.0272372	20
	22. Storage space arrangement and reorganization	4.1454401	19

lists 22 explored RFs that the case company plans to adopt. The RFs at five dimensions were screened by FDM. Firstly, the designed FDM questionnaire was distributed to the supply chain experts of the case company, and they were asked to evaluate the minimum and maximum values of each feature according to their judgment of experience in a 0−10 range. After the questionnaires were collected, the extreme values beyond twice the standard deviation were removed. The results show that the questionnaire data are within the range of two standard deviations, and no extreme values exist. Table 14 shows the results.

The higher the level of $G^i$ is, the higher the consensus of the experts on the RFs will be. If the consensus level is extremely low or below the threshold, the RFs should be removed. The threshold in this study was 6.5 according to the needs of the case company. The remaining 13 RFs were removed. These selected RFs, as shown in Table 14, would be included in Part ⑧ of the second HoQ, as shown in Figure 7. They would be used in the construction of the second HoQ.

Stages II–V of the second HoQ are the same as those of the first HoQ. These same stages include: (1) correlation matrix between RFs, (2) relational matrix between the RCs and the RFs, (3) integrated relational matrix between the RCs and the RFs and (4) compromise ranking of the RFs.

The ranking weight (1 − $Q_j$) of the RCs from the first HoQ was inputted into the second HoQ to calculate the ranking of the RFs.

Table 15. Compromise sorting of RFs.

	RF 1	RF 2	RF 3	RF 4	RF 5	RF 6	RF 7	RF 8	RF 9
${\mathit{Q}}_{\mathit{j}}$	0.482	0.696	0.366	1.000	0.033	0.200	0.939	0.112	0.007
${\mathit{Q}}_{\mathit{j}}$Ranking (Smaller the Better)	6	7	5	9	2	4	8	3	1
Compromise sorting	3	4	3	5	1	2	5	1	1

and Figure 7 show the results of the entire process. The second HoQ shows that the most important RFs were ‘Connection of the working site and the backstage’ (RF5), ‘Product development and design enhancement’ (RF8), and ‘Real-time sharing of job information’ (RF9), followed by ‘Choose to support and motivate employees’ (RF6). ‘Allocation and input of enterprise resources’ (RF1) and ‘Establish a clear incentive and reward system’ (RF3) ranked third.

4.3. Implications and Recommendations

In this study, the QFD-based integration framework provides a risk-driven tool for building risk resilience solutions by converting SSCDRs to resilience capacities and resilience capacities to resilience-enhancing features. With such a decision framework, a manufacturing system’s risk resilience solutions can be risk-oriented and proactive, because the framework enables manufacturers to plan resilience solutions ahead of time in response to SSCDRs.

In terms of supply chain risks and resilience capacities in the first HoQ, Table 3 shows that the top-three risks are ‘unexpected events lead to changes in supplier delivery dates’, ‘typhoon’, and ‘lack of critical capacities/skilled employees’. The ranking weights and compromise ranking of resilience capacities, as shown at the bottom of Table 13, reveal that agility, capacity, and visibility are the top concerns perceived. As shown in Figure 6, prioritizing important resilience will go a long way towards mitigating the top-three supply chain risks. The results show that agility ranks on the top position, because it has the highest group utility and the lowest individual regret. Thus, an enhancement in agility to mitigate SSCDRs is the most effective strategy for the case company. Agility emphasizes perceived ability and responsiveness. When a company is in a dynamic and rapidly changing environment, accurate perception of the changes and a quick response are important factors for companies to survive. This result conforms to the argument in the literature that agility is considered one of the most effective strategies to mitigate SSCDRs. Capacity and visibility rank second and third in the VIKOR results. To cope with SSCDRs, the case company needs to have sufficient capacity and visibility to overcome these internal and external factors from the FMEA. Furthermore, the other resilience capacities after compromise sorting can also be provided to the case company for reference for mitigating SSCDRs.

In terms of resilience capacities and resilience-enhancing features in the second HoQ, resilience capacities act as the intermediary for the other two variables. However, each resilience capacity is a proper noun, which can be difficult for decision-makers to understand. Therefore, decision-makers do not know how to improve the resilience of the supply chain. The top three resilience-enhancing features are ‘the connection of the working site and the backstage (RF9)’ and ‘product development and design enhancement (RF5)’, and ‘real-time sharing of job information (RF8)’. The compromise sorting of the three resilience-enhancing features is also ranked first. Resilience is a multidimensional concept; thus, it covers various capacities. Therefore, enhancing resilience by improving a single capacity is impossible. The case company should focus on consolidating the three features, namely, RF9, RF5, and RF8, to improve resilience capacities. Supply chain risks (especially the top-three SSCDRs) can also be mitigated when the resilience capacities are improved. RF9 enables the case company to quickly detect changes and predict them. With accurate and timely information flowing seamlessly between business units, decision-makers will have visibility into what is going on inside and outside the enterprise in real-time, as well as have a more effective control over all parts of the supply chain. When managers decide, they need RF8. Employees can quickly and actively cooperate with the execution to minimize the effects of risks or even completely avoid the occurrence of risks. Enterprises with RF5 enjoy long-term success and growth. The case company can save money and improve the quality of supply with a lower cost by implementing the stage early in the product development and design to examine supply chain risks. Good product development and design have procedures in place to evaluate disruption risks and mitigate them. The next RF is ‘choose to support and motivate employees (RF6)’ followed by ‘allocation and input of enterprise resources (RF1)’ and ‘establish a clear incentive and reward system (RF3)’. After compromise sorting, these resilience-enhancing features can also be provided to the case company for reference for enhancing resilience capacities and mitigating SSCDRs.

Given the limited resources, the Pareto effect can be applied to the results based on this framework. Elevator manufacturers can initially strengthen the most important resilience-enhancing features and jointly enhance the most important resilience capacities, thereby, mitigating the most important SSCDRs. This action not only strengthens resilience-enhancing features but also indirectly enhances and mitigates the effect of other minor resilience capacities and risks. Alternatively, once the top-three resilience-enhancing features have been enhanced, the other resilience-enhancing features can be further enhanced sequentially, thereby continuing to affect resilience capacities and SSCDRs. Finally, when all resilience-enhancing features can be valued and strengthened, the enhancement for the overall resilience capacities and risk mitigation can considerably improve risk resilience for manufacturing systems.

On this basis, resilience is an organizational ability that cannot be gained by market purchases. Manufacturing systems must continuously invest capital and time to gradually expand the scale of supply chain resilience. In this manner, any SSCR can be readily solved and even converted into new opportunities, such that manufacturing systems can achieve the objective of resilient supply chains.

5. Conclusions

In a competitive global market with increasing sustainable supply chain disruption risks, manufacturers have recognized the necessity of creating resilient supply chains for manufacturing systems. This study widens the perspective on sustainable risk resilience management in elevator manufacturing supply chains by considering the principal sustainable supply chain disruption risks, resilience capacities, and resilience-enhancing features from a supply chain viewpoint. Through an empirical investigation, the key findings are as follows.

• The top-three sustainable supply chain disruption risks are respectively ‘unexpected events lead to changes in supplier delivery dates’, ‘typhoon’, and ‘lack of critical capacities/skilled employees’.
• The top-three resilience capacities are respectively agility, capacity, and visibility.
• The top-three resilience-enhancing features are respectively ‘connection of the working site and the backstage’ and ‘product development and design enhancement’ and ‘real-time sharing of job information’.

The following are the main contributions of this study are described as follows:

Firstly, the integrated FGM–FMEA–FDM–VIKOR framework-based QFD approach is proposed to build a supply chain risk resilience that can provide decision support for elevator manufacturing supply chains by integrating MCDM and QFD.

Secondly, sustainable supply chain disruption risks, resilience capacities, and resilience-enhancing features are integrated into the framework to investigate and explore the interrelationships between different variables thoroughly, which can provide comprehensive insights into constructing feasible resilience solutions for sustainable supply chain risk mitigation for elevator manufacturing supply chains.

Thirdly, through the proposed framework, elevator manufacturers can effectively adjust their strategies, operations, and management for manufacturing systems with a clear idea of where to improve their supply chain resilience in response to sustainable supply chain disruption risks.

In terms of related research on resilience before 2020, Lam and Bai (2016) adopted a two-stage HoQ to enhance the resilience of maritime supply chains to investigate customer requirements, maritime risks and resilience measures, and finally determine the priority of the resilient solutions of shipping companies [94]. He et al. (2020) also adopt a two-stage HoQ to enhance the resilience of white goods supply chains to investigate customer requirements, risk factors, and resilience measures and finally determine the effective design of elastic solutions for home appliance companies [95]. All these papers have contributed to the study of resilience. Although these papers are all about finding important measures for resilience, they do not consider the connection to resilience capacities. These resilience capacities are important parts of resilience. In addition to investigating the relationship between the three groups of variables (sustainable supply chain disruption risks, resilience capacities, and resilience-enhancing features), this study also places special emphasis on the connection with resilience capacities. Thus, the resilience-enhancing features adopted can be fully correlated with resilience capacities. Through the full discussion between the two, we can fully grasp the spirit of resilience and find out important resilience measures to improve risk resilience for elevator manufacturing supply chains.

This study provides two suggestions for future research. Firstly, manufacturing systems in different industries can use the framework for risk resilience solutions. However, the different characteristics of the industry under examination must be considered to identify its distinctive risks, which can then be imported into the proposed framework. Finally, a user-friendly decision support system can be developed for the framework to enable manufacturers and manufacturing systems to effectively establish supply chain risk resilience and improve the level of automation of related activities.

The study has some limitations. This study is based on the case company as the research object. However, owing to the limitation of time and cost and other factors, if the number of companies can be increased, the reference value for the industry will be increased. In addition, if the analysis of the resilience-enhancing solution can increase the cost and benefit will benefit decision-makers.
