Quality Assessment of Insamyangpye Decoction by Liquid Chromatography Tandem Mass Spectrometry Multiple Reaction Monitoring
Abstract
:1. Introduction
2. Materials and Methods
2.1. Plant Materials
2.2. Chemicals and Reagents
2.3. Preparation of ISYPD Extract
2.4. Preparation of Samples and Standard Solutions for the Quantitative Analysis
2.5. Instrument and Operating Conditions for Simultaneous Analysis of Compounds 1–10 in the ISYPD Sample
2.6. Validation of the LC–MS/MS MRM Method
3. Results and Discussion
3.1. Development of the LC–MS/MS MRM Method

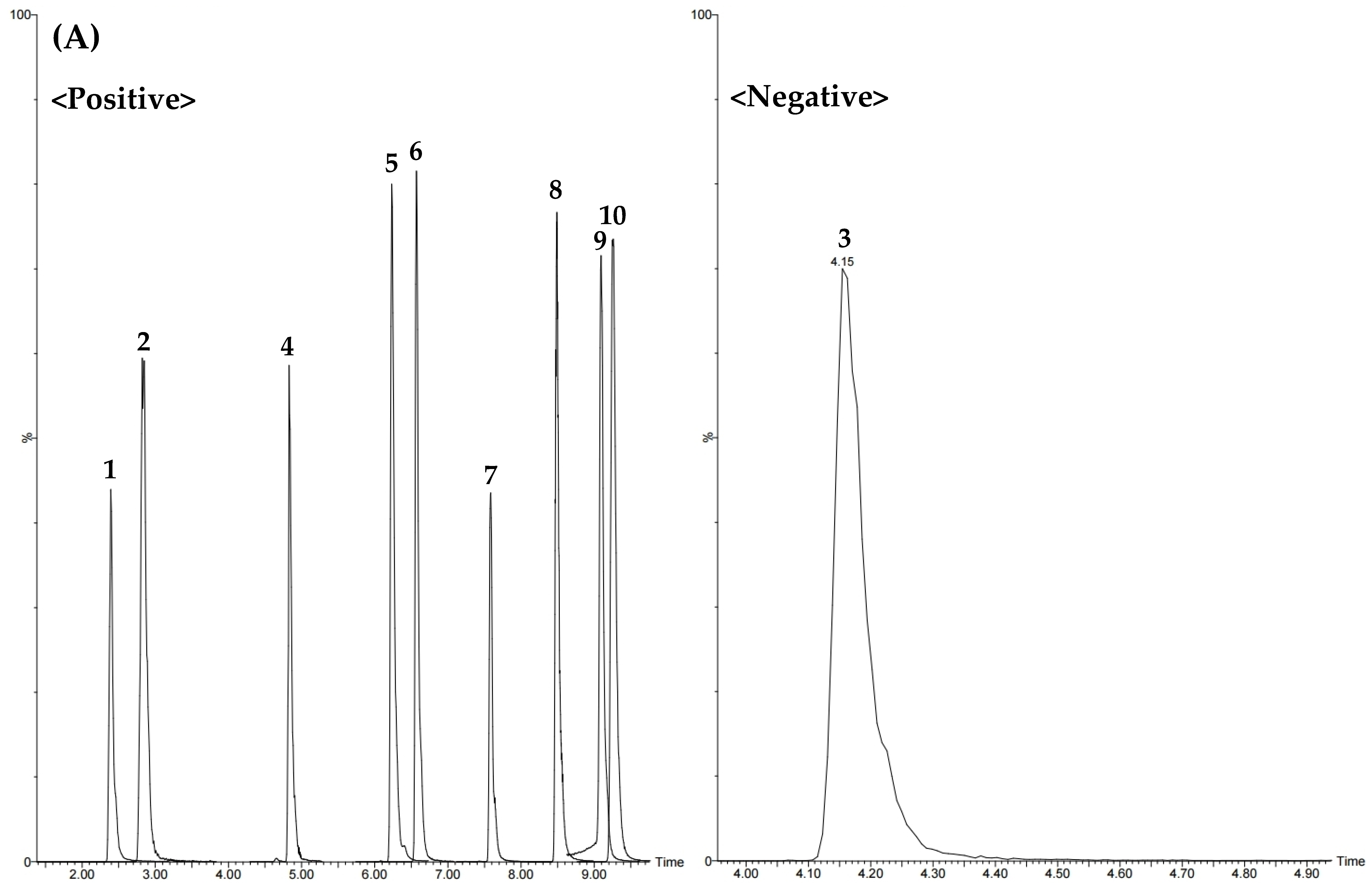

3.2. MRM Transition of Each Marker Compound in the LC–MS/MS Simultaneous Analysis
3.3. Verification of the LC–MS/MS Method

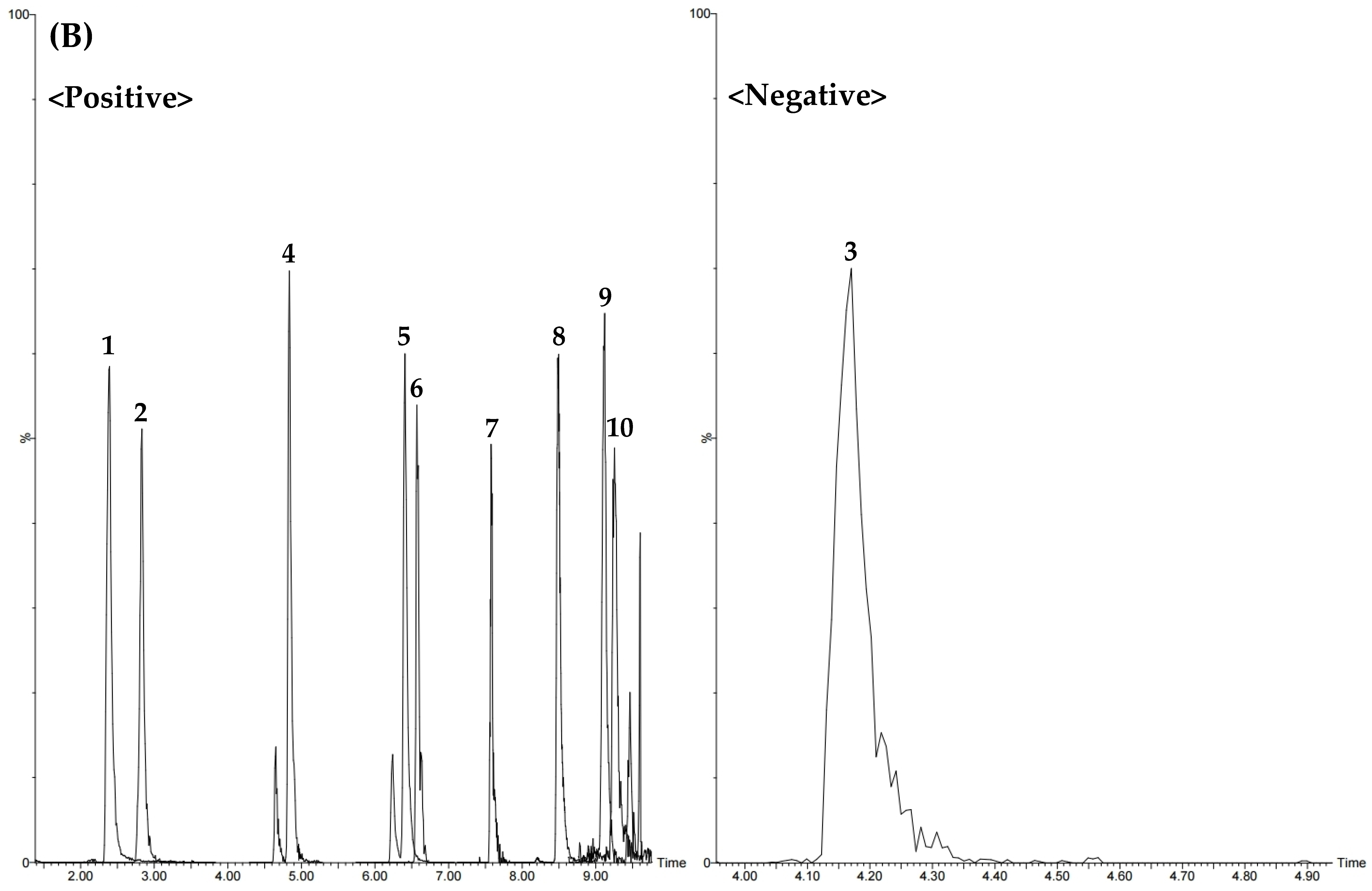

3.4. Simultaneous Determination of Compounds 1–10 in the ISYPD Samples
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Seo, C.S.; Lee, M.Y. Simultaneous quantification of eight marker components in traditional herbal formula, Haepyoyijin-tang using HPLC-PDA. Appl. Sci. 2020, 10, 3888. [Google Scholar] [CrossRef]
- Seo, C.S.; Shin, H.K. Liquid chromatography tandem mass spectrometry for the simultaneous quantification of eleven phytochemical constituents in traditional Korean medicine, Sogunjung decoction. Processes 2021, 9, 153. [Google Scholar] [CrossRef]
- Silva-Flores, P.G.; Pérez-López, L.A.; Rivas-Galindo, V.M.; Raniagua-Vega, D.; Galindo-Rodrgíuez, S.A.; Álvarez-Román, R. Simultaneous GC-FID quantification of main components of Rosmarinus officinalis L. and Lavandula dentate essential oils in polymeric nanocapsules for antioxidant application. J. Anal. Methods Chem. 2019, 2019, 2837406. [Google Scholar] [CrossRef] [Green Version]
- Tang, Y.; Zhu, M.; Yu, S.; Hua, Y.; Duan, J.A.; Su, S.; Zhang, X.; Lu, Y.; Ding, A. Identification and comparative quantification of bio-active phthalides in essential oils from Si-wu-tang, Fo-shou-san, Radix Angelica and Rhizome Chuanxiong. Molecules 2010, 15, 341–351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Seo, C.S.; Shin, H.K. Quality assessment of traditional herbal formula, Hyeonggaeyeongyo-tang through simultaneous determination of twenty marker components by HPLC–PDA and LC–MS/MS. Saudi. Pharm. J. 2020, 28, 427–439. [Google Scholar] [CrossRef]
- Heo, J. Donguibogam; Namsandang: Seoul, Korea, 2007; p. 482. [Google Scholar]
- Park, I.S.; Kang, E.M.; Kim, N. High-performance liquid chromatographic analysis of saponin compounds in Bupleurum falcatum. J. Chromatogr. Sci. 2000, 38, 229–233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kim, J.H.; Doh, E.J.; Lee, G. Quantitative comparison of the marker compounds in different medicinal parts of Morus alba L. Using high-performance liquid chromatography-diode array detector with chemometric analysis. Molecules 2020, 25, 5592. [Google Scholar] [CrossRef]
- Koo, D.C.; Suh, W.S.; Baek, S.Y.; Shim, S.H. Quantitative determination of lignans from Schizandra chinensis by HPLC. Kor. J. Pharmacong. 2011, 42, 233–239. [Google Scholar]
- Koo, J.Y.; Hwang, E.Y.; Cho, S.; Lee, J.H.; Lee, Y.M.; Hong, S.P. Quantitative determination of amygdalin epimers from Armeniacae Semen by liquid chromatography. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2005, 814, 69–73. [Google Scholar] [CrossRef]
- Zhao, B.T.; Kim, E.J.; Son, K.H.; Son, J.K.; Min, B.S.; Woo, M.H. Quality evaluation and pattern recognition analyses of marker compounds from five medicinal drugs of Rutaceae family by HPLC/PDA. Arch. Pharm. Res. 2015, 38, 1512–1520. [Google Scholar] [CrossRef]
- Ha, Y.W.; Kim, Y.S. Preparative isolation of six major saponins from Platycodi Radix by high-speed counter-current chromatography. Phytochem. Anal. 2009, 20, 207–213. [Google Scholar] [CrossRef] [PubMed]
- Shan, S.M.; Luo, J.G.; Huang, F.; Kong, L.Y. Chemical characteristics combined with bioactivity for comprehensive evaluation of Panax ginseng C.A. Meyer in different ages and seasons based on HPLC-DAD and chemometric methods. J. Pharm. Biomed. Anal. 2014, 89, 76–82. [Google Scholar]
- Zhang, Q.; Ye, M. Chemical analysis of the Chinese herbal medicine Gan-Cao (licorice). J. Chromatogr. A 2009, 1216, 1954–1969. [Google Scholar] [CrossRef] [PubMed]
- Wang, W.; Li, C.Y.; Wen, X.D.; Li, P.; Qi, L.W. Simultaneous determination of 6-gingerol, 8-gingerol, 10-gingerol and 6-shogaol in rat plasma by liquid chromatography-mass spectrometry: Application to pharmacokinetics. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2009, 877, 671–679. [Google Scholar] [CrossRef]
- Li, G.; Xu, M.L.; Lee, C.S.; Woo, M.H.; Chang, H.W.; Son, J.K. Cytotoxicity and DNA topoisomerase inhibitory activity of constituents from the sclerotium of Poria cocos. Arch. Pharm. Res. 2004, 27, 829–833. [Google Scholar] [CrossRef] [PubMed]
- Chinese Pharmacopoeia Commission. Pharmacopoeia of the People’s Republic of China; China Medical Science Press: Beijing, China, 2015; pp. 189–190, 292. [Google Scholar]
- Lee, S.Y.; Lee, J.Y.; Kim, J.S.; Lee, J.H.; Kang, S.S. Flavonoids from the seeds of Zizyphus jujuba var. spinosa. Kor. J. Pharmacogn. 2012, 43, 127–136. [Google Scholar]
- Lee, K.H. The Dispensatory on the Visual and Organoleptic Examination of Herbal Medicine; National Institute of Food and Drug Safety Evaluation: Seoul, Korea, 2013; pp. 24–696. [Google Scholar]
- International Conference on Harmonization. Guidance for Industry, Q2B, Validation of Analytical Procedures: Methodology; Food and Drug Administration: Rockville, MD, USA, 1996. [Google Scholar]
- Wang, S.; Liu, X.M.; Zhang, J.; Zhang, Y.Q. An efficient preparation of mulberroside A from the branch bark of mulberry and its effect on the inhibition of tyrosinase activity. PLoS ONE 2014, 9, e109396. [Google Scholar] [CrossRef] [PubMed]
- Wang, S.; Liu, L.; Wang, L.; Hu, Y.; Zhang, W.; Liu, R. Structural characterization and identification of major constituents in Jitai tablets by high-performance liquid chromatography/diode-array detection coupled with electrospray ionization tandem mass spectrometry. Molecules 2012, 17, 10470–10493. [Google Scholar] [CrossRef]
- Tan, G.; Zhu, Z.; Jing, J.; Lv, L.; Lou, Z.; Zhang, G.; Chai, Y. Characterization of constituents in Sini decoction and rat plasma by high-performance liquid chromatography with diode array detection coupled to time-of-flight mass spectrometry. Biomed. Chromatogr. 2011, 25, 913–924. [Google Scholar] [CrossRef]
- Shi, P.; He, Q.; Song, Y.; Qu, H.; Cheng, Y. Characterization and identification of isomeric flavonoid O-diglycosides from genus Citrus in negative electrospray ionization by ion trap mass spectrometry and time-of-flight mass spectrometry. Anal. Chim. Acta 2007, 598, 110–118. [Google Scholar] [CrossRef]
- Xu, F.; Liu, T.Y.; Song, R.; Dong, H.; Zhang, Z. Constituents of Da-Cheng-Qi decoction and its parent herbal medicines determined by LC-MS/MS. Nat. Prod. Commun. 2010, 5, 789–794. [Google Scholar] [CrossRef] [Green Version]
- Zhang, W.; Qian, S.H.; Qian, D.W.; Li, S.L. Screening of intestinal bacterial metabolites of platycodin D using ultra-performance liquid chromatography/quadrupole time-of-flight mass spectrometry. Am. J. Chin. Med. 2016, 44, 817–833. [Google Scholar] [CrossRef] [PubMed]
- Xu, L.; Song, R.; Tian, J.X.; Tian, Y.; Liu, G.Q.; Zhang, Z.J. Analysis of saikosaponins in rat plasma by anionic adducts-based liquid chromatography tandem mass spectrometry method. Biomed. Chromatogr. 2012, 26, 808–815. [Google Scholar] [CrossRef] [PubMed]
- Liu, M.; Zhao, S.; Wang, Z.; Wang, Y.; Liu, T.; Li, S.; Wang, C.; Wang, H.; Tu, P. Identification of metabolites of deoxyschizandrin in rats by UPLC-Q-TOF-MS/MS based on multiple mass defect filter data acquisition and multiple data processing techniques. J. Chromatogr. B 2014, 949–950, 115–126. [Google Scholar] [CrossRef] [PubMed]
- Zhou, C.; Su, L.; Shang, W.; Rong, Z.; Sun, M.; Zhang, K.; Shi, X.; Wang, Q. Simultaneous determination of eight chemicals in Fufang Xueshuantong capsules by LC-MS-MS with periodic polarity switching. J. Chromatogr. Sci. 2015, 53, 1757–1764. [Google Scholar] [CrossRef] [PubMed]
UPLC Conditions | MS (Mass Spectrometry) Conditions | ||||
---|---|---|---|---|---|
UPLC (Ultra performance liquid chromatography) system | Acquity UPLC H-Class | MS system | Xevo TQ-S micro | ||
Column | Acquity UPLC BEH C18 column (2.1 mm × 50 mm, 1.7 μm) | MS software | MassLynx (version 4.2) | ||
Column temp. | 30 °C | Ionization mode | ESI+ (Electrospray ionization positive)/ESI− (Electrospray ionization nagative) | ||
Sample temp. | 20 °C | Acquisition mode | MRM (multiple reaction monitoring) | ||
Injection volume | 2.0 μL | Capillary voltage | 3.3 V | ||
Flow rate | 0.3 mL/min | Cone gas flow | 80 L/h | ||
Mobile phase A | Distilled water with 0.1% TFA (trifluoroacetic acid) | Desolvation temp. | 300 °C | ||
Mobile phase B | Acetonitrile with 0.1% TFA | Desolvation gas flow | 300 L/h | ||
Gradient | Time (min) | A (%) | B (%) | Source temp. | 150 °C |
0.00 | 95 | 5 | |||
11.43 | 40 | 60 | |||
14.29 | 5 | 95 | |||
15.71 | 5 | 95 | |||
17.14 | 95 | 5 | |||
20.00 | 95 | 5 |
Markers | Ion Mode | Molecular Weight | MRM Transition | Cone Voltage (V) | Collision Energy (eV) | Retention Time (min) |
---|---|---|---|---|---|---|
1 | Positive | 568.18 | 569.21→244.99 | 16 | 18 | 2.40 |
2 | Positive | 457.16 | 480.14→347.01 | 96 | 26 | 2.84 |
3 | Negative | 550.17 | 549.15→118.94 | 76 | 48 | 4.16 |
4 | Positive | 580.18 | 581.18→152.94 | 18 | 44 | 4.83 |
5 | Positive | 594.19 | 595.21→286.98 | 6 | 20 | 6.23 |
6 | Positive | 1224.58 | 1225.66→485.23 | 14 | 46 | 6.57 |
7 | Positive | 1108.6 | 1109.7→162.94 | 28 | 44 | 7.57 |
8 | Positive | 822.4 | 823.46→453.2 | 18 | 20 | 8.48 |
9 | Positive | 780.47 | 781.51→437.2 | 14 | 16 | 9.09 |
10 | Positive | 432.21 | 433.22→346.01 | 26 | 24 | 9.25 |
Marker | Linear Range (μg/L) | Regression Equation a y = ax + b | r2 | LOD (μg/L) | LOQ (μg/L) |
---|---|---|---|---|---|
1 | 200.00–3200.00 | y = 16.61x − 30.28 | 0.9996 | 3.657 | 12.190 |
2 | 200.00–3200.00 | y = 2.34x + 31.68 | 0.9983 | 39.093 | 130.310 |
3 | 75.00–1200.00 | y = 1.06x − 14.60 | 0.9976 | 6.009 | 20.030 |
4 | 125.00–2000.00 | y = 18.62x + 59.88 | 0.9952 | 1.140 | 3.800 |
5 | 25.00–400.00 | y = 33.51x + 70.79 | 0.9996 | 2.151 | 7.170 |
6 | 7.50–120.00 | y = 3.45x + 2.65 | 0.9914 | 2.094 | 6.980 |
7 | 2.50–40.00 | y = 10.00x − 3.38 | 0.9989 | 0.002 | 0.005 |
8 | 75.00–1200.00 | y = 66.65x − 332.05 | 0.9997 | 6.939 | 23.130 |
9 | 7.50–120.00 | y = 23.00x + 3.17 | 0.9989 | 1.365 | 4.550 |
10 | 2.5.00–40.00 | y = 85.14x + 3.56 | 0.9986 | 0.123 | 0.410 |
Marker | Spiked Amount (μg/L) | Found Amount (μg/L) | Recovery (%) a | SD (Standard Deviation) | RSD (%) (Relative Standard Deviation (%)) |
---|---|---|---|---|---|
1 | 100.00 | 90.00 | 90.00 | 6.00 | 6.62 |
200.00 | 229.93 | 114.97 | 5.00 | 4.34 | |
400.00 | 417.20 | 104.30 | 2.30 | 2.25 | |
2 | 100.00 | 94.17 | 94.17 | 7.00 | 7.42 |
200.00 | 198.57 | 99.29 | 8.90 | 8.98 | |
400.00 | 428.97 | 107.24 | 6.10 | 5.67 | |
3 | 37.50 | 38.63 | 103.01 | 18.40 | 17.86 |
75.00 | 78.77 | 105.03 | 12.40 | 11.84 | |
150.00 | 165.60 | 110.40 | 4.20 | 3.78 | |
4 | 62.50 | 65.50 | 104.80 | 7.00 | 6.64 |
125.00 | 119.23 | 95.38 | 10.60 | 11.14 | |
250.00 | 263.23 | 105.29 | 8.40 | 7.97 | |
5 | 12.50 | 13.20 | 105.60 | 2.10 | 2.00 |
25.00 | 25.90 | 103.60 | 4.20 | 4.09 | |
50.00 | 53.53 | 107.06 | 6.50 | 6.04 | |
6 | 3.75 | 3.40 | 90.67 | 11.60 | 12.82 |
7.50 | 8.33 | 111.07 | 5.40 | 4.85 | |
15.00 | 16.27 | 108.47 | 8.40 | 7.78 | |
7 | 1.25 | 1.30 | 104.00 | 8.00 | 7.69 |
2.50 | 2.57 | 102.80 | 14.00 | 13.68 | |
5.00 | 4.67 | 93.40 | 17.90 | 19.21 | |
8 | 37.50 | 40.27 | 107.39 | 5.40 | 4.99 |
75.00 | 74.50 | 99.33 | 3.30 | 3.30 | |
150.00 | 152.80 | 101.87 | 1.00 | 1.02 | |
9 | 3.75 | 3.57 | 95.20 | 8.10 | 8.57 |
7.50 | 7.97 | 106.27 | 5.40 | 5.07 | |
15.00 | 14.07 | 93.80 | 11.70 | 12.52 | |
10 | 1.25 | 1.20 | 96.00 | 8.00 | 8.33 |
2.50 | 2.77 | 110.80 | 6.10 | 5.52 | |
5.00 | 5.43 | 108.60 | 11.40 | 10.47 |
Markers | Conc. (μg/L) | Intraday (n = 5) | Interday (n = 5) | ||||
---|---|---|---|---|---|---|---|
Observed Conc. (Concentration) (μg/L) | Precision (%) a | Accuracy (%) | Observed Conc. (μg/L) | Precision (%) | Accuracy (%) | ||
1 | 100.00 | 90.00 | 6.62 | 90.00 | 106.37 | 7.85 | 106.40 |
200.00 | 229.93 | 4.34 | 115.00 | 219.26 | 5.08 | 109.60 | |
400.00 | 417.20 | 2.25 | 104.30 | 371.90 | 11.46 | 93.00 | |
2 | 100.00 | 94.17 | 7.42 | 94.20 | 100.77 | 12.02 | 100.80 |
200.00 | 198.57 | 8.98 | 99.30 | 200.98 | 17.83 | 100.50 | |
400.00 | 428.97 | 5.67 | 107.20 | 392.52 | 13.05 | 98.10 | |
3 | 37.50 | 38.63 | 17.86 | 103.00 | 37.02 | 16.75 | 98.70 |
75.00 | 78.77 | 11.84 | 105.00 | 84.23 | 3.66 | 112.30 | |
150.00 | 165.60 | 3.78 | 110.40 | 151.03 | 15.01 | 100.70 | |
4 | 62.50 | 65.50 | 6.64 | 104.80 | 65.67 | 11.03 | 105.10 |
125.00 | 119.23 | 11.14 | 95.40 | 135.20 | 9.19 | 108.20 | |
250.00 | 263.23 | 7.97 | 105.30 | 262.77 | 13.83 | 105.10 | |
5 | 12.50 | 13.20 | 2.00 | 105.60 | 13.23 | 3.49 | 105.90 |
25.00 | 25.90 | 4.09 | 103.60 | 24.73 | 8.39 | 98.90 | |
50.00 | 53.53 | 6.04 | 107.10 | 48.17 | 16.48 | 96.30 | |
6 | 3.75 | 3.40 | 12.82 | 90.70 | 3.90 | 5.13 | 104.00 |
7.50 | 8.33 | 4.85 | 111.10 | 8.40 | 1.19 | 112.00 | |
15.00 | 16.27 | 7.78 | 108.40 | 14.67 | 14.05 | 97.80 | |
7 | 1.25 | 1.30 | 7.69 | 104.00 | 1.28 | 10.25 | 102.40 |
2.50 | 2.57 | 13.68 | 102.70 | 2.78 | 3.93 | 111.00 | |
5.00 | 4.67 | 19.21 | 93.30 | 4.96 | 15.15 | 99.10 | |
8 | 37.50 | 40.27 | 4.99 | 107.40 | 37.51 | 2.76 | 100.00 |
75.00 | 74.50 | 3.30 | 99.30 | 74.55 | 4.79 | 99.40 | |
150.00 | 152.80 | 1.02 | 101.90 | 148.97 | 5.63 | 99.30 | |
9 | 3.75 | 3.57 | 8.57 | 95.10 | 3.91 | 8.03 | 104.20 |
7.50 | 7.97 | 5.07 | 106.20 | 7.84 | 8.88 | 104.60 | |
15.00 | 14.07 | 12.52 | 93.80 | 15.08 | 8.92 | 100.50 | |
10 | 1.25 | 1.20 | 8.33 | 96.00 | 1.17 | 9.90 | 93.30 |
2.50 | 2.77 | 5.52 | 110.70 | 2.70 | 7.41 | 108.00 | |
5.00 | 5.43 | 10.47 | 108.70 | 5.33 | 8.86 | 106.70 |
Marker | Amount | ||
---|---|---|---|
Mean (mg/g) | SD | RSD (%) | |
1 | 7.47 | 0.33 | 4.35 |
2 | 6.12 | 0.25 | 4.05 |
3 | 1.72 | 0.09 | 5.09 |
4 | 3.86 | 0.18 | 4.76 |
5 | 1.08 | 0.12 | 10.71 |
6 | 0.37 | 0.04 | 11.09 |
7 | 0.09 | 0.01 | 11.84 |
8 | 2.69 | 0.02 | 0.60 |
9 | 0.36 | 0.01 | 1.79 |
10 | 0.10 | 0.00 | 1.15 |
