Thermogravimetric Analysis of Coal Semi-Char Co-Firing with Straw in O₂/CO₂ Mixtures

Abstract

For coal semi-char as a by-produced of low-temperature pyrolysis, combustion for power generation is one of the effective utilization methods to realize its clean and efficient utilization. However, the coal semi-char combustion process has a difficult ignition, unstable combustion and low burnout rate. The co-firing of the semi-char with biomass under oxy-fuel conditions can improve the combustion behavior and reduce fossil CO₂ emissions. In this paper, the combustion behavior of Shenhua coal semi-char (SHC) co-firing with straw (ST) in O₂/CO₂ mixture is investigated using thermogravimetric analysis. The results show that each curve lays between those of the individual fuels and presents three peaks (i.e., three stages). The thermogravimetric curves of SHC co-firing with ST can be divided into three stages: the volatile combustion of ST, the co-combustion of SHC and ST fixed-carbons and the SHC fixed-carbon combustion and the decomposition of the difficult pyrolytic material of ST. Blending ST into the SHC can significantly decrease the ignition temperature and improve the comprehensive combustion behavior of blended samples. In increasing the proportion of ST from 25 to 100%, the change of the blended ignition temperature is slight, but the burnout temperature decreases greatly. Kinetic parameters of combustion are calculated by using the Coats–Redfern integral method. Compared to that of stage I and stage III, the activation energy of stage II is significantly lower. As increasing blending ratio from 25% to 100%, the activation energy increases at stage I and decreases at stage III. Furthermore, the O₂ concentration obviously affects stage III of 50% SHC + 50% ST, and the thermogravimetric curves at this stage are obviously shifted to the lower temperature zone as the O₂ concentration increases. The activation energy of 50% SHC + 50% ST increases as the oxygen concentration increases. Besides, the activation energy shows that the combustion characteristics cannot be determined only by the activation energy obtained by the Coats–Redfern method. These findings can provide useful information for semi-char co-firing with biomass.

1. Introduction

In China, the low-rank coal (such as lignite and subbituminous coal) accounts for above 50% of the total (141,595 million tons at the end of 2019 from BP Statistical Review of World Energy 2020) [1,2]. Pyrolysis is one of the most effective methods to realize the high and clean, efficient utilization of low-rank coal [3,4,5]. The pyrolysis process at low temperature and low heating rate produce the by-product semi-char with lower moisture and volatile contents [6]. With the rapid development of the coal chemical industry, there is a large amount of semi-char in China. For the coal semi-char, combustion for power generation is one of the effective utilization methods to realize its clean and efficient utilization [7]. However, the coal semi-char combustion has many problems in actual utilization, such as poor ignition, low burnout rate, etc. [8].

In order to solve these difficulties of the coal semi-char combustion, many efforts have been performed. The preheating combustion technology is one of the effective methods and has been widely studied recently [5,9,10]. However, the preheating combustion technology may be uneconomic for existing utility boilers due to the high cost of preheating equipment. Co-combustion technology of coal semi-char with high-volatile fuels is also one of the effective methods. Zheng et al. [11] performed an experimental investigation on ignition and burnout characteristics of coal semi-char and bituminous coal blends, and the results show that the ignitability index and the comprehensive combustion characteristic index of the blends decrease as increasing the blending proportion of coal semi-char. Zhang et al. [12] investigated the co-combustion behaviors and NOx emissions of coal semi-char and bituminous coal, and results showed obvious promotion on burnout and superior inhibition on NOx formation when the coal semi-char accounted for 20%. Moreover, there is a great supply of biomass but little use in China. As a renewable energy source, biomass has many advantages, such as better ignition and burnout behaviors and low pollution. Wang [13] and Liu et al. [14,15] studied the co-combustion behavior of coal semi-char with cornstalk, and good ignition and high burnout can be achieved when coal semi-char was co-fired with cornstalk. Especially in a real scale application, co-firing coal semi-char and straw may cause notable problems to the feeding system and the reactor. Pelletizing or co-pelletizing the materials may be a way to overcome this issue, although it could be unfeasible.

In addition, fossil fuel combustion is the dominant contributor to CO₂ as a greenhouse gas and has received wide attention [16,17,18,19]. Oxy-fuel combustion is recognized as one of the promising CO₂ reduction and capture technologies for fossil fuel combustion [20]. Meanwhile, biomass is also recognized as a zero-CO₂ (fossil CO₂) renewable fuel. Therefore, co-firing with coal semi-char under oxy-fuel conditions may be one of the effective ways to improve the combustion characteristics and reduce fossil CO₂ emissions. However, there are few studies on the coal semi-char co-firing with biomass under oxy-fuel conditions. It is necessary to investigate the co-firing behavior of coal semi-char and biomass in the oxy-fuel atmosphere. In this study, the combustion behavior of coal semi-char co-firing with straw in O₂/CO₂ mixture is investigated using thermogravimetric analysis, which can provide useful information for coal semi-char co-firing with biomass in oxy-fuel conditions.

2. Experiments

2.1. Samples Description

This study chooses two fuels: Shenhua coal semi-char (SHC) and straw (ST). The straw was obtained from rice straw in Hubei. The proximate and ultimate analysis of samples is listed in

Table 1. Proximate analysis and ultimate analysis of samples.

Samples	Proximate Analysis (Dry, wt%)			Ultimate Analysis (Daf, wt%)
	Volatile Matter	Ash	Fixed Carbon	C	H	O	N	S
Shenhua coal	32.32	10.27	57.41	81.52	3.33	13.65	1.18	0.31
SHC	6.45	14.93	78.62	72.25	0.43	11.21	0.89	0.29
ST	75.90	10.75	13.35	48.22	6.62	33.05	1.06	0.31

. The coal pyrolysis process at low temperature (below 800 °C) and low heating rate produce the by-product semi-char with little volatile and rich pore structure. Additionally, in this study, a tubular furnace prepares the Shenhua coal semi-char (SHC). First, 1.0 g coal with a size of 75–150 μm are spread evenly on the corundum magnetic boat bottom, and the corundum magnetic boat is pushed into the furnace. Then, the furnace is heated to 750 °C at a heating rate of 5 °C /min under N₂ atmosphere; then, the furnace is kept at 750 °C about 30 min. After the preparation, the corundum magnetic boat is pushed out and is flushed in N₂ atmosphere to cool the sample.

2.2. Experimental Apparatus, Methods and Kinetic Method

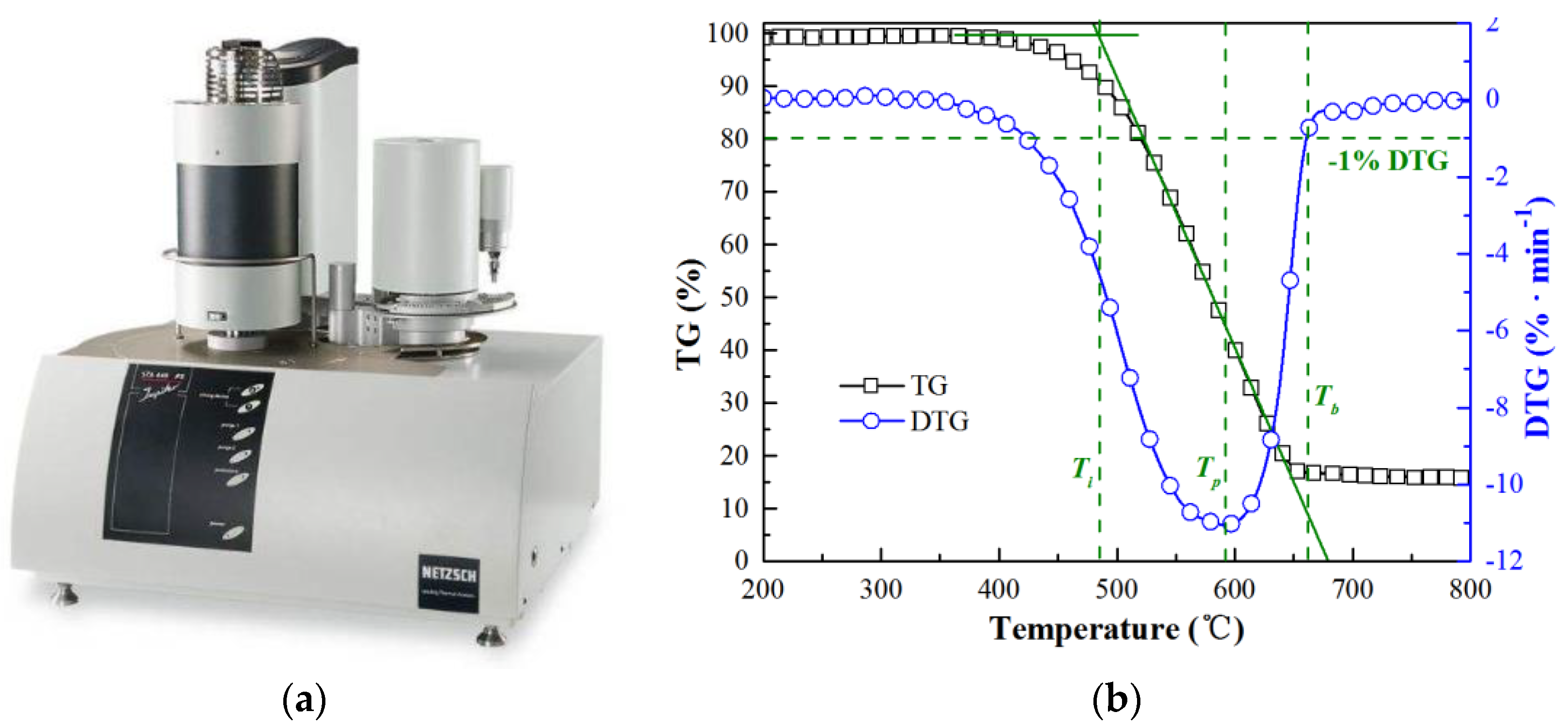

The combustion characteristics of samples are studied by using a thermogravimetric analyzer, as shown in Figure 1a. This small-scaled experiment can accurately and quantitatively reflect some behaviors in the co-combustion processes of coal semi-char and straw in O₂/CO₂ mixtures, although a difference exists compared to the actual combustion in the large-scaled device. The O₂ concentrations used in this study are 21, 30 and 40 vol%, which are mixed with CO₂ for a total flow rate of 100 mL/min under the ambient temperature and pressure. A total of 10.00 mg sample is heated from 50 °C to 800 °C with a heating rate of 20 °C/min. Duplicate experiments for each test were performed in order to test the reproducibility of the results.

According to thermo-gravimetric analysis curves, there are several methods that are used to determine the ignition and burnout temperatures. They are usually slightly different for different methods. In this study, the ignition temperature T_i is obtained according to the TG-DTG curve method (as shown in Figure 1b) [21]. A tangent line on the TG curve is taken as the peak temperature T_p corresponding to the maximum weight loss rate on the FTG curve, and the temperature at the intersection of the tangent line and the initial horizontal line of the reaction on the TG curve is the ignition temperature T_i. The burnout temperature T_b is defined as the temperature at which the combustion rate exceeds −1 (wt, %/min) at the end of a major combustion process. More details are shown in Figure 1.

In order to evaluate the burning performance of coal, the comprehensive combustion index (CCI) is defined as follows [22]:

$$CCI=\frac{{(dW/dt)}_{\max }{(dW/dt)}_{\mathrm{mean}}}{T_i{}^2{T}_b}$$

(1)

where (dW/dt)_max is the maximum combustion rate, (dW/dt)_mean is the average mass loss rate, T_i is the ignition temperature and T_b is the burnout temperature.

In this study, Coats–Redfern integral method is used to analyze the kinetic parameters [21,23,24]. The kinetic equation can generally be written as:

$$\frac{d\alpha }{dt}=k(T)f(\alpha )$$

(2)

$$k(T)=A\exp (-\frac{E}{RT})$$

(3)

$$f(\alpha )={(1-\alpha )}^n$$

(4)

where t(s) is time; α is the conversion degree, $\alpha =(m_0-m_t)/(m_0-m_{\infty })$, m₀ is the initial mass of the sample, m_t is the mass of the sample at time t, m_∞ the final mass of the sample in the reaction; T(K) is the absolute temperature; A (s⁻¹) is pre-exponential or frequency factor, E (kJ·mol⁻¹) is the activation energy and R (kJ·mol⁻¹·K⁻¹) is 8.3145 kJ·mol⁻¹·K⁻¹ (the universal gas constant).

Inserting Equations (3) and (4) in Equation (2), we obtain the kinetic equation in the following form:

$$\frac{d\alpha }{dt}=A\exp (-\frac{E}{RT}){(1-\alpha )}^n$$

(5)

where β = dT/dt is the heating rate and n is the reaction order. Equation (5) could be transferred to

$$\frac{d\alpha }{{(1-\alpha )}^n}=\frac{A}{\beta }\exp (-\frac{E}{RT})dT$$

(6)

Therefore, Coats–Redfern equation can be obtained by integration of Equation (6) as follows:

$$n=1, \ln \left\{\frac{-\ln (1-\alpha )}{T^2}\right\}=\ln \left\{\frac{AR}{\beta E}\left[1-\frac{2RT}{E}\right]\right\}-\frac{E}{RT}$$

(7)

$$n\ne 1, \ln \left\{\frac{1-{(1-\alpha )}^{(1-n)}}{T^2(1-n)}\right\}=\ln \left\{\frac{AR}{\beta E}\left[1-\frac{2RT}{E}\right]\right\}-\frac{E}{RT}$$

(8)

For the actual combustion process, $E/RT\ge 1 \mathrm{and} 1-2RT/E\approx 1$, so Equations (7) and (8) can be simplified as:

$$n=1, \ln \left\{\frac{-\ln (1-\alpha )}{T^2}\right\}=\ln \left\{\frac{AR}{\beta E}\right\}-\frac{E}{RT}$$

(9)

$$n\ne 1, \ln \left\{\frac{1-{(1-\alpha )}^{(1-n)}}{T^2(1-n)}\right\}=\ln \left\{\frac{AR}{\beta E}\right\}-\frac{E}{RT}$$

(10)

In order to obtain kinetic parameters, coal combustion can be assumed as first-order reaction, using the Coats–Redfern equation above to calculate the apparent activation energy E and pre-exponential factor A. Thus a plot of $\ln |-\ln (1-\alpha )/T^2|$ versus 1/T should result in a straight line with the slope equal to −E/R for the first-order kinetics. Therefore, the data in Coats–Redfern kinetic analysis were obtained by taking the reaction order as unity.

3. Results and Discussion

3.1. Co-Firing Behavior of Semi-Char and Straw under Different Blending Ratios in 21% O₂/79% CO₂ Mixtures

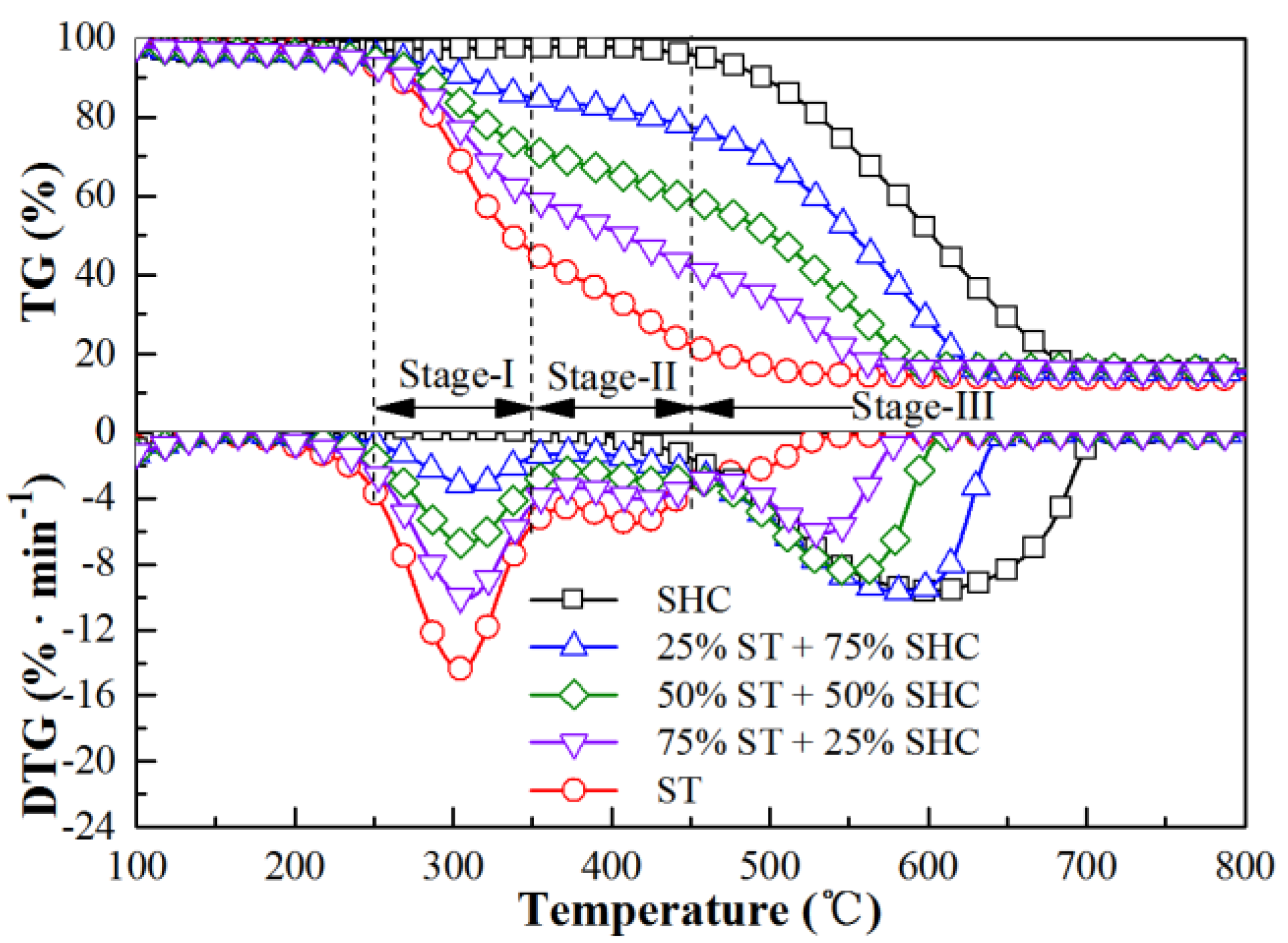

The TG and DTG curves of semi-char co-firing with biomass are shown in Figure 2. It can be seen that semi-char and biomass show large differences in combustion behaviors, and these curves show similar regulation in two different atmospheres. The TG curve of SHC presents only one peak (about 600 °C), and the combustion of fixed carbon mainly occurs at this stage. The TG curve of ST shows three peaks (i.e., three stages). The first stage extends from about 250 °C to 350 °C, which is the ST volatile combustion. The second stage extends from about 350 to 450 °C, which is the ST fixed-carbon combustion. The third stage extends from about 450 to 550 °C, which is the residual-char combustion and the decomposition of the difficult pyrolytic material [14]. For the blended fuels, each curve lays between those of the individual fuels and presents three peaks (i.e., three stages). The first stage (from about 250 to 350 °C) corresponds to the volatile combustion of ST; the second stage (from about 350 to 450 °C) corresponds to the co-combustion of SHC and ST fixed-carbons, and the third stage (from about 450 to 550 °C) corresponds to the SHC fixed-carbon combustion and the decomposition of the difficult pyrolytic material of ST. While increasing the blending ratio of ST, the first and second peak values gradually increase, and the corresponding temperatures change slightly; the third peak value gradually decreases, and the corresponding temperature moves towards the lower temperature zone.

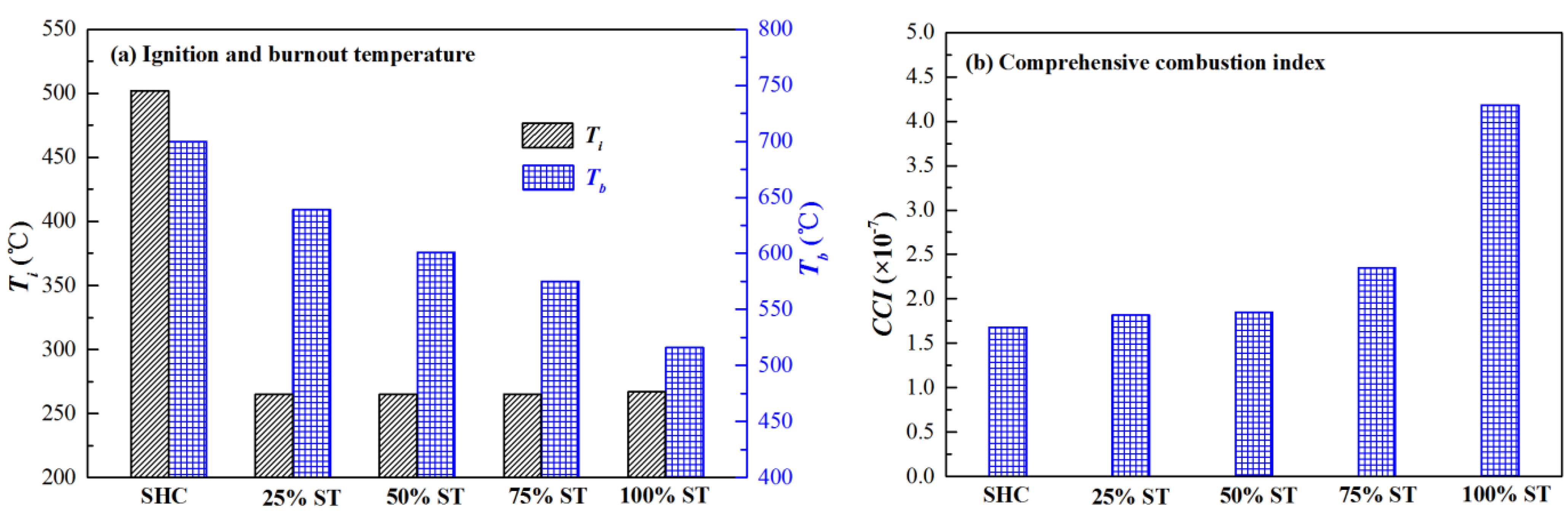

Figure 3 shows the ignition and burnout temperatures and comprehensive combustion index. It is obviously seen that the ignition temperature Ti of SHC is significantly higher than that of ST. For the semi-char co-firing with biomass, as the proportion of ST increases from 25 to 100%, the change of the blended ignition temperature Ti is slight, which indicates that the ignition temperature Ti of blended fuels is mainly determined by the ST. As the proportion of ST increases from 0 to 100%, the burnout temperature Tb decreases greatly and linearly. Results in Figure 3b show that as the proportion of ST increases, the comprehensive combustion index CCI increases non-linearly, and the CCI increases gradually with the increasing blending ratio from 0% to 75% and increases significantly with the increasing blending ratio from 75% to 100%. The explanation for this phenomenon may be that ST is added to SHC so that there is a synergy. These show that adding ST can effectively reduce the ignition temperature and burnout temperature of the sample.

In order to evaluate the effect of the ST blending ratio on the combustion characteristics, the kinetic parameters (E and lnA) under different blending ratios are obtained. In this study, in order to obtain the relatively accurate kinetic parameters, the kinetic analysis curves are divided into several segments according to the inflection point on the kinetic analysis curves. Additionally, the average activation energy E and the average pre-exponential factor lnA are calculated from the following equation [21,25]:

E = ∑E_i·F_i

(11)

lnA = ∑lnA_i·F_i

(12)

where E_i and lnA_i are the activation energy and the pre-exponential factor for each stage, respectively, and F_i is the mass loss fractions for each stage.

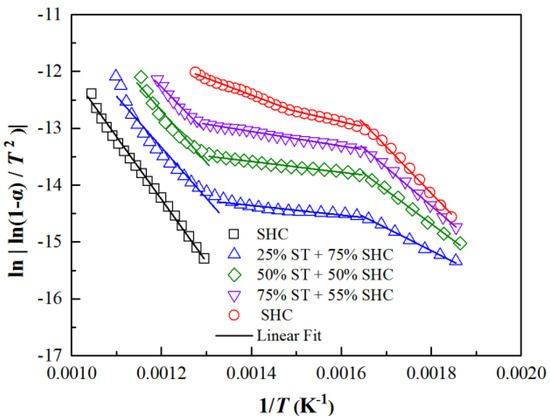

The kinetic analysis curves of different blended coal combustion in 21% O₂/79% CO₂ atmosphere are shown in Figure 4.

Table 2. Kinetic parameters under different ST blending ratios.

Item	Stages	Fi (%)	Ei (kJ/mol)	E (kJ/mol)	lnAi (s−1)	lnA (s−1)	R2
SHC	502–700	-	-	91.51	-	17.35	0.99117
25% ST + 75% SHC	Stage I	11	43.09	56.43	21.96	19.66	0.99550
	Stage II	14	5.82		25.63		0.91626
	Stage III	75	67.84		18.21		0.93601
50% ST + 50% SHC	Stage I	27	49.03	47.44	18.43	19.62	0.99590
	Stage II	31	7.94		24.79		0.98230
	Stage III	42	75.58		16.58		0.94467
75% ST + 25% SHC	Stage I	39	56.20	42.38	16.69	19.48	0.96747
	Stage II	36	10.64		23.99		0.99330
	Stage III	25	66.52		17.35		0.99529
100% ST	Stage I	54	67.93	46.18	14.13	17.96	0.99101
	Stage II	20	15.18		23.16		0.99212
	Stage III	26	24.833		21.92		0.99286

lists the activation energy E values and the corresponding correlation factor R² of different blending ratios in 21% O₂/79% CO₂ atmosphere. It can be found that all activation energy E values have a high correlation coefficient (R²), showing acceptable accuracy of the results. It can be seen that there is a similar trend. The total E for the pure SHC is obviously higher than that for the pure ST. Additionally, the total E reduces significantly after blending ST, but as the blending ratio increases from 25% to 100%, E changes slowly due to the synergy between fuels. For different stages, E and lnA present different regulations as the ST blending ratio increases. Compared to that of stage I and stage III, E of stage II is significantly lower, and lnA is obviously higher. With an increasing blending ratio from 25% to 100%, E at stage I increases and lnA decreases; E at stage II increases and lnA decreases as the blending ratio increases from 25% to 100%.

3.2. Co-Firing Behavior of Semi-Char and Straw under Different O₂ Concentrations in O₂/CO₂ Mixture

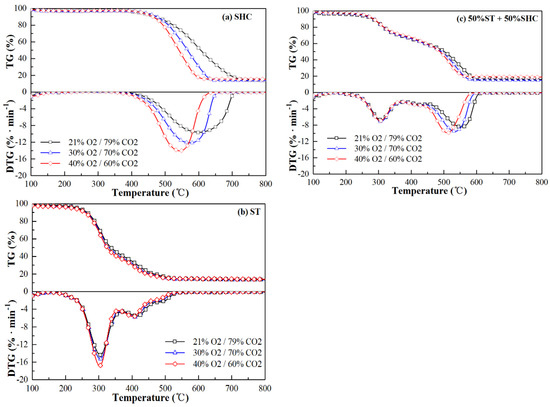

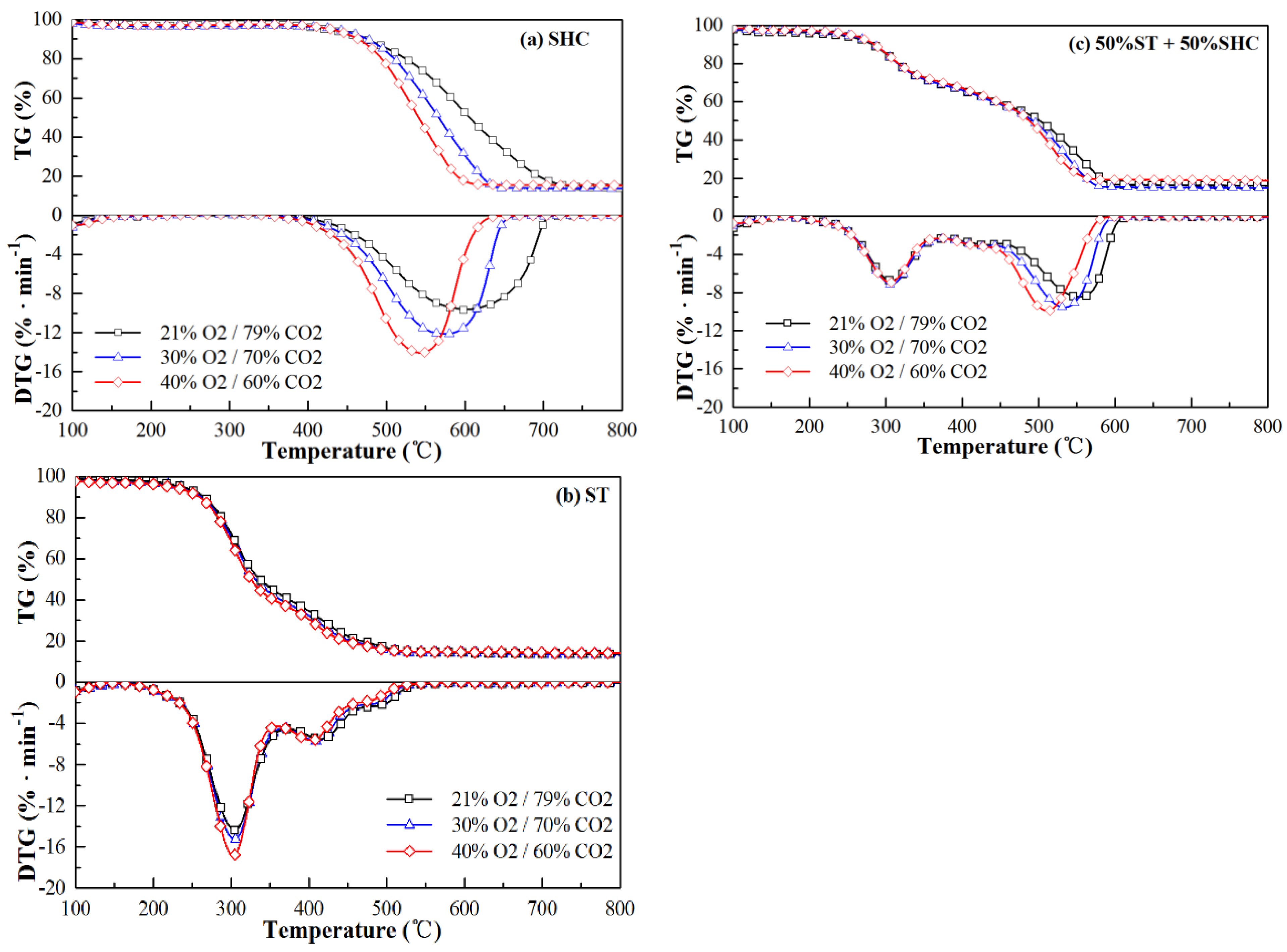

Figure 5 shows the TG and DTG curves of SHC, ST and 50% SHC + 50% ST under different O₂ concentrations in the O₂/CO₂ atmosphere. It can be seen that the effect of O₂ concentration on combustion behavior is much stronger for SHC than ST (as shown in panels a and b of Figure 5). As a result, for the 50% SHC + 50% ST (as shown in panel c of Figure 5), the O₂ concentration obviously affects stage III, and the TG and DTG curves of the third stage are obviously shifted to the lower temperature zone with increasing O₂ concentrations. The mass-loss rate of the coal sample in high O₂ concentrations is always higher than that in low O₂ concentrations. Figure 6 presents the ignition and burnout temperatures and comprehensive combustion index of 50% SHC + 50% ST under different O₂ concentrations. With increasing O₂ concentration, Ti decreases slightly due to the slight effect of the O₂ concentration on the ST ignition. A tendency for the burnout temperature Tb of the 50% SHC + 50% ST samples to decrease is observed as the oxygen concentration increases. As shown in Figure 6b, the comprehensive combustion index CCI increases with an increase in oxygen concentration. This means that the increase in oxygen concentration is favorable for the burnout of the blended coal but slightly affects the ignition behavior of blended samples.

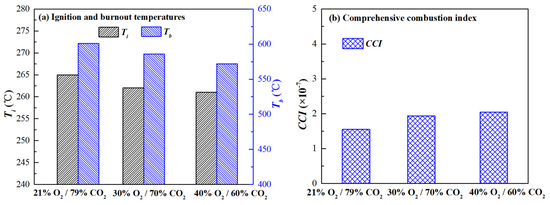

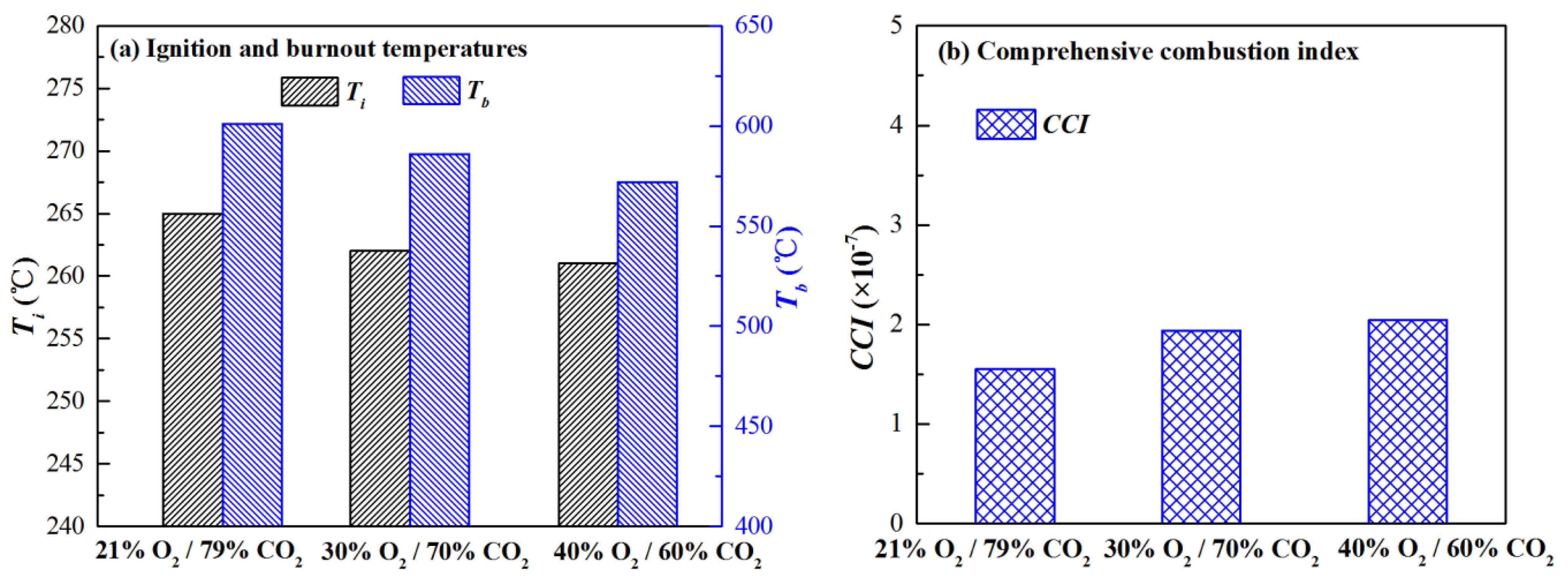

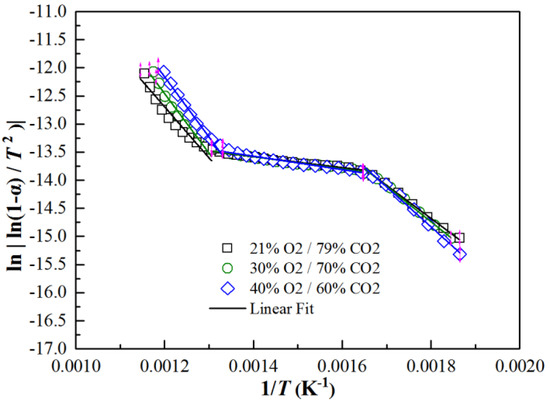

In order to evaluate the effect of the O₂ concentration on the combustion characteristics, the kinetic parameters (E and lnA) of 50% SHC + 50% ST under different O₂ concentrations is obtained. The kinetic analysis curves of 50% SHC + 50% ST under different O₂ concentrations are shown in Figure 7.

Table 3. Kinetic parameters of 50% SHC + 50% ST under different O₂ concentrations.

Item	Stages	Fi (%)	Ei (kJ/mol)	E (kJ/mol)	lnAi (s−1)	lnA (s−1)	R2
21% O2/79% CO2	Stage I	27	49.03	47.44	18.43	19.62	0.99590
	Stage II	31	7.94		24.79		0.98230
	Stage III	42	75.58		16.58		0.94467
30% O2/70% CO2	Stage I	25	52.47	56.29	17.81	18.76	0.99377
	Stage II	29	9.03		24.74		0.96212
	Stage III	46	88.15		15.52		0.96876
40% O2/60% CO2	Stage I	24	58.92	57.33	16.62	18.61	0.99045
	Stage II	31	9.924		24.67		0.95589
	Stage III	45	89.14		15.50		0.98724

lists the activation energy E values and the corresponding correlation factor R² of 50% SHC + 50% ST. For the three stages, similar regulation is observed. While increasing the oxygen concentration, the average activation energy E gradually increases and the average pre-exponential factor lnA gradually decreases. According to existing reaction kinetic theory, the activation energy value can represent the difficulty of the reaction. An increase in oxygen concentration promotes the combustion reaction, which should have a lower activation energy [26,27]. However, in this study, the higher O₂ concentration presents the highest activation energy and the lower pre-exponential factor. This phenomenon is in conformity with the experimental results of previous researchers [21,28,29]. For this phenomenon, Chen et al. [30] explained that during the sample combustion process, the activation energy is effected by the diffusion limitation and the reduction of the activated molecule concentration and the organic impurities. As the oxygen concentration increases, the heat release of the sample oxidation increases. In addition, the char structure increases the grain size and absorbs more ash, resulting in a corresponding increase in the final temperature [31]. Therefore, as the oxygen concentration increases, the activation energy increases.

4. Conclusions

This paper investigates the combustion behavior of semi-char co-firing with straw in O₂/CO₂ mixture using thermogravimetric analysis, which can can provide useful information for semi-char co-firing with biomass. The results show that each curve lays between those of the individual fuels and presents three peaks (i.e., three stages). The thermogravimetric curves of SHC co-firing with ST can be divided into three stages: the volatile combustion of ST, the co-combustion of SHC and ST fixed-carbons and the SHC fixed-carbon combustion and the decomposition of the difficult pyrolytic material of ST. Blending ST into the SHC can significantly decrease the ignition temperature and improve the comprehensive combustion behavior of blended samples. In increasing the proportion of ST from 25 to 100%, the change of the blended ignition temperature is slight, but the burnout temperature decreases greatly. Kinetic parameters of combustion are calculated by using the Coats–Redfern integral method. Compared to that of stage I and stage III, the activation energy of stage II is significantly lower. In increasing the blending ratio from 25% to 100%, the activation energy increases at stage I and decreases at stage III. Furthermore, the O₂ concentration obviously affects stage III of 50% SHC + 50% ST and the thermogravimetric curves at this stage are obviously shifted to the lower temperature zone as the O₂ concentration increases. The activation energy of 50% SHC + 50% ST increases as the oxygen concentration increases. Besides, the activation energy shows that the combustion characteristics cannot only be determined by the activation energy obtained by the Coats–Redfern method.
