Electrochemical Study of Stainless Steel Anchor Bolt Corrosion Initiation in Corrosive Underground Water

Abstract

Application of low-nickel stainless steel anchor was one of the economical and effective methods to solve the durability problem of slope engineering. At present, there are scarce reports about corrosion characteristics of low-nickel stainless steel in various underground waters. For investigating the corrosion initiation of stainless steel anchor bolt in corrosive underground water, the effect of SO₄²⁻, HCO₃⁻ and pH value on the corrosion behavior of 201 low-nickel stainless steel was studied via electrochemical methods. As the SO₄²⁻ concentration, HCO₃⁻ concentration or pH value increase, the open circuit potential and polarization resistance increase, while the double-layer capacitance, donor density and passive current density decrease. The results indicate that corrosion is inhibited by SO₄²⁻, HCO₃⁻ and OH⁻ in underground water. In addition, the inhibitive efficiency of SO₄²⁻ and HCO₃⁻ increases with the SO₄²⁻ and HCO₃⁻ concentration.

1. Introduction

Steel anchor bolt is widely applied in the high-steep slope in hydropower and transportation fields, as shown in Figure 1a, which can maintain the slopes in stable conditions. However, many anchor bolts were found to be seriously corroded, causing a collapse of slopes, for the corrosive ions in underground waters. Therefore, much attention was given to the durability of steel anchor bolts in the past several decades.

Steel anchor bolts in corrosive environments may degrade in various manners. Stress corrosion cracking (SCC) is one of the main corrosion-induced failure of bolts [1,2,3,4,5]. It occurs when highly stressed steel bolts are exposed to corrosive environments [2], and it was related to hydrogen embrittlement [3,4,5]. In addition, as shown in Figure 1b, bond failure at the bolt-grout interface is another degradation mode which frequently occurred [6]. Jiang et al. [7] compared the probability of yield failure at the free length to that of bond failure at the bolt-grout interface, and they found that the former was much lower than the latter over time. Xia et al. [6] suggested a predictive model, which was based on the Mohr–Coulomb theory, to estimate the lifetime of rock bolts in corrosive environments considering bond failure. The model can be applied to arrange rational maintenance programs for anchorage structures. Generally, SCC and bond failure were two main failure modes which attracted much attention in the past several decades.

Except for the studies on the failure modes of steel anchorage bolts [1,2,3,4,5,6,7], many studies [7,8,9,10,11] also focused on the factors that influence the corrosion behavior and durability of steel anchorage bolts. Divi et al. [8] investigated the effect of temperature on the corrosion properties of different rock bolts and found that severe corrosion was detected for most rock bolts as the temperature reached 90 °C. The effect of thickness of grout cover layer and water–cement ratio of grout on the long-term stabilization of anchored rock slope was reported by Jiang et al. [7]. The results indicated that the lifetime of rock bolts extended with increasing thickness of grout cover layer on the bolt and decreasing water–cement ratio of the grout. The coupled effect of stress and corrosion on the anchorage performance of rock bolts was investigated by Wang et al. [9], and the authors found that the bonding strength of rock bolts was significantly degraded by the increasing working stress and corrosion time. Similar results were reported by Wang et al. [10], and the longer corrosion time could lead to pitting, which reduced the bearing capacity and lifetime of rock bolts. In general, the durability of bolts can be affected by factors such as temperature, material, stress and corrosion time.

The effect of solution composition on the durability of bolts was also investigated in previous studies. Rahman et al. [11] analyzed the corrosion behavior of rock bolts in simulated concentrated water with different anions (chlorides, sulfates, bicarbonates and silicates) and found that the steels in bicarbonate and silicate solution showed the highest and lowest corrosion, respectively. However, some other studies [12,13] suggested that HCO₃⁻ ions have an inhibitive effect on corrosion. Moreover, the effect of SO₄²⁻ ions on the corrosion behavior of steels is also controversial [14,15,16,17]. Some reports [14,15] indicated that SO₄²⁻ can lead to the dissolution of Cr and accelerate corrosion. By contrast, some other reports [16,17] found the SO₄²⁻ can inhibit general corrosion and pitting corrosion. It is worth noting that those studies [11,12,13,14,15,16,17] scarcely paid attention to the corrosion behavior of steels in underground waters.

To resist the corrosive anions in underground water, stainless steel anchors can be adopted to substitute for carbon steel anchors and for the higher corrosion resistance of the former. However, from an economic point of view, the cost of stainless steel is substantially higher than that of carbon steel, because of the increasing price of nickel. Taking the corrosion resistance and the expense into consideration, low-nickel stainless steel is an excellent choice for anchor bolt in corrosive underground water. Some previous studies reported that low-nickel stainless steel exhibited similar corrosion resistance compared with traditional 304 stainless steel. Our previous studies investigated the effect of the concentration of Cl⁻ in the underground water [18] and stains [19] on the corrosion behavior of the 201 low-nickel stainless steels. In the present study, the effect of the concentrations of SO₄²⁻ and HCO₃⁻, as well as the pH value on the corrosion behavior of the 201 low-nickel stainless steel, was studied in simulated underground water.

2. Materials and Experiments

2.1. Materials

In total, 201 low-nickel stainless steels were adopted as test specimens, the chemical composition of which was (wt.%): 0.082% C, 0.33% Si, 0.12% N, 9.34% Mn, 14.74% Cr, 0.9% Ni, 1.45% Cu, 0.031% P, 0.007% S and Fe. The low-nickel stainless steel was processed into a rectangular sheet, with a size of 20 mm × 100 mm × 1 mm. The specimens were ground with emery papers to NO. 1000, degreased and washed with absolute ethyl alcohol and deionized water, respectively. Then, the samples were sealed with silica gel, leaving an area of 0.5 cm² in the middle of the geometry exposed for electrochemical tests. The edge between the exposed stainless steel and silica gel were daubed nail enamel after the silica gel cured, to avoid the crevice corrosion. Underground water was prepared with analytic reagent sodium chloride, sodium sulfate and sodium bicarbonate to simulate the underground water of the North Mountain in Gansu Province, China [20]. In addition, for investigating the influence of SO₄²⁻, HCO₃⁻ and pH value on the corrosion initiation of low-nickel stainless steel in underground water, different SO₄²⁻, HCO₃⁻ concentration and pH value were tested, as shown in

Table 1. The concentration of various ions in the simulated underground water solution.

Solution	A1	A2	A3	A4	A5	B1	B2	B3	B4	B5	C1	C2	C3
Cl− (g/L)	12.00	12.00	12.00	12.00	12.00	12.00	12.00	12.00	12.00	12.00	12.00	12.00	12.00
SO42− (g/L)	2.75	5.50	11.00	22.00	44.00	11.00	11.00	11.00	11.00	11.00	11.00	11.00	11.00
HCO3− (g/L)	1.40	1.40	1.40	1.40	1.40	0.35	0.70	1.40	2.80	5.60	1.40	1.40	1.40
pH	7.0	7.0	7.0	7.0	7.0	7.0	7.0	7.0	7.0	7.0	5.0	7.0	9.0

. To obtain certain pH values in Table 1, diluted nitric acid was applied, since the nitrate ions have little effect on the corrosion behavior of stainless steel [21].

2.2. Experiments

Electrochemical measurements were performed via CS350 workstation (Corrtest Instrument, China). The 201 low-nickel stainless steel sample, a platinum plate and a saturated calomel electrode (SCE) was connected to the working electrode, counter electrode and reference electrode, respectively. Three samples were measured in each electrochemical test, and the middle curve was selected to represent the result. Specimens were cathodically polarized at −1.0 V_SCE for 5 min before the experiments [22], to remove the oxide film formed in air. One hour after the cathodically polarization, electrochemical measurements were conducted in underground water solutions. The open-circuit potential (OCP) was recorded for 300 s until a stable potential was reached. The average values of three parallel samples were calculated and represented the OCP value in the corresponding conditions. Subsequently, electrochemical impedance spectroscopy (EIS) was measured by applying a 10 mV AC disturbance signal, in the range from 10⁵ to 10⁻² Hz. Thereafter, Mott–Schottky measurements were conducted at a frequency of 1000 Hz, from −1.5 to 1.5 V_SCE with 10 mV amplitude signal and a potential step of 50 mV [23,24,25]. Furthermore, potentiodynamic polarization curves were tested at a scanning rate of 1 mV/s from −0.3 to 1.1 V_SCE [26], after the stainless steel was immersed in underground water one hour, with three new samples in each condition.

3. Results and Discussion

3.1. Open-Circuit Potential

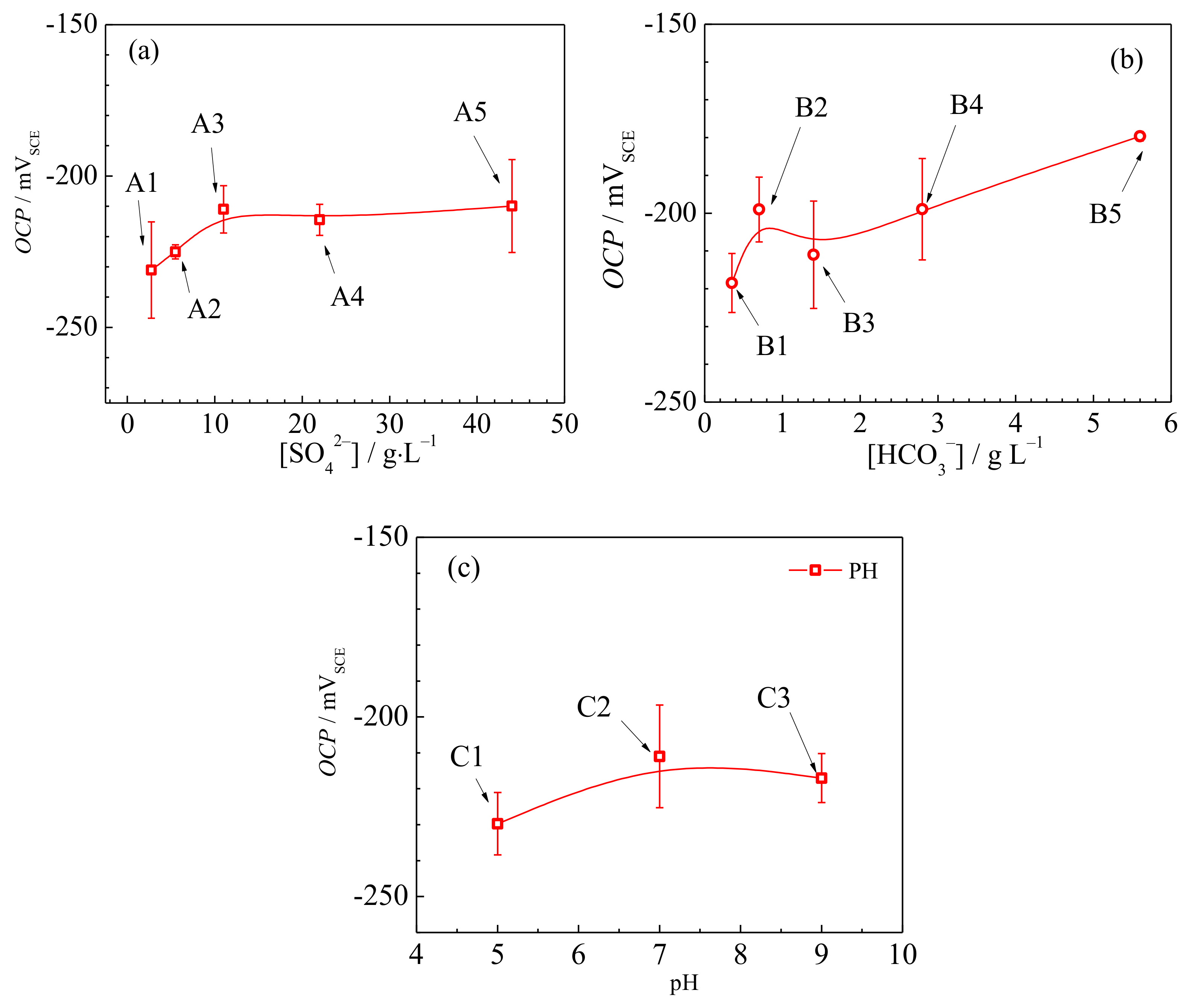

The OCP values of the 201 low-nickel stainless steel samples in the underground water with different SO₄²⁻ content, HCO₃⁻ content and pH value were presented in Figure 2. As can be seen in Figure 2a,b, the OCP generally slightly shifted to a positive direction with increasing SO₄²⁻ concentration and HCO₃⁻ concentration, suggesting the decrease tendency of corrosion on the 201 stainless steels. Hong [16] investigated the effect of SO₄²⁻ ions concentration on the early stages of pitting corrosion of 430 stainless steel in NaCl solution and found that the number of metastable pits decreased with increasing SO₄²⁻ concentration. In addition, Li [12] reported that the corrosion potential increased with increasing HCO₃⁻ concentration. These reports confirmed that SO₄²⁻ ions and HCO₃⁻ ions can serve as an inhibitor of chloride-induced corrosion for stainless steels. Furthermore, as shown in Figure 2c, the OCP increased with the pH values. Similar results were reported by Luo [27], that the corrosion resistance of 316 L stainless steel was enhanced by the higher pH values when it was less than 12.5. Therefore, the OCP results suggested that as the SO₄²⁻ concentration, HCO₃⁻ concentration and pH values increased, the OCP of the 201 low-nickel stainless steel increased, while its corrosion tendency decreased.

3.2. Electrochemical Impedance Spectroscopy

The Nyquist plots of the stainless steels in the underground water with different SO₄²⁻ and HCO₃⁻ concentration and different pH value are presented in Figure 3. According to previous studies, the radius of the arc in Nyquist plots is closely related to the polarization resistance [28,29], which usually represents the corrosion resistance of steels. The radius of the arc significantly increased with the increase in SO₄²⁻ concentration, HCO₃⁻ concentration and pH values, indicating an enhanced corrosion resistance of steels.

The equivalent circuit shown in Figure 3c was applied to fit the EIS data, in which R_s represents the solution resistance, and Q and R_ct represent the double-layer capacitance and the charge transfer resistance, respectively [30]. In the present study, constant phase element (CPE) is used in place of pure capacitance, and the impedance of CPE (Z_CPE) can be given by:

$$Z_{CPE}={\left[Q{\left(jw\right)}^n\right]}^{-1}$$

(1)

where n is the CPE exponent and w is the phase angle frequency. The capacitance element Q (CPE) is pure capacitance when n = 1 and pure resistance when n = 0.

The fitting results of charge transfer resistance R_ct and double-layer capacitance Q were shown in

Table 2. The fitting results of EIS data.

Solution	A1	A2	A3	A4	A5	B1	B2	B3	B4	B5	C1	C2	C3
Rs (Ω cm2)	22.4	16.4	18.2	18.0	9.52	15.9	17.3	18.2	16.3	14.7	16.9	18.2	11.2
Rct (×105 Ω cm2)	1.3	1.7	2.3	3.3	4.2	2.1	2.1	2.3	3.1	3.3	0.65	2.3	5.4
Q (×10−5 Ω−1 Sn cm2)	6.2	6.0	5.9	5.0	4.9	5.8	5.0	5.9	4.9	4.0	9.6	5.9	6.3

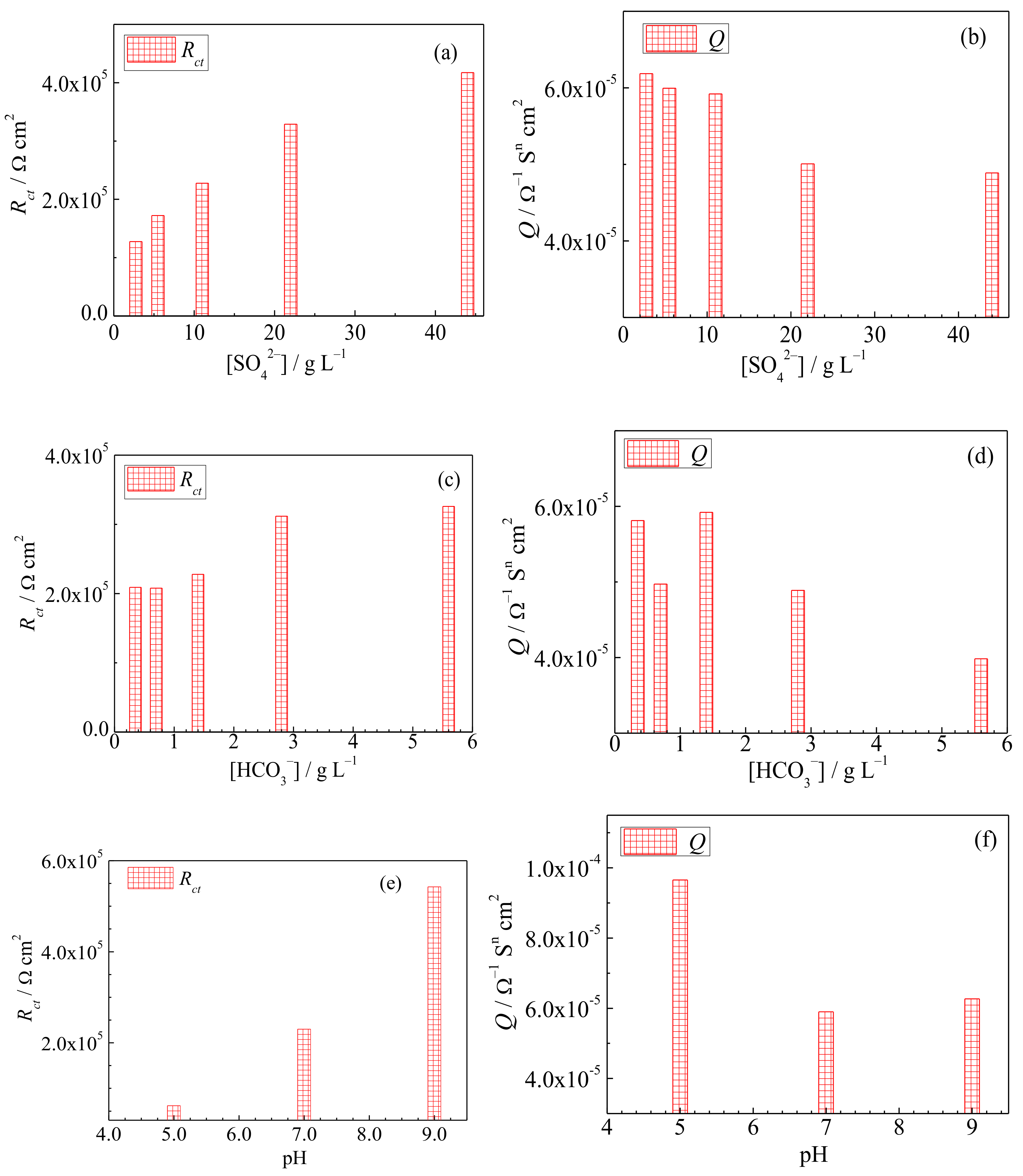

and Figure 4. Generally, with the increase in SO₄²⁻ concentration, HCO₃⁻ concentration and pH values, the charge transfer resistance R_ct increased, while the double-layer capacitance Q decreased. Particularly, the R_ct of the sample in the pH 9 solution was one order of magnitude larger than that of the one in the pH 5 solution, which means the corrosion resistance of the 201 low-nickel stainless steel was significantly enhanced in alkaline environment. In addition, as the SO₄²⁻ concentration increased from 2.75 to 22 g/L, the R_ct increased to about 2.5 times. Similarly, as the HCO₃⁻ concentration increased from 0.35 to 2.8 g/L, the R_ct increased to about 1.5 times. These situations indicate that the SO₄²⁻ and HCO₃⁻ exhibited inhibitive effect on corrosion of the 201 low-nickel stainless steel in simulated underground waters. However, when the SO₄²⁻ concentration exceeded 22 g/L or the HCO₃⁻ concentration exceeded 2.8 g/L, the growth rate of R_ct obviously slowed down, which indicates that the corrosion resistance of stainless steel was not further improved by the increase in SO₄²⁻ and HCO₃⁻ concentration, when they were higher than certain values.

The capacitance C (i.e., Q) is in inverse proportion to the thickness (d) of the passive film [31,32]:

C = (ε₀ εS)/d

(2)

where ε₀ is the dielectric constant of free space and ε is the dielectric constant of the passive film. As shown in Figure 4, with increasing SO₄²⁻ concentration, HCO₃⁻ concentration and pH values, the capacitance decreased, and the thickness of the passive film correspondingly increased, which means the corrosion resistance was enhanced. The EIS results, together with the OCP results, confirmed that the corrosion of the 201 low-nickel stainless steel was inhibited by SO₄²⁻ and HCO₃⁻ in the Cl⁻ contaminated underground water and also by the alkaline environment. Moreover, the excessive addition of SO₄²⁻ and HCO₃⁻ seems to have little effect on the improvement of corrosion resistance.

3.3. Semiconducting Properties of the Passive Film

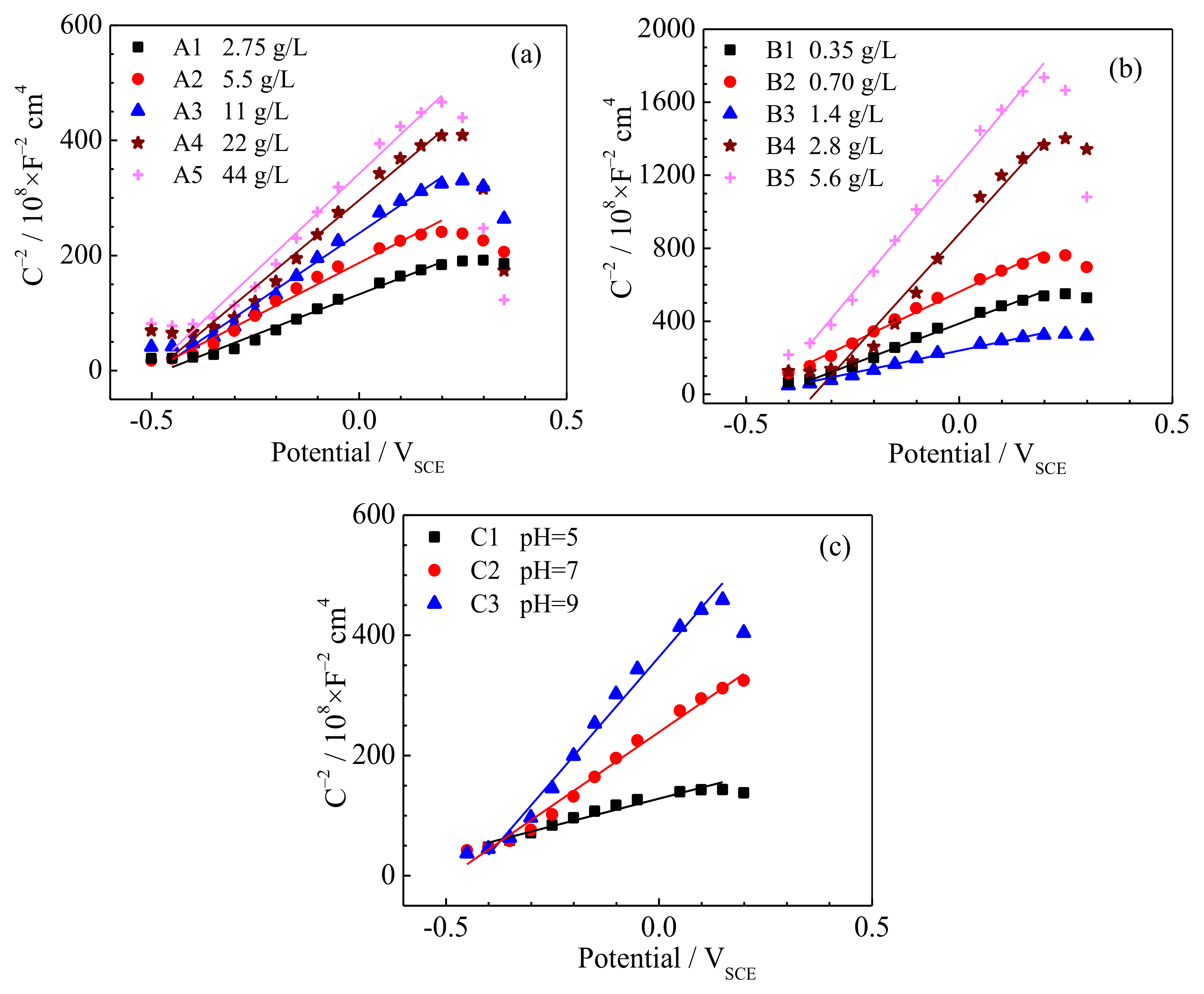

Figure 5 shows the Mott–Schottky plots of the 201 low-nickel stainless steels in simulated underground water with different anion concentrations and pH values. Positive slopes can be observed in the Mott–Schottky plots when the potential is in the range of −0.4 to 0.2 V_SCE, which indicates that the passive film on the stainless steel is an n-type semiconductor [33,34]. However, as the potential exceeds 0.2 V_SCE, the slopes turn negative, indicating the initial breakdown of the passive film [35,36].

Assuming that the capacitance of the Helmholtz layer (C_H) can be neglected [37,38], the capacitance of n-type semiconductors can be calculated by Equation (3) [34,35]:

$$C^{-2}=C_{SC}^{-2}=\frac{2}{\epsilon {\epsilon }_{0}q{N}_D}\left(E-E_{FB}-\frac{kT}{q}\right)$$

(3)

where C_SC is the capacitance of space charge layer; ε_o (8.85 × 10⁻¹⁴ F/cm) and ε (12 [37,38]) are the dielectric constants of the vacuum and the passive film, respectively; q is the electron charge (1.602 × 10⁻¹⁹ C); N_D is the donor density of the passive film; E is the applied potential; E_FB is the flat band potential; k is the Boltzmann constant (1.38 × 10⁻²³ J/K); and T is the absolute temperature and in the present study is 295 K. The value of kT/q is negligible because it is only 25 mV [39,40]. The donor density N_D of passive films formed in underground water with different anion concentration, and the pH value was obtained from the slopes of Mott–Schottky plots, and the results were presented in

Table 3. The donor densities of passive film formed on 201 low-nickel stainless steel in different solutions.

Solution	A1	A2	A3	A4	A5	B1	B2	B3	B4	B5	C1	C2	C3
ND (×1020 cm−3)	3.22	2.44	1.85	1.50	1.33	4.48	2.84	1.85	1.95	1.23	4.94	1.85	1.10

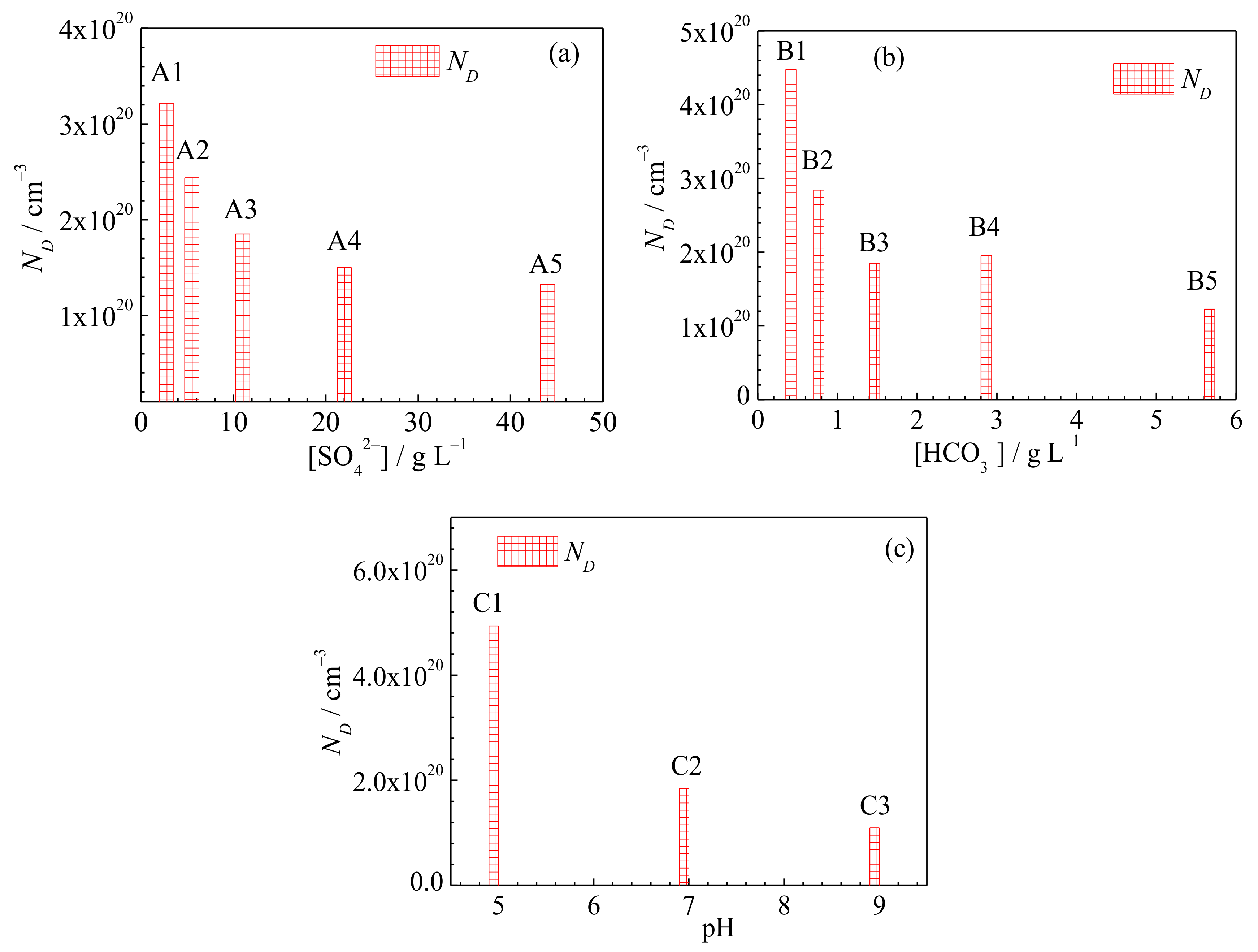

and Figure 6. As the SO₄²⁻ concentration increased from 2.75 to 22 g/L, or the HCO₃⁻ concentration increased from 0.35 to 2.8 g/L, the donor density sharply decreased by more than half. However, when the SO₄²⁻ concentration exceeded 22 g/L, or the HCO₃⁻ concentration exceeded 2.8 g/L, the donor density seemed to decline at a slower rate. According to the point defect model (PDM) proposed by Macdonald et al. [41,42,43], the decrease in donor density suggests the higher stability of the passive film and less susceptive to pitting corrosion. Therefore, the results in Figure 6a,b suggested that the stability of the passive film and resistance to pitting corrosion were enhanced by the increasing of SO₄²⁻ and HCO₃⁻, while excessive addition of SO₄²⁻ and HCO₃⁻ only led to slight improvement on the stability of the passive film. In Figure 6c, it can be observed that the donor density of the film formed in alkaline environment was much lower compared to that of the film formed in neutral or acidic solutions, which means the stability of the film was substantially improved and the probability of pitting was significantly reduced in alkaline underground water.

In general, the Mott–Schottky results together with the EIS and OCP results, suggested that corrosion of the 201 low-nickel stainless steel was inhibited by the SO₄²⁻ and HCO₃⁻ in underground waters. Moreover, the passivity of the low-nickel stainless steel was substantially improved in the alkaline underground waters.

3.4. Potentiodynamic Polarization

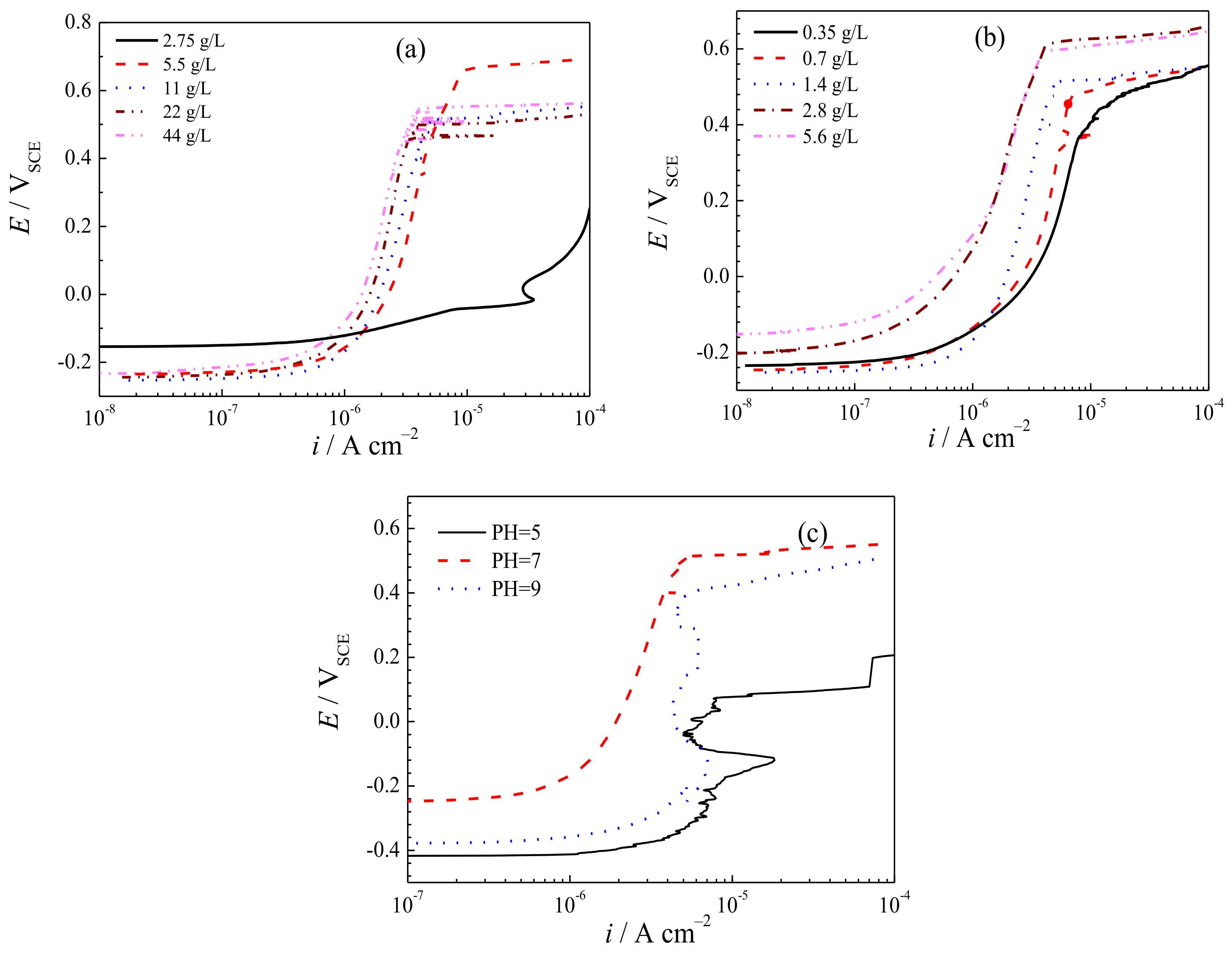

The potentiodynamic polarization curves of the samples immersed in underground water with different anion concentrations and pH values were depicted in Figure 7. It can be observed that most stainless steels samples displayed typical passivation state in these underground waters, except for the sample in the solution containing 2.75 g/L SO₄²⁻. Furthermore, the passive current densities derived from the potentiodynamic polarization curves were presented in

Table 4. The passive current density of 201 low-nickel stainless steel in different solutions.

Solution	A1	A2	A3	A4	A5	B1	B2	B3	B4	B5	C1	C2	C3
ipass (×10−6 A cm−2)	58.8	2.92	2.38	1.97	1.69	4.58	3.69	2.38	1.12	0.950	46.4	2.38	4.80

and Figure 8. As Figure 8 shows, the current density of the low-nickel stainless steels decreased with increasing SO₄²⁻ and HCO₃⁻ in the underground water, especially when the SO₄²⁻ concentration was lower than 22 g/L or the HCO₃⁻ concentration was lower than 2.8 g/L. For instance, the passive current density of the sample in the solution with 22 g/L SO₄²⁻ was one order of magnitude lower than the one in the solution with 2.75 g/L SO₄²⁻. However, when the SO₄²⁻ or HCO₃⁻ concentration was higher than certain values, the current density almost remained constant. In addition, the current density of the sample in neutral or alkaline solution was one order of magnitude lower than the one in acidic solution. Lower current density represents the reduction of activity of the low-nickel stainless steel substrate. Thus, the potentiodynamic polarization results confirmed that the corrosion resistance of 201 low-nickel stainless steel increased with increasing SO₄²⁻ concentration and HCO₃⁻ concentration. Furthermore, the stainless steel sample showed higher corrosion resistance in the alkaline underground waters, which concurred with the OCP, EIS and Mott–Schottky results.

3.5. The Corrosion Initiation of Stainless Steel in Underground Water

The OCP, EIS, Mott–Schottky plot and potentiodynamic polarization results reveal that corrosion and pitting corrosion can be inhibited by the SO₄²⁻, HCO₃⁻ and alkaline environment. Moreover, the inhibitive effect of SO₄²⁻ and HCO₃⁻ is significant at low concentration (for SO₄²⁻, it is less than 22 g/L, and for HCO₃⁻, it is less than 2.8 g/L) while inefficiency at higher concentration. Thus, SO₄²⁻ and HCO₃⁻ are not the aggressive anions for the low-nickel stainless steels in the simulated underground water in the present study.

According to PDM [41,42,43], passivity breakdown derives from cation vacancy condensation, which may further evolve into pitting corrosion under certain conditions. The cation vacancies result from absorption of aggressive anions (Cl⁻) into oxygen vacancies at film/solution interface [34,43]. Excess cation vacancies flux across the passive film and condensate at the metal/film interface, causing separation of the passive film from metal substrate and preventing further growth of the film in the cation vacancy condensation regions [34,35,43]. Considering the continual dissolution of passive film at the film/solution interface, the film over the condensate becomes thinner and eventually breaks down [34,43]. Thus, corrosive solution can penetrate into the condensate, and a micropit (metastable pit) is initiated [43]. The formation of micropit is inseparable from aggressive anions, such as Cl⁻ in the underground water [20]. In a previous study [18], the corrosion behavior of low-nickel stainless steels was investigated in underground water with different Cl⁻ concentration. The results suggested that the stainless steel was more severely degraded in underground water with high chloride ion concentration. Therefore, the corrosion of stainless steel can be initiated by Cl⁻ in the underground water.

In addition to the facilitation of Cl⁻ to the corrosion initiation, other ions, such as SO₄²⁻, HCO₃⁻ and OH⁻, also have an impact on the corrosion initiation of steels. The electrochemical measurement results in the present study indicate that SO₄²⁻ has the ability to inhibit corrosion, which can be attributed to the competitive adsorption of SO₄²⁻ and Cl⁻ on the steel surface [44,45,46,47]. It is that the SO₄²⁻ is preferentially adsorbed onto the film/solution interface for its higher charge in comparison to Cl⁻, thus preventing Cl⁻ from contact with the passive film and reducing the probability of Cl⁻ absorbed into oxygen vacancy. Therefore, the probability of cation vacancy condensation is reduced, and corrosion can be inhibited. The inhibitive effect of HCO₃⁻ can also be partially attributed to the competitive adsorption [13]. In addition, the presence of HCO₃⁻ promotes the formation of protective FeCO₃ film [13] and dilutes the concentration of Cl⁻ in the micro-pit [48], inhibiting the nucleation of a stable pit. In the present study, corrosion was also inhibited by the alkaline environment, which could be related to the facilitation of OH⁻ on passivation [49,50]. It is worth mentioning that the OH⁻ can be induced by the addition of SO₄²⁻ and HCO₃⁻, according to the Equations (4) and (5), which also may contribute to the inhibition effect of SO₄²⁻ and HCO₃⁻ on the 201 low-nickel stainless steel in the underground waters.

SO₄²⁻ + H₂O ⇔ HSO₄⁻ + OH⁻

(4)

HCO₃⁻ ⇔ CO₂ + OH⁻

(5)

In some previous studies [11,14,15], SO₄²⁻ and HCO₃⁻ were found to be detrimental to steels. Qiu [14] and Zhu [15] investigated the effect of SO₄²⁻ on the corrosion of 316L stainless steel and Ni-Mo-Cr alloy (GH3535) in FLiNaK molten salt, respectively. The results suggested that SO₄²⁻ accelerates the corrosion of both types of steel. The authors attributed this situation to the dissolution of Cr in molten salt with high SO₄²⁻ concentration. However, in the present study, the ambient temperature of underground water solution (20 °C) was much lower than that of molten salt (700 °C), so that the dissolution of Cr may be insignificant in the underground water. In addition, Rahman et al. [11] reported that A607 steel was obviously corroded in simulated Yucca Mountain water solution with 20 g/L HCO₃⁻. It seems that HCO₃⁻ is one of the most aggressive anions in Yucca Mountain underground water. However, in the present study, HCO₃⁻ was tested in the range from 0.35 to 5.6 g/L, which is much lower than 20 g/L. A previous study [12] suggested that HCO₃⁻ has an inhibitive effect on corrosion at low concentration, but the inhibitive effect reduces in a solution with high HCO₃⁻ concentration. Generally, the effect of SO₄²⁻ and HCO₃⁻ on corrosion behavior of steels could be changed with the solutions or the types of steels. In the present study, SO₄²⁻ and HCO₃⁻ seem to be corrosion inhibitors for the low-nickel stainless steels in chloride-contaminated underground water.

4. Conclusions

In the present study, the corrosion initiation of 201 low-nickel stainless steel was studied in simulated underground water with various anions concentration. The following conclusions can be drawn from the results.

• The open-circuit potential and charge transfer resistance increase, while the double-layer capacitance, donor density and passive current density decrease as the SO₄²⁻ concentration, HCO₃⁻ concentration or pH value of the underground water increase.
• The corrosion of 201 low-nickel stainless steel is inhibited by SO₄²⁻, HCO₃⁻ and OH⁻ in underground water.
• The inhibitive effect of SO₄²⁻ and HCO₃⁻ is significant at low concentration (for SO₄²⁻, it is less than 22 g/L, and for HCO₃⁻, it is less than 2.8 g/L), while the excessive addition of SO₄²⁻ and HCO₃⁻ only showed a little improvement on the corrosion resistance of 201 low-nickel stainless steel.
• The passivity and corrosion resistance of low-nickel stainless steel is substantially improved in alkaline underground waters.
• Anion concentrations was magnified in simulated underground waters in the present study. Corrosion behavior of 201 low-nickel stainless steel in underground waters with lower concentration of anions, and the relationship between corrosion rates in the simulated solution and that in actual groundwater environment should be investigated in the future study.
