Alginate Nanohydrogels as a Biocompatible Platform for the Controlled Release of a Hydrophilic Herbicide

by
Fiora Artusio
1,
Dario Casà
1,
Monica Granetto
2,
Tiziana Tosco
2 and
Roberto Pisano
1,*
1
Department of Applied Science and Technology (DISAT), Politecnico di Torino, 24 Corso Duca Degli Abruzzi, 10129 Torino, Italy
2
Department of Environment, Land and Infrastructure Engineering (DIATI), Politecnico di Torino, 24 Corso Duca Degli Abruzzi, 10129 Torino, Italy
*
Author to whom correspondence should be addressed.
Processes 2021, 9(9), 1641; https://doi.org/10.3390/pr9091641
Submission received: 31 July 2021 / Revised: 7 September 2021 / Accepted: 9 September 2021 / Published: 11 September 2021
(This article belongs to the Topic Modern Technologies and Manufacturing Systems)
Browse Figures
Versions Notes

Abstract

:
The large-scale application of volatile and highly water-soluble pesticides to guarantee crop production can often have negative impacts on the environment. The main loss pathways are vapor drift, direct volatilization, or leaching of the active substances. Consequently, the pesticide can either accumulate and/or undergo physicochemical transformations in the soil. In this scenario, we synthesized alginate nanoparticles using an inverse miniemulsion template in sunflower oil and successfully used them to encapsulate a hydrophilic herbicide, i.e., dicamba. The formulation and process conditions were adjusted to obtain a unimodal size distribution of nanohydrogels of about 20 nm. The loading of the nanoparticles with dicamba did not affect the nanohydrogel size nor the particle stability. The release of dicamba from the nanohydrogels was also tested: the alginate nanoparticles promoted the sustained and prolonged release of dicamba over ten days, demonstrating the potential of our preparation method to be employed for field application. The encapsulation of hydrophilic compounds inside our alginate nanoparticles could enable a more efficient use of pesticides, minimizing losses and thus environmental spreading. The use of biocompatible materials (alginate, sunflower oil) also guarantees the absence of toxic additives in the formulation.

1. Introduction

Pesticides are massively used worldwide in agriculture to control pests, including insects, weeds, rodents, fungi, and any armful organism in crop production and livestock management [1]. Their use is fundamental in enhancing crop yield production in a scenario of increasing global population, which is expected to reach 9.8 billion by 2050 [2,3]. Several studies show how crop management, without the use of pesticides, would averagely result in 35% loss of potential yields in the pre-harvest phase [4], and another 35% during transformation, transport, and other processing steps [5]. On the other hand, 10 to 75% of applied pesticides does not actually reach the target organisms and is dispersed in the environment [6,7]. As a consequence, significantly higher doses, compared to those really needed to control target pests, must be currently applied for most agrochemicals, with potential detrimental effects for environmental compartments. Depending on their specific characteristics, pesticides spread into the environmental matrices, where they can either undergo physical/chemical transformations (e.g., degradation, hydrolysis, oxidation, etc.) [8] or accumulate [9]. Unintended losses and consequent environmental spreading are particularly relevant for highly soluble and volatile pesticides, having a high potential of diffusion and dispersion in surface and subsurface water and in the atmosphere. Among these, dicamba is a prime example. Dicamba is a post-emergence selective herbicide that is active against broadleaf weeds and currently applied in different crops such as maize, wheat, and sorghum. It belongs to the family of benzoic acids and is characterized by a low dissociation constant (pKa = 1.89), high solubility in water (6.5 g/L at pH ≈ 2, and significantly higher at higher pH), and moderate volatility in air (vapor pressure = 3.4 × 10−5 mmHg) [10]. The presence of dicamba in its dissociated form at pH values typically detected in environmental conditions leads to a generalized low soil adsorption capacity [11,12,13] and consequent high leaching potential [14,15,16]. In the presence of a rainfall or sprinkling irrigation right after application, a major part of dicamba in traditional formulations can be mobilized from top soil and leaves and lost due to infiltration in soil. Moderate volatility can cause both dicamba vapor drift—i.e., loss during or right after the application for wind blows or evaporation of droplet from pressurized nozzles [17,18]—and direct volatilization after it has been applied to the target area [19,20], with a consequent potential damage to neighbor crops and safety risks for the operators and, more in general, for the nearby population [21].
In the last decade, nanotechnologies started playing a key role in agriculture; advanced solutions have been developed mainly in terms of new sensors for real-time monitoring of relevant parameters (nanobiosensors) [22], and smart delivery systems to protect crops against pests (nanopesticides) or to supply nutrients and fertilizers (nanofertilizers) [2,22,23,24]. Nanopesticides have been typically proposed to overcome the technical limitations of their conventional analogues. On the one hand, the applicability of poorly water-soluble active ingredients (AIs, i.e., the molecules exploiting the pesticidal effect) to pest targeting is limited by their scarce solubility. On the other hand, hydrophilic AIs may need engineered solutions to control their release over time, thus guaranteeing a specific concentration for a prolonged time, and to limit their leaching in the subsoil (following, for example, irrigation or precipitations). To this aim, the AI can be embedded, adsorbed, or encapsulated in a nanoparticle or a micelle that modifies its solubility, mobility, lifetime, and/or bioavailability. Nanocarriers, such as polymeric nanohydrogels, nanospheres, nanocapsules, porous hollow silica nanoparticles, double-layered hydroxides, and modified or natural clays have been proposed [2,25,26]. For example, the use of an alginate-based nanohydrogel can positively influence dicamba leaching potential, reducing the amount of AI that could be washed out or volatilized after treatment [20,27]. Reduced leaching of alginate-based controlled-release formulations has also been reported for several other compounds, e.g., carbofuran [28], metribuzin [29], nitrogen, phosphorous, and potassium [30].
The AI polarity plays a key role in the selection of the most appropriate nanocarrier configuration. The AI must display a high affinity toward the chemistry of the nanocarrier to get high AI loadings and limited leakage during storage. In this scenario, emulsified systems offer a versatile platform for the encapsulation of hydrophilic or hydrophobic compounds, depending on the composition of the continuous and the dispersed phases.
Miniemulsions, also known as nanoemulsions, are thermodynamically unstable systems that must be stabilized against coalescence by adding surfactants [31]. The miniemulsion formation requires an energy input, coming from hot/cold homogenization [32], high-pressure homogenization [33], ultrasounds [34], or even phase transitions [35,36]. Direct (oil-in-water, O/W) miniemulsions are characterized by oily droplets, where hydrophobic AIs can readily be solubilized [25,37]. Conversely, inverse (water-in-oil, W/O) miniemulsions can be employed for the encapsulation of hydrophilic AIs as an aqueous dispersed phase is homogenized into an oily continuous phase [37,38,39].
When monomers are added to the formulation, O/W and W/O miniemulsions can act as templates for the synthesis of polymeric nanoparticles, which can be obtained with several processing methods. Among these, sol–gel techniques, physical cross-linking, and UV or thermal polymerization are often employed [25,40,41]. Miniemulsion polymerization enables the preservation of droplet size thanks to the confinement of the cross-linking within the dispersed phase [42]. Therefore, each droplet acts as a “nanoreactor”, where polymerization occurs as in a closed system. The final particle size corresponds to the templating droplet size and can be adjusted by acting on the homogenization conditions. Miniemulsion polymerization has been extensively used for preparing nanoparticles for drug delivery purposes [43], magnetic particles, clay/polymer nanocomposites [44], or hybrid nanomaterials [45,46].
In this work, the inverse miniemulsion approach was exploited to produce polymeric nanocarriers for the encapsulation of dicamba. Sodium alginate and sunflower oil were selected as the nanocarrier material and the continuous oily phase, respectively, due to their high biocompatibility and biodegradability, thus ensuring that no potentially harmful substance is introduced in the environment along with the AI. Sodium alginate is a food-grade linear polysaccharide that is soluble in water and can readily undergo physical cross-linking: bivalent cations substitute sodium ions, resulting in an egg box-like cross-linked network. Alginate has been successfully used for nanocarrier synthesis via complexation and internal or external gelation after emulsification in oily phases [25,47,48], but to the authors’ knowledge, this is the first time it is used in inverse miniemulsions for agricultural uses. In addition, its application to the pharmaceutical and biological field is very limited compared to other polysaccharides such as agarose [49,50,51].
In this study, the synthesis, characterization, encapsulation capacity, and modulated release of dicamba from alginate nanohydrogels obtained via inverse miniemulsion are reported and discussed, opening perspectives for the application of this approach to the encapsulation of highly soluble, mobile, and/or volatile pesticides. Particles with an average size of 20 nm and good colloidal stability were obtained and successfully loaded with dicamba. The sustained release of AI from the alginate nanohydrogels was guaranteed over ten days.

2. Materials and Methods

2.1. Materials

All the chemicals were reagent-grade and used as received. 3,6-Dichloro-2-methoxybenzoic acid (dicamba, ≥98%) was supplied by Alfa Chemistry (Ronkonkoma, NY, USA). Sodium alginate (from brown algae, M/G = 1.49, Mw = 396 kDa [52]), calcium chloride, and sodium hydroxide were purchased from Merck (Milano, Italy). Pluronic PE 6100 (HLB = 3) was obtained from BASF (Ludwigshafen, Germany), whereas sunflower oil was acquired in a grocery store (Simply, Torino, Italy). Water was deionized and filtered (ELGA Vision 250 disposable deionizer, Veolia Water Technologies, Saint-Maurice, France).

2.2. Synthesis of Unloaded and Loaded Carriers

Deionized water and non-ionic surfactant were selected because of the absence of ions, which could interfere with the alginate gelification. Nanohydrogels were synthesized starting from an inverse miniemulsion template: 0.25–0.4 g of Pluronic PE 6100 were dissolved in 75 mL of sunflower oil to prepare the continuous phase. A 1–2 wt % aqueous solution of sodium alginate was separately prepared by vigorous stirring for 1 h. To prepare the miniemulsion, 1% (v/v) alginate solution was added to the oily phase and mixed by Ultra Turrax (T25, IKA, Staufen, Germany) at 8000–14,000 rpm for 10 min. Then, 0.75 mL of 0.2 M CaCl2 solution were added to trigger the cross-linking of alginate droplets and obtain the nanohydrogels. The operation was performed under mixing, and the system was homogenized for another 5 min. All the formulations and operating conditions employed in this study are reported in Table 1.
For dicamba-loaded nanohydrogels, a direct incorporation was employed. Dicamba was dissolved in the 0.2 M CaCl2 solution. For small dicamba concentrations, i.e., ≤3 mg/mL, the pesticide was directly dissolved in deionized water for 30 min with the help of an ultrasonic bath (Bandelin, Sonorex, Germany). After complete dissolution, CaCl2 was added. Larger concentrations required a different procedure as the solubility of dicamba strongly depends on pH. Dicamba was first dissolved in deionized water to obtain a pH 3 solution. Then, 5 M NaOH was added to raise the pH to 4. A new dicamba addition was performed to lower the pH to 3, and so on. When the target dicamba concentration was reached, the solution was exposed to ultrasounds for 30 min. In this way, dicamba concentrations in water as high as 250 mg/mL could be obtained. In parallel, 10 mL of 0.4 M CaCl2 solution was prepared and mixed with an equal volume of dicamba solution. All the other synthesis conditions were unmodified. The experimental set-up is summarized in Figure 1.
Unloaded and dicamba-loaded nanohydrogels were studied in the form of oily suspension (i.e., alginate nanoparticles dispersed in the sunflower oil used for the synthesis), if not stated otherwise. For dimensional analyses only, aqueous suspensions of the nanohydrogels were also prepared. To this purpose, centrifugation at 14,000 rpm for 15 min was performed on freshly cross-linked nanohydrogels suspended in oil. Nanohydrogels were rinsed with deionized water and resuspended in water after 10 min of ultrasound exposure.

2.3. Dimensional and Morphological Characterization

Dynamic light scattering (DLS, Zetasizer Nano ZS90, Malvern Instruments, Malvern, Worcestershire, UK) was employed to evaluate the particle size and colloidal stability over time. The temperature was set at 25 °C, and the scattering angle was 90°. All the measurements were performed in triplicate. Miniemulsions, oily, and aqueous suspensions of nanohydrogels were analyzed. For size analyses, 1 mL of sample was inserted into a disposable polystyrene cuvette with no preliminary dilution. The size and morphology of the particles were also investigated via Field Emission Scanning Electron Microscopy (FE-SEM Zeiss MERLIN, Carl Zeiss NTS GmbH, Oberkochen, Germany). The aqueous suspension of nanohydrogels was dried at room temperature for a week, and the residue was placed on a SEM stub before undergoing metallization. The SEM accelerating voltage was set at 3 KeV, the working distance was 3 mm, and an InLens detector was used.

2.4. Release Tests

Dialysis tests were performed to evaluate the release profile of dicamba. A cellulose membrane with a molecular cut-off of 14,000 Da (Sigma-Aldrich, Cesano Maderno, Italy) was employed to allow the permeation of dicamba while retaining the nanocarrier. The membrane was preconditioned by immersion in 0.17 (v/v)% NaOH solution. The concentration of the buffer solution was selected to counterbalance the osmotic pressure due to NaOH in the nanohydrogels.
Release from non-encapsulated and encapsulated dicamba formulations were compared. For both formulations, the continuous phase was the oily phase. Encapsulated dicamba (i.e., dicamba-loaded nanohydrogels) was prepared following the procedure described in Section 2.2. Non-encapsulated dicamba was prepared following the same procedure but without alginate in the dispersed water phase.
First, 40 mL of oily nanohydrogel suspension or dicamba-loaded miniemulsion were inserted inside the membrane, which was then sealed with clippers and immersed in 0.75 L of buffer solution, i.e., 0.17 (v/v)% NaOH solution. The system was gently mixed throughout the whole release test and covered with an aluminum foil because of the dicamba photosensitivity. The release tests were carried out at room temperature (20 °C). Three mL were periodically withdrawn from the buffer compartment and immediately reintegrated with fresh buffer solution. The samples were analyzed by UV/VIS spectrophotometry (Specord S 600, Analytik Jena AG, Jena, Germany) using the buffer solution as a blank. The absorption peak at 281 nm was associated with the presence of released dicamba, since neither continuous oily phase nor alginate showed any absorbance at that wavelength. This peak was used to evaluate the pesticide concentration.

3. Results and Discussion

3.1. Design of Miniemulsion Formulation and Operative Conditions

The miniemulsion template for the synthesis of alginate nanohydrogels is composed of a continuous oily phase and a dispersed aqueous phase. The phase configuration was dictated by the hydrophilicity of dicamba. The selected materials respond to the biodegradability and biocompatibility constraints imposed by the environmental application of the delivery platform. The miniemulsion formulation was first optimized in terms of surfactant concentration and mixing speed. The selection of Pluronic PE 6100 as a proper surfactant for the stabilization of an inverse miniemulsion has been reported in our previous publication [31]. The surfactant concentration was progressively increased from 0.25 to 0.4 g in 75 mL of sunflower oil (samples M1–M4 in Table 1), and the miniemulsion was analyzed via DLS. Table 2 reports a non-linear trend of the drops dimension as a function of the amount of surfactant. For Pluronic < 0.35 g (samples M1 and M2), unimodal dimensional distributions were obtained, and the droplet size decreased in agreement with Gibbs law. For surfactant ≥ 0.35 g (samples M3, M4, and M5), a bimodal dimensional distribution was obtained, as shown in Figure S1 for sample M4, resulting in higher Z-average size. The distinct features of the samples were also highlighted by the polydispersity index (PDI). PDI was around 0.2 for Pluronic < 0.35 g, which denotes a fine control over droplet size exerted by the homogenization step. By contrast, larger surfactant concentrations led to polydisperse values of droplet size, which was probably because of competitive micellization and coalescence phenomena. Thus, 0.3 g of Pluronic was selected as the optimal amount of surfactant, which guaranteed a monodisperse droplet size around 25 nm.
The effect of the homogenization speed on the miniemulsion features was also investigated with DLS. The speed range was 8000–14,000 rpm (see samples M2, M5, and M6). As listed in Table 2, a drop size around 25 nm and PDI < 0.3 was obtained only above 10,000 rpm. Further increases in the homogenization speed (sample M3) were not effective in reducing drop size because of the equilibration between breakage and coalescence phenomena. As a drawback, too high speeds could result in excessive heating of the suspension because of the Joule effect and may justify the slightly higher dispersion of dimensional values. Instead, lower speeds led to not reproducible results, implying that the miniemulsion was not properly formed and stabilized. Relative standard deviations around 50% and PDI close to 1 corroborated the experimental evidence. Therefore, the homogenization speed was set at 10,000 rpm to guarantee a narrow dimensional distribution of miniemulsion droplets, as highlighted in Figure 2 (sample M6).

3.2. Nanohydrogel Synthesis

After the optimization of the miniemulsion formation, the synthesis of nanohydrogels was investigated. Nanohydrogels are identified with the prefix H. To trigger alginate cross-linking, CaCl2 was added to the suspension during the homogenization step. A comparison between the dimensional distribution of miniemulsion droplets (sample M6) and nanohydrogel oily suspension (sample H2) is reported in Figure 2. A good overlapping between the two curves was observed and was attributed to the templating effect of miniemulsion cross-linking. Therefore, the miniemulsion droplet size (21.4 ± 3.0 nm) determines the final hydrogel size (20.6 ± 4.4 nm). The PDI was 0.29 and 0.14 for the miniemulsion and the nanohydrogel suspension, respectively. All the evidence pointed out that the physical cross-linking process did not lead to aggregation phenomena among the particles nor altered the monodispersity of the system.
A further investigation of the miniemulsion templating effect was carried out by analyzing the size of nanohydrogels prepared at different homogenization speed, which is reported in Table 3 (samples H1–H3).
The same UT speeds of the study on miniemulsions were considered. The results concerning the average size and PDI were in good agreement with those obtained for the corresponding miniemulsion droplets reported in Table 2. At 8000 rpm (H1), the unstable miniemulsion led to bimodal distributions of hydrogels, pointing out peaks around 50 and 125 nm, as reported in Figure S2. Instead, higher speeds resulted in populations of nanoparticles with reproducible and finely tuned size. Speeds as high as 14,000 rpm led to slightly more dispersed populations, which was probably because of the consequence of excessive heating. Thanks to the preservation of size, the dimensional features of the nanohydrogels could easily be tuned by acting on the miniemulsion formation process.
The stability of miniemulsion droplets and nanohydrogel suspensions was also tested over time. Samples were prepared by setting 10,000 rpm as the homogenization speed. Reference samples are M6 and H2. As can be seen in Figure 3, the dimensional and PDI trends pointed out the beneficial effect of alginate cross-linking over particle stability. A progressive increase in the drop size was observed for the miniemulsion as a consequence of constructive collision phenomena due to Ostwald ripening. The droplet size doubled in just two days, denoting a strong instability of the system. Conversely, the nanohydrogel suspension did not show any appreciable dimensional or PDI variation over the testing time. Thus, miniemulsions had to be freshly prepared and immediately cross-linked to preserve the particle size and benefit from the dimensional template. Nevertheless, the nanohydrogel suspension was stable and could be employed for release studies.
Lastly, the impact of alginate concentration on the features of the particles was investigated. Doubling alginate concentration (2 wt %, sample H4) led to larger and more dispersed nanoparticles populations, as reported in Table 3. The effect was attributed to the increased viscosity of alginate solutions and inter-particle cross-linking. Therefore, 1 wt % alginate was selected as the optimal hydrogel precursor for the following study on particle loading and release.

3.3. Loading of the Nanohydrogels with Dicamba

Nanohydrogels prepared according to the optimized set of synthesis conditions (H2) were loaded with dicamba. Final concentrations of dicamba ranging from 1 to 125 mg/mL in the 0.2 M CaCl2 phase were tested to evaluate their impact on the nanoparticle distributions (samples HD1–HD4 in Table 4). As a general trend, dicamba did not significantly disturb the nanohydrogel formation nor did it perturb the particle size distribution and colloidal stability, even at high loadings. Table 4 lists the average size and PDI of the loaded nanohydrogels.
The direct incorporation method for dicamba loading guaranteed the preservation of the templating effect of miniemulsion and did not alter the quality attributes of the nanocarrier. Such a method could potentially be applied to any hydrophilic substance to be encapsulated. The different hydrophilicity of the continuous and the dispersed phases of the miniemulsion determined the preferential location of the active principle within the drops. A confinement effect was exerted by the surrounding hydrophobic environment, ensuring negligible migration of the encapsulated substance out of the carrier.
It is worth mentioning that the final nanohydrogel particle size and its substantial stability over time make this nanoformulation largely compatible with its field-scale application using conventional herbicide spray equipment, in which eventual nanoparticle aggregation can lead to nozzle clogging and therefore deviation from the desired spray pattern. In fact, in these systems, the average drop size applied to the targeted leaves, controlled by the combination of nozzle size and applied pressure, can range from less than 60 to more than 650 µm [53,54,55].

3.4. Controlled Release of Dicamba

The release ability of the nanocarriers was tested by means of dialysis tests. Release tests were performed on non-encapsulated and encapsulated dicamba formulations, which were both dispersed in the sunflower oil used for the synthesis. This choice was in view of the potential use of the dicamba-alginate nanohydrogels for the development of an emulsifiable concentrate (EC), that is, an oil-based pesticide formulation which, thanks to the addition of surfactants and other co-formulants when developing the commercial product, can be diluted in water by the farmer prior to application. Despite the less common use of such a type of pesticide formulation compared to water-based products, this route was preferred to preserve the alginate nanohydrogels from premature degradation and/or dicamba release [56,57]. The use of a food-grade oil overcomes most of the environmental and health criticalities associated to ECs, which were traditionally based on mineral oils [58,59]. Moreover, oils are quite commonly used as adjuvants and wetting agents in dicamba-based pesticides to improve the leaf uptake of the compound.
Preliminary release tests were carried out on unloaded nanohydrogels and confirmed the complete retention of alginate nanoparticles by the dialysis membrane and the absence of free alginate. Then, the performances of freshly prepared non-encapsulated and encapsulated formulations of dicamba were compared. For these tests, both the miniemulsion and the nanohydrogels were prepared using a dicamba concentration of 100 mg/mL in water and in 0.2 M CaCl2. As reported in our previous study [31], water-soluble compounds can be successfully confined in the aqueous dispersed phase, i.e., inside the nanohydrogels, of inverse miniemulsions, achieving unitary encapsulation efficiency of AIs.
Cumulative release curves are reported in Figure 4. The cumulative released mass mc(t) was obtained as:
m c ( t ) = V b C ( t ) + V ∑ i = 0 t − 1 C i
where Vb is the buffer volume, C is the dicamba concentration, V is the withdrawal volume, and t is the time. The percentage of released dicamba was expressed as the ratio between the cumulative released mass over the dicamba loading.
Firstly, the non-encapsulated dicamba formulation was studied. Thus, a dicamba-loaded miniemulsion was prepared, and the release of dicamba was monitored over time. The synthesis conditions were those of sample M6, but the dispersed phase of the miniemulsion did not comprehend alginate. Most (73.1%) of the loaded dicamba was released within 120 h. For the encapsulated formulation, a sustained dicamba release was observed for the first 75 h, which was followed by a slower release phase. Equilibrium was reached after 250 h, and the total released dicamba was equal to 71.1% of the loading. Several reasons could justify the incomplete release observed for both encapsulated and non-encapsulated oily formulations, including the interaction between dicamba and NaOH as well as the depletion of the driving force due to the dicamba gradient in chemical potential between the acceptor and receptor compartments.
As expected, the encapsulation of dicamba did not affect the total released quantity, confirming the absence of significative interactions between the cross-linking protocol of nanohydrogels and the presence of dicamba. The encapsulated dicamba formulation promoted a prolonged and more controlled release of the pesticide compared to the miniemulsion. In addition, the polymeric matrix embedding the active substance can serve as a protector from external stresses and can safeguard the pesticide from soil washing-out.
To provide insight in the mechanism of release, the experimental data were least-squares fitted to different kinetic models. Table 5 reports the tested models, the relative equation, and the determination coefficient. F is the released fraction of dicamba, and ki represents the various kinetic constants. The values of all fitted parameters are reported in the SI (Table S1).
The Higuchi (R2 = 0.98) and the Baker–Lonsdale (R2 = 0.99) models best describe the experimental release trends, pointing out a diffusion-dominated release. More specifically, the Baker–Lonsdale model is derived from the Higuchi model, which accounts for the release from semi-solid or solid matrixes, considering the release carrier as a sphere. It was hypothesized that the nanohydrogels were attracted by the hydrophilic dialysis membrane, favoring their accumulation at the solid–liquid interface and thus facilitating the diffusive release of the pesticide through the interstitial water [31]. In this way, the release of a hydrophilic compound from an oily formulation was studied.
The timing here observed for the release of dicamba from the nanohydrogel is compatible with the needs of a field-scale application of the nanopesticide. An effective nanoformulation of dicamba is expected to release the AI in a few tens of hours, thus preventing its volatilization (which mainly occurs during spraying itself and in a short time after application) without hindering plant uptake itself. The alginate nanoparticles synthesized in this study released less than 30% of the loaded AI in 24 h. When sprayed on target weeds, dicamba is translocated in all the parts of the weed in a few hours, with a predominant uptake in leaves: it was observed [60] that more than 40% of the AI applied on sensible weeds was absorbed by leaves and only about 5% was detected in roots. Noticeably, the encapsulation of dicamba in the nanohydrogel is not expected to hinder uptake: the intake of hydrophilic nanoparticles is mediated by the presence of an aqueous phase connecting the external part of the leaf with the internal one. The thickness of this medium, typically in the order of 50 nm, determines the upper threshold value of nanoparticles size that can easily enter stomata [61]. As a consequence, nanoparticles with an average size lower than 42 nm could easily enter plant stomata, increasing herbicides’ efficacy [62].
Lastly, nanohydrogels were separated from the oily synthesis medium and redispersed in a hydrophilic medium in order to mimic the pesticide dilution for field application. After reconstitution, the nanohydrogel aqueous suspension did not show appreciable variations in size (21.3 ± 6.7 nm) or PDI (0.19) compared to the oily suspension. Nonetheless, nanohydrogels showed a slight tendency to swelling over time, unlike the oil-based formulation. A 40% increase in particle size was registered after two days from reconstitution. Then, both size (29.8 ± 0.24 nm) and PDI (0.22) stabilized over time. The spherical shape of the particles, their monodispersity, and their size in the range of a few tens of nanometers were confirmed by SEM investigation, as shown by the micrographs in Figure 5.

4. Conclusions

The synthesis of biocompatible nanohydrogels suitable for the encapsulation of hydrophilic substances and their application to the controlled release of a model pesticide were here discussed. The preparation of miniemulsion templates was optimized, and the cross-linked formulation was proved to be stable over time. Alginate nanohydrogels promoted the controlled and sustained release of dicamba over more than two weeks, thus representing an ideal platform for environmental applications. The nanoformulation of the pesticide slowed down the release rate and exerted a protective action toward hydrophilic active substances.
Even though specific uptake studies were not carried out in this work, these results suggest that the nanoformulation herein synthesized can effectively prevent volatilization without hindering dicamba uptake by target weeds, thanks to the combination of the AI slow release and the reduced particle size, which is small enough to enter leaf stomata.
Alginate nanohydrogels synthesized starting from an emulsified template were proved to effectively encapsulate dicamba and control its prolonged and sustained release over time. The proposed biocompatible formulation has the potential to be applied to a large spectrum of hydrophilic compounds and expand their applicability in the environmental field.

Supplementary Materials

The following are available online at www.mdpi.com/article/10.3390/pr9091641/s1, Figure S1: Size distribution of miniemulsion droplets of sample M4 obtained by DLS; Figure S2: Size distribution of the nanohydrogel of sample H1 obtained by DLS; Table S1: Fitted parameters of kinetic models of dicamba release from encapsulated and non-encapsulated formulations of dicamba.

Author Contributions

Conceptualization, F.A., R.P. and T.T.; methodology, F.A., R.P. and T.T.; formal analysis, F.A., D.C., M.G.; investigation, D.C.; writing—original draft preparation, F.A. and M.G.; writing—review and editing, R.P. and T.T.; supervision, R.P. and T.T.; funding acquisition, T.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the project Nanograss co-funded by Compagnia di San Paolo.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

G.G. is kindly acknowledged for supporting the experimental activity. The authors also wish to thank S.C. for the support in the manuscript proofreading.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Alavanja, M.C.R. Introduction: Pesticides use and exposure extensive worldwide. Rev. Environ. Health 2009, 24, 303–309. [Google Scholar] [CrossRef] [PubMed]
  2. Kah, M.; Kookana, R. Emerging investigator series: Nanotechnology to develop novel agrochemicals: Critical issues to consider in the global agricultural context. Environ. Sci. Nano 2020, 7, 1867–1873. [Google Scholar] [CrossRef]
  3. United Nations, Department of Economic and Social Affairs, Population Division. World Population Prospects. 2019. Available online: https://population.un.org/wpp/Publications/ (accessed on 28 July 2021).
  4. Popp, J.; Pető, K.; Nagy, J. Pesticide productivity and food security. A review. Agron. Sustain. Dev. 2013, 33, 243–255. [Google Scholar] [CrossRef]
  5. Oerke, E.C. Crop losses to pests. J. Agric. Sci. 2006, 144, 31–43. [Google Scholar] [CrossRef]
  6. Pimentel, D.; Burgess, M. Small amounts of pesticides reaching target insects. Environ. Dev. Sustain. 2012, 14, 1–2. [Google Scholar] [CrossRef] [Green Version]
  7. Aktar, M.W.; Sengupta, D.; Chowdhury, A. Impact of pesticides use in agriculture: Their benefits and hazards. Interdiscip. Toxicol. 2009, 2, 1–12. [Google Scholar] [CrossRef] [Green Version]
  8. Fenner, K.; Canonica, S.; Wackett, L.P.; Elsner, M. Evaluating Pesticide Degradation in the Environment: Blind Spots and Emerging Opportunities. Science 2013, 341, 752–758. [Google Scholar] [CrossRef] [Green Version]
  9. Silva, V.; Mol, H.G.J.; Zomer, P.; Tienstra, M.; Ritsema, C.J.; Geissen, V. Pesticide residues in European agricultural soils—A hidden reality unfolded. Sci. Total Environ. 2019, 653, 1532–1545. [Google Scholar] [CrossRef] [PubMed]
  10. Krieger, R.I. Preface. In Handbook of Pesticide Toxicology, 2nd ed.; Krieger, R.I., Krieger, W.C., Eds.; Academic Press: San Diego, CA, USA, 2001; pp. xxv–xxvi. [Google Scholar]
  11. Kah, M.; Brown, C.D. Prediction of the adsorption of ionizable pesticides in soils. J. Agric. Food Chem. 2007, 55, 2312–2322. [Google Scholar] [CrossRef] [PubMed]
  12. Villaverde, J.; Kah, M.; Brown, C.D. Adsorption and degradation of four acidic herbicides in soils from southern Spain. Pest Manag. Sci. 2008, 64, 703–710. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Sakaliene, O.; Papiernik, S.K.; Koskinen, W.C.; Spokas, K.A. Sorption and predicted mobility of herbicides in Baltic soils. J. Environ. Sci. Health B 2007, 42, 641–647. [Google Scholar] [CrossRef] [Green Version]
  14. Roy, J.W.; Hall, J.C.; Parkin, G.W.; Wagner-Riddle, C.; Clegg, B.S. Seasonal leaching and biodegradation of dicamba in turfgrass. J. Environ. Qual. 2001, 30, 1360–1370. [Google Scholar] [CrossRef]
  15. Spadotto, C.A.; Hornsby, A.G.; Gomes, M.A. Sorption and leaching potential of acidic herbicides in Brazilian soils. J. Environ. Sci. Health B 2005, 40, 29–37. [Google Scholar] [CrossRef]
  16. Tindall, J.A.; Vencill, W.K. Transport of Atrazine, 2,4-D, and Dicamba through Preferential Flowpaths in an Unsaturated Claypan Soil near Centralia, Missouri. J. Hydrol. 1995, 166, 37–59. [Google Scholar] [CrossRef]
  17. Riter, L.S.; Sall, E.D.; Pai, N.; Beachum, C.E.; Orr, T.B. Quantifying Dicamba Volatility under Field Conditions: Part I, Methodology. J. Agric. Food Chem. 2020, 68, 2277–2285. [Google Scholar] [CrossRef] [Green Version]
  18. Bish, M.D.; Farrell, S.T.; Lerch, R.N.; Bradley, K.W. Dicamba Losses to Air after Applications to Soybean under Stable and Nonstable Atmospheric Conditions. J. Environ. Qual. 2019, 48, 1675–1682. [Google Scholar] [CrossRef] [Green Version]
  19. Gavlick, W.; Wright, D.; MacInnes, A.; Hemminghaus, J.; Webb, J.; Yermolenka, V.; Su, W. A Method to Determine the Relative Volatility of Auxin Herbicide Formulations. In Pesticide Formulation and Delivery Systems: 35th Volume, Pesticide Formulations, Adjuvants, and Spray Characterization in 2014; Goss, G., Ed.; ASTM International: West Conshohocken, PA, USA, 2016; pp. 24–32. [Google Scholar]
  20. Sciumbato, A.S.; Chandler, J.M.; Senseman, S.A.; Bovey, R.W.; Smith, K.L. Determining exposure to auxin-like herbicides. II. Practical application to quantify volatility. Weed Technol. 2004, 18, 1135–1142. [Google Scholar] [CrossRef]
  21. Mueller, T.C. Methods To Measure Herbicide Volatility. Weed Sci. 2015, 63, 116–120. [Google Scholar] [CrossRef] [Green Version]
  22. Moulick, R.G.; Das, S.; Debnath, N.; Bandyopadhyay, K. Potential use of nanotechnology in sustainable and ‘smart’ agriculture: Advancements made in the last decade. Plant Biotechnol. Rep. 2020, 14, 505–513. [Google Scholar] [CrossRef]
  23. Kumar, S.; Nehra, M.; Dilbaghi, N.; Marrazza, G.; Hassan, A.A.; Kim, K.H. Nano-based smart pesticide formulations: Emerging opportunities for agriculture. J. Control. Release 2019, 294, 131–153. [Google Scholar] [CrossRef]
  24. Vurro, M.; Miguel-Rojas, C.; Perez-de-Luque, A. Safe nanotechnologies for increasing the effectiveness of environmentally friendly natural agrochemicals. Pest Manag. Sci. 2019, 75, 2403–2412. [Google Scholar] [CrossRef]
  25. Guha, T.; Gopal, G.; Kundu, R.; Mukherjee, A. Nanocomposites for Delivering Agrochemicals: A Comprehensive Review. J. Agric. Food Chem. 2020, 68, 3691–3702. [Google Scholar] [CrossRef]
  26. Shakiba, S.; Astete, C.E.; Paudel, S.; Sabliov, C.M.; Rodrigues, D.F.; Louie, S.M. Emerging investigator series: Polymeric nanocarriers for agricultural applications: Synthesis, characterization, and environmental and biological interactions. Environ. Sci. Nano 2020, 7, 37–67. [Google Scholar] [CrossRef]
  27. Strachan, S.D.; Casini, M.S.; Heldreth, K.M.; Scocas, J.A.; Nissen, S.J.; Bukun, B.; Lindenmayer, R.B.; Shaner, D.L.; Westra, P.; Brunk, G. Vapor Movement of Synthetic Auxin Herbicides: Aminocyclopyrachlor, Aminocyclopyrachlor-Methyl Ester, Dicamba, and Aminopyralid. Weed Sci. 2010, 58, 103–108. [Google Scholar] [CrossRef]
  28. Marei, A.S.; Soltan, H.R.; Mousa, A.; Khamis, A. Leaching and mobility of carbofuran from granular and alginate controlled release formulations. J. Agric. Sci. 2000, 134, 405–412. [Google Scholar] [CrossRef] [Green Version]
  29. Johnson, R.M.; Pepperman, A.B. Soil Column Mobility of Metribuzin from Alginate-Encapsulated Controlled Release Formulations. J. Agric. Food Chem. 1995, 43, 241–246. [Google Scholar] [CrossRef]
  30. Song, B.; Liang, H.; Sun, R.; Peng, P.; Jiang, Y.; She, D. Hydrogel synthesis based on lignin/sodium alginate and application in agriculture. Int. J. Biol. Macromol. 2020, 144, 219–230. [Google Scholar] [CrossRef] [PubMed]
  31. Artusio, F.; Ferri, A.; Gigante, V.; Massella, D.; Mazzarino, I.; Sangermano, M.; Barresi, A.; Pisano, R. Synthesis of high payload nanohydrogels for the ecapsulation of hydrophilic molecules via inverse miniemulsion polymerization: Caffeine as a case study. Drug Dev. Ind. Pharm. 2019, 45, 1862–1870. [Google Scholar] [CrossRef]
  32. Azmi, N.A.N.; Elgharbawy, A.A.M.; Motlagh, S.R.; Samsudin, N.; Salleh, H.M. Nanoemulsions: Factory for Food, Pharmaceutical and Cosmetics. Processes 2019, 7, 617. [Google Scholar] [CrossRef] [Green Version]
  33. Innocente, N.; Biasutti, M.; Venir, E.; Spaziani, M.; Marchesini, G. Effect of high-pressure homogenization on droplet size distribution and rheological properties of ice cream mixes. J. Dairy Sci. 2009, 92, 1864–1875. [Google Scholar] [CrossRef]
  34. Shahavi, M.H.; Hosseini, M.; Jahanshahi, M.; Meyer, R.L.; Darzi, G.N. Evaluation of critical parameters for preparation of stable clove oil nanoemulsion. Arab. J. Chem. 2019, 12, 3225–3230. [Google Scholar] [CrossRef] [Green Version]
  35. Solans, C.; Izquierdo, P.; Nolla, J.; Azemar, N.; Garcia-Celma, M.J. Nano-emulsions. Curr. Opin. Colloid Interface Sci. 2005, 10, 102–110. [Google Scholar] [CrossRef]
  36. Mason, T.G.; Wilking, J.N.; Meleson, K.; Chang, C.B.; Graves, S.M. Nanoemulsions: Formation, structure, and physical properties. J. Phys. Condens. Matter 2006, 18, R635–R666. [Google Scholar] [CrossRef] [Green Version]
  37. Cao, Z.H.; Ziener, U. Synthesis of nanostructured materials in inverse miniemulsions and their applications. Nanoscale 2013, 5, 10093–10107. [Google Scholar] [CrossRef] [PubMed]
  38. Landfester, K.; Willert, M.; Antonietti, M. Preparation of polymer particles in nonaqueous direct and inverse miniemulsions. Macromolecules 2000, 33, 2370–2376. [Google Scholar] [CrossRef]
  39. Capek, I. On inverse miniemulsion polymerization of conventional water-soluble monomers. Adv. Colloid Interface Sci. 2010, 156, 35–61. [Google Scholar] [CrossRef]
  40. Anton, N.; Benoit, J.P.; Saulnier, P. Design and production of nanoparticles formulated from nano-emulsion templates-a review. J. Control. Release 2008, 128, 185–199. [Google Scholar] [CrossRef] [PubMed]
  41. Artusio, F.; Bazzano, M.; Pisano, R.; Coulon, P.-E.; Rizza, G.; Schiller, T.; Sangermano, M. Polymeric nanocapsules via interfacial cationic photopolymerization in miniemulsion. Polymer 2018, 139, 155–162. [Google Scholar] [CrossRef]
  42. Schork, F.J.; Luo, Y.; Smulders, W.; Russum, J.P.; Butté, A.; Fontenot, K. Miniemulsion Polymerization. In Polymer Particles; Okubo, M., Ed.; Springer: Berlin/Heidelberg, Germany, 2005; pp. 129–255. [Google Scholar]
  43. Mora-Huertas, C.E.; Fessi, H.; Elaissari, A. Polymer-based nanocapsules for drug delivery. Int. J. Pharm. 2010, 385, 113–142. [Google Scholar] [CrossRef]
  44. Faucheu, J.; Gauthier, C.; Chazeau, L.; Cavaillé, J.-Y.; Mellon, V.; Lami, E.B. Miniemulsion polymerization for synthesis of structured clay/polymer nanocomposites: Short review and recent advances. Polymer 2010, 51, 6–17. [Google Scholar] [CrossRef]
  45. Weiss, C.K.; Landfester, K. Miniemulsion Polymerization as a Means to Encapsulate Organic and Inorganic Materials. In Hybrid Latex Particles: Preparation with (Mini)emulsion Polymerization; van Herk, A.M., Landfester, K., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 185–236. [Google Scholar]
  46. Asua, J.M. Miniemulsion polymerization. Prog. Polym. Sci. 2002, 27, 1283–1346. [Google Scholar] [CrossRef]
  47. Paques, J.P.; van der Linden, E.; van Rijn, C.J.; Sagis, L.M. Preparation methods of alginate nanoparticles. Adv. Colloid Interface Sci. 2014, 209, 163–171. [Google Scholar] [CrossRef] [PubMed]
  48. Nörnberg, A.B.; Gehrke, V.R.; Mota, H.P.; Camargo, E.R.; Fajardo, A.R. Alginate-cellulose biopolymeric beads as efficient vehicles for encapsulation and slow-release of herbicide. Colloids Surf. Physicochem. Eng. Aspects 2019, 583, 123970. [Google Scholar] [CrossRef]
  49. Sarika, P.R.; James, N.R.; Anil, P.R.; Raj, D.K. Preparation, characterization and biological evaluation of curcumin loaded alginate aldehyde–gelatin nanogels. Mater. Sci. Eng. C 2016, 68, 251–257. [Google Scholar] [CrossRef]
  50. Artusio, F.; Castellví, A.; Sacristán, A.; Pisano, R.; Gavira, J.A. Agarose Gel as a Medium for Growing and Tailoring Protein Crystals. Cryst. Growth Des. 2020, 20, 5564–5571. [Google Scholar] [CrossRef]
  51. Artusio, F.; Castellví, A.; Pisano, R.; Gavira, J.A. Tuning Transport Phenomena in Agarose Gels for the Control of Protein Nucleation Density and Crystal Form. Crystals 2021, 11, 466. [Google Scholar] [CrossRef]
  52. Dalmoro, A.; Barba, A.A.; Lamberti, G.; Grassi, M.; d’Amore, M. Pharmaceutical applications of biocompatible polymer blends containing sodium alginate. Adv. Polym. Tech. 2012, 31, 219–230. [Google Scholar] [CrossRef]
  53. Nuyttens, D.; Baetens, K.; De Schampheleire, M.; Sonck, B. Effect of nozzle type, size and pressure on spray droplet characteristics. Biosys. Eng. 2007, 97, 333–345. [Google Scholar] [CrossRef]
  54. Antuniassi, U.; Mota, A.; Chechetto, R.; Carvalho, F.; Ovejero, R.; Barbosa, H.; Morris, M.; Araujo, V. Droplet Spectrum Generated by Air Induction Nozzles Spraying Solutions Containing Adjuvants and a Tank Mixture of Glyphosate and Dicamba. In Pesticide Formulation and Delivery Systems: 40th Volume, Formulation, Application and Adjuvant Innovation; Elsik, C., Ed.; ASTM International: West Conshohocken, PA, USA, 2020; p. 36. [Google Scholar]
  55. Putorti, A. Simultaneous Measurements of Drop Size and Velocity in Large-Scale Sprinkler Flows Using Particle Tracking and Laser-Induced Fluorescence; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2004. Available online: https://tsapps.nist.gov/publication/get_pdf.cfm?pub_id=101399 (accessed on 28 July 2021).
  56. Maldonado-Reina, A.J.; López-Ruiz, R.; Garrido Frenich, A.; Arrebola, F.J.; Romero-González, R. Co-formulants in plant protection products: An analytical approach to their determination by gas chromatography–high resolution mass accuracy spectrometry. Talanta 2021, 234, 122641. [Google Scholar] [CrossRef]
  57. ElShafei, G.M.S.; El-Said, M.M.; Attia, H.A.E.; Mohammed, T.G.M. Environmentally friendly pesticides: Essential oil-based w/o/w multiple emulsions for anti-fungal formulations. Ind. Crop. Prod. 2010, 31, 99–106. [Google Scholar] [CrossRef]
  58. Brito, E.S.; de Paula, A.R.; Vieira, L.P.; Dolinski, C.; Samuels, R.I. Combining vegetable oil and sub-lethal concentrations of Imidacloprid with Beauveria bassiana and Metarhizium anisopliae against adult guava weevil Conotrachelus psidii (Coleoptera: Curculionidae). Biocontrol Sci. Technol. 2008, 18, 665–673. [Google Scholar] [CrossRef]
  59. Knowles, A. Recent developments of safer formulations of agrochemicals. Environmentalist 2008, 28, 35–44. [Google Scholar] [CrossRef]
  60. Ghanizadeh, H.; Harrington, K.C.; James, T.K. A comparison of dicamba absorption, translocation and metabolism in Chenopodium album populations resistant and susceptible to dicamba. Crop Protect. 2018, 110, 112–116. [Google Scholar] [CrossRef]
  61. Eichert, T.; Kurtz, A.; Steiner, U.; Goldbach, H.E. Size exclusion limits and lateral heterogeneity of the stomatal foliar uptake pathway for aqueous solutes and water-suspended nanoparticles. Physiol. Plant. 2008, 134, 151–160. [Google Scholar] [CrossRef] [PubMed]
  62. Yadav, A.; Yadav, K. Nanoparticle-Based Plant Disease Management: Tools for Sustainable Agriculture. In Nanobiotechnology Applications in Plant Protection; Abd-Elsalam, K.A., Prasad, R., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 29–61. [Google Scholar]
Processes 09 01641 g001 550

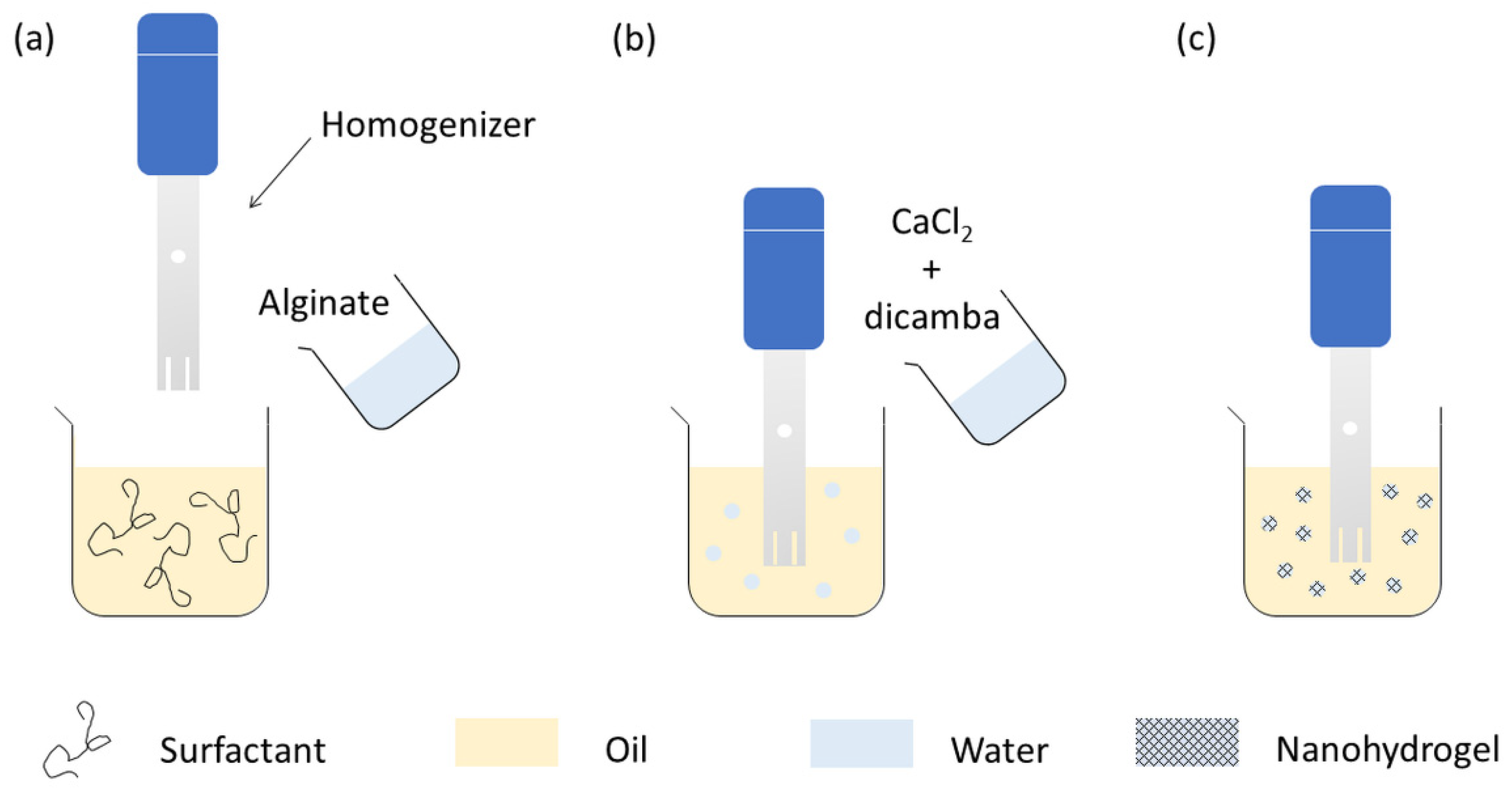

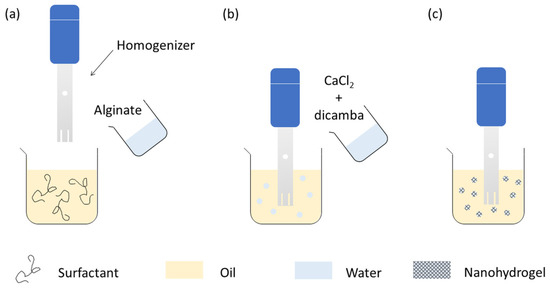

Figure 1. Experimental set-up for the synthesis of dicamba-loaded alginate nanohydrogels: (a) addition of the alginate solution to the oily phase and mixing with Ultra Turrax homogenizer, (b) addition of CaCl2 and dicamba solution to the miniemulsion, and (c) nanohydrogels obtained thanks to the cross-linking of alginate droplets.
Figure 1. Experimental set-up for the synthesis of dicamba-loaded alginate nanohydrogels: (a) addition of the alginate solution to the oily phase and mixing with Ultra Turrax homogenizer, (b) addition of CaCl2 and dicamba solution to the miniemulsion, and (c) nanohydrogels obtained thanks to the cross-linking of alginate droplets.
Processes 09 01641 g001
Processes 09 01641 g002 550

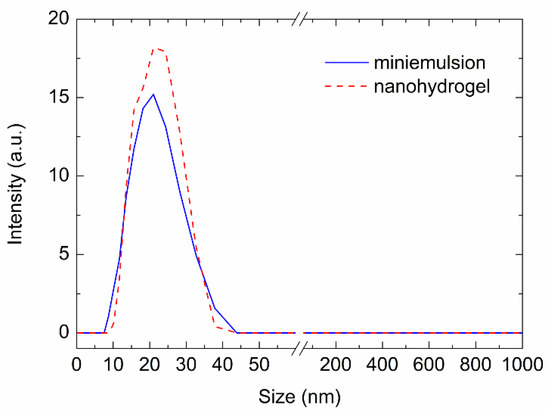

Figure 2. Comparison between miniemulsion droplet (sample M6) and nanohydrogel (sample H2) dimensional distributions obtained by DLS. The templating effect of miniemulsion is highlighted by the overlapping of the two curves.
Figure 2. Comparison between miniemulsion droplet (sample M6) and nanohydrogel (sample H2) dimensional distributions obtained by DLS. The templating effect of miniemulsion is highlighted by the overlapping of the two curves.
Processes 09 01641 g002
Processes 09 01641 g003 550

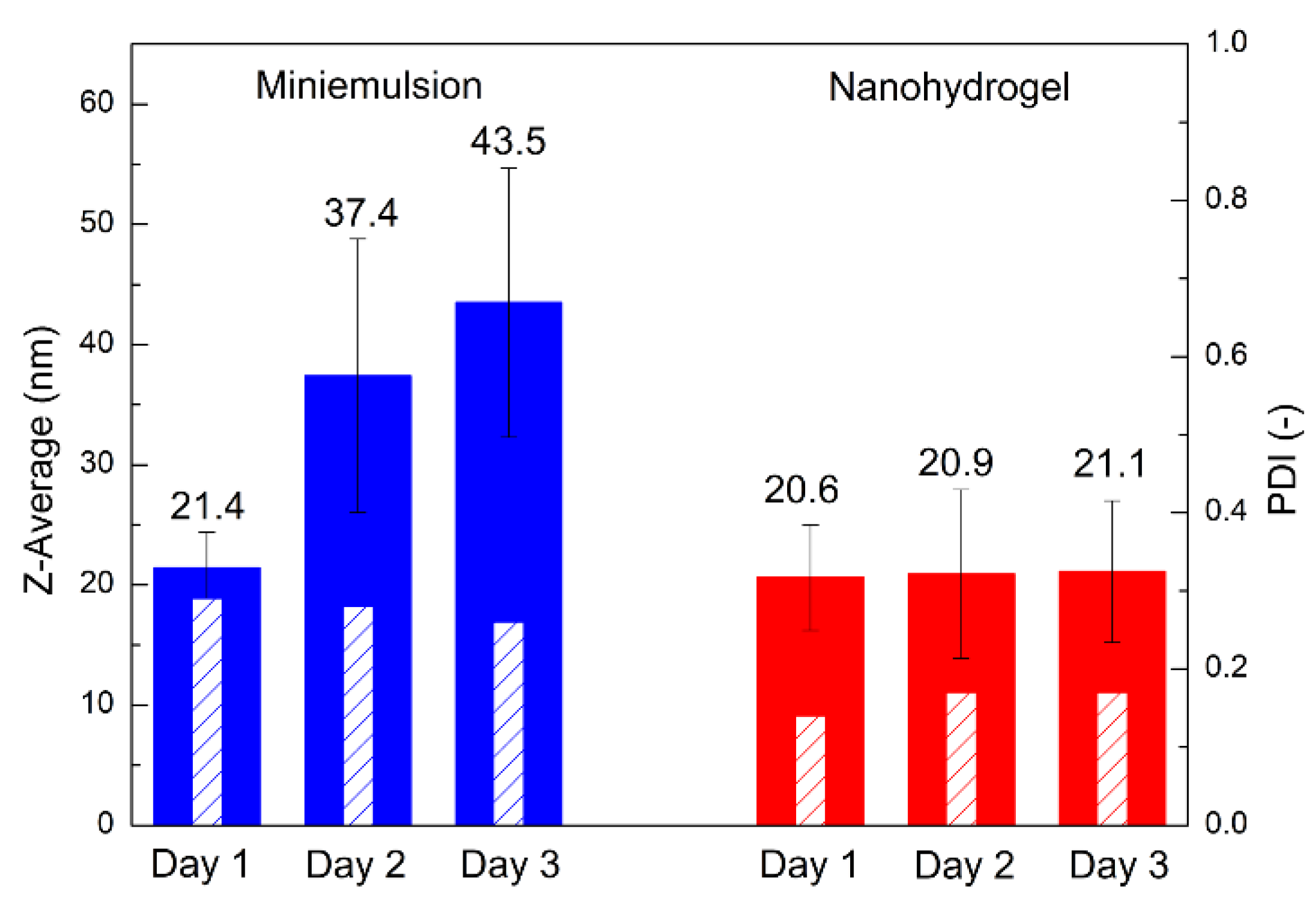

Figure 3. Comparison between miniemulsion (sample M6) and nanohydrogel (sample H2) size (left-hand y axis) and PDI stability (right-hand y-axis) over time.
Figure 3. Comparison between miniemulsion (sample M6) and nanohydrogel (sample H2) size (left-hand y axis) and PDI stability (right-hand y-axis) over time.
Processes 09 01641 g003
Processes 09 01641 g004 550

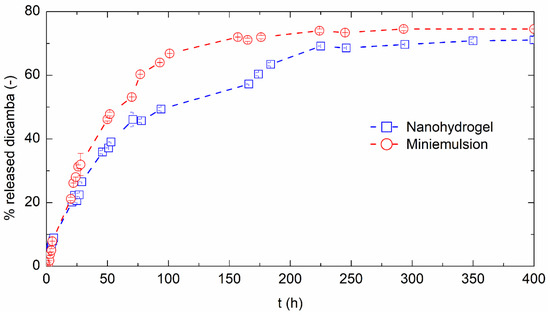

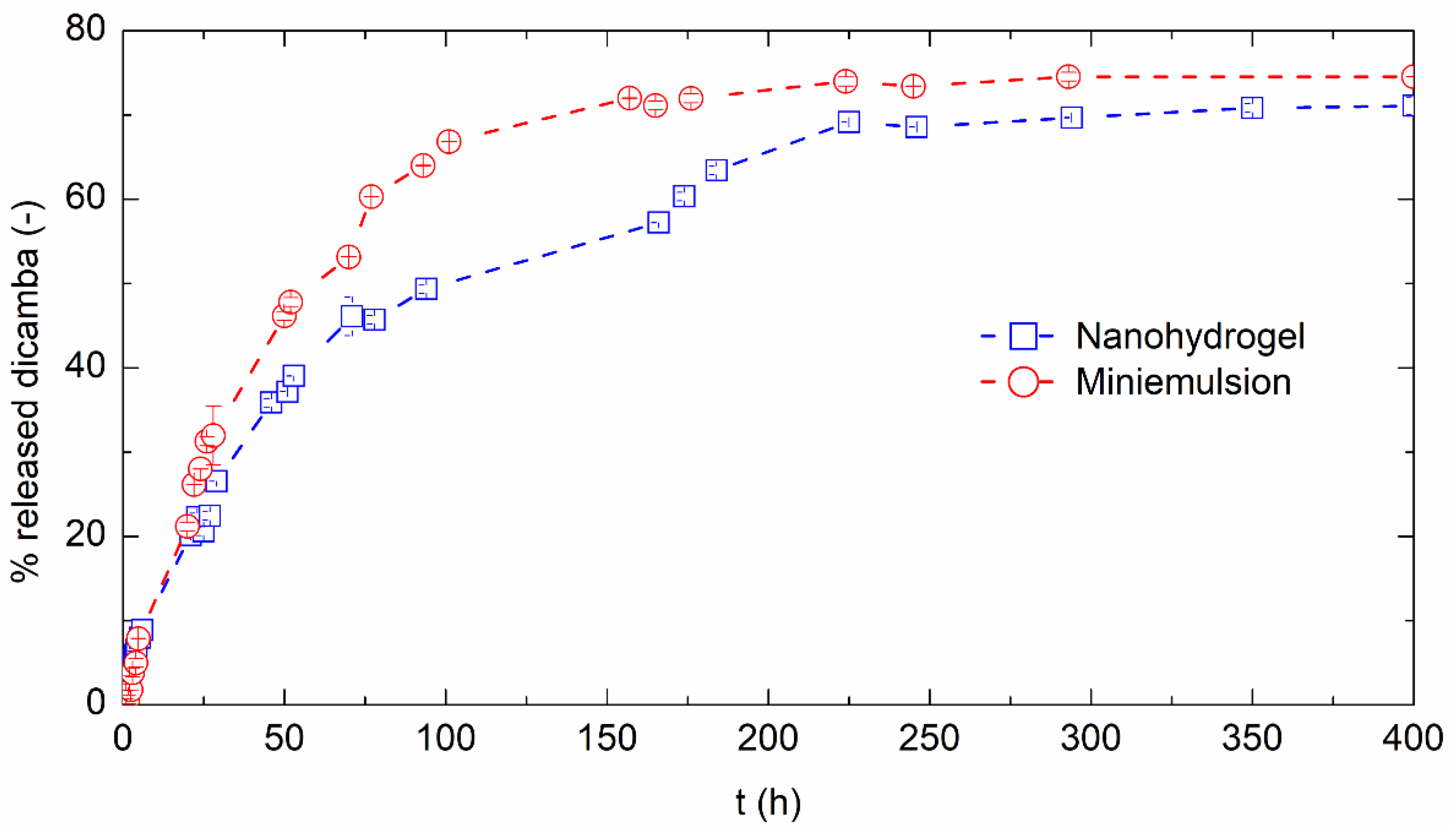

Figure 4. Cumulative percentage of non-encapsulated and encapsulated released dicamba. The percentage was calculated taking the dicamba mass loaded in the miniemulsion/nanohydrogels as a reference.
Figure 4. Cumulative percentage of non-encapsulated and encapsulated released dicamba. The percentage was calculated taking the dicamba mass loaded in the miniemulsion/nanohydrogels as a reference.
Processes 09 01641 g004
Processes 09 01641 g005 550

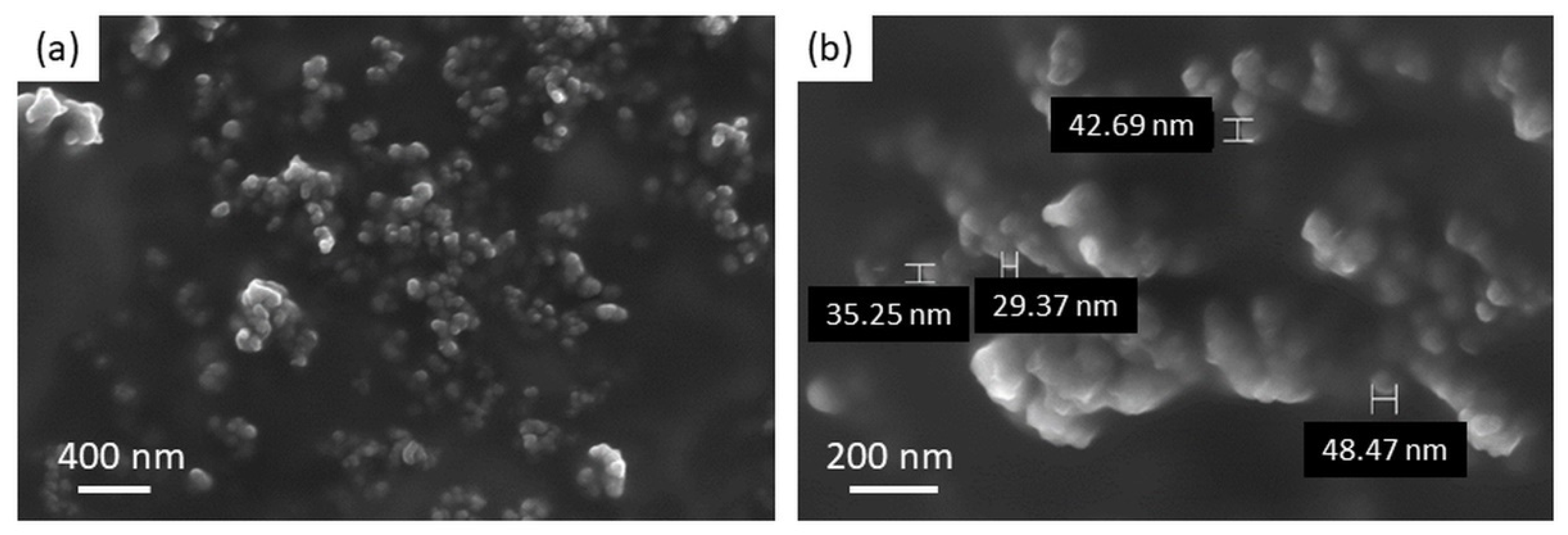

Figure 5. (a,b) SEM micrographs of alginate nanoparticles.
Figure 5. (a,b) SEM micrographs of alginate nanoparticles.
Processes 09 01641 g005
Table
Table 1. List of formulations and operating conditions for the preparation of miniemulsions (M), unloaded nanohydrogels (H), and nanohydrogels loaded with dicamba (HD).
Table 1. List of formulations and operating conditions for the preparation of miniemulsions (M), unloaded nanohydrogels (H), and nanohydrogels loaded with dicamba (HD).
Sample CodePluronic, gUT Speed, rpmAlginate, wt %Dicamba, mg/mL
M10.2514,000--
M20.3014,000--
M30.3514,000--
M40.4014,000--
M50.308000--
M60.3010,000--
H10.3080001-
H20.3010,0001-
H30.3014,0001-
H40.3010,0002-
HD10.3010,00011
HD20.3010,00013
HD30.3010,000130 (+NaOH)
HD40.3010,0001125 (+NaOH)
Table
Table 2. Z-average and PDI evaluated by DLS on miniemulsion droplets prepared with increasing amounts of Pluronic PE 6100 in the continuous phase and increasing homogenization speed.
Table 2. Z-average and PDI evaluated by DLS on miniemulsion droplets prepared with increasing amounts of Pluronic PE 6100 in the continuous phase and increasing homogenization speed.
Sample CodePluronic, gUT Speed, rpmZ-Average, nmStd Dev, nmPDI, -
M10.2514,00052.28.00.19
M20.3014,00026.76.20.23
M30.3514,00073.619.80.46
M40.4014,00082.713.60.58
M50.308000131.677.10.92
M60.3010,00021.43.00.29
Table
Table 3. Z-average and PDI evaluated by DLS on nanohydrogels prepared with increasing homogenization speed and with different amounts of sodium alginate.
Table 3. Z-average and PDI evaluated by DLS on nanohydrogels prepared with increasing homogenization speed and with different amounts of sodium alginate.
Sample CodeUT Speed, rpmAlginate, wt %Z-Average, nmStd Dev, nmPDI, -
H180001112.390.50.75
H210,000120.64.40.14
H314,000119.30.30.35
H410,000235.213.50.36
Table
Table 4. Z-average and PDI evaluated by DLS on dicamba-loaded nanohydrogels, prepared with H2 procedure with increasing dicamba concentrations.
Table 4. Z-average and PDI evaluated by DLS on dicamba-loaded nanohydrogels, prepared with H2 procedure with increasing dicamba concentrations.
Sample CodeDicamba, mg/mLZ-Average, nmStd Dev, nmPDI, -
HD1115.01.90.03
HD2321.33.20.07
HD330 (+NaOH)23.30.230.23
HD4125 (+NaOH)27.84.60.17
Table
Table 5. Fitting of the experimental release data with different kinetic models. The model equation and the dispersive coefficient are reported.
Table 5. Fitting of the experimental release data with different kinetic models. The model equation and the dispersive coefficient are reported.
Kinetic Release ModelModel EquationR2
Zero OrderF = ko t0.78
First Orderln(1−F) = − k1 t0.90
HiguchiF = kH t1/20.98
Hixson–Crowell1−(1−F)1/3 = kHC t0.87
Baker–Lonsdale3/2[1−(1−F)2/3]–F = kBL t0.99
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Artusio, F.; Casà, D.; Granetto, M.; Tosco, T.; Pisano, R. Alginate Nanohydrogels as a Biocompatible Platform for the Controlled Release of a Hydrophilic Herbicide. Processes 2021, 9, 1641. https://doi.org/10.3390/pr9091641

AMA Style

Artusio F, Casà D, Granetto M, Tosco T, Pisano R. Alginate Nanohydrogels as a Biocompatible Platform for the Controlled Release of a Hydrophilic Herbicide. Processes. 2021; 9(9):1641. https://doi.org/10.3390/pr9091641

Chicago/Turabian Style

Artusio, Fiora, Dario Casà, Monica Granetto, Tiziana Tosco, and Roberto Pisano. 2021. "Alginate Nanohydrogels as a Biocompatible Platform for the Controlled Release of a Hydrophilic Herbicide" Processes 9, no. 9: 1641. https://doi.org/10.3390/pr9091641

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
