An Efficient Framework for Multi-Objective Risk-Informed Decision Support Systems for Drainage Rehabilitation
Abstract
:1. Introduction
2. Materials and Methods

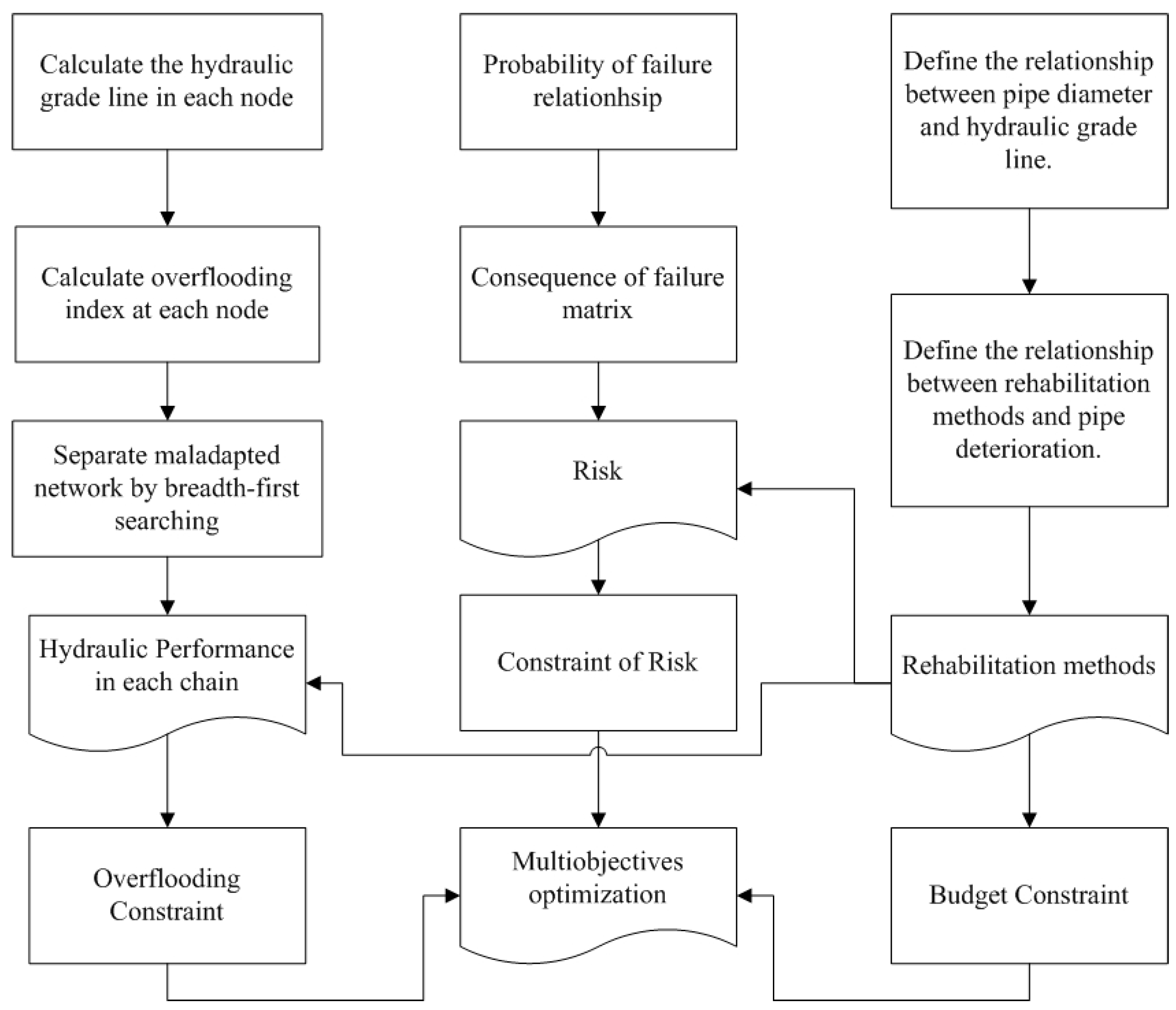

2.1. Introduction to the Hydraulics and Risk Combined Model Model
2.2. Algorithm Frameworks
HRCM Model Simulation Frameworks
2.3. Revised HRCM Method (RHRCM)
2.4. Case Study
2.5. Model Performance Evaluation
Sensitivity Analysis
3. Results
3.1. Computational Time Competition
3.2. Methods Evaluation
3.2.1. Scenario 1—Narrow Pipe
3.2.2. Scenario 2—Ageing Pipe
4. Discussion
4.1. Advantage and Limitation of RHRCM Method
4.2. Discrete Versus Continuous Data
4.3. Parallel Results Problem
4.4. Framework
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Jegatheesan, V. Urban Stormwater and Flood Management: Enhancing the Liveability of Cities; Springer: New York, NY, USA, 2019; ISBN 978-3-030-11817-4. [Google Scholar]
- Adamowski, J.; Adamowski, K.; Bougadis, J. Influence of Trend on Short Duration Design Storms. Water Resour. Manag. 2010, 24, 401–413. [Google Scholar] [CrossRef]
- Buttle, J.M.; Allen, D.M.; Caissie, D.; Davison, B.; Hayashi, M.; Peters, D.L.; Pomeroy, J.W.; Simonovic, S.; St-Hilaire, A.; Whitfield, P.H. Flood processes in Canada: Regional and special aspects. Can. Water Resour. J. Rev. Can. Ressour. Hydr. 2016, 41, 7–30. [Google Scholar] [CrossRef]
- Buttle, J.M.; Lafleur, P.M. Anatomy of an Extreme Event: The July 14–15, 2004 Peterborough Rainstorm. Can. Water Resour. J. 2007, 32, 59–74. [Google Scholar] [CrossRef]
- Government of Canada. Causes of Flooding. 2013. Available online: https://www.canada.ca/en/environment-climate-change/services/water-overview/quantity/causes-of-flooding.html (accessed on 19 October 2020).
- Ogidan, O.; Giacomoni, M. Multiobjective Genetic Optimization Approach to Identify Pipe Segment Replacements and Inline Storages to Reduce Sanitary Sewer Overflows. Water Resour. Manag. 2016, 30, 3707–3722. [Google Scholar] [CrossRef]
- Yazdi, J.; Sadollah, A.; Lee, E.H.; Yoo, D.G.; Kim, J.H. Application of multi-objective evolutionary algorithms for the rehabilitation of storm sewer pipe networks: Comparison of MOEAs. J. Flood Risk Manag. 2017, 10, 326–338. [Google Scholar] [CrossRef]
- Moussavi, A.; Samani, H.M.V.; Haghighi, A. A framework for optimal reliability-based storm sewer network design in flat areas. Can. J. Civ. Eng. 2017, 44, 139–150. [Google Scholar] [CrossRef]
- Shao, Z.; Zhang, X.; Li, S.; Deng, S.; Chai, H. A Novel SWMM Based Algorithm Application to Storm Sewer Network Design. Water 2017, 9, 747. [Google Scholar] [CrossRef] [Green Version]
- Barreto, W.; Vojinovic, Z.; Price, R.; Solomatine, D. Multiobjective Evolutionary Approach to Rehabilitation of Urban Drainage Systems. J. Water Resour. Plan. Manag. 2010, 136, 547–554. [Google Scholar] [CrossRef]
- Vojinovic, Z.; Sahlu, S.; Torres, A.S.; Seyoum, S.D.; Anvarifar, F.; Matungulu, H.; Barreto, W.; Savic, D.; Kapelan, Z. Multi-objective rehabilitation of urban drainage systems under uncertainties. J. Hydroinf. 2014, 16, 1044–1061. [Google Scholar] [CrossRef]
- CIRC. Canada Infrastructure Report Card. 2019. Available online: http://canadianinfrastructure.ca/en/index.html (accessed on 19 October 2020).
- Dawson, R.J.; Speight, L.; Hall, J.W.; Djordjevic, S.; Savic, D.; Leandro, J. Attribution of flood risk in urban areas. J. Hydroinf. 2008, 10, 275–288. [Google Scholar] [CrossRef] [Green Version]
- Elsawah, H.; Bakry, I.; Moselhi, O. Decision Support Model for Integrated Risk Assessment and Prioritization of Intervention Plans of Municipal Infrastructure. J. Pipeline Syst. Eng. Pract. 2016, 7, 04016010. [Google Scholar] [CrossRef]
- Huang, D.; Liu, X.; Jiang, S.; Wang, H.; Wang, J.; Zhang, Y. Current state and future perspectives of sewer networks in urban China. Front. Environ. Sci. Eng. 2018, 12, 2. [Google Scholar] [CrossRef]
- Haller, L.; Hutton, G.; Bartram, J. Estimating the costs and health benefits of water and sanitation improvements at global level. J. Water Health 2007, 5, 467–480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Del Giudice, G.; Padulano, R.; Siciliano, D. Multivariate probability distribution for sewer system vulnerability assessment under data-limited conditions. Water Sci. Technol. 2016, 73, 751–760. [Google Scholar] [CrossRef] [PubMed]
- Santos, P.; Amado, C.; Coelho, S.T.; Leitão, J.P. Stochastic data mining tools for pipe blockage failure prediction. Urban Water J. 2017, 14, 343–353. [Google Scholar] [CrossRef]
- Ana, E.V.; Bauwens, W. Modeling the structural deterioration of urban drainage pipes: The state-of-the-art in statistical methods. Urban Water J. 2010, 7, 47–59. [Google Scholar] [CrossRef]
- Altarabsheh, A.; Kandil, A.; Ventresca, M. New Multiobjective Optimization Approach to Rehabilitate and Maintain Sewer Networks Based on Whole Lifecycle Behavior. J. Comput. Civil. Eng. 2018, 32, 04017069. [Google Scholar] [CrossRef]
- Altarabsheh, A.; Ventresca, M.; Kandil, A. New Approach for Critical Pipe Prioritization in Wastewater Asset Management Planning. J. Comput. Civil. Eng. 2018, 32, 04018044. [Google Scholar] [CrossRef]
- Baik, H.-S.; Jeong, H.S.; Abraham, D.M.; Director, A. Estimating Transition Probabilities in Markov Chain-Based Deterioration Models for Management of Wastewater Systems. J. Water Resour. Plan. Manag. 2006, 123, 15–24. [Google Scholar] [CrossRef]
- Berardi, L.; Giustolisi, O.; Kapelan, Z.; Savic, D.A. Development of pipe deterioration models for water distribution systems using EPR. J. Hydroinf. 2008, 14, 113–126. [Google Scholar] [CrossRef] [Green Version]
- Younis, R.; Knight, M.A. Continuation ratio model for the performance behavior of wastewater collection networks. Tunn. Undergr. Sp. Technol. 2010, 25, 660–669. [Google Scholar] [CrossRef]
- Hosseini, S.M.; Ghasemi, A. Hydraulic performance analysis of sewer systems with uncertain parameters. J. Hydroinf. 2012, 14, 682–696. [Google Scholar] [CrossRef] [Green Version]
- Rudiono, J. Priority Scale of Drainage Rehabilitation of Cilacap City. IOP Conf. Ser. Mater. Sci. Eng. 2018, 333, 012111. [Google Scholar] [CrossRef]
- Tarigan, A.P.M.; Rahmad, D.; Sembiring, R.A.; Iskandar, R. An application of the AHP in water resources management: A case study on urban drainage rehabilitation in Medan City. IOP Conf. Ser. Mater. Sci. Eng. 2018, 309, 012096. [Google Scholar] [CrossRef]
- Cai, X.; Shirkhani, H.; Mohammadian, A. Risk-Informed Framework for Sewerage Flooding and Ageing Rehabilitation Management. J. Pipeline Syst. Eng. Pract. 2020. Accepted. [Google Scholar]
- Bennis, S.; Bengassem, J.; Lamarre, P. Hydraulic Performance Index of a Sewer Network. J. Hydraul. Eng. 2003, 129, 504–510. [Google Scholar] [CrossRef]
- Sabzkouhi, A.M.; Haghighi, A. Uncertainty Analysis of Pipe-Network Hydraulics Using a Many-Objective Particle Swarm Optimization. J. Hydraul. Eng. 2016, 142, 04016030. [Google Scholar] [CrossRef]
- Amador, L.; Mohammadi, A.; Abu-Samra, S.; Maghsoudi, R. Resilient storm pipes: A multi-stage decision support system. Struct. Infrastruct. Eng. 2020, 16, 847–859. [Google Scholar] [CrossRef]
- Dion, Y.; Bennis, S. A global modeling approach to the hydraulic performance evaluation of a sewer network. Can. J. Civ. Eng. 2010, 37, 1432–1436. [Google Scholar] [CrossRef]
- Duchesne, S.; Beardsell, G.; Villeneuve, J.-P.; Toumbou, B.; Bouchard, K. A Survival Analysis Model for Sewer Pipe Structural Deterioration: A sewer deterioration model. Comput. Aided Civil. Infrastruct. Eng. 2013, 28, 146–160. [Google Scholar] [CrossRef]
- Baah, K.; Dubey, B.; Harvey, R.; McBean, E. A risk-based approach to sanitary sewer pipe asset management. Sci. Total Environ. 2015, 505, 1011–1017. [Google Scholar] [CrossRef]
- Afshar, M.H.; Afshar, A.; Mariño, M.A.; Darbandi, A.A.S. Hydrograph-based storm sewer design optimization by genetic algorithm. Can. J. Civ. Eng. 2006, 33, 319–325. [Google Scholar] [CrossRef]
- Vasudevan, B.; Sinha, A.K. Reliability improvement of reconfigurable distribution system using GA and PSO. Electr. Eng. 2018, 100, 1263–1275. [Google Scholar] [CrossRef]
- Surendar, A.; Kuzichkin, O.R.; Kanagarajan, S.; Hashemi, M.H.; Khorami, M. Applying two optimization techniques in evaluating tensile strength of granitic samples. Eng. Comput. 2019, 35, 985–992. [Google Scholar] [CrossRef]
- Yazdi, J.; Yoo, D.G.; Kim, J.H. Comparative study of multi-objective evolutionary algorithms for hydraulic rehabilitation of urban drainage networks. Urban Water J. 2017, 14, 483–492. [Google Scholar] [CrossRef]
- Yarpiz. Multi-Objective Particle Swarm Optimization. Available online: https://yarpiz.com/59/ypea121-mopso (accessed on 18 October 2020).
- Haghighi, A. Loop-by-Loop Cutting Algorithm to Generate Layouts for Urban Drainage Systems. J. Water Resour. Plan. Manag. 2013, 139, 693–703. [Google Scholar] [CrossRef]
- Akan, A.O.; Houghtalen, R.J. Urban Hydrology, Hydraulics, and Stormwater Quality; Wiley: Hoboken, NJ, USA, 2003. [Google Scholar]
- Watt, E.; Marsalek, J. Critical review of the evolution of the design storm event concept. Can. J. Civ. Eng. 2013, 40, 105–113. [Google Scholar] [CrossRef]
- Irfan, M.; Khurshid, M.B.; Labi, S.; Flora, W. Evaluating the Cost Effectiveness of Flexible Rehabilitation Treatments Using Different Performance Criteria. J. Transp. Eng. 2009, 135, 753–763. [Google Scholar] [CrossRef]
- Yao, L.; Dong, Q.; Ni, F.; Jiang, J.; Lu, X.; Du, Y. Effectiveness and Cost-Effectiveness Evaluation of Pavement Treatments Using Life-Cycle Cost Analysis. J. Transp. Eng. Part B Pavements 2019, 145, 04019006. [Google Scholar] [CrossRef]
- Haji Agha Mohammad Zarbaf, S.E.; Norouzi, M.; Allemang, R.J.; Hunt, V.J.; Helmicki, A. Stay Cable Tension Estimation of Cable-Stayed Bridges Using Genetic Algorithm and Particle Swarm Optimization. J. Bridge Eng. 2017, 22, 05017008. [Google Scholar] [CrossRef]
- Kumar, S.; Kaushal, D.R.; Gosain, A.K. Evaluation of evolutionary algorithms for the optimization of storm water drainage network for an urbanized area. Acta Geophys. 2019, 67, 149–165. [Google Scholar] [CrossRef]
- Kleiner, Y.; Sadiq, R.; Rajani, B. Modelling the deterioration of buried infrastructure as a fuzzy Markov process. J. Water Supply Res.Technol. Aqua. 2006, 55, 67–80. [Google Scholar] [CrossRef] [Green Version]
- Afshar, M.H.; Shahidi, M.; Rohani, M.; Sargolzaei, M. Application of cellular automata to sewer network optimization problems. Sci. Iran. 2011, 18, 304–312. [Google Scholar] [CrossRef] [Green Version]
- Bakhshipour, A.E.; Bakhshizadeh, M.; Dittmer, U.; Haghighi, A.; Nowak, W. Hanging Gardens Algorithm to Generate Decentralized Layouts for the Optimization of Urban Drainage Systems. J. Water Resour. Plan. Manag. 2019, 145, 04019034. [Google Scholar] [CrossRef]
- Mirjalili, S.; Lewis, A. The Whale Optimization Algorithm. Adv. Eng. Softw. 2016, 95, 51–67. [Google Scholar] [CrossRef]
Rehabilitation Number | Action | Rehabilitation Cost ($/m) | Disruption Cost ($/m) | Pipe Cost ($/m) | Benefit (Year) |
---|---|---|---|---|---|
1 | Do nothing | 0 | 0 | 0 | - |
2 | Routine cleaning | 16 | 0 | 0 | 10 |
3 | Shotcrete | 656 | 0 | 0 | 20 |
4 | Cured-in-place pipe | 1558 | 0 | 0 | 50 |
5 | Reinforced fiberglass sliplining | 2231 | 0 | 0 | 100 |
6 | Dig and replace with concrete pipe | 1148 | 656 | 1 | 50 |
Name | Discrete Pipe | Constraint Functions 1 | Diagnostic Model 2 | Network Index 3 | Objective Cost | GA |
---|---|---|---|---|---|---|
GA-HRCM | √ | √ | √ | √ | ||
GA-Continuous | √ | √ | √ | |||
GA-Cost | √ | √ | √ | √ | √ | |
GA-Unconstrainted | √ | √ | √ | |||
GA-Network | √ | √ | √ | √ | ||
PSO-HRCM | √ | √ | ||||
PSO-Cost | √ | √ | √ | |||
RHRCM | √ | √ | √ |
Classification | Scenario | Description | Function |
---|---|---|---|
Hydraulic | 1 | A system with one narrow pipe (poor hydraulic performance) at the chain route. The diameter of pipe (C8) is replaced to 0.1 m. The age of all the pipes is zero. | In this simulation, it was tested whether the method can detect the narrow pipe. |
Ageing risk | 2 | A system with a pipe at high risk but there is no hydraulic risk. The diameters of pipes are presented in Figure 4b. The age of pipe C9 was 60, and other pipes ages are zero. | In this simulation, it was tested whether the method can detect an aged pipe. |
Method | Convergent Population | Convergent Time (s) | 2500 Time (s) | 2500 Number of Solutions | 2500 Average Cost (million $) | 2500 Cost Effectiveness | |
---|---|---|---|---|---|---|---|
Hydro 1 | Risk 2 | ||||||
GA-HRCM | 2000 | 182,334 | 372,035 | 6 | 0.67 | 54.81 | 31.36 |
GA-Continuous | 1500 | 116,374 | 232,122 | 5 | 0.44 | 62.65 | 33.60 |
GA-Cost | N/A | N/A | 298,599 | 34 | 0.30 | 138.26 | 73.92 |
GA-Network | 500 | 36696 | 229,006 | 4 | 0.70 | 43.97 | 23.82 |
GA-Unconstraint | N/A | N/A | 84,157 | 8 | 0.78 | 47.81 | 24.64 |
PSO-HRCM | N/A | N/A | 223,591 | 5 | 1.03 | 28.16 | 13.99 |
PSO-Cost | N/A | N/A | 268,340 | 13 | 0.61 | 45.24 | 22.18 |
RHRCM | N/A | N/A | 89,182 | 10 | 0.30 | 177.29 | 87.82 |
Method | Convergent Population | Convergent Time (s) | 2500 Time (s) | 2500 Number of Solutions | 2500 Average Cost (million$) | 2500 Cost Effectiveness | |
---|---|---|---|---|---|---|---|
Hydro 1 | Risk 2 | ||||||
GA-HRCM | N/A | N/A | 163,519 | 6 | 0.65 | 4.46 | 40.77 |
GA-Continuous | 1500 | 232,415 | 222,536 | 6 | 0.67 | 3.64 | 39.66 |
GA-Cost | N/A | N/A | 277,206 | 40 | 0.24 | 13.92 | 129.50 |
GA-Network | N/A | N/A | 196,281 | 6 | 0.66 | 3.69 | 41.07 |
GA-Unconstraint | 2000 | 86,322 | 406,361 | 6 | 0.73 | 4.40 | 36.62 |
PSO-HRCM | N/A | N/A | 219,888 | 5 | 1.00 | 3.30 | 19.87 |
PSO-Cost | N/A | N/A | 309,305 | 33 | 0.63 | 4.29 | 27.17 |
RHRCM | N/A | N/A | 89,863 | 30 | 0.26 | 11.70 | 137.31 |
