Field Study to Evaluate Water Loss in the Irrigation Canals of Middle Egypt: A Case Study of the Al Maanna Canal and Its Branches, Assiut Governorate

Abstract

Egyptian policymakers and researchers have been working to address the challenge of bridging the gap between limited water resources and the growing population’s needs for agricultural and food production. The National Great Project for Lining and Rehabilitation of All Open Canals of the Irrigation Network aims to reduce irrigation water losses through seepage, evaporation, and evapotranspiration. This study evaluated water losses from the Al Maanna canal network in the Assiut governorate, Middle Egypt, using empirical formulas and field ponding methods. The results show the Moleth–Worth formula was more compatible with field measurements, with estimated seepage losses of 2.07 and 2.20 million m³/month, respectively. Moreover, maximum evaporation and evapotranspiration losses were 0.086 and 1.133 million m³/month, respectively. Consequently, total water losses from the Al Maanna canal are estimated to be 3.42 million m³/month, accounting for 13.63% of the total discharge. After canal rehabilitation, evaporation and evapotranspiration losses significantly decreased, while seepage losses were lowered to 0.472 million m³/month, as estimated using the field ponding method. Hence, lining the Al Maanna canal network could reduce water losses by 84%, promoting lining processes that yield significant benefits such as moral, cultural, and environmental benefits. This approach outweighs implementation expenses and ensures a sustainable water supply.

1. Introduction

Bridging the rapidly rising gap between the small amount of water that is now accessible and the enormous amount necessary to meet the needs of growing populations for agricultural and food production has been one of the main challenges facing Egyptians recently [1]. That is why Egyptian policymakers as well as scientific researchers in Egypt have focused on finding radical solutions to the problem and providing the largest possible amount of water through more than one tool at the same time. In addition to proceeding with extreme degrees of rationalization of water use in all sectors, the National Great Project for Lining and Rehabilitation of All Open Canals of the Irrigation Network all over the Egyptian countryside was recently implemented, mainly to address the main reason for irrigation water losses through seepage in permeable soil [2]. That project not only preserves the seeped quantities of water but also minimizes the quantities that were lost through evaporation and evapotranspiration due to controlling the designed cross sections of all irrigation water streams. Additionally, the project stops the increase in water sections, distortions, and swimming processes, as well as the growth of weeds and plants in irrigation water canals, which will decrease the quantities of water lost.

The Egyptian irrigation authorities expect to save about five thousand million cubic meters of water a year [3]. This is a significant amount of water gained from such a large national project, in addition to other significant benefits expected in the environment, health, and social sectors.

Much of Egypt’s population lives in rural areas with low incomes, lacking basic water supply and sanitation, leading to health, economic, and social inequalities. Inequitable water distribution causes social unrest in rural Egypt [4], with local-scale water-based protests rooted in water management and agriculture development politics.

Earthen irrigation canals experience significant water losses, including through seepage, evaporation, and evapotranspiration, which significantly reduce water supplies. These losses are discussed in detail in the following sections:

1.1. Seepage Losses

Seepage losses from a unit length of 1 km of Egypt’s earthen irrigation canals, which account for a significant portion of canal water losses, are determined by several factors, such as soil permeability, canal water depth, length of wetted perimeter, channel geometry, location of the groundwater table, velocity of flowing water, and so on. Worldwide, several researchers have studied seepage losses from the earthen canals, as shown in

Table 1. Examples of previous studies on measuring of seepage losses from earthen canals.

Reference	The Study	Country	Major Findings
[5]	Seepage losses from Al Ismailia canal using empirical and analytical formulas.	Egypt	Minimum seepage losses occurred from reach 1 and maximum seepage losses occurred from reach 4.
			The maximum seepage losses from reach 2 are 0.5753 (m3s−1km−1), and maximum seepage losses from reach 3 are 0.645 (m3s−1km−1).
[6]	Seepage losses from two main conveyance canals (Port Said and Suez canals).	Egypt	Developed four equations based on the inflow–outflow method. The relations are applicable for canals having discharges ranging between 2 and 20 (m3/s): $\mathrm{S}=9.533\times {10}^{-3}{\mathrm{Q}}^{1.533}$; $\mathrm{S}={0.0369\mathrm{d}}^{3.969}$; $\mathrm{S}={1.146\times {10}^{-5}\times \left(\mathrm{P}\right)}^{3.053}$; $\mathrm{S}=1.696\times {10}^{-4}({\mathrm{P})}^{1.931}({\mathrm{d})}^{2.202}$; where: S—seepage losses (m3s−1km−1); Q—discharge (m3s−1); d—water depth (m); P—wetted perimeter (m).
[7]	Seepage losses from canals and minor canals in Paithan Left Bank Canal and Lassina Left Bank Canal.	Pakistan	Average seepage losses from lined and unlined canals were 0.836 and 7.063 (cumec/Mm2), respectively.
			Average seepage losses from lined and unlined minor canals were 3.01 and 4.93 (cumec/Mm2), respectively.
[8]	Seepage losses from Kabul River in Nowshera District.	Afghanistan	Developed mathematical relationships between seepage and discharge: Linear solution: S = 0.00024Q + 0.298; Logarithmic solution: S = 0.294 ln (Q) − 1.453; Power solution: S = 0.018Q0.494; where: S—seepage losses (m3s−1km−1); Q—discharge (m3s−1).
[9]	Seepage losses from irrigation canals in Tendaho Sugar Estate.	Ethiopia	Average seepage losses were 0.55% per 100 m and 0.84% per 100 m from lined and unlined primary canals, respectively.

.

Previous studies employed two basic strategies to quantify seepage losses from earthen canals: experimental formulas and field methods.

1.1.1. Experimental Formulas for Measuring Seepage Losses

Table 2. Experimental formulas for estimating seepage losses.

Formula Name	Seepage (S)	Factors	Units
Mortis 1	S = $0.2\ast C\ast ({\frac{Q}{V})}^{0.50}$	Clay: C = 0.34. Sand: C = 2.2	American
Moleth–Worth and Yennidunia 1	S = $C\ast L\ast {P\ast R}^{0.5}$	Clay: C = 0.0015. Sand: C = 0.003	SI
Indian 1	S = $C\ast a\ast d$	C = (1.1: 1.8). a = Area of wetted perimeter (million ft2)	American
Pakistani 1	$S=5\ast Q^{0.0652}\ast P\ast L/{10}^6$	-----	American
Davis–Wilson 2	$S=0.45\ast C\ast \frac{P\ast L}{4\ast {10}^6+3650\ast \sqrt{V}}\ast \sqrt[3]{d}$	C = (1: 70) depends on bed material	SI
Inghum 3	S = $0.55\ast {10}^{-6}\ast C\ast P\ast L\ast d^{0.50}$	C = (1.5: 5.5)	SI
Offengenden 4	$S=10\ast$α $\ast Q^{1-\beta }$	(α, β) = (0.7, 0.3), (1.9, 0.4) and (3.4, 0.5) for low, medium, and high permeable soil, respectively	SI
Nazeer Ahmed 5	$S=\frac{0.04\ast Q^{0.68}}{56.81}$	-----	SI

Sources: ¹ Mowafy [5]; ² Leigh [10]; ³ Dolatkhah et al. [11]; ⁴ Vivekanand et al. [12]; ⁵ Adnan et al. [8]. Notes in the above table: Q—discharge (m³s⁻¹); V—water velocity (m¹s⁻¹); L—canal length (m); R—hydraulic radius (m); d—water depth (m); P—wetted perimeter (m); SI—International system of units.

introduces a variety of experimental formulas that were used to quantify seepage losses from earthen canals.

1.1.2. The Field Ponding Method for Measuring of Seepage Losses

The field ponding method was used for measuring seepage losses. The method represents a direct method for measuring seepage losses from a considerable length of a canal, based on restricting water in a certain reach of the canal and then measuring the water level twice: once after the restriction process and again after 24 h. The reduction in the water level is considered a seepage loss [10], as shown in Figure 1.

To determine the seepage rates in ponding tests, Leigh [10] presented the equation shown below:

$${\mathrm{S}}_F=\frac{\mathrm{W}\ast \left({\mathrm{d}}_1-{\mathrm{d}}_2\right)\ast \mathrm{L}}{\mathrm{P}\ast \mathrm{L}}$$

(1)

where: S_F—average seepage losses from the ponded reach (ft³/ft²/day); W—average width of water surface in the ponded reach (ft); d₁—water depth at the beginning of measurement in the ponded reach (ft); d₂—water depth in the ponded reach after 24 h (ft); P—average wetted perimeter in the ponded reach (ft); L—length of canal ponded reach (ft).

1.2. Evaporation Losses

Evaporation losses from the open canals, which depend mainly on the surface wind speed, are negligible in comparison to seepage losses. Suhua et al. [13] used two methods to investigate evaporation losses from the middle reaches of the Heihe River in northern China: (i) the aerodynamic method based on the double-deck surface air layer (DSAL) model, and (ii) the heat balance method. The results showed that cumulative evaporation losses estimated by the DSAL model were equal in order of magnitude to those estimated by the heat balance method. The evaporation losses were determined to be less than 1% of the total designed discharge. They also provided the following equation to predict a canal’s evaporation losses:

$$R=\left(K_p\ast E_p\right)\ast W\ast L$$

(2)

where: R—Evaporation losses from the open canals (m³/day); E_p—Pan Evaporation (mm/day); K_p—Pan coefficient (0.60); W—Width of water surface in the canal (m); L—Length of canal (m).

1.3. Evapotranspiration Losses

Transpiration from the crops and evaporation from the soil make up the evapotranspiration in a cropped area. The evapotranspiration rate (crop water use) is determined by the crop type, growth stage, soil moisture content, and available energy to evaporate water [14]. The reference crop evapotranspiration (ET_o) and an average crop coefficient (K_a) are used to calculate crop water use (ET_c) [15], as follows:

$${\mathrm{E}\mathrm{T}}_c={\mathrm{K}}_a\ast {\mathrm{E}\mathrm{T}}_o$$

(3)

The average crop coefficient (K_a) is estimated, as follows [16]:

$${\mathrm{K}}_a=\left({\mathrm{K}}_{cb}\ast {\mathrm{K}}_s\right)+{\mathrm{K}}_w$$

(4)

where: K_a—Average crop coefficient; K_cb—Basal crop coefficient; K_w—Wet soil evaporation; K_s—Water stress factor.

On the other hand, Jensen et al. [17] examined 20 methods to estimate ET_o for arid and humid areas. For both areas, they found that the Penman–Monteith technique was the most accurate. The approach introduced by El-Enany et al. [14] is used to calculate the water consumption (evapotranspiration losses) from a cultivated area as follows:

$${\mathrm{W}}_{\mathrm{C}}=\left(\frac{{\mathrm{E}\mathrm{T}}_{\mathrm{o}}\ast {\mathrm{K}}_{\mathrm{a}}\ast \mathrm{A}}{1000}\right)\ast \frac{4200}{\mathrm{86,400}}$$

(5)

where: W_C—Water consumptive needed (m³/s); ET_o—Reference crop evapotranspiration (mm/day); K_a—Average crop coefficient; A—Area cultivated (feddan).

As a sample case study for the Middle Egypt region, the current field study intended to assess the water losses from the Al Maanna canal network in the Assiut governorate. The study also aimed to survey literature relationships for accurate seepage estimation. We used equations suitable for the Egyptian soil, climate, and irrigation systems to estimate lost water quantities and to compare seepage water quantities from designed water sections with measured field dimensions. The study also included an economic analysis of the costs saved as a result of the lining process in the selected research area. Lining irrigation canals can significantly reduce water losses, providing moral, cultural, and environmental benefits. This approach outweighs implementation expenses and ensures a sustainable water supply, making the water gained more valuable than implementation costs.

2. Materials and Methods

2.1. Methodology

The following procedures will be utilized to assess water losses from distorted irrigation networks in Assiut governorate as well as the positive effects of the rehabilitation process: (i) choosing and describing a study area; (ii) surveying the different soil types in the study area; (iii) collecting meteorological data that affects evaporation and evapotranspiration losses; (iv) collecting field data that affects seepage, evaporation, and evapotranspiration losses; (v) analyzing and discussing seepage, evaporation, and evapotranspiration losses (before and after rehabilitation).

2.2. Study Area

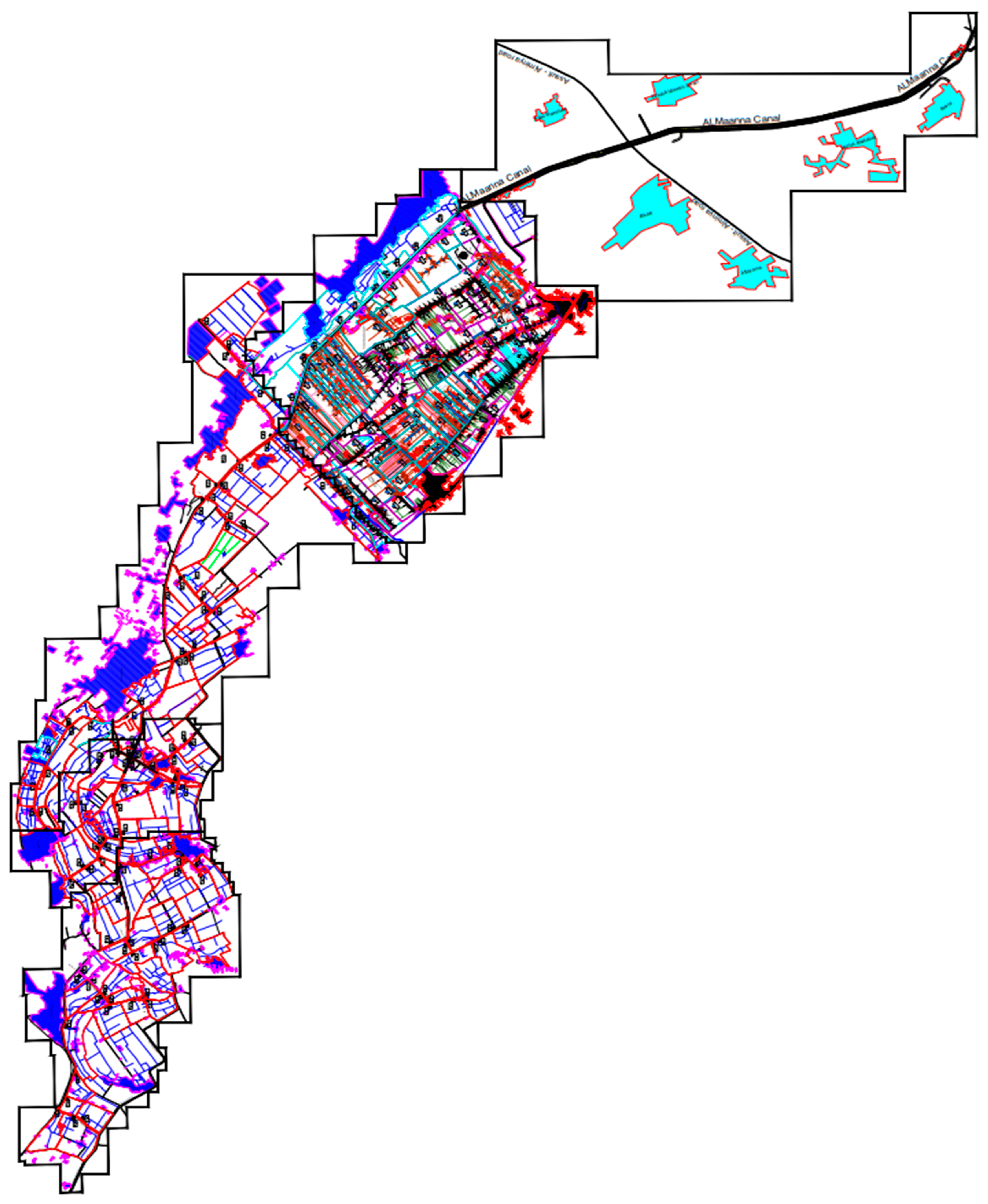

One of the major canals in the Assiut governorate is the Al Maanna Canal. It irrigates a cultivated area of around 13,500 feddan and takes its water from the Eastern Naga Hammady Canal. The Al Maanna Canal is around 32.8 km long. As illustrated in Figure 2, this length is divided into five reaches where the less regulated canals branch on both sides. The length of the branches as a whole is about 47 km [18]. The characteristics of the Al Maanna Canal and its branches are documented in

Table 3. Characteristics of Al Maanna Canal and its branches [18].

Reaches of Al Maanna Canal								Branches of Al Maanna Canal
No.	Beginning	End	Length	Area Served		Designed Discharge *	Location of Off-Taking Branches	Branches	Length	Area Served	Measured Discharge *
				Direct Irrigation from Al Maanna Canal	Branches of Al Maanna Canal			Secondary Branches
	Km	Km	Km	Feddan	Feddan	m3/s	Km		Km	Feddan	m3/s
1	0.0000	10.45	10.450	zero	zero	19.34
2	10.450	16.45	6.0000	1140	4850	21.79	10.500	Al Maanna Side	5.827	1000	2.05
							10.500	Al Hammam	9.000	3400	4.39
							1.0000	Arab Moter	2.000	600	1.45
							3.0000	Arab Al Atawla	2.400	500	1.65
							6.3000	Zafaran	2.300	400	1.34
							6.9400	Al Taweel	2.400	500	2.92
							12.500	Shew	2.300	450	1.26
3	16.450	23.06	6.6100	868	2680	14.65	16.500	East Al Awamer	0.670	400	0.04
							16.500	West Al Awamer	0.800	200	1.38
							17.800	North Al Awamer	1.400	780	1.93
							19.800	Deir Shew	1.000	400	0.50
							21.800	East Al Kadadeeh	1.000	400	0.74
							22.800	Al Hager	4.200	500	0.95
4	23.060	26.40	3.3400	zero	1700	8.23	23.800	South Al Gabrawe	2.200	500	2.01
							23.800	Bani Ibraheem	1.400	800	1.74
							0.250	Bani Ibraheem	1.350	400	1.45
							25.650	North Al Gabrawe	1.350	400	0.81
5	26.400	32.80	6.4000	562	1700	7.55	26.450	Aswalem	1.800	700	1.93
							27.600	Alam Aldeen	1.600	500	0.90
							28.350	Al Haraga	2.100	500	1.15
Total			32.800	2570	10,930				47.097	10,930
				13,500

* Designed discharge at the beginning of each reach and each branch.

.

2.3. Soil Types

It was necessary to collect several soil samples along the canals’ pathways in order to identify the kind of soil, degree of permeability, and other physical properties. Soil samples were taken from various depths beneath the canal bed and from the side slopes every 5 km along the main canal, and one sample was taken for each off-taking canal. As reported in

Table 4. The used soil coefficients in the empirical equations.

Equation	Units	Clay	Clay + Silt	Sand
Molesworth and Yennidunia (Egyptian)	m3/s	0.0015	0.0026	0.003
Molesworth and Yennidunia (Analytical)	m3/s	0.375	0.56	0.75
Moritz	ft3/s	0.41	0.53	0.66
Davis and Wilson	ft3/s	12	18	25
Indian	ft3/s	1.1	1.4	1.8
Ingham	m3/s	1.5	3	5.5

, all of these samples were subjected to sieve analysis, a liquid limit, a plastic limit, a plasticity index test, and a group index test in order to estimate all of these parameters and coefficients. As well as analyzing the soil samples that were collected from the field, soil classification analysis was verified using remote sensing and GIS techniques. Mapping was performed using ArcGIS 9.2 software (Appendix A). The study area primarily had a clay loam upper texture up to 30 cm, with clay (light) subsoil and inclusions.

2.4. Meteorological Data

Using data from the Arab Al-Awamer Weather Station [19],

Table 5. Meteorological data of the study area [19].

Month	Temperature (T)			RH	Ep	Wind Speed	SH/Day
	Max.	Min.	Avg.
	°C			%	mm/Day	km/Hour
January	18	6.50	22.40	60.30	2.80	16.00	08.90
February	22.5	11.20	26.10	52.60	3.20	17.30	9.70
March	25	14.20	30.50	42.90	4.40	19.80	9.90
April	29	17.10	35.10	36.50	6.40	21.30	10.30
May	32	22.00	38.10	35.10	6.60	20.30	11.40
June	36	24.90	40.70	37.40	6.90	21.00	12.30
July	37	25.30	39.10	41.50	7.40	19.50	12.20
August	34.5	24.80	40.30	40.70	8.00	19.80	11.90
September	29	23.80	38.50	46.20	7.00	21.70	10.80
October	29	20.90	33.00	51.30	5.70	19.20	10.00
November	27	13.20	27.00	54.70	5.00	15.20	09.40
December	22.5	9.00	23.20	63.20	3.10	16.80	09.00

displays the monthly meteorological information currently available for the understudied area. These data include air temperature (T), relative humidity (RH), pan evaporation (Ep), wind speed, and number of sunny hours per day (SH/day). In order to calculate the evaporation and evapotranspiration losses from the Al Maanna canal and its branches, meteorological data were used, as evaluated and explained below.

2.5. Field Data

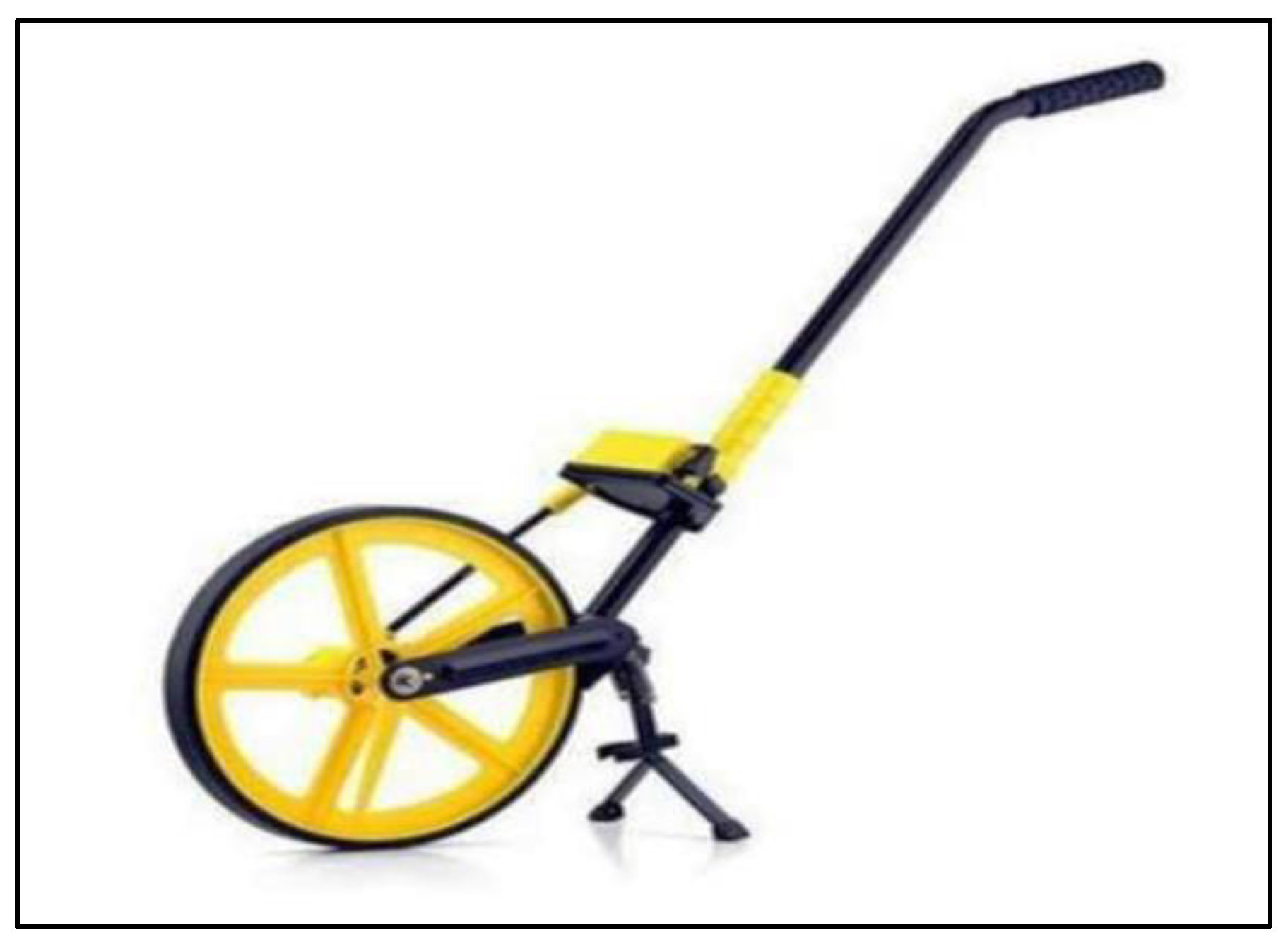

The gathered data from the study area of the Al Maanna canal and its branches were based on the required parameters to measure seepage, evaporation, and evapotranspiration losses from the network, as indicated below.

2.5.1. Field Parameters of Seepage Losses

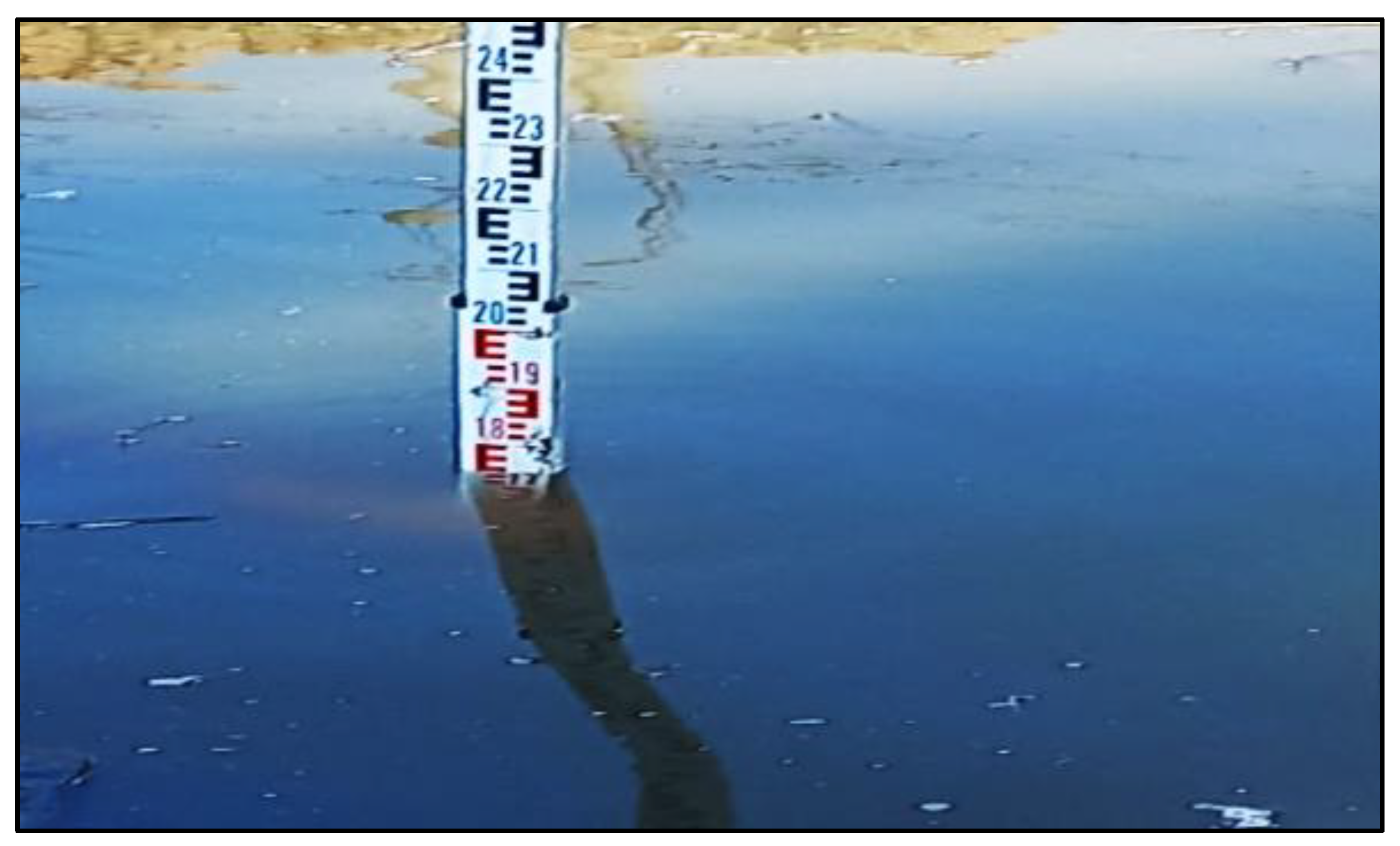

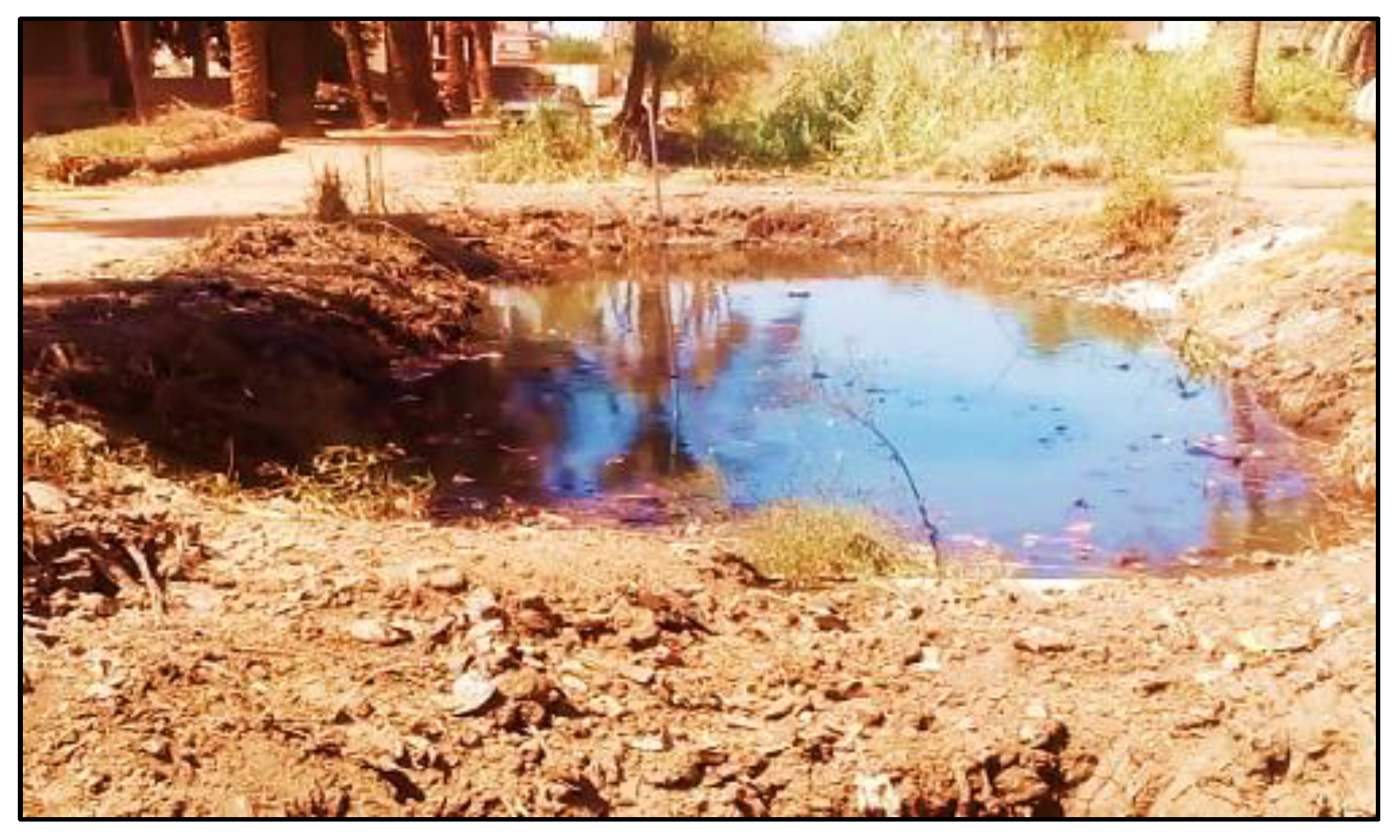

Using the field ponding method, displayed in Figure 3, water was restricted for significant lengths of the Al Maanna canal and its branches in order to measure seepage losses. The water level was then measured twice, once immediately following the restriction procedure and once again after 24 h, using the measuring tool shown in Figure 4. The seepage rates for the ponding test were computed using Leigh’s Equation (1) [10].

2.5.2. Field Parameters of Evaporation Losses

Depending on the top width of the exposed water surface, evaporation losses occur from both the designed (rehabilitated) and distorted cross sections of canals. According to Figure 5, the evaporation rate from the canal’s distorted cross section will be positive (higher than the evaporation rate from the designed cross section), if the top water surface in the distorted cross section is greater than the top water surface in the designed cross section. However, as illustrated in Figure 6, if the top water surface in the distorted cross section is lower than the top water surface in the designed (rehabilitated) cross section, the canal’s evaporation rate will be negative (less than the evaporation rate from the designed cross section). Every 200 m along the canal’s length, the distorted cross sections of the Al Maanna canal and its branches were measured and compared to the designed cross sections. Using the meteorological data in Table 5 and Equation (2) from Suhua et al. [13], the evaporation rates from the designed and distorted cross sections were calculated.

2.5.3. Field Parameters of Evapotranspiration Losses

Aquatic weeds are undesirable plants that play a vital role in various ecosystems, and many of them inflict massive direct and indirect losses. Many irrigation canals are suffering from significant weed growth along the canal sides as well as siltation along the canal bed. This has an effect on hydraulic characteristics such as increased roughness, which affects flowing velocity, and decreased cross section, which limits the flow capacity of irrigation canals and hence the availability of water to farmers. Weeds that are growing along the Al Maanna canal’s banks and its branches, shown in Figure 7, are a source of evapotranspiration losses from the network. Using a field measuring wheel, shown in Figure 8, the dimensions of the weeds were determined. These measurements were used to calculate the weed growth areas along the Al Maanna Canal and its branches, as shown in

Table 6. Measured areas of weeds along Al Maanna canal and its branches.

Reaches of Al Maanna Canal		Branches of Al Maanna Canal
Reach No.	Area of Weeds (Feddan)	Branches	Area of Weeds (Feddan)
		Secondary Branches
Reach 1	37.17
Reach 2	20.91	Al Maanna Side	6.91
		Al Hammam	10.21
		Arab Moter	3.80
		Arab Al Atawla	4.90
		Zafaran	6.66
		Al Taweel	2.48
		Shew	3.22
Reach 3	24.39	East Al Awamer	0.66
		West Al Awamer	0.92
		North Al Awamer	1.09
		Deir Shew	1.26
		East Al Kadadeeh	1.31
		Al Hager	4.70
Reach 4	11.62	South Al Gabrawe	1.77
		Bani Ibraheem	0.65
		Bani Ibraheem	2.12
		North Al Gabrawe	2.03
Reach 5	22.07	Aswalem	1.82
		Alam Aldeen	2.09
		Al Haraga	4.01
Total	116.16		62.61
	178.77 Feddan

.

On the basis of the meteorological information presented in Table 5 and the CROP-WATER software model, which was used to calculate the reference evapotranspiration (ET_o) from the weeds, the evapotranspiration losses from the weeds along the Al Maanna canal and its branches were calculated using Equation (5) developed by El-Enany et al. [14]. It is worth noting that the CROPWATER software is based on the Penman–Monteith method [20].

3. Results and Discussion

Using a literature search and the information gathered for the study region, it was possible to calculate the seepage, evaporation, and evapotranspiration losses from the distorted and designed (rehabilitated) cross sections of the Al Maanna canal and its branches in the Assiut governorate. Each type of water loss from the network was determined by a separate analysis of the parts listed below.

3.1. Seepage Losses

In addition to the experimental formulas mentioned in Table 2, the seepage losses from the distorted cross sections of the Al Maanna canal and its branches were calculated using the field ponding method, as shown in Figure 9 and Figure 10.

According to the Offengenden experimental formula, it can be seen from Figure 9 that the Al Maanna canal’s largest seepage losses occurred in the first reach. The fourth reach exhibited the lowest seepage losses, according to the experimental Indian formula.

According to Figure 10, the largest seepage losses from the Al Maanna canal branches came from the branches of the second reach, measured by the Indian experimental formula. In contrast, according to a Pakistani experimental formula, branches of the last reach caused the fewest seepage losses. It should be noted that there is no branching in the Al Maanna Canal’s first reach; also, the third reach contains six canals totaling 5.54 m³/s of discharge and 9.07 km of impermeable, silty, loamy soil. The fourth reach includes four canals with a combined length of 6.3 km and a discharge rate of 6.01 m³/s. These canals are more permeable than the third reach because the soil there is silty with sand. This explains why the seepage loss values between the third and fourth reaches are convergent, despite the third reach’s increased canal number.

As shown in Figure 9 and Figure 10, the field ponding method and the experimental Moleth–Worth and Yennidunia methods were compatible for calculating seepage losses. The distorted cross sections of the Al Maanna canal had seepage losses of 1.563 and 1.617 million m³/month, respectively. The Moleth–Worth formula and field ponding method estimated seepage losses from branches of the Al Maanna canal to be 0.506 and 0.580 million m³/month, respectively.

The field ponding method was used to calculate seepage losses from the lined cross sections following the lining and rehabilitation of the Al Maanna canal and its branches, as shown in Figure 11 and Figure 12.

As shown in Figure 11, the first reach of the Al Maanna Canal had the greatest seepage losses from the rehabilitation sections. The least amount of seepage loss occurred in the fourth-lined reach. In addition, Figure 12 demonstrates that lined branches in the second reach of the Al Maanna canal produced the largest seepage losses, while the lined branches in the final reach contributed to the least amount of seepage losses.

There is a noticeable discrepancy between the calculated seepage losses from the distorted cross sections and the rehabilitated sections. The large amounts of seepage losses in the Al Maanna canal network were greatly decreased after the lining and rehabilitation procedure, to roughly 0.472 million m³/month, or nearly 21.48% of seepage losses before rehabilitation.

3.2. Evaporation Losses

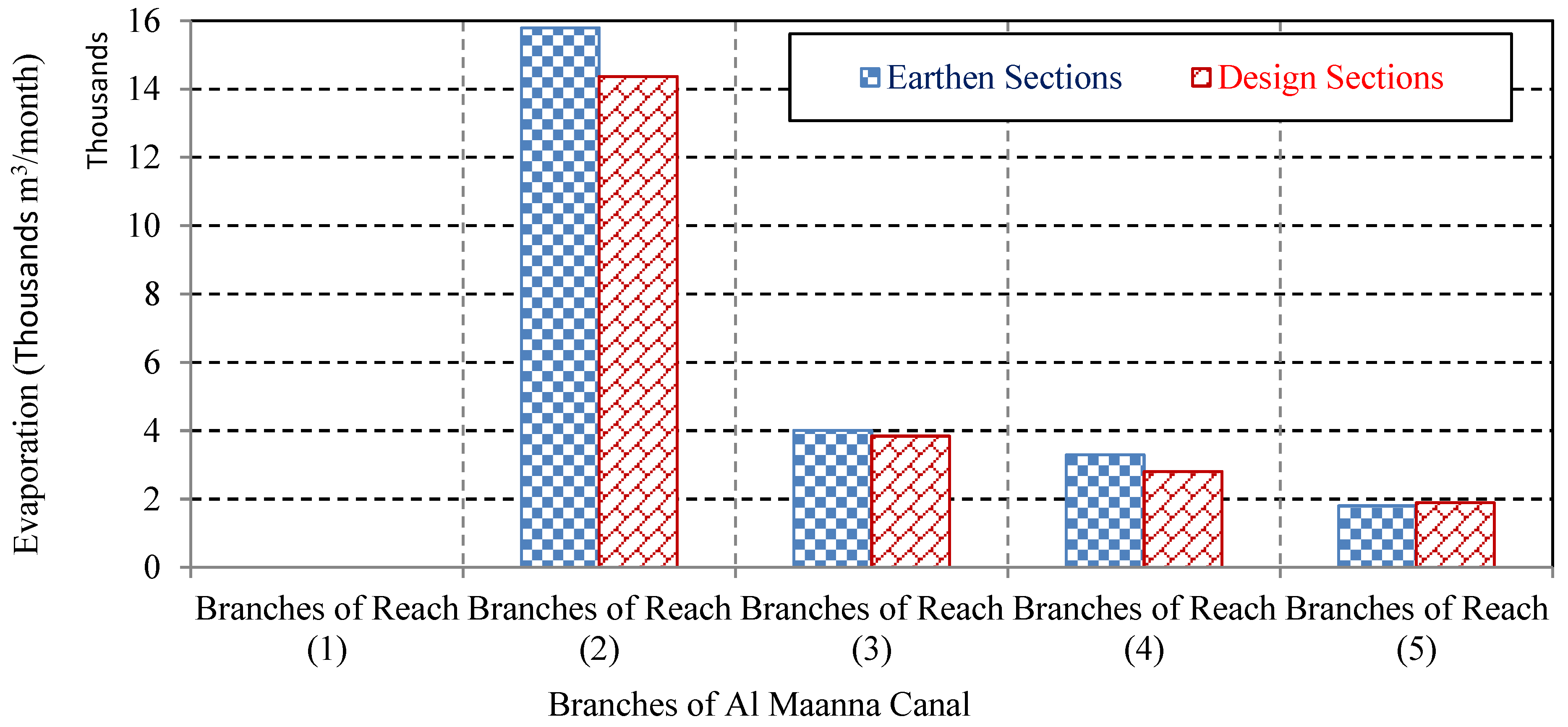

As observed in Figure 13 and Figure 14, there is a notable difference in the evaporation losses from Al Maanna Canal and its branches acquired from the distorted (earthen) and lined (designed) sections. Due to the narrower top width of the exposed water surface in the rehabilitated sections, evaporation losses from the lined (designed) sections were smaller than those from the distorted (earthen) sections.

It should also be noted that branches of the last reach exhibited negative evaporation losses, as illustrated in Figure 14, which is regarded as a sign of decreased distorted cross sections compared to lined sections in these branches. Around 60,789 and 24,899 m³/month of evaporation losses from the Al Maanna canal’s distorted sections and its branches, respectively, were calculated. On the other hand, the evaporation losses from the lined sections of the Al Maanna Canal and its branches were calculated to be roughly 51,856 and 22,905 m³/month, respectively. As a result, the rehabilitation of the Al Maanna canal network could minimize evaporation losses by about 10,926 m³/month.

3.3. Evapotranspiration Losses

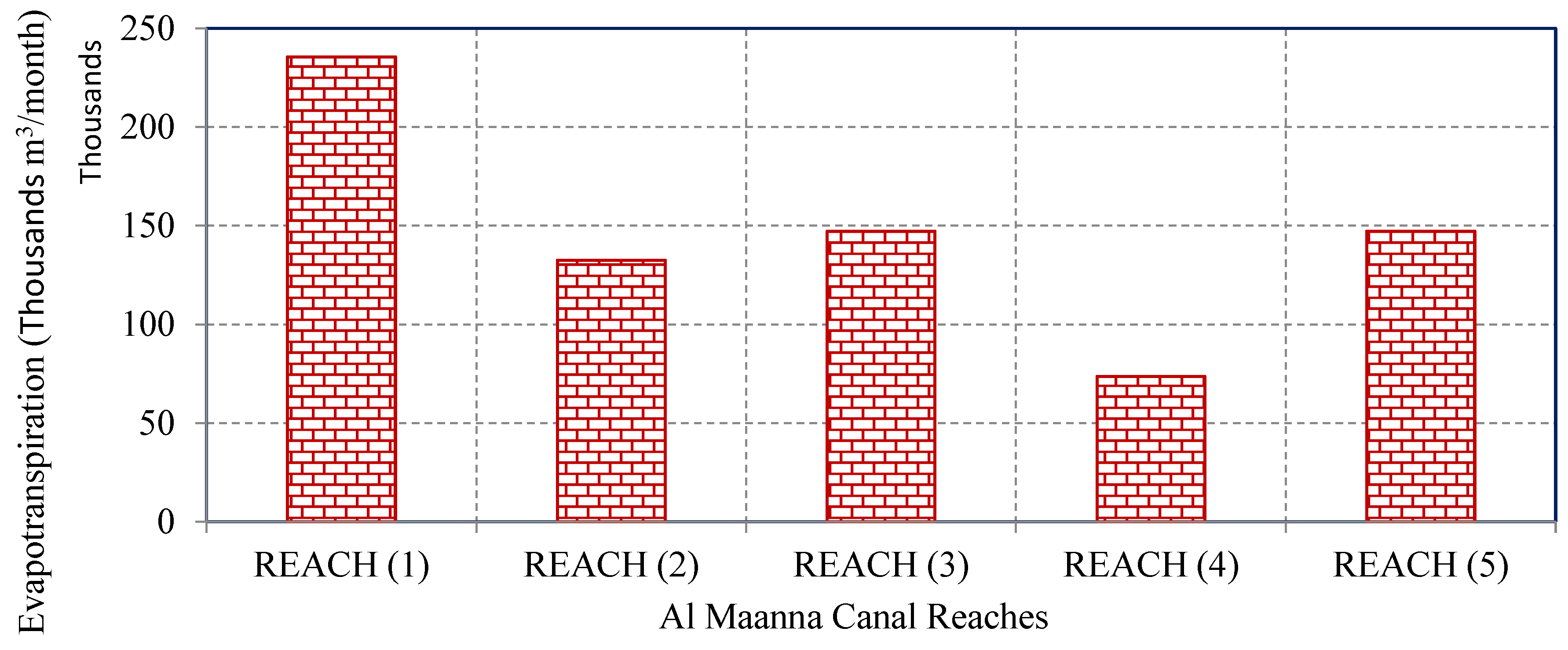

With a rate of about 235,630 m³/month, the first reach of the Al Maanna canal had the highest evapotranspiration rate from weeds. The minimum evapotranspiration rate from weeds occurred in the fourth reach, at around 73,634 m³/month, as shown in Figure 15.

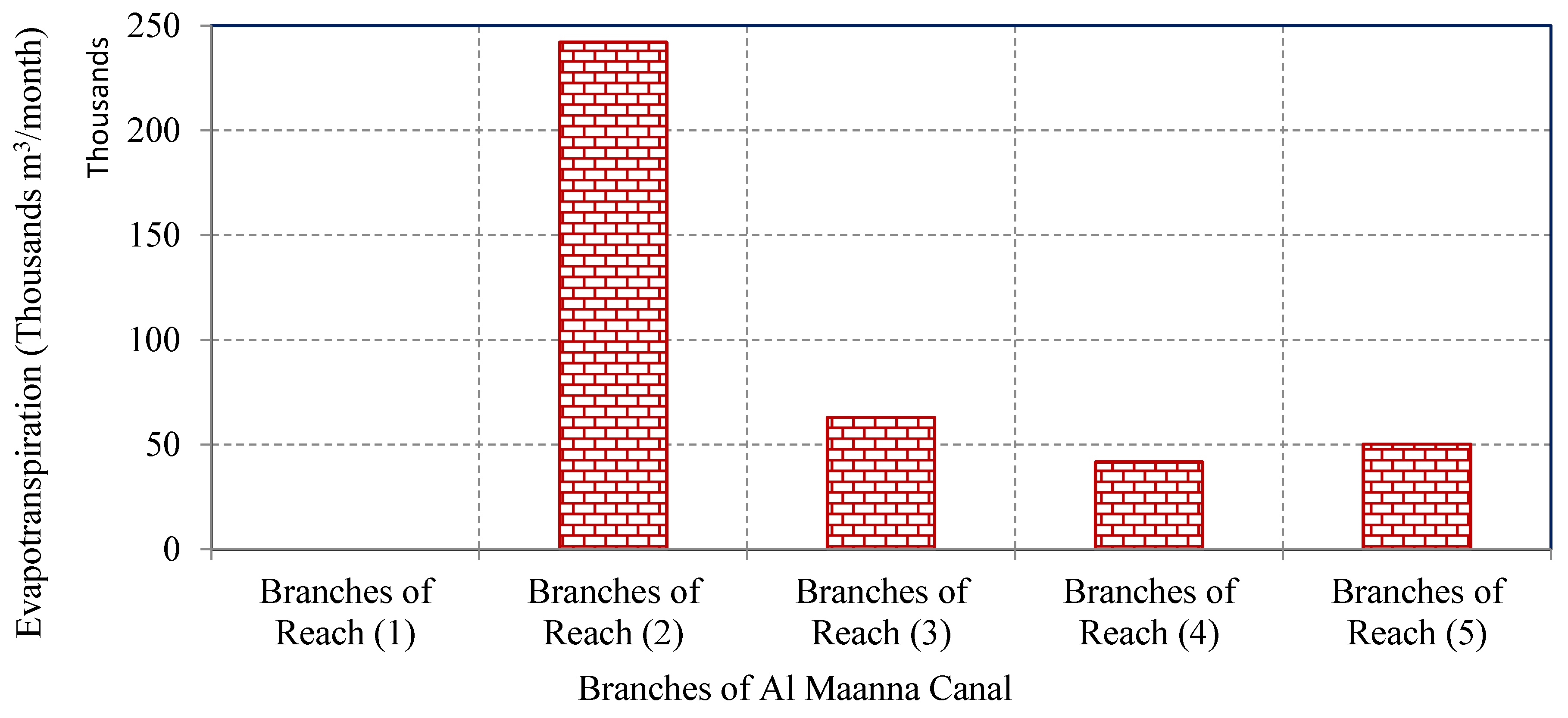

On the other hand, Figure 16 shows that both the maximum and minimum evapotranspiration rates from weeds were approximately 242,025 m³/month from the branches of the second reach and approximately 41,647 m³/month from the branches of the fourth reach. Accordingly, the overall evapotranspiration losses might be 1,133,234 m³/month, or almost 4.50% of the Al Maanna canal’s discharge. This demonstrates the huge quantity of weeds that grow on both sides of the Al Maanna canal network.

3.4. An Economic Study of the Lining Process in the Study Area

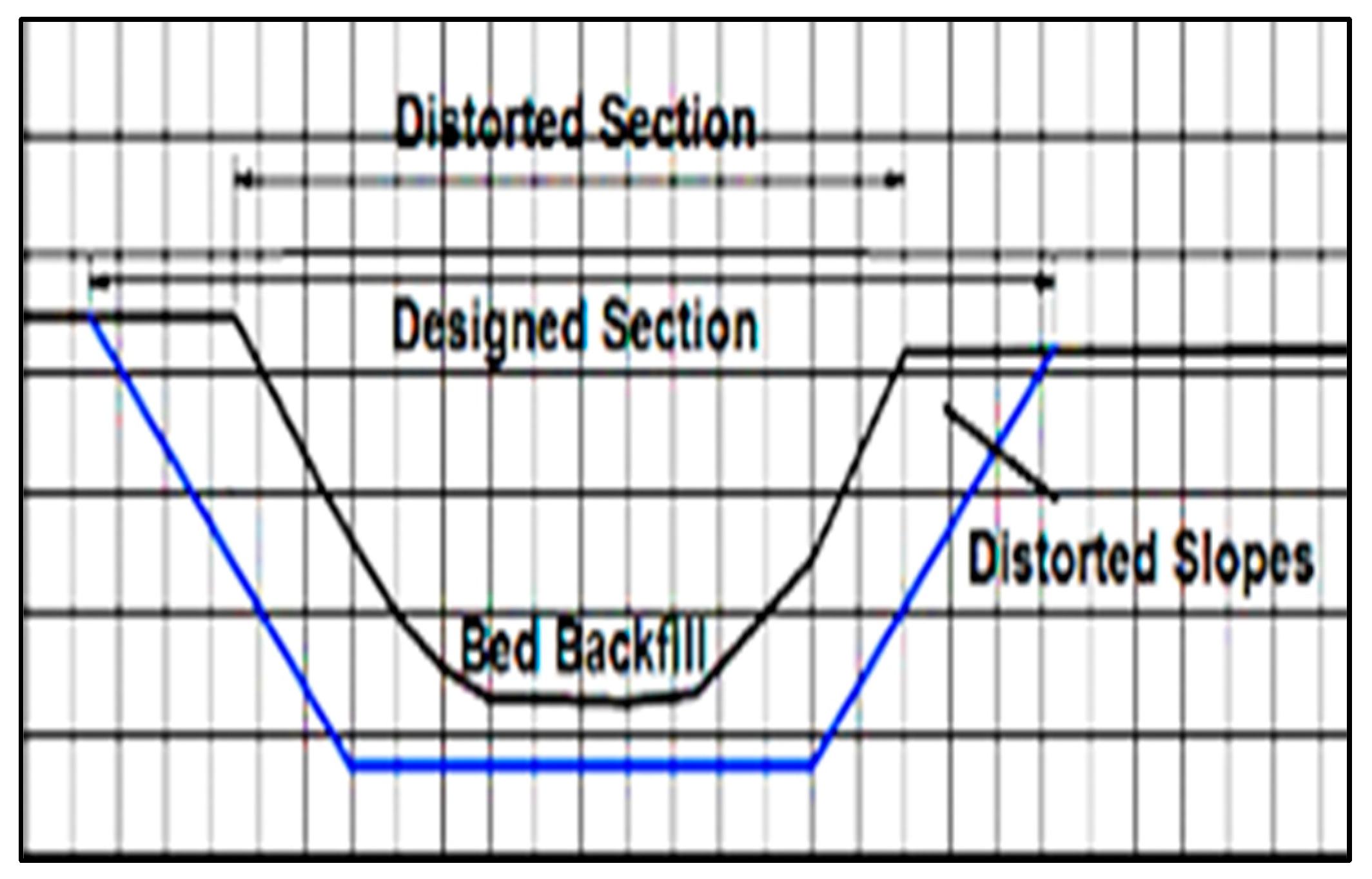

The two main problems with traditional irrigation networks are (i) the growth of weeds along canal banks and (ii) bed backfill. Every three months, weeds are pulled, and once a year, beds are dug up for canal dredging. According to MWRI [21], bed dredging for canals with a designed bed width of 10 m costs about EGP 8/m³, while weed removal costs about EGP 5000 per kilometer (EGP/km).

Table 7. Costs of bed dredging and weed removal from Al Maanna canal cross sections.

Reach		Costs of Bed Dredging			Costs of Weeds’ Removal
Reach No.	Reach Length	Fill Area	Costs/m3	Total Costs	Designed Bed Width	Covered Length of Weeds	Costs/ Km	Total Costs
	m	m2	EGP *	L.E.	m	Km	EGP *	EGP
	{1}	{2}	{3}	{4} = {1} × {2} × {3}	{5}	{6}	{7}	{8} = {6} × {7}
Reach 1	10,450	39.030	8.00	3,262,908	10.00	7.80595	5000	39,029.75
Reach 2	6000	15.380		738,240	7.50	4.87872		24,393.60
Reach 3	6610	15.590		824,399.2	6.00	5.73967		28,698.35
Reach 4	3340	7.560		202,003.2	4.00	4.06560		20,328.00
Reach 5	6400	5.400		276,480	3.00	6.17971		30,898.55
Total		82.960		5,304,030		28.66965		143,348.30

* Costs in Egyptian pounds determined by MWRI in the year 2019.

and

Table 8. Costs of bed dredging and weeds’ removal from branches of Al Maanna canal.

Al Maanna Canal Branches	Length of Branch	Costs of Bed Dredging			Costs of Weed Removal
		Fill Area	Costs/m3	Total Costs	Covered Length of Weeds	Costs/Km	Total Costs
Branches	m	m2	EGP *	EGP	Km	EGP *	EGP
Secondary Branches	{1}	{2}	{3}	{4} = {1} × {2} × {3}	{5}	{6}	{7} = {5} × {6}
Al Maanna Side	5827	0.852775	8.00	39,752.96	5.277	5000	26,385
Al Hammam	9000	1.834167		132,060	9		45,000
Arab Moter	2000	1.783		28,528	1.9		9500
Arab Al Atawla	2400	0.8625		16,560	2.400		12,000
Zafaran	2300	1.493478		27,480	2.295		11,475
Al Taweel	2400	1.455		27,936	2.400		12,000
Shew	2300	1.453043		26,735.99	2.299		11,495
East Al Awamer	670	1.022687		5481.602	0.660		3300
West Al Awamer	800	1.5275		9776	0.800		4000
North Al Awamer	1400	2.315714		25,936	1.400		7000
Deir Shew	1000	1.1244		8995.2	0.998		4990
East Al Kadadeeh	1000	1.392		11,136	1.000		5000
Al Hager	4200	1.192143		40,056	4.187		20,935
South Al Gabrawe	2200	1.319318		23,220	2.197		10,985
Bani Ibraheem	1400	1		11,200	1.400		7000
Bani Ibraheem	1350	1.044074		11,276	1.350		6750
North Al Gabrawe	1350	1.549259		16,732	1.343		6715
Aswalem	1800	1.995556		28,736.01	1.800		9000
Alam Aldeen	1600	1.860375		23,812.8	1.463		7315
Al Haraga	2100	1.068571		17,951.99	2.100		10,500
Total		28.14556		533,362.6	46.269		231,345

* Costs in Egyptian pounds determined by MWRI in the year 2019.

show the overall costs of bed dredging and weed removal from the distorted cross sections of Al Maanna canal and its branches.

Since weed removal from Al Maanna Canal and its branches needs to be performed every three months, the annual cost of doing so is almost EGP 1.498 million.

According to the results of the preceding tables, the costs of bed dredging from the Al Maanna canal and its branches are roughly EGP 5,304,030 and EGP 533,363, respectively. Each year, it costs between EGP 573,393 and EGP 925,380 to remove weeds from Al Maanna Canal and its branches. After the lining and rehabilitation processes, these expenses can be avoided.

4. Conclusions

The following major conclusions may be drawn after analyzing the seepage, evaporation, and evapotranspiration losses from the distorted and lined sections of the Al Maanna canal and its branches:

• The results obtained using the most widely used equations for predicting the estimated values of seeping water from the Al Maanna Canal were notably different. This is due to the varying conditions and properties of the soil in which the experiments were conducted, which resulted in each equation.
• The results obtained using the Moleth–Worth formula were most consistent with the measured seeping quantities of water using the field ponding method. The measured seeping quantities from the Al Maanna canal were around 1.563 million m³/month, while the calculated quantities using the Moleth–Worth equation were 1.617 million m³/month. Additionally, the approximate seepage losses from the Al Manna canal branches were 0.506 and 0.580 million m³/month, respectively, indicating a tolerable approximation difference.
• The maximum calculated evaporation and evapotranspiration losses from the Al Maanna canal were roughly 0.061 and 0.736 million m³/month, respectively, while the maximum evaporation and evapotranspiration losses from the Al Maanna canal branches were calculated to be approximately 0.0249 and 0.397 million m³/month, respectively.
• The overall seepage, evaporation, and evapotranspiration losses from the Al Maanna canal network are estimated to be around 3.42 million m³/month, accounting for approximately 13.63% of the Al Maanna canal’s total discharge.
• Following the lining process, the field ponding method was used to estimate seepage losses from the Al Maanna canal and its branches, which were approximately 0.472 million m³/month. Additionally, evaporation losses can be decreased to roughly 0.075 million m³/month after the rehabilitation procedure, while evapotranspiration losses are ignored.
• The lining of distorted sections of the Al Maanna canal and its branches can reduce water losses by approximately 84%, which is good and sufficient to recommend and encourage lining processes where the gained quantities of water will be more valuable and important than the cost of implementation.
• Estimated savings would be no less than EGP 5.84 million per year and EGP 1.50 million per year on the costs of periodic maintenance and removal of weeds for Al Maanna canal’s sections and branches.
