Communication

Precisely Tunable 780 nm External Cavity Diode Laser

by
Baoni Han
1,
Yuanlin Shi
1,
Xu Tang
1,
Jing Li
1,
Chenggang Guan
2,*,
Junzhu Ye
3,* and
Rongxu Shen
2
1
Xi’an Institute of Space Radio Technology, Xi’an 710100, China
2
Wuhan Accelink Technologies Co., Ltd., Wuhan 430074, China
3
Laboratory of Optoelectronics and Sensor (OES Lab), School of Science, Hubei University of Technology, Wuhan 430068, China
*
Authors to whom correspondence should be addressed.
Photonics 2025, 12(4), 293; https://doi.org/10.3390/photonics12040293
Submission received: 9 February 2025 / Revised: 25 February 2025 / Accepted: 18 March 2025 / Published: 21 March 2025
Browse Figures
Versions Notes

Abstract

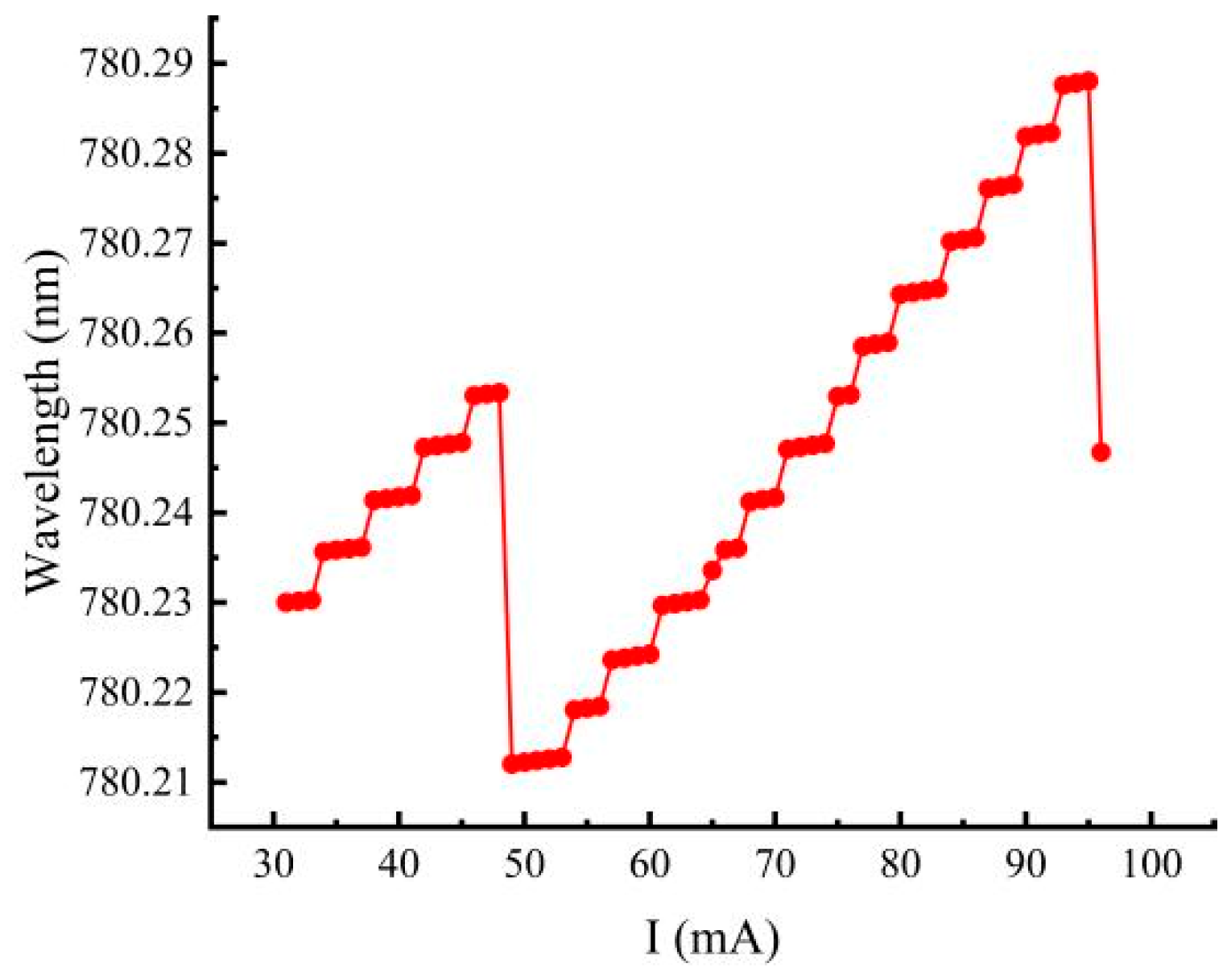

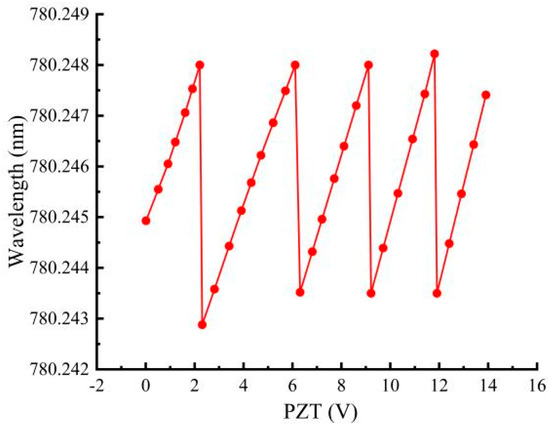

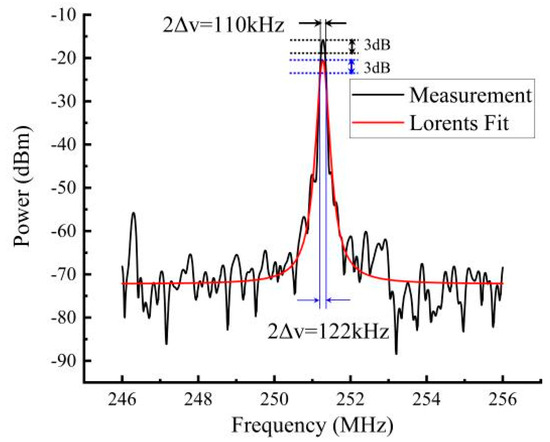

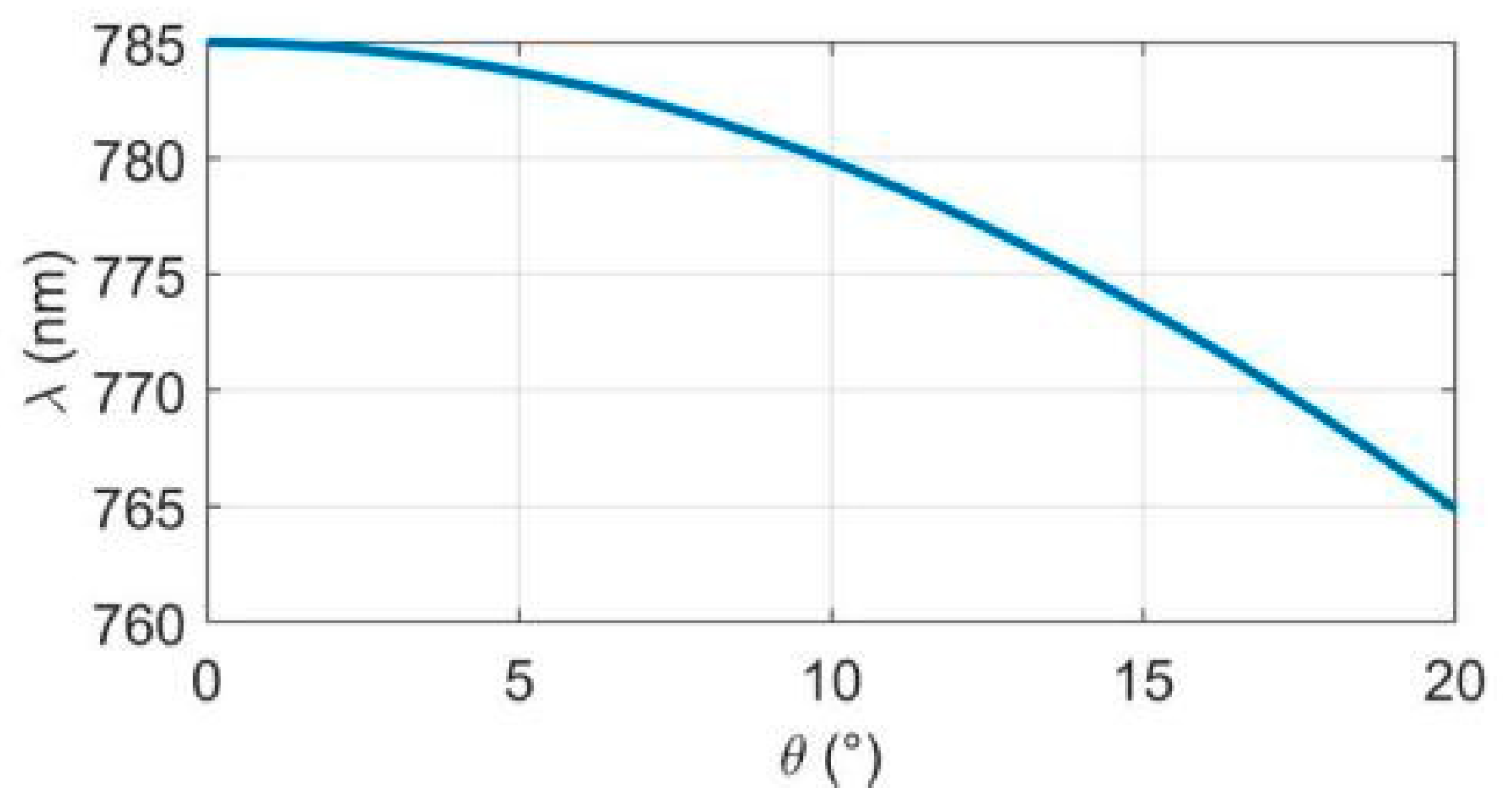

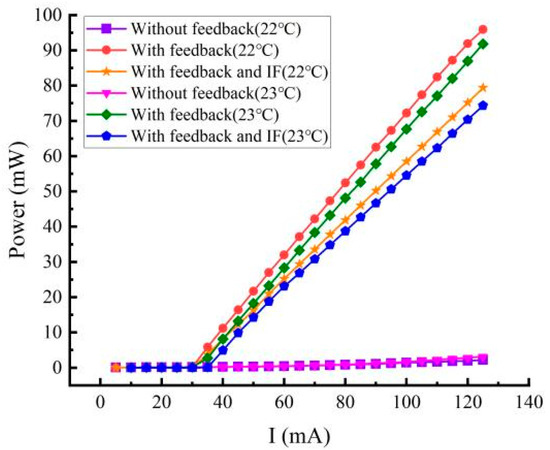

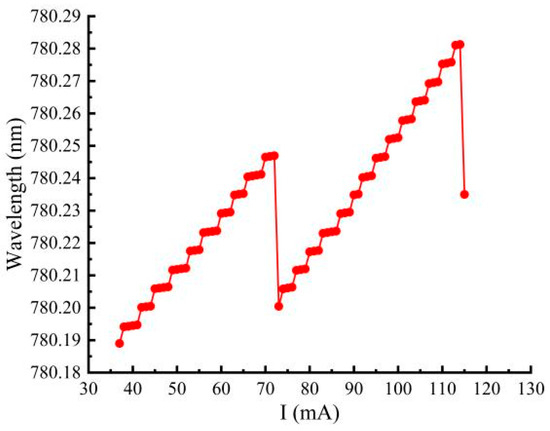

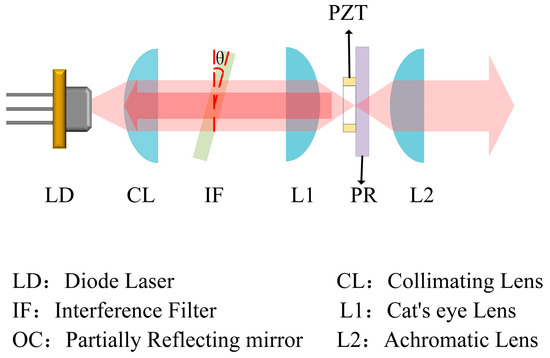

State-of-the-art research on narrow-linewidth external cavity semiconductor lasers has provided limited discussion on the capability of continuous wavelength tuning. In this study, we present a 780 nm tunable external cavity diode laser (ECDL) with narrow linewidth. An angle-adjustable interference filter (IF) is employed as the mode-selection element, enabling a wide wavelength tuning range. Precise, mode-hop-free continuous tuning is achieved through a combination of current modulation and piezoelectric ceramic transducer (PZT) control, with a tuning accuracy of 1.65 pm/mA. Experimental optimization of the interference filter external cavity diode laser (IF-ECDL) operating conditions resulted in a narrow linewidth of 55 kHz and a high output power of 51 mW. Furthermore, by integrating current and PZT tuning, continuous wavelength tuning of the IF-ECDL output is demonstrated over a specified range.
Keywords: external cavity diode laser; interference filter; mode-hop-free tuning external cavity diode laser; interference filter; mode-hop-free tuning
