1. Introduction
Photonic crystal fiber (PCF) [
1] is a new class of optical waveguide that guides the electromagnetic field by a periodic arrangement of dielectric medium that goes down the entire length of the fiber. In general, a PCF microstructure involves lattice of air holes which appear on a background material, usually, silica. Fundamentally, the confinement and propagation of the light takes place in the fiber core due to the existence of the periodic low-index air hole. The physical mechanism for which the light guidance takes place in the optical waveguide due to the difference in the refractive index is known as total internal reflection (TIR) or index guiding [
2].
Photonic crystal fibers, in recent years, have drawn significant attention as these microstructures exploit extraordinary optical properties which are unlikely to be achieved by the conventional optical fibers. Photonic fibers are being employed in many optical devices such as telecommunication sensors [
3], polarization sensitive devices [
4], wavelength de-multiplexer [
5], sensors [
6], filters [
7], and splitters [
8].
The fundamental drawback of high-bit-rate conventional optical transmission systems is the broadening of optical pulses due to group velocity. The spreading of the optical pulses needs to be compensated for long-distance transmission. Therefore, dispersion compensating fibers (DCFs) which show negative dispersion characteristics are widely employed to mitigate the broadening effect [
9]. The negative dispersion properties should be distributed throughout the broad spectral range in order to compensate the accumulated dispersion in the conventional optical fibers. However, it is difficult to obtain large negative dispersion by using conventional DCFs for broadband application. Moreover, single mode operation in DCFs needs to be ensured in order to avoid signal degradation. On the other hand, PCFs ensure single mode operation and allow flexibility in tuning dispersion properties [
10]. Several designs have been proposed to obtain large negative dispersion coefficients over a wideband. For example, a design of an octagonal PCF with six air hole rings is proposed in Reference [
11] that obtains a negative dispersion of
ps/nm.km at
nm. Selim habib et al. proposed a design based on holey fibers in [
12] which exhibits negative dispersion coefficient of
to
ps/nm.km over S to L-bands. Furthermore, a design of a spiral microstructure fiber is proposed in Reference [
13] that obtains
ps/nm.km at
nm. Mejbaul Haque et al. [
14] proposed a single mode circular PCF design which demonstrates a negative dispersion of
ps/nm.km at
nm wavelength.
It is possible to obtain novel optical properties such as high birefringence, non-linearity, and low confinement loss with different geometrical designs of PCF. Different sizes and shapes (e.g., square, elliptical, circular) [
15,
16] of the air holes near the asymmetric core region [
17] result in birefringence at different levels which can be employed in different sensing applications. By exploiting high birefringence, PCF refrains cross coupling of the optical power between two polarization modes and can be employed as polarization maintaining fiber (PMF) [
18]. Different designs of PCF have been proposed to obtain high birefringence characteristics. For instance, a novel PCF with rectangular air holes in the core region is proposed by Wang et al. in Reference [
19] that obtains a birefringence of
at
nm. Rashid et al. [
20] designed a dodecagonal shaped five-ring PCF which has reported a birefringence of
. A spiral PCF was developed in Reference [
21] which obtains a birefringence of
. Moreover, Agarwal et al. [
22] showed a PCF which achieved a high birefringence of
at
nm with non-circular air holes arranged in a golden spiral pattern. Furthermore, Chen et al. [
23] proposed a design of a hexagonal PCF with non-circular core and circular cladding which attains a birefringence of
. However, different geometrical shapes of the air hole, usually non-circular, around the solid core lead to difficulties in the fabrication process. The fabrication process becomes much easier by using a drilling method [
24] or stack and draw technique [
25] when the design of the PCF is limited to circular air holes. Recently, a design of a hexagonal PCF with all circular air holes was proposed in Reference [
26] which was able to achieve a high birefringence of
at the excitation wavelength of
nm.
In this work, we propose a modified design of hexagonal circular photonic crystal fiber (HC-PCF) of five air hole rings. We only used circular air holes in the design of the photonic structure which makes the fabrication easier. The proposed structure consists of an asymmetric core region where one air hole is missing from the first ring and the opposite one with a reduced diameter. The diameter of the horizontally located circular air holes in the second ring is reduced which results in mirror-symmetry refractive index profile in the design. The simulation results show that the proposed structure exhibits a large negative dispersion over a wideband and ps/nm.km at an operating wavelength of nm. Furthermore, the proposed HC-PCF has a birefringence of at the operating wavelength which is till now the highest achievable birefringence using all circular air holes in the fiber structure. The exploitation of large negative dispersion and ultrahigh birefringence of our proposed HC-PCF structure makes it a potential candidate for high-bit-rate optical broadband communication and various sensing applications.
3. Numerical Method
Numerical simulation was carried out in order to investigate the guiding properties of the modified HC-PCF. Since the proposed PCF is a microstructure-design, finite element method (FEM) was employed to carry out the electromagnetic investigation, i.e., field distribution and effective mode indices. Commercially available, FEM-based software package COMSOL Multiphysics, version 5.3, was used. A circular perfectly matched layer (PML), with a thickness of
of the cladding radius, was applied at the boundary of the design to avoid reflection and back scattering. The thickness of the uniformly employed PML around the proposed HC-PCF was 1 μm with a scaling factor of 1. Finer mesh was applied to the entire structure. By solving Maxwell’s equations in the microstructure design, FEM derives the propagation constant
through mode analysis. The refractive index
of the background material, i.e., silica, is a function of wavelength and can be estimated using the Sellmeier equation [
27] as follows:
where
is the wavelength-dependent refractive index of the material,
λ is the wavelength in μm, and
and
are sellmeier coefficients for the material which can be determined experimentally. Usually, for glass material
equals 3. Once the propagation constant
is obtained, the effective refractive index
can be estimated from the following expression [
28]:
where
equals
is the wave number of free space and
is the effective refractive index. The effective refractive index
is not only wavelength-dependent but also depends on the mode. Therefore, it is called modal index as well. Since the guiding properties such as dispersion, modal birefringence, numerical aperture, non-linearity, and confinement loss of the PCF are investigated, the formulations for the corresponding optical parameters are discussed in this section. Chromatic dispersion
of the PCF is wavelength-dependent and can be estimated from the effective refractive index
of the fundamental mode using the following expression [
28]:
where the unit of the dispersion in ps/(nm.km),
is the wavelength in μm,
is the velocity of light in vacuum, and
is the real part of the modal refractive index
. Chromatic dispersion of the PCF can be manipulated by changing the geometrical parameters, e.g., pitch
, diameter
, and distribution of the air holes in the PCF structure. The modal birefringence
depends on the polarization-dependent effective refractive indices and is calculated by the following equation [
28]:
where
and
are effective refractive indices of two orthogonal polarization modes:
polarization and
polarization, respectively. However, the non-linearity of the PCF largely depends on the optical parameters of the core, i.e., effective mode area
. The effective area
of the core is defined as follows [
28]:
where the unit of the mode effective area is μm
2 and
is the electric field. The non-linearity
is inversely proportional to the effective mode area
[
28] and can be defined as follows:
where the unit of non-linearity is
and
is the Kerr constant of the material with a unit of
.
In PCF, the optical power is mostly confined in the core area due to the higher refractive index in contrast to the cladding, i.e., surrounding air holes. However, since there is a finite number of air holes around the core, the portion of the optical energy penetrates inevitably into the cladding area and results in confinement loss or leakage loss. The confinement loss
can be estimated by the following expression [
29]:
where the unit of the confinement loss is dB/km and
is the imaginary part of the effective refractive index
.
The amount of optical power collection in PCF is quantified by numerical aperture
, a dimensionless parameter. The expression for numerical aperture
can be given by as follows [
30]:
4. Simulation Result and Discussion
In this section, the guiding properties such as dispersion, birefringence, non-linearity, and numerical aperture of the proposed HC-PCF are investigated by changing the geometrical parameters of the microstructure.
Figure 2a,b show the field distribution of the fundamental mode of the proposed HC-PCF for both
and
polarization at wavelength of
nm respectively. The simulation results demonstrate that the electric field is strongly confined in the asymmetric core region of the HC-PCF for two orthogonal polarizations. The convergence of the simulated results is also investigated in order to determine the accuracy of the approximated solution.
Figure 2c shows that the error meets an acceptable error tolerance of
after every iteration and finally reaches to
at 16th iteration.
Figure 3 shows the chromatic dispersion properties of the proposed HC-PCF as a function of wavelength for the optimized geometrical parameters. The result shows that the dispersion values for
polarization mode are much more promising than
polarization over a broad spectral range of
nm to
nm. The dispersion coefficient is obtained around
ps/nm.km at
nm for
polarization for the optimum parameters.
We have investigated the effect on the dispersion coefficient due to changes in the geometrical parameters, i.e.,
,
, and
.

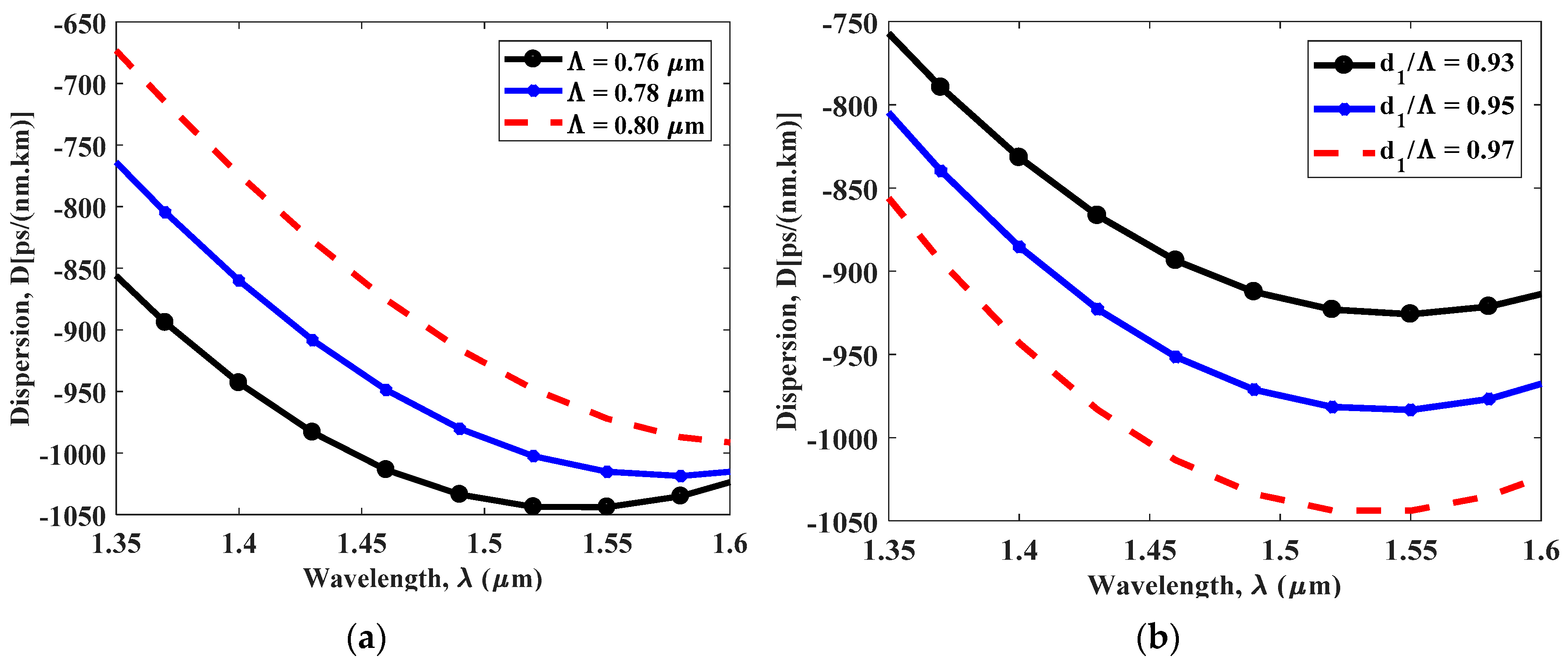

Figure 4a shows the changes in the wavelength-dependent dispersion coefficient from
nm to
nm for different values of
with fixed
and
. The dispersion coefficient has been estimated
ps/nm.km,
ps/nm.km, and
ps/nm.km when the pitch is changed to
,
, and
respectively for
nm. This is due to fact that as the pitch Λ increases (with fixed
and
) the optical field in the core region for the fundamental mode is no longer strongly confined which apparently changes the dispersion coefficient
.
The effect of the change in the diameter
on the dispersion properties of the proposed HC-PCF has been investigated.
Figure 4b shows that with a fixed Λ and
, the calculated dispersion is respectively
ps/nm.km,
ps/nm.km, and
ps/nm.km when
is changed to 0.97, 0.95, and 0.93 at
nm. This is due to fact that, as
increases with a fixed Λ, the local average refractive index around the core region decreases. Therefore, the confinement of the optical energy in the core region becomes strong which results in high negative dispersion at operating wavelength of 1550 nm. The dispersion properties have been further investigated with the variation of
of the proposed HC-PCF in
Figure 4c. It shows that with a fixed Λ and
, the dispersion of the proposed HC-PCF at
nm is about
ps/nm.km,
ps/nm.km, and
ps/nm.km when
equals
, and
respectively. The simulation result shows that the change in
causes a small change in dispersion coefficient at the excitation wavelength of
nm.
The birefringence characteristics of the proposed PCF have also been investigated.
Figure 5a reports the changes in the modal birefringence of the proposed HC-PCF as a function of wavelength for different values of the pitch Λ with fixed
and
. The difference between the effective refractive index of two polarization modes can be increased by introducing spatial asymmetry in the index profile near the core area.
Figure 5a shows that the modal birefringence of the PCF structure increases as function of wavelength from
nm to
nm. The birefringence of the HC-PCF is estimated to be
,
and
when the pitch
is changed to
μm,
μm, and
μm, respectively at
nm.
Figure 5b,c represent the effect of the
and
on the birefringence characteristics of PCF, respectively.
Figure 5b shows significant changes in the modal birefringence over the broad spectral range from
nm to
nm due to the variation in
. The simulation result clearly shows that with an increase in
, the birefringence strongly increases as a function of wavelength for fixed
and
. This is due to the fact that larger
with fixed
results in strong asymmetry in the refractive index profile. The birefringence estimated for the PCF structure are
, and
when
is changed to 0.93, 0.95, and 0.97, respectively at 1550 nm. However,
Figure 5c illustrates that the effect of the change in
on the modal birefringence is pronounced at longer wavelengths from
nm to
nm.
The optical non-linearity of the proposed structure has also been studied by changing the geometrical parameters.

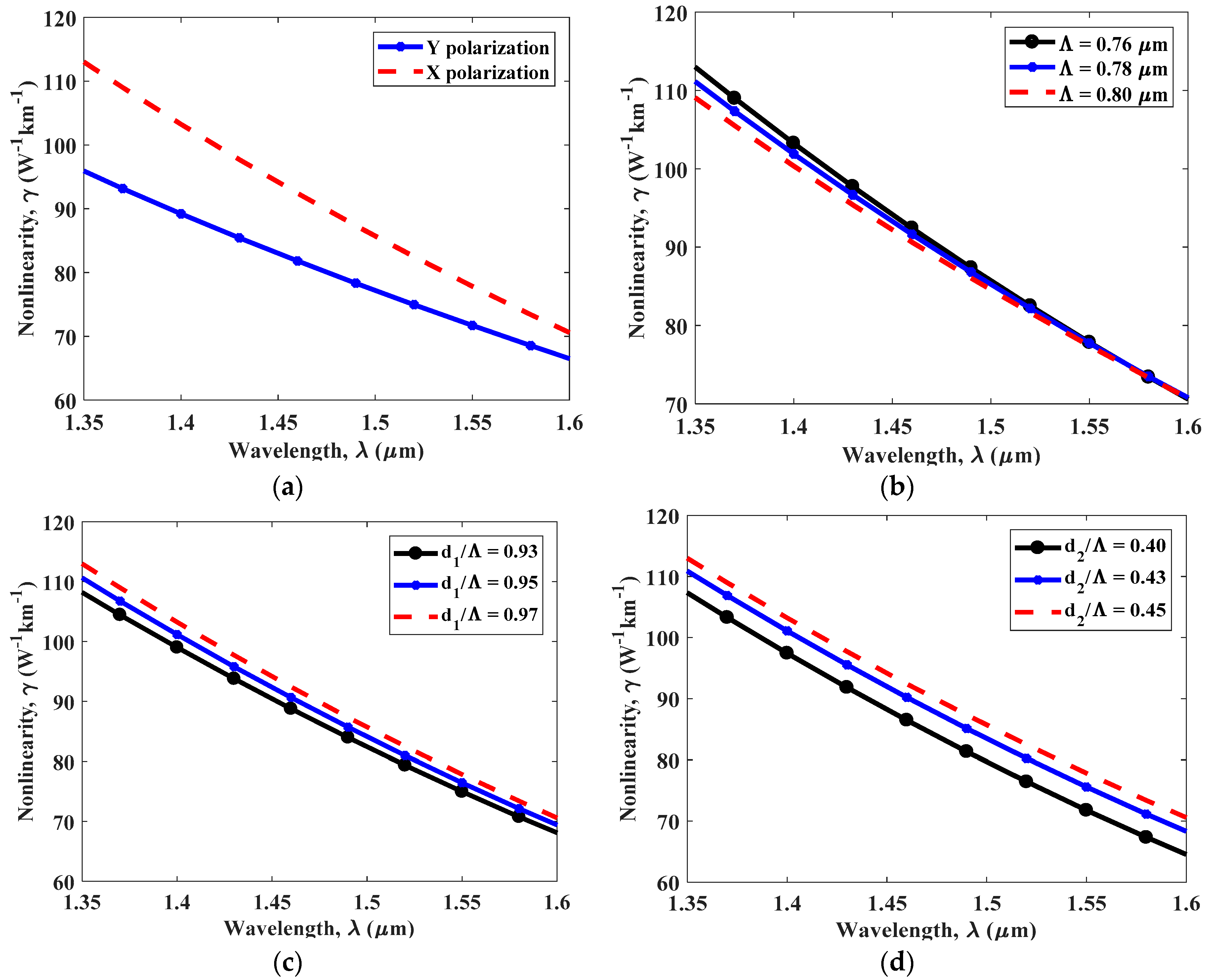

Figure 6a shows the non-linearity of the proposed HC-PCF for two orthogonal
and
polarizations. The non-linear characteristic of the proposed microstructure was strongly pronounced at higher frequencies. The optimum result for the non-linearity was obtained for
polarization and was
.
Figure 6b shows the variation in the non-linearity of the PCF with fixed diameters and changes in the pitch
. However, insignificant change in the non-linearity was observed over the wideband due to the change in the pitch.
Figure 6c,d shows the effect of changing the diameters
and
on the non-linear properties of the proposed HC-PCF. As
increased with rest of the design parameters were kept fixed, the light confined strongly in the core region and exhibited high non-linearity. The measured non-linearity for the PCF were
, and
when
was changed to 0.97, 0.95, and 0.93, respectively at
nm.
Figure 6d also reported an enhancement in the non-linear properties of the proposed HC-PCF as
increased. This is due to fact that as
increases the effective area for the fundamental mode confined in the core decreases which results in high nonlinearity.

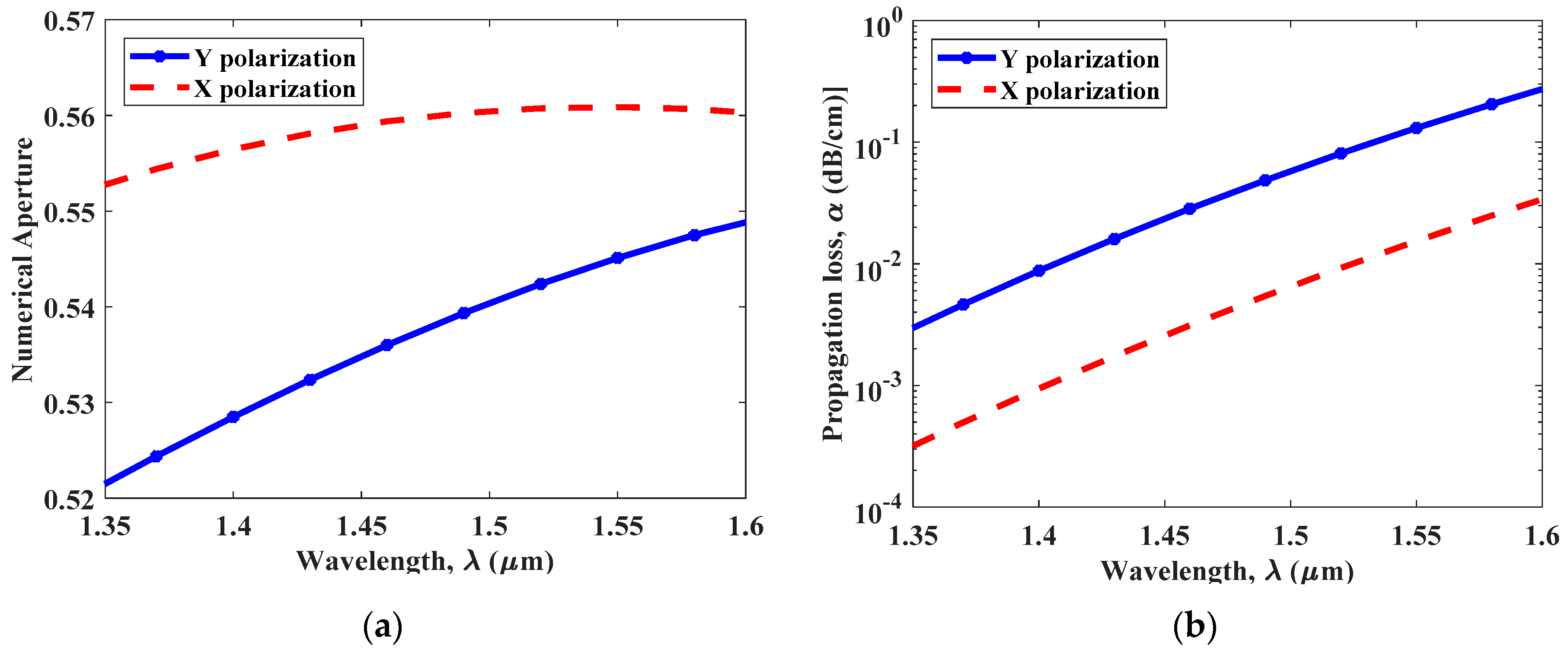

Figure 7a represents the numerical aperture of the proposed HC-PCF as function of wavelength. The highest numerical aperture is obtained for
polarization mode for the optimized geometrical parameters is about
at λ =
nm. However, the value of the numerical aperture for both polarization modes enhances proportionally with the wavelength. We also studied the confinement or leakage loss as a function of wavelength for the optimized design parameters. The confinement loss is calculated and found to be in order of
dB/cm at the operating wavelength of
nm, as shown in
Figure 7b. However, the confinement loss can be reduced significantly by increasing the number of air hole rings in the structure.
Figure 8a,b show the wavelength dependence dispersion properties and birefringence of the proposed structure for variation in the pitch from
to
. It is to be noted that for the broad spectral range from 1350 nm to 1600 nm, the chromatic dispersion for the proposed design gradually decreases, i.e., gets more negative, and birefringence increases with the increase in the wavelength. However, the change in both dispersion and birefringence due to the variation in the pitch becomes less significant at longer wavelength from 1550 nm to 1600 nm.
Furthermore, we have studied the changes in the dispersion characteristics and birefringence of the proposed structure for the variation in
from
to
.

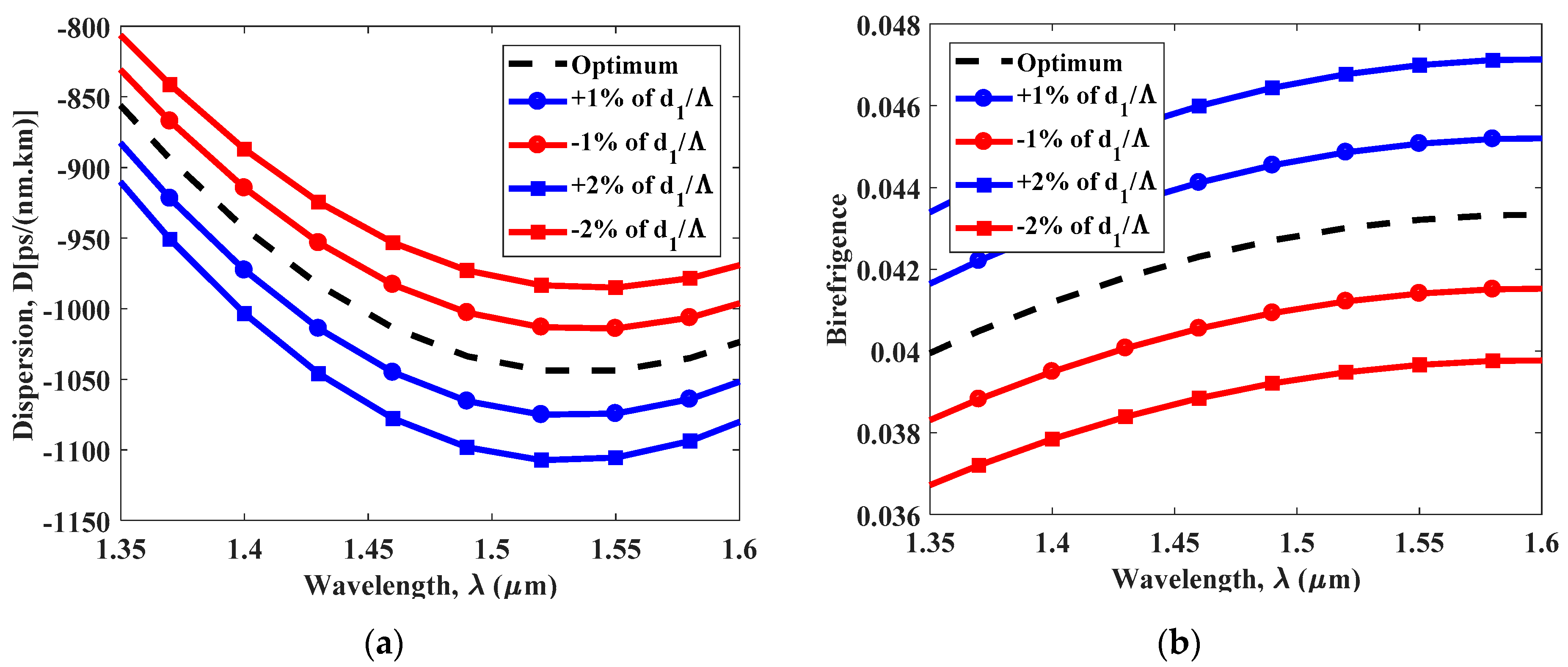

Figure 9a,b show that the change in both dispersion and birefringence characteristics due to the variation in
is relatively more pronounced than the variation of the pitch
at longer wavelength.
Finally, we have performed study on the effect on the dispersion and birefringence of the proposed HC-PCF due to the variation in
.

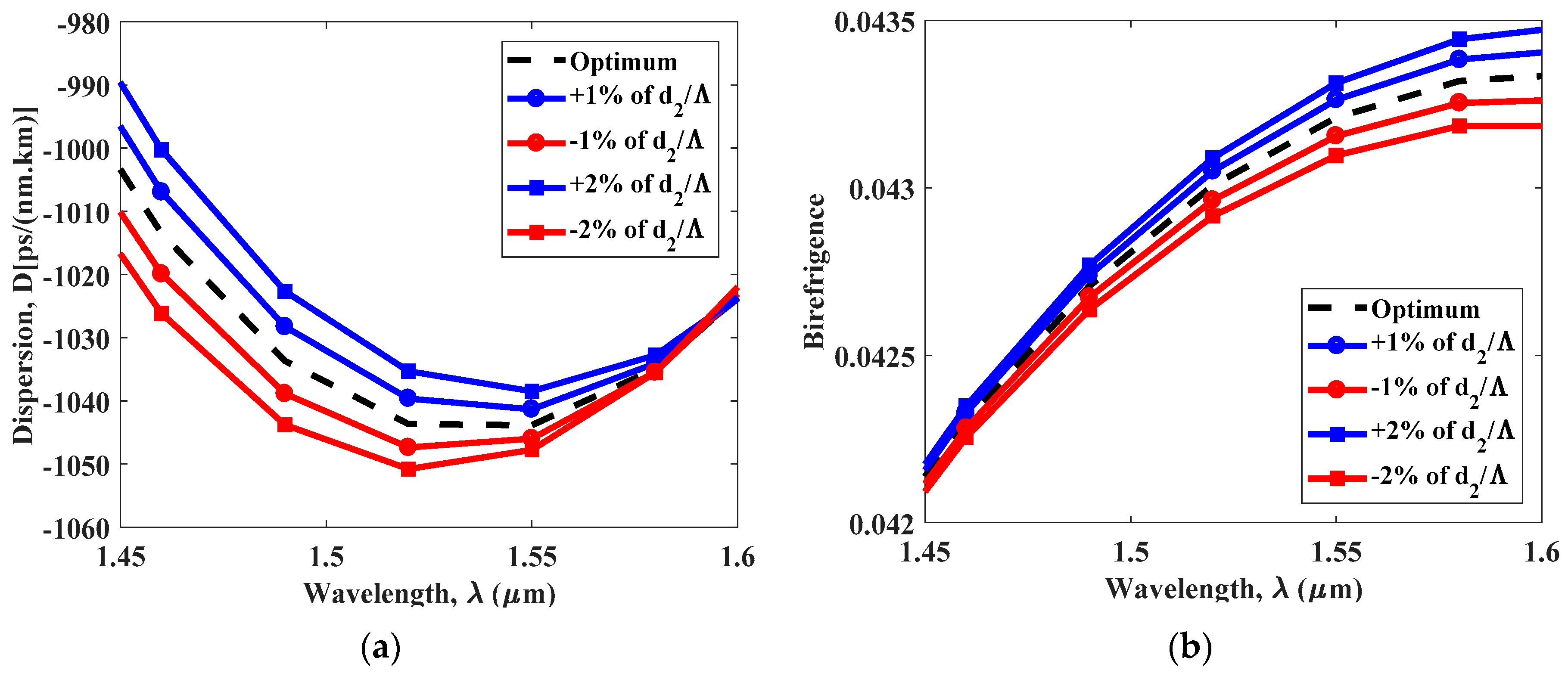

Figure 10a,b illustrate that both the optical properties of the photonics structure changes as function of wavelength. As the wavelength increases the dispersion coefficient becomes more negative and birefringence of the proposed structure enhances gradually and very much distinguishable over the wide band. However, the result indicates that change in
leads to smaller variation in the dispersion coefficient and birefringence compared to change in
.
The modal properties of the proposed modified HC-PCF were compared with the contemporary PCF designs in
Table 1. The comparisons are discussed in terms of chromatic dispersion and birefringence at the operating wavelength of
nm for different shapes of the air hole in the PCF structure.
Table 1 shows that the highest dispersion coefficient was achieved in Reference [
31] which involves both circular and elliptical air holes in the PCF structure and makes the fabrication process challenging. Our modified HC-PCF only involves circular air holes and shows highest dispersion coefficient at
nm among all the circular PCF designs. It is also clearly evident from the table that the proposed HC-PCF achieves the highest birefringence among all circular and non-circular PCF designs. One of the primary goals of our design is to ensure the feasibility of the fabrication process. There are few techniques which can be employed to fabricate PCF design such as conventional drilling, stack and draw method [
25,
32], and sol-gel casting [
33]. The shape of the core along with the refractive index profile of the cladding can easily be controlled using stack and draw method [
32]. Sol-gel casting allows a broad range of design flexibility which can be employed to fabricate PCF at a large scale. Fabrication of several complex structures of PCFs using straw and draw methods and sol-gel techniques have been reported in References [
33,
34]. Since our proposed design only involves circular air holes in the core and cladding region, both of these fabrication techniques can be used to manufacture the proposed PCF structure which will be comparatively easier than the PCFs which contain non-circular air holes.
