Evolution of Spatiotemporal Intensity of Partially Coherent Pulsed Beams with Spatial Cosine-Gaussian and Temporal Laguerre–Gaussian Correlations in Still, Pure Water

Abstract

A new family of partially coherent pulsed beams with spatial cosine-Gaussian and temporal Laguerre–Gaussian correlations, named spatial cosine-Gaussian and temporal Laguerre–Gaussian correlated Schell-model (SCTLGSM) pulsed beams, is introduced. An analytic propagation formula is derived for the SCTLGSM pulsed beam through the spatiotemporal ABCD optical system characterizing a continuous dispersive medium. As an example, the evolution of spatiotemporal intensity of the SCTLGSM pulsed beam in a still, pure water column is then investigated. It is found that the SCTLGSM pulsed beams simultaneously exhibit spatiotemporal self-splitting and self-focusing phenomena, which can be attributed to the special spatial/temporal coherence structures and the presence of pulse chirper in the source plane. The physical interpretation of the obtained phenomena is given. The results obtained in this paper will be of interest in underwater optical technologies, e.g., directed energy and communications.

1. Introduction

In the past few years, a great deal of attention has been paid to partially coherent beams radiated by sources with non-Gaussian correlation functions [1,2,3,4,5,6,7,8,9]. This is due to a variety of extraordinary features that these beams exhibit on free-space propagation, such as self-splitting [10,11,12], self-focusing [13], self-steering [14], and useful shapes they acquire in the far field: flat-tops [15], rings [7,16], rectangles [17], grids [18], and dark-hollow intensity profiles [19]. These new properties have already stimulated new applications in optical particle trapping, free-space optical communications [20], classic imaging [21] and remote sensing [22]. It was also recently revealed that partially coherent sources with complex coherence states (non-trivial phase distributions) can be used for fine directional control of the produced far-field spectral density and polarization distributions [23,24].

All of the aforementioned investigations are confined to statistically stationary light sources/beams in the spatial domain. More recently, non-stationary optical pulses, i.e., those with partial temporal/spectral and spatial coherence states were introduced [25,26,27,28]. Such pulses are envisioned to benefit applications in pulse shaping, laser micromachining, medical diagnosis, ghost imaging, etc. Conventionally, in time domain, a partially coherent light pulse was characterized by Schell model with a temporal Gaussian correlation function. In 2013, Lajunen et al. introduced the non-uniformly partially coherent pulse sources, i.e., sources with a non-Gaussian correlation function [29]. The generated pulsed beams were shown to lead to self-focusing upon propagation in time domain. Subsequently, other models for partially coherent pulsed sources were developed [30,31,32,33,34] to illustrate temporal self-splitting, multispot self-focusing and formation of flat far-fields, among other effects. Partially coherent pulses with the structured phase of the correlation function were also recently studied to demonstrate the control in the average pulse arrival time [35]. However, investigations in [27,28,29,30,31,32,33,34,35,36] were solely confined to the time domain while spatial pulse profiles were assumed to be constant. The non-stationary pulses can be realized experimentally. A stationary, spatially partially coherent beam with a prescribed profile of the coherence function can be first realized with the help of a spatial light modulator or Fourier optics 2f system [12]. Then the spatial correlation can be converted to temporal correlation with the direct space-to-time pulse shaper [37].

Thus, an interesting question arises: what new phenomena can one observe on propagation of partially coherent pulsed beams radiated from sources having non-Gaussian, and in general different, profiles in temporal and spatial correlation functions at the same time? In fact, partially coherent pulses with both spatial and temporal/spectral structured correlations were already considered [38,39] but the analysis relied on Gaussian distributions alone. It would be interesting to consider non-Gaussian but analytically tractable models for the spatial and temporal partial coherence.

In this paper, we choose a combination of the cosine-Gaussian Schell model for the spatial correlations and the Laguerre–Gaussian correlated Schell-model for the temporal ones. Each of these two types of partial coherence was studied separately in the literature. The cosine-Gaussian Schell model for the spatial correlations was studied both theoretically [10] and experimentally [12] and it was demonstrated that the initially Gaussian intensity distribution changes to the dark-hollow distribution and remains shape-invariant in the far field. It was shown also that this model is much simpler for analytical treatment compared to other non-Gaussian models. The Laguerre–Gaussian correlated Schell-model for the temporal correlations was studied theoretically [31] and it was found that it exhibits temporal self-splitting into n + 1 lobes upon propagation in a dispersive medium, where n is the order of the Laguerre polynomial. A potentially high number of lobes distinguishes this model from the alternative ones, which may be attractive for some applications. Thus, we introduce a new family of spatially and temporally partially coherent pulsed beams with spatial cosine-Gaussian and temporal Laguerre–Gaussian correlations, named SCTLGSM pulses. The mathematical consistency and physical feasibility of such beams are briefly discussed in the Appendix A. We then explore the evolution of the spatiotemporal intensity of a typical SCTLGSM pulsed beam through an ABCD optical system describing a diffractive and a dispersive medium, generalizing the particular media considered in Refs. [10,12,31]. Using the second-order optical coherence theory of the non-stationary optical fields, we derive, in Section 2, the analytical expressions for the spatiotemporal intensity of the SCTLGSM pulsed beams passing through the ABCD optical systems. In Section 3, the detailed numerical results regarding the SCTLGSM pulse evolution are presented and the corresponding physical interpretations are given. In Section 4, the main results obtained in this paper are summarized. The self-splitting/self-focusing of a non-stationary pulse in the temporal and spatial domains can be potentially used in optical communication systems operating in dispersive environments, e.g., underwater, for information encoding. This phenomenon can also be applied in temporal ghost imaging [40,41] and optical coherence tomography [42] for obtaining the pulse replicas that can be used for further manipulation of imaged/sensed fields.

2. Theory and Method

In the space–time domain, the second-order correlation properties of a partially coherent pulsed beam are described by the mutual coherence function (MCF) [39,43,44]. Let for the SCTLGSM pulsed beam, the mutual coherence function at the source plane z = 0 be defined as

$${\mathsf{\Gamma }}_0({\mathit{\rho }}_1,{\tau }_1;{\mathit{\rho }}_2,{\tau }_2)=S({\mathit{\rho }}_1,{\mathit{\rho }}_2)T({\tau }_1,{\tau }_2)$$

(1)

where S and T characterize the spatial and the temporal parts, respectively:

$$\begin{array}{ll}S({\mathit{\rho }}_1,{\mathit{\rho }}_2)& =\exp \left(-\frac{{\mathit{\rho }}_1^2+{\mathit{\rho }}_2^2}{4w_0^2}\right)\exp \left[-\frac{{({x^{\prime }}_2-{x^{\prime }}_1)}^2}{2{\delta }_{}^2}\right]\cos \left[\frac{m\sqrt{2\pi }({x^{\prime }}_2-{x^{\prime }}_1)}{\delta }\right]\\ & \times \exp \left[-\frac{{({y^{\prime }}_2-{y^{\prime }}_1)}^2}{2{\delta }_{}^2}\right]\cos \left[\frac{m\sqrt{2\pi }({y^{\prime }}_2-y^{\prime })}{\delta }\right],\end{array}$$

(2)

$$T({\tau }_1,{\tau }_2)=\exp \left(-\frac{{\tau }_1^2+{\tau }_2^2}{T_0^2}\right)\exp \left[-\frac{{({\tau }_2^{}-{\tau }_1^{})}^2}{2T_c^2}\right]L_n\left[\frac{{({\tau }_2^{}-{\tau }_1^{})}^2}{T_c^2}\right]\exp \left[-i{\omega }_0({\tau }_2^{}-{\tau }_1^{})\right]$$

(3)

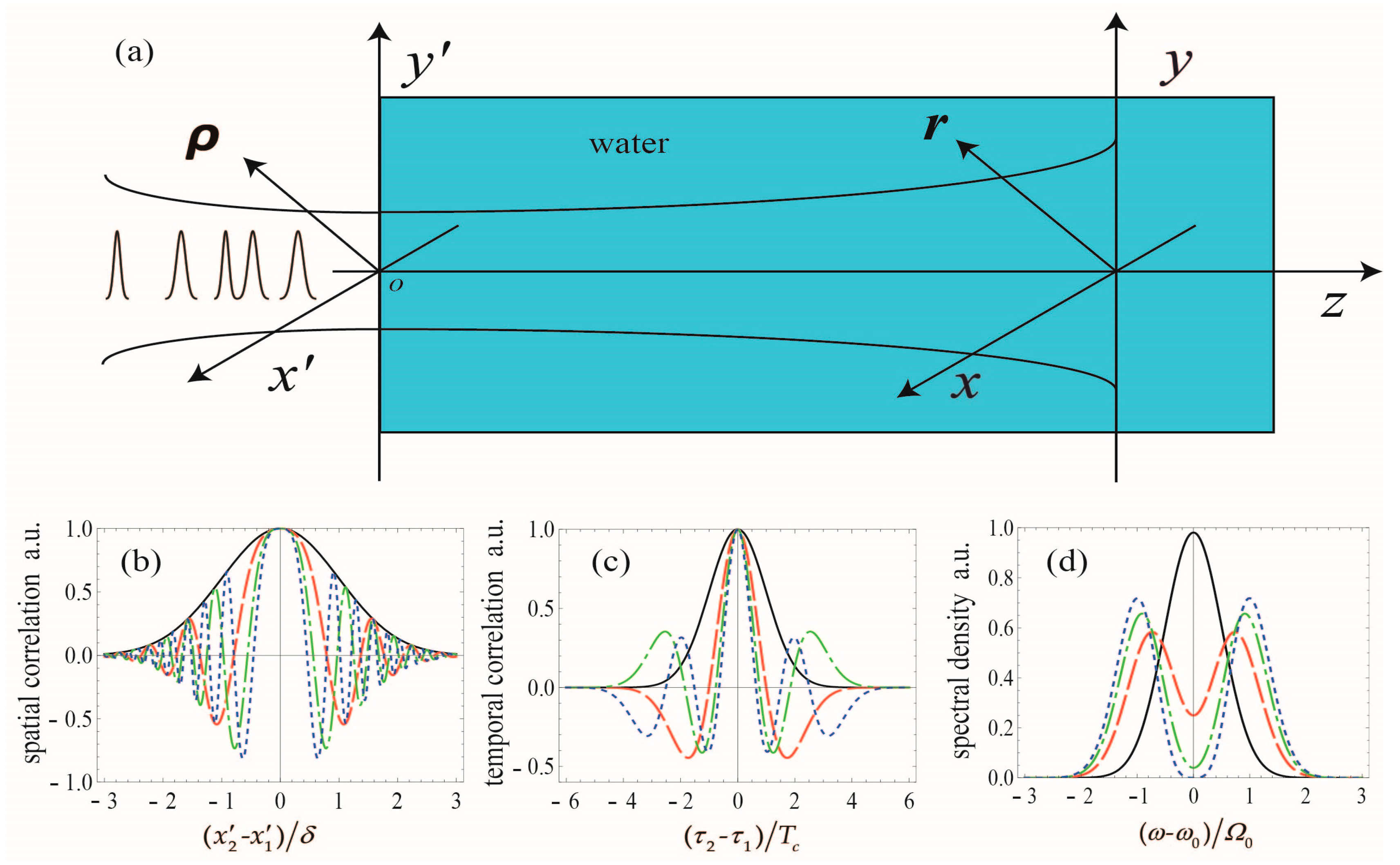

Here ${\mathit{\rho }}_1=({x^{\prime }}_1,{y^{\prime }}_1)$ and ${\mathit{\rho }}_2=({x^{\prime }}_2,{y^{\prime }}_2)$ are the two-dimensional transverse position vectors, τ₁ and τ₂ are two time instants, cos(•) is the cosine function, and m is the beam order parameter. Further, L_n(•) denotes the Laguerre polynomial of mode order n, ω₀ is the pulse’s carrier frequency, while w₀ and δ denote the r.m.s. spatial beam width and the r.m.s. beam transverse coherence width, respectively. T₀ and T_c represent the pulse duration and the temporal coherence length, respectively. The pulsed beam expressed by Equation (1) is therefore the spatial cosine-Gaussian and temporal Laguerre–Gaussian correlated Schell-model (SCTLGSM) pulsed beam. The SCTLGSM pulsed beam reduces to the conventional Gaussian Schell-model (GSM) pulsed beam when m = 0 and n = 0. For m ≠ 0 and n ≠ 0, the spatial and the temporal coherence parts of the mutual coherence function are modulated by the cosine function and the Laguerre function, respectively. The details of the model can be found in the Appendix A.

We will now consider propagation of the SCTLGSM pulsed beam in the spatiotemporal domain by means of the extended Collins formula, under the paraxial approximation. We consider an additional linear chirp s imposed on the pulse before it enters the dispersive medium [45]. This chirp is described by the factor $\exp \left(i{\tau }^{2}s/2\right)$ in the field amplitude, can be realized by an amplitude modulator, and results in pulse compression upon propagation in a dispersive medium in the case of Gaussian Schell model [26]. A similar effect is expected for the SCTLGSM pulsed beam. Adopting the ABCD characterization of the optical system embedded in a dispersive medium in the absence of spatiotemporal coupling, we employ the following integral formula [46,47]

$$\begin{array}{ll}{\mathsf{\Gamma }}_{}({\mathit{r}}_1,{\mathit{r}}_2,t_1,t_2,z)& ={\left[\frac{k({\omega }_0)}{2\pi B_S}\right]}^2\frac{{\omega }_0}{2\pi B_T}{\displaystyle \int {\displaystyle \int {\displaystyle \int {\displaystyle {\int }_{-\infty }^{\infty }{\mathsf{\Gamma }}_0({\mathit{\rho }}_1,{\tau }_1;{\mathit{\rho }}_2,{\tau }_2)}}}}\\ & \times \exp \left\{-\frac{ik({\omega }_0)}{2B_S}\left[A_S({\mathit{\rho }}_1^2-{\mathit{\rho }}_2^2)-2({\mathit{\rho }}_1\cdot {\mathit{r}}_1-{\mathit{\rho }}_2\cdot {\mathit{r}}_2)+D_S({\mathit{r}}_1^2-{\mathit{r}}_2^2)\right]\right\}{d}^2{\mathit{\rho }}_1{d}^2{\mathit{\rho }}_2\\ & \times \exp \left\{-\frac{i{\omega }_0}{2B_T}\left[A_T({\tau }_1^2-{\tau }_2^2)-2({\tau }_1{t}_1-{\tau }_2{t}_2)+D_T(t_1^2-t_2^2)\right]\right\}d{\tau }_{1}d{\tau }_2.\end{array}$$

(4)

here k(ω₀) = n(ω₀)ω₀/c denotes the wave number, in which n(ω₀) is the refractive index of the medium at carrier frequency ω₀, c is the speed of light in vacuum, r₁ = (x₁, y₁) and r₂ = (x₂, y₂) are position vectors in any plane z > 0 and t₁ and t₂ are two time instants of the pulse profile. Further, A_S, B_S and D_S are the transfer matrix elements of the optical system in the spatial domain [48], while A_T, B_T and D_T are those in the temporal domain [45].

On substituting from Equations (1)–(3) into Equation (4), one can derive the following simplified expression

$${\mathsf{\Gamma }}_{}({\mathit{r}}_1,{\mathit{r}}_2,t_1,t_2,z)=H_S^{}({\mathit{r}}_1,{\mathit{r}}_2,z)H_T^{}(t_1,t_2,z),$$

(5)

where

$$\begin{array}{ll}{H}_S^{}({\mathit{r}}_1,{\mathit{r}}_2,z)& ={\left[\frac{k({\omega }_0)}{2\pi B_S}\right]}^2{\displaystyle \int {\displaystyle {\int }_{-\infty }^{\infty }S({\mathit{\rho }}_1,{\mathit{\rho }}_2)}}\\ & \times \exp \left\{-\frac{ik({\omega }_0)}{2B_S}\left[A_S({\mathit{\rho }}_1^2-{\mathit{\rho }}_2^2)-2({\mathit{\rho }}_1\cdot {\mathit{r}}_1-{\mathit{\rho }}_2\cdot {\mathit{r}}_2)+D_S({\mathit{r}}_1^2-{\mathit{r}}_2^2)\right]\right\}{d}^2{\mathit{\rho }}_1{d}^2{\mathit{\rho }}_2,\end{array}$$

(6)

$$H_T^{}(t_1,t_2,z)=\frac{{\omega }_0}{2\pi B_T}{\displaystyle \int {\displaystyle {\int }_{-\infty }^{\infty }T({\tau }_1,{\tau }_2)}}\exp \left\{-\frac{i{\omega }_0}{2B_T}\left[A_T({\tau }_1^2-{\tau }_2^2)-2({\tau }_1{t}_1-{\tau }_2{t}_2)+D_T(t_1^2-t_2^2)\right]\right\}d{\tau }_{1}d{\tau }_2.$$

(7)

After tedious calculation, one can obtain the following expression, for the spatial domain:

$$H_S^{}({\mathit{r}}_1,{\mathit{r}}_2,z)=H_S^{}(x_1,x_2,z)H_S^{}(y_1,y_2,z)$$

(8)

where

$$\begin{array}{ll}{H}_S^{}({\alpha }_1,{\alpha }_2,z)& =\frac{1}{\Delta }\exp \left(-\frac{2\pi m^2{B}_S^2}{2k^2{\delta }^2{w}_0^2{\Delta }^2}+\frac{ik{\alpha }_s{\alpha }_d}{R}\right)\\ & \times \exp \left[-\frac{1}{2{\Delta }^2}\left(\frac{{\alpha }_s^2}{w_0^2}+\frac{{\alpha }_d^2}{Q^2}\right)\right]\cosh \left[\frac{\sqrt{2\pi }m}{\delta {\Delta }^2}\left(\frac{B_S{\alpha }_s}{k{w}_0^2}-i{A}_s{\alpha }_d\right)\right], \end{array}$$

(9)

and

$${\alpha }_s=({\alpha }_1+{\alpha }_2)/2,{\alpha }_d={\alpha }_2-{\alpha }_1,(\alpha =x,y),$$

(10)

$$Q={\left(\frac{1}{4w_0^2}+\frac{1}{{\delta }^2}\right)}^{-\frac{1}{2}},$$

(11)

$$\Delta =\sqrt{A_S^2+{\left(\frac{B_S}{k{w}_{0}Q}\right)}^2},$$

(12)

$$R=\frac{B_S{\left(\frac{B_{\mathrm{S}}}{k{w}_{0}Q}\right)}^2+A_S^2{B}_S}{D_S{\left(\frac{B_S}{k{w}_{0}Q}\right)}^2+A_S\left(A_S{D}_S-1\right)},$$

(13)

with the spatial ABCD matrix in the form

$$\left(\begin{array}{cc}{A}_S& B_S\\ C_S& D_S\end{array}\right)=\left(\begin{array}{cc}1& z\\ 0& 1\end{array}\right).$$

(14)

On the other hand, in the temporal domain, one can obtain the expression

$$H_T^{}(t_1,t_2,z)=\frac{{\omega }_0{T}_0}{2\sqrt{2}{B}_T}\exp \left(\frac{i{\omega }_0{D}_T}{B_T}\overline{t}\cdot t_d\right)\exp \left(-\frac{T_0^2{\omega }_0^2}{8B_T^2}{t}_d^2\right)\exp \left(-\frac{b^2}{4a}\right){\displaystyle \sum _{q=0}^n\left(\begin{array}{c}n\\ q\end{array}\right)}\frac{H_{2q}(b/2\sqrt{a})}{q!{(2T_c)}^{2q}{a}^{q+1/2}},$$

(15)

where H_2q is Hermite polynomial of order 2q, and

$$\overline{t}=(t_1+t_2)/2,t_d=t_2-t_1,$$

(16)

$$a=\frac{1}{2T_0^2}+\frac{1}{2T_c^2}+\frac{A_T^2{T}_0^2{\omega }_0^2}{8B_T^2},$$

(17)

$$b=\frac{{\omega }_0}{B_T}\overline{t}+i\frac{A_T{T}_0^2{\omega }_0^2}{4B_T^2}{t}_d,$$

(18)

with the temporal ABCD matrix given by expression

$$\left(\begin{array}{cc}{A}_T& B_T\\ C_T& D_T\end{array}\right)=\left(\begin{array}{cc}1+s{\beta }_{2}z& {\omega }_0{\beta }_{2}z\\ s/{\omega }_0& 1\end{array}\right).$$

(19)

Here we assume that the refractive index of the dispersive medium is given by expression n(ω) = n_aω + n_b, where n_a = β₂c and n_b = c/v_g − 2β₂ω₀c. Here β₂ denotes the group velocity dispersion and v_g is the group velocity of the pulse [49]. Furthermore, the time coordinate is a retarded time with respect to a frame moving with group velocity v_g and s is the chirp coefficient of the pulse.

Let r₁ = r₂ = r and t₁ = t₂ = t in Equations (8) and (15), respectively. Then the spatiotemporal intensity of the SCTLGSM pulsed beam becomes

$$\begin{array}{ll}I(\mathit{r},t,z)& ={\mathsf{\Gamma }}_{}(\mathit{r},\mathit{r},t,t,z)=H_S^{}(\mathit{r},\mathit{r},z)H_T^{}(t,t,z)\\ & =\frac{1}{{\Delta }^2}\exp \left(-\frac{2\pi m^2{B}_S^2}{k^2{\delta }^2{w}_0^2{\Delta }^2}\right)\exp \left[-\frac{1}{2{\Delta }^2}\left(\frac{x_{}^2+y_{}^2}{w_0^2}\right)\right]\\ & \times \cosh \left[\frac{\sqrt{2\pi }m}{\delta {\Delta }^2}\left(\frac{B_{S}x}{k{w}_0^2}\right)\right]\cosh \left[\frac{\sqrt{2\pi }m}{\delta {\Delta }^2}\left(\frac{B_{S}y}{k{w}_0^2}\right)\right]\\ & \times \frac{{\omega }_0{T}_0}{2\sqrt{2}{B}_T}\exp \left(-\frac{{\omega }_0^2}{4a{B}_T^2}{t}^2\right){\displaystyle \sum _{q=0}^n\left(\begin{array}{c}n\\ q\end{array}\right)}\frac{H_{2q}({\omega }_{0}t/2\sqrt{a}{B}_T)}{q!{(2T_c)}^{2q}{a}^{q+1/2}},\end{array}$$

(20)

where cosh(•) is the hyperbolic cosine function. Equation (20) is the main formula derived in this paper. It can be used to investigate the spatiotemporal intensity evolution of the SCTLGSM pulsed beams in any diffractive and dispersive medium.

3. Spatiotemporal Intensity Evolution of the SCTLGSM Pulsed Beams in Water

In this section, the interaction of the SCTLGSM pulsed beams in a column of still, pure water is examined by means of numerical examples. The group velocity refractive index of water at 20 °C and the standard atmospheric pressure is n_g = c/v_g = 1.3591 and its group velocity dispersion coefficient is β₂ = 58.174 ps²km⁻¹ [50]. In the following calculation, the pulses’ and medium’s parameters are chosen to be w₀ = 2 mm, σ = 2 mm, T₀ = 4 ps, T_c = 2 ps, ω₀ = 3.667 rad/fs (λ₀ = 514 nm [51]), unless different values are specified. Because of still water absorption [52] the propagation distances will be limited to 100 m throughout the text.

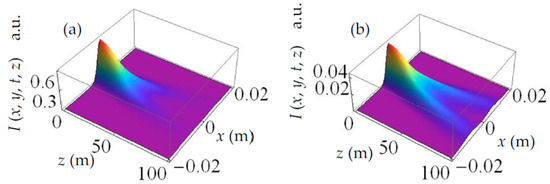

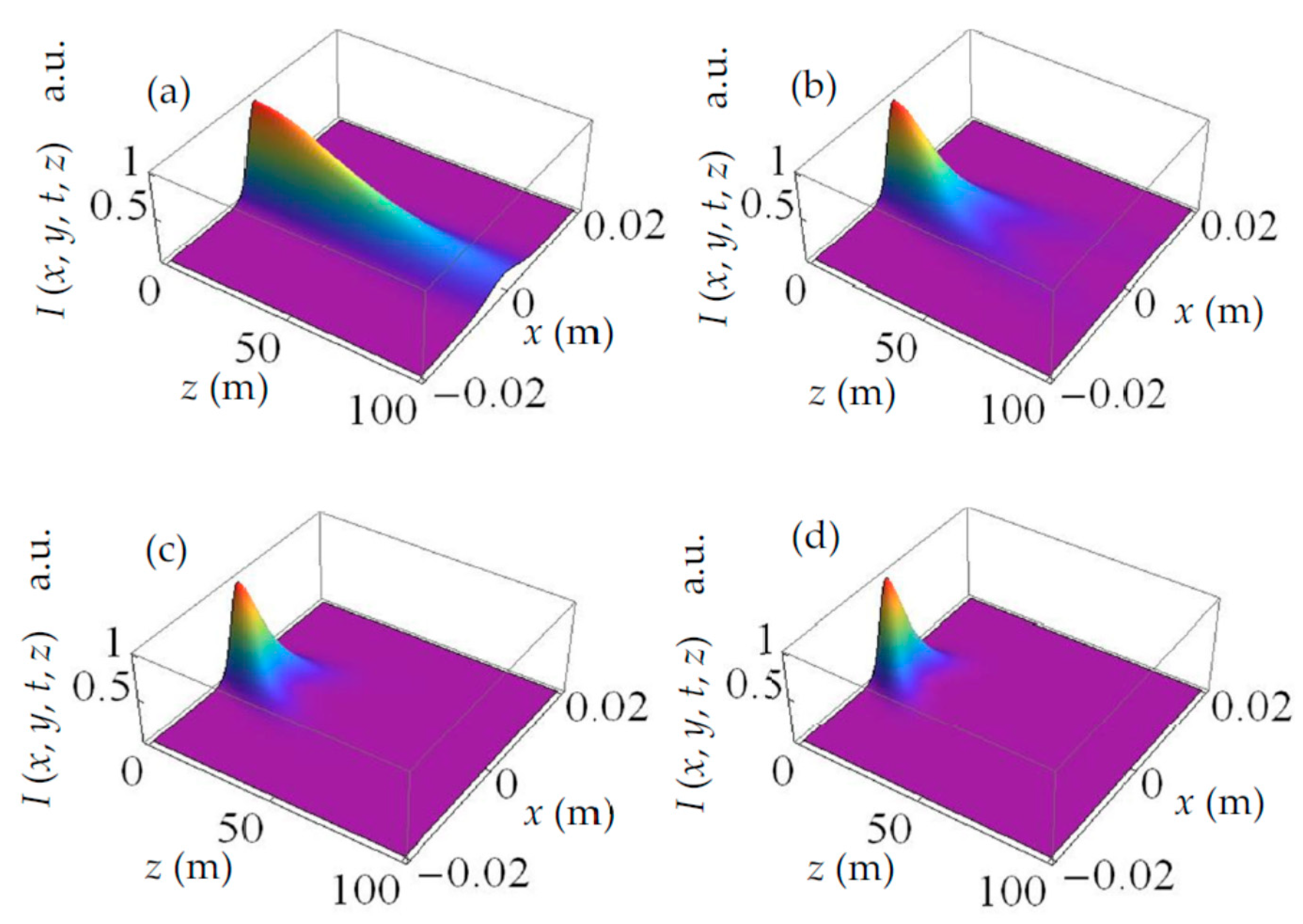

Figure 1a–d shows the evolution of the spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam as a function of propagation distance z and horizontal coordinate x with different beam orders, m = 0, 1, 2 and 3. The other values of parameters are y = 0, t = 0, s =0 and n = 0. Figure 2a,b shows the same as Figure 1 but at different time instants t = 2 ps, 5 ps, and for m = 1. As can be seen, beam order plays an important role in the spatial splitting of the SCTLGSM pulsed beam. Of course, for the GSM pulsed beam (m = 0), there is no beam splitting upon propagation. However, for m = 1, the beam splits into two sub-beams when the propagation distance z exceeds 30 m. For larger beam orders (see m = 2 and m = 3), the starting point of the split moves closer to the source plane z = 0. Note that time t has no impact on the beam splitting position. For larger time instants t, the spatiotemporal intensity is gradually reduced (see t = 2 ps and 5 ps in Figure 2). These results can be interpreted physically as follows. Equation (20) can be expressed as

$$\begin{array}{ll}I(\mathit{r},t,z)& =\frac{1}{4{\Delta }^2}\left\{\exp \left[-\frac{1}{2{\Delta }^2{w}_0^2}{\left(x-\frac{\sqrt{2\pi }m{B}_S}{\delta k}\right)}^2\right]+\exp \left[-\frac{1}{2{\Delta }^2{w}_0^2}{\left(x+\frac{\sqrt{2\pi }m{B}_S}{\delta k}\right)}^2\right]\right\}\\ & \times \left\{\exp \left[-\frac{1}{2{\Delta }^2{w}_0^2}{\left(y-\frac{\sqrt{2\pi }m{B}_S}{\delta k}\right)}^2\right]+\exp \left[-\frac{1}{2{\Delta }^2{w}_0^2}{\left(y+\frac{\sqrt{2\pi }m{B}_S}{\delta k}\right)}^2\right]\right\}\\ & \times \frac{{\omega }_0{T}_0}{2\sqrt{2}{B}_T}\exp \left(-\frac{{\omega }_0^2}{4a{B}_T^2}{t}^2\right){\displaystyle \sum _{q=0}^n\left(\begin{array}{c}n\\ q\end{array}\right)}\frac{H_{2q}({\omega }_{0}t/2\sqrt{a}{B}_T)}{q!{(2T_c)}^{2q}{a}^{q+1/2}}.\end{array}$$

(21)

Further, when y = 0, t = 0 and n = 0, Equation (21) can be expressed as

$$\begin{array}{ll}I(\mathit{r},t,z)& =\frac{1}{2{\Delta }^2}\exp \left(-\frac{\pi m^2{z}_{}^2}{k^2{\delta }^2{w}_0^2{\Delta }^2}\right)\frac{{\omega }_0{T}_0}{2\sqrt{2a}{B}_T}\\ & \times \left\{\exp \left[-\frac{1}{2{\Delta }^2{w}_0^2}{\left(x-\frac{\sqrt{2\pi }mz}{\delta k}\right)}^2\right]+\exp \left[-\frac{1}{2{\Delta }^2{w}_0^2}{\left(x+\frac{\sqrt{2\pi }mz}{\delta k}\right)}^2\right]\right\}.\end{array}$$

(22)

It can be seen from Equation (22) that the spatiotemporal intensity I(x, y, t, z) is a superposition of two exponential functions symmetric with respect to the coordinate axis x = 0. When the propagation distance z is short, the two exponential functions are similar, hence the two beams cannot be distinguished. However, when z grows large enough, the two beams become visibly different. Further, when beam order m increases, the position where the beam starts to split moves closer to the source plane z = 0. Moreover, when t ≠ 0, the decrease of the spatiotemporal intensity is attributed to the last exponential function in Equation (21), which plays an important role in determining the value of spatiotemporal intensity.

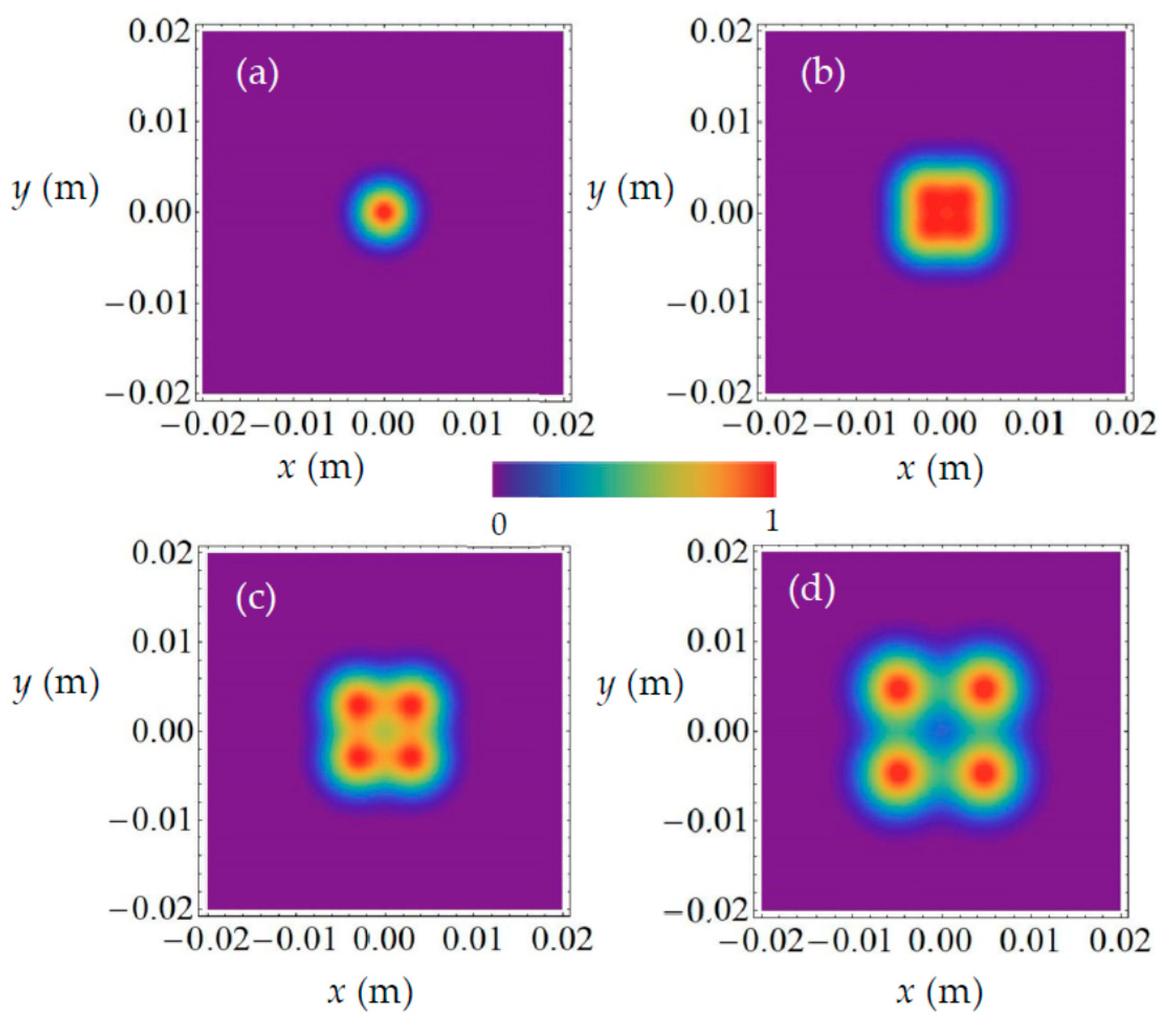

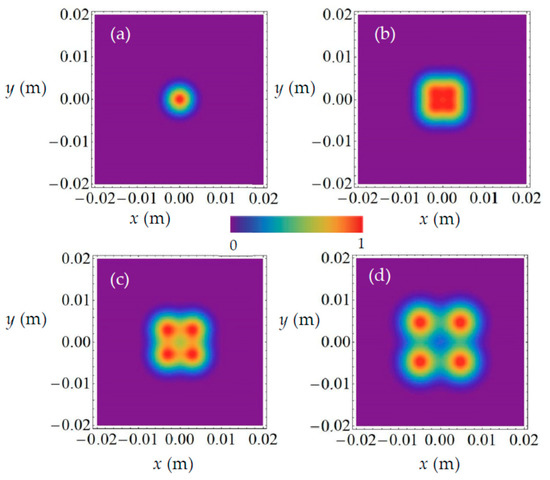

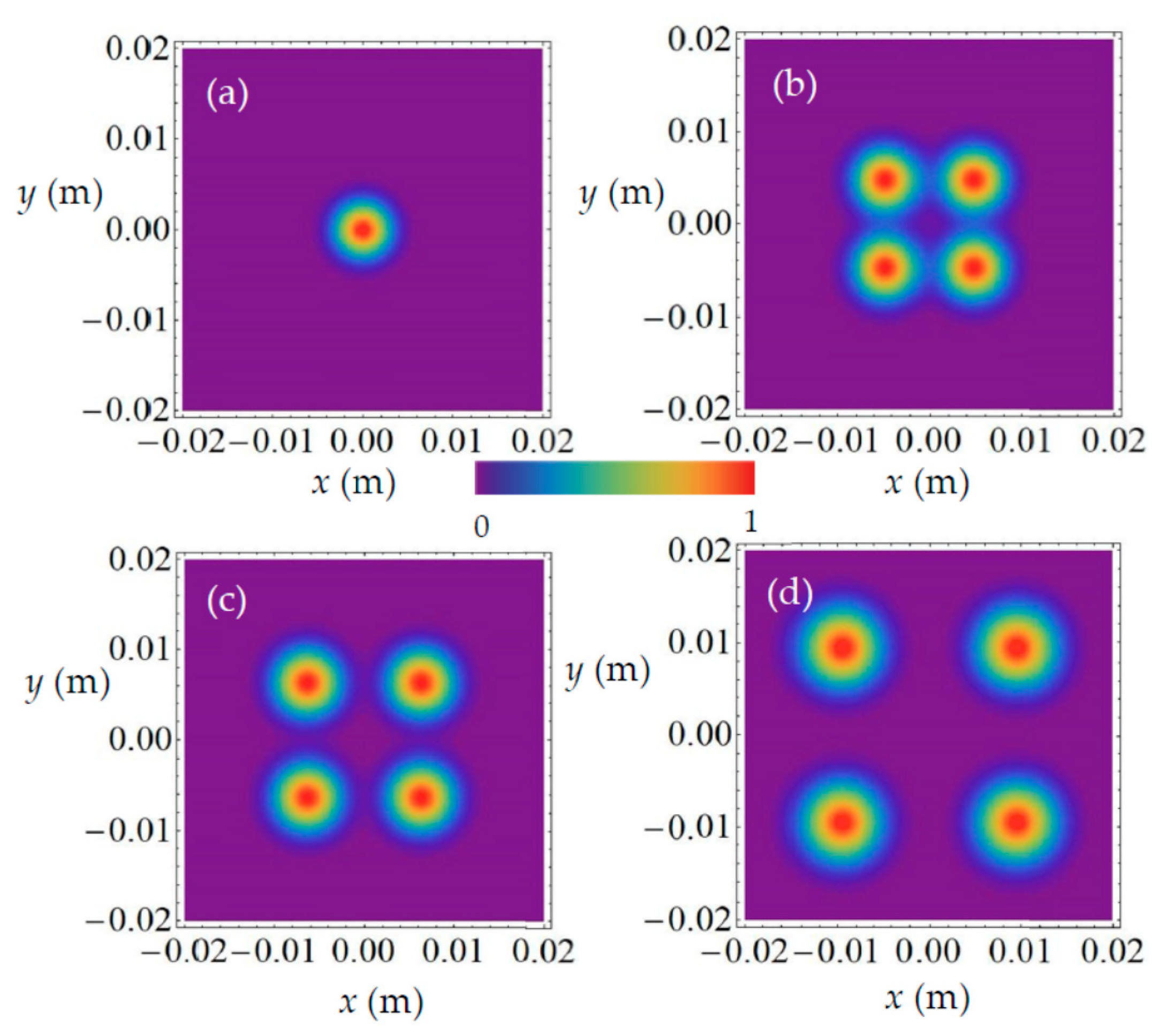

Figure 3 and Figure 4 show the density plots for the normalized spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam in the x–y plane at some propagation distances z = 0, 30 m, 40 m, 60 m and for m = 1 (Figure 3) and m = 2 (Figure 4), respectively. The other values of parameters are t = 0, s = 0 and n = 0. It is shown that the SCTLGSM pulsed beam exhibits self-splitting properties upon propagation in water, i.e., the initial beam spot evolves into four sub-beam spots in the far field depending on the value of beam order m. For larger m, the self-splitting time is smaller. These results can be explained from the Equation (22). When m increases, coefficient (2π)^1/2m/δk of z in the exponential function increases as well. Hence, the rate of change in the spatiotemporal intensity increases with the increasing propagation distance.

Figure 5 illustrates the evolution of the spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam as a function of propagation distance z and time t, with different beam orders n = 0, 1, 2 and 3. The other calculation parameters are x = 0, y = 0, s = −0.4ps⁻² and m = 0. One can see from Figure 5 that the beam exhibits self-splitting behavior when n > 0. Specifically, the beam splits into n + 1 sub-beams with increasing propagation distance z, being in good agreement with the results of the Laguerre–Gaussian Schell-model pulsed beam in time domain [31]. While for n = 0, i.e., for the conventional Gaussian-correlated Schell-model pulsed beam, there is no self-splitting upon propagation. These results can be interpreted as follows. For n = 0, the last term of Equation (21) can be re-expressed as

$$I_{n=0}=\frac{{\omega }_0{T}_0}{2\sqrt{2a}{B}_T}\exp \left(-\frac{{\omega }_0^2}{4a{B}_T^2}{t}^2\right),$$

(23)

while for n=1,

$$I_{n=1}=\frac{{\omega }_0{T}_0}{2\sqrt{2a}{B}_T}\exp \left(-\frac{{\omega }_0^2}{4a{B}_T^2}{t}^2\right)\left[\frac{{\omega }_0^2}{4a^2{B}_T^2{T}_c^2}{t}^2+1-\frac{1}{2a{T}_c^2}\right],$$

(24)

and for n = 2,

$$I_{n=2}=\frac{{\omega }_0{T}_0}{2\sqrt{2a}{B}_T}\exp \left(-\frac{{\omega }_0^2}{4a{B}_T^2}{t}^2\right)\left[\frac{{\omega }_0^4}{32a^4{B}_T^4{T}_c^4}{t}^4+\left(1-\frac{3}{2a{T}_c^2}\right)\frac{{\omega }_0^2}{4a^2{B}_T^2{T}_c^2}{t}^2+1-\frac{1}{2a{T}_c^2}+\frac{3}{8a^2{T}_c^4}\right],$$

(25)

here Equations (24) and (25) can be re-written as:

$$I_{n=1}=\mathit{\epsilon }\exp \left(-\phi t^2\right)\left[{\xi }_1{t}^2+{\psi }_1\right],$$

(26)

$$I_{n=2}=\mathit{\epsilon }\exp \left(-\phi t^2\right)\left[\zeta t^4+{\xi }_2{t}^2+{\psi }_2\right],$$

(27)

$$\mathit{\epsilon }=\frac{{\omega }_0{T}_0}{2\sqrt{2a}{B}_T},\phi =\frac{{\omega }_0^2}{4a{B}_T^2},{\xi }_1=\frac{{\omega }_0^2}{4a^2{B}_T^2{T}_c^2},{\psi }_1=1-\frac{1}{2a{T}_c^2},$$

(28)

$$\zeta =\frac{{\omega }_0^4}{32a^4{B}_T^4{T}_c^4},{\xi }_2=\left(1-\frac{3}{2a{T}_c^2}\right)\frac{{\omega }_0^2}{4a^2{B}_T^2{T}_c^2},{\psi }_2=1-\frac{1}{2a{T}_c^2}+\frac{3}{8a^2{T}_c^4}.$$

(29)

From Equation (24) we see that I_n=1 is a product of functions $\exp \left(-\phi t^2\right)$ and ${\xi }_1{t}^2+{\psi }_1$. Thus, letting

$$\frac{d{I}_{n=1}}{dt}=2\mathit{\epsilon }\exp [-\phi t^2](-\phi {\xi }_1{t}^2+{\xi }_1-\phi {\psi }_1)=0,$$

(30)

and solving Equation (30), I_n=1 will obtain two symmetric intensity maxima at $t=\pm \sqrt{({\xi }_1-\phi {\psi }_1)/\phi {\xi }_1}$ when ${\xi }_1\ne \phi {\psi }_1$. Therefore, the beam starts splitting into two sub-beams in Figure 5b. In addition, when z is very short, the influence of term ξ₁ t²+Ψ₁ can be neglected compared with that of exp(−φt²). This is why there is only one beam when z is much closer to the source plane. Similarly, for n = 2 and n = 3, we can obtain 3 intensity maxima and 4 intensity maxima in the far field, respectively.

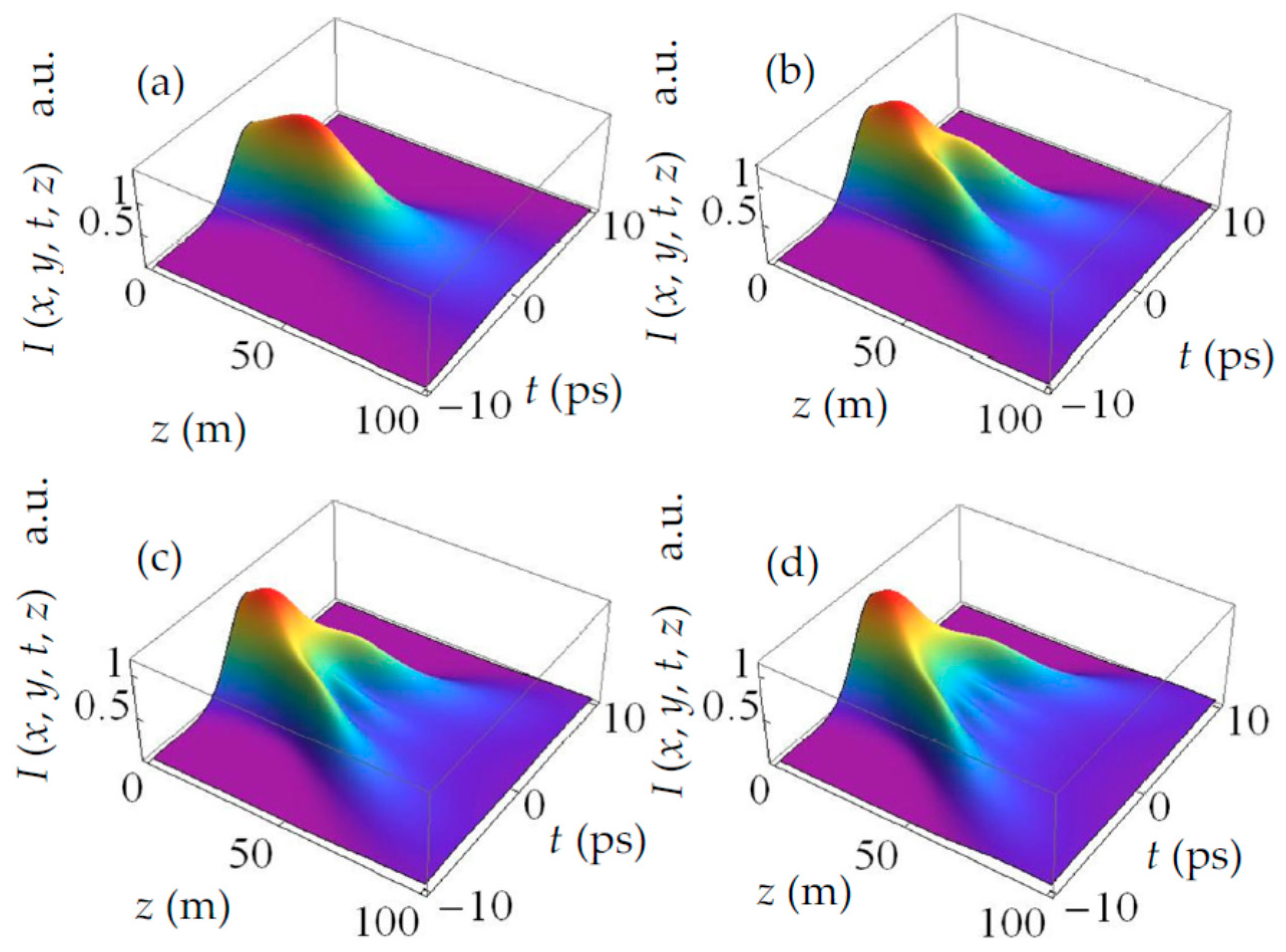

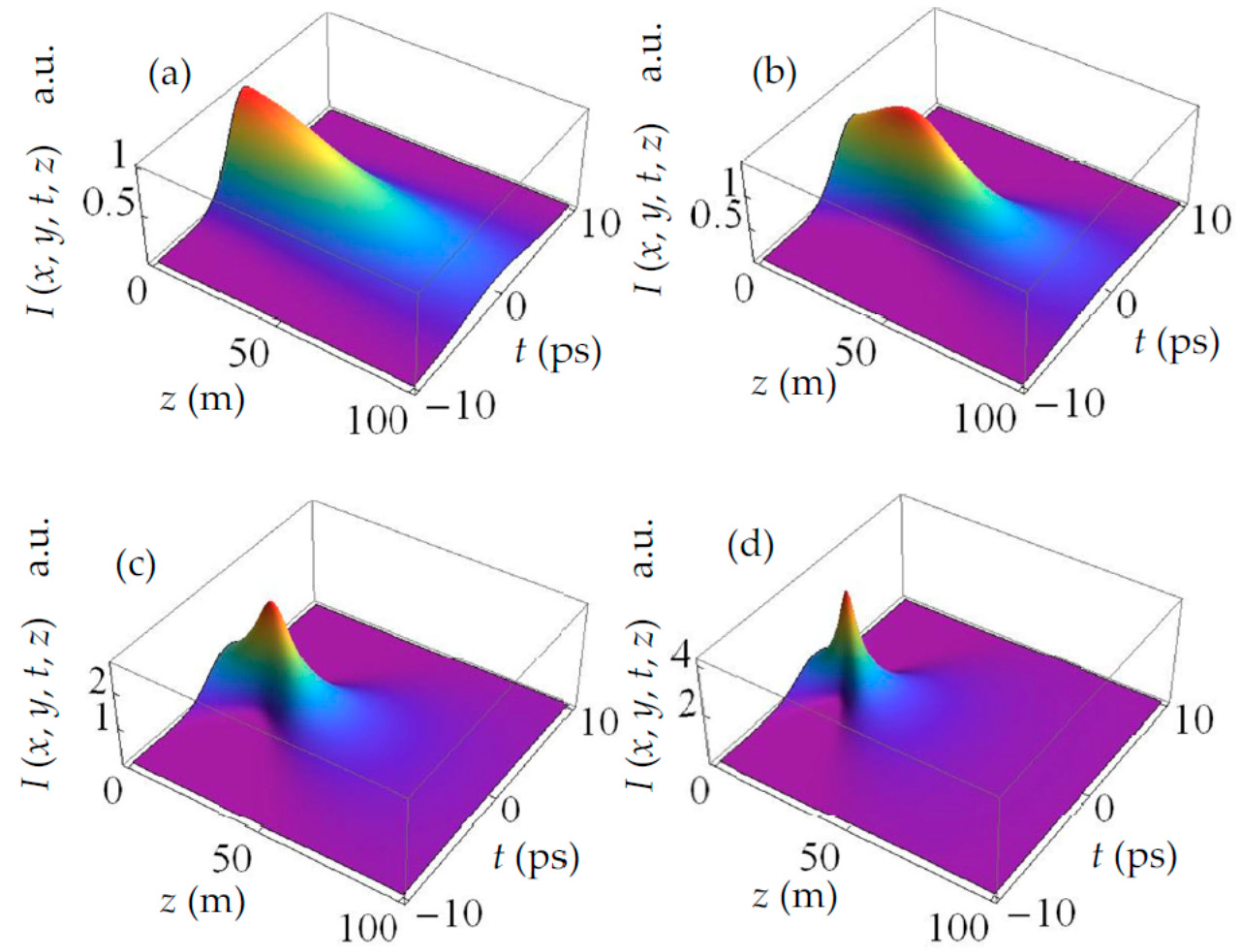

Figure 6 shows the evolution of spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam as a function of propagation distance z and time t with different values of chirp coefficient s = 0, −0.4ps⁻², −0.8ps⁻², −1.2ps⁻², and for n = 0, m = 0, x = 0, y = 0. It is shown that the self-focusing phenomenon takes place upon propagation when chirp coefficient s < 0, and it becomes more noticeable with decreasing chirp coefficient s, while the position of the focus shifts towards the source plane. This result can be explained as follows. When n = 0, m = 0, x = 0, y = 0, Equation (23) can be expressed as

$$I_{n=0}=\frac{{\omega }_0{T}_0}{2\sqrt{2a}{B}_T}\exp \left(-\frac{{\omega }_0^2}{4a{B}_T^2}{t}^2\right)=\frac{T_0}{\sqrt{2}T(z)}\exp \left(-\frac{1}{T^2{(z)}^{}}{t}^2\right),$$

(31)

where

$$T^2(z)=\left(\frac{2}{T_0^2}+\frac{2}{T_c^2}\right){\beta }_2^2{z}^2+\frac{{(1+s{\beta }_{2}z)}_{}^2{T}_0^2}{2}=\left(\frac{2}{T_0^2}+\frac{2}{T_c^2}+\frac{T_0^2{s}^2}{2}\right){\beta }_2^2{z}^2+s{T}_0^2{\beta }_{2}z+\frac{T_0^2}{2}.$$

(32)

One can see from Equation (32) that $T^2(z)$ is a quadratic function of z, and will reach minima when

$$z_{\min }=-\frac{s{T}_0^2{\beta }_2}{T_0^2{s}^2+4/T_0^2+4/T_c^2}.$$

(33)

Hence, the self-focusing phenomenon appears upon propagation when chirp coefficient s < 0. Moreover, with increasing |s|, z_min will decrease, which can be seen from Equation (33), because for large |s|, $4/T_0^2+4/T_c^2$ can be omitted. Equation (33) can be expressed as z_min ≈ β₂/|s| which is why the position of focus shifts towards the source plane with increasing |s|. Here the influence of s on propagation in the temporal ABCD matrix is equivalent to a lens. Hence, the self-focusing phenomenon appears.

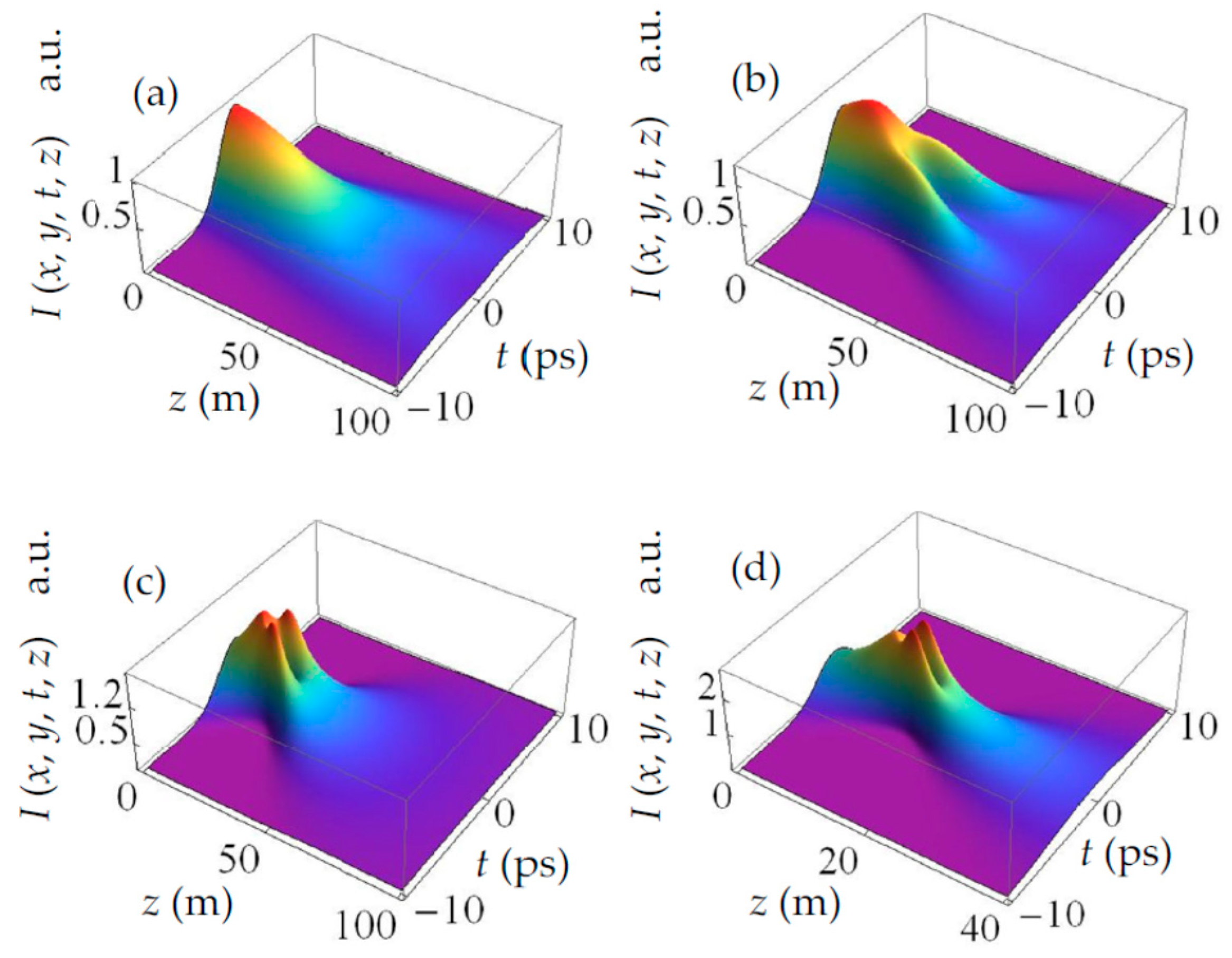

Figure 7 shows the evolution of spatiotemporal intensity I(x, y, t, z) of SCTLGSM pulsed beam as a function of propagation distance z and time t with different chirp coefficients s = 0, −0.4ps⁻², −0.8ps⁻², −1.2ps⁻², and for n = 1, m = 0, x = 0, y = 0. It is shown that the self-focusing and the self-splitting phenomena take place at the same time when chirp coefficient s < 0. Due to the shift of the position of self-focusing, there are three intensity peaks appearing for larger |s|.

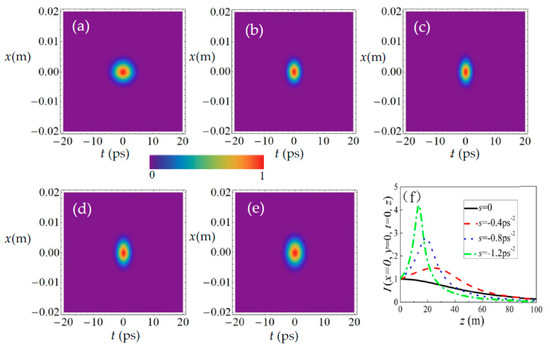

Figure 8a–e shows the density plots for the normalized spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam in the x–t plane at fixed propagation distances z = 0, 20 m, 30 m, 40 m, 50 m and for s = −0.4ps⁻², n = 0, m = 0, y = 0. As can be seen, there is a circular intensity distribution in the x–t plane for z = 0. With the increasing propagation distance z, the circular intensity distribution becomes elliptical (Figure 8c–e), where the self-focusing appears in the coordinate axis t. Figure 8f shows the normalized spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam as a function of propagation distance z for different values of the chirp coefficient s = 0, −0.4ps⁻², −0.8ps⁻², −1.2ps⁻², where n = 0, m = 0, x = 0, y = 0. One can see that the self-focusing phenomenon becomes more and more noticeable with increasing chirp coefficient |s|. Moreover, for the case of m = n = 1, shown in Figure 9a–c, the beam splits first in the coordinate axis t, and then splits in the coordinate axis x (Figure 9d). In the far field, the beam splits into four sub-beam spots in the x–t plane. Figure 9f shows the normalized spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam as a function of propagation distance z for different chirp coefficient values: s = 0, −0.4ps⁻², −0.8ps⁻², −1.2ps⁻², where n = 1, m = 1, x = 0, y = 0, t = 0. One can find that the self-focusing phenomenon is more noticeable for s = −1.2ps⁻². Comparison of Figure 8 with Figure 9 implies that the beam orders m and n play an important role in determining the spatiotemporal intensity distribution in x–t plane.

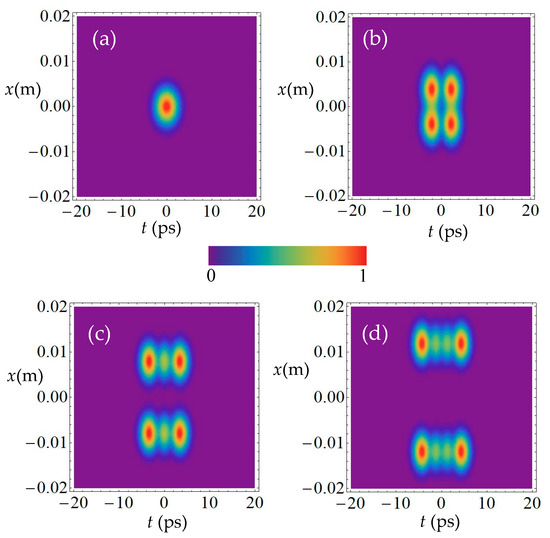

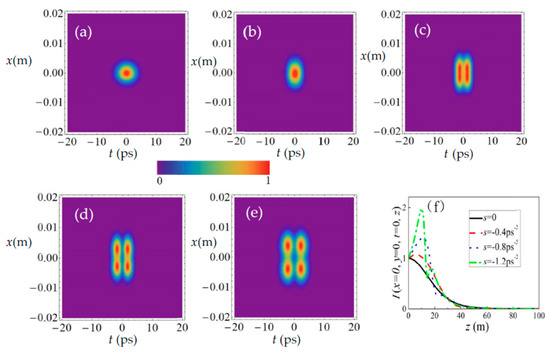

Figure 10a–d includes the density plots for the normalized spatiotemporal intensity I(x, y, t, z) of the SCTLGSM pulsed beam in the x–t plane for different beam orders m = n = 0, m = n = 1, m = n = 2, m = n = 3 at z = 50 m, and for s = −0.4 ps⁻², y = 0. It is shown that no beam splitting occurs in the far field for m = n = 0. However, for m = n = 1, the initial beam starts to split into two sub-beams in coordinate axis t and coordinate axis x, respectively. With increasing beam order, such as m = n = 2, the initial beam starts to split into three sub-beams in coordinate axis t and two sub-beams in coordinate axis x, respectively. In addition, for m = n = 3, the initial beam starts to split into four sub-beams in coordinate axis t and two sub-beams coordinate axis x, respectively. These results are consistent with those of Figure 5.

4. Concluding Remarks

In this paper, a new class of partially coherent pulsed beams with spatial cosine-Gaussian and temporal Laguerre–Gaussian correlations is introduced. The analytical expressions of the spatiotemporal intensity of the SCTLGSM pulsed beam through the ABCD optical system on passing in a diffractive/dispersive medium are obtained and used to investigate the evolution of the spatiotemporal intensity of the SCTLGSM pulsed beam in still, pure water. It is found that the SCTLGSM pulsed beam exhibits the phenomena of simultaneous spatiotemporal self-splitting and self-focusing. When the chirp coefficient is trivial, s = 0, in the x–z plane, the beam always splits into two sub-beams, when m > 0, while in the t–z plane, the beam splits into n + 1 sub-beams. When s < 0, the spatiotemporal self-focusing phenomenon takes place. The influence of s on propagation in a dispersive medium is equivalent to the effect of a lens in a diffractive medium. Physically, the special structuring of the spatial coherence and temporal coherence states result in the spatiotemporal self-splitting phenomenon of the SCTLGSM pulsed beam. Furthermore, the pulse chirp leads to the spatiotemporal self-focusing phenomenon of the SCTLGSM pulsed beam. The results obtained in this paper can be readily extended to other dispersive media and/or other temporal ABCD optical systems.

More importantly, we have explored the possibility of shaping of optical pulsed signals by source correlations in one of the most frequently encountered natural environments—pure water. Such a method can be of interest for rapidly developing underwater optical technologies, including wireless communications and directed energy. In particular, one can obtain the desired beam profiles delivered at suitable time instants by modulating the spatial and temporal coherence structures of the pulsed beams and/or adding a linear chirp.

It should be stressed that our work was carried out under the assumption that the refractive index of the dispersive medium is linear. The self-focusing effect comes from the source-induced spatial and temporal interference effects (pulse chirp) and should not be associated with the medium’s non-linear effects. In cases when the dispersive medium is nonlinear, the four-wave-mixing [53] and formation of optical solitons must be additionally discussed [54]. We note that there is a report available on propagation of the spatially partially coherent beams with non-Gaussian correlation in oceanic turbulence [55] in which the correlation-induced phenomenon of self-focusing also appears, confirming the validity of our results.
