NH₃ Sensor Based on ZIF-8/CNT Operating at Room Temperature with Immunity to Humidity

Abstract

Humidity effects on resistive gas sensors operating at room temperature remain a serious bottleneck. In this work, we introduce a resistive gas sensor based on a zeolitic imidazolate framework-8/carbon nanotube (ZIF-8/CNT) composite for the detection of ammonia gas at room temperature. The composite was prepared using a facile solution method. In this sensor, the basic mechanism was the charge transfer between ammonia molecules and CNTs; meanwhile, the ZIF-8 facilitated the adsorption of ammonia molecules as a preconcentrator, and prevented the adsorption of H₂O molecules due to its hydrophobicity; CNTs were threaded through the ZIF-8 to form a great conductive network for charge transfer. The obtained sensor showed good ammonia sensing, especially at room temperature, with great selectivity and immunity to humidity under moderately humid conditions (45–70 % RH). However, the ammonia response was reduced at very high humidity (90% RH) due to the competitive adsorption of H₂O molecules. This proved that the NH₃ sensor based on ZIF-8/CNT could be suitable for practical applications under moderately humid conditions.

1. Introduction

Ammonia (NH₃) is a highly toxic gas that is mostly released by industrial combustion and biological processes [1]. In direct contact, a high level of NH₃ irritates human skin, eyes, and respiratory tracts. A long-term (8 h) exposure level of 25 ppm and a short-term (15 min) exposure of 35 ppm have been set as the limits for ammonia [1]. Therefore, the design of a novel sensor allowing the sensitive and in-situ detection of ammonia is seriously essential. Ammonia sensors operating at low temperatures are especially more desirable because of the low power consumption, low cost, and good security.

Among various gas sensors, resistive sensors are most widely used due to their micro size and simple, portable setup. In the last decades, metal oxides, conductive polymer, carbon materials, transition-metal dichalcogenides, and even their hybrid-based nanostructures have been widely investigated for ammonia sensing [1,2,3,4]. Notably, humidity has a serious effect on the gas-sensing performances of room temperature (RT) sensors, which could result in unrepeatable and inaccurate measured responses. A hydrophobic surface is a common method to improve the immunity to the humidity of RT-gas-sensing materials. In existing reports, polypyrrole (PPy) and SnS₂ with ammonia-sensing behaviors were able to subdue the effect of humidity on ammonia sensing [5,6]. However, the simultaneous stability of an RT ammonia sensor remains a high challenge, due to the lack of thermal stability in PPy and SnS₂.

A metal–organic framework (MOF) is constructed from metal ions or clusters coordinated to organic ligands, possessing a large surface area, tunable porosity, a hybrid organic–inorganic structure, and outstanding gas sorption properties [7,8,9,10]. Of particular note, ZIF-8, a kind of zeolitic imidazolate framework, has attracted much more attention due to its high chemical and thermal stabilities and hydrophobicity [11,12,13]. As a result, it is also therefore very promising for gas sensing. However, ZIF-8-based hybrids, not solo ZIF-8, were usually taken as resistive gas-sensing materials due to their poor electrical conductivity. The ZIF-8 coating has been reported to improve the gas-sensing response as a preconcentrator [14], to improve the selectivity as a filter due to the tunable porosity [15,16], as well as to enhance immunity to humidity due to the hydrophobicity of ZIF-8 [17,18,19]. Carbon nanotubes (CNT) are well known for their outstanding electrical and mechanical properties, and thermal stability, and have therefore been widely studied within the last decades. CNT-based resistive sensors have been demonstrated to be sensitive to gas vapors at RT with low noise and high stability [20,21]. Unfortunately, disadvantages, such as low response value, long recovery time, and the strong influence of humidity limit the potential applications of CNT resistive sensors.

Inspired by previous works, we ideated that ZIF-8 stranding on CNT could obtain great NH₃ sensing performances, which has not yet been reported to the best of our knowledge. Herein, the ZIF-8/CNT composite was prepared by a facile solution method. The NH₃ sensing performances of the composite were investigated systematically, including under different humidity conditions. The ZIF-8/CNT showed a great NH₃ response at room temperature with immunity to humidity. We also discuss the NH₃ sensing mechanism of the ZIF-8/CNT composite.

2. Results and Discussion

2.1. Material Analysis

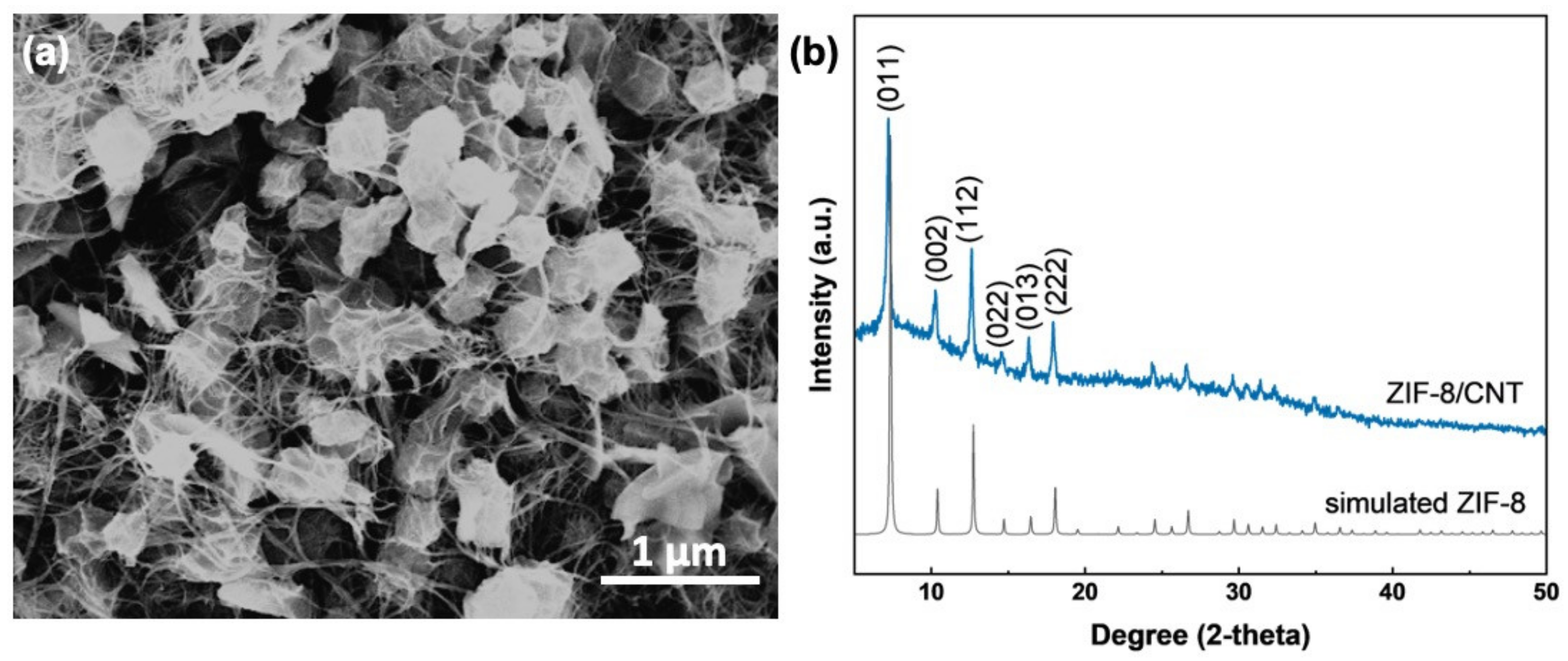

The SEM image in Figure 1a shows the morphology of the prepared ZIF-8/CNT. The rhombic dodecahedral morphology is ZIF-8, with a size of about 250 nm. The CNT is partially threaded through the ZIF-8, dedicated to the formation of an interconnected carbon nanotube network for the conductivity of the composite. The successful preparation of ZIF-8 is further confirmed by the XRD pattern (Figure 1b). The significant peaks at 7.3°, 10.4°, 12.7°, 14.7°, 16.5°, and 18.1° are attributed to (011), (002), (112), (022), (013), and (222) crystal planes of ZIF-8, respectively [22]. As shown in Figure S2, the CNT is multi-walled, and the measured spacing of the crystallographic plane is 0.34 nm from the high-resolution TEM image, corresponding to the (002) plane of CNT.

2.2. Sensor Fabrication and Gas-Sensing Test

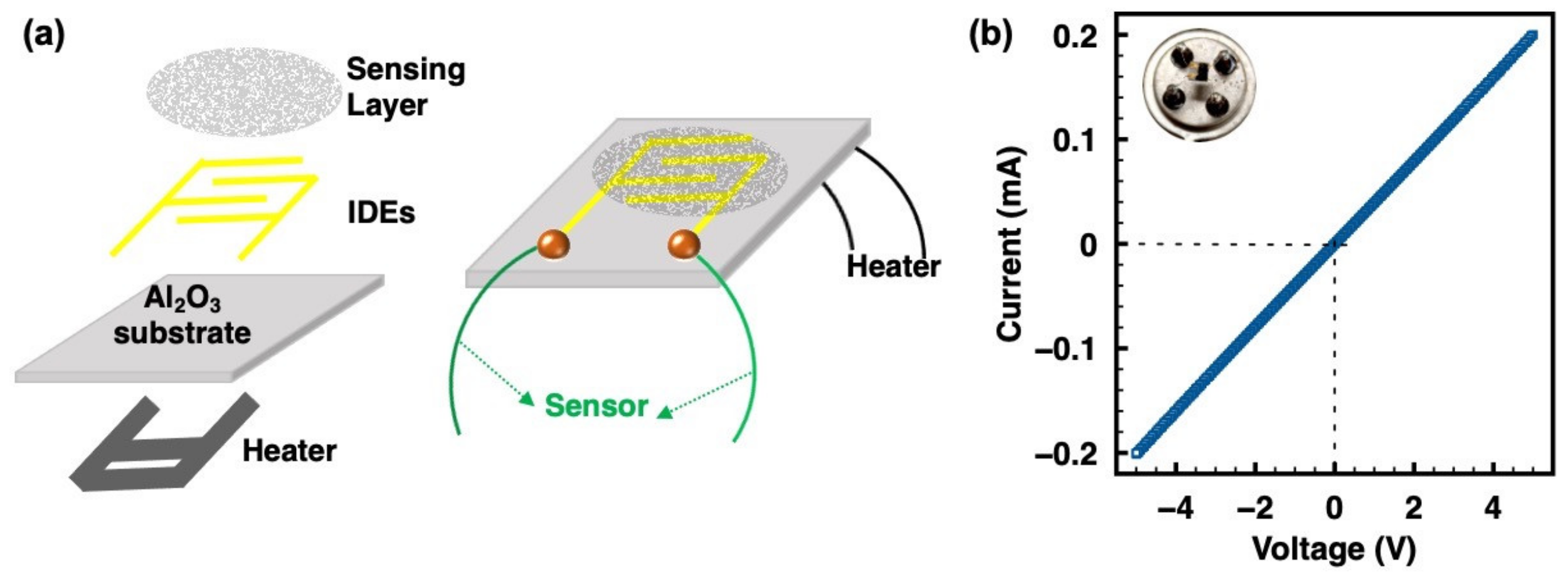

The schematic of the bare sensor device with a pair of interdigital electrodes (IDEs) integrating with a microheater platform is shown in Figure 2a. The width of the Pt finger electrode was 200 µm, and the separation space between the coplanar platinum electrodes was 100 µm. For a completely resistive sensor device preparation, 0.5 mg as-prepared ZIF-8/CNT was dispersed in 30 µL of ethanol containing 0.75 µL of Nafion under ultrasonication for 10 min. One drop (~1 µL) was then drop-casted onto the IDE area of a bare sensor chip. After that, the device was heated and maintained at 80 °C for 3 days to promote sensing layer deposition and device aging to get reliable testing data. The inset of Figure 2b shows the optical image of the sensor device, as well as the sensing layer on IDEs. Ohmic contact was formed for the resistive sensing measurements between the sensing layer and IDEs, as demonstrated in Figure 2b.

The gas-sensing tests were performed using a self-made dynamic sensing measurement setup, which is described in detail in Figure S1 (Supplementary Materials). For all measurements, the ambient temperature was kept to around 25 °C and the sensor resistance was measured at 5 V. The response value was calculated as ΔR/R_a in percentage, where ΔR = R_g − R_a, R_g, and R_a are the resistance of the sensor in a tested gas and air, respectively. The response/recovery time is defined as the time required for the sensor current change to reach 90% of the total resistance change.

2.3. Gas-Sensing Characteristics

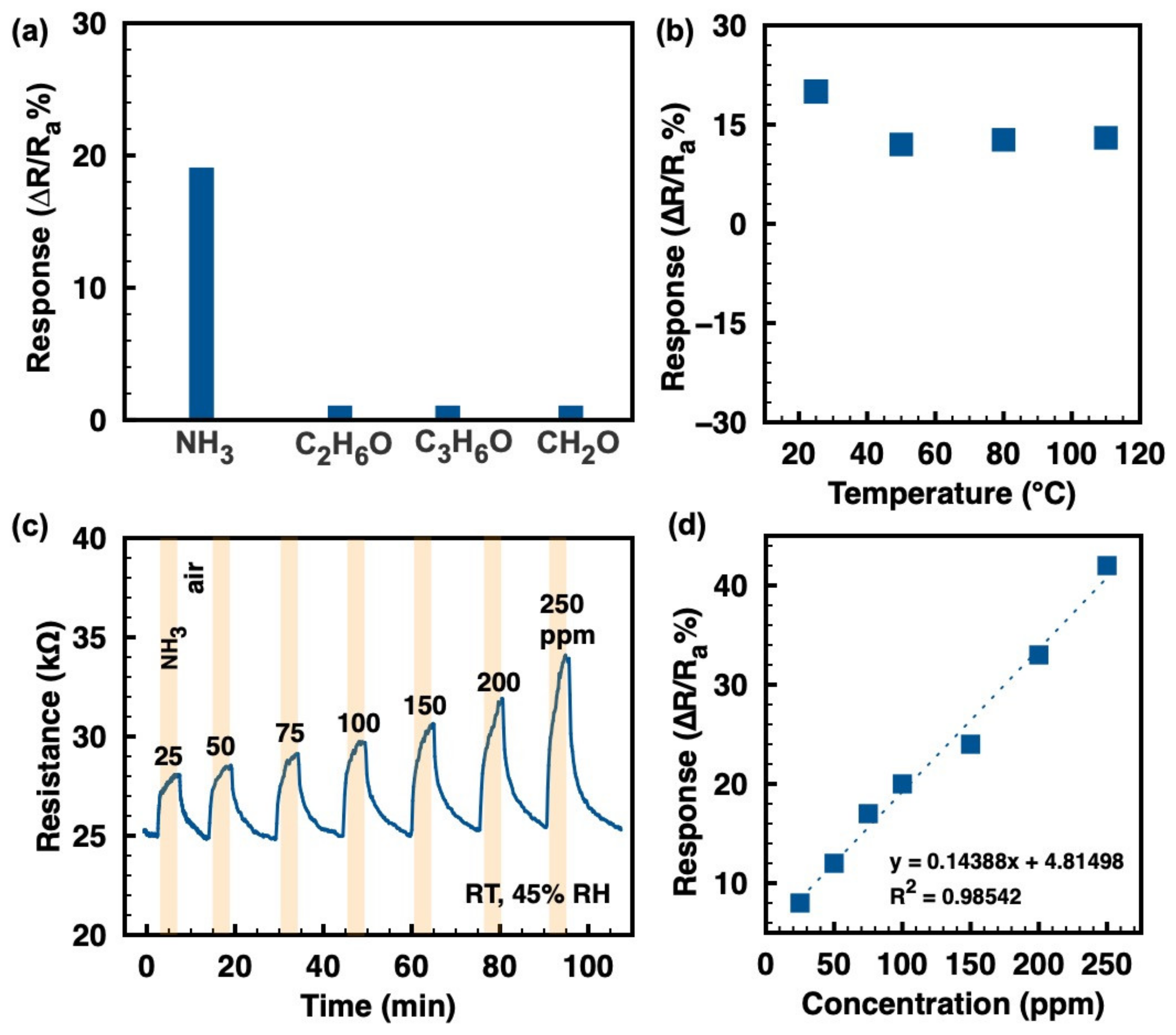

The selectivity to several typical analytes (ammonia, ethanol, acetone, and formaldehyde) at 100 ppm, as displayed in Figure 3a, shows outstanding ammonia selectivity of the ZIF-8/CNT at RT. Figure 3b shows the response values of the ZIF-8/CNT to 100 ppm ammonia at different temperatures. The sample clearly exhibits the maximum response value (~ 20 at 100 ppm NH₃) at RT of 25 °C. The response value decreases to about 12 at 100 ppm NH₃ when the working temperature increases to the range of 50–110 °C. However, the higher operating temperature (50–110 °C) has no significant effect on the response value. For a surface-controlled gas sensor, the sensing response is the result of a dynamic equilibrium between adsorption and desorption [23]. At higher temperatures, the gas adsorption is higher and stronger, while the desorption is also improved. Therefore, the maximum response value of the ZIF-8/CNT to ammonia is obtained at RT. Figure 3c shows the continuous resistance variation of the ZIF-8/CNT to various ammonia concentrations (25–250 ppm) at RT. Upon exposure to ammonia, the composite resistance increases and then decreases back to the original value after the ammonia is turned off, indicating the complete response/recovery behavior and the p-type semiconductor behavior of the composite. The response/recovery time to ammonia in the range of 25–250 ppm is around 2/5 min. The response/recovery rate to ammonia gas needs to be improved in the next work. Figure 3d shows the positive linear relationship of response values to ammonia vs. concentration, suggesting the physisorption of ammonia molecules on the ZIF-8/CNT. The slope of the fitted curve (0.14388, as shown in Figure 3d) indicates the sensitivity of the device. Similar linear behavior has been reported for other MOF and CNT materials [24,25]. Additionally, the theoretical limit of detection (LOD) was calculated to be about 208 ppb when the signal-to-noise ratio is considered as 3 [26,27].

As reported, CNT behaves as a p-type semiconductor, and the resistive response of CNT to gas molecules mainly depends on the change in electrical properties due to the charge transfer between the CNT and the gas molecules [25,28]. Since NH₃ is a reducing agent, NH₃ adsorption will inject electrons into the CNT and thus reduce the conducting hole number in the p-type CNT, thereby increasing the resistance. However, the interaction of CNT with gas molecules is very weak, leading to quite a poor response value [25]. In the present work, the ZIF-8 could allow the physisorption of more ammonia gas molecules as a preconcentrator, yielding more adsorption of NH₃ on the CNT and a stronger interaction between them. Meanwhile, CNT threading through the ZIF-8 act as a transducer for resistive detection. Therefore, the enhanced ammonia sensing based on ZIF-8/CNT is proven.

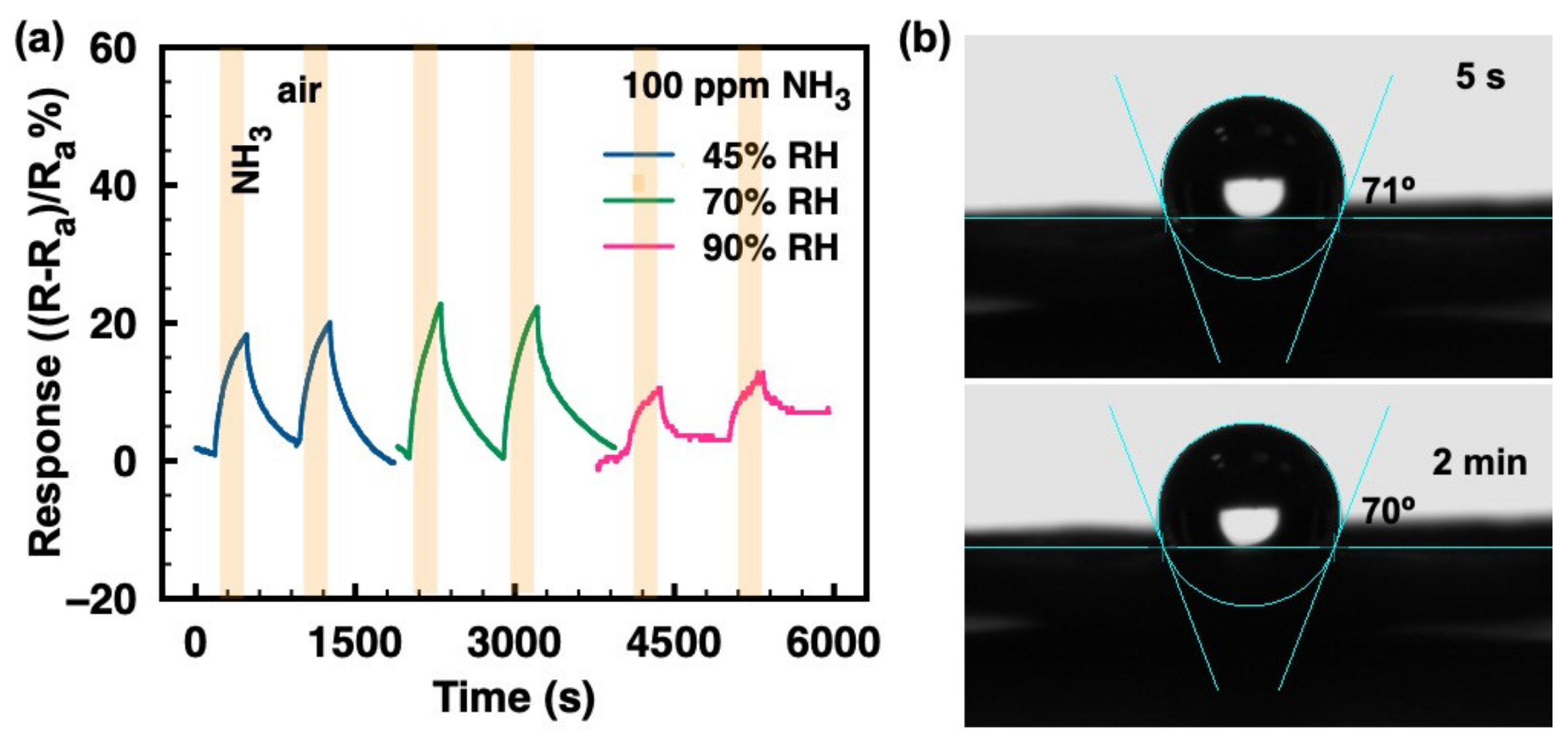

Humidity is essential in real conditions and it must be taken into consideration, especially for room-temperature gas sensors. Figure 4a demonstrates that the ammonia responses of the ZIF-8/CNT show no obvious changes under moderately humid conditions (45–70%). However, at a higher humidity of 90%, the ammonia response is dramatically reduced. Figure 4b shows the contact angles of water droplets on the ZIF-8/CNT surface at 5 s and 2 min. The contact angle of 71° at 5 s and that of 70° at 2 min suggest a hydrophobic surface of ZIF-8/CNT, which contributes to the immunity of ammonia response to humidity in the range of 45–70%. However, at very high humidity levels (e.g., 90% RH), the ammonia response is dramatically reduced. This could be explained by the accumulation of excessive water molecules adsorbed on the material surface favoring the formation of H₃O⁺ ions, which hinders the adsorption of NH₃ molecules [25].

3. Materials and Methods

3.1. ZIF-8/CNT Preparation

The ZIF-8/CNT was prepared according to the reference [29]. Briefly, 1.6 mM aminoethanol aqueous and 4 mM zinc nitrate aqueous were mixed under stirring, followed by aging for 30 min at room temperature, producing positively charged zinc hydroxide nanostrands (ZHN). Then, a certain amount of 0.5 mM carboxyl multi-walled carbon nanotubes (CNT, from XFNANO Materials Tech Co., Ltd., Nanjing, China) solution was added to the ZHN solution under strong stirring to become a homogeneous suspension. The volume ratio of ZHN to CNT is 30:1. The carboxyl CNT dispersed in water is negatively charged. Thus, zinc hydroxide nanostrands were strung by carbon nanotubes due to the electrostatic interaction. Next, the suspension was filtered to get ZHN/CNT powder. The ZIF-8/CNT was obtained by filtering after immersing the ZHN/CNT powder in 25 mM 2-methylimidazole (2-mIm) methanol–water (vol:vol = 2:3) solution for 24 h. The obtained ZIF-8/CNT was then washed with extra water and dried under vacuum at room temperature.

3.2. Characterization

Scanning electron microscopy (SEM, ULTRA 55, Zeiss, Göttingen, Germany) was used to characterize the morphology of the prepared materials. Powder X-ray diffraction (XRD) analyses were performed on a Bruker D8 Advance diffractometer (Bruker, Berlin, Germany) with Cu Kα radiation (λ ≈ 1.54 Å) to characterize the nanostructure of the samples.

4. Conclusions

In this study, a ZIF-8/CNT nanocomposite was facilely prepared via a simple solution method. ZIF-8, with a rhombic dodecahedral morphology, facilitated the adsorption of ammonia molecules, while the CNT threading through the ZIF-8 formed an interconnected conductive network for the charge transfer between the ammonia molecules and the sensing material. Thus, the composite showed great ammonia-sensing performances at room temperatures, with great selectivity and immunity to humidity under moderately humid conditions (45–70 % RH), due to the hydrophobicity of ZIF-8. Unfortunately, under very high humid conditions (90% RH), the ammonia sensing of the ZIF-8/CNT was reduced due to the competitive adsorption of NH₃ and excessive H₂O molecules.
