Synthesis, X-ray Structures and Hirshfeld Analysis of Two Novel Thiocyanate-Bridged Ag(I) Coordination Polymers

by
Mezna Saleh Altowyan
1,
Eman M. Fathalla
2,*,
Jörg H. Albering
3,
Morsy A. M. Abu-Youssef
2,*,
Taher S. Kassem
2,
Assem Barakat
4,
Matti Haukka
5,
Ahmed M. A. Badr
2 and
Saied M. Soliman
2,*
1
Department of Chemistry, College of Science, Princess Nourah bint Abdulrahman University, P.O. Box 84428, Riyadh 11671, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Alexandria University, Ibrahimia, P.O. Box 426, Alexandria 21321, Egypt
3
Graz University of Technology, Mandellstr. 11/III, A-8010 Graz, Austria
4
Department of Chemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
5
Department of Chemistry, University of Jyväskylä, P.O. Box 35, FI-40014 Jyväskylä, Finland
*
Authors to whom correspondence should be addressed.
Inorganics 2023, 11(10), 417; https://doi.org/10.3390/inorganics11100417
Submission received: 27 September 2023 / Revised: 17 October 2023 / Accepted: 19 October 2023 / Published: 23 October 2023
(This article belongs to the Section Coordination Chemistry)
Browse Figures
Versions Notes

Abstract

:
Two novel silver(I) coordination polymers, [Ag(4BP)(SCN)]n (1) and {(4BPH)+[Ag(SCN)2]−}n (2) (4BP = 4-benzoyl pyridine), have been synthesized. The two complexes were prepared using almost the same reagents, which were AgNO3, 4BP and NH4SCN. The only difference was the presence of 1:1 (v/v) HNO3 in the synthesis of 2. In the two complexes, the Ag(I) has distorted tetrahedral coordination geometry. The structure of both complexes and the involvement of the thiocyanate anion as a linker between the Ag(I) centers were confirmed using single-crystal X-ray diffraction. 4BP participated as a monodentate ligand in the coordination sphere of complex 1, while in 2 it is found protonated (4BP-H)+ and acts as a counter ion, which balances the charge of the anionic [Ag(SCN)2]− moiety. The thiocyanate anion shows different coordination modes in the two complexes. In complex 1, the thiocyanate anion exhibits a µ1,1,3 bridging mode, which binds three Ag(I) ions to build a boat-like ten-membered ring structure leading to a two-dimensional coordination polymer. In 2, there are mixed µ1,1 and µ1,3 bridging thiocyanate groups, which form the one-dimensional polymeric chain running in the a-direction. Several interactions affected the stability of the crystal structure of the two complexes. These interactions were examined using Hirshfeld surface analysis. The coordination interactions (Ag-S and Ag-N) have a great impact on the stability of the polymeric structure of the two complexes. Additionally, the hydrogen-bonding interactions are crucial in the assembly of these coordination polymers. The O…H (10.7%) and C…H (34.2%) contacts in 1 as well as the N···H (15.3%) and S···H (14.9%) contacts in 2 are the most significant. Moreover, the argentophilic interaction (Ag…Ag = 3.378 Å) and π- π stacking play an important role in the assembly of complex 2.

1. Introduction

Coordination polymers (CPs) have gained prominence in the field of materials science. Due to their many potential applications, particularly in gas storage [1,2], separation [3,4], catalysis [5,6,7], sensors, optoelectronics [8,9], nanomaterial synthesis [10,11], illumination, photodetection [12,13] and drug delivery [14,15], CPs with one- to three-dimensional structures have been studied. In particular, silver is an effective metal to be used for the synthesis of CPs because it can involve coordination numbers ranging from 2 to 6, providing a variety of coordination geometries [16]. Also, some Ag-CPs have coordination numbers greater than six [17,18]. Furthermore, the structural diversity of silver-based CPs is affected not only by the supramolecular Ag···ligand, Ag···C, Ag···π, C‒H···π, H-bonds, π-π stacking and anion interactions [19,20,21,22] but also by the significant Ag···Ag interactions (argentophilicity) [23,24,25], which have an impact on the structural diversity and appealing optoelectronic properties [26,27,28,29,30,31,32,33,34]. As a result, silver is one of the top ten metals chosen to construct 2D CPs [35,36]. Moreover, 8% of all the CPs (1D–3D) in the MOF subset are Ag-CPs [37]. These materials were found to exhibit fascinating structural motifs [21,38,39,40] and intriguing properties, including electrical conductivity [41,42], photoluminescence [27,43], guest exchange and sorption [44,45], magnetism [46,47], catalysis [48,49], antitumor [50] as well as antibacterial activities [51]. More recently, Ag(I) compounds with N-heterocyclic ligands have been reported to show more cytotoxic action than cis-platin against tested cancer cell lines [52].
Pyridine derivatives are among the most often used nitrogen-containing heterocyclic ligands. Due to the variety of ligand design and the ability to form labile and reversible bonds, the metal–pyridine coordination bond is among the most ideal systems for the self-assembly of well-organized CPs [53,54,55,56]. Various factors should be taken into consideration for the successful preparation of these polymeric materials, including the reaction conditions [57], the ratio of silver to ligand [58], silver ion stereochemistry coupled with the functionality of the ligands [59] and the characteristics of counter-anions [60]. Recently, our research groups reported the synthesis and X-ray structure analysis combined with Hirshfeld and antimicrobial studies of polymeric [Ag(3-cyanopyridine)2(CF3COO)]n and the dinuclear [Ag(4-benzoylpyridine)2]2(CF3COO)2 complexes [61]. In addition, the X-ray structure of [Ag(4-benzoylpyridine)2](NO3).H2O revealed the monomeric structure of this complex [62].
In this regard, thiocyanate (SCN−) is frequently used as a bridging ligand for creating new silver clusters because of the strong Ag-S bond and the high ability of silver to form relatively stable coordination compounds with nitrogen a as donor atom [63,64,65,66,67], in addition to its various coordination modes (Figure 1) [68,69,70,71,72,73,74,75]. The crystal structure of the simple silver(I) thiocyanate salt has been reported by Zhu and coworkers. Its X-ray structure revealed a 3D network via Ag—S bonds and weak Ag…Ag interactions where each Ag-atom has a T-shaped coordination environment [65]. Also, the X-ray structure of the AgSCN adducts with pyridine and other heterocyclic ligands was reported in the literature to have an oligo-nuclear structure [67], i.e., 1-, 2- and 3D polymeric networks that use AgSCN fragments as their building blocks [65,73,74].
In the light of the interesting structural and supramolecular structure properties of Ag(I) thiocyanato complexes, we report herein the synthesis of two new Ag(I)-CPs with 4-benzoyl pyridine (4BP) (Figure 2), using thiocyanate as a linker. The structure of the synthesized complexes was verified using single-crystal X-ray diffraction analysis. In addition, Hirshfeld calculations were used to investigate the supramolecular architectures of the studied complexes.

2. Results and Discussion

2.1. Synthesis and Characterizations

The X-ray structures of the Ag(I) complexes with 4-benzoylpyridine with different anions such as CF3COO− and NO3− were previously reported in the literature [61,62]. The former complex [Ag(4BP)2]2(CF3COO)2 is dinuclear through a strong argentophilic interaction connecting the two [Ag(4BP)2] cationic units [61] while the latter [Ag(4BP)2](NO3).H2O is monomeric [62]. In both cases, the 4-benzoylpyridine molecule is acting as a monodentate ligand via its pyridine N-atom, and no close contacts were found between the Ag(I) ion and the carbonyl group. For [Ag(4BP)2]2(CF3COO)2, the nonpolar C···H (26.2%) and the polar O···H (15.6%) interactions were found to be the most important in the molecular packing. In this work, we present the synthesis of two new Ag(I) complexes with 4-benzoylpyridine (4BP) in the presence of thiocyanate (SCN−) as a bridging ligand. Schematic illustration for the synthesis of the two complexes is shown in Scheme 1. The two complexes were prepared using almost the same reagents, which are AgNO3, 4BP and NH4SCN. The only difference is the addition of 1:1 (v/v) HNO3 in the synthesis of 2. After mixing, the resulting clear solutions were left for slow evaporation at room temperature. After a few days, both complexes were formed in crystalline forms, which are suitable for single-crystal X-ray diffraction analysis. Based on the CIF data, the Hirshfeld calculations were used to investigate the intermolecular interactions of the studied complexes.

2.2. X-ray Crystal Structure Description of [Ag(4BP)(SCN)]n (1)

The structure of complex 1 has been revealed using single-crystal X-ray crystallography to be [Ag(4BP)(SCN)]n. It crystallizes in the orthorhombic system with the Pna21 space group and Z = 4. The unit cell parameters are a = 27.2079(9) Å, b = 6.0833(2) Å and c = 7.5732(2) Å while the unit cell volume equals 1253.47(7) Å3. The asymmetric unit consists of one [Ag4BP(SCN)] unit (Figure 3a). The structure of the title complex is approved to have a 2D polymeric structure via the Ag-N and Ag-S interactions between the Ag(I) and the bridged SCN− group.
In complex 1, the Ag(I) is tetra-coordinated (Figure 3b) by one pyridine N-atom from the 4BP; Ag1–N2; 2.331(2) Å, two thiocyanate sulfur atoms; Ag1–S1; 2.5885(8) Å, Ag1–S1#; 2.6136(8) Å and one nitrogen atom from another thiocyanate anion; Ag1–N1##; 2.175(3) Å. The bond angles inside the coordination sphere range from 93.98(6)° (N2-Ag1-S1#) to 123.35(10)° (N1-Ag1-N2). Hence, the coordination geometry around the Ag(I) is considered a distorted tetrahedron. Selected bond lengths and angles are given in Table 1. The Ag-N distances were found to be 2.1708(11) Å and 2.1733(12) Å in the [Ag(4BP)2]2(CF3COO)2 complex [61] and 2.146(3) Å and 2.147(3) Å in the [Ag(4BP)2](NO3).H2O complex [62]. The Ag-N distances are shorter in these cases due to the absence of a coordinating anion attached to the Ag(I) ion.
Each thiocyanate anion exhibits a µ1,1,3-(S,S,N-) bridging mode, which binds three Ag(I) centers leading to a boat-like ten-membered ring. These repeating units are fused together to generate a 2D wavy-like structure extended along the ac plane (Figure 4a). As a result, each sulfur atom connects two silver atoms, one from its own unit and the other from another adjacent unit, leading to zig-zag chains extended along the c-direction, where the Ag–S–Ag angle is 155.04(4)°. These polymeric chains are further connected by the coordination interaction between the Ag(I) ion and N-atom from the third thiocyanate group, which extends the coordination polymer along the b-direction leading to the 2D polymeric structure shown in Figure 4b. The angles of the thiocyanate groups are nearly linear (179.7(4)° and 158.2(3)° for S1–C1–N1 and C1##-N1##-Ag1, respectively) while the Ag1–S1–C1 acquires bent conformation, with angles 96.34(12)° for Ag1–S1–C1 and 94.97(11)° for Ag1–S1#–C1#. These results are consistent with the mesomeric structure of the thiocyanate group [69,75]. The 4BP organic ligand acts as a terminal monodentate ligand via the pyridine N-atom and thus is not included in the polymer expansion but is found located above and below the polymeric zig-zag chains (Figure 5).

2.3. X-ray Crystal Structure Description of {(4BP-H)+[Ag(SCN)2]−}n (2)

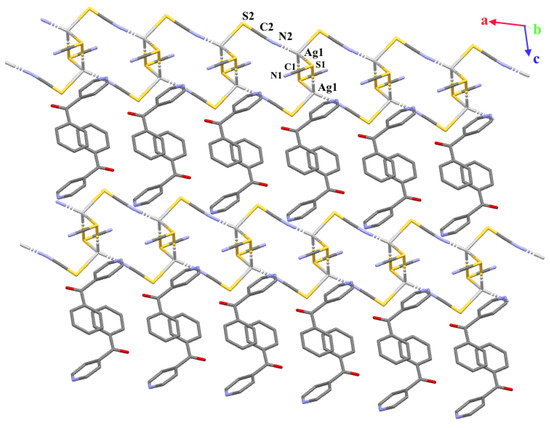

The crystal structure of complex 2 consists of the anionic complex [Ag(SCN)2]−, which forms a one-dimensional polymeric structure, in addition to the protonated 4BP cation (4BP-H)+ as an outer sphere. The compound crystallizes in the triclinic system with the space group P-1 and Z = 2. The unit cell parameters are a = 6.0975(2) Å, b = 8.7626(4) Å, c = 14.6204(6) Å, α = 95.010(2)° and β = 100.1270(10)° while the unit cell volume is 765.80(5) Å3. The asymmetric unit and the coordination geometry of the Ag(I) together with the numbering scheme are shown in Figure 6. The asymmetric unit is composed of one 4BP-H+ and one [Ag(SCN)2]− anion. In this complex, the N-atom (N3) from the 4BP is found protonated and is not involved in any coordination interaction with the Ag(I) ion.
In the anionic part of this complex, the crystallographically unique Ag1 center is tetra-coordinated by four thiocyanate groups via the three S-atoms S1, S1# and S2 in addition to the N-atom N2##. The S(1)C(1)N(1)− exhibit a µ1,1-mode while the S(2)C(2)N(2)− exhibit a µ1,3-mode. The main geometrical parameters of the [Ag(SCN)2]− anion are depicted in Table 2. The Ag-S distances range from 2.5747(6) to 2.6788(7) Ǻ while the Ag-N bond distance is 2.213(2) Ǻ. The angles around the silver atom are in the range from 99.980(19)° to 132.38(8)°, revealing a distorted tetrahedral coordination geometry. As a result of the end-to-end (µ1,3-) bonding mode of the S(2)C(2)N(2)−, the anionic part of the complex formed a one-dimensional polymeric chain running along the a-direction while the two thiocyanate groups with the (µ1,1-) bonding mode bi-bridge two Ag(I) centers (Figure 7). As a result, the anionic chain can more easily be considered as a lengthwise stacking of the [(Ag)2(SCN)2]− dinuclear units. The Ag…Ag separation in the dinuclear unit is 3.379(4) Ǻ, which is a little bit shorter than the sum of the van der Waals radii of two silver atoms (3.44 Ǻ) [23], indicating weak argentophilic interactions, unlike the [Ag(4BP)2]2(CF3COO)2 complex in which the Ag-Ag distance is short 3.0740(2) Ǻ, indicating a strong argentophilic interaction, which leads to the dinuclear complex.
The thiocyanates in 2 are slightly less linear compared to complex 1 as can be observed from the S1–C1–N1 and S2–C2–N2 angles [179.1(3)° and 177.7(3)°, respectively]. As evident, the order of deviation from the linearity (180°) of the SCN− group according to its bonding mode is µ1,1,3 < µ1,1 < µ1,3.
The cationic part (4BP-H)+ of complex 2 acts as the templating agent that fills the space between the 1D anionic polymer. On the other hand, the 2D supramolecular framework of the complex is constructed mainly via the C–H…S interactions. These interactions occur between the carbon atom (C7) of the pyridine moiety in the (4BP-H)+ as the hydrogen bond donor and the µ1,1- thiocyanato S-atom (S1) as the hydrogen bond acceptor and between the C12-H12 from the phenyl moiety of the (4BP-H)+ cation and S2 of the µ1,3- thiocyanato group (Figure 8). The C7…S1 and C12…S2 contact distances are 3.692 Å and 3.639 Å, respectively, while the H7…S1 and H12…S2 distances are 2.900 Å and 2.908 Å, respectively. Moreover, there is a significant N3-H3…N1 hydrogen-bonding interaction between the protonated N-atom (N3) of the (4BP-H)+ as the hydrogen bond donor and the freely uncoordinated N-atom (N1) from the µ1,1- thiocyanate group as the hydrogen bond acceptor (Figure 8). The H3…N1 and N3…N1 distances are 1.880 Å and 2.723 (3) Å, respectively.

2.4. Analysis of Molecular Packing

The crystalline polymeric silver complexes 1 and 2 have a well-ordered arrangement that maintains the stability of the crystal through a set of interactions. These interactions involve primary bonds (covalent bonds) and secondary bonds (van der Waals, hydrogen bonds, Ag···Ag interactions, π-π stacking, etc.). A leading method for finding and analyzing all potential interactions that affect a crystal structure’s stability is Hirshfeld topology analysis. Figure 9 shows the Hirshfeld surface mapped with the dnorm properties along with the neighboring molecules involved in the closest contacts. The red and blue areas in the dnorm map represent contacts shorter and longer than the sum of the van der Waals radii of the contacting atoms. Figure 10 illustrates the 2D fingerprint (FP) plots of the important interactions in the [Ag(4BP)(SCN)]n complex (1).

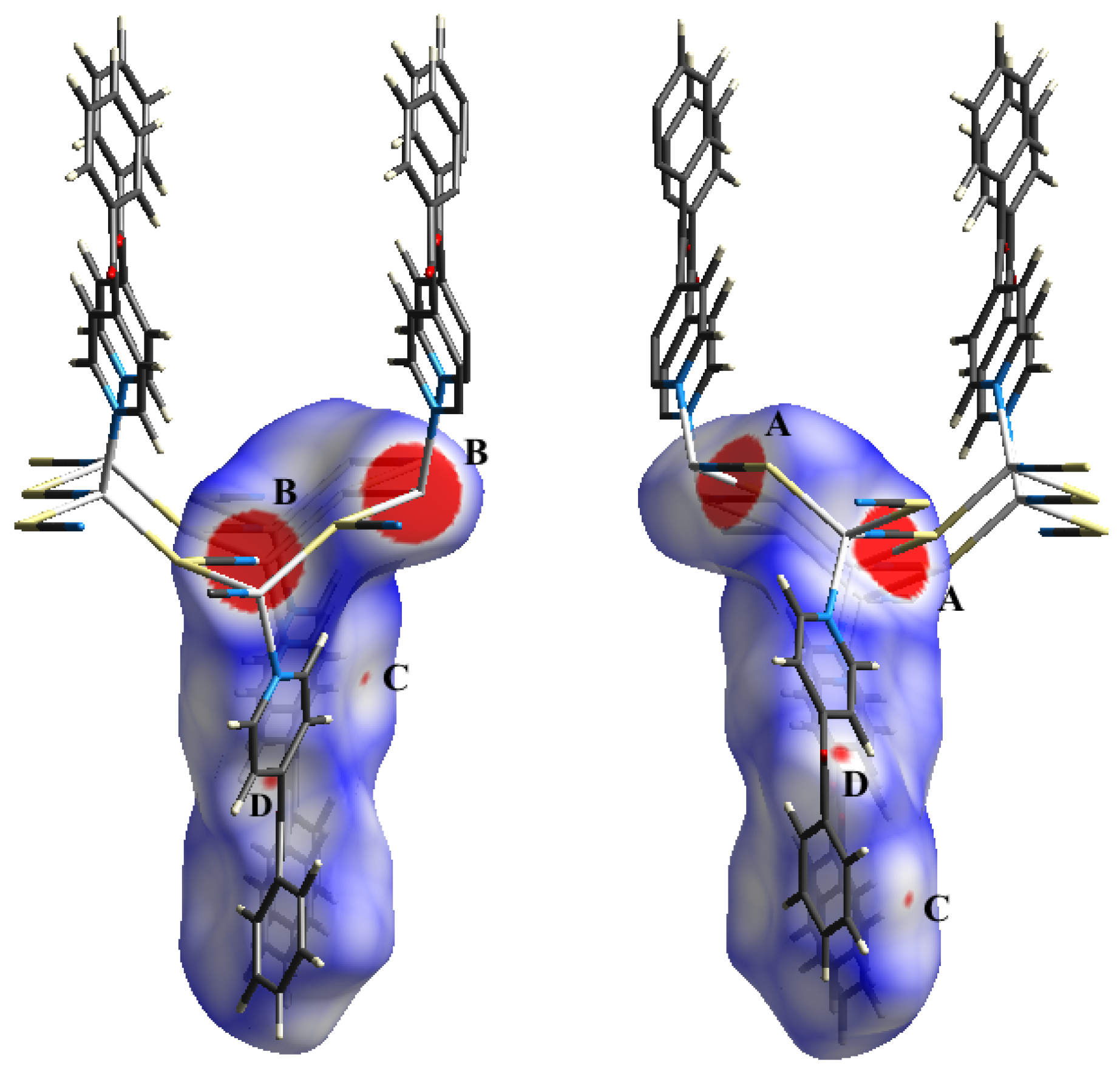

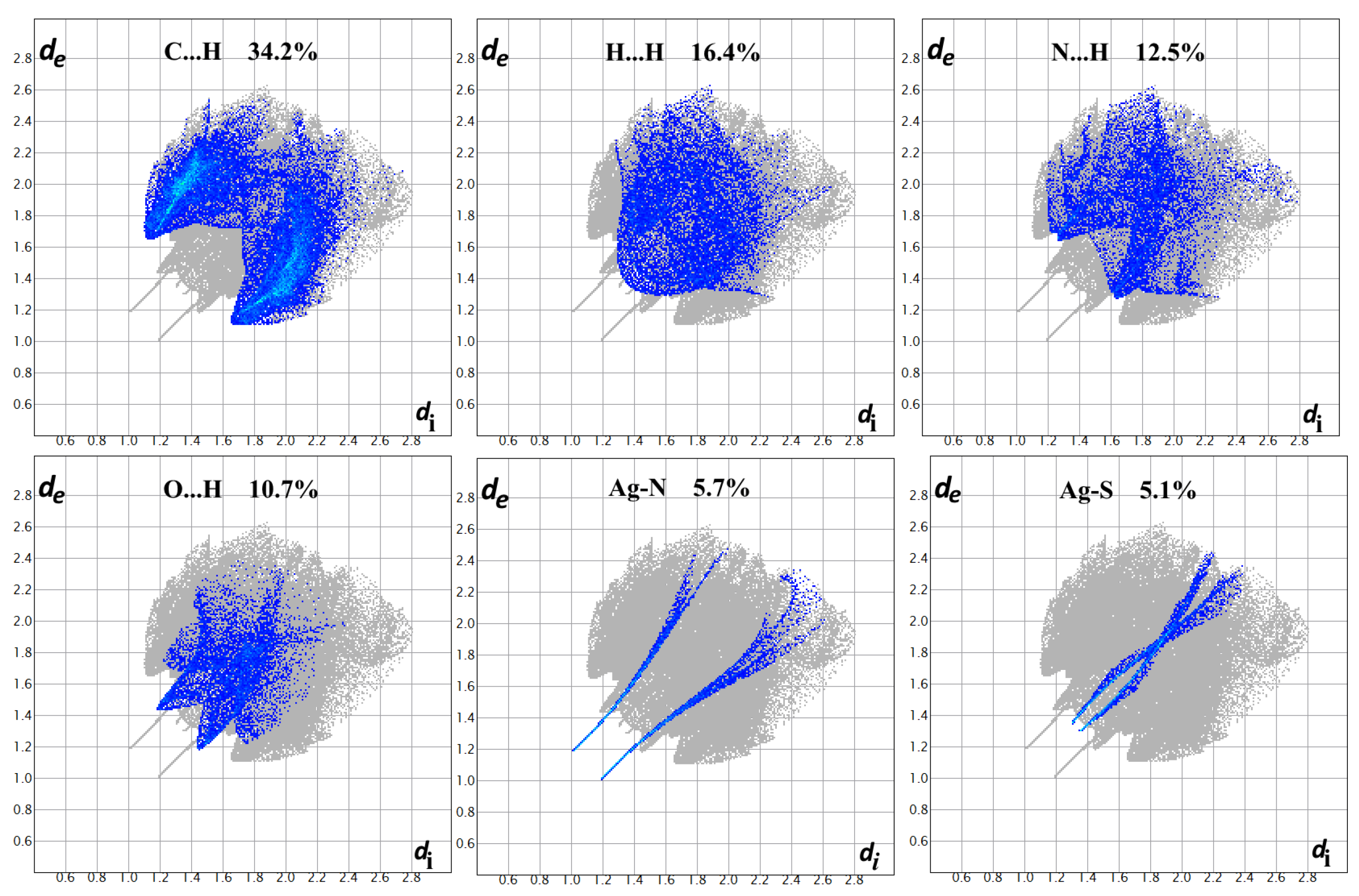

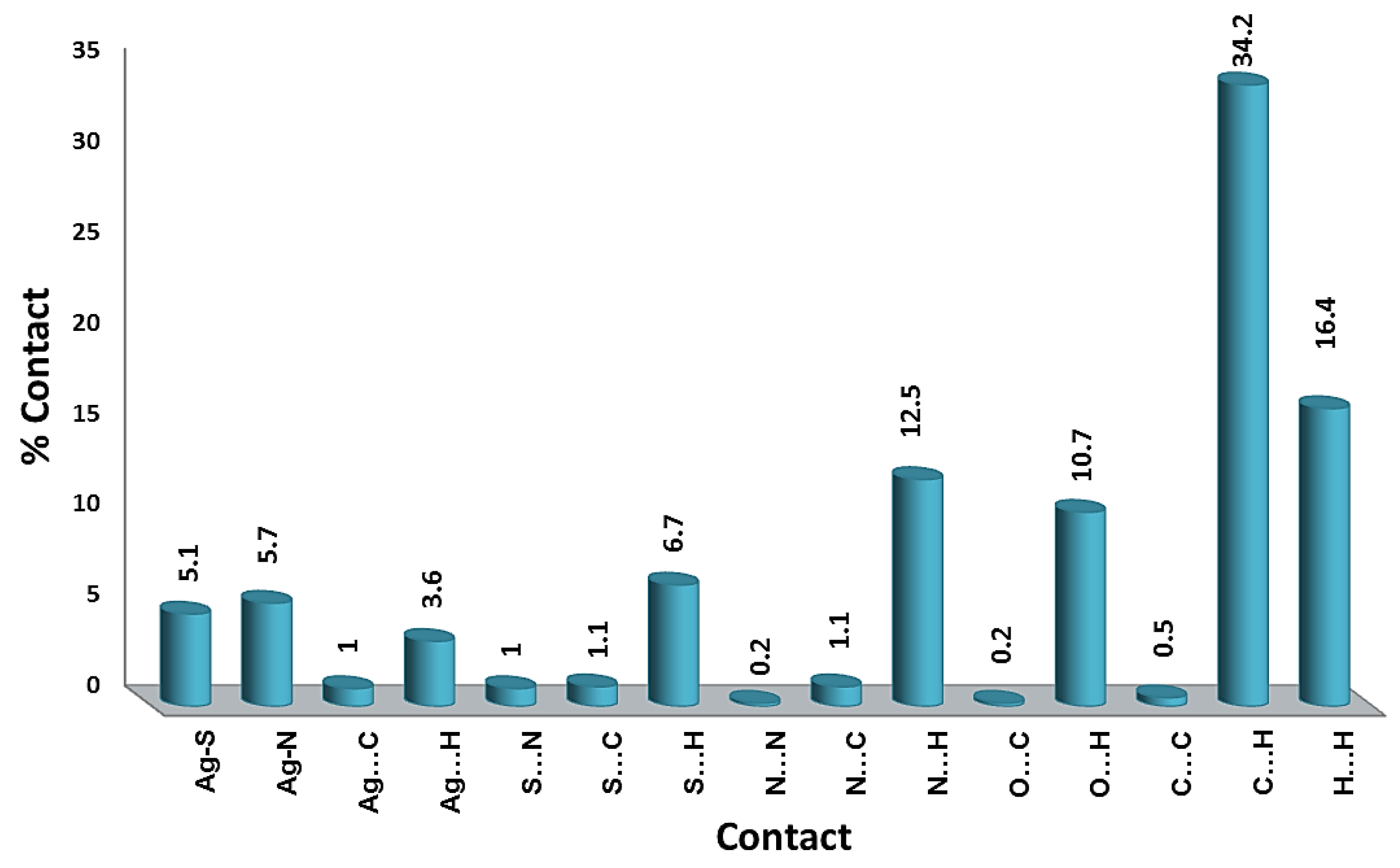

The polymeric Ag-S (5.1%) and Ag-N (5.7%) interactions appear as intense red spots in the dnorm map (Figure 9) and as two distinct sharp spikes in the FP plot (Figure 10), indicating that these coordination interactions have great significance for the extension of the polymeric chain structure and in the stability of complex 1 as well. Additionally, other contacts such as C…H and O…H are important for the crystal stability of complex 1. These interactions represent 34.2% and 10.7% of the total Hirshfeld surface area for this complex. These interactions occur between the adjacent organic ligand (4BP) moieties. The C2…H9 and O1…H5 are the shortest interactions, where their corresponding distances are 2.741 Å and 2.592 Å, respectively.
Also, the supramolecular structure of the [Ag(4BP)(SCN)]n complex is affected by other numerous weak interactions. Figure 11 displays a summary of all contacts and their contributions to the molecular packing of this complex. The significant C…H (34.2%), hydrogenic H…H (16.4%) and N…H (12.5%) interactions are the most frequent interactions.

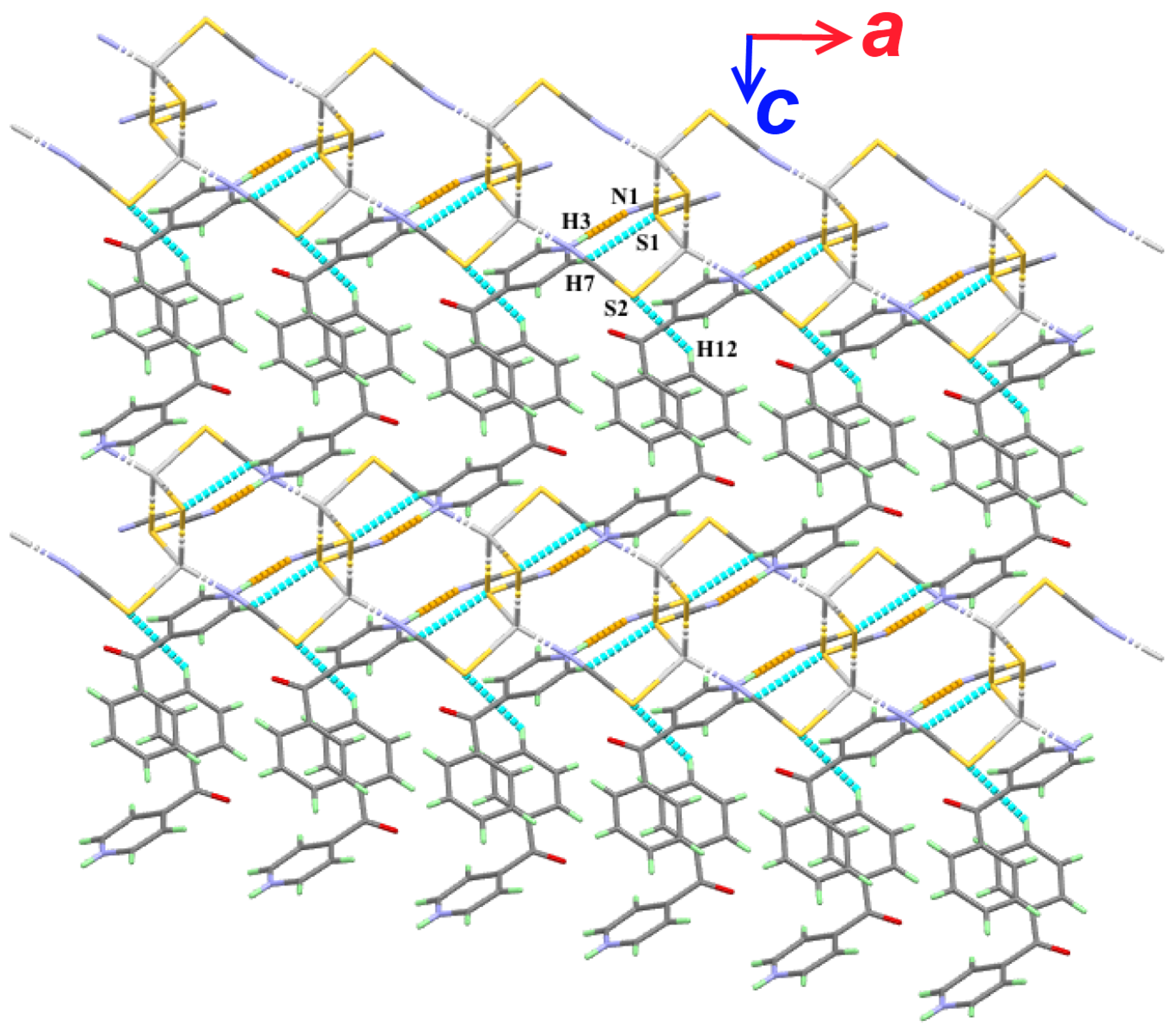

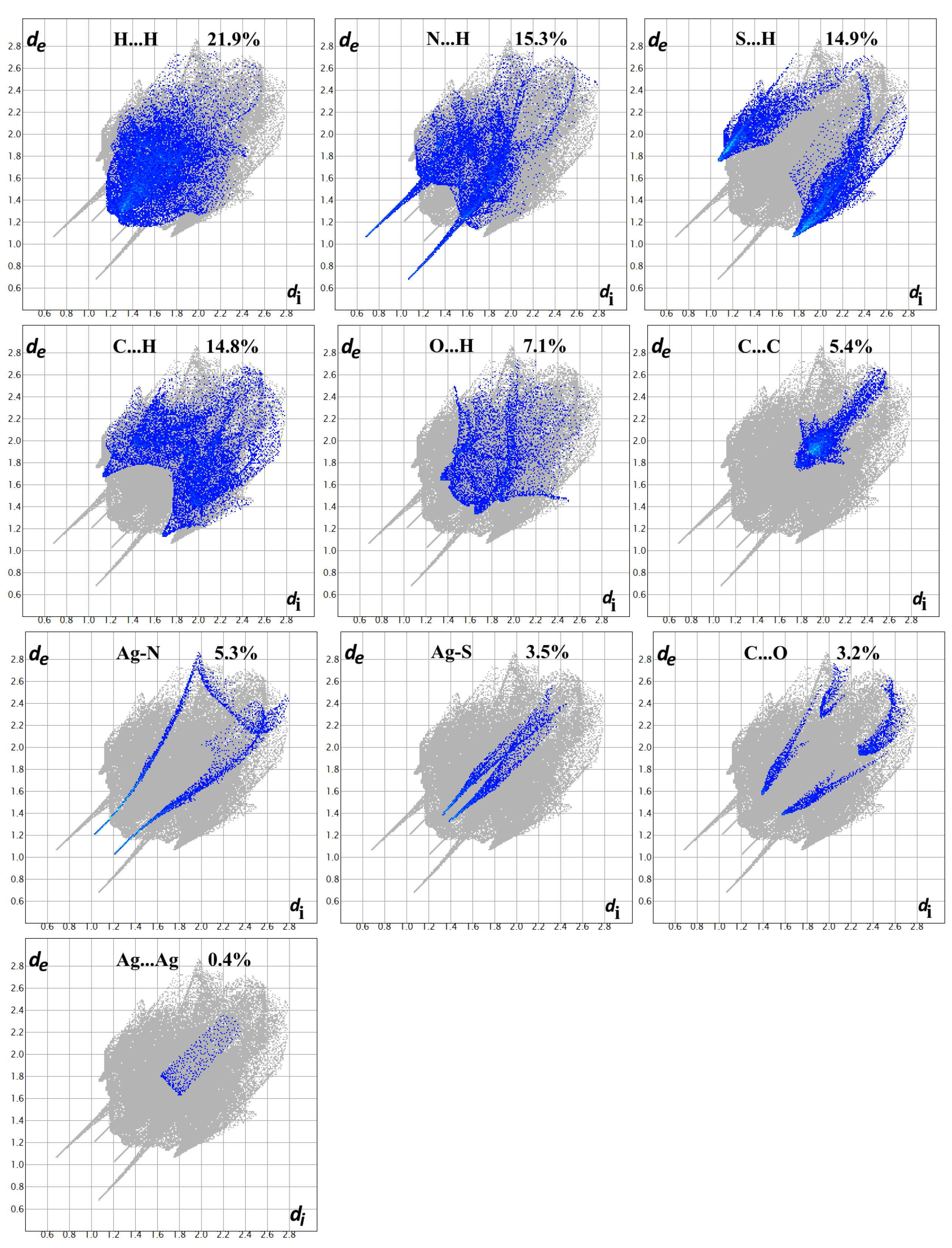

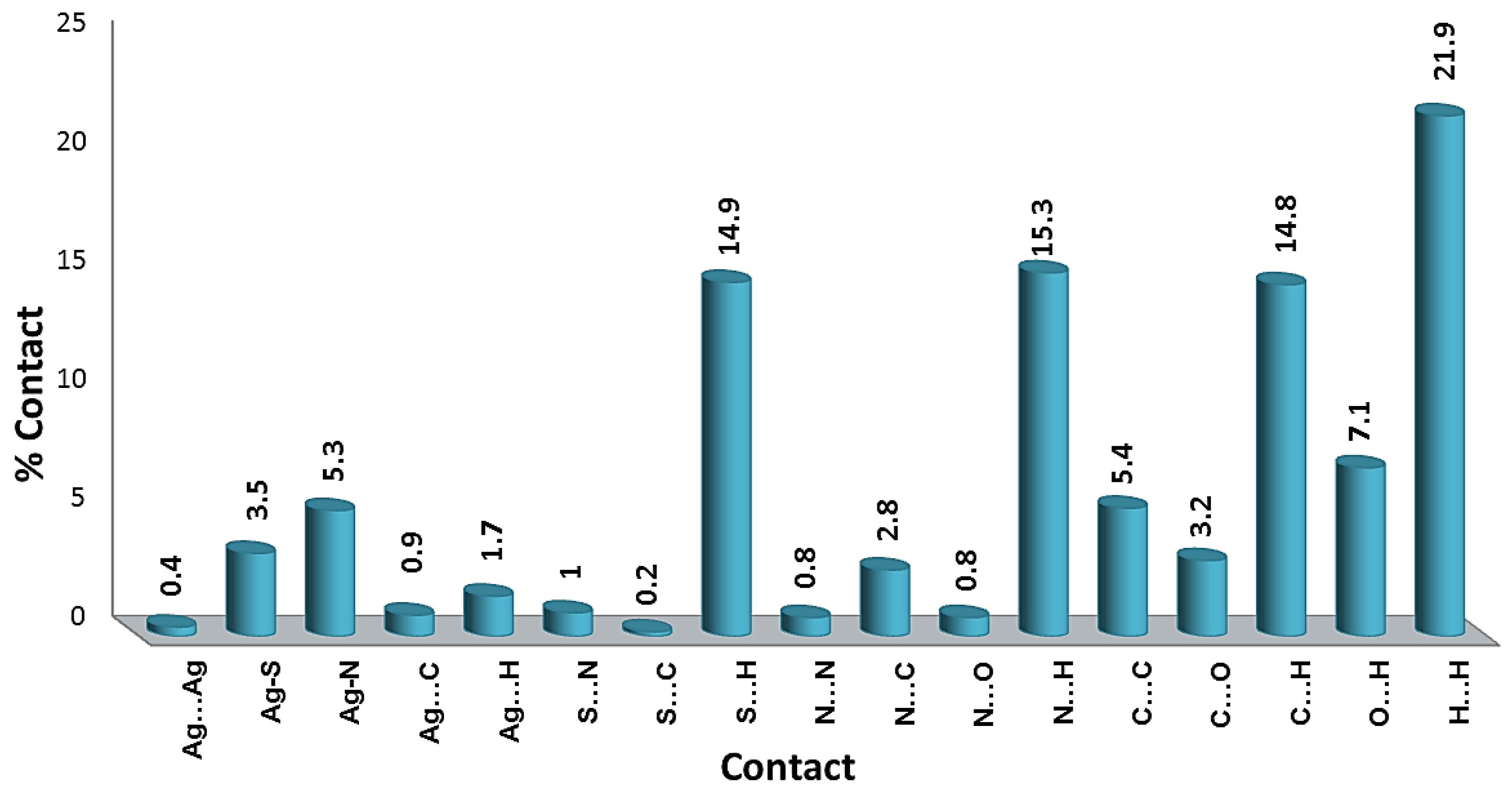

For the compound {(4BP-H)+[Ag(SCN)2]−}n (2), the dnorm map and the 2D fingerprint plots are presented in Figure 12 and Figure 13, respectively. As in 1, the polymeric Ag-S and Ag-N interactions appear as intense red spots in the dnorm map and as two distinct sharp spikes in the FP plot. Their respective contributions are 3.5% and 5.3%, respectively. It revealed the polymeric nature of this compound through coordination interactions between the Ag(I) ion and the thiocyanato sulfur and nitrogen atoms, which form the 1D polymeric chain of this complex. As shown in Figure 12, the dnorm map shows other red spots related to the N…H, S…H, C…O and Ag…Ag contacts, which are also important for the crystal stability of complex 2.

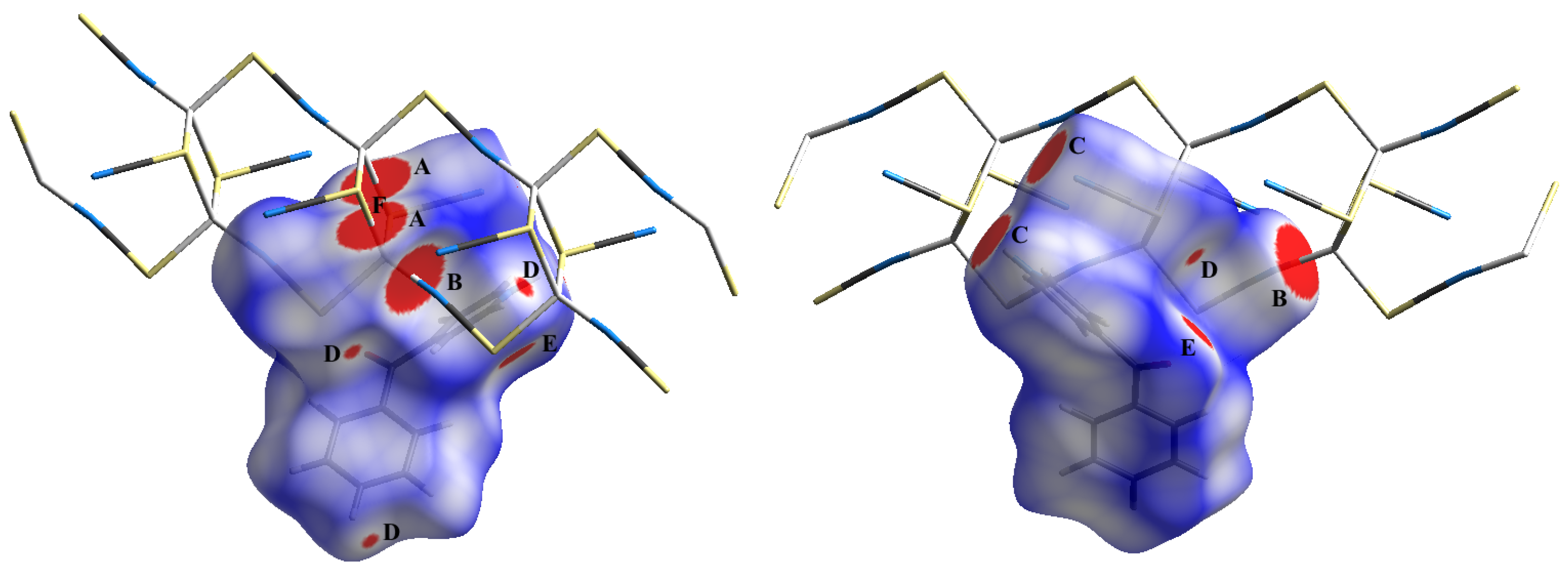

As shown in Figure 12, there are two large and intense red spots corresponding to the N…H interactions that also appear as sharp spikes in the FP plot (15.3%) (Figure 13), revealing the importance of this interaction in the crystal stability of 2. The N…H interaction occurs between the uncoordinated N-atom (N1) of the µ1,1-thiocyanato group in the 1D polymeric chain of [Ag(SCN)2]− anion and the hydrogen atom (H3) of the protonated 4BP in (4BP-H)+ cation where the N1…H3 distance is 1.734Å.
The S…H interaction appeared in the FP as wings and contributed to the crystal structure packing by 14.9%, indicating the importance of the interactions between the hydrogen atoms from the (4BP-H)+ cation and the S-atoms of the µ1,1- (S1…H7 = 2.778 Å) and µ1,3-thiocyanato (S2…H12 = 2.798 Å) groups from the anionic complex part, leading to the extended 2D supramolecular framework. Moreover, the C…O interaction occurred between the adjacent (4BP-H)+ cations where the C7…O2 distance is 2.916 Å. In addition, the argentophilic (Ag…Ag) interaction occurred in complex 2 (Ag1…Ag1 = 3.378 Å). On the other hand, the contribution of the C…C contact by 5.4% in the FP plot (Figure 13), along with the red/blue triangles and green flat area in the shape index (SI) and curvedness maps, respectively, confirm the existence of π- π stacking interactions between the parallel phenyl rings of the (4BP-H)+ cation (Figure 14). The C11…C13 (3.712 Å) and C12…C12 (3.714 Å) are the shortest distances between the stacked phenyl rings. These distances are longer than twice the van der Waals radii (3.40 Å) of the carbon atoms, indicating rather weak π-π stacking interactions.
The other weak non-covalent interactions that occurred in complex 2 are shown in Figure 15. The hydrogenic H…H (21.9%), N…H (15.3%), S…H (14.9%) and C…H (14.8%) contacts were the most frequent interactions.

3. Experimental

3.1. Material and Instrumentation

All chemicals were obtained from Sigma-Aldrich Company and used as received. A Perkin Elmer 2400 Elemental Analyzer (PerkinElmer, New York, NY, USA) was used to perform the CHN analyses. Additionally, the amount of Ag was determined using a Shimadzu atomic absorption spectrophotometer (AA-7000 series, Shimadzu, Ltd., Kyoto, Japan).

3.2. Synthesis of the AgSCN/4BP CPS

3.2.1. Synthesis of [Ag(4BP)(SCN)]n Complex (1)

An aqueous solution of silver(I) nitrate (170 mg, 1 mmol) in 10 mL was mixed with a saturated solution of ammonium thiocyanate followed by the addition of an ethanolic solution (10 mL) of 4BP (183.2 mg, 1 mmol). This mixture was left at room temperature and allowed to evaporate slowly. Complex 1 was obtained as pale-yellow block crystals after 10 days. [Ag(4BP)(SCN)]n (1); (76% yield). Anal. Calc. C13H9AgN2OS: C, 44.72; H, 2.60; N, 8.02; Ag, 30.89%. Found: C, 44.59; H, 2.56; N, 7.94; Ag, 30.71%.

3.2.2. Synthesis of {(4BP-H)+[Ag(SCN)2]−}n Complex (2)

An aqueous solution of silver(I) nitrate (170 mg, 1 mmol) in 10 mL was mixed with a saturated solution of ammonium thiocyanate followed by the addition of an ethanolic solution (10 mL) of 4BP (183.2 mg, 1 mmol). To the resulting mixture, 2 mL of 1:1 (v/v) aqueous solution of nitric acid was added. Complex 2 was obtained as colorless needle crystals after 6 days. {(4BP-H)+[Ag(SCN)2]−}n (2); (71% yield). Anal. Calc. C14H10AgN3OS2: C, 41.19; H, 2.47; N, 10.29; Ag, 26.42%. Found: C, 41.07; H, 2.44; N, 10.20; Ag, 26.29%.

3.3. X-ray Crystallography

The crystal structure of the two complexes was measured with the aid of Bruker APEX II machine employing graphite monochromator and MoKα radiation. Absorption corrections were performed using SADABS while all steps performed to solve the structure were executed using the SHELXTL program package [76]. Table S1 (Supplementary Data) provides a summary of the crystallographic results.

3.4. Hirshfeld Surface Analysis

The program Crystal Explorer 17.5 [77] was used to analyze the various intermolecular interactions in the investigated silver complexes.

4. Conclusions

The supramolecular structures of the 2D [Ag(4BP)(SCN)]n (1) and 1D {(4BP-H)+[Ag(SCN)2]−}n (2) coordination polymers are presented. Both complexes were prepared from the reaction of 4-benzoyl pyridine (4BP) with AgNO3 in the presence of thiocyanate as a linker. As shown from the X-ray structure analysis of both complexes, the 4BP does not participate in expanding the polymeric structure. In complex 1, it acts as a N-donor monodentate ligand while in 2 it does not participate in coordination and was found monoprotonated (4BP-H)+. The thiocyanate anion displays different coordination modes in complexes 1 and 2, which affects the interconnection of the (AgSCN)n fragments and the propagation of the network structure in the different dimensions. In the case of complex 1, the SCN− exhibits a µ1,13- bonding mode, while in 2 there are two types of bonding modes, which are the µ1,1- and µ1,3-types. As a result, 2D and 1D polymeric structures are obtained for complexes 1 and 2, respectively. The supramolecular structure aspects of both complexes were analyzed quantitatively using Hirshfeld analysis. The non-covalent C…H and O…H interactions are the most significant contacts in 1 where the percentages of these interactions are 34.2% and 10.7%, respectively. In 2, the N…H (15.3%), S…H (14.9%) and C…O (3.2%) contacts are the most significant. Additionally, the hydrogenic H…H interactions largely contributed to the packing of complexes 1 (16.4%) and 2 (21.9%).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics11100417/s1, Table S1: Crystal data and structure refinement for complexes 1 and 2.

Author Contributions

Conceptualization, S.M.S. and M.A.M.A.-Y.; methodology, E.M.F., J.H.A., A.M.A.B., T.S.K. and A.B.; software, S.M.S., A.M.A.B., M.H. and A.B.; formal analysis, E.M.F., M.H. and A.M.A.B.; investigation, S.M.S., A.M.A.B., T.S.K. and E.M.F. resources, M.A.M.A.-Y. and A.B.; writing—original draft preparation, S.M.S., E.M.F., M.A.M.A.-Y., A.M.A.B. and A.B.; writing—review and editing, S.M.S., E.M.F., M.A.M.A.-Y., A.M.A.B. and A.B.; supervision, S.M.S. and M.A.M.A.-Y.; project administration, M.S.A.; funding acquisition, M.S.A. All authors have read and agreed to the published version of the manuscript.

Funding

Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2023R86), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

Data Availability Statement

Not applicable.

Acknowledgments

Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2023R86), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Blagojević, V.A.; Lukić, V.; Begović, N.N.; Maričić, A.M.; Minić, D.M. Hydrogen Storage in a Layered Flexible [Ni2(btc)(en)2]n Coordination Polymer. Int. J. Hydrogen Energy 2016, 41, 22171–22181. [Google Scholar] [CrossRef]
  2. Suh, M.P.; Park, H.J.; Prasad, T.K.; Lim, D.W. Hydrogen storage in metal–organic frameworks. Chem. Rev. 2012, 112, 782–835. [Google Scholar] [CrossRef] [PubMed]
  3. Qiu, S.; Xue, M.; Zhu, G. Metal–organic framework membranes: From synthesis to separation application. Chem. Soc. Rev. 2014, 43, 6116–6140. [Google Scholar] [CrossRef] [PubMed]
  4. Li, J.R.; Kuppler, R.J.; Zhou, H.C. Selective gas adsorption and separation in metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef]
  5. Wu, X.Y.; Qi, H.X.; Ning, J.J.; Wang, J.F.; Ren, Z.G.; Lang, J.P. One Silver(I)/Tetraphosphine Coordination Polymer Showing Good Catalytic Performance in the Photodegradation of Nitroaromatics in Aqueous Solution. Appl. Catal. B Environ. 2015, 168–169, 98–104. [Google Scholar] [CrossRef]
  6. Xing, B.; Choi, M.F.; Xu, B. Design of Coordination Polymer Gels as Stable Catalytic Systems. Chem.—Eur. J. 2002, 8, 5028–5032. [Google Scholar] [CrossRef]
  7. Maurya, M.R.; Kumar, A. Oxovanadium(IV) Based Coordination Polymers and Their Catalytic Potentials for the Oxidation of Styrene, Cyclohexene and Trans-Stilbene. J. Mol. Catal. A Chem. 2006, 250, 190–198. [Google Scholar] [CrossRef]
  8. Liu, J.Q.; Luo, Z.D.; Pan, Y.; Singh, A.K.; Trivedi, M.; Kumar, A. Recent developments in luminescent coordination polymers: Designing strategies, sensing application and theoretical evidences. Coord. Chem. Rev. 2020, 406, 213145. [Google Scholar] [CrossRef]
  9. Liu, H.; Wang, Y.; Qin, Z.; Liu, D.; Xu, H.; Dong, H.; Hu, W. Electrically conductive coordination polymers for electronic and optoelectronic device applications. J. Phys. Chem. Lett. 2021, 12, 1612–1630. [Google Scholar] [CrossRef]
  10. Mirtamizdoust, B. Sonochemical Synthesis of Nano Lead(II) Metal-Organic Coordination Polymer; New Precursor for the Preparation of Nano-Materials. Ultrason. Sonochem. 2017, 35, 263–269. [Google Scholar] [CrossRef]
  11. Molaei, F.; Bigdeli, F.; Morsali, A.; Joo, S.W.; Bruno, G.; Rudbari, H.A. Synthesis and Characterization of Different Zinc(II) Oxide Nano-Structures from Two New Zinc(II)- Quinoxaline Coordination Polymers. J. Mol. Struct. 2015, 1095, 8–14. [Google Scholar] [CrossRef]
  12. San Sebastian, E.; Rodríguez-Diéguez, A.; Seco, J.M.; Cepeda, J. Coordination Polymers with Intriguing Photoluminescence Behavior: The Promising Avenue for Greatest Long- Lasting Phosphors. Eur. J. Inorg. Chem. 2018, 2018, 2155–2174. [Google Scholar] [CrossRef]
  13. Li, Q.; Qian, J.; Zhou, J.; Du, L.; Zhao, Q. Highly chemically and thermally stable lanthanide coordination polymers for luminescent probes and white light emitting diodes. CrystEngComm 2020, 22, 2667–2674. [Google Scholar] [CrossRef]
  14. Begum, S.; Hassan, Z.; Bräse, S.; Wöll, C.; Tsotsalas, M. Metal–organic framework-templated biomaterials: Recent progress in synthesis, functionalization, and applications. Acc. Chem. Res. 2019, 52, 1598–1610. [Google Scholar] [CrossRef] [PubMed]
  15. Giménez-Marqués, M.; Hidalgo, T.; Serre, C.; Horcajada, P.J.C.C.R. Nanostructured metal–organic frameworks and their bio-related applications. Coord. Chem. Rev. 2016, 307, 342–360. [Google Scholar] [CrossRef]
  16. Zhu, H.; Liu, D.; Li, Y.H.; Cui, G.H. A 1D Silver(I) Coordination Polymer as Luminescent Probe for Cu2+ and Effective Photocatalyst for Degradation Organic Dyes. Inorg. Chem. Commun. 2019, 108, 107539. [Google Scholar] [CrossRef]
  17. Dinh Do, N.; Kovalchukova, O.; Stash, A.; Strashnova, S. Catena-Poly[Ammonium [Aquabis(μ-2,3,5,6-Tetraoxo-4-Nitropyridin-4-Ido) Argentate(I)]]. Acta Crystallogr. Sect. E Struct. Rep. Online 2013, 69, m477–m478. [Google Scholar] [CrossRef]
  18. Fang, X.Q.; Deng, Z.P.; Huo, L.H.; Wan, W.; Zhu, Z.B.; Zhao, H.; Gao, S. New Family of Silver(I) Complexes Based on Hydroxyl and Carboxyl Groups Decorated Arenesulfonic Acid: Syntheses, Structures, and Luminescent Properties. Inorg. Chem. 2011, 50, 12562–12574. [Google Scholar] [CrossRef]
  19. Chen, C.L.; Kang, B.S.; Su, C.Y. Recent Advances in Supramolecular Design and Assembly of Silver(I) Coordination Polymers. Aust. J. Chem. 2006, 59, 3–18. [Google Scholar] [CrossRef]
  20. Capel Berdiell, I.; Warriner, S.L.; Halcrow, M.A. Silver(I) Complexes of Bis- and Tris- (Pyrazolyl)Azine Derivatives-Dimers, Coordination Polymers and a Pentametallic Assembly. Dalton Trans. 2018, 47, 5269–5278. [Google Scholar] [CrossRef]
  21. Khlobystov, A.N.; Blake, A.J.; Champness, N.R.; Lemenovskii, D.A.; Majouga, A.G.; Zyk, N.V.; Schröder, M. Supramolecular Design of One-Dimensional Coordination Polymers Based on Silver(I) Complexes of Aromatic Nitrogen-Donor Ligands. Coord. Chem. Rev. 2001, 222, 155–192. [Google Scholar] [CrossRef]
  22. Moghadam, Z.; Akhbari, K.; Jamali, F.; Shahangi Shirazi, F. All Procedures for the Synthesis of Silver Nanosheets. Nanochem. Res. 2017, 2, 248–260. [Google Scholar]
  23. Schmidbaur, H.; Schier, A. Argentophilic interactions. Angew. Chem. Int. Ed. 2015, 54, 746–784. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, D.; Wang, H.; Lu, H.F.; Feng, S.Y.; Zhang, Z.W.; Sun, G.X.; Sun, D.F. Two birds with one stone: Anion templated ball-shaped Ag56 and disc-like Ag20 clusters. Dalton Trans. 2013, 42, 6281–6284. [Google Scholar] [CrossRef]
  25. Sun, D.; Zhang, L.L.; Lu, H.F.; Feng, S.Y.; Sun, D.F. Brightyellow to orange-red thermochromic luminescence of an AgI6−ZnII2 heterometallic aggregate. Dalton Trans. 2013, 42, 3528–3532. [Google Scholar] [CrossRef]
  26. Lamming, G.; Kolokotroni, J.; Harrison, T.; Penfold, T.J.; Clegg, W.; Waddell, P.G.; Probert, M.R.; Houlton, A. Structural diversity and argentophilic interactions in one-dimensional silverbased coordination polymers. Cryst. Growth Des. 2017, 17, 5753–5763. [Google Scholar] [CrossRef]
  27. Huang, R.W.; Wei, Y.S.; Dong, X.Y.; Wu, X.H.; Du, C.X.; Zang, S.Q.; Mak, T.C. Hypersensitive dual-function luminescence switching of a silver-chalcogenolate cluster based metal-organic framework. Nat. Chem. 2017, 9, 689. [Google Scholar] [CrossRef]
  28. Xi, X.; Liu, Y.; Cui, Y. Homochiral Silver-Based Coordination Polymers Exhibiting Temperature-Dependent Photoluminescence Behavior. Inorg. Chem. 2014, 53, 2352–2354. [Google Scholar] [CrossRef]
  29. Song, Y.F.; Abbas, H.; Ritchie, C.; McMillian, N.; Long, D.L.; Gadegaard, N.; Cronin, L. From polyoxometalate building blocks to polymers and materials: The silver connection. J. Mater. Chem. 2007, 17, 1903–1908. [Google Scholar] [CrossRef]
  30. Rais, D.; Yau, J.; Mingos, D.M.P.; Vilar, R.; White, A.J.; Williams, D.J. Anion-Templated Syntheses of Rhombohedral Silver− Alkynyl Cage Compounds. Angew. Chem. Int. Ed. 2001, 40, 3464–3467. [Google Scholar] [CrossRef]
  31. Liu, C.; Li, T.; Abroshan, H.; Li, Z.; Zhang, C.; Kim, H.J.; Li, G.; Jin, R. Chiral Ag23 nanocluster with open shell electronicstructure and helical face-centered cubic framework. Nat. Commun. 2018, 9, 744. [Google Scholar] [CrossRef] [PubMed]
  32. Song, X.-R.; Goswami, N.; Yang, H.-H.; Xie, J. Functionalization of metal nanoclusters for biomedical applications. Analyst 2016, 141, 3126–3140. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, S.S.; Su, H.F.; Zhuang, G.L.; Wang, X.P.; Tung, C.H.; Sun, D.; Zheng, L.S. A hexadecanuclear silver alkynyl clusterbased NbO framework with triple emissions from the visible to near-infrared II region. Chem. Commun. 2018, 54, 11905–11908. [Google Scholar] [CrossRef] [PubMed]
  34. Chai, J.; Yang, S.; Lv, Y.; Chen, T.; Wang, S.; Yu, H.; Zhu, M. A unique pair: Ag40 and Ag46 nanoclusters with the same surface but different cores for structure—property correlation. J. Am. Chem. Soc. 2018, 140, 15582–15585. [Google Scholar] [CrossRef] [PubMed]
  35. Morsali, A.; Hashemi, L. Main Group Metal Coordination Polymers: Stuctures and Nanostructures; John Wiley & Sons: Hoboken, NJ, USA, 2017. [Google Scholar]
  36. Tran, M.; Kline, K.; Qin, Y.; Shen, Y.; Green, M.D.; Tongay, S. 2D Coordination Polymers: Design Guidelines and Materials Perspective. Appl. Phys. Rev. 2019, 6, 041311–041328. [Google Scholar] [CrossRef]
  37. Allen, F.H. The Cambridge Structural Database: A Quarter of a Million Crystal Structures and Rising. Acta Crystallogr. Sect. B 2002, 58, 380–388. [Google Scholar] [CrossRef]
  38. Su, C.Y.; Chen, C.L.; Zhang, J.Y.; Kang, B.S. Silver(I) coordination polymers. Des. Constr. Coord. Polym. 2009, 5, 111–144. [Google Scholar]
  39. Steel, P.J.; Fitchett, C.M. Metallosupramolecular silver(I) assemblies based on pyrazine and related ligands. Coord. Chem. Rev. 2008, 252, 990–1006. [Google Scholar] [CrossRef]
  40. Mak, T.C.; Zhao, X.-L. Silver: Inorganic and coordination chemistry. In Encyclopedia of Inorganic and Bioinorganic Chemistry; King, R.B., Ed.; John Wiley & Sons, Inc.: Chichester, UK, 2005; pp. 5187–5197. [Google Scholar]
  41. Rana, A.; Jana, S.K.; Pal, T.; Puschmann, H.; Zangrando, E.; Dalai, S. Electrical conductivity and luminescence properties of two silver(I) coordination polymers with heterocyclic nitrogen ligands. J. Solid State Chem. 2014, 216, 49–55. [Google Scholar] [CrossRef]
  42. Zheng, X.-F.; Zhu, L.-G. Synthesis, structures and conductivity properties of silver 3-sulfobenzoate coordination polymers. Inorg. Chim. Acta 2011, 365, 419–429. [Google Scholar] [CrossRef]
  43. Yan, J.; Wilbraham, L.; Basa, P.N.; Schüttel, M.; Macdonald, J.C.; Ciofini, I.; Coudert, F.-X.; Burdette, S.C. Emissive azobenzenes delivered on a silver coordination polymer. Inorg. Chem. 2018, 57, 15009–15022. [Google Scholar] [CrossRef] [PubMed]
  44. May, L.J.; Shimizu, G.K.H. Highly selective intercalation of primary amines in a continuous layer Ag coordination network. Chem. Mater. 2005, 17, 217–220. [Google Scholar] [CrossRef]
  45. Yang, G.; Raptis, R.G. A robust, porous, cationic silver(I) 3,5-diphenyl-1,2,4-triazolate framework with a uninodal 49.66 net. Chem. Commun. 2004, 18, 2058–2059. [Google Scholar] [CrossRef] [PubMed]
  46. Yamada, S.; Ishida, T.; Nogami, T. Supramolecular triangular and linear arrays of metal-radical solids using pirazolato-silver(I) motifs. Dalton Trans. 2004, 6, 898–903. [Google Scholar] [CrossRef] [PubMed]
  47. Rigamonti, L.; Vaccari, M.; Roncaglia, F.; Baschieri, C.; Forni, A. New silver(I) coordination polymer with Fe4 single-molecule magnets as long spacer. Magnetochemistry 2018, 4, 43. [Google Scholar] [CrossRef]
  48. Zhou, Z.; He, C.; Yang, L.; Wang, Y.; Liu, T.; Duan, C. Alkyne activation by a porous silver coordination polymer for heterogeneous catalysis of carbon dioxide cycloaddition. ACS Catal. 2017, 7, 2248–2256. [Google Scholar] [CrossRef]
  49. Wang, C.C.; Jing, H.P.; Wang, P. Three silver-based complexes constructed from organic carboxylic acid and 4,4′-bipyridine-like ligands: Syntheses, structures and photocatalytic properties. J. Mol. Struct. 2014, 1074, 92–99. [Google Scholar] [CrossRef]
  50. Sulaiman, N.I.; Salimin, N.R.; Haque, R.A.; Iqbal, M.A.; Ng, S.W.; Razali, M.R. Synthesis, spectroscopic characterization, single crystal X-ray determination and cytotoxicity activity against human breast cancer (MCF-7) and colon cancer (HCT 116) cell lines of silver (I) coordination polymer. Polyhedron 2015, 97, 188–196. [Google Scholar] [CrossRef]
  51. Rogovoy, M.I.; Berezin, A.S.; Kozlova, Y.N.; Samsonenko, D.G.; Artem’ev, A.V. A layered Ag (I)-based coordination polymer showing sky-blue luminescence and antibacterial activity. Inorg. Chem. Commun. 2019, 108, 107513. [Google Scholar] [CrossRef]
  52. El-Naggar, M.A.; Albering, J.H.; Barakat, A.; Abu-Youssef, M.A.; Soliman, S.M.; Badr, A.M. New bioactive 1D Ag (I) coordination polymers with pyrazole and triazine ligands; Synthesis, X-ray structure, Hirshfeld analysis and DFT studies. Inorg. Chim. Acta 2022, 537, 120948. [Google Scholar] [CrossRef]
  53. Adarsh, N.N.; Dastidar, P. Coordination polymers: What has been achieved in going from innocent 4, 4’-bipyridine to bis-pyridyl ligands having a non-innocent backbone? Chem. Soc. Rev. 2012, 41, 3039–3060. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, Z.; Qayyum, M.F.; Wu, C.; Whited, M.T.; Djurovich, P.I.; Hodgson, K.O.; Hedman, B.; Solomon, E.I.; Thompson, M.E. A Codeposition route to CuI- pyridine coordination complexes for organic light-emitting diodes. J. Am. Chem. Soc. 2011, 133, 3700–3703. [Google Scholar] [CrossRef] [PubMed]
  55. Abu-Youssef, M.A.M.; Langer, V.; Barakat, A.; Haukka, M.; Soliman, S.M. Molecular, Supramolecular Structures Combined with Hirshfeld and DFT Studies of Centrosymmetric M(II)-azido {M = Ni(II), Fe(II) or Zn(II)} Complexes of 4-Benzoylpyridine. Symmetry 2021, 13, 2026. [Google Scholar] [CrossRef]
  56. Pai, S.; Schott, M.; Niklaus, L.; Posset, U.; Kurth, D.G. A study of the effect of pyridine linkers on the viscosity and electrochromic properties of metallo-supramolecular coordination polymers. J. Mater. Chem. C 2018, 6, 3310–3321. [Google Scholar] [CrossRef]
  57. Blake, A.J.; Champness, N.R.; Cooke, P.A.; Nicolson, J.E.B. Synthesis of a chiral adamantoid network—the role of solvent in the construction of new coordination netwroks with silver(I). Chem. Commun. 2000, 8, 665–666. [Google Scholar] [CrossRef]
  58. Feazell, R.P.; Carson, C.R.; Klausmeyer, K.K. Silver(I) 3-aminomethylpyridine complexes, Part 1: Effect of ligand ratio, π-stacking, and temperature with a noninteracting anion. Inorg. Chem. 2006, 45, 2627–2634. [Google Scholar] [CrossRef]
  59. Marchetti, F.; Pettinari, R.; Di Nicola, C.; Pettinari, C.; Paul, A.; Crispini, A.; Giorno, E.; Lelj, F.; Stoia, S.; Amati, M. Effect of methyl groups in a pyrimidine-based flexible ligand on the formation of silver(I) coordination networks. N. J. Chem. 2018, 42, 13998–14008. [Google Scholar] [CrossRef]
  60. Patra, G.K.; Goldberg, I.; De, S.; Datta, D. Effect of the size of discrete anions on the nuclearity of a complex cation. CrystEngComm 2007, 9, 828–832. [Google Scholar] [CrossRef]
  61. El-Naggar, M.A.; Abu-Youssef, M.A.M.; Soliman, S.M.; Haukka, M.; Al-Majid, A.M.; Barakat, A.; Badr, A.M.A. Synthesis, X-ray structure, Hirshfeld, and antimicrobial studies of new Ag(I) complexes based on pyridine-type ligands. J. Mol. Struct. 2022, 1264, 133210. [Google Scholar] [CrossRef]
  62. Gotsis, S.; White, A.H. Lewis-Base Adducts of Group-11 Metal(I) Compounds. XXIX. Crystal Structures of Bis(Pyridine-4-carbonitrile)silver(I) Nitrate and Bis(4-benzoylpyridine)Silver(I) Nitrate Monohydrate. Aust. J. Chem. 1987, 40, 1603–1608. [Google Scholar] [CrossRef]
  63. Song, K.Y.; Zhao, L.M.; Zhang, W.T.; Li, Y.; Li, H.H.; Chen, Z.R. Two-Dimensional Silver-Thiocyanate Layers Directed by Viologens: Structural Transformations upon Low Pressure Stimuli, Piezochromic Luminescence, Photocurrent Responses, and Photocatalytic Properties. Cryst. Growth Des. 2018, 19, 177–192. [Google Scholar] [CrossRef]
  64. Chakkaradhari, G.; Eskelinen, T.; Degbe, C.; Belyaev, A.; Melnikov, A.S.; Grachova, E.V.; Tunik, S.P.; Hirva, P.; Koshevoy, I.O. Oligophosphine-thiocyanate copper (I) and silver (I) complexes and their borane derivatives showing delayed fluorescence. Inorg. Chem. 2019, 58, 3646–3660. [Google Scholar] [CrossRef] [PubMed]
  65. Luo, S.Q.; Wang, Q.; Quan, J.; Yang, M.; Wang, Y.; Zhang, X.; Chen, Z.N. A sky-blue luminescent silver (I) complex with a one-dimensional zipper-like structure constructed with 2-diphenylphosphinopyridine and thiocyanate. Transit. Met. Chem. 2021, 46, 415–421. [Google Scholar] [CrossRef]
  66. Filipović, N.R.; Ristić, P.; Janjić, G.; Klisurić, O.; Puerta, A.; Padron, J.M.; Donnard, M.; Gulea, M.; Todorović, T.R. Silver-based monomer and coordination polymer with organic thiocyanate ligand: Structural, computational and antiproliferative activity study. Polyhedron 2019, 173, 114132. [Google Scholar] [CrossRef]
  67. Bowmaker, G.A.; Di Nicola, C.; Hanna, J.V.; Healy, P.C.; King, S.P.; Marchetti, F.; Pettinari, C.; Robinson, W.T.; Skelton, B.W.; Sobolev, A.N.; et al. Oligo-nuclear silver thiocyanate complexes with monodentate tertiary phosphine ligands, including novel ‘cubane’and ‘step’tetramer forms of AgSCN: PR3 (1:1)4. Dalton Trans. 2013, 42, 277–291. [Google Scholar] [CrossRef] [PubMed]
  68. Mautner, F.A.; Scherzer, M.; Berger, C.; Fischer, R.C.; Vicente, R.; Massoud, S.S. Synthesis and characterization of five new thiocyanato-and cyanato-metal (II) complexes with 4-azidopyridine as co-ligand. Polyhedron 2015, 85, 20–26. [Google Scholar] [CrossRef]
  69. Kabesova, M.; Gazo, J. Structure and classification of thiocyanates and the mutual influence of their ligands. Chem. Zvesti. 1980, 34, 800. [Google Scholar]
  70. Norbury, A.H. Coordination chemistry of the cyanate, thiocyanate, and selenocyanate ions. Adv. Inorg. Radiochem. 1975, 17, 231–386. [Google Scholar]
  71. Armstrong, D.R.; Khandelwal, A.H.; Raithby, P.R.; Snaith, R.; Stalke, D.; Wright, D.S. Structure of the lithium thiocyanate-tetramethylpropylenediamine complex dimer,[LiNCS-Me2N (CH2)3NMe2]2, with asymmetric NCS-bridge bonding: A new bonding mode for the thiocyanate ligand. Inorg. Chem. 1993, 32, 2132–2136. [Google Scholar] [CrossRef]
  72. Zhu, H.-L.; Liu, G.-F.; Meng, F.-J. Refinement of the crystal structure of silver (I) thiocyanate, AgSCN. Z. Kristallogr.—N. Cryst. Struct. 2003, 218, 263–264. [Google Scholar]
  73. Luo, G.G.; Sun, D.; Zhang, N.; Huang, R.B.; Zheng, L.S. Two novel silver (I) coordination polymers: Poly [(μ2-2-aminopyrimidine-κ2N1:N3)bis(μ3-thiocyanato-κ3S:S:S)disilver(I)] and poly [(2-amino-4,6-dimethylpyrimidine-κN) (μ3-thiocyanato-κ3N:S:S)silver(I)]. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 2009, 65, m377–m381. [Google Scholar] [CrossRef] [PubMed]
  74. Etaiw, S.E.D.H.; Abd El-Aziz, D.M.; Ibrahim, M.S.; El-din, A.S.B. Synthesis and crystal structures of three novel coordination polymers constructed from Ag (I) thiocyanate and nitrogen donor ligands. Polyhedron 2009, 28, 1001–1009. [Google Scholar] [CrossRef]
  75. Krautscheid, H.; Emig, N.; Klaassen, N.; Seringer, P. Thiocyanato complexes of the coinage metals: Synthesis and crystal structures of the polymeric pyridine complexes [AgxCuy (SCN) x+ y (py) z]. J. Chem. Soc. Dalton Trans. 1998, 18, 3071–3078. [Google Scholar] [CrossRef]
  76. Sheldrick, G.M. A short history of SHELX. Acta Cryst. A 2008, 64, 112–122. [Google Scholar]
  77. Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Spackman, P.R.; Jayatilaka, D.; Spackman, M.A. Crystal Explorer17; University of Western Australia: Crawley, Australia, 2017. [Google Scholar]
Inorganics 11 00417 g001

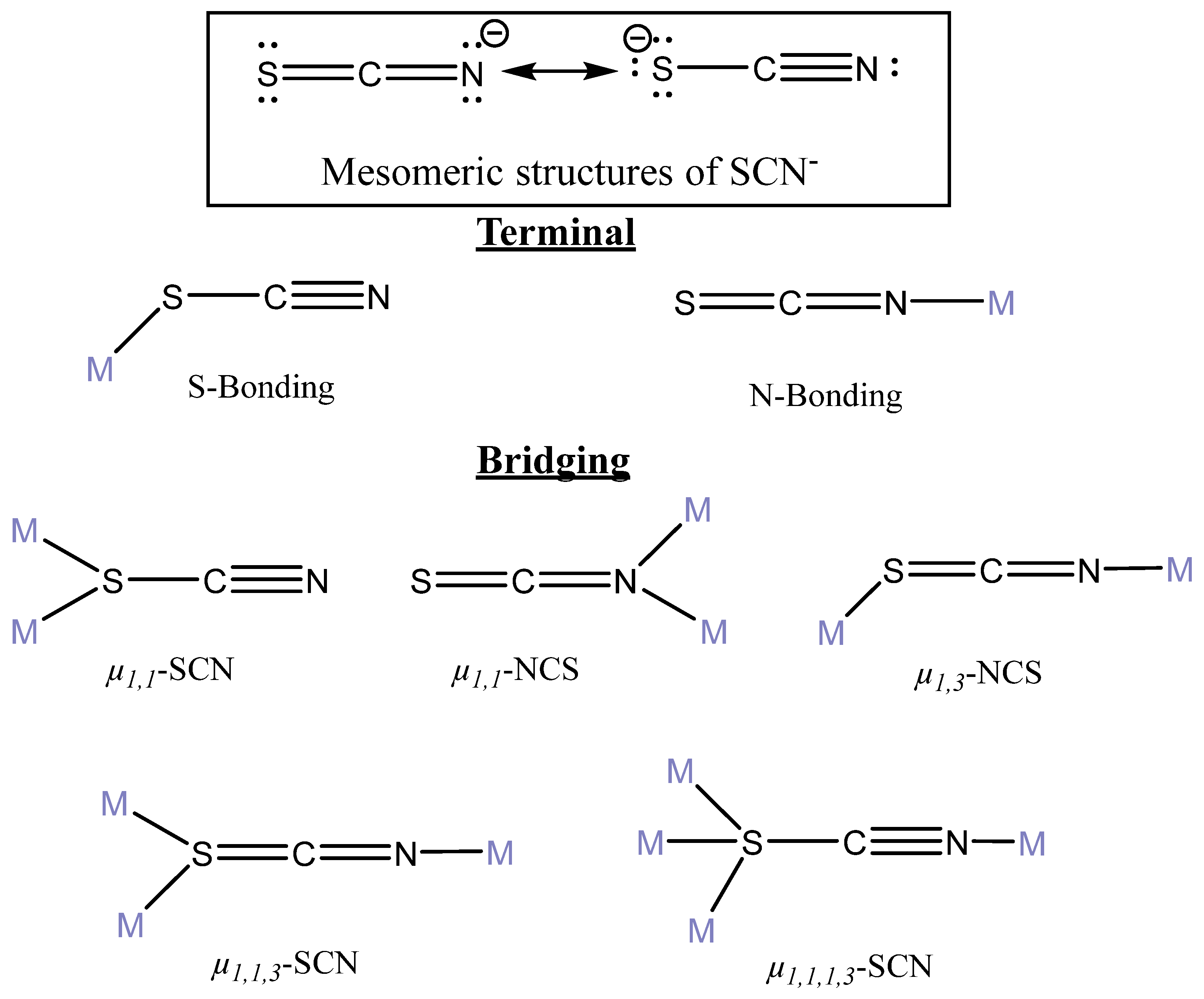

Figure 1. Mesomeric structures and coordination modes of SCN− ion.
Figure 1. Mesomeric structures and coordination modes of SCN− ion.
Inorganics 11 00417 g001
Inorganics 11 00417 g002

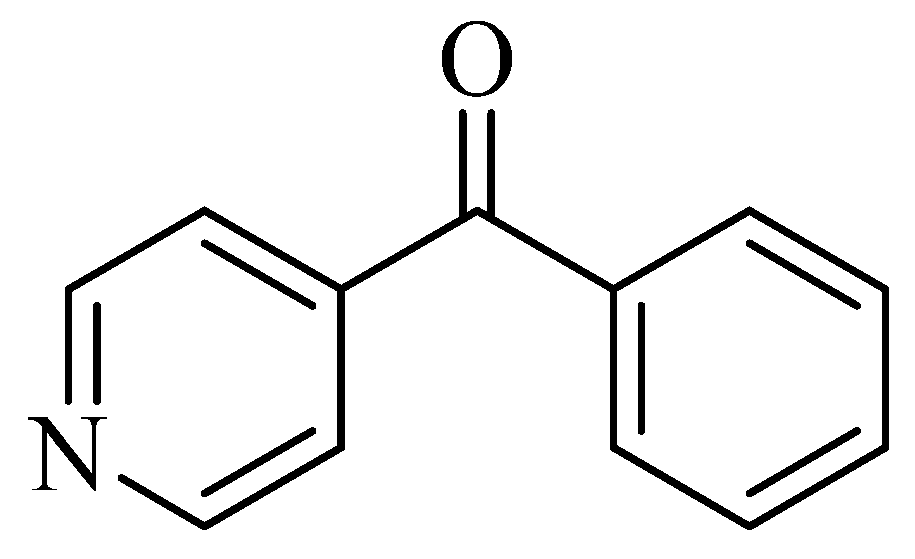

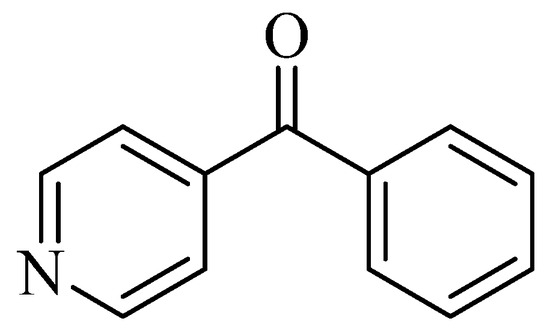

Figure 2. Structure of 4-benzoyl pyridine (4BP).
Figure 2. Structure of 4-benzoyl pyridine (4BP).
Inorganics 11 00417 g002
Inorganics 11 00417 sch001

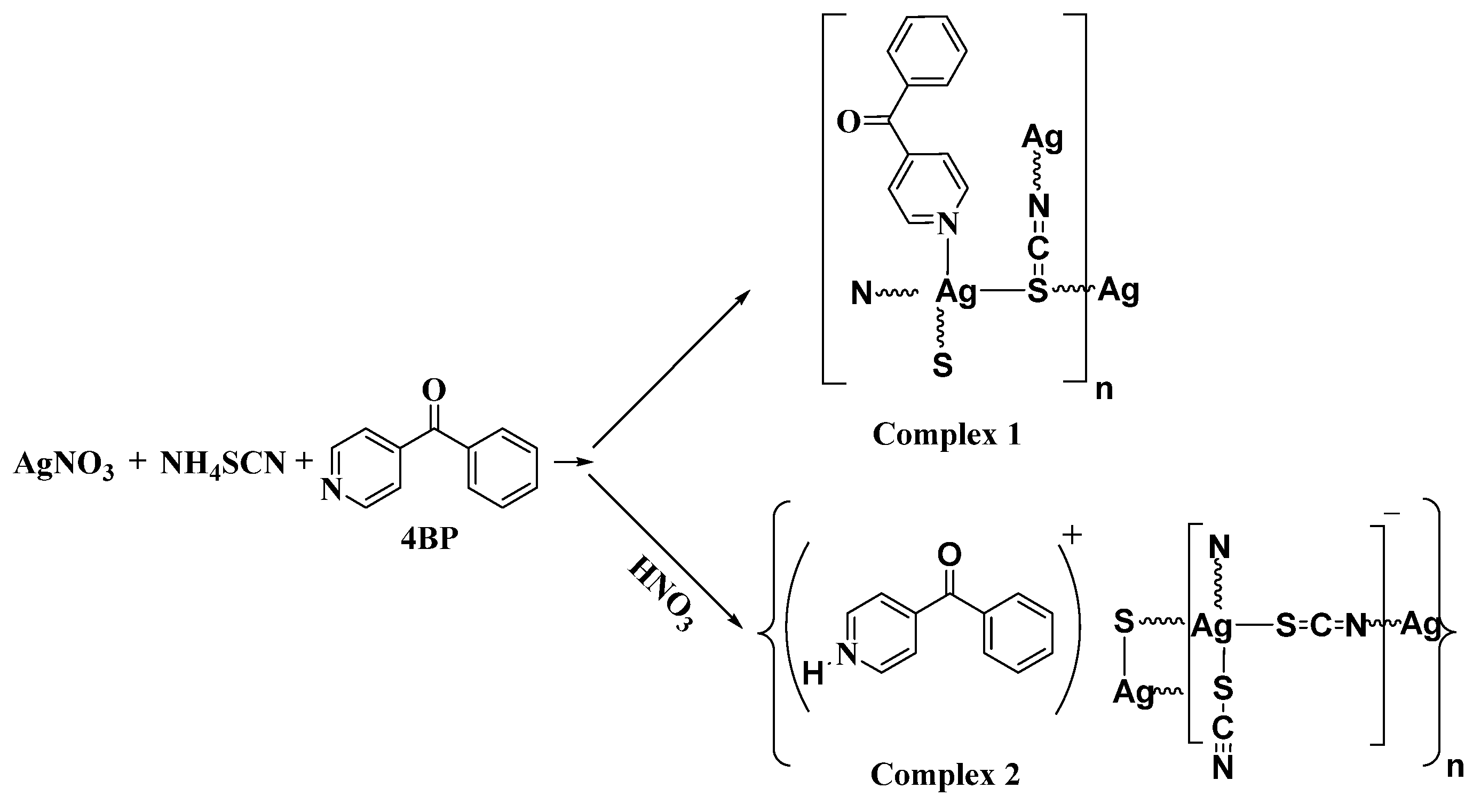

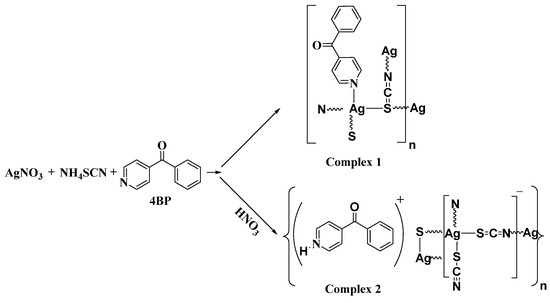

Scheme 1. Synthesis of the two complexes, 1 and 2.
Scheme 1. Synthesis of the two complexes, 1 and 2.
Inorganics 11 00417 sch001
Inorganics 11 00417 g003

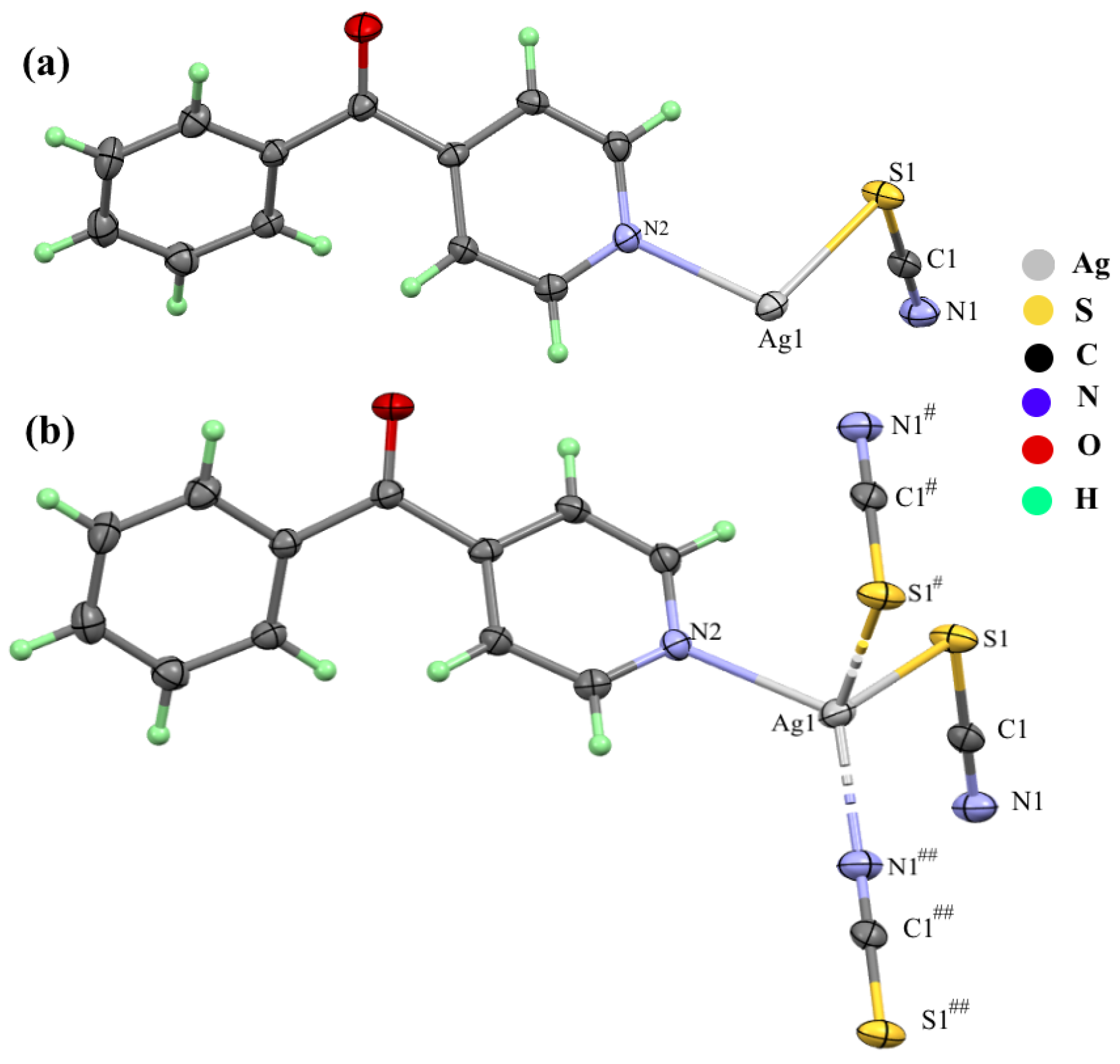

Figure 3. Structure of the asymmetric unit (a) and the complete coordination geometry around Ag(I) (b) in complex 1. Symmetry codes for S1 #: 1 − x, 1 − y, −1/2 + z and for N1 ##: 1 – x,2 – y, −1/2 + z.
Figure 3. Structure of the asymmetric unit (a) and the complete coordination geometry around Ag(I) (b) in complex 1. Symmetry codes for S1 #: 1 − x, 1 − y, −1/2 + z and for N1 ##: 1 – x,2 – y, −1/2 + z.
Inorganics 11 00417 g003
Inorganics 11 00417 g004

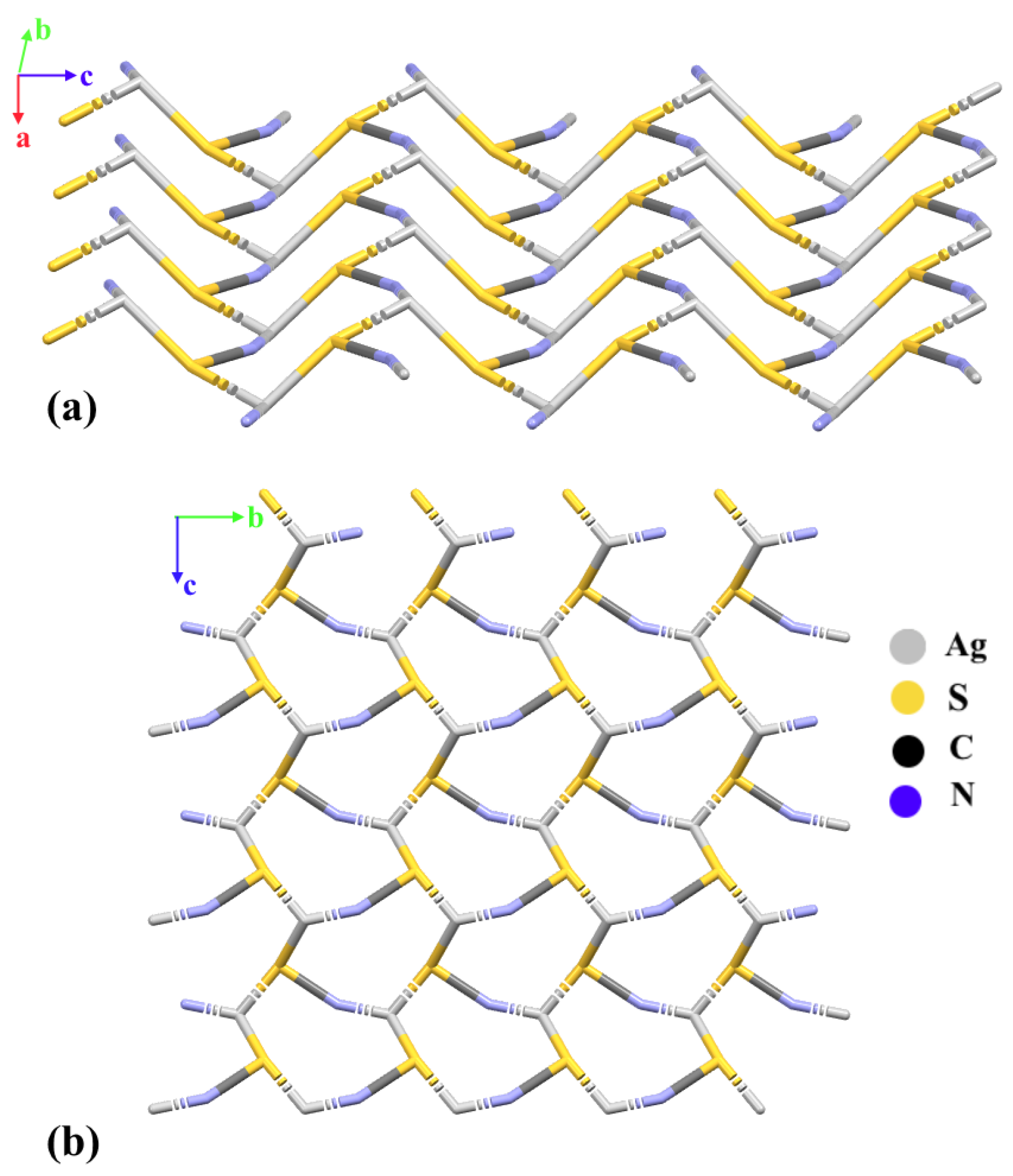

Figure 4. The zigzag-like (a) showing the two-dimensional polymeric structure (b) of complex 1 formed by the µ1,1,3-thiocyanate bridging ligand, viewed along two different axes. The 4BP and H-atoms are omitted for clarity.
Figure 4. The zigzag-like (a) showing the two-dimensional polymeric structure (b) of complex 1 formed by the µ1,1,3-thiocyanate bridging ligand, viewed along two different axes. The 4BP and H-atoms are omitted for clarity.
Inorganics 11 00417 g004
Inorganics 11 00417 g005

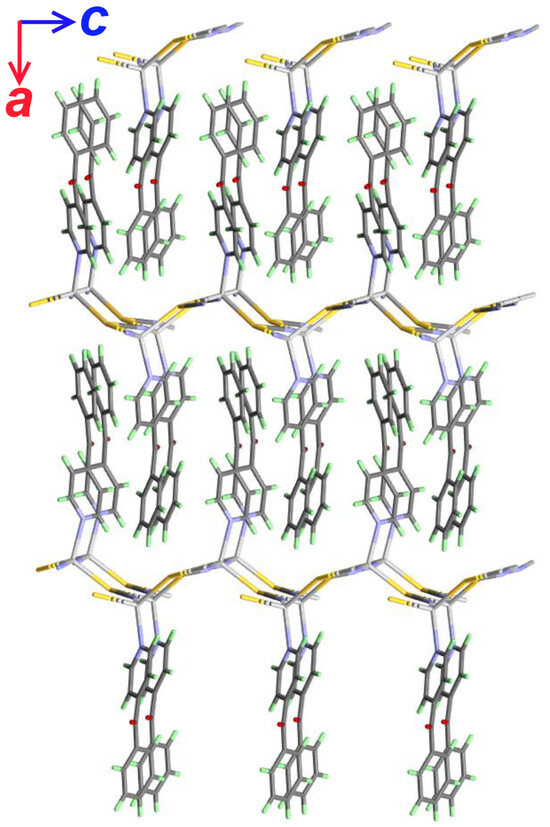

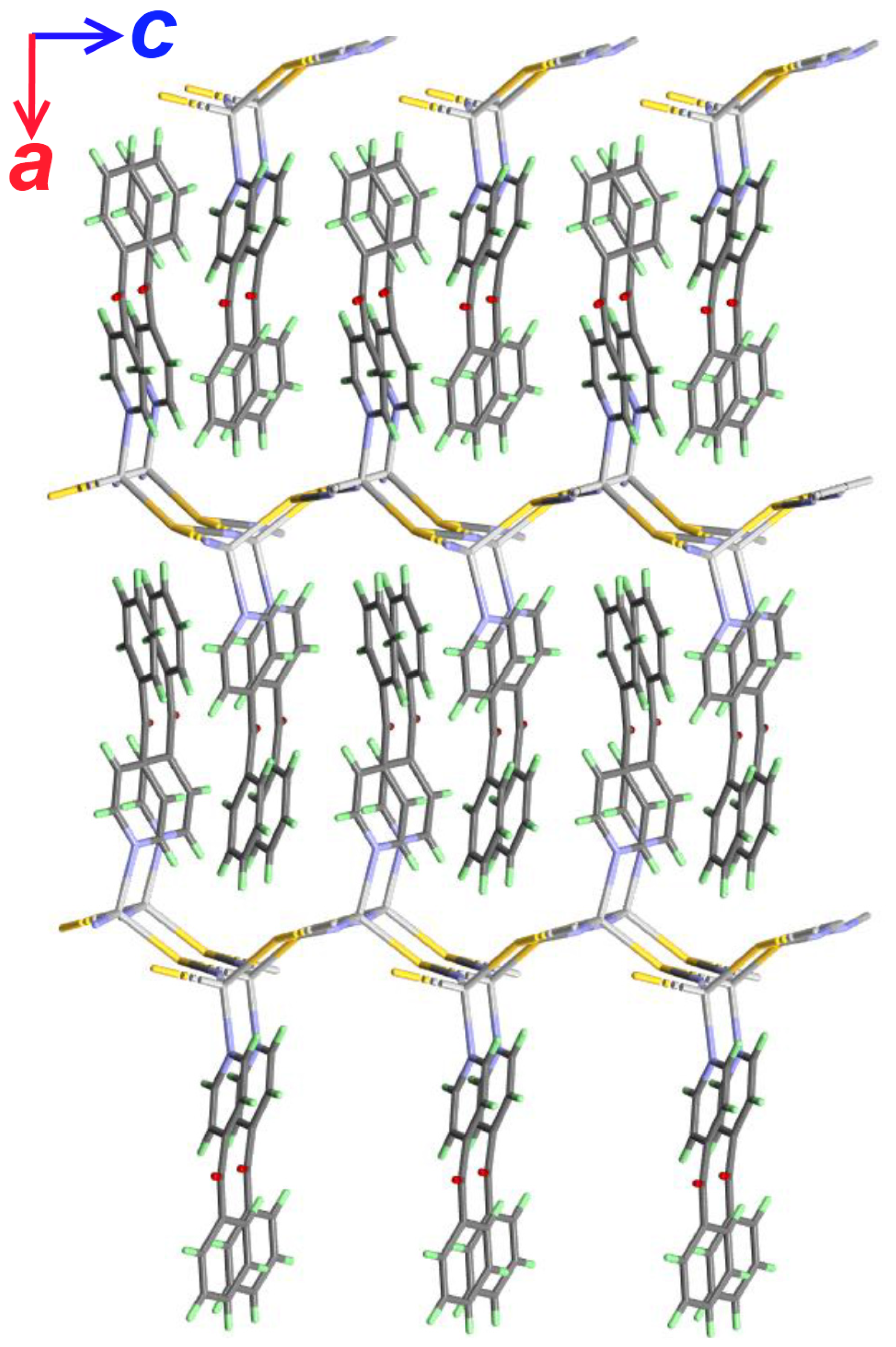

Figure 5. The monodentate 4BP ligand units are found above and below the zig-zag chains of the 2D polymer.
Figure 5. The monodentate 4BP ligand units are found above and below the zig-zag chains of the 2D polymer.
Inorganics 11 00417 g005
Inorganics 11 00417 g006

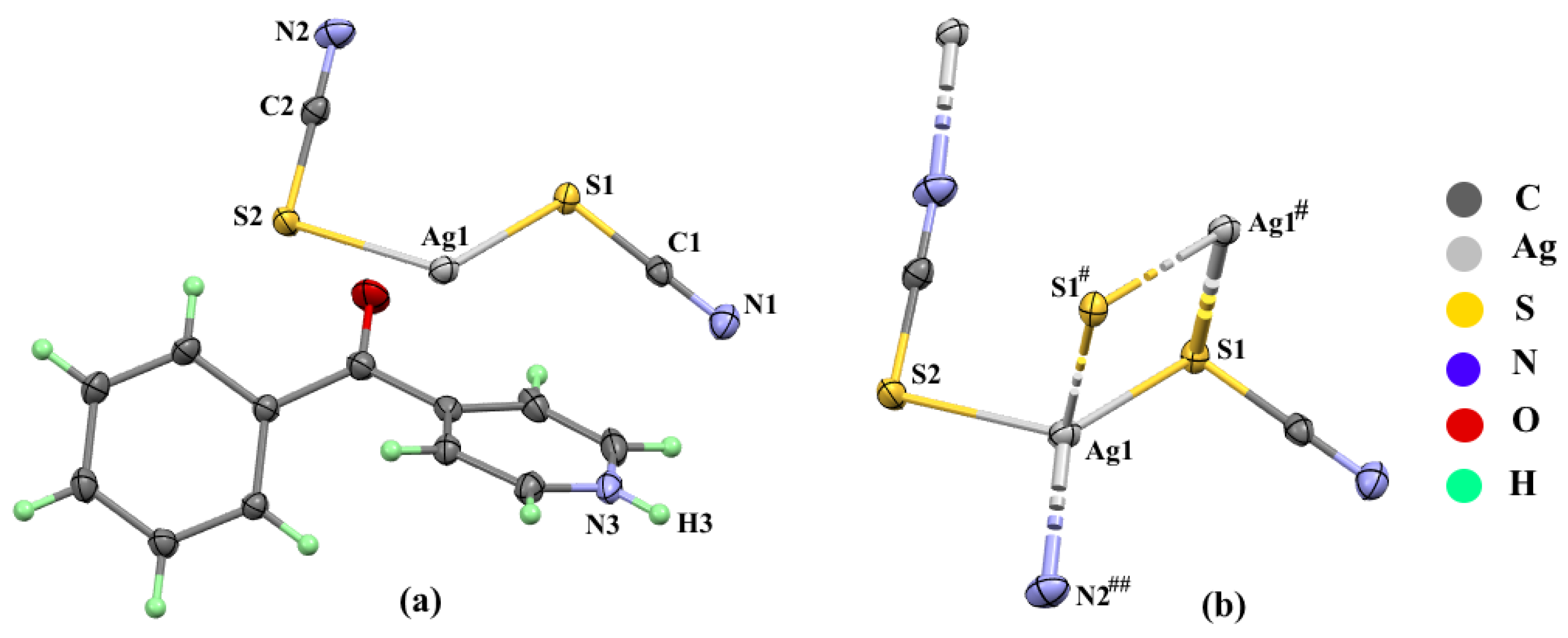

Figure 6. The asymmetric unit (a) and the coordination geometries of the silver (I) ion (b) in the polymeric structure of compound 2. Symmetry codes: # 2 − x, −y, −z and ## −1 + x, y, z.
Figure 6. The asymmetric unit (a) and the coordination geometries of the silver (I) ion (b) in the polymeric structure of compound 2. Symmetry codes: # 2 − x, −y, −z and ## −1 + x, y, z.
Inorganics 11 00417 g006
Inorganics 11 00417 g007
Figure 7. The 1D polymeric chain for the [Ag(SCN)2]− along the a-axis with (4BP-H)+ as the templating agent. Hydrogen atoms have been omitted for clarity.
Figure 7. The 1D polymeric chain for the [Ag(SCN)2]− along the a-axis with (4BP-H)+ as the templating agent. Hydrogen atoms have been omitted for clarity.
Inorganics 11 00417 g007
Inorganics 11 00417 g008
Figure 8. The 2D supramolecular sheet structure of {(4BP-H)+[Ag(SCN)2]−}n (2). The turquoise and orange dotted lines refer to S…H and N…H interactions, respectively.
Figure 8. The 2D supramolecular sheet structure of {(4BP-H)+[Ag(SCN)2]−}n (2). The turquoise and orange dotted lines refer to S…H and N…H interactions, respectively.
Inorganics 11 00417 g008
Inorganics 11 00417 g009
Figure 9. Full dnorm map for the [Ag(4BP)(SCN)]n (1). The most significant interactions are (A) Ag-S, (B) Ag-N, (C) C···H and (D) O···H.
Figure 9. Full dnorm map for the [Ag(4BP)(SCN)]n (1). The most significant interactions are (A) Ag-S, (B) Ag-N, (C) C···H and (D) O···H.
Inorganics 11 00417 g009
Inorganics 11 00417 g010
Figure 10. Hirshfeld 2D fingerprint plots for the most significant (Ag-N, Ag-S, O…H and C…H) interactions and other contacts (H…H and N…H), which have a high percentage in complex 1.
Figure 10. Hirshfeld 2D fingerprint plots for the most significant (Ag-N, Ag-S, O…H and C…H) interactions and other contacts (H…H and N…H), which have a high percentage in complex 1.
Inorganics 11 00417 g010
Inorganics 11 00417 g011
Figure 11. All the intermolecular interactions in [Ag(4BP)(SCN)]n (1).
Figure 11. All the intermolecular interactions in [Ag(4BP)(SCN)]n (1).
Inorganics 11 00417 g011
Inorganics 11 00417 g012
Figure 12. Full dnorm map for the {(4BP-H)+[Ag(SCN)2]−}n (2). The most significant interactions are (A) Ag-S, (B) Ag-N, (C) N···H, (D) S···H, (E) C…O and (F) Ag…Ag.
Figure 12. Full dnorm map for the {(4BP-H)+[Ag(SCN)2]−}n (2). The most significant interactions are (A) Ag-S, (B) Ag-N, (C) N···H, (D) S···H, (E) C…O and (F) Ag…Ag.
Inorganics 11 00417 g012
Inorganics 11 00417 g013
Figure 13. Hirshfeld 2D fingerprint plots of the most significant (Ag-N, Ag-S, N…H, S…H, C…O and Ag…Ag) interactions and other contacts (H…H, C…H, O…H and C…C) that contribute with a high percentage to the stability of complex 2.
Figure 13. Hirshfeld 2D fingerprint plots of the most significant (Ag-N, Ag-S, N…H, S…H, C…O and Ag…Ag) interactions and other contacts (H…H, C…H, O…H and C…C) that contribute with a high percentage to the stability of complex 2.
Inorganics 11 00417 g013
Inorganics 11 00417 g014

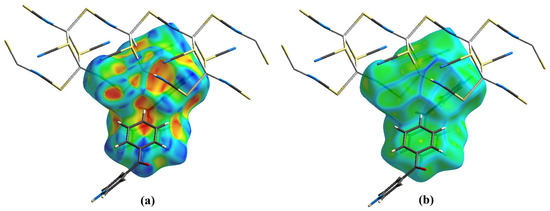

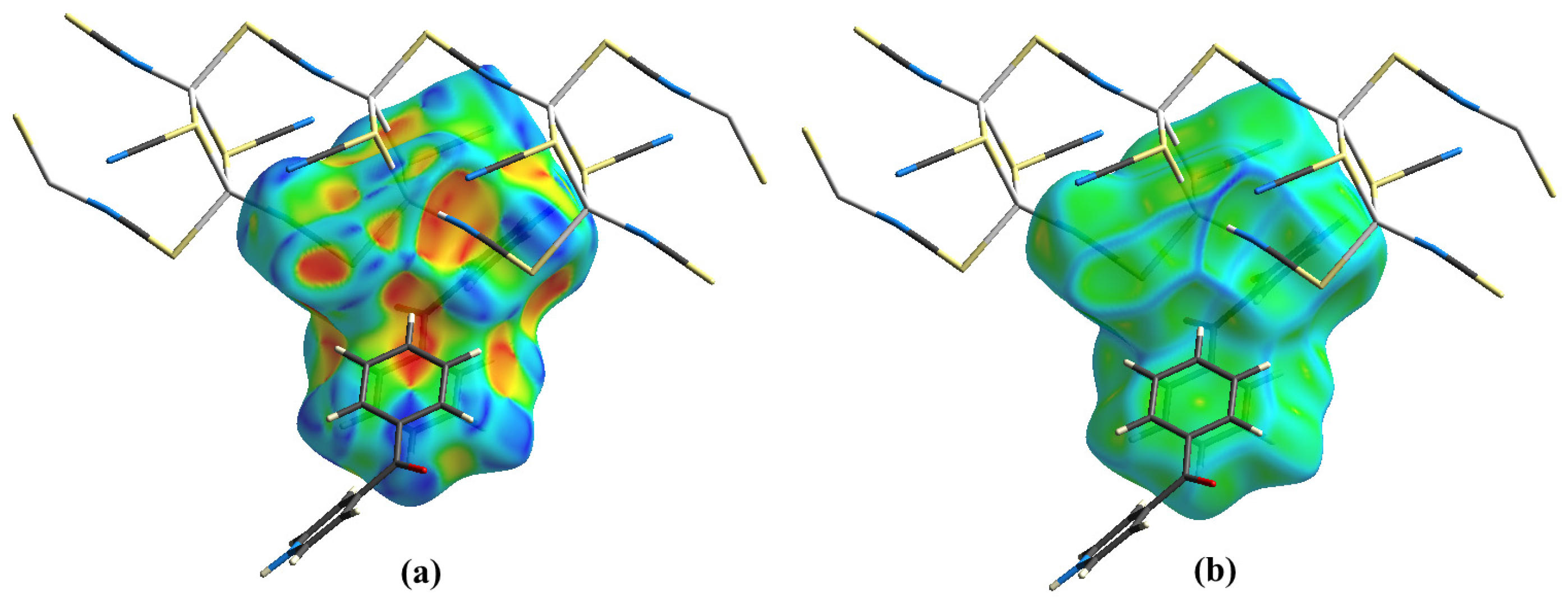

Figure 14. Full SI (a) and curvedness (b) maps for complex 2 showing the presence of the π-π interaction.
Figure 14. Full SI (a) and curvedness (b) maps for complex 2 showing the presence of the π-π interaction.
Inorganics 11 00417 g014
Inorganics 11 00417 g015
Figure 15. All the intermolecular interactions in {(4BP-H)+[Ag(SCN)2]−}n (2).
Figure 15. All the intermolecular interactions in {(4BP-H)+[Ag(SCN)2]−}n (2).
Inorganics 11 00417 g015
Table 1. Selected bond lengths (Å) and angles (°) for 1.
Table 1. Selected bond lengths (Å) and angles (°) for 1.
BondDistanceBondDistance
Ag1-N1##2.175(3)Ag1-S12.5885(8)
Ag1-N22.331(2)Ag1-S1#2.6136(8)
BondsAngleBondsAngle
N1##-Ag1-N2123.35(10)C1-S1-Ag196.34(12)
N1##-Ag1-S1116.58(8)C1#-S1#-Ag194.97(11)
N2-Ag1-S1103.91(7)Ag1-S1-Ag1155.04(4)
N1##-Ag1-S1#115.60(8)C1##-N1##-Ag1158.2(3)
N2-Ag1-S1#93.98(6)C2-N2-Ag1122.0(2)
S1-Ag1-S1#98.727(10)C6-N2-Ag1118.59(19)
Symmetry codes: # 1 – x, 1 – y, −1/2 – z and ## 1 − x,2 − y, −1/2 + z.
Table 2. Selected geometric parameters (Å, °) for complex 2.
Table 2. Selected geometric parameters (Å, °) for complex 2.
BondDistanceBondDistance
Ag1-N2##2.213(2)Ag1-S22.5890(8)
Ag1-S12.5747(6)Ag1-S1#2.6788(7)
BondsAngleBondsAngle
N2##-Ag1-S1132.38(8)S2-Ag1-Ag1#115.482(15)
N2##-Ag1-S2106.15(7)S1-Ag1#-Ag148.637(14)
S1-Ag1-S2100.97(2)C1-S1-Ag1103.49(8)
N2##-Ag1-S1#105.56(7)C1-S1-Ag1#98.38(9)
S1-Ag1-S1#99.980(19)Ag1-S1-Ag180.020(19)
S2-Ag1-S1#111.08(2)C2-S2-Ag197.88(9)
N2-Ag1-Ag1#136.58(7)C2-N2-Ag1###172.9(2)
S1#-Ag1#-Ag151.343(15)
Symmetry codes: # 2 − x, −y, −z, ## −1 + x, y, z and ### 1 + x, y, z.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Altowyan, M.S.; Fathalla, E.M.; Albering, J.H.; Abu-Youssef, M.A.M.; Kassem, T.S.; Barakat, A.; Haukka, M.; Badr, A.M.A.; Soliman, S.M. Synthesis, X-ray Structures and Hirshfeld Analysis of Two Novel Thiocyanate-Bridged Ag(I) Coordination Polymers. Inorganics 2023, 11, 417. https://doi.org/10.3390/inorganics11100417

AMA Style

Altowyan MS, Fathalla EM, Albering JH, Abu-Youssef MAM, Kassem TS, Barakat A, Haukka M, Badr AMA, Soliman SM. Synthesis, X-ray Structures and Hirshfeld Analysis of Two Novel Thiocyanate-Bridged Ag(I) Coordination Polymers. Inorganics. 2023; 11(10):417. https://doi.org/10.3390/inorganics11100417

Chicago/Turabian Style

Altowyan, Mezna Saleh, Eman M. Fathalla, Jörg H. Albering, Morsy A. M. Abu-Youssef, Taher S. Kassem, Assem Barakat, Matti Haukka, Ahmed M. A. Badr, and Saied M. Soliman. 2023. "Synthesis, X-ray Structures and Hirshfeld Analysis of Two Novel Thiocyanate-Bridged Ag(I) Coordination Polymers" Inorganics 11, no. 10: 417. https://doi.org/10.3390/inorganics11100417

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
