The Role of Bulk Stiffening in Reducing the Critical Temperature of the Metal-to-Hydride Phase Transition and the Hydride Stability: The Case of Zr(Mo_xFe_1−x)₂-H₂

Abstract

This study aims to shed light on the unusual trend in the stabilities of Zr(Mo_xFe_1−x)₂, 0 ≤ x ≤ 1, hydrides. Both the rule of reversed stability and the crystal volume criterion correlate with the increased hydride stabilities from x = 0 to x = 0.5, but are in contrast with the destabilization of the end member ZrMo₂ hydride. The pressure-composition isotherms of ZrMo₂-H₂ exhibit very wide solid solubility regions, which may be associated with diminished H–H elastic interaction, u_elas. In order to discern this possibility, we measured the elastic moduli of Zr(Mo_xFe_1−x)₂, x = 0, 0.5, 1. The shear modulus, G, shows a moderate variation in this composition range, while the bulk modulus, B, increases significantly and monotonically from 148.2 GPa in ZrFe₂ to 200.4 GPa in ZrMo₂. The H–H elastic interaction is proportional to B and therefore its increase cannot directly account for a decrease in u_elas. Therefore, we turn our attention to the volume of the hydrogen atom, ${\mathrm{v}}_{\mathrm{H}}$, which usually varies in a limited range. Two coexisting phases, a Laves cubic (a = 7.826 Å) and a tetragonal (a = 5.603 Å, c = 8.081 Å) hydride phase are identified in ZrMo₂H_3.5, obtained by cooling to liquid nitrogen temperature at about 50 atm. The volume of the hydrogen atom in these two hydrides is estimated to be 2.2 ų/(H atom). Some very low ${\mathrm{v}}_{\mathrm{H}}$ values, have been reported by other investigators. The low ${\mathrm{v}}_{\mathrm{H}}$ values, as well as the one derived in this work, significantly reduce u_elas for ZrMo₂-H₂, and thus reduce the corresponding critical temperature for the metal-to-hydride phase transition, and the heat of hydride formation. We suggest that the bulk stiffening in ZrMo₂ confines the corresponding hydride expansion and thus reduces the H-H elastic interaction.

1. Introduction

The present study demonstrates a significant impact of the bulk modulus on the hydride formation of the intermetallic compounds ZrMo₂ and TaV₂. It would be instructive to consider at the outset some general factors determining the hydrogenation behavior of metal alloys. It is a well-known empirical rule that hydrogen-absorbing alloys or intermetallic compounds must contain at least one elementary metal forming a reversible hydride at nearly ambient conditions, e.g., Ref. [1]. The ability of the compounds to absorb hydrogen is thus determined by the metal–hydrogen interaction. In addition, the properties of the parent intermetallics provide some guidelines regarding the stability of the corresponding hydrides: (i) the rule of reversed stability—the more stable the original intermetallic, the less stable the resulting hydride [2]; (ii) the crystal volume criterion—the hydride stability increases with the increase in the original crystal volume [3]; (iii) the crystal structure—sometimes alloys of identical or nearly identical chemical compositions crystallize in a completely different lattice structure. The one, presenting interstitial sites more abundant in hydride-forming elements, forms more stable hydrides. For example, the pseudobinary U(Al_xNi_1−x)₂ system crystallizes in two different structures, a Laves phase structure in the compositional ranges 0 ≤ x ≤ 0.2, 0.9 ≤ x ≤ 1, and a ZrNiAl-type (Fe₂P-type) structure at 0.4 ≤ x ≤ 0.5. The Laves phase compounds do not absorb hydrogen up to pressures of 100 atm, while the hydrides UNiAlH_2.5 and UNi_1.2Al_0.8H_2.35 are formed at that pressure range. This difference of hydrogen absorption is attributed to the presence of uranium-richer tetrahedral sites (3U + 1(Ni,Al)) in U(Al_xNi_1−x)₂, x = 0.4, 0.5, as compared to the (2U + 1(Ni,Al)) sites in the Laves-phase compounds, where uranium is the hydride-forming element [4,5]; and (ⅳ) we will consider in some detail the influence of the bulk elastic modulus on the critical temperature, T_c.

The metal to hydride phase transition in most hydrogen-absorbing intermetallic compounds is characterized by a critical temperature, T_c. A discontinuous transformation of the crystal lattice occurs below T_c, while above it the final hydride structure may be reached in a gradual, continuous way. This behavior imposes identical or very similar crystal structures of the original intermetallic compound and its corresponding hydride, besides the usual increase in the lattice volume upon hydrogenation. The metal to hydride phase transformation is driven by attractive hydrogen–hydrogen interaction, −u, which is composed of elastic and electronic parts [6].

u = u_elas + u_elec

The critical temperature, T_c, is related to the attractive H–H interaction:

T_c = u × r/4k

(1)

r is the number of interstitial sites per metal atom available for hydrogen absorption and k is Boltzmann’s constant (1.38 × 10⁻²³ J K⁻¹). The corresponding units of u are J.

The form of the elastic part, u_elas, has been derived by several investigators, e.g., Refs. [6,7,8]:

$${\mathrm{u}}_{\mathrm{e}\mathrm{l}\mathrm{a}\mathrm{s}}=\left(1-\frac{\mathrm{B}}{\mathrm{B}+\frac{4}{3}\mathrm{G}}\right)\mathrm{B}\frac{{\mathrm{v}}_{\mathrm{H}}^2}{\mathrm{V}}$$

(2)

B and G are the bulk and shear moduli in Pa (N/m²), respectively, ${\mathrm{v}}_{\mathrm{H}}$ is the excess volume occupied by one hydrogen atom in the metal matrix in m³, and V is the average volume per metal atom in m³. u_elas is then obtained in J. u_elas is usually presented in eV by multiplying the value in J by the conversion factor 1 J = 6.242 × 10¹⁸ eV. The volume,${\mathrm{v}}_{\mathrm{H}}$, of the hydrogen atom in the metal matrix and the term in the brackets usually do not change very much. Typical values of ${\mathrm{v}}_{\mathrm{H}}$ stay in the range of 2.5–3 ų/H atom, e.g., Ref. [6]. The bulk modulus, B, is then a leading term in u_elas. The physical reasoning for the increase in the long-range u_elas interaction with B is that larger B induces larger strain fields in the crystal lattice around a hydrogen atom and provides better linkage between the hydrogen atoms. The attractive elastic interaction is considered to play a main role in the metal-to-hydride phase transition. Fen Li et al. have proposed a repulsive screened Coulomb interaction between the hydrogen atoms in TiCr₂H_x [9]. It was recently demonstrated that the electronic interaction may be repulsive, negligible, or attractive by considering the corresponding critical temperatures of the ZrCr₂-H₂ (<300 K), ZrMn₂-H₂ (564 K), and Pd-H₂ (565 K) systems in relation to their relevant elastic properties, Equations (1) and (2) [10].

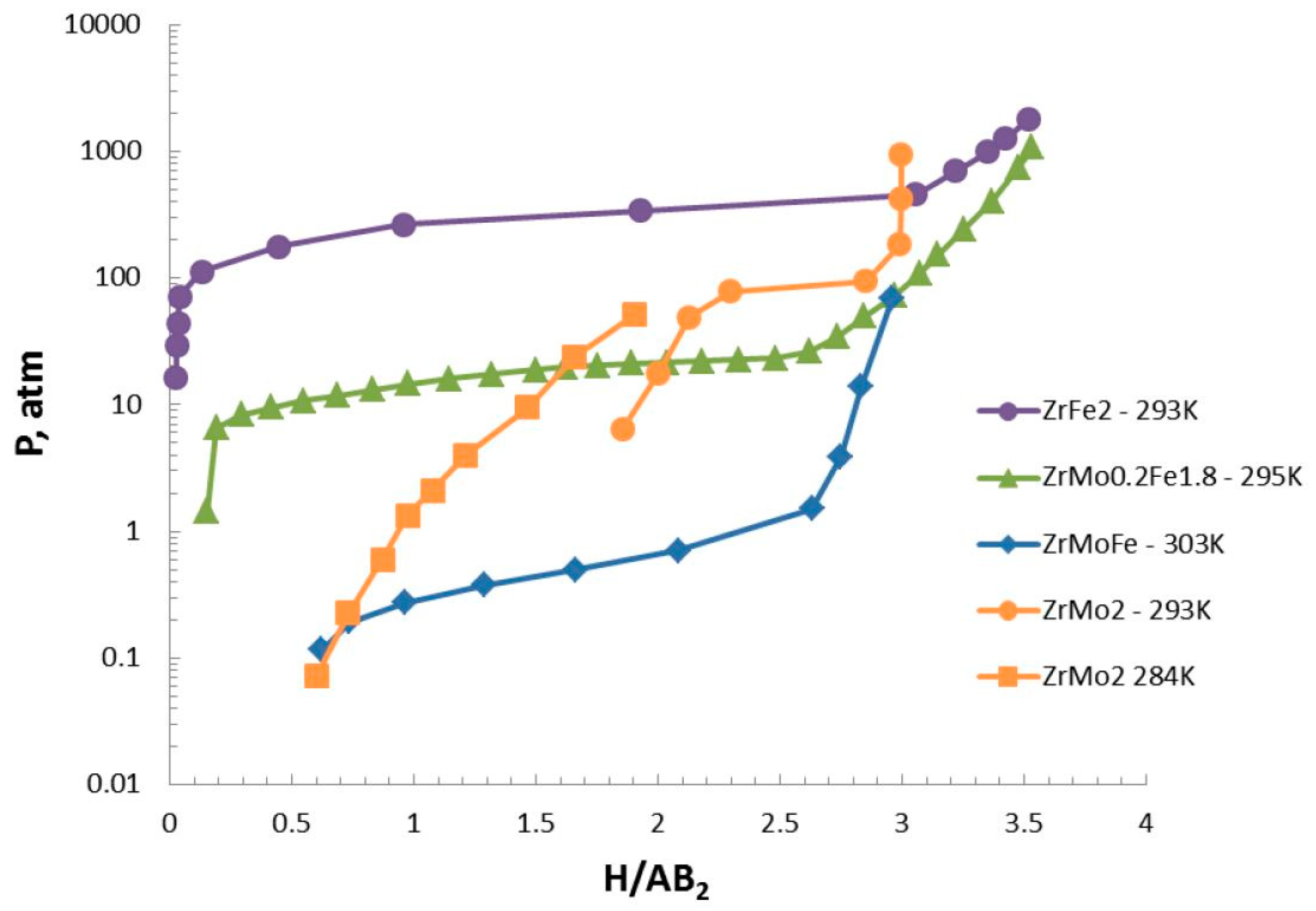

This study aims at elucidating a puzzling behavior of the hydride stabilities in the Zr(Mo_xFe_1−x)₂ system, as presented at MH2018 and subsequently published [11]. Figure 1 [11] exhibits pressure-composition isotherms, demonstrating increased monotonic stability of the Zr(Mo_xFe_1−x)₂ hydrides for x = 0, 0.2, 0.5, but then this trend is reversed by a stability decrease for x = 1. Investigating these stability trends of the Zr(Mo_xFe_1−x)₂ hydrides, in view of the guidelines listed above, requires a knowledge of relevant data, namely, the heats of formation of the original intermetallic compounds, their crystal structures, lattice parameters, bulk and shear moduli, and the degree of expansion upon hydrogenation which determines ${\mathrm{v}}_{\mathrm{H}}$. Most of these data appear in the literature. In order to complete the required set, elastic properties have been determined in this work. In addition, we hydrogenated ZrMo₂ to the greatest possible extent under the available experimental conditions in our lab, attempting to settle some differing crystallographic results, associated with the volume of the hydrogen atom in ZrMo₂ hydride(s).

2. Experimental Details

Zr(Mo_xFe_1−x)₂, x = 0, 0.5, 1, samples were prepared by arc melting high-purity (~99.9%) elements on a water-cooled copper hearth. The pellets were homogenized by melting them at least three times, turning them over after each melting. The as-cast alloys were then sealed in argon-filled quartz ampules and annealed for 72 h at 1373 K. The crystal structure of the prepared compounds was determined and verified by X-ray diffraction (XRD) in a PW 1050/70 diffractometer from Philips, utilizing Cu K_α radiation of 1.5418 Å. Parallel-faced intermetallic slices of about 2.5 mm thickness were cut using a diamond sawing disk and subsequently polished to achieve a parallelism within the range of 3 × 10⁻⁶ m. The resulting parallel-faced samples were then subjected to sound velocity measurements using the pulse echo (PE) method. The frequency of the PE piezoelectric transducers for both the longitudinal and transverse modes was 5 MHz. The sound wave velocities were determined by measuring the time needed for the acoustic waves to travel forth and back between the opposite parallel faces of the sample. The densities of the samples were analyzed using the measured structural parameters. The obtained results were then compared to the measured Archimedes densities (both wet and dry) in order to determine the porosity ratio of the samples.

ZrMo₂ compound was hydrogenated at about 60 atm hydrogen pressure and room temperature in a home-built Sieverts system, equipped with 3.5, 60, and 100 atm pressure transducers. The amount of absorbed hydrogen in ZrMo₂ was calculated by considering the non-ideality of the hydrogen gas. For example, the difference between the real and the ideal hydrogen pressures at 100 atm and room temperature is about 6%. The reactor chamber, with the hydrogenated sample in it, was then very slowly cooled from room to liquid nitrogen temperature in order to enhance the hydrogen absorption. The equilibrium hydrogenation pressure decreases in an exponential way vs. the decreased temperature. Thus, decreasing the sample temperature at approximately constant pressure, as most of the system is kept at ambient conditions, corresponds to significantly increasing the pressure at room temperature. Hydrogen absorption is expected to be practically none at very low temperatures, e.g., 78 K, because of extremely reduced kinetics. The very slow cooling is then intended to enable hydrogen absorption at intermediate temperatures, between 295 K and 78 K. Finally, a poisoning procedure was applied. (The purpose of the poisoning procedure is a contamination of the surface of the sample, for example by water vapor, without changing its bulk content. This contamination keeps the hydride intact and prevents its decomposition for long enough time in order to enable some experimental measurements at ambient conditions, e.g., XRD.) The hydrogen was evacuated from the reaction chamber, kept at liquid nitrogen temperature, and then the sample was exposed to the ambient atmosphere. The X-ray diffraction pattern of the air-exposed sample was immediately recorded without any additional precautions. The poisoning is considered successful provided two conditions are fulfilled: (i) the XRD pattern of the hydrogenated sample is significantly different from the pattern of the original compound; and (ii) the XRD pattern of the hydrogenated sample does not change or changes very slowly with time. These two conditions were satisfied in the present case of ZrMo₂—see Section 3.1 below.

3. Results and Discussion

3.1. Structural and Elastic Properties of Zr(Mo_xFe_1−x)₂, x = 0, 0.5, 1

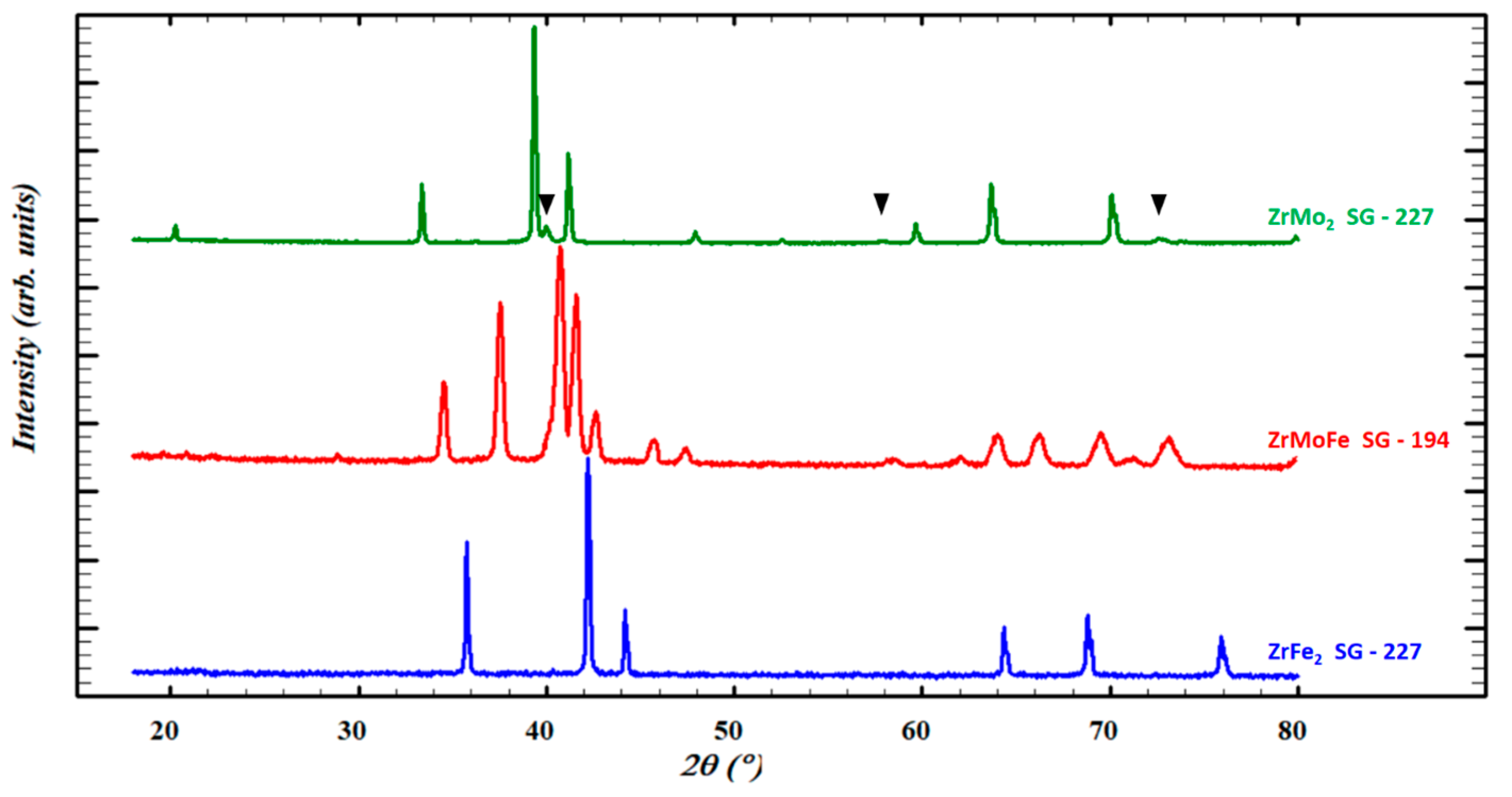

ZrFe₂ and Zr(Mo_0.5Fe_0.5)₂ exhibited single Laves phases in their XRD patterns, while 95% Laves phase was obtained for ZrMo₂ (Figure 2). ZrFe₂ and ZrMo₂ crystallized in the cubic C15 phase with lattice constants 7.074 Å and 7.589 Å, respectively. These values are in fair agreement with the published data for ZrFe₂ (e.g., 7.074 Å [12]) and ZrMo₂ (e.g., 7.59 Å [13]). About 5% of Mo, with lattice constant a = 3.185 Å, was present along the ZrMo₂ pattern (Figure 2). The cubic crystal parameter of pure Mo is 3.147 Å [14]. The increased a value indicates the dissolution of some Zr into the molybdenum matrix. Zr(Mo_0.5Fe_0.5)₂ presents a C14 hexagonal phase with lattice constants a = 5.173 Å and c = 8.461 Å, comparable to a = 5.172 Å and c = 8.463 Å [15] or a = 5.130 Å and c = 8.440 Å [16]. The longitudinal, v_L, and transverse, v_T, ultrasonic velocities, measured by the pulse-echo method, are presented in

Table 1. Lattice constants, theoretical densities, porosities, longitudinal, v_L, and transverse, v_T, ultrasonic velocities, shear, G, and bulk, B, elastic moduli in the Laves phase Zr(Mo_xFe_1−x)₂ system. Experimental B and G values of Zr(Al_0.04Fe_0.96)₂ and theoretical B and G values of ZrMo₂ are also presented. The numbers in the parentheses present the estimated errors of the last significant digits.

x	a [Å]	c [Å]	Theoretical Density [kg/m3]	Porosity [%]	vL [m/s]	vT [m/s]	G [GPa]	B [GPa]
0 * [19]							75.8	148
0	7.074		7614	0.9	5674 (9)	3142 (4)	75.6 (3)	148.2 (9)
0.5	5.173	8.461	8297	0.8	5337 (2)	2608 (1)	56.3 (2)	164.2 (4)
1	7.589		8605	0.7	5733 (16)	2762 (14)	66.1 (8)	200.4 (2)
1 [20]	7.594						57.3	196.5

* Zr(Al_0.04Fe_0.96)₂.

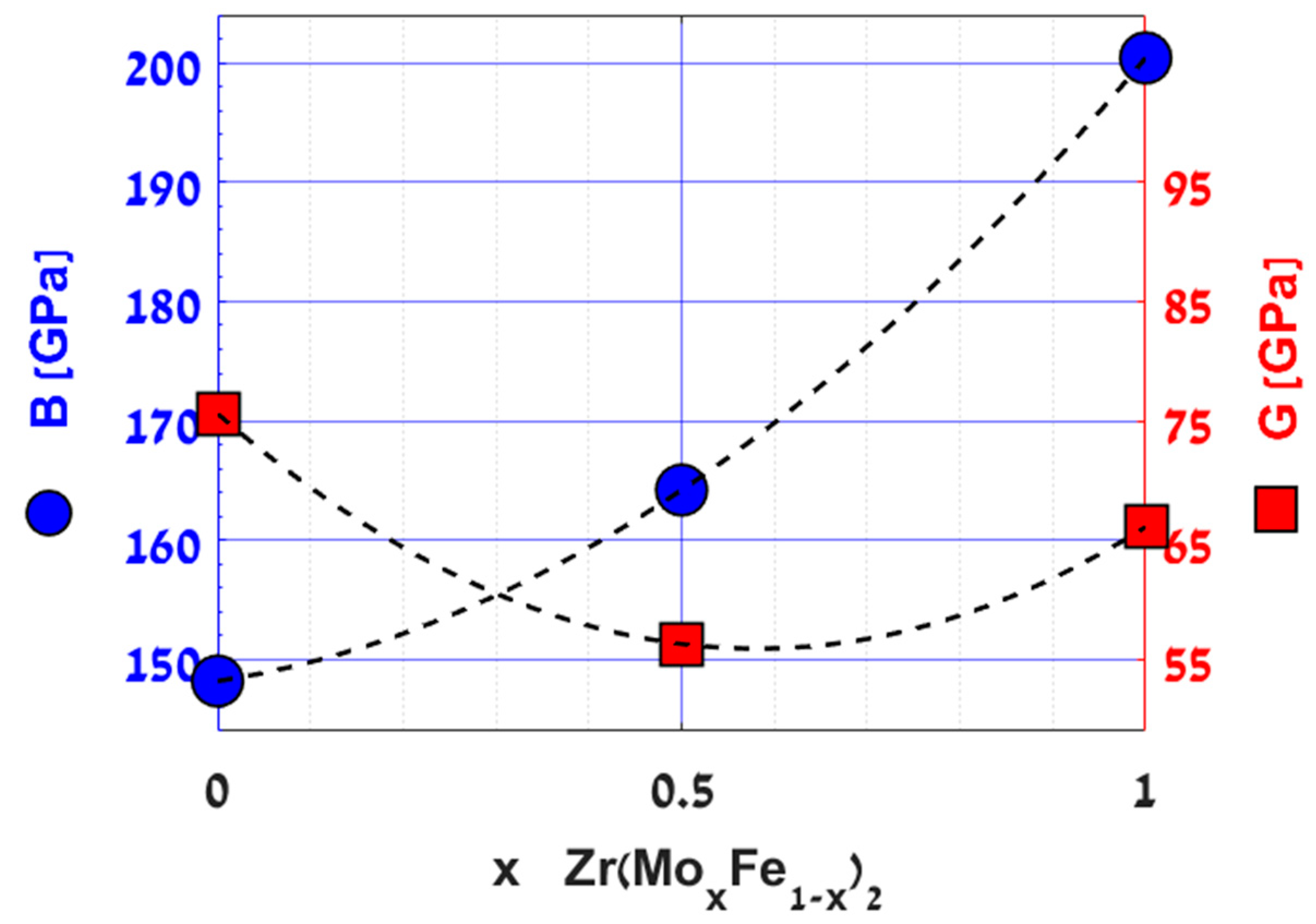

. They were used to calculate two elastic constants according to the relations C₁₁ = v_L²ρ and C₄₄ = v_T²ρ, assumed to hold for polycrystalline isotropic samples (ρ is the sample density). Bulk, B, and shear, G, moduli were derived from the relations B = C₁₁−4 C₄₄/3 and G = C₄₄ (Table 1). Minor corrections of B and G were made in view of the small porosities of the samples [17,18]. The shear modulus changes moderately with the composition, x, along the Zr(Mo_xFe_1−x)₂ series, while the bulk modulus increases significantly and monotonically as a function of x. The variations of B and G are exhibited in Figure 3 and Table 1.

ZrMo₂ absorbed about 2.1 H atoms per formula unit at 60 atm and room temperature, and about 3.5 H atoms per f.u. upon slow cooling to 78 K at 50 atm pressure. It should be born in mind that the hydrogenations of ZrMo₂ were carried out in order to estimate the corresponding ${\mathrm{v}}_{\mathrm{H}}$ values. PCT (pressure-composition-temperature) isotherms of ZrMo₂-H₂ may be found elsewhere, e.g., Ref. [11]. The XRD pattern, recorded immediately after removing the sample from the reactor, revealed two hydride phases, cubic Laves structure with lattice constant a = 7.826 Å (26%) and tetragonal structure, space group 88, with cell parameters a = 5.603 Å, c = 8.081 Å (68%) (Figure 4). These lattice constants slowly decreased during one week of exposure to the ambient atmosphere. The crystal parameter of Mo with dissolved Zr almost did not change (a = 3.187 Å) upon hydrogenation, indicating no hydrogen absorption in it. By imposing somewhat arbitrarily identical ${\mathrm{v}}_{\mathrm{H}}$ for the two existing phases in ZrMo₂H_3.5, we obtain for the composition of these two phases ZrMo₂H_2.39 (MgCu₂-type, a = 7.826 Å) and ZrMo₂H_3.98 (tetragonal, SG88, a = 5.603 Å, c = 8.081 Å). Their common ${\mathrm{v}}_{\mathrm{H}}$ is 2.2 ų/(H atom). Additional ${\mathrm{v}}_{\mathrm{H}}$ estimations, performed in a similar way for ZrMo₂H_1.6 and ZrMo₂H_2.8, yielded values between 2.1 ų/(H atom) and 2.2 ų/(H atom).

3.2. Resolving the Peculiarity in the Stability Trends of the Zr(Mo_xFe_1−x)₂, x = 0, 0.1, 0.5, 1, Hydrides

As cited in the Introduction, the formation pressures of the Zr(Mo_xFe_1−x)₂ hydrides decrease between x = 0 and x = 0.5, indicating increasing stability in this compositional range. Then, this trend is unexpectedly reversed and ZrMo₂ hydride is formed at higher pressures than ZrMoFe and Zr(Mo_0.1Fe_0.9)₂ hydrides. We consider next the possible factors influencing the stability of these hydrides.

3.2.1. The Substitution of Fe by Mo

Both Fe and Mo form hydrides at very high hydrogen pressures. The equilibrium formation pressure of MoH_1.1 and FeH are about 4.3 GPa at 600 °C and 3.5 GPa at 300 °C (decomposition pressure 2.2 GPa), respectively [21,22]. It is thus not expected that the hydrogen affinity properties of Mo, as compared to Fe, play a dominant role in the variation of the hydride stabilities in Zr(Mo_xFe_1−x)₂.

3.2.2. Trends of the Heats of Formation and the Crystal Volumes in the Zr(Mo_xFe_1−x)₂ System

Table 2. Unit cell volumes, V, heats of intermetallic formation, ∆H_f, hydrogen contents, hydrogen atomic volumes, ${\mathrm{v}}_{\mathrm{H}}$, and elastic interactions, u_elas, for Zr(Mo_xFe_1−x)₂ and the corresponding hydrides.

x	V [Å3/f.u.]	∆Hf [eV/Atom]	H Content [H Atoms/f.u.]	${\mathbf{v}}_{\mathbf{H}}$ [Å3/H Atom]	uelas [eV]
0 [24,25]	44.058	0.281 [26]	3.54	3.02	0.23
0.1 [25]	44.805	0.267	3.54	2.99
0.5	48.089 [16]	0.21	2.5	2.90	0.17
	49.013 [15]		2.6	2.74	0.15
1	54.677 [27]	0.139 [28]	4	1.41	0.042
	54.829 [16]		1.4	1.57	0.052
	54.634 this work		3.5	2.2	0.102

presents the crystal volumes per formula unit (f.u.), V, and theoretically derived heats of formation, ∆H_f, of the original, non-hydrogenated Zr(Mo_xFe_1−x)₂ intermetallics, x = 0, 0.1, 0.5, 1. The theoretically determined ∆H_f of 0.281 eV/(metal atom) for ZrFe₂ is in good agreement with a corresponding experimental value of 0.26 eV/(metal atom), e.g., Ref. [23]. ∆H_f values of Zr(Mo_xFe_1−x)₂, x = 0.1, 0.5 are obtained by interpolation.

The heats of formation of the intermetallic compounds decrease with x from 0.281 eV/(metal atom) for ZrFe₂ to 0.139 eV/(metal atom) for ZrMo₂, while the corresponding crystal volumes increase from 44.058 ų/(f.u.) to 54.634 ų/(f.u.) (see Table 2). Thus, according to both the rule of reverse stability and the crystal volume criterion (see (i) and (ii) in the Introduction), the hydride stabilities should increase with x. These trends comply with the behavior for 0 ≤ x ≤ 0.5, but disagree with the decreased stability of ZrMo₂ hydride.

3.2.3. Elastic Properties and H–H Elastic Interaction in Zr(Mo_xFe_1−x)₂-H₂

As already noted, the H–H interaction influences the critical temperature, T_c, according to Equation (1). It also contributes to the heat of hydrogen solution or hydride formation [6]. We find two indications for the reduction in the attractive, elastically mediated H–H interaction.

(a) From inspection of Figure 1, the very wide solubility region of ZrMo₂-H₂ indicates a decrease in T_c with respect to the rest of the hydrogenated Zr(Mo_xFe_1−x)₂ compounds, x = 0, 0.1, 0.5. This occurs in spite of the monotonic increase in the bulk modulus, B, from 148.2 GPa for ZrFe₂ to 200.4 GPa for ZrMo₂, expected in turn to increase T_c.

(b) The increased hydrogenation pressures in ZrMo₂-H₂ with regard to Zr(Mo_xFe_1−x)₂-H₂, x = 0.1, 0.5, indicate a corresponding destabilization of ZrMo₂H_x. Indeed, the absolute enthalpy of ZrMo₂ hydride formation, 22 kJ/(mole H₂), is significantly lower than those of Zr(Mo_xFe_1−x)₂ hydrides, 29.5 kJ/(mole H₂) for x = 0.5, and 26 kJ/(mole H₂) for x = 0.1. It even approaches the 21.3 kJ/(mole H₂) for ZrFe₂ hydride [11]. This destabilization behavior suggests that the attractive (negative) contribution of the H–H elastic interaction to the enthalpy of hydride formation or to the enthalpy of hydrogen solubility in ZrMo₂ weakens with the increase in hydrogen content (see the similar case of TaV₂-H₂ below).

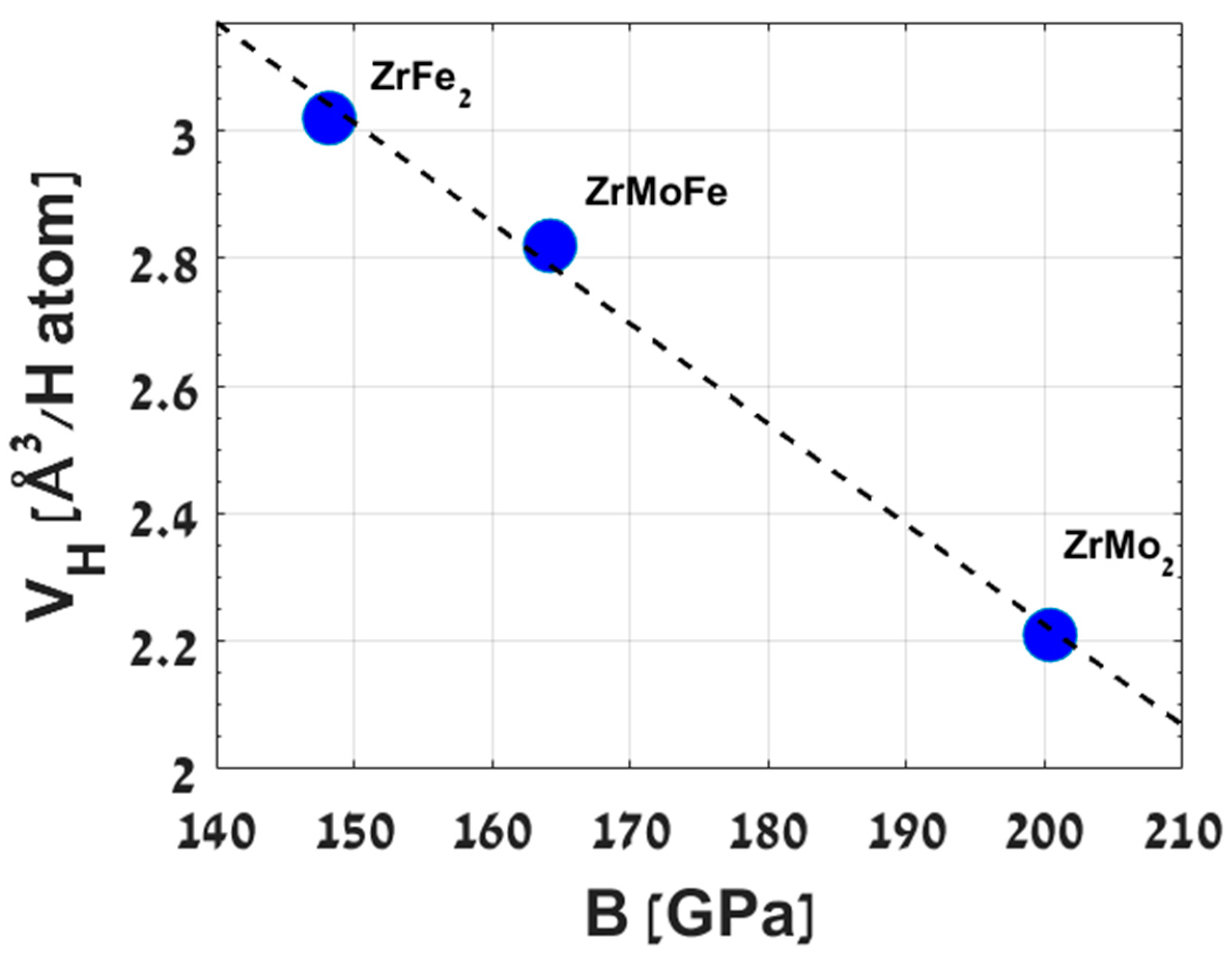

As the variation in B of the Zr(Mo_xFe_1−x)₂ compounds cannot directly account for the observed trend in the critical temperatures of the metal-to-hydride phase transitions and the heats of hydride formation at x > 0.5, we inspect another term that appears in a squared form in Equation (2), namely, ${\mathrm{v}}_{\mathrm{H}}$. A priori, ${\mathrm{v}}_{\mathrm{H}}$ is not supposed to significantly affect u_elas according to Equation (2), as ${\mathrm{v}}_{\mathrm{H}}$ usually acquires values in quite a narrow range, e.g., Ref. [6]. We find hereafter surprising experimentally derived ${\mathrm{v}}_{\mathrm{H}}$ values. Lushnikov et al. report that a Laves ZrMo₂ compound with lattice constant a = 7.591 Å undergoes a tetragonal distortion upon deuteration to ZrMo₂D₄ with lattice constants a = 5.496 Å and c = 7.986 Å [27]. The authors note that such a tetragonal distortion is a known phenomenon in hydrogenated Laves phase compounds [29]. It is also worth noting that the composition of the interstitial sites does not change upon the tetragonal distortion. The deuterium atoms occupy (2Zr + 2Mo) tetrahedral interstitial sites [27], which are the preferable (2A + 2B) sites for hydrogen occupation in AB₂ Laves phase compounds [30]. A straightforward evaluation of the volume of the hydrogen atom in ZrMo₂D₄ (4 f.u./unit cell), using also the above data for ZrMo₂ (8 f.u./unit cell), yields ${\mathrm{v}}_{\mathrm{H}}$ = 1.4 ų/(H atom). This is the lowest reported ${\mathrm{v}}_{\mathrm{H}}$ value in intermetallic and even in binary hydrides [6] (pp. 105–109). Supporting evidence for this hydrogen atomic volume may be found in the reported cell parameter a = 7.698 Å of ZrMo₂H_1.4 [16]. Utilizing a = 7.598 Å for ZrMo₂ by the same authors [31], ${\mathrm{v}}_{\mathrm{H}}$ = 1.6 ų/(H atom) is evaluated. It should be noted that a cell parameter a = 7.548 Å is reported for ZrMo₂ in [16], which is very different from other reported values [13,27], as well as from the value, reported later, by the same authors [31]. Nonetheless, ${\mathrm{v}}_{\mathrm{H}}$ of 2.33 ų/(H atom) is obtained for ZrMo₂H_1.4 by employing a = 7.548 Å for ZrMo₂, although the stated ${\mathrm{v}}_{\mathrm{H}}$ in [16] is 2.6 ų/(H atom). Additional ${\mathrm{v}}_{\mathrm{H}}$ values, reported for various hydrogen compositions in ZrMo₂, span between 3.2 and 4.5 ų/(H atom) [31]. We recommend adopting ${\mathrm{v}}_{\mathrm{H}}$ = 2.2 ų/(H atom) for the ZrMo₂ hydrides following the experimental estimations of this work. It is worthwhile noting that we found larger lattice constants of the tetragonal hydride phase (see Section 3.1) than those cited above. The latter lattice constants were obtained in the course of a seemingly very comprehensive neutron diffraction experiment, under much more extreme conditions of 2500 atm hydrogen pressure and a temperature of 78 K [27]. Table 2 presents the relevant information for the Zr(Mo_xFe_1−x)₂ compounds and their hydrides. The small values of ${\mathrm{v}}_{\mathrm{H}}$ affect u_elas very significantly. Table 2 lists the calculated values of u_elas according to Equation (2), utilizing the measured bulk and shear moduli (Table 1), and the V and ${\mathrm{v}}_{\mathrm{H}}$ volumes (Table 2). The ZrMo₂-H₂ system clearly exhibits the smallest ${\mathrm{v}}_{\mathrm{H}}$ and u_elas. This may explain the decreased T_c in this system according to Equation (1). The hydride stability would also be decreased as u_elas provides a smaller negative contribution to the heat of hydride formation of ZrMo₂ with regard to ZrFe₂ and ZrMoFe. A most probable reason for the decrease in ${\mathrm{v}}_{\mathrm{H}}$, and hence in u_elas, in the Zr(Mo_xFe_1−x)₂ system is the large bulk modulus of ZrMo₂. We suggest that the large bulk modulus of ZrMo₂ confines the expansion of the metal lattice upon hydrogenation by restricting the H atoms in smaller interstitial volumes, ${\mathrm{v}}_{\mathrm{H}}$. The variation of ${\mathrm{v}}_{\mathrm{H}}$ as a function of B, plotted in Figure 5, supports this suggestion. The depressed expansion of the crystal lattice mitigates the strain fields around a hydrogen atom and thus reduces the elastically mediated interaction between the hydrogen atoms.

Elastic moduli rarely play such a significant role in the hydrogenation properties of intermetallic compounds. We note that a very similar behavior to that of ZrMo₂-H₂ is demonstrated by the C15 compound TaV₂. The experimentally derived bulk modulus of C15 TaV₂ varies between 200 GPa at low temperatures and 194 GPa at room temperature [32]. These B values of TaV₂ are very close to the 200.4 GPa bulk modulus of ZrMo₂, obtained in this work (see Table 1 and Figure 5). The volume of the hydrogen atom in hydrogenated TaV₂ is 2.09 ų/(H atom) [33] in the low range of ${\mathrm{v}}_{\mathrm{H}}$ values, and in close proximity to ${\mathrm{v}}_{\mathrm{H}}$ of 2.2 ų/(H atom), estimated here for the hydrogenated ZrMo₂ (see Table 2 and Figure 5). Accordingly, TaV₂-H₂ exhibits a broad solid hydrogen solubility region without a discontinuous metal-to-hydride phase transition even at temperatures as low as 195 K and pressures of 1000 atm [33]. In addition, the heat of hydrogen solution decreases with the increase in H content, i.e., becomes less exothermic. This may be regarded as surmounting the attractive elastic H–H interaction by some repulsive, probably electronic H–H interaction. It is worthwhile noting that the heats of hydrogen solution in metal–hydrogen systems usually become more exothermic with the increase in H content, e.g., Refs. [6,34]. We suggest that, in resemblance to ZrMo₂-H₂, the large bulk modulus of TaV₂ confines the hydrogen atoms into small interstitial volumes and consequently reduces the H–H elastic interaction, as indicated by the broad solubility region and the lack of metal to hydride phase transition in TaV₂-H₂. Another example of a significant role of elastic moduli is the shear stiffening in Zr(Al_xM_1−x)₂, M=Fe, Co [19,35]. It prevents hydrogen absorption in ZrAl₂ even at extremely high H₂ pressures of 40 GPa [36], although Al substitution drastically stabilizes the hydrogen absorption of ZrFe₂ and ZrCo₂ for small x values [37,38].

4. Summary and Conclusions

The elastic moduli of Zr(Mo_xFe_1−x)₂, x = 0, 0.5, 1, as well as hydrogen absorption in ZrMo₂, were measured in an attempt to shed light on the unusual trend of hydride stabilities in this system. It seems that the bulk modulus plays a dual role in that context. Initially, B participates in generating attractive elastic interaction between the hydrogen atoms. Then, the significant increase in B in ZrMo₂ confines the expansion of the metal matrix and restrains the hydrogen atoms in smaller interstitial volumes. Consequently, the attractive H–H interaction is reduced, demonstrated by a sharp decrease in the critical temperature for metal-to-hydride phase transition and the hydride stability in the ZrMo₂-H₂ system. We also suggest a similar explanation for the lack of a discontinuous metal-to-hydride phase transition in the Laves phase TaV₂-H₂ system. It would be of interest to find a criterion that determines at which point B converts from a stabilizing to destabilizing agent during hydrogen absorption in intermetallic systems.
