Genomic and Metabolic Features of an Unexpectedly Predominant, Thermophilic, Assistant Starter Microorganism, Thermus thermophilus, in Chinese Inner Mongolian Cheese

by
Lin Zhu
1,
Zhaozhi Hou
1,
Xinyu Hu
1,
Xu Liu
1,
Tian Dai
1,
Xinyu Wang
1,
Chunlin Zeng
1,
Yuan Wang
1,
Caizheng Wang
1,
Shujing Yang
2,
Henglin Cui
1 and
Wei Wei
2,*
1
School of Food and Biological Engineering, Jiangsu University, Zhenjiang 212013, China
2
School of Agricultural Engineering, Jiangsu University, Zhenjiang 212013, China
*
Author to whom correspondence should be addressed.
Foods 2021, 10(12), 2962; https://doi.org/10.3390/foods10122962
Submission received: 3 September 2021 / Revised: 7 November 2021 / Accepted: 9 November 2021 / Published: 2 December 2021
(This article belongs to the Special Issue Microbes in Cheese: Isolation, Molecular Detection and Characterization)
Browse Figures
Versions Notes

Abstract

:
Inner Mongolian cheese is a traditional dairy product in China. It is produced without rennet, using naturally acidified milk that is simmered to achieve whey separation. In order to analyse the impact of simmering on the microbial community structure, high-throughput sequencing was performed to obtain bacterial 16S rRNA sequences from cheeses from the Ordos (ES), Ulanqab (WS), Horqin (KS) and Xilingol (XS) grasslands of Inner Mongolia. The relative abundance of an unexpected microorganism, Thermus thermophilus, ranged from 2% to 9%, which meant that its dominance was second only to that of lactic acid bacteria (LABs). Genome sequencing and fermentation validation were performed in T. thermophilus N-1 isolated from the Ordos, and it was determined that T. thermophilus N-1 could ingest and metabolise lactose in milk to produce lactate during the simmering process. T. thermophilus N-1 could also produce acetate, propionate, citrate and other organic acids through a unique acetate production pathway and a complete propionate production pathway and TCA cycle, which may affect texture and flavour development in Inner Mongolian cheese. Simultaneously, the large amount of citrate produced by T. thermophilus N-1 provides a necessary carbon source for continuous fermentation by LABs after the simmering step. Therefore, T. thermophilus N-1 contributes to cheese fermentation as a predominant, thermophilic, assistant starter microorganism unique to Chinese Inner Mongolian cheese.

1. Introduction

Cheese is a popular dairy product that is very important to the human diet and presents a variety of styles and flavours associated with its diverse geographical and cultural distribution [1]. Inner Mongolian cheese is the most common traditional cheese in China [2]. Inner Mongolian cheese is different from that of European and American cheeses. A simmering process involving naturally acidified milk is added during fermentation to replace the artificial addition of chymosin; thus, acidification and heating are used to promote the denaturation and solidification of casein in milk [3]. The simmering process can lead to the thermally imposed death of some microorganisms, similar to pasteurisation, and organic acids also exert some antibacterial effects [4]. Thus, the unique acidification and heating process involved in Inner Mongolian cheese production exerts a relevant microbial reduction. However, such acidification and heating provide appropriate conditions for the enrichment of some thermotolerant or thermophilic acidogenic microorganisms, with the temperature reaching 80~85 °C and pH reaching 4.5~6.5. Therefore, the simmering process in the preparation of Inner Mongolian cheese has the potential to shift the microbial community within the cheese, increasing the dominance of some thermotolerant or thermophilic acidogenic microorganisms in the microbial cheese community.
Lactic acid bacteria (LABs), such as Lactococcus, Lactobacillus and Streptococcus species, are used as starter microorganisms in cheese production and always account for more than 95% of the relative abundance of the microbial cheese community [5,6,7,8]. This is because these LABs can metabolise lactose, which was the absolute proportion of carbon source in milk, into glucose as the substrates of the Embden–Meyerhof–Parnas (EMP) metabolic pathway by β-galactosidase [9]. β-Galactosidase is an enzyme possessed by few microorganisms [10] but exists in some thermophilic microorganisms, such as Thermus thermophilus [11]. In our preliminary experiments involving the isolation of thermophilic bacteria, a strain of T. thermophilus N-1 was isolated from Inner Mongolian cheese samples (described in detail below), and the isolation of T. thermophilus was not reported in other cheese microbe-related studies. These results give us reason to believe that T. thermophilus with β-galactosidase may be selectively enriched in Inner Mongolian cheese in response to its distinctive simmering process.
The acidification of the milk used in Chinese Inner Mongolian cheese preparation is caused by organic acids produced mainly by LAB fermentation in milk [12]. These organic acids can acidify the milk and also act as flavours of Chinese Inner Mongolian cheese [13,14]. However, during simmering, LABs will be inhibited or even killed, and their acid production will stop [15]. Therefore, to reveal the role of T. thermophilus in Chinese Inner Mongolian cheese fermentation, high-throughput sequencing was performed to analyse the microbial community structure and dominant groups in cheese samples from different grasslands in Inner Mongolia. The whole-genome sequencing of the T. thermophilus N-1 isolate was performed, and the key enzyme genes related to lactose metabolism and organic acid production were annotated. The ability of T. thermophilus N-1 to metabolise lactose and produce a variety of organic acids was determined by comparing the metabolic pathways and fermentation products between the T. thermophilus N-1 strain and reference LABs. This study provides a reference for the large-scale, standardised production of Chinese Inner Mongolian cheese.

2. Materials and Methods

2.1. Chinese Inner Mongolian Cheese Samples and Food-Borne Pathogens Detection

We collected four kinds of Chinese Inner Mongolian cheese from different grasslands in the Inner Mongolia Autonomous Region of China, including Inner Mongolian cheese from Ordos (ES), Xilingol (XS), Horqin (KS) and Ulanqab (WS). The four kinds of cheese are cow cheese and prepared via almost the same traditional production process, in which after fresh milk is left to stand for 48 h, the acidified milk with the surface cream removed is simmered for approximately 4–6 h to completely separate the curds and whey [16]. After the whey is filtered out, the remaining curd is stirred and then placed in a mould for natural cooling for 24 h. The cooled curd is subsequently placed in a shaded area and dried for 7 days to obtain the final Inner Mongolian cheese [16].
Four pathogens were detected as soon as we collected the four cheese samples. Salmonella was detected qualitatively [17], and Listeria monocytogenes and Escherichia coli were detected quantitatively [17,18], but none of them was detected. Staplococcus aureus was detected by the Baird–Parker plate counting method [19], and the number of Staphylococcus aureus in the four cheese samples was in the range of 10–50 CFU/g, which was less than the safety standard required for dairy products [20].

2.2. High-Throughput Sequencing Based on the Bacterial 16S rRNA Genes of Cheese Samples

Microbial genomic DNA was extracted from the cheese samples using the PoweFood Microbial DNA Isolation Kit (MoBio Laboratories Inc., Solana Beach, CA, USA). One gram of cheese was combined with 9 mL of 2% trisodium citrate and homogenised before DNA extraction [21]. The DNA samples were amplified by PCR using the universal prokaryotic primers 515F and 806R for the V4 region of the 16S rRNA gene [21]. The 16S rRNA V4 amplicons were sequenced on an Illumina MiSeq platform according to the paired-end protocol, and the average read length was 252 bp. The quality control procedures and the determination and annotation of operational taxonomic units (OTUs) were performed according to the descriptions of Zeng et al. [21].

2.3. Strain Isolation and Genome DNA Extraction

The strain T. thermophilus N-1 was isolated from the cheese sample from the Ordos by using ML medium that contains (g/L): 10.0 tryptone, 10.0 NaCl, 5.0 yeast extract (adjusted to pH = 7.0), and incubated at 80 °C. The T. thermophilus N-1 strain was enriched in CM0828 liquid medium at 80 °C until the midlogarithmic phase was reached, and the cells were then centrifuged for collection. The genomic DNA of T. thermophilus N-1 was extracted by using the genomic DNA extraction kit (CW0552; Beijing ComWin Biotech Co., Ltd., Beijing, China). The quality assessment of the purified DNA was performed by agarose gel electrophoresis, and its quantification was performed on a Qubit 2.0 system.

2.4. Genome Sequencing and Assembly

The genomic DNA of T. thermophilus N-1 was sent to Beijing Novogene Bioinformatics Technology Co., Ltd. (Beijing, China) and sequenced by using Pacific Biosciences RS II single-molecule real-time (SMRT) sequencing technology and Illumina high-throughput sequencing technology. Sequence reads were generated from the 10 kb SMRT Bell library and a 350 bp library. After subread filtering of the raw data from the PacBio RS II and Illumina PE150 sequencers, low-quality reads were filtered out by SMRT Link 5.0.1 [22,23], and assembly was performed. The complete genome sequence of T. thermophilus N-1 was submitted to the GenBank database under accession number CP082323-CP082325.

2.5. Genome Component Prediction

GeneMarkS [24] (http://topaz.gatech.edu/GeneMark/, accessed on May 2020) was used to predict the coding genes of the sequenced genome. RepeatMasker [25] was used to predict scattered repeats, and Tandem Repeats Finder (TRF) Version 4.07b [26] was used to search for tandem repeats in the DNA sequences. tRNAs were predicted by using tRNAscan-SE [27]. RNAmmer [28] was used to predict rRNAs. First, we performed annotation via comparison with the Rfam database [29], and we then used the cmsearch program (Version 1.1rc4, with default parameter) to determine the final sRNA gene set [30]. Island Island-DIOMB [31] in the sample genome were predicted with phiSpy (Version 2.3) [32]. CRISPRdigger [33] was used for CRISPR prediction of the sample genome.

2.6. Genome Annotation

Five databases were used to predict gene functions. They were the Gene Ontology (GO) [34], Kyoto Encyclopedia of Genes and Genomes (KEGG) [35], Clusters of Orthologous Groups (COG) [36], and the Non-Redundant Protein Database databases (NR) [37]. Whole-genome BLAST searches (E-value less than 1e-5, minimal alignment length percentage greater than 40%) were performed against the above five databases. Additionally, secondary metabolism gene clusters were analysed by using antiSMASH [38]. Carbohydrate-active enzymes were predicted in the Carbohydrate-Active EnZymes Database [39]. The complete genomes of some reported LABs isolated from different cheeses, including Lactobacillus plantarum 10CH, Lactococcus lactis SD96, Streptococcus thermophilus NCTC 12958, Leuconostoc mesenteroides DSM 20484, Lactobacillus paracasei NJ and Lactobacillus fermentum MTCC 25067, were obtained from the NCBI Database to perform the comparative genome annotation of T. thermophilus N-1 (https://www.ncbi.nlm.nih.gov/, accessed on May 2020). The sources and accession numbers of the isolates are given in Table S1.

2.7. Verification of the Milk Fermentation Ability and Characteristics of T. thermophilus N-1

In order to clarify the role of T. thermophilus in the preparation of traditional Chinese cheese, the T. thermophilus N-1 strain and the Lactobacillus fermentum 11-1S4 strain (the dominant LAB species isolated from the same Ordos cheese samples as T. thermophilus N-1) were used to ferment the milk. In order to obtain L. fermentum 11-1S4 and T. thermophilus N-1 with similar cell numbers, the culture endpoint with an OD600 value of 0.3 was determined based on pre-experiment. The OD600 value of culture medium inoculated with L. fermentum 11-1S4 and T. thermophilus N-1 was reached 0.3 by culturing for 4 h and 6 h, respectively. At this time, the number of L. fermentum 11-1S4 and T. thermophilus N-1 were determined to be 6.2 × 107 CFU/mL and 2.5 × 107 CFU/mL, respectively, by the dilution plate counting method, and 1 mL of L. fermentum 11-1S4 and T. thermophilus N-1 solution was centrifuged to obtain bacterial precipitation. Then, the bacterial precipitations of L. fermentum 11-1S4 or T. thermophilus N-1 were inoculated into 100 mL sterilised milk to determine their milk fermentation ability at the test temperature. We set up six treatments involving different inoculation and culture methods: (a) uninoculated sterilised milk, (b) sterilised milk inoculated with L. fermentum 11-1S4 and cultured at 80 °C for 24 h, (c) sterilised milk inoculated with T. thermophilus N-1 and cultured at 37 °C for 24 h, (d) sterilised milk inoculated with L. fermentum 11-1S4 and cultured at 37 °C for 24 h, (e) sterilised milk inoculated with T. thermophilus N-1 and cultured at 80 °C for 24 h and (f) treatment e inoculated with L. fermentum 11-1S4 and cultured at 37 °C for 24 h. After fermentation, the CFU, pH values, lactose contents and organic acid types and concentrations were measured. pH was measured by using a pH meter (pHS-3TC; Shanghai Tianda Instrument Co., Ltd., Shanghai, China). The lactose content was measured using the HPLC method [40]. Organic acids, including oxalic acid, tartaric acid, malic acid, fumaric acid, lactic acid, acetic acid, citric acid, succinic acid and propionic acid, were determined by high-performance liquid chromatography (HPLC) (Thermo Fisher Technologies, Waltham, MA, USA). The analysis conditions referred to Akalin et al. [14].

3. Results

3.1. Relative Abundance of T. thermophilus in the Bacterial Community of Chinese Inner Mongolian Cheese

Based on high-throughput sequencing, the bacterial 16S rRNA genes of four tested cheese samples from Inner Mongolia were sequenced. The sequencing libraries of the four samples showed qualified library coverage (Table 1). Based on sequence alignment results, different OTU numbers were obtained from the four tested samples, ranging from 389 to 646. The annotation results of these OTUs showed that LABs, including Streptococcus thermophilus, Lactococcus lactis, Lactobacillus fermentum and Leuconostoc mesenteroides were dominant in the bacterial communities of the four tested cheeses, and their total relative abundance ranged from 86.9% to 90.9% (Figure 1). T. thermophilus was the only species other than LABs with a relative abundance of more than 1% in all samples, and its relative abundance ranged from 2.2% to 9.9% (Figure 1). The relative abundance of T. thermophilus in the cheese samples from the Ordos was 9.9%. Therefore, the T. thermophilus N-1 strain was isolated from the cheese samples of Ordos at 80 °C via a method based on the selective ML medium. This N-1 strain was used as a representative strain of T. thermophilus for subsequent genome analysis and fermentation validation experiments.

3.2. General Genome Features of T. thermophilus N-1

The sequencing of T. thermophilus N-1 generated 98,992 subreads and 655,471,669 base pairs, with 298-fold genome coverage. One contig without gaps was obtained after assembling the filtered low-quality reads with SMRT Link v5.0.1. A complete genome map of T. thermophilus N-1 was drawn (Figure 2). The complete genome was 2,194,207 bp in length and contained a circular chromosome with a G + C content of 69.51% and two circular plasmids with G + C contents of 69.33% and 67.95% (Table 2). Six rRNA operons, 48 tRNA genes, 11 genomics islands, 10 clustered regularly interspersed short palindromic repeats (CRISPRs), and 2328 protein-coding genes (CDSs) were identified. Twenty-one interspersed repetitive sequences, including 11 long terminal repeats (LTRs), 3 DNA transposons, 2 long interspersed repeated segments (LINEs), 4 short interspersed repeated segments (SINEs) and 1 unknown sequence, were identified. Additionally, 139 tandem repeat sequences (repeat size 9–228 bp), including 128 minisatellite DNA sequences (repeat size 11–56 bp), were found.

3.3. Functional Annotation of T. thermophilus N-1

In order to gain insight into the gene functions of T. thermophilus N-1, the KEGG and COG databases were used to functionally annotate the genome. The genome annotation results revealed that 2251 CDSs could be assigned to the KEGG database (Figure 3) and that 1918 CDSs could be assigned to the COG database (Figure S1). Based on the KEGG pathway annotations, 1522 proteins were associated with 178 KEGG metabolic pathways, which was greater than the number of proteins associated with other pathways. Among the 773 genes encoding proteins associated with metabolic pathways, 52% were related to the metabolism of nutrients (e.g., lipids, proteins and carbohydrates), including 41 genes associated with lipid metabolism, 15 genes associated with glycan biosynthesis and metabolism, 146 genes associated with carbohydrate metabolism, 165 genes associated with amino acid metabolism and 34 genes associated with the metabolism of other amino acids (Figure 3). Based on COG function classification, 1555 identified coding proteins were classified into 25 functional categories. Among the 810 genes encoding proteins associated with metabolic pathways, 55% were related to the metabolism of nutrients (e.g., lipids, proteins and carbohydrates), including 99 genes associated with lipid transport and metabolism, 144 genes associated with carbohydrate transport and metabolism and 204 genes associated with amino acid transport and metabolism (Figure S1). These results indicated that T. thermophilus N-1 has the ability to metabolise proteins, lipids and carbohydrates, which may play a role in changing the nutritional composition and flavour during the simmering process in Chinese Inner Mongolian cheese fermentation.

3.4. Distribution of Enzymes Associated with Lactose Metabolism

Based on the genome annotation results of T. thermophilus N-1 obtained from the KEGG database, we screened the genes encoding core enzymes related to lactose hydrolysis and predicted the metabolic pathway map (Figure 4). T. thermophilus N-1 exhibited genes encoding a putative sugar transporter and β-galactosidase, which suggested that extracellular lactose could be transported intracellularly and decomposed to glucose and galactose by β-galactosidase. This lactose metabolism process suggests that T. thermophilus N-1 could also use the lactose in raw milk as a carbon source for normal growth, similar to LABs. Therefore, T. thermophilus N-1 can grow in milk by metabolising lactose during the simmering process in Chinese Inner Mongolian cheese fermentation, which makes Thermus among the predominant genera in the bacterial cheese community, similar to LABs.
Subsequently, genomic data were collected from six different LABs isolated from different cheeses, including Lactobacillus plantarum 10CH, Lactococcus lactis SD96, Streptococcus thermophilus NCTC 12958, Leuconostoc mesenteroides DSM 20484, Lactobacillus paracasei NJ and Lactobacillus fermentum MTCC 25067, and the genes related to milk fermentation were annotated (Figure 4). We found that these reference LABs all harboured an enzyme not found in T. thermophilus N-1 that can metabolise D-galactose produced via lactose metabolism into glucose-6P through the Leloir Pathway, after which this product enters the EMP Pathway. These results showed that the LABs in Chinese Inner Mongolian cheese might have more available carbon source substrates than T. thermophilus N-1 for metabolism under conditions in which the same amount of lactose is metabolised.

3.5. Distribution of Enzymes Associated with Organic Acid Generation

Further genome annotation results showed that the previously produced glucose could be transformed into pyruvate through the EMP pathway, after which pyruvate is metabolised into the various organic acids, which could accelerate the coagulation of milk by reducing the pH and play a role as flavouring substances (Figure 4). Lactate could be generated by L-lactate dehydrogenase (Ldh), as observed in the LABs we collected through homolactic fermentation (Figure 4). In contrast to the acetate production pathway of reference LABs, T. thermophilus N-1 may produce acetate from acetyladenylate via the action of acetyl-CoA synthetase (Acs) (Figure 4). T. thermophilus N-1 has a complete propanoate production pathway, which is not present in all reference LABs and can convert acetyl-CoA into propanoate (Figure 4). Additionally, T. thermophilus N-1 exhibits a complete TCA cycle pathway, which is also not found in reference LABs and can generate a variety of organic acids, including citrate, malate, fumarate and succinate (Figure 4). These results indicated that T. thermophilus N-1 might be able to produce a variety of organic acids similar to cheese LABs, which can promote the coagulation and acid flavour formation of cheese. Therefore, T. thermophilus may play a similar role to LABs in organic acid generation during the simmering process in the fermentation of Chinese Inner Mongolian cheese.

3.6. Validation of T. thermophilus N-1 in Milk during Fermentation

To verify the lactose metabolic pathway and four major organic acid-producing metabolic pathways predicted via whole-genome sequencing, we carried out culture experiments of T. thermophilus N-1. Simultaneously, a strain 11-1S4 belonging to Lactobacillus fermentum, the most dominant species in Ordos cheese samples (Figure 1), was used as a representative of LABs for fermentation experiments (Figure 5). The CFU number of milk samples inoculated with L. fermentum 11-1S4 after 24 h of culture at 37 °C and 80 °C was 9.5 × 1010 CFU/mL and 3.0 × 105 CFU/mL, respectively. The CFU number of milk samples inoculated with T. thermophilus N-1 after 24 h of culture at 37 °C and 80 °C was 1.0 × 105 CFU/mL and 1.2 × 1010 CFU/mL, respectively. After 24 h at 37 °C, the pH and the lactose and organic acid contents of the milk inoculated with T. thermophilus N-1 were almost the same as those of the control, as observed in the milk inoculated with L. fermentum 11-1S4 at 80 °C (Figure 5). However, the pH and lactose content of the milk inoculated with T. thermophilus N-1 decreased significantly after 24 h at 80 °C (p < 0.05). This was consistent with the changing trend observed in milk inoculated with L. fermentum 11-1S4 at 37 °C, although the downward trend was not as obvious as that associated with L. fermentum 11-1S4. These results showed that Thermus could replace LABs (whose metabolism is inactivated by the simmering process in Chinese Inner Mongolian cheese fermentation), metabolise lactose and produce moderate amounts of organic acids, thus playing a potential role as a starter microorganism.
The contents of lactate, acetate, malate and succinate in milk inoculated with T. thermophilus N-1 at 80 °C for 24 h were significantly higher than those under the control treatment (p < 0.05), but the degree of the increase was smaller than that in milk inoculated with L. fermentum 11-1S4 (Figure 5). Simultaneously, the content of propionate, which L. fermentum 11-1S4 cannot produce, was also increased significantly in milk (p < 0.05). It should be noted that the content of citrate in milk increased significantly but was almost completely metabolised in milk inoculated with L. fermentum 11-1S4 (Figure 5). These results indicated that T. thermophilus N-1 has the ability to produce organic acids similarly to L. fermentum 11-1S4. Although its ability to produce organic acids is weaker than that of L. fermentum 11-1S4, the variety of organic acids it produces is more diverse, and it can provide abundant citrate, which is necessary for L. fermentum 11-1S4 metabolism, to assist LABs in cheese fermentation.
After the inoculation of L. fermentum 11-1S4 and fermentation for 24 h, the lactose content of 1 mL of milk decreased by 9.1 mg, the pH value decreased by 1.1, and the lactate, succinate, malate and fumarate contents increased by 827.4, 4875.2, 473.3 and 74.9 μg, respectively (Figure 5). When L. fermentum 11-1S4 was inoculated into milk samples that were inoculated with T. thermophilus N-1 and fermented for 24 h, the lactose content of 1 mL of milk decreased by 11.5 mg, the pH value decreased by 1.3, and the lactate, succinate, malate and fumarate contents increased by 932.5, 5761.6, 486.8 and 92.5 μg, respectively (Figure 5). The above series of values of milk inoculated with T. thermophilus N-1 and L. fermentum 11-1S4 always exceed those of inoculated with only L. fermentum 11-1S4. These results indicate that the lactose metabolism, organic acid production and pH-reducing abilities of L. fermentum 11-1S4 were enhanced through the action of T. thermophilus N-1, which may be the result of the promotion of L. fermentum 11-1S4 metabolism by citrate production by T. thermophilus N-1. All the above results suggest that T. thermophilus N-1 can metabolise lactose and decrease pH levels, similar to LABs, in the simmering process of Chinese Inner Mongolian cheese, and its products can promote the growth and fermentation of LABs in milk after this simmering process.

4. Discussion

Chinese Inner Mongolian cheese is produced without adding any starter microorganisms or exogenous chymosin; instead, a unique simmering and stirring process is added to cause the milk to coagulate. The simmering process conducted at a high temperature of approximately 80 °C provides a suitable enrichment temperature for Thermus, a thermophilic bacterial genus. Simultaneously, through genome annotation and fermentation experiments, we successfully verified that the T. thermophilus N-1 strain might transport lactose from milk into cells by using putative lactose transporters (STs) that are different from those of reference LABs and can metabolise lactose by using a β-galactosidase (β-GAL) that is the same as that of reference LABs [41,42]. Although T. thermophilus N-1 lacks the complete D-galactose Leioir pathway and its ability to produce D-glucose by metabolising lactose is weaker than that of LABs, the high temperature of the simmering process used in China Inner Mongolian cheese fermentation means that the lactose metabolism function of T. thermophilus N-1 cannot be replaced by LABs.
In addition to the lactate produced by lactose metabolism, T. thermophilus N-1 plays an important role in the production of other organic acids. For example, T. thermophilus N-1 exhibits an acetate synthesis pathway dominated by acetyl-CoA synthetase (Acs), which is not found in LABs; T. thermophilus N-1 has a complete TCA cycle pathway, which is also lacking in LABs [43], and can thus produce citrate, malate, fumarate and succinate; and T. thermophilus N-1 has a complete propanoate synthesis pathway, which is not observed in LABs. It was reported that lactate, acetate, propanoate and citrate could play important roles as flavouring substances in the formation of characteristic flavours in cheese [44,45,46]. Some of the inorganic acid products produced by organic acid metabolism are also sources of special flavours in cheese. For example, we screened the adh gene, which encodes an enzyme that converts acetyl-CoA to acetaldehyde, a volatile aromatic substance produced during hetero-alcoholic fermentation in acetate generation [47]. We also screened the gene encoding the enzyme that converts acetolactate to diacetyl, a buttery substance produced during acetolactate metabolism [48]. Therefore, the metabolism of organic acids by the Thermus genus might contribute to the formation of special flavours in Chinese Inner Mongolian cheese. Additionally, salt plays an important role in cheese-making, including preservation, contributions to flavours and acting as a source of dietary sodium [49]; salt contents in China Inner Mongolian cheese range from 0.1 to 0.7%. T. thermophilus can grow in the salt concentration range of 0~4% [50], which is also sufficient to meet the salt addition demand in cheese production [51].
It was reported that citrate is an essential carbon source substrate used by LABs in milk fermentation, and various fermentation pathways are related to citrate metabolism [52]. In our fermentation validation experiment, it was indeed found that the citrate content of milk supplemented with LABs decreased significantly after fermentation and was almost completely consumed (Figure 5). The results also confirmed the dependence of some LABs on citrate in milk fermentation. Simultaneously, our validation experiment showed that T. thermophilus N-1 could produce a large amount of citrate in milk under high-temperature culture conditions. Therefore, we believe that the high-temperature culture of T. thermophilus N-1 before milk fermentation with LABs can effectively promote the fermentation efficiency of LABs. To verify this hypothesis, we set up a treatment in which L. fermentum 11-1S4 was added to milk cultured with T. thermophilus N-1 (Figure 5). In this treatment, the absolute changes in lactose, pH and lactate were greater than those under fermentation with L. fermentum 11-1S4 alone. These results suggest that by producing citrate required for L. fermentum 11-1S4 fermentation, T. thermophilus N-1 may promote the fermentation of L. fermentum 11-1S4 in milk, acting similarly to an LAB assistant.
Conversely, LABs might assist T. thermophilus in becoming the most dominant thermophilic microorganism by inhibiting Geobacillus stearothermophilus, which is a more common Gram-positive thermophilic microorganism than T. thermophilus [53]. Among the four Inner Mongolia cheese samples, G. stearothermophilus was detected but did not surpass T. thermophilus as the most dominant thermophilic microorganism (Figure 1). This is probably due to the inhibitory effect of nisin secreted by LABs on Gram-positive G. stearothermophilus [54], which helps Gram-negative T. thermophilus to be preferentially enriched. Therefore, T. thermophilus may form a mutual relationship with LABs in the process of Inner Mongolia cheese preparation.
A starter culture may be defined as a preparation or material containing large numbers of different microorganisms, referred to as starter microorganisms, that may be added to accelerate fermentation and decrease the risk of fermentation failure [55,56]. Therefore, we conclude that T. thermophilus acts as a thermophilic, assistant starter microorganism in the production of Chinese Inner Mongolian cheese.

5. Conclusions

Chinese Inner Mongolian cheese production does not involve the artificial addition of starter microorganisms and chymosin and instead relies on the simmering of acidified milk to separate whey until milk coagulation occurs. This special process enriches thermophilic T. thermophilus in milk because of its lactose metabolic pathway. Although the lack of the Leloir pathway in T. thermophilus means that it is unable to metabolise D-galactose, resulting in lower production efficiency of lactate than is observed in LABs, it plays a role in lactose metabolism and acid production that LABs cannot perform during the simmering process in Chinese Inner Mongolian cheese fermentation. T. thermophilus can also produce acetate, propionate, citrate and other organic acids through unique acetate production pathways and complete propionate production pathways and TCA cycle that are absent in LABs, which affects flavour formation in Chinese Inner Mongolian cheese. Simultaneously, T. thermophilus can produce a large amount of citrate during the milk simmering process, which provides the carbon source substrate most needed by LABs for continuous fermentation after milk cooling, and plays a role in promoting LAB fermentation in Chinese Inner Mongolian cheese production. Therefore, T. thermophilus is a predominant, thermophilic, assistant starter microorganism unique to Chinese Inner Mongolian cheese.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/foods10122962/s1, Figure S1: COG categories of coding proteins, Table S1: The complete genome sequences of T. thermophilus N-1, Lactobacillus plantarum 10CH, Lactococcus lactis SD96, Streptococcus thermophilus NCTC 12958, Leuconostoc mesenteroides DSM 20484, Lactobacillus paracasei NJ and Lactobacillus fermentum MTCC 25067, and the main functional genes involved in fermentation.

Author Contributions

Conceptualisation, investigation, funding acquisition, writing—original draft preparation, L.Z.; methodology, data curation and validation, Z.H.; formal analysis, visualisation, writing—original draft preparation, X.H.; Experiment, X.L.; Experiment, T.D.; Experiment, X.W.; Investigation and methodology, C.Z.; Methodology, Y.W.; Validation, C.W.; Visualisation, S.Y.; Writing—review and editing, H.C.; Conceptualisation, investigation, funding acquisition, visualisation, writing—review and editing, W.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (31770543, 31600069, 41503068), Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD-2018-87), and Natural Science Foundation of Jiangsu Province of China (BK20150496, BK20150497).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to thank Feng Gao for the instructions during the research process.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Khattab, A.R.; Guirguis, H.A.; Tawfik, S.M.; Farag, M.A. Cheese ripening: A review on modern technologies towards flavor enhancement, process acceleration and improved quality assessment. Trends Food Sci. Technol. 2019, 88, 343–360. [Google Scholar] [CrossRef]
  2. Gao, M.L.; Hou, H.M.; Teng, X.X.; Zhu, Y.L.; Hao, H.S.; Zhang, G.L. Microbial diversity in raw milk and traditional fermented dairy products (Hurood cheese and Jueke) from Inner Mongolia, China. Genet. Mol. Res. 2017, 16, 1–3. [Google Scholar] [CrossRef]
  3. Al-Khusaibi, M. Arab Traditional Foods: Preparation, Processing and Nutrition BT—Traditional Foods: History, Preparation, Processing and Safety; Al-Khusaibi, M., Al-Habsi, N., Shafiur Rahman, M., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 9–35. ISBN 978-3-030-24620-4. [Google Scholar]
  4. Davidson, P.M.; Critzer, F.M. Interventions to Inhibit or Inactivate Bacterial Pathogens in Foods BT—Microbial Food Safety: An Introduction; Oyarzabal, O.A., Backert, S., Eds.; Springer: New York, NY, USA, 2012; pp. 189–202. ISBN 978-1-4614-1177-2. [Google Scholar]
  5. Aldrete-Tapia, A.; Escobar-Ramírez, M.C.; Tamplin, M.L.; Hernández-Iturriaga, M. High-throughput sequencing of microbial communities in Poro cheese, an artisanal Mexican cheese. Food Microbiol. 2014, 44, 136–141. [Google Scholar] [CrossRef]
  6. Dugat-Bony, E.; Garnier, L.; Denonfoux, J.; Ferreira, S.; Sarthou, A.S.; Bonnarme, P.; Irlinger, F. Highlighting the microbial diversity of 12 French cheese varieties. Int. J. Food Microbiol. 2016, 238, 265–273. [Google Scholar] [CrossRef] [PubMed]
  7. Lee, J.Y.; Joung, J.Y.; Choi, Y.S.; Kim, Y.; Oh, N.S. Characterisation of microbial diversity and chemical properties of Cheddar cheese prepared from heat-treated milk. Int. Dairy J. 2016, 63, 92–98. [Google Scholar] [CrossRef]
  8. Wei, W.; Hu, X.; Hou, Z.; Wang, Y.; Zhu, L. Microbial community structure and diversity in different types of non-bovine milk. Curr. Opin. Food Sci. 2021, 40, 51–57. [Google Scholar] [CrossRef]
  9. Issa, A.T.; Tahergorabi, R. Chapter 22—Milk Bacteria and Gastrointestinal Tract: Microbial Composition of Milk. In Dietary Interventions in Gastrointestinal Diseases; Watson, R.R., Preedy, V.R.B.T.-B.F., Eds.; Academic Press: Cambridge, MA, USA, 2019; pp. 265–275. ISBN 978-0-12-814468-8. [Google Scholar]
  10. Park, A.-R.; Oh, D.-K. Galacto-oligosaccharide production using microbial β-galactosidase: Current state and perspectives. Appl. Microbiol. Biotechnol. 2010, 85, 1279–1286. [Google Scholar] [CrossRef]
  11. Pantazaki, A.A.; Papaneophytou, C.P.; Pritsa, A.G.; Liakopoulou-Kyriakides, M.; Kyriakidis, D.A. Production of polyhydroxyalkanoates from whey by Thermus thermophilus HB8. Process Biochem. 2009, 44, 847–853. [Google Scholar] [CrossRef]
  12. Thybo, C.D.; Lillevang, S.K.; Skibsted, L.H.; Ahrné, L. Calcium balance during direct acidification of milk for Mozzarella cheese production. LWT 2020, 131, 109677. [Google Scholar] [CrossRef]
  13. Li, J.; Huang, Q.; Zheng, X.; Ge, Z.; Lin, K.; Zhang, D.; Chen, Y.; Wang, B.; Shi, X. Investigation of the Lactic Acid Bacteria in Kazak Cheese and Their Contributions to Cheese Fermentation. Front. Microbiol. 2020, 11, 228. [Google Scholar] [CrossRef]
  14. Akalin, A.S.; Gönç, S.; Akbaş, Y. Variation in Organic Acids Content during Ripening of Pickled White Cheese. J. Dairy Sci. 2002, 85, 1670–1676. [Google Scholar] [CrossRef] [Green Version]
  15. Bluma, A.; Ciprovica, I. Diversity of lactic acid bacteria in raw milk. Res. Rural Dev. 2015, 1, 157–161. [Google Scholar]
  16. Xiao, F.; Zhu, J.-J.; Zhang, H.-M.; Ya, M.; Yong, F. Inner Mongolian traditional dairy product processing technology and hygiene quality analysis. China Diary Ind. 2016, 44, 35–42. [Google Scholar]
  17. D’amico, D.J.; Groves, E.; Donnelly, C.W. Low Incidence of Foodborne Pathogens of Concern in Raw Milk Utilized for Farmstead Cheese Production. J. Food Prot. 2008, 71, 1580–1589. [Google Scholar] [CrossRef]
  18. Nalepa, B.; Markiewicz, L.H. PCR-DGGE markers for qualitative profiling of microbiota in raw milk and ripened cheeses. LWT 2017, 84, 168–174. [Google Scholar] [CrossRef]
  19. Holbrook, R.; Anderson, J.M.; Baird-Parker, A.C. The Performance of a Stable Version of Baird-Parker’s Medium for Isolating Staphylococcus aureus. J. Appl. Bacteriol. 1969, 32, 187–192. [Google Scholar] [CrossRef] [PubMed]
  20. Leong, W.; Geier, R.; Engstrom, S.; Ingham, S.; Ingham, B.; Smukowski, M. Growth of Listeria monocytogenes, Salmonella spp., Escherichia coli O157:H7, and Staphylococcus aureus on Cheese during Extended Storage at 25 °C. J. Food Prot. 2014, 77, 1275–1288. [Google Scholar] [CrossRef] [PubMed]
  21. Zhu, L.; Zeng, C.; Yang, S.; Hou, Z.; Wang, Y.; Hu, X.; Senoo, K.; Wei, W. Diversity and specificity of the bacterial community in Chinese horse milk cheese. Microbiologyopen 2020, 9, e1066. [Google Scholar] [CrossRef] [PubMed]
  22. Reiner, J.; Pisani, L.; Qiao, W.; Singh, R.; Yang, Y.; Shi, L.; Khan, W.A.; Sebra, R.; Cohen, N.; Babu, A. Cytogenomic identification and long-read single molecule real-time (SMRT) sequencing of a Bardet–Biedl Syndrome 9 (BBS9) deletion. Npj Genom. Med. 2018, 3, 3. [Google Scholar] [CrossRef]
  23. Ardui, S.; Ameur, A.; Vermeesch, J.R.; Hestand, M.S. Single molecule real-time (SMRT) sequencing comes of age: Applications and utilities for medical diagnostics. Nucleic Acids Res. 2018, 46, 2159–2168. [Google Scholar] [CrossRef] [Green Version]
  24. Besemer, J.; Lomsadze, A.; Borodovsky, M. GeneMarkS: A self-training method for prediction of gene starts in microbial genomes. Implications for finding sequence motifs in regulatory regions. Nucleic Acids Res. 2001, 29, 2607–2618. [Google Scholar] [CrossRef] [Green Version]
  25. Saha, S.; Bridges, S.; Magbanua, Z.V.; Peterson, D.G. Empirical comparison of ab initio repeat finding programs. Nucleic Acids Res. 2008, 36, 2284–2294. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Benson, G. Tandem repeats finder: A program to analyze DNA sequences. Nucleic Acids Res. 1999, 27, 573–580. [Google Scholar] [CrossRef] [Green Version]
  27. Lowe, T.M.; Eddy, S.R. tRNAscan-SE: A Program for Improved Detection of Transfer RNA Genes in Genomic Sequence. Nucleic Acids Res. 1997, 25, 955–964. [Google Scholar] [CrossRef] [PubMed]
  28. Lagesen, K.; Hallin, P.; Rødland, E.A.; Stærfeldt, H.H.; Rognes, T.; Ussery, D.W. RNAmmer: Consistent and rapid annotation of ribosomal RNA genes. Nucleic Acids Res. 2007, 35, 3100–3108. [Google Scholar] [CrossRef]
  29. Griffiths-Jones, S.; Moxon, S.; Marshall, M.; Khanna, A.; Eddy, S.R.; Bateman, A. Rfam: Annotating non-coding RNAs in complete genomes. Nucleic Acids Res. 2005, 33, 121–124. [Google Scholar] [CrossRef] [Green Version]
  30. Cui, X.; Lu, Z.; Wang, S.; Jing-Yan Wang, J.; Gao, X. CMsearch: Simultaneous exploration of protein sequence space and structure space improves not only protein homology detection but also protein structure prediction. Bioinformatics 2016, 32, i332–i340. [Google Scholar] [CrossRef] [PubMed]
  31. Hsiao, W.; Wan, I.; Jones, S.J.; Brinkman, F.S.L. IslandPath: Aiding detection of genomic islands in prokaryotes. Bioinformatics 2003, 19, 418–420. [Google Scholar] [CrossRef] [Green Version]
  32. Zhou, Y.; Liang, Y.; Lynch, K.H.; Dennis, J.J.; Wishart, D.S. PHAST: A Fast Phage Search Tool. Nucleic Acids Res. 2011, 39, W347–W352. [Google Scholar] [CrossRef]
  33. Grissa, I.; Vergnaud, G.; Pourcel, C. CRISPRFinder: A web tool to identify clustered regularly interspaced short palindromic repeats. Nucleic Acids Res. 2007, 35, W52–W57. [Google Scholar] [CrossRef] [Green Version]
  34. Ashburner, M.; Ball, C.A.; Blake, J.A.; Botstein, D.; Butler, H.; Cherry, J.M.; Davis, A.P.; Dolinski, K.; Dwight, S.S.; Eppig, J.T.; et al. Gene Ontology: Tool for the unification of biology. Nat. Genet. 2000, 25, 25–29. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Kanehisa, M.; Goto, S.; Hattori, M.; Aoki-Kinoshita, K.F.; Itoh, M.; Kawashima, S.; Katayama, T.; Araki, M.; Hirakawa, M. From genomics to chemical genomics: New developments in KEGG. Nucleic Acids Res. 2006, 34, D354–D357. [Google Scholar] [CrossRef]
  36. Tatusov, R.L.; Galperin, M.Y.; Natale, D.A.; Koonin, E.V. The COG database: A tool for genome-scale analysis of protein functions and evolution. Nucleic Acids Res. 2000, 28, 33–36. [Google Scholar] [CrossRef] [Green Version]
  37. Li, W.; Jaroszewski, L.; Godzik, A. Tolerating some redundancy significantly speeds up clustering of large protein databases. Bioinformatics 2002, 18, 77–82. [Google Scholar] [CrossRef]
  38. Medema, M.H.; Blin, K.; Cimermancic, P.; de Jager, V.; Zakrzewski, P.; Fischbach, M.A.; Weber, T.; Takano, E.; Breitling, R. antiSMASH: Rapid identification, annotation and analysis of secondary metabolite biosynthesis gene clusters in bacterial and fungal genome sequences. Nucleic Acids Res. 2011, 39, W339–W346. [Google Scholar] [CrossRef]
  39. Cantarel, B.L.; Coutinho, P.M.; Rancurel, C.; Bernard, T.; Lombard, V.; Henrissat, B. The Carbohydrate-Active EnZymes database (CAZy): An expert resource for Glycogenomics. Nucleic Acids Res. 2009, 37, D233–D238. [Google Scholar] [CrossRef]
  40. Zeppa, G.; Conterno, L.; Gerbi, V. Determination of organic acids, sugars, diacetyl, and acetoin in cheese by high-performance liquid chromatography. J. Agric. Food Chem. 2001, 49, 2722–2726. [Google Scholar] [CrossRef] [PubMed]
  41. Irene, G.-R.; Paula, G.; Borja, S.; Miguel, G.; Abelardo, M.; Rute, N.A. Catabolism of glucose and lactose in Bifidobacterium animalis subsp. lactis, studied by 13C nuclear magnetic resonance. Appl. Environ. Microbiol. 2013, 79, 7628–7638. [Google Scholar] [CrossRef] [Green Version]
  42. Comas, I.; González-Candelas, F.; Zúñiga, M. Unraveling the evolutionary history of the phosphoryl-transfer chain of the phosphoenolpyruvate:phosphotransferase system through phylogenetic analyses and genome context. BMC Evol. Biol. 2008, 8, 147. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Salminen, S.; Wright, A.V.; Lahtinen, S.; Ouwehand, A.C. Lactic Acid Bacteria: Microbiological and Functional Aspects; CRC Press: Boca Raton, FL, USA, 2004. [Google Scholar]
  44. Fox, P.F.; Wallace, J.M. Formation of flavor compounds in cheese. Adv. Appl. Microbiol. 1997, 45, 17–86. [Google Scholar]
  45. Sablé, S.; Cottenceau, G. Current knowledge of soft cheeses flavor and related compounds. J. Agric. Food Chem. 1999, 47, 4825–4836. [Google Scholar] [CrossRef]
  46. Singh, T.K.; Drake, M.A.; Cadwallader, K.R. Flavor of cheddar cheese: A chemical and sensory perspective. Compr. Rev. Food Sci. Food Saf. 2003, 2, 166–189. [Google Scholar] [CrossRef]
  47. Capozzi, V.; Garofalo, C.; Chiriatti, M.A.; Grieco, F.; Spano, G. Microbial terroir and food innovation: The case of yeast biodiversity in wine. Microbiol. Res. 2015, 181, 75–83. [Google Scholar] [CrossRef] [PubMed]
  48. Cui, D.-Y.; Wei, Y.-N.; Lin, L.-C.; Chen, S.-J.; Feng, P.-P.; Xiao, D.-G.; Lin, X.; Zhang, C.-Y. Increasing yield of 2,3,5,6-Tetramethylpyrazine in baijiu through Saccharomyces cerevisiae metabolic engineering. Front. Microbiol. 2020, 11, 2946. [Google Scholar] [CrossRef]
  49. Guinee, T.P. Salting and the role of salt in cheese. Int. J. Dairy Technol. 2004, 57, 99–109. [Google Scholar] [CrossRef]
  50. Marteinsson, V.T. Isolation and characterization of Thermus thermophilus Gy1211 from a deep-sea hydrothermal vent. Extremophiles 1999, 3, 247–251. [Google Scholar] [CrossRef]
  51. Farahnaky, A.; Mousavi, S.H.; Nasiri, M. Role of salt in Iranian ultrafiltered Feta cheese: Some textural and physicochemical changes during ripening. Int. J. Dairy Technol. 2013, 66, 359–365. [Google Scholar] [CrossRef]
  52. Drider, D.; Bekal, S.; Prévost, H. Genetic organization and expression of citrate permease in lactic acid bacteria. Genet. Mol. Res. 2004, 3, 273–281. [Google Scholar]
  53. Nazina, T.N.; Tourova, T.P.; Poltaraus, A.B.; Novikova, E.V.; Grigoryan, A.A.; Ivanova, A.E.; Lysenko, A.M.; Petrunyaka, V.V.; Osipov, G.A.; Belyaev, S.S.; et al. Taxonomic study of aerobic thermophilic bacilli: Descriptions of Geobacillus subterraneus gen. nov., sp. nov. and Geobacillus uzenensis sp. nov. from petroleum reservoirs and transfer of Bacillus stearothermophilus, Bacillus thermocatenulatus, Bacillus thermoleovorans, Bacillus kaustophilus, Bacillus thermodenitrificans to Geobacillus as the new combinations G. stearothermophilus, G. thermocatenulatus, G. thermoleovorans, G. kaustophilus, G. thermoglucosidasius and G. thermodenitrificans. Int. J. Syst. Evol. Microbiol. 2001, 51, 433–446. [Google Scholar] [CrossRef] [Green Version]
  54. Pirttijärvi, T.S.M.; Wahlström, G.; Rainey, F.A.; Saris, P.E.J.; Salkinoja-Salonen, M.S. Inhibition of bacilli in industrial starches by nisin. J. Ind. Microbiol. Biotechnol. 2001, 26, 107–114. [Google Scholar] [CrossRef] [PubMed]
  55. Holzapfel, W. Use of starter cultures in fermentation on a household scale. Food Control 1997, 8, 241–258. [Google Scholar] [CrossRef]
  56. Park, M.K.; Kim, Y.-S. Comparative metabolic expressions of fermented soybeans according to different microbial starters. Food Chem. 2020, 305, 125461. [Google Scholar] [CrossRef] [PubMed]
Foods 10 02962 g001 550
Figure 1. Dominant bacterial species with a relative abundance greater than 1% in different cheese samples. The sizes of the different-coloured areas in the rings represent the relative abundance of different dominant species. Cheese samples are shown in the middle of the rings. ES, cheese sample from the Ordos grassland; XS, cheese sample from the Xilingol grassland; KS, cheese sample from the Horqin grassland; WS, cheese sample from the Ulanqab grassland.
Figure 1. Dominant bacterial species with a relative abundance greater than 1% in different cheese samples. The sizes of the different-coloured areas in the rings represent the relative abundance of different dominant species. Cheese samples are shown in the middle of the rings. ES, cheese sample from the Ordos grassland; XS, cheese sample from the Xilingol grassland; KS, cheese sample from the Horqin grassland; WS, cheese sample from the Ulanqab grassland.
Foods 10 02962 g001
Foods 10 02962 g002 550
Figure 2. Genome map of T. thermophilus N-1. From the outer cycle to the inner cycle, ring 1 represents the total base pairs and the position coordinates of the genomic sequences; ring 2 shows the coding sequences; rings 3, 4 and 5 represent functional annotation results coloured according to their COG, KEGG and GO origins, respectively; ring 6 represents noncoding RNA (ncRNA) genes; ring 7 represents GC contents; and ring 8 represents the GC skew value distribution. The image was created by using the software Circos. For the two plasmids of T. thermophilus N-1, circles 1–4 (from outermost to innermost) represent the COG functional annotation classifications of genes (a clockwise arrow indicates the positive coding strand), genomic sequence position coordinates, genomic GC contents and the genomic GC skew value distribution.
Figure 2. Genome map of T. thermophilus N-1. From the outer cycle to the inner cycle, ring 1 represents the total base pairs and the position coordinates of the genomic sequences; ring 2 shows the coding sequences; rings 3, 4 and 5 represent functional annotation results coloured according to their COG, KEGG and GO origins, respectively; ring 6 represents noncoding RNA (ncRNA) genes; ring 7 represents GC contents; and ring 8 represents the GC skew value distribution. The image was created by using the software Circos. For the two plasmids of T. thermophilus N-1, circles 1–4 (from outermost to innermost) represent the COG functional annotation classifications of genes (a clockwise arrow indicates the positive coding strand), genomic sequence position coordinates, genomic GC contents and the genomic GC skew value distribution.
Foods 10 02962 g002
Foods 10 02962 g003 550

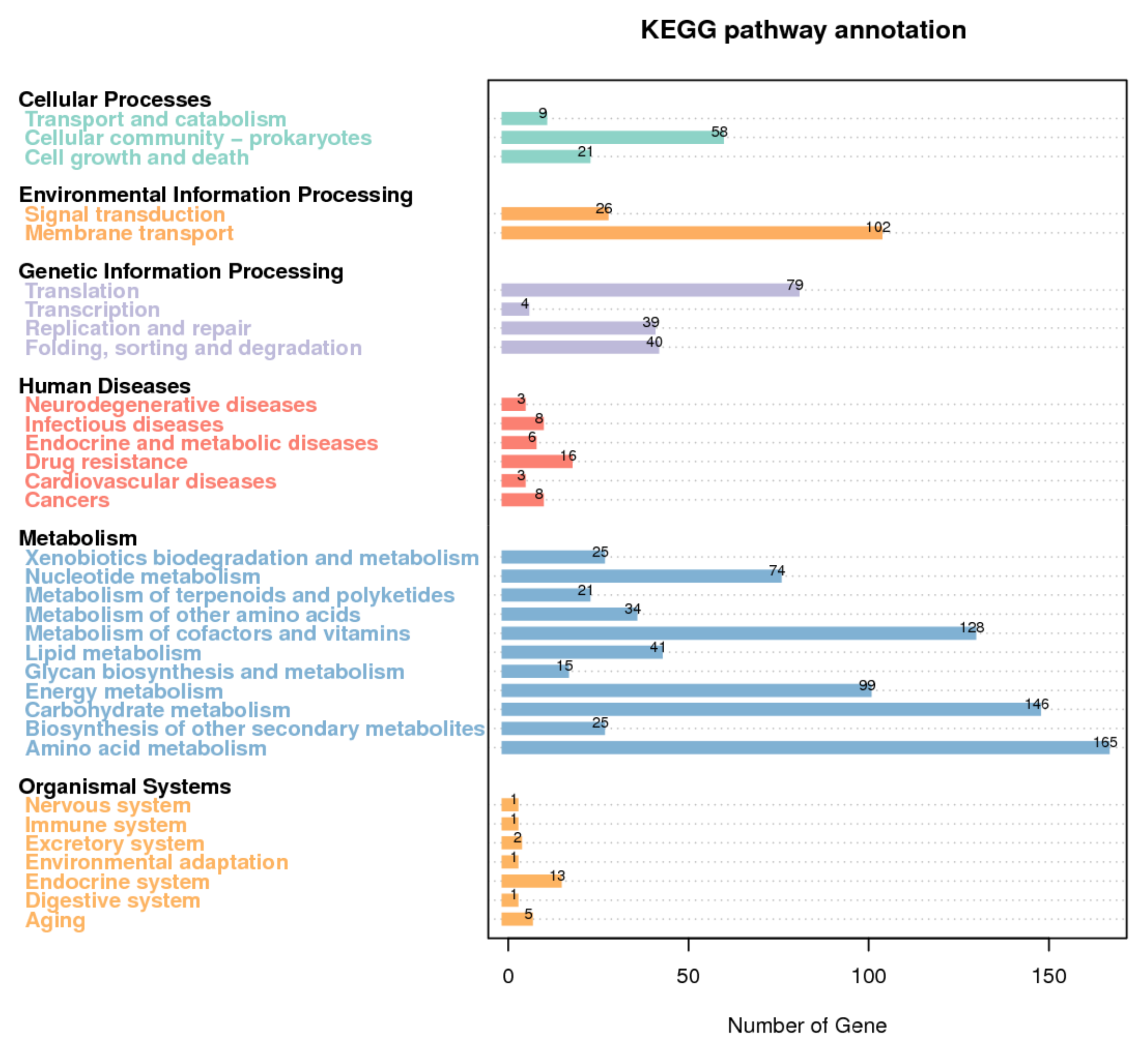

Figure 3. KEGG annotation of T. thermophilus N-1 based on pathway type and gene number.
Figure 3. KEGG annotation of T. thermophilus N-1 based on pathway type and gene number.
Foods 10 02962 g003
Foods 10 02962 g004 550

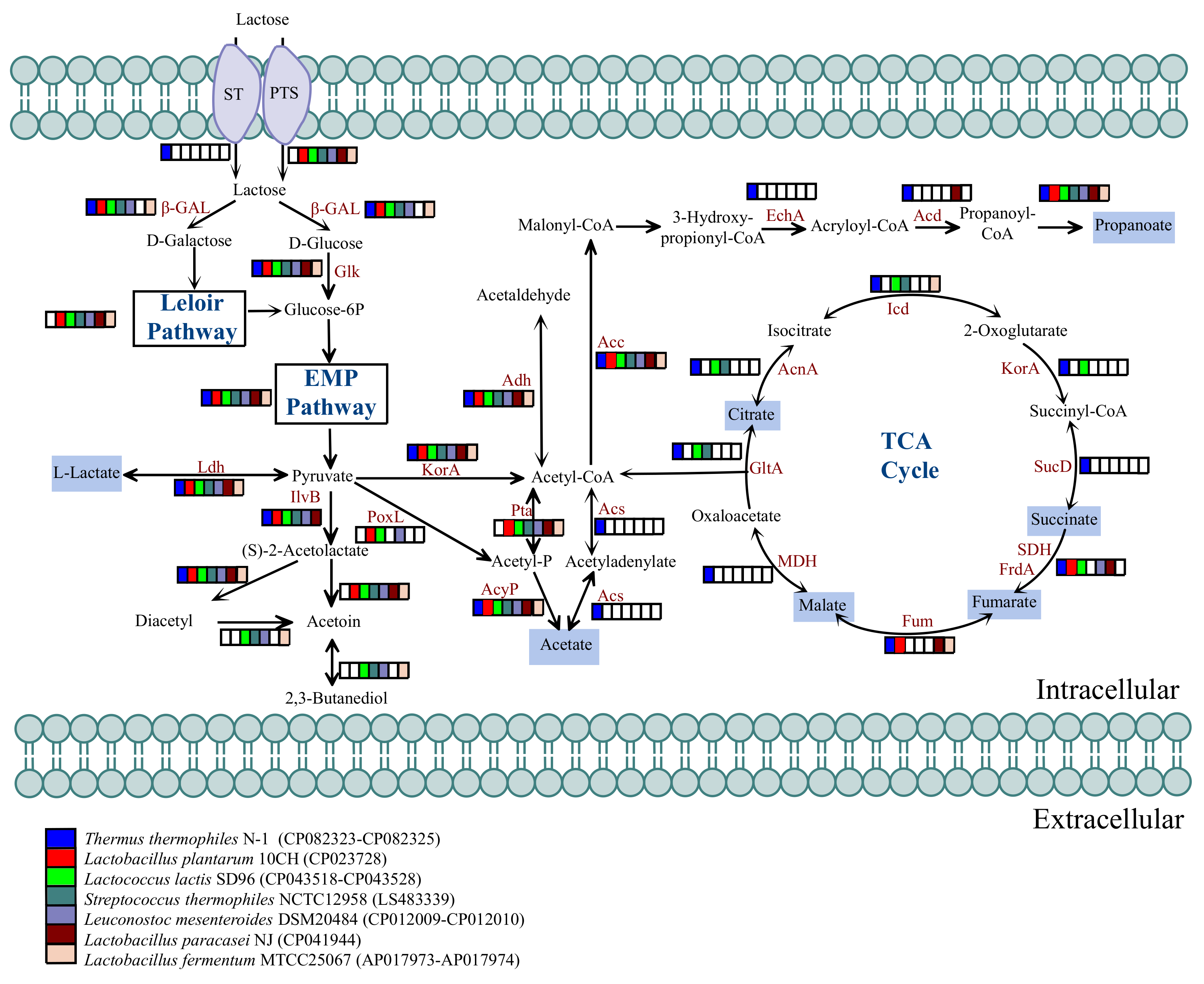

Figure 4. Predicted metabolic network of lactose metabolism and organic acid production in T. thermophilus N-1. EMP, Embden–Meyerhof–Parnas pathway; TCA cycle, tricarboxylic acid cycle. ST, sugar transporter(glycoside/pentoside/hexuronide: cation symporter, GPH family); PTS, phosphoenolpyruvate phosphotransferase system; Glc, glucose uptake permease; β-GAL, beta-galactosidase; Glk, glucokinase; Ldh, L-lactate dehydrogenase; IlvB, acetolactate synthase; PoxL, pyruvate oxidase; KorA, 2-oxoglutarate/2-oxoacid ferredoxin oxidoreductase; Adh, acetaldehyde dehydrogenase; Acs, acetyl-CoA synthetase; Acc, acetyl-CoA carboxylase/biotin carboxylase; EchA, enoyl-CoA hydratase; Acd, acyl-CoA dehydrogenase; GltA, citrate synthase; AcnA, aconitate hydratase; Icd, isocitrate dehydrogenase; KorA, 2-oxoglutarate/2-oxoacid ferredoxin oxidoreductase subunit alpha; SucD, succinyl-CoA synthetase; SDH, succinate dehydrogenase; FrdA, fumarate reductase; Fum, fumarate hydratase; MDH, malate dehydrogenase.
Figure 4. Predicted metabolic network of lactose metabolism and organic acid production in T. thermophilus N-1. EMP, Embden–Meyerhof–Parnas pathway; TCA cycle, tricarboxylic acid cycle. ST, sugar transporter(glycoside/pentoside/hexuronide: cation symporter, GPH family); PTS, phosphoenolpyruvate phosphotransferase system; Glc, glucose uptake permease; β-GAL, beta-galactosidase; Glk, glucokinase; Ldh, L-lactate dehydrogenase; IlvB, acetolactate synthase; PoxL, pyruvate oxidase; KorA, 2-oxoglutarate/2-oxoacid ferredoxin oxidoreductase; Adh, acetaldehyde dehydrogenase; Acs, acetyl-CoA synthetase; Acc, acetyl-CoA carboxylase/biotin carboxylase; EchA, enoyl-CoA hydratase; Acd, acyl-CoA dehydrogenase; GltA, citrate synthase; AcnA, aconitate hydratase; Icd, isocitrate dehydrogenase; KorA, 2-oxoglutarate/2-oxoacid ferredoxin oxidoreductase subunit alpha; SucD, succinyl-CoA synthetase; SDH, succinate dehydrogenase; FrdA, fumarate reductase; Fum, fumarate hydratase; MDH, malate dehydrogenase.
Foods 10 02962 g004
Foods 10 02962 g005 550
Figure 5. Validation of T. thermophilus N-1 fermentation in milk, including the pH change, lactose metabolism, and organic acid generation. *, ** indicate significant difference at p < 0.05 and p < 0.01 compared with the uninoculated sterilised milk.
Figure 5. Validation of T. thermophilus N-1 fermentation in milk, including the pH change, lactose metabolism, and organic acid generation. *, ** indicate significant difference at p < 0.05 and p < 0.01 compared with the uninoculated sterilised milk.
Foods 10 02962 g005
Table
Table 1. Information on the high-throughput sequencing libraries of the bacterial 16S rRNA genes in cheese samples from Inner Mongolia.
Table 1. Information on the high-throughput sequencing libraries of the bacterial 16S rRNA genes in cheese samples from Inner Mongolia.
Sample NameRaw ReadsClean ReadsOTU NumberShannon IndexSimpson IndexChao1ACELibrary Coverage
XS80076728646462.3350.464614.919625.8010.998
KS73117692044031.1030.235398.943409.0960.998
ES88637800663893.7530.817351.643354.2440.999
WS87213801374133.8840.816390.818400.8150.999
ES, cheese sample from the Ordos grassland; XS, cheese sample from the Xilingol grassland; KS, cheese sample from the Horqin grassland; WS, cheese sample from the Ulanqab grassland. ACE, abundance-based coverage estimator.
Table
Table 2. Overview of genomic features of T. thermophilus N-1.
Table 2. Overview of genomic features of T. thermophilus N-1.
FeaturesChromosomePlasmid 1Plasmid 2
Genome topologyCircularCircularCircular
Genome size (bp)1,855,628257,20681,373
G+C content (mol%)69.7269.3367.95
Open reading frames2328--
tRNA genes48--
rRNA genes6--
sRNA genes0--
GenBank accession numberCP082323CP082324CP082325
G+C, Guanine + Cytosine.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhu, L.; Hou, Z.; Hu, X.; Liu, X.; Dai, T.; Wang, X.; Zeng, C.; Wang, Y.; Wang, C.; Yang, S.; et al. Genomic and Metabolic Features of an Unexpectedly Predominant, Thermophilic, Assistant Starter Microorganism, Thermus thermophilus, in Chinese Inner Mongolian Cheese. Foods 2021, 10, 2962. https://doi.org/10.3390/foods10122962

AMA Style

Zhu L, Hou Z, Hu X, Liu X, Dai T, Wang X, Zeng C, Wang Y, Wang C, Yang S, et al. Genomic and Metabolic Features of an Unexpectedly Predominant, Thermophilic, Assistant Starter Microorganism, Thermus thermophilus, in Chinese Inner Mongolian Cheese. Foods. 2021; 10(12):2962. https://doi.org/10.3390/foods10122962

Chicago/Turabian Style

Zhu, Lin, Zhaozhi Hou, Xinyu Hu, Xu Liu, Tian Dai, Xinyu Wang, Chunlin Zeng, Yuan Wang, Caizheng Wang, Shujing Yang, and et al. 2021. "Genomic and Metabolic Features of an Unexpectedly Predominant, Thermophilic, Assistant Starter Microorganism, Thermus thermophilus, in Chinese Inner Mongolian Cheese" Foods 10, no. 12: 2962. https://doi.org/10.3390/foods10122962

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
